1. Introduction
Plastics are more and more widely used in home appliances, auto parts, aircraft parts, electronic products and other fields, and the injection molding technology of plastic products is a difficult problem for mold design engineers, plastic product engineers, and injection molding technicians, especially the design and molding of heterogeneous parts such as windshields in high-speed trains. Moldflow is a plastic product simulation and analysis software, which can assist mold designers in mold design, plastic product engineers in optimizing product design schemes, and injection molding technicians to debug injection molding machine parameters. The software simulates flash, weld marks and injection pressure in the molding of plastic parts, warpage deformation, etc. [1]-[7]. The mold design engineer can continuously adjust the parameters such as runner, gate shape, gate position and so on on the software; Product designers optimize the design of products through software; The injection molding machine molding technician can continuously correct various parameters of the injection molding machine on the software, which can reduce product waste, shorten the product molding cycle, and improve production efficiency [8]-[10]. In this paper, Moldflow software is used to design the gate selection of a complex heterosexual plastic part.
2. Plastic Part Analysis

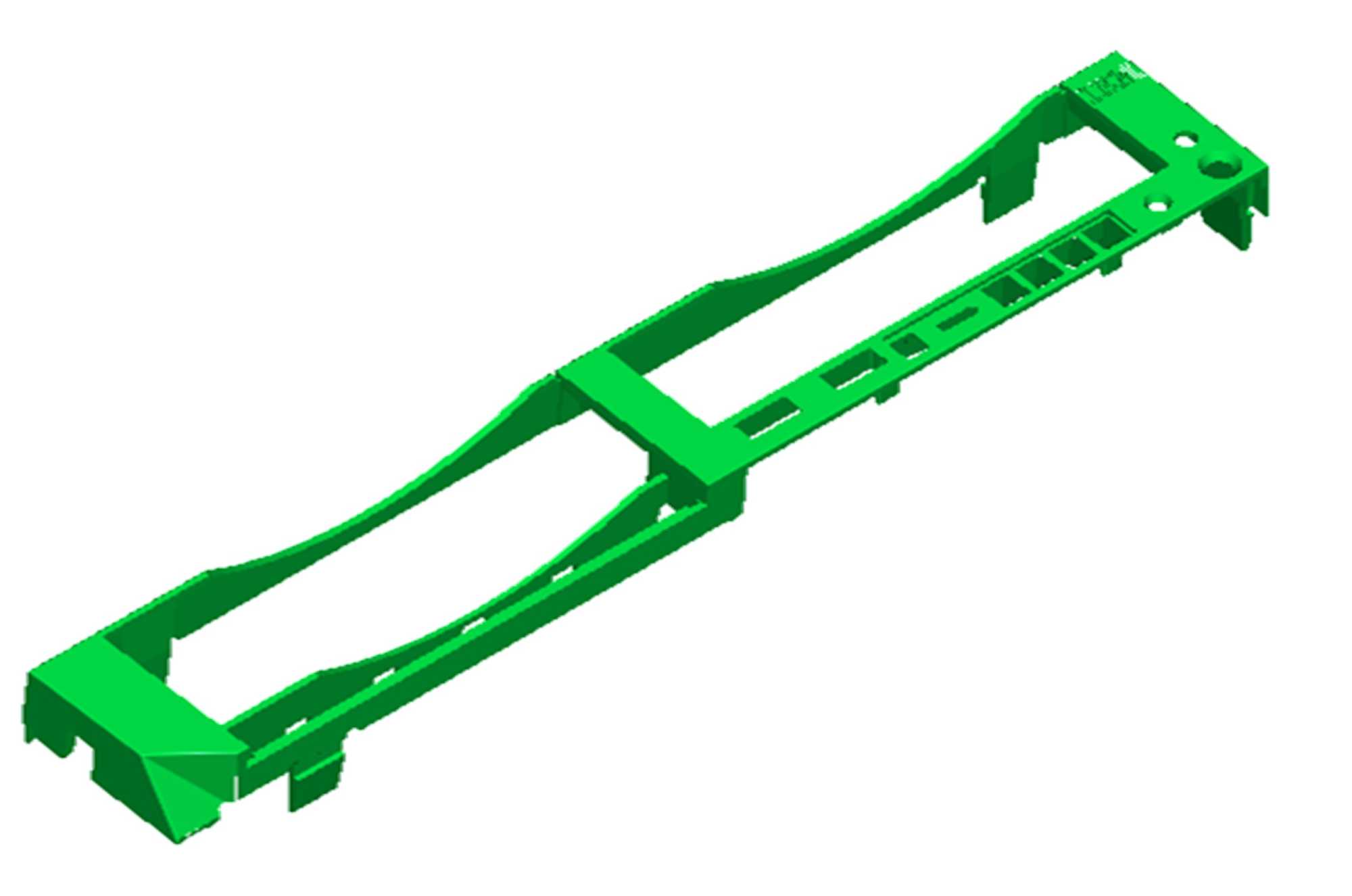

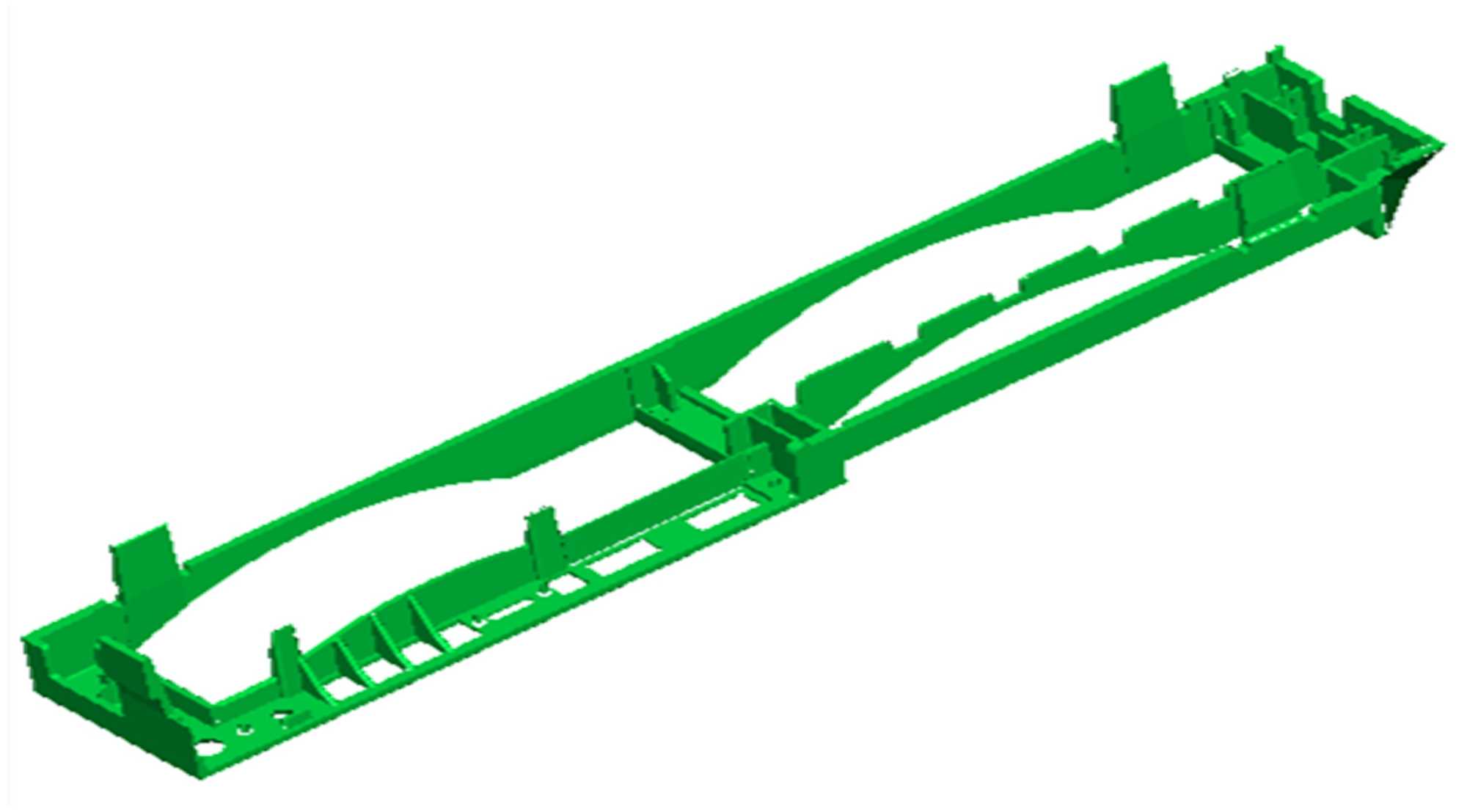

This product is an inner buckle plate of the windshield in the train, and the display in the three-dimensional software is more complex (as shown in Figure 1). The main dimensions are 1874 × 44 × 16, there are many through holes, and the maximum thickness of the wall thickness of the gusset is uneven, and the maximum thickness is about 4 mm (at the hook of the gusset plate).
The small thickness is 1.5 mm, with a thin-walled characteristic structure, the material selection is PC + ABS, the color is white, the appearance of the product is not high, and the assembly tolerance MT5 is not very high.
(a) Heads (b) Tails
Figure 1. Outline diagram of the inner gusset.
3. Gate Location Analysis of Plastic Parts
3.1. Meshing and Cavity Layout
The structure of the plastic part is a thin-walled part, the surface mesh is divided by hypermesh, the edge length of the grid is set to 1mm, the network aspect ratio is less than 6 after repair, there is no free edge and overlapping overlapping edge, the structure of the plastic part is complex and the thickness is inconsistent, the preliminary consideration is that it is two molds, one mold and one hole.
3.2. Gate Type Selection

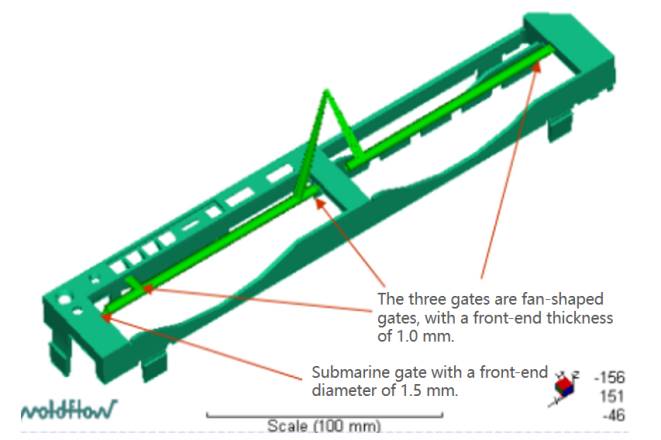

From the analysis of product properties, there are two schemes, one scheme adopts 3 gates, and the gate type adopts a sector gate, see Figure 2(a); In another scheme 4 gate, one gate takes a latent gate and the other gate takes a fan gate, see Figure 2(b).
3.3. Analysis of Gate Feeding of Plastic Parts
Filling Analysis and Comparison

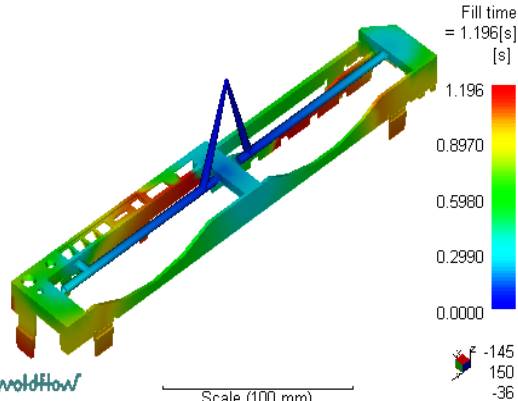

The three-gate pouring is shown in Figure 3(a), the filling time is 1.13 seconds, and the wall thickness is only 0.5 - 0.6 mm at the place close to the gate position, and the plastic fluid flows to this position with too much resistance and stagnates, which hinders the flow of the plastic fluid, so the short shot phenomenon occurs; Figure 3(b) for 4 gates shows that the filling time is 1.2 seconds, and the stagnation may occur for the same reason at the position of the four gates. Considering the use of a four-gate scheme, the following is a filling and warpage analysis of the four-gate scheme.
(a) Three gate pouring (b) Four gate pouring
Figure 2. Plastic part gate filling analysis.
(a) Three gate pouring (b) Four gate pouring
Figure 3. Filling flow analysis.
4. Flow Analysis of Four-Gate Filling
4.1. Injection Pressure Analysis

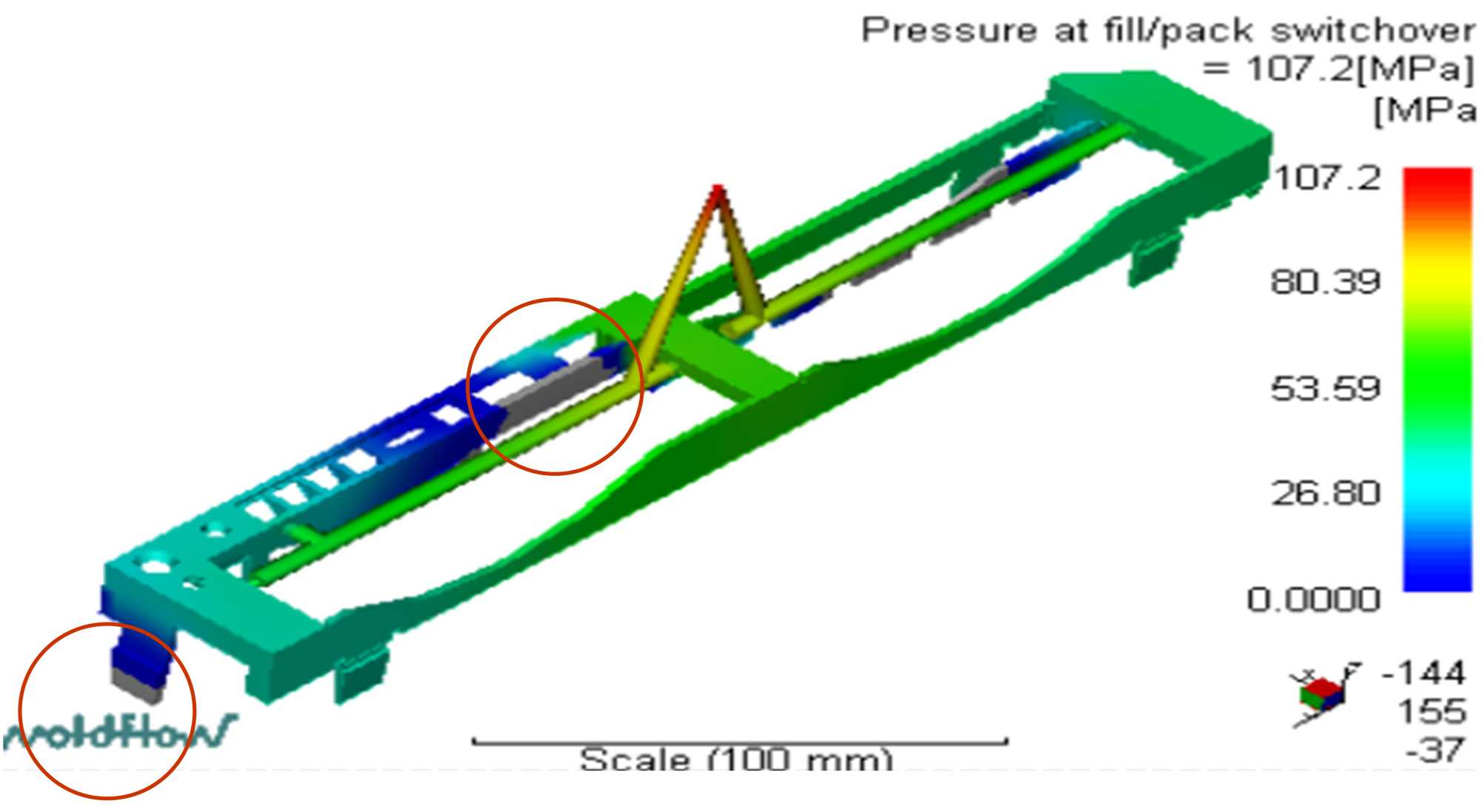

Figure 4 shows that 90% of the four-gate injection speed/pressure switching plastic parts are filled through the speed, and the remaining two gray parts need 107 (MPa) pressure to fill at 1.3 s, which requires an injection molding machine with a large cavity, which will cause serious product flash.
4.2. Injection Wavefront Distribution

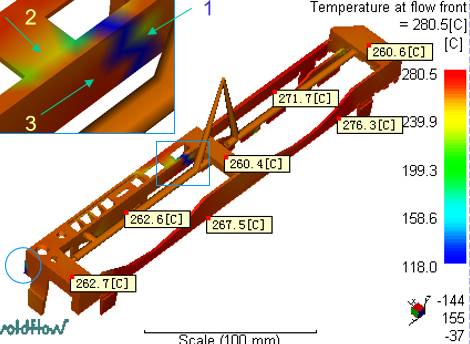

From the temperature distribution of the injection wavefront in Figure 5, it can be seen that most of the filling temperatures are relatively uniform in the filling process, but the wavefront temperature of the plastic parts in the frame shown in the figure drops sharply, resulting in stagnation, and the fluid plastic parts at 2 and 3 places in the frame can be filled to 1 place in the frame in time to avoid short emission of the plastic parts.
Figure 4. Gate injection speed/pressure switching pressure.
Figure 5. Injection wavefront temperature distribution.
4.3. Weld Mark Analysis

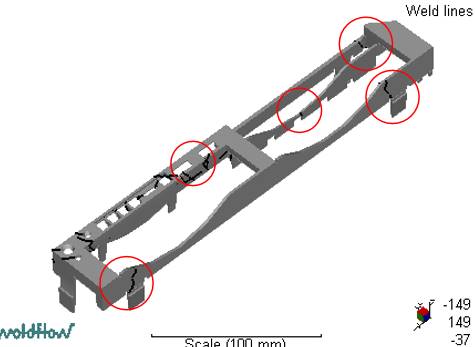

The weld mark in the weld mark frame shown in Figure 6 obviously affects the appearance of the plastic part, but the welding temperature of the weld mark in the frame is high and does not affect the strength of the plastic part, and the plastic part does not have high requirements for appearance, so the weld mark is acceptable.
Figure 6. Gate injection weld marks.
5. Four-Gate Cooling Warpage Analysis
5.1. Waterway Layout

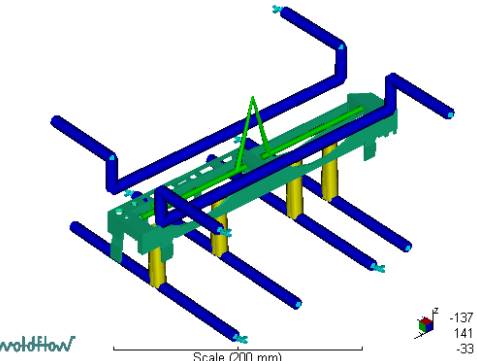

The layout of the waterway is shown in Figure 7, the upper master mold is designed with two waterways with a diameter of 10 mm, and the lower male mold is designed with four waterways directly of 9.5 mm (the baffle is designed to be directly 12 mm).
Figure 7. Layout design of plastic parts waterway.
5.2. Cooling Water Variation

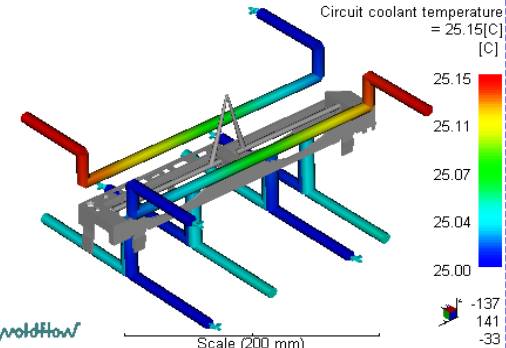

The cooling water changes as shown in Figure 8, the 8 water channels are not connected in series, the water temperature rise changes slightly, and the water channel design meets the cooling requirements during molding.
Figure 8. Cooling water variation.
5.3. Warpage Analysis

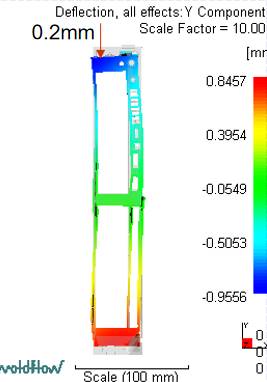

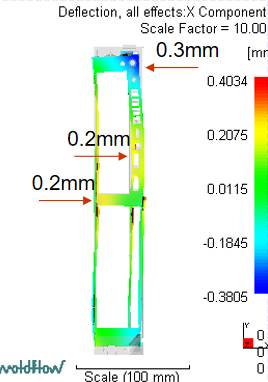

Figure 9 shows that the total warpage deformation value in the X direction is 0.7839 mm, the end deformation is 0.3 mm, and the gusset deformation is 0.2 mm, the total warpage deformation value in the Y direction is 1.8013 mm, the end deformation is 0.2 mm, and the total warpage deformation value in the Z direction is 0.5629 mm, the end deformation is 0.1 mm, and the intermediate shrinkage deformation is 0.2 mm. The deformation in the three directions is not large, and the product does not have high requirements for appearance, which can meet the assembly tolerance 5MT assembly requirements.
(a) X-direction warping (b) Y-direction warping
(c) Z-direction warping
Figure 9. Warpage analysis.
6. Summary
1) The plastic parts are thin-walled parts with complex structures and different thicknesses, all of which do not have high requirements for appearance, meet the basic assembly function, and consider the cost of designing two molds, one mold and one hole.
2) The three-gate scheme and the four-gate scheme were designed, and it was found that the three-gate pouring was prone to short injection, which affected the functional requirements of the plastic parts.
3) The analysis of the results of Moldflow for the four-gate feeding of plastic parts shows that this product needs an injection molding machine with a large cavity, the flash is more serious, the wavefront temperature is reasonable, the product does not have high requirements for appearance, and the weld marks are acceptable.
4) After the waterway design of the product, the warpage analysis of the product was carried out. The total warpage deformation value in the X direction is 0.7839 mm, the total warpage deformation value in the Y direction is 1.8013 mm, and the total warpage deformation value in the Z direction is 0.5629 mm, and the deformation amount is within the tolerance requirements of the plastic parts.
5) The designed scheme is suitable for small batch production. Assuming mass production, it is recommended to design a three-plate mold scheme.
