Synthesis of Encapsulated Oroxylin A Nanoparticles and Their Effect on Cancer Cell Viability and Apoptosis ()
1. Introduction
In this study, we target a fundamental difference in metabolism between cancer cells and normal cells. Cancer cells shift their energy metabolism (ATP production) from mitochondrial oxidative phosphorylation observed in non-tumour cells to cytosolic aerobic glycolysis. This change is known as the Warburg Effect [1]. The Warburg Effect is mediated by increased expression of uncoupling protein-2 (UCP2) [2]. UCP2 uncouples the oxidative phosphorylation from ATP in the mitochondria.
Oroxylin A is an o-methylated flavone obtained from the root-bark of Oroxylum indicum, the dried root of Scutellaria baicalensis and several other plants.
Oroxylin A has been documented to have preventative and therapeutic effects in cancer [3] [4]. The studies of Lu et al. [3], Sajeev et al. [4] and Wang et al. [5] detail the mechanisms of the anti-cancer activity of Oroxylin A. Also, Tuli et al. [6] have reviewed the anti-cancer effects of Oroxylin A in both in vitro and in vivo studies.
Pertinent to the present study, Oroxylin A has been observed to be an inhibitor of uncoupling protein-2 (UCP2) [7].
The role of UCP2 in cells is the uncoupling of mitochondrial oxidative phosphorylation. Baffy et al. [8] have suggested that mitochondrial recoupling would be a novel therapeutic strategy for cancer.
This study details the synthesis of nanoparticles containing Oroxylin A encapsulated into PLGA, Solutol or nanofibrils. The primary aim of the present work is to study the effect of these encapsulated Oroxylin A nanoparticles on cancer cell viability and apoptosis. In addition, the effect of PLGA or Solutol alone on cancer cell viability is also studied in this work.
The high molecular weight of these encapsulated Oroxylin A nanoparticles, in PLGA, Solutol or nanofibrils, will enable them to be taken up and retained by the tumour vasculature and also accumulated in tumours to a greater extent than they do in normal tissue. This is known as the Enhanced Permeability and Retention Effect (EPR effect) [9], creating the potential for a novel enhanced and targeted cancer therapy based on mitochondrial recoupling.
2. Materials and Methods
2.1. Materials
The mouse melanoma (B16/F10), human colon carcinoma cells (HCT-116), human gastric adenocarcinoma cells (AGS) and human skin fibroblasts (Detroit 551) were from American Type Cell Culture (ATCC)/(Bethesda, MD, USA). Dulbecco’s Modified Eagle’s medium (DMEM) was provided by Gibco (Auckland, New Zealand), Eagle’s Minimum Essential Medium (EMEM), McCoy’s 5A medium and Ham’s F-12K medium were from ATCC. Oroxylin A was supplied by MedChem Express (Monmouth Junction, NJ, USA). The caspase-9 activity assay kit was from R&D Systems (Minneapolis, MN, USA). Poly (D,L-Lactide-co-glycolide) (lactide:glycolide) (1:1) ester terminated (MW 24,000 - 38,000) (PLGA) and Solutol®/Kolliphor HS15 (Macrogol) (15)-hydroxystearate, and all other reagents were obtained from Sigma-Aldrich (St Louis, MO, USA). Information of the properties of (PLGA) may be found in Rezvantalab et al. [10]. Information of the properties of Solutol® HS15 is described in a review by Ali et al. [11].
The Oroxylin A-PLGA at 4.26 µg of Oroxylin A/mL in 1% PLGA and the Oroxylin A-Solutol at 1.99 µg of Oroxylin A/mL in 0.1% Solutol were prepared by Dr. Sean Mackay, University of Otago, Dunedin, New Zealand. Also, the preparation of Oroxylin A in whey protein-derived nanofibrils was donated by Hi-Aspect Ltd., Wellington, New Zealand.
2.2. Methods
Mouse melanoma cells (B16/F10) were cultured in DMEM, human colon carcinoma cells (HCT-116) in McCoy’s 5A medium, human gastric adenocarcinoma cells (AGS) in Hams F-12K medium and human skin fibroblasts in EMEM. All cultures were supplemented with 10% foetal bovine serum and penicillin (100 U/mL)/streptomycin (100 µg/mL). The test samples were added to the cells (5 × 104 cells/mL), which were incubated using 96-well flat-bottomed multi-well plates for 24 hours at 37˚C in a 5% CO2/95% air atmosphere. Each sample was assayed at least in triplicate. The carrier used was 1.5% dimethyl sulphoxide in Hank’s Balanced Salt Solution. Cells were then lysed and the cell concentrations were determined at 570 nm following reaction with 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) [12]. Caspase-9 activity was measured using an assay kit supplied by R&D Systems. The caspase activity per cell in each culture was also determined by dividing the caspase activity by the absorbance value from the MTT assay.
Oroxylin A-PLGA nanoparticles were prepared using a double emulsion method (Figure 1) similar to that described by Ramalho et al. [13]. Initially, as proof of concept for the double emulsion method, a hydrophobic organic dye, 1,1’-dioctadecyl-3,3,3’,3’-tetramethylindocarboryamine perchlorate, was used as a substitute to Oroxylin A for PLGA encapsulation. Using this model, it was established that PLGA nanoparticles could be repeatedly formed using the double emulsion method, whereby insoluble 1,1’-dioctadecyl-3,3,3’,3’-trimethylindocarboryamine perchlorate could be suspended in phosphate-buffered saline (pH 7.4) to produce a pink suspension.
Figure 1. Schematic illustration depicting the preparation of PLGA nanoparticles encapsulating Oroxylin A.
Following this successful demonstration, we undertook the encapsulation of the desired agent, Oroxylin A. PLGA (100 mg) and Oroxylin A (approximately 1 mg) were dissolved in acetone (10 mL), while a 1% aqueous solution of Pluronic F127® (1%, 200 mg in 20 mL) was prepared. The organic phase was added dropwise to the aqueous phase with continuous stirring (~1000 rpm). The solution was continuously stirred for a further 6 hours under a light air flow to allow the acetone to evaporate. Control PLGA nanoparticles were prepared in an identical manner, but without the inclusion of Oroxylin A. The PLGA suspensions were subsequently purified by centrifugation at 2500 rpm for 5 minutes, followed by 3500 rpm for 5 minutes. The pelleted material (larger micron-sized PLGA/Oroxylin A) was discarded. The remaining suspension was then dialysed against phosphate-buffered saline for 24 hours to remove any excess Pluronic F127®.
A spectrophotometric assay for the sensitive detection and quantification of Oroxylin A was developed based on the strong absorbance of Oroxylin A observed at 374 nm under alkaline conditions, which is due to the deprotonation of Oroxylin A to form the Oroxylin A anion (Figure 2).

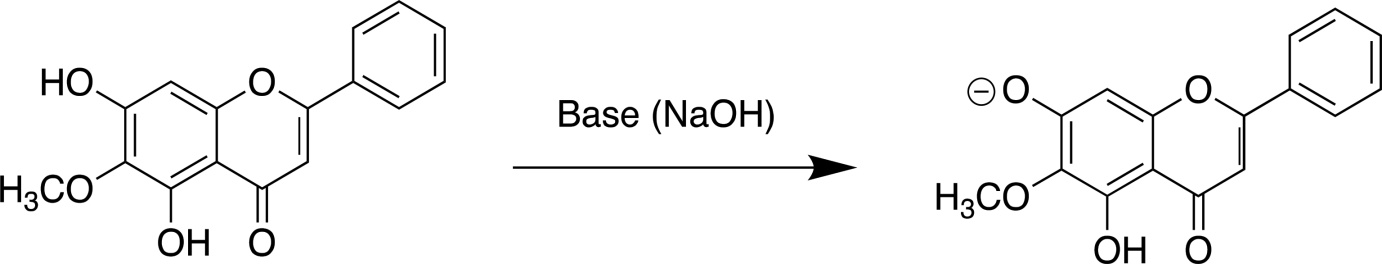

Figure 2. Reaction scheme for the deprotonation of Oroxylin A under alkaline conditions.
To determine the concentration of Oroxylin A in the PLGA nanoparticle suspension, a standard curve of Oroxylin A was prepared by dissolving Oroxylin A in a mixture of acetone and pH 10 sodium borate buffer (1:1 acetone: buffer; 100 mM sodium borate adjusted with NaOH; 1 mM Oroxylin A). The stock solution was serially diluted to produce a concentration range between 0 and 0.33 mM and the absorbance was measured at 374 nm (Table 1, Figure 3).
Characterisation of the PLGA nanoparticle suspensions was performed primarily by Dynamic Light Scattering (DLS) (Figures 4-7). DLS was performed on all suspensions. Control PLGA nanoparticles displayed a hydrodynamic diameter of approximately 150 nm with excellent polydispersity (Figure 4). PLGA nanoparticles encapsulating Oroxylin A tended to have a slightly greater hydrodynamic diameter of approximately 160 nm with good polydispersity (Figure 5). The potential
Table 1. Absorbance of Oroxylin A at 374 nm under alkaline conditions (~pH 9) with increasing Oroxylin A concentration.
Absorbance |
Concentration (mM) |
0 |
0 |
0.062 |
0.0024 |
0.215 |
0.011 |
1.068 |
0.061 |
2.459 |
0.33 |

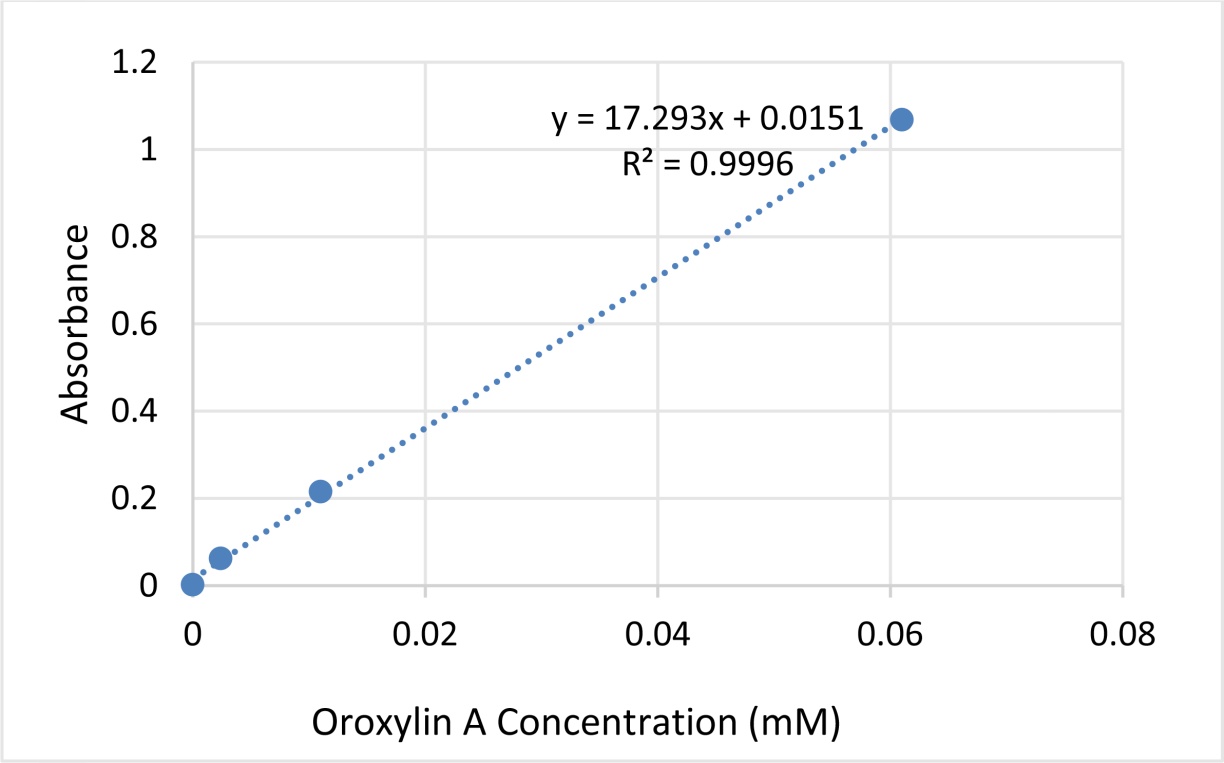

Figure 3. Standard curve of Oroxylin A alkaline conditions (pH ~9) with absorbance measured at 374 nm.
for the PLGA/Oroxylin A nanoparticle suspensions to be lyophilised and stored as a dry powder for re-suspension when required was also investigated. After lyophilisation, PLGA nanoparticles containing Oroxylin A could be easily re-suspended in deionized water or phosphate-buffered saline (pH 7.4) with only a small degree of aggregation observed by DLS (Figure 6). It was noted however, that re-suspending the PLGA nanoparticles containing Oroxylin A by ultrasonication (bath ultrasonicator, 40 kHz, 100 W, 60 seconds) caused significant aggregation by DLS (Figure 7). Therefore, PLGA nanoparticles containing Oroxylin A can be lyophilised and stored as a dry powder but are not recommended for re-suspension to be facilitated by ultrasonication.
The absorbance of control and Oroxylin A PLGA nanoparticles was measured under identical conditions by diluting (1:10) an aliquot of nanoparticle suspension with acetone:borate buffer (pH 10; 1:1 acetone:buffer; 100 mM sodium borate) and measuring absorbance. Under these conditions, it was observed that the cloudy appearance of the nanoparticle suspension clarified, suggesting either that PLGA is more soluble under these conditions, or that the PLGA is hydrolysed into lactic acid and glycolic acid. Absorbance of control PLGA nanoparticles (no Oroxylin A) had little absorbance at 374 nm (0.07, within error of baseline), while the absorbance of the Oroxylin A PLGA nanoparticle suspension corresponded to an Oroxylin A concentration of approximately 60 μM (A = 0.124; c = ~0.063 mM; batch variation ~0.057 - ~0.063 mM). Increasing the concentration of Oroxylin A used during the manufacturing process produced little benefit to the final Oroxylin A concentration in suspension using this method. To maximise the concentration of Oroxylin A, the PLGA/Oroxylin A nanoparticle suspension was concentrated by lyophilisation resulting in an increased Oroxylin A concentration of approximately 150 μM.
Attempts to solubilise Oroxylin A as a microemulsion were made using Kolliphor HS15 (Solutol). A solid quantity of Oroxylin A was dispersed in 1% Solutol via ultrasonication (60 minutes) and stirred continuously for 15 hours at 40˚C. The maximum concentration of Oroxylin A achieved using a 1% Solutol emulsion was approximately 70 μM.
Attempts to produce a liposome suspension of Oroxylin A were also made. Oroxylin A and soy phosphatidylcholine were dissolved in chloroform. The chloroform was removed under vacuum and the residual phospholipid/Oroxylin A film was rehydrated with pH 7.4 PBS to produce a final concentration of 1 mM Oroxylin and 10 mM soy phosphatidylcholine in suspension. The lipid suspension was subsequently extruded 15 times through 1000 nm followed by 100 nm polycarbonate membranes at 60˚C. The liposome suspension was then purified via dialysis against pH 7.4 PBS for 12 hours, during which the liposome suspension aggregated from solution. The process was repeated unsuccessfully using 0.5 mM Oroxylin A to 10 mM soy phosphatidylcholine.
Cell viability was measured by the MTT assay. The MTT assay is a colorimetric assay that detects the conversion of the yellow tetrazolium salt, MTT, to a purple formazan product produced by active mitochondria in living cells.
3. Results
Figures 4-7 show the size distribution of PLGA nanoparticles, PLGA nanoparticles encapsulated with Oroxylin A and the further treatment of PLGA encapsulated with Oroxylin A.
Figure 4 shows the size distribution of nanoparticles containing PLGA alone.
Figure 5 shows the size distribution of PLGA nanoparticles encapsulating Oroxylin A.
Figure 6 shows the size distribution of PLGA nanoparticles encapsulating Oroxylin A after freeze drying and re-suspension in deionized water.
Figure 7 shows the size distribution of PLGA nanoparticles encapsulating Oroxylin A after freeze drying and re-suspension in deionized water and using bath sonication to re-disperse the nanoparticles.

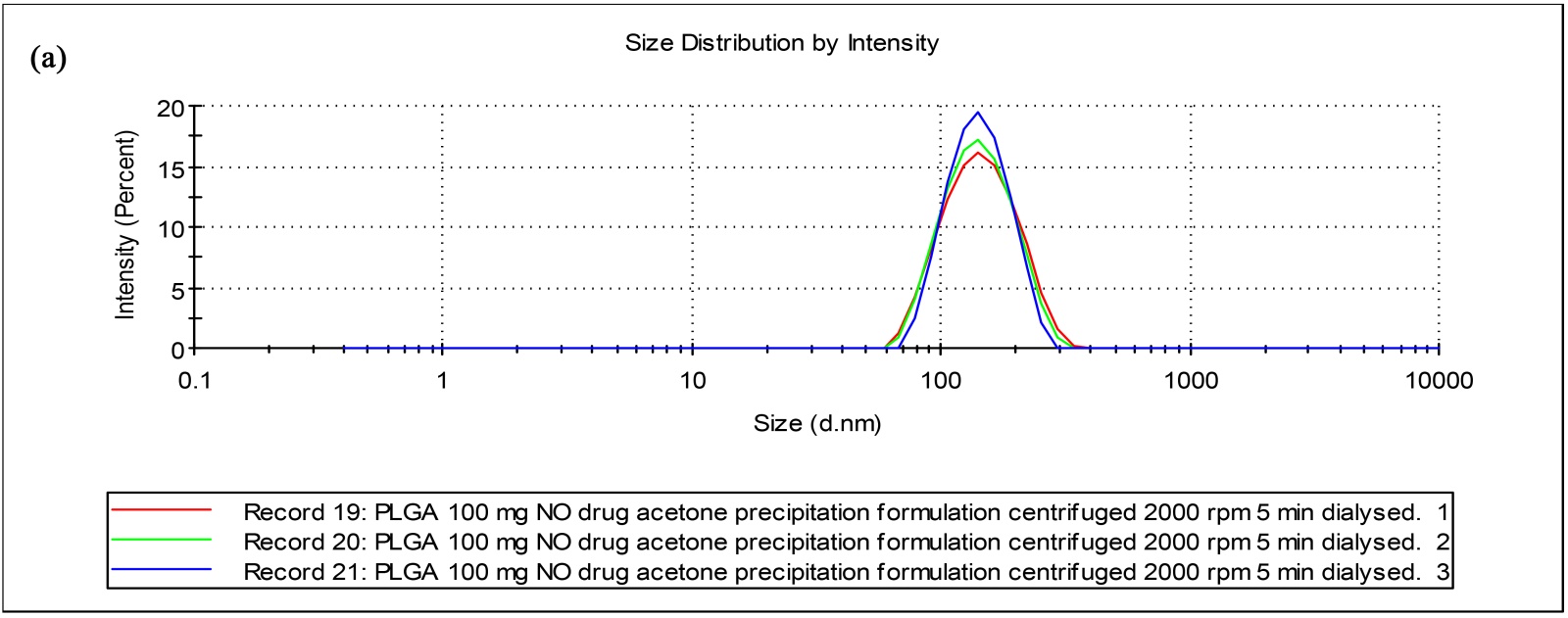

Figure 4. PLGA nanoparticles made by acetone precipitation. Average size = 148 ± 3 nm. Polydispersity index = 0.07 ± 0.03. (a) Size distribution by intensity. (b) Size distribution by number. The results of three preparations (Record 19, Record 20, Record 21) determined by Dynamic Light Scattering (DLS).

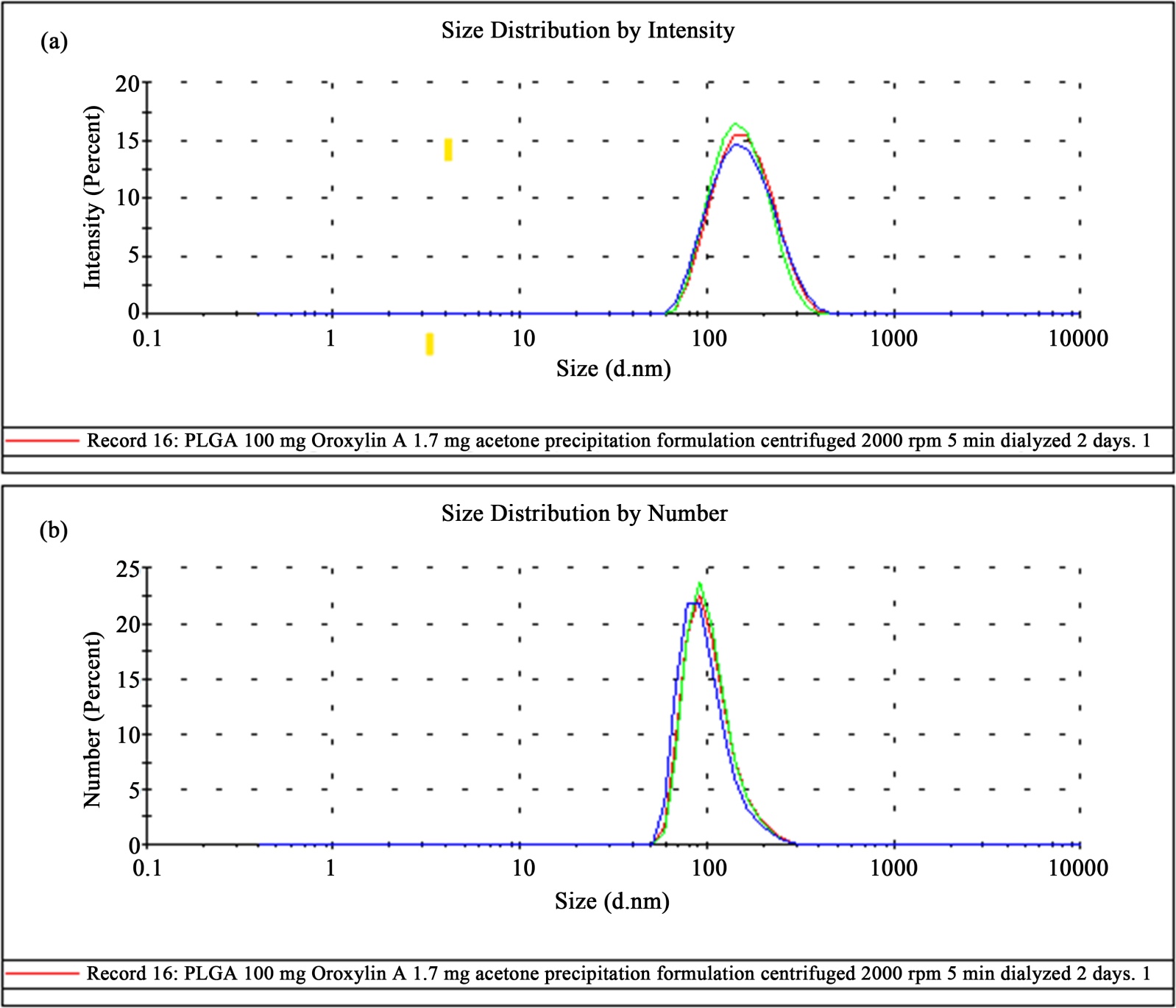

Figure 5. PLGA nanoparticles encapsulating Oroxylin A produced by acetone precipitation. Average size = 162 ± 5 nm. Polydispersity index = 0.12 ± 0.02. (a) Size distribution by intensity. (b) Size distribution by number. The results of three preparations (Record 16, Record 17, Record 18) determined by Dynamic Light Scattering (DLS).

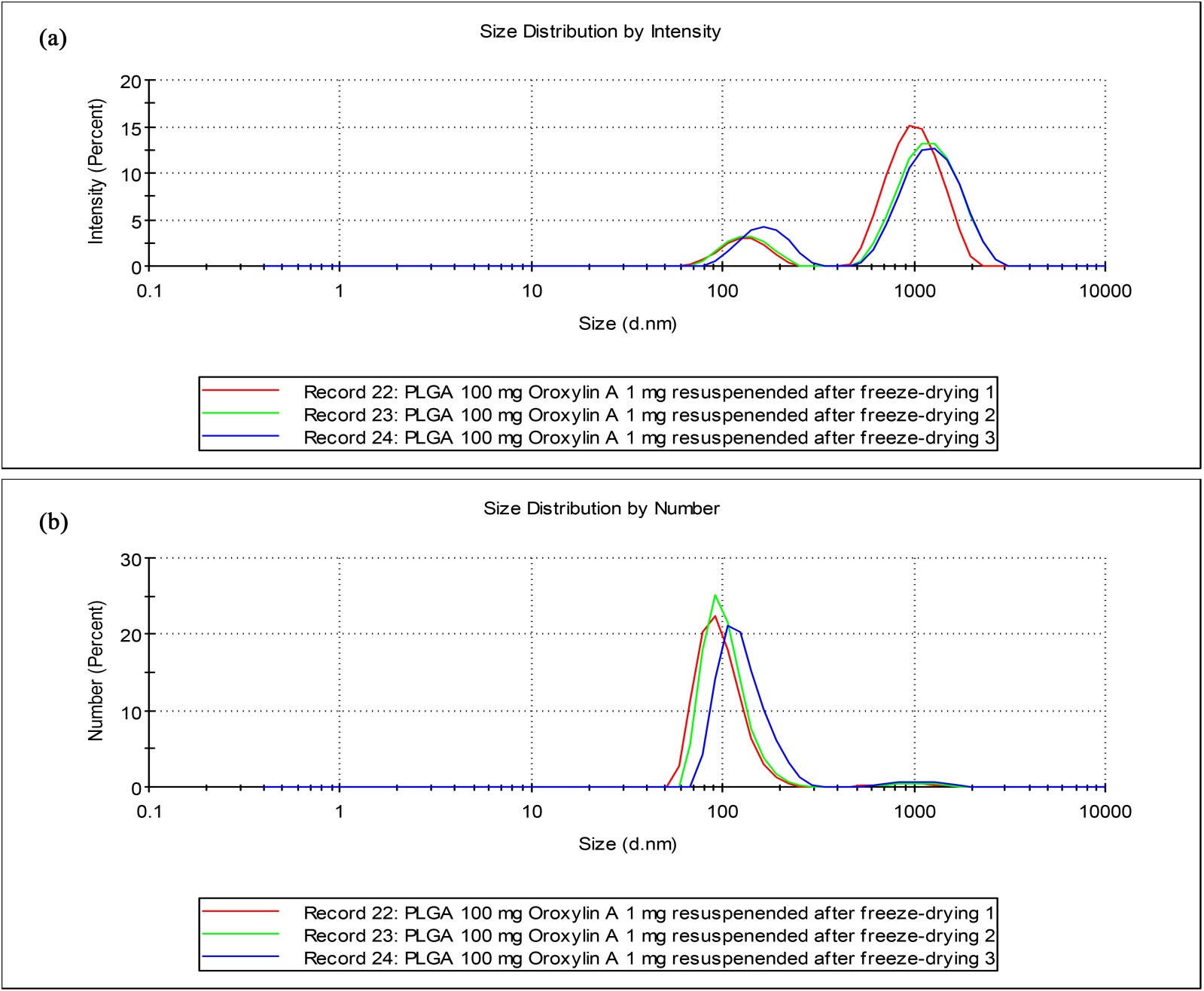

Figure 6. PLGA nanoparticles encapsulating Oroxylin A by acetone precipitation after freeze-drying and re-suspensing in deionised water. Average size = 1202 ± 138 nm (peak 1) and 147 ± 20 nm (peak 2). Polydispersity index = 0.64 ± 0.04. (a) Size distribution by intensity. (b) Size distribution by number. The results of three preparations (Record 22, Record 23, Record 24) determined by Dynamic Light Scattering (DLS).

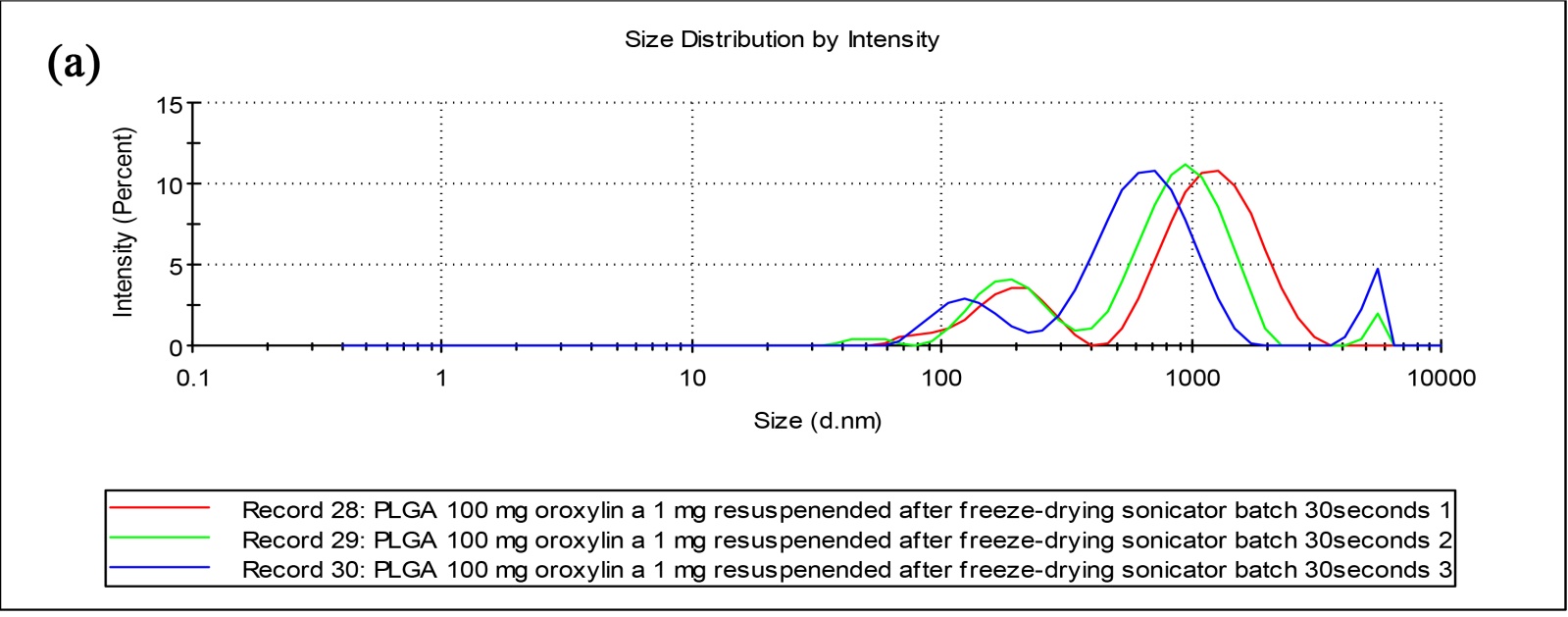

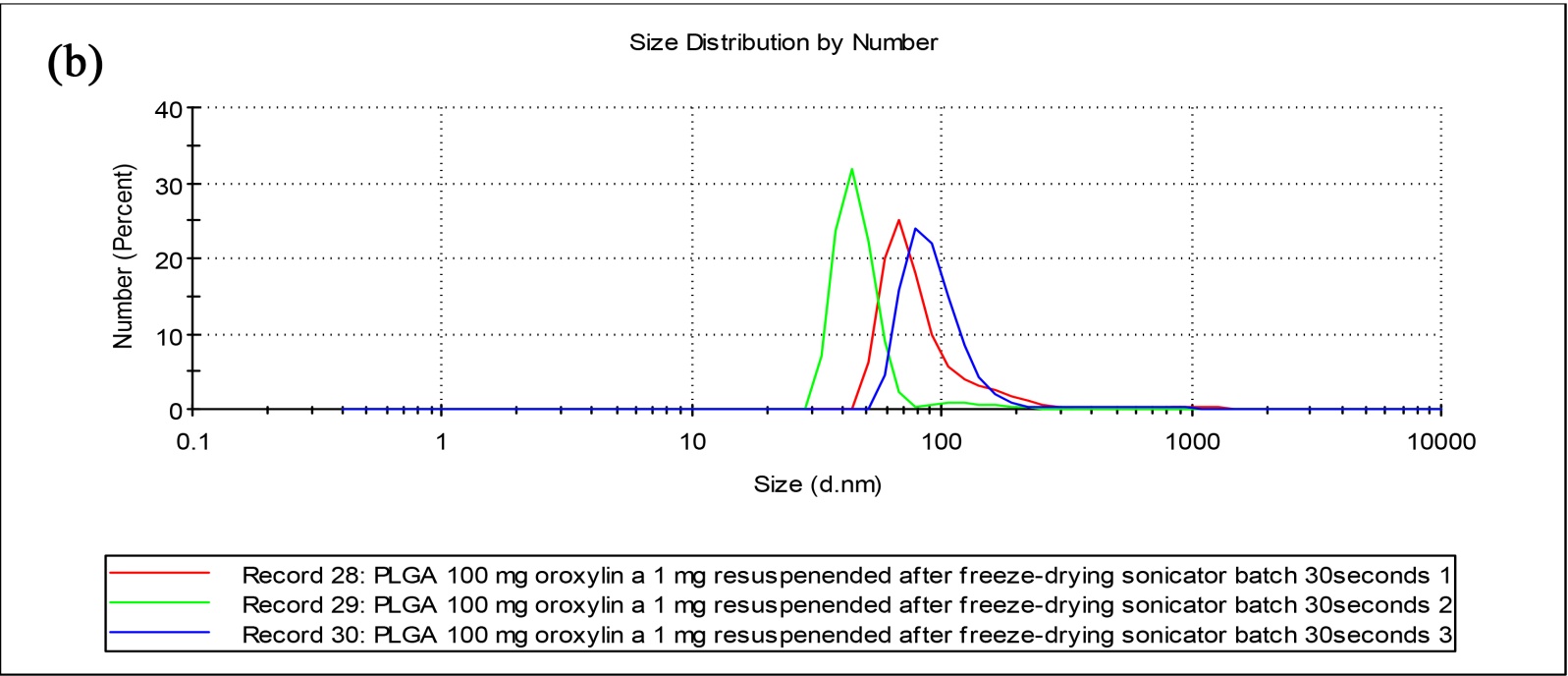

Figure 7. PLGA nanoparticles encapsulating Oroxylin A by acetone precipitation after freeze-drying, re-suspending in deionised water, and using bath sonication (40 kHz) to re-disperse the nanoparticles. Average size = 995 ± 312 nm (peak 1), 171 ± 35 nm (peak 2), 3547 ± 3073 nm (peak 3). Polydispersity index = 0.64 ± 0.13. (a) Size distribution by intensity. (b) Size distribution by number. The results of three preparations (Record 28, Record 29, Record 30) determined by Dynamic Light Scattering (DLS).
In this study, we measured the effect of Oroxylin A and encapsulated Oroxylin A on cell viability in melanoma cells in culture and apoptosis in melanoma cells in culture. The effects of PLGA and Solutol on melanoma cells, colon carcinoma cells and gastric adenocarcinoma cells were also studied. Initially, the effects of different Oroxylin A preparations on the viability of melanoma cells were determined (Table 2).
Table 2. Melanoma cell concentration after 24 hours of incubation in the presence of different Oroxylin A preparations. Viability determined by absorbance at 570 nm (mean ± SEM) following MTT reaction. Statistical significance (T-test) (p < 0.05). NS = Not significant. The stimulation or inhibition in the presence of the test samples is presented. The concentration of Oroxylin A in nanofibrils was not determined, but it is estimated that it would be of a similar order to the concentration of Oroxylin A in PLGA or Solutol.
Test Culture |
Absorbance (MTT) at 570 nm (mean ± SEM) |
Statistical Significance
p < 0.05 |
% Inhibition |
% Stimulation |
Cells in 1.5% DMSO (control) |
0.972 ± 0.012 |
- |
- |
- |
Cells + Oroxylin A (40 µg/mL) |
1.055 ± 0.052 |
NS |
- |
8.58% |
Cells + Oroxylin A (20 µg/mL) |
0.981 ± 0.033 |
NS |
- |
0.93% |
Cells + Oroxylin A in PLGA (4.26 µg/mL in 1% PLGA) |
0.362 ± 0.018 |
<0.0001 |
62.75% |
- |
Cells + Oroxylin A in Solutol (1.99 µg/mL in 0.1% Solutol) |
0.356 ± 0.018 |
<0.0001 |
63.34% |
- |
Cells + Oroxylin A in Nanofibrils |
0.289 ± 0.018 |
<0.0001 |
70.27% |
- |
The effect of Oroxylin A on melanoma cell viability showed that Oroxylin A alone was slightly stimulatory to melanoma cell growth at a higher concentration (40 µg/mL) (Table 2). However, incorporation of Oroxylin A into PLGA, Solutol or nanofibrils markedly inhibited the growth of the cells (Table 2). This suggests the incorporation of Oroxylin A into the above carriers may be a useful means of inhibiting tumour growth. It is noted that the effective concentration of the Oroxylin A is lower when incorporated into the carriers.
Caspase-9 activity is a marker of apoptosis with increased caspase-9 activity being associated with increased apoptosis. When caspase-9 activity was calculated per viable melanoma cell, there was a decrease in activity using Oroxylin A alone at both 20 µg/mL and 40 µg/mL and also Oroxylin A incorporated into PLGA (Table 3). However, there was increased caspase-9 activity with Oroxylin A incorporated into Solutol and also into the nanofibrils, with the effect in the former being much stronger.
Table 3. Caspase-9 activity per melanoma cell after 24 hours of incubation in the presence of different Oroxylin A preparations. The caspase-9 activity was divided by the cell concentration (MTT absorbance) (mean ± SEM). Statistical significance (T-test) (p < 0.05). NS = Not Significant. The stimulation or inhibition in the presence of the test samples is presented.
Test Culture |
Caspase Activity per Cell (mean ± SEM) |
Statistical Significance
p < 0.05 |
% Inhibition |
% Stimulation |
Cells in 1.5% DMSO (control) |
0.019 ± 0.008 |
- |
- |
- |
Cells + Oroxylin A (40 µg/mL) |
0.018 ± 0.040 |
NS |
5.26% |
- |
Cells + Oroxylin A (20 µg/mL) |
0.016 ± 0.026 |
0.0016 |
15.83% |
- |
Cells + Oroxylin A in PLGA (4.26 µg/mL in 1% PLGA) |
0 |
<0.0001 |
100.00% |
- |
Cells + Oroxylin A in Solutol (1.99 µg/mL in 0.1% Solutol) |
0.030 ± 0.013 |
0.0001 |
- |
58.00% |
Cells + Oroxylin A in Nanofibrils |
0.020 ± 0.014 |
0.0001 |
- |
5.31% |
In the course of the studies on the effect of Oroxylin A and of Oroxylin A encapsulated on cell viability, it was possible that PLGA or Solutol alone affected the viability of cancer cells. The results of the effects on cell viability are summarised in Table 4.
Solutol (particularly at the highest concentration used) inhibited cell viability of these cell cultures. Interestingly, PLGA did not have this effect. Therefore, the potential use of Solutol alone may be considered to have activity as a single agent in the treatment of cancer and therefore may provide a potentially additive effect over the encapsulated anti-cancer agent, particularly when the Solutol-drug particle retains its nanoparticulate form and the Enhanced Permeability and Retention (EPR) effect is taken into account [9].
In order to establish whether the results presented for Solutol and PLGA are confined to melanoma, the effects of these two carriers on colorectal carcinoma and gastric adenocarcinoma cells were determined.
Similar to the results with melanoma cells (Table 4), Solutol (particularly at the highest concentration used) inhibited cell viability of colorectal carcinoma cells and gastric adenocarcinoma cells (Table 5).
Table 4. Melanoma cell concentration after 24 hours of incubation in the presence of different concentrations of PLGA and Solutol. Viability determined by absorbance at 570 nm (mean ± SEM) following MTT reaction. Statistical significance (T-test) (p < 0.05). NS = Not Significant. The stimulation or inhibition in the presence of the test samples is presented.
Test Culture |
Absorbance (MTT) at 570 nm (mean ± SEM) |
Statistical Significance p < 0.05 |
% Inhibition |
% Stimulation |
Cells |
0.199 ± 0.001 |
|
|
|
Cells in 1.5% DMSO (control) |
0.197 ± 0.004 |
- |
- |
- |
Cells + PLGA (10 mg/mL) |
0.250 ± 0.026 |
NS |
- |
26.76% |
Cells + PLGA (3 mg/mL) |
0.214 ± 0.013 |
NS |
- |
8.13% |
Cells + PLGA (1 mg/mL) |
0.179 ± 0.004 |
0.015 |
9.14% |
- |
Cells + PLGA (0.3 mg/mL) |
0.220 ± 0.005 |
0.007 |
- |
11.71% |
Cells + PLGA (0.1 mg/mL) |
0.191 ± 0.003 |
NS |
3.02% |
- |
Cells + Solutol (10 mg/mL) |
0.015 ± 0.001 |
<0.0001 |
91.16% |
- |
Cells + Solutol (3 mg/mL) |
0.155 ± 0.007 |
<0.0001 |
21.71% |
- |
Cells + Solutol (1 mg/mL) |
0.160 ± 0.002 |
<0.0001 |
19.09% |
- |
Cells + Solutol (0.3 mg/mL) |
0.206 ± 0.005 |
NS |
- |
4.31% |
Cells +Solutol (0.1 mg/mL) |
0.204 ± 0.006 |
NS |
- |
3.28% |
Table 5. Colorectal carcinoma cells (a) and gastric adenocarcinoma cells (b) concentration after 24 hours of incubation in the presence of different concentrations of PLGA and Solutol. Viability determined by absorbance at 570 nm (mean ± SEM) following MTT reaction. Statistical significance (T-test) (p < 0.05). NS = Not Significant. The stimulation or inhibition in the presence of the test samples is presented.
(a) HCT-116—Colorectal Carcinoma Cells |
Test Culture |
Absorbance (MTT) at 570 nm (mean ± SEM) |
Statistical Significance
p < 0.05 |
% Inhibition |
% Stimulation |
Cells |
0.707 ± 0.009 |
- |
- |
- |
Cells in 1.5% DMSO (control) |
0.615 ± 0.011 |
- |
- |
- |
Cells + PLGA (10 mg/mL) |
0.776 ± 0.021 |
<0.0001 |
- |
26.31% |
Cells + PLGA (3 mg/mL) |
0.646 ± 0.019 |
NS |
- |
5.17% |
Cells + PLGA (1 mg/mL) |
0.623 ± 0.007 |
NS |
- |
1.37% |
Cells + PLGA (0.3 mg/mL) |
0.609 ± 0.010 |
NS |
0.93% |
- |
Cells + PLGA (0.1 mg/mL) |
0.549 ± 0.008 |
0.002 |
10.69% |
- |
Cells + Solutol (10 mg/mL) |
0.011 ± 0.002 |
<0.0001 |
98.26% |
- |
Cells + Solutol (3 mg/mL) |
0.537 ± 0.009 |
0.0006 |
12.55% |
- |
Cells + Solutol (1 mg/mL) |
0.554 ± 0.007 |
0.002 |
9.80% |
- |
Cells + Solutol (0.3 mg/mL) |
0.552 ± 0.016 |
0.015 |
10.22% |
- |
Cells +Solutol (0.1 mg/mL) |
0.605 ± 0.007 |
NS |
1.62% |
- |
(b) AGS—Gastric Adenocarcinoma Cells |
Test Culture |
Absorbance (MTT) at 570 nm (mean ± SEM) |
Statistical Significance
p < 0.05 |
% Inhibition |
% Stimulation |
Cells |
0.709 ± 0.023 |
- |
- |
- |
Cells in 1.5% DMSO (control) |
0.682 ± 0.006 |
- |
- |
- |
Cells + PLGA (10 mg/mL) |
0.876 ± 0.044 |
0.003 |
- |
28.23% |
Cells + PLGA (3 mg/mL) |
0.783 ± 0.014 |
0.0002 |
- |
14.70% |
Cells + PLGA (1 mg/mL) |
0.720 ± 0.008 |
0.005 |
- |
5.49% |
Cells + PLGA (0.3 mg/mL) |
0.677 ± 0.026 |
NS |
0.75% |
- |
Cells + PLGA (0.1 mg/mL) |
0.646 ± 0.009 |
0.012 |
5.29% |
- |
Cells + Solutol (10 mg/mL) |
0.013 ± 0.002 |
<0.0001 |
98.10% |
- |
Cells + Solutol (3 mg/mL) |
0.650 ± 0.014 |
NS |
4.71% |
- |
Cells + Solutol (1 mg/mL) |
0.609 ± 0.008 |
0.0001 |
10.75% |
- |
Cells + Solutol (0.3 mg/mL) |
0.651 ± 0.010 |
0.030 |
4.61% |
- |
Cells +Solutol (0.1 mg/mL) |
0.724 ± 0.012 |
0.019 |
- |
5.89% |
The preparation of Oroxylin A incorporated into PLGA, Solutol or nanofibrils enables the impact of the EPR effect on tumours to be assessed. While the results of the studies carried out here are concerned with cell culture and not tumours in situ, it may be useful to consider the possible EPR effect of nanoparticle encapsulated Oroxylin A, as macromolecular drugs play a key role in tumour selective targeting [9].
In the in vitro studies reported here, a range of concentrations of Oroxylin A and incorporated Oroxylin A concentrations have been used, both in cell viability and apoptosis studies. As well, a range of PLGA and Solutol concentrations has been used in the studies on the cell viability of these macromolecular carriers. In a recent review, Graham et al. [14] caution the danger of translating the effect of in vitro drug concentrations to in vivo situations, especially as many drug studies have used supratherapeutic drug concentrations.
An experiment was undertaken to determine the IC50 of Solutol on melanoma cells and human skin fibroblasts, aimed to distinguish the action of this carrier on cancerous cells (melanoma) and non-cancerous cells (human skin fibroblasts). The IC50 value for the melanoma cells was 5.6 mg/mL and for the skin fibroblasts, it was 6.4 mg/mL. The fact that the IC50 for the two cell types was similar indicates that the effect of Solutol is not specific to cancer cells but also applies to normal skin cells. It is considered that the similar effect of Solutol on cancer cells and normal cells may be due to a detergent effect of Solutol on these cells.
These studies show that Oroxylin A enhances melanoma cell viability and inhibits apoptosis. However, cell viability is inhibited by Oroxylin A when integrated into all three carriers evaluated. Apoptosis in the melanoma cells is inhibited by Oroxylin A and Oroxylin A incorporated into PLGA but is stimulated by Oroxylin A incorporated into Solutol. Thus, nanoparticle-encapsulated Oroxylin A may be useful as an anti-cancer drug. This effect may be both through affecting cell viability and inducing apoptosis. As well, Solutol alone may be a useful anti-cancer drug as it reduces the viability of melanoma cells, colorectal carcinoma cells and gastric adenocarcinoma cells. However, as stated in the above paragraph, the effect of Solutol may be due to its detergent action.
4. Discussion
The results obtained in the present study are clearly distinguished from those reported in the published literature. In all cases, findings by others are clearly identified with the relevant references. The reference [2] is a commentary on the overexpression of uncoupling protein-2 in cancer and contains many references to studies in this area.
4.1. Characteristics of PLGA and SOLUTOL
Poly (lactic-co-glycolic acid) (PLGA) was used as the platform delivery system for the encapsulation of Oroxylin A due to its widespread use in pharmaceutical science for the formulation of poorly water-soluble drugs [15] [16]. The metabolic products of PLGA produce lactic acid and glycolic acid, which are subsequently eliminated as carbon dioxide and water via the Krebs cycle. Therefore, PLGA nanoparticles are biodegradable, biocompatible, and approved by the FDA as a pharmaceutical excipient.
Poly (lactic-co-glycolic acid) (PLGA) is a copolymer of lactic acid and glycolic acid [10]. Solutol HS 15 (Solutol) is a non-ionic surfactant and is composed of polyglycol mono- and di-esters of 12-hydroxystearic acid and free polyethylene glycol [11]. There is little evidence that PLGA or Solutol nanoparticles have intrinsic anti-cancer effect.
PLGA decomposes into H2O and CO2 that are eliminated in the body. Its polymeric nanoparticles degrade in vivo through hydrolysis of the ester bonds to its monomeric anions (lactate and glycolate). While D-Lactate is not further metabolised before excretion, L-Lactate is converted into CO2, which is excreted through the lungs and is converted to pyruvate, which then enters the Krebs cycle. Glycolate is either directly excreted through the renal system or it can be oxidised to glyoxylate, which is subsequently converted into glycine, serine and pyruvate. The latter can again enter the Krebs cycle and be metabolised into CO2 and H2O [10].
PLGA-based nanoparticles encapsulating anti-cancer drugs have been widely used [10]. Notwithstanding the above, Solutol is known to reverse multi-drug resistance of cancer cells [17]. Also, Solutol-based nanoparticles encapsulating anti-cancer drugs have been used in several studies [18]-[22]. In these studies, Solutol is mixed with other polymers to form mixed micelles. Despite the limited evidence of Solutol alone affecting cancer cells, we found in this study that Solutol alone does decrease the viability of cancer cells (Table 5).
4.2. Changes on Cancer Cells and Some Metabolic Effects of Uncoupling Protein-2 (UCP2) (Table 6 and Figure 8)

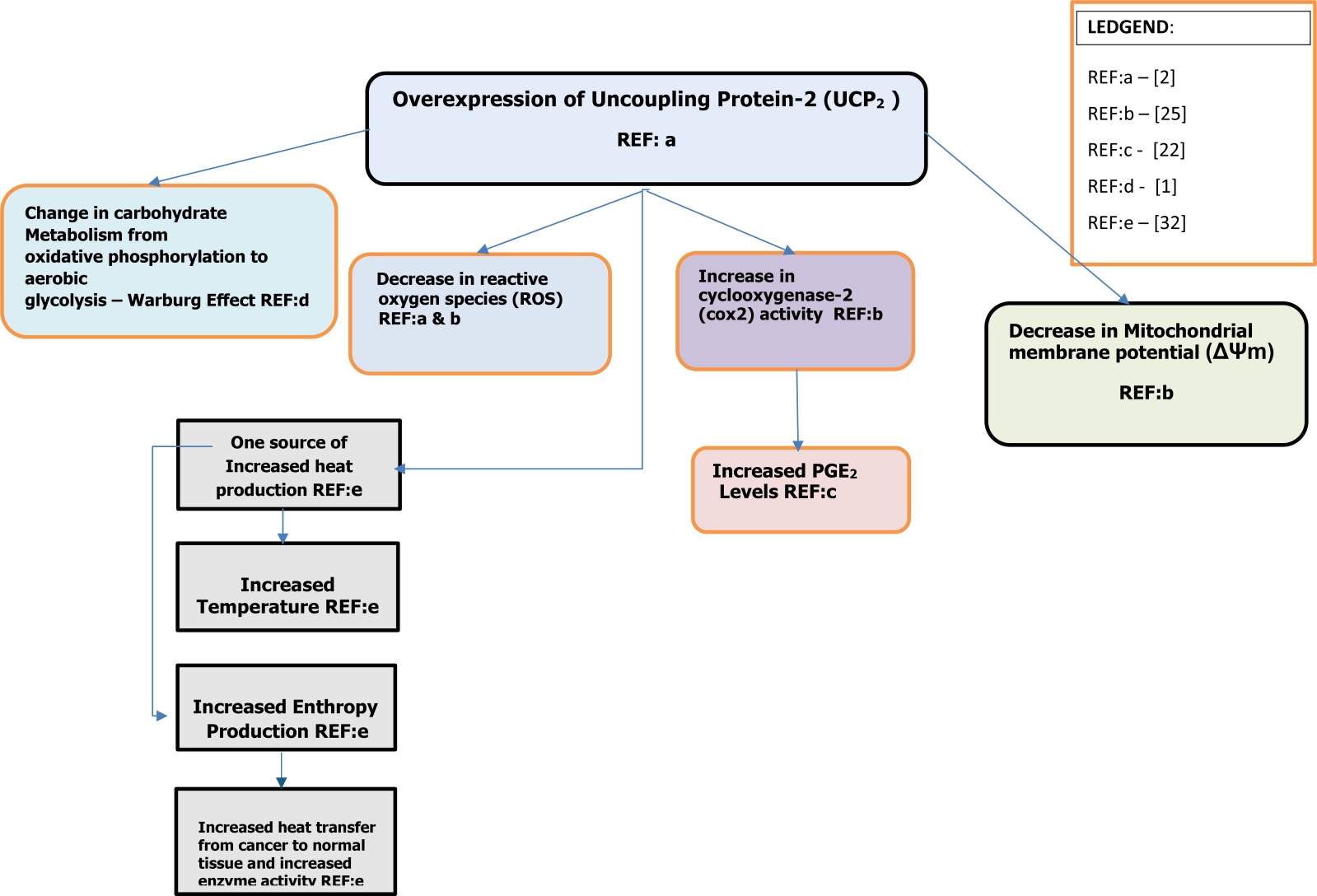

Figure 8. Some metabolic changes due to overexpression of UCP2 in cancer cells. These changes include decrease in ROS, increase in COX2 activity and increase in PGE2 levels.
Table 6. Oroxylin A reverses these changes. Hence, Oroxylin A inhibits UCP2 expression, stimulates ROS, inhibits COX2 expression and lowers PGE2 levels in cancer cells.
Effect of Oroxylin A on Metabolic Changes in Cancer |
Inhibition of UCP2 Expression |
[7] |
Stimulation of ROS |
[25] |
Inhibition of COX-2 Expression |
[25] |
Lower PGE2 Levels |
[25] |
4.3. Effects of Oroxylin A and Encapsulated Oroxylin A on Cancer Cells
In this study, we observed that melanoma cell viability is not affected following administration of Oroxylin A to cancer cells. However, Zhu et al. [23] observed decreased cell viability of squamous cell carcinoma cells following Oroxylin A treatment after a lengthy incubation of 48 hours. Also, Zhao et al. [24] and Ha et al. [25] demonstrated decreased cell viability of human hepatocellular carcinoma cells and human colon cancer cells respectively following administration of Oroxylin A. However, our studies showed decreased cell viability following administration of Oroxylin A encapsulated nanoparticles to melanoma cells. We did not observe decreased cell viability following administration of non-encapsulated Oroxylin A (Table 2). The difference of our findings for Oroxylin A treatment of cancer calls and those of Zhu et al. [23], Zhao et al. [24], Ha et al. [25] may be due to the fact that different cancer cells have been used in each of these studies. We showed increased apoptosis following treatment of cancer cells with Oroxylin A encapsulated with Solutol but not with PLGA. Interestingly, Zhu et al. [23] showed Oroxylin A-loaded PDots caused increased apoptosis in squamous cells carcinoma.
4.4. Effect of Oroxylin A on UCP2 and Changes in Carbohydrate Metabolism in Cancer Cells
Oroxylin A is an inhibitor of UCP2 [7]. We consider that the effects outlined above of Oroxylin A encapsulated nanoparticles on cancer cells are due, at least in part, to the inhibition of UCP2 by Oroxylin A. UCP2 converts the carbohydrate metabolism of cancer cells from mitochondrial oxidative phosphorylation to aerobic glycolysis. It does this by uncoupling mitochondrial oxidative phosphorylation. Baffy et al. [8] have suggested that recoupling mitochondrial oxidative phosphorylation would be a novel way to treat cancer. As Oroxylin A is an inhibitor of UCP2, this agent would be a suitable candidate to cause the recoupling of mitochondrial oxidative phosphorylation.
4.5. Effect of Oroxylin A and Oroxylin A Encapsulated Nanoparticles on Tumour Size and Weight of Cancer Cells. Synergistic Effect of Oroxylin A and 5-Fluorouracil on Cancer Cells
Recently, Zhu et al. [23] investigated the effect of Oroxylin A-Loaded PDots on squamous cell carcinoma cells. Both Oroxylin A alone and Oroxylin A-Loaded PDots inhibited cell growth, however Oroxylin A-Loaded PDots were more potent. Zhu et al. [23] also found that Oroxylin A-Loaded PDots increased apoptosis and that Oroxylin A and Oroxylin A-loaded PDots were effective in decreasing size and weight of implanted tumours in mice.
Zhao et al. [24] studied synergism of Oroxylin A and fluorouracil on liver cancer viability and observed that Oroxylin A alone inhibited cell growth, increased apoptosis and reduced growth of implanted tumours. Similarly, Ha et al. [25] carried out parallel studies on the synergism of Oroxylin A and 5-fluorouracil on colon cancer cells. They found Oroxylin A inhibited cell growth, enhanced apoptosis and reduced growth of implanted tumours. When combined with 5-fluorouracil, Oroxylin A was more effective than Oroxylin A alone in decreasing weight and size of implanted tumours [24] [25]. Other studies have shown that other inhibitors of UCP2, when combined with anti-cancer agents, are more effective in decreasing cell viability and increasing ROS production and apoptosis than the inhibitors alone [2] (reference therein).
In non-small cell lung cancer, Oroxylin A reverses hypoxia-induced cisplatin resistance [26]. The combination of Oroxylin A and gefitinib in A549 cells instigated more apoptotic cells than other studied combinations and gefitinib alone [27].
4.6. Oroxylin A and Encapsulated Oroxylin A Nanoparticles and the EPR Effect
The effects of encapsulated Oroxylin A nanoparticles and Oroxylin A PDots on cancer cells have been demonstrated in cancer cells in culture. Maeda [9] has shown that certain high molecular weight substances are more effective in the treatment of whole tumours (Enhanced Permeability and Retention Effect—EPR Effect). Although the studies carried out by us have been on cultured cancer cells, Zhu et al. [23] have shown that Oroxylin A-Loaded PDots do shrink tumour size and weight. Despite our studies with cultured cancer cells, it is interesting that we only achieved a decrease in cell viability and an increase in apoptosis using Oroxylin A nanoparticles and not using Oroxylin A alone.
4.7. Effect of PLGA or Solutol Alone on Cancer Cell Viability and Apoptosis
In this work, we treated cancer cells with PLGA or Solutol alone. We found that Solutol decreased cancer cell viability, but PLGA did not. It appears that the effect of Solutol alone may be due to its properties as a detergent.
4.8. UCP2 Releases Heat and the Effect of Increased Temperature, Heat and Entropy Production on Cancer Cells
Lawson et al. [28], Lawson et al. [29] and Stefanadis et al. [30] [31] have shown that there is an increase in the temperature of cancers compared to normal tissue. This temperature increase has been attributed to increased heat production by these tumours [32]. UCP2 has been shown to release heat [8] and so its overexpression in cancer is at least one source of the extra heat production in cancer [32]. Conversely, inhibition of UCP2 by Oroxylin A will reduce the heat production in cancers. The heat production in cancer also results in increased entropy production in these tumours. Increased entropy production is a feature of a departure from the steady state, where entropy production is a minimum. Growing tumors are a departure from the steady state of normal tissue [32].
4.9. Apoptosis Studies in Cancer Cells
Tuli et al. [6] have reviewed the anti-cancer potential of Oroxylin A and noted that apoptosis is lacking in cancer cells, resulting in immortal malignant cells. They then proceed to cite numerous studies showing that Oroxylin A enhances apoptosis in cancer cells. Consistent with these findings, our studies have shown that Oroxylin A encapsulated in Solutol enhances apoptosis as shown by increased caspase-9 activity.
