Abstract

Purpose: Diabetes presents a major public health challenge in Bangladesh, demanding effective data-driven solutions for improved disease monitoring and management. This study aims to design and implement a scalable, multidimensional data warehouse integrated with statistical and machine learning techniques to support batch-based diabetes monitoring, prediction, and decision-making. The key research question is: Can a unified data-driven framework improve diabetes classification accuracy and provide actionable clinical insights for healthcare systems in Bangladesh? Methods: Clinical and demographic data from selected hospitals were consolidated into a centralized data warehouse. A Python-based GUI enabled interactive data access and visualization. Statistical analyses (ANOVA, Chi-square) assessed associations between demographic, clinical, and lifestyle factors. For predictive modeling, supervised learning algorithms—Logistic Regression, Decision Tree, Multilayer Perceptron (MLP), and LightGBM—were trained and evaluated for diabetes type classification. Results: Statistical analysis revealed significant associations between gender, treatment cost, and patient satisfaction; blurred vision and diabetes longevity; and lifestyle habits and weight loss. Among the machine learning models tested, Logistic Regression demonstrated the best overall performance, achieving 81.25% accuracy, 82.07% precision, 81.3% recall, an F1-score of 81.48%, a ROC-AUC of 0.8278, and a log loss of 0.5029. Conclusions: The integrated data warehouse and machine learning framework offers a scalable, batch-based prediction system for diabetes management in Bangladesh. It combines statistical insights with predictive modeling to support clinical decision-making and is adaptable across healthcare settings. This approach meets the urgent need for actionable, data-driven insights into chronic disease care and advances the country’s digital health transformation.

Keywords

Dimension, Fact Table, ETL, GUI, Aggregate, Query, Accuracy

Share and Cite:

1. Introduction

Diabetes is a major non-communicable disease, especially in low- and middle-income countries like Bangladesh [1]. Effective management requires continuous monitoring, early prediction, and timely intervention, all of which relies on structured, comprehensive, and accessible health data [2]-[4]. However, Bangladesh’s healthcare system suffers from fragmented data, inconsistent record-keeping, and limited batch-based analytics, hindering clinical decision-making and national efforts to improve chronic disease outcomes [5]-[7].

In response to these limitations, this study presents the design and implementation of a scalable, multidimensional data warehouse integrated with statistical analysis and machine learning techniques for batch-based diabetes monitoring in Bangladesh [8]-[11]. The system enables interactive querying, advanced analytics, and predictive modelling through a user-friendly graphical user interface (GUI) by consolidating clinical and demographic data from hospital settings into a centralized platform [11]-[13].

The significant contributions of this paper are as follows:

• Development of a hospital-level multidimensional data warehouse using ETL (Extract, Transform, Load) to integrate heterogeneous data.

• Embedded statistical analyses (ANOVA, Chi-square) to identify associations between clinical variables, lifestyle factors, and outcomes.

• The evaluation and deployment of multiple supervised machine learning models for batch-based diabetes type prediction, with Logistic Regression achieving the best performance metrics and being integrated into a GUI for practical use.

The paper is organized as follows: Section 2 reviews related literature; Section 3 outlines the methodology, including data collection, warehouse design, statistical analysis, and machine learning; Section 4 presents results; and Section 5 concludes with future research directions.

2. Literature Review

Extensive research has advanced health data warehousing and diabetes monitoring, particularly in low-resource settings. Khan (2022) proposed a national health data warehouse for Bangladesh, highlighting infrastructural and policy challenges [1], while Khan and Hoque (2016) identified technical and organizational barriers to data integration and interoperability [5].

Methodologically, Ronaldson et al. (2022) applied Structural Equation Modelling on clinical data to study Diabetes-depression links, emphasizing multidimensional analysis, and Sakib et al. (2022) demonstrated AI-based data warehousing for intelligent healthcare decision-making [6] [7].

Technological innovations include Rghioui et al. (2020, 2019) on intelligent monitoring and glucose classification [11] [14], Alfian et al. (2018) on BLE-based real-time healthcare systems, and Breault et al. (2002) on early data mining in diabetes warehouses [12] [13]. Recent work by Emad Ali et al. (2024) and Suraka & Gayathri (2022) focused on real-time patient monitoring using machine learning, while Lee et al. (2010) and Johnson & Miller (2022) addressed advisory systems and remote management of patient-generated data [15]-[18]. Ado et al. (2014) highlighted the strategic role of data warehousing in healthcare decision-making [19].

Existing studies highlight the promise of integrated data warehousing, machine learning, and real-time analytics for diabetes management. However, Bangladesh lacks a context-specific diabetes data warehouse, with systemic issues such as fragmented infrastructure and poor data integration persisting [1] [5]. While international models show potential [6] [11] [12], they are designed for high-resource settings and are not readily applicable to Bangladesh’s resource-constrained healthcare system.

This study proposes a scalable, GUI-enabled multidimensional data warehouse integrated with statistical analysis and machine learning for batch-based diabetes prediction. The system enhances clinical decision-making and supports national digital health transformation by adapting international methodologies to the healthcare context of Bangladesh.

3. Methodology

3.1. Data Collection Method

A semi-structured questionnaire collected socio-demographic (age, gender, marital status, family type, income, education) and diabetes-related health data from hospitals in Dhaka (Dhamrai, Savar), Tangail (Mirzapur), and Manikganj. Data were obtained through surveys using convenience sampling. We acknowledge that the use of convenience sampling may limit the representativeness of the study population and introduce selection bias. As a result, the findings may not be fully generalizable to the broader target population. Furthermore, we have added a recommendation that future studies should employ probability-based sampling methods and larger, more diverse populations to improve external validity and generalizability.

3.2. Data Warehouse Formation Method

Data from multiple sources were integrated via an ETL process into a unified format [17] [18]. The Diabetes Management System database () includes hospital, patient, doctor, and admin tables for demographics, clinical data, treatments, and outcomes [19]. Developed in MySQL and Python (PyCharm), the data warehouse employs a dimensional model with four dimensions, supporting multidimensional analysis across 16 cuboids ().

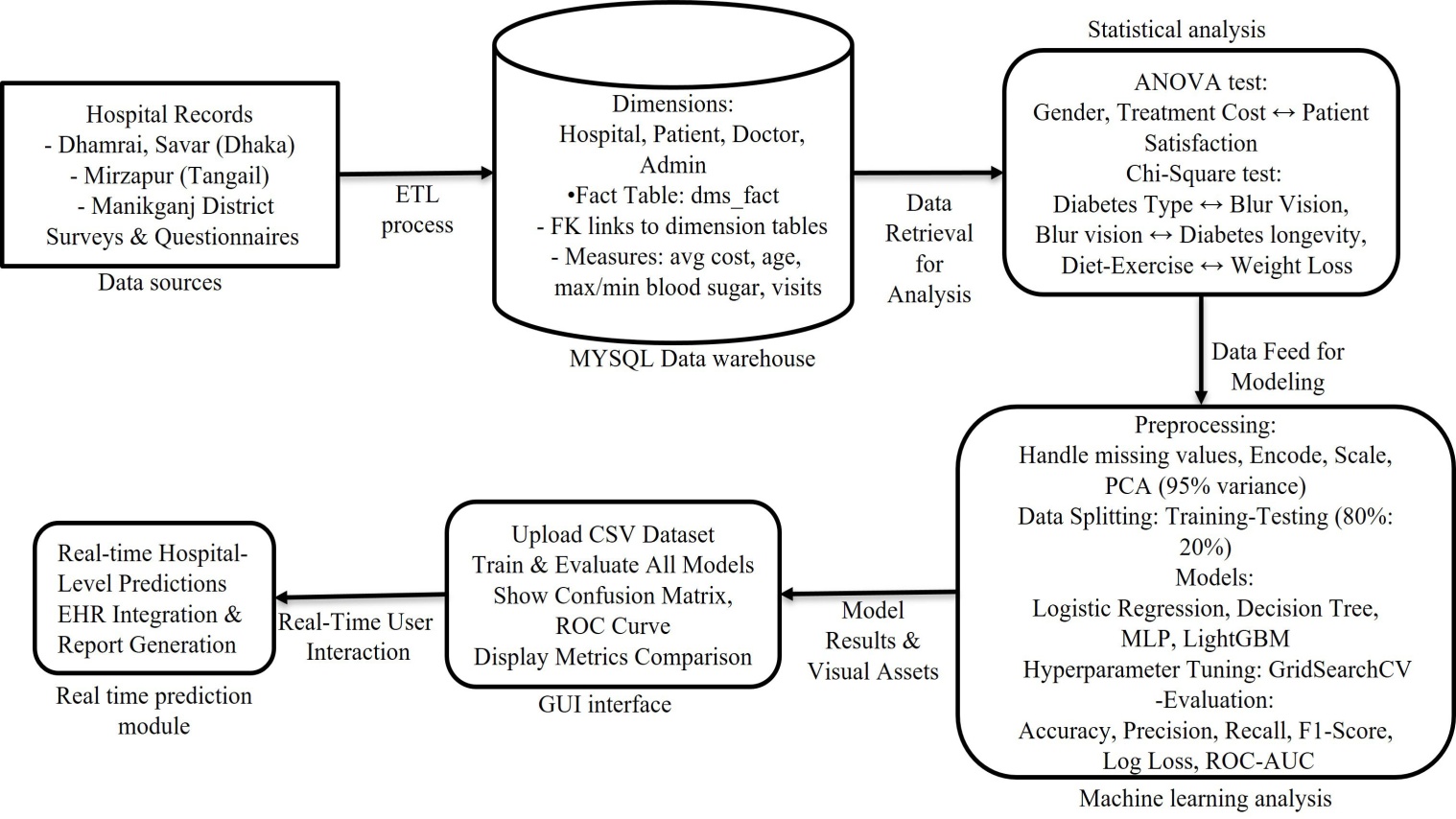

Figure 1. Data warehouse system for Diabetes patient monitoring system.

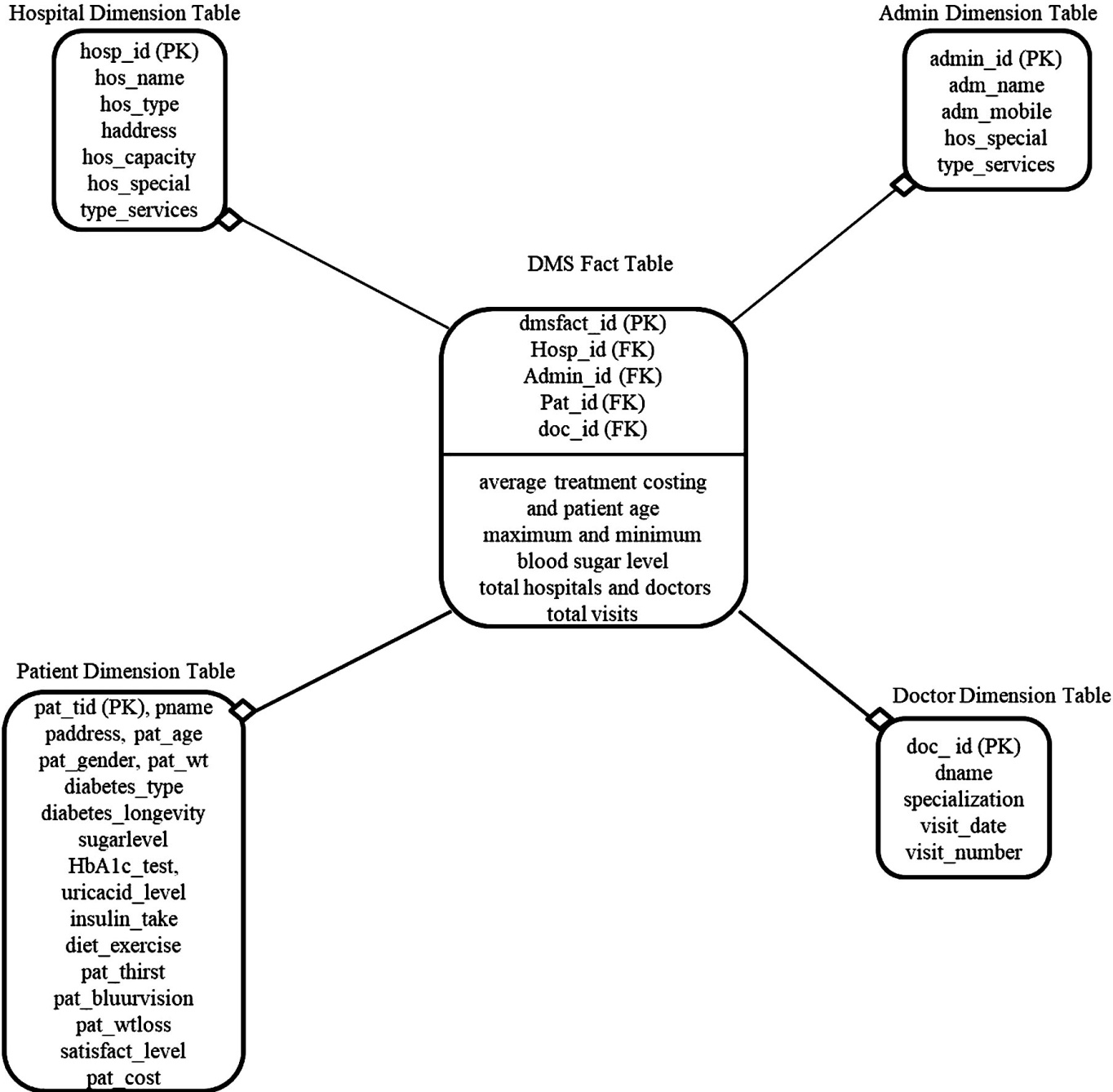

Figure 2. Multidimensional data model snapshot.

The diabetes data warehouse contains a fact table, dms_fact, linking four dimension tables and storing measures such as treatment cost, patient age, blood sugar levels, and counts of hospitals, doctors, visits, and patients.

3.3. Data Analysis

Data analysis using MySQL server and PyCharm Community Edition (with Python).

3.3.1. Multidimensional Database

We designed a diabetes data warehouse with a GUI for analytical purposes, enabling low-latency visualization of quantitative and graphical information. Two statistical modules and machine learning analytics were integrated to enhance the system’s scalability and affordability.

3.3.2. Statistical Analysis

We employed ANOVA and Chi-Square tests to explore associations between categorical and numerical variables. The ANOVA test was conducted between gender, treatment cost, and patient satisfaction. Chi-Square tests were used to find associations between diabetes_type and blurred vision, blurred vision and diabetes longevity, and between diet-exercise and weight loss.

3.3.3. Machine Learning Analysis

a) Preprocessing, Modeling, and Optimization

The CSV dataset comprised patient demographics, symptoms, and lifestyle-related features, along with a target variable indicating diabetes type (Type-1, Type-2, or Gestational). Data preprocessing was performed in several steps. Missing values were handled using listwise (row-wise) deletion to ensure complete records for analysis. Categorical variables were transformed into numerical format using one-hot encoding. Feature scaling was applied using standardization (z-score normalization) to ensure all features contributed equally to model training. Finally, Principal Component Analysis (PCA) was employed for dimensionality reduction, retaining 95% of the total variance to reduce feature redundancy while preserving most of the informative structure in the dataset. Four machine learning classifiers—Logistic Regression, Decision Tree, Multilayer Perceptron (MLP), and LightGBM—were evaluated. Hyperparameters were optimized using Grid Search with cross-validation to improve model performance and minimize overfitting. These models were selected due to their established effectiveness in healthcare prediction tasks and their ability to model both linear and non-linear relationships in clinical data. Logistic Regression was included as a strong and interpretable baseline model, while Decision Tree provides rule-based interpretability. MLP captures complex non-linear patterns, and LightGBM offers high predictive performance through gradient boosting and efficient handling of structured tabular healthcare datasets.

b) Model Training, Evaluation, and GUI Integration

All models were trained on the preprocessed dataset and evaluated using Accuracy, Precision, Recall, F1-Score, Log Loss, and ROC-AUC. The Python Tkinter GUI allows CSV uploads, automatic model training, and visualization of confusion matrices and ROC-AUC curves (). Logistic Regression outperformed the other algorithms in accuracy, interpretability, Log Loss, and ROC-AUC, making it the preferred choice for the batch-based hospital-level diabetes prediction system in Bangladesh.

Figure 3. Generic diagram of the proposed system.

4. Results and Discussion

A) Multidimensional database with aggregate queries

A diabetes data warehouse was designed with a fact table linked to four dimension tables. Aggregate queries on dms_fact provide analytical insights, accessible via a Python GUI for interactive visualization ().

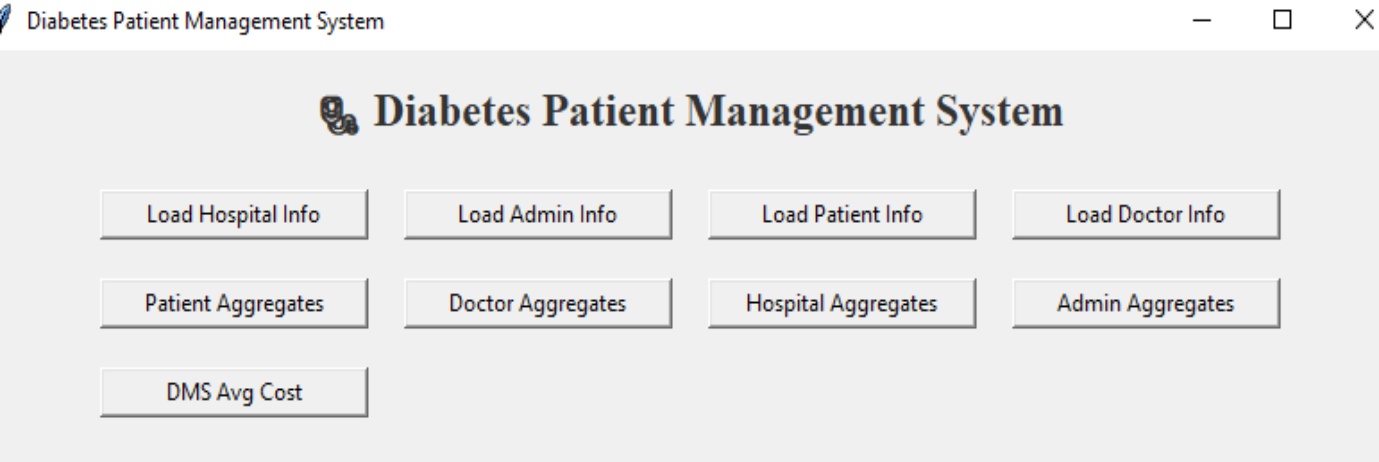

Figure 4. Diabetes patient management system.

A snapshot of patient information stored in the DMS data warehouse is also presented and described in .

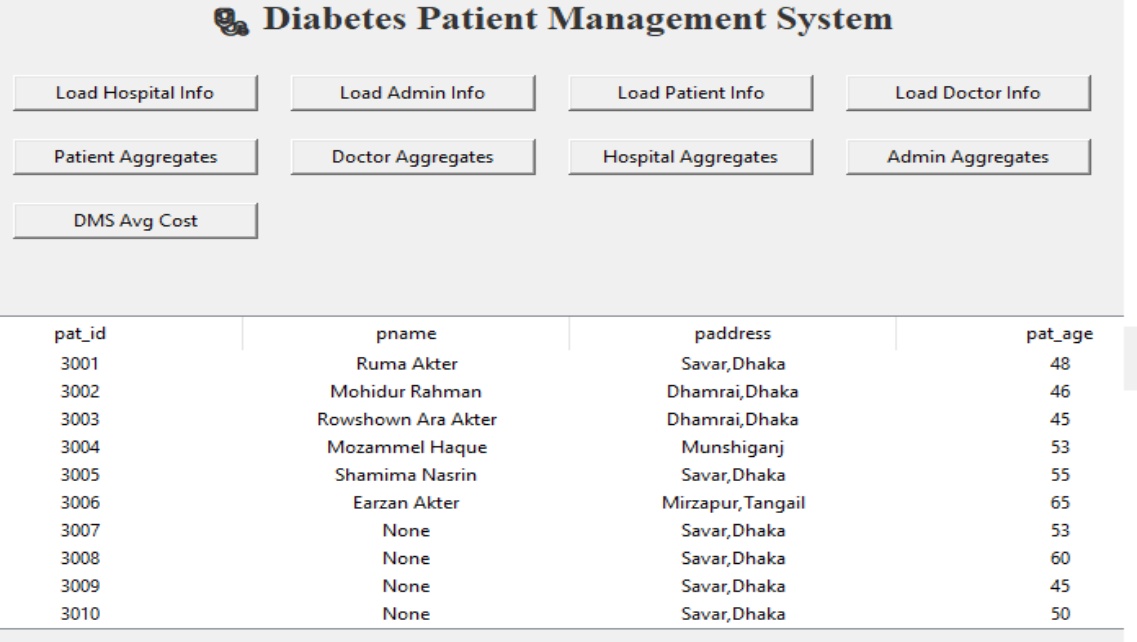

Figure 5. Schematic diagram of patient information.

A snapshot of hospital information stored in the DMS data warehouse is also presented and described in .

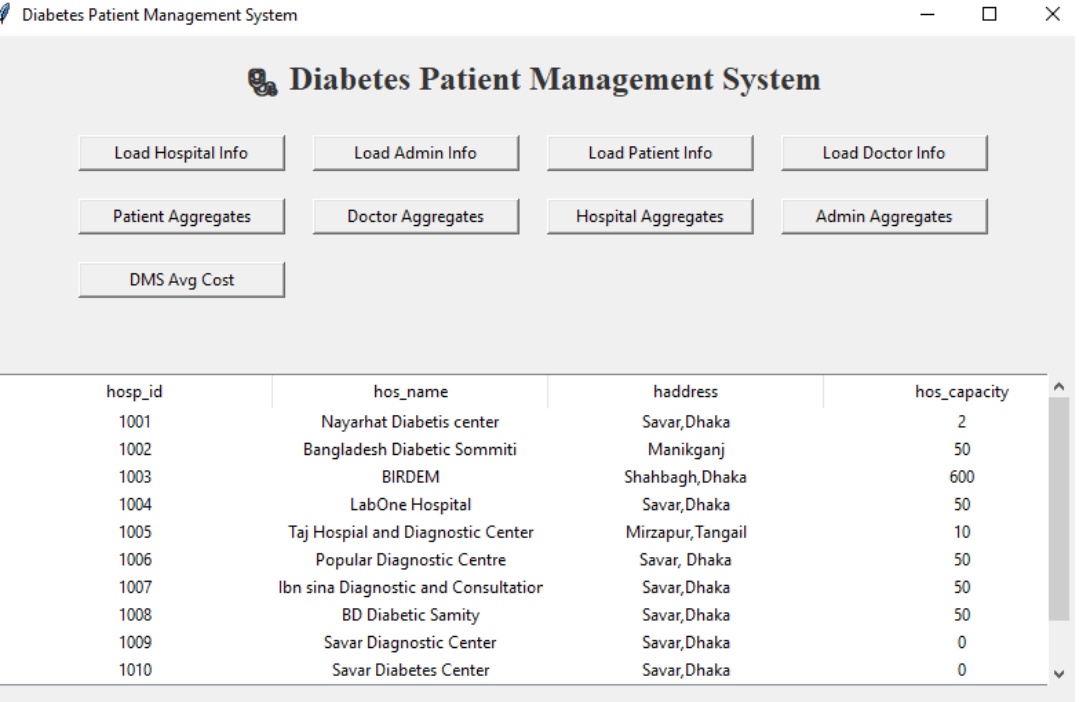

Figure 6. Schematic diagram of hospital information.

A snapshot of admin and doctor information stored in the DMS data warehouse is also presented and described in and , respectively.

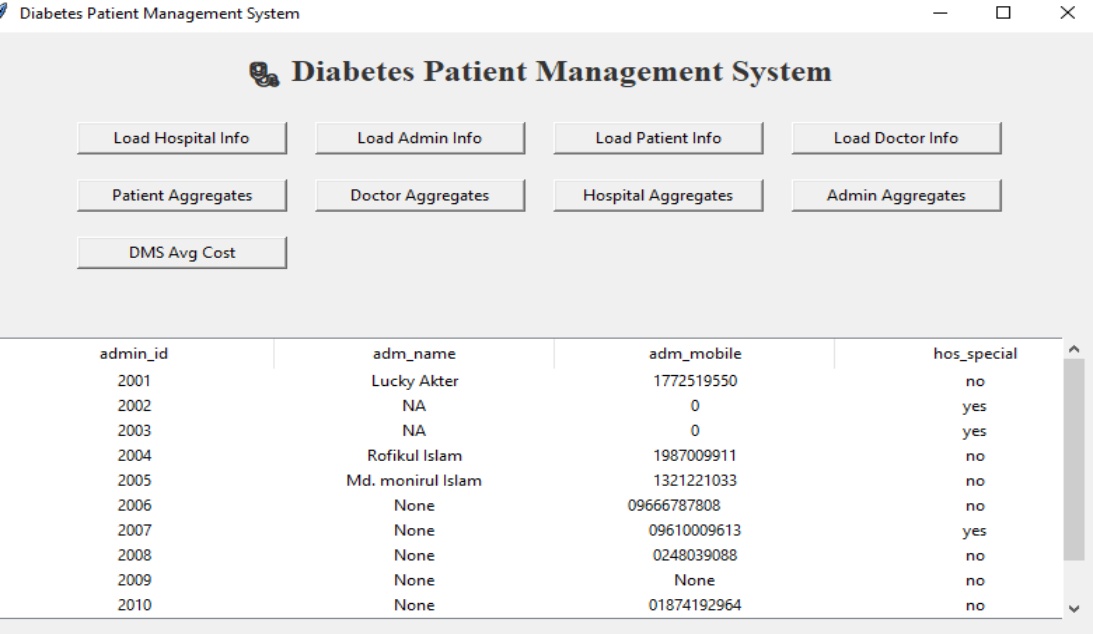

Figure 7. Schematic diagram of admin information.

Figure 8. Schematic diagram of doctor information.

(a) (b)

(c) (d)

(e)

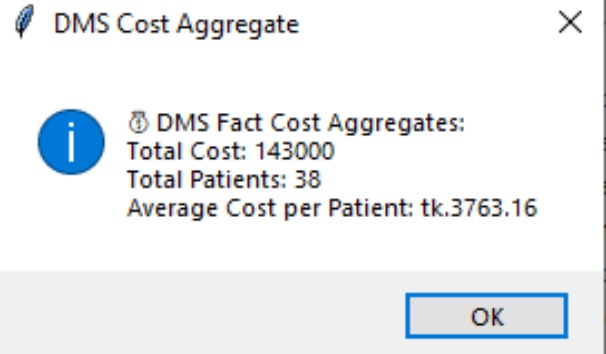

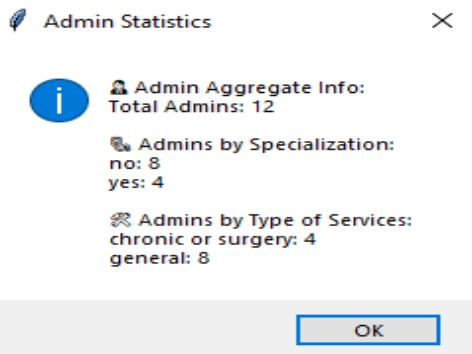

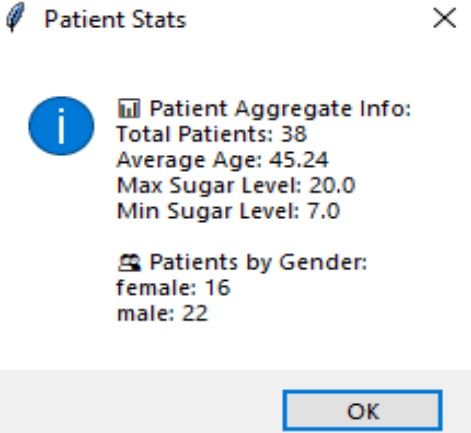

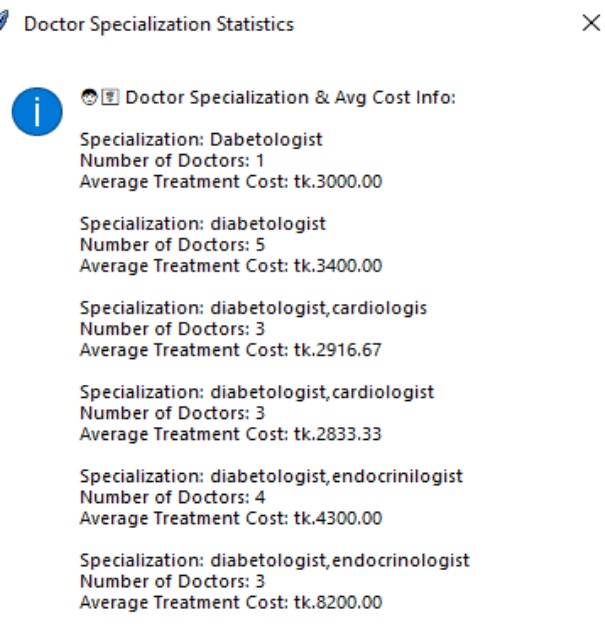

Figure 9. (a) Hospital aggregate output, (b) Patient aggregate output, (c) DMS cost aggregate output, (d) Admin aggregate output, (e) Doctor specialization statistics.

The query outputs are presented in, which illustrate the patient and hospital-related aggregates. Similar visual representations are provided for doctors and admin as well as are in and .

B) Statistical analysis

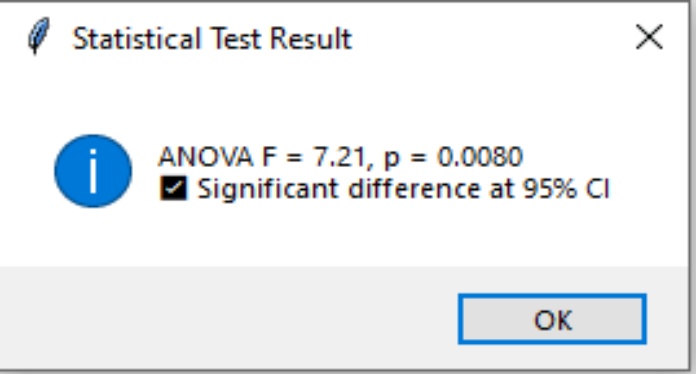

shows a significant association between patients’ gender, treatment cost, and satisfaction level (ANOVA: F = 7.21, p = 0.008), indicating that satisfaction varies with gender and cost. In contrast, shows no significant association between blurred vision and diabetes type (Chi-Square: χ² = 0.21, p = 0.9001).

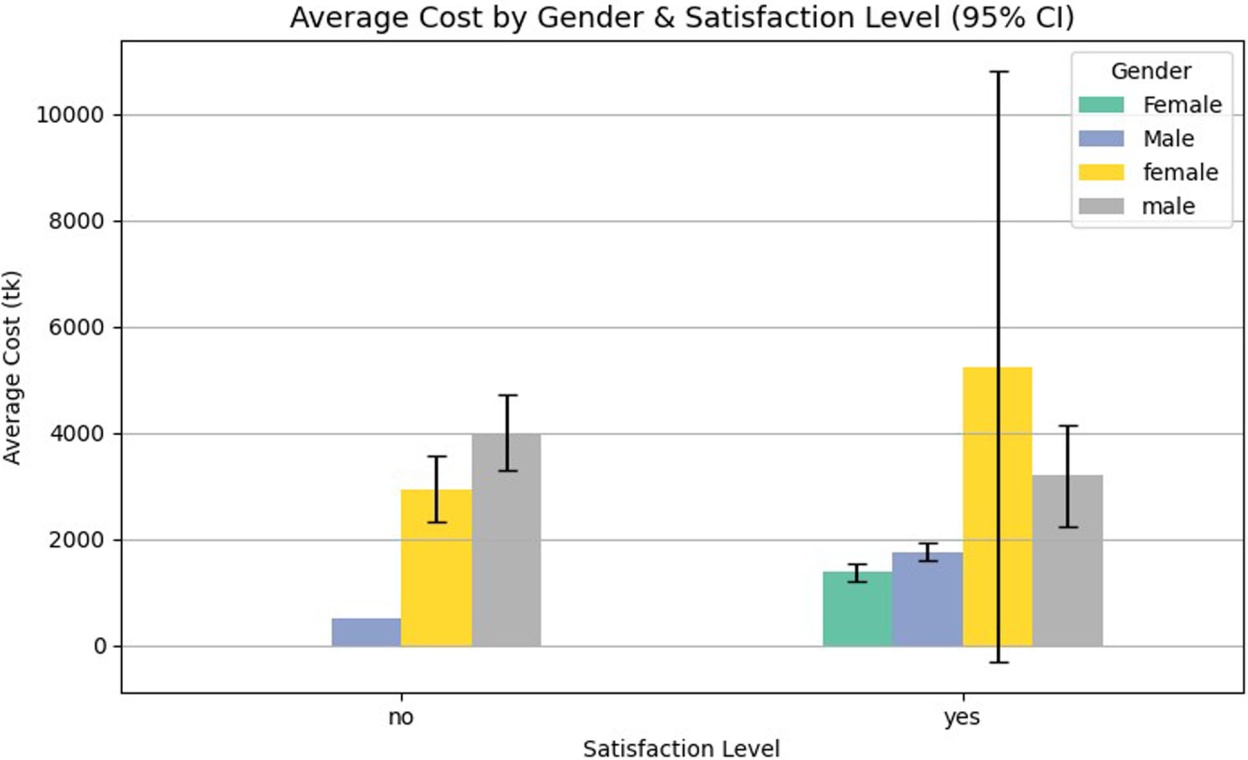

Figure 10. Association between patient gender and treatment cost with patient satisfaction level.

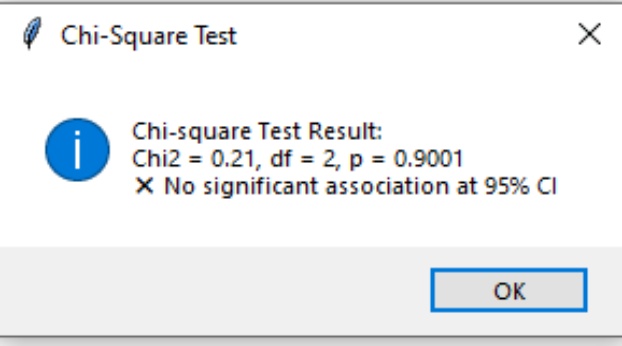

Figure 11. Association between diabetes type and blurred vision in patients.

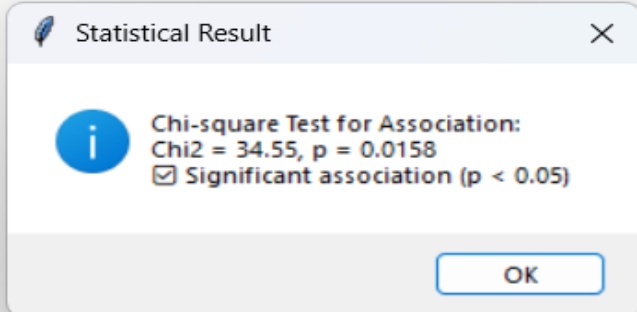

shows a significant association between blurred vision and diabetes duration (Chi-Square: χ² = 34.55, p = 0.0158). shows a significant association between diet/exercise and patient weight loss (Chi-Square: χ² = 11.01, p = 0.0009).

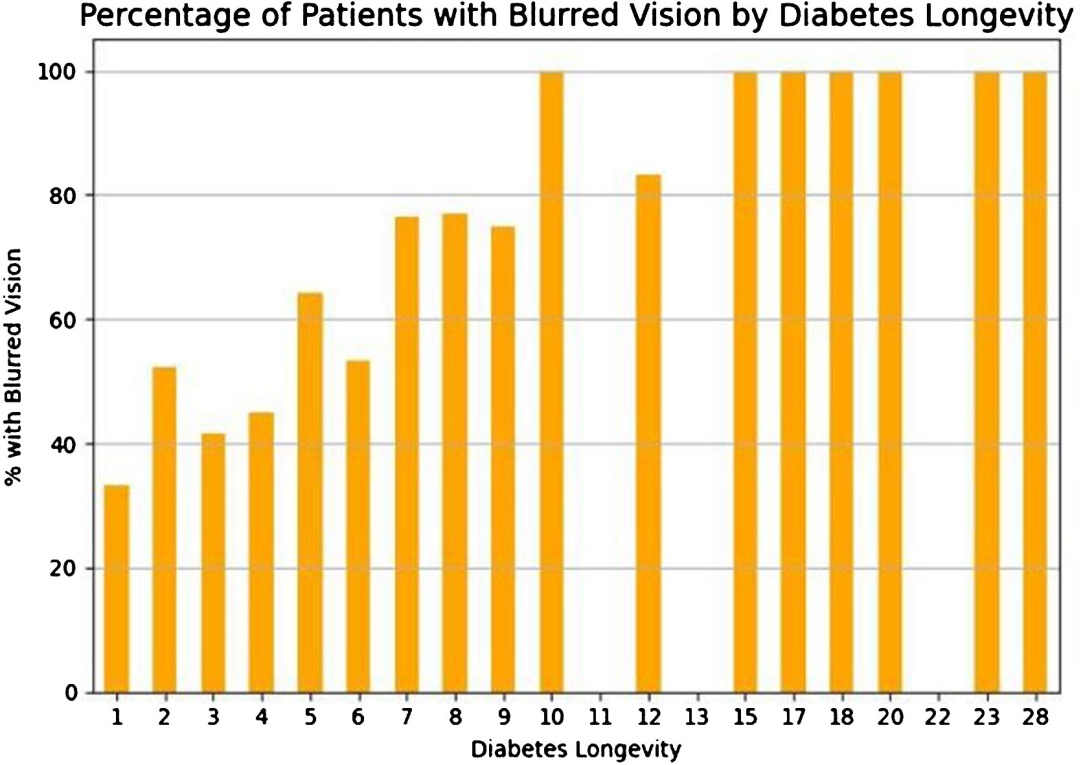

Figure 12. Association between diabetes longevity and blurred vision in patients.

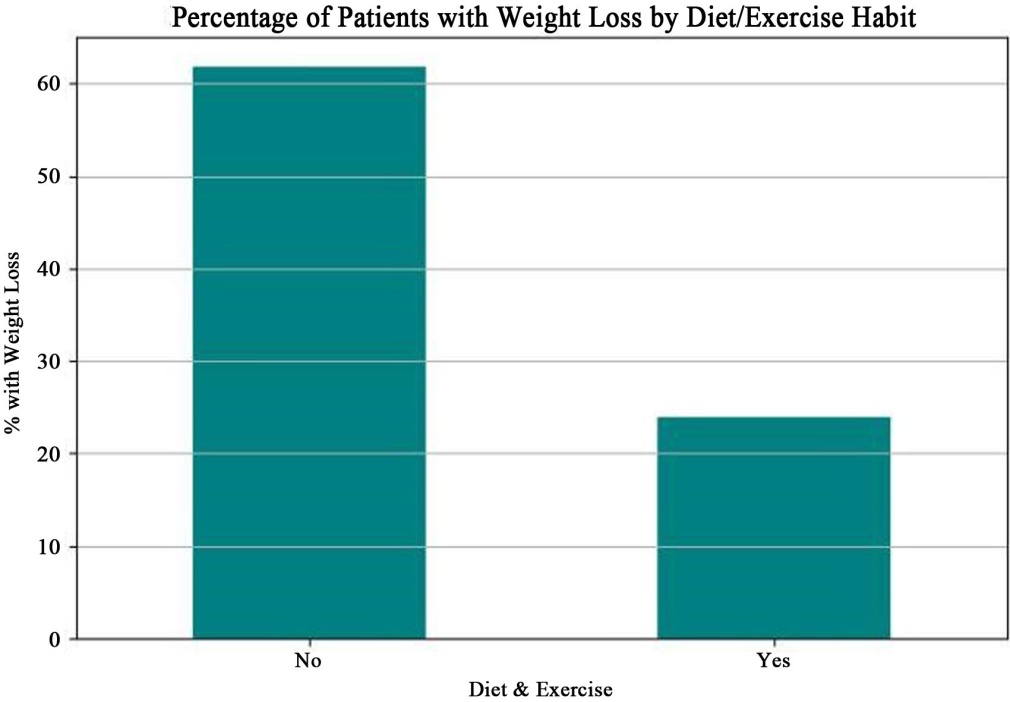

Figure 13. Association between diet_exercise and patient weight loss.

C) Machine learning-based analysis

The diabetes prediction system was evaluated using supervised machine learning models. Performance metrics included accuracy, precision, recall, F1-score, and log loss, calculated using the standard formulas below.

Accuracy: Accuracy is the proportion of correctly classified samples to the total number of samples.

$Accuracy=\left[\frac{\left(TP+TN\right)}{\left(TP+FN+FP+TN\right)}\right]\times 100\%$ (1)

Precision: Precision is the proportion of correctly identified positive samples to the total number of samples predicted as positive.

$Precision=\left[\frac{TP}{TP+FP}\right]\times 100\text{\%}$ (2)

Recall: Recall is the proportion of correctly identified positive samples to the total number of positive samples.

$Recall=\left[\frac{TP}{TP+FN}\right]\times 100\%$ (3)

F1 Score: The F1-score is the harmonic mean of precision and recall, providing a metric that balances false positives and false negatives.

$F1-Score=2\times \left[\frac{\left(Precision\times Recall\right)}{\left(Precision+Recall\right)}\right]\times 100\%$ (4)

where TP represents the true positive, the actual negative is defined by TN; FP represents the false positive, and FN represents the false negative.

The model’s classification performance was also visualized using ROC curves with the corresponding AUC values.

ROC curve: The ROC curve is a graphical representation of a classification model’s performance. It is plotted by comparing the True Positive Rate (TPR) against the False Positive Rate (FPR) at various classification thresholds. The TPR (also known as Recall or Sensitivity) and FPR are calculated using the following formula:

$TPR=\frac{TP}{TP+FP}$ (5)

$FPR=\frac{FP}{FP+TN}$ (6)

AUC: The AUC represents the area under the ROC curve (from (0,0) to (1,1)), with higher values indicating better model performance in distinguishing between classes.

Categorical Cross-Entropy: Categorical Cross-Entropy (Log Loss) is a common loss function used to evaluate multiclass classification models.

$\log loss=-\frac{1}{N}{\displaystyle \sum _i^N{\displaystyle \sum _j^M{y}_{ij}\log \left(p_{ij}\right)}}$ (7)

where N is the number of rows or samples, M is the number of classes, y_ij is 1 if sample i belongs to class j; otherwise, it is 0, and P_ij is the probability from our classifier that predicts sample i to class j.

reveals that the framework for the Diabetes multiclass system, and CSV file browsing and loading information are shown in and , respectively.

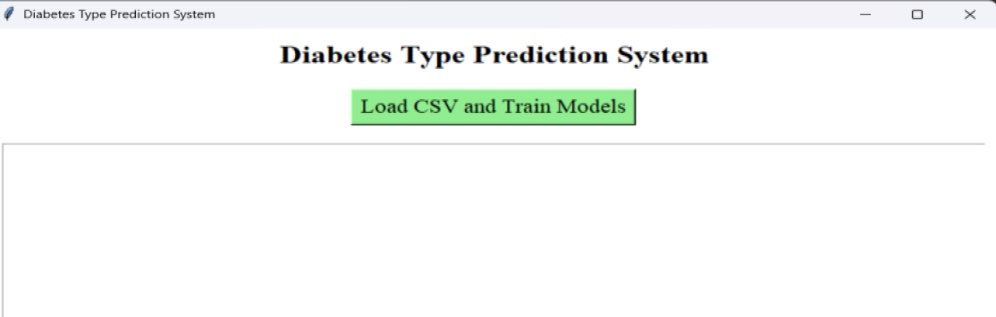

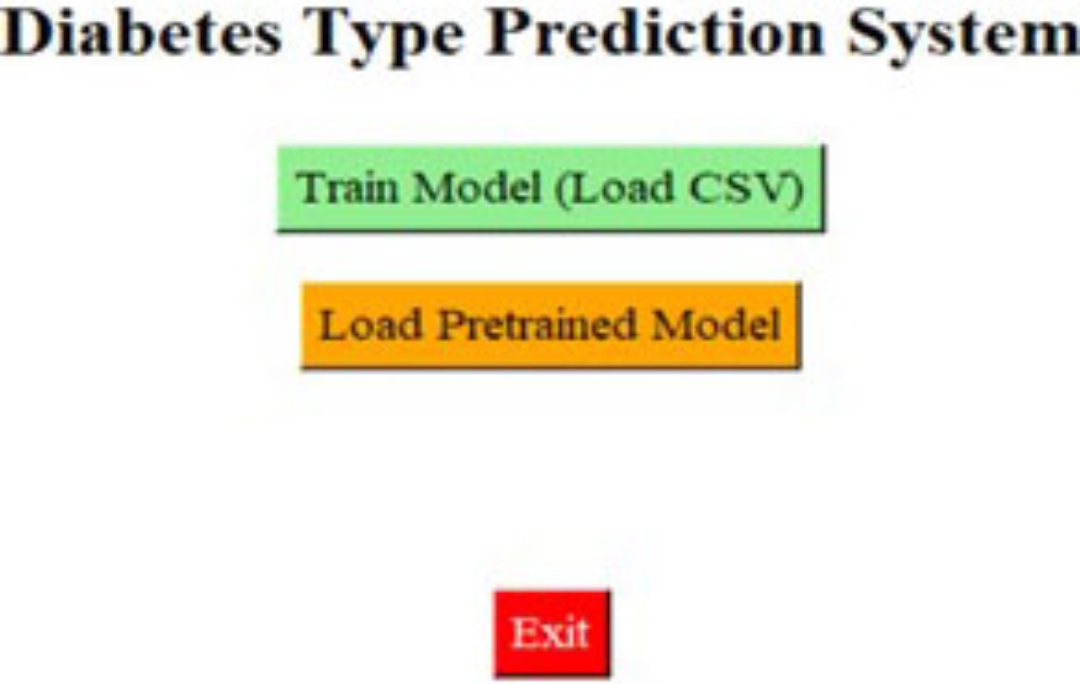

Figure 14. Load data into the diabetes prediction system.

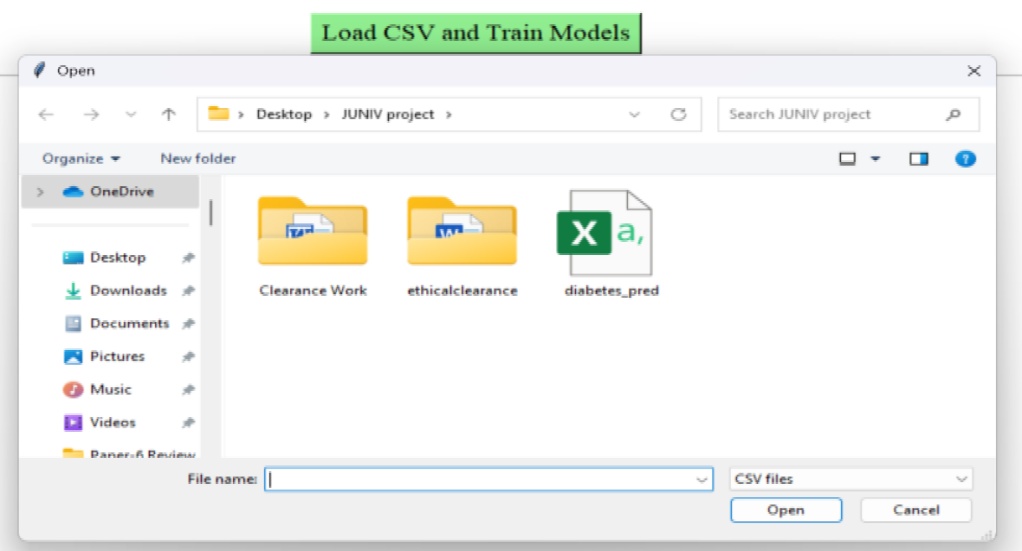

Figure 15. Browsing the dataset for training models.

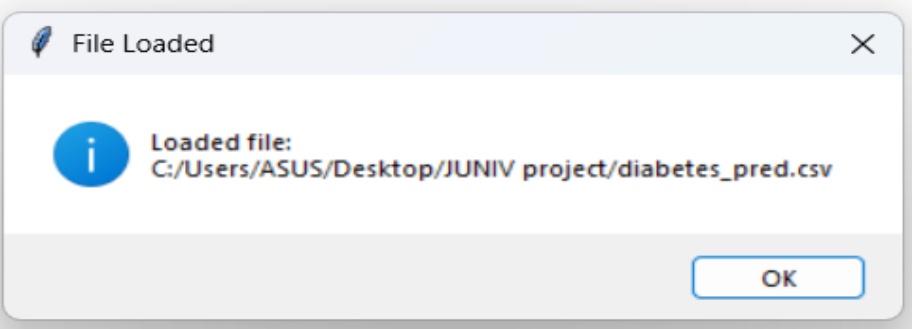

Figure 16. Visualization of the loaded file in the GUI.

explains the evaluation metrics such as accuracy, precision, recall, F1-score, log loss, and ROC (receiver operating characteristics)-AUC (area under the curve) for a diabetes prediction system using four supervised learning models.

Table 1. Evaluation of metrics for a diabetes prediction system.

and show the confusion matrix and ROC-AUC graph for the Decision Tree model.

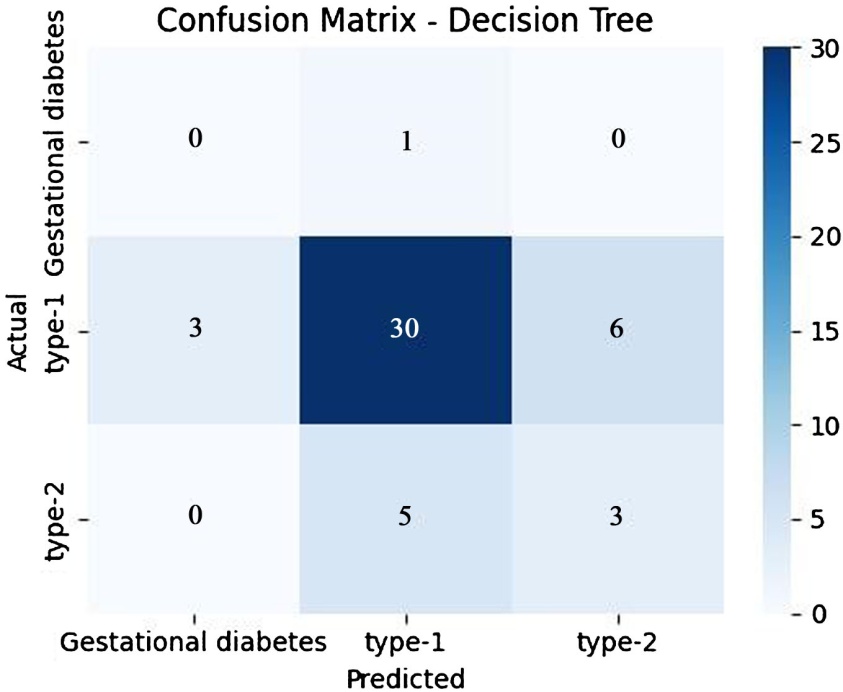

Figure 17. Confusion matrix for a decision tree.

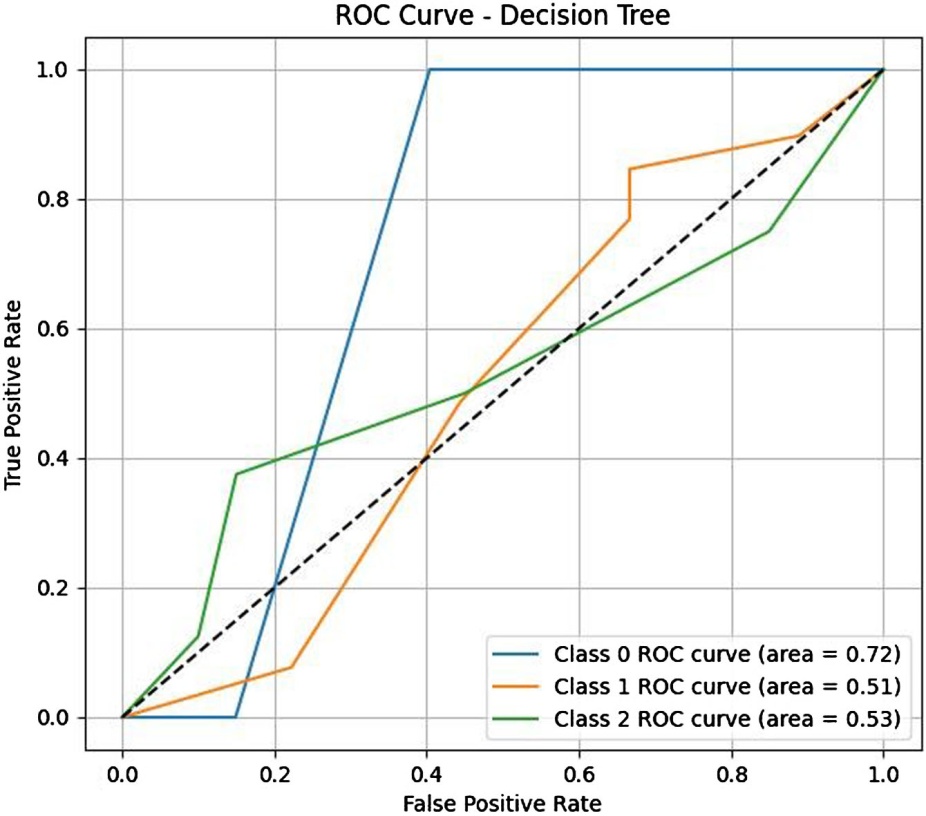

Figure 18. ROC-AUC for Decision Tree.

and show the confusion matrix and ROC-AUC graph for the logistic regression model.

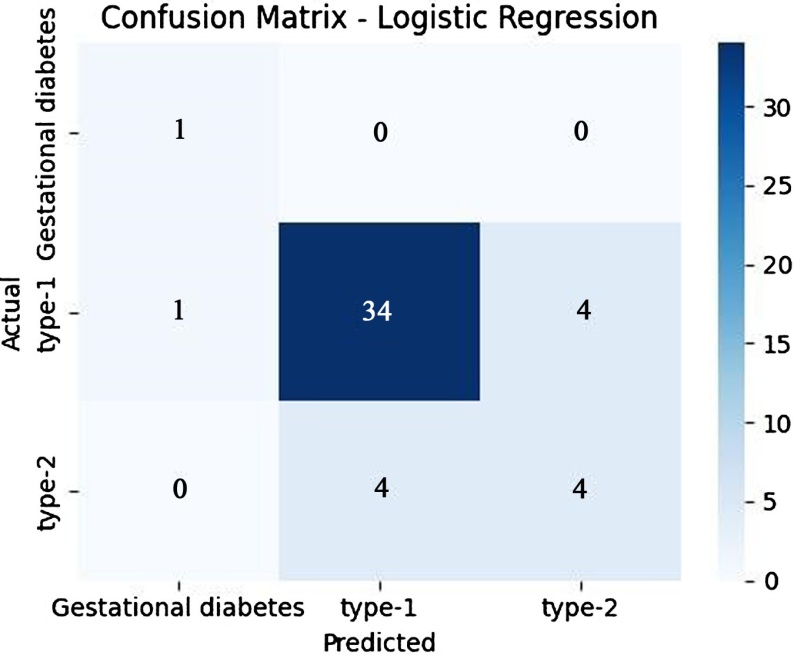

Figure 19. Confusion matrix for logistic regression.

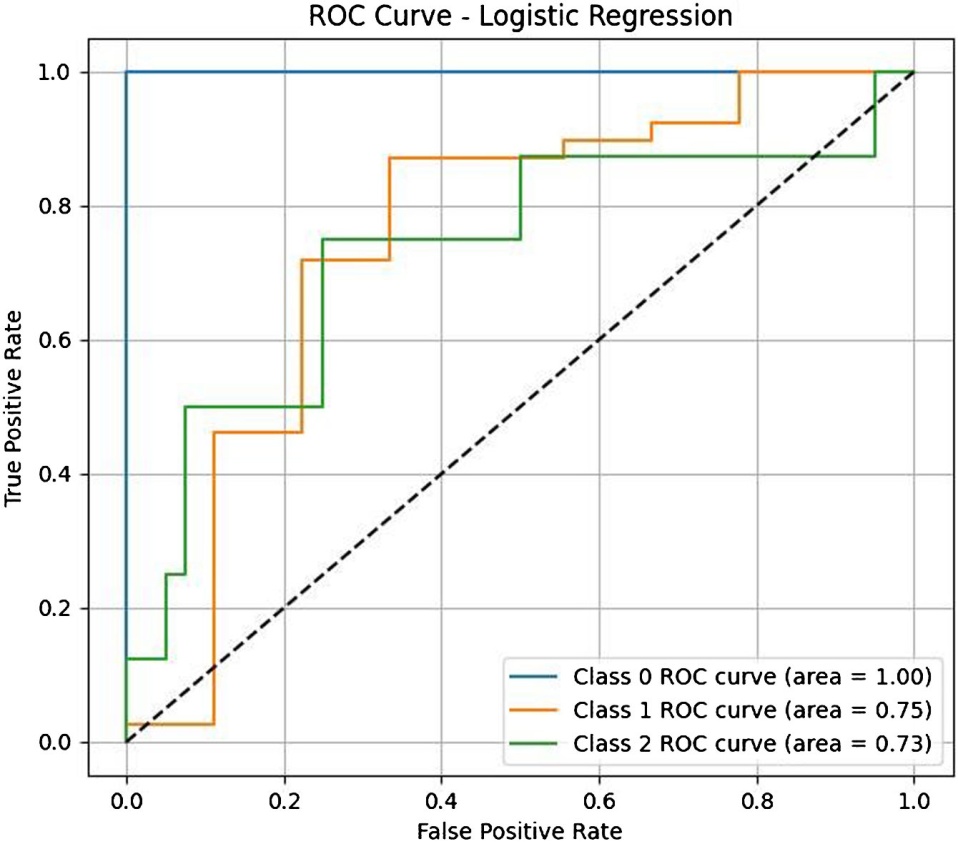

Figure 20. ROC-AUC for logistic regression

and show the confusion matrix and the ROC-AUC graph for the MLP classifier model.

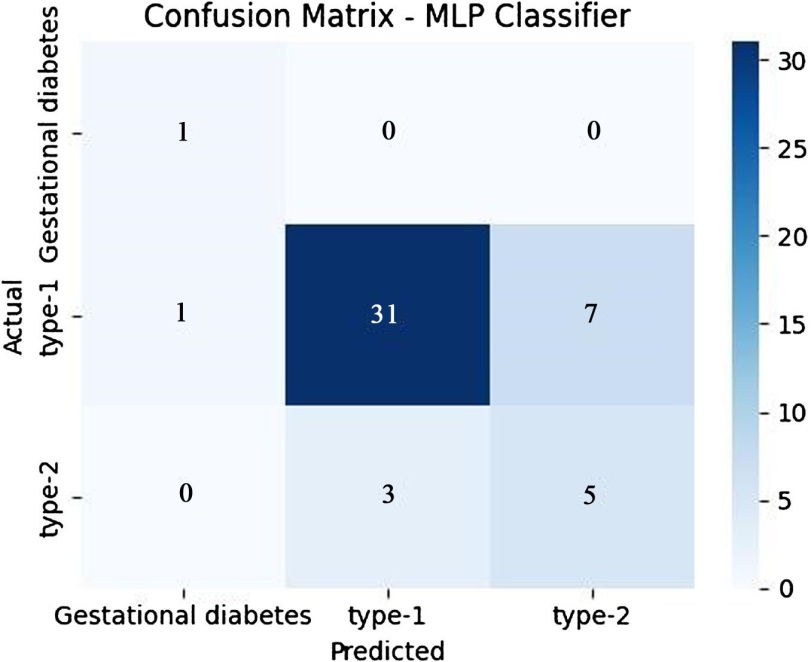

Figure 21. Confusion matrix for the MLP classifier.

Figure 22. ROC-AUC for the MLP classifier.

and show the confusion matrix and the ROC-AUC graph for the LightGBM model.

Figure 23. Confusion matrix for LightGBM.

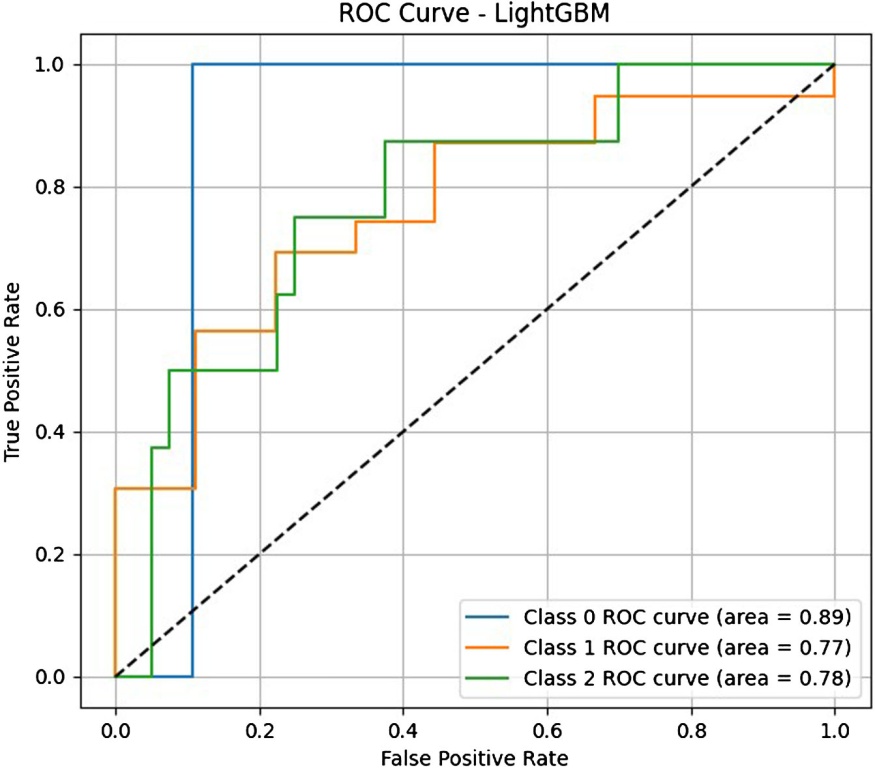

Figure 24. ROC-AUC for LightGBM.

Table 2. Comparison of the existing method with the proposed method.

summarizes existing data warehousing research, highlighting gaps in AI-driven analytics and GUI integration. Our proposed system addresses these gaps by combining a scalable, GUI-enabled data warehouse with machine learning and statistical analysis, achieving higher accuracy, lower Log Loss, and improved ROC-AUC, making it more comprehensive and suitable for real-world diabetes management.

D) Batch-based diabetes prediction

After evaluating four supervised algorithms using accuracy, precision, recall, F1-score, Log Loss, and ROC-AUC, Logistic Regression consistently outperformed the others in robustness, interpretability, and metric performance. It was selected as the core model for the batch-based hospital-level diabetes prediction system in Bangladesh. shows the system architecture, and illustrates the Logistic Regression training process.

Figure 25. Snapshot of a batch-based diabetes prediction system.

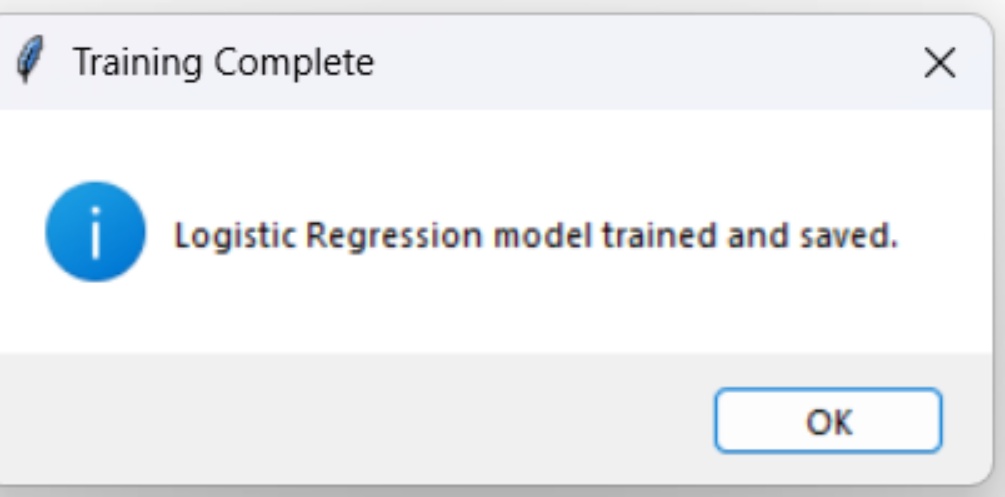

Figure 26. LR model trained with the dataset.

shows the Logistic Regression model’s performance on real hospital patient data, while presents the predicted diabetes outcomes generated by the model.

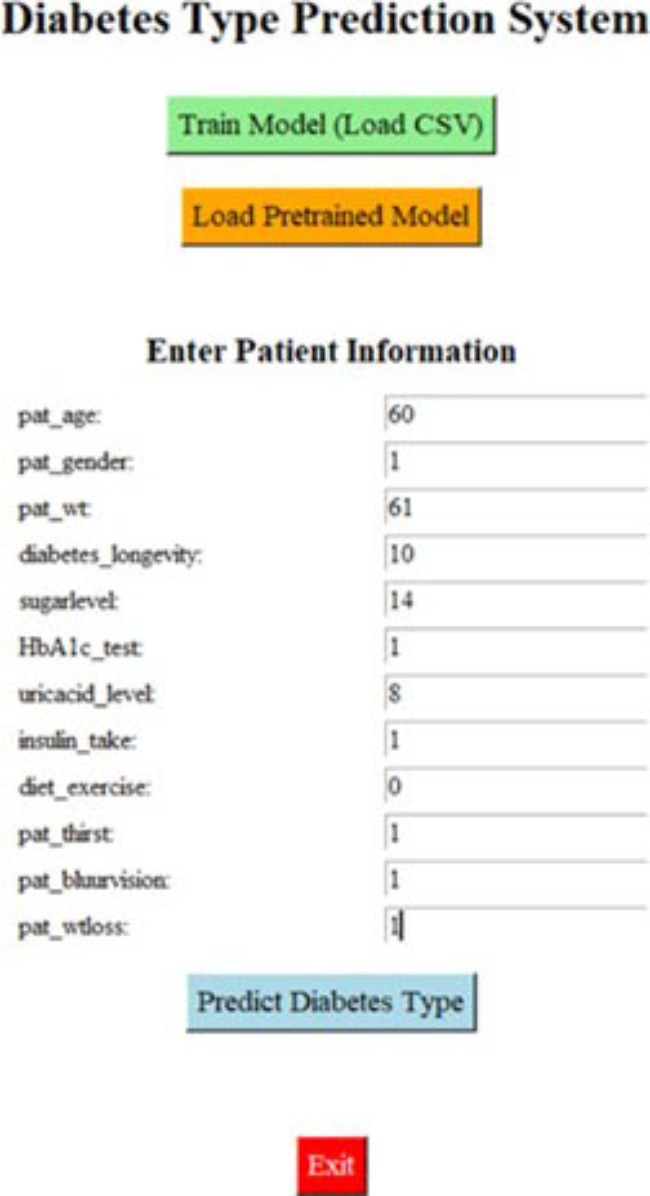

Figure 27. LR-based model test with real patient data.

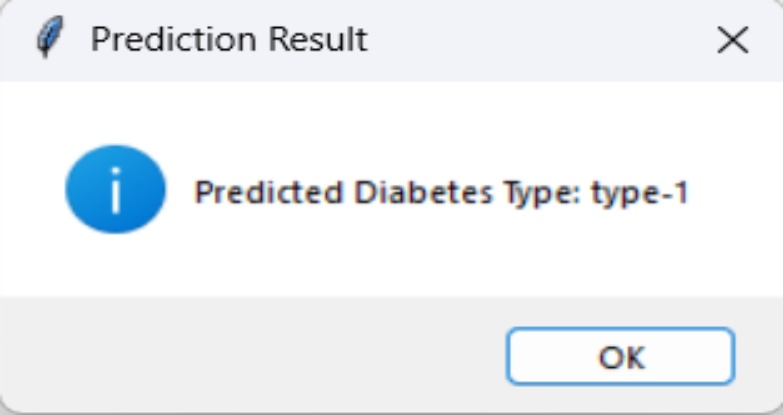

Figure 28. Model output visualization.

Limitations of the Study

The study’s limited sample size may not fully represent diabetes patients across Bangladesh, and time constraints prevented deeper exploration of the findings. The absence of external validation is a limitation of the present study. The models were evaluated using an internal train-test split with cross-validation due to the unavailability of an independent external datasets from different institutions or time periods. We recognize that such internal validation may not fully reflect real-world generalizability across diverse clinical settings. We acknowledge this limitation and plan to address it in future work by validating the proposed models on external datasets collected from multiple hospitals and different time periods, thereby improving robustness and clinical applicability.

5. Conclusion

The centralized diabetes data warehouse developed for selected hospitals in Bangladesh consolidates fragmented datasets into a unified, GUI-enabled platform, enabling batch-based monitoring, data-driven analysis, and informed clinical decision-making. The system uncovered key insights, such as links between gender, treatment cost, and patient satisfaction, blurred vision and diabetes duration, and diet/exercise with weight loss. By integrating statistical analysis and machine learning, Logistic Regression achieved the best predictive performance (accuracy 81.25%, precision 82.07%, recall 81.3%, F1-score 81.48%, ROC-AUC 0.8278, log loss 0.5029), demonstrating strong reliability for hospital-level implementation. Overall, the system enhances diabetes care, supports targeted interventions, and contributes to Bangladesh’s broader digital health transformation and chronic disease management initiatives.

Code Availability

The programming code used in this research is customized in the Python environment.

Conflicts of Interest

The authors declare no conflicts of interest regarding the publication of this paper.
