Stainless Steel Failures: Bridging Metallurgy and Practice—Lessons from Case Studies and Industrial Material Selection ()
1. Introduction
Stainless steels are often the default choice for corrosive service in the process industries, prized for their ability to form a stable, self-healing chromium oxide film. However, this corrosion resistance is conditional—governed by alloy composition, microstructure, fabrication quality, and local environmental factors. Field experience shows that engineers often specify materials by nominal grade (e.g., 304, 316, 2205), relying on datasheets and general service conditions without considering elemental thresholds or synergistic interactions.
As a result, failures continue to occur across food, desalination, chemical, and petrochemical facilities. These failures often stem from insufficient metallurgical understanding during specification. Once in service, even minor deviations in composition or environment can trigger localized corrosion, pitting, sensitization, or stress corrosion cracking phenomena not predicted by datasheets or design codes.
This paper examines how subtle metallurgical and environmental variations contribute to real-world stainless-steel failures. It reframes material selection as both a technical and managerial issue, integrating metallurgical criteria into procurement and design workflows. Through case studies and industrial data, the paper proposes a mechanism-based selection framework to reduce future failures and improve asset reliability.
2. Background: Failure Mechanisms and Economic Impact
2.1. Overview of Stainless-Steel Failure Mechanisms
Although stainless steels are renowned for corrosion resistance, field evidence shows that service failures arise when design or operation are unsuitable for basic metallurgical limits. Typical degradation modes include:
Pitting and Crevice Corrosion—Localized breakdown of the passive chromium-oxide film in environment conditions like chloride containing, oxygen depletion or stagnant solutions.
Intergranular Corrosion—Chromium depletion along grain boundaries due to carbide precipitation during welding or improper heat treatment.
Stress Corrosion Cracking (SCC)—Interaction of tensile stress, elevated temperature, and chloride activity that produces branched transgranular and intergranular cracks.
Microbiologically Influenced Corrosion (MIC)—Biofilm growth that creates oxygen-differential cells and locally acidified zones.
High-Temperature Degradation—Sigma-phase embrittlement, oxidation, or carburization in mixed oxidizing/reducing atmospheres.
Each mechanism links directly to metallurgical factors such as chromium, molybdenum, and nitrogen levels; carbon control; and the alloy’s ability to maintain passivity.
Across peer-reviewed and industry sources, Cl-SCC [1]-[3] emerges as the most prevalent and damaging failure mode in stainless-steel equipment within chloride-bearing chemical environments. Pitting and crevice corrosion [4] [5] frequently serve as precursors to SCC, while MIC [6] [7] contributes significantly in aqueous and cooling circuits. Fabrication and design-related issues amplify these mechanisms by introducing local stress, sensitization, or crevices.
Although precise statistical data vary with plant type and service, the collective literature implies the following qualitative distribution for stainless-steel failures in process industries [1] [3]:
SCC ~ 40% - 60% | Pitting/Crevice ~ 20% - 30% | MIC ~ 10% - 15% | Others < 15%
These ranges represent engineering consensus and case-study aggregation rather than a global numerical survey. Nonetheless, SCC, Pitting/Crevice contributed to majority of the failures.
2.2. Metallurgical Sensitivity
The protective film’s stability depends on alloy chemistry and microstructure: chromium and molybdenum govern film formation and re-passivation rate; nickel stabilizes the austenitic phase and improves SCC resistance; nitrogen increases both strength and pitting potential in duplex grades. When any of these are at the low end of specification or in adequate synergistic combination or when fabrication introduces sensitization, the alloy behaves more like a mid-range stainless steel than a premium grade. Thus, failures often trace not to the family chosen but to inadequate chemical margin within that grade.
2.3. Economic Impact
Global corrosion costs are estimated at 3% - 4% of GDP [8], with process industries accounting for about USD 96.1 trillion in 2021. In USA alone, ~USD 300 billion loss are attributed to corrosion in process industry [9]. Within this, stainless-steel failures represent a significant share because of their prevalence in heat exchangers, piping, and reactors. Beyond material loss, the secondary impacts—unplanned shutdowns, contamination, and reputational damage—are disproportionately high. Each failure also erodes confidence in stainless steels as “fit-and-forget” materials, leading to costly over-specification in subsequent projects.
2.4. Need for Applied Understanding
PREN (often written as PRE, PERN, or Pitting Resistance Equivalent Number) is an empirical alloy design index used to estimate the resistance of stainless steels and related alloys to pitting corrosion derived from chemical composition—especially in chloride-containing environments like seawater or process brines. The higher the PREN value, the greater the alloy’s resistance to pitting and crevice corrosion.
Despite extensive literature on corrosion science, plant-level decision-making still relies mainly on tabulated limits and PREN values. The gap lies in applying metallurgical knowledge to practical environments: under-deposit zones, stagnant pockets, temperature excursions, and weld heat-affected regions. Bridging this gap requires a framework that couples metallurgical fundamentals with operational realities, ensuring that material selection anticipates not only nominal service but also micro-environmental extremes [4].
3. Metallurgical Fundamentals and Operational Factors
3.1. Role of Alloying Elements
The synergy among chromium, molybdenum, nitrogen, and nickel governs passive film stability and re-passivation. Chromium establishes passivity; molybdenum enhances its resilience in chloride and reducing conditions; nitrogen increases both mechanical strength and pitting resistance in duplex grades and raises pitting potential by increasing the local pH at passive film rupture sites. Nickel provides phase stability and improves resistance to stress corrosion cracking. Balanced Cr-Mo-N chemistry ensures that duplex and high-performance austenitic grades retain both passive film strength and mechanical integrity under oxygen depleted conditions.
3.2. Microstructure Stability
Microstructure governs how the alloy responds to thermal cycles and corrosive exposure:
Austenitic grades (e.g., 304, 316, 254 SMO) are fully FCC and non-magnetic, offering high ductility and toughness, but can sensitize readily if carbon or heat input is not controlled.
Duplex grades (e.g., 2205, 2507) combine ferrite (BCC) and austenite (FCC) phases in roughly equal balance. The duplex structure resists SCC and yields high strength but requires controlled heat input to avoid ferrite excess or sigma-phase precipitation.
Ferritic and Martensitic grades are stronger but less corrosion-resistant and may undergo embrittlement through sigma-phase formation at 600˚C - 950˚C.
Maintaining microstructural balance during fabrication is as critical as the initial alloy choice.
3.3. Passivity, Film Breakdown, and Re-Passivation
The hallmark of stainless steels with Austenitic structure is the formation of a thin, adherent, self-healing chromium oxide (Cr2O3) film on their surface, typically 1-5 nm thick, giving stainless steel its resistance against corrosion. The protective Cr2O3 film relies on oxygen availability. In well-aerated conditions, the film is self-healing; however, under deposits, insulation, or sleeves where oxygen diffusion is limited, the potential drops below the passivation threshold, allowing localized breakdown. Local acidification and chloride enrichment accelerate film breakdown, producing pits or crevice attack.
Molybdenum and nitrogen resist this breakdown process by strengthening the passive film and increasing the critical pitting temperature [10] [11]. By nature of the microstructure and chemical composition, duplex grades often exhibit better recovery because micro-galvanic coupling between ferrite and austenite provides localized cathodic support that resists breakdown and promotes re-passivation—an advantage not available to single-phase austenitic steels [12].
3.4. Welding and Fabrication Effects
Improper welding can negate the alloy’s inherent advantages. High inter-pass temperature or slow cooling promotes carbide and nitride precipitation in austenitic grades and phase imbalance in duplex steels. The selection of appropriate filler metals is equally critical; matching or slightly over-alloyed (except carbon) weld consumables help maintain phase balance and pitting resistance across the joint and to prevent effect of dilution. Recommended practices include:
Use of low-carbon (L) & stabilized grades when welding.
Limiting inter-pass temperature ≤ 120˚C for 304/316 series.
Solution annealing and rapid quenching after heavy welding to dissolve carbides and restore corrosion resistance.
Post-weld pickling is required to remove heat-tint oxides that act as initiation sites for corrosion.
Without these controls, even a correctly selected alloy can fail prematurely through sensitization or heat-tint pitting
3.5. Operational Factors
Operational variables frequently override nominal alloy limits including:
Temperature excursions above design cause phase changes and oxide instability.
Deposits and stagnant flow create oxygen-deprived micro-zones.
Chloride concentration multiplies under evaporation or local heating.
Mechanical stress interacts with corrosion to accelerate SCC.
Hence, stainless steel selection must integrate both metallurgical thresholds and service environment. The alloy should not only withstand the “average” condition but remain stable during localized extremes such as start-up, shutdown, or fouling episodes.
4. Methodology: Case Studies and Metallurgical Analysis
The author’s investigation over several decades shows that most stainless-steel failures stem from limited understanding of corrosion mechanisms and of how metallurgical variables interact with operating environment.
Four representative cases are summarized below; each demonstrates how seemingly minor oversights in specification or design led to major failure.
4.1. Case 1—Sea Water Carrying Heat Exchanger Tubes
Failure [13]
Service: Heat-exchanger tubes operating at 30˚C - 50˚C in seawater.
Observation: Perforation within four months of service; pinholes initiated beneath adherent deposits occur for SMO 254 tubes. There were no failures for SAF 2507 tubes running parallel under the same conditions. Figure 1 shows a perforated tube made of SMO 254 that failed. Surround the pin-hole were deposits, most were cleaned away during shutdown hydro-jetting. Figure 2 showed SAF 2507 tube material with no signs of pinholes
Metallography (Figure 3) revealed intergranular attack beneath the deposits, and Energy-dispersive X-ray spectroscopy (EDX) (Figure 4) confirmed high chloride (Cl) concentration (Figure 4). Parallel exchanger fitted with duplex SAF 2507 tubes exhibited no pitting, even though some deposits were present.

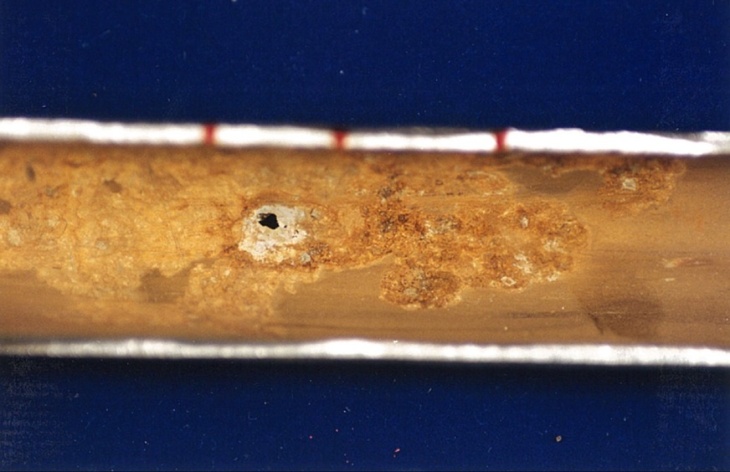

Figure 1. Perforated from under deposit corrosion inside SMO 254 tube.

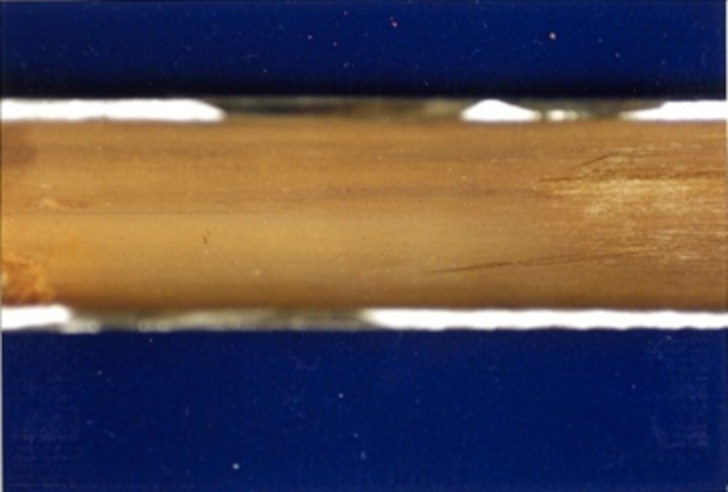

Figure 2. No signs of corrosion inside SAF 2507 tube.

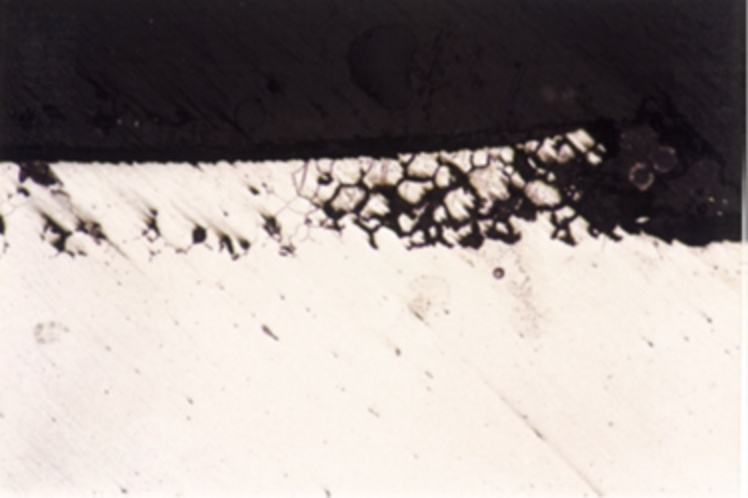

Figure 3. Cross sectional across perforated region in Figure.1 showing intergranular corrosion (200x).

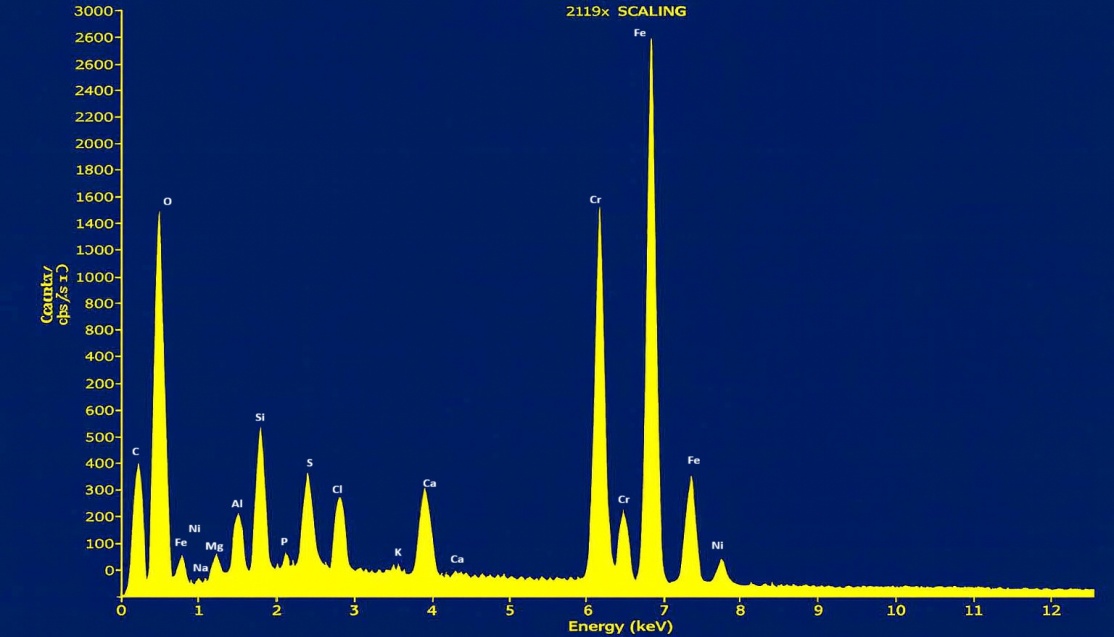

Figure 4. EDX on pitted location on SMO 254 tube showed high chloride content among other Sea Water elements.
Table 1. Data comparison between 254 SMO and SAF 2507*.
Property |
254 SMO |
SAF 2507 |
PREN (Cr + 3.3Mo + 16N) |
~ 43 - 45 |
~ 42 - 45 |
Pitting corrosion |
Excellent ≤ 35˚C |
Excellent ≤ 35˚C - 40˚C |
Crevice/under-deposit corrosion |
Good-Very good |
Good |
SCC resistance |
Excellent (fully austenitic) |
Very good-risk > 150˚C |
Weld corrosion risk |
Low |
Moderate (HAZ imbalance) |
*Data adapted from various manufacturer datasheets and published technical sources.
Despite similar PREN values (Table 1), 254 SMO failed sooner because its single-phase austenitic structure could not re-passivate once oxygen was depleted. SAF 2507’s duplex micro-galvanic balance (ferrite-austenite interfaces) sustained passivity longer. In reducing, chloride-rich crevices, ferrite is less anodic and chloride diffusion slower, giving the duplex alloy greater tolerance to deposits.
Root Cause: Under deposit causing chloride concentration and poor oxygen condition resulted in passive film breakdown, pitting and perforation.
Lesson: While PREN predicts ideal passivity, real-world performance depends on microstructural buffering (see Section 6, Guideline I & Table 4) and adherence to alloying thresholds [4].
4.2. Case 2—Lone External Crack on Stainless Steel Pipe [14]
Service: Stainless steel grade 316L plant piping operating ~70˚C near the seaside.
Observation: The external crack length was much longer (Figure 5) than the inside (Figure 6). As such, the crack started beneath a plastic sleeve from external. There were no other sleeves in this pipeline and there were no other cracks found.

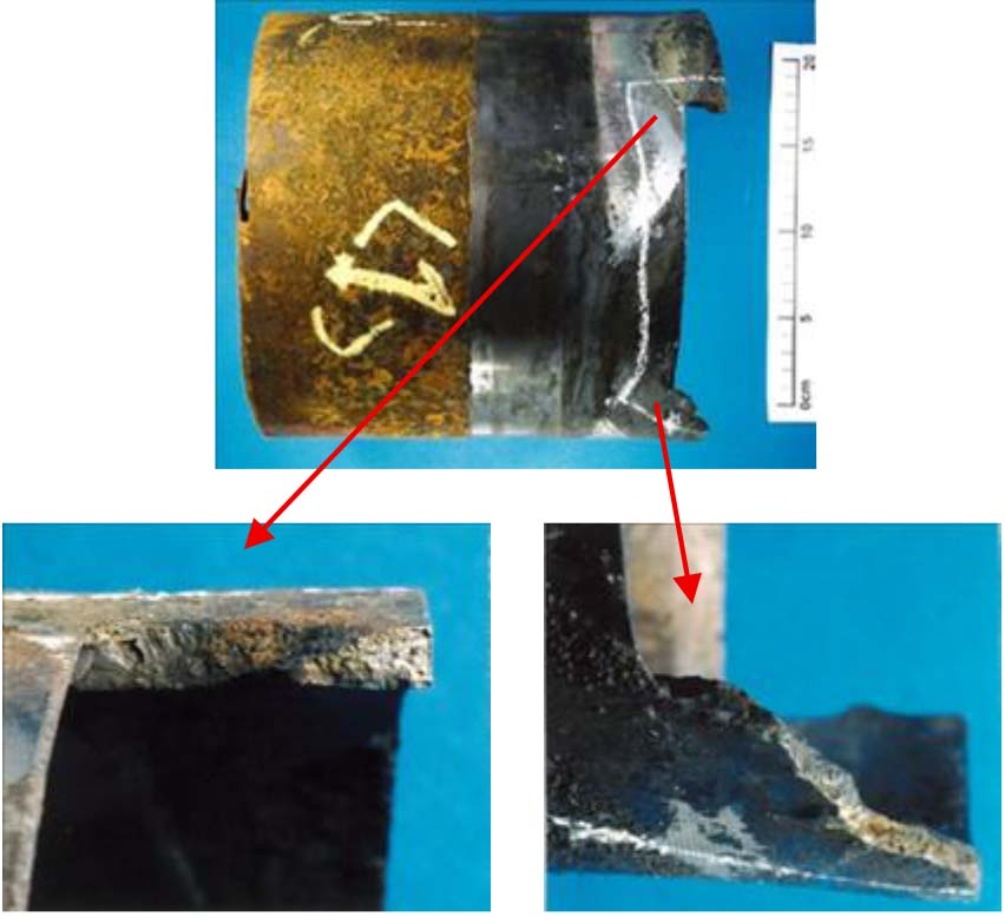

Figure 5. Pipe external showing a crack of about 25 mm with corrosion stains.
Figure 6. Pipe internal, showing a short crack of not more than 5 mm.
Microscopy showed mixed transgranular and intergranular branching cracks (Figure 7) typical of chloride SCC. Energy-dispersive X-ray spectroscopy (EDX) detected both Chloride (Cl) and Sulphur (S) on the fracture surface (Figure 8). The plastic sleeve created a crevice that trapped moisture, concentrated chloride from a marine coastal location, and excluded oxygen, transforming a normally safe environment into a reducing, chloride-rich zone.

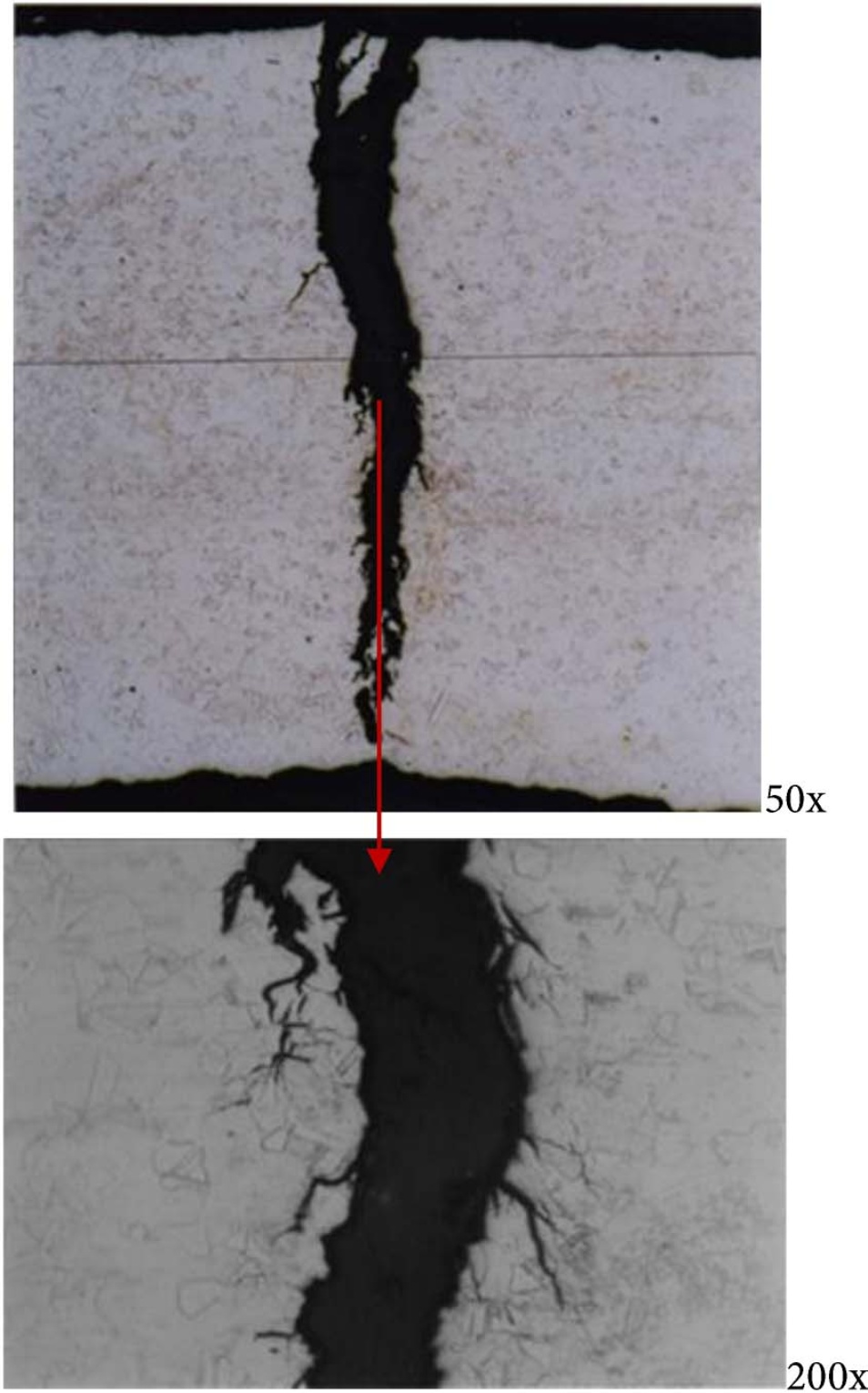

Figure 7. Mixed of trans-granular and inter-granular cracks.

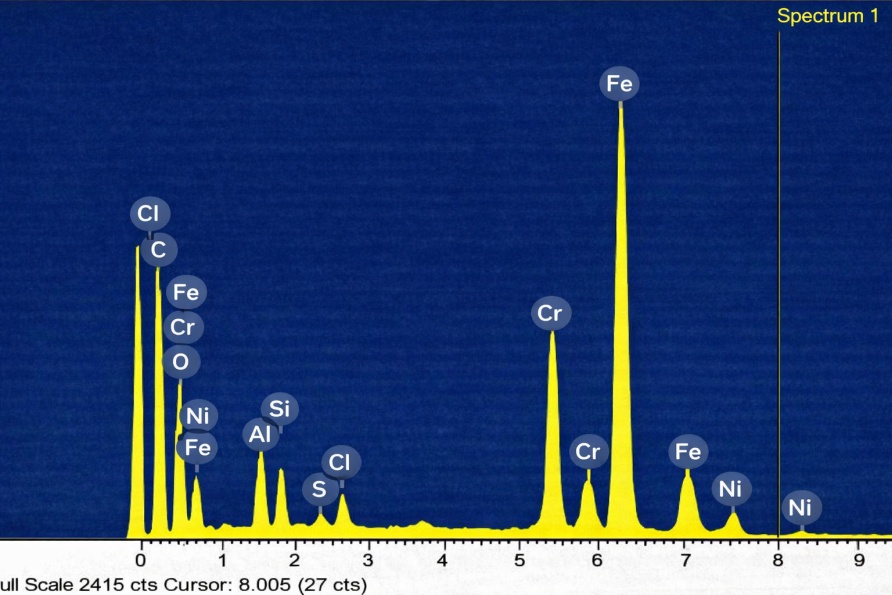

Figure 8. EDX on cracked location, showing presence of Cl, S common in marine costal environment.
Root cause: Loss of oxygen prevented passive film repair. At 50˚C - 80˚C and >100 ppm Cl⁻, 316 L is most vulnerable to SCC.
Lesson: Even an adequately alloyed stainless-steel can fail when design details (sleeves, supports, insulation) create unventilated crevices. Stainless steels must have access to oxygen to maintain passivity. Reducing environment is not for stainless steel. Plant location such as industrial area or marine coast should be part of the design and selection parameters.
4.3. Case 3—Burner Assembly Tip Failure at High Temperature
Section [15]
Service: Vent-gas burner exposed to oxidizing, carburizing, and nitriding gases; operating about 1000˚C.
Observation: Failure within three years due to severe external oxidation and internal carbide precipitation (Figure 9).

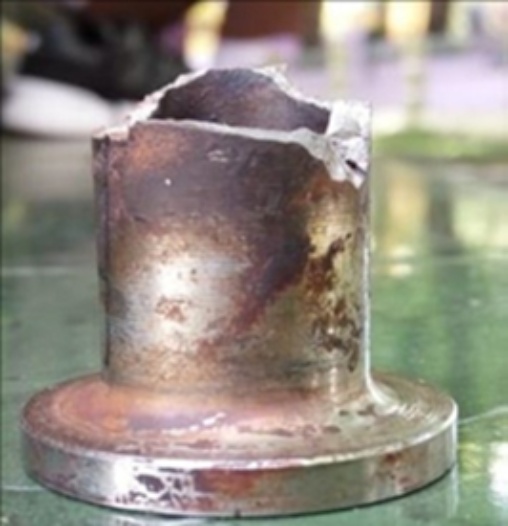

Figure 9. Photo showing failed burner with oxidized surfaces at fracture zone.
Metallography revealed a thick oxidized layer and coalesced carbide needles in the austenitic matrix (Figure 10). Energy-dispersive X-ray spectroscopy (EDX) detected Carbon (C), Oxygen (O), Sodium (Na), Silicon (Si), Sulphur (S), Chromium (Cr), Iron (Fe), and Nickel (Ni) evidence of mixed oxidation and carbon deposition (Figure 11).

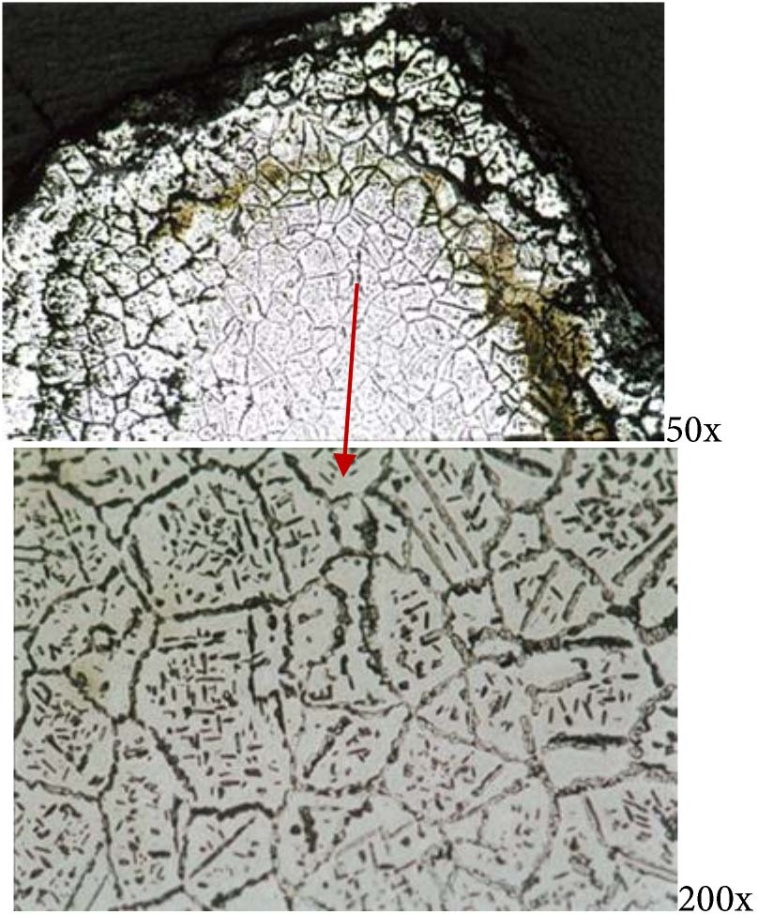

Figure 10. Metallographic on oxidized tip section on the outside with extensive precipitation and coalescence of primary and secondary carbide needles in an austenite matrix just after the oxidized outer layer.
Figure 11. EDX showed presences of C, O, Na, Si, S, Cr, Fe & Ni. Typical of stainless steel, oxidation and carbon deposits on the external of fractured surface.
Root cause: Although 310 SS is rated to 1050˚C in continuous service, running at the upper limit left no safety margin for transients such as flame impingement or carburizing excursions.
Lesson: Temperature ratings are not design targets. Materials chosen for a certain temperature application must include margin for fluctuation and gas chemistry. Moreover, materials data itself are derived from statistical studies that varies based on the range of chemicals and the process control that each batch of material. As such, when reading a data, it is essential to check whether the authors provide sample sizes, variability, and confidence in those numbers. If not, treat those percentages should be taken as approximate rather than precise.
Alternatives for this case can be 253 MA (resistance up to 1100˚C) or Ni-based RA 602 CA (resistance up to 1200˚C) offer superior oxide stability. Ultimately, Ni-based alloy would be the better choice between the two.
4.4. Case 4—HAZ Cracking of 304 Pipeline [16]
Service: CO2 pipeline; failure after ~1 year at weld heat-affected zone (HAZ).
Observation: Stress corrosion cracking (SCC) confined to darkened HAZ regions (Figure 12). Metallography on the HAZ showed sensitization with Chromium Carbides (Figure 13).
Side View [16]
Top View [16]

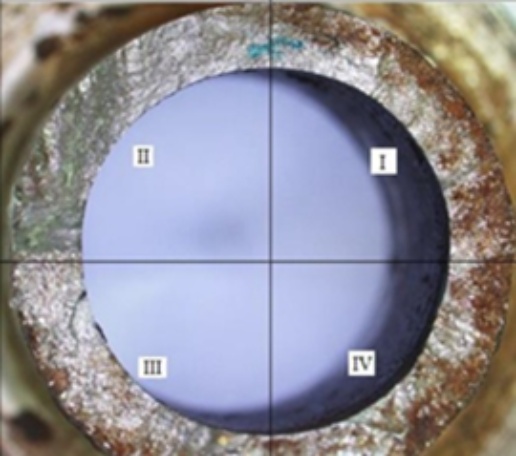

Figure 12. Photo of failed component. From the darkened zone it (I, III & IV) can be seen were areas whereby Stress Corrosion Cracking (SCC) existed in Heat affected Zone followed by final failure on the bright surface.

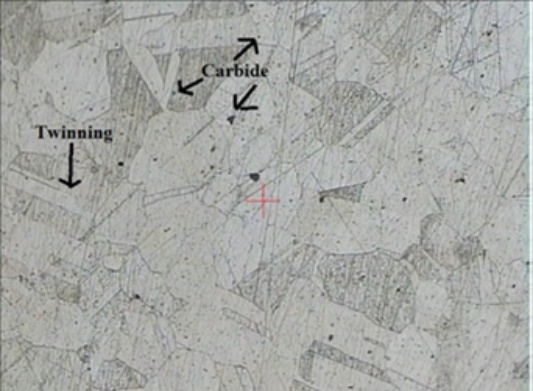

Figure 13. HAZ microstructure near failed surface with presence of Chromium Carbide [16].
Compositional test using X-ray fluorescent (XRF) analyzers was used to compared cracked and sound sections (Table 2):
Table 2. XRF analysis results.
Element |
Failed Pipe wt.% |
Sound Pipe wt.% |
Cr |
18.19 |
18.47 |
Ni |
9.79 |
9.31 |
Mo |
0.00 |
0.178 |
C |
0.05 |
0.05 |
The absence of Mo and elevated C promoted sensitization. Pipes containing even 0.178% Mo performed better; Mo stabilizes the passive film and delays Chromium Carbide formation.
Root Cause: Welding caused sensitization through chromium carbide formation at grain boundaries, weakening local corrosion resistance. The compositional difference between the failed and sound sections—particularly the presence of Mo—proved decisive.
Lesson: Fabrication control is as important as alloy choice. Using 304L (C ≤0.03 wt.%) should be the minimum specification to reduce sensitization risk; however, the absence of molybdenum in this grade limits its resistance to carbide precipitation and localized corrosion in welded zones. Specifying Mo content in line with Section 6, Guideline II, and selecting 316L provides a more robust solution—not merely as a higher-grade alloy, prevents sensitization but because its 2 wt.% - 3 wt.% Mo enhances passive film stability and delays chromium carbide formation during thermal cycling. This compositional advantage improves both fabrication tolerance and pitting resistance in service. The sound pipe that did not sensitize in this case demonstrated the metallurgical benefits of molybdenum, reinforcing the importance of alloy chemistry control as part of fabrication quality assurance.
4.5. Comparison with Industrial Data
The case studies presented above were compared with operational experiences and documented failures from similar industrial environments (Table 3) to identify recurring patterns and metallurgical consistencies.
Table 3. Industrial case studies of in-service stainless-steel failures.
Case Service |
Alloy |
Observation |
Root Cause |
Selection Insight |
Steam generator (feedwater/steam) [17] |
321 SS (X6CrNiTi18-10) |
Pitting & SCC |
Sensitization and poor water chemistry |
Use 316L (Mo + low C <0.02%). Proper Welding control |
Desalination plant (heat exch.) [18] |
316 SS (Mo 2.1 wt.%) |
Crevice, Pitting, MIC |
Low Mo, insufficient PREN |
Mo ≥wt.2.6%, PREN ≥40 |
Chemical plant piping [19] |
Duplex 2205 |
Brittle cracking |
N deficiency → ferrite-rich |
Require N ≥0.15 wt.% |
Distillation column welds [20] |
304 SS |
Intergranular corrosion |
Sensitization (C-Cr carbides) |
C ≤0.03 wt.% or stabilized grades |
Furnace Tubes [21] |
Ferritic SS |
Embrittlement |
Sigma Phase from Cr-Si |
Control Cr-Mo Balance |
Petroleum stripper trays [22] |
410S SS |
Localized corrosion & wall thinning |
Sulfide attack (NH₄HS), Cr-depleted zones |
Us Mo ≥2.5 wt.% grades (316L or duplex SS) |
Seawater [23] |
316 SS |
Crevice corrosion & MIC* |
O₂ depletion, stagnant flow |
PREN ≥40, design for flow |
*MIC should be resolved by water cleanliness and/or increasing in flow rate.
The purpose of this comparison is to consolidate the observed case findings with broader industry experience, establishing a factual basis for the discussion and interpretation that follows.
5. Discussion: Systemic Weaknesses and Lessons Learned
5.1. Key Observations from the Case Studies & Industrial Data
The four case studies demonstrate that stainless-steel failures rarely arise from incorrect material families. Instead, they occur when materials are selected by grade name or datasheet value without linking metallurgical behaviour to localized service conditions. Common patterns include:
1) Oxygen deprivation—Under-deposit or sleeved zones deprive the passive film of oxygen, leading to rapid breakdown even in high-PREN alloys.
2) Operation at the material limit—Running 310 SS exactly at its 1050˚C rating ignored temperature cycling and gas chemistry variations. Data at 1050˚C itself is only a statistical mean value.
3) Chemical margin neglect—Alloys procured below the thresholds defined in Section 6 (Guidelines II-IV) often underperform.
4) Fabrication influence—Improper welding of 304 without carbon or Mo control caused sensitization, erasing the alloy’s corrosion advantage.
The lesson is that datasheet adequacy ≠ field reliability. Failure results from the gap between theoretical design environments and micro-environments formed during actual operation.
Industrial reports show similar patterns (see Table 3). Pitting in generator (321), crevice corrosion in desalination (316 Mo = 2.1 wt.%), and cracking in 316 seawater lines all reveal insufficient Mo or oxygen access. In each case, the alloy nominally met standards but fell short under real service conditions.
Likewise, weld failures in distillation columns and pipelines mirror the sensitization observed in Case 4, confirming that fabrication controls are as critical as alloy choice.
Across sectors, these observations expose a persistent shortfall in how industry interprets metallurgical data. The use of PREN as a universal corrosion index encourages false confidence; PREN assumes full passivity and oxygen availability, which may not hold in micro-environments (see Section 6, Guideline I) [4].
5.2. Root Weaknesses in Current Practice
Causes of failure can be a very long list. However, as in Para 2.1, a significant majority of failures for stainless steel could have been prevented through better selection process and an in-depth review of the chemical composition and metallurgical behaviour of stainless steel in relation to the operating environment.
a) Specification by grade name, not by chemistry or microstructure. Alloy ranges permit wide variation; purchasing “304” or “316” without defining minimum Mo, N, or maximum C will reduce corrosion resistance and increase the risk of failure.
b) Lack of safety margin and Data Interpretation. Designers treat temperature and chloride limits as absolute rather than as boundaries needing safety allowance. The lack of appreciation that published standard data are statistical based and not a straightforward one value application.
c) Micro-environment blindness. Deposits, sleeves, and insulation create crevices far harsher than the bulk environment, yet rarely appear in design checks.
d) Fabrication disconnect. Welding, pickling, and cleaning are often delegated to contractors without explicit metallurgical control, introducing sensitization or sigma-phase risks.
Each weakness reflects not a lack of technology, but a lack of integration between metallurgy, design, and operation.
5.3. Integration of Metallurgy into Management Systems
The recurring failures outlined in this study reveal that stainless steel reliability is not solely a matter of alloy selection, but of how metallurgical knowledge is embedded-or omitted-from broader engineering and procurement systems. Material performance hinges on decisions made across multiple departments: design teams that overlook micro-environmental risks, procurement units that default to minimum-cost specifications, and fabrication contractors operating without metallurgical supervision. These are not isolated technical oversights but systemic process gaps. Bridging them requires a shift from reactive failure analysis to proactive integration of metallurgical criteria into specification protocols, vendor qualification, and quality assurance workflows. In this sense, stainless steel selection becomes a cross-functional responsibility, not just a materials engineering task.
At the project phase, engineering teams are often not directly involved in plant operations and may therefore lack detailed practical experience related to service environments. This limitation can be mitigated through the inclusion of experienced asset integrity personnel with expertise in materials engineering, corrosion, and inspection, as well as representatives from maintenance and operations. Establishing regular cross-functional review meetings between these disciplines not only helps identify material selection gaps but also provides valuable insight into operational variability, process upsets, and maintenance-related risks that may create unforeseen conditions during service. To institutionalize this approach, organizations should embed metallurgical and corrosion reviews early in the project workflow—particularly during design and procurement phases. This can be achieved by implementing revised material selection checklists, enforcing minimum alloy chemistry verification (e.g., Mo, N, and C thresholds) during procurement, and incorporating corrosion and materials specialists in design and vendor document reviews.
6. Towards a Mechanism-Based Selection Framework—Practical Selection
Building on the failure mechanisms and systemic gaps identified in Section 5, the following guidelines offer a mechanism-based framework for stainless-steel selection to reduce the risk of stress corrosion cracking, pitting, and crevice corrosion, and to assist engineers in making more informed material choices.
I. Prioritize PREN Over Nominal Grade [4]
a) Always calculate PREN: PREN = %Cr + 3.3 × %Mo + 16 × %N.
b) Specific minimum PREN that is suitable for the application.
c) Recommended minimums: brackish water ≥25; seawater/stagnant ≥40; offshore ≥45.
II. Mo Content in Austenitic (316/317/904L)
a) Spec range: 316 SS (2.0 wt.% - 3.0 wt.% Mo).
b) Mo content should be ≥2.5 wt.% for pitting and chloride rich environment. If temperature and chloride content increases beyond normal sea water, consideration should be given to increasing Mo and Cr content.
c) Recommendation: ≥2.5 wt.% Mo for seawater service [24].
III. Nitrogen in Duplex Steels (2205, 2507)
a) For 2205: ≥0.15 wt.% N ensures balanced ferrite-austenite [19].
b) For 2507: ≥0.24 wt.% N recommended.
Nitrogen, N, provides a balanced ferrite-austenite structure (50% - 50%) ensures synergistic performance—combining strength, ductility, corrosion resistance, and weldability. For corrosion purpose
When ferrite exceeds ~60%, nitrogen and nickel partitioning decline—leading to lower austenitic PREN and increased pitting susceptibility.
Conversely, if ferrite drops below ~40%, strength decreases and susceptibility to SCC increases.
IV. Carbon Control in Austenitic
a) Limit C to ≤0.03 wt.% (L grades) to prevent sensitization. Include Mo for further risk reduction.
b) Use Ti- or Nb-stabilized grades when welding unavoidable.
V. Chromium + Molybdenum Balance
a) Avoid Cr >25 wt.% without Mo ≥3 wt.% in ferritic/duplex to reduce sigma-phase risk [25].
VI. Microstructural Considerations
a) Benefits of micro-galvanic coupling as in Duplex [26].
b) Microstructure influenced Corrosion resistance within Stainless steel group:
Table 4. Microstructural contribution to corrosion resistance among stainless steel families #1 #2 [4] [27] [28].
Family |
Uniform |
Pitting/Crevice |
SCC |
Intergranular |
Ferritic |
M |
M |
E |
G (low C) |
Martensitic |
P |
P |
P |
P |
Austenitic |
E |
G-VG if Mo/N adequate |
P-M |
Variable |
Duplex |
E |
E |
E |
G |
#1: This is only for comparison. It reflects relative corrosion resistance advantages attributable to microstructural characteristics under similar service conditions. Its only one of the factors that can be considered. #2: MIC (Microbiologically Influenced Corrosion) is primarily environment-driven; microstructure has limited influence. Resistance depends mainly on surface condition, flow dynamics, and fluid chemistry, rather than alloy family. E—Excellent, H—High, M—Moderate, G—Good, P—Poor, V—Very.
Table 4 is only a comparative advantage between different microstructure. All things equal, the microstructure provides an advantage. For example, Type 446 ferritic stainless steel (26% Cr) demonstrates better uniform corrosion resistance than 304 SS in boiling 65% nitric acid [4] despite ferritic is moderate and austenitic is excellent in Table 4. Case 1 would be an example of both Austenitic and Duplex having the same PREN. The Austenitic grade failed and Duplex survived due to micro-galvanic support in ferrite-austenite microstructure. The advantage of microstructure should have been taken into consideration.
VII. Avoid Low-End Specs
a) Procurement must require certified minimal.
b) Example 316 ≥2.6 wt.% Mo, or 2205 ≥0.16 wt.% N.
In addition to the above, another critical consideration should be inter-chemical element synergies. The suggested minimum values are given below and they should be increases based with increasing concentration of corrosive elements and temperature.
A) Cr-Mo synergy: ≥18 wt.% Cr + ≥2.5 wt.% Mo for chloride resistance to pitting and crevice. Mo stabilizes the film and re-passivation process.
B) Ni-N synergy: Austenitic stability need ≥8% Ni + ≥0.12% N; duplex ≥0.15% N (balance of 50% - 50%).
C) C-Cr balance: ≤0.03 wt.% C prevents sensitization.
D) Cr-Si high-temp control: Si ≤0.75 wt.% in Cr-rich steels to avoid sigma-phase.
E) Mn-N: Mn ≥2 wt.% required when N >0.2 wt.% to prevent blowholes in casting.
F) Cr-Ni synergy: ≥18 wt.% Cr + ≥8 wt.% Ni for oxidizing acids.
G) Cr-Mo-Ni synergy: as in point a) above, Mo stabilizes and accelerates the re-passivation while Ni increase the resistance/stability as in point; b) These three provides a good combination for higher resistance to pitting and crevice
With the minimum explained above, when a grade of stainless steel is selected or when considering the selection between various grades, these considerations can be applied and a certified minimal must be stated in the procurement document instead of just the grade.
This approach converts metallurgical insight into actionable engineering requirements. It shifts focus from “selecting stainless steel” to designing the alloy-environment system.
6.1. From Alloy Choice to System Design
The recurring failures reviewed here demonstrate that stainless steel is not a “fit-and-forget” material but a responsive system whose durability depends on oxygen availability, temperature, chemistry, and workmanship.
A mechanism-based selection framework—grounded in elemental synergies, microstructural behaviour, and fabrication sensitivity—offers a more reliable path forward. However, implementing such a framework requires more than technical awareness; it demands organizational change. Reliability improves when metallurgical insight is institutionalized across design, procurement, and fabrication practices.
6.2. Institutionalizing Metallurgical Control in Practice
To ensure consistent application of these metallurgical thresholds and prevent recurrence of past failures, it is recommended that organizations develop a standardized stainless-steel material selection and verification procedure, supported by a formal review checklist. The checklist should guide engineering, procurement, and integrity teams through critical verification steps, including:
A) Alloy specification (see Section 6.1): Confirm grade designation and verify minimum Mo, N, and C thresholds relevant to service environment.
B) Metallurgical balance (see Section 3.1 and 6.1): Ensure adequate Cr-Mo-N synergy and PREN compliance, microstructural influence especially for duplex and high-alloy steels.
C) Fabrication and welding controls (see Section 3.4 and 4.4): Review weld procedures, inter-pass temperature limits, and post-weld treatments such as pickling and solution annealing.
D) Service-environment compatibility (see Sections 2.3 and 4.2): Assess chloride content, oxygen availability, temperature, and flow conditions against alloy tolerance, including upset conditions.
E) Inspection and maintenance integration (see Section 5.3): Define inspection intervals, passivation needs, maintenance practices and failure feedback mechanisms for continuous improvement.
F) Cross-functional review (see Section 5.3): Involve materials, corrosion, operations, and maintenance specialists early—design and procurement stage.
G) Industrial failure learning (see case analyses in Section 4): Review in-house, field and published failures to extract lessons on alloy behavior and integrate them into updated specifications.
Institutionalizing these checkpoints transforms stainless-steel selection from a single-point engineering decision into a systematic control process, bridging metallurgical principles with operational reliability and reducing life-cycle risk across industrial assets.
7. Conclusions
This study confirms that the predominant causes of stainless steel failure are associated with chloride-induced stress corrosion cracking, pitting and crevice corrosion, and microstructural sensitization influenced by fabrication conditions. The findings emphasize the critical importance of maintaining chemical composition thresholds and implementing controlled welding practices to mitigate such failures. Integrating metallurgical insight with field-specific operating conditions in material specification is essential to ensuring long-term service reliability.
Although specifying precise alloy chemistries and enforcing strict fabrication controls may increase initial project costs, these measures provide substantial long-term savings by preventing premature failures, unplanned downtime, and costly replacements. Industry data indicate that unplanned downtime in oil and gas operations can cost up to USD 200,000 per hour (MaintainX Editorial Team, 2025) [29], underscoring the economic value of improved material selection and fabrication control in mitigating corrosion-related failures. In downstream operations, even a single day of shutdown—including repair and decontamination—can easily exceed this figure, rendering the initial cost increase comparatively insignificant.
Future research should focus on real-time monitoring and predictive maintenance strategies to further minimize unplanned failures in corrosion-prone environments and strengthen the link between metallurgical design and operational reliability.
