Helicobacter pylori Seroprevalence among Students: A Case Study of the Higher Institute of Medical Techniques of Lubumbashi and the University of Lubumbashi

Abstract

The WHO lists H. pylori as one of the 20 pathogens that pose the greatest threat to human health due to their antibiotic resistance and classifies it as a Group 1 gastric carcinogen, directly linked to stomach cancer. This study aimed to determine the prevalence of H. pylori infection among students in Lubumbashi and to test the associations between serological results and sex, age, and the presence of gastritis attack. This was a descriptive cross-sectional study conducted from March 14, 2024, to July 25, 2025, among 485 students from UNILU and ISTM in Lubumbashi. We included students with or without gastritis attack and those not receiving any antibiotic therapy, regardless of age or sex. Data were entered into Excel 2016 and processed using SPSS 23 software. Serological analyses were performed using Accurate’s H. pylori Ab Rapid Test Strip (One Step Dipstick Test), a 50-kit sample. The female sex had a slight predominance over the male sex at 52.99%, representing a sex ratio of 0.887. The subjects’ ages varied between 19 and 45 years, with an average of 25 ± 5 years. The prevalence of H. pylori infection was 77.94%, where 15.46% of cases did not have a gastritis attack. None statistically significant association was found between H. pylori test results and sex, Pearson’s chi-squared = 0.024 (p = 0.878) and Fisher’s exact test = 0.913; between H. pylori tests and gastritis attack, Pearson’s chi-squared = 0.344 (p = 0.558) and Fisher’s exact test = 0.587; nor between the positive tests and age, with binary logistic regression (OR = 0.978, [95% CI: 0.943 - 1.015], p = 0.235). Congolese students in general, and those in Lubumbashi in particular, face several constraints during their studies, including stress, dietary imbalance, self-medication, overcrowding, etc., which are also factors that promote H. pylori infection.

Share and Cite:

Kimuni, K.C., Kamb, A.M.R., Mavila, M.N., Ndaya, K.A., Kalenga, M.P., Ndete, L.N., Numbi, M.G. and Kasamba, I.E. (2025) Helicobacter pylori Seroprevalence among Students: A Case Study of the Higher Institute of Medical Techniques of Lubumbashi and the University of Lubumbashi. Open Access Library Journal, 12, 1-11. doi: 10.4236/oalib.1114616.

1. Introduction

Helicobacter pylori (H. pylori) infection is a public health problem according to the World Health Organization (WHO) [1]. The WHO lists it as one of the 20 pathogens that pose the greatest threat to human health due to their antibiotic resistance [2] and classifies it as a Group 1 gastric carcinogen, meaning it has a direct link to stomach cancer [3]. H. pylori colonizes the human stomach and has received increasing attention over the past 40 years [4]. This bacterium was discovered by Marshall and Warren in 1982. It is a Gram-negative, curved, microaerophilic bacterium [5]. H. pylori infection has a prevalence of 80% to 90% in some populations [4]; 37.1% in the United States [6] 7% inEurope, 85% in America, 94% in Asia and 23% in Oceania [3], 44.2% in Chinacontinental [7] and 91% in Africa and 74% in the Democratic Republic of Congo [3]. Transmission occurs via the oral-oral and fecal-oral routes, either directly or indirectly through saliva, food bolus, and contaminated drinking water, with an interhuman and interfamilial character favored by promiscuity, a worrying socioeconomic level, and very precarious hygienic conditions [8]. The infection is usually contracted very early in childhood but it generates complications during adulthood, as the bacterium can remain asymptomatic for decades [9]. According to the 2010 Maastricht consensus conference on Helicobacter pylori, it manifests itself through epigastric pain, dyspepsia, vomiting (sometimes persistent), chest heaviness making the differential diagnosis with Gastroesophageal Reflux Disease (GERD), Hiatal Hernia, weight loss, fever, night sweats, progressive dysphagia, odynophagia, hematuria and melena. It is complicated by anemia, jaundice, lymphadenopathy, unexplained abdominal mass, either gastric, duodenal or gastroduodenal ulcer, either gastric, duodenal or gastroduodenal cancer, upper gastrointestinal bleeding, unexplained iron deficiency anemia, idiopathic thrombocytopenic purpura and growth retardation in children [3]. The study was initiated following reports of gastric attacks among students during classes. Therefore, this study aims to determine the prevalence of H. pylori infection among students in Lubumbashi and to test the associations between serological results and sex, age, and the severity of gastritis attacks.

2. Materials and Methods

This was a descriptive cross-sectional study conducted from March 14, 2024, to July 25, 2025, among students at the University of Lubumbashi (UNILU) and the Higher Institute of Medical Techniques of Lubumbashi (ISTM/Lubumbashi). The sampling method was convenience sampling, with 485 blood samples collected from students who agreed to participate in the study, with or without gastric attacks and without any antibiotic treatment, across all ages and sexes. Anonymity and confidentiality were guaranteed. Data were entered into Excel 2016 and processed using SPSS 23 software, with descriptive data analysis performed. The chi-square test was used to compare qualitative variables, and binary logistic regression was used for qualitative and quantitative variables with a significance level of p < 0.05. Data on sex, age, origin, and gastric crisis status were collected from pre-established forms. Serological analyses were performed at the ISTM/Lubumbashi Application Laboratory using Accurate’s H. pylori Ab Rapid Test Strip (One Step Dipstick Test), 50-kit pack. Batch: 20231220; EXP: 20261219.

The H. pylori Ab Rapid Test Strip (whole Blood/Serum/Plasma) is a rapid chromatographic immunoassay for the qualitative detection of antibodies to H. pylori in whole blood, serum or plasma to aid in the diagnosis of H. pylori infection. The H. pylori Ab Rapid Test Strip (whole Blood/Serum/Plasma) is a qualitative membrane device based immunoassay for the detection of H. pylori antibodies in whole blood, serum or plasma. In this test, specimen or specimen followed by buffer is added to the specimen well of the Test Strip. The specimen migrates chromatographically along the lenght of the test strip container within the device and interacts with the reagents on the strip. If the specimen contains H. pylori antibodies, a colored line appear in the test line region indicating a positive result. The presence of this colored band indicates a positive result, while its absence indicates a negative result. If the specimen does not contain H. pylori antibodies, a colored line will not appear in this region indicanting a negative result. To serve as a procedural control, a colored line will always appear at the control line region indicating that the proper volume of specimen has been added and membrane wicking has occurred. Procedure: Allow the Test Strip, specimen, buffer, and/or controls to equilibrate to room temperature (15˚C - 30˚C) prior to testing. Remove the Test Strip from the foil pouch and use it as soon as possible. Best results will be obtained if the assay is performed within one hour. Place the Test Strip on a clean and level surface. Hold the dropper vertically and transfer 2 drops of serum or plasma or 3 drops of whole blood to the specimen pad of the test strip, the add 1 drop of buffer and start the timer. Wait for the red line (s) to appear. The result should be read at 10 minutes. Do not interpret the result after 20 minutes.

Interpretation of results: Positive result: A colored band appears in the control band region (C) and another colored band appears in the T band region. Negative result: One colored band appears in the control band region (C). No band appears in the test band region (T). Invalid result: Control band fails to appear. Results from any test which has not produced a control band at the specified reading time must be discarded. Please review the procedure and repeat with a new test. If the problem persists, discontinue using the kit immediately and contact your local distributor. Limitations of the test: The H. pylori Ab Rapid Test Strip (whole Blood/Serum/Plasma) is for in vitro diagnostic use only. The test should be used for the detection of H. pylori antibodies in whole blood, serum or plasma specimens only. Neither the quantitative value nor the rate of increase in H. pylori antibody concentration can be determined by this quantitative test. The H. pylori Ab Rapid Test Strip (whole Blood/Serum/Plasma) will only indicate the presence of H. pylori antibodies in the specimen and should not be used as the sole criteria for the diagnosis of H. pylori infection. As with all diagnostic tests, all results must be interpreted together with other clinical information available to the physician. If the test result is negative and clinical symptoms persist, additional testing using other clinical methods is recommanded. A negative result does not at any time preclude the possibility of H. pylori infection. Performance characteristics at 95% Confidence Interval: Relative sensitivity: >95.0 % (90.0% - 97.9%). Relative specificity: >95.7% (92.3% - 97.9%). Overal Agreement: >95.4% (92.8% - 97.3%). Conservation: 2˚C - 30˚C (36˚F - 86˚F) [10]-[17].

3. Results

The female sex had a slight predominance over the male sex of 52.99% (257 cases); i.e. a sex ratio of 0.887 (n = 485) (Figure 1).

Overall, 36.91% (179 cases) of cases came from the Kampemba commune and 20% (97 cases) from the Annexe commune (n = 485) (Figure 2).

Overall, the subjects’ age groups from 19 to 45 years, with an average of 25 ± 5 years. 54.64% (265 cases) of subjects were in the age groups ranging from 19 to 24 years and 29.69% (144 cases) in those ranging from 25 to 30 years (n = 485) (Figure 3).

Many subjects exhibited gastritis attack at 79.59% (386 cases) (n = 485) (Figure 4).

The prevalence of H. pylori infection was 77.94% (378 cases) (n = 485) (Figure 5).

Among the positive H. pylori cases, females were slightly more numerous than males at 41.4% (201 cases), with a sex ratio of 0.88. Pearson’s chi-squared = 0.024 (p = 0.878) and Fisher’s exact test = 0.913. Therefore, there was no statistically significant association between H. pylori test results and sex (n = 485) (Figure 6).

Among those who tested positive for H. pylori, 62.5% (303 cases) experienced a gastritis attack, while 15.46% (75 cases) did not. Pearson’s chi-squared value was 0.344 (p = 0.558), and Fisher’s exact test was 0.587. Therefore, there was no statistically significant association between H. pylori test results and gastritis attacks (n = 485) (Figure 7).

Positive tests were observed across all age groups, but the 19 - 24 and 25 - 30 age groups were disproportionately affected. Binary logistic regression revealed no statistically significant association between H. pylori test results and the age of the respondents (OR = 0.978, [95% CI: 0.943 - 1.015], p = 0.235) (n = 485) (Figure 8).

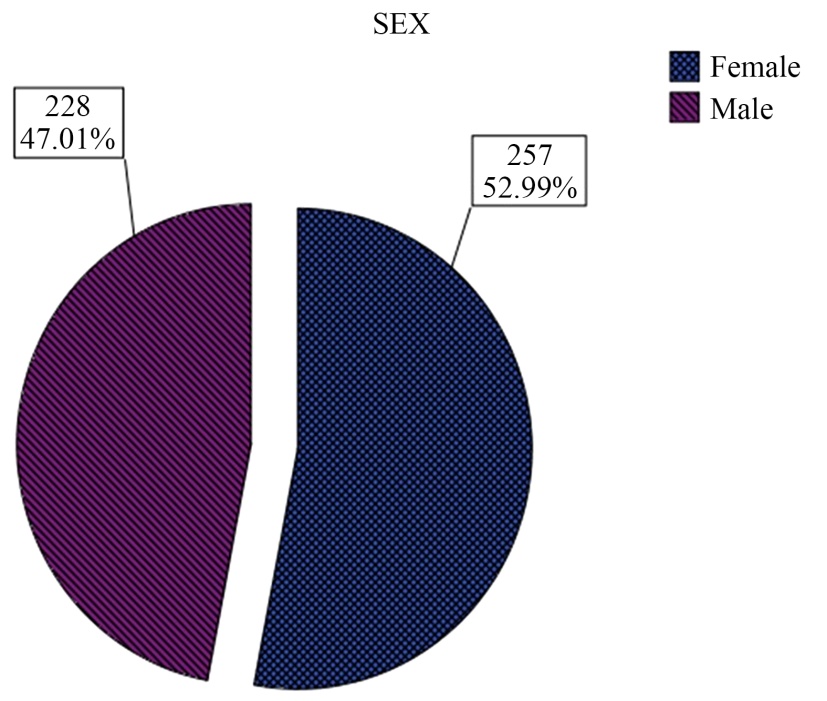

Figure 1. Distribution by sex.

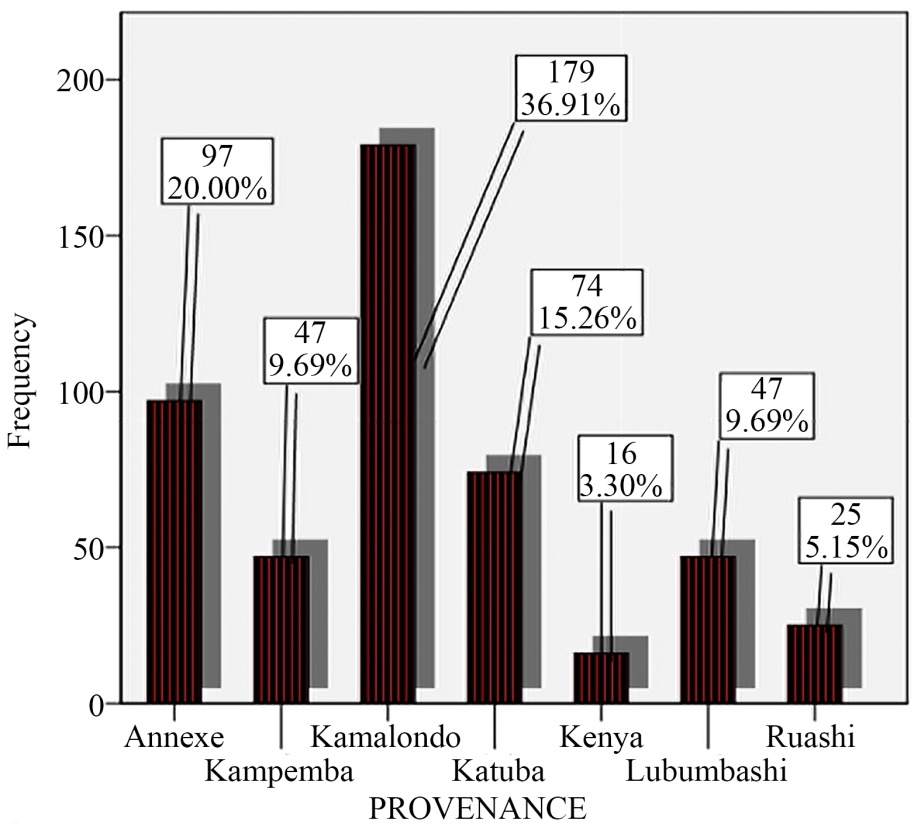

Figure 2. Distribution by provenance.

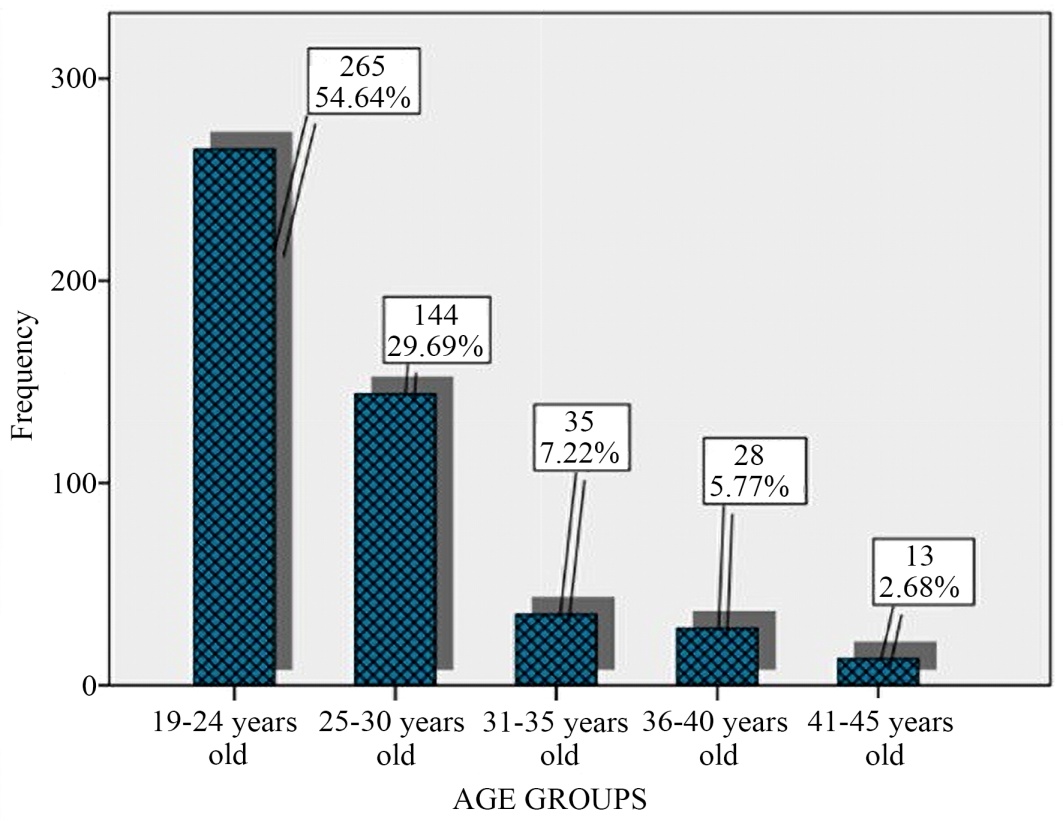

Figure 3. Distribution by age groups.

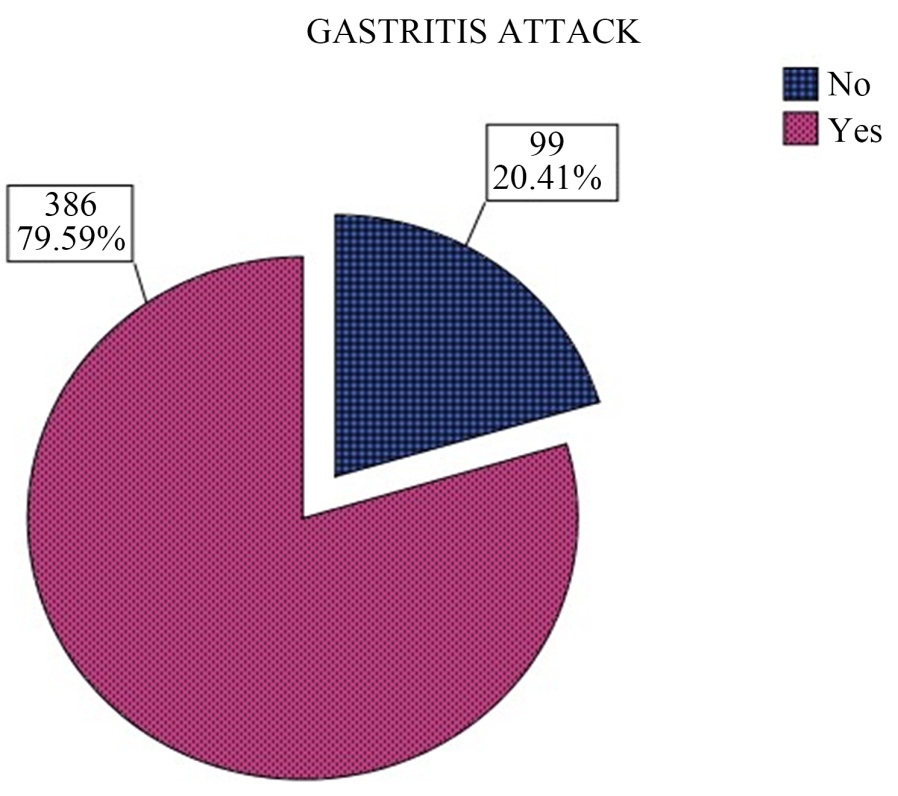

Figure 4. Distribution according to the gastritis attack.

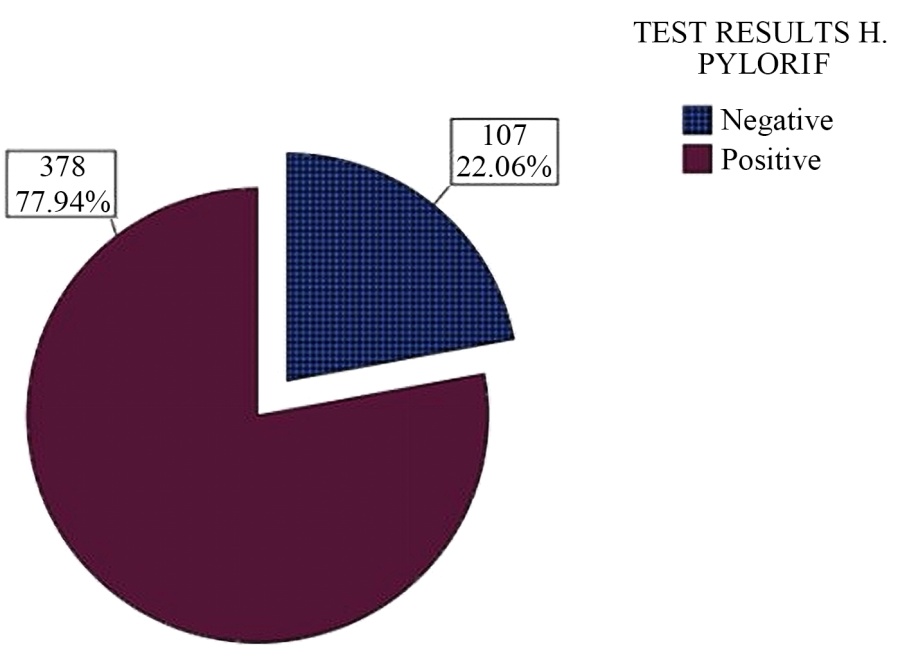

Figure 5. Distribution according test results H. pylori.

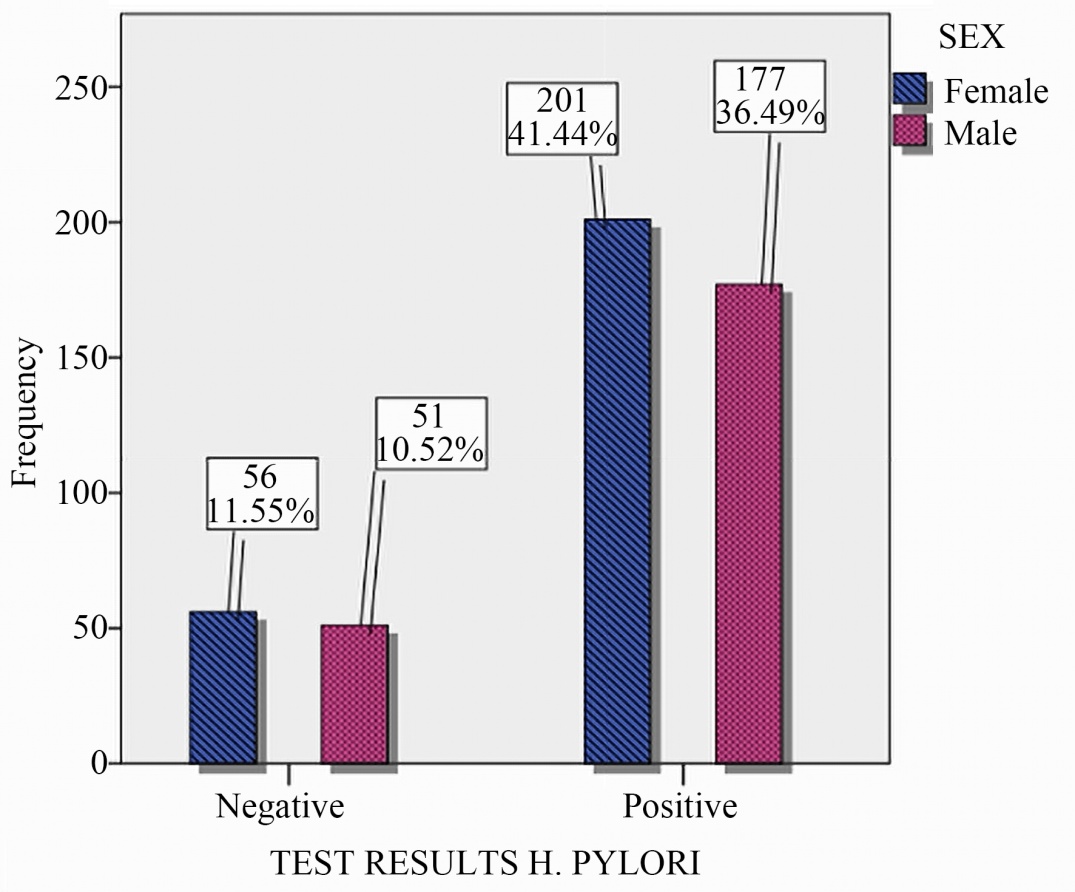

Figure 6. Expression of H. pylori test results according to sex.

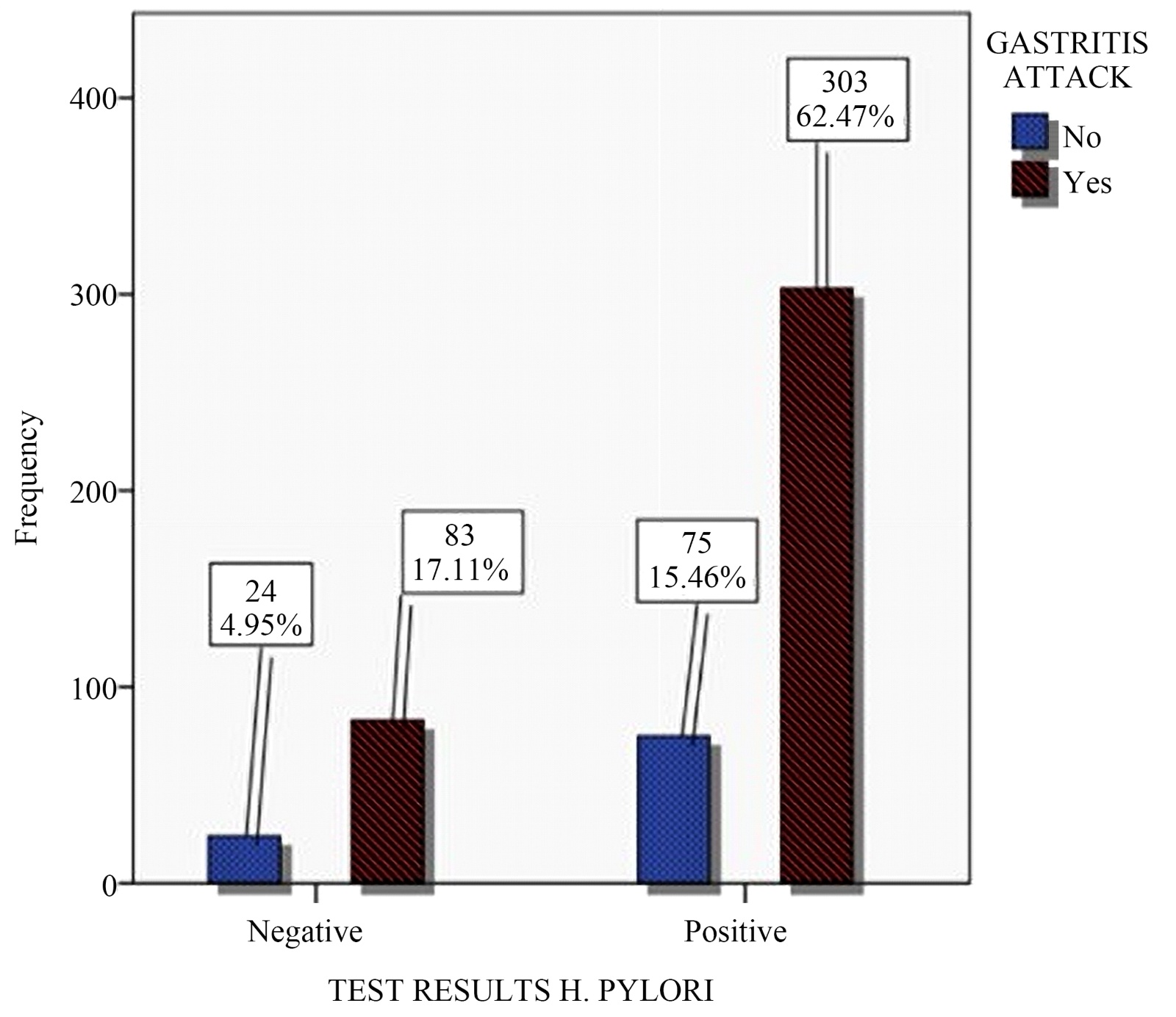

Figure 7. Expression of H. pylori test results according to gastritis attack.

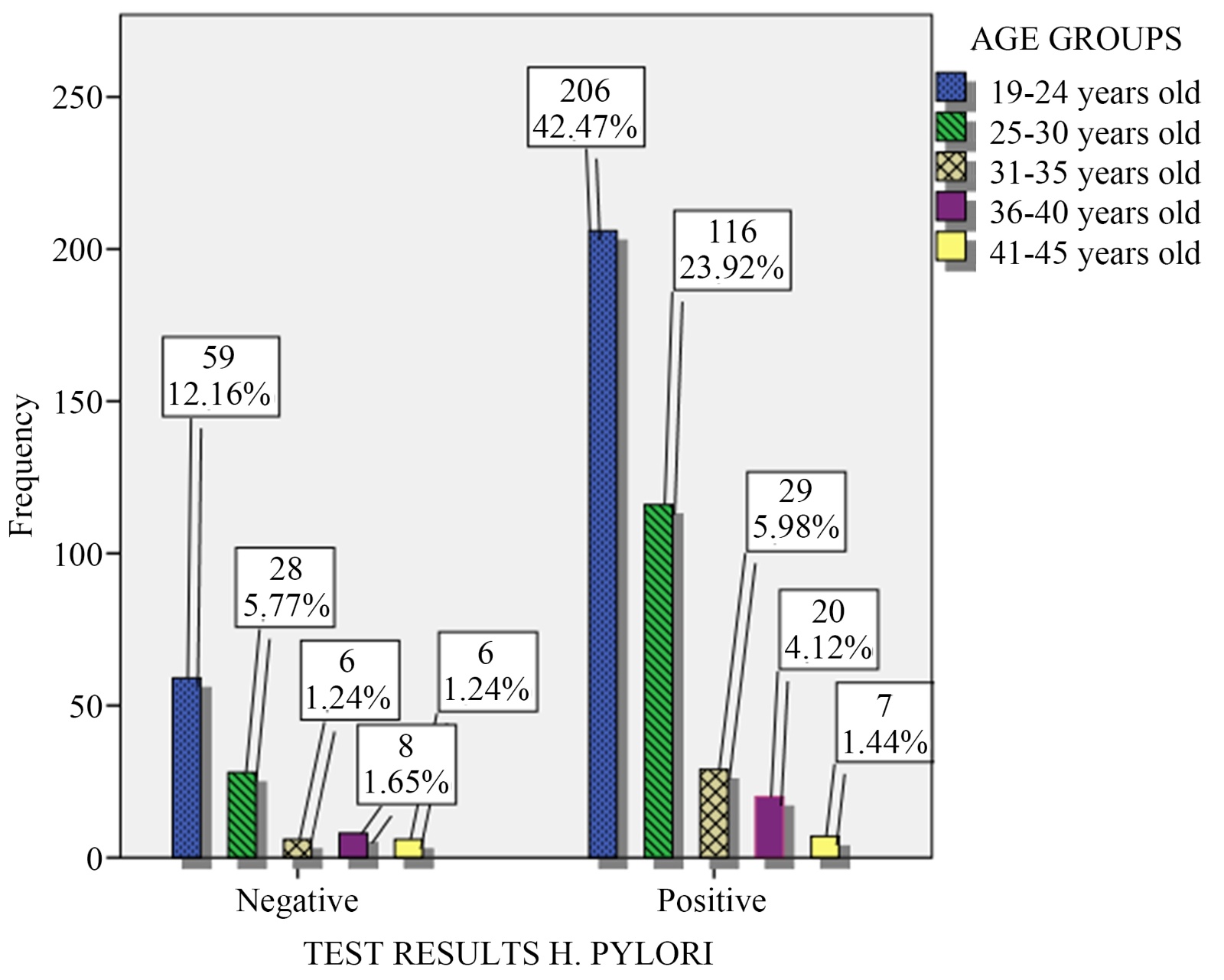

Figure 8. Expression of H. pylori test results according to age groups.

4. Discussion

In this study, the 485 respondents came from all 7 communes of the city of Lubumbashi; however 36.91% came from the Kampemba commune and 20% from the Annexe commune; then followed the other communes (Figure 2). These two communes had a high number of cases due to their size. Overall, females were in the majority at 52.99% compared to males at 47.01%; a sex ratio of 0.887 (Figure 1). This female predominance was also observed in studies carried out in the DRC by Bwira in Goma [3]; Kagoro et al. in Bunia and Mahagi commune [18] and Salumu in Bukavu [19]. And in studies carried out in some African countries, notably by Bignoumba et al. in Libreville, Gabon [1]; Ankouane et al. in Cameroon [20] and Essadik et al. in Morocco [21]. Our data differ from those found in Gaza, Palestine by Elmanama et al. [22], who found a male predominance, Mégraud et al. [17] and Replogle et al., 1995 [23]. On the other hand, Ramamampmonjy et al. [24] had found 50% men and 50% women. The age of our subjects ranged from 19 to 45 years, with an average of 25 ± 5 years. Many subjects were in the 19 - 24 age group (54.64%) and the 25 - 30 age group (29.69%). Positive tests were found across all age groups, but the 19 - 24 and 25 - 30 age groups were disproportionately affected (Figure 3 and Figure 8). Various age groups and mean ages have been found in other studies, including a mean age of 47.5 ± 14.3 years in Kinshasa [25]; the age groups 57.7% of 15 - 35 year olds in Bukavu [19]; from 31 to 50 years old at 74% in Goma [3] and between21 to 68 years old, with an average of 42.84 ± 11.11 years in Bunia [18] all in the Democratic Republic of Congo. The average age is 41.9 years in Gabon [1]; in Gaza, Palestine, the average age is 37.03 years, ranging from 13 to 77 years [22]. It should be noted that the age groups most affected in our study were the least infected in Ouagadougou, Burkina Faso [9]. In this study, 79.59% of subjects experienced a gastritis attack (Figure 4). This frequency fell between those found in Bukavu and Kinshasa, with respectively 64.95% % [7] and 80.5% [25]. The prevalence of H. pylori infection in this study was 77.94% (Figure 5). This prevalence is close to that found by Birato et al. (77.8%) in Bukavu in the Democratic Republic of Congo [26]; Ankouane et al. in Cameroon (72.5%) [27] and Ntajirabiri et al. in Burundi (70.8%) [28]; Kpossou et al. in Benin (75.4%) [29]; Olokoba et al. in Nigeria (80%) [30]. High frequencies were found by Atipo-Ibara (91%) in Congo Brazzaville [31] and Werme et al. (88.57%) in Ouagadougou [9]. Moderate frequencies were reported by Kagoro et al. (67.63%) in Bunia and Mahagi Commune [18] and Salumu (60.3%) in Bukavu [19], all in the Democratic Republic of Congo. Conversely, low frequencies were found by Bwira (11.5%) in Goma [3]; Bomba DME et al. (37%) in Kinshasa [25], all in the Democratic Republic of Congo; Bignoumba et al. (37.5%) in Libreville, Gabon [1]; and Etukudo et al. (30.8%) in Nigeria [32]; Ankouane et al. (39.8%) in Cameroon [20]; Elmanama et al. (48.3%) to Gaza in Palestine [22] and Hooi et al. (37.1%) in the United States [6]. It should be noted that the prevalence of 15.46% in this study was found among respondents without a gastritis attack (Figure 7). In contrast, Werme et al. [9] found 20% of patients with no gastric problems [9]. In this study, factors associated with H. pylori infection revealed no statistically significant association between H. pylori test results and sex (Figure 6), with a Pearson chi-square statistic of 0.024 (p = 0.878) and Fisher’s exact test of 0.913; even less so between H. pylori tests and gastritis (Figure 7), with a Pearson chi-square statistic of 0.344 (p = 0.558) and Fisher’s exact test of 0.587. Finally, no association was found between H. pylori tests and the age of the participants (Figure 8), with a binary logistic regression (OR = 0.978, [95% CI: 0.943 - 1.015], p = 0.235). These authors also found no significant association between H. pylori tests and the age of the participants. No statistically significant association was found between H. pylori infection and sex [1] [20] [29] [33]. In contrast, Ankouame et al. in Cameroon found a statistically significant association between H. pylori infection and age [20].

5. Conclusion

The study included 485 students, and the overall prevalence of H. pylori infection was 77.94%. However, the prevalence of 15.46% was attributed to students without a gastritis attack. No statistically significant association was found between H. pylori test results and the sex, presence of a gastritis attack, or age of the participants. It should be noted that Congolese students in general, and those in Lubumbashi in particular, face several constraints during their studies, including stress, dietary imbalance, self-medication, overcrowding, etc., which are also factors that promote H. pylori infection.

Authors’ Contribution

All authors contributed identically to the different phases of the research.

Conflicts of Interest

The authors declare no conflicts of interest.

References

[1] Bignoumba, P.E.I., Moussavou, I.F.M., Ziza, N., Nzouto, P.D., Saibou, M. and Kombila, J.B.M. (2019) Helicobacter pylori at the Libreville University Hospital Center: Epidemiological and Clinical Aspects of 728 Patients. Health Sciences and Disease, 20, 64-68.
https://www.hsd-fmsb.org/index.php/hsd/article/view/1241
[2] L’Observatoire Congolais de l’infection à Helicobacter pylori.
https://fondationaurore.org/wp-content/uploads/2023/01/Hp-Symposium-2023-v6-FR.pdf
[3] Bwira, F. (2020) Epidemiological, Clinical and Therapeutic Aspects of Helicobacter pylori Infection. Annals of UNIGOM, 10, 332-338.
https://pugoma.com/index.php/UNIGOM/article/view/130
[4] Sun, Q., Yuan, C., Zhou, S., Lu, J., Zeng, M., Cai, X., et al. (2023) Helicobacter pylori Infection: A Dynamic Process from Diagnosis to Treatment. Frontiers in Cellular and Infection Microbiology, 13, Article 1257817.[CrossRef] [PubMed]
[5] Ali, M., Salaou, C., Lamine Hadja Zarra, E.L.H., Adamou, F.G., et al. (2024) Prevalence of Helicobacter pylori Infection in Africa: A Literature Review (2010 to 2022).
https://jaccrafrica.com/assets/files/24JA83.010L023009_m_ali_et_al._prevalence_h_pylori_africa.pdf
[6] Hooi, J.K.Y., Lai, W.Y., Ng, W.K., Suen, M.M.Y., Underwood, F.E., Tanyingoh, D., et al. (2017) Global Prevalence of Helicobacter pylori Infection: Systematic Review and Meta-Analysis. Gastroenterology, 153, 420-429.[CrossRef] [PubMed]
[7] Ren, S., Cai, P., Liu, Y., Wang, T., Zhang, Y., Li, Q., et al. (2022) Prevalence of Helicobacter pylori Infection in China: A Systematic Review and Meta-Analysis. Journal of Gastroenterology and Hepatology, 37, 464-470.[CrossRef] [PubMed]
[8] Leja, M., Grinberga-Derica, I., Bilgilier, C. and Steininger, C. (2019) Review: Epidemiology of Helicobacter pylori Infection. Helicobacter, 24, e12635.[CrossRef] [PubMed]
[9] Werme, K., Bisseye, C., Ouedraogo, I., Yonli, A.T., Ouermi, D., Djigma, F., et al. (2015) Molecular Diagnosis of Helicobacter pylori by PCR in Patients Undergoing Gastroenterological Consultation at the Saint Camille Medical Center in Ouagadougou. The Pan African Medical Journal, 21, Article 123.
https://www.panafrican-med-journal.com//content/article/21/123/full
[10] Marshall, B.J., McGechie, D.B., Rogers, P.A. and Clancy, R.J. (1985) Pyloric Campylobacter Infection and Gastroduodenal Disease. Medical Journal of Australia, 142, 439-444.[CrossRef] [PubMed]
[11] Soll, A.H. (1990) Pathogenesis of Peptic Ulcer and Implications for Therapy. New England Journal of Medicine, 322, 909-916.[CrossRef] [PubMed]
[12] Hazell, S.L., Borody, T.J., Gal, A., et al. (1987) Campylobacter pyloridis and Gastritis I: Detection of Urease as a Marker of Bacterial Colonization and Gastritis. The American Journal of Gastroenterology, 82, 292-296.
[13] Loffeld, R.J.L.F., Vriese, W.T.J. and Stobberingh, E.E. (1993) Usefulness of Several Commercial Enzyme-Linked Immunoassays for Detection of Helicobacter pylori Infection in Clinical Medicine. European Journal of Gastroenterology & Hepatology, 5, 333-338.[CrossRef]
[14] Cutler, A.F., Havstad, S., Ma, C.K., Blaser, M.J., Perez-Perez, G.I. and Schubert, T.T. (1995) Accuracy of Invasive and Noninvasive Tests to Diagnose Helicobacter pylori Infection. Gastroenterology, 109, 136-141.[CrossRef] [PubMed]
[15] Ansorg, R., Von Recklinghausen, G., Pomarius, R. and Schmid, E.N. (1991) Evaluation of Techniques for Isolation, Subcultivation, and Preservation of Helicobacter pylori. Journal of Clinical Microbiology, 29, 51-53.[CrossRef] [PubMed]
[16] Pronovost, A.D., Rose, S.L., Pawlak, J.W., Robin, H. and Schneider, R. (1994) Evaluation of a New Immunodiagnostic Assay for Helicobacter pylori Antibody Detection: Correlation with Histopathological and Microbiological Results. Journal of Clinical Microbiology, 32, 46-50.[CrossRef] [PubMed]
[17] Mégraud, F., Brassens-Rabbé, M.P., Denis, F., Belbouri, A. and Hoa, D.Q. (1989) Seroepidemiology of Campylobacter pylori Infection in Various Populations. Journal of Clinical Microbiology, 27, 1870-1873.[CrossRef] [PubMed]
[18] Kagoro, F.B., Kibendelwa, Z.T., Agasa, S.B., Bafwa, Y.T., et al. (2024) Helicobacter pylori Infection: Epidemiological-Clinical Aspects and Associated Factors in the City of Bunia and Commune of Mahagi. Kivu Medical Journal, 2, 1-9.
[19] Salumu, P. (2022) TFC Epidemio-Clinical and Therapeutic Profile of Helicobacter pylori Infection: Retrospective Study Conducted at the PANZI General Referral Hospital from 1 January 2019 to 31 December 2020.
[20] Ankouane, F., Kowo, M., Ngatcha, G., et al. (2015) Prevalence of Helicobacter pylori Infection in 103 Patients with Gastroesophageal Reflux, Erosive Esophagitis, or Barrett’s Esophagus in Yaoundé, Cameroon. Hegel, 5, 297-303
[21] Essadik, A., Benomar, H., Rafik, I., et al. (2013) Epidemiological and Clinical Aspects of Helicobacter pylori Infection through a Moroccan Study. Hegel, 3, 163-169.
[22] Elmanama, A., Mokhallalati, M. and Abu-Mugesieb, R. (2008) Risk Factors Associated with Helicobacter pylori Infection in Gaza, Palestine. The Islamic University Journal, 16, 97-110.
[23] Replogle, M.L., Glaser, S.L., Hiatt, R.A. and Parsonnet, J. (1995) Biologic Sex as a Risk Factor for Helicobacter pylori Infection in Healthy Young Adults. American Journal of Epidemiology, 142, 856-863.[CrossRef] [PubMed]
[24] Ramamampmonjy, R., Randria, M., Razafimahefa, H.S., Ratsimandisa, R., Rajaonarivelo, P. and Rajaona, H. (2007) Seroprevalence of Infection Due to Helicobacter pylori in a Sample of the Malagasy Population. Bulletin of the Society of Exotic Pathology, 100, 57-60.
[25] Dyspepsia and Helicobacter pylori Infection in Kinshasa (DR Congo).
https://www.researchgate.net/publication/323106424_Dyspepsie_et_infection_a_Helicobacter_pylori_a_Kinshasa_RDCongo
[26] Birato, Y.C., Masimango, B.A., Katabana, D.M., et al. (2022) Risk Factors of Helicobacter pylori Infection in Bukavu, Democratic Republic of the Congo: A Case Control Study. The International Journal of Infectious Diseases, 116, 24-29.
[27] Ankouane, F.A., Noah, D.N., Tagni Sartre, M., et al. (2014) Epidemiology of Helicobacter pylori Infection in Yaoundé: From Peculiarity to African Enigma. Pan African Medical Journal, 16, 115-120.
[28] Ntagirabiri, R., Harerimana, S., Makuraza, F., et al. (2014) Helicobacter pylori in Burundi: First Assessment of Endoscopy Prevalence and Eradication. African Journal of Gastroenterology and Hepatology, 8, 217-222.
[29] Kpossou, A.R., Kouwakanou, B., Séidou, F., Saké Alassane, K., Vignon, R.K., Martin Sokpon, C.N., et al. (2020) Prevalence of Helicobacter pylori Infection and Gastric Preneoplastic Lesions in Patients Admitted for Upper Gastro-Intestinal Endoscopy in Cotonou (Benin Republic). Gastroenterology & Hepatology: Open Access, 11, 208-213. [Google Scholar] [CrossRef]
[30] Olokoba, A.B., Gashau, W., Bwala, S., Adamu, A. and Salawu, F.K. (2013) Helicobacter pylori Infection in Nigerians with Dyspepsia. Ghana Medical Journal, 47, 79-81.
[31] Atipo-Ibara, B.H., Boumba, A., Atipo Ibara Ollandzobo Ikobo, L.C., Mongo-Onkouo, A., Mimiesse Monamou, J.F., Itoua-Ngaporo, N.A., et al. (2023) Helicobacter pylori Infection: Epidemiological, Clinical and Endoscopic Aspects in Brazzaville. Open Journal of Gastroenterology, 13, 131-139.[CrossRef]
[32] Etukudo, O.M., Ikpeme, E.E. and Ekanem, E.E. (2012) Seroepidemiology of Helicobacter pylori Infection among Children Seen in Tertiary Hospital in Uyo, Southern Nigeria. Pan African Medical Journal, 12, Article 39.
[33] Itoudi, B.P.E., Maganga, M.I.F., Ziza, N., Nzouto, P.D., Saibou, M. and Moussavou, K.J.B. (2019) Helicobacter pylori at the Libreville University Hospital Center: Epidemiological and Clinical Aspects of 728 Patients. Health Sciences and Diseases, 20, 64-68.
