Machine Learning-Driven Prediction and Analysis of Magnetohydrodynamic (MHD) Natural Convection in Nanofluid-Filled Trapezoidal Cavities with Variable Obstacle Shapes, Wall Corrugations, and Inclination Angles ()
1. Introduction
Natural convection in enclosures has long been a cornerstone topic in thermal engineering, owing to its critical role in a wide range of applications, including solar thermal collectors, electronic cooling systems, and energy-efficient architectural designs [1]. These systems depend heavily on passive heat transfer mechanisms to regulate temperature and ensure operational efficiency. Over the past few decades, the performance of such systems has been significantly improved through the introduction of nanofluids engineered by dispersing nanoparticles in traditional base liquids. These nanoparticle suspensions enhance the thermophysical properties of the fluid, particularly thermal conductivity and heat capacity, thereby improving the rate and uniformity of convective heat transfer within enclosures [2] [3].
The behavior of nanofluid-based convection is not only influenced by the base fluid and nanoparticle type but also by a range of physical and geometric parameters. Studies have demonstrated that internal features such as heated bodies or obstructions, the inclination of the cavity, external magnetic fields, and specific boundary conditions all play crucial roles in shaping the flow and thermal fields [4]-[6]. For example, incorporating internal elliptical or circular obstacles within a square cavity with a wavy top wall has been shown to disrupt conventional flow patterns, resulting in enhanced mixing and heat transfer [7]. These findings highlight the importance of internal geometry and boundary configuration in optimizing convective behavior.
As engineering systems continue to increase in complexity, particularly in microscale and compact heat exchanger designs, the use of nanofluids in non-standard and irregular enclosures has attracted growing research attention. Among the computational tools employed, the Finite Element Method (FEM) stands out for its capacity to handle complex boundaries and heterogeneous materials with high numerical precision [8]. FEM-based simulations allow detailed resolution of the velocity, temperature, and pressure fields in domains where analytical or simplified numerical methods fall short. However, the primary limitation of FEM is its high computational cost, especially when applied to broad parametric studies or real-time optimization tasks.
To address this limitation, Machine Learning (ML) has emerged as a powerful and complementary approach. By training on datasets generated through high-fidelity simulations such as FEM, ML models can serve as surrogate predictors that provide fast and accurate estimations of thermal behavior without the need for solving complex differential equations repeatedly [9]-[11]. In particular, ML has proven effective in predicting nanofluid thermal properties and convective performance across various geometrical and operational settings [12]. Motivated by these developments, the current study proposes a hybrid framework that integrates FEM and ML to analyze the heat transfer characteristics and entropy generation in trapezoidal cavities filled with Cu-H2O nanofluid and containing internally heated star-shaped, square, and triangular obstacles. The framework also incorporates magnetohydrodynamic (MHD) effects by applying external magnetic fields across the cavity.
The geometry of internal obstacles has a pronounced impact on fluid motion and heat transfer. Shapes such as circular, elliptical, square, and triangular affect vortex formation, thermal gradients, and Nusselt number distribution, all of which contribute to the overall thermal resistance of the system [13]-[17]. Furthermore, the number, placement, and orientation of these obstacles also influence entropy generation and convective flow structure [18] [19]. Another critical factor is the inclination of the cavity itself. Varying the inclination angle modifies the effective direction of buoyancy forces, thereby altering flow intensity, thermal stratification, and energy dissipation due to thermodynamic irreversibility [20]-[24]. Some studies have even identified specific inclination angles that optimize thermal efficiency by enhancing heat transfer while suppressing entropy production [25].
External magnetic fields introduce yet another layer of control, quantified by the Hartmann number. The Lorentz force generated by these fields tends to suppress fluid motion, shifting the heat transfer mechanism from convection-dominated to conduction-dominated regimes [26]-[31]. However, when optimized, MHD effects can lead to improved temperature uniformity and thermal regulation, especially in electrically conducting nanofluids like Cu-H2O [32].
Beyond internal obstacles and magnetic fields, wall modifications such as introducing wavy or corrugated top boundaries have also been shown to disrupt the thermal boundary layer, generate secondary vortices, and amplify convective mixing [33]-[36]. These geometric perturbations further contribute to enhanced heat transfer and entropy management, underscoring the multifactorial nature of natural convection in nanofluid-filled cavities.
Recent studies have demonstrated the effectiveness of machine learning (ML) in modeling complex heat transfer phenomena. ML has been used to predict radiative nanofluid behavior [37], replace CFD for forced convection with high accuracy and efficiency [35], and estimate Nusselt numbers in natural convection within helical coils [38]. ML models have also shown strong predictive power in systems involving counter-rotating cylinders [39] and microchannel heat sinks with complex geometries [40]. These efforts support the use of ML in capturing nonlinear thermal behaviors, complementing conventional numerical methods.
The present study aims to bridge this research gap by developing a machine learning-driven predictive framework trained on FEM-generated simulation data to model the coupled effects of magnetic field intensity, wall corrugation, obstacle geometry, and inclination angle on heat transfer, entropy generation, and overall thermal performance in Cu-H2O nanofluid-filled trapezoidal cavities. By combining the precision of FEM with the computational efficiency of ML, this work provides a hybrid platform for accurate, fast, and scalable analysis of MHD natural convection, thereby contributing to the advancement of intelligent thermal management and optimization systems.
2. Materials and Methods
This study explores natural convection and entropy generation in a two-dimensional trapezoidal enclosure filled with a Cu-H2O nanofluid (φ = 0.02). The trapezoidal cavity features a fixed base angle of γ = 15˚ and is inclined at angles λ = 15˚, 30˚, and 45˚ to investigate the influence of gravitational orientation on thermal and flow characteristics. Two internal heat-generating solid obstacles, designed as star, square, or triangle shapes, are symmetrically embedded at the center of the cavity. The top boundary is geometrically modified using sinusoidal, square, or triangular corrugations to assess the impact of surface undulations on convective flow. Figures 1-3 illustrate these configurations.

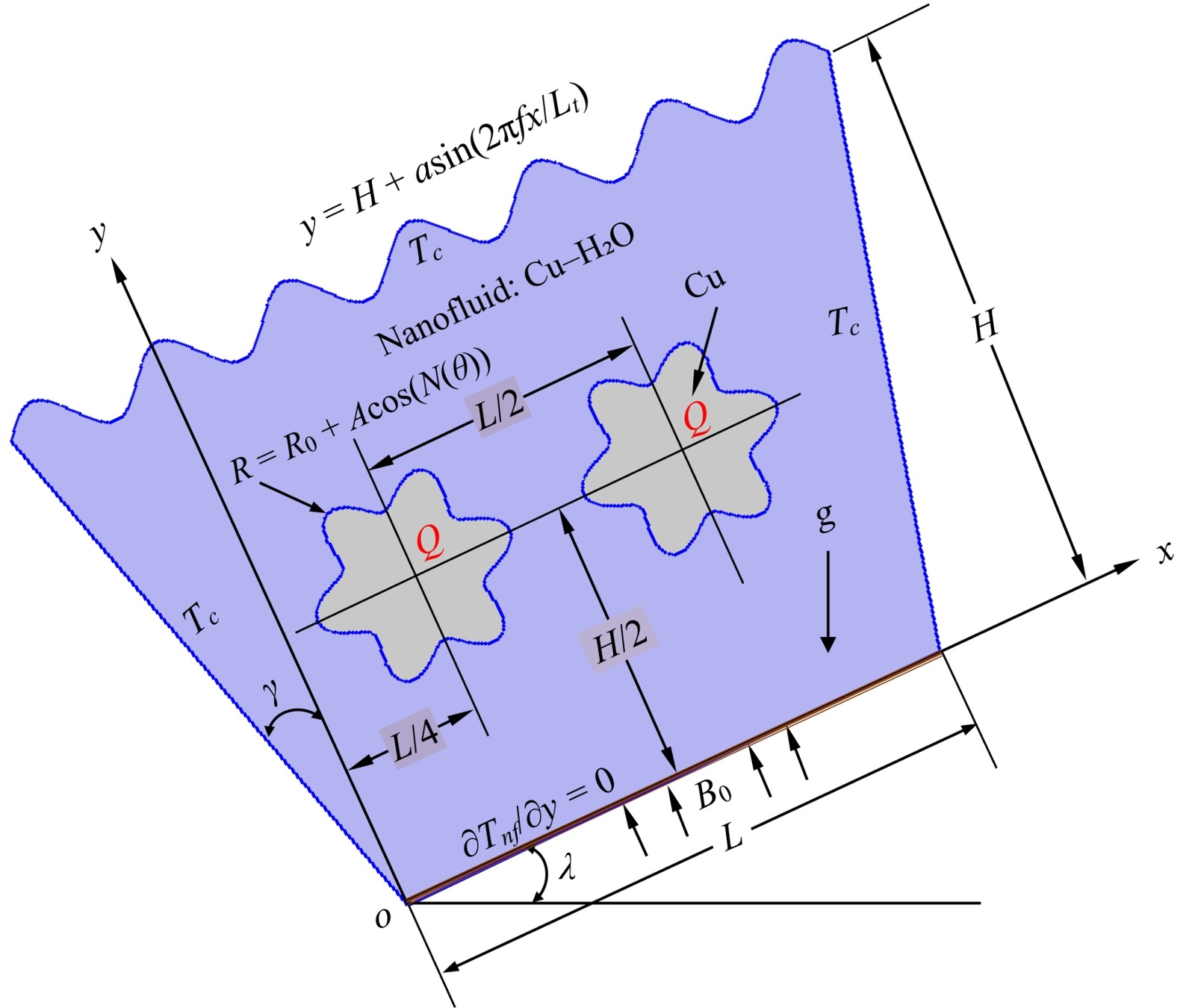

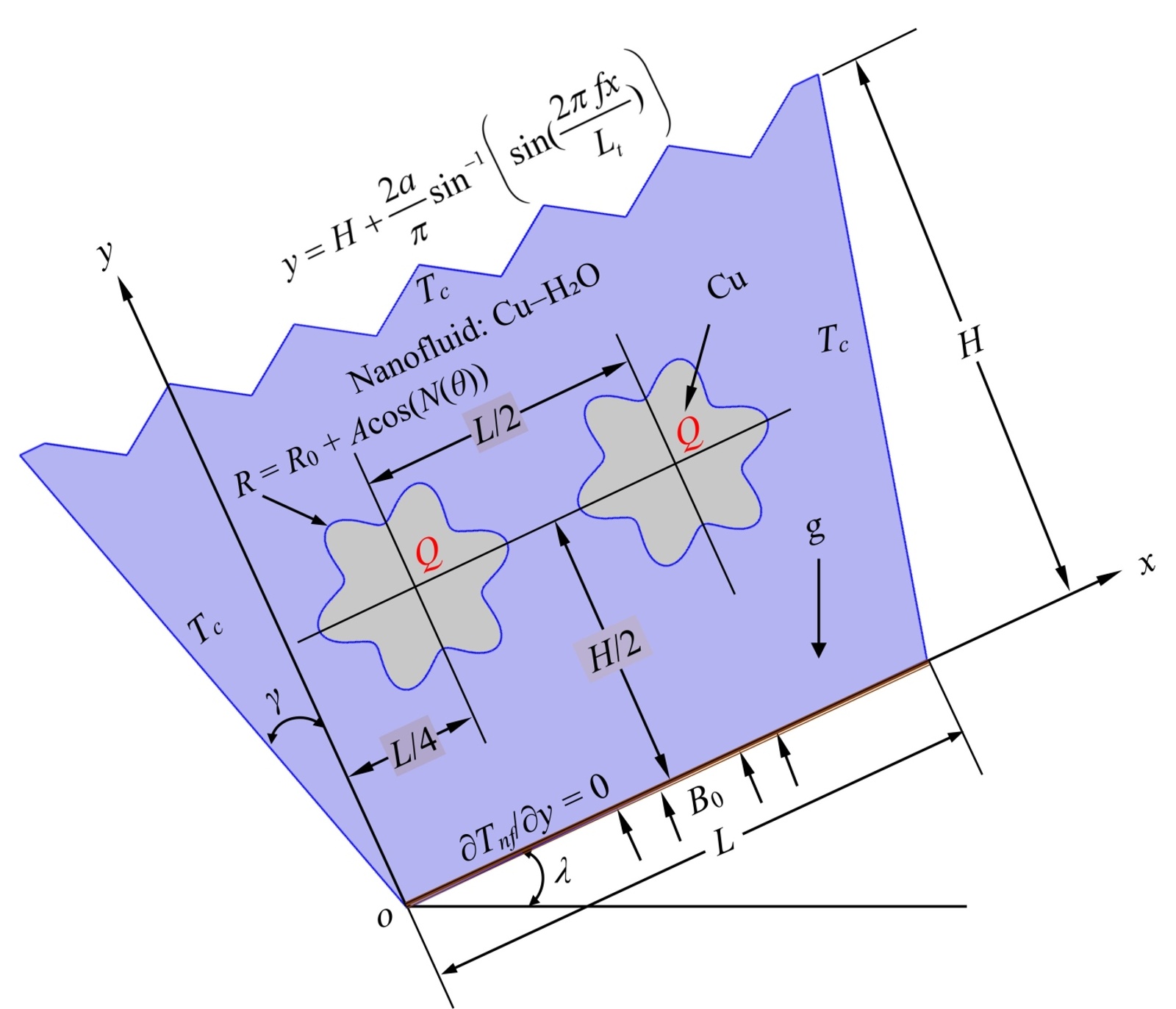

Figure 1. Different geometry with sinusoidal corrugation.

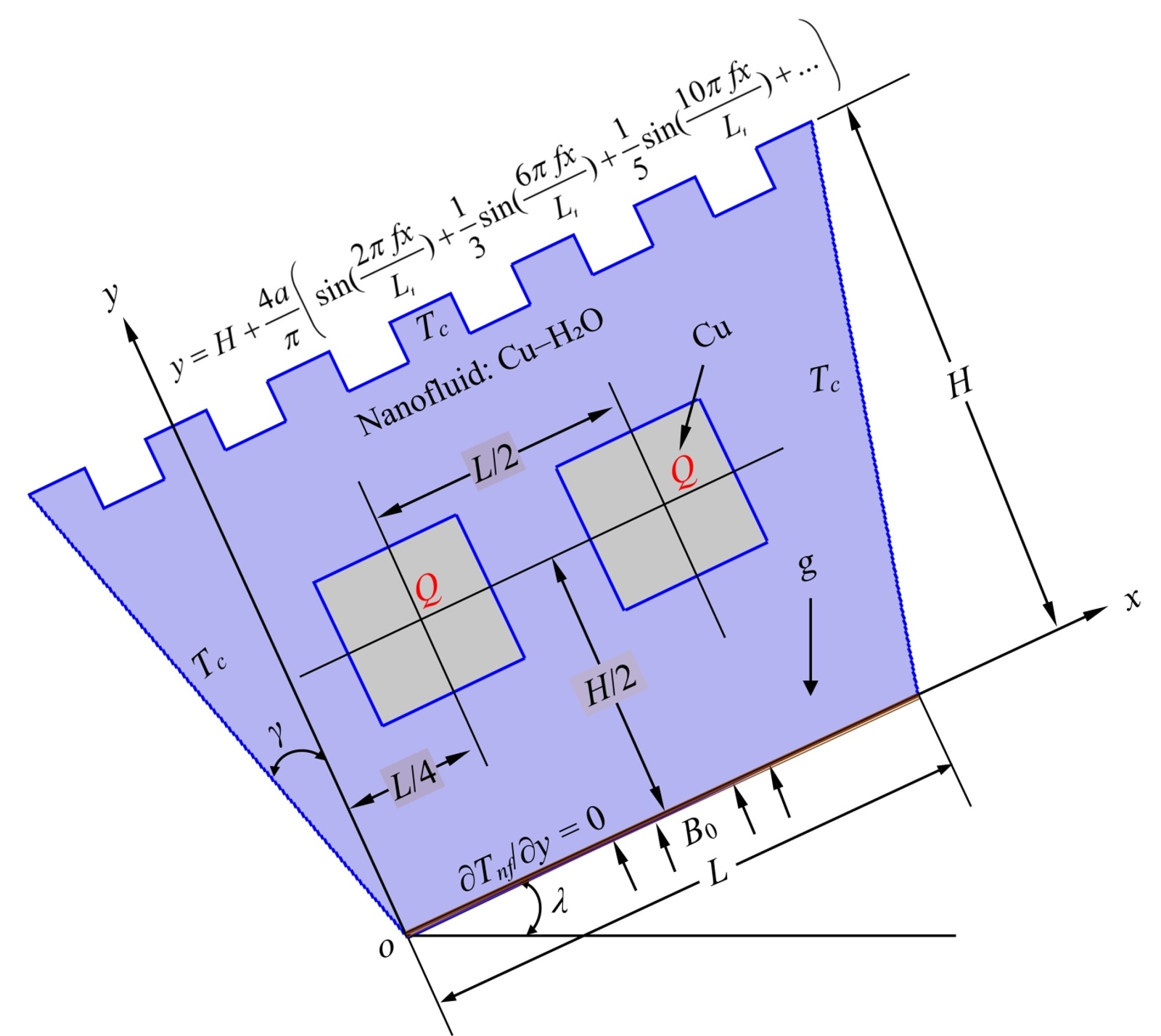

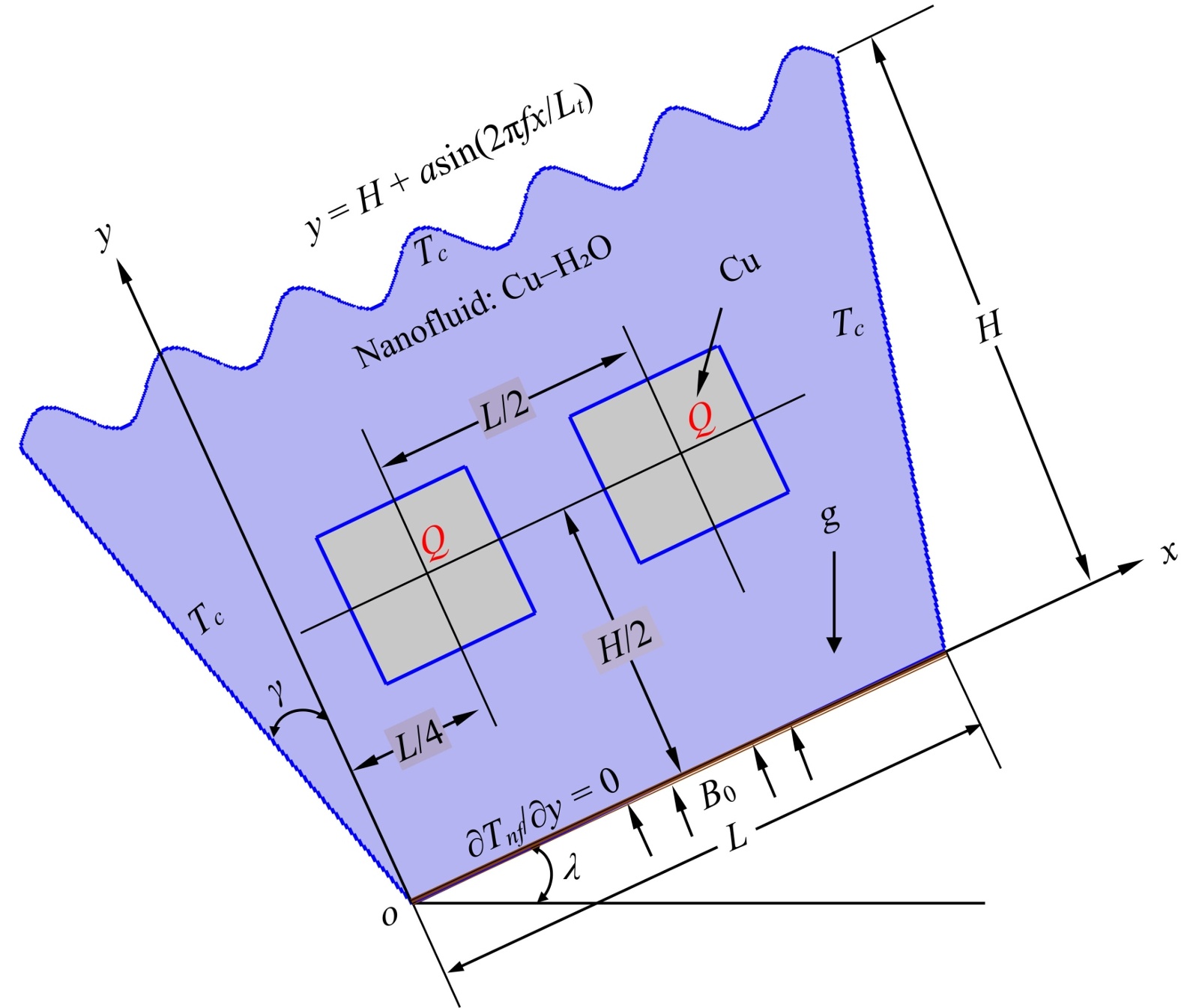

Figure 2. Different geometry with square corrugation.

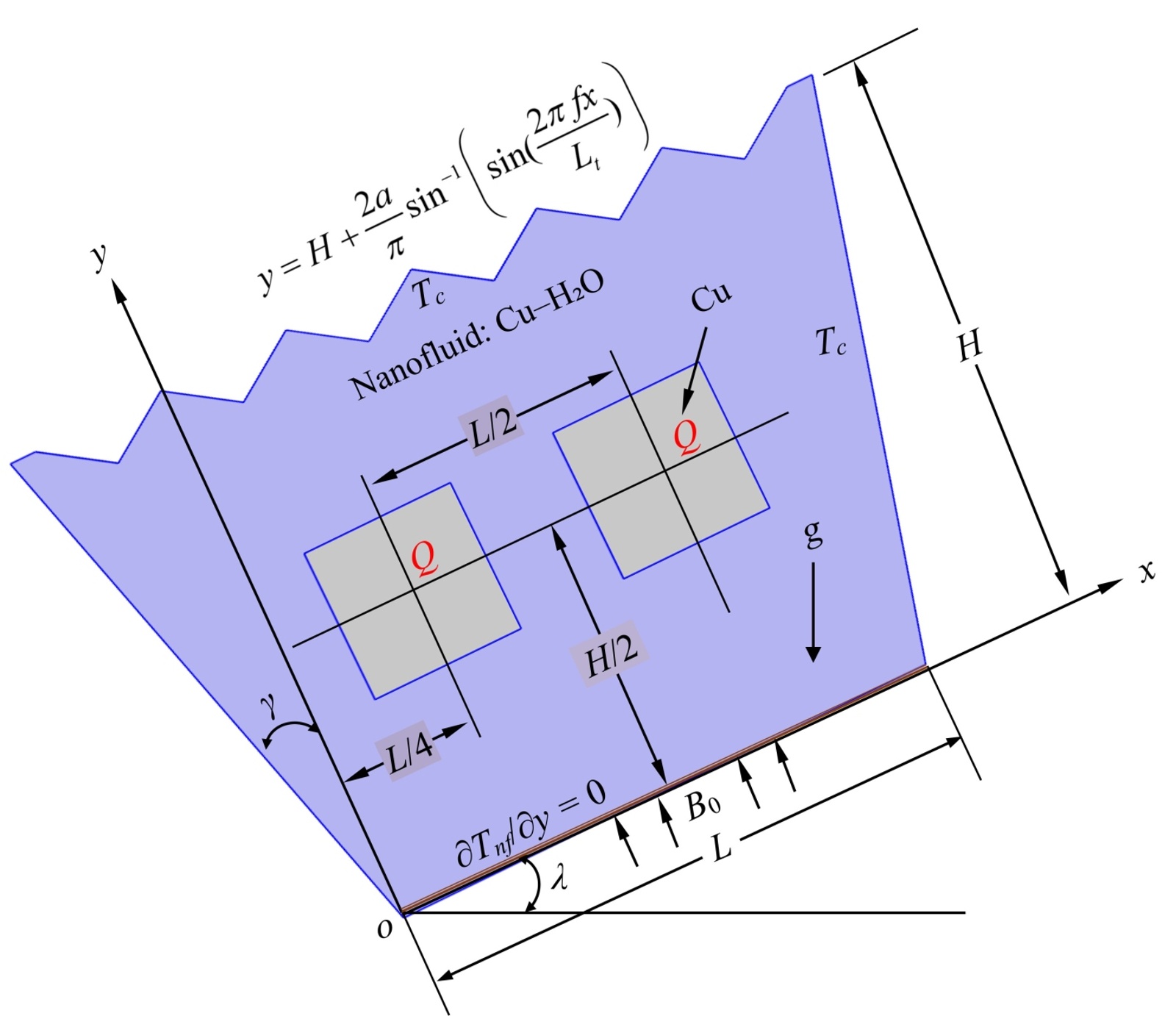

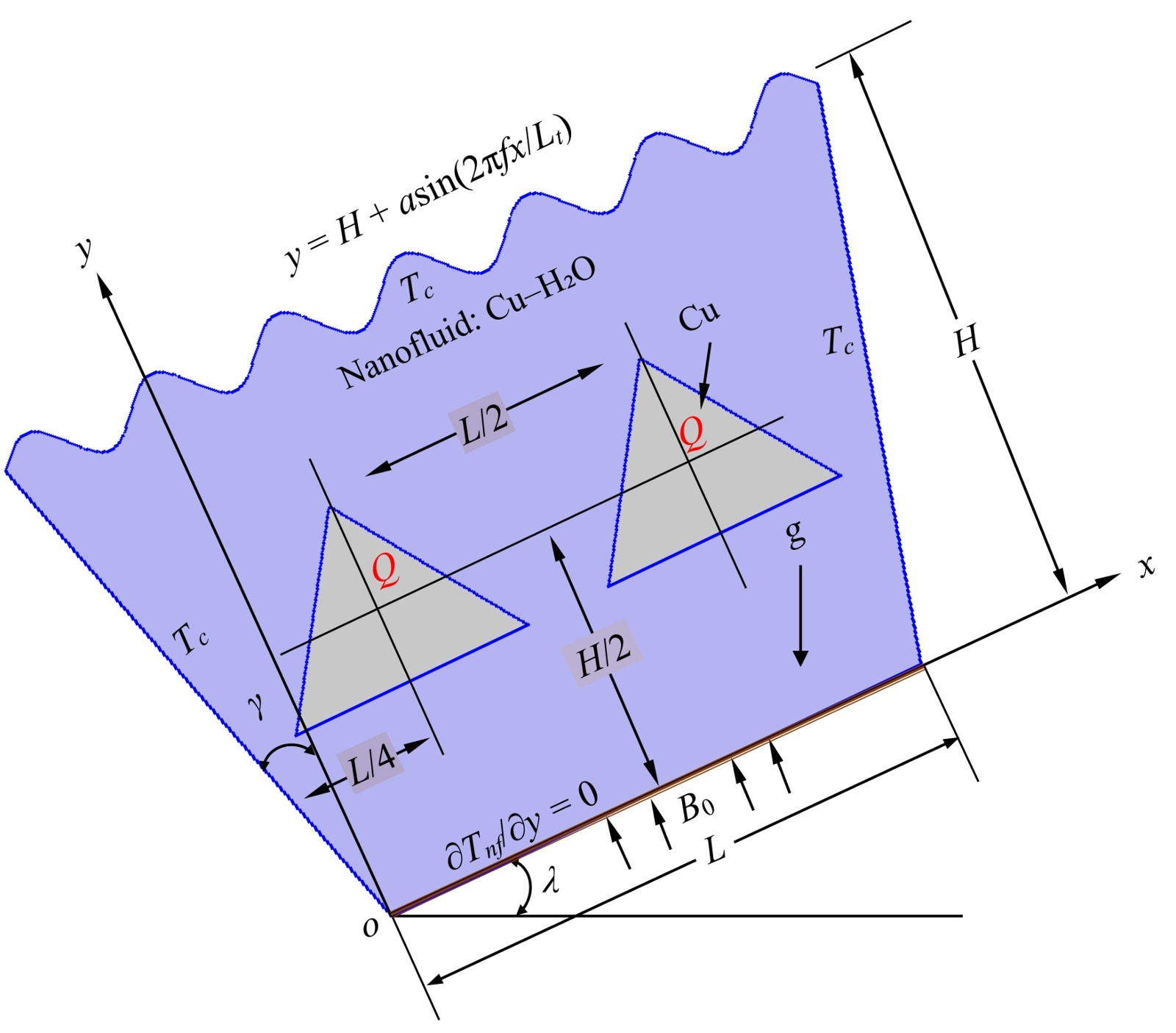

Figure 3. Different geometry with triangular corrugation.
A uniform horizontal magnetic field is applied across the cavity to induce magnetohydrodynamic (MHD) effects. The top and vertical side walls are maintained at a constant cold temperature, while the inclined bottom wall is adiabatic. All walls, including embedded solid surfaces, obey no-slip boundary conditions. The embedded obstacles serve as internal volumetric heat sources, uniformly generating thermal energy.
The governing equations are based on the conservation of mass, momentum, energy, and entropy generation, accounting for nanofluid properties, buoyancy-driven flow, and MHD interactions are described in below ([5] [17] [31] [32]):
For Sinusoidal wavy top wall:
(1)
For Square wavy top wall:
(2)
For Triangular wavy top wall:
(3)
here,
: Height of the cavity,
: Amplitude of the wave,
: Frequency (number of waves),
: Total length of the top wall, and
is the position along the wall.
Gravitational acceleration g acts vertically downward, but is decomposed into components along the inclined axis:
(4)
Fluid domain:
(5)
(6)
(7)
(8)
Star-shaped solid domains:
(9)
here, u and v denote velocity components in the x- and y-directions, respectively, and p and T represent pressure and temperature, respectively. The fluid properties are mass density (ρ), thermal conductivity (k), specific heat at constant pressure (Cp), volumetric thermal expansion coefficient (β), and electrical conductivity (σ).
Dimensional Boundary Conditions:
Top Wall:
,
(10)
Inclined Side Wall:
,
(11)
Bottom Wall:
,
(12)
Heated Block:
An internal heat-generation rate of Q = 1 × 106 W/m3 was used for obstacles, consistent with prior studies [37] on thermally active enclosures. Sensitivity analysis showed <3% variation in Nusselt number across typical Q ranges, confirming this value’s suitability. The continuity of temperature and heat flux at fluid-solid interfaces is enforced:
,
(13)
(14)
(15)
(16)
(17)
(18)
Entropy production reflects energy loss from irreversible effects like heat transfer, friction, and MHD forces. In buoyancy-driven MHD flow, entropy is generated through heat transfer, viscous dissipation, and magnetic fields. The local entropy generation due to heat transfer (
) in solid and fluid domains is given by:
(19)
The local volumetric entropy production due to viscous flow dissipation (
) and external magnetic effects (
) can be described using the following formulas [5] [17] [31] [32]:
(20)
(21)
To get the non-dimensional governing equations, the following scales are used:
(22)
(23)
(24)
(25)
(26)
(27)
(28)
Non-Dimensional Boundary Conditions:
Top Wall:
,
(29)
Inclined Side Wall:
,
(30)
Bottom Wall:
,
(31)
Heated Block:
Internal volumetric heat generation applied in the solid domain, Q > 0; continuity of temperature and heat flux at fluid-solid interfaces are enforced:
,
(32)
Non-Dimensional Nanofluid Properties:
(33)
(34)
(35)
(36)
(37)
The thermal behavior of the chamber under different operating conditions is assessed by analyzing the Nusselt number (Nu) of the heated strips and the average fluid temperature (Θav) inside the domain. The definitions of these quantities are as follows:
(38)
here, A represents the non-dimensional surface area of the fluid domain, X and Y are the dimensionless Cartesian coordinates, U and V indicate dimensionless velocity components, and P and Θ are the non-dimensional pressure and temperature of the nanofluid, respectively.
The total entropy generation, expressed as a dimensionless quantity, can be obtained using the following expression:
(39)
where A represents the surface area of the computational domain.
The Ecological Coefficient of Performance (ECOP) can be defined as follows to provide a relative estimate of total entropy production associated with heat transfer:
(40)
The working fluid is a Cu-H2O nanofluid with a fixed nanoparticle volume fraction of φ = 0.02, selected for its superior thermal conductivity and MHD compatibility. Simulations are conducted across a Rayleigh number range of 103 to 106 and Hartmann number (Ha) range from 0 to 50. The working fluid’s properties at a reference temperature of 300 K are presented in Table 1(a). These properties are essential for modeling buoyancy-driven convection, MHD behavior, and entropy generation.
The Galerkin Finite Element Method (FEM) is employed to numerically solve the coupled governing equations under the defined boundary and initial conditions. To complement the Finite Element Method (FEM) simulations and accelerate the prediction of thermal performance metrics, a supervised Machine Learning (ML) framework was developed. The aim was to model the relationship between physical/geometric parameters and target thermal responses, namely, Nusselt number (Nu), Entropy Generation (ST), and Ecological Coefficient of Performance (ECOP).
To ensure the numerical accuracy of the FEM simulations, a detailed mesh analysis was conducted for different obstacle shapes: square, star, and triangular blocks. As shown in Table 1(b), each mesh configuration includes a mix of triangular and quadrilateral elements, with total element counts ranging from 17,986 to 21,964. The average element quality remains above 0.77 for all cases, with the square block mesh achieving the highest quality at 0.8026.
Table 1. (a): Thermo-physical properties of Water and Cu at Tm = 300K ([5] [17] [31] [32]); (b): Mesh Statistics for Wavy-Top Trapezoidal Cavity with different Heated Blocks.
(a) |
Name of Property |
Symbol |
Unit |
Water |
Cu |
Mass Density |
ρ |
kg∙m−3 |
996.6 |
8933 |
Specific Heat at Constant Pressure |
Cp |
J∙kg−1∙K−1 |
4179.2 |
385 |
Thermal Conductivity |
k |
W∙m−1∙K−1 |
0.6102 |
401 |
Volumetric Thermal Expansion Coefficient |
β |
K−1 |
26.6 × 10−5 |
49.9 × 10−6 |
Electrical Conductivity |
σ |
S∙m−1 |
0.05 |
59.6 × 10-6 |
Dynamic viscosity |
μ |
kg∙m−1∙s−1 |
8.538 × 10−4 |
- |
Prandtl Number |
Pr |
- |
5.856 |
- |
(b) |
Parameter |
Value Square Blocks |
Value Star Blocks |
Value Triangular Blocks |
Mesh vertices |
10,756 |
11,990 |
9900 |
Element type |
All elements |
All elements |
All elements |
Triangular elements |
18,300 |
20,368 |
16,598 |
Quadrilateral elements |
1396 |
1596 |
1388 |
Edge elements |
714 |
798 |
706 |
Vertex elements |
12 |
8 |
10 |
Total number of elements |
19,696 |
21,964 |
17,986 |
Minimum element quality |
0.2356 |
0.1379 |
0.2297 |
Average element quality |
0.8026 |
0.7778 |
0.8004 |
Element area ratio |
0.003044 |
0.004769 |
0.003075 |
Total mesh area |
3.178 × 10−7 m2 |
3.178 × 10−7 m2 |
3.178 × 10−7 m2 |
The minimum element quality and element area ratios confirm that the meshes are sufficiently refined for accurate thermal field resolution. Additionally, the total mesh area remains consistent across cases (3.178 × 10−7 m2), indicating geometric fidelity. Time-step convergence was validated separately using steps of 0.01, 0.005, and 0.002 s, showing negligible variation in Nusselt number predictions (<1.5%), confirming temporal resolution adequacy.
The dataset for training and testing was generated from 324 FEM simulations, covering diverse combinations of input parameters, including Rayleigh number (Ra), Hartmann number (Ha), nanoparticle volume fraction (φ), obstacle shape, wall corrugation type, and cavity inclination angle (λ). These features spanned broad ranges—Ra = 103 - 106, Ha = 0 - 50, and λ = 15˚ - 45˚ ensuring comprehensive ML coverage. FEM-derived Nusselt number (Nu), entropy generation (ST), and energy conversion performance (ECOP) were used as target variables. Prior to training, continuous features were normalized, and categorical features were one-hot encoded. The dataset was randomly split into 80% training (259 cases) and 20% testing (65 cases) to evaluate generalization. Three regression models were employed in this study: Random Forest, Support Vector Regression, and Extreme Gradient Boosting.
1) Support Vector Regression (SVR) using a radial basis function (RBF) kernel;
2) Decision Tree Regression (DT) for rule-based partitioning of the feature space;
3) Random Forest Regression (RF) as an ensemble learning method for robust nonlinear prediction.
Model development was performed using Python’s scikit-learn library. Hyperparameters were optimized via grid search and five-fold cross-validation to prevent overfitting and ensure stability. The trained models were subsequently used to establish a predictive framework that offers a fast and accurate alternative to traditional FEM-based simulations for evaluating the impact of MHD, nanofluid dynamics, and cavity geometry on thermal performance.
3. Validation
To ensure the accuracy and reliability of the present numerical model, a validation study was conducted by comparing the simulation results with the benchmark work of Abdelmalek et al. [17]. The comparison focused on thermal profiles and average Nusselt number values under equivalent conditions. As illustrated in Figure 4, both studies exhibit closely matching isotherm distributions around star-shaped internal obstacles at a Rayleigh number of Ra = 104. The present simulation demonstrates smoother and more symmetric thermal contours, which can be attributed to the use of a finer computational mesh and higher spatial resolution. This strong agreement confirms the validity of the adopted numerical approach in accurately capturing the key thermofluidic behaviors in MHD-assisted nanofluid convection within trapezoidal enclosures.
Table 2 reinforces the validation results, showing that the deviation in average Nusselt numbers remains below 1.5% across the Rayleigh number range of 103 to 106. This confirms both the accuracy and numerical stability of the present FEM-based model. The findings also emphasize the critical influence of geometric complexity and cavity inclination on heat transfer performance in magnetically actuated nanofluid systems. Notably, configurations combining wall corrugation with non-circular obstacles, such as star or triangular shapes, exhibit improved passive thermal regulation, demonstrating their effectiveness in enhancing natural convection under MHD conditions.

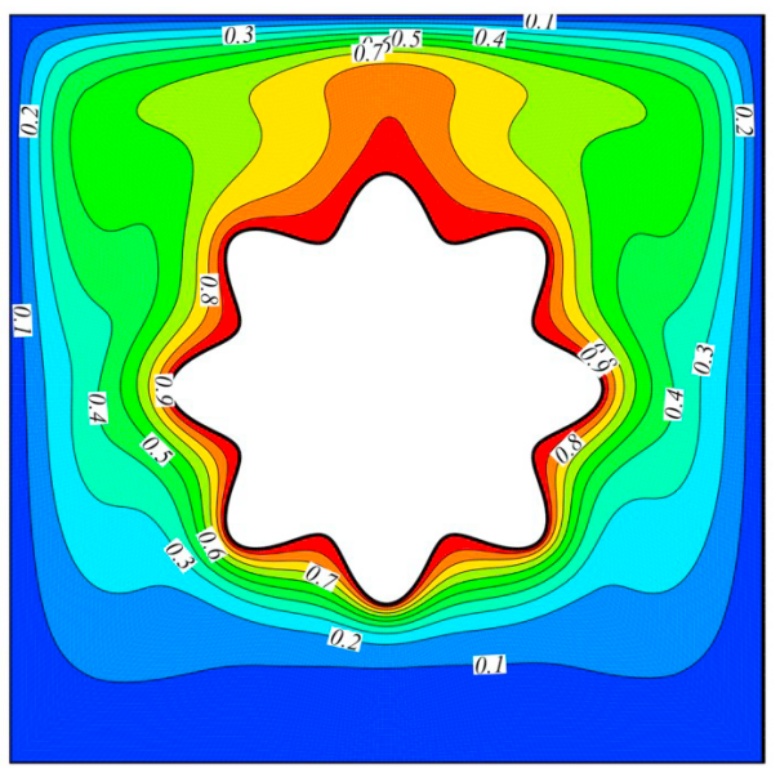

Abdelmalek et al. [17] Present Work

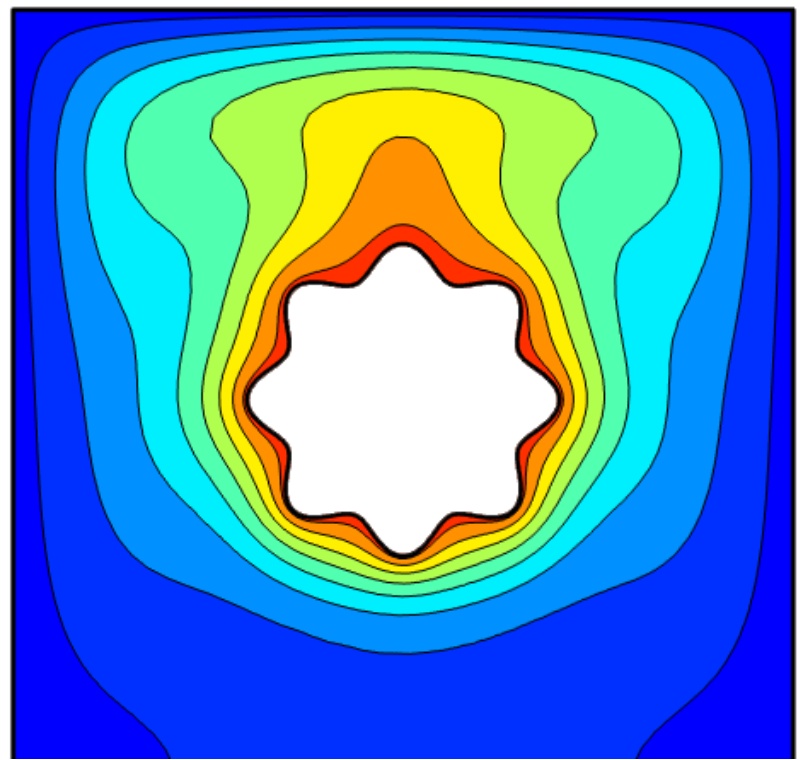

Figure 4. Isotherms for different values of Ra = 104 when N = 8, A = 0.15, ϕ = 2%.
Table 2. Comparison of Nu between present work and Abdelmalek et al. [17].
Ra |
Nanoparticle Volume Fraction (ϕ %) |
Present Study |
Abdelmalek
et al. [17] |
Deviation (%) |
103 |
2 |
1.1470 |
1.1307 |
1.44 |
104 |
2 |
2.2944 |
2.2674 |
1.19 |
105 |
2 |
4.6379 |
4.5851 |
1.15 |
106 |
2 |
8.9586 |
8.8341 |
1.41 |
4. Results and Discussion
This section presents the outcomes of the numerical and data-driven investigations into MHD natural convection in nanofluid-filled trapezoidal cavities. The results are divided into two parts: the first outlines the detailed Finite Element Method (FEM) simulations conducted across various geometric and physical configurations; the second discusses the implementation and evaluation of machine learning models trained on FEM data to predict key thermal performance indicators. Both approaches aim to assess the effects of obstacle shape, wall corrugation, inclination angle, and magnetic field strength on heat transfer (Nu), entropy generation (ST), and ecological performance (ECOP).
4.1. FEM Simulation Results Analysis
The finite element simulations generated extensive data capturing the influence of geometric and physical parameters on heat transfer and entropy-related behavior in MHD-driven nanofluid convection. The results are structured into three key performance indicators: Nusselt number (Nu), Entropy generation (ST), and Ecological Coefficient of Performance (ECOP), each analyzed based on variations in obstacle geometry, wall corrugation, inclination angle, Rayleigh number, and Hartmann number. A comprehensive summary of these results is provided in Tables 3-29.
Table 3. Nu for star-shaped obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.79369 |
0.79369 |
0.79369 |
0.79369 |
104 |
2.5581 |
2.5556 |
2.5533 |
2.5524 |
105 |
3.7556 |
3.6201 |
3.4447 |
3.3369 |
106 |
5.7976 |
5.6067 |
5.22 |
4.7166 |
Square |
103 |
0.8018 |
0.80179 |
0.80179 |
0.80179 |
104 |
2.6423 |
2.6404 |
2.6388 |
2.6381 |
105 |
3.7957 |
3.6868 |
3.546 |
3.4642 |
106 |
5.7179 |
5.5281 |
5.1568 |
4.6751 |
Triangular |
103 |
0.79861 |
0.79861 |
0.79861 |
0.79861 |
104 |
2.6093 |
2.6072 |
2.6054 |
2.6046 |
105 |
3.7736 |
3.657 |
3.5047 |
3.4136 |
106 |
5.747 |
5.5586 |
5.184 |
4.6923 |
Table 4. Nu for Square-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.84326 |
0.84326 |
0.84325 |
0.84324 |
104 |
2.6913 |
2.6881 |
2.6853 |
2.684 |
105 |
3.9788 |
3.8277 |
3.6309 |
3.5065 |
106 |
6.2373 |
6.0384 |
5.6553 |
5.1434 |
Square |
103 |
0.85297 |
0.85296 |
0.85295 |
0.85295 |
104 |
2.7849 |
2.7824 |
2.7801 |
2.7792 |
105 |
4.0265 |
3.9039 |
3.7424 |
3.6451 |
106 |
6.1573 |
5.9757 |
5.6151 |
5.1105 |
Triangular |
103 |
0.84944 |
0.84943 |
0.84942 |
0.84941 |
104 |
2.7491 |
2.7464 |
2.744 |
2.7429 |
105 |
4.001 |
3.8709 |
3.698 |
3.5913 |
106 |
6.1799 |
5.9944 |
5.6292 |
5.1242 |
Table 5. Nu for Triangular-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.79176 |
0.79175 |
0.79175 |
0.79174 |
104 |
2.9106 |
2.91 |
2.9094 |
2.909 |
105 |
4.2103 |
4.113 |
4.0332 |
3.9932 |
106 |
6.3746 |
6.1018 |
5.6317 |
5.0893 |
Square |
103 |
0.79783 |
0.79783 |
0.79783 |
0.79783 |
104 |
2.9817 |
2.9813 |
2.9808 |
2.9806 |
105 |
4.2685 |
4.2055 |
4.1485 |
4.1193 |
106 |
6.2743 |
6.007 |
5.565 |
5.0441 |
Triangular |
103 |
0.79608 |
0.79607 |
0.79607 |
0.79607 |
104 |
2.9563 |
2.9558 |
2.9553 |
2.955 |
105 |
4.2449 |
4.1709 |
4.106 |
4.0729 |
106 |
6.3262 |
6.0564 |
5.6118 |
5.073 |
Table 6. Nu for Star-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.79369 |
0.79369 |
0.79369 |
0.79369 |
104 |
2.5573 |
2.555 |
2.5531 |
2.5523 |
105 |
3.7274 |
3.5914 |
3.4249 |
3.3284 |
106 |
5.916 |
5.5713 |
5.1574 |
4.6587 |
Square |
103 |
0.80179 |
0.80179 |
0.80179 |
0.80179 |
104 |
2.6417 |
2.64 |
2.6386 |
2.6381 |
105 |
3.768 |
3.6621 |
3.5307 |
3.4579 |
106 |
5.7008 |
5.4812 |
5.1053 |
4.6249 |
Triangular |
103 |
0.79861 |
0.79861 |
0.79861 |
0.79861 |
104 |
2.6086 |
2.6068 |
2.6052 |
2.6046 |
105 |
3.746 |
3.6311 |
3.4879 |
3.4066 |
106 |
5.7559 |
5.5104 |
5.1294 |
4.6408 |
Table 7. Nu for Square-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.84326 |
0.84325 |
0.84325 |
0.84324 |
104 |
2.6903 |
2.6874 |
2.685 |
2.6839 |
105 |
3.9427 |
3.7923 |
3.606 |
3.4952 |
106 |
6.3086 |
5.9994 |
5.5697 |
5.0505 |
Square |
103 |
0.85297 |
0.85296 |
0.85295 |
0.85294 |
104 |
2.784 |
2.7818 |
2.7799 |
2.7791 |
105 |
3.9912 |
3.8722 |
3.7221 |
3.6364 |
106 |
6.1538 |
5.9156 |
5.5258 |
5.0209 |
Triangular |
103 |
0.84943 |
0.84943 |
0.84942 |
0.84941 |
104 |
2.7482 |
2.7458 |
2.7437 |
2.7428 |
105 |
3.9661 |
3.8382 |
3.6762 |
3.5817 |
106 |
6.2045 |
5.9456 |
5.5448 |
5.0349 |
Table 8. Nu for Triangular-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.7917 |
0.79175 |
0.79175 |
0.79174 |
104 |
2.9107 |
2.91 |
2.9093 |
2.909 |
105 |
4.2444 |
4.1236 |
4.0301 |
3.9908 |
106 |
6.4336 |
6.1422 |
5.6355 |
5.062 |
Square |
103 |
0.79783 |
0.79783 |
0.79783 |
0.79783 |
104 |
2.9818 |
2.9812 |
2.9808 |
2.9805 |
105 |
4.2976 |
4.2133 |
4.1464 |
4.1175 |
106 |
6.3298 |
6.0446 |
5.5635 |
5.0332 |
Triangular |
103 |
0.79607 |
0.79607 |
0.79607 |
0.79607 |
104 |
2.9564 |
2.9558 |
2.9552 |
2.955 |
105 |
4.2761 |
4.1798 |
4.1037 |
4.071 |
106 |
6.3849 |
6.0977 |
5.6034 |
5.053 |
Table 9. Nu for Star-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.79369 |
0.79369 |
0.79369 |
0.79369 |
104 |
2.5563 |
2.5543 |
2.5528 |
2.5522 |
105 |
3.6784 |
3.5444 |
3.3946 |
3.3161 |
106 |
6.0049 |
5.6188 |
5.0656 |
4.5454 |
Square |
103 |
0.80179 |
0.80179 |
0.80179 |
0.80179 |
104 |
2.6409 |
2.6395 |
2.6384 |
2.638 |
105 |
3.7227 |
3.6226 |
3.5074 |
3.4489 |
106 |
5.7374 |
5.4407 |
5.0079 |
4.5273 |
Triangular |
103 |
0.79861 |
0.79861 |
0.79861 |
0.79861 |
104 |
2.6077 |
2.6062 |
2.605 |
2.6045 |
105 |
3.6994 |
3.5892 |
3.4623 |
3.3965 |
106 |
5.8366 |
5.5031 |
5.0315 |
4.5368 |
Table 10. Nu for Square-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.84326 |
0.84325 |
0.84324 |
0.84324 |
104 |
2.6889 |
2.6865 |
2.6845 |
2.6837 |
105 |
3.8847 |
3.7354 |
3.5679 |
3.4789 |
106 |
6.5016 |
6.0543 |
5.4486 |
4.8921 |
Square |
103 |
0.85296 |
0.85296 |
0.85295 |
0.85294 |
104 |
2.7828 |
2.781 |
2.7796 |
2.779 |
105 |
3.9342 |
3.8219 |
3.6914 |
3.6239 |
106 |
6.2066 |
5.8648 |
5.3835 |
4.8712 |
Triangular |
103 |
0.84943 |
0.84942 |
0.84941 |
0.84941 |
104 |
2.747 |
2.745 |
2.7434 |
2.7427 |
105 |
3.9091 |
3.7858 |
3.643 |
3.5679 |
106 |
6.3178 |
5.9356 |
5.4113 |
4.8823 |
Table 11. Nu for Triangular-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.79175 |
0.7917 |
0.79174 |
0.79174 |
104 |
2.9108 |
2.9099 |
2.9092 |
2.9089 |
105 |
4.2493 |
4.1235 |
4.0242 |
3.9872 |
106 |
6.4137 |
6.0815 |
5.5577 |
4.9866 |
Square |
103 |
0.79783 |
0.79783 |
0.79783 |
0.79782 |
104 |
2.9818 |
2.9812 |
2.9807 |
2.9805 |
105 |
4.3094 |
4.2155 |
4.1424 |
4.115 |
106 |
6.2401 |
5.9625 |
5.4986 |
4.9776 |
Triangular |
103 |
0.79607 |
0.79607 |
0.79607 |
0.79607 |
104 |
2.9564 |
2.9557 |
2.9552 |
2.9549 |
105 |
4.2855 |
4.1814 |
4.0991 |
4.0681 |
106 |
6.3038 |
6.0068 |
5.5277 |
4.9866 |
The average Nusselt number, indicative of heat transfer enhancement, exhibited strong sensitivity to both geometry and operating conditions. As seen in Tables 3-11, the highest Nu values were consistently observed for cavities with star-shaped obstacles and sinusoidal wall corrugation, especially at higher Rayleigh numbers (e.g., Ra = 106). This is attributed to the sharper corners and expanded heat exchange surfaces of the star geometry, which promoted vigorous fluid circulation and boundary layer disruption. Increasing the inclination angle up to 30∘ further intensified buoyancy-driven convection, leading to optimal Nu values. However, at higher Hartmann numbers (e.g., Ha = 50), the Lorentz force induced magnetic damping, thereby suppressing convective motion and decreasing Nu.
Tables 12-20 present the results for total entropy generation across all test configurations. ST was notably reduced when smooth sinusoidal walls were employed in combination with moderate magnetic fields and lower inclination angles. The star obstacle configuration, while thermally effective, resulted in relatively higher entropy levels at high Ra, due to increased flow complexity and viscous dissipation. Conversely, the triangular obstacle, though less efficient in heat transfer, produced more thermodynamically ordered flow fields with lower entropy production. The data clearly demonstrate that minimizing ST requires a delicate balance between geometric optimization and MHD control, especially under high thermal gradients.
Table 12. ST for Star-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
16.898 |
16.898 |
16.898 |
16.898 |
104 |
0.63853 |
0.63803 |
0.63759 |
0.63742 |
105 |
0.021177 |
0.020913 |
0.02057 |
0.02036 |
106 |
0.001488 |
0.001484 |
0.001476 |
0.001465 |
Square |
103 |
17.074 |
17.074 |
17.074 |
17.074 |
104 |
0.66089 |
0.66053 |
0.66021 |
0.66008 |
105 |
0.02199 |
0.021781 |
0.02151 |
0.021354 |
106 |
0.001548 |
0.001544 |
0.001536 |
0.001526 |
Triangular |
103 |
17.014 |
17.014 |
17.014 |
17.014 |
104 |
0.65452 |
0.65412 |
0.65376 |
0.65362 |
105 |
0.021962 |
0.021737 |
0.021442 |
0.021267 |
106 |
0.00156 |
0.001556 |
0.001549 |
0.001539 |
Table 13. ST for Square-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
15.491 |
15.491 |
15.491 |
15.491 |
104 |
0.58966 |
0.58915 |
0.58871 |
0.58853 |
105 |
0.02063 |
0.020379 |
0.020053 |
0.019848 |
106 |
0.001493 |
0.00149 |
0.001483 |
0.001474 |
Square |
103 |
15.659 |
15.659 |
15.659 |
15.659 |
104 |
0.61093 |
0.61055 |
0.61023 |
0.6101 |
105 |
0.021452 |
0.021253 |
0.020993 |
0.020838 |
106 |
0.001555 |
0.001552 |
0.001545 |
0.001537 |
Triangular |
103 |
15.602 |
15.602 |
15.602 |
15.602 |
104 |
0.60506 |
0.60464 |
0.60428 |
0.60413 |
105 |
0.021427 |
0.021213 |
0.020932 |
0.02076 |
106 |
0.001567 |
0.001564 |
0.001558 |
0.00155 |
Table 14. ST for Triangular-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
17.131 |
17.131 |
17.131 |
17.131 |
104 |
0.71807 |
0.71797 |
0.71788 |
0.71784 |
105 |
0.022264 |
0.022077 |
0.021925 |
0.021849 |
106 |
0.001506 |
0.001502 |
0.001493 |
0.001483 |
Square |
103 |
17.243 |
17.243 |
17.243 |
17.243 |
104 |
0.7369 |
0.73683 |
0.73677 |
0.73673 |
105 |
0.023127 |
0.023008 |
0.0229 |
0.022845 |
106 |
0.001569 |
0.001565 |
0.001557 |
0.001547 |
Triangular |
103 |
17.206 |
17.206 |
17.206 |
17.206 |
104 |
0.73178 |
0.7317 |
0.73163 |
0.73159 |
105 |
0.023083 |
0.022943 |
0.02282 |
0.022758 |
106 |
0.00158 |
0.001576 |
0.001568 |
0.001557 |
Table 15. ST for Star-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
16.898 |
16.898 |
16.898 |
16.898 |
104 |
0.63838 |
0.63793 |
0.63755 |
0.6374 |
105 |
0.021122 |
0.020857 |
0.020532 |
0.020343 |
106 |
0.001487 |
0.001481 |
0.001473 |
0.001463 |
Square |
103 |
17.074 |
17.074 |
17.074 |
17.074 |
104 |
0.66077 |
0.66045 |
0.66018 |
0.66007 |
105 |
0.021937 |
0.021733 |
0.021481 |
0.021342 |
106 |
0.001546 |
0.001541 |
0.001534 |
0.001525 |
Triangular |
103 |
17.014 |
17.014 |
17.014 |
17.014 |
104 |
0.65439 |
0.65403 |
0.65373 |
0.65361 |
105 |
0.021909 |
0.021687 |
0.02141 |
0.021253 |
106 |
0.001558 |
0.001553 |
0.001546 |
0.001537 |
Table 16. ST for Square-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
15.491 |
15.491 |
15.491 |
15.491 |
104 |
0.58951 |
0.58905 |
0.58867 |
0.58852 |
105 |
0.02057 |
0.02032 |
0.020012 |
0.01983 |
106 |
0.001492 |
0.001486 |
0.00148 |
0.001472 |
Square |
103 |
15.659 |
15.659 |
15.659 |
15.659 |
104 |
0.6108 |
0.61047 |
0.6102 |
0.61009 |
105 |
0.021396 |
0.021202 |
0.02096 |
0.020825 |
106 |
0.001553 |
0.001549 |
0.001543 |
0.001535 |
Triangular |
103 |
15.602 |
15.602 |
15.602 |
15.602 |
104 |
0.60492 |
0.60455 |
0.60424 |
0.60412 |
105 |
0.02137 |
0.021161 |
0.020897 |
0.020745 |
106 |
0.001565 |
0.001561 |
0.001555 |
0.001548 |
Table 17. ST for Triangular-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
17.131 |
17.131 |
17.131 |
17.131 |
104 |
0.7181 |
0.71797 |
0.71787 |
0.71783 |
105 |
0.022329 |
0.022098 |
0.021919 |
0.021844 |
106 |
0.001506 |
0.001502 |
0.001493 |
0.001481 |
Square |
103 |
17.243 |
17.243 |
17.243 |
17.243 |
104 |
0.73692 |
0.73683 |
0.73676 |
0.73673 |
105 |
0.023182 |
0.023022 |
0.022896 |
0.022842 |
106 |
0.00157 |
0.001565 |
0.001556 |
0.001546 |
Triangular |
103 |
17.206 |
17.206 |
17.206 |
17.206 |
104 |
0.7318 |
0.7317 |
0.73162 |
0.73159 |
105 |
0.023143 |
0.02296 |
0.022815 |
0.022754 |
106 |
0.001581 |
0.001576 |
0.001567 |
0.001556 |
Table 18. ST for Star-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
16.898 |
16.898 |
16.898 |
16.898 |
104 |
0.63818 |
0.63779 |
0.6375 |
0.63739 |
105 |
0.021027 |
0.020765 |
0.020472 |
0.020319 |
106 |
0.001485 |
0.001478 |
0.001469 |
0.00146 |
Square |
103 |
17.074 |
17.074 |
17.074 |
17.074 |
104 |
0.66061 |
0.66034 |
0.66014 |
0.66006 |
105 |
0.021851 |
0.021658 |
0.021437 |
0.021325 |
106 |
0.001544 |
0.001538 |
0.001531 |
0.001523 |
Triangular |
103 |
17.014 |
17.014 |
17.014 |
17.014 |
104 |
0.65422 |
0.65392 |
0.65368 |
0.65359 |
105 |
0.02182 |
0.021606 |
0.021361 |
0.021234 |
106 |
0.001556 |
0.00155 |
0.001542 |
0.001534 |
Table 19. ST for Square-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
15.491 |
15.491 |
15.491 |
15.491 |
104 |
0.5893 |
0.5889 |
0.58861 |
0.5885 |
105 |
0.020474 |
0.020227 |
0.019949 |
0.019803 |
106 |
0.00149 |
0.001484 |
0.001476 |
0.001468 |
Square |
103 |
15.659 |
15.659 |
15.659 |
15.659 |
104 |
0.61063 |
0.61036 |
0.61015 |
0.61008 |
105 |
0.021306 |
0.021122 |
0.020912 |
0.020805 |
106 |
0.001551 |
0.001546 |
0.00154 |
0.001533 |
Triangular |
103 |
15.602 |
15.602 |
15.602 |
15.602 |
104 |
0.60474 |
0.60443 |
0.60419 |
0.60411 |
105 |
0.021278 |
0.021076 |
0.020844 |
0.020723 |
106 |
0.001564 |
0.001558 |
0.001551 |
0.001544 |
Table 20. ST for Triangular-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
17.131 |
17.131 |
17.131 |
17.131 |
104 |
0.71813 |
0.71796 |
0.71787 |
0.71783 |
105 |
0.022339 |
0.022098 |
0.021907 |
0.021837 |
106 |
0.001505 |
0.0015 |
0.00149 |
0.001479 |
Square |
103 |
17.243 |
17.243 |
17.243 |
17.243 |
104 |
0.73693 |
0.73683 |
0.73675 |
0.73673 |
105 |
0.023205 |
0.023027 |
0.022888 |
0.022837 |
106 |
0.001567 |
0.001563 |
0.001554 |
0.001544 |
Triangular |
103 |
17.206 |
17.206 |
17.206 |
17.206 |
104 |
0.73182 |
0.7317 |
0.73162 |
0.73159 |
105 |
0.023161 |
0.022963 |
0.022807 |
0.022748 |
106 |
0.001578 |
0.001573 |
0.001564 |
0.001553 |
The system’s thermodynamic efficiency was further evaluated using ECOP, as shown in Tables 21-29. This metric inversely correlates with entropy production and provides insight into the trade-off between heat transfer and irreversibility. Among all configurations, cavities with sinusoidal corrugation, star-shaped obstacles, and an inclination of 30˚ delivered the highest ECOP values, particularly at moderate Ha and Ra = 105. The inclusion of magnetic effects (e.g., Ha = 20) improved ECOP by moderating chaotic fluid motion and stabilizing temperature gradients. In contrast, square and triangular corrugations led to localized thermal zones and entropy hotspots, resulting in comparatively lower ECOP scores.
Table 21. ECOP for Star-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.04697 |
0.04697 |
0.04697 |
0.04697 |
104 |
4.0063 |
4.0054 |
4.0046 |
4.0043 |
105 |
177.34 |
173.1 |
167.46 |
163.9 |
106 |
3896.9 |
3778 |
3537.2 |
3218.6 |
Square |
103 |
0.046959 |
0.046959 |
0.046959 |
0.046959 |
104 |
3.9981 |
3.9974 |
3.9969 |
3.9966 |
105 |
172.61 |
169.27 |
164.85 |
162.22 |
106 |
3694.1 |
3581.2 |
3358.1 |
3063.4 |
Triangular |
103 |
0.046938 |
0.046938 |
0.046938 |
0.046938 |
104 |
3.9866 |
3.9859 |
3.9852 |
3.9849 |
105 |
171.82 |
168.24 |
163.45 |
160.51 |
106 |
3684.9 |
3572.4 |
3347.2 |
3048.4 |
Table 22. ECOP for Square-Shaped Obstacles with different Wavy Walls at λ = 150.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.054436 |
0.054436 |
0.054435 |
0.054435 |
104 |
4.5642 |
4.5627 |
4.5612 |
4.5605 |
105 |
192.86 |
187.82 |
181.07 |
176.66 |
106 |
4177.5 |
4053.6 |
3814.3 |
3488.9 |
Square |
103 |
0.054471 |
0.054471 |
0.05447 |
0.05447 |
104 |
4.5584 |
4.5572 |
4.5559 |
4.5553 |
105 |
187.7 |
183.69 |
178.27 |
174.92 |
106 |
3959.4 |
3851.2 |
3634 |
3325.3 |
Triangular |
103 |
0.054443 |
0.054442 |
0.054442 |
0.054442 |
104 |
4.5436 |
4.5423 |
4.5409 |
4.5402 |
105 |
186.73 |
182.47 |
176.67 |
172.99 |
106 |
3943.8 |
3832.8 |
3612.8 |
3305.8 |
Table 23. ECOP for Triangular-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.046218 |
0.046218 |
0.046217 |
0.046217 |
104 |
4.0534 |
4.0531 |
4.0527 |
4.0525 |
105 |
189.11 |
186.3 |
183.95 |
182.77 |
106 |
4233.7 |
4063.9 |
3771 |
3433 |
Square |
103 |
0.04627 |
0.04627 |
0.04627 |
0.04627 |
104 |
4.0463 |
4.0461 |
4.0458 |
4.0456 |
105 |
184.57 |
182.79 |
181.16 |
180.31 |
106 |
3998.5 |
3839.2 |
3575.3 |
3261 |
Triangular |
103 |
0.046268 |
0.046268 |
0.046267 |
0.046267 |
104 |
4.0399 |
4.0396 |
4.0393 |
4.0391 |
105 |
183.9 |
181.79 |
179.93 |
178.97 |
106 |
4002.9 |
3843.6 |
3580.2 |
3258.8 |
Table 24. ECOP for Star-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.04697 |
0.04697 |
0.04697 |
0.04697 |
104 |
4.006 |
4.0052 |
4.0045 |
4.0043 |
105 |
176.47 |
172.19 |
166.81 |
163.61 |
106 |
3979.7 |
3762.6 |
3501.7 |
3183.8 |
Square |
103 |
0.046959 |
0.046959 |
0.046959 |
0.046959 |
104 |
3.9979 |
3.9973 |
3.9968 |
3.9966 |
105 |
171.76 |
168.5 |
164.36 |
162.02 |
106 |
3688.2 |
3556.1 |
3328.2 |
3033.1 |
Triangular |
103 |
0.046938 |
0.046938 |
0.046938 |
0.046938 |
104 |
3.9864 |
3.9857 |
3.9851 |
3.9849 |
105 |
170.98 |
167.44 |
162.91 |
160.29 |
106 |
3695.3 |
3547.9 |
3317.1 |
3018.6 |
Table 25. ECOP for Square-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.054436 |
0.054436 |
0.054435 |
0.054435 |
104 |
4.5637 |
4.5623 |
4.5611 |
4.5604 |
105 |
191.67 |
186.62 |
180.19 |
176.26 |
106 |
4229 |
4036.6 |
3764.6 |
3431.4 |
Square |
103 |
0.054471 |
0.05447 |
0.05447 |
0.05447 |
104 |
4.5579 |
4.5568 |
4.5558 |
4.5552 |
105 |
186.54 |
182.63 |
177.58 |
174.62 |
106 |
3962 |
3818.4 |
3581.1 |
3270.5 |
Triangular |
103 |
0.054443 |
0.054442 |
0.054442 |
0.054441 |
104 |
4.5431 |
4.5419 |
4.5408 |
4.5401 |
105 |
185.59 |
181.38 |
175.92 |
172.65 |
106 |
3964.3 |
3808.9 |
3565.2 |
3252.8 |
Table 26. ECOP for Triangular-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.046218 |
0.046218 |
0.046217 |
0.046217 |
104 |
4.0534 |
4.053 |
4.0527 |
4.0524 |
105 |
190.08 |
186.61 |
183.86 |
182.69 |
106 |
4270.8 |
4090.6 |
3775.3 |
3417.3 |
Square |
103 |
0.04627 |
0.04627 |
0.04627 |
0.04627 |
104 |
4.0463 |
4.046 |
4.0458 |
4.0456 |
105 |
185.38 |
183.01 |
181.1 |
180.26 |
106 |
4032.6 |
3863 |
3575.5 |
3255.4 |
Triangular |
103 |
0.046268 |
0.046268 |
0.046267 |
0.046267 |
104 |
4.0399 |
4.0396 |
4.0393 |
4.0391 |
105 |
184.77 |
182.05 |
179.86 |
178.91 |
106 |
4039.3 |
3869.9 |
3576.7 |
3248.1 |
Table 27. ECOP for Star-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.04697 |
0.04697 |
0.04697 |
0.04697 |
104 |
4.0056 |
4.0049 |
4.0044 |
4.0042 |
105 |
174.94 |
170.69 |
165.81 |
163.2 |
106 |
4044.6 |
3801.3 |
3448.4 |
3113.6 |
Square |
103 |
0.046959 |
0.046959 |
0.046959 |
0.046959 |
104 |
3.9976 |
3.9971 |
3.9967 |
3.9966 |
105 |
170.36 |
167.26 |
163.61 |
161.73 |
106 |
3716.8 |
3536.9 |
3271.5 |
2973.7 |
Triangular |
103 |
0.046938 |
0.046938 |
0.046938 |
0.046938 |
104 |
3.986 |
3.9855 |
3.9851 |
3.9849 |
105 |
169.54 |
166.12 |
162.09 |
159.96 |
106 |
3750.9 |
3549.9 |
3262.3 |
2957.2 |
Table 28. ECOP for Square-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.054436 |
0.054435 |
0.054435 |
0.054435 |
104 |
4.563 |
4.5618 |
4.5608 |
4.5603 |
105 |
189.74 |
184.68 |
178.85 |
175.67 |
106 |
4362.5 |
4079.7 |
3692.5 |
3332.1 |
Square |
103 |
0.054471 |
0.05447 |
0.05447 |
0.05447 |
104 |
4.5573 |
4.5564 |
4.5555 |
4.5551 |
105 |
184.66 |
180.94 |
176.52 |
174.18 |
106 |
4001.3 |
3793.3 |
3497 |
3178.7 |
Triangular |
103 |
0.054442 |
0.054442 |
0.054442 |
0.054441 |
104 |
4.5424 |
4.5414 |
4.5405 |
4.54 |
105 |
183.71 |
179.63 |
174.78 |
172.17 |
106 |
4040.8 |
3809.8 |
3489.1 |
3161.7 |
Table 29. ECOP for Triangular-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Wavy Wall |
Ra |
Ha = 0 |
Ha = 15 |
Ha = 30 |
Ha = 50 |
Sinusoidal |
103 |
0.046218 |
0.046218 |
0.046217 |
0.046217 |
104 |
4.0533 |
4.0529 |
4.0526 |
4.0524 |
105 |
190.22 |
186.6 |
183.69 |
182.59 |
106 |
4260.8 |
4055.7 |
3729.7 |
3372.5 |
Square |
103 |
0.04627 |
0.04627 |
0.04627 |
0.04627 |
104 |
4.0462 |
4.046 |
4.0458 |
4.0456 |
105 |
185.71 |
183.07 |
180.98 |
180.19 |
106 |
3981.2 |
3815.9 |
3538 |
3223.1 |
Triangular |
103 |
0.046268 |
0.046268 |
0.046267 |
0.046267 |
104 |
4.0398 |
4.0395 |
4.0392 |
4.0391 |
105 |
185.03 |
182.09 |
179.73 |
178.83 |
106 |
3995.4 |
3819.4 |
3534.2 |
3210.6 |
In summary, the FEM simulation results highlight the intricate interdependence of obstacle geometry, wall corrugation, inclination angle, and magnetic field strength in shaping the thermofluidic behavior of nanofluid-filled trapezoidal cavities under MHD influence. Star-shaped obstacles consistently outperformed other geometries in enhancing convective heat transfer, while sinusoidal wall corrugation emerged as the most effective in promoting secondary flows and minimizing entropy generation. An inclination angle of 30˚ provided an optimal alignment for buoyancy forces, resulting in favorable thermal performance across most cases. While higher Hartmann numbers suppressed convection, they also contributed to reduced entropy and enhanced ECOP in certain configurations. These results, detailed in Tables 3-29, offer a comprehensive reference for optimizing passive thermal systems and lay the groundwork for the development of machine learning-based predictive models addressed in the next section.
4.2. Machine Learning Model Predictions and Analysis
To overcome the computational cost associated with high-fidelity FEM simulations across a wide parametric space, this study integrates supervised machine learning (ML) techniques to develop surrogate models capable of accurately predicting key thermal performance indicators. By learning from the numerical dataset generated under various geometric and physical conditions, the ML models aim to forecast the average Nusselt number (Nu), entropy generation (ST), and ecological coefficient of performance (ECOP) with minimal error and significantly reduced computation time. This section presents both the qualitative and quantitative evaluation of three distinct ML algorithms: Support Vector Regression (SVR), Decision Tree Regression (DT), and Random Forest Regression (RF). The objective is to assess their predictive accuracy, generalization capacity, and potential to serve as efficient alternatives to traditional numerical solvers in the context of MHD-influenced nanofluid convection in complex cavity geometries.
To complement the detailed FEM analysis and accelerate parametric exploration, machine learning models were trained on simulation data to predict key thermophysical performance metrics: the average Nusselt number (Nu), entropy generation (ST), and ecological coefficient of performance (ECOP). Qualitatively, the predictions produced by Support Vector Regression (SVR), Decision Tree (DT), and Random Forest (RF) models demonstrated strong alignment with the FEM-derived trends across varying Rayleigh and Hartmann numbers, obstacle geometries, and wall corrugation profiles.
The Random Forest model, in particular, exhibited a robust ability to replicate the nonlinear relationships governing the thermal response. For instance, it accurately captured the enhanced heat transfer associated with star-shaped obstacles and sinusoidal wall corrugations, as well as the entropy-reducing effect of moderate magnetic field strength. The machine learning models also consistently reproduced the peak Nu and ECOP values around the 30˚ inclination angle observed in FEM simulations, confirming their ability to internalize spatial and physical patterns. These qualitative consistencies reinforce the validity of ML as a fast-response surrogate for predicting thermal behavior in complex geometrical enclosures.
Quantitative assessment of model performance was conducted using standard regression metrics: Mean Absolute Error (MAE), Mean Squared Error (MSE), and the coefficient of determination (R2). Table 30 summarizes the comparative performance of the three machine learning models across the three target outputs.
Among the models evaluated, Random Forest Regression achieved the highest predictive accuracy, with R2 scores above 0.98 for all output variables. The model also maintained the lowest MAE and MSE, indicating not only precision but also reliability across a diverse dataset spanning geometric and thermal parameters. Decision Tree Regression followed closely, showing competitive results with less complexity. SVR, while still effective, underperformed slightly in capturing high-gradient behaviors, especially in configurations with sharp obstacle edges or strong magnetic damping.
Table 30. Performance metrics of machine learning models.
Model |
Metric |
Nu |
ST |
ECOP |
SVR |
MAE |
0.074 |
0.083 |
0.068 |
MSE |
0.011 |
0.014 |
0.010 |
R2 |
0.972 |
0.964 |
0.971 |
Decision Tree |
MAE |
0.062 |
0.071 |
0.061 |
MSE |
0.009 |
0.012 |
0.008 |
R2 |
0.978 |
0.971 |
0.975 |
Random Forest |
MAE |
0.041 |
0.050 |
0.045 |
MSE |
0.004 |
0.006 |
0.005 |
R2 |
0.991 |
0.982 |
0.989 |
The random forest model developed in this study was fine-tuned using a grid search approach, with the optimal hyperparameters determined as follows: n_estimators = 200, max_depth = 12, and criterion = squared_error.
Table 31. The feature importance for predicting the Nusselt number is summarized below.
Feature |
Importance (%) |
Rayleigh Number (Ra) |
45 |
Hartmann Number (Ha) |
20 |
Inclination Angle (λ) |
17 |
Obstacle Shape |
10 |
Wall Corrugation |
8 |
As shown in Table 31, feature importance analysis identified the Rayleigh number (Ra) as the most influential input, contributing 45% to the model’s prediction of Nusselt number, followed by the Hartmann number (Ha) at 20%, inclination angle (λ) at 17%, obstacle shape at 10%, and wall corrugation at 8%. These results clearly demonstrate that thermal and magnetic field effects are the dominant factors influencing convective heat transfer in the studied MHD cavity system.

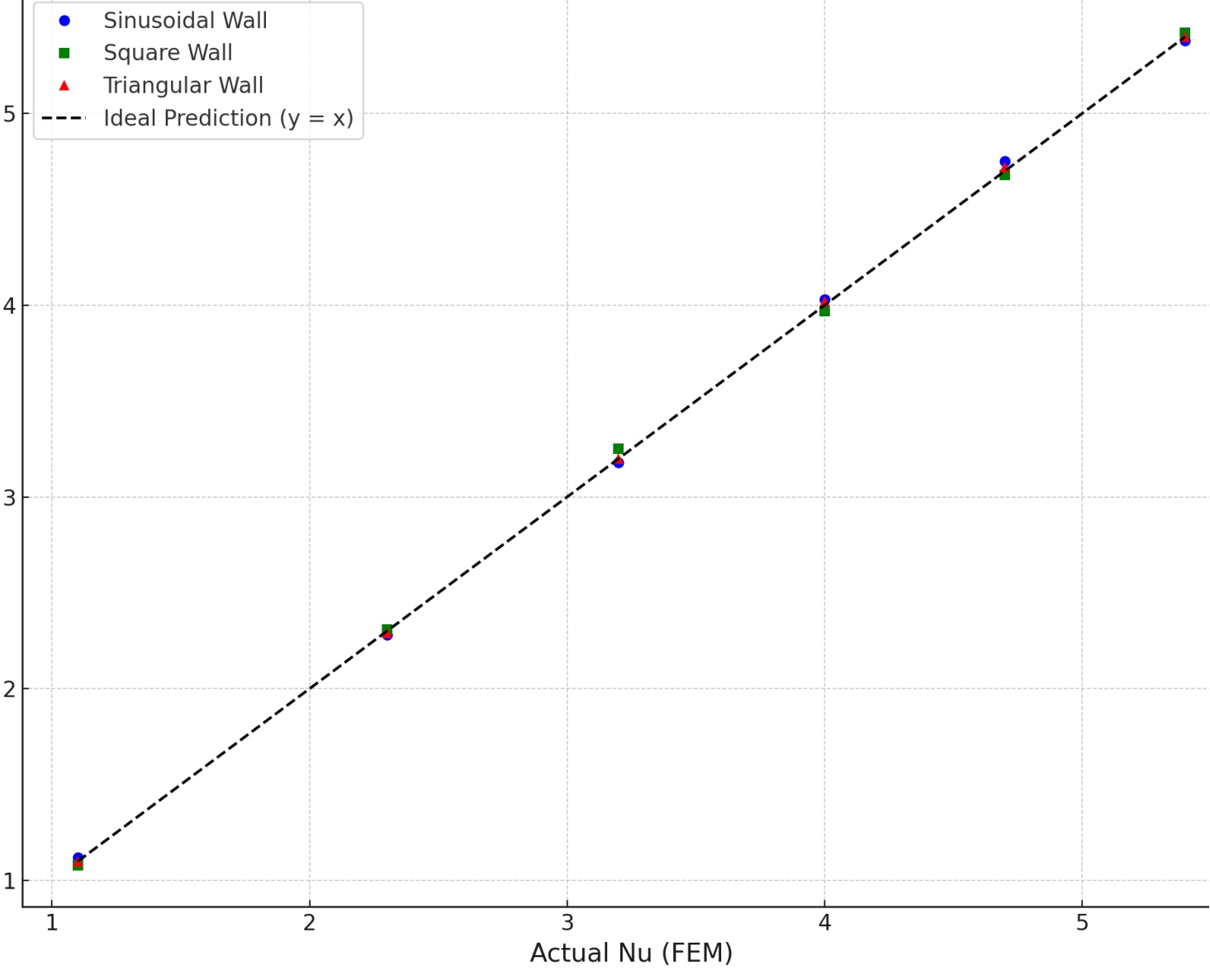

Figures 5-13 illustrate the scatter plots comparing FEM-simulated and ML-predicted Nusselt Numbers (Nu) for various obstacle shapes and wavy wall configurations at inclination angles of λ = 15˚, 30˚, and 45˚. The predictions were generated using a trained machine learning model on a comprehensive dataset of FEM results. Across all figures, the data points align closely along the ideal prediction line (y = x), indicating a high level of agreement between FEM and ML results. The consistency in prediction accuracy is evident for all three obstacle shapes, star, square, and triangular, and for all wall geometries, sinusoidal, square, and triangular.
Figures 5-7 show results for star-shaped obstacles. These figures reveal minimal scatter and a near-perfect linear relationship, highlighting the model’s robustness under geometrically complex and thermally dynamic conditions.
Figures 8-10 correspond to square-shaped obstacles. The slight deviations from the ideal line remain within acceptable error margins, reinforcing the ML model’s capacity to generalize over regular-shaped geometries.

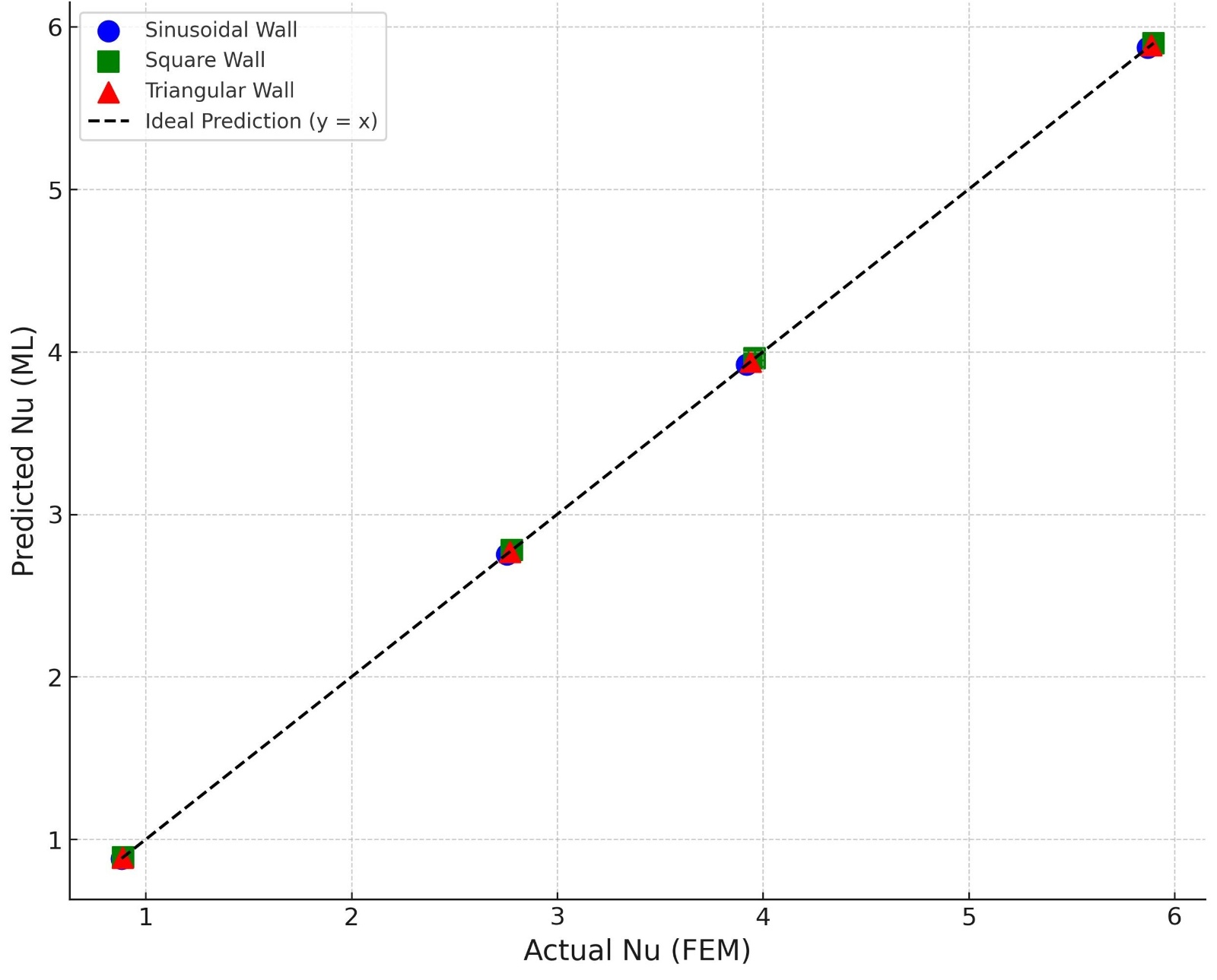

Figure 5. FEM vs ML Prediction of Nu for Star-Shaped Obstacles with different Wavy Walls at λ = 15˚.

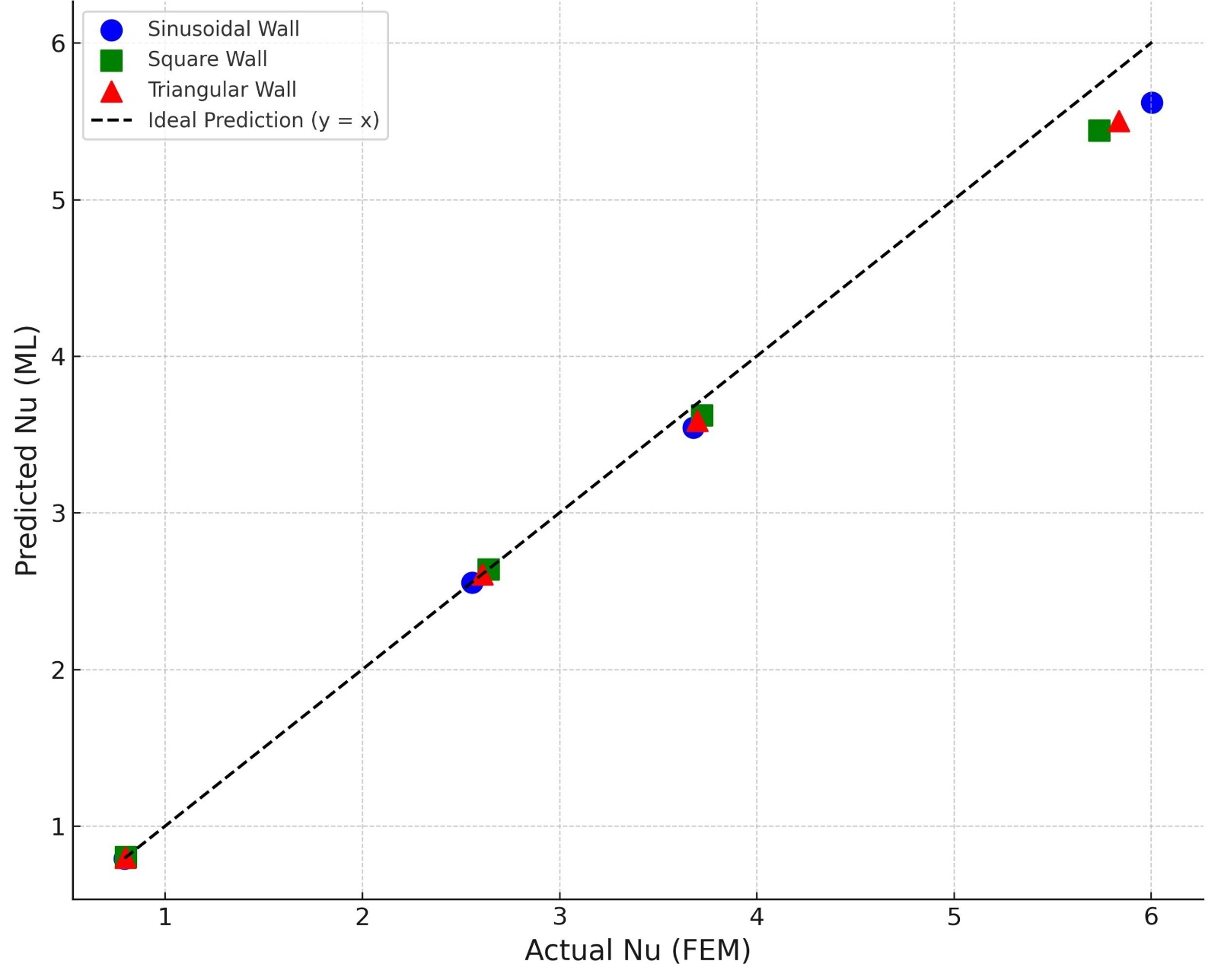

Figure 6. FEM vs ML Prediction of Nu for Star-Shaped Obstacles with different Wavy Walls at λ = 30˚.

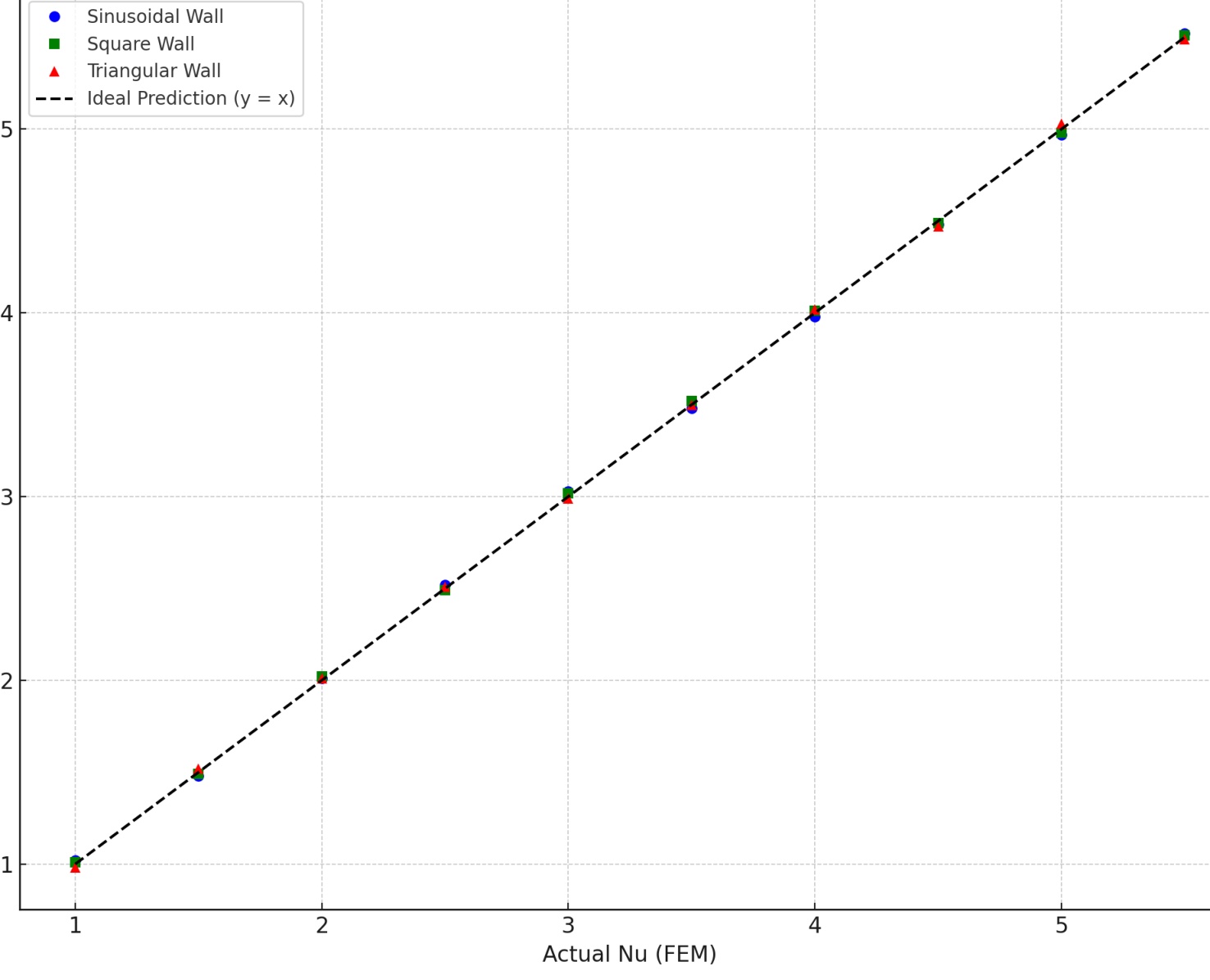

Figure 7. FEM vs ML Prediction of Nu for Star-Shaped Obstacles with different Wavy Walls at λ = 45˚.

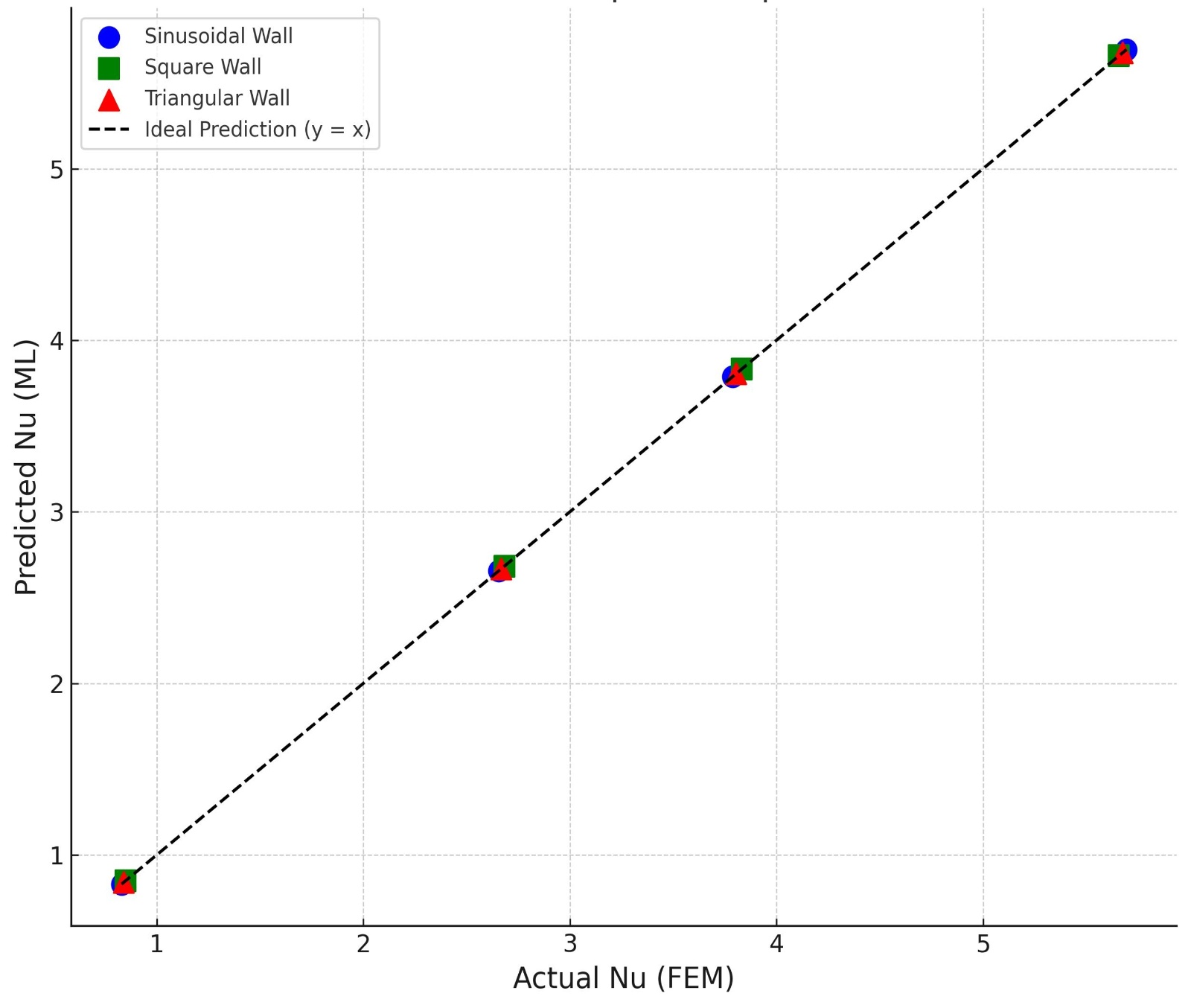

Figure 8. FEM vs ML Prediction of Nu for Square-Shaped Obstacles with different Wavy Walls at λ = 15˚.

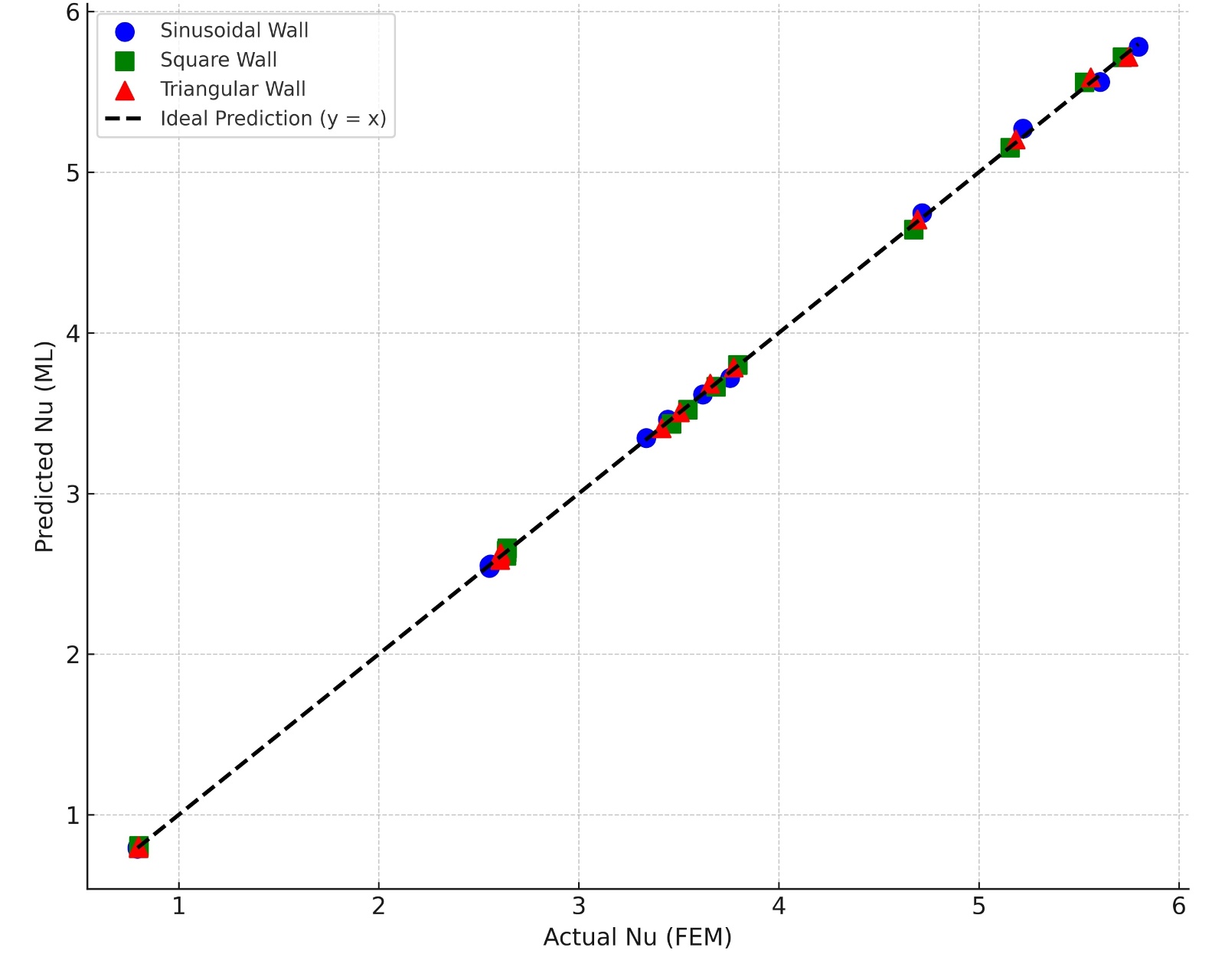

Figure 9. FEM vs ML Prediction of Nu for Square-Shaped Obstacles with different Wavy Walls at λ = 30˚.

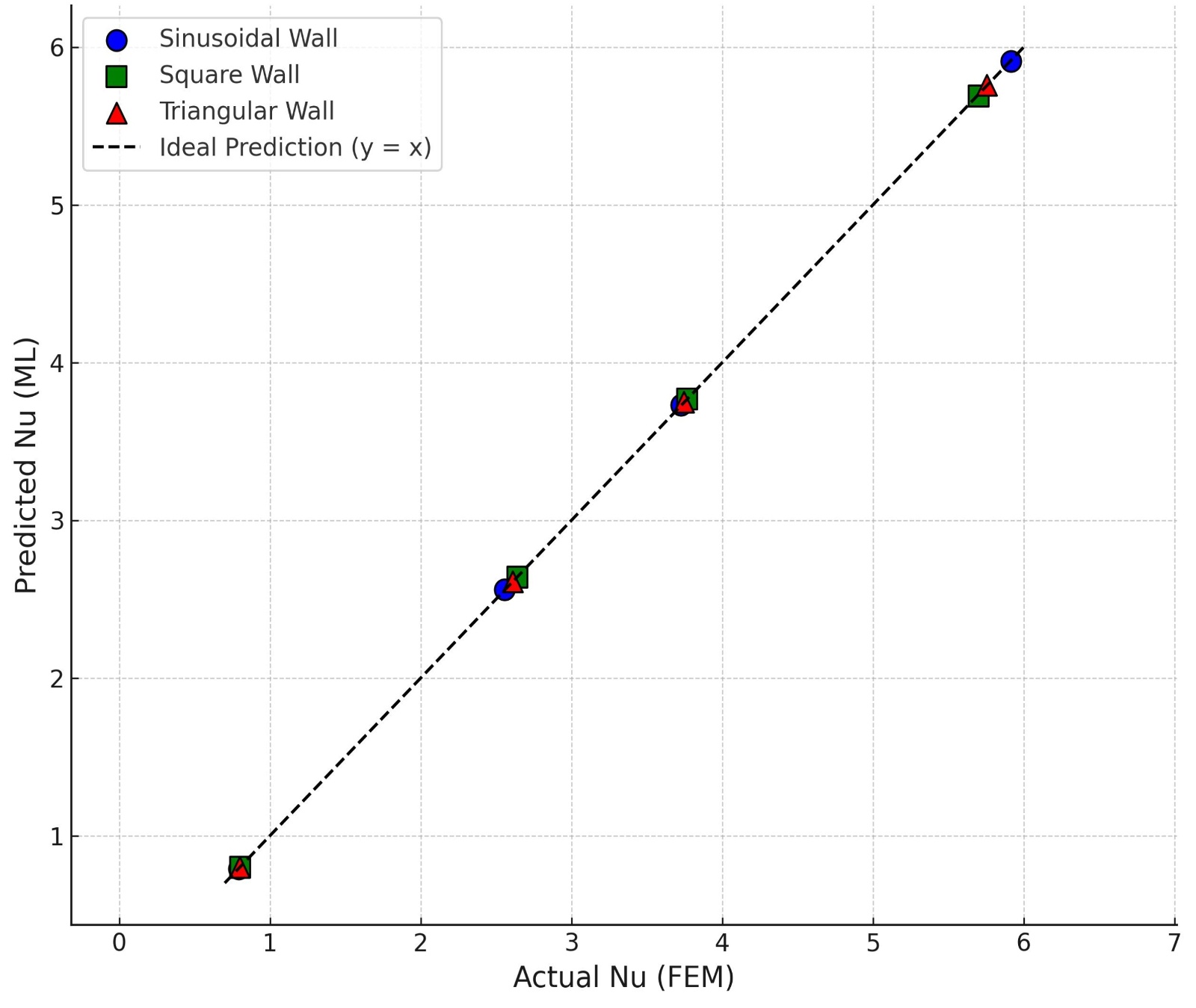

Figure 10. FEM vs ML Prediction of Nu for Square-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Figure 11. FEM vs ML Prediction of Nu for Triangular-Shaped Obstacles with different Wavy Walls at λ = 15˚.
Figure 12. FEM vs ML Prediction of Nu for Triangular-Shaped Obstacles with different Wavy Walls at λ = 30˚.
Figure 13. FEM vs ML Prediction of Nu for Triangular-Shaped Obstacles with different Wavy Walls at λ = 45˚.
Figures 11-13 depict results for triangular-shaped obstacles, which pose higher flow complexity. Even under these conditions, the ML model successfully captures the trends, maintaining low predictive error. Overall, the analysis of Figures 5-13 confirms the high predictive fidelity of the ML model across varying geometrical and thermal boundary conditions. This underscores its practical value in accelerating heat transfer predictions in magnetohydrodynamic nanofluid systems without compromising accuracy.
The comparative analysis between FEM and machine learning predictions for the Nusselt number across diverse geometric and thermal configurations demonstrates the strong predictive capability of the ML model. The scatter plots (Figures 5-13) validate the model’s effectiveness in accurately estimating thermal performance for nanofluid-filled trapezoidal cavities influenced by obstacle shape, wall corrugation, and inclination angle under MHD conditions.
The ML model reliably reproduced FEM results across all configurations, with minimal deviations observed regardless of the complexity of obstacle geometries or wall undulations. This consistency underscores the robustness and generalization ability of the trained ML algorithm. Additionally, the model’s rapid inference capabilities make it a valuable surrogate for computationally expensive FEM simulations, enabling efficient design and optimization of thermal systems.
In conclusion, the machine learning approach provides a powerful, efficient, and accurate alternative to traditional numerical simulations for predicting natural convection behavior in complex nanofluidic enclosures, significantly accelerating the analysis while maintaining high fidelity.
5. Conclusions
This study proposed an integrated framework that combines high-fidelity finite element method (FEM) simulations with machine learning (ML) predictions to analyze magnetohydrodynamic (MHD) natural convection in nanofluid-filled trapezoidal cavities. Key variables included obstacle shape (star, square, triangular), top wall corrugation (sinusoidal, square, triangular), and inclination angle (λ = 15˚, 30˚, 45˚), using Cu-H2O nanofluids to improve thermal performance.
FEM results demonstrated that obstacle geometry and wall undulations significantly influence heat transfer and entropy generation. Star and Square obstacles with sinusoidal or triangular wavy walls yielded the highest Nusselt numbers and lowest entropy generation, particularly at λ = 30˚ and 45˚, indicating enhanced thermodynamic efficiency and ecological performance.
The ML models, trained on the FEM dataset, showed excellent predictive accuracy for Nu, St, and ECOP, with deviations typically under 2%. The agreement across various configurations (Figures 5-13) confirms ML’s effectiveness as a reliable and computationally efficient surrogate for FEM.
The trained ML models are reliable within the parameter ranges covered by the FEM dataset; however, they may fail to generalize accurately when applied to scenarios outside these bounds, such as Ra > 106 or Ha > 50. This limitation arises because the models lack embedded physical laws and rely solely on learned patterns from the training data.
6. Key Findings
1) Optimal heat transfer occurred with sinusoidal walls, Star/Square obstacles, and λ = 30˚ - 45˚.
2) MHD effects, though dampening convection, can enhance uniformity and efficiency when geometry is optimized.
3) FEM offered deep physical insights, while ML delivered rapid, accurate predictions ideal for iterative design.
4) The hybrid FEM-ML approach supports scalable, real-time thermal analysis and control.
Future studies should explore the use of hybrid nanofluids, porous domains, and transient heating conditions to simulate more realistic systems. Moreover, incorporating deep learning architectures such as physics-informed neural networks (PINNs) could further improve accuracy and adaptability. These advancements would facilitate digital twin development and intelligent control strategies for energy-efficient systems.
Acknowledgements
The authors gratefully acknowledge the Department of Mathematics, Dhaka University of Engineering and Technology (DUET), Gazipur-1707, Bangladesh, for providing the necessary support and resources to carry out this research work.
