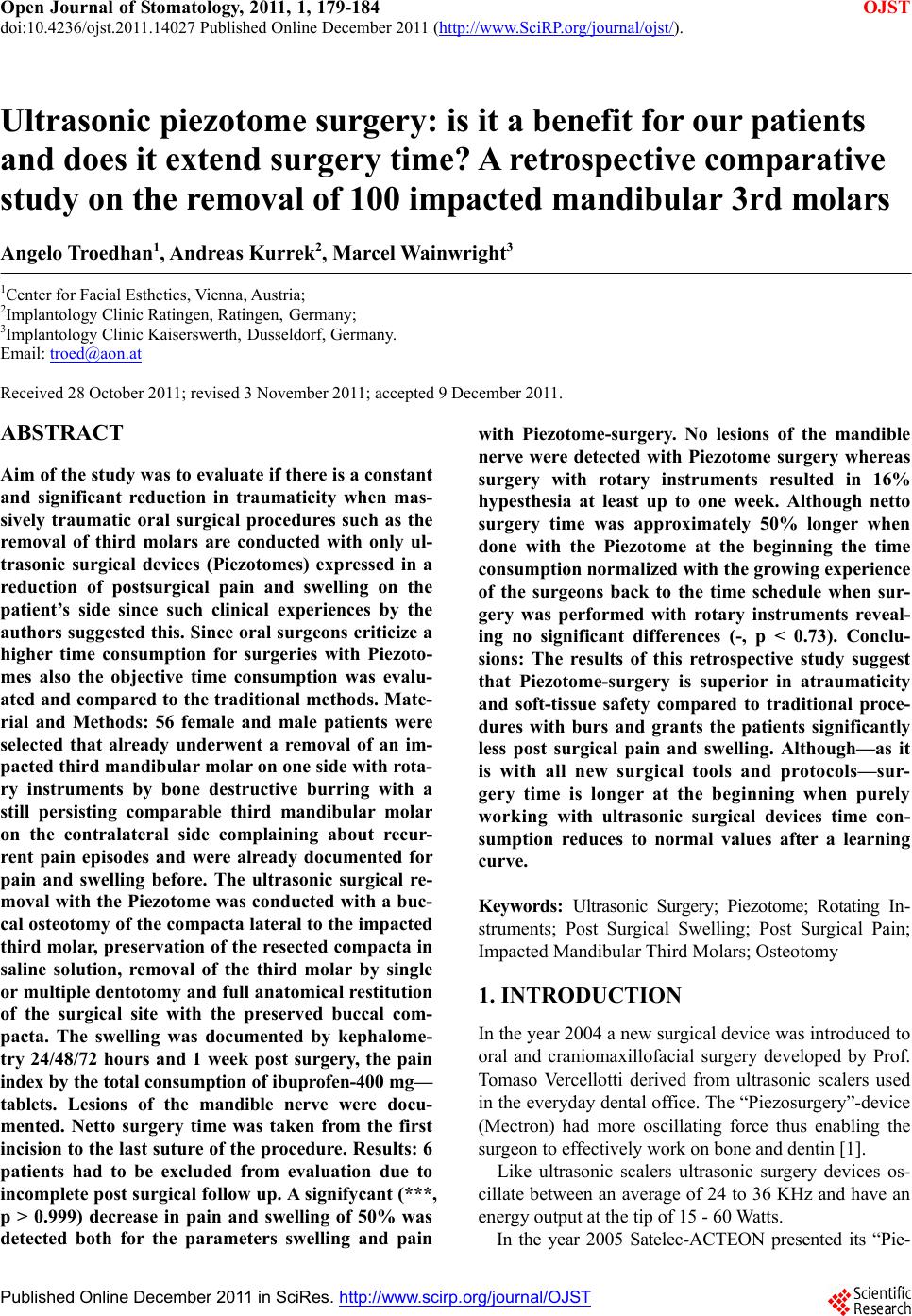

Ultrasonic piezotome surgery: is it a benefit for our patients

and does it extend surgery time? A retrospective comparative

study on the removal of 100 impacted mandibular 3rd molars

Angelo Tr oedhan1, Andr eas Kurrek2, Marcel Wainwright3

1Center for Facial Esthetics, Vienna, Austria;

2Implantology Clinic Ratingen, Ratingen, Germany;

3Implantology Clinic Kaiserswerth, Dusseldorf, Germany.

Email: [email protected]

Received 28 October 2011; revised 3 November 2011; accepted 9 December 2011.

ABSTRACT

Aim of the study was to evaluate if there is a constant

and significant reduction in traumaticity when mas-

sively traumatic oral surgical procedures such as the

removal of third molars are conducted with only ul-

trasonic surgical devices (Piezotomes) expressed in a

reduction of postsurgical pain and swelling on the

patient’s side since such clinical experiences by the

authors suggested this. Since oral surgeons criticize a

higher time consumption for surgeries with Piezoto-

mes also the objective time consumption was evalu-

ated and compared to the traditio nal methods. Mate-

rial and Methods: 56 female and male patients were

selected that already underwent a removal of an im-

pacted third mandibular molar on one side with rota-

ry instruments by bone destructive burring with a

still persisting comparable third mandibular molar

on the contralateral side complaining about recur-

rent pain episodes and were already documented for

pain and swelling before. The ultrasonic surgical re-

moval with the Piezotome was conducted with a buc-

cal osteotomy of the compacta lateral to the impacted

third molar, preservation of the resected compacta in

saline solution, removal of the third molar by single

or multiple dentotomy and full anatomical restitution

of the surgical site with the preserved buccal com-

pacta. The swelling was documented by kephalome-

try 24/48/72 hours and 1 week post surgery, the pain

index by the total consumption of ibuprofen-400 mg—

tablets. Lesions of the mandible nerve were docu-

mented. Netto surgery time was taken from the first

incision to the last suture of the procedure. Results: 6

patients had to be excluded from evaluation due to

incomplete post surgical follow up. A signifycant (***,

p > 0.999) decrease in pain and swelling of 50% was

detected both for the parameters swelling and pain

with Piezotome-surgery. No lesions of the mandible

nerve were detected with Piezotome surgery whereas

surgery with rotary instruments resulted in 16%

hypesthesia at least up to one week. Although netto

surgery time was approximately 50% longer when

done with the Piezotome at the beginning the time

consumption normalized with the growing experience

of the surgeons back to the time schedule when sur-

gery was performed with rotary instruments reveal-

ing no significant differences (-, p < 0.73). Conclu-

sions: The results of this retrospective study suggest

that Piezotome-surgery is superior in atraumaticity

and soft-tissue safety compared to traditional proce-

dures with burs and grants the patients significantly

less post surgical pain and swelling. Although—as it

is with all new surgical tools and protocols—sur-

gery time is longer at the beginning when purely

working with ultrasonic surgical devices time con-

sumption reduces to normal values after a learning

curve.

Keywords: Ultrasonic Surgery; Piezotome; Rotating In-

struments; Post Surgical Swelling; Post Surgical Pain;

Impacted Mandibular Third Molars; Osteotomy

1. INTRODUCTION

In the year 2004 a new surgical device was introduced to

oral and craniomaxillofacial surgery developed by Prof.

Tomaso Vercellotti derived from ultrasonic scalers used

in the everyday dental office. The “Piezosurgery”-device

(Mectron) had more oscillating force thus enabling the

surgeon to effectively work on bone and dentin [1].

Like ultrasonic scalers ultrasonic surgery devices os-

cillate between an average of 24 to 36 KHz and have an

energy output at the tip of 15 - 60 Watts.

In the year 2005 Satelec-ACTEON presented its “Pie-

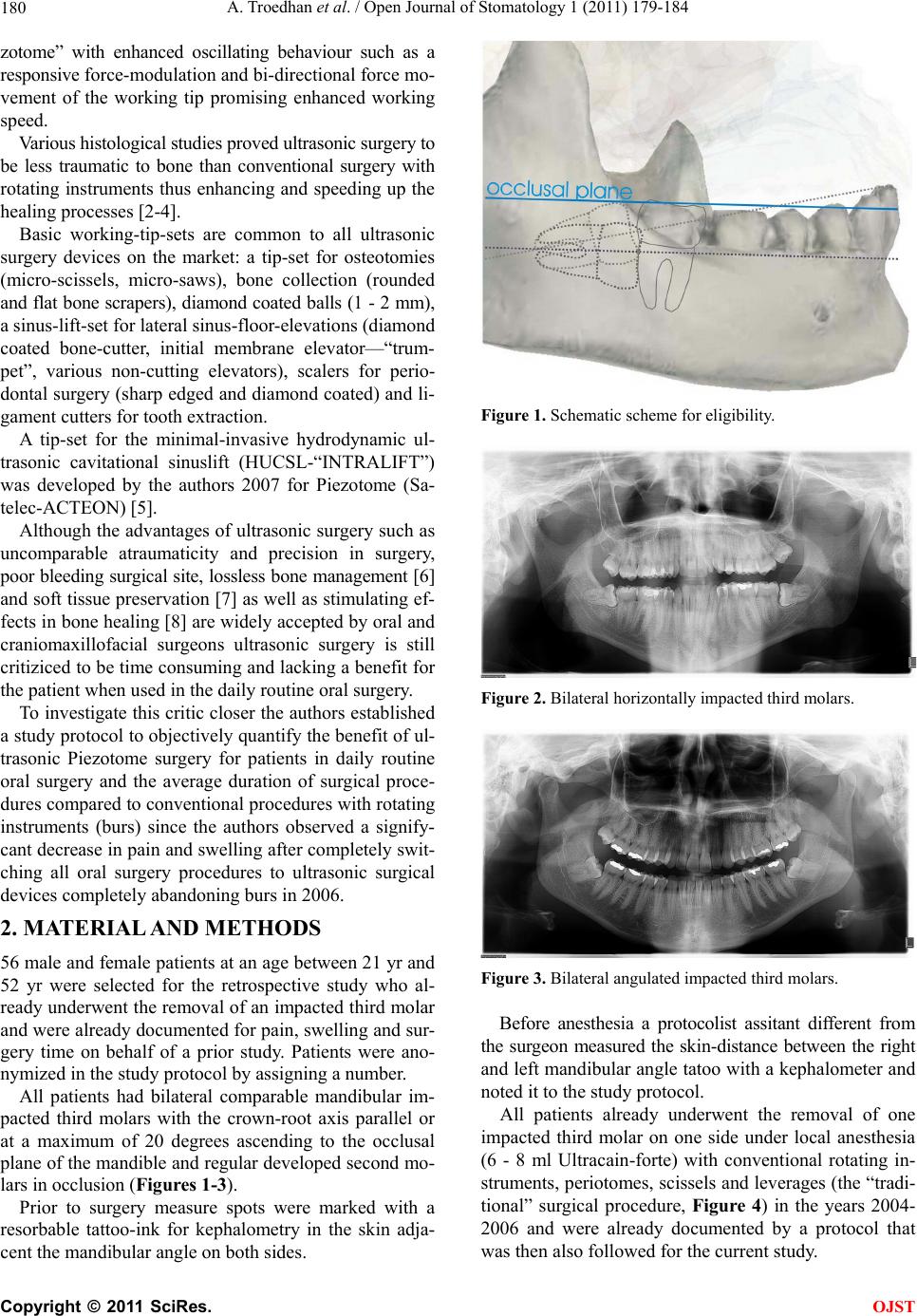

A. T ro edhan et al. / Open Journal of Stomatology 1 (2011) 179-184

180

zotome” with enhanced oscillating behaviour such as a

responsive force-modulation and bi-directional force mo-

vement of the working tip promising enhanced working

speed.

Various histological st udies proved ult rasonic surgery to

be less traumatic to bone than conventional surgery with

rotating instruments thus enhancing and speeding up the

healing processes [2-4 ].

Basic working-tip-sets are common to all ultrasonic

surgery devices on the market: a tip-set for osteotomies

(micro-scissels, micro-saws), bone collection (rounded

and flat bone scrapers), diamond coated balls (1 - 2 mm),

a sinus-lift-set for lateral sinus-floor-elevations (diamond

coated bone-cutter, initial membrane elevator—“trum-

pet”, various non-cutting elevators), scalers for perio-

dontal surgery (sharp edged and diamond coated) and li-

gament cutters for tooth extraction.

A tip-set for the minimal-invasive hydrodynamic ul-

trasonic cavitational sinuslift (HUCSL-“INTRALIFT”)

was developed by the authors 2007 for Piezotome (Sa-

telec-ACTEON) [5].

Although the ad vantages of ultrasonic surgery such as

uncomparable atraumaticity and precision in surgery,

poor bleeding surgical site, lossless bone management [6]

and soft tissue preserva tion [7] as well as stimulating ef-

fects in bone healing [8] are widely accepted by oral and

craniomaxillofacial surgeons ultrasonic surgery is still

critiziced to be time consuming and lack ing a benefit for

the patient when used in the daily routine oral surgery.

To investigate th is critic closer the authors established

a study protocol to objectively quantify the benefit of ul-

trasonic Piezotome surgery for patients in daily routine

oral surgery and the average duration of surgical proce-

dures compared to conventional procedures with rotating

instruments (burs) since the authors observed a signify-

cant decrease in pain and swelling after completely swit-

ching all oral surgery procedures to ultrasonic surgical

devices completely abandoning burs in 2006.

2. MATERIAL AND METHODS

56 male and female patients at an age between 21 yr and

52 yr were selected for the retrospective study who al-

ready underwent the removal of an impacted third molar

and were already documented for pain, swelling and sur-

gery time on behalf of a prior study. Patients were ano-

nymized in the study protocol by assigning a number.

All patients had bilateral comparable mandibular im-

pacted third molars with the crown-root axis parallel or

at a maximum of 20 degrees ascending to the occlusal

plane of the mandible and regular developed second mo-

lars in occlusion (Figures 1-3).

Prior to surgery measure spots were marked with a

resorbable tattoo-ink for kephalometry in the skin adja-

cent the mandibular angle on both sides.

Figure 1. Schematic scheme for eligibility.

Figure 2. Bilateral horizontally impacted third molars.

Figure 3. Bilateral angulated impacted third molars.

Before anesthesia a protocolist assitant different from

the surgeon measured the skin-distance between the right

and left mandibular angle tatoo with a kephalometer and

noted it to the study protocol.

All patients already underwent the removal of one

impacted third molar on one side under local anesthesia

(6 - 8 ml Ultracain-forte) with conventional rotating in-

struments, periotomes, scissels and leverages (the “tradi-

tional” surgical procedure, Figure 4) in the years 2004-

2006 and were already documented by a protocol that

was then also followed for the current study.

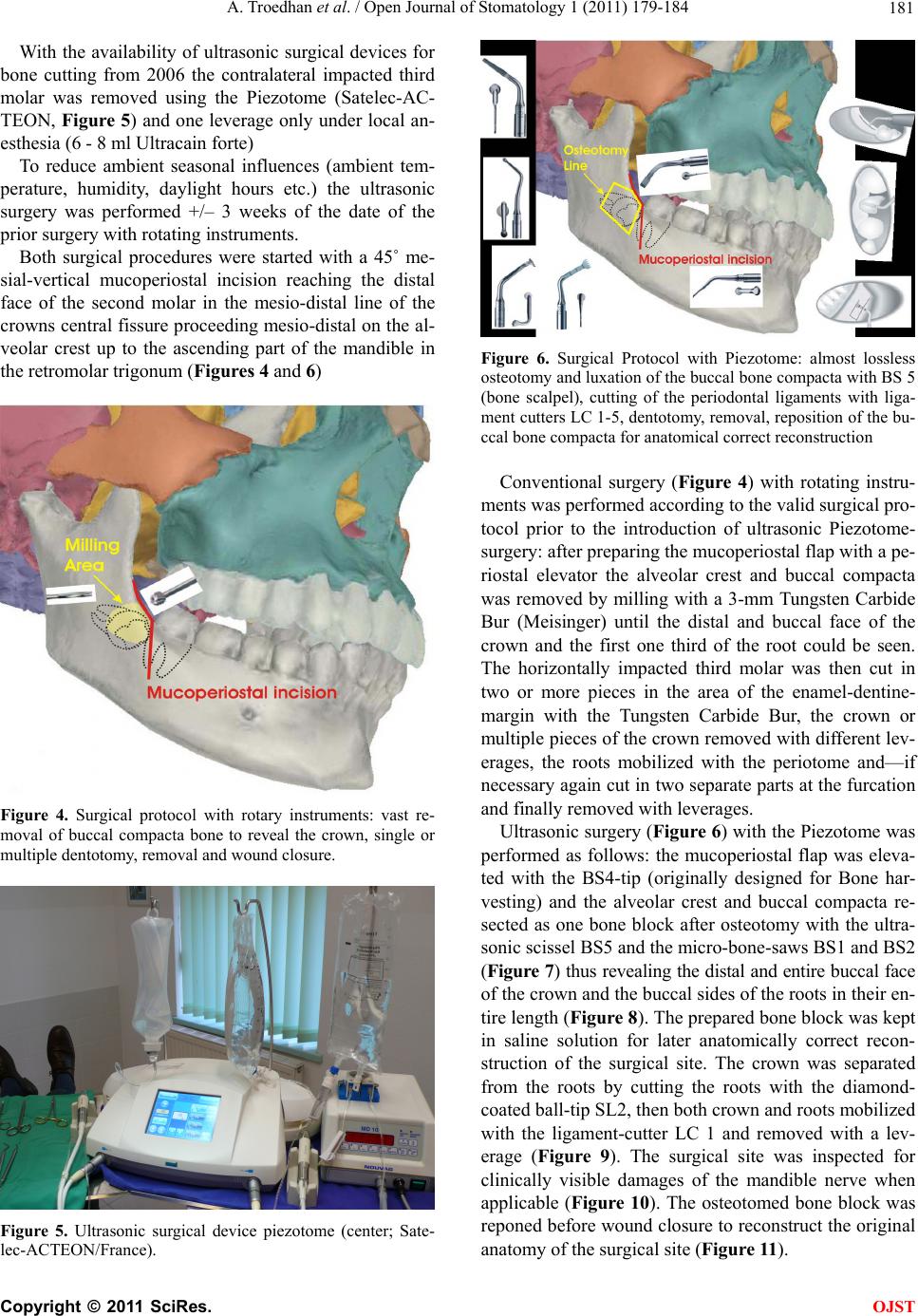

A. T ro edhan et al. / Open Journal of Stomatology 1 (2011) 179-184 181

With the availability of ultrasonic surgical devices for

bone cutting from 2006 the contralateral impacted third

molar was removed using the Piezotome (Satelec-AC-

TEON, Figure 5) and one leverage only under local an-

esthesia (6 - 8 ml Ultracain forte)

To reduce ambient seasonal influences (ambient tem-

perature, humidity, daylight hours etc.) the ultrasonic

surgery was performed +/– 3 weeks of the date of the

prior surgery with rotating instruments.

Both surgical procedures were started with a 45˚ me-

sial-vertical mucoperiostal incision reaching the distal

face of the second molar in the mesio-distal line of the

crowns central fissure proceeding mesio-distal on the al-

veolar crest up to the ascending part of the mandible in

the retromolar trigonum (Figures 4 and 6)

Figure 4. Surgical protocol with rotary instruments: vast re-

moval of buccal compacta bone to reveal the crown, single or

multiple dentotomy, removal and wound closure.

Figure 5. Ultrasonic surgical device piezotome (center; Sate-

lec-ACTEON/France).

Figure 6. Surgical Protocol with Piezotome: almost lossless

osteotomy and luxation of the buccal bone compacta with BS 5

(bone scalpel), cutting of the periodontal ligaments with liga-

ment cutters LC 1-5, dentotomy, removal, reposition of the bu-

ccal bone compacta for anatomical correct reconstruction

Conventional surgery (Figure 4) with rotating instru-

ments was performed according to the valid surgical pro-

tocol prior to the introduction of ultrasonic Piezotome-

surgery: after preparing the mu coperiostal flap with a pe-

riostal elevator the alveolar crest and buccal compacta

was removed by milling with a 3-mm Tungsten Carbide

Bur (Meisinger) until the distal and buccal face of the

crown and the first one third of the root could be seen.

The horizontally impacted third molar was then cut in

two or more pieces in the area of the enamel-dentine-

margin with the Tungsten Carbide Bur, the crown or

multiple pieces of the crown removed with different lev-

erages, the roots mobilized with the periotome and—if

necessary again cut in two separate parts at the furcation

and finally removed with leverages.

Ultrasonic surgery (Figure 6) with the Piezotome was

performed as follows: the mucoperiostal flap was eleva-

ted with the BS4-tip (originally designed for Bone har-

vesting) and the alveolar crest and buccal compacta re-

sected as one bone block after osteotomy with the ultra-

sonic scissel BS5 and the micro-bone-saws BS1 and BS2

(Figure 7) thus revealing the distal and entire buccal face

of the crown and the bu ccal side s of the roots in their en-

tire length (Figure 8). The prepared bone block was kept

in saline solution for later anatomically correct recon-

struction of the surgical site. The crown was separated

from the roots by cutting the roots with the diamond-

coated ball-tip SL2, then both crown and roots mobilized

with the ligament-cutter LC 1 and removed with a lev-

erage (Figure 9). The surgical site was inspected for

clinically visible damages of the mandible nerve when

applicable (Figure 10). The osteotomed bone block was

reponed before wound closure to reconstruct the original

anatomy of the surgical site (Figure 11).

A. T ro edhan et al. / Open Journal of Stomatology 1 (2011) 179-184

182

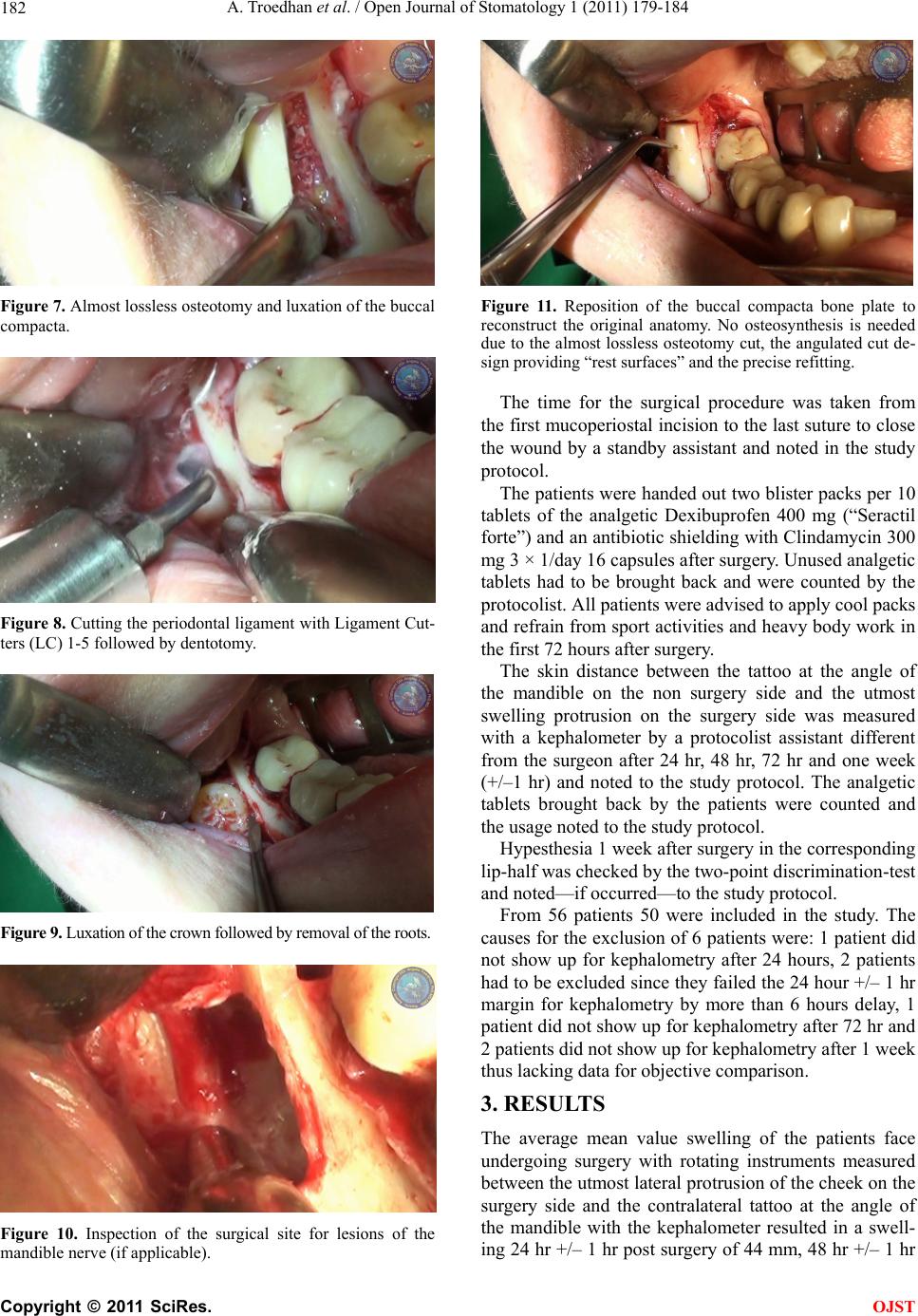

Figure 7. Almost lossless osteotomy and luxation of the buccal

compacta.

Figure 8. Cutting the periodontal ligament with Ligament Cut-

ters (LC) 1-5 followed by dentotomy.

Figur e 9 . Lux ation of the crown followed by removal of th e roots.

Figure 10. Inspection of the surgical site for lesions of the

mandible nerve (if applicable).

Figure 11. Reposition of the buccal compacta bone plate to

reconstruct the original anatomy. No osteosynthesis is needed

due to the almost lossless osteotomy cut, the angulated cut de-

sign providing “rest surfaces” and the precise refitting.

The time for the surgical procedure was taken from

the first mucoperiostal incision to the last suture to close

the wound by a standby assistant and noted in the study

protocol.

The patients were handed out two blister packs per 10

tablets of the analgetic Dexibuprofen 400 mg (“Seractil

forte”) and an antibiotic sh ielding with Clindamycin 300

mg 3 × 1/day 16 capsules after surgery. Unused analgetic

tablets had to be brought back and were counted by the

protocolist. All patients were advised to apply cool packs

and refrain from sport activities and heavy body work in

the first 72 hours after surgery.

The skin distance between the tattoo at the angle of

the mandible on the non surgery side and the utmost

swelling protrusion on the surgery side was measured

with a kephalometer by a protocolist assistant different

from the surgeon after 24 hr, 48 hr, 72 hr and one week

(+/–1 hr) and noted to the study protocol. The analgetic

tablets brought back by the patients were counted and

the usage noted to the study protocol.

Hypesthesia 1 week after surgery in the corresponding

lip-half was checked by the two-point discrimination-test

and noted—if occurred—to the study protocol.

From 56 patients 50 were included in the study. The

causes for the exclusion of 6 patients were: 1 patient did

not show up for kephalometry after 24 hours, 2 patients

had to be excluded since th ey failed the 24 hour +/– 1 hr

margin for kephalometry by more than 6 hours delay, 1

patient did not show up for kephalometry after 72 hr and

2 patients did n ot sho w up f or kep hal ometry after 1 week

thus lacking data for objective comparison.

3. RESULTS

The average mean value swelling of the patients face

undergoing surgery with rotating instruments measured

between the utmost lateral protrusion of the cheek on the

surgery side and the contralateral tattoo at the angle of

the mandible with the kephalometer resulted in a swell-

ing 24 hr +/– 1 hr post surgery of 44 mm, 48 hr +/– 1 hr

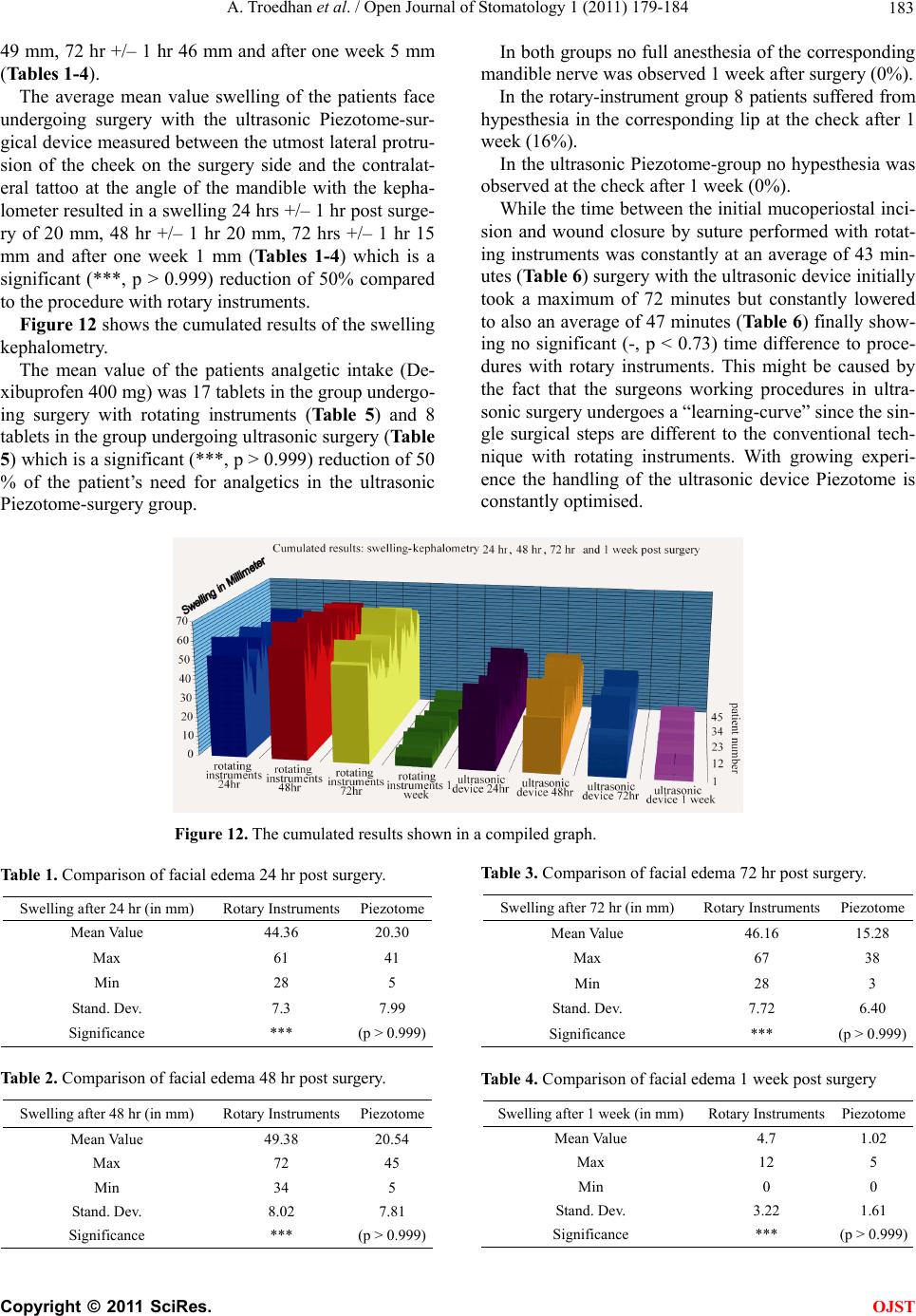

A. T ro edhan et al. / Open Journal of Stomatology 1 (2011) 179-184

183

49 mm, 72 hr +/– 1 hr 46 mm and after one week 5 mm

(Tables 1-4). In both groups no full anesthesia of th e corresponding

mandible nerve was observed 1 week after surgery (0%).

The average mean value swelling of the patients face

undergoing surgery with the ultrasonic Piezotome-sur-

gical device measured between the utmost lateral protru-

sion of the cheek on the surgery side and the contralat-

eral tattoo at the angle of the mandible with the kepha-

lometer resulted in a swelling 24 hr s +/– 1 hr post surge-

ry of 20 mm, 48 hr +/– 1 hr 20 mm, 72 hrs +/– 1 hr 15

mm and after one week 1 mm (Tables 1 -4) which is a

significant (***, p > 0.999) reduction of 50% compared

to the procedure with rotary instruments.

In the rotary-instrument group 8 patients suffered from

hypesthesia in the corresponding lip at the check after 1

week (16%).

In the ultrasonic Piezotome-group no hypesthesia was

observed at the check after 1 week (0%).

While the time between the in itial mucoperiostal inci-

sion and wound closure by suture performed with rotat-

ing instruments was constantly at an average of 43 min-

utes (Table 6) surgery with the ultrasonic device initially

took a maximum of 72 minutes but constantly lowered

to also an average of 47 minutes (Table 6) finally show-

ing no significant (-, p < 0.73) time difference to proce-

dures with rotary instruments. This might be caused by

the fact that the surgeons working procedures in ultra-

sonic surgery undergoes a “learning-curve” since the sin-

gle surgical steps are different to the conventional tech-

nique with rotating instruments. With growing experi-

ence the handling of the ultrasonic device Piezotome is

constantly optimised.

Figure 12 shows the cumulated results of the swelling

kephalometry.

The mean value of the patients analgetic intake (De-

xibuprofen 400 mg) was 17 tablets in the group undergo-

ing surgery with rotating instruments (Table 5) and 8

tablets in the group und ergoing ultr asonic surgery (Table

5) which is a significant (***, p > 0.999) reduction of 50

% of the patient’s need for analgetics in the ultrasonic

Piezotome-surgery gr o up .

Figure 12. The cumulated results shown in a compiled graph.

Table 3. Comparison of facial edema 72 hr post surgery.

Table 1. Comparison of facial edema 24 hr post surgery.

Swelling after 24 hr (in mm) Rotary Instruments Piezotome

Mean Value 44.36 20.30

Max 61 41

Min 28 5

Stand. D e v. 7.3 7.99

Significance *** (p > 0.999)

Swelling after 72 hr (in mm) Rotary Instruments Piezotome

Mean Value 46.16 15.28

Max 67 38

Min 28 3

Stand. D e v. 7.72 6.40

Significance *** (p > 0.999)

Table 2. Comparison of facial edema 48 hr post surgery. Table 4. Comparison of facial edema 1 week post surgery

Swelling after 48 hr (in mm) Rotary Instruments Piezotome

Mean Value 49.38 20.54

Max 72 45

Min 34 5

Stand. D e v. 8.02 7.81

Significance *** (p > 0.999)

Swelling after 1 week (in mm)Ro tary Instruments Piezotome

Mean Value 4.7 1.02

Max 12 5

Min 0 0

Stand. D e v. 3.22 1.61

Significance *** (p > 0.999)

OJST

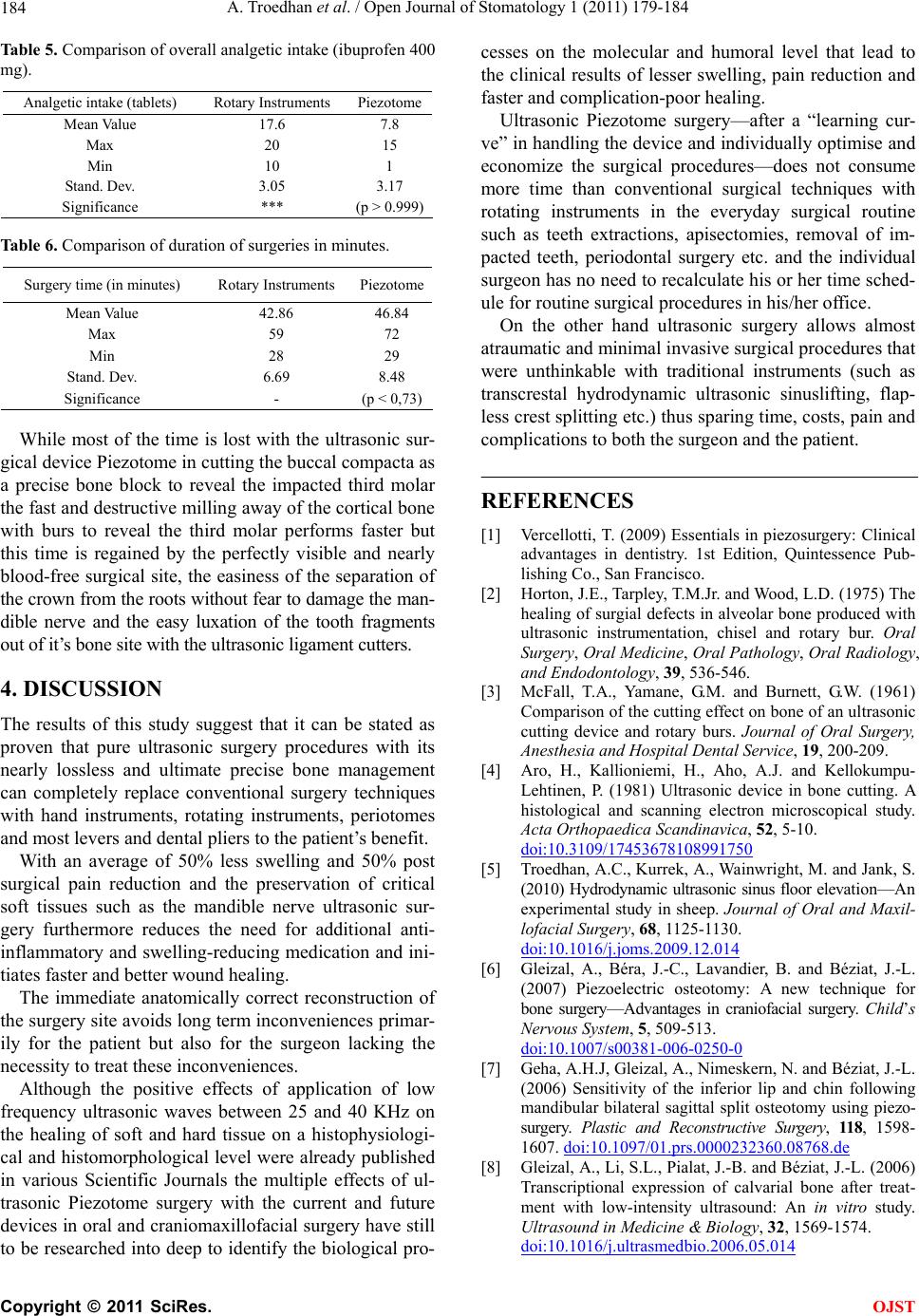

A. T ro edhan et al. / Open Journal of Stomatology 1 (2011) 179-184

184

Table 5. Comparison of overall analgetic intake (ibuprofen 400

mg).

Analgetic intake (tablets) Rotary Instruments Piezotome

Mean Value 17.6 7.8

Max 20 15

Min 10 1

Stand. D e v. 3.05 3.17

Significance *** (p > 0.999)

Table 6. Comparison of duration of surgeries in minutes.

Surgery time (in minutes) Rotary Instruments Piezotome

Mean Value 42.86 46.84

Max 59 72

Min 28 29

Stand. D e v. 6.69 8.48

Significance - (p < 0,73)

While most of the time is lost with the ultrasonic sur-

gical device Piezotome in cutting the buccal compacta as

a precise bone block to reveal the impacted third molar

the fast and destructive milling away of th e cortical bone

with burs to reveal the third molar performs faster but

this time is regained by the perfectly visible and nearly

blood-free surgical site, the easiness of the separation of

the crown from the roots without fear to damage the man-

dible nerve and the easy luxation of the tooth fragments

out of it’s bone site with the ultrasonic ligament cutters.

4. DISCUSSION

The results of this study suggest that it can be stated as

proven that pure ultrasonic surgery procedures with its

nearly lossless and ultimate precise bone management

can completely replace conventional surgery techniques

with hand instruments, rotating instruments, periotomes

and most levers and dental pliers to the patient’s benefit.

With an average of 50% less swelling and 50% post

surgical pain reduction and the preservation of critical

soft tissues such as the mandible nerve ultrasonic sur-

gery furthermore reduces the need for additional anti-

inflammatory and swelling-reducing medication and ini-

tiates faster and better wound healing.

The immediate anatomically correct reconstruction of

the surgery site avoids long term inconveniences primar-

ily for the patient but also for the surgeon lacking the

necessity to treat these inconvenien ces.

Although the positive effects of application of low

frequency ultrasonic waves between 25 and 40 KHz on

the healing of soft and hard tissue on a histophysiologi-

cal and histomorphological level were already published

in various Scientific Journals the multiple effects of ul-

trasonic Piezotome surgery with the current and future

devices in oral and craniomax illofacial surgery have still

to be rese arched into d eep to identify the bio logical pro-

cesses on the molecular and humoral level that lead to

the clinical results of lesser swelling, pain reduction and

faster and complication -poor healing.

Ultrasonic Piezotome surgery—after a “learning cur-

ve” in handling the device and individually optimise and

economize the surgical procedures—does not consume

more time than conventional surgical techniques with

rotating instruments in the everyday surgical routine

such as teeth extractions, apisectomies, removal of im-

pacted teeth, periodontal surgery etc. and the individual

surgeon has no need to recalculate his or her time sched-

ule for routine surgical procedures in his/he r office.

On the other hand ultrasonic surgery allows almost

atraumatic and minimal invasive surgical procedures that

were unthinkable with traditional instruments (such as

transcrestal hydrodynamic ultrasonic sinuslifting, flap-

less crest splitting etc.) thus sp aring time, costs, pain and

complications to both the surgeon and the patient.

REFERENCES

[1] Vercellotti, T. (2009) Essentials in piezosurgery: Clinical

advantages in dentistry. 1st Edition, Quintessence Pub-

lishing Co., San Francisco.

[2] Horton, J.E., Tarpley, T.M.Jr. and Wood, L.D. (1975) The

healing of surgial defects in alveolar bone produced with

ultrasonic instrumentation, chisel and rotary bur. Oral

Surgery, Oral Medicine, Oral Pathology, Oral Radiology,

and Endodontology, 39, 536-546.

[3] McFall, T.A., Yamane, G.M. and Burnett, G.W. (1961)

Comparison of the cutting effect on bone of an ultrasonic

cutting device and rotary burs. Journal of Oral Surgery,

Anesthesia and Hospital Dental Service, 19, 200-209.

[4] Aro, H., Kallioniemi, H., Aho, A.J. and Kellokumpu-

Lehtinen, P. (1981) Ultrasonic device in bone cutting. A

histological and scanning electron microscopical study.

Acta Orthopaedica Scandinavica, 52, 5-10.

doi:10.3109/17453678108991750

[5] Troedhan, A.C., Kurrek, A., Wa inwright, M. and Jank, S.

(2010) Hydrodynamic ultrasonic sinus floor elevation—An

experimental study in sheep. Journal of Oral and Maxil-

lofacial Surgery, 68, 1125-1130.

doi:10.1016/j.joms.2009.12.014

[6] Gleizal, A., Béra, J.-C., Lavandier, B. and Béziat, J.-L.

(2007) Piezoelectric osteotomy: A new technique for

bone surgery—Advantages in craniofacial surgery. Child’s

Nervous System, 5, 509-513.

doi:10.1007/s00381-006-0250-0

[7] Geha, A.H.J, Gleizal, A., Nimeskern, N. and Béziat, J.-L.

(2006) Sensitivity of the inferior lip and chin following

mandibular bilateral sagittal split osteotomy using piezo-

surgery. Plastic and Reconstructive Surgery, 118, 1598-

1607. doi:10.1097/01.prs.0000232360.08768.de

[8] Gleizal, A., Li, S.L., Pialat, J.-B. and Béziat, J.-L. (2006)

Transcriptional expression of calvarial bone after treat-

ment with low-intensity ultrasound: An in vitro study.

Ultrasound in Medicine & Biology, 32, 1569-1574.

doi:10.1016/j.ultrasmedbio.2006.05.014
