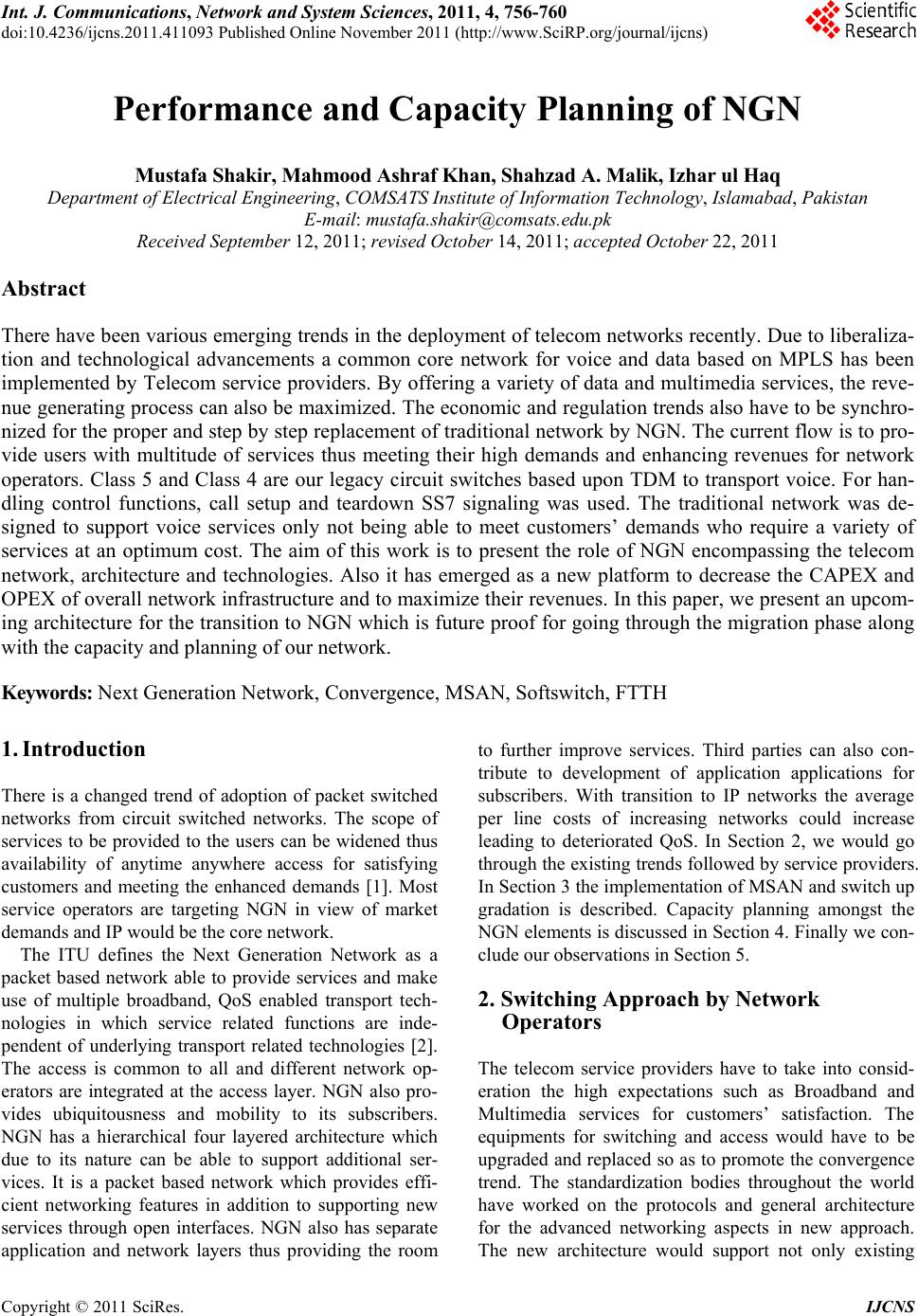

Performance and Capacity Planning of NGN

Mustafa Shakir, Mahmood Ashraf Khan, Shahzad A. Malik, Izhar ul Haq

Department of Electrical Engineering, COMSATS Institute of Information Technology, Islamabad, Pakistan

E-mail: [email protected]

Received September 12, 2011; revised October 14, 2011; accepted October 22, 2011

Abstract

There have been various emerging trends in the deployment of telecom networks recently. Due to liberaliza-

tion and technological advancements a common core network for voice and data based on MPLS has been

implemented by Telecom service providers. By offering a variety of data and multimedia services, the reve-

nue generating process can also be maximized. The economic and regulation trends also have to be synchro-

nized for the proper and step by step replacement of traditional network by NGN. The current flow is to pro-

vide users with multitude of services thus meeting their high demands and enhancing revenues for network

operators. Class 5 and Class 4 are our legacy circuit switches based upon TDM to transport voice. For han-

dling control functions, call setup and teardown SS7 signaling was used. The traditional network was de-

signed to support voice services only not being able to meet customers’ demands who require a variety of

services at an optimum cost. The aim of this work is to present the role of NGN encompassing the telecom

network, architecture and technologies. Also it has emerged as a new platform to decrease the CAPEX and

OPEX of overall network infrastructure and to maximize their revenues. In this paper, we present an upcom-

ing architecture for the transition to NGN which is future proof for going through the migration phase along

with the capacity and planning of our network.

Keywords: Next Generation Network, Convergence, MSAN, Softswitch, FTTH

1. Introduction

There is a changed trend of adoption of packet switched

networks from circuit switched networks. The scope of

services to be provided to the users can be widened thus

availability of anytime anywhere access for satisfying

customers and meeting the enhanced demands [1]. Most

service operators are targeting NGN in view of market

demands and IP would be the core network.

The ITU defines the Next Generation Network as a

packet based network able to provide services and make

use of multiple broadband, QoS enabled transport tech-

nologies in which service related functions are inde-

pendent of underlying transport related technologies [2].

The access is common to all and different network op-

erators are integrated at the access layer. NGN also pro-

vides ubiquitousness and mobility to its subscribers.

NGN has a hierarchical four layered architecture which

due to its nature can be able to support additional ser-

vices. It is a packet based network which provides effi-

cient networking features in addition to supporting new

services through open interfaces. NGN also has separate

application and network layers thus providing the room

to further improve services. Third parties can also con-

tribute to development of application applications for

subscribers. With transition to IP networks the average

per line costs of increasing networks could increase

leading to deteriorated QoS. In Section 2, we would go

through the ex isting trends followed by serv ice providers.

In Section 3 the implementation of MSAN and switch up

gradation is described. Capacity planning amongst the

NGN elements is discussed in Section 4. Finally we con-

clude our observations in Section 5.

2. Switching Approach by Network

Operators

The telecom service providers have to take into consid-

eration the high expectations such as Broadband and

Multimedia services for customers’ satisfaction. The

equipments for switching and access would have to be

upgraded and replaced so as to promote the convergence

trend. The standardization bodies throughout the world

have worked on the protocols and general architecture

for the advanced networking aspects in new approach.

The new architecture would support not only existing

M. SHAKIR ET AL.757

telecom infrastructures but would also ensure a smooth

transition to an ip based network. British Telecom and

SingTel are adopting the converged approach thus im-

plementing a single multi-service network [3]. Various

operators are working upon implementation of NGN in

their core networks. The operators would pursue a

phased approach towards upgrading to the corresponding

NGN components while providing the services of tradi-

tional network at the same time. The NGN setup is

shown in Figure 1. The softswitch (SS) provides call

control services as well as Media Gateway control since

it handles many switching functions and has replaced the

traditional switch. The Trunk Gateway (TGW) and Ac-

cess Gateway (AGW) are controlled by the softswitch

and act as the interface between circuit and packet

switched networks converting ip to TDM traffic and

TDM traffic to ip. The Application Server (AS) provides

enhanced features which are not available in the

softswitch. A protocol used to control call setup, connec-

tion and termination. The call control protocols used in

softswitch are SS7 for switched circuit network, whereas

SIP and H.323 are implemented for call control in packet

switched networks. The softswitch controls media gate-

ways by means of MGCP. The SIGTRAN (Signaling

Transport) protocol carries SS7 signals over the internet.

The immediate and one step conversion of existing net-

works to NGN would not b e possible so it has to be exe-

cuted in a proper way. At the core IP network shown in

Figure, IP based components would be implemented

which would realize a MPLS approach and multimedia

services would have to be provided thus achieving our

targets of Fixed Mobile Converg ence [4].

The network operators divide their traditional infra-

structure into region s or domains as per the requirements

of operation and maintenance, traffic engineering and

distribution and the buildup of sites in various areas. The

network can be seen as comprising of a number of do-

mains while we realize the NGN solution for switching

i.e. the Soft Switch. Our IP based network at the core

would be able to provide a better QoS and processing a

capability to handle a large number of subscribers. The

softswitch serves as the central device in the telecommu-

nications system. The call agent in the soft switch carries

out functions of signaling, billing and services. The Me-

dia Gateway which is controlled by the softswitch acts as

the interface between circuit and packet switched net-

works converting ip to TDM traffic and TDM traffic to

ip. The Signaling Gateway converts PSTN signaling be-

tween TDM bearer mode and IP packets mode and is

applied on the access layer of NGN thus can process

both SIGTRAN and SS7 protocols keeping ahead in sig-

naling link density, capacity and signaling processing

capacity. The access gateway is the line interface to the

core ip network and connects subscribers with analog

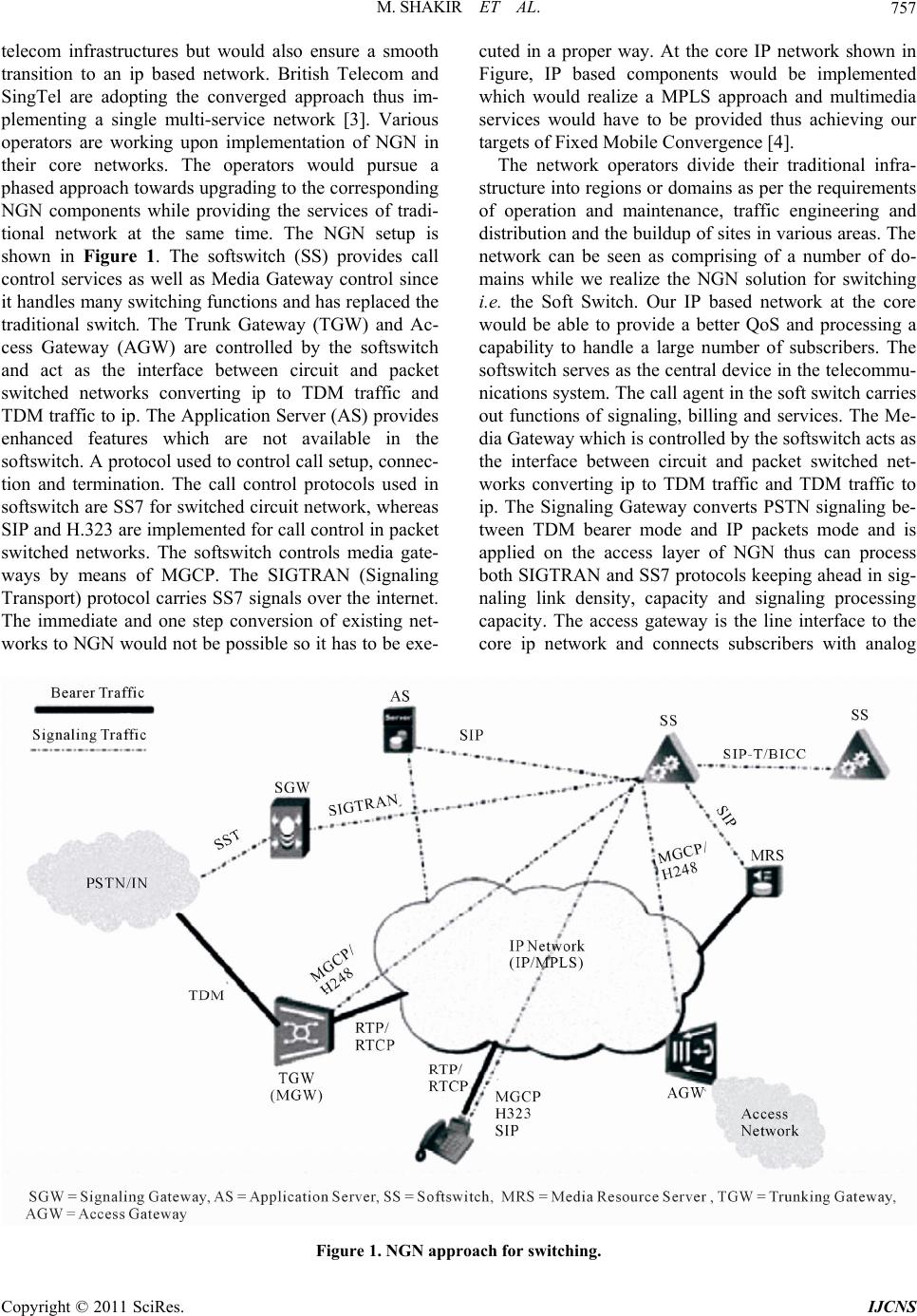

Figure 1. NGN approach for switching.

M. SHAKIR ET AL.

758

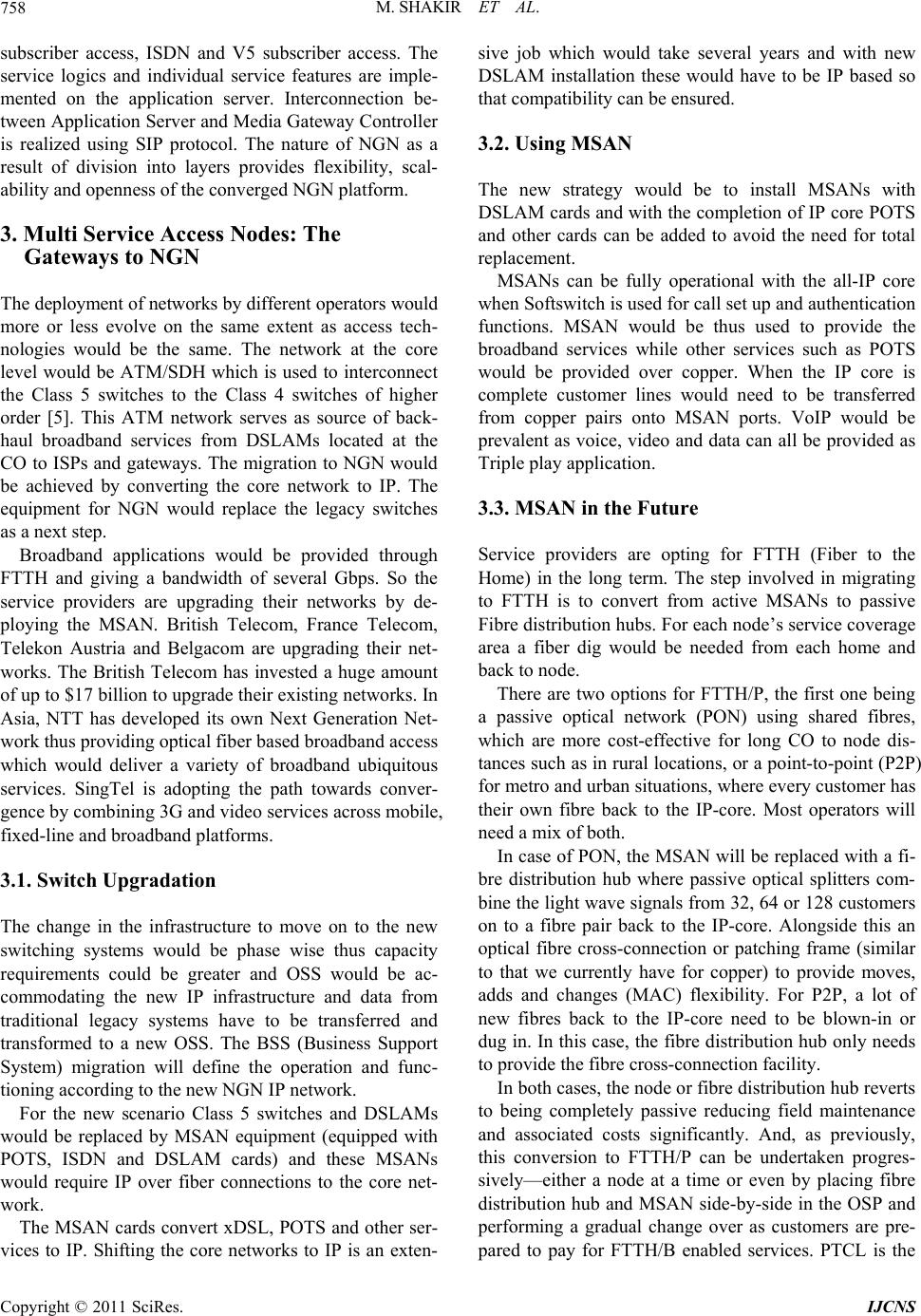

subscriber access, ISDN and V5 subscriber access. The

service logics and individual service features are imple-

mented on the application server. Interconnection be-

tween Application Server and Media Gateway Co ntroller

is realized using SIP protocol. The nature of NGN as a

result of division into layers provides flexibility, scal-

ability and openness of the converged NGN platform.

3. Multi Service Access Nodes: The

Gateways to NGN

The deployment of networks by different operators would

more or less evolve on the same extent as access tech-

nologies would be the same. The network at the core

level would be ATM/SDH which is used to interconnect

the Class 5 switches to the Class 4 switches of higher

order [5]. This ATM network serves as source of back-

haul broadband services from DSLAMs located at the

CO to ISPs and gateways. The migration to NGN would

be achieved by converting the core network to IP. The

equipment for NGN would replace the legacy switches

as a next step.

Broadband applications would be provided through

FTTH and giving a bandwidth of several Gbps. So the

service providers are upgrading their networks by de-

ploying the MSAN. British Telecom, France Telecom,

Telekon Austria and Belgacom are upgrading their net-

works. The British Telecom has invested a huge amount

of up to $17 billion to upgrade their ex istin g netwo rks. In

Asia, NTT has developed its own Next Generation Net-

work thus providing optical fiber based broadband access

which would deliver a variety of broadband ubiquitous

services. SingTel is adopting the path towards conver-

gence by combining 3G and video services across mobile,

fixed-line an d br oadband pl at fo rms.

3.1. Switch Upgradation

The change in the infrastructure to move on to the new

switching systems would be phase wise thus capacity

requirements could be greater and OSS would be ac-

commodating the new IP infrastructure and data from

traditional legacy systems have to be transferred and

transformed to a new OSS. The BSS (Business Support

System) migration will define the operation and func-

tioning according to the new NGN IP net w o rk .

For the new scenario Class 5 switches and DSLAMs

would be replaced by MSAN equipment (equipped with

POTS, ISDN and DSLAM cards) and these MSANs

would require IP over fiber connections to the core net-

work.

The MSAN cards convert xDSL, POTS and other ser-

vices to IP. Shifting the core networks to IP is an exten-

sive job which would take several years and with new

DSLAM installation these would have to be IP based so

that compatibility can be ensured.

3.2. Using MSAN

The new strategy would be to install MSANs with

DSLAM cards and with the completion of IP core POTS

and other cards can be added to avoid the need for total

replacement.

MSANs can be fully operational with the all-IP core

when Softswitch is used for call set up and authentication

functions. MSAN would be thus used to provide the

broadband services while other services such as POTS

would be provided over copper. When the IP core is

complete customer lines would need to be transferred

from copper pairs onto MSAN ports. VoIP would be

prevalent as voice, video and data can all be provided as

Triple play application.

3.3. MSAN in the Future

Service providers are opting for FTTH (Fiber to the

Home) in the long term. The step involved in migrating

to FTTH is to convert from active MSANs to passive

Fibre distribution hubs. For each node’s service coverage

area a fiber dig would be needed from each home and

back to node.

There are two options for FTTH/P, the first one being

a passive optical network (PON) using shared fibres,

which are more cost-effective for long CO to node dis-

tances such as in rural lo cations, or a point-to-poin t (P2P)

for metro and urban situations, where every customer has

their own fibre back to the IP-core. Most operators will

need a mix of both.

In case of PON, the MSAN will be replaced with a fi-

bre distribution hub where passive optical splitters com-

bine the light wave signals from 32, 64 or 128 customers

on to a fibre pair back to the IP-core. Alongside this an

optical fibre cross-connection or patching frame (similar

to that we currently have for copper) to provide moves,

adds and changes (MAC) flexibility. For P2P, a lot of

new fibres back to the IP-core need to be blown-in or

dug in. In this case, the fibre distributio n hub only needs

to provide the fib re cross-connection facility.

In both cases, the node or fibre distribution hu b reverts

to being completely passive reducing field maintenance

and associated costs significantly. And, as previously,

this conversion to FTTH/P can be undertaken progres-

sively—either a node at a time or even by placing fibre

distribution hub and MSAN side-by-side in the OSP and

performing a gradual change over as customers are pre-

pared to pay for FTTH/B enabled services. PTCL is the

M. SHAKIR ET AL.759

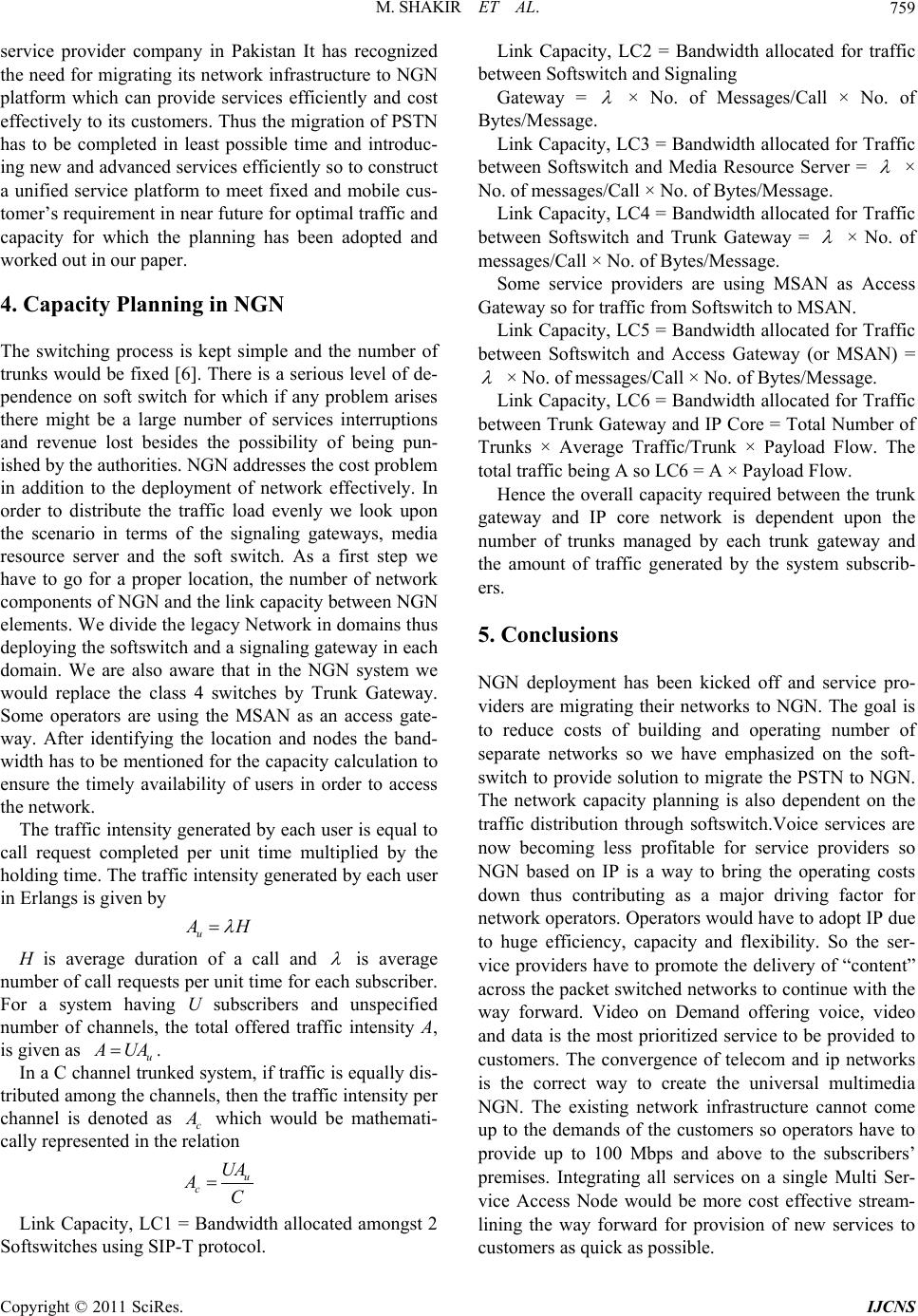

service provider company in Pakistan It has recognized

the need for migrating its network infrastructure to NGN

platform which can provide services efficiently and cost

effectively to its customers. Thus the migration of PSTN

has to be completed in least possible time and introduc-

ing new and advanced services efficiently so to construct

a unified service platform to meet fixed and mobile cus-

tomer’s requirement in near future for optimal traffic an d

capacity for which the planning has been adopted and

worked out in our paper.

4. Capacity Planning in NGN

The switching process is kept simple and the number of

trunks would be fixed [6]. There is a serious level of de-

pendence on soft switch for which if any problem arises

there might be a large number of services interruptions

and revenue lost besides the possibility of being pun-

ished by the authorities. NGN ad dresses the cost problem

in addition to the deployment of network effectively. In

order to distribute the traffic load evenly we look upon

the scenario in terms of the signaling gateways, media

resource server and the soft switch. As a first step we

have to go for a proper location, the number of network

components of NGN and the link capacity between NGN

elements. We divide the legacy Network in domains thus

deploying the softswitch and a signaling gateway in each

domain. We are also aware that in the NGN system we

would replace the class 4 switches by Trunk Gateway.

Some operators are using the MSAN as an access gate-

way. After identifying the location and nodes the band-

width has to be mentioned for the capacity calculation to

ensure the timely availability of users in order to access

the network.

The traffic intensity generated by each user is equal to

call request completed per unit time multiplied by the

holding time. The traffic intensity generated by each user

in Erlangs is given by





H is average duration of a call and



is average

number of call requests per unit time for each subscriber.

For a system having U subscribers and unspecified

number of channels, the total offered traffic intensity A,

is given as u

UA.

In a C channel trunked system, if traffic is equally dis-

tributed among the ch annels, then the traffic inten sity per

channel is denoted as c

which would be mathemati-

cally represented in the relation

cUA



Link Capacity, LC1 = Bandwidth allocated amongst 2

Softswitches using SIP-T protocol.

Link Capacity, LC2 = Bandwidth allocated for traffic

between Softswitch and Signaling

Gateway =



× No. of Messages/Call × No. of

Bytes/Message.

Link Capacity, LC3 = Bandwidth allocated for Traffic

between Softswitch and Media Resource Server =



No. of messages/Call × No. of Bytes/Message.

Link Capacity, LC4 = Bandwidth allocated for Traffic

between Softswitch and Trunk Gateway =



× No. of

messages/Call × No. of Bytes/Message.

Some service providers are using MSAN as Access

Gateway so for traffic from Softswitch to MSAN.

Link Capacity, LC5 = Bandwidth allocated for Traffic

between Softswitch and Access Gateway (or MSAN) =



× No. of messages/Call × No. of Bytes/Message.

Link Capacity, LC6 = Bandwidth allocated for Traffic

between Trunk Gateway and IP Core = Total Number of

Trunks × Average Traffic/Trunk × Payload Flow. The

total traffic being A so LC6 = A × Payload Flow.

Hence the overall capacity required between the trunk

gateway and IP core network is dependent upon the

number of trunks managed by each trunk gateway and

the amount of traffic generated by the system subscrib-

ers.

5. Conclusions

NGN deployment has been kicked off and service pro-

viders are migrating their networks to NGN. The goal is

to reduce costs of building and operating number of

separate networks so we have emphasized on the soft-

switch to provide solution to migrate the PSTN to NGN.

The network capacity planning is also dependent on the

traffic distribution through softswitch.Voice services are

now becoming less profitable for service providers so

NGN based on IP is a way to bring the operating costs

down thus contributing as a major driving factor for

network operators. Operators would have to adopt IP due

to huge efficiency, capacity and flexibility. So the ser-

vice providers have to promote the delivery of “content”

across the packet switched networks to continue with the

way forward. Video on Demand offering voice, video

and data is the most prioritized service to be provided to

customers. The convergence of telecom and ip networks

is the correct way to create the universal multimedia

NGN. The existing network infrastructure cannot come

up to the demands of the customers so operators have to

provide up to 100 Mbps and above to the subscribers’

premises. Integrating all services on a single Multi Ser-

vice Access Node would be more cost effective stream-

lining the way forward for provision of new services to

customers as quick as possible.

M. SHAKIR ET AL.

760

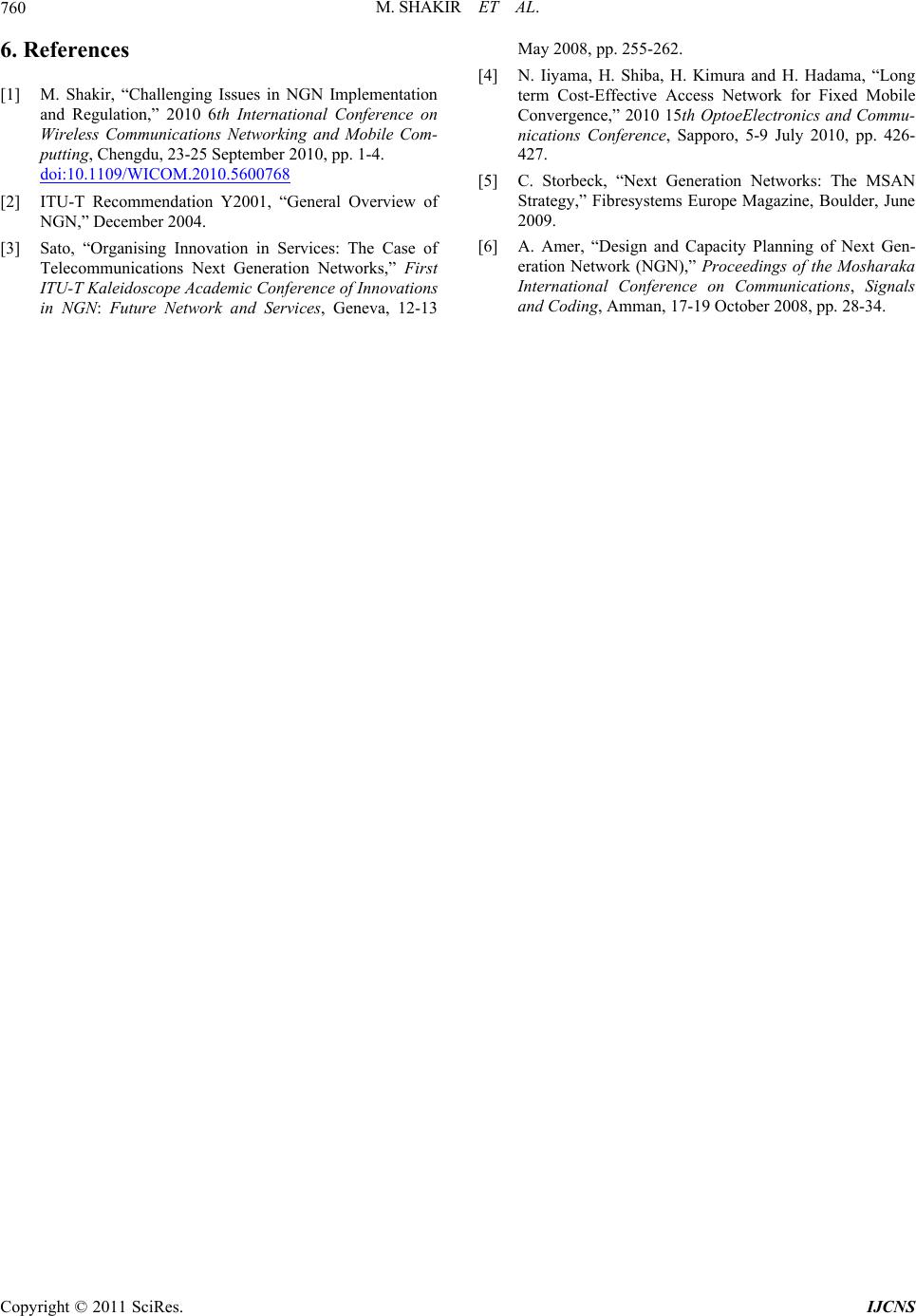

6. References

[1] M. Shakir, “Challenging Issues in NGN Implementation

and Regulation,” 2010 6th International Conference on

Wireless Communications Networking and Mobile Com-

putting, Chengdu, 23-25 September 2010, pp. 1-4.

doi:10.1109/WICOM.2010.5600768

[2] ITU-T Recommendation Y2001, “General Overview of

NGN,” December 2004.

[3] Sato, “Organising Innovation in Services: The Case of

Telecommunications Next Generation Networks,” First

ITU-T Kaleidoscope Academic Conference of Innovations

in NGN: Future Network and Services, Geneva, 12-13

May 2008, pp. 255-262.

[4] N. Iiyama, H. Shiba, H. Kimura and H. Hadama, “Long

term Cost-Effective Access Network for Fixed Mobile

Convergence,” 2010 15th OptoeElectronics and Commu-

nications Conference, Sapporo, 5-9 July 2010, pp. 426-

427.

[5] C. Storbeck, “Next Generation Networks: The MSAN

Strategy,” Fibresystems Europe Magazine, Boulder, June

2009.

[6] A. Amer, “Design and Capacity Planning of Next Gen-

eration Network (NGN),” Proceedings of the Mosharaka

International Conference on Communications, Signals

and Coding, Amman, 17-19 October 2008, pp. 28-34.
