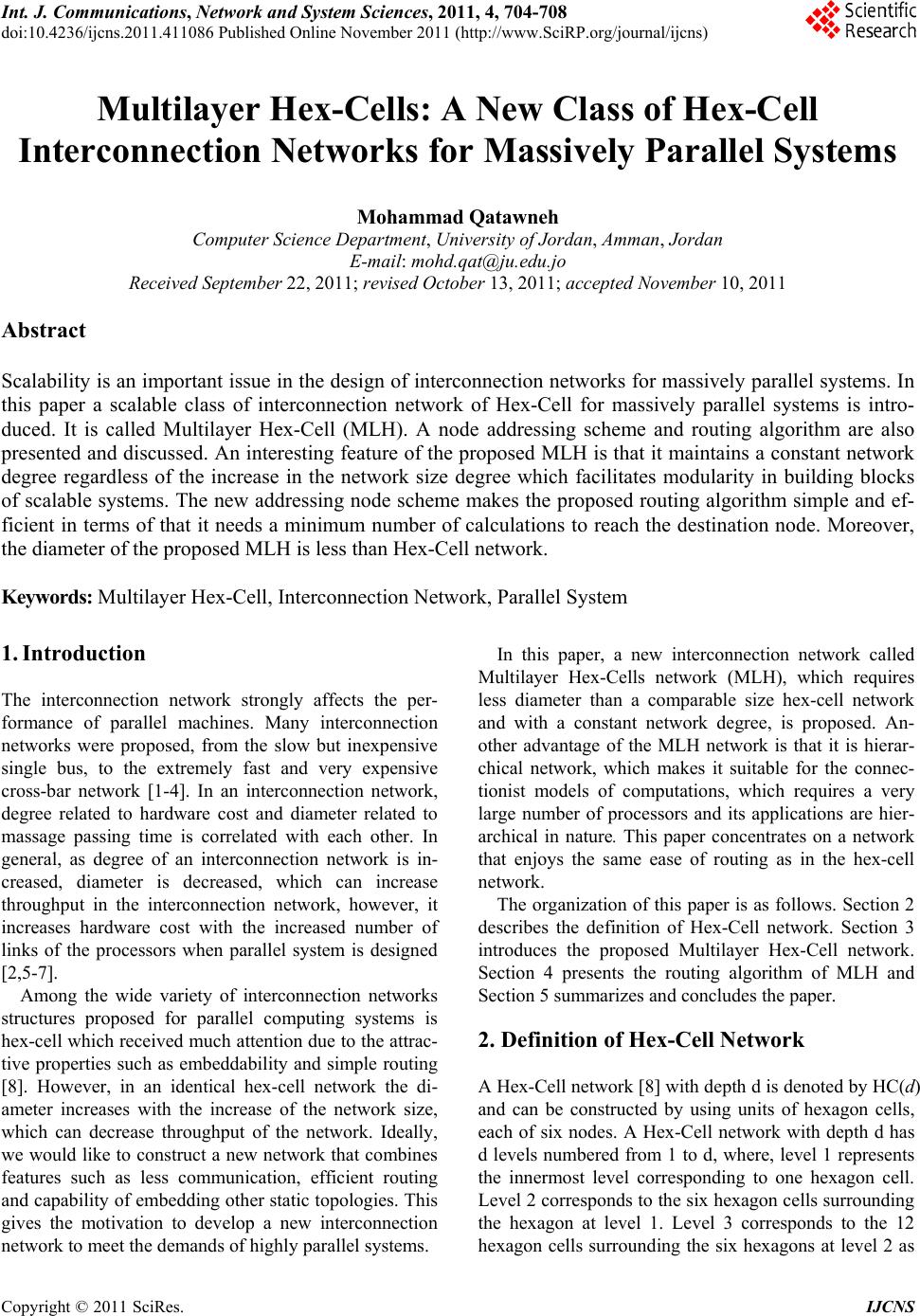

Multilayer Hex-Cells: A New Class of Hex-Cell

Interconnection Networks for Massively Parallel Systems

Mohammad Qatawneh

Computer Science Department, University of Jordan, Amman, Jordan

E-mail: [email protected]

Received September 22, 2011; revised October 13, 2011; accepted November 10, 2011

Abstract

Scalability is an important issue in the design of interconnection networks for massively parallel systems. In

this paper a scalable class of interconnection network of Hex-Cell for massively parallel systems is intro-

duced. It is called Multilayer Hex-Cell (MLH). A node addressing scheme and routing algorithm are also

presented and discussed. An interesting feature of the proposed MLH is that it maintains a constant network

degree regardless of the increase in the network size degree which facilitates modularity in building blocks

of scalable systems. The new addressing node scheme makes the proposed routing algorithm simple and ef-

ficient in terms of that it needs a minimum number of calculations to reach the destination node. Moreover,

the diameter of the proposed MLH is less than Hex-Cell network.

Keywords: Multilayer Hex-Cell, Interconnection Network, Parallel System

1. Introduction

The interconnection network strongly affects the per-

formance of parallel machines. Many interconnection

networks were proposed, from the slow but inexpensive

single bus, to the extremely fast and very expensive

cross-bar network [1-4]. In an interconnection network,

degree related to hardware cost and diameter related to

massage passing time is correlated with each other. In

general, as degree of an interconnection network is in-

creased, diameter is decreased, which can increase

throughput in the interconnection network, however, it

increases hardware cost with the increased number of

links of the processors when parallel system is designed

[2,5-7].

Among the wide variety of interconnection networks

structures proposed for parallel computing systems is

hex-cell which received much attention due to the attrac-

tive properties such as embeddability and simple routing

[8]. However, in an identical hex-cell network the di-

ameter increases with the increase of the network size,

which can decrease throughput of the network. Ideally,

we would like to construct a new network that combines

features such as less communication, efficient routing

and capability of embedding other static topologies. This

gives the motivation to develop a new interconnection

network to meet the demands of highly parallel systems.

In this paper, a new interconnection network called

Multilayer Hex-Cells network (MLH), which requires

less diameter than a comparable size hex-cell network

and with a constant network degree, is proposed. An-

other advantage of the MLH network is that it is hierar-

chical network, which makes it suitable for the connec-

tionist models of computations, which requires a very

large number of processors and its applications are hier-

archical in nature. This paper concentrates on a network

that enjoys the same ease of routing as in the hex-cell

network.

The organization of this paper is as follows. Section 2

describes the definition of Hex-Cell network. Section 3

introduces the proposed Multilayer Hex-Cell network.

Section 4 presents the routing algorithm of MLH and

Section 5 summarizes and concludes the paper.

2. Definition of Hex-Cell Network

A Hex-Cell network [8] with depth d is denoted by HC(d)

and can be constructed by using units of hexagon cells,

each of six nodes. A Hex-Cell network with depth d has

d levels numbered from 1 to d, where, level 1 represents

the innermost level corresponding to one hexagon cell.

Level 2 corresponds to the six hexagon cells surrounding

the hexagon at level 1. Level 3 corresponds to the 12

hexagon cells surrounding the six hexagons at level 2 as

M. QATAWNEH705

shown in Figure 1. Each level i has Ni nodes, where Ni

= 6(2i – 1) and the total number of nodes in a Hex-Cell

network HC(d) is N = 6d2. Each node in the HC is identi-

fied by a pair (X.Y), where X denotes the line number in

which the node exists, and Y denotes the location of the

node in the line as in Figure 2. A node with the address

1.1 is the first node that exists at line number 1. 1.2 refers

to the second node that exists at line number 1, and so

on.

3. Multilayer Hex-Cells Interconnection

Network

The Multilayer Hex-Cell (MLH) is a modular intercon-

nection network that consists of layers of identical

Hex-Cell networks connected together in a hierarchical

fashion as shown in Figure 3. The MLH is denoted by

MLH(k,d), where k denotes the layer number, and d de-

notes the depth of the identical Hex-Cell. Each Layer k

has Ni nodes, where Ni = 6d2 and the total number of

nodes in MHL network is 6 kd2.

Lemma 1:

The total number of nodes in a MLH(k,d) with k layers

is:

MLH

Nk. (1)

Proof:

Using the previous definition of HC(d), it can be eas-

ily seen that the total number of nodes at level 1 as

shown in Figure 1 is N1 = 6 nodes, since there is a single

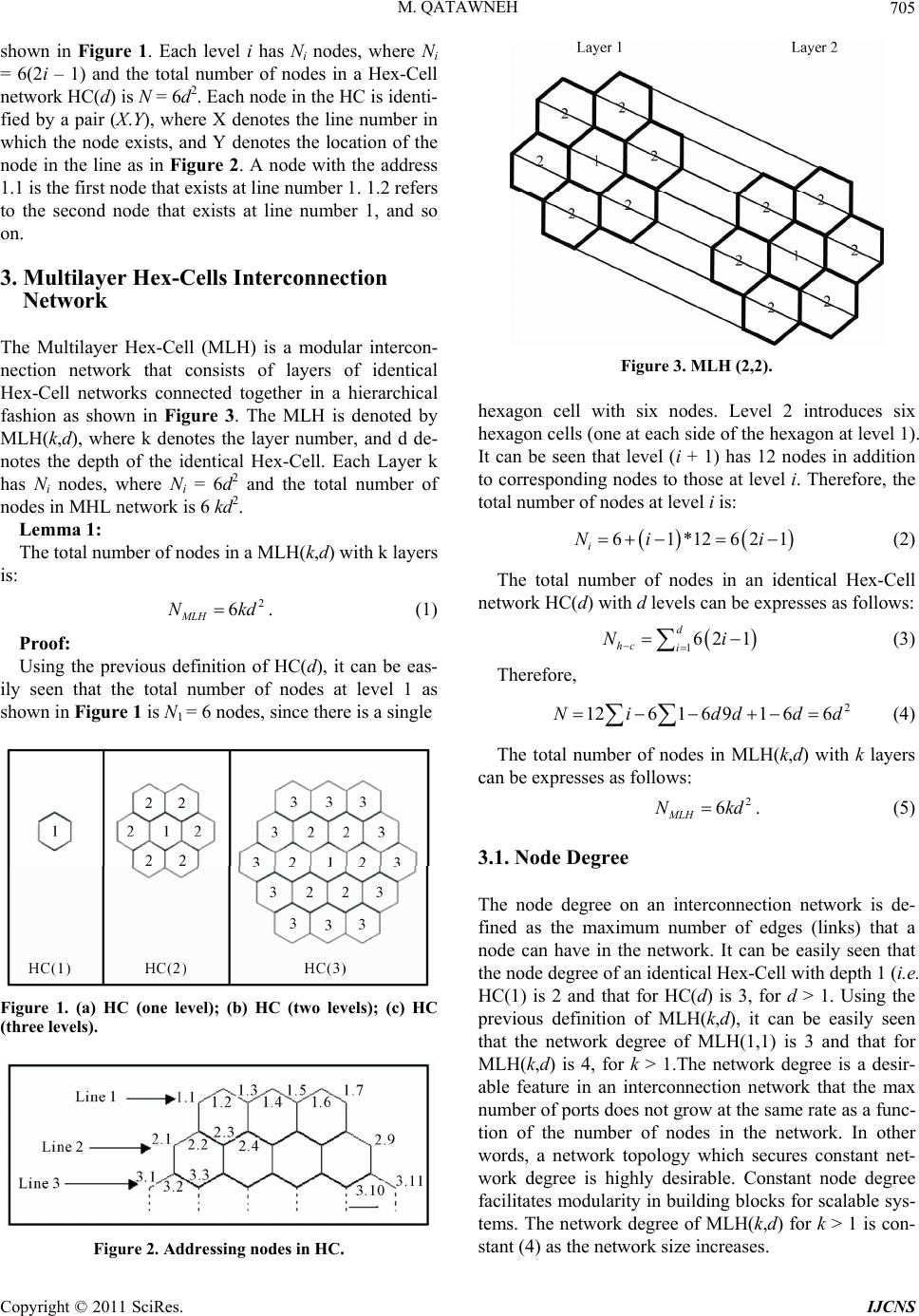

Figure 1. (a) HC (one level); (b) HC (two levels); (c) HC

(three levels).

Figure 2. Addressing nodes in HC.

Figure 3. MLH (2,2).

hexagon cell with six nodes. Level 2 introduces six

hexagon cells (one at each side of the hexagon at level 1).

It can be seen that level (i + 1) has 12 nodes in addition

to corresponding nodes to those at level i. Therefore, the

total number of nodes at level i is:





61 *12621

Ni i





  (2)

The total number of nodes in an identical Hex-Cell

network HC(d) with d levels can be expresses as follows:



162 1

hc i









 (3)

Therefore,

1261 691 66Ni dddd



 (4)

The total number of nodes in MLH(k,d) with k layers

can be expresses as follows:

MLH

Nkd. (5)

3.1. Node Degree

The node degree on an interconnection network is de-

fined as the maximum number of edges (links) that a

node can have in the network. It can be easily seen that

the node degree of an identical Hex-Cell with depth 1 (i.e.

HC(1) is 2 and that for HC(d) is 3, for d > 1. Using the

previous definition of MLH(k,d), it can be easily seen

that the network degree of MLH(1,1) is 3 and that for

MLH(k,d) is 4, for k > 1.The network degree is a desir-

able feature in an interconnection network that the max

number of ports does not grow at the same rate as a func-

tion of the number of nodes in the network. In other

words, a network topology which secures constant net-

work degree is highly desirable. Constant node degree

facilitates modularity in building blocks for scalable sys-

tems. The network degree of MLH(k,d) for k > 1 is con-

stant (4) as the network size increases.

M. QATAWNEH

706

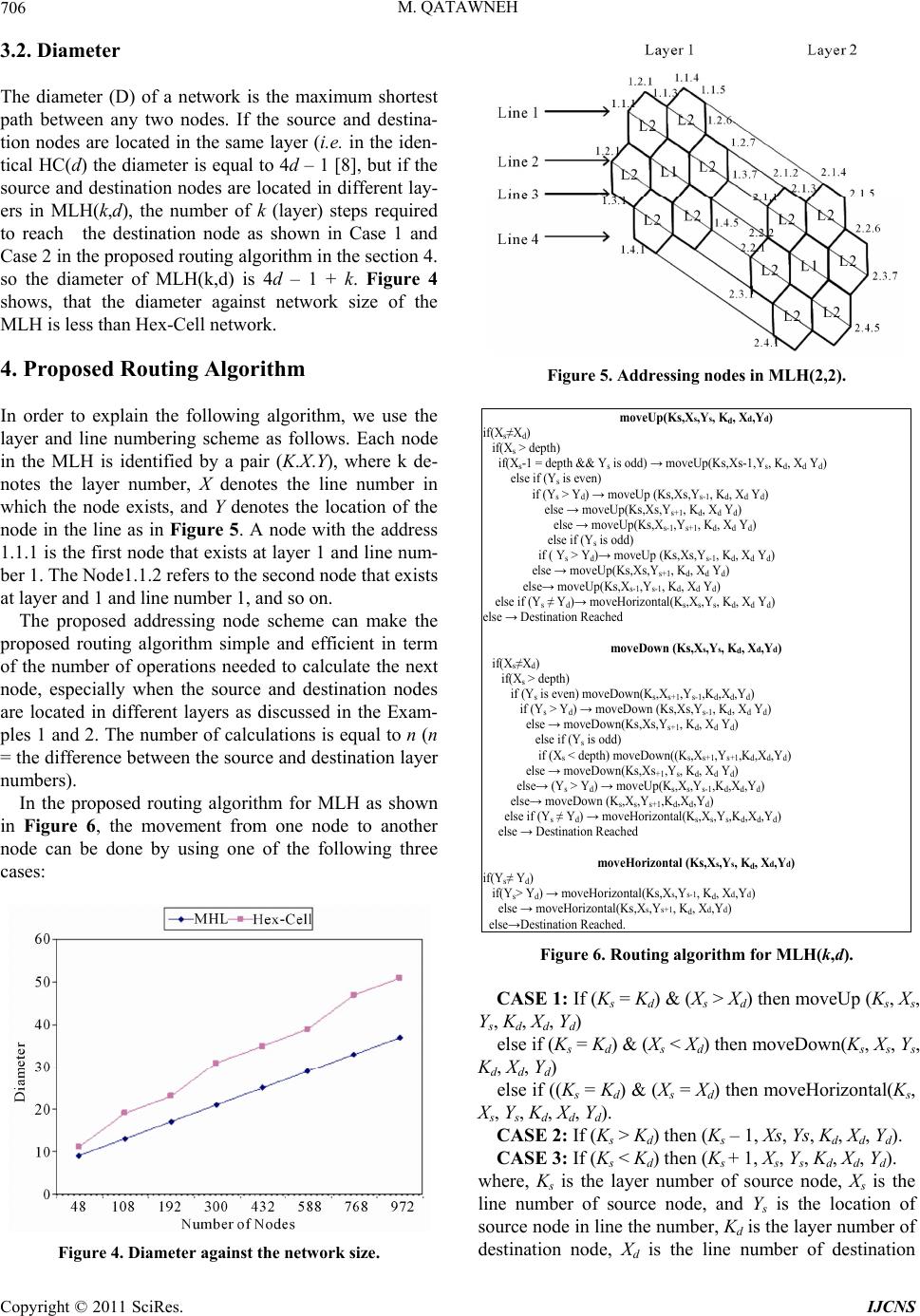

3.2. Diameter

The diameter (D) of a network is the maximum shortest

path between any two nodes. If the source and destina-

tion nodes are located in the same layer (i.e. in the iden-

tical HC(d) the diameter is equal to 4d – 1 [8], but if the

source and destination nodes are located in different lay-

ers in MLH(k,d), the number of k (layer) steps required

to reach the destination node as shown in Case 1 and

Case 2 in the proposed routing algorithm in the section 4.

so the diameter of MLH(k,d) is 4d – 1 + k. Figure 4

shows, that the diameter against network size of the

MLH is less than Hex-Cell network.

4. Proposed Routing Algorithm

In order to explain the following algorithm, we use the

layer and line numbering scheme as follows. Each node

in the MLH is identified by a pair (K.X.Y), where k de-

notes the layer number, X denotes the line number in

which the node exists, and Y denotes the location of the

node in the line as in Figure 5. A node with the address

1.1.1 is the first node that exists at layer 1 and line num-

ber 1. The Node1.1.2 refers to the second node that exists

at layer and 1 and line number 1, and so on.

The proposed addressing node scheme can make the

proposed routing algorithm simple and efficient in term

of the number of operations needed to calculate the next

node, especially when the source and destination nodes

are located in different layers as discussed in the Exam-

ples 1 and 2. The number of calculations is equal to n (n

= the difference between the source and destination layer

numbers).

In the proposed routing algorithm for MLH as shown

in Figure 6, the movement from one node to another

node can be done by using one of the following three

cases:

Figure 4. Diameter against the network size.

Figure 5. Addressing nodes in MLH(2,2).

moveUp(Ks,X

, K

, X

)

if(X

≠X

)

if(X

> depth)

if(X

-1 = depth && Y

is odd) → moveUp(Ks,Xs-1,Y

, K

, X

)

else if (Y

is even)

if (Y

> Y

) → moveUp (Ks,Xs,Y

s-1

, K

, X

)

else → moveUp(Ks,Xs,Y

s+1

, K

, X

)

else → moveUp(Ks,X

s-1

s+1

, K

, X

)

else if (Y

is odd)

if ( Y

> Y

)→ moveUp (Ks,Xs,Y

s-1

, K

, X

)

else → moveUp(Ks,Xs,Y

s+1

, K

, X

)

else→ moveUp(Ks,X

s-1

, K

, X

)

else if (Y

≠ Y

)→ moveHorizontal(K

, K

, X

)

else → Destination Reached

moveDown (Ks,X

, K

, X

)

if(X

≠X

)

if(X

> depth)

if (Y

is even) moveDown(K

s+1

s-1

)

if (Y

> Y

) → moveDown (Ks,Xs,Y

s-1

, K

, X

)

else → moveDown(Ks,Xs,Y

s+1

, K

, X

)

else if (Y

is odd)

if (X

< depth) moveDown((K

s+1

)

else → moveDown(Ks,Xs

, K

, X

)

else→ (Y

> Y

) → moveUp(K

s-1

)

else→ moveDown (K

s+1

)

else if (Y

≠ Y

) → moveHorizontal(K

)

else → Destination Reached

moveHorizont al (Ks ,X

, K

, X

)

if(Y

≠ Y

)

if(Y

> Y

) → moveHorizontal(Ks,X

s-1

, K

, X

)

else → moveHorizontal(Ks,X

s+1

, K

, X

)

else→Destination Reached.

Figure 6. Routing algorithm for MLH(k,d).

CASE 1: If (Ks = Kd) & (Xs > Xd) then moveUp (Ks, Xs,

Ys, Kd, Xd, Yd)

else if (Ks = Kd) & (Xs < Xd) then moveDown(Ks, Xs, Ys,

Kd, Xd, Yd)

else if ((Ks = Kd) & (Xs = Xd) then moveHorizontal(Ks,

Xs, Ys, Kd, Xd, Yd).

CASE 2: If (Ks > Kd) then (Ks – 1, Xs, Ys, Kd, Xd, Yd).

CASE 3: If (Ks < Kd) then (Ks + 1, Xs, Ys, Kd, Xd, Yd).

where, Ks is the layer number of source node, Xs is the

line number of source node, and Ys is the location of

source node in line the number, Kd is the layer number of

destination node, Xd is the line number of destination

M. QATAWNEH707

node, and Yd is the location of destination node in the

line number. One of the previous cases will be called

recursively until the destination has been reached.

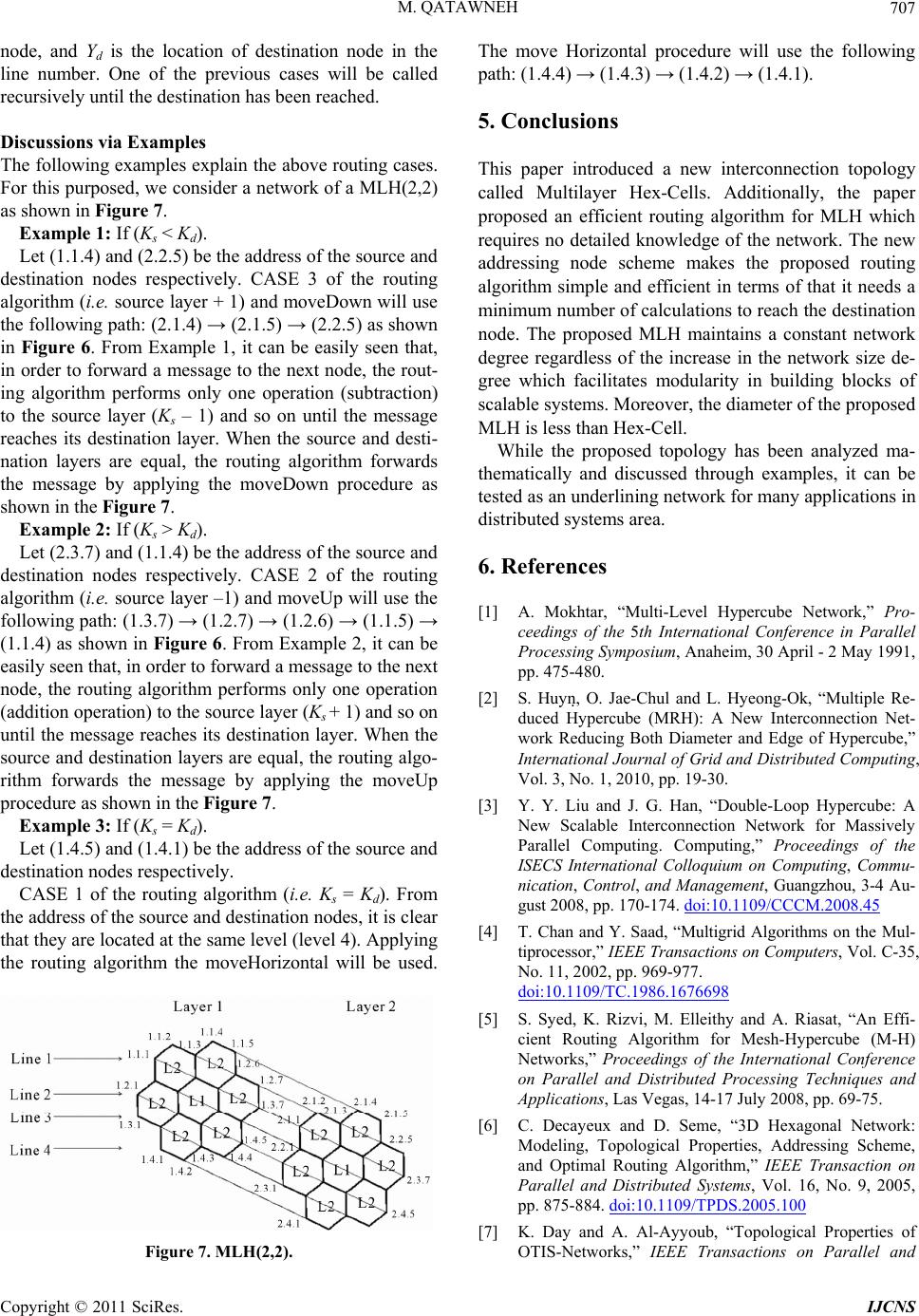

Discussions via Example s

The following examples explain the above routing cases.

For this purposed, we consider a network of a MLH(2,2)

as shown in Figure 7.

Example 1: If (Ks < Kd).

Let (1.1.4) and (2.2.5) be the address of the source and

destination nodes respectively. CASE 3 of the routing

algorithm (i.e. source layer + 1) and moveDown will use

the following path: (2.1.4) → (2.1.5) → (2.2.5) as shown

in Figure 6. From Example 1, it can be easily seen that,

in order to forward a message to the next node, the rout-

ing algorithm performs only one operation (subtraction)

to the source layer (Ks – 1) and so on until the message

reaches its destination layer. When the source and desti-

nation layers are equal, the routing algorithm forwards

the message by applying the moveDown procedure as

shown in the Figure 7.

Example 2: If (Ks > Kd).

Let (2.3.7) and (1.1.4) be the address of the source and

destination nodes respectively. CASE 2 of the routing

algorithm (i.e. source layer –1) and moveUp will use the

following path: (1.3.7) → (1.2.7) → (1.2.6) → (1.1.5) →

(1.1.4) as shown in Figure 6. From Example 2, it can be

easily seen that, in order to forward a message to the next

node, the routing algorithm performs only one operation

(addition operation) to the source layer (Ks + 1) and so on

until the message reaches its destination layer. When the

source and destination layers are equal, the routing algo-

rithm forwards the message by applying the moveUp

procedure as shown in the Figure 7.

Example 3: If (Ks = Kd).

Let (1.4.5) and (1.4.1) be the address of the source and

destination nodes respectively.

CASE 1 of the routing algorithm (i.e. Ks = Kd). From

the address of the source and destination nodes, it is clear

that they are located at the same level (level 4). Applying

the routing algorithm the moveHorizontal will be used.

Figure 7. MLH(2,2).

The move Horizontal procedure will use the following

path: (1.4.4) → (1.4.3) → (1.4.2) → (1.4.1).

5. Conclusions

This paper introduced a new interconnection topology

called Multilayer Hex-Cells. Additionally, the paper

proposed an efficient routing algorithm for MLH which

requires no detailed knowledge of the network. The new

addressing node scheme makes the proposed routing

algorithm simple and efficient in terms of that it needs a

minimum number of calculations to reach the destination

node. The proposed MLH maintains a constant network

degree regardless of the increase in the network size de-

gree which facilitates modularity in building blocks of

scalable systems. Moreover, the diameter of the proposed

MLH is less than Hex-Cell.

While the proposed topology has been analyzed ma-

thematically and discussed through examples, it can be

tested as an underlining network for many applications in

distributed systems area.

6. References

[1] A. Mokhtar, “Multi-Level Hypercube Network,” Pro-

ceedings of the 5th International Conference in Parallel

Processing Symposium, Anaheim, 30 April - 2 May 1991,

pp. 475-480.

[2] S. Huyn, O. Jae-Chul and L. Hyeong-Ok, “Multiple Re-

duced Hypercube (MRH): A New Interconnection Net-

work Reducing Both Diameter and Edge of Hypercube,”

International Journal of Grid and Distributed Computing,

Vol. 3, No. 1, 2010, pp. 19-30.

[3] Y. Y. Liu and J. G. Han, “Double-Loop Hypercube: A

New Scalable Interconnection Network for Massively

Parallel Computing. Computing,” Proceedings of the

ISECS International Colloquium on Computing, Commu-

nication, Control, and Management, Guangzhou, 3-4 Au-

gust 2008, pp. 170-174. doi:10.1109/CCCM.2008.45

[4] T. Chan and Y. Saad, “Multigrid Algorithms on the Mul-

tiprocessor,” IEEE Transactions on Computers, Vol. C-35,

No. 11, 2002, pp. 969-977.

doi:10.1109/TC.1986.1676698

[5] S. Syed, K. Rizvi, M. Elleithy and A. Riasat, “An Effi-

cient Routing Algorithm for Mesh-Hypercube (M-H)

Networks,” Proceedings of the International Conference

on Parallel and Distributed Processing Techniques and

Applications, Las Vegas, 14-17 July 2008, pp. 69-75.

[6] C. Decayeux and D. Seme, “3D Hexagonal Network:

Modeling, Topological Properties, Addressing Scheme,

and Optimal Routing Algorithm,” IEEE Transaction on

Parallel and Distributed Systems, Vol. 16, No. 9, 2005,

pp. 875-884. doi:10.1109/TPDS.2005.100

[7] K. Day and A. Al-Ayyoub, “Topological Properties of

OTIS-Networks,” IEEE Transactions on Parallel and

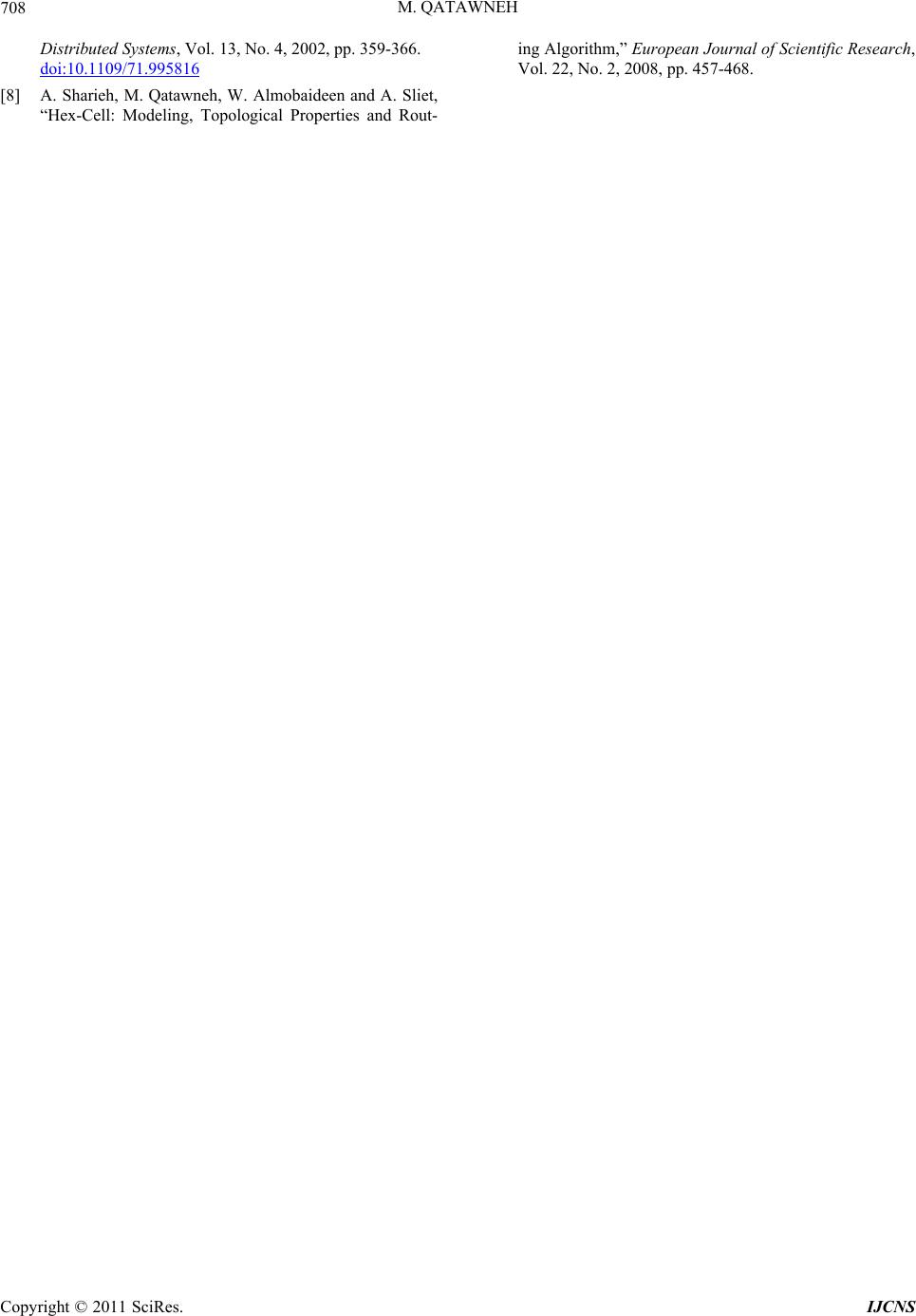

M. QATAWNEH

708

Distributed Systems, Vol. 13, No. 4, 2002, pp. 359-366.

doi:10.1109/71.995816

[8] A. Sharieh, M. Qatawneh, W. Almobaideen and A. Sliet,

“Hex-Cell: Modeling, Topological Properties and Rout-

ing Algorithm,” European Journal of Scientific Research,

Vol. 22, No. 2, 2008, pp. 457-468.
