Advances in Internet of Things, 2011, 1, 51-54

doi:10.4236/ait.2011.13007 Published Online October 2011 (http://www.SciRP.org/journal/ait)

Advances in Intrusion Detection System for WLAN

Ravneet Kaur

Department of C om p ut er Science and En gi n eering, Beant C ol l ege of E ng i neering and Technolo gy,

Gurdaspur, India

E-mail: [email protected]

Received July 8, 2011; revised July 28, 2011; accepted August 21, 2011

Abstract

A wireless network is not as secure as compare the wired network because the data is transferred on air so

any intruder can use hacking techniques to access that data. Indeed it is difficult to protect the data and pro-

vide the user a secure information system for lifetime. An intrusions detection system aim to detect the dif-

ferent attacks against network and system. An intrusion detection system should be capable for detecting the

misuse of the network whether it will be by the authenticated user or by an attacker. Cross layer based tech-

nique help to make decision based on two layer physical layer where we compute RSS value and on MAC

layer where one compute RTS-CTS time taken. This will reduce the positive false rate. They detect attempts

and active misuse either by legitimate users of the information systems or by external. The paper has high-

lighted the advances in intrusion detection in wireless local area network.

Keywords: Reciever Signal Strength (RSS), Time Taken for RTS-CTS Handshake (TT),

Radio Frequency (RF)

1. Introduction

A Wireless Local Area Network (WLAN) is a flexible

data communications system implemented as an exten-

sion to or as an alternative for, a wired LAN. Using radio

frequency (RF) technology, wireless LANs transmit and

receive data over the air, minimizing the need for wired

connections. Wireless LANs frequently augment rather

than replace wired LAN networks often providing the

final few meters of connectivity between a wired net-

work and the mobile user. Intrusion detection can be of

misuse detection and anomaly based d etection. In misuse

detection the decision by gathering the data of attacker

and then compare it with large database of attack signa-

ture. It looks for specific attack that has been already

documented. In anomaly detection the system adminis-

trator define the baseline or normal state of network like

packet size, protocol, traffic load. Then it monitor by

comparing network segment to normal behavior and look

for anomalies [1-10]. In cross layer based intrusions de-

tection the decision is based on the combine weight value

of two or more layer. So the decision is not based on

single layer, it will reduce false positive rate. Multi-hop

wireless networks are more unsafe as compared to wired

or single hop wireless networks. Multilayer security at-

tacks need to be considerate before the design of any

security mechanism or intrusion detection system [11-

13].

2. Intrusion Detection System

2.1. Types of Intrusion Detection Systems

There are two types of intrusion detection system First,

Network Based Intrusion Detection System (NIDS) which

resides on network. Second, Host Based Intrusion Detec-

tion system (HIDS) which resides on host i.e. computer

system [11].

2.2. Network Based Intrusion Detection System

(NIDS)

Network based intrusion detection system resides on

network. It exists as software process on hardware sys-

tem. It changes the network interface card (NIC) into

promiscuous mode, i.e. the card passes all traffic on the

network to the NIDS software. The software includes the

rules which are used to analyze the traffic. It analyzes the

incoming packets against these rules to determine the

signature of the attacker. Whether this traffic signature is

of any attacker or not. If it is of interest then events are

generated. The data source to NIDS is raw packets. It

R. KAUR

utilizes a network adapter which is running in promiscu-

ous mode to monitor and analyze the network. There are

four common techniques to identify attack.

1) Frequency or threshold crossing.

2) Correlation of lesser events.

3) Statistical anomaly detection.

4) Pattern, expression or byte code matching.

NIDS is not limited to read all the incoming packets

only. But also learn the valuable information on outgoing

traffic. With this feature the attacker form inside the

monitored network are identified .

2.3. Host Based Intrusion Detection System

(HIDS)

Host based IDS are embedded on host computer. It exists

as a software process on a system. So it examines the log

entries in system for specific information. It identifies the

new entries and compares them to pre configured rules.

It also works on rule based, if th e entry match to the rule

then it will generate alarm that this is not legal user.

2.4. Anomaly Based Detection

Anomaly detection attempts to model the normal behav-

ior. Any occurring event which violates this model be-

havior is reflected to be suspicious. It aim is to detect the

patterns that do not conform normal behavior. The pat-

tern that does not conformed as normal are called as

anomalies.

2.5. Misuse Based Detection

The equations are an exception to the prescribed specifi-

cations of this template. You will need to determine

whether or not your equation should be typed using ei-

ther the Times New Roman or the Symbol font (please

no other font). To create multileveled equations, it may

be necessary to treat the equation as a graphic and insert

it into the text after paper is styled.

3. Cross Layer Based Technique

Cross layer based technique is used to make decision that

whether there is an attacker or not by combining the re-

sult of two or more layer in TCP protocol [12,13].

3.1. Monitoring Received Signal Strength (RSS)

A measure of energy which is observed by the physical

layer at the antenna of the receiver is called as Received

signal strength (RSS). In IEEE 802.11 networks, while

performing MAC clear channel measurement and in

roaming operations, the RSS indication value is used.

The radio frequency (RF) signal strength can be meas-

ured through absolute (decibel mill watts-dBm) or rela-

tive (RSSI) manner [8-10].

Exact RSS value from sender to receiver is not easy to

assume as mention above. To assume exact value of RSS

the attacker has to be present on the same location which

is not possible. The radio equipment used by the receiver

have to be same for identify exact value of RSS. More-

over there should be same level of reflection, refraction,

and interface. Even if the sender is fixed, RSS value

seems to vary a little and it is proved that it is almost not

possible to guess. This restricts the attacker from using

the radio equipment to spoof the RSS clearly by the re-

ceiver. A dynamic profile is build of the computer node

which are communicating depend upon the RSS value

from a server. Any sudden or unusual changes can be

marked as doubtful activity which indicates the possible

session of hijacking attack. Reason why we call RSS

profile dynamic is because during every session it is

build again and keeps on updating. Any sudden changes

in the RSS dynamic profile can be marked as doubtful

activity with a higher confidence level because BSs are

generally immobile. On the other hand, if the MS is mo-

bile, then its respective RSS values will vary quickly

which can be observed by the server. Therefore the un-

certainty of the wireless medium can be used in the favor

of intrusion detection, where the attacker is unable to

know what RSS values to spoof. Therefore it is effective

for the session hijacking attacks and it does not need any

additional bandwidth consumption.

For example, based on the observed RSS values at the

server it can develop a dynamic RSS profile for both

MS2 and BS when a valid MS2 has an active session

with a BS (Refer Figure 1). If an attacker MS1 hijacks

MS2 through isolating from the network and spoofing its

MAC address then the server will pick up the abrupt

changes in the RSS profile of MS2’s MAC and gives an

alert signal. Since they depend on the MS1’s actual loca-

tion, radio equipment and surrounding environment the

RSS values for the MS2’s MAC address will change.

In another situation, if the attacker MS1 spoofs the

base station BS then it will also get detected as the dy-

namic RSS profile for the BS undergoes sudden varia-

tions. Therefore this mechanism gives detection for both

session hijacking and man-in-the-middle attacks which is

targeted at either MSs or BSs.

3.2. Monitoring Time Taken for RTS-CTS

Handshake

Virtual carrier sensing is created using RTS-CTS which

makes the transmission of data frames possible without

R. KAUR53

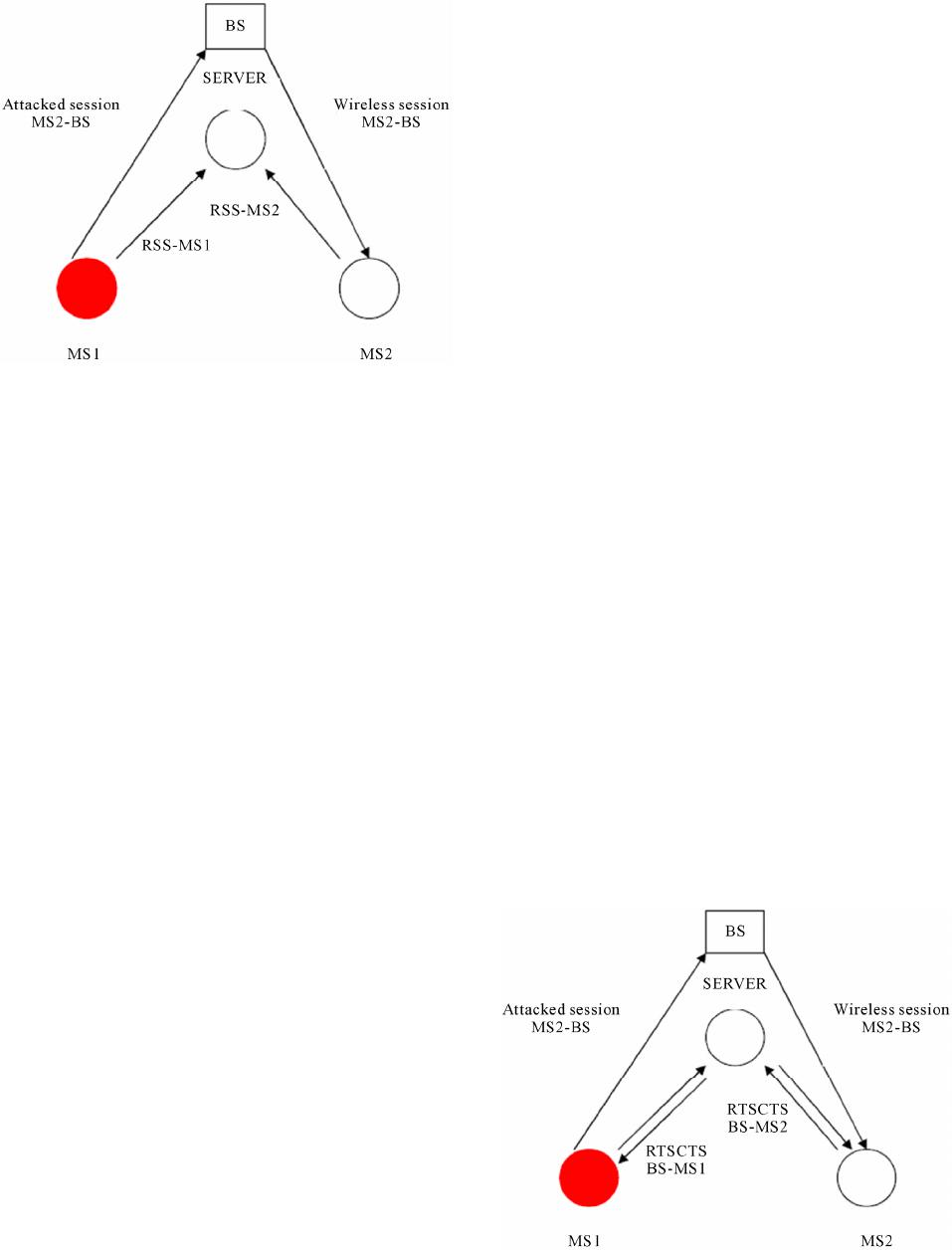

Figure 1. Received signal strength (RSS).

collision. The successful delivery of the CTS frame from

the receiver shows that the receiver is received the send-

ers RTS frame successfully and ready for receiving the

data. The time taken to complete the RTS-CTS hand-

shake between itself and receiver i.e. TT can be exam-

ined by the sender. This is the total time taken for the

RTS frame to travel from the sender to receiver and also

for the CTS frame to send an acknowledgement. RTS-

CTS handshake is free from collisions with any network

node.

The TT values for a fixed transmission rate are not af-

fected because the size of RTS and CTS frames are fixed

and makes the TT between two nodes as an unspoofable

parameter. So this cannot be easily guessed by an at-

tacker when tracking the wave s. Since it is calculated by

the sender of the RTS-CTS handshake it is also protected

from snooping. Since it is a measurement related to the

entity measuring, the attacker should be exactly at the

same location as the sender. Also the attacker should use

the same radio equipment with the same attenuation and

antenna gain. In order to predict the values of TT be-

tween the sender and receiver as measured by the sender,

the attacker should receive the radio waves after the

same number of reflections and refractions. It can also be

calculated without any particular computational. From

the intrusion detection poin t of view, a mechanism which

is used to detect the session hijacking attacks uses the

quick and sudden changes in the TT between the two

nodes. Server can measure the time elapsed between

when it detects RTS frame from the sender to receiver

and when it detects a return CTS from the receiver back

to the sender i.e. TT. For understanding, this time can be

represented as,

sr ms

TT TTTTTT



 



(1)

where,



—time taken for a RTS frame to cover the dis-

tance between the sender and the server,



—time taken for a frame to cover the

distance between the server and the receiver,

RTS

—time taken for a handshake to

complete between a sender and receiver as observed by

the server.

RTS-CTS

But the server does not know these actual values.

Monitoring observed

values at the server pro-

vides a reliable passive detection mechanism for session

hijacking attacks since is an unspoofable parameter

related to its measuring entity. Also this cannot be gue-

ssed because its exact value depends on

1) The position of the receiver and the server

2) The distance between the server and receiver

3) The environment around the receiver and the server.

This is a property which cannot be measured or

spoofed by an attacker when tracking the network traffic

or using a specialized radio equipment.

We propose that changes in

between two com-

municating nodes can be observed by a passive server

and the sudden variations are marked as suspicious. This

helps to detect the attacker who tries to take over a re-

ceiver’s session by isolating it off the network and

spoofing its MAC address. On the other hand, the

handshake which originates from the re-

ceiver is used to detect the session hijacking attacks

which aims the senders. For example, the server can de-

velop a dynamic RSS profile which gets constantly up-

dated per session and it calculates thefor every

handshake from both MS2 and BS when a

valid MS2 has an active session with a BS (Refer

Figure

). If an attacker MS1 hijacks MS2 through spoofing its

MAC address then the server will observe abrupt

changes in the for MS2 and gives an alert signal.

Also to detect the man-in-the-middle attacks against BS,

values from handshakes between MS2

RTS-CTS

Figure 2. Round Trip Time (RTT).

R. KAUR

[3] H. Debar, M. Dacier and A. Wespi, “Towards a Taxon-

omy of Intrusion-Detection Systems,” Computer Net-

works, Vol. 31, No. 8, 1999, pp. 805-822.

doi:10.1016/S1389-1286(98)00017-6

and BS which originates from MS2 can be registered by

the server in the MS2’s profile. The server executes the

following algorithm, to detect the attackers.

[4] D. Denning, “An Intrusion-Detection Model,” IEEE Trans-

actions on Software Engineering, Vol. Se-13, No. 2, 1987,

pp. 222-232.

3.3. Detection Algorithm

Step 1: Server mea su res RSS

[5] G. Thamilarasu, A. Balasubramanian, S. Mishra and R.

Sridhar, “A Cross-Layer Based Intrusion Detection Ap-

proach for Wireless Ad Hoc Networks,” Proceedings of

IEEE International Conference on Mobile Adhoc and

Sensor Systems Conference, 2005, p. 861.

doi:10.1109/MAHSS.2005.1542882

Step 2: Server mea sur es

Step 3: Server ca lc ul at es the w ei gh t as W

SS TT

Ww w



  (2)

where



= Variation of and RSS



= Variation of

[6] J. Hall, “Enhancing Intrusion Detection in Wireless Net-

works Using Radio Frequency Fingerprinting,” IEEE

Transactions on Dependable and Secure Computing, Vol.

3, No. 3, 2005, pp. 18-22.

and are two constants, which can be fine

tuned . 2w

Step 4: If

, (where is the detection

threshold) Then MS is an attacker.

thrDthr

[7] Y. Lim, T. Schmoyer, J. Levine and H. L. Owen. “Wire-

less Intrusion Detection and Response.” Proceedings of

the 2003 IEEE Workshop on Information Assurance

United States Military Academy, West Point, 18-20 June

2003, pp. 22-26.

4. Conclusions

By developing a dynamic profile based upon the RSS

value and keep on updating it. RSS value is difficult to

assume because the attacker must use same equipment

and same level of interface, refraction which is not pos-

sible. Cross layer based technique help to make decision

based on two layer physical layer where we compute

RSS value and on MAC layer where we compute

RTS-CTS time taken. This will reduce the positive false

rate. The cross layer design approach has impact on per-

formance enhancement for intrusion detection system for

WLAN [14,15].

[8] S. Rakesh, “A Novel Cross Layer Intrusion Detection

System in MANET,” Proceedings of 24th IEEE Interna-

tional Conference on Advanced Information Networking

and Applications, 2010, pp. 38-48.

[9] S. Madhavi, “An Intrusion Detection System in Mobile

Adhoc Networks,” International Journal of Security and

Its Applications, Vol. 2, No. 3, 2008, pp 11-17.

[10] K. Shafiullah, “Framework for Intrusion Detection in

IEEE 802.11 Wireless Mesh Networks,” The Interna-

tional Arab Journal of Information Technology, Vol. 7,

No. 4, 2010, pp. 50-55.

[11] Y. Zhang and W. Lee, “Intrusion Detection in Wireless

Ad-Hoc Network,” Proceedings of the 6th Annual Inter-

national Conference on Mobile Computing and Network-

ing, Boston, 6-11 August 2000, pp. 26-31.

doi:10.1145/345910.345958

5. Acknowledgements

The author is thankful to Dr. Jatinder Singh Bal (Dean

and Professor, Computer Science & Engineering Desh

Bhagat Enggineering College, Moga) for critical discus-

sion as well as constant help during the present study.

The constant encouragement provided by Dr. H S Johal

as well as Mr. Dalwinder Singh and Deepak Prashar,

Lovely Professional University Jalandhar is also ac-

knowledged.

[12] W. Xia, J. S. Wong, F. Stanley and S. Basu, “Cross-Layer

Based Anomaly Detection in Wireless Mesh Networks,”

9th Annual International Symposium on Applications and

the Internet, Bellevue, 20-24 July 2009, pp. 9-15.

[13] J. S. Bal, et al., “A Cross Layer Based Intrusion Detec-

tion Technique for Wireless Network,” International

Journal of Computer Science and Information Security,

Vol. 5, September 2009, Article ID: 25080924.

6. References

[14] R. Kaur, “Study of Intrusion Detection Systems for

Wireless Networks,” International Journal of Wireless

Networks and Communication, Vol. 13, 2011,In Press.

[1] B. Mukherjee, L. T. Heberlein and K. N. Levitt, “Net-

work Intrusion Detection,” IEEE Network, Vol. 8, No. 3,

1994, pp. 8-10.doi:10.1109/65.283931 [15] R. Kaur, “Cross Layer Based Intrusion Detection System

for Wireless Domain-Acritical Analysis,” International

Journal of Computer Science and Communication, Vol. 2,

No. 2 (Accepted for publication), 2011.

[2] D. Dasgupta, et al., “Cougar Based Intrusion Detection

System (Cids),” Cs Technical Report No. Cs-02-001, 4

February 2002.
