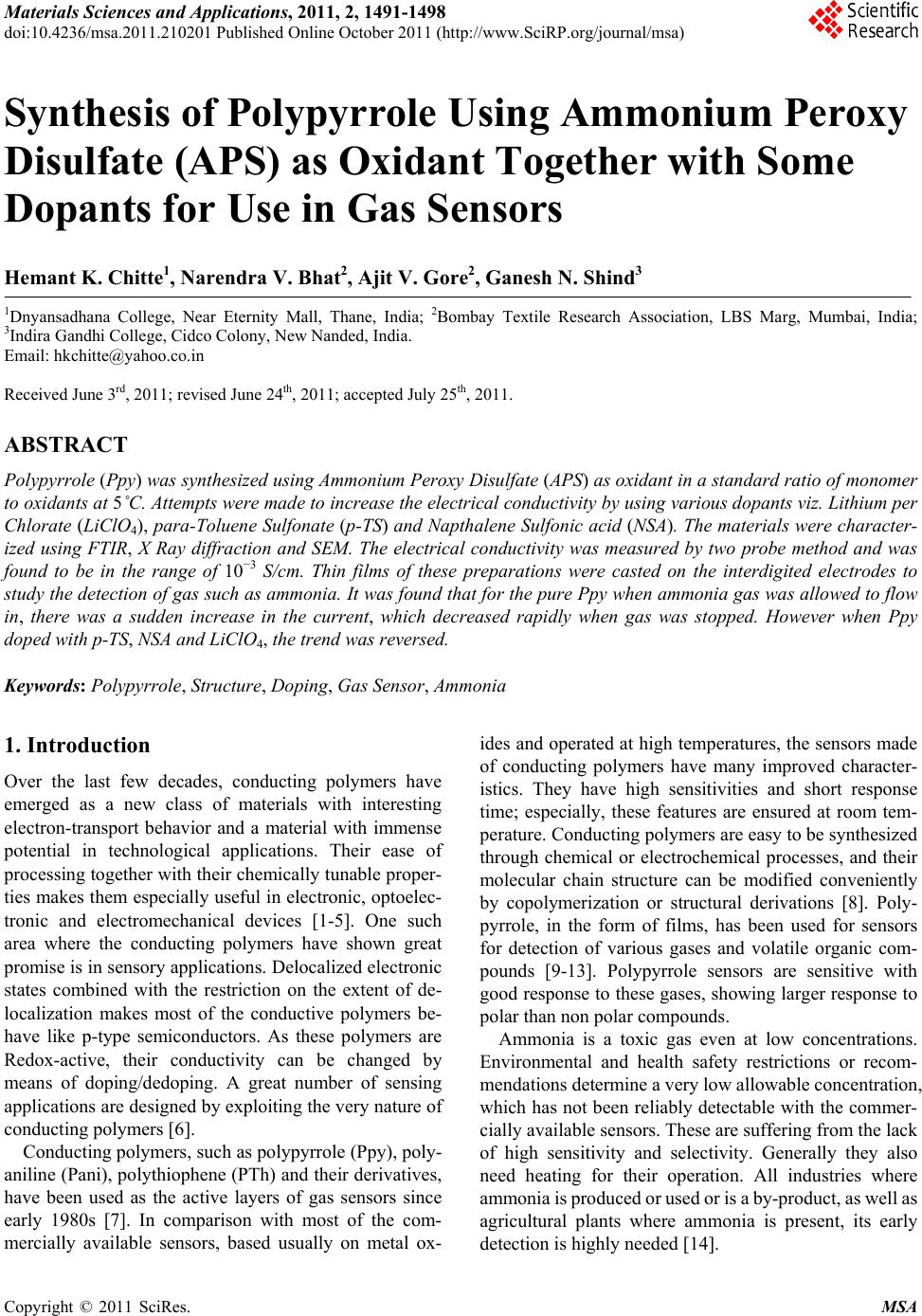

Synthesis of Polypyrrole Using Ammonium Peroxy

Disulfate (APS) as Oxidant Together with Some

Dopants for Use in Gas Sensors

Hemant K. Chitte1, Narendra V. Bhat2, Ajit V. Gore2, Ganesh N. Shind3

1Dnyansadhana College, Near Eternity Mall, Thane, India; 2Bombay Textile Research Association, LBS Marg, Mumbai, India;

3Indira Gandhi College, Cidco Colony, New Nanded, India.

Email: [email protected]

Received June 3rd, 2011; revised June 24th, 2011; accepted July 25th, 2011.

ABSTRACT

Polypyrrole (Ppy) was synthesized using Ammonium Peroxy Disulfate (APS) as oxidant in a standard ratio of monomer

to oxidants at 5˚C. Attempts were made to increase the electrical conductivity by using various dopants viz. Lithium per

Chlorate (LiClO4), para-Toluene Sulfonate (p-TS) and Napthalene Sulfonic acid (NSA). The materials were character-

ized using FTIR, X Ray diffraction and SEM. The electrical conductivity was measured by two probe method and was

found to be in the range of 10−3 S/cm. Thin films of these preparations were casted on the interdigited electrodes to

study the detection of gas such as ammonia. It was found that for the pure Ppy when ammonia gas was allowed to flow

in, there was a sudden increase in the current, which decreased rapidly when gas was stopped. However when Ppy

doped with p-TS, NSA and LiClO4, the trend was reversed.

Keywords: Polypyrrole, Structure, Doping, Gas Sensor, Ammonia

1. Introduction

Over the last few decades, conducting polymers have

emerged as a new class of materials with interesting

electron-transport behavior and a material with immense

potential in technological applications. Their ease of

processing together with their chemically tunable proper-

ties makes them especially useful in electronic, optoelec-

tronic and electromechanical devices [1-5]. One such

area where the conducting polymers have shown great

promise is in sensory applications. Delocalized electronic

states combined with the restriction on the extent of de-

localization makes most of the conductive polymers be-

have like p-type semiconductors. As these polymers are

Redox-active, their conductivity can be changed by

means of doping/dedoping. A great number of sensing

applications are designed by exploiting the very nature of

conducting polymers [6].

Conducting polymers, such as polypyrrole (Ppy), poly-

aniline (Pani), polythiophene (PTh) and their derivatives,

have been used as the active layers of gas sensors since

early 1980s [7]. In comparison with most of the com-

mercially available sensors, based usually on metal ox-

ides and operated at high temperatures, the sensors made

of conducting polymers have many improved character-

istics. They have high sensitivities and short response

time; especially, these features are ensured at room tem-

perature. Conducting polymers are easy to be synthesized

through chemical or electrochemical processes, and their

molecular chain structure can be modified conveniently

by copolymerization or structural derivations [8]. Poly-

pyrrole, in the form of films, has been used for sensors

for detection of various gases and volatile organic com-

pounds [9-13]. Polypyrrole sensors are sensitive with

good response to these gases, showing larger response to

polar than non polar compounds.

Ammonia is a toxic gas even at low concentrations.

Environmental and health safety restrictions or recom-

mendations determine a very low allowable concentration,

which has not been reliably detectable with the commer-

cially available sensors. These are suffering from the lack

of high sensitivity and selectivity. Generally they also

need heating for their operation. All industries where

ammonia is produced or used or is a by-product, as well as

agricultural plants where ammonia is present, its early

detection is highly needed [14].

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with

1492

Some Dopants for Use in Gas Sensors

The physical properties of conducting polymers

strongly depend on the type of dopants and the doping

levels. The doping levels can be easily changed by

chemical reactions at room temperatures and this pro-

vides a simple technique to facilitate detection of several

gases. Most of the conducting polymers are doped/un-

doped by redox reactions. When such conducting poly-

meric material is brought in contact with either a gas or a

liquid, transfer of electrons from or to the analyte takes

place. Electron transferring can cause the change in re-

sistance and work function of the sensing material. When

Ppy is exposed to some gases, redox reaction can take

place. Gases such as NO2 and I2 which are electron ac-

ceptors can remove electrons from the aromatic ring of

polypyrrole. When this occurs, for a p-type conductive

polymer, the doping level as well as electric conductance

of the conductive polymers is enhanced. On the other

hand an electron donating gas, such as ammonia, reacts

with the Ppy, the electrical conductance falls down

sharply. However when desorption of the gas occurs the

process can be reversed. The following reaction is invol-

ved in the process [15].

Ppy + NH Ppy + NH

 absorption

PpyNH Ppy+ NH

 desorption

In spite of such advances, the results obtained for

many gases may differ from this generalized postulate of

detection mechanism. For example work reported in thin

polycarboazole film sensors shows increase in conduc-

tance when the electron donating gas has been used [16].

Conducting polymers usually can be synthesized by

chemical or electrochemical techniques, oxidizing the

corresponding monomers. Chemical oxidation involves

mixing monomer and oxidant in solution. The most

widely used oxidants are Ammonium Peroxy Disulfate,

Ferric Chloride, Hydrogen peroxide, Potassium dichro-

mate, Cerium sulfate, and so on. Both aqueous and or-

ganic media are used.

In the present paper we report preparation of polypyr-

role in pure form and by using dopants such as LiClO4,

p-TS and NSA. The structure and morphology of these

materials has been investigated using the methods of

FTIR, X-Ray diffraction and SEM. The electrical con-

ductivity has been measured by two probe method. The

response of these materials, when exposed to ammonia is

being reported.

2. Experimental Methods and Preparations

Pyrrole (Sisco Research laboratory, 99% pure) was dis-

tilled before use. All other reagents and solvents obtained

from SDL were of reagent grade and were used as re-

ceived. All solutions were prepared using distilled water.

All reactions were conducted at a temperature of 5˚C

[17]. The solution of the oxidizing agent, APS, was pre-

pared using distilled water and was used in the ratio of

1:2.4 (monomer:oxidant) [12]. Dopants were mixed with

Pyrrole solution (10% w/w) and stirred for 30 minutes

for proper mixing and then the oxidant solution was

added slowly.

The Polypyrrole was prepared by chemical polymeri-

zation method. 1 M Pyrrole solution was prepared using

distilled water and then mixed with an oxidizing agents

in the ratio mentioned above, slowly under constant stir-

ring for 30 minutes. Then the polymerization was con-

ducted for 4 hours under constant stirring. This prepara-

tion was kept unagitated for 24 hours so that Ppy powder

settled down. The Polypyrrole powder was filtered out

under vacuum and washed with distilled water several

times to remove any impurities present. The Polypyrrole

was dried for 2 days at room temperature.

The chemical bonding was analyzed using FTIR spec-

troscopy by FTIR spectrometer model Perkin-Elmer Ltd.

system 2000 using KBr pellets. The Polypyrrole was

characterized by XRD using PAnalytical (Philips), model

XpertPro. The XRD patterns were recorded between 2



= 10˚ to 40˚ The X-ray diffractometer uses CuKα radia-

tion of



= 1.5418 Å generated at 40 kV/20 ma.

The morphology of Polypyrrole was examined using

Scanning Electron Microscope (SEM) JEOL make JSM-

5400 model. The Polypyrrole was tested for conductivity

by preparing its pellets of area of cross section of 1 sq·cm.

and 1 mm. thickness. The conductivity was tested by two

probe apparatus fabricated in our laboratory. It consists

of a copper plate which serves as one electrode, heated

from the bottom to raise the temperature. The second

electrode was a copper rod which was spring loaded to

give enough pressure on the sample pallet so that electri-

cal contact is maintained The conductivity was measured

at room temperature and various temperatures up to 70

˚C in the voltage range from 0 to 12 V.

In order to measure the gas response, interdigited elec-

trodes, separated by 1 mm. from all sides, were prepared

on a printed circuit board (PCB) and the slurry of

Polypyrrole powder prepared with distilled water was

spread over it uniformly and dried for 24 hours under

vacuum at room temperature. A specially prepared gas

chamber was used in which the PCB was fitted firmly.

Various gases were passed through the chamber at room

temperature with Nitrogen gas as a carrier. The current

was recorded, at a constant voltage, for every 15 seconds

for the total time of 3 minutes. The flow of the gas was

stopped and the desorption was also recorded for interval

of every 10 seconds till current recovered up to 90% of

its original value. The gas response was recorded con-

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with

Some Dopants for Use in Gas Sensors

1493

with p-TS (24.6˚). This indicates that the inter planer

spacing increases with the addition of dopants. This

would make the chains get apart from each other due to

the large sizes of the dopant molecules. In addition it was

noted that the diffraction profile is highly asymmetrical

and there is considerable broadening towards lower an-

gles from the peak positions.

tinuously for 3 cycles.

3. Result and Discussions

3.1. Characterization of Ppy

3.1.1. FTIR Spectroscopy

The Polypyrrole powders prepared in different ways

were analyzed by FTIR. FTIR spectra showed the main

characteristic peaks at 1558 cm−1, 1542 cm−1 and 1471

cm−1 corresponding to the fundamental vibrations of

polypyrrole ring. The band at 1294 cm−1 corresponds C-H

deformation. Other low intensity peaks are observed at

around 2927 cm−1 - 2814 cm−1 which can be attributed to

aromatic C-H stretching vibrations. The peaks at 1685

m−1 and 801 cm−1 represents C=N and C-N bonds, the

bond of C-H in plane deformation vibration is situated at

985 cm−1 and of the C-C out of plane ring deformation

vibrations or C-H rocking is at 681 cm−1 which occurs at

695 cm−1 in our spectrum [18]. These peaks were ob-

served in the present work for preparations using APS as

oxidants and various dopants such LiClO4, p-TS and

NSA (Figure 1). This agrees well with the ones available

the literature, confirming the formation of Polypyrrole

[19,20].

3.1.3. Morphology Using SE M

The morphological features of polypyrrole synthesized

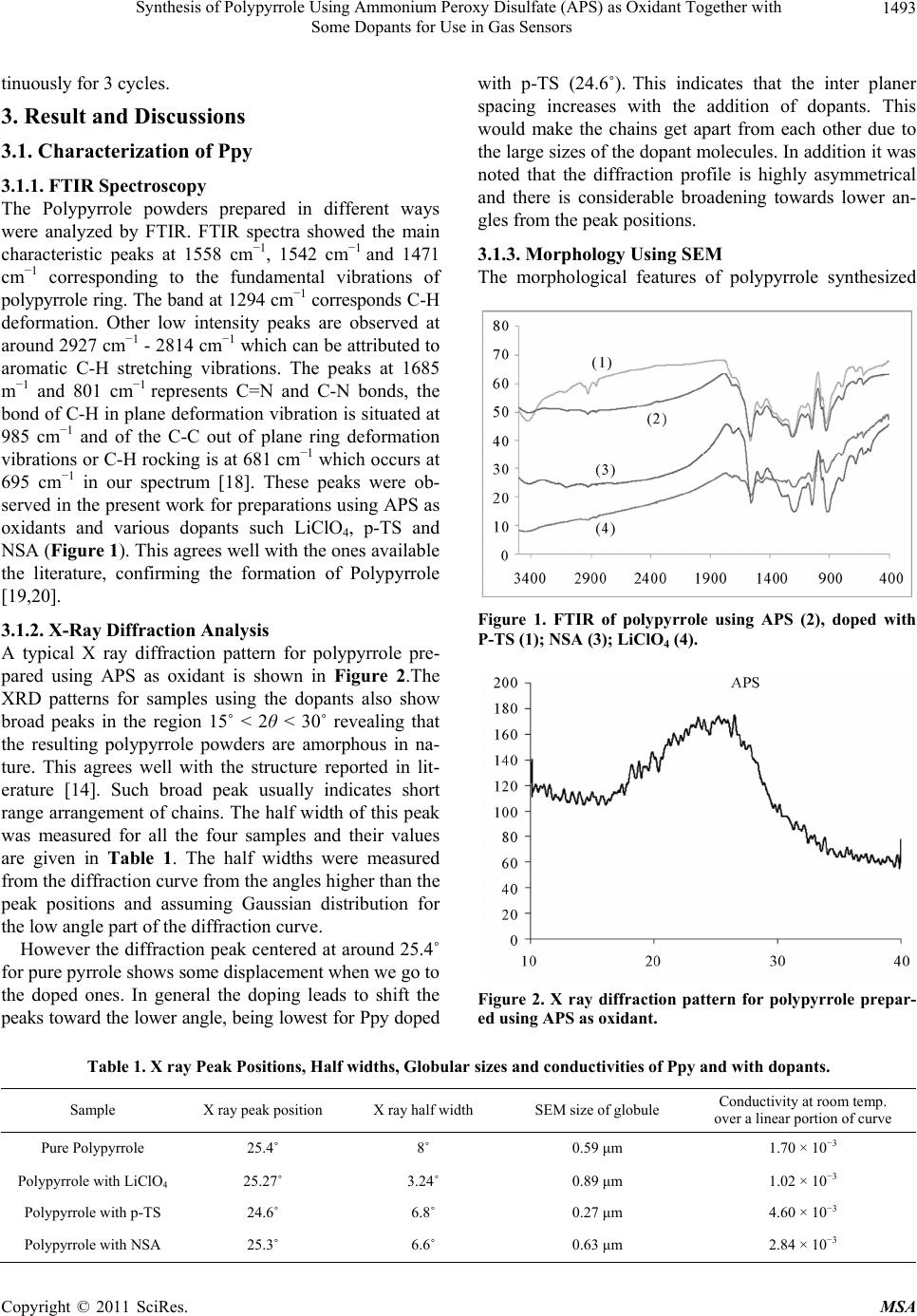

Figure 1. FTIR of polypyrrole using APS (2), doped with

P-TS (1); NSA (3); LiClO4 (4).

3.1.2. X-Ray Diffrac ti on Anal ysis

A typical X ray diffraction pattern for polypyrrole pre-

pared using APS as oxidant is shown in Figure 2.The

XRD patterns for samples using the dopants also show

broad peaks in the region 15˚ < 2θ < 30˚ revealing that

the resulting polypyrrole powders are amorphous in na-

ture. This agrees well with the structure reported in lit-

erature [14]. Such broad peak usually indicates short

range arrangement of chains. The half width of this peak

was measured for all the four samples and their values

are given in Table 1. The half widths were measured

from the diffraction curve from the angles higher than the

peak positions and assuming Gaussian distribution for

the low angle part of the diffraction curve.

However the diffraction peak centered at around 25.4˚

for pure pyrrole shows some displacement when we go to

the doped ones. In general the doping leads to shift the

peaks toward the lower angle, being lowest for Ppy doped Figure 2. X ray diffraction pattern for polypyrrole prepar-

ed using APS as oxidant.

Table 1. X ray Peak Positions, Half widths, Globular sizes and conductivities of Ppy and with dopants.

Sample X ray peak position X ray half width SEM size of globule Conductivity at room temp.

over a linear portion of curve

Pure Polypyrrole 25.4˚ 8˚ 0.59 μm 1.70 × 10−3

Polypyrrole with LiClO4 25.27˚ 3.24˚ 0.89 μm 1.02 × 10−3

Polypyrrole with p-TS 24.6˚ 6.8˚ 0.27 μm 4.60 × 10−3

Polypyrrole with NSA 25.3˚ 6.6˚ 0.63 μm 2.84 × 10−3

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with

1494

Some Dopants for Use in Gas Sensors

chemically and electrochemically has revealed that mostly

the growth is in the globular form but changes some time

due to dopant molecules [21]. Typical SEM images of

different Polypyrrole preparations are shown in Figures

3 (a)-(d). All the photographs show a globular structure.

It can be seen from Figure 3(a) that when polymeriza-

tion was done with APS the average size of globules was

found to be 0.59 μm. The individual granules observed

were nearly spherical and have a close packing. It seems

that such spherulites are growing one over the other and

forming a continuous structure. The sizes of these spher-

ulites are varying from 0.2 μm to 0.7 μm. When dopants

were used during the polymerization with APS, the sizes

of the granules were found to be different. With LiClO4

the average size was found to be 0.89 μm, with variation

between 0.3 μm to 0.9 μm, which is rather large in com-

parison to other preparations. When p-TS were used as a

dopant, there was a considerable reduction in the size

amounting to 0.27 μm. More over the morphological fea-

ture was spongy in nature and there is considerable dif-

ficulty in distinguishing the granules from each other.

This shows that a much closed packed structure is form-

ed and this fact supports our earlier conclusion on the

basis of X ray diffraction. When NSA was used as do-

pant it was observed that average globular size is 0.63

μm. Such morphological features are considered to be

good for gas sensing applications.

3.2. I-V Characteristics

Typical plots of I vs. V for polypyrrole prepared using

APS as oxidant and LiClO4, p-TS and NSA as dopants are

given in Figures 4(a)-(d). It was observed that the electri-

cal conductivity of polypyrrole increased when dopants

such as LiClO4, p-TS and NSA were used. Nearly linear

relationship of the graph of I vs V curve was noted upto 8

volts for samples prepared using only APS and APS +

(a) (b)

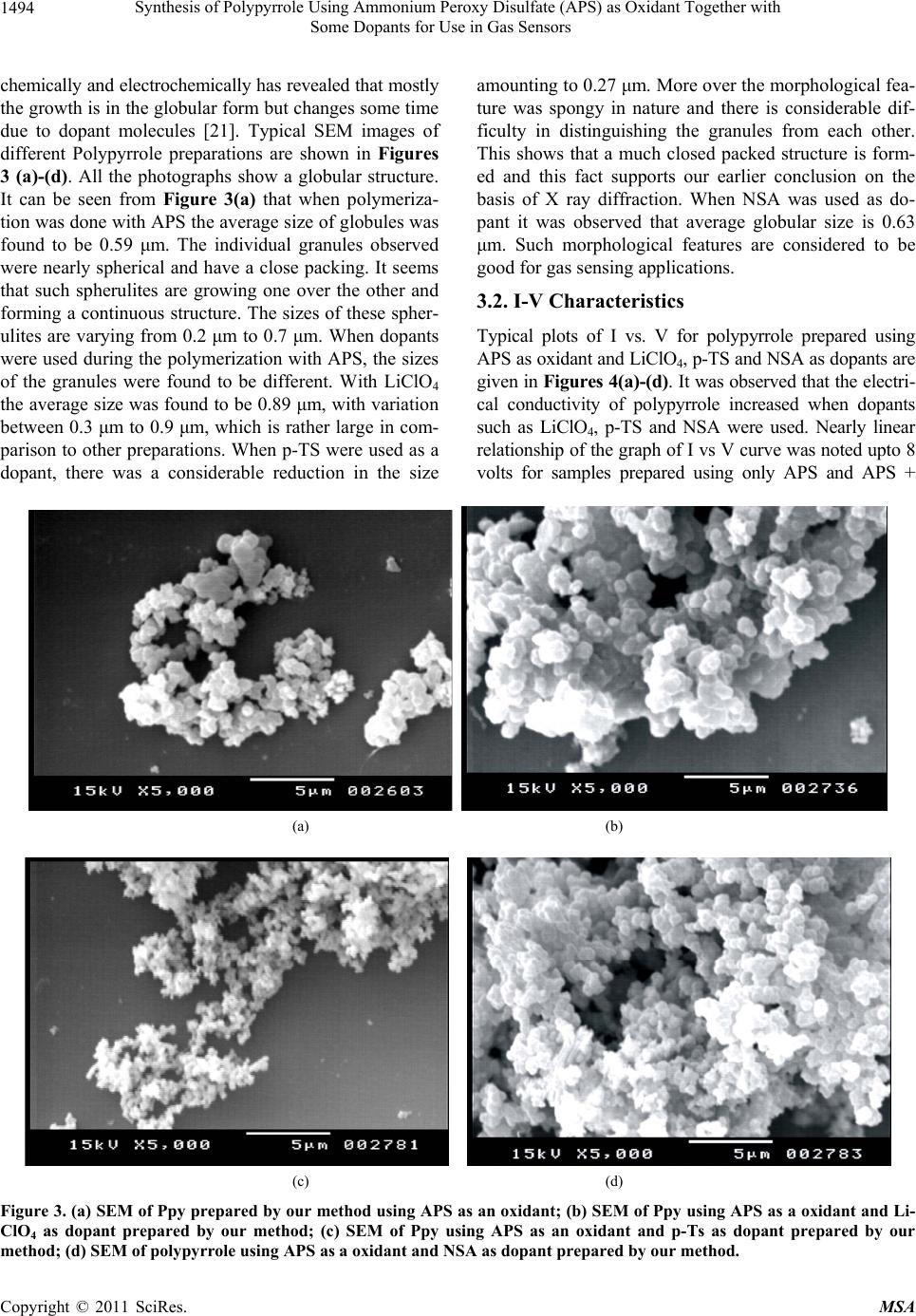

Figure 3. (a) SEM of Ppy prepared by our method using APS as an oxidant; (b) SEM of Ppy using APS as a oxidant and Li-

ClO4 as dopant prepared by our method; (c) SEM of Ppy using APS as an oxidant and p-Ts as dopant prepared by our

method; (d) SEM of polypyrrole using APS as a oxidant and NSA as dopant prepared by our method.

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with 1495

Some Dopants for Use in Gas Sensors

(a) (b)

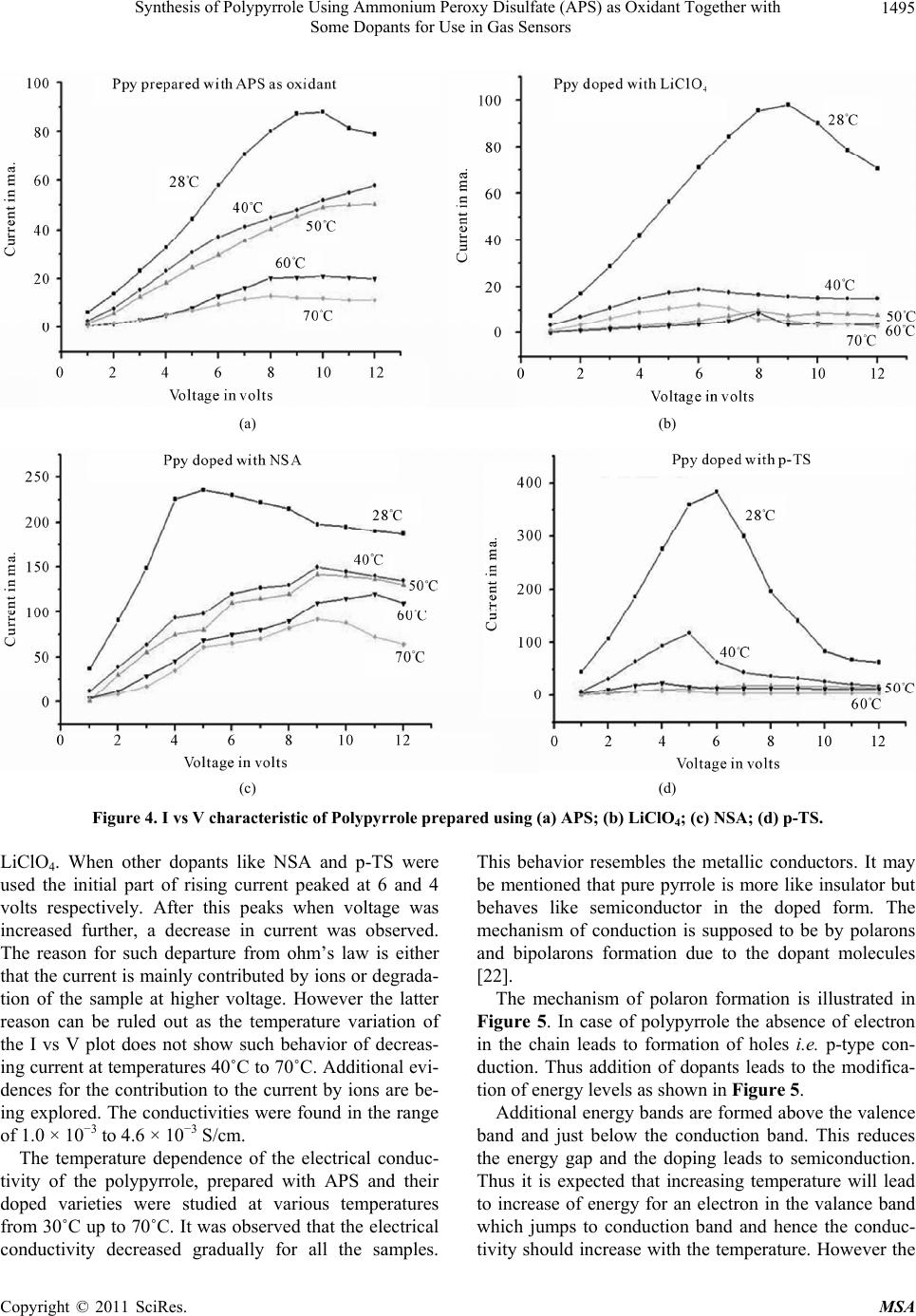

Figure 4. I vs V characteristic of Polypyrrole prepared using (a) APS; (b) LiClO4; (c) NSA; (d) p-TS.

LiClO4. When other dopants like NSA and p-TS were

used the initial part of rising current peaked at 6 and 4

volts respectively. After this peaks when voltage was

increased further, a decrease in current was observed.

The reason for such departure from ohm’s law is either

that the current is mainly contributed by ions or degrada-

tion of the sample at higher voltage. However the latter

reason can be ruled out as the temperature variation of

the I vs V plot does not show such behavior of decreas-

ing current at temperatures 40˚C to 70˚C. Additional evi-

dences for the contribution to the current by ions are be-

ing explored. The conductivities were found in the range

of 1.0 × 10−3 to 4.6 × 10−3 S/cm.

The temperature dependence of the electrical conduc-

tivity of the polypyrrole, prepared with APS and their

doped varieties were studied at various temperatures

from 30˚C up to 70˚C. It was observed that the electrical

conductivity decreased gradually for all the samples.

This behavior resembles the metallic conductors. It may

be mentioned that pure pyrrole is more like insulator but

behaves like semiconductor in the doped form. The

mechanism of conduction is supposed to be by polarons

and bipolarons formation due to the dopant molecules

[22].

The mechanism of polaron formation is illustrated in

Figure 5. In case of polypyrrole the absence of electron

in the chain leads to formation of holes i.e. p-type con-

duction. Thus addition of dopants leads to the modifica-

tion of energy levels as shown in Figure 5.

Additional energy bands are formed above the valence

band and just below the conduction band. This reduces

the energy gap and the doping leads to semiconduction.

Thus it is expected that increasing temperature will lead

to increase of energy for an electron in the valance band

which jumps to conduction band and hence the conduc-

tivity should increase with the temperature. However the

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with

1496

Some Dopants for Use in Gas Sensors

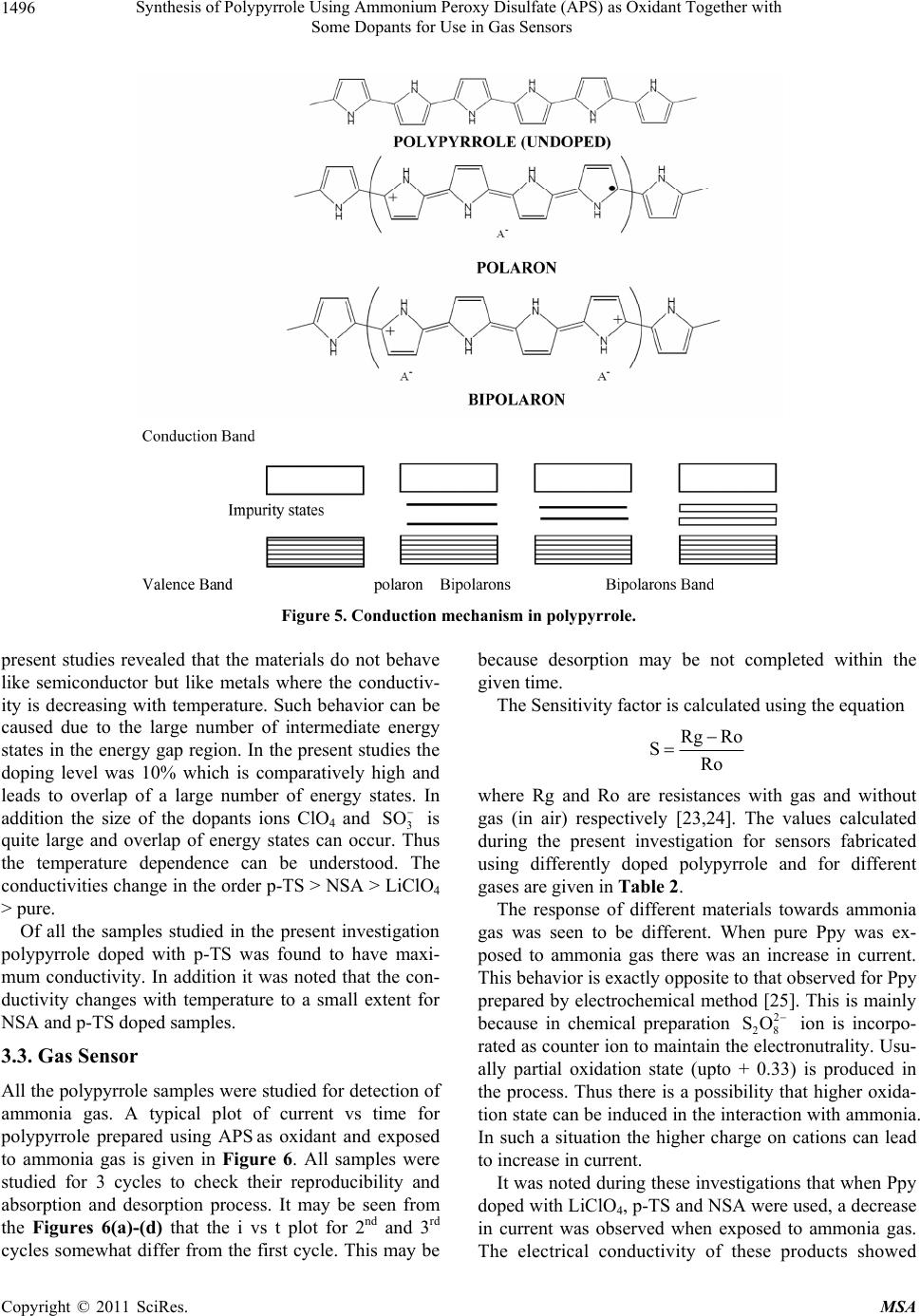

Figure 5. Conduction mechanism in polypyrrole.

present studies revealed that the materials do not behave

like semiconductor but like metals where the conductiv-

ity is decreasing with temperature. Such behavior can be

caused due to the large number of intermediate energy

states in the energy gap region. In the present studies the

doping level was 10% which is comparatively high and

leads to overlap of a large number of energy states. In

addition the size of the dopants ions ClO4 and 3



quite large and overlap of energy states can occur. Thus

the temperature dependence can be understood. The

conductivities change in the order p-TS > NSA > LiClO4

> pure.

Of all the samples studied in the present investigation

polypyrrole doped with p-TS was found to have maxi-

mum conductivity. In addition it was noted that the con-

ductivity changes with temperature to a small extent for

NSA and p-TS doped samples.

3.3. Gas Sensor

All the polypyrrole samples were studied for detection of

ammonia gas. A typical plot of current vs time for

polypyrrole prepared using APS as oxidant and exposed

to ammonia gas is given in Figure 6. All samples were

studied for 3 cycles to check their reproducibility and

absorption and desorption process. It may be seen from

the Figures 6(a)-(d) that the i vs t plot for 2nd and 3rd

cycles somewhat differ from the first cycle. This may be

because desorption may be not completed within the

given time.

The Sensitivity factor is calculated using the equation

Rg Ro

SRo





where Rg and Ro are resistances with gas and without

gas (in air) respectively [23,24]. The values calculated

during the present investigation for sensors fabricated

using differently doped polypyrrole and for different

gases are given in Table 2.

The response of different materials towards ammonia

gas was seen to be different. When pure Ppy was ex-

posed to ammonia gas there was an increase in current.

This behavior is exactly opposite to that observed for Ppy

prepared by electrochemical method [25]. This is mainly

because in chemical preparation ion is incorpo-

rated as counter ion to maintain the electronutrality. Usu-

ally partial oxidation state (upto + 0.33) is produced in

the process. Thus there is a possibility that higher oxida-

tion state can be induced in the interaction with ammonia.

In such a situation the higher charge on cations can lead

to increase in current.

SO

It was noted during these investigations that when Ppy

doped with LiClO4, p-TS and NSA were used, a decrease

in current was observed when exposed to ammonia gas.

The electrical conductivity of these products showed

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with 1497

Some Dopants for Use in Gas Sensors

(a) (b)

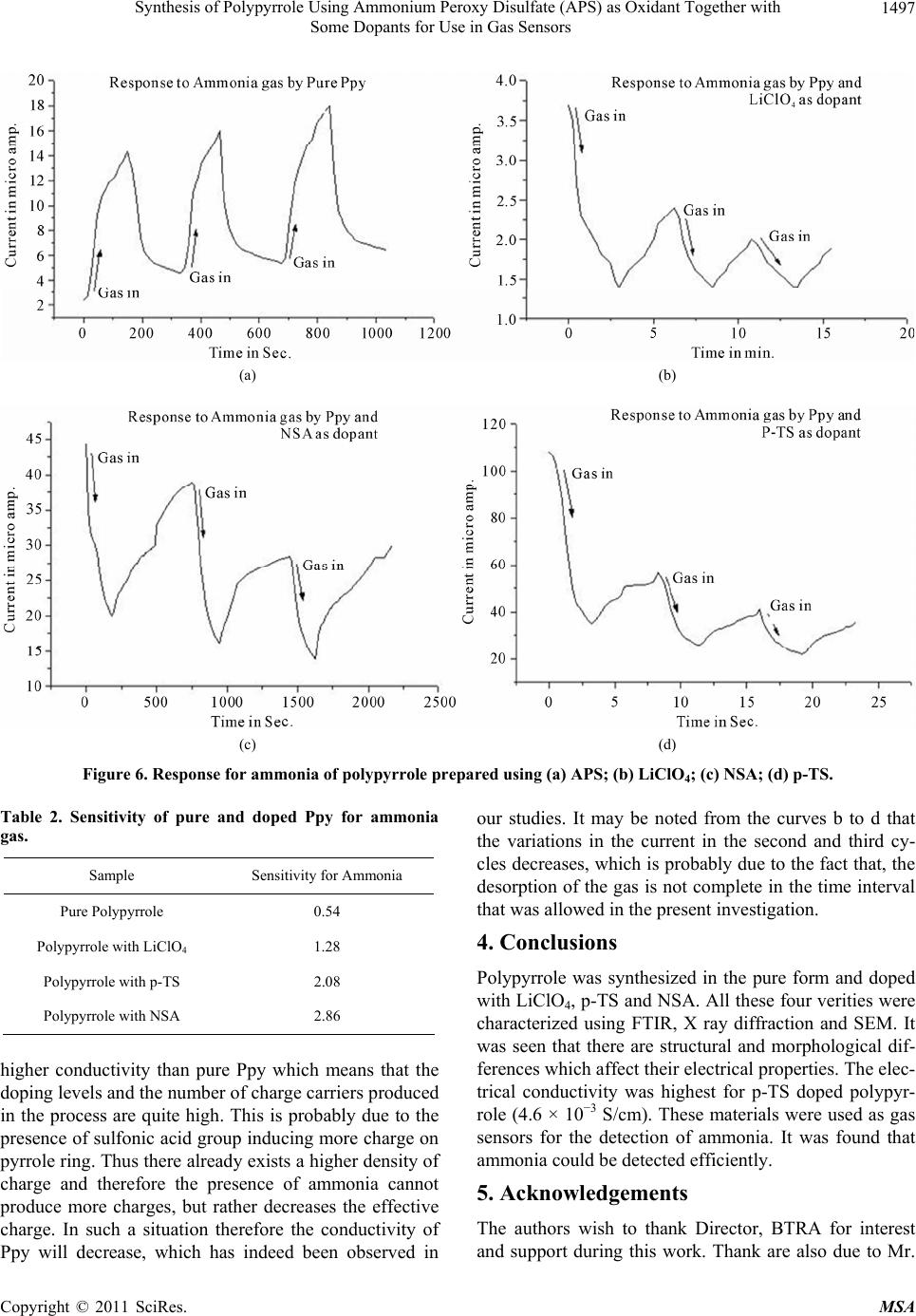

Figure 6. Response for ammonia of polypyrrole prepared using (a) APS; (b) LiClO4; (c) NSA; (d) p-TS.

Table 2. Sensitivity of pure and doped Ppy for ammonia

gas.

Sample Sensitivity for Ammonia

Pure Polypyrrole 0.54

Polypyrrole with LiClO4 1.28

Polypyrrole with p-TS 2.08

Polypyrrole with NSA 2.86

higher conductivity than pure Ppy which means that the

doping levels and the number of charge carriers produced

in the process are quite high. This is probably due to the

presence of sulfonic acid group inducing more charge on

pyrrole ring. Thus there already exists a higher density of

charge and therefore the presence of ammonia cannot

produce more charges, but rather decreases the effective

charge. In such a situation therefore the conductivity of

Ppy will decrease, which has indeed been observed in

our studies. It may be noted from the curves b to d that

the variations in the current in the second and third cy-

cles decreases, which is probably due to the fact that, the

desorption of the gas is not complete in the time interval

that was allowed in the present investigation.

4. Conclusions

Polypyrrole was synthesized in the pure form and doped

with LiClO4, p-TS and NSA. All these four verities were

characterized using FTIR, X ray diffraction and SEM. It

was seen that there are structural and morphological dif-

ferences which affect their electrical properties. The elec-

trical conductivity was highest for p-TS doped polypyr-

role (4.6 × 10−3 S/cm). These materials were used as gas

sensors for the detection of ammonia. It was found that

ammonia could be detected efficiently.

5. Acknowledgements

The authors wish to thank Director, BTRA for interest

and support during this work. Thank are also due to Mr.

Synthesis of Polypyrrole Using Ammonium Peroxy Disulfate (APS) as Oxidant Together with

1498

Some Dopants for Use in Gas Sensors

V. E. Walunj for help during the experimental work. H.

K. C. is grateful to the Principal Dnyanasadhana College

for granting the necessary leave.

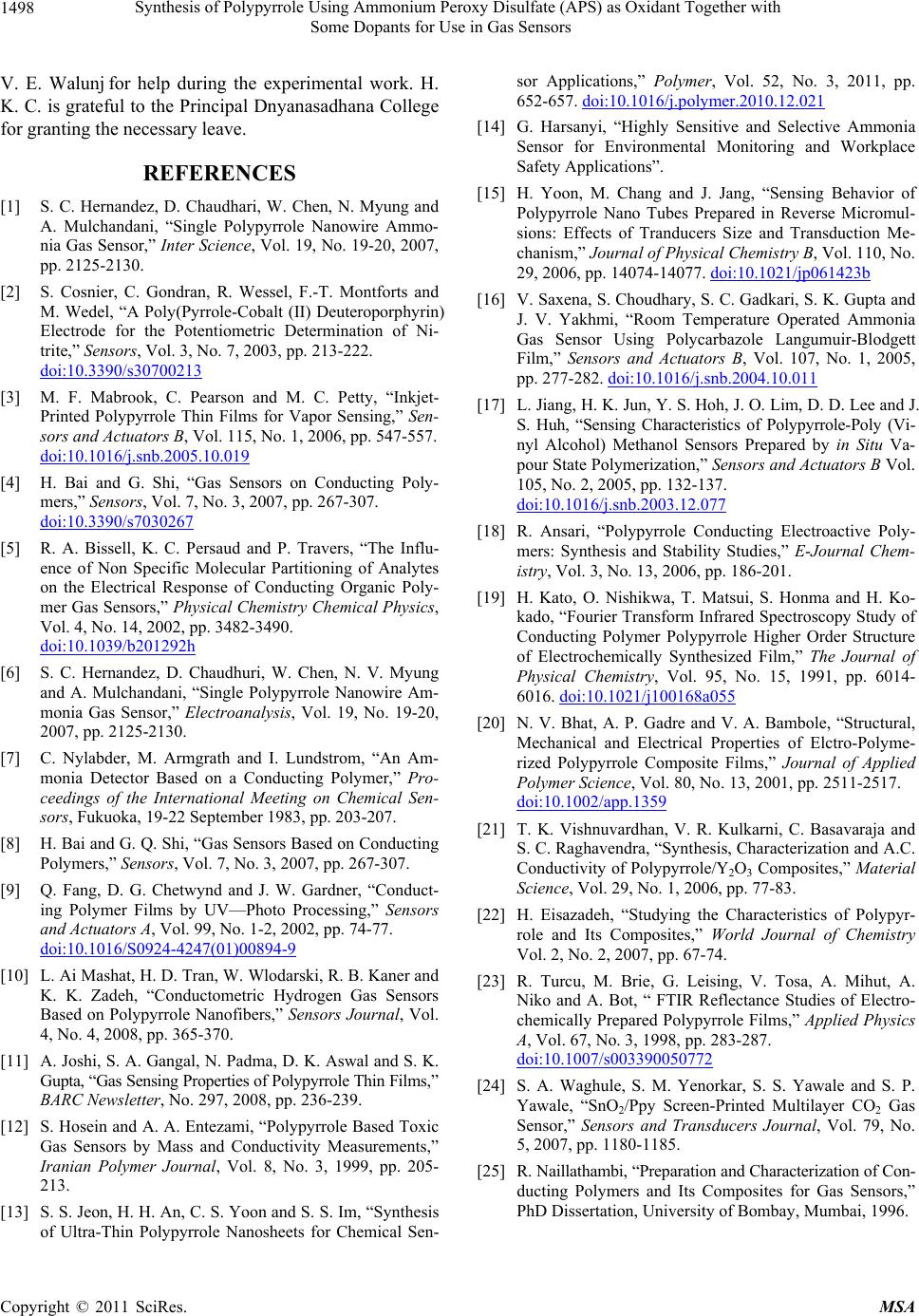

REFERENCES

[1] S. C. Hernandez, D. Chaudhari, W. Chen, N. Myung and

A. Mulchandani, “Single Polypyrrole Nanowire Ammo-

nia Gas Sensor,” Inter Science, Vol. 19, No. 19-20, 2007,

pp. 2125-2130.

[2] S. Cosnier, C. Gondran, R. Wessel, F.-T. Montforts and

M. Wedel, “A Poly(Pyrrole-Cobalt (II) Deuteroporphyrin)

Electrode for the Potentiometric Determination of Ni-

trite,” Sensors, Vol. 3, No. 7, 2003, pp. 213-222.

doi:10.3390/s30700213

[3] M. F. Mabrook, C. Pearson and M. C. Petty, “Inkjet-

Printed Polypyrrole Thin Films for Vapor Sensing,” Sen-

sors and Actuators B, Vol. 115, No. 1, 2006, pp. 547-557.

doi:10.1016/j.snb.2005.10.019

[4] H. Bai and G. Shi, “Gas Sensors on Conducting Poly-

mers,” Sensors, Vol. 7, No. 3, 2007, pp. 267-307.

doi:10.3390/s7030267

[5] R. A. Bissell, K. C. Persaud and P. Travers, “The Influ-

ence of Non Specific Molecular Partitioning of Analytes

on the Electrical Response of Conducting Organic Poly-

mer Gas Sensors,” Physical Chemistry Chemical Physics,

Vol. 4, No. 14, 2002, pp. 3482-3490.

doi:10.1039/b201292h

[6] S. C. Hernandez, D. Chaudhuri, W. Chen, N. V. Myung

and A. Mulchandani, “Single Polypyrrole Nanowire Am-

monia Gas Sensor,” Electroanalysis, Vol. 19, No. 19-20,

2007, pp. 2125-2130.

[7] C. Nylabder, M. Armgrath and I. Lundstrom, “An Am-

monia Detector Based on a Conducting Polymer,” Pro-

ceedings of the International Meeting on Chemical Sen-

sors, Fukuoka, 19-22 September 1983, pp. 203-207.

[8] H. Bai and G. Q. Shi, “Gas Sensors Based on Conducting

Polymers,” Sensors, Vol. 7, No. 3, 2007, pp. 267-307.

[9] Q. Fang, D. G. Chetwynd and J. W. Gardner, “Conduct-

ing Polymer Films by UV—Photo Processing,” Sensors

and Actuators A, Vol. 99, No. 1-2, 2002, pp. 74-77.

doi:10.1016/S0924-4247(01)00894-9

[10] L. Ai Mashat, H. D. Tran, W. Wlodarski, R. B. Kaner and

K. K. Zadeh, “Conductometric Hydrogen Gas Sensors

Based on Polypyrrole Nanofibers,” Sensors Journal, Vol.

4, No. 4, 2008, pp. 365-370.

[11] A. Joshi, S. A. Gangal, N. Padma, D. K. Aswal and S. K.

Gupta, “Gas Sensing Properties of Polypyrrole Thin Films,”

BARC Newsletter, No. 297, 2008, pp. 236-239.

[12] S. Hosein and A. A. Entezami, “Polypyrrole Based Toxic

Gas Sensors by Mass and Conductivity Measurements,”

Iranian Polymer Journal, Vol. 8, No. 3, 1999, pp. 205-

213.

[13] S. S. Jeon, H. H. An, C. S. Yoon and S. S. Im, “Synthesis

of Ultra-Thin Polypyrrole Nanosheets for Chemical Sen-

sor Applications,” Polymer, Vol. 52, No. 3, 2011, pp.

652-657. doi:10.1016/j.polymer.2010.12.021

[14] G. Harsanyi, “Highly Sensitive and Selective Ammonia

Sensor for Environmental Monitoring and Workplace

Safety Applications”.

[15] H. Yoon, M. Chang and J. Jang, “Sensing Behavior of

Polypyrrole Nano Tubes Prepared in Reverse Micromul-

sions: Effects of Tranducers Size and Transduction Me-

chanism,” Journal of Physical Chemistry B, Vol. 110, No.

29, 2006, pp. 14074-14077. doi:10.1021/jp061423b

[16] V. Saxena, S. Choudhary, S. C. Gadkari, S. K. Gupta and

J. V. Yakhmi, “Room Temperature Operated Ammonia

Gas Sensor Using Polycarbazole Langumuir-Blodgett

Film,” Sensors and Actuators B, Vol. 107, No. 1, 2005,

pp. 277-282. doi:10.1016/j.snb.2004.10.011

[17] L. Jiang, H. K. Jun, Y. S. Hoh, J. O. Lim, D. D. Lee and J.

S. Huh, “Sensing Characteristics of Polypyrrole-Poly (Vi-

nyl Alcohol) Methanol Sensors Prepared by in Situ Va-

pour State Polymerization,” Sensors and Actuators B Vol.

105, No. 2, 2005, pp. 132-137.

doi:10.1016/j.snb.2003.12.077

[18] R. Ansari, “Polypyrrole Conducting Electroactive Poly-

mers: Synthesis and Stability Studies,” E-Journal Chem-

istry, Vol. 3, No. 13, 2006, pp. 186-201.

[19] H. Kato, O. Nishikwa, T. Matsui, S. Honma and H. Ko-

kado, “Fourier Transform Infrared Spectroscopy Study of

Conducting Polymer Polypyrrole Higher Order Structure

of Electrochemically Synthesized Film,” The Journal of

Physical Chemistry, Vol. 95, No. 15, 1991, pp. 6014-

6016. doi:10.1021/j100168a055

[20] N. V. Bhat, A. P. Gadre and V. A. Bambole, “Structural,

Mechanical and Electrical Properties of Elctro-Polyme-

rized Polypyrrole Composite Films,” Journal of Applied

Polymer Science, Vol. 80, No. 13, 2001, pp. 2511-2517.

doi:10.1002/app.1359

[21] T. K. Vishnuvardhan, V. R. Kulkarni, C. Basavaraja and

S. C. Raghavendra, “Synthesis, Characterization and A.C.

Conductivity of Polypyrrole/Y2O3 Composites,” Material

Science, Vol. 29, No. 1, 2006, pp. 77-83.

[22] H. Eisazadeh, “Studying the Characteristics of Polypyr-

role and Its Composites,” World Journal of Chemistry

Vol. 2, No. 2, 2007, pp. 67-74.

[23] R. Turcu, M. Brie, G. Leising, V. Tosa, A. Mihut, A.

Niko and A. Bot, “ FTIR Reflectance Studies of Electro-

chemically Prepared Polypyrrole Films,” Applied Physics

A, Vol. 67, No. 3, 1998, pp. 283-287.

doi:10.1007/s003390050772

[24] S. A. Waghule, S. M. Yenorkar, S. S. Yawale and S. P.

Yawale, “SnO2/Ppy Screen-Printed Multilayer CO2 Gas

Sensor,” Sensors and Transducers Journal, Vol. 79, No.

5, 2007, pp. 1180-1185.

[25] R. Naillathambi, “Preparation and Characterization of Con-

ducting Polymers and Its Composites for Gas Sensors,”

PhD Dissertation, University of Bombay, Mumbai, 1996.
