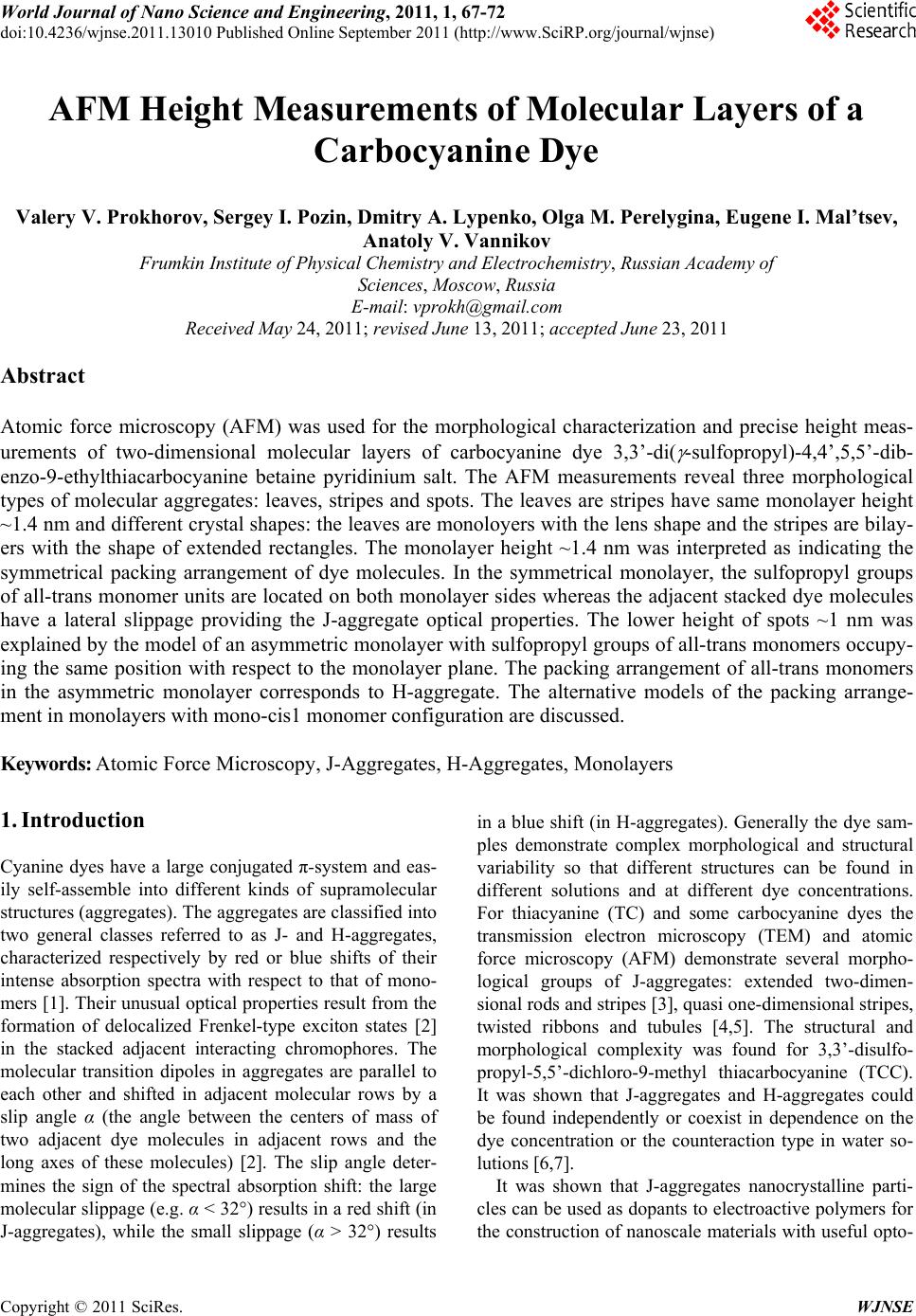

AFM Height Measurements of Molecular Layers of a Carbocyanine Dye

doi:10.4236/wjnse.2011.13010

Paper Menu >>

Journal Menu >>

World Journal of Nano Science and Engineering, 2011, 1, 67-72

doi:10.4236/wjnse.2011.13010 Published Online September 2011 (http://www.SciRP.org/journal/wjnse)

AFM Height Measurements of Molecular Layers of a

Carbocyanine Dye

Valery V. Prokhorov, Sergey I. Pozin, Dmitry A. Lypenko, Olga M. Perelygina, Eugene I. Mal’tsev,

Anatoly V. Vannikov

Frumkin Institute of Physical Chemistry and Electrochemistry, Russian Academy of

Sciences, Moscow, Russia

E-mail: [email protected]

Received May 24, 2011; revised June 13, 2011; accepted June 23, 2011

Abstract

Atomic force microscopy (AFM) was used for the morphological characterization and precise height meas-

urements of two-dimensional molecular layers of carbocyanine dye 3,3’-di(



-sulfopropyl)-4,4’,5,5’-dib-

enzo-9-ethylthiacarbocyanine betaine pyridinium salt. The AFM measurements reveal three morphological

types of molecular aggregates: leaves, stripes and spots. The leaves are stripes have same monolayer height

~1.4 nm and different crystal shapes: the leaves are monoloyers with the lens shape and the stripes are bilay-

ers with the shape of extended rectangles. The monolayer height ~1.4 nm was interpreted as indicating the

symmetrical packing arrangement of dye molecules. In the symmetrical monolayer, the sulfopropyl groups

of all-trans monomer units are located on both monolayer sides whereas the adjacent stacked dye molecules

have a lateral slippage providing the J-aggregate optical properties. The lower height of spots ~1 nm was

explained by the model of an asymmetric monolayer with sulfopropyl groups of all-trans monomers occupy-

ing the same position with respect to the monolayer plane. The packing arrangement of all-trans monomers

in the asymmetric monolayer corresponds to H-aggregate. The alternative models of the packing arrange-

ment in monolayers with mono-cis1 monomer configuration are discussed.

Keywords: Atomic Force Microscopy, J-Aggregates, H-Aggregates, Monolayers

1. Introduction

Cyanine dyes have a large conjugated π-system and eas-

ily self-assemble into different kinds of supramolecular

structures (aggregates). The aggregates are classified into

two general classes referred to as J- and H-aggregates,

characterized respectively by red or blue shifts of their

intense absorption spectra with respect to that of mono-

mers [1]. Their unusual optical properties result from the

formation of delocalized Frenkel-type exciton states [2]

in the stacked adjacent interacting chromophores. The

molecular transition dipoles in aggregates are parallel to

each other and shifted in adjacent molecular rows by a

slip angle α (the angle between the centers of mass of

two adjacent dye molecules in adjacent rows and the

long axes of these molecules) [2]. The slip angle deter-

mines the sign of the spectral absorption shift: the large

molecular slippage (e.g. α < 32°) results in a red shift (in

J-aggregates), while the small slippage (α > 32°) results

in a blue shift (in H-aggregates). Generally the dye sam-

ples demonstrate complex morphological and structural

variability so that different structures can be found in

different solutions and at different dye concentrations.

For thiacyanine (TC) and some carbocyanine dyes the

transmission electron microscopy (TEM) and atomic

force microscopy (AFM) demonstrate several morpho-

logical groups of J-aggregates: extended two-dimen-

sional rods and stripes [3], quasi one-dimensional stripes,

twisted ribbons and tubules [4,5]. The structural and

morphological complexity was found for 3,3’-disulfo-

propyl-5,5’-dichloro-9-methyl thiacarbocyanine (TCC).

It was shown that J-aggregates and H-aggregates could

be found independently or coexist in dependence on the

dye concentration or the counteraction type in water so-

lutions [6,7].

It was shown that J-aggregates nanocrystalline parti-

cles can be used as dopants to electroactive polymers for

the construction of nanoscale materials with useful opto-

V. V. PROKHOROV ET AL.

electronic properties such as efficient tunable photolu-

minescence and electroluminescence, ultrafast optical

switching, electron-hole conductivity [8,9]. Typically, a

building unit of the dye molecular aggregates is a

monolayer (or bilayer) formed by stacked dye molecules

with molecular planes oriented normally to the mono-

layer plane. The measurements of the monolayer(s) thi-

ckness thus give important structural information on a

type of molecular packing. The bilayer thickness of some

carbocyanine dyes was determined by TEM from the

visualization of tubular walls or the stripe patterns of

twisted ribbon stacks taken in “edge-on” orientation [4].

The obtained results indicated the bilayer structure in

which two asymmetric monolayers partially interpene-

trate. The advantage of AFM in comparison with TEM is

the capability for direct measurements of heights of

mono- or multilayers with potentially much higher preci-

sion of the order of tenth of angstrom. High-resolution

AFM measurements were conducted for J-aggregates of

two dyes [10] and the AFM heights of their monolayers

were precisely determined from the mono- and multilay-

ers height distributions. In contrast to AFM results for

the TC dye reported in [3], the smaller monolayer height

~1.0 - 1.1 nm was found, indicating the asymmetric

monolayer structure with sulfopropyl groups on one side

of the monolayer. The AFM heights derived in [10] for the

narrow stripes of the C8S3 carbocyanin dye character-

ized by TEM in [4] were strictly quantized with a step ~3

nm. This height step corresponds to the bilayer with par-

tially interpenetrated long aliphatic chains belonging to

individual monolayers.

In the present work, a carbocyanine dye with larger

heterocyclic system was chosen with the aim of AFM

morphological characterization and the precise height

measurements of the constituent molecular layers.

2. Experimental Details

The chemical structure of the carbocyanine dye used

(refereed below as D-1) 3,3’-di(



-sulfopropyl)-4,4’,5,5’-

dibenzo-9-ethylthiacarbocyanine betaine pyridinium salt

is represented in Figure 1. In comparison with the cya

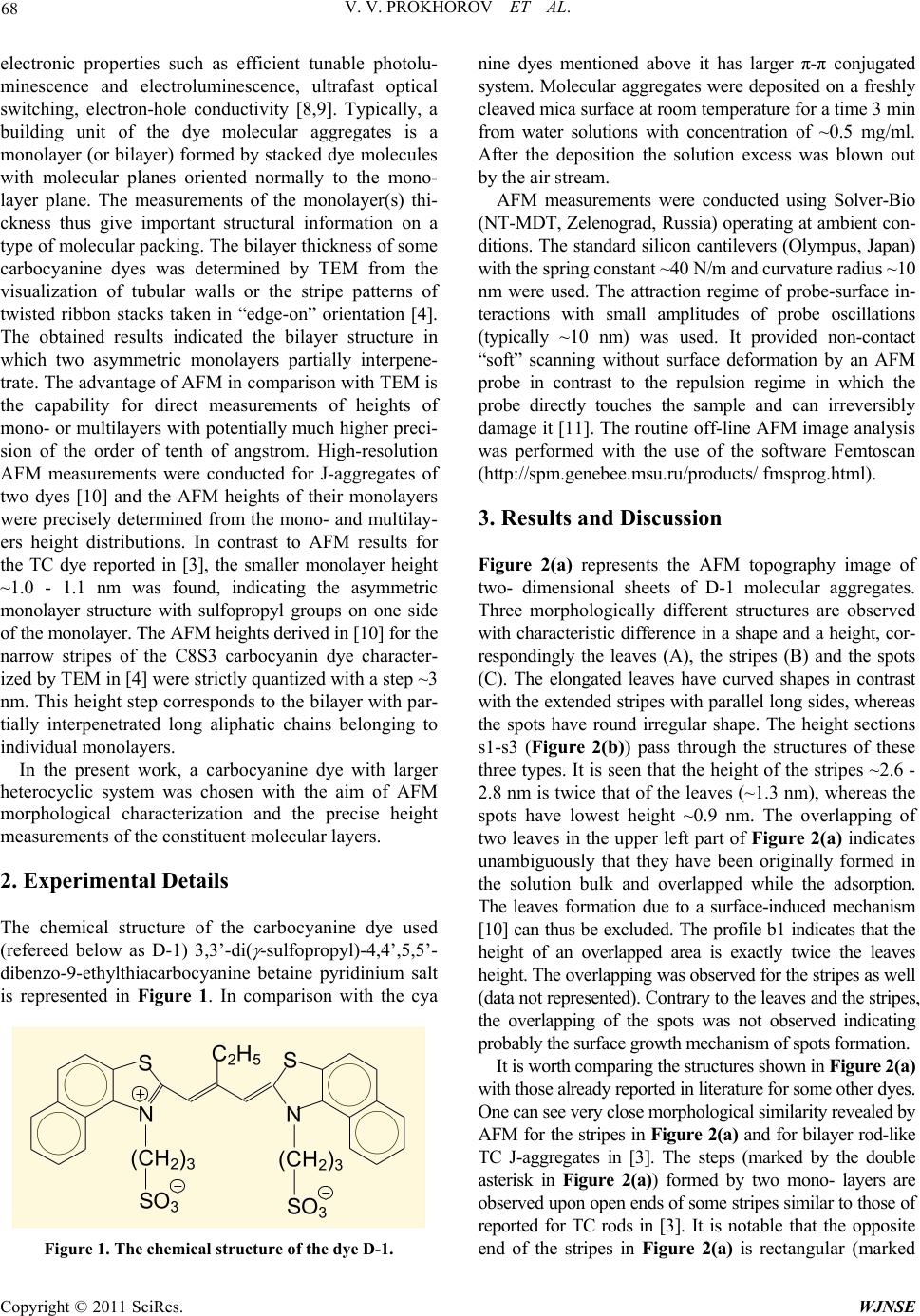

Figure 1. The chemical structure of the dye D-1.

nine dyes mentioned above it has larger π-π conjugated

system. Molecular aggregates were deposited on a freshly

cleaved mica surface at room temperature for a time 3 min

from water solutions with concentration of ~0.5 mg/ml.

After the deposition the solution excess was blown out

by the air stream.

AFM measurements were conducted using Solver-Bio

(NT-MDT, Zelenograd, Russia) operating at ambient con-

ditions. The standard silicon cantilevers (Olympus, Japan)

with the spring constant ~40 N/m and curvature radius ~10

nm were used. The attraction regime of probe-surface in-

teractions with small amplitudes of probe oscillations

(typically ~10 nm) was used. It provided non-contact

“soft” scanning without surface deformation by an AFM

probe in contrast to the repulsion regime in which the

probe directly touches the sample and can irreversibly

damage it [11]. The routine off-line AFM image analysis

was performed with the use of the software Femtoscan

(http://spm.genebee.msu.ru/products/ fmsprog.html).

3. Results and Discussion

Figure 2(a) represents the AFM topography image of

two- dimensional sheets of D-1 molecular aggregates.

Three morphologically different structures are observed

with characteristic difference in a shape and a height, cor-

respondingly the leaves (A), the stripes (B) and the spots

(C). The elongated leaves have curved shapes in contrast

with the extended stripes with parallel long sides, whereas

the spots have round irregular shape. The height sections

s1-s3 (Figure 2(b)) pass through the structures of these

three types. It is seen that the height of the stripes ~2.6 -

2.8 nm is twice that of the leaves (~1.3 nm), whereas the

spots have lowest height ~0.9 nm. The overlapping of

two leaves in the upper left part of Figure 2(a) indicates

unambiguously that they have been originally formed in

the solution bulk and overlapped while the adsorption.

The leaves formation due to a surface-induced mechanism

[10] can thus be excluded. The profile b1 indicates that the

height of an overlapped area is exactly twice the leaves

height. The overlapping was observed for the stripes as well

(data not represented). Contrary to the leaves and the stripes,

the overlapping of the spots was not observed indicating

probably the surface growth mechanism of spots formation.

It is worth comparing the structures shown in Figure 2( a)

with those already reported in literature for some other dyes.

One can see very close morphological similarity revealed by

AFM for the stripes in Figure 2(a) and for bilayer rod-like

TC J-aggregates in [3]. The steps (marked by the double

asterisk in Figure 2(a)) formed by two mono- layers are

observed upon open ends of some stripes similar to those of

reported for TC rods in [3]. It is notable that the opposite

end of the stripes in Figure 2(a) is rectangular (marked

V. V. PROKHOROV ET AL.

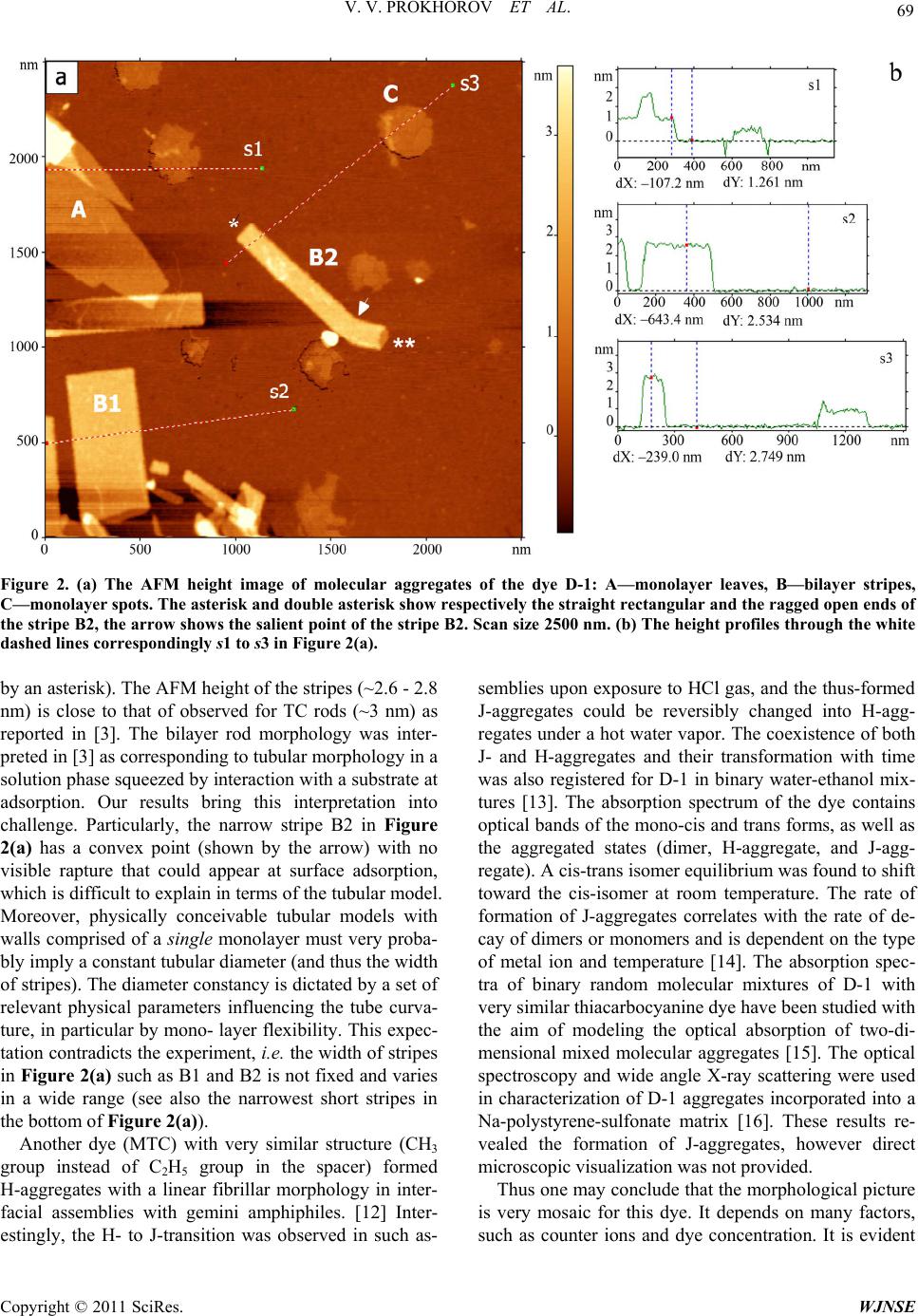

Figure 2. (a) The AFM height image of molecular aggregates of the dye D-1: A—monolayer leaves, B—bilayer stripes,

C—monolayer spots. The asterisk and double asterisk show respectively the straight rectangular and the ragged open ends of

the stripe B2, the arrow shows the salient point of the stripe B2. Scan size 2500 nm. (b) The height profiles through the white

dashed lines correspondingly s1 to s3 in Figure 2(a).

by an asterisk). The AFM height of the stripes (~2.6 - 2.8

nm) is close to that of observed for TC rods (~3 nm) as

reported in [3]. The bilayer rod morphology was inter-

preted in [3] as corresponding to tubular morphology in a

solution phase squeezed by interaction with a substrate at

adsorption. Our results bring this interpretation into

challenge. Particularly, the narrow stripe B2 in Figure

2(a) has a convex point (shown by the arrow) with no

visible rapture that could appear at surface adsorption,

which is difficult to explain in terms of the tubular model.

Moreover, physically conceivable tubular models with

walls comprised of a single monolayer must very proba-

bly imply a constant tubular diameter (and thus the width

of stripes). The diameter constancy is dictated by a set of

relevant physical parameters influencing the tube curva-

ture, in particular by mono- layer flexibility. This expec-

tation contradicts the experiment, i.e. the width of stripes

in Figure 2(a) such as B1 and B2 is not fixed and varies

in a wide range (see also the narrowest short stripes in

the bottom of Figure 2(a)).

Another dye (MTC) with very similar structure (CH3

group instead of C2H5 group in the spacer) formed

H-aggregates with a linear fibrillar morphology in inter-

facial assemblies with gemini amphiphiles. [12] Inter-

estingly, the H- to J-transition was observed in such as-

semblies upon exposure to HCl gas, and the thus-formed

J-aggregates could be reversibly changed into H-agg-

regates under a hot water vapor. The coexistence of both

J- and H-aggregates and their transformation with time

was also registered for D-1 in binary water-ethanol mix-

tures [13]. The absorption spectrum of the dye contains

optical bands of the mono-cis and trans forms, as well as

the aggregated states (dimer, H-aggregate, and J-agg-

regate). A cis-trans isomer equilibrium was found to shift

toward the cis-isomer at room temperature. The rate of

formation of J-aggregates correlates with the rate of de-

cay of dimers or monomers and is dependent on the type

of metal ion and temperature [14]. The absorption spec-

tra of binary random molecular mixtures of D-1 with

very similar thiacarbocyanine dye have been studied with

the aim of modeling the optical absorption of two-di-

mensional mixed molecular aggregates [15]. The optical

spectroscopy and wide angle X-ray scattering were used

in characterization of D-1 aggregates incorporated into a

Na-polystyrene-sulfonate matrix [16]. These results re-

vealed the formation of J-aggregates, however direct

microscopic visualization was not provided.

Thus one may conclude that the morphological picture

is very mosaic for this dye. It depends on many factors,

such as counter ions and dye concentration. It is evident

V. V. PROKHOROV ET AL.

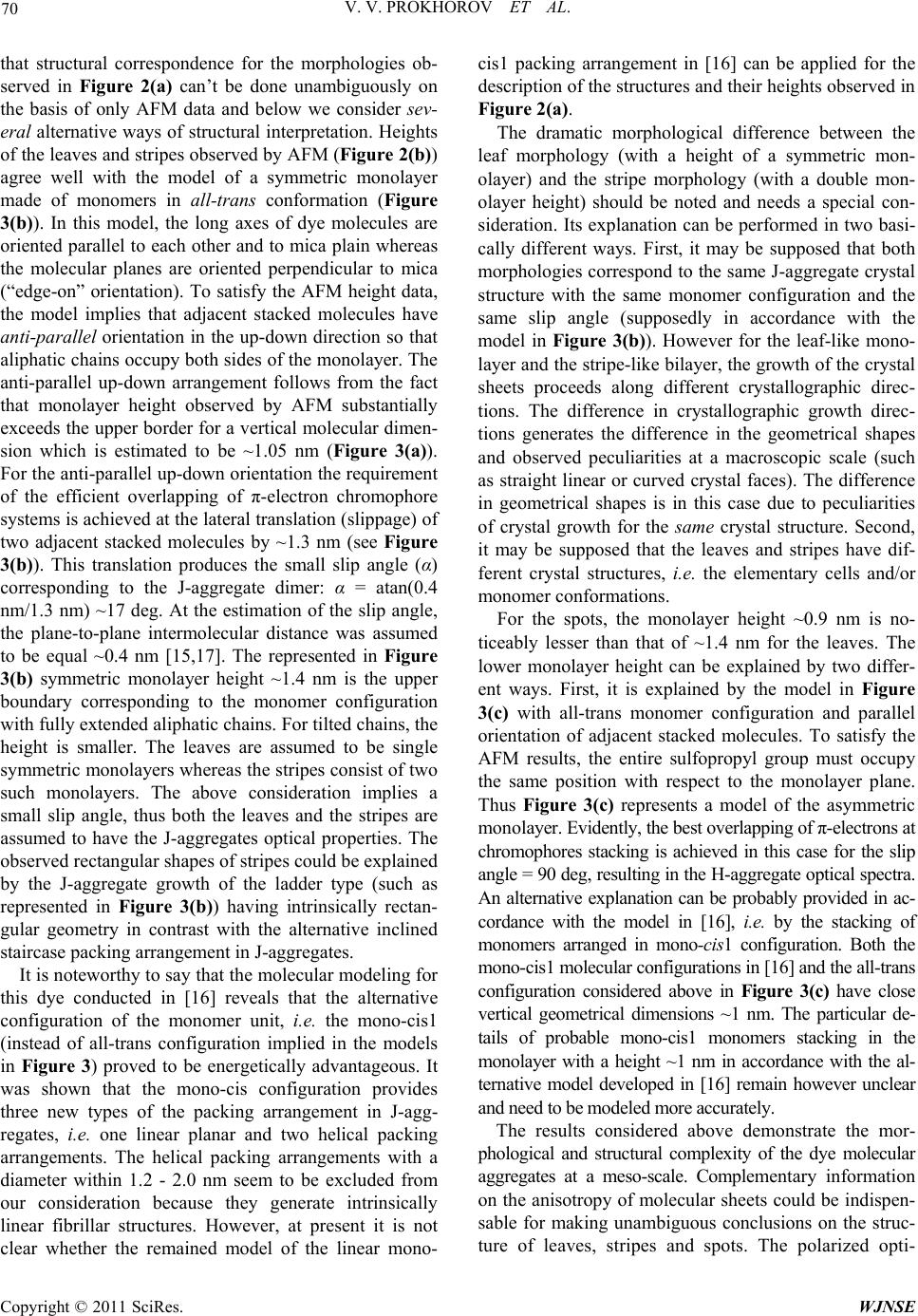

that structural correspondence for the morphologies ob-

served in Figure 2(a) can’t be done unambiguously on

the basis of only AFM data and below we consider sev-

eral alternative ways of structural interpretation. Heights

of the leaves and stripes observed by AFM (Figure 2(b))

agree well with the model of a symmetric monolayer

made of monomers in all-tra ns conformation (Figure

3(b)). In this model, the long axes of dye molecules are

oriented parallel to each other and to mica plain whereas

the molecular planes are oriented perpendicular to mica

(“edge-on” orientation). To satisfy the AFM height data,

the model implies that adjacent stacked molecules have

anti-parallel orientation in the up-down direction so that

aliphatic chains occupy both sides of the monolayer. The

anti-parallel up-down arrangement follows from the fact

that monolayer height observed by AFM substantially

exceeds the upper border for a vertical molecular dimen-

sion which is estimated to be ~1.05 nm (Figure 3(a)).

For the anti-parallel up-down orientation the requirement

of the efficient overlapping of π-electron chromophore

systems is achieved at the lateral translation (slippage) of

two adjacent stacked molecules by ~1.3 nm (see Figure

3(b)). This translation produces the small slip angle (α)

corresponding to the J-aggregate dimer: α = atan(0.4

nm/1.3 nm) ~17 deg. At the estimation of the slip angle,

the plane-to-plane intermolecular distance was assumed

to be equal ~0.4 nm [15,17]. The represented in Figure

3(b) symmetric monolayer height ~1.4 nm is the upper

boundary corresponding to the monomer configuration

with fully extended aliphatic chains. For tilted chains, the

height is smaller. The leaves are assumed to be single

symmetric monolayers whereas the stripes consist of two

such monolayers. The above consideration implies a

small slip angle, thus both the leaves and the stripes are

assumed to have the J-aggregates optical properties. The

observed rectangular shapes of stripes could be explained

by the J-aggregate growth of the ladder type (such as

represented in Figure 3(b)) having intrinsically rectan-

gular geometry in contrast with the alternative inclined

staircase packing arrangement in J-aggregates.

It is noteworthy to say that the molecular modeling for

this dye conducted in [16] reveals that the alternative

configuration of the monomer unit, i.e. the mono-cis1

(instead of all-trans configuration implied in the models

in Figure 3) proved to be energetically advantageous. It

was shown that the mono-cis configuration provides

three new types of the packing arrangement in J-agg-

regates, i.e. one linear planar and two helical packing

arrangements. The helical packing arrangements with a

diameter within 1.2 - 2.0 nm seem to be excluded from

our consideration because they generate intrinsically

linear fibrillar structures. However, at present it is not

clear whether the remained model of the linear mono-

cis1 packing arrangement in [16] can be applied for the

description of the structures and their heights observed in

Figure 2(a).

The dramatic morphological difference between the

leaf morphology (with a height of a symmetric mon-

olayer) and the stripe morphology (with a double mon-

olayer height) should be noted and needs a special con-

sideration. Its explanation can be performed in two basi-

cally different ways. First, it may be supposed that both

morphologies correspond to the same J-aggregate crystal

structure with the same monomer configuration and the

same slip angle (supposedly in accordance with the

model in Figure 3(b)). However for the leaf-like mono-

layer and the stripe-like bilayer, the growth of the crystal

sheets proceeds along different crystallographic direc-

tions. The difference in crystallographic growth direc-

tions generates the difference in the geometrical shapes

and observed peculiarities at a macroscopic scale (such

as straight linear or curved crystal faces). The difference

in geometrical shapes is in this case due to peculiarities

of crystal growth for the same crystal structure. Second,

it may be supposed that the leaves and stripes have dif-

ferent crystal structures, i.e. the elementary cells and/or

monomer conformations.

For the spots, the monolayer height ~0.9 nm is no-

ticeably lesser than that of ~1.4 nm for the leaves. The

lower monolayer height can be explained by two differ-

ent ways. First, it is explained by the model in Figure

3(c) with all-trans monomer configuration and parallel

orientation of adjacent stacked molecules. To satisfy the

AFM results, the entire sulfopropyl group must occupy

the same position with respect to the monolayer plane.

Thus Figure 3(c) represents a model of the asymmetric

monolayer. Evidently, the best overlapping of π-electrons at

chromophores stacking is achieved in this case for the slip

angle = 90 deg, resulting in the H-aggregate optical spectra.

An alternative explanation can be probably provided in ac-

cordance with the model in [16], i.e. by the stacking of

monomers arranged in mono-cis1 configuration. Both the

mono-cis1 molecular configurations in [16] and the all-trans

configuration considered above in Figure 3(c) have close

vertical geometrical dimensions ~1 nm. The particular de-

tails of probable mono-cis1 monomers stacking in the

monolayer with a height ~1 nm in accordance with the al-

ternative model developed in [16] remain however unclear

and need to be modeled more accurately.

The results considered above demonstrate the mor-

phological and structural complexity of the dye molecular

aggregates at a meso-scale. Complementary information

on the anisotropy of molecular sheets could be indispen-

sable for making unambiguous conclusions on the struc-

ture of leaves, stripes and spots. The polarized opti-

V. V. PROKHOROV ET AL.

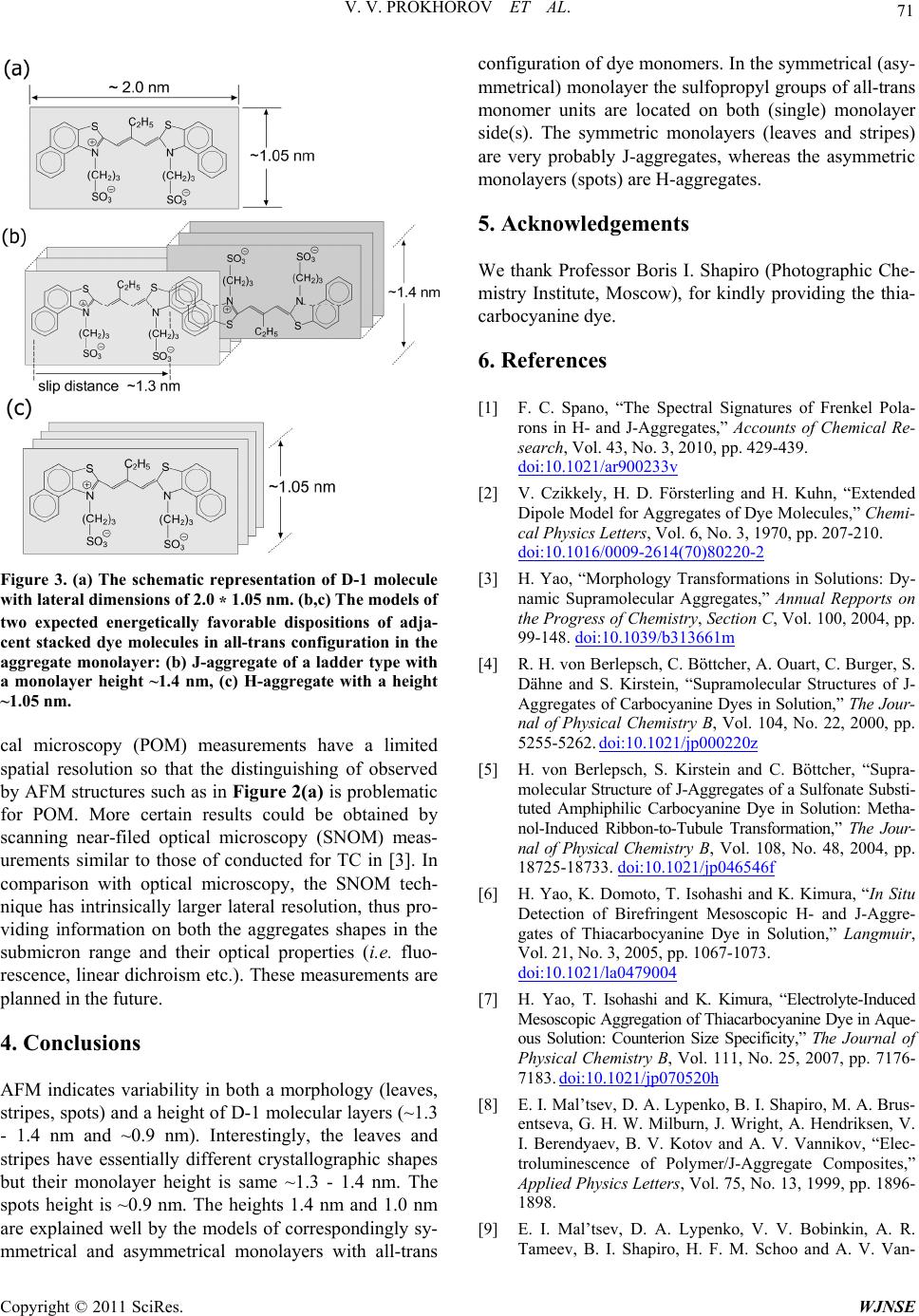

Figure 3. (a) The schematic representation of D-1 molecule

with lateral dimensions of 2.0 * 1.05 nm. (b,c) The models of

two expected energetically favorable dispositions of adja-

cent stacked dye molecules in all-trans configuration in the

aggregate monolayer: (b) J-aggregate of a ladder type with

a monolayer height ~1.4 nm, (c) H-aggregate with a height

~1.05 nm.

cal microscopy (POM) measurements have a limited

spatial resolution so that the distinguishing of observed

by AFM structures such as in Figure 2(a) is problematic

for POM. More certain results could be obtained by

scanning near-filed optical microscopy (SNOM) meas-

urements similar to those of conducted for TC in [3]. In

comparison with optical microscopy, the SNOM tech-

nique has intrinsically larger lateral resolution, thus pro-

viding information on both the aggregates shapes in the

submicron range and their optical properties (i.e. fluo-

rescence, linear dichroism etc.). These measurements are

planned in the future.

4. Conclusions

AFM indicates variability in both a morphology (leaves,

stripes, spots) and a height of D-1 molecular layers (~1.3

- 1.4 nm and ~0.9 nm). Interestingly, the leaves and

stripes have essentially different crystallographic shapes

but their monolayer height is same ~1.3 - 1.4 nm. The

spots height is ~0.9 nm. The heights 1.4 nm and 1.0 nm

are explained well by the models of correspondingly sy-

mmetrical and asymmetrical monolayers with all-trans

configuration of dye monomers. In the symmetrical (asy-

mmetrical) monolayer the sulfopropyl groups of all-trans

monomer units are located on both (single) monolayer

side(s). The symmetric monolayers (leaves and stripes)

are very probably J-aggregates, whereas the asymmetric

monolayers (spots) are H-aggregates.

5. Acknowledgements

We thank Professor Boris I. Shapiro (Photographic Che-

mistry Institute, Moscow), for kindly providing the thia-

carbocyanine dye.

6. References

[1] F. C. Spano, “The Spectral Signatures of Frenkel Pola-

rons in H- and J-Aggregates,” Accounts of Chemical Re-

search, Vol. 43, No. 3, 2010, pp. 429-439.

doi:10.1021/ar900233v

[2] V. Czikkely, H. D. Försterling and H. Kuhn, “Extended

Dipole Model for Aggregates of Dye Molecules,” Chemi-

cal Physics Letters, Vol. 6, No. 3, 1970, pp. 207-210.

doi:10.1016/0009-2614(70)80220-2

[3] H. Yao, “Morphology Transformations in Solutions: Dy-

namic Supramolecular Aggregates,” Annual Repports on

the Progress of Chemistry, Section C, Vol. 100, 2004, pp.

99-148. doi:10.1039/b313661m

[4] R. H. von Berlepsch, C. Böttcher, A. Ouart, C. Burger, S.

Dähne and S. Kirstein, “Supramolecular Structures of J-

Aggregates of Carbocyanine Dyes in Solution,” The Jour-

nal of Physical Chemistry B, Vol. 104, No. 22, 2000, pp.

5255-5262. doi:10.1021/jp000220z

[5] H. von Berlepsch, S. Kirstein and C. Böttcher, “Supra-

molecular Structure of J-Aggregates of a Sulfonate Substi-

tuted Amphiphilic Carbocyanine Dye in Solution: Metha-

nol-Induced Ribbon-to-Tubule Transformation,” The Jour-

nal of Physical Chemistry B, Vol. 108, No. 48, 2004, pp.

18725-18733. doi:10.1021/jp046546f

[6] H. Yao, K. Domoto, T. Isohashi and K. Kimura, “In Situ

Detection of Birefringent Mesoscopic H- and J-Aggre-

gates of Thiacarbocyanine Dye in Solution,” Langmuir,

Vol. 21, No. 3, 2005, pp. 1067-1073.

doi:10.1021/la0479004

[7] H. Yao, T. Isohashi and K. Kimura, “Electrolyte-Induced

Mesoscopic Aggregation of Thiacarbocyanine Dye in Aque-

ous Solution: Counterion Size Specificity,” The Journal of

Physical Chemistry B, Vol. 111, No. 25, 2007, pp. 7176-

7183. doi:10.1021/jp070520h

[8] E. I. Mal’tsev, D. A. Lypenko, B. I. Shapiro, M. A. Brus-

entseva, G. H. W. Milburn, J. Wright, A. Hendriksen, V.

I. Berendyaev, B. V. Kotov and A. V. Vannikov, “Elec-

troluminescence of Polymer/J-Aggregate Composites,”

Applied Physics Letters, Vol. 75, No. 13, 1999, pp. 1896-

1898.

[9] E. I. Mal’tsev, D. A. Lypenko, V. V. Bobinkin, A. R.

Tameev, B. I. Shapiro, H. F. M. Schoo and A. V. Van-

V. V. PROKHOROV ET AL.

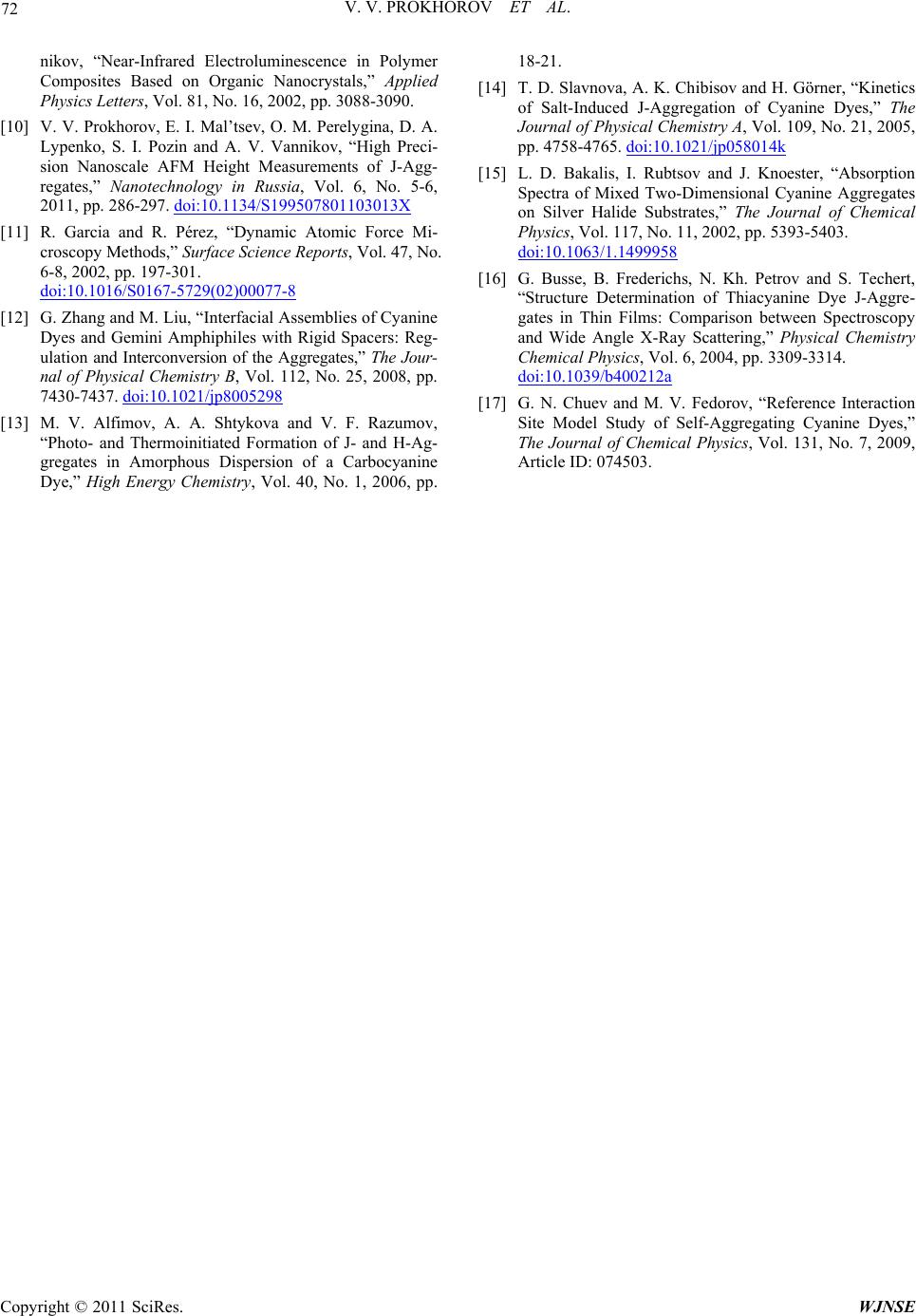

nikov, “Near-Infrared Electroluminescence in Polymer

Composites Based on Organic Nanocrystals,” Applied

Physics Letters, Vol. 81, No. 16, 2002, pp. 3088-3090.

[10] V. V. Prokhorov, E. I. Mal’tsev, O. M. Perelygina, D. A.

Lypenko, S. I. Pozin and A. V. Vannikov, “High Preci-

sion Nanoscale AFM Height Measurements of J-Agg-

regates,” Nanotechnology in Russia, Vol. 6, No. 5-6,

2011, pp. 286-297. doi:10.1134/S199507801103013X

[11] R. Garcia and R. Pérez, “Dynamic Atomic Force Mi-

croscopy Methods,” Surface Science Reports, Vol. 47, No.

6-8, 2002, pp. 197-301.

doi:10.1016/S0167-5729(02)00077-8

[12] G. Zhang and M. Liu, “Interfacial Assemblies of Cyanine

Dyes and Gemini Amphiphiles with Rigid Spacers: Reg-

ulation and Interconversion of the Aggregates,” The Jour-

nal of Physical Chemistry B, Vol. 112, No. 25, 2008, pp.

7430-7437. doi:10.1021/jp8005298

[13] M. V. Alfimov, A. A. Shtykova and V. F. Razumov,

“Photo- and Thermoinitiated Formation of J- and H-Ag-

gregates in Amorphous Dispersion of a Carbocyanine

Dye,” High Energy Chemistry, Vol. 40, No. 1, 2006, pp.

18-21.

[14] T. D. Slavnova, A. K. Chibisov and H. Görner, “Kinetics

of Salt-Induced J-Aggregation of Cyanine Dyes,” The

Journal of Physical Chemistry A, Vol. 109, No. 21, 2005,

pp. 4758-4765. doi:10.1021/jp058014k

[15] L. D. Bakalis, I. Rubtsov and J. Knoester, “Absorption

Spectra of Mixed Two-Dimensional Cyanine Aggregates

on Silver Halide Substrates,” The Journal of Chemical

Physics, Vol. 117, No. 11, 2002, pp. 5393-5403.

doi:10.1063/1.1499958

[16] G. Busse, B. Frederichs, N. Kh. Petrov and S. Techert,

“Structure Determination of Thiacyanine Dye J-Aggre-

gates in Thin Films: Comparison between Spectroscopy

and Wide Angle X-Ray Scattering,” Physical Chemistry

Chemical Physics, Vol. 6, 2004, pp. 3309-3314.

doi:10.1039/b400212a

[17] G. N. Chuev and M. V. Fedorov, “Reference Interaction

Site Model Study of Self-Aggregating Cyanine Dyes,”

The Journal of Chemical Physics, Vol. 131, No. 7, 2009,

Article ID: 074503.
