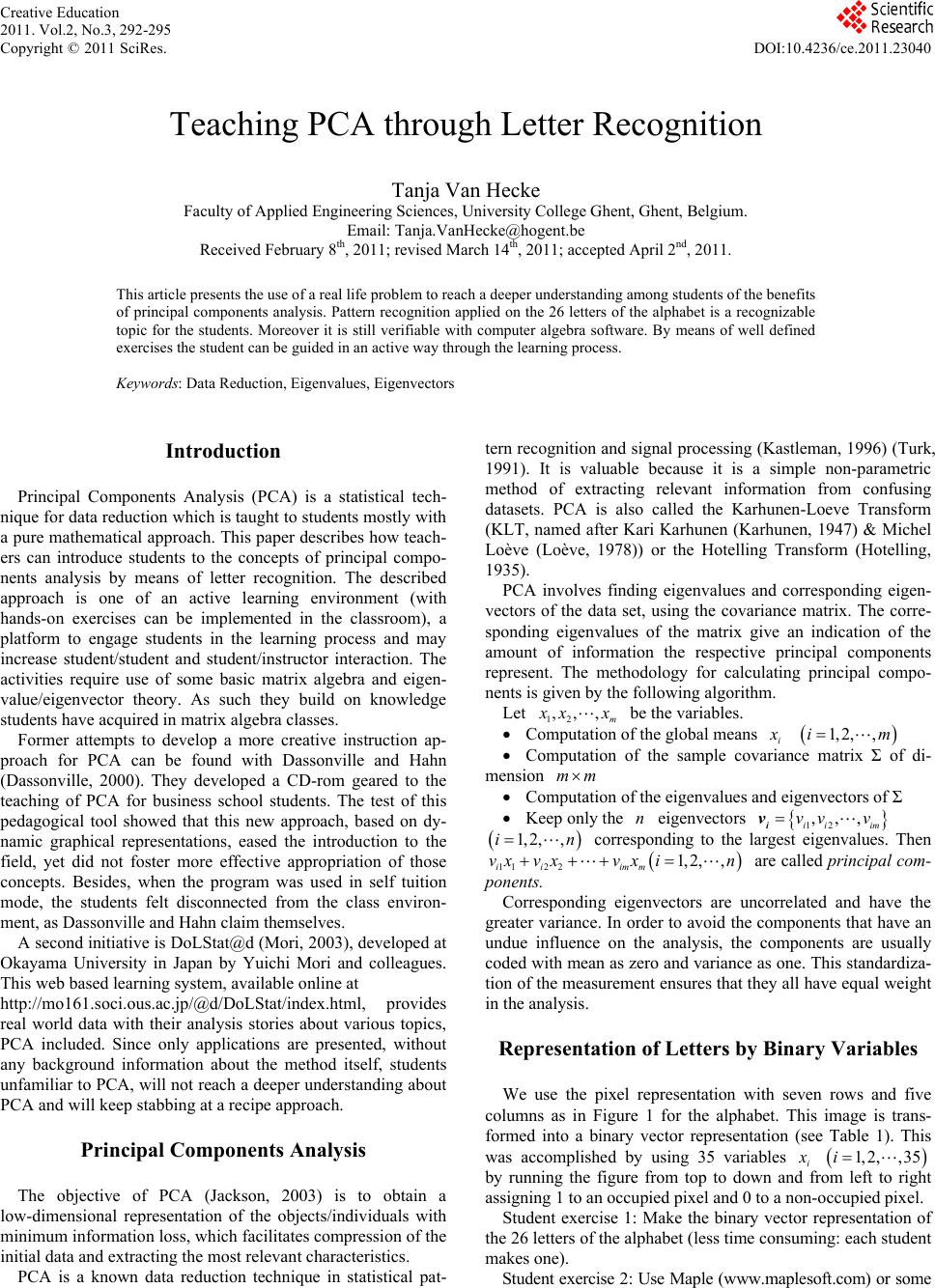

Teaching PCA through Letter Recognition

Tanja Van Hecke

Faculty of Applied Engineering Sciences, University College Ghent, Ghent, Belgium.

Email: [email protected]

Received February 8th, 2011; revised March 14th, 2011; accepted April 2nd, 2011.

This article presents the use of a real life problem to reach a deeper understanding among students of the benefits

of principal components analysis. Pattern recognition applied on the 26 letters of the alphabet is a recognizable

topic for the students. Moreover it is still verifiable with computer algebra software. By means of well defined

exercises the student can be guided in an active way through the learning process.

Keywords: Data Reduction, Eigenvalues, Eigenvectors

Introduction

Principal Components Analysis (PCA) is a statistical tech-

nique for data reduction which is taught to students mostly with

a pure mathematical approach. This paper describes how teach-

ers can introduce students to the concepts of principal compo-

nents analysis by means of letter recognition. The described

approach is one of an active learning environment (with

hands-on exercises can be implemented in the classroom), a

platform to engage students in the learning process and may

increase student/student and student/instructor interaction. The

activities require use of some basic matrix algebra and eigen-

value/eigenvector theory. As such they build on knowledge

students have acquired in matrix algebra classes.

Former attempts to develop a more creative instruction ap-

proach for PCA can be found with Dassonville and Hahn

(Dassonville, 2000). They developed a CD-rom geared to the

teaching of PCA for business school students. The test of this

pedagogical tool showed that this new approach, based on dy-

namic graphical representations, eased the introduction to the

field, yet did not foster more effective appropriation of those

concepts. Besides, when the program was used in self tuition

mode, the students felt disconnected from the class environ-

ment, as Dassonville and Hahn claim themselves.

A second initiative is DoLStat@d (Mori, 2003), developed at

Okayama University in Japan by Yuichi Mori and colleagues.

This web based learning system, available online at

http://mo161.soci.ous.ac.jp/@d/DoLStat/index.html, provides

real world data with their analysis stories about various topics,

PCA included. Since only applications are presented, without

any background information about the method itself, students

unfamiliar to PCA, will not reach a deeper understanding about

PCA and will keep stabbing at a recipe approach.

Principal Components Analysis

The objective of PCA (Jackson, 2003) is to obtain a

low-dimensional representation of the objects/individuals with

minimum information loss, which facilitates compression of the

initial data and extracting the most relevant characteristics.

PCA is a known data reduction technique in statistical pat-

tern recognition and signal processing (Kastleman, 1996) (Turk,

1991). It is valuable because it is a simple non-parametric

method of extracting relevant information from confusing

datasets. PCA is also called the Karhunen-Loeve Transform

(KLT, named after Kari Karhunen (Karhunen, 1947) & Michel

Loève (Loève, 1978)) or the Hotelling Transform (Hotelling,

1935).

PCA involves finding eigenvalues and corresponding eigen-

vectors of the data set, using the covariance matrix. The corre-

sponding eigenvalues of the matrix give an indication of the

amount of information the respective principal components

represent. The methodology for calculating principal compo-

nents is given by the following algorithm.

Let 12

,,,

xx be the variables.

 Computation of the global means i





1, 2,,im

 Computation of the sample covariance matrix Σ of di-

mension mm



 Computation of the eigenvalues and eigenvectors of Σ

 Keep only the n eigenvectors





,,,

ii im

vv v





1, 2,,in corresponding to the largest eigenvalues. Then





11 21, 2,,

ii n are called principal com-

ponents.

vx vx im

x

v i

Corresponding eigenvectors are uncorrelated and have the

greater variance. In order to avoid the components that have an

undue influence on the analysis, the components are usually

coded with mean as zero and variance as one. This standardiza-

tion of the measurement ensures that they all have equal weight

in the analysis.

Representation of Letters by Binary Variables

We use the pixel representation with seven rows and five

columns as in Figure 1 for the alphabet. This image is trans-

formed into a binary vector representation (see Table 1). This

was accomplished by using 35 variables i

by running the figure from top to down and from left to right

assigning 1 to an occupied pixel and 0 to a non-occupied pixel.



1, 2,, 35i

Student exercise 1: Make the binary vector representation of

the 26 letters of the alphabet (less time consuming: each student

makes one).

Student exercise 2: Use Maple (www.maplesoft.com) or some

T. V. HECKE 293

Table 1.

The binary vector representing the letters of the alphab et.

letter 1

… 35

A 0 0 1 0 0 0 1 0 1 0 1 0 … 1

B 1 1 1 1 0 1 0 0 0 1 1 0 … 0

C 0 1 1 1 0 1 0 0 0 1 1 0 … 0

… … … … … … … … … … … … … … …

Z 1 1 1 1 1 0 0 0 0 1 0 0 … 1

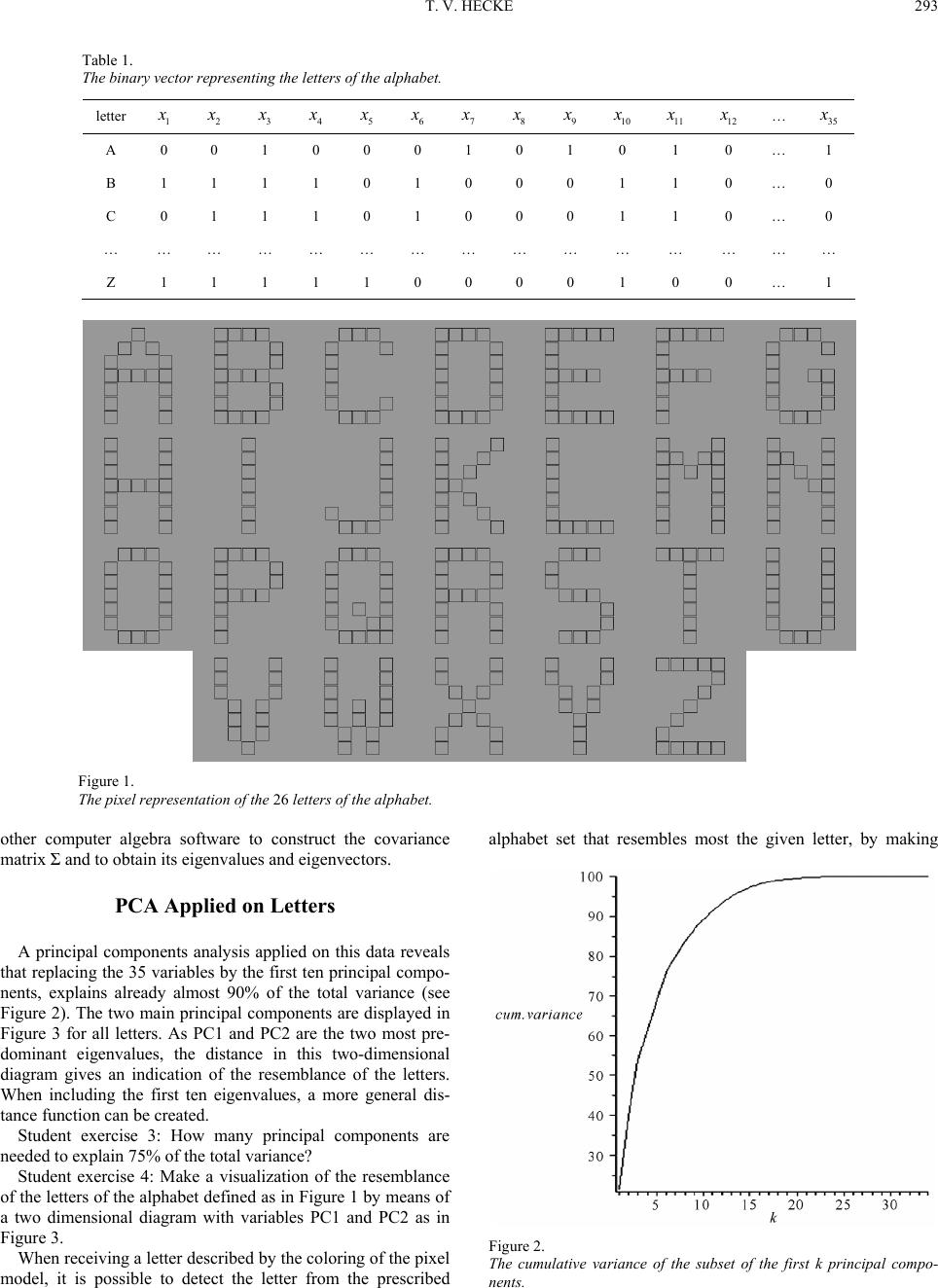

Figure 1.

The pixel representation of the 26 letters of the alphabet.

other computer algebra software to construct the covariance

matrix Σ and to obtain its eigenvalues and eigenvectors.

PCA Applied on Letters

A principal components analysis applied on this data reveals

that replacing the 35 variables by the first ten principal compo-

nents, explains already almost 90% of the total variance (see

Figure 2). The two main principal components are displayed in

Figure 3 for all letters. As PC1 and PC2 are the two most pre-

dominant eigenvalues, the distance in this two-dimensional

diagram gives an indication of the resemblance of the letters.

When including the first ten eigenvalues, a more general dis-

tance function can be created.

Student exercise 3: How many principal components are

needed to explain 75% of the total variance?

Student exercise 4: Make a visualization of the resemblance

of the letters of the alphabet defined as in Figure 1 by means of

a two dimensional diagram with variables PC1 and PC2 as in

Figure 3.

When receiving a letter described by the coloring of the pixel

model, it is possible to detect the letter from the prescribed

alphabet set that resembles most the given letter, by making

Figure 2.

The cumulative variance of the subset of the first k principal compo-

nents.

T. V. HECKE

294

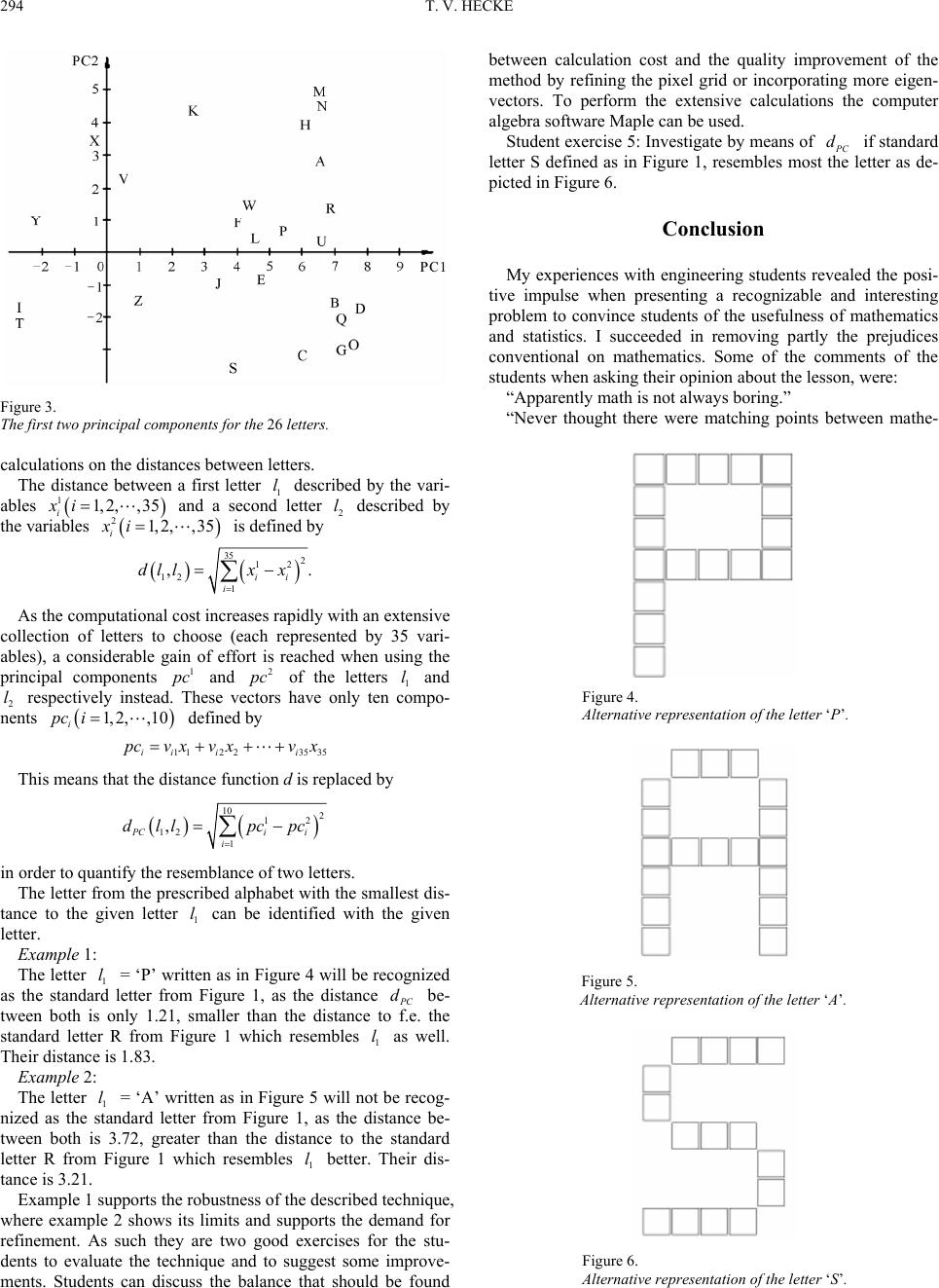

Figure 3.

The first two principal components for the 26 letters.

calculations on the distances between letters.

The distance between a first letter 1 described by the vari-

ables





11,2,, 35

xi



and a second letter described by

the variables 2



21, 2,

xi, 35 is defined by



35 2

dllx x







As the computational cost increases rapidly with an extensive

collection of letters to choose (each represented by 35 vari-

ables), a considerable gain of effort is reached when using the

principal components 1

c and 2

c of the letters 1 and

2 respectively instead. These vectors have only ten compo-

nents defined by



1, 2,,1

pci 



112 235 35ii ii

cvxv vxx

This means that the distance function d is replaced by



10 2

PCi i

dll pcpc







in order to quantify the resemblance of two letters.

The letter from the prescribed alphabet with the smallest dis-

tance to the given letter can be identified with the given

letter. 1

Example 1:

The letter 1 = ‘P’ written as in Figure 4 will be recognized

as the standard letter from Figure 1, as the distance PC be-

tween both is only 1.21, smaller than the distance to f.e. the

standard letter R from Figure 1 which resembles as well.

Their distance is 1.83.

Example 2:

The letter 1 = ‘A’ written as in Figure 5 will not be recog-

nized as the standard letter from Figure 1, as the distance be-

tween both is 3.72, greater than the distance to the standard

letter R from Figure 1 which resembles better. Their dis-

tance is 3.21.

Example 1 supports the robustness of the described technique,

where example 2 shows its limits and supports the demand for

refinement. As such they are two good exercises for the stu-

dents to evaluate the technique and to suggest some improve-

ments. Students can discuss the balance that should be found

between calculation cost and the quality improvement of the

method by refining the pixel grid or incorporating more eigen-

vectors. To perform the extensive calculations the computer

algebra software Maple can be used.

Student exercise 5: Investigate by means of PC if standard

letter S defined as in Figure 1, resembles most the letter as de-

picted in Figure 6.

Conclusion

My experiences with engineering students revealed the posi-

tive impulse when presenting a recognizable and interesting

problem to convince students of the usefulness of mathematics

and statistics. I succeeded in removing partly the prejudices

conventional on mathematics. Some of the comments of the

students when asking their opinion about the lesson, were:

“Apparently math is not always boring.”

“Never thought there were matching points between mathe-

Figure 4.

Alternative representation of the l etter ‘P’.

Figure 5.

Alternative representation of the l etter ‘A’.

Figure 6.

Alternative representation of the l etter ‘S’.

T. V. HECKE 295

matics and language.”

“Surprising that we can make computers smart by means of

mathematics, since they are able to recognize letters!”

“Granted, today revealed that statistics is more than calculat-

ing the mean of our exam results.”

The discussions I held in class with my engineering students,

resulted in an impressive improvement in their mathematical

comprehension. Moreover the students became aware of the

relevance of reducing the multidimensional datasets to lower

dimensions for analysis by means of principal components

analysis.

References

Dassonville, P., & Hahn, C. (2000). The multimedia tool: A transitional

medium beween the mathematician’s culture and the professional’s

culture in teaching PCA in a business school. In A. Ahmed, J.

Kraemer, & H. Williams (Eds.), Cultural diversity in mathematics

Education (pp. 125-136). United Kingdom: Horwood

Hotelling, H. (1935). The most predictable criterion. Journal of Educa-

tional Psychology, 26 , 139-142. doi:10.1037/h0058165

Jackson, J. E. (2003). A user’s guide to principal components. New

Jersey: Wiley & Sons, Inc..

Karhunen, K. (1947). Über lineare methoden in der wahrscheinli-

chkeitsrechnung. Annales Academiæ Scientiarum Fennicae Series A1,

Mathematica-Physica, 3 7 , 1-79.

Kastleman, K. (1996). Digital image processing. London: Prentice

Hall.

Loève, M. (1978). Probability theory Vol. II, graduate texts in mathe-

matics 46 (4th ed.). New York, NY: Springer-Verlag.

Mori, Y., Yamamoto, Y., & Yadohisa, H. (2003). Data-oriented learn-

ing system of statistics based on analysis scenario/story (DoLStat).

Bulletin of the International Statistical Institute (ISI), 54th Session

Proceedings, Volume LX Two Books, Book 2 (pp. 74-77).

Turk, M., & Pentland, A. (1991). Eigenfaces for Recognition. Journal

of Cognitive Neurosicence, 3, 71-86. doi:10.1162/jocn.1991.3.1.71
