Effect of Silane Coupling Agent on the

Flexural Property of Glass Fiber Reinforced

Composite Film

Hye-Hyun Kim, Si-Young Kim, Dae-Hee Kim, Chae-Young Oh, Nam-Ju Jo*

Department of Polymer Science & Engineering, Pusan National University, Busan, Korea

Email: *[email protected]

Received August 2014

Abstract

Transparent glass fiber reinforced composites films ware fabricated by UV light induced chemical

crosslinking of composite materials consisting of glass fiber and UV curable resin in film state. In

order to app l y film to flexible device, excellent flexural property is required, then the delamination

should not occurred between glass fiber and UV curable resin when film is bent. To minimize

delamination and improve the interfacial adhesion at interface between glass fiber and UV curable

resin, the γ-aminopropyl triethoxy silane and γ-glycid oxypropyl trimethoxy silane were applied

for the surface treatment of glass fibers. Silanization of glass fiber surface was checked by

scanning electron microscopy and the degree of delamination of composite film was confirmed

through the bending test, ASTEM290-96a, used by haze meter.

Keywords

Glass Fiber, Silane , UV Curable Resin, Composite, Flexural Property, Haze

1. Introduction

Glass fiber is the most common reinforcing fiber for polymeric matrix composite. The principal advantages of

glass fiber are low cost, high tensile strength, high chemical resistance, and excellent insulating property. Fiber-

reinforced polymer composites have seen a rapid rise in use in the past 30 years, due to their high strength and

stiffness and light weight, compared with more traditional structural materials, such as steel and aluminum. The

reason for this superior performance is the synergistic combination of the two, or more, constituent phases. This

synergy is brought about by the interaction between the fibers and the polymeric matrix [1].

However, most of the fiber-reinforced polymer composites have been used as structural materials. They have

not been tried for application to optical films in thin film transistor (TFT) liquid crystal display or flexible sub-

strate in organic light emitting diodes (OLEDs).

For these applications, the matching of the refractive index of matrix and glass fiber should be essentially re-

quired for achieving transparent composite films. In addition, when composite film is bent, the optical property

Corresponding author.

H.-H. Kim et al.

should be equal. In other words, delamination should not be occurred between glass fiber and matrix resin, and

this phenomenon is highly related with interfacial adhesion between glass fiber and matrix [2].

It is well known that the interphase plays a key role in determining mechanical interfacial properties of com-

posites. The efficiency of the stress transfer between fibers and matrix is determined not only by molecular inte-

raction at interface, but also by the properties of the formed interphase, in particular, its thickness and strength [3]

[4].

One of the effective ways of creating interphase and, in this way, controlling composite properties is fiber

surface treatment, using sizings and film formers or coupling agents.

To improve the interfacial adhesion at interface between the glass fibers and matrix resin, silane coupling

agents were used formerly on the fibers [5]. At interface between the glass fibers and the silane coupling agent,

the hydroxyl groups of the silanes and those of the glass fiber surface can react with each other through siloxane

bonding or hydrogen bonding, as seen in Figure 1 which indicated the adhesion process of the silane coupling

agents onto glass fibers [6] [7].

The aim for this work is to find out the relationship between flexural property of composite film and optical

property as a result of composite film fabrication based on glass fiber processed by various silanes coupling

agent.

2. Experimental

2.1. Materials

E-glass fiber (56 × 56 count/25 mm, 48 g/m2) used in this work was supplied from Nittobo Asco Glass Fiber Co.

Ltd.. And e-glass fiber is treated with acrylic silane compound [8]. For the matrix resin, fluorene acrylate and

urethane acrylate were used. Both are provided from Osaka Gas Chemical Co. and SK Cytec. And 1-hydroxy

cyclohexyl phenyl ketone (HCPK) was used as photoinitiator. Silane coupling agents, γ-aminopropyltriethoxy

silane (APS) and γ-glycidoxypropyltrimethoxy silane (GPS) are purchased from Sigma Aldrich. The chemical

structures of APS and GPS are given in Figure 2.

2.2. Silanization of Glass Fiber

In order to treat silane, the glass fib er was fired at first under an ambient atmosphere at 500˚C for 2 h to burn out

the organic sizing agent coated onto its surface. Silane coupling agents were diluted to 1 wt% using the co-sol-

vents of methanol and deionized water with the ratio of methanol/water = 80/20 wt%. A silanol group is usually

unstable in the presence of water, but it is stable in weakly acidic solution. Aminosilanes and glycidylsilanes are

an exception because the amino group and glycidyl group help to stabilize the silane in water. Next, the hydro-

lysis of the silane coupling agent was carried out for 30 min, and glass fibers were dipped in the hydrolyzed si-

lane solution for 30 min. And it was dried at 110˚C for 5 min , follo w ed by 24 h at room temperature.

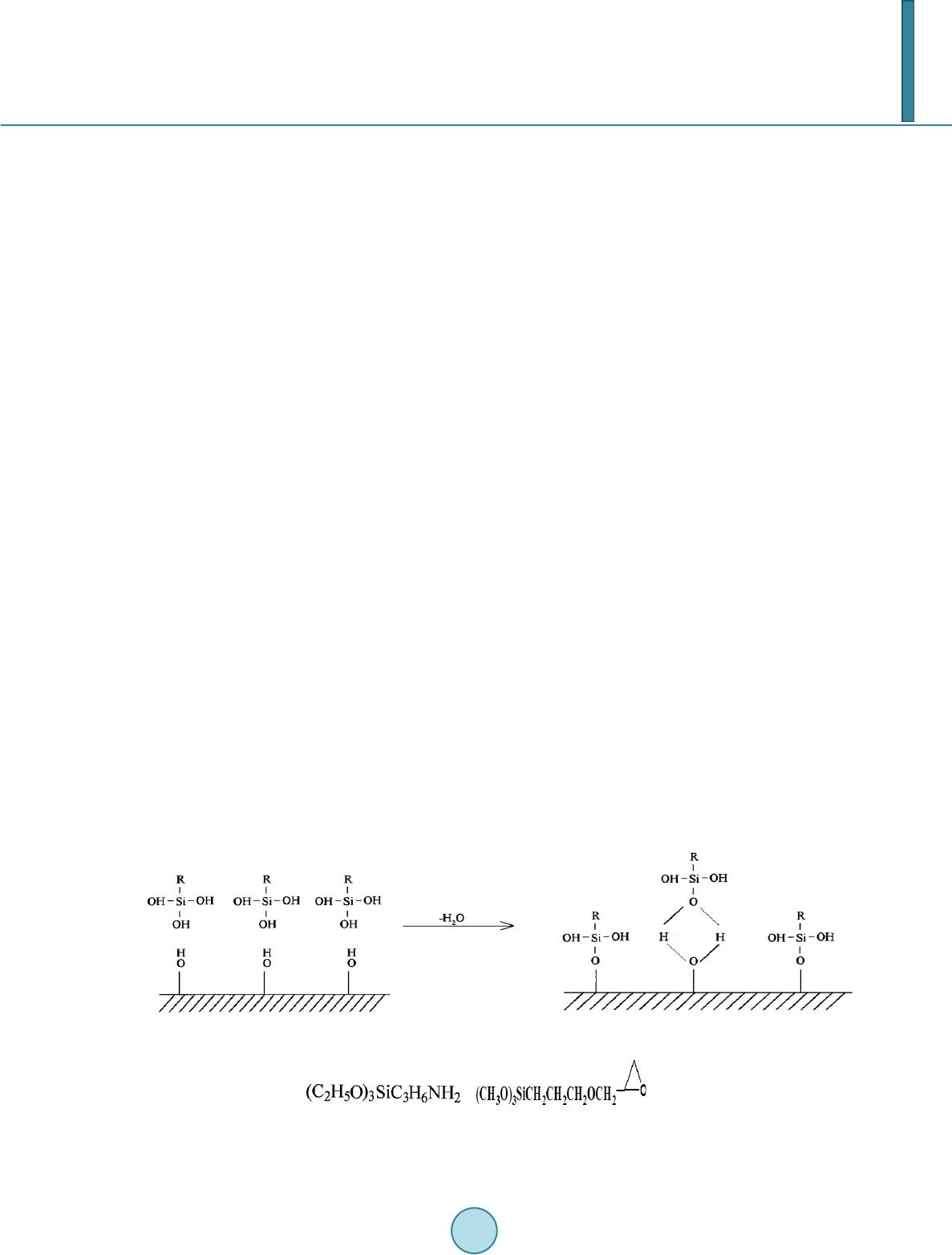

Figure 1. Surface structure of silane-treated glass fiber [1].

APS GPS

Figure 2. Chemical structures of the APS and GPS.

H.-H. Kim et al.

2.3. Composite Film Fabrication

Based on APS treated glass fiber, GPS treated glass fiber, and non-treated glass fiber (burned original glass fi-

ber), three composite films were fabricated. The procedure described below (Figure 3).

1) Matrix resin was prepared by complete mix ing with fluorene acrylate, urethane acrylate, and HCPK. 2)

Glass fiber was placed on a glass plate and impregnated with the matrix resin. 3) Sample was deaerated in a va-

cuum oven at 60˚C for 20 min. 4) The drenched sample was covered with another glass plate. 5) To obtain a

proper film thickness, the sample was pressed by laminator. 6) Sample was treated by heat treatment at 220˚C

oven for 1 h after cured both sides by metal UV lamp for 90 s.

2.4. Bending Test

Figure 4 shows schematic diagram of bending test to observe the point where delamination occurs.

This is the experiment exerted by force until the upper and bottom sides of specimen bending becomes equi-

librium. At the moment specimen delamination occurs, the flexural property of composite film is estimated by

measuring the distance between gap and haze.

2.5. Scanning Electron Microscopy (SEM)

Silanization of glass fiber surface was observed with a scanning electron microscopy (S3500N, HITACHI). The

surfaces of specimens were coated with gold to avoid charging under the electron beam.

3. Results and Discussion

Figure 5 shows SEM microphotographs of the surface of various silane-treated glass fiber. Figure 5(a) is image

of none-treated glass fiber. It has a clean surface. Figure 5(b) and Figure 5 (c) are images of glass fibers treated

by APS and GPS, respectively. As shown in Figure 5(b) and Figure 5(c), we found that APS and GPS are well

adhered to the surface of glass fiber. This indicates that the interfacial adhesion of the glass composites is im-

proved. These results could be explained by the increase of hydroxyl groups and it makes more hydrogen bond-

ing at the interfaces between the glass fiber and the silane coupling agent.

Figure 6 displays hazes of composite films treated APS and GPS silane coupling agents and non-treated de-

pending on the gap of the two plates. For composite films treated by APS and GPS coupling agents, haze started

increasing when the upper and bottom side of specimen gap becomes 8 mm. For non-treated glass fiber,

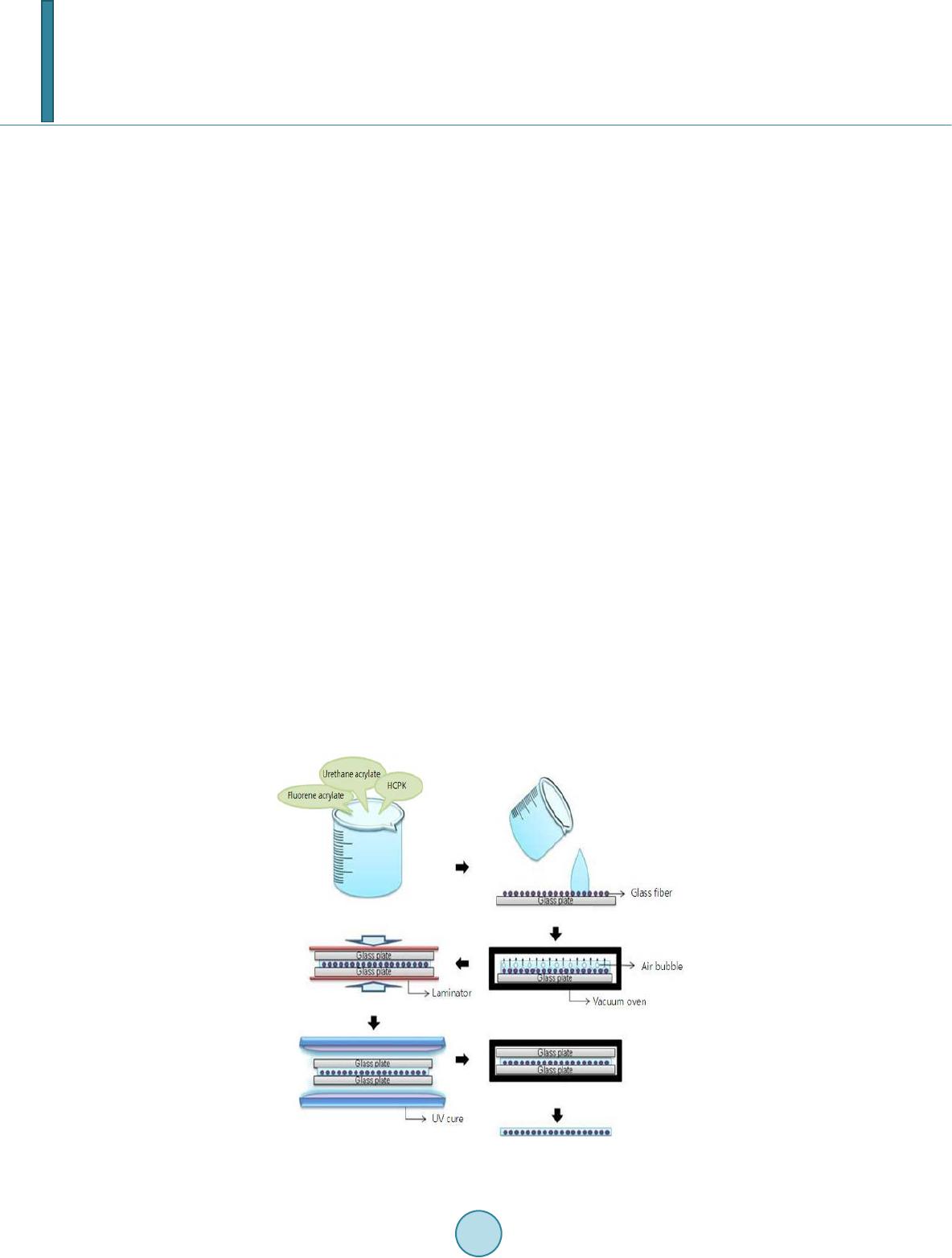

Figure 3. The manufacturing process of composite film.

H.-H. Kim et al.

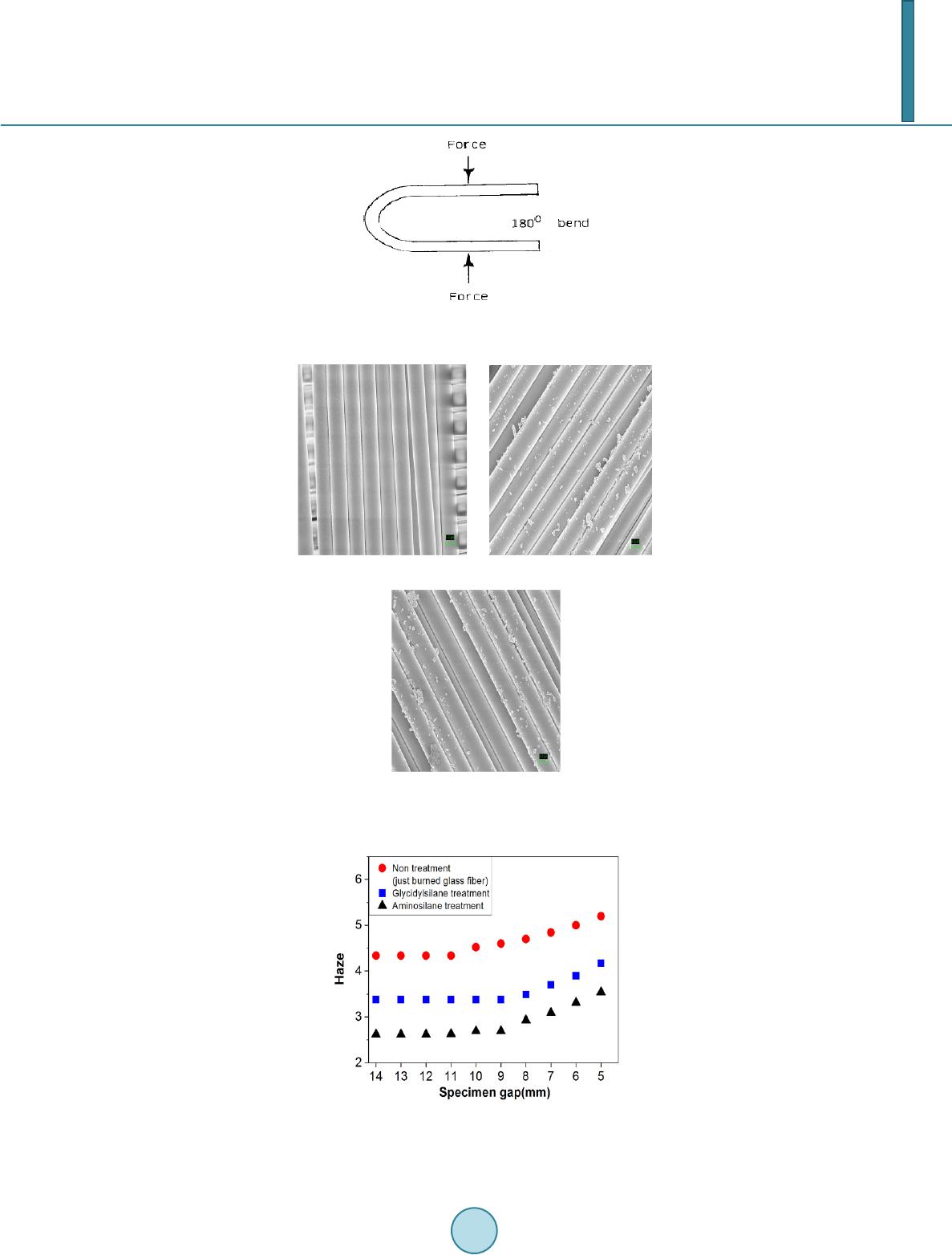

Figure 4. Standard test method for bend testing of ma-

terial (ASTM E 290-97a).

(a) (b)

(c)

Figure 5. SEM micrographs of the glass fiber (a) non-treated glass

fiber; (b) APS; and (c) GPS-treated glass fiber.

Figure 6. Hazes of composite films treated APS and GPS coupling

agents and non-treated depending on the gap of the upper and bot-

tom side of specimen.

H.-H. Kim et al.

delamination started at 10 mm, shows the poorest flexural property. As a result of evaluation of flexural property,

the flexural property of composite film treated by APS coupling agent is the best. Result above is expected that

APS treated glass fiber is well compatible with flourene acrylate and urethane acrylate applied matrix resin.

4. Conclusion

For the manufacture of transparent glass fiber composite film to apply for flexible device, excellent optical

property and flexural property are significant elements. To improve the interfacial adhesion at interface between

the glass fibers and matrix resin, the various types of silane coupling agents such as γ-aminopropyl triethoxy si-

lane (APS) and γ-glycid oxypropyl trimethoxy silane (GPS) were applied. In result, the optical property and

flexural property of glass fiber composite film were highly improved by the treatment of silane coupling agent

between glass fiber and matrix resin. And APS coupling agent was suitable in this study.

Acknowledgements

This work was supported by the BK21 PLUS Centre for Advanced Chemical Technology (21A20131800002).
