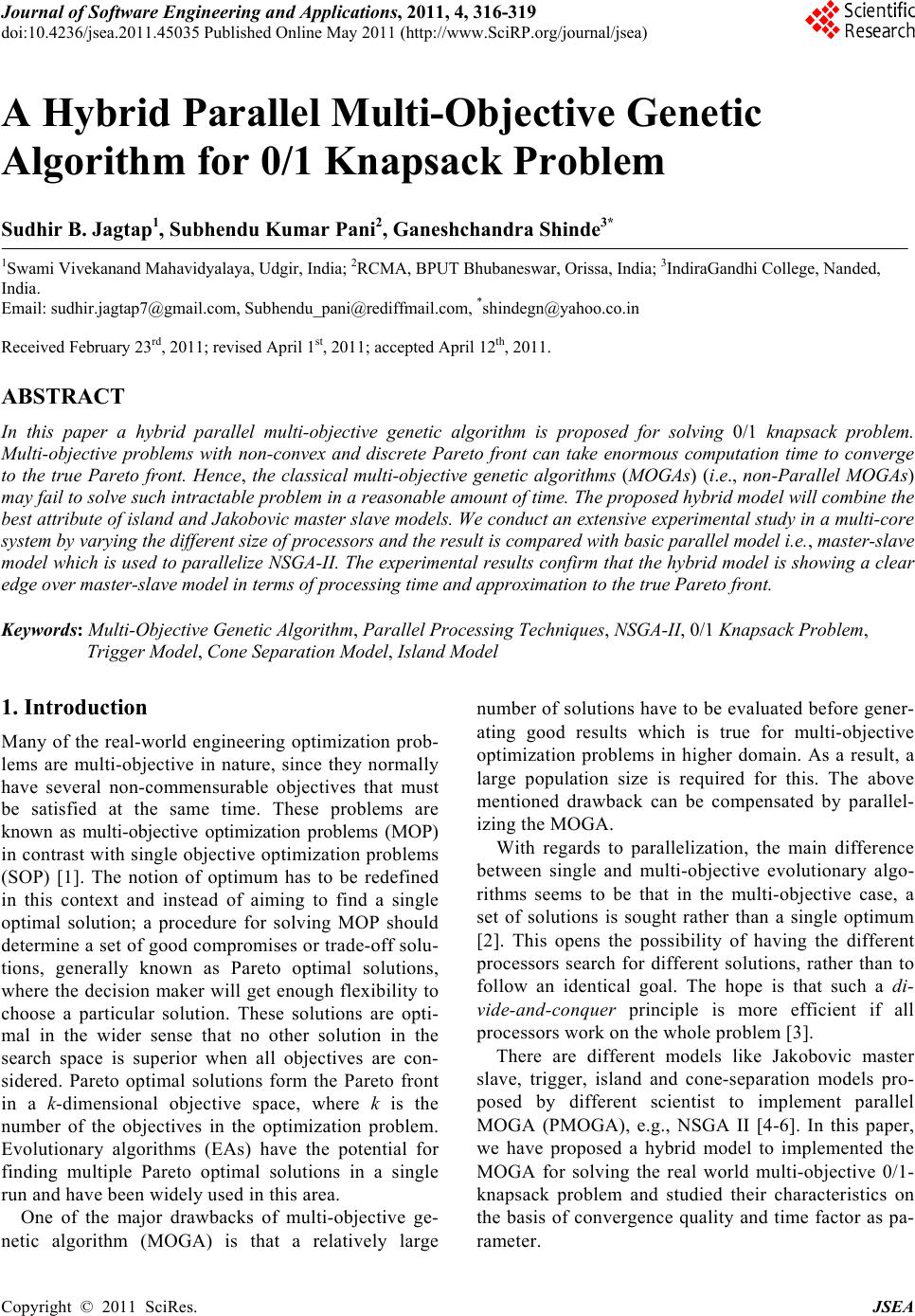

Journal of Software Engineering and Applications, 2011, 4, 316-319

doi:10.4236/jsea.2011.45035 Published Online May 2011 (http://www.SciRP.org/journal/jsea)

A Hybrid Parallel Multi-Objective Genetic

Algorithm for 0/1 Knapsack Problem

Sudhir B. Jagtap1, Subhendu Kumar Pani2, Ganeshchandra Shinde3*

1Swami Vivekanand Mahavidyalaya, Udgir, India; 2RCMA, BPUT Bhubaneswar, Orissa, India; 3IndiraGandhi College, Nanded,

India.

Email: [email protected], Subhendu_pa[email protected], *[email protected]

Received February 23rd, 2011; revised April 1st, 2011; accepted April 12th, 2011.

ABSTRACT

In this paper a hybrid parallel multi-objective genetic algorithm is proposed for solving 0/1 knapsack problem.

Multi-objective problems with non-convex and discrete Pareto front can take enormous computation time to converge

to the true Pareto front. Hence, the classical multi-objective genetic algorithms (MOGAs) (i.e., non-Parallel MOGAs)

may fail to solve such in tracta ble p roblem in a reasonab le amoun t of time. The p ropo sed hybrid mod el will comb ine the

best attribute of island and Jakobovic ma ster slave mode ls. We conduct a n extensive exp erimental stud y in a multi-co re

system by varying the different size of processors and the resu lt is comp ar ed with basic parallel mod el i.e. , master-slave

model which is used to parallelize NSGA-II. The experimental results confirm that the hybrid model is showing a clear

edge over master-slave model in terms of processing time and approximation to the true Pareto front.

Keywords: Multi-Objective Genetic Algorithm, Parallel Processing Techniques, NSGA-II, 0/1 Knapsack Problem,

Trigger Model, Cone Separation Model, Island Model

1. Introduction

Many of the real-world engineering optimization prob-

lems are multi-objective in nature, since they normally

have several non-commensurable objectives that must

be satisfied at the same time. These problems are

known as multi-objective optimization problems (MOP)

in contrast with single objective optimization problems

(SOP) [1]. The notion of optimum has to be redefined

in this context and instead of aiming to find a single

optimal solution; a procedure for solving MOP should

determine a set of good compromises or trade-off solu-

tions, generally known as Pareto optimal solutions,

where the decision maker will get enough flexibility to

choose a particular solution. These solutions are opti-

mal in the wider sense that no other solution in the

search space is superior when all objectives are con-

sidered. Pareto optimal solutions form the Pareto front

in a k-dimensional objective space, where k is the

number of the objectives in the optimization problem.

Evolutionary algorithms (EAs) have the potential for

finding multiple Pareto optimal solutions in a single

run and have been widely used in this area.

One of the major drawbacks of multi-objective ge-

netic algorithm (MOGA) is that a relatively large

number of solutions have to be evaluated before gener-

ating good results which is true for multi-objective

optimization problems in higher domain. As a result, a

large population size is required for this. The above

mentioned drawback can be compensated by parallel-

izing the MOGA.

With regards to parallelization, the main difference

between single and multi-objective evolutionary algo-

rithms seems to be that in the multi-objective case, a

set of solutions is sought rather than a single optimum

[2]. This opens the possibility of having the different

processors search for different solutions, rather than to

follow an identical goal. The hope is that such a di-

vide-and-conquer principle is more efficient if all

processors work on the whole problem [3].

There are different models like Jakobovic master

slave, trigger, island and cone-separation models pro-

posed by different scientist to implement parallel

MOGA (PMOGA), e.g., NSGA II [4-6]. In this paper,

we have proposed a hybrid model to implemented the

MOGA for solving the real world multi-objective 0/1-

knapsack problem and studied their characteristics on

the basis of convergence quality and time factor as pa-

rameter.

A Hybrid Parallel Multi-Objective Genetic Algorithm for 0/1 Knapsack Problem317

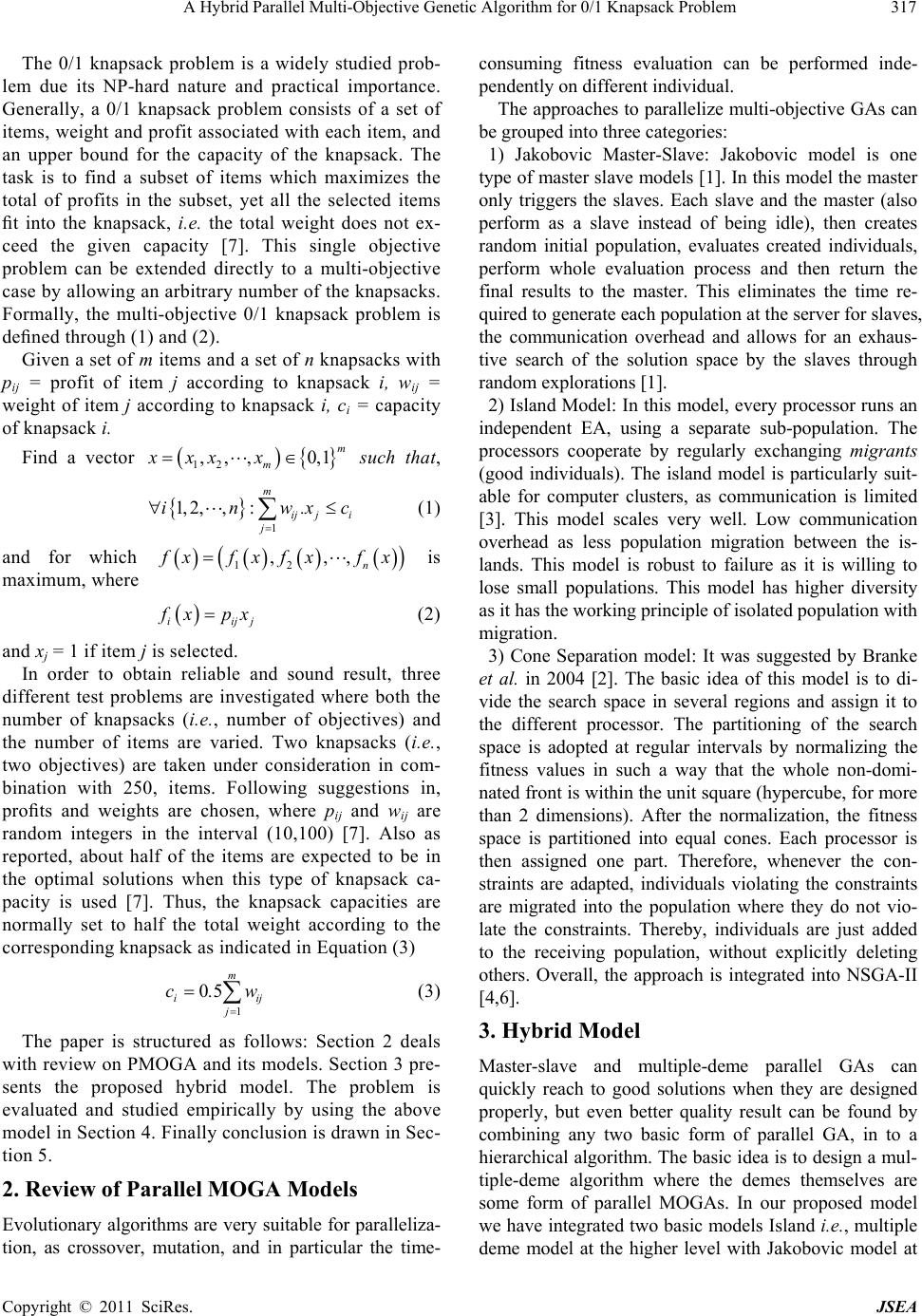

The 0/1 knapsack problem is a widely studied prob-

lem due its NP-hard nature and practical importance.

Generally, a 0/1 knapsack problem consists of a set of

items, weight and profit associated with each item, and

an upper bound for the capacity of the knapsack. The

task is to find a subset of items which maximizes the

total of profits in the subset, yet all the selected items

ﬁt into the knapsack, i.e. the total weight does not ex-

ceed the given capacity [7]. This single objective

problem can be extended directly to a multi-objective

case by allowing an arbitrary number of the knapsacks.

Formally, the multi-objective 0/1 knapsack problem is

deﬁned through (1) and (2).

Given a set of m items and a set of n knapsacks with

pij = profit of item j according to knapsack i, wij =

weight of item j according to knapsack i, ci = capacity

of knapsack i.

Find a vector such that,





,,,0,1

xxx x



1, 2,,:m

ij ji

inw.x



 

 (1)

and for which













,,,



xfxfx fx is

max imum, whe r e



iijj

xpx (2)

and xj = 1 if item j is selected.

In order to obtain reliable and sound result, three

different test problems are investigated where both the

number of knapsacks (i.e., number of objectives) and

the number of items are varied. Two knapsacks (i.e.,

two objectives) are taken under consideration in com-

bination with 250, items. Following suggestions in,

proﬁts and weights are chosen, where pij and wij are

random integers in the interval (10,100) [7]. Also as

reported, about half of the items are expected to be in

the optimal solutions when this type of knapsack ca-

pacity is used [7]. Thus, the knapsack capacities are

normally set to half the total weight according to the

corresponding knapsack as indicated in Equation (3)

05m

c.w



i

(3)

The paper is structured as follows: Section 2 deals

with review on PMOGA and its models. Section 3 pre-

sents the proposed hybrid model. The problem is

evaluated and studied empirically by using the above

model in Section 4. Finally conclusion is drawn in Sec-

tion 5.

2. Review of Parallel MOGA Models

Evolutionary algorithms are very suitable for paralleliza-

tion, as crossover, mutation, and in particular the time-

consuming fitness evaluation can be performed inde-

pendently on different individual.

The approaches to parallelize multi-objective GAs can

be grouped into three categories:

1) Jakobovic Master-Slave: Jakobovic model is one

type of master slave models [1]. In this model the master

only triggers the slaves. Each slave and the master (also

perform as a slave instead of being idle), then creates

random initial population, evaluates created individuals,

perform whole evaluation process and then return the

final results to the master. This eliminates the time re-

quired to generate each population at the server for slaves,

the communication overhead and allows for an exhaus-

tive search of the solution space by the slaves through

random explorations [1].

2) Island Model: In this model, every processor runs an

independent EA, using a separate sub-population. The

processors cooperate by regularly exchanging migrants

(good individuals). The island model is particularly suit-

able for computer clusters, as communication is limited

[3]. This model scales very well. Low communication

overhead as less population migration between the is-

lands. This model is robust to failure as it is willing to

lose small populations. This model has higher diversity

as it has the working principle of isolated population with

migration.

3) Cone Separation model: It was suggested by Branke

et al. in 2004 [2]. The basic idea of this model is to di-

vide the search space in several regions and assign it to

the different processor. The partitioning of the search

space is adopted at regular intervals by normalizing the

fitness values in such a way that the whole non-domi-

nated front is within the unit square (hypercube, for more

than 2 dimensions). After the normalization, the fitness

space is partitioned into equal cones. Each processor is

then assigned one part. Therefore, whenever the con-

straints are adapted, individuals violating the constraints

are migrated into the population where they do not vio-

late the constraints. Thereby, individuals are just added

to the receiving population, without explicitly deleting

others. Overall, the approach is integrated into NSGA-II

[4,6].

3. Hybrid Model

Master-slave and multiple-deme parallel GAs can

quickly reach to good solutions when they are designed

properly, but even better quality result can be found by

combining any two basic form of parallel GA, in to a

hierarchical algorithm. The basic idea is to design a mul-

tiple-deme algorithm where the demes themselves are

some form of parallel MOGAs. In our proposed model

we have integrated two basic models Island i.e., multiple

deme model at the higher level with Jakobovic model at

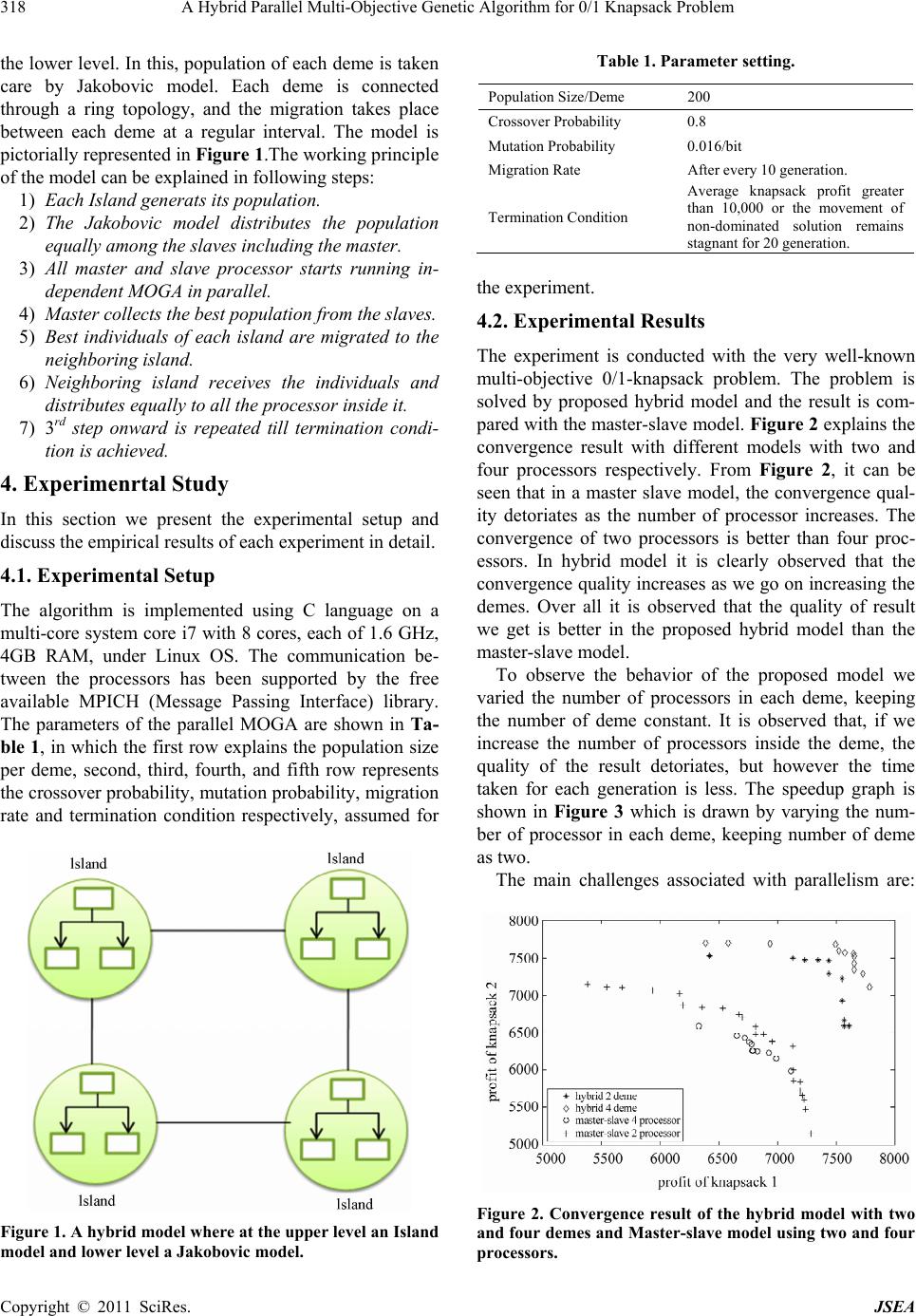

A Hybrid Parallel Multi-Objective Genetic Algorithm for 0/1 Knapsack Problem

318

the lower level. In this, population of each deme is taken

care by Jakobovic model. Each deme is connected

through a ring topology, and the migration takes place

between each deme at a regular interval. The model is

pictorially represented in Figure 1.The working principle

of the model can be explained in following steps:

1) Each Island generats its population.

2) The Jakobovic model distributes the population

equally among the sla ves including the master.

3) All master and slave processor starts running in-

dependent MOGA in parallel.

4) Master collects the best population from the slaves.

5) Best individuals of each island are migrated to the

neighboring island.

6) Neighboring island receives the individuals and

distributes equally to all the processor inside it.

7) 3rd step onward is repeated till termination condi-

tion is achieved.

4. Experimenrtal Study

In this section we present the experimental setup and

discuss the empirical results of each experiment in detail.

4.1. Experimental Setup

The algorithm is implemented using C language on a

multi-core system core i7 with 8 cores, each of 1.6 GHz,

4GB RAM, under Linux OS. The communication be-

tween the processors has been supported by the free

available MPICH (Message Passing Interface) library.

The parameters of the parallel MOGA are shown in Ta-

ble 1, in which the first row explains the population size

per deme, second, third, fourth, and fifth row represents

the crossover probability, mutation probability, migration

rate and termination condition respectively, assumed for

Figure 1. A hybrid model where at the upper level an Island

model and lower level a Jakobovic model.

Table 1. Parameter setting.

the experiment.

4.2. Experimental Results

The experiment is conducted with the very well-known

multi-objective 0/1-knapsack problem. The problem is

solved by proposed hybrid model and the result is com-

pared with the master-slave model. Figure 2 explains the

convergence result with different models with two and

four processors respectively. From Figure 2, it can be

seen that in a master slave model, the convergence qual-

ity detoriates as the number of processor increases. The

convergence of two processors is better than four proc-

essors. In hybrid model it is clearly observed that the

convergence quality increases as we go on increasing the

demes. Over all it is observed that the quality of result

we get is better in the proposed hybrid model than the

master-slave model.

To observe the behavior of the proposed model we

varied the number of processors in each deme, keeping

the number of deme constant. It is observed that, if we

increase the number of processors inside the deme, the

quality of the result detoriates, but however the time

taken for each generation is less. The speedup graph is

shown in Figure 3 which is drawn by varying the num-

ber of processor in each deme, keeping number of deme

as two.

The main challenges associated with parallelism are:

Figure 2. Convergence result of the hybrid model with two

and four demes and Master -slave model using two and four

processors.

Population Size/Deme 200

Crossover Probability 0.8

Mutation Probability 0.016/bit

Migration Rate After every 10 generation.

Termination Condition

Average knapsack profit greater

than 10,000 or the movement of

non-dominated solution remains

stagnant for 20 generation.

A Hybrid Parallel Multi-Objective Genetic Algorithm for 0/1 Knapsack Problem

319

to address these issues by balancing the load and reas-

signing the loads to the lighter ones. The development of

distributing search space is a challenging and critical task.

Since it requires knowledge at all the individuals stored

at different locations and the ability to combine partial

results from individuals search space into a single result.

5. Conclusions

Parallelizing multi-objective evolutionary algorithms is

an important issue as it is associated with large com-

putation time with multiple solutions. In this paper, we

proposed a new hybrid model to parallelize multi-objec-

tive genetic algorithms and implemented it on 0/1 knap-

sack problem. Further, the result was also compared with

the basic master-slave model. Again by discussing the

convergence parameter, it is concluded that the hybrid

model gives better result in comparison with mas-

ter-slave model irrespective of any number of processor.

Figure 3. Speedup analysis of hybrid model.

• Minimizing Input/output.

• Minimizing synchronization and communication.

• Effective load balancing.

• Deciding the best search procedure use.

• Maximizing/avoidin g duplication of work.

The speed and efficiency of parallel formulations are

as below. In a parallel MOGA, the main issues taken into

account are:

 Load balancing REFERENCES

 Minimizing communication.

 Overlapping communication and computation.

Speed Up:

A program is basically associated with some serial in-

structions and some parallel instructions. The serial in-

structions cannot be parallelized because there may be

presence of dependency between the instructions.

Let us assume that, serial fraction of instructions: fs,

parallel fraction of instructions: fp = 1 – fs, then speedup

is defined as

[1] T. Al-Somani and K. Qureshi, “Reliability Optimization

Using Genetics Algorithms,” M. Sc. Thesis, King Ab-

dul-Aziz University, Saudi Arabia, 2000.

[2] J. Branke, H. Schmeck, K. Deb and M. S Reddy, “Paral-

lelizing Multi-Objective Evolutionary Algorithms: Cone

Separation,” Congress on Evolutionary Computation, Vol.

2, 2004, pp. 1952-1957.

[3] E. Cantu-Paz, “A Survey of Parallel Genetic Algorithms,”

Calculateurs Paralleles, Vol. 10, No. 2, 1998, pp. 141-

171.

STf











(i.e., p: number of processors). [4] K. Deb, A. Pratap, S. Agrawal and T. Mey arivan, “A Fast

and Elitist Multi-objective Genetic Algorithm: NSGA-II,”

IEEE Transactions on Evolutionary Computation, Vol. 6,

No. 2, 2002, pp. 182-197. doi:10.1109/4235.996017

[5] C. Grosan, “How to Compare the Multi-Objective Evolu-

tionary Algorithms Performances?” Zilele Academice

Clujene, Vol. 4, No. 2, 2003, pp. 82-87.

Efficiency:

The efficiency in terms of fp and fs is computed as fol-

lows: [6] F. Streichert, H. Ulmer and A. Zell, “Parallelization of

Multi-Objective Evolutionary Algorithms Using Cluster-

ing Algorithms,” In: C. A. Coello, A. H. Aguirre and E.

Zitzler, Eds., Evolutionary Multi-Criterion Optimization,

Springer, Berlin/Heidelberg, Vol. 3410, 2005, pp. 92-107.

doi:10.1007/978-3-540-31880-4_7



EPpfs f

 .

In general, we can say that, the total overhead need in

an increasing function of P, at least linearly when fs > 0.

In case of parallel processing, we are using more than

one numbers of processor, so the total load balancing is

required between the processors. There are two types of

load balancing static and dynamic load balancing seeks

[7] E. Zitzler, K. Deb and L. Thiele, “Comparison of

Multi-Objective Evolutionary Algorithms: Empirical Re-

sults,” Institution Swiss Federal Institute of Technology

(ETH), Zurich, Vol. 3, No. 2, 1999, pp. 192-197.
