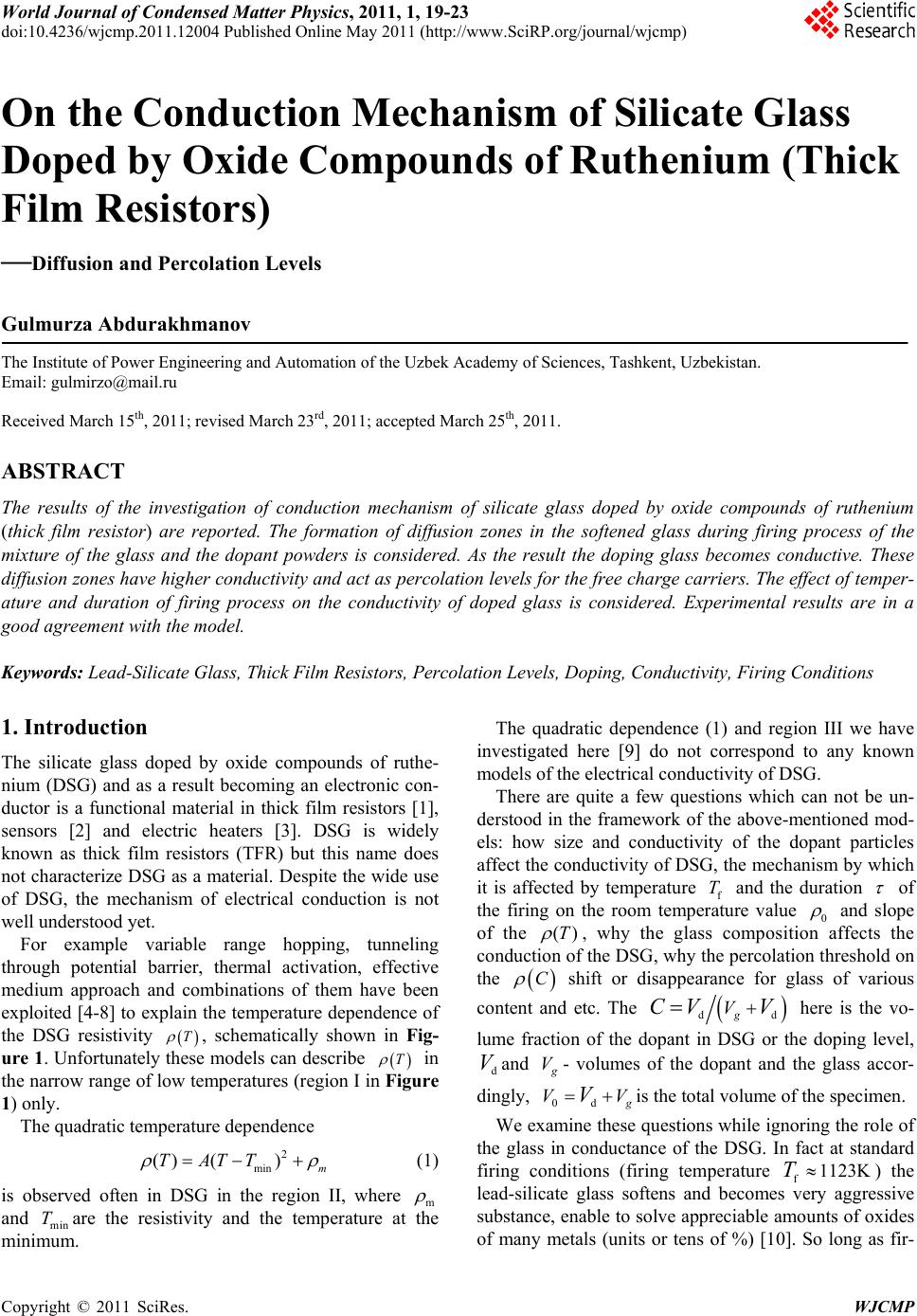

![]() World Journal of Condensed Matter Physics, 2011, 1, 19-23 doi:10.4236/wjcmp.2011.12004 Published Online May 2011 (http://www.SciRP.org/journal/wjcmp) Copyright © 2011 SciRes. WJCMP 19 On the Conduction Mechanism of Silicate Glass Doped by Oxide Compounds of Ruthenium (Thick Film Resistors) —Diffusion and Percolation Levels Gulmurza Abdurakhmano v The Institute of Power Engineering and Automation of the Uzbek Academy of Sciences, Tashkent, Uzbekistan. Email: [email protected] Received March 15th, 2011; revised March 23rd, 2011; accepted March 25th, 2011. ABSTRACT The results of the investigation of conduction mechanism of silicate glass doped by oxide compounds of ruthenium (thick film resistor) are reported. The formation of diffusion zones in the softened glass during firing process of the mixture of the glass and the dopant powders is considered. As the result the doping glass becomes conductive. These diffusion zones have higher conductivity and act as percolation levels fo r the free charge carriers. The effect of te mper- ature and duration of firing process on the conductivity of doped glass is considered. Experimental results are in a good agreement with the model. Keywords: Lead-Silicate Glass, Thick Film Resistors , Percola tion Levels, Doping, Conductivity, Firing Conditions 1. Introduction The silicate glass doped by oxide compounds of ruthe- nium (DSG) and as a result becoming an electronic con- ductor is a functional material in thick film resistors [1], sensors [2] and electric heaters [3]. DSG is widely known as thick film resistors (TFR) but this name does not characterize DSG as a material. Despite the wide use of DSG, the mechanism of electrical conduction is not well understood yet. For example variable range hopping, tunneling through potential barrier, thermal activation, effective medium approach and combinations of them have been exploited [4-8] to explain the temperature dependence of the DSG resistivity ( ) T ρ , schematically shown in Fig- ure 1. Unfortunately these models can describe ( ) T ρ in the narrow range of low temperatures (region I in Figure 1) only. The quadratic temperature dependenc e 2 min () ()m TATT ρρ =−+ (1) is observed often in DSG in the region II, where m ρ and min Tare the resistivity and the temperature at the min imu m. The quadratic dependence (1) and region III we have investigated here [9] do not correspond to any known models of the electrical conductivity of DSG. There are quite a few questions which can not be un- derstood in the framework of the above-mentioned mod- els: how size and conductivity of the dopant particles affect the conductivity of DSG, the mechanism by which it is affected by temperature f T and the duration τ of the firing on the room temperature value 0 ρ and slope of the () T ρ , why the glass composition affects the conduction of the DSG, why the percolation threshold on the ( ) C ρ shift or disappearance for glass of various content and etc. The ( ) dd g VCV V+= here is the vo- lume fraction of the dopant in DSG or the doping level, d V and g V - volumes of the dopant and the glass accor- dingly, 0dg VVV =+ is the total volume of the specimen. We examine these questions while ignoring th e role of the glass in conductance of the DSG. In fact at standard firing conditions (firing temperature f 1123K T ≈ ) the lead-silicate glass softens and becomes very aggressive substance, enable to solve appreciable amounts of oxides of many metals (units or tens of %) [10]. So long as fir- ![]() On the Conduction Mechanism of Silicate Glass Doped by Oxide Compounds of Ruthenium (Thick Film Resistors) Copyright © 2011 SciRes. WJCMP 20 0 77 300 500 1000 1 10 T, K R R 0 I II III Figure 1. Resistivity vs temperature for DSG (schematical- ly). Regi ons I , II and I II cor r e spond to low , middle and hi gh temperature. ing duration of DSG is limited (usually 10min τ ≈ ) and mechanical mixing is not affecting the distribution of solved atoms of the dopant in the glass, it should be dif- fusive. In this paper we will consider a possible effect of dif- fusion of dopant atoms at f T in the glass on the elec- trical conduction of the DSG. The production of specimens is a standard procedure for thick film resistors and is described in many papers and books (see, for example, [2]). The glass composi- tions we us ed are as follows (weight %): Glass1 SiO2 31; PbO 67; MnO2 2; Glass2 SiO2 29; PbO 67; BaO 4. The DSG specimens compositions are as follows (weight %): 1) Glass1 80; Pb2Ru2O6 20; 2) Glass1 90; RuO2 10; 3) Glass2 90; RuO2 10; 4) Glass2 80; RuO2 20. Volume fraction of dopant C is less than theoretical percolation threshold (critical value Cc) in all cases. 2. Diffusion of Dopant Atoms into the Glass and Formation of Percolation Levels It should be noted that the percolation theory is consi- dered as most common model of conduction mechanism of the DSG [11-13]. In this theory transport of charge takes place along the contiguous chains of intimately contacted dopant particles (infinite cluster) and the resis- tivity of DSG depends on the dopant volume fraction C as ( ) ( ) 0C t C CC ρρ − = − (2) where 0 ρ is material-dependent prefactor, C C is the percolation critical volume fraction of the dopant below which ρ goes to infinity, t is the dc transport critical exponent. According to the standard theory of transport percolation [12], C C≈ 0.12 – 0.39 and 01.6 2tt ÷ is the universal value for three-dimensional disordered composites. The expression (2) predicts percolation threshold of ( ) C ρ at C CC ≈, while in reality the value of t might be as high as 7 for various compositions of glass and doping conditions [14]. Additionally, the value of C C is essentially lower than the theoretical estimation in many cases or percolation threshold disappears . The reason for this discrepancy between the experi- mental results and the theory of percolation is the as- sumption that the volume fraction C of the dopant in the DSG (after firing) is known a priori (often it equals to the initial volume fraction of them). In fact the interac- tion of dopant and the glass is possible during the firing process as well as the mutual diffusion of the glass and dopant atoms. As the result one does not have informa- tion about C in the final stage of technological process and about the value of the resistivity of doped region s of the glass. So we should consider that the glass resistivity (in the diffusion zone) is reduced by many orders of magnitude due to diffusion (as in crystalline semicon- ductors) and infinite cluster consists of closed or over- lapping diffusion zones which have been formed around the each dopant particle (Figure 2). Let us to consider [15] that the diffusion zone is spherical because the glass is isotropic. This diffusion zone has the volume 3 dd 4 3R V π = (3) There dd R rl= +is the radius of the diffusion zone, r is the main radius of the dopant particles, and the dif- fusion length is d d0 f exp 2 E lDD kT ττ = =− . (4) There D is the diffusion coefficient, ( ) 0f D DT= →∞ , d E is the activation energy of diffusion, and k is the Boltzmann constant. Inserting Figure 2. Formation of diffusion zone around the dopant particle of the radius r. There r + ld is the radius of diffusion zone, ld is the diffusion length. L is the main distance be- tween the nei gh bor dopant particles in the DSG. d rl+ L r ![]() On the Conduction Mechanism of Silicate Glass Doped by Oxide Compounds of Ruthenium (Thick Film Resistors) Copyright © 2011 SciRes. WJCMP 21 ( ) ddg C VVV=+ and ( ) cd cg CVVV=+ into (2) and taking into account (3) and (4) gives ( ) ( ) 1/ 0 00 d0 f 3 ln / 4 1ln( ). 22 t c VVV r ED kT ρρ τ − + −= π −+ (5) Expression (5) for f ()T ρ of DSG is in a good agreement with experiment (Figure 3) for various glasses and dopants and makes it possible to evaluate0 D, d Eand d l from the experimental data. Here 0 ρ is the fitting parameter and corresponds to average resistivity of the diffusion zone, which is unknown and is usually no uniform. The value of the diffusion length d l≈0.22 – 1600 μm, evaluated in the same manner for the standard firing conditions is essentially higher than the main dis- tance between dopant particles d1 33 2 211 66 gm Lr r CC γ γ ππ == +− (6) From (6) we have 0.16L μm for main diameter 2 0.1r≈ μm of dopant particles and volume fraction 0.16C≈ , so diffusion zones are heavily overlapped and the whole volume of the specimen is uniformly filled by infinite conductive cluster, as shown schematically in Figure 4. There d γ and g γ are the specific weight of do- pant and glass accordingly, m Cis the mass fraction of the dopant. (a) (b) Figure 3. R(Tf) for DSG mentioned above (see Introduction). Solid lines are fitting of (5) to experimental data by the least squires me t hod . Figure 4. Generation of percolation levels due to diffusion (schematically). The bold curve is the infinite cluster. Gray circles represent diffusion zones. Tf in 3 is higher than in 1. τ = const. Expression (5) shows good agreement with the expe- rimental data for DSG of other compositions [16] as well (Figure 5). One can also derive the effect of firing duration τ on the resistivity ρ of DSG from (2) – (4): ( ) ( ) 2 1 00 f 13 34 t c V Vr DT τ ρρ = +− π (7) This expression is compared with the experiment in Figure 6. We have simulated the effect of doping level and size of dopant particles on the ρ of DSG. The simulation is based on Fick’s equation [17] and expression (5). It is assumed that 1) diffusion from neighbor particles of the dopant into the glass interlayer is uniform; 2) value of ρ is predetermined by minimum of concentration N of dopant atoms at the middle point being at distance L/2 from each of them, i.e., ( ) 12N xL ρ − ∝= . The result of the simulation of ( ) ρτ for two sizes of dopant particles is shown in Figure 7. It is clear on one hand that the size of dopant particles essentially affects on the conductivity of DSG. On the other hand ( ) R τ at small τ is stronger in our simulation than in the usual model of diffusion ( ) ( ) expRc ττ ∝− (the last is shown in Figure 7 as dotted line). Resistivity of DSG is strongly affected by the dispersiv- ity of the dopant powder [16] – reduction of the di-ameter of the particles from 4.5 μm up to 1.6 μm decreases 1 2 3 ![]() On the Conduction Mechanism of Silicate Glass Doped by Oxide Compounds of Ruthenium (Thick Film Resistors) Copyright © 2011 SciRes. WJCMP 22 8.0 8.5 9.0 9.5 1.5 1.0 0.5 0.0 104 T f ,K 1 lg R R 0 1 t V c Figure 5. R(Tf), recalculated data from [16] in accordance with (5). The solid line is fitting of (5) with R0 = 10 Ohm, t = 1.7, Vc = 0.16. 1 2 3 4 1.0 1.5 2.0 2.5 3.0 3.5 4.0 0.06 0.07 0.08 0.09 0.1 0.11 0.12 0.13 0.14 0.15 , min R 1 t , kOhm Figure 6. R(τ) for DSG at Tf , K: 1073 (1, 2) and 1123 (3, 4). Temperature increasing rate is higher for data 1 and 2, than for data 3 and 4. Points are recalculated from [16] in accordance with (7). DSG composition isn’t varied. a b c 0.5 1.0 1.5 2.0 2.5 3.0 0 2 4 6 8 D ,ar b.unit lg R R 0 Figure 7. The result of simulation ( ) R τ of DSG for r, μm: 0.5 (a); 1 (b). L ≈5 μm. The function ( ) expab c τ +− (dotted li ne) have been fitte d to curve a in the 3 points. the resistivity by bout one order in magnitude. We have simulated this effect as the result of diffusion a b 0.1 0.2 0.3 0.4 0.5 0.6 0.7 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 r, m lg N r N 0 Figure 8. Effect of the main size of dopant particles on con- centration of the dopant atoms at the point 2 2.5xL= = μm between the neighbor dopant particles (simulation, see Fig- ures 2 and 7). Content of dopant in DSG is 2 times less for curve a than for curve b. The diffusion duration accords to the diffusion lengthD τ =1,25 μm. process (Figure 8) in accordance with the expression (5) for two val ues of c CC <. There we assume that ( ) 12N xL ρ − ∝= , the same assumption is made in fig. 7. One can see that the dependence ( ) r ρ or ( ) ,2Nrx L= becomes stronger for smaller r , when the main distance between particles of the dopant have been decreased for constant C, and conductivity of the DSG increases. It must be noted here that the information on the solu- bility of RuO2 in lead-sili cate glass is contr adictory: Pala- nisamy et al. [18] estimate it less than 10-4 atomic %, while Flachbart et al. [8] present the value about 7 atom- ic %. We are inclined to admit the last value because of the results of X-ray diffraction experiments, in which the intensity of main reflexes of RuO2 relicts in DSG reduces nearly 10% due to firing and they become wider [19]. One should also take into account the fact that solubility of pure metals in silicate glass is very small (really less than 10-3 atomic%, [20]), while solubility of their oxides is essentially higher (up to 10 – 70 mol . % for PbO). It is clear in the same approach that the electrical properties of DSG, specifically ( ) T ρ , beyond the forma- tion of infinite cluster from diffusion zones, mainly de- pend on the properties of the doped glass, namely, on the glass structure, on the distribution of the energy levels of the impurity in the energy gap of the glass, and on other microscopic characteristics. The resistivity of the glass in the diffusion zone is 5 - 6 orders of magnitudes higher than that of the dopant re- licts, so the latter one does not affect the macroscopic parameters of the DSG unless they form an infinite clus- ter (i.e. unless c CC <). Indeed, th e conduction is metal- lic at c CC >. 3. Conclusions The experiments and simulations show that the diffusion zones are formed around the dopant particles in DSG due ![]() On the Conduction Mechanism of Silicate Glass Doped by Oxide Compounds of Ruthenium (Thick Film Resistors) Copyright © 2011 SciRes. WJCMP 23 to the diffusion of dopant atoms into the glass during the firing. The glass becomes conductive in these zones and the overlapping of them generates the infinite conductive cluster (s) (percolation levels). This model allows ex- plaining the effect of technological parameters such as temperature and duration of firing, glass and dopant composition, dispersivity of the powders, on the electric- al properties of the DSG as well as the absence of perco- lation threshold or its shift to smaller values of the do- pant content 4. Acknowledgements Fond for Support of Fundamental Researches of the Uz- bek Academy of Sciences is acknowledged for the finan- cial support (grants 55-08 and 27-10). REFERENCES [1] H. C. Angus and P. E. Gainsbury, “Glaze Resistors with Ruthenium Dioxide,” Electronic Components, Vol . 9, No. 1, 1968, p. 84. [2] M. Prudenziati, “Thick Film Sensors,” Elsevier Science, Amsterdam, 1994. [3] Thick Film Heating Technology, www.watlow.com. [4] G. E. Pike and C. H. Seager, “Electrical Properties and Conduction Mechanisms of Ru-Based Thick-Film (Cer- met) Resistors,” Journal of Applied Physics, Vol. 48, No. 12, 1977, p. 5152. doi:10.1063/1.323595 [5] D. P. H. Smith and J. C. Anderson, “Electron Conduction in Thick Film Resistors,” Thin Solid Films, Vol. 71, No. 1, 1980, pp. 79-89. doi:10.1016/0040-6090(80)90186-8 [6] A. Abe and Y. Taketa, “Electrical Conduction in Thick Film Resistors,” Journal of Physics D: Applied Physics, Vol. 24, No. 7, 1991, p. 1163. [7] W. Schoepe, “Conduction Mechanism in Granular RuO2- Based Thick-Film Resistors,” Physica B: Physics of Con- densed Matter, Vol. 165, 1990, pp. 299-300. [8] K. Flachbart, V. Pavlнk, N. Tomašovičová, C. J. Adkins, M. Somora, J. Leib and G. Eska, “Conduction Mechan- ism in RuO2-Based Thick Films,” Physica Status Solidi (B), 205, No. 1, January 1998, pp. 399-404. doi:10.1002/(SICI)1521-3951(199801)205:1<399::AID-P SSB399>3.0.CO;2-X [9] G. Abdurakhmanov and N. G. Abdurakhmanova, “High Temperature Anomalies in Resistivity and Thermoelectric Power of Thick Film Resistors,” Physica Status Solidi (A), Vol. 202, No. 9, 2005, pp. 1799-1803. doi:10.1002/pssa.200420036 [10] A. A. Appen, “Khimiya stekla (Chemistry of Glass, in Russian) Leningrad,” Khimiya Publishing House, Lenin- grad Branch, 1974. [11] V. L. Bonch-Bruevich, et al., “Electron Theory of Disor- dered Semi Conductors (in Russian),” Nauka Publishers, Мoscow, 1981. [12] B. I. Shklovskii and A. L. Efros, “Electronic Properties of Doped Semiconductors,” Springer, Heidelberg, 1984. [13] J. Ziman, “Models of Disorder,” Cambridge University Press, Cambridge, 1979. [14] C. Grimaldi, T. Maeder, P. Ryser and S. Strässler, “A Model of Transport Non-Universality in Thick-Film Re- sistors,” Applied Physics Letters, Vol. 83, 2003, p. 189. [15] G. Abdurakhmanov and G. S. Vakhidova, “Diffusion and Electrical Conduction in Thick Film Resistors,” Technical Physics, The Russian Journal of Applied Physics, Vol. 65, No. 7, 1995, p. 178. [16] J. Lee and R. W. West, “Firing Studies with Model Thick Film Resistor Systems,” IEEE Transactions on Compo- nents, Hybrids and Manufacturing Technology, Vol. 6, No. 4, 1983, p. 430. [17] J. P. Stark, “Solid State Diffusion,” Wiley, New York, 1976. [18] P. Palanisamy, D. H. R. Sarma and R. W. Ves t , “Solubil- ity of Ruthenium Dioxide in Lead Borosilicate Glasses,” Journal of the American Ceramic Society, Vol. 72, No. 9, September 1989, pp. 1755-1756. doi:10.1111/j.1151-2916.1989.tb06321.x [19] G. Abdurakhmanov, G. Vakhidova and L. Tursunov, “Interaction of RuO2 and Lead-Silicate Glass in Thick- Film Resistors,” World Journal of Condensed Matter Physics, Vol. 1, No. 1, February 2011, pp. 1-5. [20] H. D. Schreiber, F. A. Settle, P. L. Jamison, J. P. Ecke- nrode and G. W. Headley, “Ruthenium in Glass—Form- ing Borosilicate Melts,” Journal of the Less Common Metals, Vol. 115, No. 1, January 1986, pp. 145-154. doi:10.1016/0022-5088(86)90379-6 |
