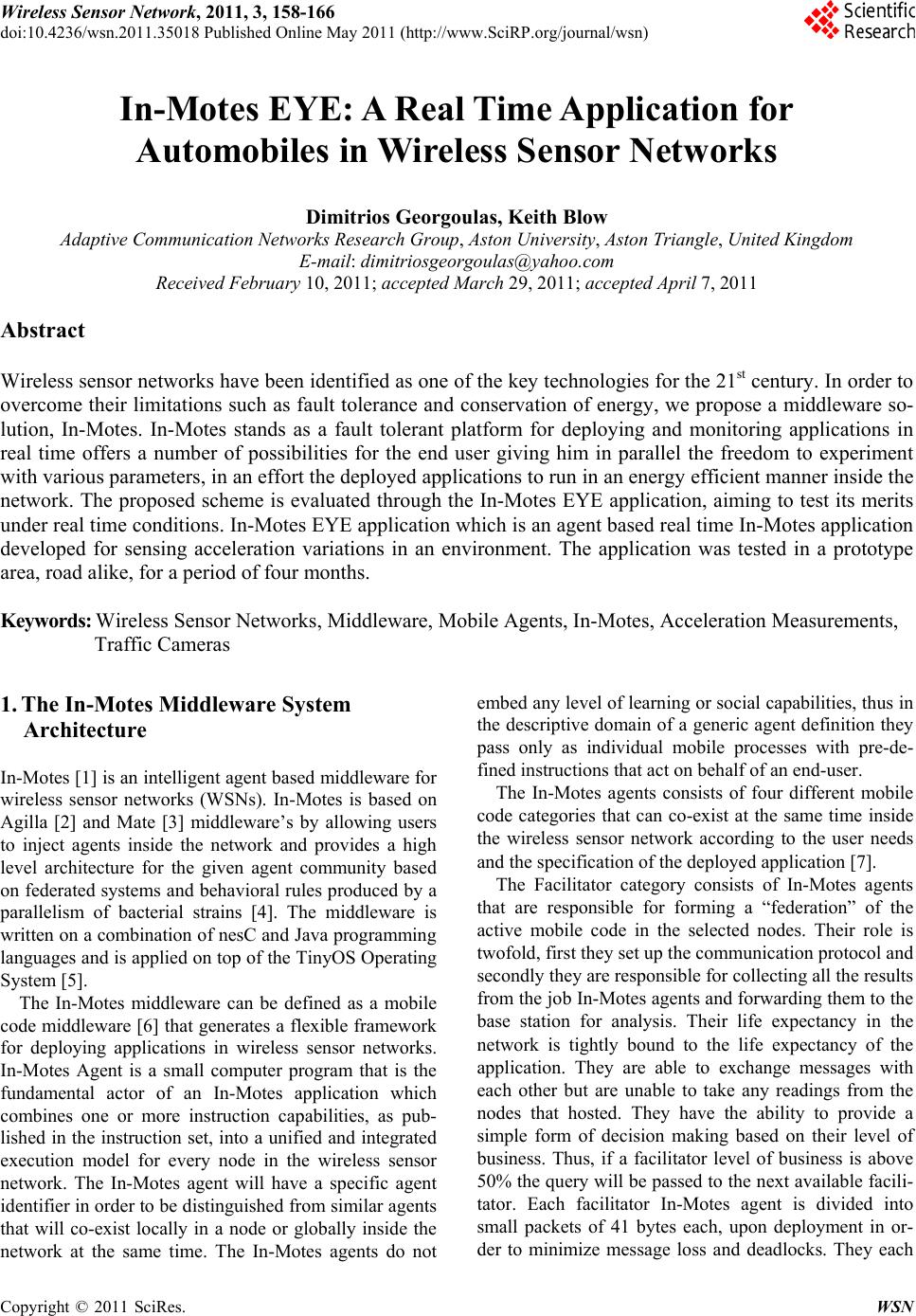

In-Motes EYE: A Real Time Application for

Automobiles in Wireless Sensor Networks

Dimitrios Georgoulas, Keith Blow

Adaptive Communication Networks Research Group, Aston University, Aston Triangle, United Kingdom

E-mail: [email protected]

Received February 10 , 2011; accepted March 29, 2011; ac cept e d Apri l 7, 2011

Abstract

Wireless sensor networks have been identified as one of the key technologies for the 21st century. In order to

overcome their limitations such as fault tolerance and conservation of energy, we propose a middleware so-

lution, In-Motes. In-Motes stands as a fault tolerant platform for deploying and monitoring applications in

real time offers a number of possibilities for the end user giving him in parallel the freedom to experiment

with various parameters, in an effort the deployed applications to run in an energy efficient manner inside the

network. The proposed scheme is evaluated through the In-Motes EYE application, aiming to test its merits

under real time conditions. In-Motes EYE application which is an agent based real time In-Motes application

developed for sensing acceleration variations in an environment. The application was tested in a prototype

area, road alike, for a period of four months.

Keywords: Wireless Sensor Networks, Middleware, Mobile Agents, In-Motes, Acceleration Measurements,

Traffic Cameras

1. The In-Motes Middleware System

Architecture

In-Motes [1] is an intelligent ag ent based midd leware for

wireless sensor networks (WSNs). In-Motes is based on

Agilla [2] and Mate [3] middleware’s by allowing users

to inject agents inside the network and provides a high

level architecture for the given agent community based

on federated systems and behavioral rules produced by a

parallelism of bacterial strains [4]. The middleware is

written on a combination o f nesC and Java programming

languages and is applied on top of the TinyOS Operating

System [5].

The In-Motes middleware can be defined as a mobile

code middleware [6] that generates a flexible framework

for deploying applications in wireless sensor networks.

In-Motes Agent is a small computer program that is the

fundamental actor of an In-Motes application which

combines one or more instruction capabilities, as pub-

lished in the instruction set, into a unified and integrated

execution model for every node in the wireless sensor

network. The In-Motes agent will have a specific agent

identifier in order to be distinguish ed from similar agents

that will co-exist locally in a node or globally inside the

network at the same time. The In-Motes agents do not

embed any level of learning or social capabilities, thus in

the descriptive domain of a generic agent definition they

pass only as individual mobile processes with pre-de-

fined instructions that act on behalf of an end-user.

The In-Motes agents consists of four different mobile

code categories that can co-exist at the same time inside

the wireless sensor network according to the user needs

and the specification of the deployed application [7].

The Facilitator category consists of In-Motes agents

that are responsible for forming a “federation” of the

active mobile code in the selected nodes. Their role is

twofold, first they set up the communication protocol and

secondly they are responsible for collecting all the results

from the job In-Motes agents and forwarding them to the

base station for analysis. Their life expectancy in the

network is tightly bound to the life expectancy of the

application. They are able to exchange messages with

each other but are unable to take any readings from the

nodes that hosted. They have the ability to provide a

simple form of decision making based on their level of

business. Thus, if a facilitator level of business is above

50% the query will be passed to the n ext available facili-

tator. Each facilitator In-Motes agent is divided into

small packets of 41 bytes each, upon deployment in or-

der to minimize message loss and deadlocks. They each

D. GEORGOULAS ET AL.

159

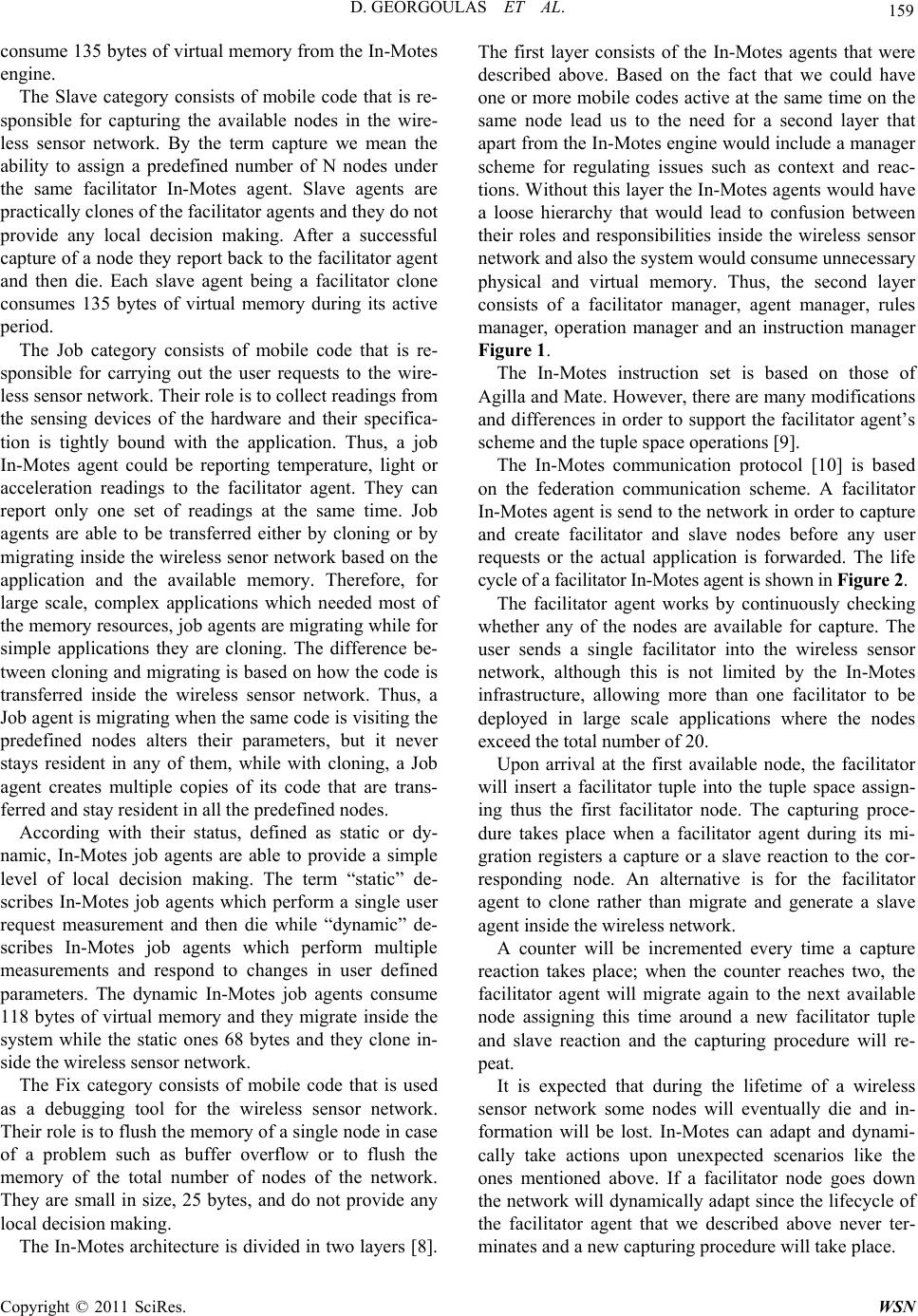

consume 135 bytes of virtual memory from the In-Motes

engine.

The Slave category consists of mobile code that is re-

sponsible for capturing the available nodes in the wire-

less sensor network. By the term capture we mean the

ability to assign a predefined number of N nodes under

the same facilitator In-Motes agent. Slave agents are

practically clones of the facilitator ag ents and they do not

provide any local decision making. After a successful

capture of a node they report back to the facilitator agen t

and then die. Each slave agent being a facilitator clone

consumes 135 bytes of virtual memory during its active

period.

The Job category consists of mobile code that is re-

sponsible for carrying out the user requests to the wire-

less sensor network. Their role is to collect readings from

the sensing devices of the hardware and their specifica-

tion is tightly bound with the application. Thus, a job

In-Motes agent could be reporting temperature, light or

acceleration readings to the facilitator agent. They can

report only one set of readings at the same time. Job

agents are able to be transferred either by cloning or by

migrating inside the wireless senor network based on the

application and the available memory. Therefore, for

large scale, complex applications which needed most of

the memory resources, job agents are migrating while for

simple applications they are cloning. The difference be-

tween cloning and migrating is based on how the code is

transferred inside the wireless sensor network. Thus, a

Job agent is migrating wh en the same cod e is visiting the

predefined nodes alters their parameters, but it never

stays resident in any of them, while with cloning, a Job

agent creates multiple copies of its code that are trans-

ferred and stay resident in all the predefined nodes.

According with their status, defined as static or dy-

namic, In-Motes job agents are able to provide a simple

level of local decision making. The term “static” de-

scribes In-Motes job agents which perform a single user

request measurement and then die while “dynamic” de-

scribes In-Motes job agents which perform multiple

measurements and respond to changes in user defined

parameters. The dynamic In-Motes job agents consume

118 bytes of virtual memory and they migrate inside the

system while the static ones 68 bytes and they clone in-

side the wireless sensor network.

The Fix category consists of mobile code that is used

as a debugging tool for the wireless sensor network.

Their role is to flush the memory of a single node in case

of a problem such as buffer overflow or to flush the

memory of the total number of nodes of the network.

They are small in size, 25 bytes, and do not provide any

local decision making.

The In-Motes architecture is divided in two layers [8].

The first layer consists of the In-Motes agents that were

described above. Based on the fact that we could have

one or more mobile codes active at the same time on the

same node lead us to the need for a second layer that

apart from the In-Motes engine would include a manager

scheme for regulating issues such as context and reac-

tions. Without this layer th e In-Motes agents would have

a loose hierarchy that would lead to confusion between

their roles and responsibilities inside the wireless sensor

network and also the system would consume unnecessary

physical and virtual memory. Thus, the second layer

consists of a facilitator manager, agent manager, rules

manager, operation manager and an instruction manager

Figure 1.

The In-Motes instruction set is based on those of

Agilla and Mate. However, there are many modifications

and differences in order to support the facilitator agent’s

scheme and the tuple space operations [9].

The In-Motes communication protocol [10] is based

on the federation communication scheme. A facilitator

In-Motes agent is send to the network in order to capture

and create facilitator and slave nodes before any user

requests or the actual application is forwarded. The life

cycle of a facilitator In-Motes agent is shown in Figure 2.

The facilitator agent works by continuously checking

whether any of the nodes are available for capture. The

user sends a single facilitator into the wireless sensor

network, although this is not limited by the In-Motes

infrastructure, allowing more than one facilitator to be

deployed in large scale applications where the nodes

exceed the total number of 20.

Upon arrival at the first available node, the facilitator

will insert a facilitator tuple into the tuple space assign-

ing thus the first facilitator node. The capturing proce-

dure takes place when a facilitator agent during its mi-

gration registers a capture or a slave reaction to the cor-

responding node. An alternative is for the facilitator

agent to clone rather than migrate and generate a slave

agent inside the wireless network.

A counter will be incremented every time a capture

reaction takes place; when the counter reaches two, the

facilitator agent will migrate again to the next available

node assigning this time around a new facilitator tuple

and slave reaction and the capturing procedure will re-

peat.

It is expected that during the lifetime of a wireless

sensor network some nodes will eventually die and in-

formation will be lost. In-Motes can adapt and dynami-

cally take actions upon unexpected scenarios like the

ones mentioned above. If a facilitator node goes down

the network will dynamically adapt since the lifecycle of

the facilitator agent that we described above never ter-

minates and a new capturing procedure will take place.

D. GEORGOULAS ET AL.

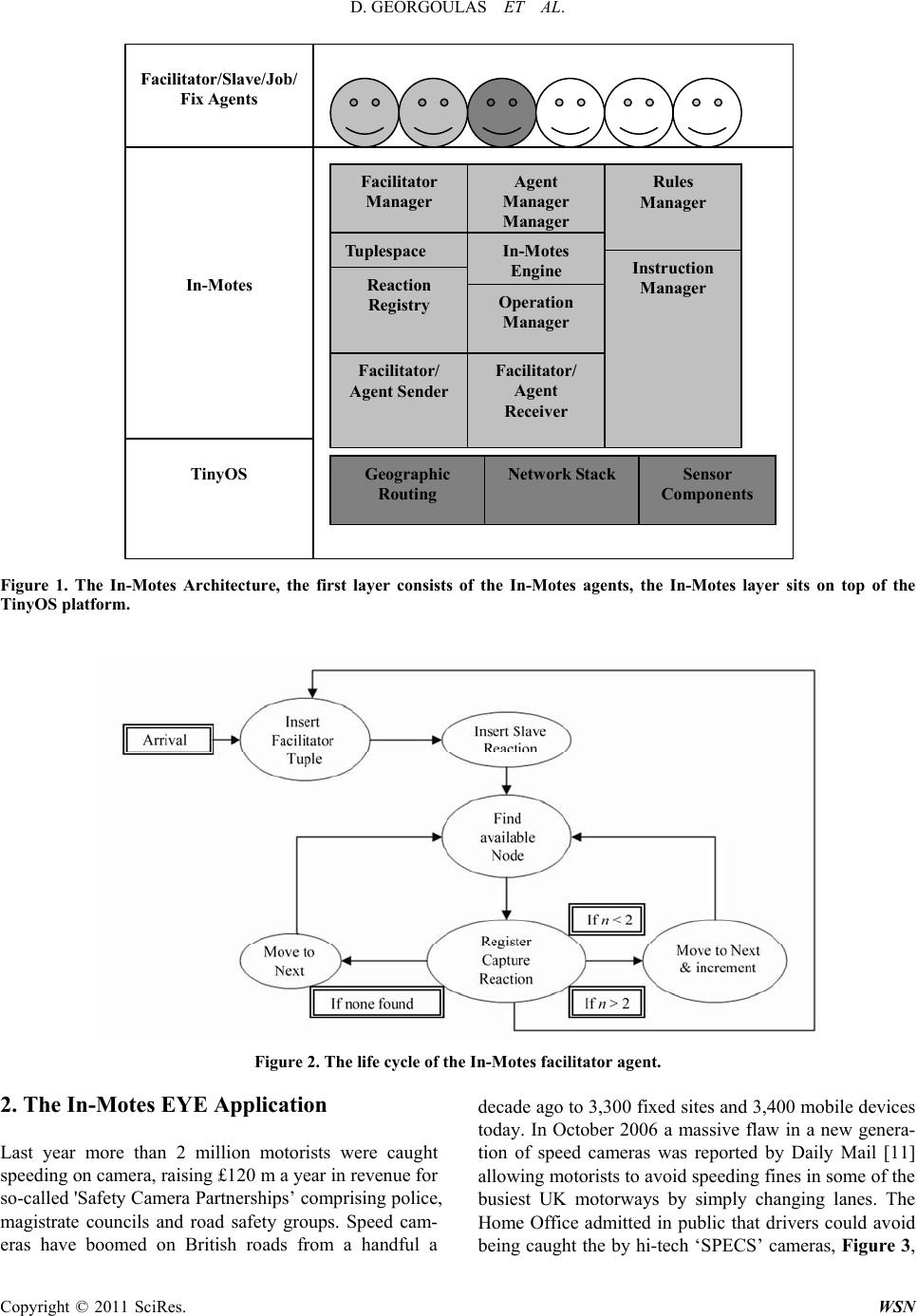

Facili tator/Sl ave/ Job/

Fix Agents

Facilitator

Manager

les

ace

Reaction

Registry

Agent

Manager

In-Motes

Engine

Operation

Manager

Rules

Manager

Instruction

Manager

Facilitator/

Agent Sender Facilitator/

Agent

Receiver

Geographic

Routing Network St ack Sensor

Components

In-Motes

TinyOS

Figure 1. The In-Motes Architecture, the first layer consists of the In-Motes agents, the In-Motes layer sits on top of the

TinyOS platform.

Figure 2. The life cycle of the In-Motes facilitator agent.

2. The In-Motes EYE Application

Last year more than 2 million motorists were caught

speeding on camera , raising £120 m a year in r evenu e for

so-called 'Safety Camera Partnerships’ comprising police,

magistrate councils and road safety groups. Speed cam-

eras have boomed on British roads from a handful a

decade ago to 3,300 fixed sites and 3,400 mobile devices

today. In October 2006 a massive flaw in a new genera-

tion of speed cameras was reported by Daily Mail [11]

allowing motorists to avoid sp eeding fines in so me of the

busiest UK motorways by simply changing lanes. The

Home Office admitted in public that drivers could avoid

being caught the by hi-tech ‘SPECS’ cameras, Figure 3,

D. GEORGOULAS ET AL.

161

Figure 3. The SPEC road cameras with the problematic

software, taken from

http://www.speedcamerasuk.com/SPECS.htm

which calculate a car’s average speed over a long dis-

tance.

The cameras were designed to catch motorists who

simply slow down in front of a camera, case of the Gatso

speed cameras, and then drive above the speed limit until

they reach the next one. The loophole in the software is

located when a motorist changes lanes as it is unable to

calculate if the average speed is above the limits due to

the fact that the fixed points of measurement need to be

in a straight line. Although the software was designed to

improve the road safety, by measuring a driver's average

speed between two fixed points which can be many miles

apart the loophole meant that drivers may actually in-

crease the risk of accidents by continually switching

lanes. Since then, an update of the software took place to

correct this problem but as Mr. Collins, a Home Office

representative stated recently “There are configurations

when (a speeding vehicle) would not be picked up, if it’s

gone from lane one to lane three between cameras.”

As we mentioned above Gatso speed cameras, Figure

4, are frequently used but their vast flow is there size that

makes them visible to a driver and the fact that GPS units

inside a car can detect them and warn a speeding careless

driver in advance.

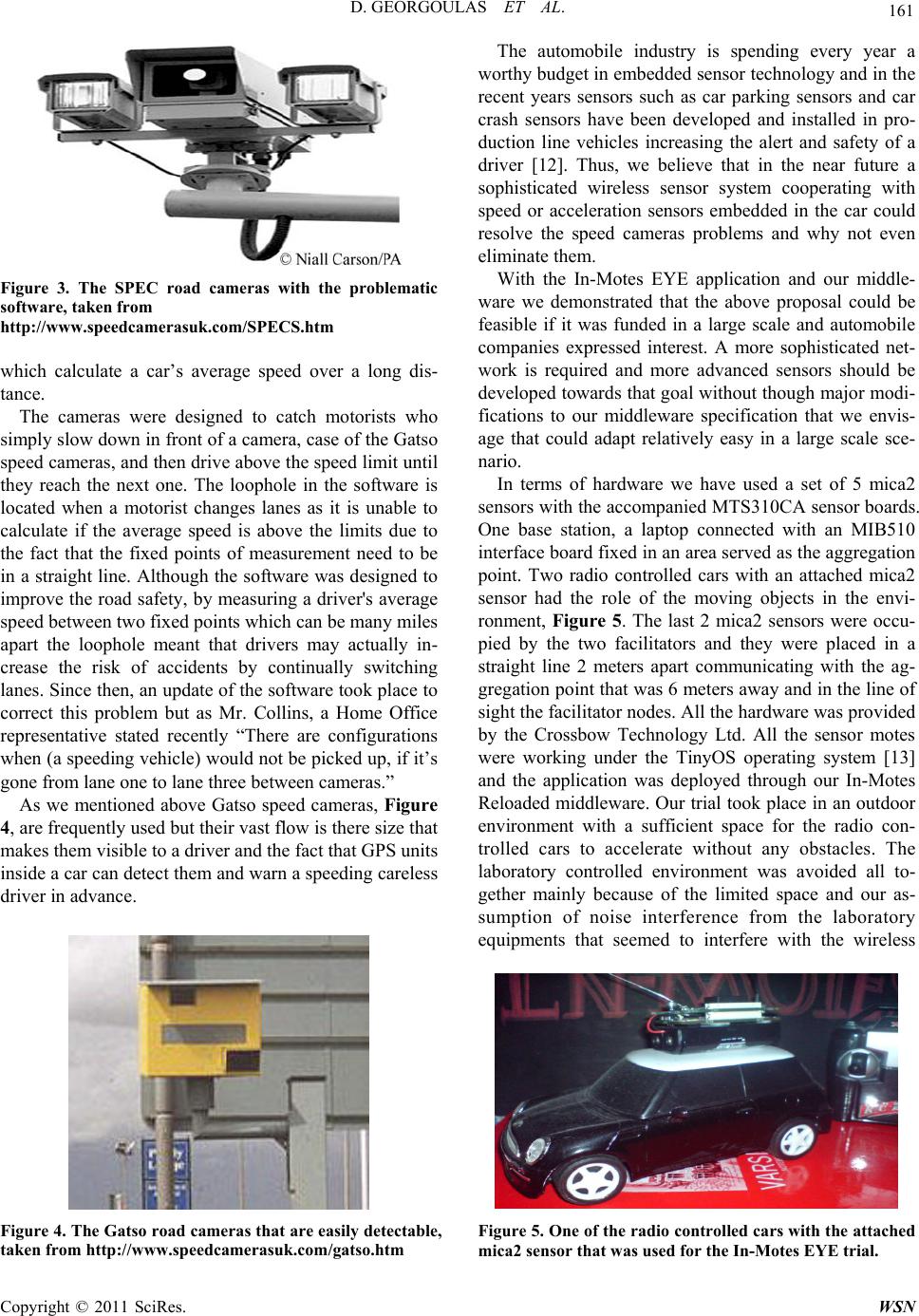

Figure 4. The Gatso road cameras that are easily detectable,

taken from http://www.speedcamerasuk.com/gatso.htm

The automobile industry is spending every year a

worthy budget in embedded sensor technology and in the

recent years sensors such as car parking sensors and car

crash sensors have been developed and installed in pro-

duction line vehicles increasing the alert and safety of a

driver [12]. Thus, we believe that in the near future a

sophisticated wireless sensor system cooperating with

speed or acceleration sensors embedded in the car could

resolve the speed cameras problems and why not even

eliminate them.

With the In-Motes EYE application and our middle-

ware we demonstrated that the above proposal could be

feasible if it was funded in a large scale and automobile

companies expressed interest. A more sophisticated net-

work is required and more advanced sensors should be

developed toward s that goal without though major modi-

fications to our middleware specification that we envis-

age that could adapt relatively easy in a large scale sce-

nario.

In terms of hardware we have used a set of 5 mica2

sensors with the accompanied MTS310CA sensor boards.

One base station, a laptop connected with an MIB510

interface board fixed in an area served as the aggregation

point. Two radio controlled cars with an attached mica2

sensor had the role of the moving objects in the envi-

ronment, Figure 5. The last 2 mica2 sensors were occu-

pied by the two facilitators and they were placed in a

straight line 2 meters apart communicating with the ag-

gregation poin t that was 6 meters away and in the line of

sight the facilitator nodes. All the hardware was prov ided

by the Crossbow Technology Ltd. All the sensor motes

were working under the TinyOS operating system [13]

and the application was deployed through our In-Motes

Reloaded middleware. Our trial took place in an outdoor

environment with a sufficient space for the radio con-

trolled cars to accelerate without any obstacles. The

laboratory controlled environment was avoided all to-

gether mainly because of the limited space and our as-

sumption of noise interference from the laboratory

equipments that seemed to interfere with the wireless

Figure 5. One of the radio controlled cars with the attached

mica2 sensor that was used for the In-Motes EYE trial.

162 D. GEORGOULAS ET AL.

sensor network transmi ssi o ns.

The In-Motes EYE application uses dynamic job

In-Motes agents for forwarding all the user queries in the

wireless sensor network. Every monitor request that is

send from the user contains a critical parameter which is

used locally to determine if a sequence of readings

should be reported or not. The nodes that are attached to

the cars are waking up every two minutes and report to

their facilitator node one acceleration reading. When the

critical parameter is breached, each facilitator sends one

packet containing one acceleration reading per 10 sec-

onds for a period of 2 minutes.

The user also has the freedom to choose a random ra-

dio control car and at random intervals to check its ac-

celeration behavior for a period of two minutes. In order

to do so, the memory of the node of the selected car

firstly must be flushed, by sending a fix In-Motes agent

in order the resident job ag ent with the critical parameter

and the according reactions to be erased. Then a new job

agent is migrating to the desired location. After the end

of the measuring period the job agent stops its execution

and dies. Figure 6 demonstrates part of the In-Motes

EYE application code that was deployed to the wireless

sensor network during our trials.

We initialize our wireless sensor network by injecting

once two facilitator agents to the according nodes that

are placed in a straight line and 2 meters apart, with one

node attached to each car acting as slave to them. The

facilitators captured the nodes and were ready to receive

the first job requests in 35s. We send, once, two dynamic

job agents, 40 bytes each to the wireless sensor network.

The above procedures, as well as the wake up calls and

the transmission of data readings are executed by the

application without us interf ering with the process unless

a failure is noticed or as we mentioned above a user de-

sires to monitor the acceleration of a specific car.

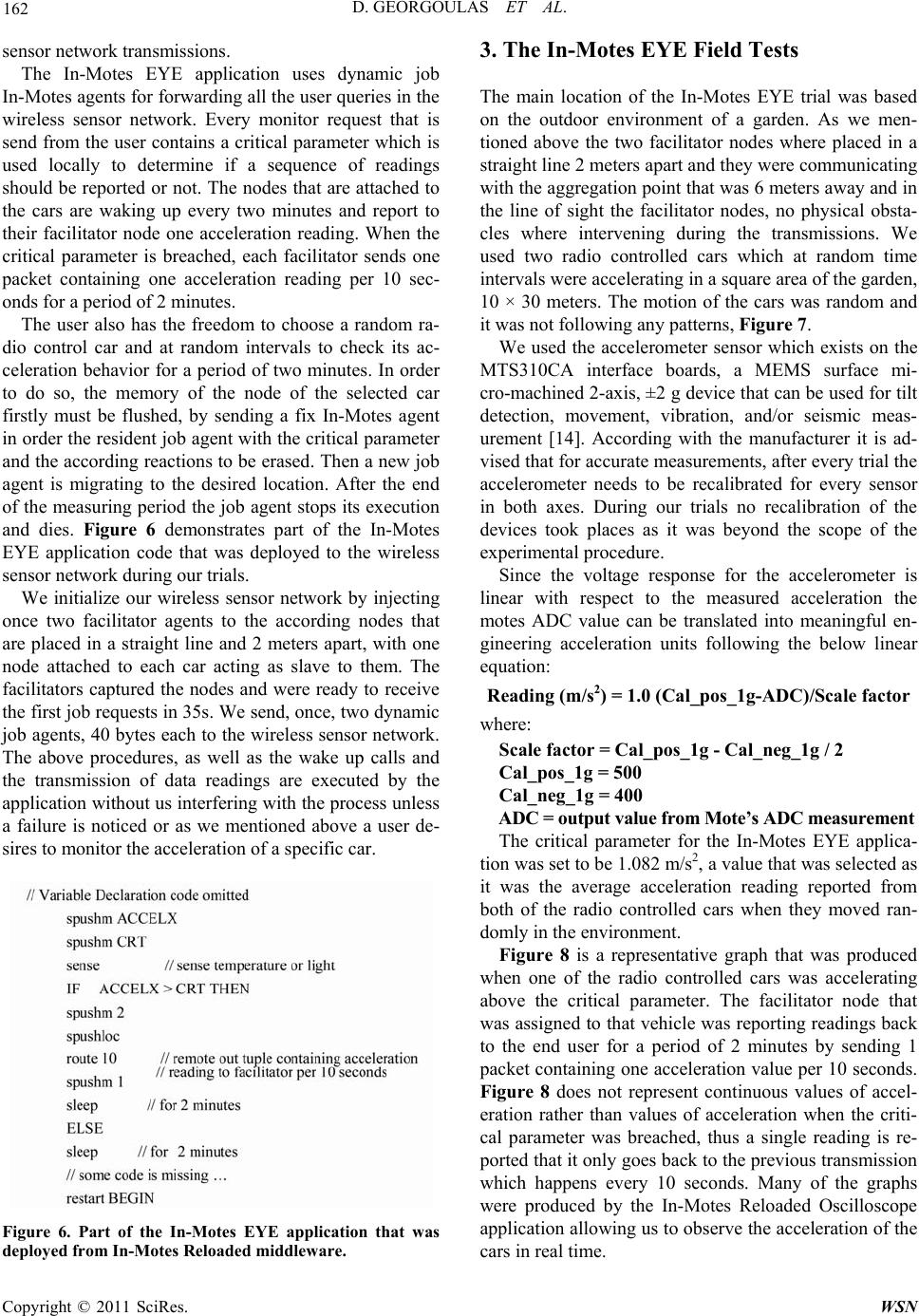

Figure 6. Part of the In-Motes EYE application that was

deployed from In-Motes Reloaded middleware.

3. The In-Motes EYE Field Tests

The main location of the In-Motes EYE trial was based

on the outdoor environment of a garden. As we men-

tioned above the two facilitator nodes where placed in a

straight line 2 meters apart and they were communicating

with the aggregatio n point that was 6 meters away and in

the line of sight the facilitator nodes, no physical obsta-

cles where intervening during the transmissions. We

used two radio controlled cars which at random time

intervals were accelerating in a square area of the garden,

10 × 30 meters. The motion of the cars was random and

it was not following any patterns, Figure 7.

We used the accelerometer sensor which exists on the

MTS310CA interface boards, a MEMS surface mi-

cro-machined 2-axis, ±2 g device that can be used for tilt

detection, movement, vibration, and/or seismic meas-

urement [14]. According with the manufacturer it is ad-

vised that for accurate measurements, after every trial the

accelerometer needs to be recalibrated for every sensor

in both axes. During our trials no recalibration of the

devices took places as it was beyond the scope of the

experimental procedure.

Since the voltage response for the accelerometer is

linear with respect to the measured acceleration the

motes ADC value can be translated into meaningful en-

gineering acceleration units following the below linear

equation:

Reading (m/s2) = 1.0 (Cal_pos_1g- A DC )/ S c al e factor

where:

Scale factor = Cal_pos_1g - Cal_neg_1g / 2

Cal_pos_1g = 500

Cal_neg_1g = 400

ADC = output value from Mote’s ADC measurement

The critical parameter for the In-Motes EYE applica-

tion was set to be 1.082 m/s2, a value that was selected as

it was the average acceleration reading reported from

both of the radio controlled cars when they moved ran-

domly in the environment.

Figure 8 is a representative graph that was produced

when one of the radio controlled cars was accelerating

above the critical parameter. The facilitator node that

was assigned to that vehicle was reporting readings back

to the end user for a period of 2 minutes by sending 1

packet containing one acceleration value per 10 seconds.

Figure 8 does not represent continuous values of accel-

eration rather than values of acceleration when the criti-

cal parameter was breached, thus a single reading is re-

ported that it only goes back to the previous transmission

which happens every 10 seconds. Many of the graphs

were produced by the In-Motes Reloaded Oscilloscope

application allowing us to observe the acceleration of the

cars in real time.

D. GEORGOULAS ET AL.

163

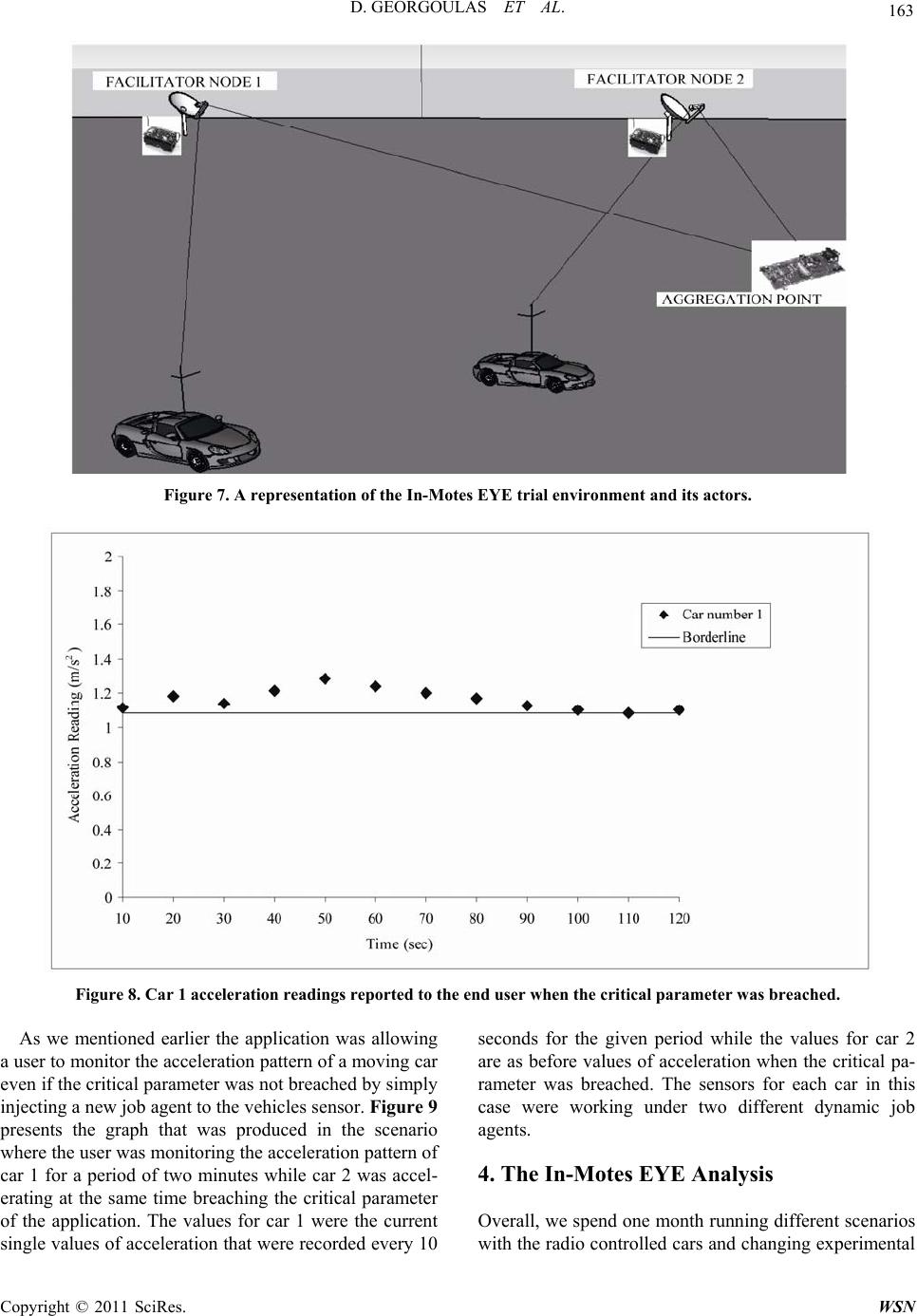

Figure 7. A representation of the In-Motes EYE trial environment and its actors.

Figure 8. Car 1 acceleration readings reported to the end user when the critical parameter was breached.

As we mentioned earlier the application was allowing

a user to monitor the acceleration pattern of a moving car

even if the critical parameter was not breached by simply

injecting a new job agent to the vehicles sensor. Figure 9

presents the graph that was produced in the scenario

where the user was monitoring the acceleration pattern of

car 1 for a period of two minutes while car 2 was accel-

erating at the same time breaching the critical parameter

of the application. The values for car 1 were the current

single values of acceleration that were recorded every 10

seconds for the given period while the values for car 2

are as before values of acceleration when the critical pa-

rameter was breached. The sensors for each car in this

case were working under two different dynamic job

agents.

4. The In-Motes EYE Analysis

Overall, we spend one month running different scenarios

with the radio controlled cars and changing experimental

164 D. GEORGOULAS ET AL.

parameters such as the epoch time per trial circle helping

us to understand better the nature of the wireless sensor

network we deployed and evaluate better the engine of

the In-Motes Reloaded middleware. Packet delivery did

not affect by the distance between the aggregation point

and the sensors rather from facts such as the duration per

measuring period and buffer overflows at the facilitator

node end.

Figure 10 presents the total number of packets that

were delivered from a facilitator node monitoring one car

that breached the acceleration critical parameter for dif-

ferent epochs.

From the above graph it is obviou s that the packet de-

livery performance was affected as the measuring period

was increased. Packet losses were observed mainly due

to two reasons. Firstly, increasing the activity of a slave

node of a radio controlled car it meant that we were in-

creasing the battery power consu mption of the mote.

For mica2 motes this increase usually affects the per-

formance of the hardware resulting to delays in obtaining

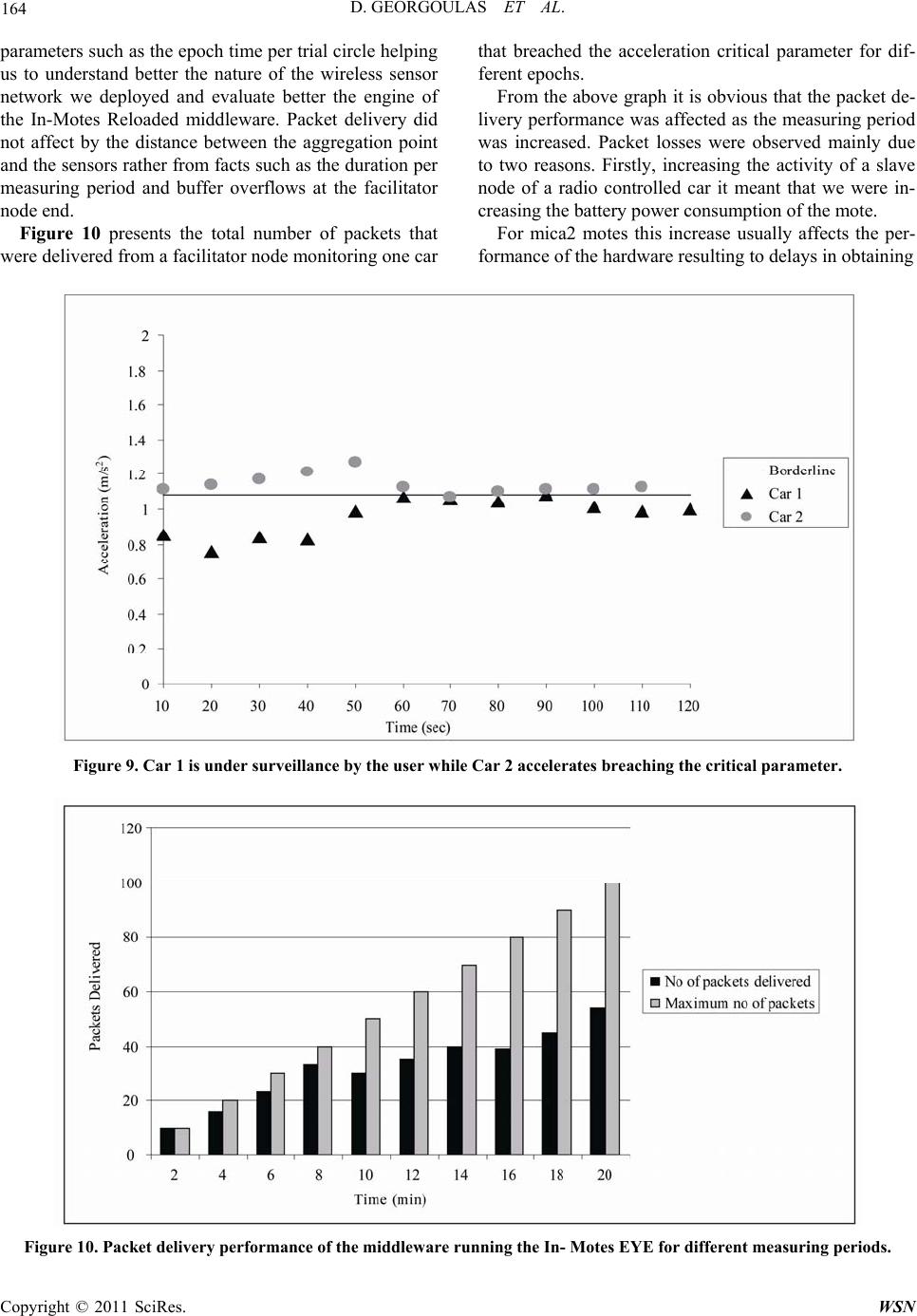

Figure 9. Car 1 is under surveillance by the user while Car 2 accelerates breaching the critical parameter.

Figure 10. Packet delivery performance of the middleware running the In- Motes EYE for different measuring periods.

D. GEORGOULAS ET AL.

165

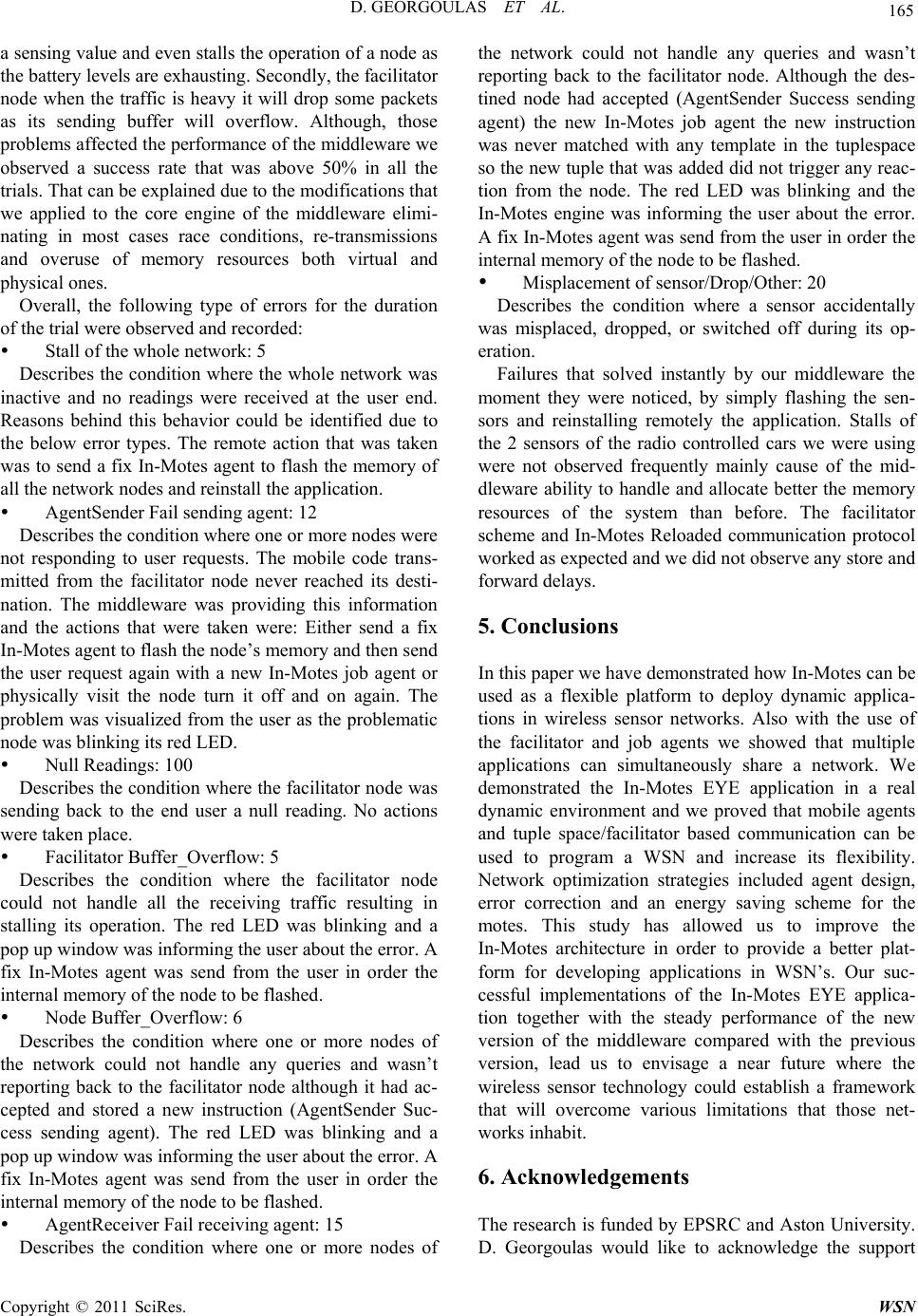

a sensing value and even stalls the operation of a node as

the battery levels are exhausting. Secondly, the facilitator

node when the traffic is heavy it will drop some packets

as its sending buffer will overflow. Although, those

problems affected the performance of the middleware we

observed a success rate that was above 50% in all the

trials. That can be explained due to the modifications that

we applied to the core engine of the middleware elimi-

nating in most cases race conditions, re-transmissions

and overuse of memory resources both virtual and

physical ones.

Overall, the following type of errors for the duration

of the trial were observed and recorded:

 Stall of the whole network: 5

Describes the condition where the whole network was

inactive and no readings were received at the user end.

Reasons behind this behavior could be identified due to

the below error types. The remote action that was taken

was to send a fix In-Motes agent to flash the memory of

all the network nodes and reinstall the application.

 AgentSender Fail sending agent: 12

Describes the condition where one or more nodes were

not responding to user requests. The mobile code trans-

mitted from the facilitator node never reached its desti-

nation. The middleware was providing this information

and the actions that were taken were: Either send a fix

In-Motes agent to flash the node’s memory and then send

the user request again with a new In-Motes job agent or

physically visit the node turn it off and on again. The

problem was visualized from the user as the problematic

node was blinking its red LED.

 Null Readings: 100

Describes the condition where the facilitator node was

sending back to the end user a null reading. No actions

were taken place.

 Facilitator Buffer_Overflow: 5

Describes the condition where the facilitator node

could not handle all the receiving traffic resulting in

stalling its operation. The red LED was blinking and a

pop up window was informing the user about the error. A

fix In-Motes agent was send from the user in order the

internal memory of the node to be flashed.

 Node Buffer_Overflow: 6

Describes the condition where one or more nodes of

the network could not handle any queries and wasn’t

reporting back to the facilitator node although it had ac-

cepted and stored a new instruction (AgentSender Suc-

cess sending agent). The red LED was blinking and a

pop up window was informing the user about the error. A

fix In-Motes agent was send from the user in order the

internal memory of the node to be flashed.

 AgentReceiver Fail receiving agent: 15

Describes the condition where one or more nodes of

the network could not handle any queries and wasn’t

reporting back to the facilitator node. Although the des-

tined node had accepted (AgentSender Success sending

agent) the new In-Motes job agent the new instruction

was never matched with any template in the tuplespace

so the new tuple that was added did not trigger any reac-

tion from the node. The red LED was blinking and the

In-Motes engine was informing the user about the error.

A fix In-Motes agent was send from the user in order the

internal memory of the node to be flashed.

 Misplacement of sensor/Drop/Other: 20

Describes the condition where a sensor accidentally

was misplaced, dropped, or switched off during its op-

eration.

Failures that solved instantly by our middleware the

moment they were noticed, by simply flashing the sen-

sors and reinstalling remotely the application. Stalls of

the 2 sensors of the radio controlled cars we were using

were not observed frequently mainly cause of the mid-

dleware ability to handle and allocate better the memory

resources of the system than before. The facilitator

scheme and In-Motes Reloaded communication protocol

worked as expected and we did no t obser v e any store and

forward delays.

5. Conclusions

In this paper we have demonstrated how In-Motes can be

used as a flexible platform to deploy dynamic applica-

tions in wireless sensor networks. Also with the use of

the facilitator and job agents we showed that multiple

applications can simultaneously share a network. We

demonstrated the In-Motes EYE application in a real

dynamic environment and we proved that mobile agents

and tuple space/facilitator based communication can be

used to program a WSN and increase its flexibility.

Network optimization strategies included agent design,

error correction and an energy saving scheme for the

motes. This study has allowed us to improve the

In-Motes architecture in order to provide a better plat-

form for developing applications in WSN’s. Our suc-

cessful implementations of the In-Motes EYE applica-

tion together with the steady performance of the new

version of the middleware compared with the previous

version, lead us to envisage a near future where the

wireless sensor technology could establish a framework

that will overcome various limitations that those net-

works inhabit.

6. Acknowledgements

The research is funded by EPSRC and Aston University.

D. Georgoulas would like to acknowledge the support

166 D. GEORGOULAS ET AL.

and valuable advice of Dr. David Holding, Aston Uni-

versity, Mr. C. L Fok of Washington University in St

Louis, for helping us understand th e Agilla prog ramming

core and Mr. M. Smith, technical support engineer of

Crossbow technology, for technical advice.

7. References

[1] D. Georgoulas and K. Blow, “In-Motes: An Intelligent

Agent Based Middleware for Wireless Sensor Networks,”

Proceedings of the 5th WSEAS International Conference

on Application of Electrical Engineering, Prague, 12-14

March 2006, pp. 225-231.

[2] C.-L Fok, G.-C. Roman and C. Y. Lu, “Rapid Develop-

ment and Flexible Deployment of Adaptive Network Ap-

plications,” Proceedings of the 25th IEEE International

Conference on Distributed Computing Systems, Colum-

bus, 10 June 2005, pp. 653-662.

doi:10.1109/ICDCS.2005.63

[3] P. Levis and D. Culler, “Maté: A Tin y Virtual Ma chine for

Sensor Networks,” Proceedings of the 10th International

Conference on Architectural Support for Programming

Languages and Operating Systems, San Jose, 6-10 Octo-

ber 2002, pp. 85-95. doi:10.1145/605397.605407

[4] C. M. RoadKnight and I. W. Marshall, “Future Network

Management—A Bacterium Inspired Solution,” Pro-

ceedings of the 2nd International Symposium Engineer-

ing and Intelligent Systems, Tel Aviv, March 2000, pp.

123-129

[5] P. Levis, “TinyOS programming,” Stanford University,

USA, 2006

http://csl.stanford.edu/~pal/pubs/tinyos-programming.pdf

[13/03/2007]

[6] J. M. Bradshaw, “An introduction to Software Agents,”

In: B. M. Jeffrey Ed., Software Agents, MIT Press, Cam-

bridge, 1997,

[7] D. Georgoulas and K. Blow, “In-Motes Bins: A Real

Time Application for Environmental Monitoring in

Wireless Sensor Networks,” Proceedings of the 9th

IEEE/IFIP International Conference on Mobile Wireless

Communications Networks, Cork, 19-21 September 2007,

pp. 21-25. doi:10.1109/ICMWCN.2007.4668173

[8] D. Georgoulas and K. Blow, “Intelligent Mobile Agent

Middleware for Wireless Sensor Networks: A Real Time

Application Case Study,” 2008 4th Advanced Interna-

tional Conference on Telecommunications, Athens, 8-13

June 2008, pp. 95-100.

doi:10.1109/AICT.2008.51

[9] G. Cabri, L. Leonardi and F. Zambonelli, “Reactive Tu-

ple Spaces for Mobile Agent Coordination,” Proceedings

of the 2nd International Workshop on Mobile Agents,

Stuttgart, September 1998, pp. 237-248.

[10] D. Georgoulas and K. Blow, “Making Motes Intelligent:

An Agent Based Approach to Wireless Sensor Net-

works,” In WSEAS on Communications Journal, Vol. 5,

No. 3, 2006, pp. 515-522.

[11] Ray Ramsey, “Drivers Can Avoid Speeding Tickets...by

Changing Lanes,” 2006.

http://www.dailymail.co.uk/news/article-410539/Drivers-

avoid-speeding-tickets--changing-lanes.html

[12] BMW United Kingdom Research, “Passive Safety in

Vehicles,” 2010.

http://www.bmw.co.uk/bmwuk/bmwcorporate/sales/respo

nsible/passive_safety/

[13] Crossbow, “Wireless Systems for Environmental Moni-

toring,” 2007.

http://www.xbow.com/Products/Product_pdf_files/Wirele

ss_pdf/Smart_Dust_AppNote.pdf

[14] Crossbow, “Crossbow Users Manual,” Crossbow Tech-

nology, 2007, pp. 1-45.
