Computer Image Analysis as a Tool for

Microbial Viability Assessment: Examples

of Use and Prospects

Evgeny Puchkov

All-Russian Collection of Microorganisms, Skryabin Institute of Biochemistry and Physiolog of Microorganisms,

Pushchino, Russia

Email: [email protected]

Received January 2014

Abstract

Application of the computer image analysis for improving microbial viability assessment by plate

count and fluorescence microscopy was investigated. Yeast cells were used as a model microor-

ganism. The application of the improved methods for the viability assessment of yeast cells after

preservation by freezing and freeze-drying was demonstrated.

Keywords

Microbial Viabil ity, Microbial Prese rvati on, Plate Count, Y e ast , Computer Image Analysis,

Fluorescence Micr oscopy , Saccharomyces cer ev is iae , Cryptococcus terreus,

Xanthophyllomyces dendrorhous

1. Introduction

Microbial viability is a feature that needs to be evaluated quantitatively in many areas of the research and applied

microbiology. It is generally agreed to consider microbial viability as an ability of the cells to multiply and to give

progeny. However quantitative assessment of this ability is not straight forward and there is no any universal method

that could be used in all cases [1].

Two groups of so-called direct and indirect methods have been developed to date. The direct methods allow as-

sessing the multiplication ability of the cells by cultivating them at appropriate conditions. So, viability is considered

as culturability [2]. The plate count technique is the best example, and it is often used as a “gold standard” in many

practical cases. However, the technique, in its original form [3], is time- and labor-consuming.

The indirect methods are based on the evaluation of some features of the cells which are crucial for life/

multiplication. Metabolic/enzymatic activities and selective membrane permeability are the main features of these

[4]. An example of the indirect method is the microbial cell selective membrane permeability assessment using ap-

propriate dyes and fluorescence microscopy [5]. It should be stressed that, as any indirect method, it is just predictive,

that is it provides data which may reflect multiplication ability of the cells with some probability. For validating an

indirect method, in every particular case, correlation between indirect indicator and culturability must be established.

Also, fluorescence microscopy is rather subjective and tedious.

E. Puchkov

The main goal of this study was to investigate application of the computer image analysis for improving microbial

viability assessment by plate count and fluorescence microscopy. Yeast cells were used as a model microorganism.

The use of the improved methods for the viability assessment of yeast cells after preservation by freezing and freeze-

drying was studied.

2. Materials and Methods

2.1. Microbiological Pro cedures

Experiments were carried out with Saccharomyces cerevisiae VKM Y-2549 (type strain); Cryptococcus terreus

VKM Y-2253; Xanthophyllomyces dendrorhous VKM Y-2786 (all from All-Russian Collection of Microorgan-

isms) and Saccharomyces cerevisia cells of dry commercial Fermiol preparation (DSM Food Specialties Beve-

rage Ingredients, The Netherlands).

The cells were freeze-dryed in a protecting medium containing 10% sucrose, 1.5% gelatine, and 0.1%

agar-agar using an EF6 centrifuge-type Edwards apparatus and rehydrated in distilled water. Freezing of the

cells was carried in an MDF-Ultra Low Sanyo fridge at –68˚C followed by thawing at 36˚C.

For colony-forming capacity assessment, the cell suspensions were homogenized by pipetting. Only sus-

pensions free from microscopically visible aggregates were used for plating. Serial tenfold dilutions were

plated onto Petri dishes with agarized medium containing wort (7˚B). In case of conventional inoculation, en-

tire plate area was seeded. For implementation of the Miles and Misra procedure [6], drops of 0.02 - 0.05 ml

of each dilution were applied to one of eight sectors drawn on a Petri dish. The colonies were counted after

incubation at 20 - 23˚C for 3 - 4 days. Total concentration of cells was determined using conventional light

microscopy with a Goryaev chamber for blood cells’ counti ng.

2.2. Computer Colony Counting

A computer colony analyzer KOMPANKOL-M1 (Figure 1) developed in our laboratory [7] was used

throughout this work. The instrument was capable of getting digital images of microbial colonies in Petri

dishes (Figure 2). A computer software of the analyzer allowed automatic and “manua l” counting of the

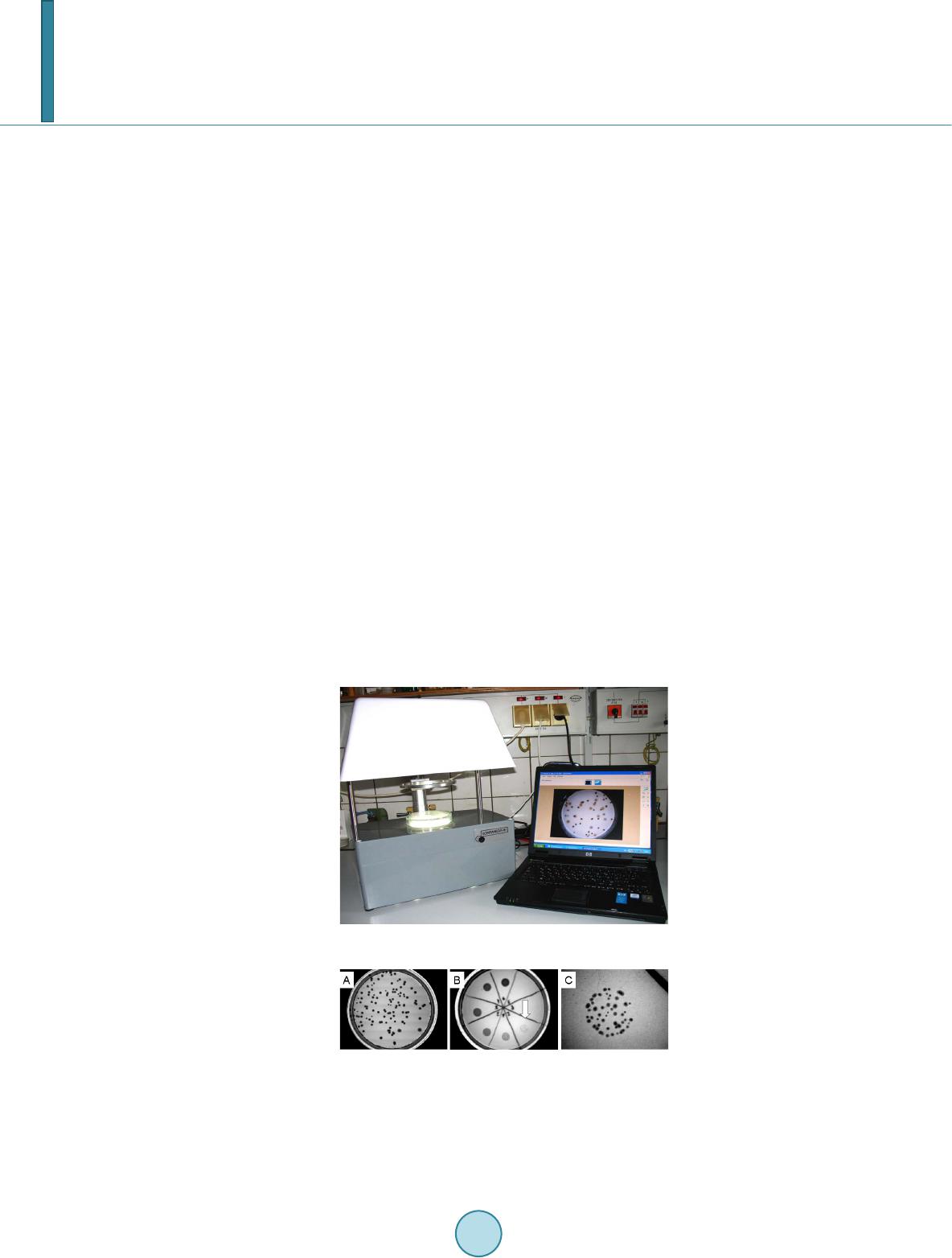

Figure 1. A computer colony analyzer KOMPANKOL-M1.

Figure 2. Examples of the yeast S. cerevisiae colony

images used in the work. A. Conventional inoculation

procedure. B. Inoculation by Miles and Misra protocol

[6]. C. An image of the colonies indicated by arrow on

the photograph C upon appropriate optical magnifica-

ion by the KOMPANKOL-M1.

E. Puchkov

colonies of 0.3 mm in diameter and higher. Automatic counting was based on the “top hat” thresholding.

“Manual” counting was accomplished visually using virtual mouse-controlled “markers” with automated

counting of the marked colonies.

2.3. Microscopy and Digital Photography

The cells were concentrated by centrifugation up to ca. 5 × 108 cells/ml and supplemented with 3,8-d ia mino-

5-et hyl -6 -phenylphenanthridinium bromide (ethidium bromide, Eth) (Sigma) at a concentration of 50 μM and

4,6-diamidino-2-phenylindole, dilactate (DAPI) (Serva) at a concentration of 15 μM. Upon 5 - 10 min of in-

cuba tion at 25˚C ± 0.5˚C, 6 μl aliquots of the cell suspension were placed onto specimen slides, covered with

cover glass, and sealed with nail polish to prevent evaporation. Observations were started ca. 20 min after

sealing, when most cells had stuck to the slide’s glass.

Fluoresce microscopy and color digital photography were carried out on a ML-2B fluorescence microscope

(LOMO, Russia) equipped with a Sony DSC-V3 digital camera [8]. By applying appropriate filter sets, the fol-

lowing combinations of λex/λem were used: in the fluorescence mode—360 nm/>400 nm; in the light transmis-

sion mode—520 nm/>400 nm.

2.4. Computer Data Treatment

The color digital images of the fluorescing cells were processed by the Adobe Photoshop v. 8.0 (Adobe Systems

Inc., USA). Quantitative image analysis was made, in case of colony counting, using original KOMPANKOL-

M1 software, and in case of microscopic cell counting, using ImageJ 1.42 software (National Institute of Health,

USA, http://rsb.info .nih. gov/ij). Other quantitative treatments were made by MS Excel 2003 and OriginPro 7.5

(OriginLab, USA) software.

3. Results and Discussion

3.1. Computer-Aided Colony Counti ng

The “manua l” and automated KOMPANKOL-M1 colony counting methods in case of conventional spread- in-

oculation onto the entire area of a Petri dish were compared (Figure 3). The data indicated that, within the error of

determination, both methods gave close results. However, it was noticed that automatic counting systematically

gave some underestimation. This was the consequence of the presence of some fraction of merged colonies.

Unfortunately, the “thre s ho ld ” adjustments could not completely “resol ve” single colonies in comparatively large

aggre ga te s.

The Miles and Misra procedure [6] of inoculation of the small volume samples upon serial dilution onto a

single Petri dish significantly lessen labor consumption in assessing of the colony-forming capacity. However,

visual identification and counting of small colonies is practically impossible. Therefore, this procedure is nor-

mally used for estimating quantitatively the colony forming ability only to the order of magnitude (or the degree of

dilution) by evaluating of the colony growth presence/absence in the section of the corresponding dilution

(Figure 2(B)).

KOMPANKOL-M1 is capable of getting images of single colonies outgrown upon Miles and Misra [6] in-

oculation (Figure 2 (C)). Comparison of the “manua l” and automated colony counting methods for this protocol

of inoculation and the conventional one revealed good agreement of all counts (Figure 4). This opens new po-

tential applications of the Miles and Misra protocol of inoculation by assessing survival rates within the percent

scale. For example, there is need in assessing survival rate in the percent scale for evaluating efficacy of micro-

bial preservation procedures. Figure 5 illustrates application of the developed computer-aided approach for as-

sessing survival rates of three yeast species after freezing and freeze-drying.

3.2. Computer-Aided Fluorescence Microscopy Viability Assessment

Fluorescence of DAPI and Eth cation is known to markedly increase upon binding to nucleic acids. On the other

hand, cell membranes of intact yeast cells are well permeable for DAPI and impermeable for Eth. This is a basis

for revealing by fluorescence microscopy of the yeast cells with compromised membranes (stained red by Eth)

upon double staining with DAPI an Eth (Figure 6(B)). Using “RGB -split” option of the Image J software digital

E. Puchkov

Figure 3. Comparison of the automated and

“manual” counting by KOMPANKOL-M1 of

the yeast S. cerevisiae Y-2549 colonies upon

conventional whole Petri dish inoculation.

Figure 4. Comparison of the automated and “manual”

counting by KOMPANKOL-M1 of the yeast S.

cerevisiae Y-2549 colonies upon conventional whole

Petri dish and Miles and Misra [6] protocols of

inoculation.

Figure 5. Application of the Miles and Misra

protocol of inoculation [6] and automated

counting colonies by KOMPANKOL-M1 for

assessing survival rates of three yeast species

after freezing and freeze-drying. Survival rate

was calculated as a ratio of the concentration of

colony forming units and total number of cells.

E. Puchkov

images of the stained cells were splitted to red, green and blue components (Figures 6(C)-(E)). By so doing,

damaged cells with the compromised membranes could be “separated” from the undamaged cells (bluish-green

ones) (Figures 6(B) and (F)). Also, the green component of fluorescence was found to be present in both dam-

aged and undamaged cells (Figures 6(F)-(H)). Then an algorithm of assessing a fraction of damaged (or unda-

maged) cells was developed comprising “RGB-split” and “Analyze particles” options of the Image J software.

This algorithm made the fluorescence microscopy technique more objective and less tedious.

Cytoplasmic membrane is generally considered to be a critical for viability cell component [4] [5]. It was

found that upon sever treatments of the yeast S. cerevisiae Y-2549 cells by 60˚C or repeated freeze-thaw cycles

there was close correlation between fractions of damaged cells assessed by the computer-aided fluorescence mi-

croscopy and the survival rate decreases determined by plate counting of colonies (data not shown). Also, a

good correlation was found between data of the developed approach and direct survival assessment by plate

countin g of starter cultures of the commercial alcohol producing yeast strain of S. cerevisia (Figure 7). These

data could be considered as a good argument for a potential practical application of the developed approach for

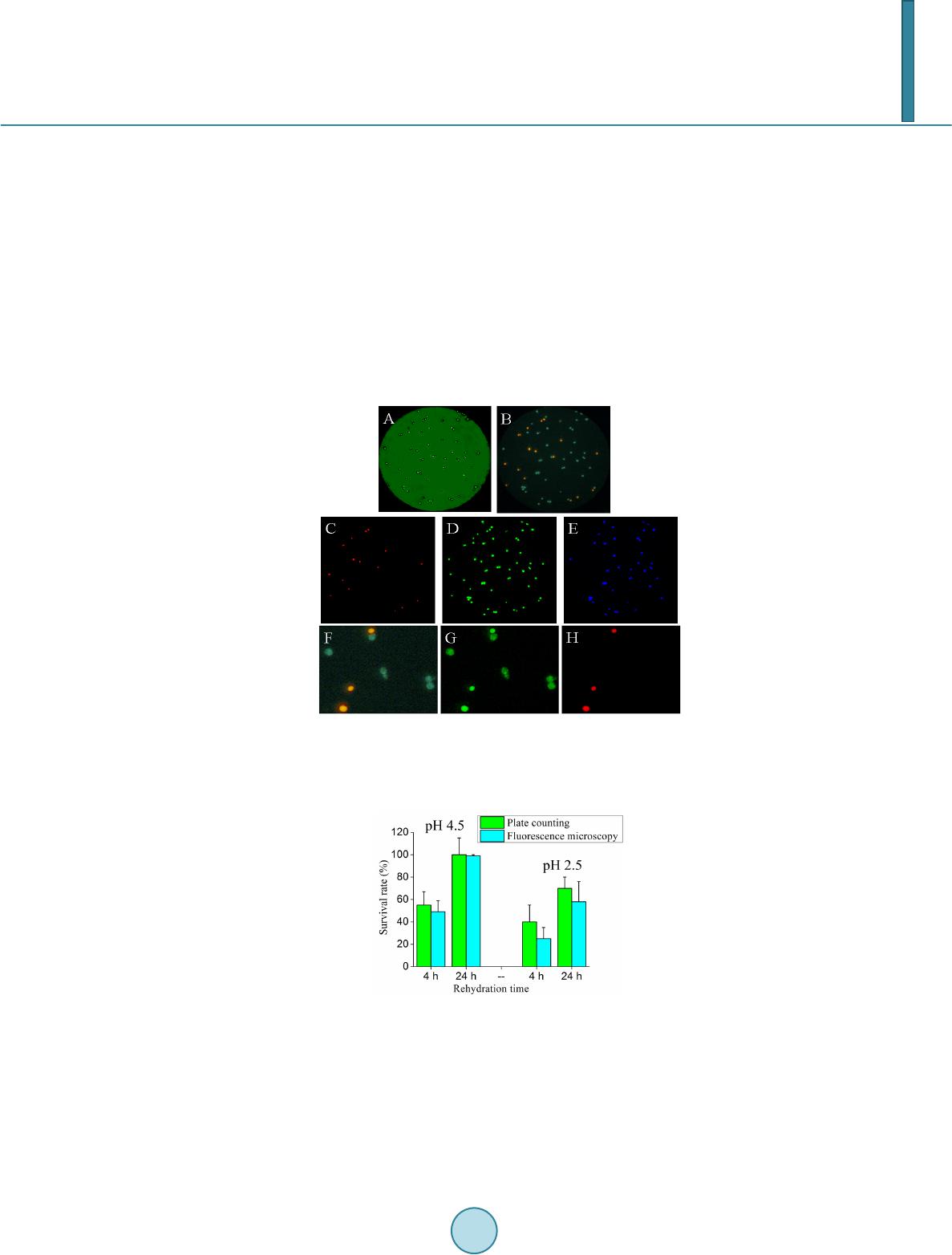

Figure 6. Microscopic digital images of the S. cerevisiae Y-

2549 cells. A—transmission mode; B and F (a magnified

fragment of B)—fluorescence mode; C,D,E,G,H—images B

and F upon RGB-splitting by Image J software, respectively.

Figure 7. Survival rates of the S. cerevisia cells as determined

by the conventional plate counting and the computer-aided

fluorescence microscopy. The starter cultures of the S. cerevisia

cells of dry commercial Fermiol preparation (DSM Food

Specialties Beverage Ingredients, The Netherlands) upon

rehydration at different conditions was used. Survival rate was

calculated as a ratio of the concentration of colony forming

units or the number of damaged cells in the case of fluorescence

microscopy and total number of cells.

E. Puchkov

viability/culturability prediction of at least yeast cultures.

4. Conclusion

The use of computer image analysis can significantly improve microbial viability assessment by either direct

plate count techniques or indirect (predictive) fluorescence microscopy methods. This improvement includes a

reduction in time and labor consumption and makes methods more objective. The major principles of the image

analysis use presented herein may be applied to other microbial objects with commercially available computer

colony counters and to fluorescence microscopy approaches utilizing other fluorophores. However, a number of

requirements are to be complied with in order to get the advantages of computer analysis and to avoid crucial

mistakes. Computer automated counts are performed with a certain error, the value of which depends on the

number of merged colonies, on the ratio between numbers of small and large colonies, irregularities of the me-

dium thickness over the dish, etc. The choice between automated and manual counting is to be made depending

on the aim of the experiment and of the sample characteristics. For using computerized indirect (predictive)

techniques, correlation with data of direct methods must be investigated in every particular case.
