Effects of Hydrogels on Soil Moisture and Growth of <i>Cajanus cajan</i> in Semi Arid Zone of Kongelai, West Pokot County

doi:10.4236/ojf.2014.41006

Paper Menu >>

Journal Menu >>

Open Journal of Forestry

2014. Vol.4, No.1, 34-37

Published Online January 2014 in SciRes (http://www.scirp.org/journal/ojf) http://dx.doi.org/10.4236/ojf.2014.41006

OPEN ACCESS

Effects of Hydrogels on Soil Moisture and Growth of Cajanus

cajan in Semi Arid Zone of Kongelai, West Pokot County

Cheruiyot Gilbert1*, Sirmah Peter1, Ng’etich Wilson2, Mengich Edward1,3

Mburu Fr ancis1, K imaiyo Sylvester1, Bett Eric k 4

1School of Natural Resource Management, University of Eldoret, Eldoret, Kenya

2School of Agriculture, University of Eldoret, Eldoret, Kenya

3Kenya Forestry Research Institute, Londiani, Kenya

4School of Science, University of Eldoret, Eldoret, Kenya

Email: *[email protected]

Received September 8th, 2013; revised October 21st, 2013; accepted November 9th, 2013

mons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, pro-

vided the original work is properly cited. In accordance of the Creative Commons Attribution License all Copy-

Studies on the effects of hydrogels on soil amendments, moisture conservation and grow th of Cajanus

cajan in arid and se mi-arid lands were carried out. Seedlings of C. cajan wer e established both in the

nursery and in the field with and without hydrogels. In the field, three replications were used with three

levels of hydrogels concentration (7 g, 11 g, and 15 g). Control seedlings were established in soils without

hydrogels. In the nursery, root collar diameters and heights were measured every two weeks up to eight

weeks. Seedlings established without hydrogels in the nursery were transplanted into field soils with none,

7 g, 11 g and 15 g of hydrogels. Root collar diameters and heights were again measured every month for

three months. In addition, s oil was collected randomly once every month from the base of each seedling

and analyzed for soil moisture using standard laboratory procedures. All data were subjected to analysis

of variance. The results show that growth in both the height and root collar diameter of the species was

significantly different at the three levels of hydrogels. This suggests that use of hydrogels retards plant

growth in nursery soils but improves growth in the field. Hydrogels increased soil moisture volume from

8.3% to 10% in H15g level of hydrogels under C. cajan after transplanting. It was concluded that hydrogels

do not contribute to growth of seedlings in the nursery but they do so after transplanting. Hydrogels in-

crease soil moisture in the soil, so they are recommended for use in semi-arid lands to boost the survival

and growth of seedlings.

Keywords: Hydrogels; Moisture; Growth; Semi-Arid Lands

Introduction

Keny a is a developing country striving to achieve vision

2030 (Muchiri et al., 2009). One way of a chieving the goals of

Vision 2030 is by improving the livelihoods of people living in

arid and semi arid lands through introduction of appropriate

agroforestry technologies and practices to mitigate aridity

(Okorie, 2003). Forest cover in Kenya is currently standing at

1.7% way bel ow the internationally accepted minimum of 10%

(IPCC, 2008), t hus there is need to support the development of

forestry practices to increase forest cover towards the required

minimum percentage. On the basis of moisture availability for

plant growth, Ke nya is classified as 88% a rid and se mi -arid

with a population of over 10 million, many of whom are pasto-

ralists and agro-pastoralists (GoK, 2010). Similarly, moisture

retention in the soil is important for the growth of agroforestry

tree species. Soil water affects plant growth direct ly because it

influences ae r ation, temperature, nutrient transport, uptake and

transformation (Luo et al., 2011).

Hydrogels are networks of polymer chains that are hydro-

philic and highly absorbent to water molecules (Abedi-Koupai,

2008). The addition of hydrogels to soil can improve water

holding capacity, decrease evapotranspiration and allow plants

to mitigate the drought stress (Chirino et al., 2008).

This study therefore aimed at investigating the effects of hy-

drogels on soil water availability and growth of C. cajan seedl-

ings in the nursery and during early establishment in the field. It

was carried out in the arid and semi-arid areas of Kongelai.

Materials and Methods

Location and Climate of Study Area

This study was carried out at Kongelai, West Pokot County,

Keny a (Figure 1; 1.47˚71'S, 35.02 ˚07'E). The study area lies be-

tween 1500 m and 2100 m above sea level, and is characterized by

a bimodal type of rainfall with the long rains between April and

August and short rains between October and February. The area is

characterized by great variations in temperature with 30˚C in the

lowlands and 15˚C in the highlands.

The hydrogels used was “Belsap” manufactured by Bell

*Corresponding a uthor.

C. GILBERT ET AL.

OPEN ACCESS

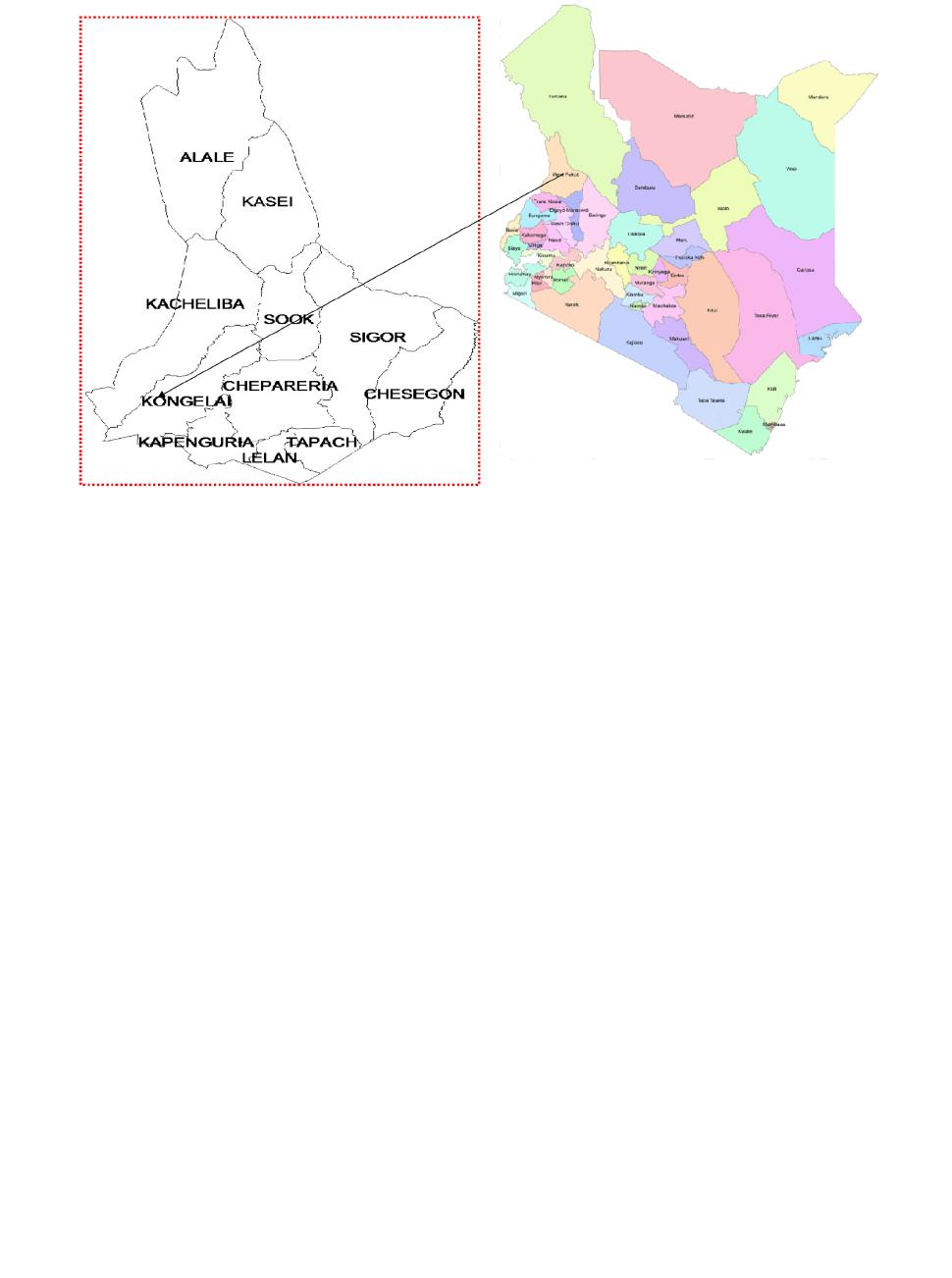

Figure 1.

Map of study ar ea, West Pokot County (County Commissioner’s Office, 2013).

Industries limited in Nairobi Kenya.

Potting soil was obtained from Kapolet Forest Station within

the county.

Procedures in the Nursery

Seeds of C. cajan were directly sown into polythene tubes

measuring 4 × 6 inches containing 800 g of forest soil and at

different levels of hydrogels. A total of 4 treatments of different

levels of hydrogels: 0, 7, 11 and 15 g were prepared. Each con-

sisted of 42 seedlings and replicated thrice. Treatments were

randomized within the blocks. All polythene tubes were labeled

for identification purposes. Once the seedlings germinated, root

collar diameter and height were measured every two weeks for

two months. A Randomized Complete Block Design (RCBD)

was used in this experiment.

Procedures in the Field

After two months in the nursery, control seedlings were

de-potted and transplanted into pre-tested soil samples in a field

within the same region. Seedlings treated with hydrogels were

not transplanted. In the field, the same levels of hydrogels as in

the nursery were applied in the planting holes and mixe d with

soil. Thirty seedlings were used for each treatment. Once a

month for two months, RCD and height of seedlings were

measured. In addition soil samples were collect ed from the base

of each growing seedling for moisture analysis.

Determination of Soil Moisture

50 g soil from 0 - 10 cm horizons were collected in the field

under Cajanus cajan seedlings using a soil auger seedlings.

Initial weight was determined and the sample oven-dried at

100˚C. Oven dry weight was determined and soil moisture

content determined.

The data collecte d were analyzed using Microsoft Excel;

Analysis Toolpak, a computer package for data analysis. F-test

was used to test the level of significance.

Results and Discussion

Effects of Hydrogels on the Growth of Seedlings in

the Nursery

Cajanus cajan seedlings established in soils with no hydro-

gels gave higher height growth than those in soils treated with

hydrogels (Figure 2). Soils treated with the higher amount of

hydrogels (H15 g) gave the least growth in height of the seedl-

ings. Analy sis of variance for the hei gh t of Cajanus cajan

seedlings showed that {F0.05(1) [3,15] = 3.6182 > F c rit i cal

(3.4903)} implying t hat hydrogels application had a significant

effect on the height growth.

Cajanus cajan seedlings established in soils with no hy dro-

gels gave higher RCD growth compared to those established in

soils treated with hydrogels (Figure 3). Analysis of variance

showed that {F0.05(1) [3,15] = 6.9127 > F critic al (6.2913)}

implying that hydrogels appl ic at ion had a significant effe ct on

the root collar diameter growth.

Increasing levels of hydrogels had a negative effect on the

growth of seedlings in the nursery both in height and RCD

(Figures 2 and 3). Hydrogels also absorb water and fi ll the soil

pores causing flooding in the po l ythene tubes therefore retard-

ing the growth of seedlings (Del Campo et al., 2011; Korsaeth,

2012).

Effects of Hydrogels on the Growth of Seedlings in

the Field

Cajanus cajan seedlings grown in soils with no hydrogels

gained lower growth in height than those in soils treated with

hydrogels (Figure 4). Analysis of variance for the height of

C. GILBERT ET AL.

OPEN ACCESS

Height (cm)

Time (weeks)

H7g

H11g

H15g

Figure 2.

Effects of hydrogels on height of Cajanus cajan seedlings in the nur-

sery.

0.02

0.04

0.06

0.08

0.1

0.12

0.14

RCD ( cm )

Time (weeks

)

H7 g

H11g

H15g

Figure 3.

Effects of hydrogels on RCD of Cajanus cajan seedlings in the nursery.

During

transplanting

1st

2nd

3rd

Height (cm)

Time (Months)

H7 g

H11g

H15g

Figure 4.

Effects of hydrogels on height of transplanted seedlings after 3 months.

Cajanus cajan showed that {F0.05(1) [3,15] = 144.8962 > F

critic al (3.4903)}. This showed that hydrogels had a significant

effect on the growth of transplanted seedlings hence use of

hydrogels to amend soils in the field had a positive impact on

height growth.

Cajanus cajan seedlings grown in soils with no hydrogels

gained least growth in RCD compared with those in soils treated

with hydrogels (Figure 5). Analysis of variance for the height

of Cajanus caj an showed that {F0.05(1) [3,15] = 138.89 > F

critic al (3.4903)}. This showed that hydrogels had a significant

effect on the growth of transplanted seedlings hence use of hy-

drogels in soils in the field has a positive impact on RCD growth.

Hydrogels is used in arid and semi -arid areas to improve the

growth of agroforestry tree species. They absorb water, im-

proving growth of transplanted seedlings under arid conditions

(Chen et al., 2010). The results of Chen et al. (2010) confirm

that changes in soil nu trie nt st a tus were influenced by the ap-

plication of hydrogels which led to the increase in soil fertility

and hence the differences in growth rate.

Effects of Hydrogels on Soil Moisture

Soil moisture contents we re determined in subplots under the

species. Results are presented in Figure 6. In the arid and semi

arid climate, hydrogels had an impact on soil moisture content

in the soil af t er transplanting. Anal ysi s of variance showed that;

F0.05(1) > F critical, implying that hydrogels had a significant

effect on the growth of transplanted seedlings in the field.

Landis (2012) reported that hydrogels improved soil moisture

content and provided water to the plants during dry seasons.

This was experienced in soils treate d with hydrogels that gained

more soil moisture as compared to controls.

Conclusion

Hydrogels reta rd ed growth of seedlings in the nursery but

improve the same after transplanting. They increase soil moisture

content under arid and semi-arid conditions, therefore increasing

seedlings survival after transplanting.

Further studies need to be done to compare the effects of hy-

drogels on a range of soil types using a wide range of tree species.

0.1

0.2

0.3

0.4

0.5

0.6

During

transplanting

1st

2nd

3rd

RCD (cm)

Time (months)

H7 g

H11g

H15g

Figure 5.

Effects of hydrogels on height of transplante d seedlings after 3 months.

Figure 6.

Effects of hydrogels on soil moisture after transplanting.

C. GILBERT ET AL.

OPEN ACCESS

REFERENCES

Abedi-Koupai, J., Sohrab, F., & Swarbrick, G. (2008). Evaluation of

hydrogels application on soil water retention characteristics. Journal

of Plant Nutrition, 31, 317-331.

http://dx.doi.org/10.1080/01904160701853928

Chen, M. S., Huang, Y., Zou, J, W., Shen, Q, R., Hua, Z. H., Qin, Y,

M., Chen, H, S., & Pan, G. X. (2010). Modeling inter-annual varia-

bility of global soil respiration from climate and soil properties.

Nanjing: College of Environmental Science and Engineering.

Chirino, E., Vilagrosa, A., Cortina, J., Valdecantos, A., Fuentes, D.,

Trubat, R., Luis, V. C., Puértolas, J., Bautista, S., Baeza, J., Peñuelas,

J. L., & Vallejo, V. R. (2008). Ecological restoration in degraded

drylands: the need to improve the seedling quality and site conditions

in the field. In S. P. Grossberg (Ed.), Forest management (pp. 85-

158). New York: Nova Science Publishers, Inc.

Del Campo, A. D., Hermoso, J., Flors, J., Lidon, A., & Navarro-Cer-

rillo, R. M. (2011). Nursery location and potassium enrichment in

Aleppo pine stock 2. Performance under real and hydrogels-mediated

drought conditions. Forestry, 84, 235-245.

http://dx.doi.org/10.1093/forestry/cpr009

GoK (2010). National climate change respo nse strategy. Nairobi: Min-

istry of Environment and Mineral Resources, Government of Kenya.

IPCC, (2008). Climate Change and Water, Intergovernmental Panel on

Climate Change Technical Report IV. June 2008.

Korsaeth, A. (2012). N, P, and K budgets and changes in selected top-

soil nutrients over 10 years in a long-term experiment with conven-

tional and organic crop rotations. Kapp: Norwegian Institute for

Agricultural and Environmental Research.

Landis, T. C., & Haase, D. L. (2012). Applications of hydrogels in the

nursery and during out planting. In: D. L. Haase, J. R. Pinto, L. E.

Riley, & Technical Coordinators (Eds.), National Proceedings: For-

est and Conservation Nursery Associations 2011 (pp. 53-58). Fort

Collins, CO: USDA Forest Service, Rocky Mountain Research Sta-

tion.

Luo, Z. K., Wang , E. L., Sun, O. J., Smith, C. J., & Probert, M. E.

(2011). Modeling long-term soil carbon dynamics and sequestration

potential in semi-arid agro-ecosystems. Agricultural and Forest Me-

teorology, 151, 1529-1544.

Muchiri, K., Ochieng, B., Tuwei, P., & Wanjiku (2009). Kenya Fore-

stry Research Institute Proceedings of the 4th KEFRI Scientific Con-

ference. Recent advances in forestry research for environmental

conservation, improved livelihood and economic development. Mu-

guga: KEFRI.

Okorie, F. C. (2003). Studies on drought in the Sub-Saharan Region of

Nigeria usi ng satellite remote sensing and precipitation data. Lagos:

University of Lagos.
