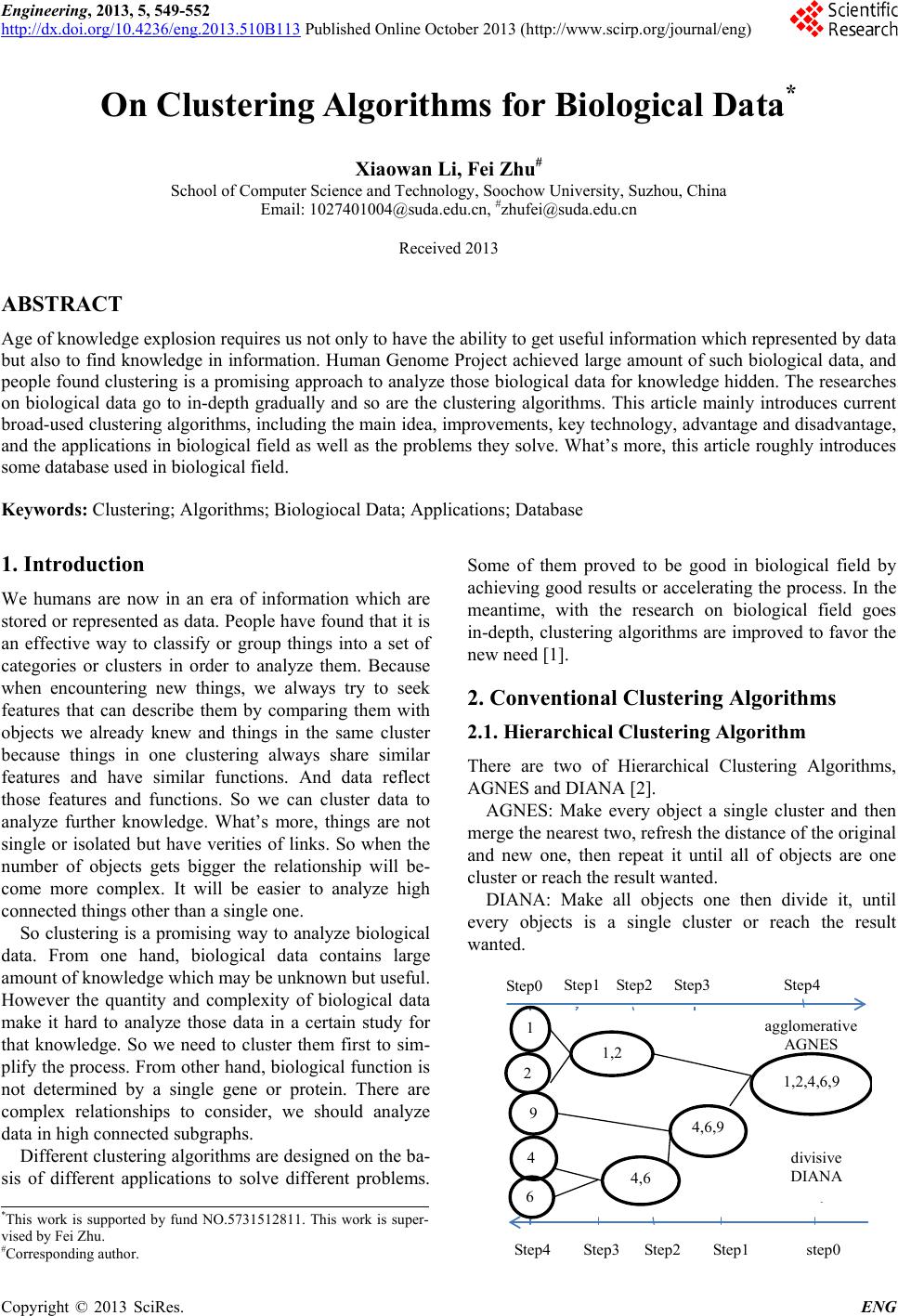

On Clustering Algorithms for Biological Data

doi:10.4236/eng.2013.510B113

Paper Menu >>

Journal Menu >>

Engineering, 2013, 5, 549-552

http://dx.doi.org/10.4236/eng.2013.510B113 Published Online October 2013 (http://www.scirp.org/journal/eng)

On Clustering Algorithms for B iological Data*

Xiaowan Li, Fei Zhu#

School of Computer Science and Technology, Soochow University, Suzhou, China

Email: [email protected], #[email protected]

Received 2013

ABSTRACT

Age of knowledge explosion requires us not only to have the ability to get useful information which represented by data

but also to find knowledg e in information. Human Genome Project achieved large amount of such biologica l data, and

people foun d clustering is a promising approach to analyze those biological data for knowledge hidden. The researches

on biological data go to in-depth gradually and so are the clustering algorithms. This article mainly introduces current

broad-used clustering algo rithms, including the main idea, improvements, key technology, advantage and disadvantage,

and the applications in biological field as well as the problems they solve. What’s more, this article roughly introduces

some database used in biological field.

Keywords: Clustering; Algorithms; Biologiocal Data; Applications ; Database

1. Introduction

We humans are now in an era of information which are

stored or represented as data. People have found that it is

an effective way to classify or group things into a set of

categories or clusters in order to analyze them. Because

when encountering new things, we always try to seek

features that can describe them by comparing them with

objects we already knew and things in the same cluster

because things in one clustering always share similar

features and have similar functions. And data reflect

those features and functions. So we can cluster data to

analyze further knowledg e . What’s more, things are not

single or isolated but have verities of links. So when the

number of objects gets bigger the relationship will be-

come more complex. It will be easier to analyze high

connected things other than a s i ngle one.

So clustering is a promising way to analyze biological

data. From one hand, biological data contains large

amount of knowledge which may be unknown but useful.

However the quantity and complexity of biological data

make it hard to analyze those data in a certain study for

that knowledge. So we need to cluster them first to sim-

plify the process. From other hand, biological function is

not determined by a single gene or protein. There are

complex relationships to consider, we should analyze

data in high connected subgraphs.

Different clustering a lgorithms are designed on th e ba-

sis of different applications to solve different problems.

Some of them proved to be good in biological field by

achieving good results or accelerating the process. In the

meantime, with the research on biological field goes

in-depth, clustering algorithms are improved to favor the

new need [1].

2. Conventional Clustering Algorithms

2.1. Hierarchical Clusterin g Algorithm

There are two of Hierarchical Clustering Algorithms,

AGNES and DIA NA [2].

AGNES: Make every object a single cluster and then

merge the nearest two, refresh the distance of the original

and new one, then repeat it until all of objects are one

cluster or reach the result wanted.

DIANA: Make all objects one then divide it, until

every objects is a single cluster or reach the result

wanted.

1,2

4,6

1,2,4,6,9

4,6,9

Step4 Step3 Step2 Step1 step0

agglomerative

AGN ES

divisive

DIANA

Step2

Step3

Step4

Step0

Step1

*This work is supported by fund NO.5731512811. This work is super-

vised by Fei Zhu.

#Corresponding author.

X. W. LI, F. ZHU

550

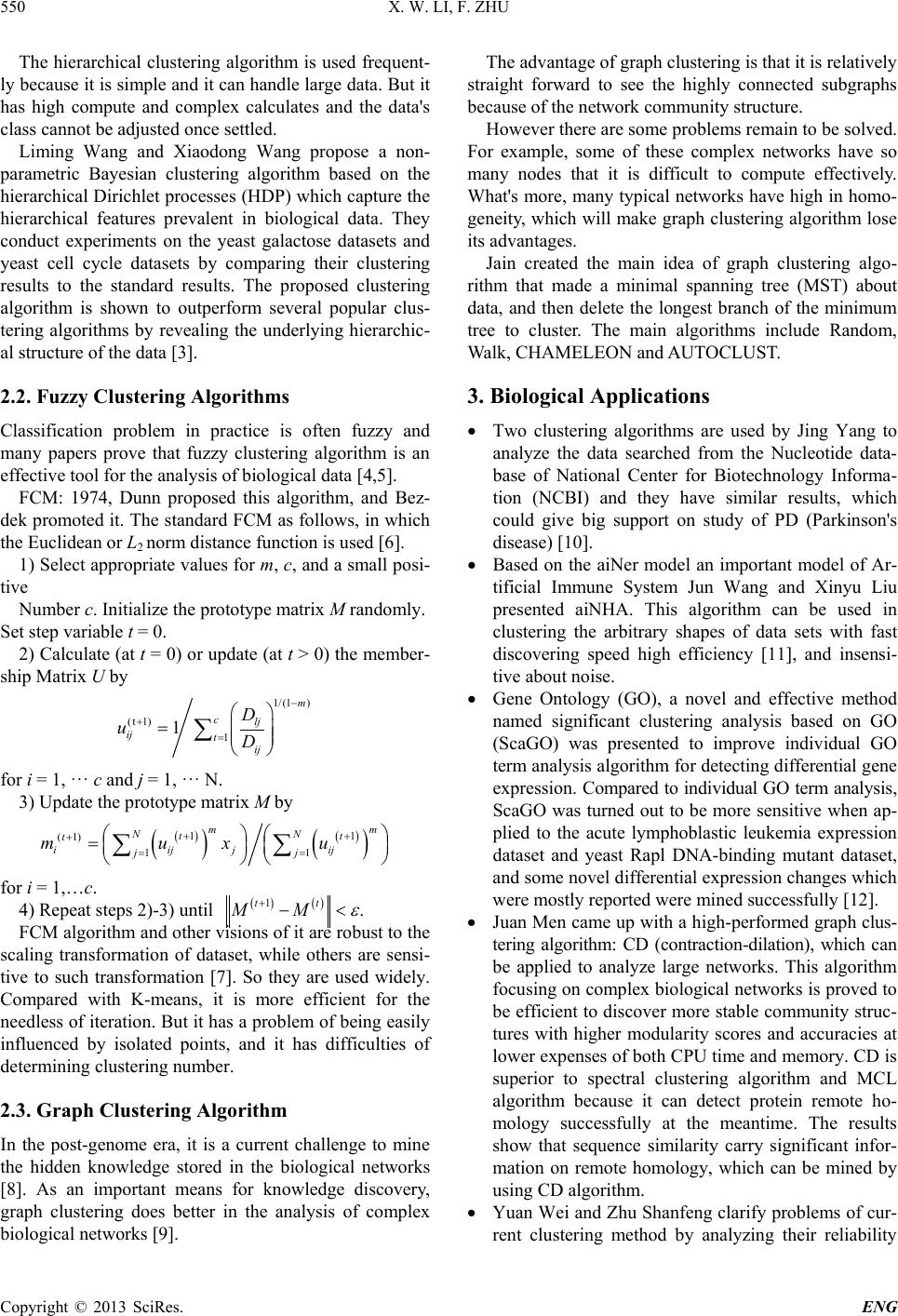

The hierarchical clustering algorithm is used frequent-

ly because it is simple and it can handle large data. But it

has high compute and complex calculates and the data's

class cannot be adjusted once settled.

Liming Wang and Xiaodong Wang propose a non-

parametric Bayesian clustering algorithm based on the

hierarchical Dirichlet processes (HDP) which capture the

hierarchical features prevalent in biological data. They

conduct experiments on the yeast galactose datasets and

yeast cell cycle datasets by comparing their clustering

results to the standard results. The proposed clustering

algorithm is shown to outperform several popular clus-

tering algorithms by revealing the underlying hierarchic-

al structure of the data [3].

2.2. Fuzzy Clustering Algorithms

Classification problem in practice is often fuzzy and

many papers prove that fuzzy clustering algorithm is an

effective tool for the analysis of biological data [4,5].

FCM: 1974, Dunn proposed this algorithm, and Bez-

dek promoted it. The standard FCM as follows, in which

the Euclidean or L2 norm distance function is used [6].

1) Select appropriate values for m, c, and a small posi-

tive

Number c. Initialize the prototype matrix M ran domly.

Set step variable t = 0.

2) Calculate (at t = 0) or update (at t > 0) t he me mber -

ship Matrix U by

1/(1 )

(t 1)

clj

ij tij

−



=





∑

for i = 1, ··· c and j = 1, ··· N.

3) Update the prototype matrix M by

( )

( 1)

iij jij

mux u

= =

 

= 

 

∑∑

for i = 1,…c.

4) Repeat steps 2)-3) until

()( )

−<

FCM algorithm and other visions of it are robust to the

scaling transformation of dataset, while others are sensi-

tive to such transformation [7]. So they are used widely.

Compared with K-means, it is more efficient for the

needless of iteration. But it has a problem of being easily

influenced by isolated points, and it has difficulties of

determining cl us t e r i ng numbe r .

2.3. Graph Clustering Algorithm

In the post-genome era, it is a current challenge to mine

the hidden knowledge stored in the biological networks

[8]. As an important means for knowledge discovery,

graph clustering does better in the analysis of complex

biological networks [9].

The advantage of graph clu s tering is that it is relatively

straight forward to see the highly connected subgraphs

because of the network community structure.

However there are some problems remain to be solved.

For example, some of these complex networks have so

many nodes that it is difficult to compute effectively.

What's more, many typical networks have high in homo-

geneity, which will make graph clustering algorithm lose

its advantages.

Jain created the main idea of graph clustering algo-

rithm that made a minimal spanning tree (MST) about

data, and then delete the longest branch of the minimum

tree to cluster. The main algorithms include Random,

Walk, CHAMELEON and AUTOCLUST.

3. Biological Applications

• Two clustering algorithms are used by Jing Yang to

analyze the data searched from the Nucleotide data-

base of National Center for Biotechnology Informa-

tion (NCBI) and they have similar results, which

could give big support on study of PD (Parkinson's

disease) [10].

• Based on the aiNer model an important model of Ar-

tificial Immune System Jun Wang and Xinyu Liu

presented aiNHA. This algorithm can be used in

clustering the arbitrary shapes of data sets with fast

discovering speed high efficiency [11], and ins e ns i-

tive about noise.

• Gene Ontology (GO), a novel and effective method

named significant clustering analysis based on GO

(ScaGO) was presented to improve individual GO

term analysis algorithm for detecting differential gene

expression. Compared to individual GO term analysis,

ScaGO was turned out to be more sensitive when ap-

plied to the acute lymphoblastic leukemia expression

dataset and yeast Rapl DNA-binding mutant dataset,

and some novel differential expression changes which

were mostly reported were mined successfully [12].

• Juan Men came up with a high-performed graph clus-

tering algorithm: CD (contraction-dilation), which can

be applied to analyze large networks. This algorithm

focu sing on complex biological networks is proved to

be efficient to discover more stable community struc-

tures with higher modularity scores and accuracies at

lower expenses of both CPU time and memory. CD is

superior to spectral clustering algorithm and MCL

algorithm because it can detect protein remote ho-

mology successfully at the meantime. The results

show that sequence similarity carry significant infor-

mation on remote homology, which can be mined by

using CD algorithm.

• Yuan Wei and Zhu Shanfeng clarify problems of cur-

rent clustering method by analyzing their reliability

X. W. LI, F. ZHU

551

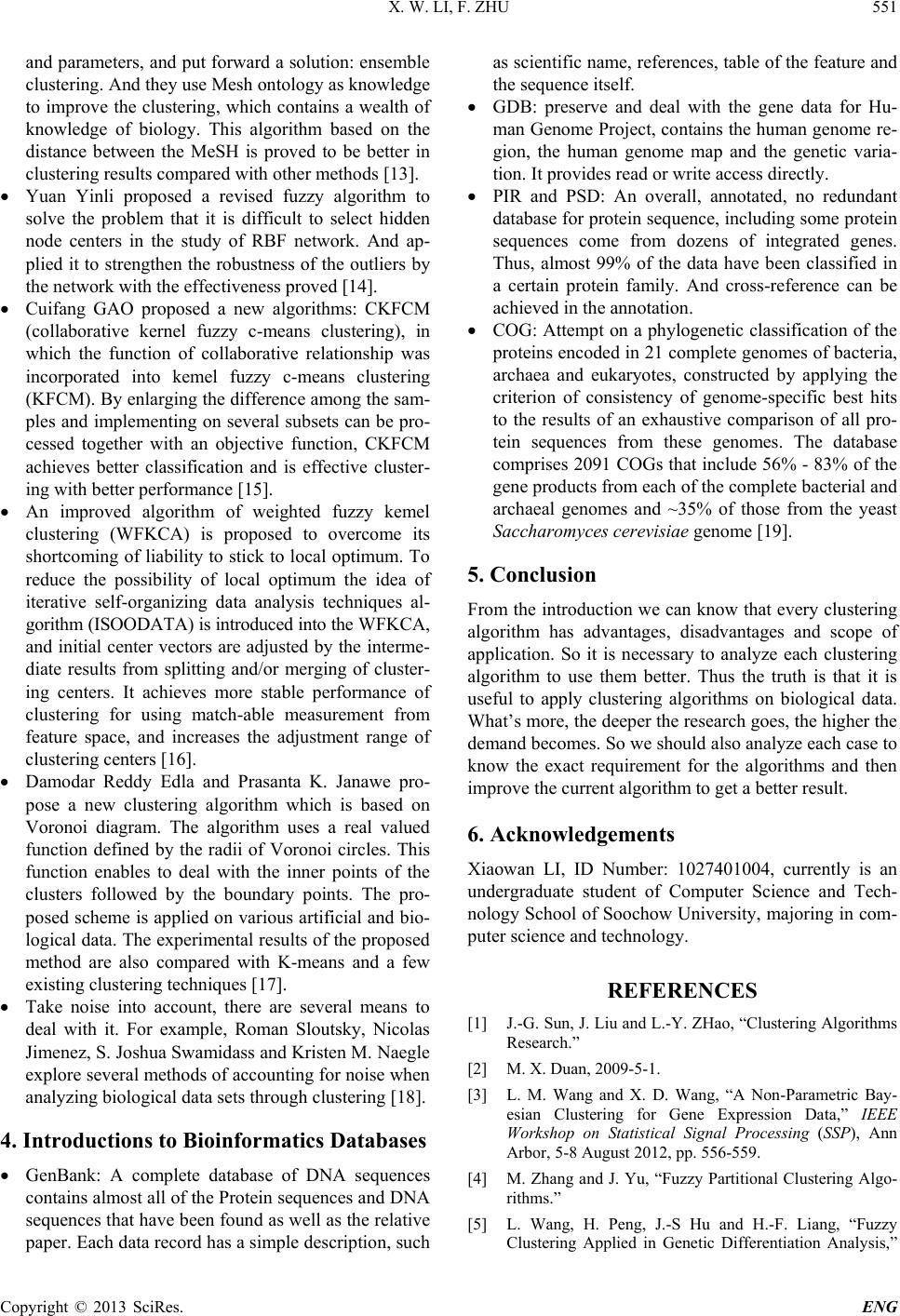

and parameters, and put forward a solution: ensemble

clustering. And they use Mesh ontology as knowledge

to improve the clustering, which contains a wealth of

knowledge of biology. This algorithm based on the

distance between the MeSH is proved to be better in

clustering results compared with other methods [13].

• Yuan Yinli proposed a revised fuzzy algorithm to

solve the problem that it is difficult to select hidden

node centers in the study of RBF network. And ap-

plied it to strengthen the robustness of the outliers by

the network with the effectiveness proved [14].

• Cuifang GAO proposed a new algorithms: CKFCM

(collaborative kernel fuzzy c-means clustering), in

which the function of collaborative relationship was

incorporated into kemel fuzzy c-means clustering

(KFCM). By enlarging the difference among the sam-

ples and implementing on several subsets can be pro-

cessed together with an objective function, CKFCM

achieves better classification and is effective cluster-

ing with better per formance [15].

• An improved algorithm of weighted fuzzy kemel

clustering (WFKCA) is proposed to overcome its

shortcoming of liability to stick to local optimum. To

reduce the possibility of local optimum the idea of

iterative self-organizing data analysis techniques al-

gorithm (ISOODATA) is introduced into the WFKCA,

and initial center vectors are adjusted by the interme-

diate results from splitting and/or merging of cluster-

ing centers. It achieves more stable performance of

clustering for using match-able measurement from

feature space, and increases the adjustment range of

clustering centers [16].

• Damodar Reddy Edla and Prasanta K. Janawe pro-

pose a new clustering algorithm which is based on

Voronoi diagram. The algorithm uses a real valued

function defined by the radii of Voronoi circles. This

function enables to deal with the inner points of the

clusters followed by the boundary points. The pro-

posed scheme is applied on various artificial and bio-

logical data. The experimental results of the proposed

method are also compared with K-means and a few

existing clustering techn iques [17].

• Take noise into account, there are several means to

deal with it. For example, Roman Sloutsky, Nicolas

Jimenez, S. Joshua Swamidass and Kristen M. Naegle

explore several methods of accounting for noise when

analyzing biological data sets through clustering [18].

4. Introductions to Bioinformatics Databases

• GenBank: A complete database of DNA sequences

contains almost all of the Protein sequences and DNA

sequences that have been found as well as the relative

paper. Each data record has a simple description, such

as scientific name, references, table of the feature and

the sequence itself.

• GDB: preserve and deal with the gene data for Hu-

man Genome Project, contains the human genome re-

gion, the human genome map and the genetic varia-

tion. It provides read or write access directly.

• PIR and PSD: An overall, annotated, no redundant

database for protein sequence, including some protein

sequences come from dozens of integrated genes.

Thus, almost 99% of the data have been classified in

a certain protein family. And cross-reference can be

achieved in the annotation.

• COG: Attempt on a phylogenetic classification of the

proteins encoded in 21 complete genomes of bacteria,

archaea and eukaryotes, constructed by applying the

criterion of consistency of genome-specific best hits

to the results of an exhaustive comparison of all pro-

tein sequences from these genomes. The database

comprises 2091 COGs that include 56% - 83% of the

gene produc t s from each of the complete bacterial and

archaeal genomes and ~35% of those from the yeast

Saccharomyces cerevisiae genome [19].

5. Conclusion

From the introd uction we can know that every clustering

algorithm has advantages, disadvantages and scope of

application. So it is necessary to analyze each clustering

algorithm to use them better. Thus the truth is that it is

useful to apply clustering algorithms on biological data.

What’s more, the deeper the research goes, the higher the

demand becomes. So we should also analyze each case to

know the exact requirement for the algorithms and then

improve the current algorithm to get a better result.

6. Acknowledgements

Xiaowan LI, ID Number: 1027401004, currently is an

undergraduate student of Computer Science and Tech-

nology School of Soochow University, majoring in com-

puter science and technology.

REFERENCES

[1] J.-G. Sun, J. Liu and L.-Y. ZHao, “Clustering Algorithms

Research.”

[2] M. X. Duan, 2009-5-1.

[3] L. M. Wang and X. D. Wang, “A Non-Parametric Bay-

esian Clustering for Gene Expression Data,” IEEE

Workshop on Statistical Signal Processing (SSP), Ann

Arbor, 5-8 August 2012, pp. 556-559.

[4] M. Zhang and J. Yu, “Fuzzy Partitional Clustering Algo-

rithms.”

[5] L. Wang, H. Peng, J.-S Hu and H.-F. Liang, “Fuzzy

Clustering Applied in Genetic Differentiation Analysis,”

X. W. LI, F. ZHU

552

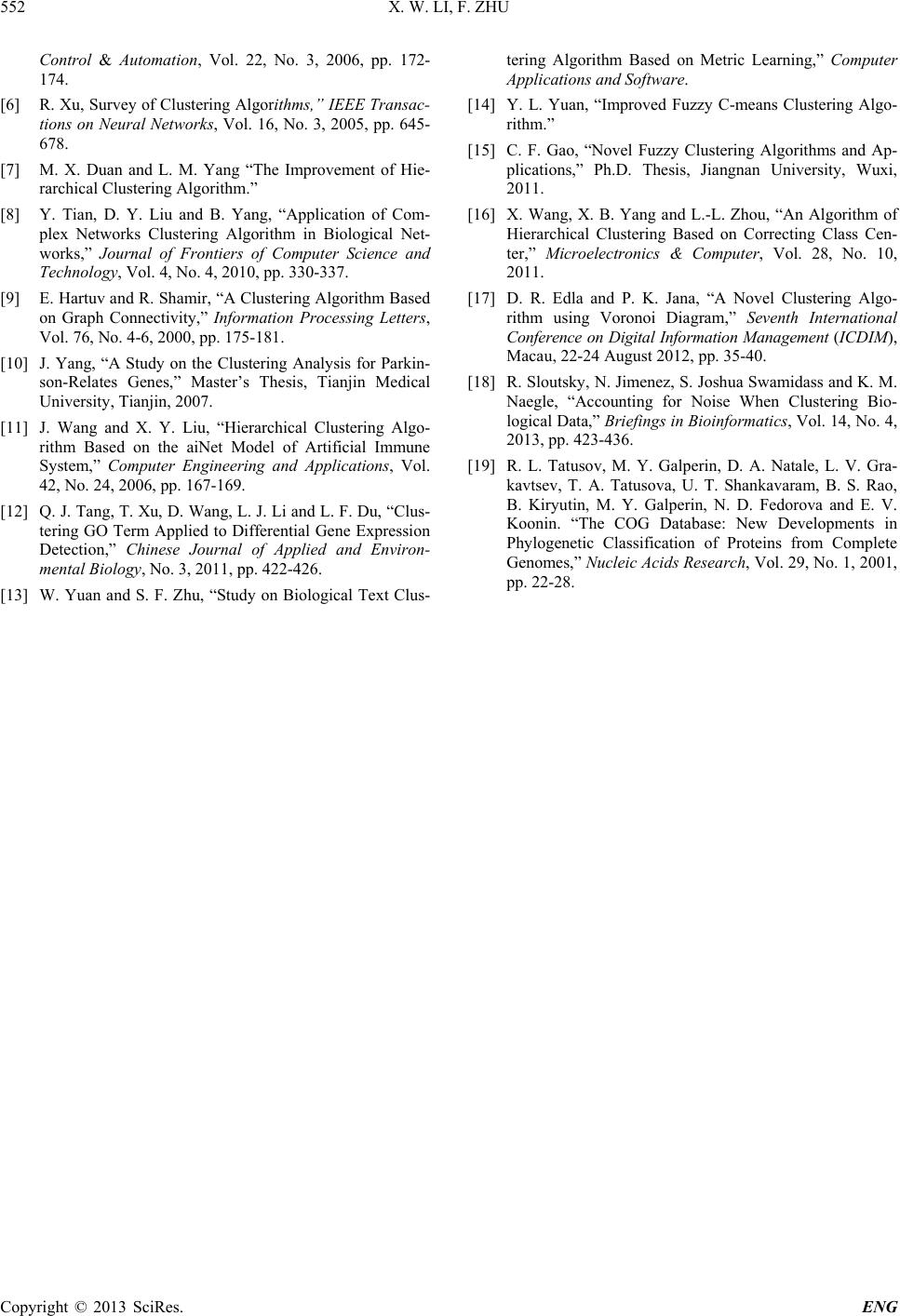

Control & Automation, Vol. 22, No. 3, 2006, pp. 172-

174.

[6] R. Xu, Survey of Clustering Algorit hms,” IEEE Transac-

tions on Neural Networks, Vol. 16, No. 3, 2005, pp. 645-

678.

[7] M. X. Duan and L. M. Yang “The Improvement of Hie-

rarchical Clustering Algorithm.”

[8] Y. Tian, D. Y. Liu and B. Yang, “Application of Com-

plex Networks Clustering Algorithm in Biological Net-

works,” Journal of Frontiers of Computer Science and

Technology, Vol. 4, No. 4, 2010, pp. 330-337.

[9] E. Hartuv and R. Shamir, “A Clustering Algorithm Based

on Graph Connectivity,” Information Processing Letters,

Vol. 76, No. 4-6, 2000, pp. 175-181.

[10] J. Yang, “A Study on the Clustering Analysis for Parkin-

son-Relates Genes,” Master’s Thesis, Tianjin Medical

University, Tianjin, 2007.

[11] J. Wang and X. Y. Liu, “Hierarchical Clustering Algo-

rithm Based on the aiNet Model of Artificial Immune

Sys t e m,” Computer Engineering and Applications, Vol.

42, No. 24, 2006, pp. 167-169.

[12] Q. J. Tang, T. Xu, D. Wang, L. J. Li and L. F. Du, “Clus-

tering GO Term Applied to Differential Gene Expression

Detection,” Chinese Journal of Applied and Environ-

mental Biology, No. 3, 2011, pp. 422-426.

[13] W. Yuan and S. F. Zhu, “Study on Biological Text Clus-

tering Algorithm Based on Metric Learning,” Computer

Applications and Software.

[14] Y. L. Yuan, “Improved Fuzzy C-means Clustering Algo-

rithm.”

[15] C. F. Gao, “Novel Fuzzy Clustering Algorithms and Ap-

plications,” Ph.D. Thesis, Jiangnan University, Wuxi,

2011.

[16] X. Wang, X. B. Yang and L.-L. Zhou, “An Algorithm of

Hierarchical Clustering Based on Correcting Class Cen-

ter,” Microelectronics & Computer, Vol. 28, No. 10,

2011.

[17] D. R. Edla and P. K. Jana, “A Novel Clustering Algo-

rithm using Voronoi Diagram,” Seventh International

Conference on Digital Information Management (ICDIM),

Macau, 22-24 August 2012, pp. 35-40.

[18] R. Sloutsky, N. Jimenez, S. Joshua Swamidass and K. M.

Naegle, “Accounting for Noise When Clustering Bio-

logical Data,” Briefings in Bioinformatics, Vol. 14, No. 4,

2013, pp. 423-436.

[19] R. L. Tatusov, M. Y. Galperin, D. A. Natale, L. V. Gra-

kavtsev, T. A. Tatusova, U. T. Shankavaram, B. S. Rao,

B. Kiryutin, M. Y. Galperin, N. D. Fedorova and E. V.

Koonin. “The COG Database: New Developments in

Phylogenetic Classification of Proteins from Complete

Genomes,” Nucleic Acids Research, Vol. 29, No. 1, 2001,

pp. 22-28.
