Tako-tsubo syndrome after administration of intravenous adrenaline during atrioventricular block

doi:10.4236/ojem.2013.12003

Paper Menu >>

Journal Menu >>

Vol.1, No.2, 8-10 (2013) Open Journal of Emergency Medicine

http://dx.doi.org/10.4236/ojem.2013.12003

Tako-tsubo syndrome after administration of

intravenous adrenaline during atrioventricular block

Manuel Calvo-Taracido, Manuel Almendro-Delia, Juan C. Garcia-Rubira*

Unidad de Gestion de Cardiologia, Hospital Universitario Virgen Macarena, Sevilla, Spain;

*Corresponding Author : [email protected]

Received 20 October 2013; revised 22 November 2013; accepted 17 December 2013

License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

ABSTRACT

We describe the clinical case of a 70-year-old

woman with complete atrioventricular block that

after administration of intravenous adrenaline,

developed electrocardiographic changes sug-

gestive of acute coronary syndrome, together

with apical dyskinesia of the left ventricle. After

ruling out the existence of coronary lesions, and

after total recovery of the echocardiographic al-

terations in segmental contractility, she was di-

agnosed as Tako-tsubo syndrome induced by

administration of adrenaline. This is the first re-

port of this syndrome in the scenario of atrio-

ventricular block treated with adrenaline infu-

sion.

Keywords: Adrenaline; Asystole; Atrioventricular

Block; Tako-Tsubo Syndrome

1. CASE REPORT

A 70-year-old woman suffered two episodes of syn-

cope of a few seconds duration at home, with no prior

chest pain. She had a previous history of hypertension,

and no other significant pathologies. At the arrival of the

emergency team, an electrocardiogram was performed,

showing a complete atrioventricular block with episodes

of asystole (Figure 1). Two milligrams of atropine and

adrenaline infusion were administered immediately and

the patient was then carried to the ambulance. A new

electrocardiogram performed then showed intraventricu-

lar conduction disturbance and ST segment elevation in

inferior and anterolateral leads together with the atrio-

ventricular block (Figure 2). The patient suffered several

episodes of syncope in the ambulance, with hemody-

namic instability dur ing all the transport time. On arrival

at the emergency room, a temporary pacemaker was im-

planted, and the adrenaline infusion was retired. De-

creased level of consciousness was the dominant symp-

tom. Serial analysis revealed a modest rise of myocardial

injury markers: Maximum CPK 92 U/L (normal < 195),

Troponine-T 0.64 ng/ml (upper limit 0.05). Transthoracic

echocardiography showed mild concentric hypertrophy

(interventricular septum 13 mm, posterior wall 14 mm),

and dyskinesia of the apical segments. Global systolic

function was moderately depressed (left ventricular ejec-

tion fraction 0.45). Coronary angiography showed no an-

giographic lesions. On the third day she recovered sinus

rhythm at 88 beats per minute with deep T-wave inver-

sion in precordial leads (Figure 3). She underwent a

permanent DDD pacemaker implantation, and was dis-

charged fully asymptomatic. Control echocardiography 4

weeks later showed normal contractility.

2. DISCUSSION

Tako-tsubo syndrome was first described in Japan by

Sato et al. [1]. It is characterized by a transitory ven-

tricular dysfunction associated with elevation of myo-

cardial damage enzymes in small amount in the absence

of coronary lesions. Prognosis seems to be better with

thi s syn drome than with the acute coronary synd rome [ 2] .

ST-segment elevation is one of the characteristic presen-

tations of this syndrome, and frequently involves anterior

and inferior derivations [3], as it occurred in our case in

the electrocardiogram of the early hours after admission.

Other patients do not show this pattern, but only have

T-wave inversion. The T-wave inversion presentation

seems to be more frequent in Caucasian people [4].

There are several hypotheses about the pathophysiol-

ogy of this syndrome; the most accepted is the catechol-

aminergic hypothesis. According to it, high levels of ca-

thecolamines induced by stress result in myocardial

M. Calvo-Taracido et al. / Open Journal of Emergency Medicine 1 (2013) 8-10 9

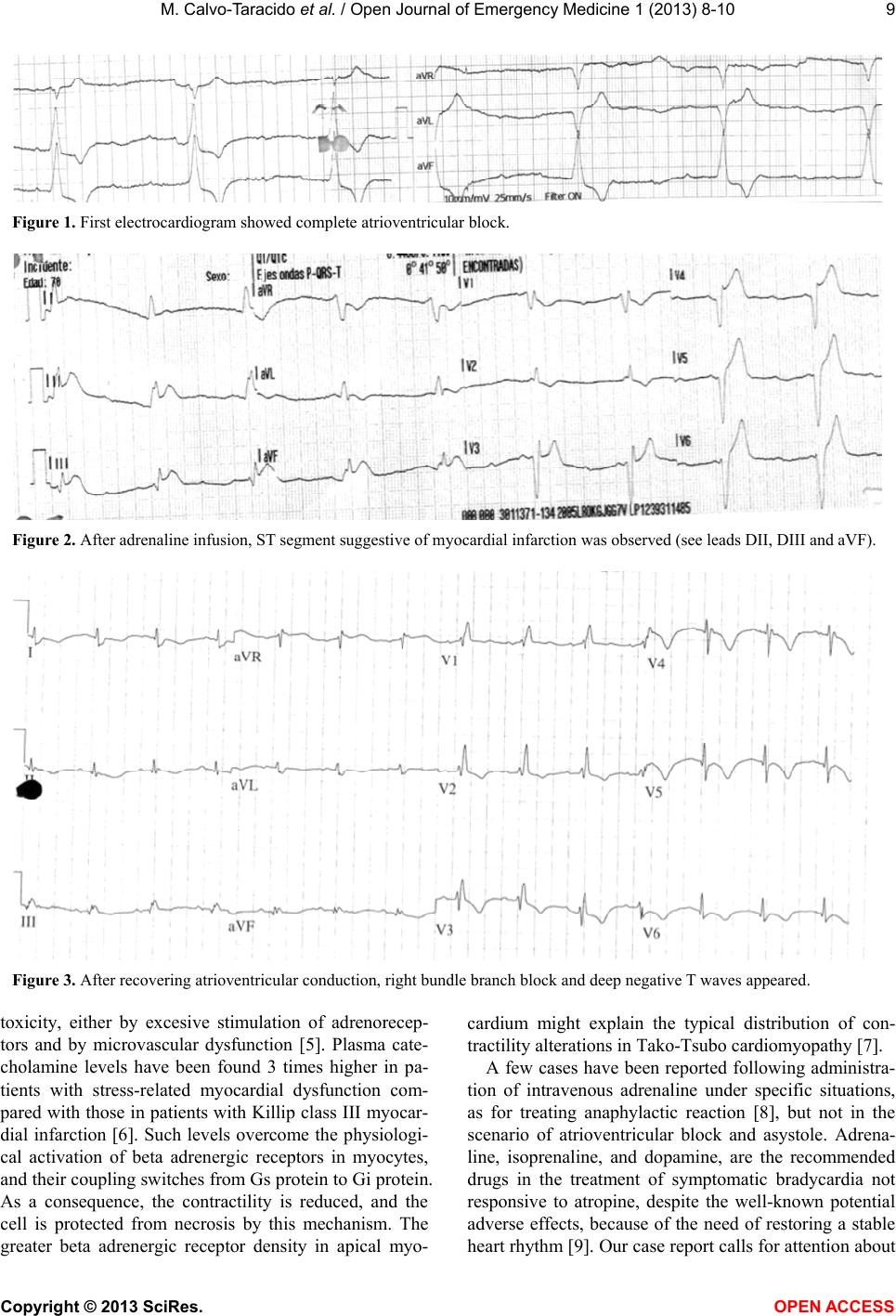

Figure 1. First electrocardiogram showed complete atrioventricular block.

Figure 2. After adrenaline infusion, ST segment suggestive of myocardial infarction was observed (see leads DII, DIII and aVF).

Figure 3. After recovering atrioventricular conduction, right bundle branch block and deep negative T waves appeared.

toxicity, either by excesive stimulation of adrenorecep-

tors and by microvascular dysfunction [5]. Plasma cate-

cholamine levels have been found 3 times higher in pa-

tients with stress-related myocardial dysfunction com-

pared with those in patients with Killip class III myocar-

dial infarction [6]. Such levels overcome the physiologi-

cal activation of beta adrenergic receptors in myocytes,

and their coupling switches from Gs protein to Gi protein.

As a consequence, the contractility is reduced, and the

cell is protected from necrosis by this mechanism. The

greater beta adrenergic receptor density in apical myo-

cardium might explain the typical distribution of con-

tractility alterations in Tako-Tsubo ca rd iomyopat hy [7].

A few cases have been reported following administra-

tion of intravenous adrenaline under specific situations,

as for treating anaphylactic reaction [8], but not in the

scenario of atrioventricular block and asystole. Adrena-

line, isoprenaline, and dopamine, are the recommended

drugs in the treatment of symptomatic bradycardia not

responsive to atropine, despite the well-known potential

adverse effects, because of the need of restoring a stable

heart rhythm [9]. Our case report calls for attention about

M. Calvo-Taracido et al. / Open Journal of Emergency Medicine 1 (2013) 8-10

the convenience of recommending an electrocardiogram

whenever adrenaline treatment has been administered,

and perform an echocardiogram and determinations of

troponine or othe r necros is mark ers if significant ch an g es

are found on them. Although a single case report does

not have strength to generalize such a recommendation,

clinicians involved in emergency departments should be

aware of this possibility.

REFERENCES

[1] Sato, H., Tateishi, H. and Uchida, T. (1990) Takotsubo-

type cardiomiopathy due to multivessel spasm. In: Ko-

dama, K., Haze, K. and Hon, M., Ed., Clinical Aspect of

Myocardial Injury: From Ischemia to Heart Failure, Ka-

gakuhyouronsya, Tokyo, 56-64.

[2] Núñez-Gil, I.J., Fernández-Ortiz, A., Pérez-Isla, L., Lua-

ces, M., García-Rubira, J.C., Vivas, D., Gonzalez, J.J.,

Alonso, J., Zamorano, J.L. and Macaya, C. (2008) Clini-

cal and prognostic comparison between left ventricular

transient dyskinesia and a first non-ST-segment elevation

acute coronary syndrome. Coronary Artery Disease, 19,

449-453.

http://dx.doi.org/10.1097/MCA.0b013e32830eab74

[3] Zhan, Z.-Q., Wang, C. -Q., Sclarovsky, S., Ni ku, K.J., He,

C.-R. and Shan, M. (2013) ST-segment deviation pattern

of takotsubo cardiomyopathy similar to acute pericarditis:

Diffuse ST-segment elevation. Journal of Electrocardi-

ology, 46, 84-89.

http://dx.doi.org/10.1016/j.jelectrocard.2012.11.013

[4] Donohue, D. and Movahed, M.R. (2005) Clinical charac-

teristics, demographics and prognosis of transient left

ventricular apical ballooning syndrome. Heart Failure

Reviews, 10, 311-316.

http://dx.doi.org/10.1007/s10741-005-8555-8

[5] Milinis, K. and Fisher, M. (2012) Takotsubo cardiomyo-

pathy: Pathophysiology and treatment. Postgraduate

Medical Journal, 88, 530-538.

http://dx.doi.org/10.1136/postgradmedj-2012-130761

[6] Wittstein, I.S., Thiemann, D.R., Lima, J.A., Baughman,

K.L., Schulman, S.P., Gerstenblith, G., et al. (2005) Neu-

rohumoral features of myocardial stunning due to sudden

emotional stress. The New England Journal of Medicine,

352, 539-548. http://dx.doi.org/10.1056/NEJMoa043046

[7] Mori, H. (1993) Increased responsiveness of left ven-

tricular apical myocardium to adrenergic stimuli. Car-

diovascular Research, 27, 192-198.

http://dx.doi.org/10.1093/cvr/27.2.192

[8] Winogradow, J., Geppert, G., Reinhard, W., Resch, M.,

Radke, P.W. and Hengstenberg, C. (2011) Tako-tsubo car-

diomyopathy after administration of intravenous Adrena-

line during an anaphylactic reaction. International Jour-

nal of Cardiology, 147, 309-311.

http://dx.doi.org/10.1016/j.ijcard.2010.12.063

[9] Deakin, C.D., Nolan, J.P., Soar, J., Sunde, K., Koster,

R.W., Smith, G.B. and Perkins, G.D. (2010) European re-

suscitation council guidelines for resuscitation 2010 sec-

tion 4. Adult advanced life support. Resuscitation, 81,

1305-1352.

http://dx.doi.org/10.1016/j.resuscitation.2010.11.009
