Engineering, 2013, 5, 400-403

http://dx.doi.org/10.4236/eng.2013.510B081 Published Online October 2013 (http://www.scirp.org/journal/eng)

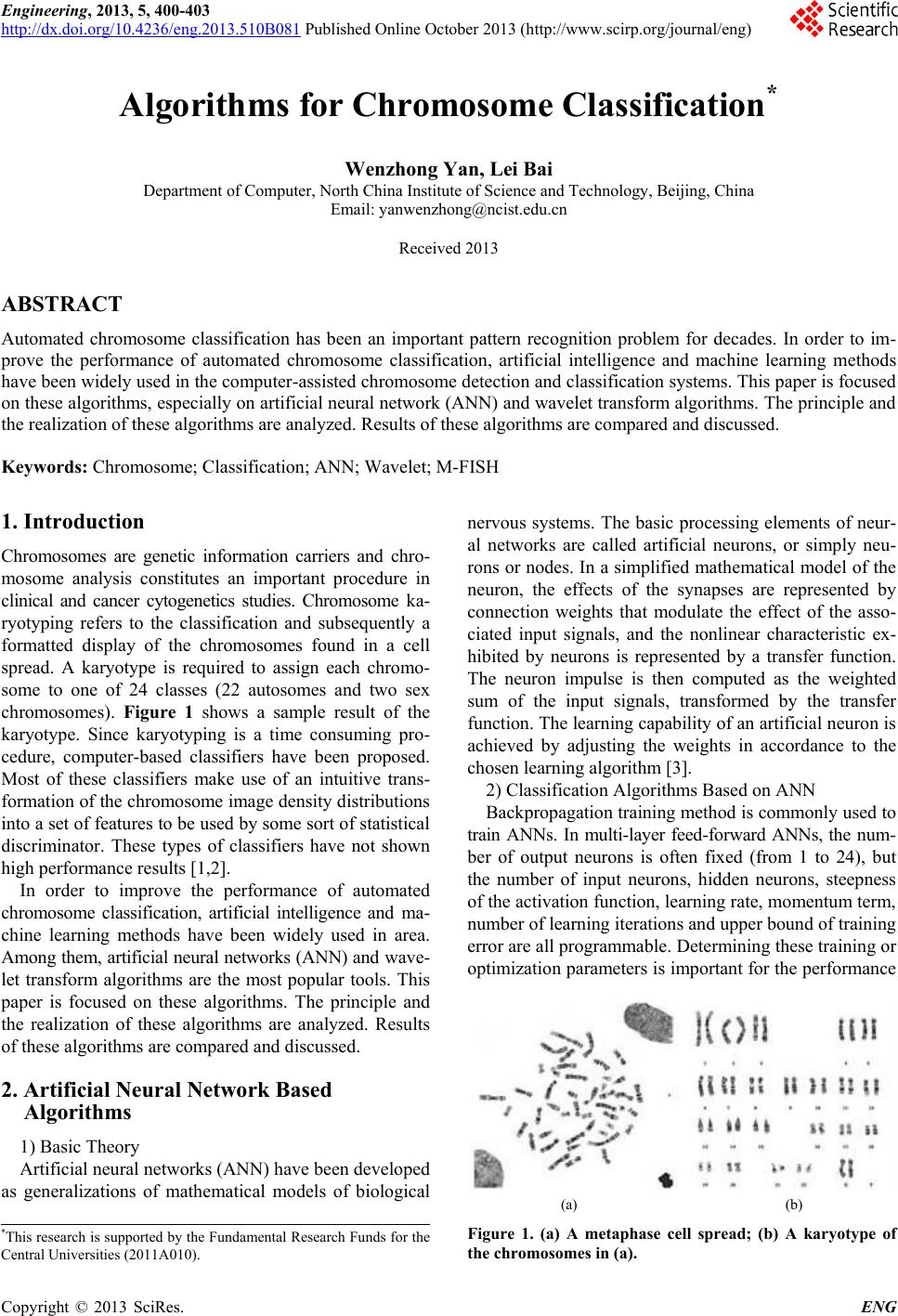

Algorithms for Ch romosome Classification*

Wenzhong Yan, Lei Bai

Department of Computer, North China Institute of Science and Technology, Beijing, China

Email: [email protected]

Received 2013

ABSTRACT

Automated chromosome classification has been an important pattern recognition problem for decades. In order to im-

prove the performance of automated chromosome classification, artificial intelligence and machine learning methods

have been widely used in the computer-assisted chromosome detection and classification systems. This paper is focused

on these algorithms, especially on artificial neur al network (ANN) and wavelet transform algorithms. The princ iple and

the realization of these algorithms are analyzed. Results of these algorithms are compared and discussed.

Keywords: Chromosome; Classification; ANN; Wavelet; M-FISH

1. Introduction

Chromosomes are genetic information carriers and chro-

mosome analysis constitutes an important procedure in

clinical and cancer cytogenetics studies. Chromosome ka-

ryotyping refers to the classification and subsequently a

formatted display of the chromosomes found in a cell

spread. A karyotype is required to assign each chromo-

some to one of 24 classes (22 autosomes and two sex

chromosomes). Figure 1 shows a sample result of the

karyotype. Since karyotyping is a time consuming pro-

cedure, computer-based classifiers have been proposed.

Most of these classifiers make use of an intuitive trans-

formation of the chromosome image density distributions

into a set of features to be used by some sort of statistical

discriminator. These types of classifiers have not shown

high perf o rmance re sults [1,2].

In order to improve the performance of automated

chromosome classification, artificial intelligence and ma-

chine learning methods have been widely used in area.

Among them, artificial neural networks (ANN) and wave-

let transform algorithms are the most popular tools. This

paper is focused on these algorithms. The principle and

the realization of these algorithms are analyzed. Results

of these algorithms are compared and discussed.

2. Artificial Neural Network Based

Algorithms

1) Basic Th eor y

Artificial neural networks (ANN) have been developed

as generalizations of mathematical models of biological

nervous systems. The basic processing elements of neur-

al networks are called artificial neurons, or simply neu-

rons or nodes. In a simplified mathematical model of the

neuron, the effects of the synapses are represented by

connection weights that modulate the effect of the asso-

ciated input signals, and the nonlinear characteristic ex-

hibited by neurons is represented by a transfer function.

The neuron impulse is then computed as the weighted

sum of the input signals, transformed by the transfer

function. The learning capability of an artificial neuron is

achieved by adjusting the weights in accordance to the

chosen learning algorithm [3].

2) Classification Algorithms Based on ANN

Backpropagation training method is commonly used to

train ANNs. In multi-layer feed-forward ANNs, the num-

ber of output neurons is often fixed (from 1 to 24), but

the number of input neurons, hidden neurons, steepness

of the activation function, learning rate, momentu m term,

number of learning iter ation s and upp er boun d of train ing

error are all programmable. Determining these training or

optimization parameters is important for the performance

(a) (b)

Figure 1. (a) A metaphase cell spread; (b) A karyotype of

the chromosomes in (a).

*This research is

supported by the Fundamental Research Funds for the

Central Universities (2011A010).

W. Z. YAN, L. BAI

401

and robustness of an ANN used in chromosome classifi-

cation [4].

In order to improve the performance of traditional

multilayer ANNs, a number of other more sophisticated

neural networks have been proposed and tested in this

area.

A hierarchical multi-layer neural network with an error

back-propagation training algorithm has been adopted for

the automatic classification of Giemsa-stained human

chromosomes. Firstly, chro mosomes data is classified into

7 major groups based on their morphological features

such as relative length, relative area, centromeric index,

and 80 density profiles. Then each 7 major groups are

classified into 24 subgroups using each group classifier.

Figure 2 shows the two steps of chromosome classifica-

tion. The classification error decreased by using two

steps of classification and the classification error was

5.9% [5].

A fuzzy Hopfield neural network is a combination

model of neuro and fuzzy computing. Its main difference

from the traditiona l ANN is that it holds fuzzy clustering

capability and learning mechanism of acquiring know-

ledge about the targets (human chromosomes) from the

noisy training samples. It develops a Classifier with the

Fuzzy Hopfield Network (CFHN) to identify each ob-

served human chromosome and assign it to one of the 24

human chromosome classes. In a test involving 100 hu-

man chromosomes, the fuzzy Hopfield neural network

produces a very low u nidenti f ication rate of 3. 33 % [6].

3. Wavelet Transforms Based Algorithms

Some researchers have set out to explore the use of

wavelet-based band pattern descriptors for chromosome

classification. Compared with other methods, wavelet

transforms use different basis functions that lead to the

desirable property of characterizing and localizing signal

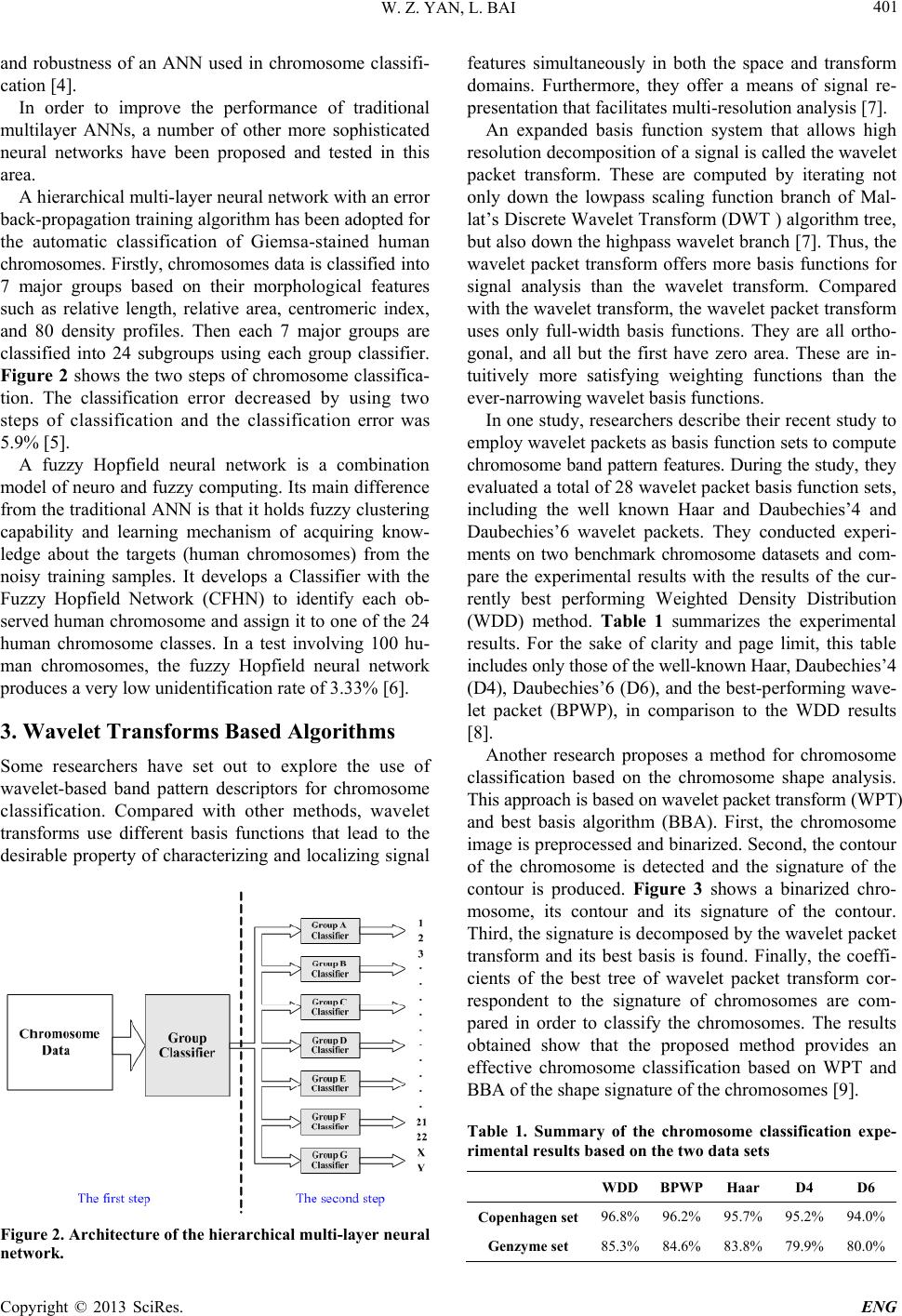

Figure 2. Architecture of the hierarchical multi-layer neural

network.

features simultaneously in both the space and transform

domains. Furthermore, they offer a means of signal re-

presentation that facilitates multi-resolution analysis [7].

An expanded basis function system that allows high

resolution decomposition of a signal is called the wavelet

packet transform. These are computed by iterating not

only down the lowpass scaling function branch of Mal-

lat’s Discrete Wavelet Transform (DWT ) algorithm tree,

but also down the highpass wavelet branch [7]. Thus, the

wavelet packet transform offers more basis functions for

signal analysis than the wavelet transform. Compared

with the wavelet transform, the wavelet packet transform

uses only full-width basis functions. They are all ortho-

gonal, and all but the first have zero area. These are in-

tuitively more satisfying weighting functions than the

ever-narrowing wavele t basis f unc t ions.

In one study, researchers describe their recent study to

employ wavelet packets as basis function sets to compute

chromosome band pattern features. During the study, they

evaluated a total of 28 wavelet packet basis function sets,

including the well known Haar and Daubechies’4 and

Daubechies’6 wavelet packets. They conducted experi-

ments on two benchmark chromosome datasets and com-

pare the experimental results with the results of the cur-

rently best performing Weighted Density Distribution

(WDD) method. Table 1 summarizes the experimental

results. For the sake of clarity and page limit, this table

includes only those of the well-known Haar, Daubechies’4

(D4), Daubechies’6 (D6), and the best-performing wave-

let packet (BPWP), in comparison to the WDD results

[8].

Another research proposes a method for chromosome

classification based on the chromosome shape analysis.

This approach is based on wavelet packet transform (WPT)

and best basis algorithm (BBA). First, the chromosome

image is preprocessed and binarized. Second, the contour

of the chromosome is detected and the signature of the

contour is produced. Figure 3 shows a binarized chro-

mosome, its contour and its signature of the contour.

Third, the signature is decomposed by the wavelet packet

transform and its best basis is found. Finally, the coeffi-

cients of the best tree of wavelet packet transform cor-

respondent to the signature of chromosomes are com-

pared in order to classify the chromosomes. The results

obtained show that the proposed method provides an

effective chromosome classification based on WPT and

BBA of the shape signature of the chromosomes [9].

Table 1. Summary of the chromosome classification expe-

rimental results based on the two data sets

WDD BPWP Haar D4 D6

Copenhagen set 96.8% 96.2% 95.7% 95.2% 94.0%

Genzyme set 85.3% 84.6% 83.8% 79.9% 80.0%

W. Z. YAN, L. BAI

402

(a)

(b)

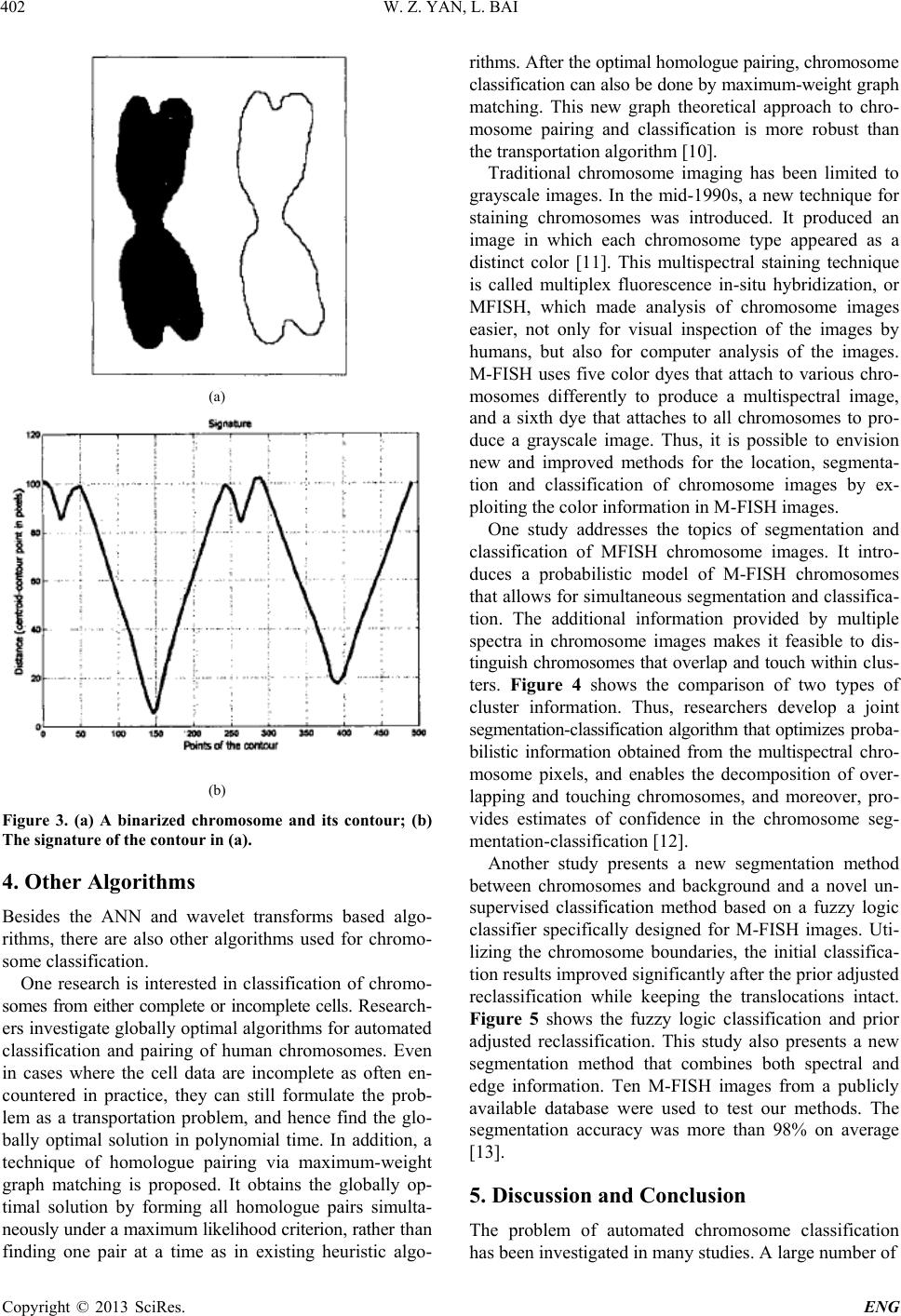

Figure 3. (a) A binarized chromosome and its contour; (b)

The signature of the contour in (a).

4. Other Algorithms

Besides the ANN and wavelet transforms based algo-

rithms, there are also other algorithms used for chromo-

some classification.

One research is interested in classification of chromo-

somes from either complete or incomplete cells. Research-

ers investigate globally op timal algorithms for automated

classification and pairing of human chromosomes. Even

in cases where the cell data are incomplete as often en-

countered in practice, they can still formulate the prob-

lem as a transportation problem, and hence find the glo-

bally optimal solution in polynomial time. In addition, a

technique of homologue pairing via maximum-weight

graph matching is proposed. It obtains the globally op-

timal solution by forming all homologue pairs simulta-

neously under a maximum likelihood criterion, rather than

finding one pair at a time as in existing heuristic algo-

rithms. After the optimal homologue pairing, chromosome

classification can also be done by maximu m-weight graph

matching. This new graph theoretical approach to chro-

mosome pairing and classification is more robust than

the transportation algorithm [10].

Traditional chromosome imaging has been limited to

grayscale images. In the mid-1990s, a new technique for

staining chromosomes was introduced. It produced an

image in which each chromosome type appeared as a

distinct color [11]. This multispectral staining technique

is called multiplex fluorescence in-situ hybridization, or

MFISH, which made analysis of chromosome images

easier, not only for visual inspection of the images by

humans, but also for computer analysis of the images.

M-FISH uses five color dyes that attach to various chro-

mosomes differently to produce a multispectral image,

and a sixth dye that attaches to all chromosomes to pro-

duce a grayscale image. Thus, it is possible to envision

new and improved methods for the location, segmenta-

tion and classification of chromosome images by ex-

ploiting the color information in M-FISH images.

One study addresses the topics of segmentation and

classification of MFISH chromosome images. It intro-

duces a probabilistic model of M-FISH chromosomes

that allows for simultaneous segmentation and clas sifica-

tion. The additional information provided by multiple

spectra in chromosome images makes it feasible to dis-

tinguish chromosomes that overlap and touch within clus-

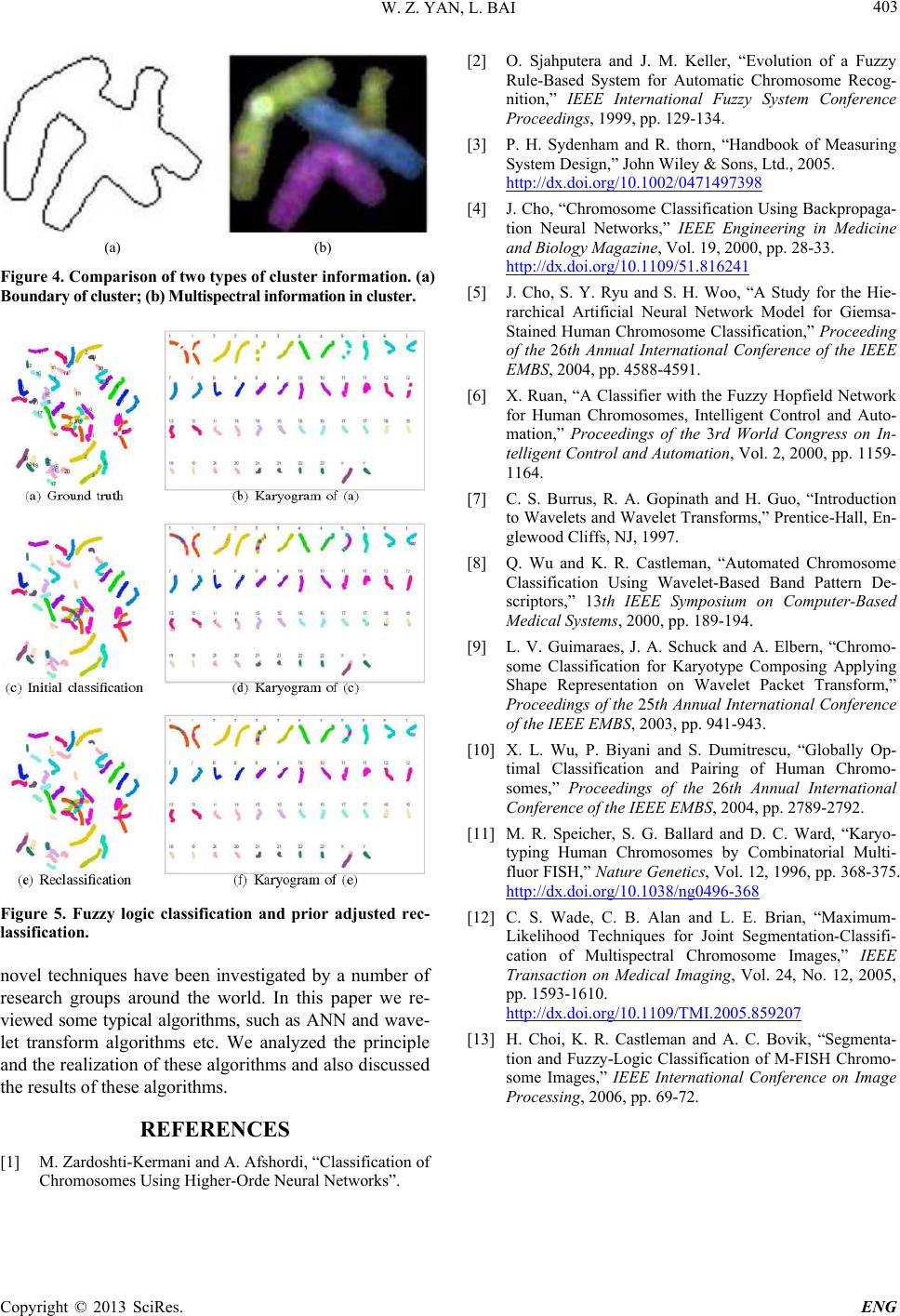

ters. Fig ure 4 shows the comparison of two types of

cluster information. Thus, researchers develop a joint

segmentation-classification algorith m that optimizes proba-

bilistic information obtained from the multispectral chro-

mosome pixels, and enables the decomposition of over-

lapping and touching chromosomes, and moreover, pro-

vides estimates of confidence in the chromosome seg-

mentation-classification [12].

Another study presents a new segmentation method

between chromosomes and background and a novel un-

supervised classification method based on a fuzzy logic

classifier specifically designed for M-FISH images. Uti-

lizing the chromosome boundaries, the initial classifica-

tion results improved significantly after the prior adjusted

reclassification while keeping the translocations intact.

Figure 5 shows the fuzzy logic classification and prior

adjusted reclassification. This study also presents a new

segmentation method that combines both spectral and

edge information. Ten M-FISH images from a publicly

available database were used to test our methods. The

segmentation accuracy was more than 98% on average

[13].

5. Discussion and Conclusion

The problem of automated chromosome classification

has been investigated in many studies. A large number of

W. Z. YAN, L. BAI

403

(a) (b)

Figure 4. Comparison of two types of cluster information. (a)

Boundary of cluster; (b) Multispectral information in cluster.

Figure 5. Fuzzy logic classification and prior adjusted rec-

lassification.

novel techniques have been investigated by a number of

research groups around the world. In this paper we re-

viewed some typical algorithms, such as ANN and wave-

let transform algorithms etc. We analyzed the principle

and the realization of these algorithms and also discussed

the results of these algorithms.

REFERENCES

[1] M. Zardoshti-Kermani and A. Afshordi, “Classification of

Chromosomes Using Higher-Orde Neural Networks”.

[2] O. Sjahputera and J. M. Keller, “Evolution of a Fuzzy

Rule-Based System for Automatic Chromosome Recog-

nition,” IEEE International Fuzzy System Conference

Proceedings, 1999, pp. 129-134.

[3] P. H. Sydenham and R. thorn, “Handbook of Measuring

System Design,” John Wiley & Sons, Ltd., 2005.

http://dx.doi.org/10.1002/0471497398

[4] J. Cho, “Chromosome Classification Using Backpropaga-

tion Neural Networks,” IEEE Engineering in Medicine

and Biology Magazine, Vol. 19, 2000, pp. 28-33.

http://dx.doi.org/10.1109/51.816241

[5] J. Cho, S. Y. Ryu and S. H. Woo, “A Study for the Hie-

rarchical Artificial Neural Network Model for Giemsa-

Stained Human Chromosome Classification,” Proceeding

of the 26th Annual International Conference of the IEEE

EMBS, 2004, pp. 4588-4591.

[6] X. Ruan, “A Classifier with the Fuzzy Hopfield Network

for Human Chromosomes, Intelligent Control and Auto-

mation,” Proceedings of the 3rd World Congress on In-

telligent Control and Automation, Vol. 2, 2000, pp. 1159-

1164.

[7] C. S. Burrus, R. A. Gopinath and H. Guo, “Introduction

to Wavelets and Wavelet Transforms,” Prentice-Hall, En-

glewood Cliffs, NJ, 1997.

[8] Q. Wu and K. R. Castleman, “Automated Chromosome

Classification Using Wavelet-Based Band Pattern De-

scriptors,” 13th IEEE Symposium on Computer-Based

Medical Systems, 2000, pp. 189-194.

[9] L. V. Guimaraes, J. A. Schuck and A. Elbern, “Chromo-

some Classification for Karyotype Composing Applying

Shape Representation on Wavelet Packet Transform,”

Proceedings of the 25th Annual International Conference

of the IEEE EMBS, 2003, pp. 941-943.

[10] X. L. Wu, P. Biy a ni and S. Dumitrescu, “Globally Op-

timal Classification and Pairing of Human Chromo-

somes,” Proceedings of the 26th Annual International

Conference of the IEEE EMBS, 2004, pp. 2789-2792.

[11] M. R. Speicher, S. G. Ballard and D. C. Ward, “Karyo-

typing Human Chromosomes by Combinatorial Multi-

fluor FISH,” Nature Genetics, Vol. 12, 1996, pp. 368-375.

http://dx.doi.org/10.1038/ng0496-368

[12] C. S. Wade, C. B. Alan and L. E. Brian, “Maximum-

Likelihood Techniques for Joint Segmentation-Classifi-

cation of Multispectral Chromosome Images,” IEEE

Transaction on Medical Imaging, Vol. 24, No. 12, 2005,

pp. 1593-1610.

http://dx.doi.org/10.1109/TMI.2005.859207

[13] H. Choi, K. R. Castleman and A. C. Bovik, “Segmenta-

tion and Fuzzy-Logic Classification of M-FISH Chromo-

some Images,” IEEE International Conference on Image

Processing, 2006, pp . 69-72.
