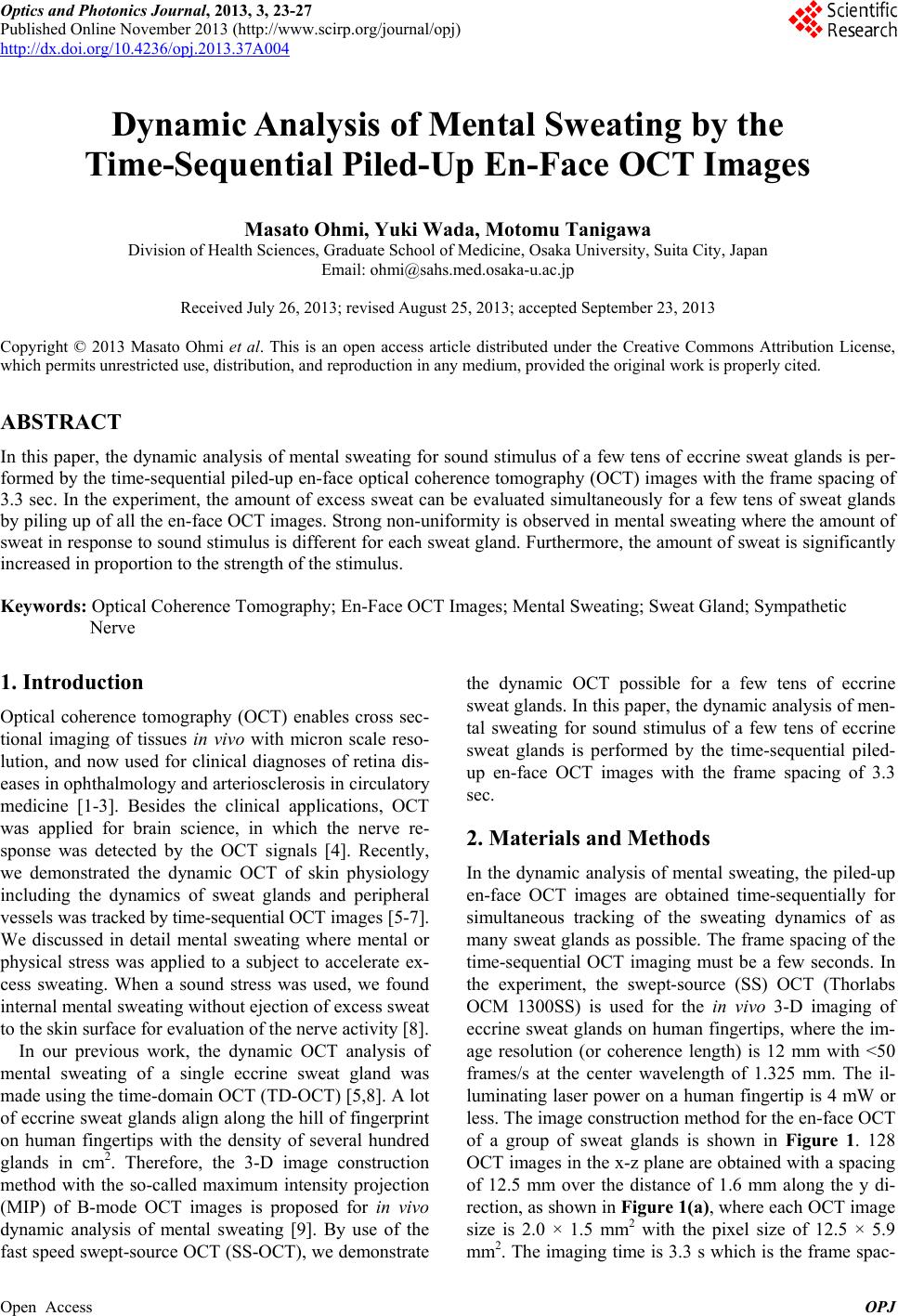

Dynamic Analysis of Mental Sweating by the

Time-Sequential Piled-Up En-Face OCT Images

Masato Ohmi, Yuki Wada, Motomu Tanigawa

Division of Health Sciences, Graduate School of Medicine, Osaka University, Suita City, Japan

Email: [email protected]

Received July 26, 2013; revised August 25, 2013; accepted September 23, 2013

which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

ABSTRACT

In this paper, the dynamic analysis of mental sweating for sound stimulus of a few tens of eccrine sweat glands is per-

formed by the time-sequential piled-up en-face optical coherence tomography (OCT) images with the frame spacing of

3.3 sec. In the experiment, the amount of excess sweat can be evaluated simultaneously for a few tens of sweat glands

by piling up of all the en-face OCT images. Strong non-uniformity is observed in mental sweating where the amount of

sweat in response to sound stimulus is different for each sweat gland. Furthermore, the amount of sweat is significantly

increased in proportion to the strength of the stimulus.

Keywords: Optical Coherence Tomography; En-Face OCT Images; Mental Sweating; Sweat Gland; Sympathetic

Nerve

1. Introduction

Optical coherence tomography (OCT) enables cross sec-

tional imaging of tissues in vivo with micron scale reso-

lution, and now used for clinical diagnoses of retina dis-

eases in ophthalmology and arteriosclerosis in circulatory

medicine [1-3]. Besides the clinical applications, OCT

was applied for brain science, in which the nerve re-

sponse was detected by the OCT signals [4]. Recently,

we demonstrated the dynamic OCT of skin physiology

including the dynamics of sweat glands and peripheral

ve ssels was tr ack ed by time-seq uen tial OCT i ma ge s [5-7].

We discussed in detail mental sweating where mental or

physical stress was applied to a subject to accelerate ex-

cess sweating. When a sound stress was used, we found

internal mental sweating without ejection of excess sweat

to the skin surface for evaluation of the nerve activity [8].

In our previous work, the dynamic OCT analysis of

mental sweating of a single eccrine sweat gland was

made using the time-domain OCT (TD-OCT) [5,8]. A lot

of eccrine sweat glands align along the h ill of fingerprint

on human fingertips with the density of several hundred

glands in cm2. Therefore, the 3-D image construction

method with the so-called maximum intensity projection

(MIP) of B-mode OCT images is proposed for in vivo

dynamic analysis of mental sweating [9]. By use of the

fast speed swept-source OCT (SS-OCT), we demonstrate

the dynamic OCT possible for a few tens of eccrine

sweat glands. In this paper, the dynamic analysis of men-

tal sweating for sound stimulus of a few tens of eccrine

sweat glands is performed by the time-sequential piled-

up en-face OCT images with the frame spacing of 3.3

sec.

2. Materials and Methods

In the dynamic analysis of mental sweating, the piled-up

en-face OCT images are obtained time-sequentially for

simultaneous tracking of the sweating dynamics of as

many sweat glands as possible. The frame spacing of the

time-sequential OCT imaging must be a few seconds. In

the experiment, the swept-source (SS) OCT (Thorlabs

OCM 1300SS) is used for the in vivo 3-D imaging of

eccrine sweat glands on human fingertips, where the im-

age resolution (or coherence length) is 12 mm with <50

frames/s at the center wavelength of 1.325 mm. The il-

luminating laser power on a human fingertip is 4 mW or

less. The image construction method for the en-face OCT

of a group of sweat glands is shown in Figure 1. 128

OCT images in the x-z plane are obtained with a spacing

of 12.5 mm over the distance of 1.6 mm along the y di-

rection, as shown in Figure 1(a), where each OCT image

size is 2.0 × 1.5 mm2 with the pixel size of 12.5 × 5.9

mm2. The imaging time is 3.3 s which is the frame spac-

M. OHMI ET AL.

400m

(a) (b)

400m

2.0 mm

1.6mm

400m

A1, A2, A3, A4, A5

B1, B2, B3, B4, B5

C1, C2, C3, C4, C5

D1, D2, D3

(c)

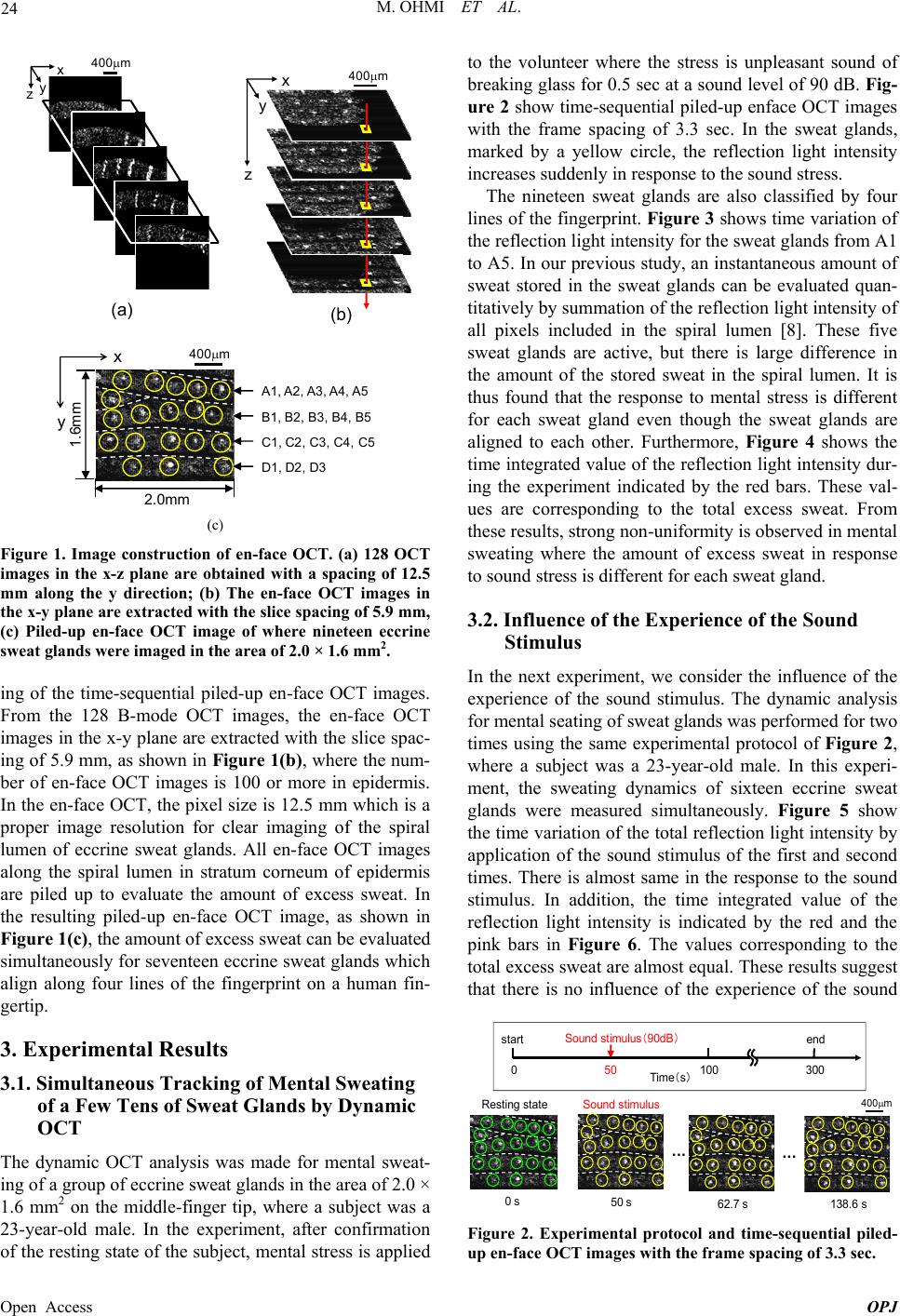

Figure 1. Image construction of en-face OCT. (a) 128 OCT

images in the x-z plane are obtained with a spacing of 12.5

mm along the y direction; (b) The en-face OCT images in

the x-y plane are extracted with the slice spacing of 5.9 mm,

sweat glands were imaged in the area of 2.0 × 1.6 mm2.

ing of the time-sequential piled-up en-face OCT images.

From the 128 B-mode OCT images, the en-face OCT

images in the x-y plane are extracted with the slice spac-

ing of 5.9 mm, as shown in Figure 1(b), where the num-

ber of en-face OCT images is 100 or more in epidermis.

In the en-face OCT, the pixel size is 12.5 mm which is a

proper image resolution for clear imaging of the spiral

lumen of eccrine sweat glands. All en-face OCT images

along the spiral lumen in stratum corneum of epidermis

are piled up to evaluate the amount of excess sweat. In

the resulting piled-up en-face OCT image, as shown in

Figure 1(c), the amount of excess sweat can be evaluated

simultaneously for seventeen eccrine sweat glands which

align along four lines of the fingerprint on a human fin-

gertip.

3. Experimental Results

3.1. Simultaneous Tracking of Mental Sweating

of a Few Tens of Sweat Glands by Dynamic

OCT

The dynamic OCT analysis was made for mental sweat-

ing of a group of eccrine sweat glands in the area of 2.0 ×

1.6 mm2 on the middle-finger tip, where a subject was a

23-year-old male. In the experiment, after confirmation

of the resting state of the subject, mental stress is applied

to the volunteer where the stress is unpleasant sound of

breaking glass for 0.5 sec at a sound level of 90 dB. Fig-

ure 2 show time-sequential piled-up enface OCT images

with the frame spacing of 3.3 sec. In the sweat glands,

marked by a yellow circle, the reflection light intensity

increases suddenly in response to the sound stress.

The nineteen sweat glands are also classified by four

lines of the fingerprint. Figure 3 shows time variation of

the reflection light intens ity for the sweat glands from A1

to A5. In our previous study, an instantaneous amount of

sweat stored in the sweat glands can be evaluated quan-

titatively by summatio n of the reflection light in tensity o f

all pixels included in the spiral lumen [8]. These five

sweat glands are active, but there is large difference in

the amount of the stored sweat in the spiral lumen. It is

thus found that the response to mental stress is different

for each sweat gland even though the sweat glands are

aligned to each other. Furthermore, Figure 4 shows the

time integrated value of the reflectio n light intensity dur-

ing the experiment indicated by the red bars. These val-

ues are corresponding to the total excess sweat. From

these results, strong non-unifor mity is observed in mental

sweating where the amount of excess sweat in response

to sound stress is different for each sweat gland.

3.2. Influence of the Experience of the Sound

Stimulus

In the next experiment, we consider the influence of the

experience of the sound stimulus. The dynamic analysis

for mental seating of sweat glands was performed for two

times using the same experimental protocol of Figure 2,

where a subject was a 23-year-old male. In this experi-

ment, the sweating dynamics of sixteen eccrine sweat

glands were measured simultaneously. Figure 5 show

the time variation of the total reflection light intensity by

application of the sound stimulus of the first and second

times. There is almost same in the response to the sound

stimulus. In addition, the time integrated value of the

reflection light intensity is indicated by the red and the

pink bars in Figure 6. The values corresponding to the

total excess sweat are almost equal. These results suggest

that there is no influence of the experience of the sound

50 s62.7 s138.6 s

400m

･･･

Sound stim ulu s

Sound s tim ulus（90 dB ）

start end

100

Time（s）3000

0 s

Resting state

Figure 2. Experimental protocol and time-sequential piled-

up en-face OCT images with the frame spacing of 3.3 sec.

Open Access OPJ

M. OHMI ET AL.

Open Access OPJ

2.4

1.6

0.8

0100 200 300

Sig nal int ensity（×10

）

Tim e ( s)

2.4

1.6

0.8

0100 200 300

2.4

1.6

0.8

0100 200 300

400m

A1 A2

A3 A4 A5

A1 A2 A3 A4 A5

Stimulus Stimulus

Stimulus

2.4

1.6

0.8

0100200 300

2.4

1.6

0.8

0100200 300

Time (s)

Tim e ( s)

Signal intensity（×10

）

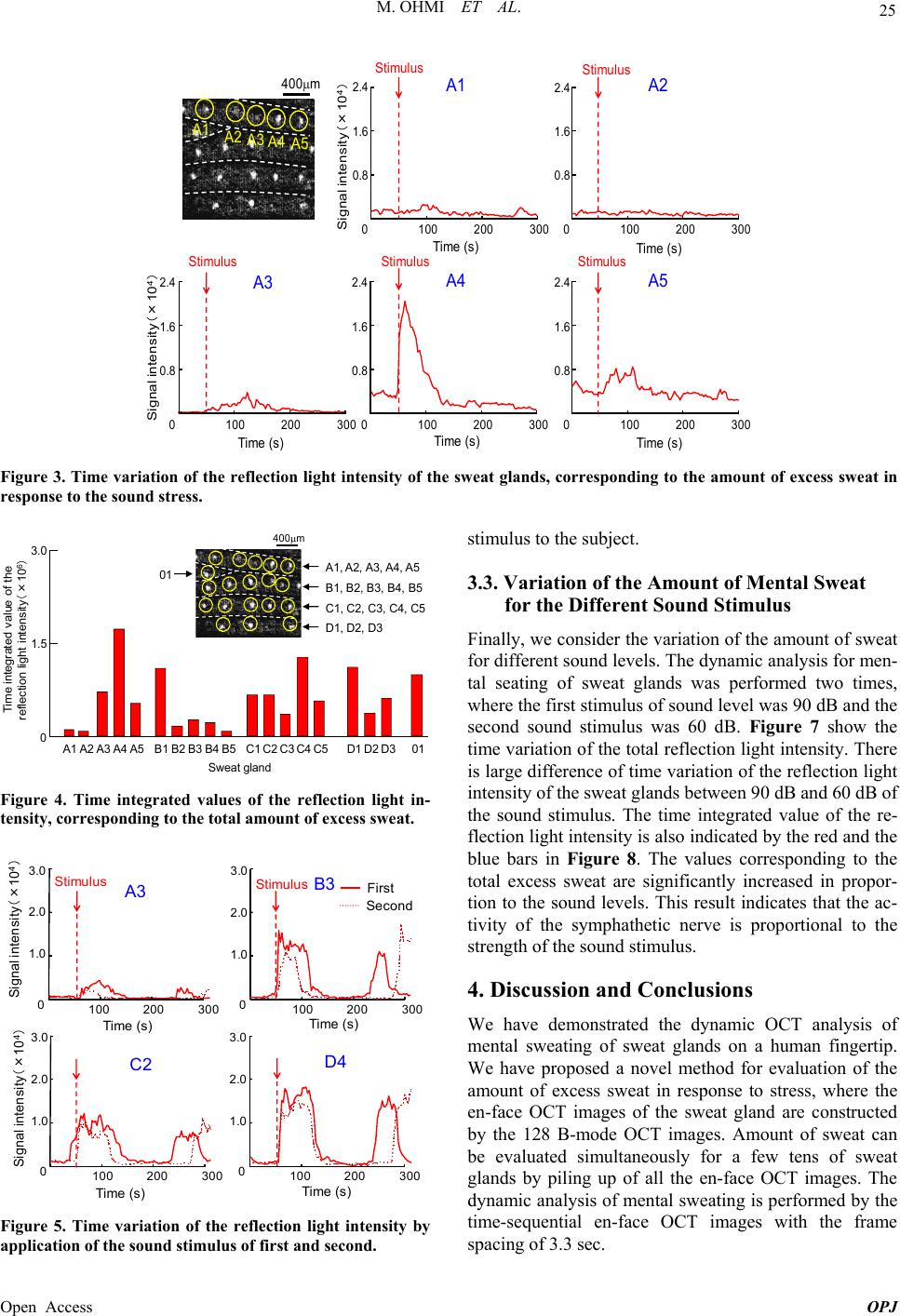

Figure 3. Time variation of the reflection light intensity of the sweat glands, corresponding to the amount of excess sweat in

response to the sound stress.

stimulus to the subject.

3.0

1.5

0A1 A2 A3 A4 A5B1 B2 B3B4C1C2C3 C4C5D1 D2D301B5

A1, A2, A3, A4, A5

B1, B2, B3, B4, B5

C1, C2, C3, C4, C5

D1, D2, D3

400m

Time integrated value of the

ref lec t ion light int ens it y （×10

）

Sweat gland

3.3. Variation of the Amount of Mental Sweat

for the Different Sound Stimulus

Finally, we consider the variation of the amount of sweat

for different sound levels. The dynamic analysis for men-

tal seating of sweat glands was performed two times,

where the fir st stimulus of sound lev el was 90 dB and th e

second sound stimulus was 60 dB. Figure 7 show the

time variation of the total reflection light intensity. There

is large difference of time variation of the reflection light

intensity of the sweat glands between 90 dB and 60 dB of

the sound stimulus. The time integrated value of the re-

flection light intensity is also indicated b y the red and the

blue bars in Figure 8. The values corresponding to the

total excess sweat are significantly increased in propor-

tion to the sound levels. This result indicates that the ac-

tivity of the symphathetic nerve is proportional to the

strength of the sound stimulus.

Figure 4. Time integrated values of the reflection light in-

tensity, corresponding to the total amount of excess sweat.

Signal intensity（×10

）

3.0

2.0

1.0

3.0

2.0

1.0

3.0

2.0

1.0

3.0

2.0

1.0

100 200 300

Time (s)

C2 D4

First

Second

100 200 300

0100200300 0100 200300

StimulusStimulus

4. Discussion and Conclusions

We have demonstrated the dynamic OCT analysis of

mental sweating of sweat glands on a human fingertip.

We have proposed a novel method for evaluation of the

amount of excess sweat in response to stress, where the

en-face OCT images of the sweat gland are constructed

by the 128 B-mode OCT images. Amount of sweat can

be evaluated simultaneously for a few tens of sweat

glands by piling up of all the en-face OCT images. The

dynamic analysis of mental sweating is performed by the

time-sequential en-face OCT images with the frame

spacing of 3.3 sec.

Signal intensity（×10

）

Time (s)

Time ( s)Tim e (s)

Figure 5. Time variation of the reflection light intensity by

application of the sound stimulus of first and second.

M. OHMI ET AL.

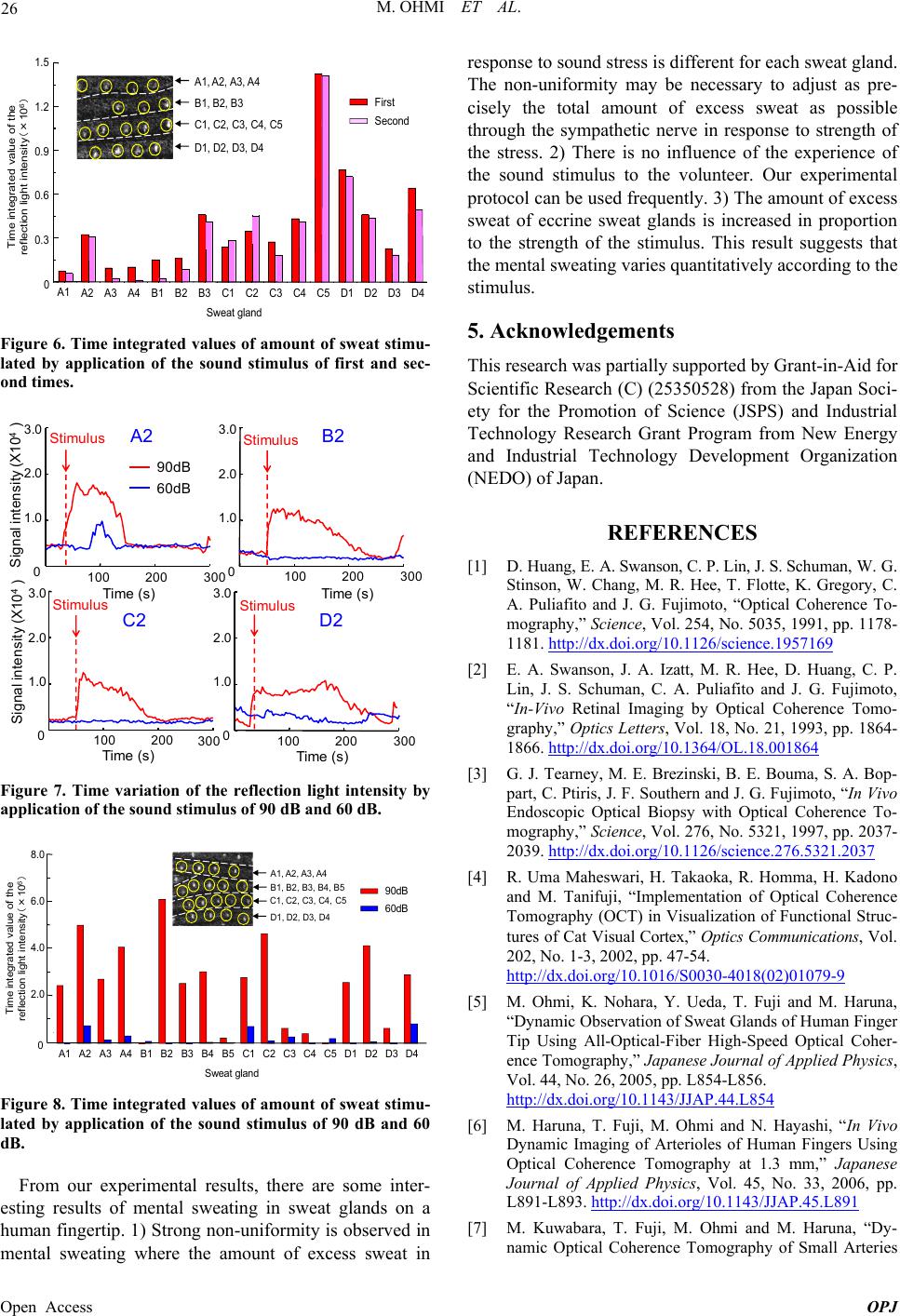

Time integrated value of the

reflection light intensity（×106）

A1 A2 A3 A4 B1 B2 B3 C1 C2 C3 C4C5 D1 D2D3 D4

First

Second

0.3

0.6

0.9

1.2

1.5

A1, A2, A3, A4

B1, B 2 , B3

C1, C2, C3, C4, C5

D1, D2, D3, D4

Sweat gland

Figure 6. Time integrated values of amount of sweat stimu-

lated by application of the sound stimulus of first and sec-

ond times.

3.0

2.0

1.0

3.0

2.0

1.0

100 200 300

Tim e ( s)

100 200 300

A2 B2

Stimulus

90dB

60dB

Time (s)

3.0

2.0

1.0

0100200 300

Stimulus

Time (s)

3.0

2.0

1.0

0100 200 300

Stimulus

104)

X10

Ti me ( s)

Signal intensity (X

Signal intensity (4)

Figure 7. Time variation of the reflection light intensity by

application of the sound stimulus of 90 dB and 60 dB.

A1 A2 A3 A4 B1 B2 B3 B4 B5 C1C2C3C4 C5D1 D2D3 D4

2.0

4.0

6.0

8.0

90dB

60dB

A1, A2, A3, A4

B1, B2, B3, B4, B5

C1, C2, C3, C4, C5

D1, D2, D3, D4

Sweat gland

Time integrat ed value of the

ref lec tion light int ens ity （×10

）

Figure 8. Time integrated values of amount of sweat stimu-

lated by application of the sound stimulus of 90 dB and 60

dB.

From our experimental results, there are some inter-

esting results of mental sweating in sweat glands on a

human fingertip. 1) Strong non-uniformity is observed in

mental sweating where the amount of excess sweat in

response to sound stress is different for each sweat gland.

The non-uniformity may be necessary to adjust as pre-

cisely the total amount of excess sweat as possible

through the sympathetic nerve in response to strength of

the stress. 2) There is no influence of the experience of

the sound stimulus to the volunteer. Our experimental

protocol can be used frequently. 3) The amount of excess

sweat of eccrine sweat glands is increased in proportion

to the strength of the stimulus. This result suggests that

the mental sweating varies quantitatively according to the

stimulus.

5. Acknowledgements

This research was partially supported by Grant-in-Aid for

Scientific Research (C) (2 5350528) from the Japan Soci-

ety for the Promotion of Science (JSPS) and Industrial

Technology Research Grant Program from New Energy

and Industrial Technology Development Organization

(NEDO) of Japan.

REFERENCES

[1] D. Huang, E. A. Swanson, C. P. Lin, J. S. Schuman, W. G.

Stinson, W. Chang, M. R. Hee, T. Flotte, K. Gregory, C.

A. Puliafito and J. G. Fujimoto, “Optical Coherence To-

mography,” Science, Vol. 254, No. 5035, 1991, pp. 1178-

1181. http://dx.doi.org/10.1126/science.1957169

[2] E. A. Swanson, J. A. Izatt, M. R. Hee, D. Huang, C. P.

Lin, J. S. Schuman, C. A. Puliafito and J. G. Fujimoto,

“In-Vivo Retinal Imaging by Optical Coherence Tomo-

graphy,” Optics Letters, Vol. 18, No. 21, 1993, pp. 1864-

1866. http://dx.doi.org/10.1364/OL.18.001864

[3] G. J. Tearney, M. E. Brezinski, B. E. Bouma, S. A. Bop-

part, C. Ptiris, J. F. Southern and J. G. Fujimoto, “In Vivo

Endoscopic Optical Biopsy with Optical Coherence To-

mography,” Science, Vol. 276, No. 5321, 1997, pp. 2037-

2039. http://dx.doi.org/10.1126/science.276.5321.2037

[4] R. Uma Maheswari, H. Takaoka, R. Homma, H. Kadono

and M. Tanifuji, “Implementation of Optical Coherence

Tomography (OCT) in Visualization of Functional Struc-

tures of Cat Visual Cortex,” Optics Communications, Vol.

202, No. 1-3, 2002, pp. 47-54.

http://dx.doi.org/10.1016/S0030-4018(02)01079-9

[5] M. Ohmi, K. Nohara, Y. Ueda, T. Fuji and M. Haruna,

“Dynamic Observation of Sweat Glands of Human Finger

Tip Using All-Optical-Fiber High-Speed Optical Coher-

ence Tomography,” Japanese Journal of Applied Physics,

Vol. 44, No. 26, 2005, pp. L854-L856.

http://dx.doi.org/10.1143/JJAP.44.L854

[6] M. Haruna, T. Fuji, M. Ohmi and N. Hayashi, “In Vivo

Dynamic Imaging of Arterioles of Human Fingers Using

Optical Coherence Tomography at 1.3 mm,” Japanese

Journal of Applied Physics, Vol. 45, No. 33, 2006, pp.

L891-L893. http://dx.doi.org/10.1143/JJAP.45.L891

[7] M. Kuwabara, T. Fuji, M. Ohmi and M. Haruna, “Dy-

namic Optical Coherence Tomography of Small Arteries

Open Access OPJ

M. OHMI ET AL.

Open Access OPJ

and Veins of Human Fingers,” Applied Physics Express,

Vol. 1, No. 5, 2008, Article ID: 058001.

http://dx.doi.org/10.1143/APEX.1.058001

[8] M. Ohmi, M. Tanigawa, A. Yamada, Y. Ueda and M.

Haruna: “Dynamic Analysis of Internal and External

Mental Sweating by Optical Coherence Tomography,”

Journal of Biomedical Optics, Vol. 14, No. 1, 2009, Arti-

cle ID: 014026. http://dx.doi.org/10.1117/1.3079808

[9] H. Saigusa, Y. Ueda, A. Yamada, M. Ohmi, M. Ohnishi,

M. Kuwabara and M. Haruna, “Maximum-Intensity-Pro-

jection Imaging for Dynamic Analysis of Mental Sweat-

ing by Optical Coherence Tomography,” Applied Physics

Express, Vol. 1, No. 9, 2008, Article ID: 098001.

http://dx.doi.org/10.1143/APEX.1.098001
