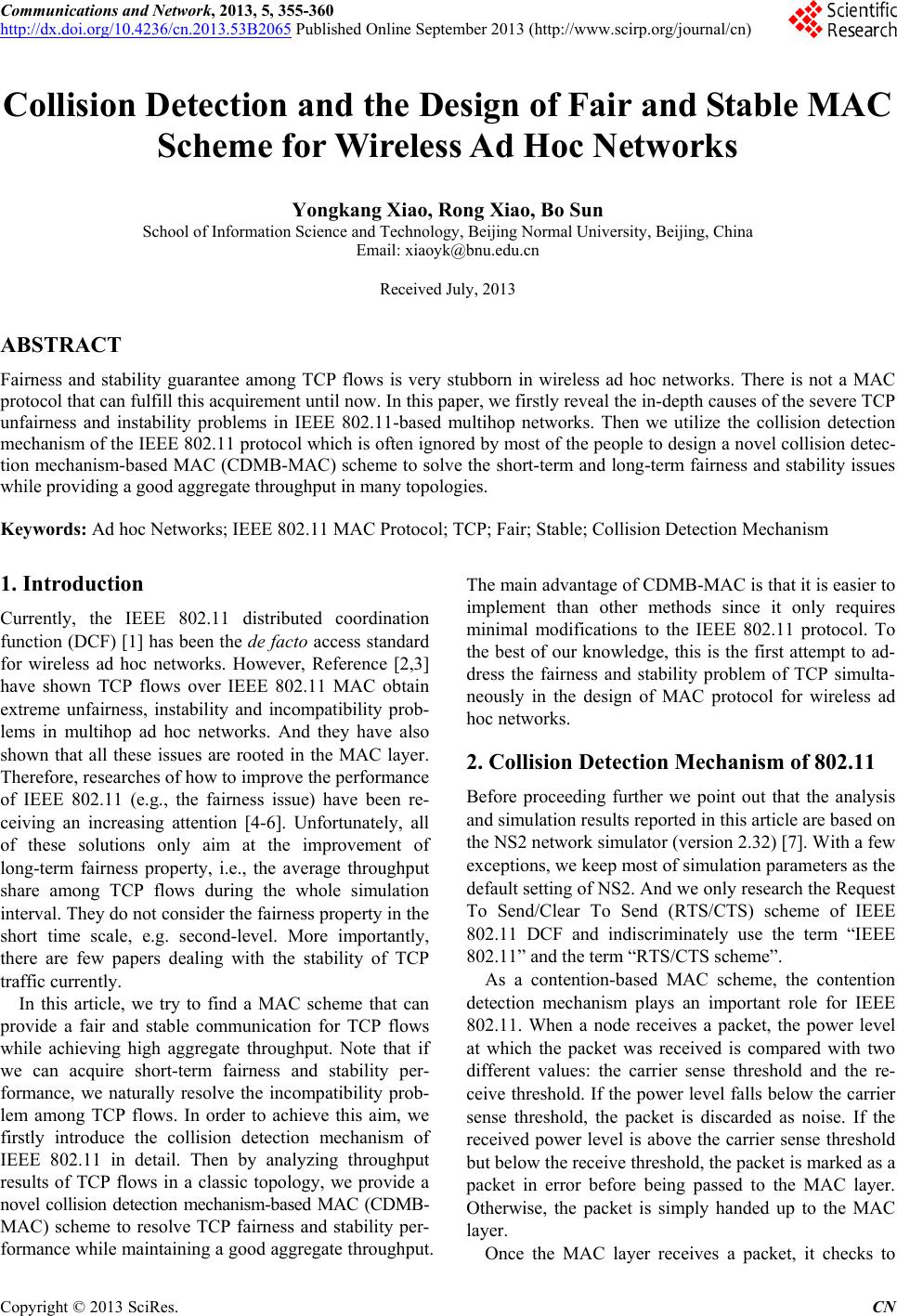

Communications and Network, 2013, 5, 355-360

http://dx.doi.org/10.4236/cn.2013.53B2065 Published Online September 2013 (http://www.scirp.org/journal/cn)

Collision Detection and the Design of Fair and Stable MAC

Scheme for Wireless Ad Hoc Networks

Yongkang Xiao, Rong Xiao, Bo Sun

School of Information Science and Technology, Beijing Normal University, Beijing, China

Email: [email protected]

Received July, 2013

ABSTRACT

Fairness and stability guarantee among TCP flows is very stubborn in wireless ad hoc networks. There is not a MAC

protocol that can fulfill this acq uirement until no w. In th is paper, we firstly reveal the in-depth causes of the severe TCP

unfairness and instability problems in IEEE 802.11-based multihop networks. Then we utilize the collision detection

mechanism of th e IEEE 802.1 1 protocol which is often ignored b y most of the people to design a novel co llision detec-

tion mechanism-based MAC (CDMB-MAC) scheme to solve the short-term and long-term fairness and stability issues

while providing a good aggregate throug hput in many topologies.

Keywords: Ad hoc Networks; IEEE 802.11 MAC Protocol; TCP; Fair; Stable; Collision Detection Mechanism

1. Introduction

Currently, the IEEE 802.11 distributed coordination

function (DCF) [1] has been the de facto access standard

for wireless ad hoc networks. However, Reference [2,3]

have shown TCP flows over IEEE 802.11 MAC obtain

extreme unfairness, instability and incompatibility prob-

lems in multihop ad hoc networks. And they have also

shown that all these issues are rooted in the MAC layer.

Therefore, researches of how to improve the performance

of IEEE 802.11 (e.g., the fairness issue) have been re-

ceiving an increasing attention [4-6]. Unfortunately, all

of these solutions only aim at the improvement of

long-term fairness property, i.e., the average throughput

share among TCP flows during the whole simulation

interval. They do not cons ider th e fairness property in the

short time scale, e.g. second-level. More importantly,

there are few papers dealing with the stability of TCP

traffic currently.

In this article, we try to find a MAC scheme that can

provide a fair and stable communication for TCP flows

while achieving high aggregate throughput. Note that if

we can acquire short-term fairness and stability per-

formance, we naturally resolve the incompatibility prob-

lem among TCP flows. In order to achieve this aim, we

firstly introduce the collision detection mechanism of

IEEE 802.11 in detail. Then by analyzing throughput

results of TCP flows in a classic topology, we provide a

novel collision detection mechanism-based MAC (CDMB-

MAC) scheme to resolve TCP fairness and stability per-

formance while maintaining a good aggregate throughpu t.

The main advantage of CDMB-MAC is that it is easier to

implement than other methods since it only requires

minimal modifications to the IEEE 802.11 protocol. To

the best of our knowledge, this is the first attempt to ad-

dress the fairness and stability problem of TCP simulta-

neously in the design of MAC protocol for wireless ad

hoc networks.

2. Collision Detection Mechanism of 802.11

Before proceeding further we point out that the analysis

and simulation results reported in this article are b ased on

the NS2 network simulator (version 2.32) [7]. With a few

exceptions, we keep most of simulation parameters as the

default setting of NS2. And we only research th e Request

To Send/Clear To Send (RTS/CTS) scheme of IEEE

802.11 DCF and indiscriminately use the term “IEEE

802.11” and the term “RTS/CTS scheme”.

As a contention-based MAC scheme, the contention

detection mechanism plays an important role for IEEE

802.11. When a node receives a packet, the power level

at which the packet was received is compared with two

different values: the carrier sense threshold and the re-

ceive threshold. If the power level falls below the carrier

sense threshold, the packet is discarded as noise. If the

received power level is above the carrier sense threshold

but below the receive threshold, the packet is marked as a

packet in error before being passed to the MAC layer.

Otherwise, the packet is simply handed up to the MAC

layer.

Once the MAC layer receives a packet, it checks to

Y. K. XIAO ET AL.

356

insure that its receive state is presently idle. If the re-

ceiver is not idle, one of two things can happen. If the

power rate of the packet already being received (carrier)

and the received power level of the new packet (interfer-

ence), , is greater than (the default

value is 10.0 dB in NS2), we assume capture, discard the

new packet, and allow th e receiving interface to con tinue

with its current receive operation. Otherwise, a collision

occurs and both packets are dropped. In other words,

whether a collision occurs at the receiver of the MAC

layer depends on the val ue of [7,10].

CINR CPThresh

NRCI

3. Performance Problem of IEEE 802.11

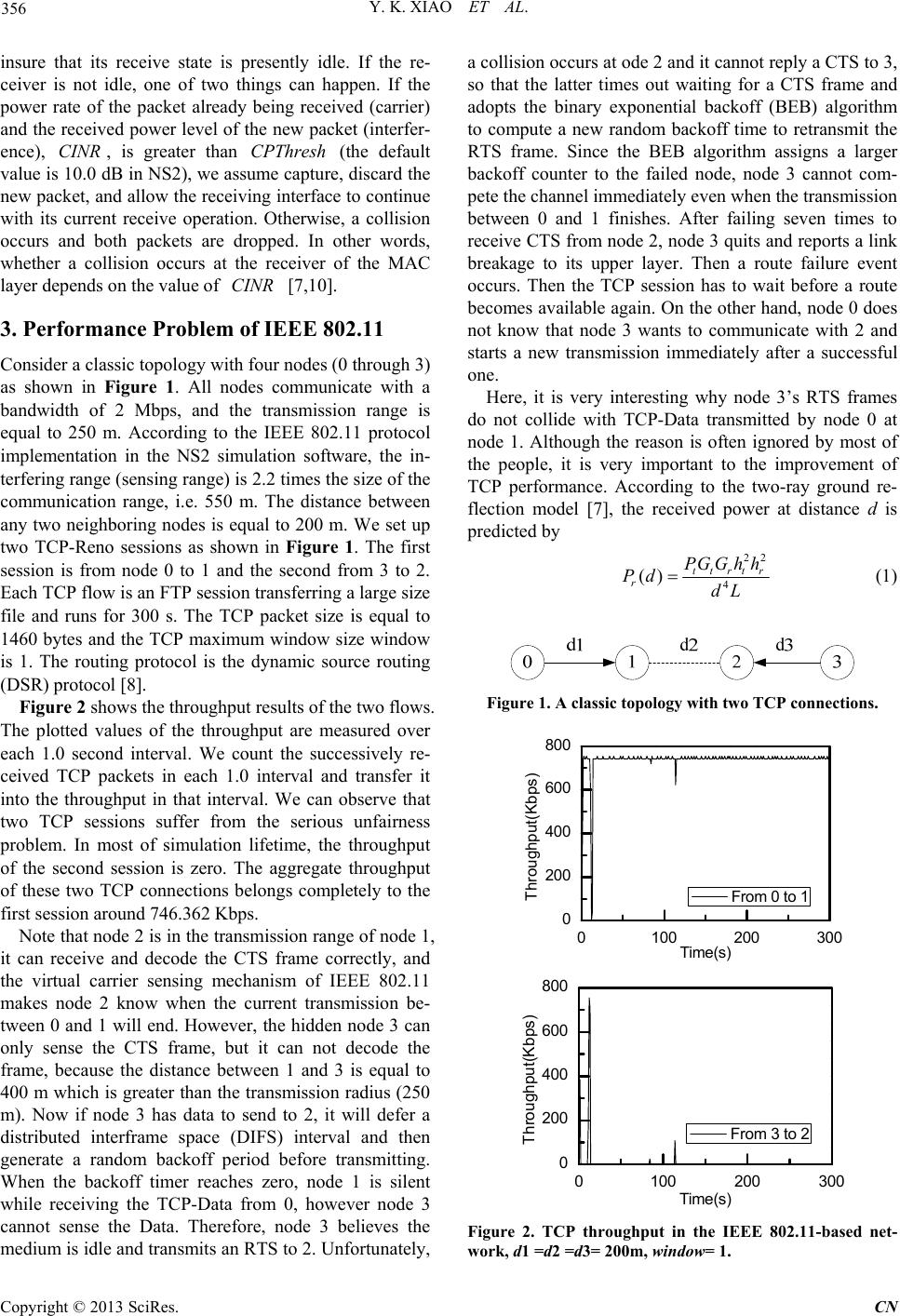

Consider a classic topology with four nodes (0 through 3)

as shown in Figure 1. All nodes communicate with a

bandwidth of 2 Mbps, and the transmission range is

equal to 250 m. According to the IEEE 802.11 protocol

implementation in the NS2 simulation software, the in-

terfering range (sensing range) is 2.2 times the size of the

communication range, i.e. 550 m. The distance between

any two neighboring nodes is equal to 200 m. We set up

two TCP-Reno sessions as shown in Figure 1. The first

session is from node 0 to 1 and the second from 3 to 2.

Each TCP flow is an FTP session transf er r in g a lar g e s i ze

file and runs for 300 s. The TCP packet size is equal to

1460 bytes and the TCP maximum window size window

is 1. The routing protocol is the dynamic source routing

(DSR) proto col [8].

Figure 2 shows the throughput results of the two flows.

The plotted values of the throughput are measured over

each 1.0 second interval. We count the successively re-

ceived TCP packets in each 1.0 interval and transfer it

into the throughput in that interval. We can observe that

two TCP sessions suffer from the serious unfairness

problem. In most of simulation lifetime, the throughput

of the second session is zero. The aggregate throughput

of these two TCP connections belongs completely to the

first session aroun d 746.362 Kbps.

Note that node 2 is in the transmission range of node 1,

it can receive and decode the CTS frame correctly, and

the virtual carrier sensing mechanism of IEEE 802.11

makes node 2 know when the current transmission be-

tween 0 and 1 will end. However, the hidden node 3 can

only sense the CTS frame, but it can not decode the

frame, because the distance between 1 and 3 is equal to

400 m which is greater than the transmission radius (250

m). Now if node 3 has data to send to 2, it will defer a

distributed interframe space (DIFS) interval and then

generate a random backoff period before transmitting.

When the backoff timer reaches zero, node 1 is silent

while receiving the TCP-Data from 0, however node 3

cannot sense the Data. Therefore, node 3 believes the

medium is idle and transmits an RTS to 2. Unfortunately,

a collision occurs at od e 2 and it cannot rep ly a CTS to 3,

so that the latter times out waiting for a CTS frame and

adopts the binary exponential backoff (BEB) algorithm

to compute a new random backoff time to retransmit the

RTS frame. Since the BEB algorithm assigns a larger

backoff counter to the failed node, node 3 cannot com-

pete the channel immediately even when the transmission

between 0 and 1 finishes. After failing seven times to

receive CTS from node 2, node 3 quits and reports a link

breakage to its upper layer. Then a route failure event

occurs. Then the TCP session has to wait before a route

becomes available again. On the other hand, node 0 does

not know that node 3 wants to communicate with 2 and

starts a new transmission immediately after a successful

one.

Here, it is very interesting why node 3’s RTS frames

do not collide with TCP-Data transmitted by node 0 at

node 1. Although the reason is often ignored by most of

the people, it is very important to the improvement of

TCP performance. According to the two-ray ground re-

flection model [7], the received power at distance d is

predicte d by

() ttrtr

PGG hh

Pd dL

 (1)

Figure 1. A classic topology with two TCP connections.

0100 200 300

200

400

600

800

Throughput(Kbps)

Time ( s )

From 0 to 1

0100 200 300

200

400

600

800

Throughput(Kbps)

Time(s)

From 3 to 2

Figure 2. TCP throughput in the IEEE 802.11-based net-

work, d1 =d2 =d3= 200m, window= 1.

Y. K. XIAO ET AL. 357

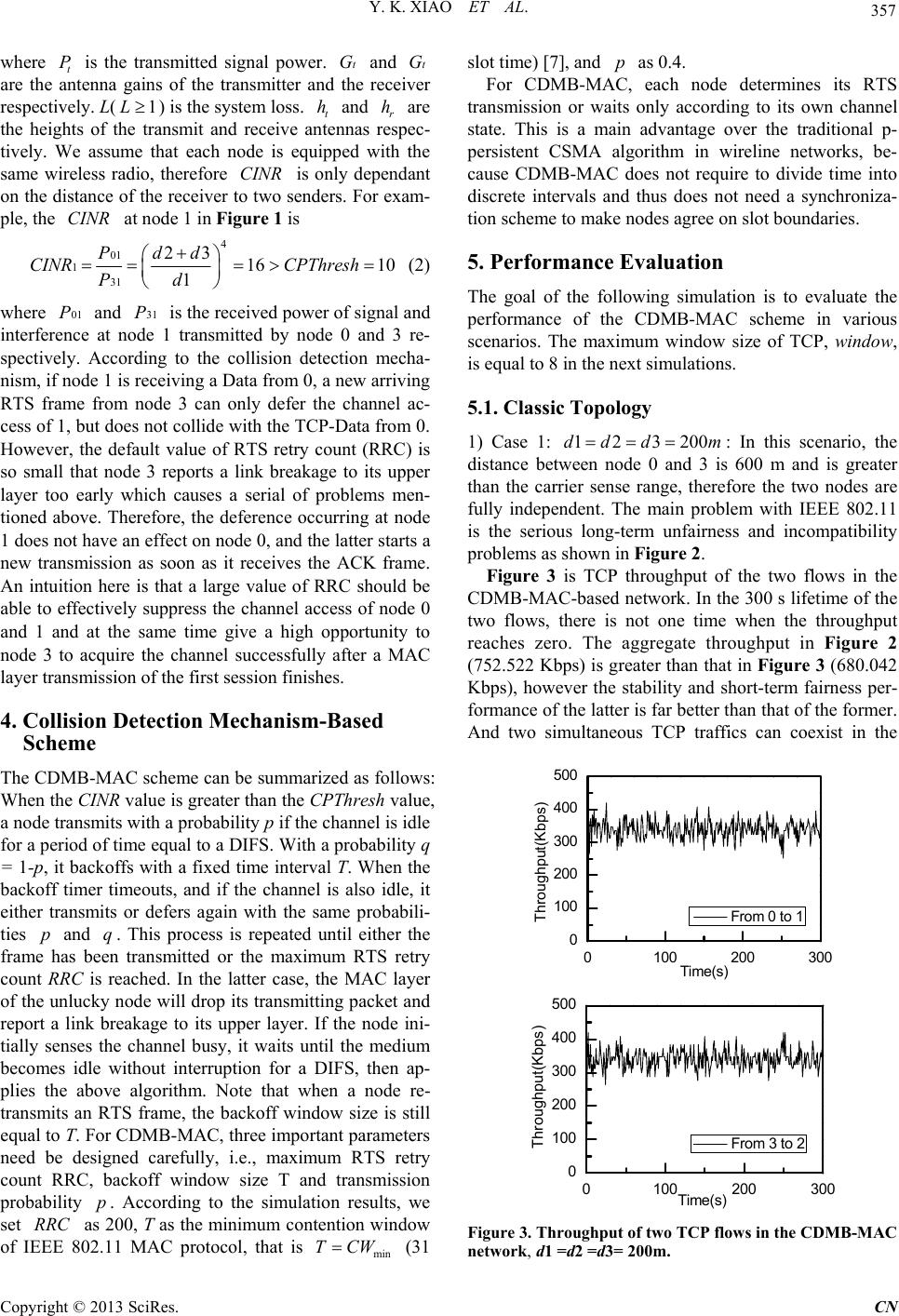

where t is the transmitted signal power. and

are the antenna gains of the transmitter and the receiver

respectively. L() is the system loss. t and r are

the heights of the transmit and receive antennas respec-

tively. We assume that each node is equipped with the

same wireless radio, therefore is only dependant

on the distance of the receiver to two senders. For exam-

ple, the at node 1 in Figure 1 is

tGtG

1Lh h

CINR

131

23 16 10

Pdd

CINR CPThresh





 



 (2)

where and is the received power of signal and

interference at node 1 transmitted by node 0 and 3 re-

spectively. According to the collision detection mecha-

nism, if node 1 is receiving a Data from 0, a new arriving

RTS frame from node 3 can only defer the channel ac-

cess of 1, but does not collide with the TCP-Data from 0.

However, the default value of RTS retry count (RRC) is

so small that node 3 reports a link breakage to its upper

layer too early which causes a serial of problems men-

tioned above. Therefore, the deference occurring at node

1 does not have an effect on node 0, and the latter starts a

new transmission as soon as it receives the ACK frame.

An intuition here is that a large value of RRC should be

able to effectively suppress the channel access of node 0

and 1 and at the same time give a high opportunity to

node 3 to acquire the channel successfully after a MAC

layer transmission of the first session finishes.

01P31P

4. Collision Detection Mechanism-Based

Scheme

The CDMB-MAC scheme can be summarized as follows:

When the CINR value is greater than the CPTh resh value,

a node transmits with a probability p if the channe l is idle

for a period of time equal to a DIFS. With a probability q

= 1-p, it backoffs with a fixed time interval T. When the

backoff timer timeouts, and if the channel is also idle, it

either transmits or defers again with the same probabili-

ties and . This process is repeated until either the

frame has been transmitted or the maximum RTS retry

count RRC is reached. In the latter case, the MAC layer

of the unluck y node will drop its transmitti ng packet and

report a link breakage to its upper layer. If the node ini-

tially senses the channel busy, it waits until the medium

becomes idle without interruption for a DIFS, then ap-

plies the above algorithm. Note that when a node re-

transmits an RTS frame, the backoff window size is still

equal to T. For CDMB-MAC, three important parameters

need be designed carefully, i.e., maximum RTS retry

count RRC, backoff window size T and transmission

probability . According to the simulation results, we

set as 200, T as the minimum contention window

of IEEE 802.11 MAC protocol, that is (31

slot time) [7], and as 0.4.

min

TCW

For CDMB-MAC, each node determines its RTS

transmission or waits only according to its own channel

state. This is a main advantage over the traditional p-

persistent CSMA algorithm in wireline networks, be-

cause CDMB-MAC does not require to divide time into

discrete intervals and thus does not need a synchroniza-

tion scheme to make nodes agree on slot boundaries.

5. Performance Evaluation

The goal of the following simulation is to evaluate the

performance of the CDMB-MAC scheme in various

scenarios. The maximum window size of TCP, window,

is equal to 8 in the next simulations.

5.1. Classic Topology

1) Case 1: mdd 20031



: In this scenario, the

distance between node 0 and 3 is 600 m and is greater

than the carrier sense range, therefore the two nodes are

fully independent. The main problem with IEEE 802.11

is the serious long-term unfairness and incompatibility

problems as shown in Figure 2.

Figure 3 is TCP throughput of the two flows in the

CDMB-MAC-based network. In the 300 s lifetime of the

two flows, there is not one time when the throughput

reaches zero. The aggregate throughput in Figure 2

(752.522 Kbp s) is greater than that in Figure 3 (680.042

Kbps), however the stability and short-term fairness per-

formance of the latter is far better than that of the former.

And two simultaneous TCP traffics can coexist in the

0100 200 300

100

200

300

400

500

Throughput (Kbps)

Time ( s )

From 0 to 1

0100 200300

100

200

300

400

500

Throughput(Kbps)

Time( s)

From 3 to 2

Figure 3. Throughput of two TCP flow s in the CDMB-MAC

network, d1 =d2 =d3= 200m.

Y. K. XIAO ET AL.

358

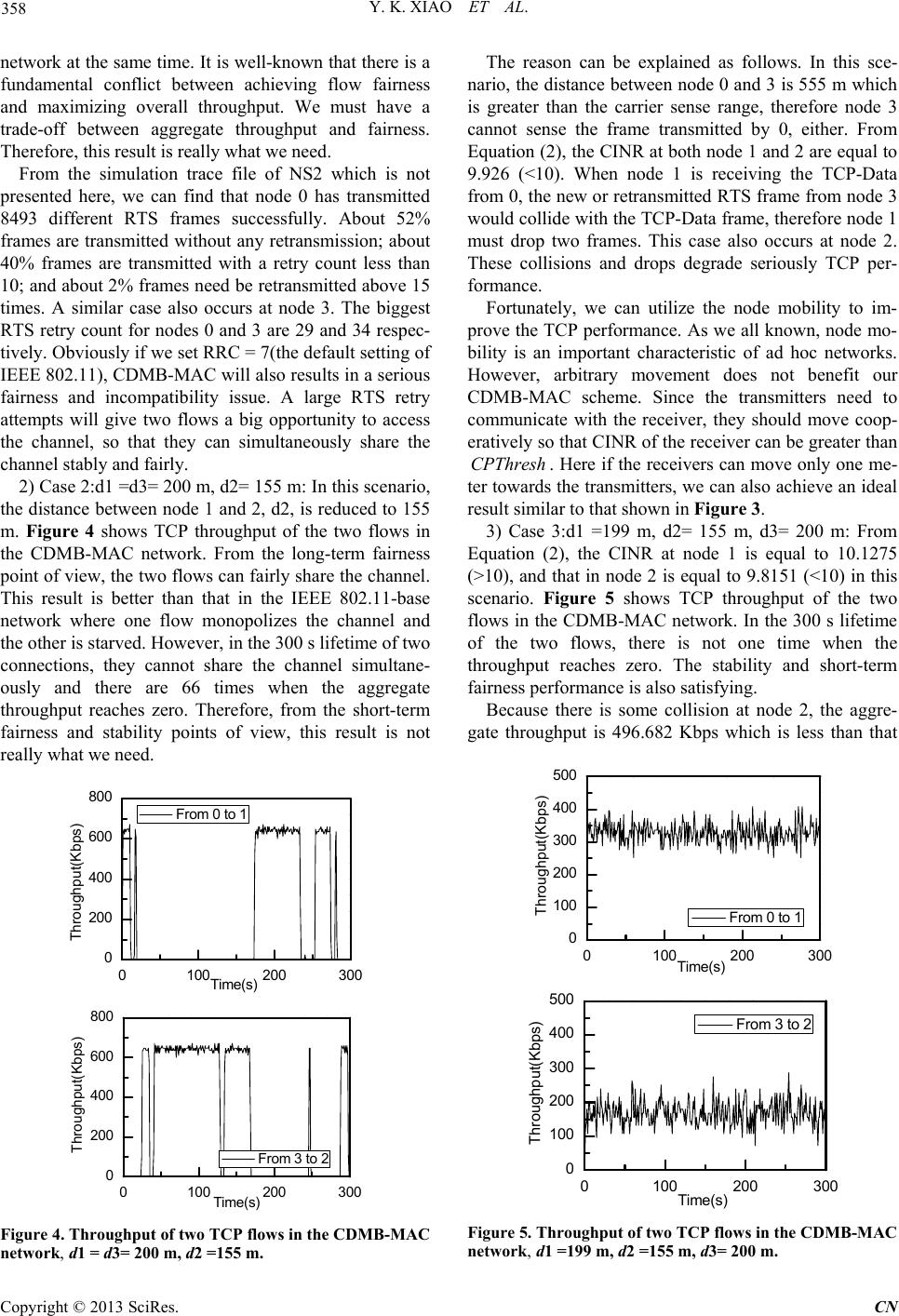

network at the same time. It is well-known that there is a

fundamental conflict between achieving flow fairness

and maximizing overall throughput. We must have a

trade-off between aggregate throughput and fairness.

Therefore, this result is really what we need.

From the simulation trace file of NS2 which is not

presented here, we can find that node 0 has transmitted

8493 different RTS frames successfully. About 52%

frames are transmitted without any retransmission; about

40% frames are transmitted with a retry count less than

10; and about 2% frames need be retransmitted above 15

times. A similar case also occurs at node 3. The biggest

RTS retry count for nodes 0 and 3 are 29 and 34 respec-

tively. Obviously if we set RRC = 7(the default setting of

IEEE 802.11), CDMB-MAC will also results in a serious

fairness and incompatibility issue. A large RTS retry

attempts will give two flows a big opportunity to access

the channel, so that they can simultaneously share the

channel stably and fairly.

2) Case 2:d1 =d3= 200 m, d2= 155 m: In this scenario,

the distance between node 1 and 2, d2, is reduced to 155

m. Figure 4 shows TCP throughput of the two flows in

the CDMB-MAC network. From the long-term fairness

point of view, the two flows can fairly share the channel.

This result is better than that in the IEEE 802.11-base

network where one flow monopolizes the channel and

the other is starved. However, in the 300 s lifetime of two

connections, they cannot share the channel simultane-

ously and there are 66 times when the aggregate

throughput reaches zero. Therefore, from the short-term

fairness and stability points of view, this result is not

really what we need.

0100 200 300

200

400

600

800

Throughput(Kbps)

Time( s )

From 0 to 1

0100200 300

200

400

600

800

Throughput(Kbps)

Time (s )

From 3 to 2

Figure 4. Throughput of two TCP flow s in the CDMB-MAC

network, d1 = d3= 200 m, d2 =155 m.

The reason can be explained as follows. In this sce-

nario, the distance between node 0 and 3 is 555 m which

is greater than the carrier sense range, therefore node 3

cannot sense the frame transmitted by 0, either. From

Equation (2), the CINR at both node 1 and 2 are equal to

9.926 (<10). When node 1 is receiving the TCP-Data

from 0, the new or retransmitted RTS frame from node 3

would collide with the TCP-Data frame, therefore node 1

must drop two frames. This case also occurs at node 2.

These collisions and drops degrade seriously TCP per-

formance.

Fortunately, we can utilize the node mobility to im-

prove the TCP performance. As we all known, node mo-

bility is an important characteristic of ad hoc networks.

However, arbitrary movement does not benefit our

CDMB-MAC scheme. Since the transmitters need to

communicate with the receiver, they should move coop-

eratively so that CINR of the receiver can be greater than

. Here if the receivers can move only one me-

ter towards the transmitters, we can also achieve an ideal

result similar to that shown in Figure 3.

CPThresh

3) Case 3:d1 =199 m, d2= 155 m, d3= 200 m: From

Equation (2), the CINR at node 1 is equal to 10.1275

(>10), and that in node 2 is equal to 9.8151 (<10) in this

scenario. Figure 5 shows TCP throughput of the two

flows in the CDMB-MAC network. In the 300 s lifetime

of the two flows, there is not one time when the

throughput reaches zero. The stability and short-term

fairness performance is also satisfying.

Because there is some collision at node 2, the aggre-

gate throughput is 496.682 Kbps which is less than that

0100 200 300

100

200

300

400

500

Throughput(Kbps)

Time (s )

From 0 to 1

0100 200 300

100

200

300

400

500

Throughput(Kbps)

Time(s)

From 3 to 2

Figure 5. Throughput of two TCP flow s in the CDMB-MAC

network, d1 =199 m, d2 =155 m, d3= 200 m.

Y. K. XIAO ET AL. 359

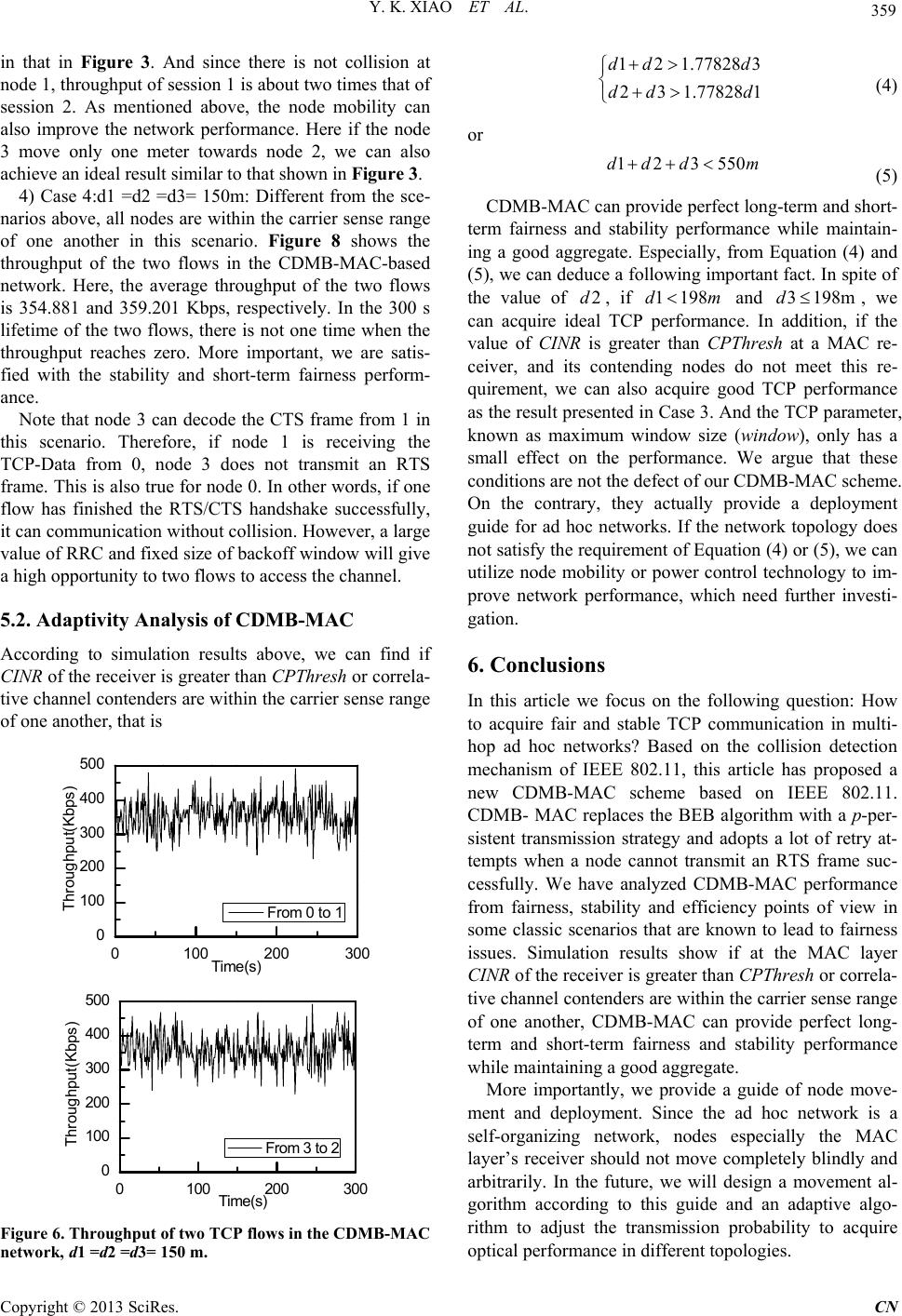

in that in Figure 3. And since there is not collision at

node 1, throughpu t of session 1 is about two ti mes that of

session 2. As mentioned above, the node mobility can

also improve the network performance. Here if the node

3 move only one meter towards node 2, we can also

achieve an ideal result similar to that shown in Figure 3.

4) Case 4:d1 =d2 =d3= 150m: Different from the sce-

narios above, all nodes are within the carrier sense range

of one another in this scenario. Figure 8 shows the

throughput of the two flows in the CDMB-MAC-based

network. Here, the average throughput of the two flows

is 354.881 and 359.201 Kbps, respectively. In the 300 s

lifetime of the two flows, there is not one time when the

throughput reaches zero. More important, we are satis-

fied with the stability and short-term fairness perform-

ance.

Note that node 3 can decode the CTS frame from 1 in

this scenario. Therefore, if node 1 is receiving the

TCP-Data from 0, node 3 does not transmit an RTS

frame. This is also true for node 0. In other words, if one

flow has finished the RTS/CTS handshake successfully,

it can communication withou t collision. However, a large

value of RRC an d fixed size of b ackoff window will giv e

a high opportunity to two flows to access the channel.

5.2. Adaptivity Analysis of CDMB-MAC

According to simulation results above, we can find if

CINR of the receiver is greater than CPThresh or correla-

tive channel contenders are within the carrier sense range

of one another, that is

0100 200 300

100

200

300

400

500

Throughput(Kbps)

Time( s)

From 0 to 1

0100 200 300

100

200

300

400

500

Throughput(Kbps)

Time( s)

From 3 to 2

Figure 6. Throughput of two TCP flow s in the CDMB-MAC

network, d1 =d2 =d3= 150 m.

121.77828 3

231.77828 1

dd d







 (4)

123550dd dm



 (5)

CDMB-MAC can provide perfect long-term and short-

term fairness and stability performance while maintain-

ing a good aggregate. Especially, from Equation (4) and

(5), we can deduce a following important fact. In spite of

the value of , if

2d1198dm



and , we

can acquire ideal TCP performance. In addition, if the

value of CINR is greater than CPThresh at a MAC re-

ceiver, and its contending nodes do not meet this re-

quirement, we can also acquire good TCP performance

as the result presented in Case 3. And th e TCP parameter,

known as maximum window size (window), only has a

small effect on the performance. We argue that these

conditions are not the defect of our CDMB-MAC scheme.

On the contrary, they actually provide a deployment

guide for ad hoc networks. If the network topology does

not satisfy the requirement of Equation (4) or (5), we can

utilize node mobility or power control technology to im-

prove network performance, which need further investi-

gation.

3198md

6. Conclusions

In this article we focus on the following question: How

to acquire fair and stable TCP communication in multi-

hop ad hoc networks? Based on the collision detection

mechanism of IEEE 802.11, this article has proposed a

new CDMB-MAC scheme based on IEEE 802.11.

CDMB- MAC replaces the BEB algorithm with a p-per-

sistent transmission strategy and adopts a lot of retry at-

tempts when a node cannot transmit an RTS frame suc-

cessfully. We have analyzed CDMB-MAC performance

from fairness, stability and efficiency points of view in

some classic scenarios that are known to lead to fairness

issues. Simulation results show if at the MAC layer

CINR of the receiver is greater than CPThresh or correla-

tive channel contenders are within the carrier sense range

of one another, CDMB-MAC can provide perfect long-

term and short-term fairness and stability performance

while maintaining a good aggreg ate.

More importantly, we provide a guide of node move-

ment and deployment. Since the ad hoc network is a

self-organizing network, nodes especially the MAC

layer’s receiver should not move completely blindly and

arbitrarily. In the future, we will design a movement al-

gorithm according to this guide and an adaptive algo-

rithm to adjust the transmission probability to acquire

optical performance in different topol ogi es.

Y. K. XIAO ET AL.

360

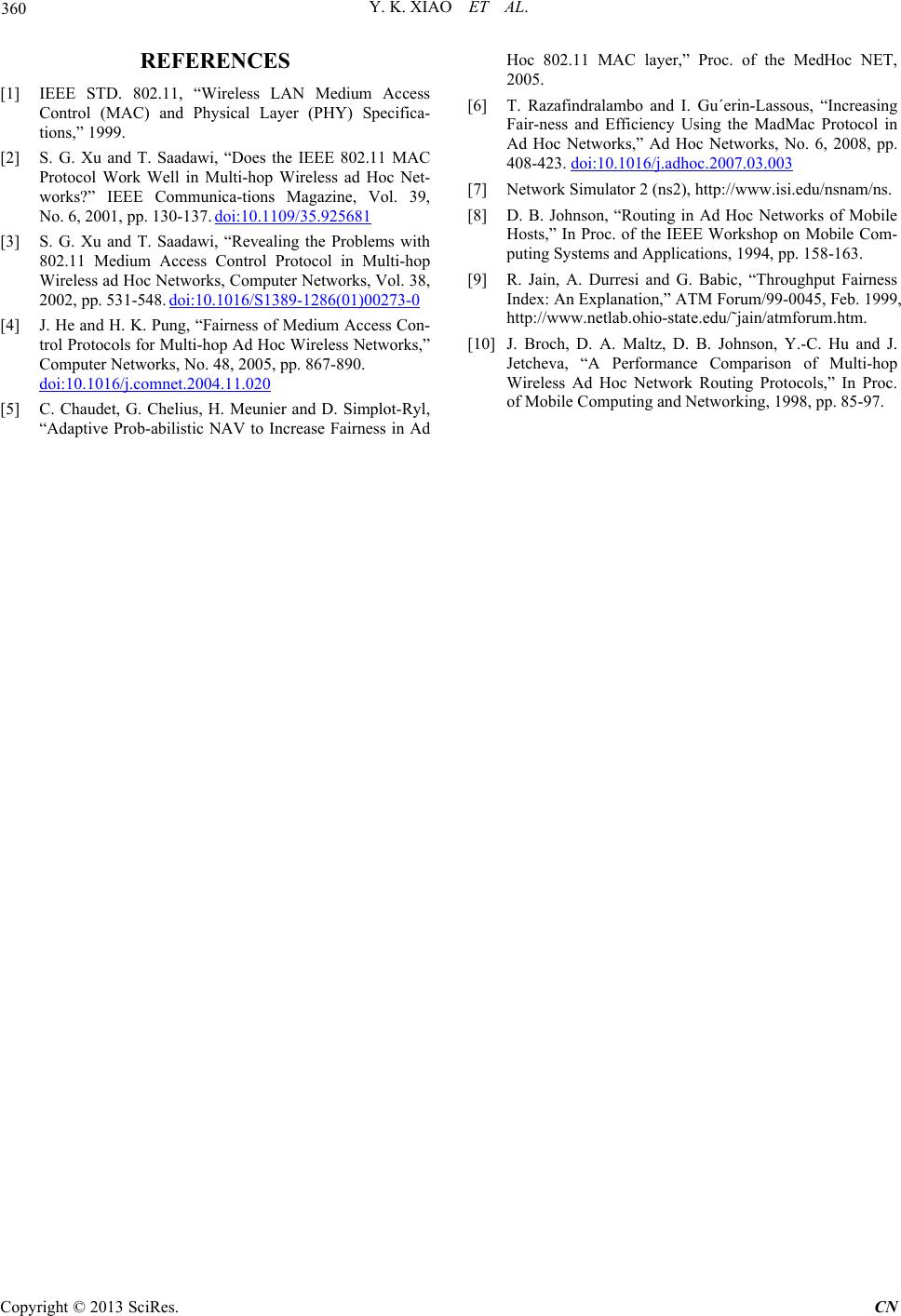

REFERENCES

[1] IEEE STD. 802.11, “Wireless LAN Medium Access

Control (MAC) and Physical Layer (PHY) Specifica-

tions,” 1999.

[2] S. G. Xu and T. Saadawi, “Does the IEEE 802.11 MAC

Protocol Work Well in Multi-hop Wireless ad Hoc Net-

works?” IEEE Communica-tions Magazine, Vol. 39,

No. 6, 2001, pp. 130-137. doi:10.1109/35.925681

[3] S. G. Xu and T. Saadawi, “Revealing the Problems with

802.11 Medium Access Control Protocol in Multi-hop

Wireless ad Hoc Networks, Computer Networks, Vol. 38,

2002, pp. 531-548. doi:10.1016/S1389-1286(01)00273-0

[4] J. He and H. K. Pung, “Fairness of Medium Access Con-

trol Protocols for Multi-hop Ad Hoc Wireless Networks,”

Computer Networks, No. 48, 2005, pp. 867-890.

doi:10.1016/j.comnet.2004.11.020

[5] C. Chaudet, G. Chelius, H. Meunier and D. Simplot-Ryl,

“Adaptive Prob-abilistic NAV to Increase Fairness in Ad

Hoc 802.11 MAC layer,” Proc. of the MedHoc NET,

2005.

[6] T. Razafindralambo and I. Gu´erin-Lassous, “Increasing

Fair-ness and Efficiency Using the MadMac Protocol in

Ad Hoc Networks,” Ad Hoc Networks, No. 6, 2008, pp.

408-423. doi:10.1016/j.adhoc.2007.03.003

[7] Network Simulator 2 (ns2), http://www.isi.edu/nsnam/ns.

[8] D. B. Johnson, “Routing in Ad Hoc Networks of Mobile

Hosts,” In Proc. of the IEEE Workshop on Mobile Com-

puting Systems and Applications, 1994, pp. 158-163.

[9] R. Jain, A. Durresi and G. Babic, “Throughput Fairness

Index: An Explanation,” ATM Forum/99-0045, Feb. 1999,

http://www.netlab.ohio-state.edu/˜jain/atmforum.htm.

[10] J. Broch, D. A. Maltz, D. B. Johnson, Y.-C. Hu and J.

Jetcheva, “A Performance Comparison of Multi-hop

Wireless Ad Hoc Network Routing Protocols,” In Proc.

of Mobile Computing and Networking, 1998, pp. 85-97.
