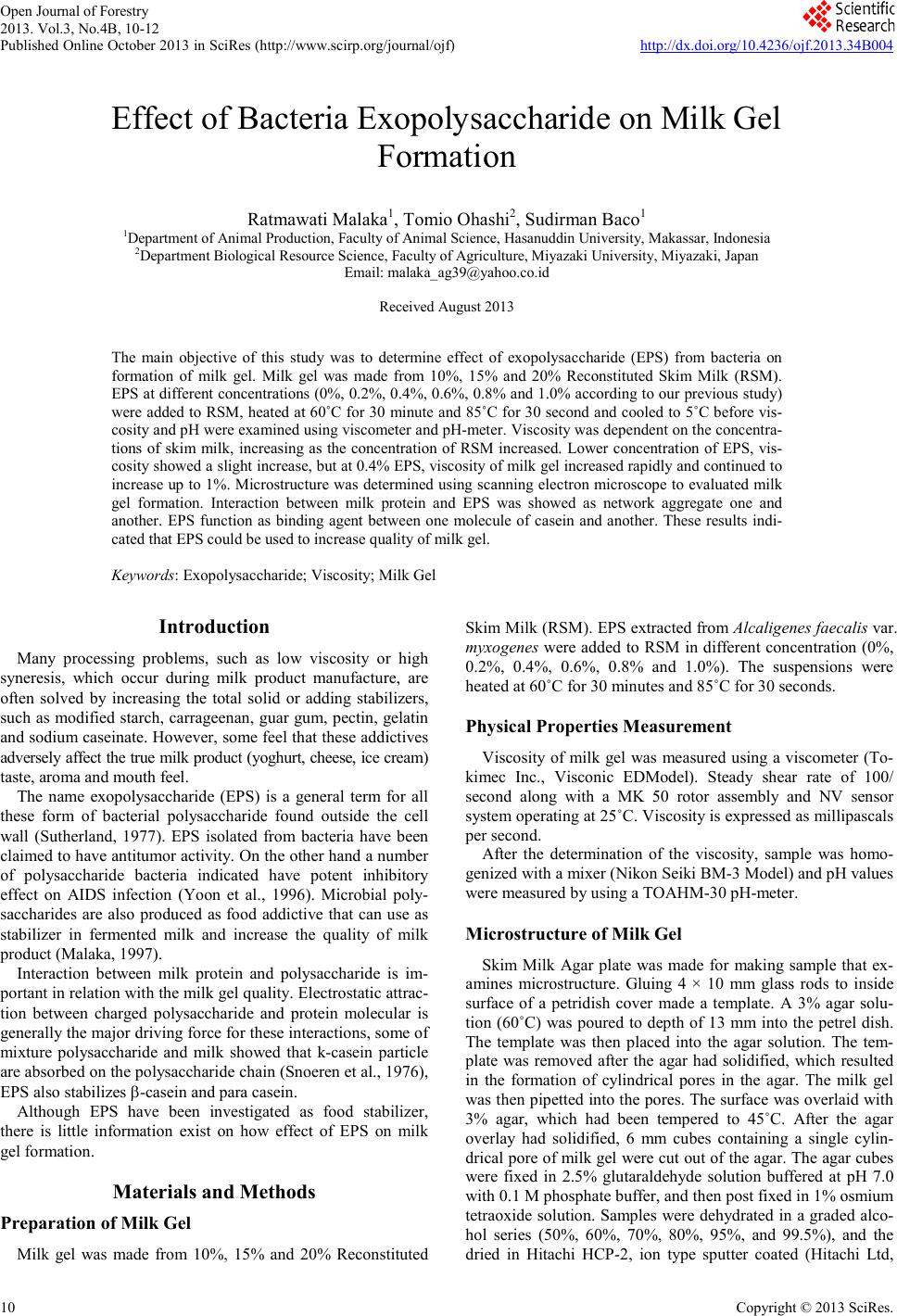

Effect of Bacteria Exopolysaccharide on Milk Gel

Formation

Ratmawati Malaka1, Tomio Ohashi2, Sudirman Baco1

1Department of Animal P roduction, Faculty of Animal Science, Hasanuddin University, Makassar, Indonesia

2Department Biological Resource Science, Faculty of Agriculture, Miyazaki University, Miyazaki, Japan

Email: [email protected]

Received August 2013

The main objective of this study was to determine effect of exopolysaccharide (EPS) from bacteria on

formation of milk gel. Milk gel was made from 10%, 15% and 20% Reconstituted Skim Milk (RSM).

EPS a t different c oncentr ations (0%, 0. 2%, 0.4%, 0.6% , 0.8% and 1.0 % accordi ng to our previo us study)

were added t o RSM, heated at 60˚C for 30 minute a nd 85˚C for 30 second a nd cooled to 5˚C before vis-

cosi t y and pH w ere examined us i ng visc o meter a nd p H-meter . V is c osity was dep ende nt on th e c onc entr a-

tions of skim milk, increasing as the concentration of RSM increased. Lower concentration of EPS, vis-

cosi ty showed a slight incr ease, but a t 0.4% EP S, viscos ity of mil k gel inc reas ed rapi dly and conti nued to

incr ease up to 1%. Mic rostructur e was det ermined using sc anning ele ctron micr oscope to evalua ted milk

gel formation. Interaction between milk protein and EPS was showed as network aggregate one and

another. EPS function as binding agent between one molecule of casein and another. These results indi-

cated that EPS could be used to increase qua lity of milk gel.

Key words: Exopol ysaccharide; Viscosity; Milk Gel

Introduction

Many processing problems, such as low viscosity or high

syneresis, which occur during milk product manufacture, are

often solved by increasing the total solid or adding stabilizers,

such as mod ified starch, carrageenan , guar gum, pectin , gelatin

and sodium caseinate. Ho wever, so me feel th at thes e addict ives

adver sely a ffect th e true milk pro duct (yoghur t, ch eese, i ce cre am)

taste, aroma and mouth feel.

The name exopolysaccharide (EPS) is a general term for all

these form of bacterial polysaccharide found outside the cell

wall (Sutherland, 1977). EPS isolated from bacteria have been

claimed to have an titumor acti vity. On the other hand a number

of polysaccharide bacteria indicated have potent inhibitory

effect on AIDS infection (Yoon et al., 1996). Microbial poly-

saccharides are also produced as food addictive that can use as

stabilizer in fermented milk and increase the quality of milk

product (Malaka, 1997).

Interaction between milk protein and polysaccharide is im-

portant in relation with the milk gel quality. Electrostatic attrac-

tion between charged polysaccharide and protein molecular is

generally the major drivi ng force fo r th ese in teract io ns, some of

mixture polysaccharide and milk showed that k-casein particle

are absorbed on the polysaccharide ch ain (Sno eren et al., 1976),

EPS also stabilizes β-casein and para casein.

Although EPS have been investigated as food stabilizer,

there is little information exist on how effect of EPS on milk

gel formation.

Materials and Methods

Preparation of Milk Gel

Milk gel was made from 10%, 15% and 20% Reconstituted

Skim Milk (RSM). EPS extracted from Alcalig enes fa ecalis var.

myxogenes were added to RSM in different concentration (0%,

0.2%, 0.4%, 0.6%, 0.8% and 1.0%). The suspensions were

heated at 60˚C for 30 minutes and 85˚C for 30 seconds.

Physical Properties Measurement

Viscosity of milk gel was measured using a viscometer (To-

kimec Inc., Visconic EDModel). Steady shear rate of 100/

second along with a MK 50 rotor assembly and NV sensor

system operating at 25˚C. Visco sity is exp ress ed as millip ascals

per second.

After the determination of the viscosity, sample was homo-

genized with a mixer (Nikon Seiki BM-3 Model) and pH values

were measured by using a TOAHM-30 pH-meter.

Microstructure of Milk Gel

Skim Milk Agar plate was made for maki ng sample that ex-

amines microstructure. Gluing 4 × 10 mm glass rods to inside

surface of a petridish cover made a template. A 3% agar solu-

tion (60˚C) was poured to depth of 13 mm into the petrel dish.

The template was then placed into the agar solution. The tem-

plate was removed after the agar had solidified, which resulted

in the formation of cylindrical pores in the agar. The milk gel

was then pipetted into the pores. The surface was overlaid with

3% agar, which had been tempered to 45˚C. After the agar

overlay had solidified, 6 mm cubes containing a single cylin-

drical po re of milk gel were cut ou t of the agar. The agar cubes

were fixed in 2.5% glutaraldehyde solution buffered at pH 7.0

with 0.1 M phosphate buffer, and then post fixed in 1% osmium

tetraoxi de solution. Samples wer e dehydrated i n a graded alco-

hol series (50%, 60%, 70%, 80%, 95%, and 99.5%), and the

dried in Hitachi HCP-2, ion type sputter coated (Hitachi Ltd,

R. MALAKA ET AL.

Tokyo), and viewed in a Hitachi s-4 100 type scanning electron

microscope.

Results and Discussions

The term “milk gel” refers to EPS was suspended in recons-

tituted skim milk and treaded by heat treatment to form gel

before cooling.

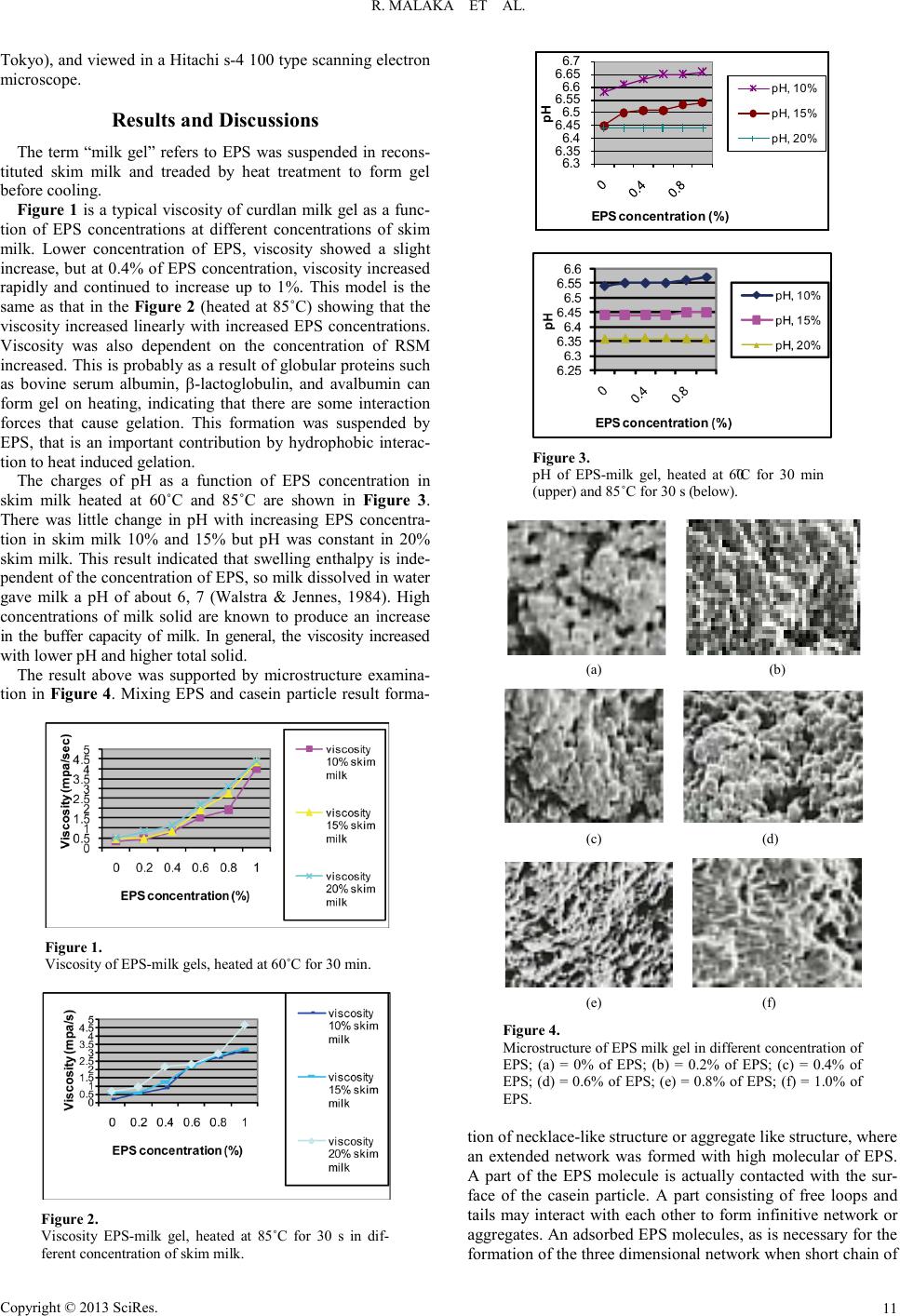

Figure 1 is a typical viscosity of curdlan milk gel as a func-

tion of EPS concentrations at different concentrations of skim

milk. Lower concentration of EPS, viscosity showed a slight

increase, but at 0.4 % of EPS concentr ation, visco sity increased

rapidly and continued to increase up to 1%. This model is the

same as that in the Figure 2 (heated at 85˚C) showing that the

viscosit y increased linearly with increased EPS concentrations.

Viscosity was also dependent on the concentration of RSM

increased. This is probably as a result of globular proteins such

as bovine serum albumin, β-lactoglobulin, and avalbumin can

form gel on heating, indicating that there are some interaction

forces that cause gelation. This formation was suspended by

EPS, that is an important contribution by hydrophobic interac-

tion to heat induced gelation.

The charges of pH as a function of EPS concentration in

skim milk heated at 60˚C and 85˚C are shown in Figure 3.

There was little change in pH with increasing EPS concentra-

tion in skim milk 10% and 15% but pH was constant in 20%

skim milk. This result indicated that swelling enthalpy is inde-

pendent of the concentration of EPS, so milk dissolved in water

gave milk a pH of about 6, 7 (Walstra & Jennes, 1984). High

concentrations of milk solid are known to produce an increase

in the buffer capacity of milk. In general, the viscosity increased

with lower pH and higher total solid.

The result above was supported by microstructure examina-

tion in Figure 4. Mixing EPS and casein particle result forma-

Figure 1.

Viscosity of EPS-milk gels, heated at 60˚C for 30 min.

Figure 2.

Viscosity EPS-milk gel, heated at 85˚C for 30 s in dif-

ferent c oncentr ation of skim milk.

Figure 3.

pH of EPS-milk gel, heated at 60˚C for 30 min

(upper) and 85˚C for 30 s (below).

(a) (b)

(e) (f)

Figure 4.

Microstructure of EPS milk gel in different concentration of

EPS; (a) = 0% of EPS; (b ) = 0.2% of EPS; (c) = 0.4% of

EPS; (d) = 0.6% of EPS; (e) = 0.8% of EPS; (f) = 1.0% of

EPS.

tion of nec k l a ce -like structure or aggregate like structure, where

an extended network was formed with high molecular of EPS.

A part of the EPS molecule is actually contacted with the sur-

face of the casein particle. A part consisting of free loops and

tails may interact with each other to form infinitive network or

aggregate s. An adso rbed EP S molecules, as is necess ary for th e

formation of the three dimensional network when short chain of

6.3

6.35

6.4

6.45

6.5

6.55

6.6

6.65

6.7

EP S c oncentr ation (%)

pH, 1 0 %

pH, 1 5 %

pH, 2 0 %

R. MALAKA ET AL.

the molecules.

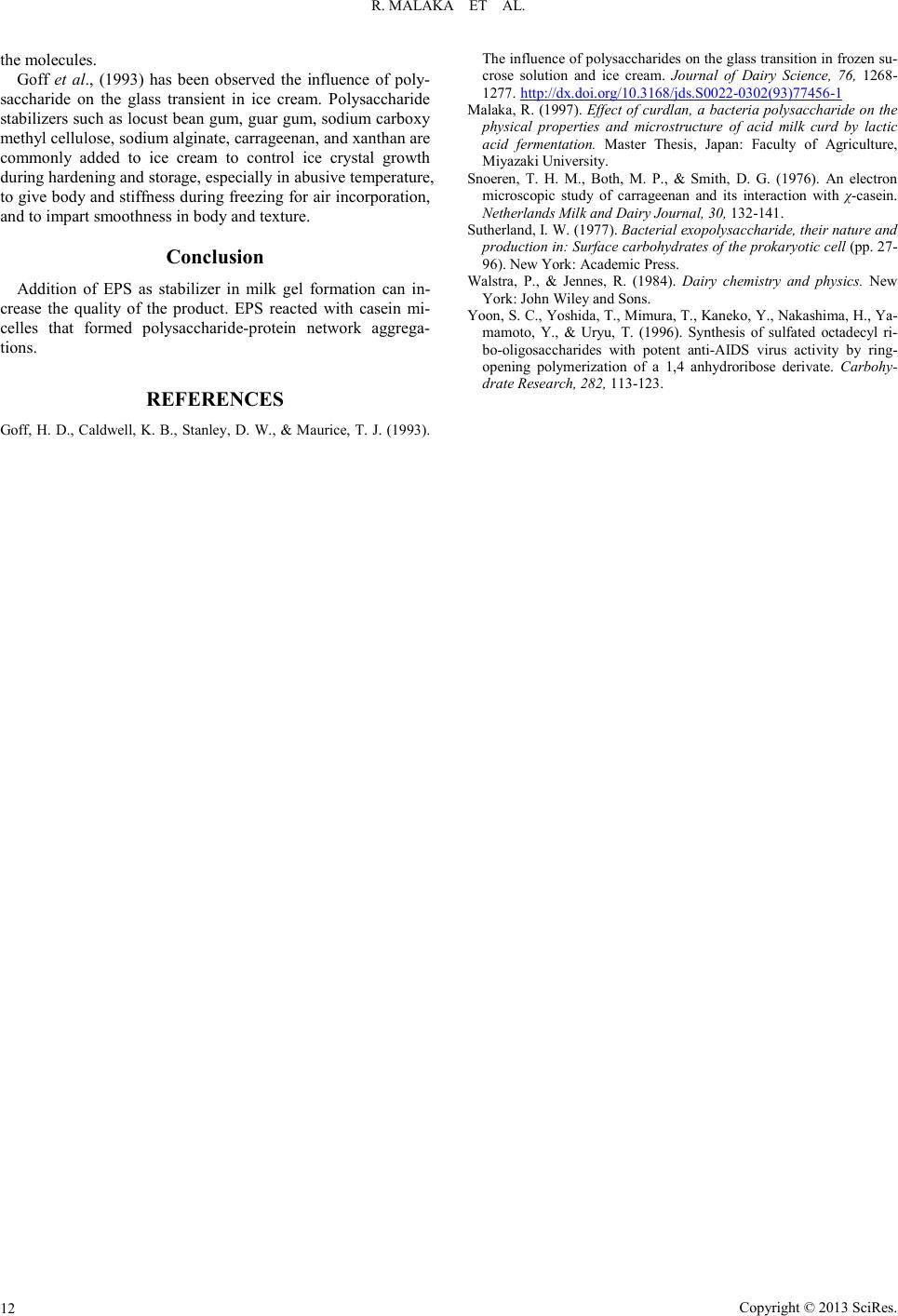

Goff et al., (1993) has been observed the influence of poly-

saccharide on the glass transient in ice cream. Polysaccharide

stabilizers such as locust bean gum, guar gum, sodium carboxy

methyl cellu lo se, so diu m alginate, carrageen an, and xan th an are

commonly added to ice cream to control ice crystal growth

during hardening and storage, especially in abusive temperature,

to give body and stiffness during freezing for air incorporation,

and to impart smoothness in body and texture.

Conclusion

Addition of EPS as stabilizer in milk gel formation can in-

crease the quality of the product. EPS reacted with casein mi-

celles that formed polysaccharide-protein network aggrega-

tions.

REFERENCES

Goff, H. D., Caldwell, K. B., Stanley, D. W. , & Maurice, T. J. (1993).

The influence of polysaccharides on the glass transition in frozen su-

crose solution and ice cream. Journal of Dairy Science, 76, 1268-

1277. http ://dx.d o i.org/10.3168/jds.S0022-0302(93)77456-1

Malaka, R. (1997). Effect of curdlan, a bacteria polysaccharide on the

physical properties and microstructure of acid milk curd by lactic

acid fermentation. Master Thesis, Japan: Faculty of Agriculture,

Miyazaki University.

Snoeren, T. H. M., Both, M. P., & Smith, D. G. (1976). An electron

microscopic study of carrageenan and its interaction with χ-casein.

Netherlands Milk and Dairy Journal, 30, 132-141.

Sutherland, I. W. (1977). Bacterial exopolysaccharide, their nature and

production in: Surface carbohydrates of the prokaryotic cell (pp. 27-

96). New York: Academic Press.

Walstra, P., & Jennes, R. (1984). Dairy chemistry and physics. New

York: John Wiley and Sons.

Yoon, S. C., Yoshida, T., Mimura, T., Kaneko, Y., Nakashima, H., Ya-

mamoto, Y., & U ryu , T. (1996). Synthesis of sulfated octadecyl ri-

bo-oligosaccharides with potent anti-AIDS virus activity by ring-

opening polymerization of a 1,4 anhydroribose derivate. Carbohy-

drate Research, 282, 113-123.
