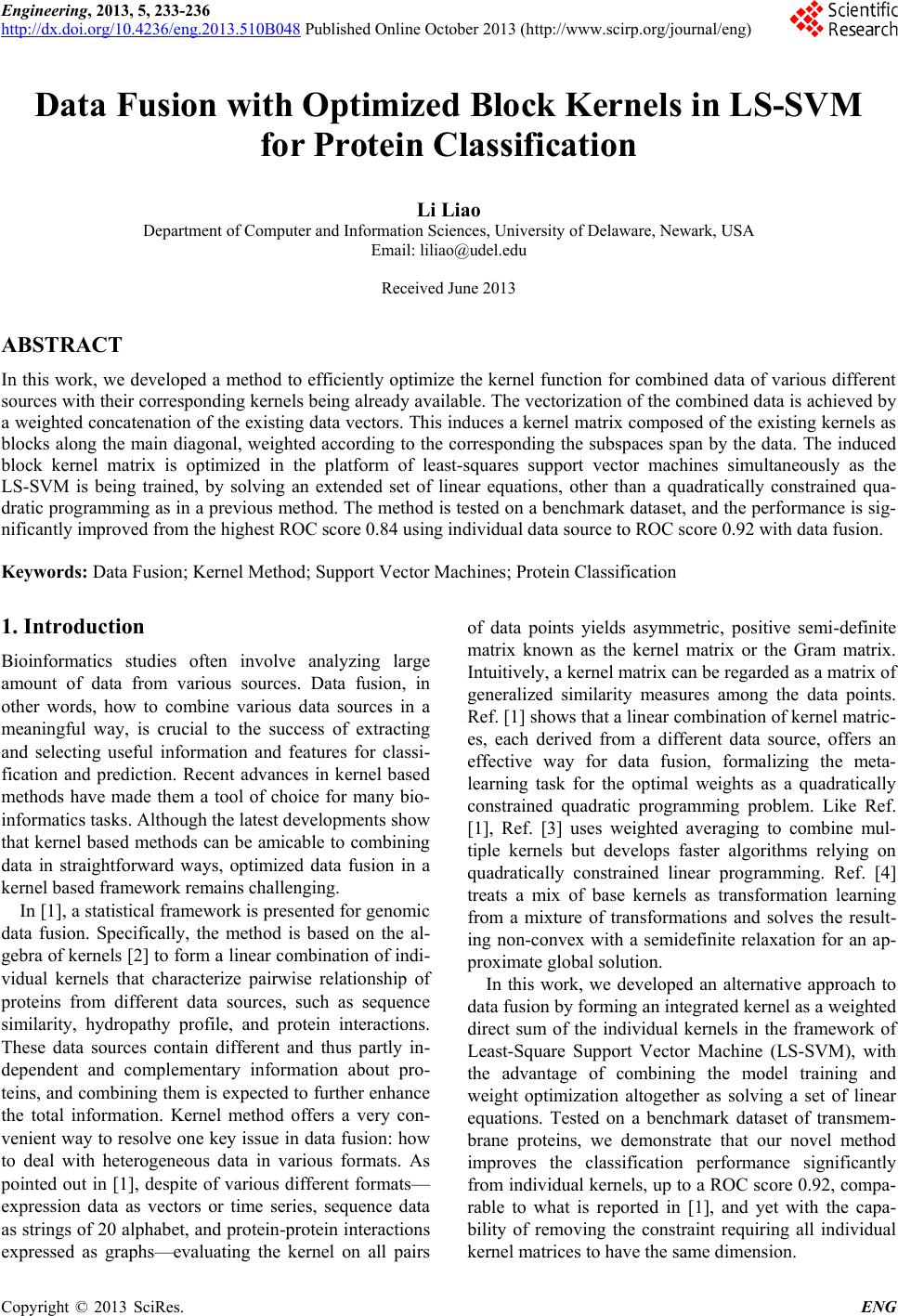

Engineering, 2013, 5, 233-236

http://dx.doi.org/10.4236/eng.2013.510B048 Published Online October 2013 (http://www.scirp.org/journal/eng)

Data Fusion with Optimized Block Kernels in LS-SVM

for Protein Classification

Li Liao

Department of Computer and Information Sciences, University of Delaware, Newark, USA

Email: [email protected]

Received June 2013

ABSTRACT

In this work, we developed a method to efficiently optimize the kernel function for combined data of various different

sources with their corresponding kernels being already available. The vectorization of the combined data is achieved by

a weighted concatenation of the existing data vectors. This induces a kernel matrix composed of the existing kernels as

blocks along the main diagonal, weighted according to the corresponding the subspaces span by the data. The induced

block kernel matrix is optimized in the platform of least-squares support vector machines simultaneously as the

LS-SVM is being trained, by solving an extended set of linear equations, other than a quadratically constrained qua-

dratic programming as in a previous method. The method is tested on a benchmark dataset, and the performance is sig-

nificantly improved from the highest ROC score 0.84 using individual data source to ROC score 0.92 with data fusion.

Keywords: Data Fusion; Kernel Method; Support Vector Machines; Protein Classification

1. Introduction

Bioinformatics studies often involve analyzing large

amount of data from various sources. Data fusion, in

other words, how to combine various data sources in a

meaningful way, is crucial to the success of extracting

and selecting useful information and features for classi-

fication and prediction. Recent advances in kernel based

methods have made them a tool of choice for many bio-

informatics tasks. Although the latest developments show

that kernel based methods can be amicable to combining

data in straightforward ways, optimized data fusion in a

kernel ba s e d f r amework re mains cha llengi ng .

In [1], a statistical framework is presented for genomic

data fusion. Specifically, the method is based on the al-

gebra of kernels [2] to form a linear combination of indi-

vidual kernels that characterize pairwise relationship of

proteins from different data sources, such as sequence

similarity, hydropathy profile, and protein interactions.

These data sources contain different and thus partly in-

dependent and complementary information about pro-

teins, and combining them is expected to further enhance

the total information. Kernel method offers a very con-

venient way to resolve one key issue in data fusion: how

to deal with heterogeneous data in various formats. As

pointed out in [1], despite of various different formats—

expression data as vectors or time series, sequence data

as strings of 20 alphabet, and pr otein-protein interactions

expressed as graphs—evaluating the kernel on all pairs

of data points yields asymmetric, positive semi-definite

matrix known as the kernel matrix or the Gram matrix.

Intuitively, a kernel matrix can be regarded as a matrix of

generalized similarity measures among the data points.

Ref. [1] shows that a linear combination of kernel matric-

es, each derived from a different data source, offers an

effective way for data fusion, formalizing the meta-

learning task for the optimal weights as a quadratically

constrained quadratic programming problem. Like Ref.

[1], Ref. [3] uses weighted averaging to combine mul-

tiple kernels but develops faster algorithms relying on

quadratically constrained linear programming. Ref. [4 ]

treats a mix of base kernels as transformation learning

from a mixture of transformations and solves the result-

ing non-convex with a semidefinite relaxation for an ap-

proximate global solution.

In this work, we developed an alternative approach to

data fusion by forming an integrated kernel as a weighted

direct sum of the individual kernels in the framework of

Least-Square Support Vector Machine (LS-SVM), with

the advantage of combining the model training and

weight optimization altogether as solving a set of linear

equations. Tested on a benchmark dataset of transmem-

brane proteins, we demonstrate that our novel method

improves the classification performance significantly

from individual kernels, up to a ROC score 0.92, compa-

rable to what is reported in [1], and yet with the capa-

bility of removing the constraint requiring all individual

kernel matrices to have the same dimension.

L. LIAO

234

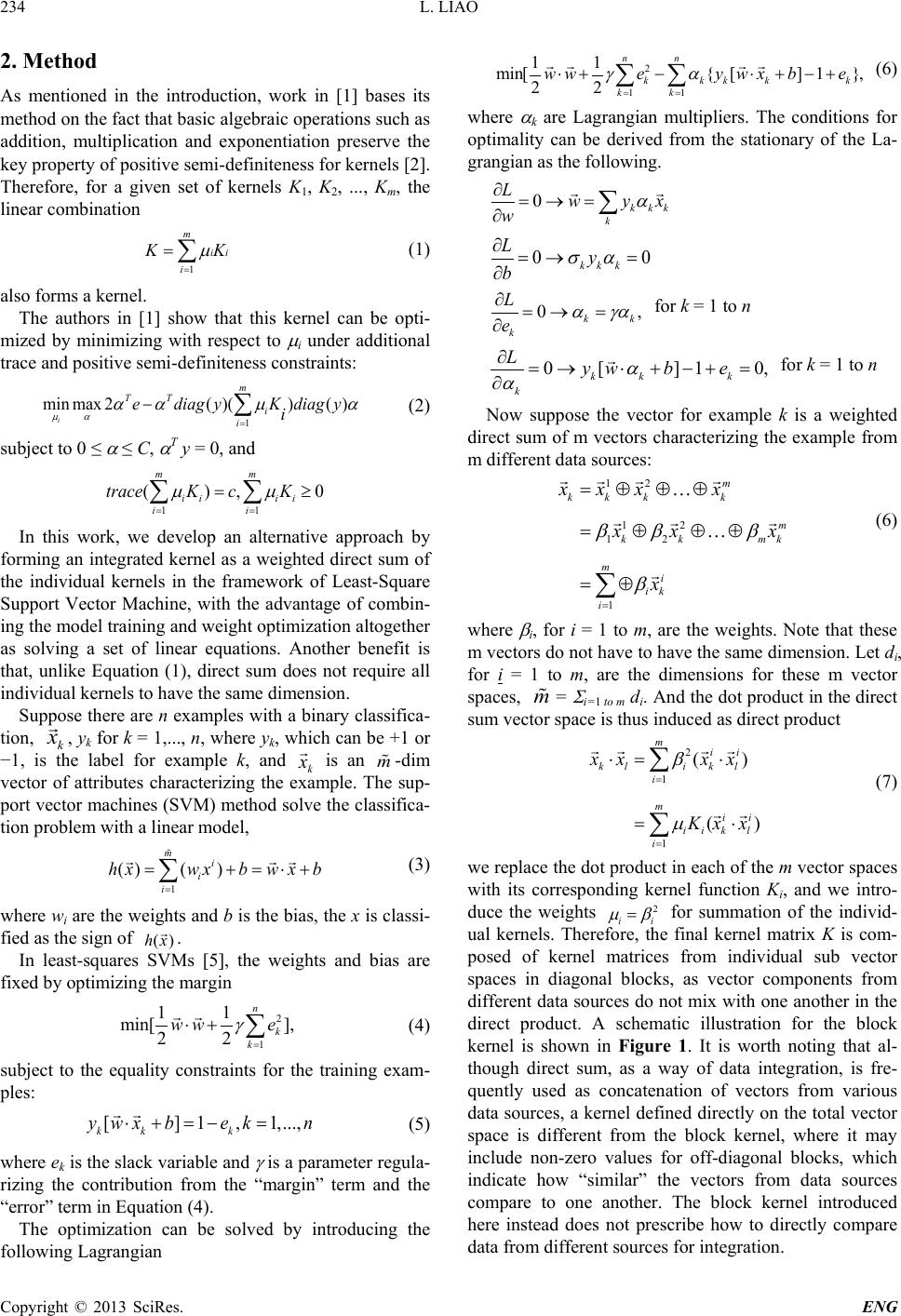

2. Method

As mentioned in the introduction, work in [1] bases its

method on the fact that basic algebraic operations such as

addition, multiplication and exponentiation preserve the

key property of po sitiv e s emi-definiteness for kernels [2].

Therefore, for a given set of kernels K1, K2, ..., Km, the

linear combination

(1)

also forms a kernel.

The authors in [1] show that this kernel can be opti-

mized by minimizing with respect to

i under additional

trace and positive semi-definiteness constraints:

min max 2()()()

TT i

ediag yKdiag y

µαααµ α

−∑

(2)

subject to 0 ≤

≤ C,

T y = 0, and

( ),0

ii ii

traceK cK

µµ

= =

= ≥

∑∑

In this work, we develop an alternative approach by

forming an integrated kernel as a weighted direct sum of

the individual kernels in the framework of Least-Square

Support Vector Machine, with the advantage of combin-

ing the model training and weight optimization altogether

as solving a set of linear equations. Another benefit is

that, unlike Equation (1), direct sum does not require all

individua l kerne l s to ha ve the same dimens ion.

Suppose there are n examples with a binary clas sifica-

tion,



, yk for k = 1,..., n, whe re yk, which can be +1 or

−1, is the label for example k, and



is an



-dim

vector of attributes characterizing the example. The sup-

port vector machines (SVM) method solve the classifica-

tion problem with a linear model,

()( )

h xwxbwxb

=+= ⋅+

∑



 

(3)

where wi are the weights and b is the bias, the x is classi-

fied as the sign of

()hx



In least-squares SVMs [5], the weights and bias are

fixed by optimizing the margin

min[ ],

ww e

⋅+

∑



(4)

subject to the equality constraints for the training exam-

ples:

[] 1,1,...,

kk k

y wxbe kn⋅+=− =



(5 )

where ek is the slack variable and

is a parameter regula-

rizing the contribution from the “marg in ” term and the

“error” term in Equation (4).

The optimization can be solved by introducing the

following Lagrangian

min[{[] 1},

kkk kk

wwey wxbe

γα

= =

⋅ +−⋅+−+

∑∑

 

(6)

where

k are Lagrangian multipliers. The conditions for

optimality can be derived from the stationary of the La-

grangian as the following.

k kk

Lw yx

∂=→=

∂

∑



kkk

σα

∂=→=

∂

α γα

∂=→=

∂

for k = 1 to n

0[] 10,

kk k

Lyw b e

∂= →⋅+−+=

∂



for k = 1 to n

Now suppose the vector for example k is a weighted

direct sum of m vectors characterizing the example from

m different data sources:

kkk k

k kmk

xxx x

xx x

ββ β

= ⊕ ⊕⊕

= ⊕⊕⊕

= ⊕

∑

 



 





(6)

where

i, for i = 1 to m, are the weights. Note that these

m vectors do not have to have the same dimension. Let di,

for i = 1 to m, are the dimensions for these m vector

spaces,



i=1 to m di. An d the d ot pro duct in the d irect

sum vector space is thus induced as direct product

()

mii

klikl

mii

iik l

xx xx

Kx x

⋅= ⋅

= ⋅

∑

 



(7)

we replace the dot product in each of the m vector spaces

with its corresponding kernel function Ki, and we intro-

duce the weights

µβ

for summation of the individ-

ual kernels. Therefore, the final kernel matrix K is com-

posed of kernel matrices from individual sub vector

spaces in diagonal blocks, as vector components from

different data sources do not mix with one another in the

direct product. A schematic illustration for the block

kernel is shown in Figure 1. It is worth noting that al-

though direct sum, as a way of data integration, is fre-

quently used as concatenation of vectors from various

data sources, a kernel defined directly on the total vector

space is different from the block kernel, where it may

include non-zero values for off-diagonal blocks, which

indicate how “similar” the vectors from data sources

compare to one another. The block kernel introduced

here instead does not prescribe how to directly compare

data from different sources for integration.

=∑

L. LIAO

235

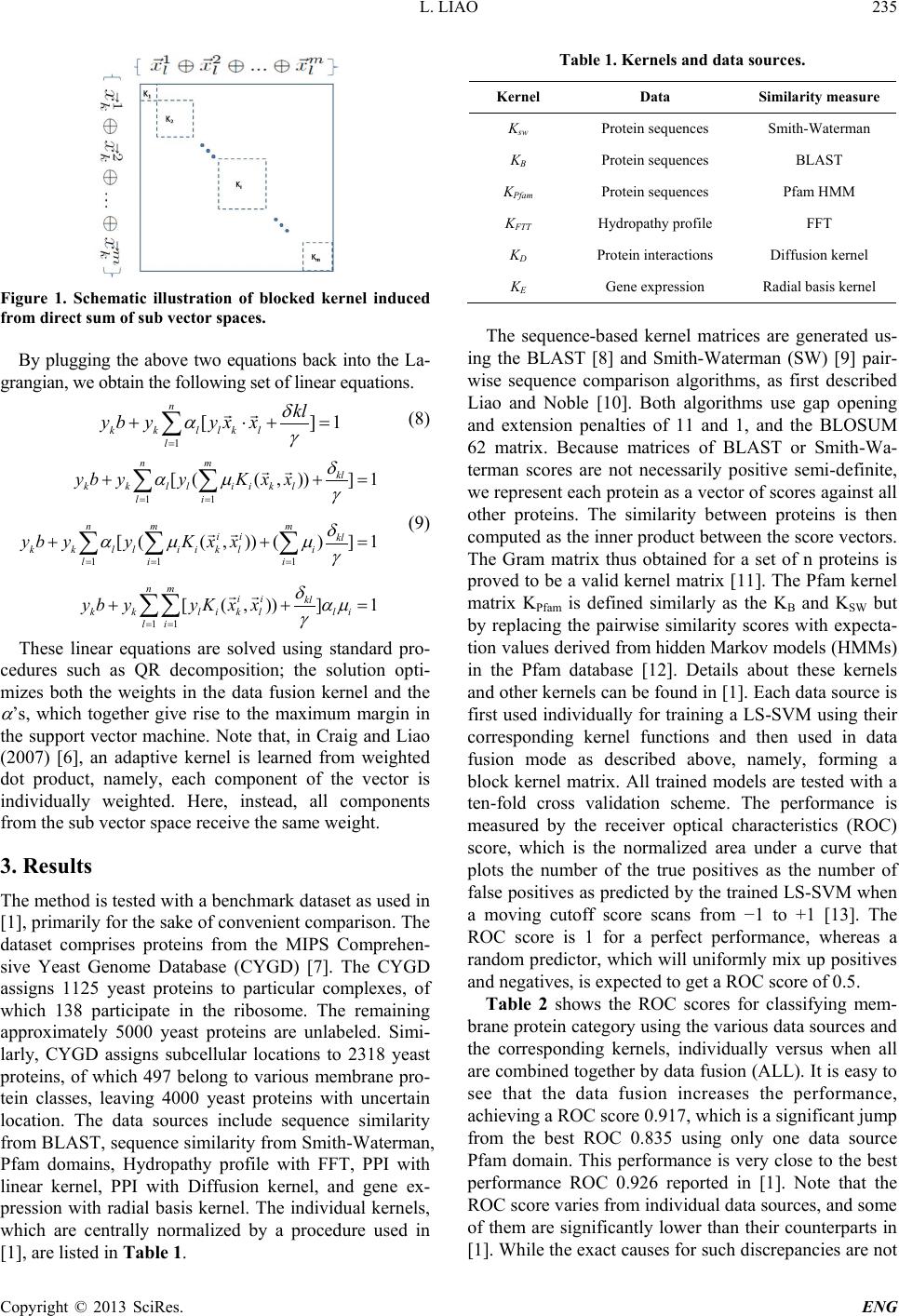

Figure 1. Schematic illustration of blocked kernel induced

from direct sum of sub vector spaces.

By plugging the above two equations back into the La-

grangian, we o bt ai n the fol lowing set of li nea r equations.

[ ]1

kkllkl

ybyyx x

αγ

+⋅+ =

∑



(8)

11 1

[ ((, ))] 1

[ ((,))()] 1

[(, ))]1

nm kl

kk lliikl

nm m

ii kl

kk lliikli

li i

nm ii kl

kkliklli

ybyyK xx

ybyyKxx

αµ γ

αµ µ

δαµ

= =

= ==

= =

+ +=

∑∑

∑∑ ∑

∑∑



(9)

These linear equations are solved using standard pro-

cedures such as QR decomposition; the solution opti-

mizes both the weights in the data fusion kernel and the

’s, which together give rise to the maximum margin in

the support vector machine. Note that, in Craig and Liao

(2007) [6], an adaptive kernel is learned from weighted

dot product, namely, each component of the vector is

individually weighted. Here, instead, all components

from the sub vector space receive the same weight.

3. Results

The method is tested with a benchmark dataset as used in

[1], primarily for the sake of convenient comparison. The

dataset comprises proteins from the MIPS Comprehen-

sive Yeast Genome Database (CYGD) [7]. The CYGD

assigns 1125 yeast proteins to particular complexes, of

which 138 participate in the ribosome. The remaining

approximately 5000 yeast proteins are unlabeled. Simi-

larly, CYGD assigns subcellular locations to 2318 yeast

proteins, of which 497 belong to various membrane pro-

tein classes, leaving 4000 yeast proteins with uncertain

location. The data sources include sequence similarity

from BLAST, sequence similarity fr om Smith-Waterman,

Pfam domains, Hydropathy profile with FFT, PPI with

linear kernel, PPI with Diffusion kernel, and gene ex-

pression with radial basis kernel. The individual kernels,

which are centrally normalized by a procedure used in

[1], are listed in Table 1.

Table 1. Kernels and data sou rces.

Kernel Data Similarity measure

Ksw Protein sequences Smith-Waterman

KB Protein sequences BLAST

KPfam Protein sequences Pfam HMM

KFTT Hydropathy profile FFT

KD Protein interactions Diffusion kernel

KE Gene expression Radial basis kernel

The sequence-based kernel matrices are generated us-

ing the BLAST [8] and Smith-Waterman (SW) [9] pair-

wise sequence comparison algorithms, as first described

Liao and Noble [10]. Both algorithms use gap opening

and extension penalties of 11 and 1, and the BLOSUM

62 matrix. Because matrices of BLAST or Smith-Wa-

terman scores are not necessarily positive semi-definite,

we represent each protein as a vector of scores against all

other proteins. The similarity between proteins is then

computed as the inner product between the score vectors.

The Gram matrix thus obtained for a set of n proteins is

proved to be a valid kernel matrix [11]. The Pfam kernel

matrix KPfam is defined similarly as the KB and KSW but

by replacing the pairwise similarity scores with expecta-

tion values derived from hidden Markov models (HMMs)

in the Pfam database [12]. Details about these kernels

and other kernels can be found in [1]. Each data source is

first used individually for training a LS-SVM using their

corresponding kernel functions and then used in data

fusion mode as described above, namely, forming a

block kernel matrix. All trained models are tested with a

ten-fold cross validation scheme. The performance is

measured by the receiver optical characteristics (ROC)

score, which is the normalized area under a curve that

plots the number of the true positives as the number of

false positives as predicted by the trained LS-SVM when

a moving cutoff score scans from −1 to +1 [13]. The

ROC score is 1 for a perfect performance, whereas a

random predictor, which will uniformly mix up positives

and negatives, is expected to get a ROC score of 0.5.

Table 2 shows the ROC scores for classifying mem-

brane protein category using the various data sources and

the corresponding kernels, individually versus when all

are combined together by data fusion (ALL). It is easy to

see that the data fusion increases the performance,

achieving a ROC score 0.917, which is a significant jump

from the best ROC 0.835 using only one data source

Pfam domain. This performance is very close to the best

performance ROC 0.926 reported in [1]. Note that the

ROC score varies from individual data sources, and some

of them are significantly lower than their counterparts in

[1]. While the exact causes for such discrepancies are not

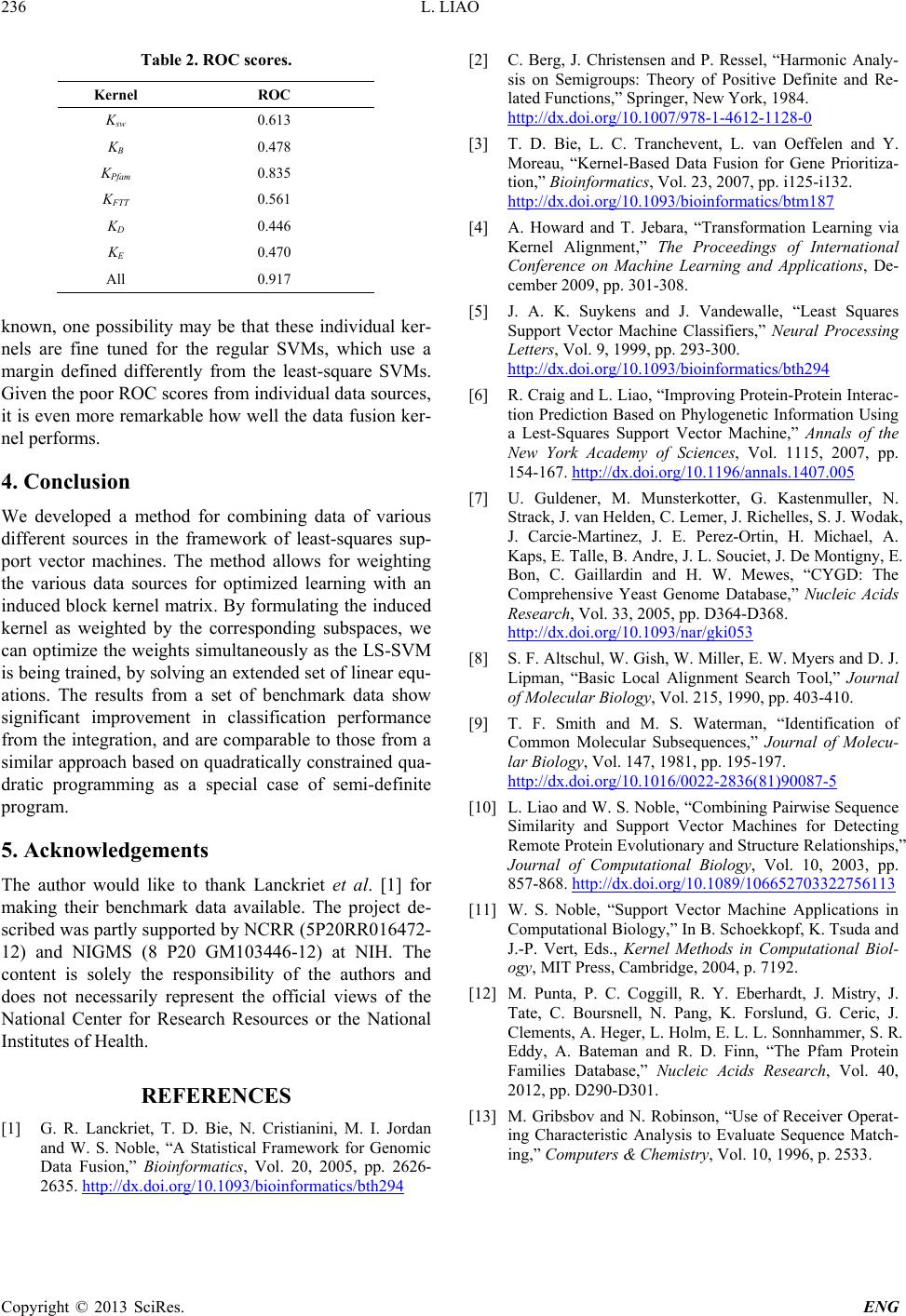

L. LIAO

236

Table 2. ROC scores.

Kernel ROC

Ksw 0.613

KB 0.478

KPfam 0.835

KFTT 0.561

KD 0.446

KE 0.470

All 0.917

known, one possibility may be that these individual ker-

nels are fine tuned for the regular SVMs, which use a

margin defined differently from the least-square SVMs.

Given the poor ROC scores from individual data sources,

it is even more remarkable how well the data fusion ker-

nel performs.

4. Conclusion

We developed a method for combining data of various

different sources in the framework of least-squares sup-

port vector machines. The method allows for weighting

the various data sources for optimized learning with an

induced block kernel matrix. By formulating the induced

kernel as weighted by the corresponding subspaces, we

can optimize the weights simultaneously as the LS-SVM

is being trained, by solving an extended set of linear equ-

ations. The results from a set of benchmark data show

significant improvement in classification performance

from the integration, and are comparable to those from a

similar appr oach based on quadratica lly constrained qua -

dratic programming as a special case of semi-definite

program.

5. Acknowledgements

The author would like to thank Lanckriet et al. [1] for

making their benchmark data available. The project de-

scribed was partly supported b y NCRR (5P2 0RR0164 72-

12) and NIGMS (8 P20 GM103446-12) at NIH. The

content is solely the responsibility of the authors and

does not necessarily represent the official views of the

National Center for Research Resources or the National

Institutes of Health.

REFERENCES

[1] G. R. Lanckriet, T. D. Bie, N. Cristianini, M. I. Jordan

and W. S. Noble, “A Statistical Framework for Genomic

Data Fusion,” Bioinformatics, Vol. 20, 2005, pp. 2626-

2635. http://dx.doi.org/10.1093/bioinformatics/bth294

[2] C. Berg, J. Christensen and P. Ressel, “Harmonic Analy-

sis on Semigroups: Theory of Positive Definite and Re-

lated Functions,” Springer, New York, 1984.

http://dx.doi.org/10.1007/978-1-4612-1128-0

[3] T. D. Bie, L. C. Tranchevent, L. van Oeffelen and Y.

Moreau, “Kernel-Based Data Fusion for Gene Prioritiza-

tion,” Bioinformatics, Vol. 23, 2007, pp. i125-i132.

http://dx.doi.org/10.1093/bioinformatics/btm187

[4] A. Howard and T. Jebara, “Transformation Learning via

Kernel Alignment,” The Proceedings of International

Conference on Machine Learning and Applications, De-

cember 2009, pp. 301-308.

[5] J. A. K. Suykens and J. Vandewalle, “Least Squares

Support Vector Machine Classifiers,” Neural Processing

Letters, Vol. 9, 1999, pp. 293-300.

http://dx.doi.org/10.1093/bioinformatics/bth294

[6] R. Craig and L. Liao, “Improving Protein-Protein Interac-

tion Prediction Based on Phylogenetic Information Using

a Lest-Squares Support Vector Machine,” Annals of the

New York Academy of Sciences, Vol. 1115, 2007, pp.

154-167. http://dx.doi.org/10.1196/annals.1407.005

[7] U. Guldener, M. Munsterkotter, G. Kastenmuller, N.

Strack, J. van Helden, C. Lemer, J. Richelles, S. J. Wodak,

J. Carcie-Martinez, J. E. Perez-Ortin, H. Michael, A.

Kaps, E. Talle, B. Andre, J. L. Souciet, J. De Montigny, E.

Bon, C. Gaillardin and H. W. Mewes, “CYGD: The

Comprehensive Yeast Genome Database,” Nucleic Acids

Research, Vol. 33, 2005, pp. D364-D368.

http://dx.doi.org/10.1093/nar/gki053

[8] S. F. Altsc hul, W. Gish, W. Miller, E. W. My ers and D. J .

Lipman, “Basic Local Alignment Search Tool,” Journal

of Molecular Biology, Vol. 215, 1990, pp. 403-410.

[9] T. F. Smith and M. S. Waterman, “Identification of

Common Molecular Subsequences,” Journal of Molecu-

lar Biology, Vol. 147, 1981, pp. 195-197.

http://dx.doi.org/10.1016/0022-2836(81)90087-5

[10] L. Liao and W. S. Noble, “Combining Pairwise Sequence

Similarity and Support Vector Machines for Detecting

Remote Protein Evolutionary and Structure Relationships,”

Journal of Computational Biology, Vol. 10, 2003, pp.

857-868. http://dx.doi.org/10.1089/106652703322756113

[11] W. S. Noble, “Support Vector Machine Applications in

Computational Biology,” In B. Schoekkopf, K. Tsuda and

J.-P. Vert, Eds., Kernel Methods in Computational Biol-

ogy, MIT Press, Cambridge, 2004, p. 7192.

[12] M. Punta, P. C. Coggill, R. Y. Eberhardt, J. Mistry, J.

Tate, C. Boursnell, N. Pang, K. Forslund, G. Ceric, J.

Clements, A. Heger, L. Hol m, E . L. L. Sonnhammer, S. R.

Eddy, A. Bateman and R. D. Finn, “The Pfam Protein

Families Database,” Nucleic Acids Research, Vol. 40,

2012, pp. D290-D301.

[13] M. Gribsbov and N. Robinson, “Use of Receiver Operat-

ing Characteristic Analysis to Evaluate Sequence Match-

ing,” Computers & Chemistry, Vol. 10, 1996, p. 2533.
