American Journal of Computational Mathematics, 2013, 3, 52-55

doi:10.4236/ajcm.2013.33B009 Published Online September 2013 (http://www.scirp.org/journal/ajcm)

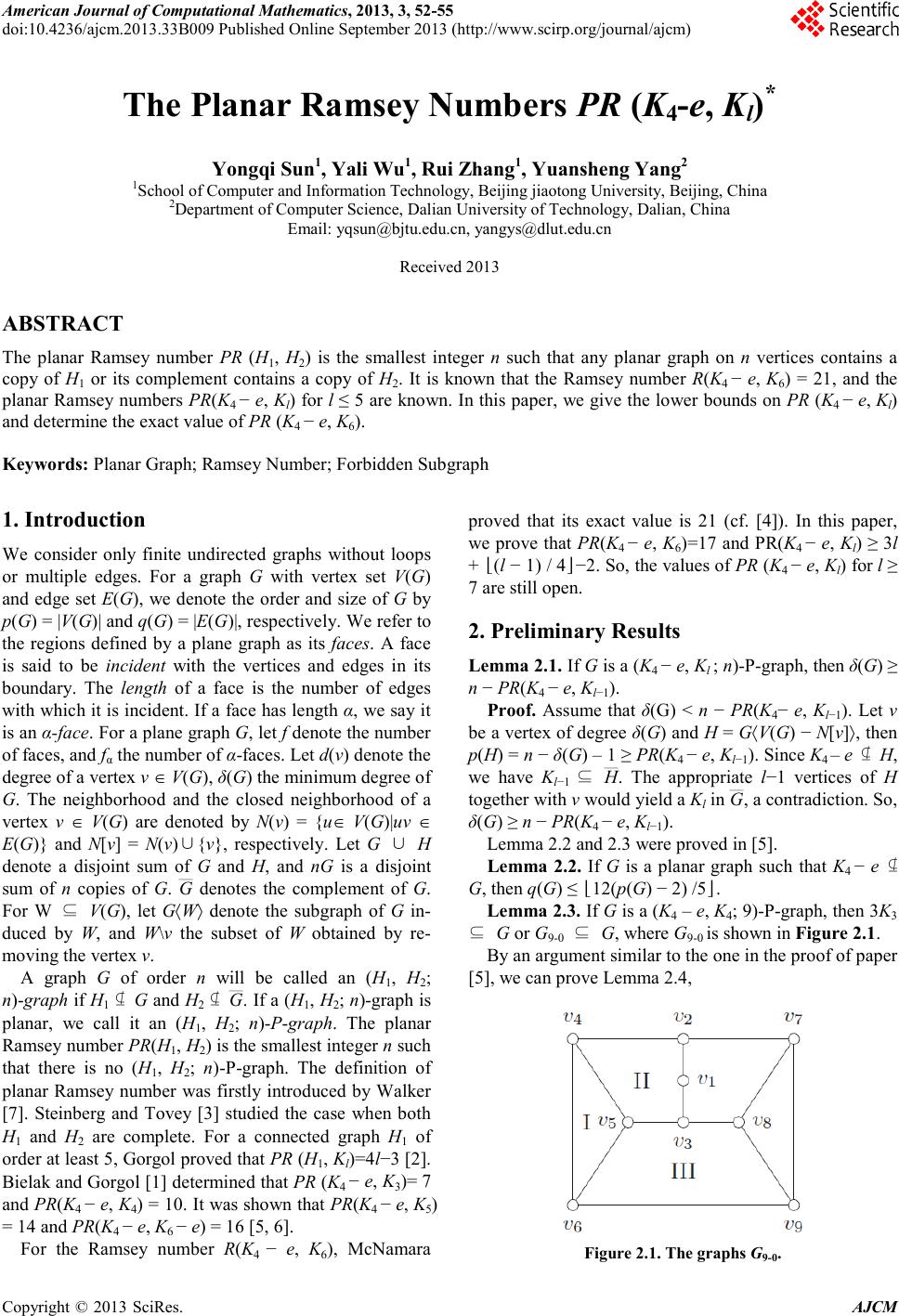

The Planar Ramsey Numbers PR (K4-e, Kl)*

Yongqi Sun1, Yali Wu1, Rui Zhang1, Yuansheng Yang2

1School of Computer and Information Technology, Beijing jiaotong University, Beijing, China

2Department of Computer Science, Dalian University of Technology, Dalian, China

Email: [email protected], [email protected]

Received 2013

ABSTRACT

The planar Ramsey number PR (H1, H2) is the smallest integer n such that any planar graph on n vertices contains a

copy of H1 or its complement contains a copy of H2. It is known that the Ramsey number R(K4 − e, K6) = 21, and the

planar Ramsey numbers PR(K4 − e, Kl) for l ≤ 5 are known. In this paper, we give the lower bounds on PR (K4 − e, Kl)

and determine the exact value of PR (K4 − e, K6).

Keywords: Planar Graph; Ramsey Number; Forbidden Subgr ap h

1. Introduction

We consider only finite undirected graphs without loops

or multiple edges. For a graph G with vertex set V(G)

and edge set E(G), we denote the order and size of G by

p(G) = |V(G)| and q(G) = |E(G)|, respectively. We refer to

the regions defined by a plane graph as its fac es. A face

is said to be incident with the vertices and edges in its

boundary. The length of a face is the number of edges

with which it is incident. If a face has length α, we say it

is an α-face . For a plane graph G, let f denote the number

of faces, and fα the number of α-faces. Let d(v) denote the

degree of a vertex v ∈ V(G), δ(G) the minimum degree of

G. The neighborhood and the closed neighborhood of a

vertex v ∈ V(G) are denoted by N(v) = {u∈ V(G)|uv ∈

E(G)} and N[v] = N(v)∪{v}, respectively. Let G ∪ H

denote a disjoint sum of G and H, and nG is a disjoint

sum of n copies of G. G

___

denotes the complement of G.

For W ⊆ V(G), let G〈W〉 denote the subgraph of G in-

duced by W, and W\v the subset of W obtained by re-

moving the vertex v.

A graph G of order n will be called an (H1, H2;

n)-graph if H1 ⊈ G and H2 ⊈ G

___

For the Ramsey number R(K4 − e, K6), McNamara

proved that its exact value is 21 (cf. [4] ). In this paper,

we prove that PR(K4 − e, K6)=17 and PR(K4 − e, Kl) ≥ 3l

+ ⌊(l − 1) / 4⌋−2. So, the values of PR (K4 − e, Kl) for l ≥

7 are still open.

2. Preliminary Results

Lemma 2.1. If G is a (K4 − e, Kl ; n)-P-gra ph, then δ(G) ≥

n − PR(K4 − e, Kl−1).

Proof. Assume that δ(G) < n − PR(K4− e, Kl−1). Let v

be a vertex of degree δ(G) and H = G〈V(G) − N[v]〉, then

p(H) = n − δ(G) – 1 ≥ PR(K4 − e, Kl−1). Since K4 – e ⊈ H,

we have Kl−1 ⊆

. If a (H1, H2; n)-graph is

planar, we call it an (H1, H2; n)-P-graph. The planar

Ramsey number PR(H1, H2) is the smallest integer n such

that there is no (H1, H2; n)-P -graph. The definition of

planar Ramsey number was firstly introduced by Walker

[7]. Steinberg and Tovey [3] studied the case when both

H1 and H2 are complete. For a connected graph H1 of

order at least 5, Gorgol proved that PR (H1, Kl)=4l−3 [2].

Bielak and Gorgol [1] determined that PR (K4 − e, K3)= 7

and PR(K4 − e, K4) = 10. It was shown that PR(K4 − e, K5)

= 14 and PR(K4 − e, K6 − e) = 16 [5, 6].

___

. The appropriate l−1 vertices of H

together with v would yield a Kl in G

___

, a contradiction. So,

δ(G) ≥ n − PR(K4 − e, Kl−1).

Lemma 2.2 and 2.3 were proved in [5].

Lemma 2.2. If G is a planar graph such that K4 − e ⊈

G, then q(G) ≤ ⌊12(p(G) − 2) /5⌋.

Lemma 2.3. If G is a (K4 – e, K4; 9)-P-graph, then 3K3

⊆ G or G9-0 ⊆ G, where G9-0 is shown in Fig ure 2.1.

By an argument similar to the one in the proof of paper

[5], we can prove Lemma 2.4,

Figure 2.1. The graphs G9-0.

Y. Q. SUN ET AL.

Lemma 2.4. Let G be a (K4 – e, K5; n)-P-gra ph,

a) If n = 12, then 4K3 ⊆ G, (G9-0 ∪ K3) ⊆ G or

G12-i ⊆ G for 1 ≤ i ≤ 8, where G12-i are shown in Fig-

ure 2.2, and

If n = 13, then G is isomorphic to G13-0 or G13-0 + v3v4,

where G13-0 is shown in Figur e 2.3.

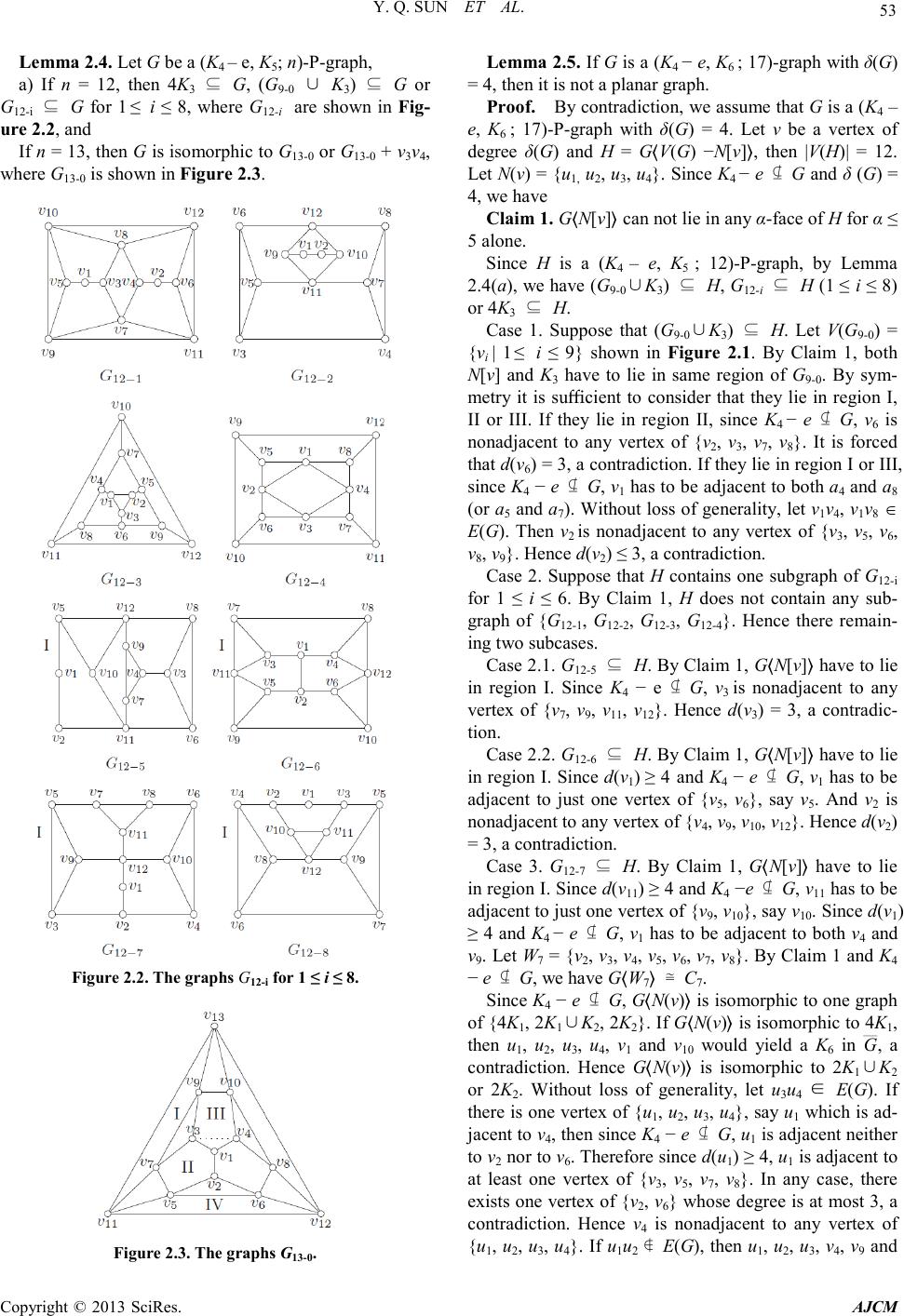

Figure 2.2. The graphs G12-i for 1 ≤ i ≤ 8.

Figure 2.3. The graphs G13-0.

Lemma 2.5. If G is a (K4 − e, K6 ; 17)-graph with δ(G)

= 4, then it is not a planar gr ap h.

Proof. By contradiction, we assume that G is a (K4 –

e, K6 ; 17)-P-graph with δ(G) = 4. Let v be a vertex of

degree δ(G) and H = G⟨V(G) −N[v]⟩, then |V(H)| = 12.

Let N(v) = {u1, u2, u3, u4}. Since K4 − e ⊈ G and δ (G) =

4, we have

Claim 1. G⟨N[v]⟩ can not lie in any α-face of H for α ≤

5 alone.

Since H is a (K4 – e, K5 ; 12)-P-graph, by Lemma

2.4(a), we have (G9-0∪K3) ⊆ H, G12-i ⊆ H (1 ≤ i ≤ 8)

or 4K3 ⊆ H.

Case 1. Suppose that (G9-0∪K3) ⊆ H. Let V(G9-0) =

{vi | 1 ≤ i ≤ 9} shown in Figure 2.1. By Claim 1, both

N[v] and K3 have to lie in same region of G9-0. By sym-

metr y it is suﬃcient to consider that they lie in region I,

II or III. If they lie in region II, since K4 − e ⊈ G, v6 is

nonad j acent to any vertex of {v2, v3, v7, v8}. It is forced

that d(v6) = 3, a contradiction. If they lie in region I or III,

since K4 − e ⊈ G, v1 has to be adjacent to both a4 and a8

(or a5 and a7). Without loss of generality, let v1v4, v1v8 ∈

E(G). Then v2 is nonadjacent to any vertex of {v3, v5, v6,

v8, v9}. Hence d(v2) ≤ 3, a contradiction.

Case 2. Suppose that H contains one subgraph of G12-i

for 1 ≤ i ≤ 6. By Claim 1, H does not contain any sub-

graph of {G12-1, G12-2, G12-3, G12-4}. Hence there remain-

ing two subcases.

Case 2.1. G12-5 ⊆ H. By Claim 1, G⟨N[v]⟩ have to lie

in region I. Since K4 − e ⊈ G, v3 is nonadjacent to any

vertex of {v7, v9, v11, v12}. Hence d(v3) = 3, a contradic-

tion.

Case 2.2. G12-6 ⊆ H. By Claim 1, G⟨N[v]⟩ have to lie

in region I. Since d(v1) ≥ 4 and K4 − e ⊈ G, v1 has to be

adjacent to just one vertex of {v5, v6}, say v5. And v2 is

nonadjacent to any vertex of {v4, v9, v10, v12}. Hence d(v2)

= 3, a contradiction.

Case 3. G12-7 ⊆ H. By Claim 1, G⟨N[v]⟩ have to lie

in region I. Since d(v11) ≥ 4 and K4 −e ⊈ G, v11 has to be

adjacent to just one vertex of {v9, v10}, say v10. Since d(v1)

≥ 4 and K4 − e ⊈ G, v1 has to be adjacent to both v4 and

v9. Let W7 = {v2, v3, v4, v5, v6, v7, v8}. By Claim 1 and K4

− e ⊈ G, we have G⟨W7⟩ ≅ C7.

Since K4 − e ⊈ G, G⟨N(v)⟩ is isomorphic to one graph

of {4K1, 2K1∪K2, 2K2}. If G⟨N(v)⟩ is isomorphic to 4K1,

then u1, u2, u3, u4, v1 and v10 would yield a K6 in G

___

, a

contradiction. Hence G⟨N(v)⟩ is isomorphic to 2K1∪K2

or 2K2. Without loss of generality, let u3u4 ∈ E(G). If

there is one vertex of {u1, u2, u3, u4}, say u1 which is ad-

jacent to v4, then since K4 − e ⊈ G, u1 is adjacent neither

to v2 nor to v6. Therefore since d(u1) ≥ 4, u1 is adjacent to

at least one vertex of {v3, v5, v7, v8}. In any case, there

exists one vertex of {v2, v6} whose degree is at most 3, a

contradiction. Hence v4 is nonadjacent to any vertex of

{u1, u2, u3, u4}. If u1u2 ∉ E(G), then u1, u2, u3, v4, v9 and

Y. Q. SUN ET AL.

v11 would yield a K6 in G

___

, a contradiction. So, we have

u1u2 ∈ E(G), that is, G⟨N(v)⟩ ≅ 2K2.

Since δ(G) = 4, there are at least 8 edges between the

vertices of {u1, u2, u3, u4} and W7\v4. Since K4 − e ⊈G,

each vertex of W7\v4 is adjacent to at most two vertices of

{u1, u2, u3, u4}. Hence there are just two vertices of

W7\v4 which are adjacent to two vertices of {u1, u2, u3,

u4}. By symmetry there are three cases.

Case 3.1. Suppose that there is one vertex of {v3, v8}

which is adjacent to u1 and u3 (or u2 and u4). Without loss

of generality, let v3u1, v3u3 ∈ E(G). Then since d(v5) ≥ 4

and K4 − e ⊈ G, v5 has to be adjacent to one vertex of {u2,

u4}, say u2. Thus there is at least one vertex of {u1, u3, u4}

whose degree is at most 3, a contradiction (see G17.1 in

Fig ur e 2.4).

Case 3.2. Suppose that there is one vertex of {v5, v7}

which is adjacent to u1 and u3 (or u2 and u4). Without loss

of generality, let v5u1, v5u3∈E(G). Then since d(v3) ≥ 4

and K4 − e ⊈ G, v3 has to be adjacent to one vertex of {u2,

u4}, say u2. Thus there is at least one vertex of {u1, u3, u4}

whose degree is at most 3, a contradiction(see G17.. 2 in Fig.

2.4) .

Case 3.3. Suppose that both v2 and v6 are adjacent to

two vertices of {u1, u2, u3, u4} respectively, say v2u1,

v2u3∈ E(G), v6 is adjacent to one vertex of {u1, u2} and

one vertex of {u3, u4}. Then since K4 − e ⊈G, there is at

least one vertex of {u1, u2, u3, u4} whose degree is at most

3, a contradiction (see G17.3 in Fig ur e 2.4).

Case 4. G12−8 ⊆ H. By Claim 1, G〈N[v]〉 have to lie in

region I. Since d(v8) ≥ 4 and K4 − e ⊈ G, v8 has to be

adjacent to v9. Since d(v10) ≥ 4 and K4 − e ⊈ G, v10 has

to be adjacent to just one vertex of {v1, v4}. Similarly, v11

has to be adjacent to just one vertex of {v1, v5}. Since K4−

e ⊈ G, v1 is adjacent to at most one vertex of {v10, v11}.

By symmetry it is sufficient to consider that v4v10, v1v11∈

E(G) or v4v10, v5v11∈ E(G). If v4v10, v1v11∈ E(G), then the

proof is same as Case 3 (see G17.4 in Fig ure 2.5 ). So it

remains that v4v10, v5v11∈ E(G).

By Claim 1, we have v4v5 ∉ E(G) and v1 is non-

adjacent to any vertex of {v6, v7}. Since K4 − e ⊈ G,

G〈N(v)〉 is isomorphic to one graph of {4K1, 2K1∪K2,

2K2}. If G〈N(v)〉 is isomorphic to 4K1, then u1, u2, u3, u4,

v8 and v10 would yield a K6 in G

___

Case 4.1. Suppose that G〈N(v)〉 ≅ 2K1∪K2, say u3u4

∈ E(G). If each vertex of {u1, u2, u3, u4} is adjacent

neither to v4 nor to v5, then u1, u2, u3 (or u4), v4, v5 and v12

would yield a K6 in

, a contr adic t io n . Hence

G〈N(v)〉 is isomorphic to 2K1∪K2 or 2K2.

___

, a contradiction. Hence there is at

least one edge between vertex sets {u1, u2, u3, u4} and {v4,

v5}. Assume that there is at least one edge between

vertex sets {u1, u2} and {v4, v5}, say u1v4 ∈ E(G). Then

since d(u1) ≥ 4 and K4 − e ⊈G, u1 has to be adjacent to

one vertices of {v3, v5, v7}. In any case, there exists at

least one vertex of {v1, v6} whose degree is at most 3, a

contradiction. Hence there is no edge between vertex sets

{u1, u2} and {v4, v5}. Then there is at least one edge

between vertex sets {u3, u4} and {v4, v5}, say u3v4∈

E(G). If u4v5 ∉ E(G), then u1, u2, u4, v4, v5 and v12 would

yield a K6 in G

___

, a contradiction too. Hence we have u4v5

∈ E(G) (see G17.5 in Figur e 2.5). There also exists at

least one vertex of {v1, v6, v7} whose degree is at most 3,

a contradiction.

Case 4.2. Suppose that G〈N(v)〉 ≅ 2K2, say u1u2, u3u4

∈ E(G). Since d(v1) ≥ 4 and K4 –e ⊈G, v1 has to be

adjacent to one vertex of {u1, u2} and one vertex of {u3,

u4}, say v1u1, v1u3 ∈ E(G). Then since K4 − e ⊈G, v1 is

adjacent neither to u2 nor to u4. If there is no edge

between vertex sets {u2, u4} and {v4, v5}, then u2, u4, v4,

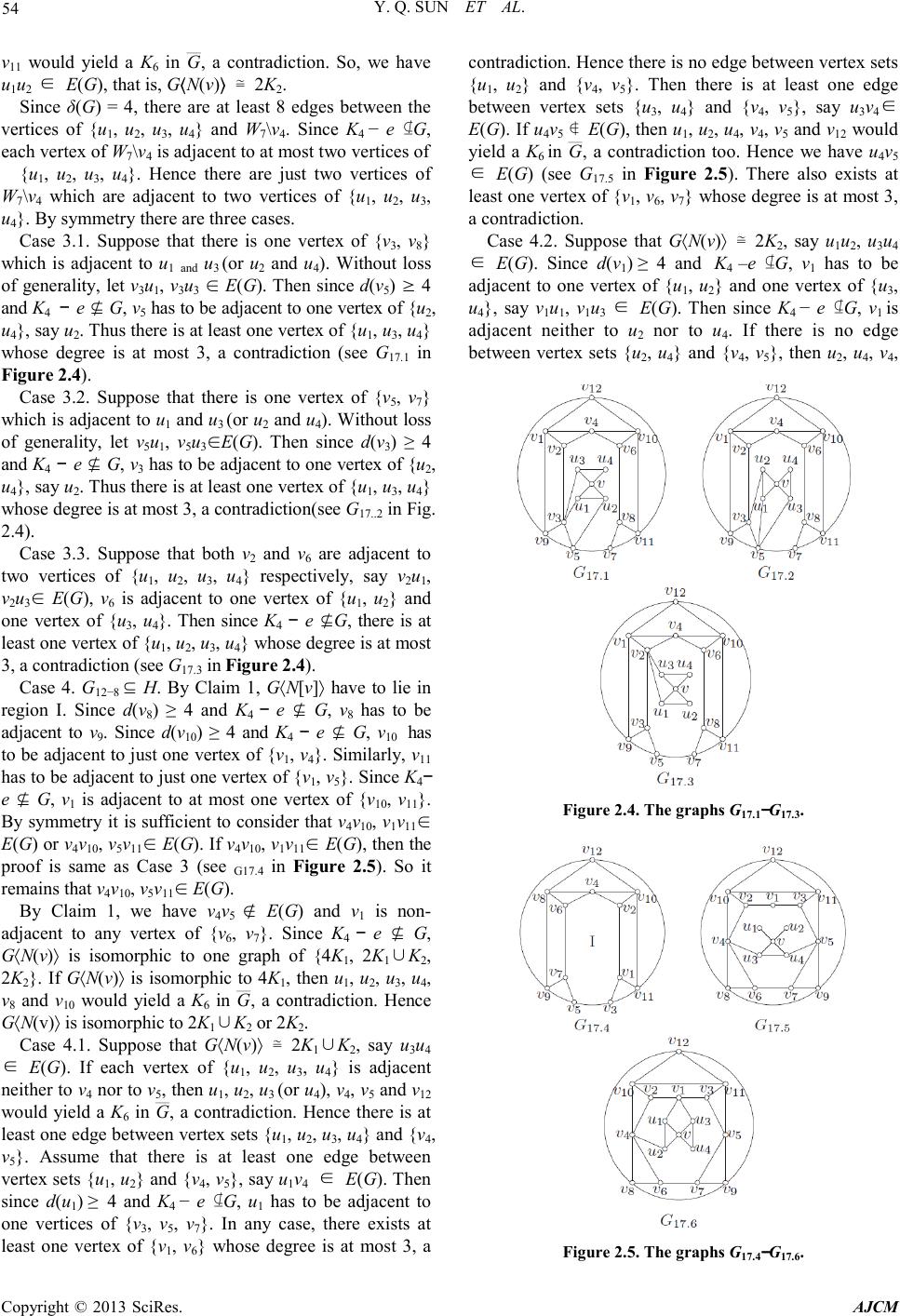

Figure 2.4. The graphs G17.1−G17.3.

Figure 2.5. The graphs G17.4−G17.6.

Y. Q. SUN ET AL.

v5, v1 and v12 would yield a K6 in G

___

, a contradiction.

Hence there is at least one edge between vertex sets {u2,

u4} and {v4, v5}, say u2v4 ∈ E(G). Then since d(u2) ≥ 4

and K4 − e ⊈G, u2 has to be adjacent to at least one

vertex of {v3, v5, v7}(see G17.6 in Figure 2.5). In any case,

we have d(v6) = 3, a contradiction.

By an argument similar to the above proof, we can

prove that 4K3 ⊈ H. However, the proof of 4K3 ⊈ H is

more complicated than Case 3 or 4, and it is available

from the authors. Hence the assumption does not hold.

3. The Main Resu lts

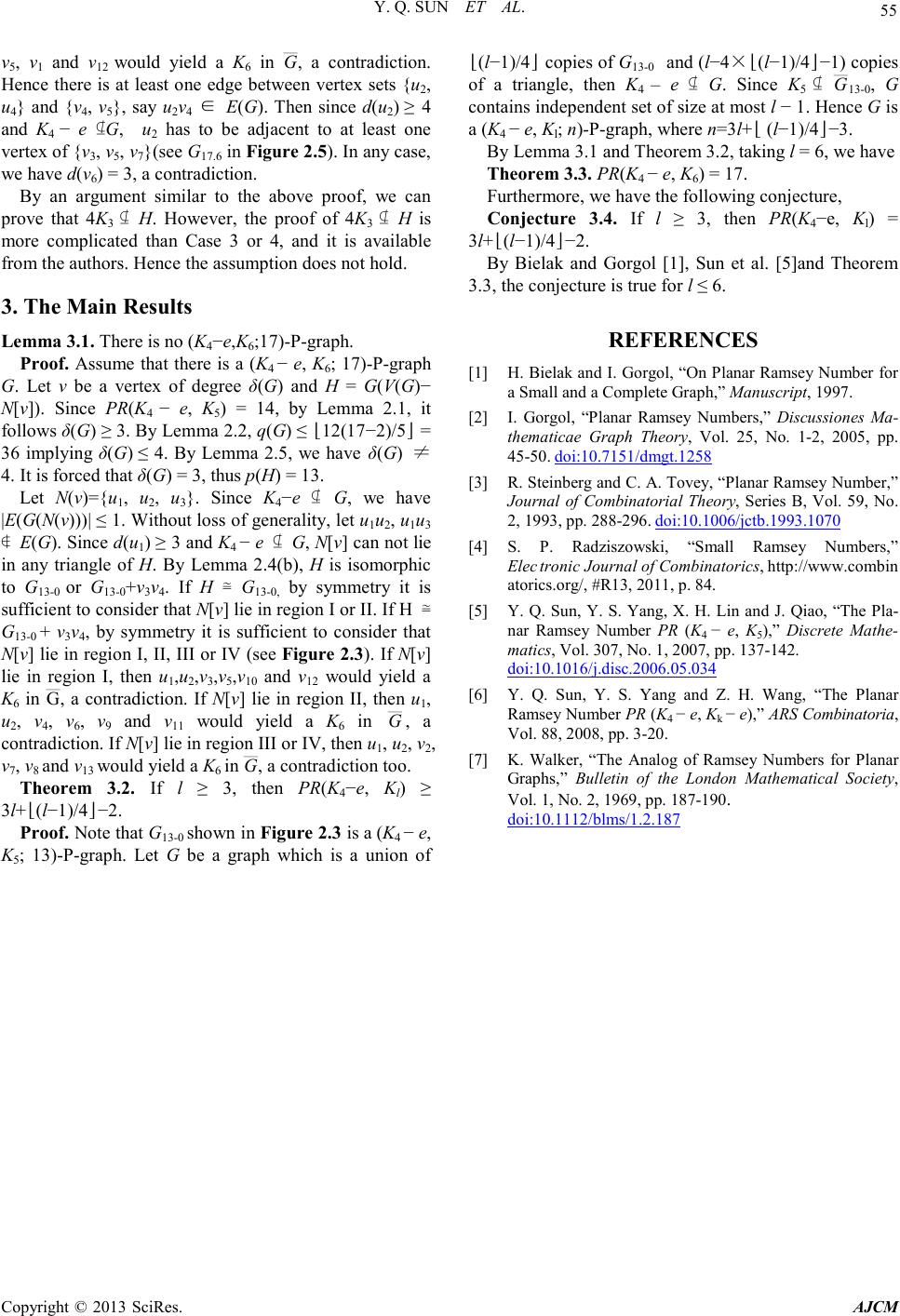

Lemma 3.1. There is no (K4−e,K6;17)-P-graph.

Proof. Assume that there is a (K4 − e, K6; 17)-P-graph

G. Let v be a vertex of degree δ(G) and H = G(V(G)−

N[v]). Since PR(K4 − e, K5) = 14, by Lemma 2.1, it

follows δ(G) ≥ 3. By Lemma 2.2, q(G) ≤ ⌊12(17−2) /5⌋ =

36 implying δ(G) ≤ 4. By Lemma 2.5, we have δ(G) ≠

4. It is forced that δ(G) = 3, thus p(H) = 13.

Let N(v)={u1, u2, u3}. Since K4−e ⊈ G, we have

|E(G(N(v)))| ≤ 1. Without loss of generality, let u1u2, u1u3

∉ E(G). Since d(u1) ≥ 3 and K4 − e ⊈ G, N[v] can not lie

in any triangle of H. By Lemma 2.4(b), H is isomorphic

to G13-0 or G13-0+v3v4. If H ≅ G13-0, by symmetry it is

sufficient to consider that N[v] lie in region I or II. If H ≅

G13-0 + v3v4, by symmetry it is sufficient to consider that

N[v] lie in region I, II, III or IV (see Figure 2.3). If N[v]

lie in region I, then u1,u2,v3,v5,v10 and v12 would yield a

K6 in G

___

, a contradiction. If N[v] lie in region II, then u1,

u2, v4, v6, v9 and v11 would yield a K6 in G

___

, a

contradiction. If N[v] lie in region III or IV, then u1, u2, v2,

v7, v8 and v13 would yield a K6 in G

___

Proof. Note that G13-0 shown in Figure 2.3 is a (K4 − e,

K5; 13)-P-graph. Let G be a graph which is a union of

⌊(l−1)/4⌋ copies of G13-0 and (l−4×⌊(l−1)/4⌋−1) copies

of a triangle, then K4 – e ⊈ G. Since K5 ⊈

, a contradiction too.

Theorem 3.2. If l ≥ 3, then PR(K4−e, Kl) ≥

3l+⌊(l−1)/4⌋−2.

___

[1] H. Bielak and I. Gorgol, “On Planar Ramsey Number for

a Small and a Complete Graph,” Manuscript, 1997.

13-0, G

contains independent set of size at most l − 1. Hence G is

a (K4 − e, Kl; n)-P-graph, where n=3l+⌊ (l−1)/4⌋−3.

By Lemma 3.1 and Theorem 3.2, taking l = 6, we have

Theorem 3.3. PR(K4 − e, K6) = 17.

Furthermore, we have the following conjecture,

Conjecture 3.4. If l ≥ 3, the n PR(K4−e, Kl) =

3l+⌊(l−1)/4⌋−2.

By Bielak and Gorgol [1], Sun et al. [5]and Theorem

3.3, the conjecture is true for l ≤ 6.

REFERENCES

[2] I. Gorgol, “Planar Ramsey Numbers,” Discussiones Ma-

thematicae Graph Theory, Vol. 25, No. 1-2, 2005, pp.

45-50. doi:10.7151/dmgt.1258

[3] R. Steinberg and C. A. Tovey, “Planar Ramsey Number,”

Journal of Combinatorial Theory, Series B, Vol. 59, No.

2, 1993, pp. 288-296. doi:10.1006/jctb.1993.1070

[4] S. P. Radziszowski, “Small Ramsey Numbers,”

Elec tronic Journal of Combinatorics,http://www.combin

atorics .org/, #R13, 2011, p. 84.

[5] Y. Q. Su n, Y. S. Yang, X. H. Lin and J. Qiao, “The Pla-

nar Ramsey Number PR (K4 − e, K5),” Discrete Mathe-

matics, Vol. 307, No. 1, 2007, pp. 137-142.

doi:10.1016/j.disc.2006.05.034

[6] Y. Q. Sun, Y. S. Yang and Z. H. Wang, “The Planar

Ramsey Number PR (K4 − e, Kk − e),” ARS Combinatoria,

Vol. 88, 2008, pp. 3-20.

[7] K. Walker, “The Analog of Ramsey Numbers for Planar

Graphs,” Bulletin of the London Mathemat ical Society,

Vol. 1, No. 2, 1969, pp. 187-190.

doi:10.1112/blms/1.2.187
