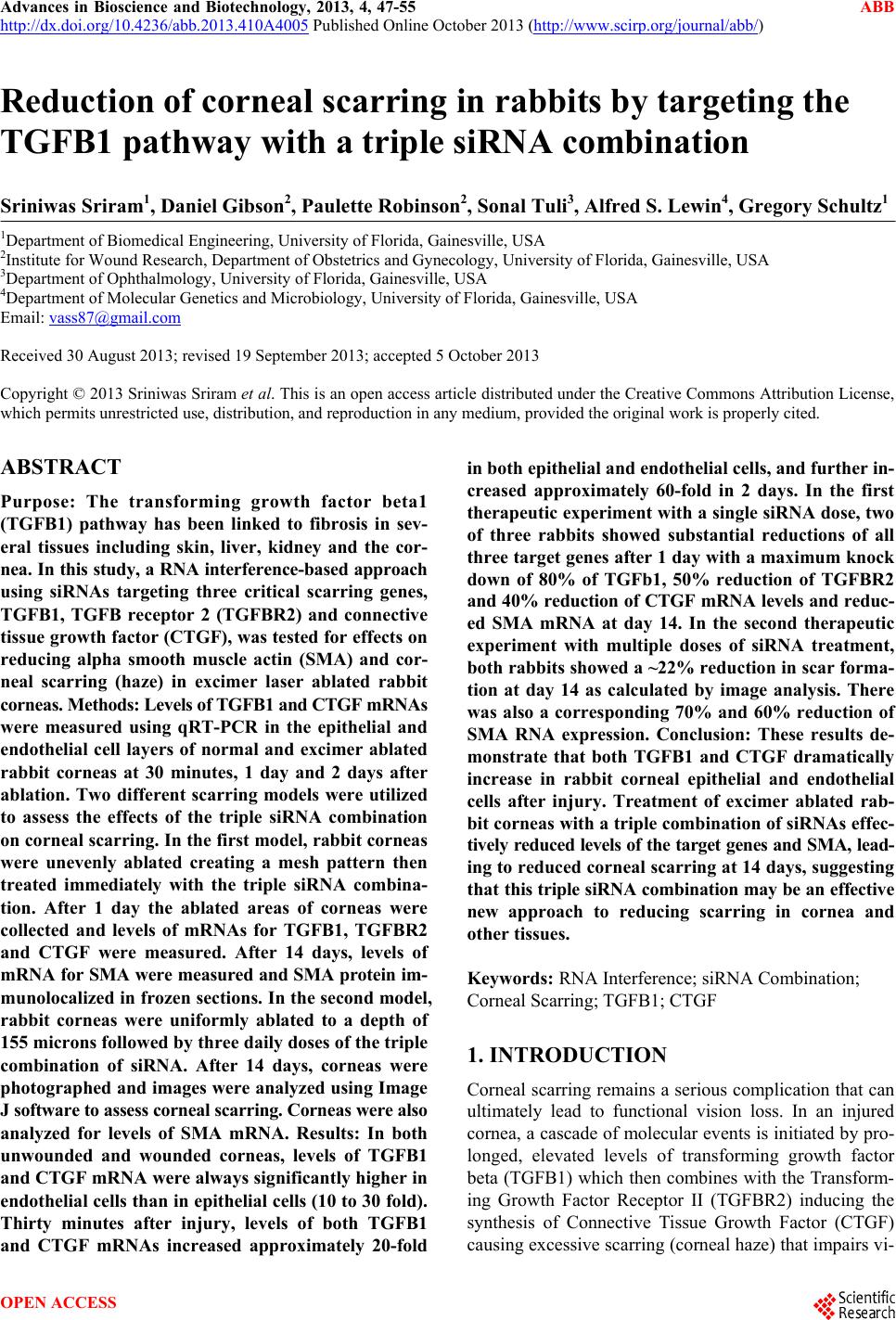

Reduction of corneal scarring in rabbits by targeting the

TGFB1 pathway with a triple siRNA combination

Sriniwas Sriram1, Daniel Gibson2, Paulette Robinson2, Sonal Tuli3, Alfred S. Lewin4, Gregory Schultz1

1Department of Biomedical Engineering, University of Florida, Gainesville, USA

2Institute for Wound Research, Department of Obstetrics and Gynecology, University of Florida, Gainesville, USA

3Department of Ophthalmology, University of Florida, Gainesville, USA

4Department of Molecular Genetics and Microbiology, University of Florida, Gainesville, USA

Email: [email protected]

Received 30 August 2013; revised 19 September 2013; accepted 5 October 2013

which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

ABSTRACT

Purpose: The transforming growth factor beta1

(TGFB1) pathway has been linked to fibrosis in sev-

eral tissues including skin, liver, kidney and the cor-

nea. In this study, a RNA interference-based approach

using siRNAs targeting three critical scarring genes,

TGFB1, TGFB receptor 2 (TGFBR2) and connective

tissue growth factor (CTGF), was tested for effects on

reducing alpha smooth muscle actin (SMA) and cor-

neal scarring (haze) in excimer laser ablated rabbit

corneas. Methods: Levels of TGFB1 and CTGF mRNAs

were measured using qRT-PCR in the epithelial and

endothelial cell layers of normal and excimer ablated

rabbit corneas at 30 minutes, 1 day and 2 days after

ablation. Two different scarring models were utilized

to assess the effects of the triple siRNA combination

on corneal scarring. In the first model, rabbit corneas

were unevenly ablated creating a mesh pattern then

treated immediately with the triple siRNA combina-

tion. After 1 day the ablated areas of corneas were

collected and levels of mRNAs for TGFB1, TGFBR2

and CTGF were measured. After 14 days, levels of

mRNA for SMA were measured and SMA protein im-

munolocalized in frozen sections. In the second model,

rabbit corneas were uniformly ablated to a depth of

155 microns followed by three daily doses of the triple

combination of siRNA. After 14 days, corneas were

photographed and images were analyzed using Image

J software to assess corneal scarring. Corneas were also

analyzed for levels of SMA mRNA. Results: In both

unwounded and wounded corneas, levels of TGFB1

and CTGF mRNA were always significantly higher in

endothelial cells than in epithelial cells (10 to 30 fold).

Thirty minutes after injury, levels of both TGFB1

and CTGF mRNAs increased approximately 20-fold

in both epithelial and endothelial cells, and further in-

creased approximately 60-fold in 2 days. In the first

therapeutic experiment with a single siRNA dose, two

of three rabbits showed substantial reductions of all

three target genes after 1 day with a maximum knock

down of 80% of TGFb1, 50% reduction of TGFBR2

and 40% reduction of CTGF mRNA levels and reduc-

ed SMA mRNA at day 14. In the second therapeutic

experiment with multiple doses of siRNA treatment,

both rabbits showed a ~22% reduction in scar forma-

tion at day 14 as calculated by image analysis. There

was also a corresponding 70% and 60% reduction of

SMA RNA expression. Conclusion: These results de-

monstrate that both TGFB1 and CTGF dramatically

increase in rabbit corneal epithelial and endothelial

cells after injury. Treatment of excimer ablated rab-

bit corneas with a triple combination of siRNAs effec-

tively reduced levels of the target genes and SMA, lead-

ing to reduced corneal scarring at 14 days, suggesting

tha t this triple siRNA combination may be an effective

new approach to reducing scarring in cornea and

other tissues.

Keywords: RNA Interference; siRNA Combination;

Corneal Scarring; TGFB1; CTGF

1. INTRODUCTION

Corneal scarring remains a serious complication that can

ultimately lead to functional vision loss. In an injured

cornea, a cascade of molecular events is initiated by pro-

longed, elevated levels of transforming growth factor

beta (TGFB1) which then combines with the Transform-

ing Growth Factor Receptor II (TGFBR2) inducing the

synthesis of Connective Tissue Growth Factor (CTGF)

causing excessive scarring (corneal haze) that impairs vi-

OPEN ACCESS

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55

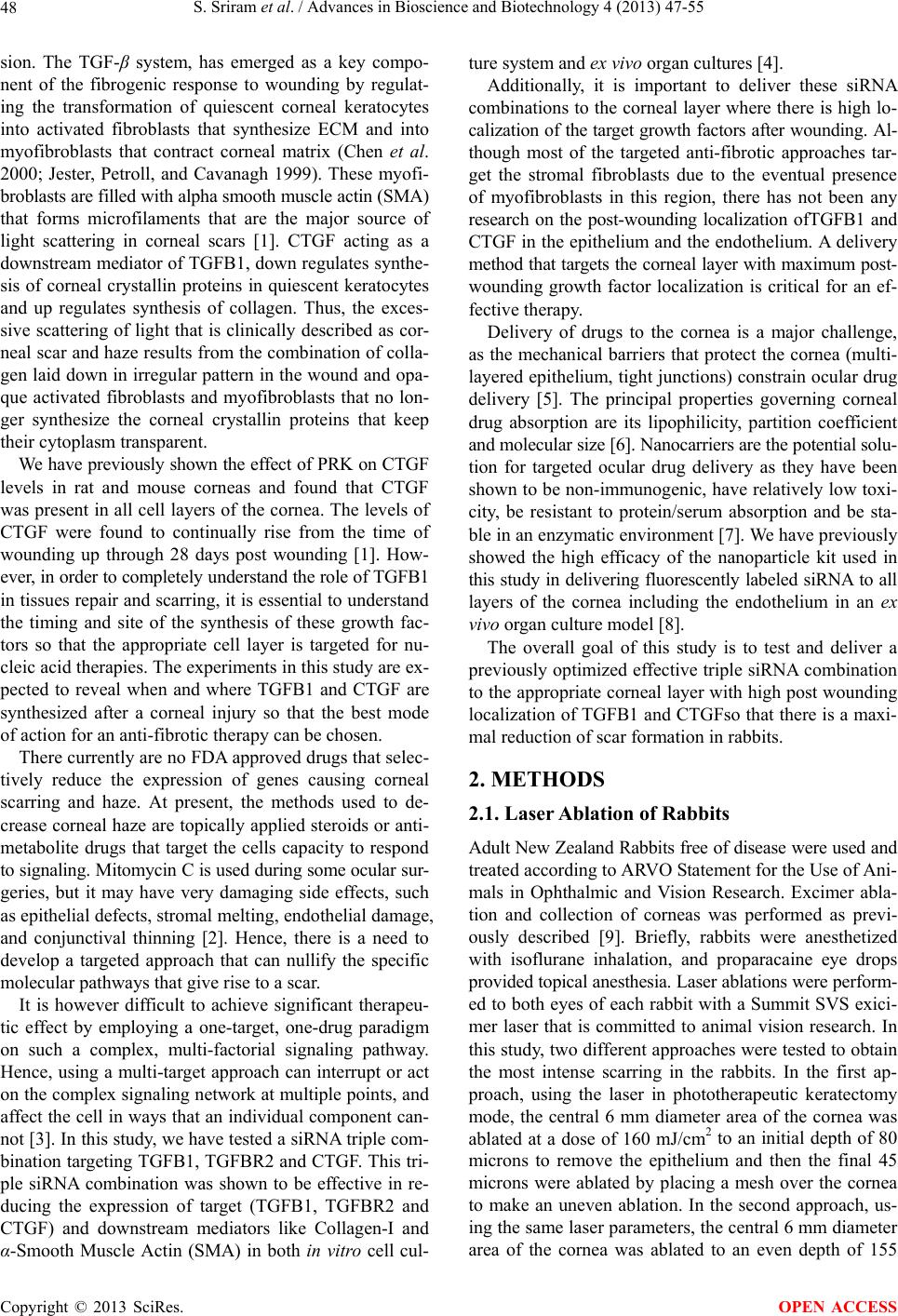

sion. The TGF-β system, has emerged as a key compo-

nent of the fibrogenic response to wounding by regulat-

ing the transformation of quiescent corneal keratocytes

into activated fibroblasts that synthesize ECM and into

myofibroblasts that contract corneal matrix (Chen et al.

2000; Jester, Petroll, and Cavanagh 1999). These myofi-

broblasts are filled with alpha smooth muscle actin (SMA)

that forms microfilaments that are the major source of

light scattering in corneal scars [1]. CTGF acting as a

downstream mediator of TGFB1, down regulates synthe-

sis of corneal crystallin proteins in quiescent keratocytes

and up regulates synthesis of collagen. Thus, the exces-

sive scattering of light that is clinically described as cor-

neal scar and haze results from the combination of colla-

gen laid down in irregular pattern in the wound and opa-

que activated fibroblasts and myofibroblasts that no lon-

ger synthesize the corneal crystallin proteins that keep

their cytoplasm transparent.

We have previously shown the effect of PRK on CTGF

levels in rat and mouse corneas and found that CTGF

was present in all cell layers of the cornea. The levels of

CTGF were found to continually rise from the time of

wounding up through 28 days post wounding [1]. How-

ever, in order to completely understand the role of TGFB1

in tissues repair and scarring, it is essential to understand

the timing and site of the synthesis of these growth fac-

tors so that the appropriate cell layer is targeted for nu-

cleic acid therapies. The experiments in this study are ex-

pected to reveal when and where TGFB1 and CTGF are

synthesized after a corneal injury so that the best mode

of action for an anti-fibrotic therapy can be chosen.

There currently are no FDA approved drugs that selec-

tively reduce the expression of genes causing corneal

scarring and haze. At present, the methods used to de-

crease corneal haze are topically applied steroids or anti-

metabolite drugs that target the cells capacity to respond

to signaling. Mitomycin C is used during some ocular sur-

geries, but it may have very damaging side effects, such

as epithelial defects, stromal melting, endothelial damage,

and conjunctival thinning [2]. Hence, there is a need to

develop a targeted approach that can nullify the specific

molecular pathways that give rise to a scar.

It is however difficult to achieve significant therapeu-

tic effect by employing a one-target, one-drug paradigm

on such a complex, multi-factorial signaling pathway.

Hence, using a multi-target approach can interrupt or act

on the complex signaling network at multiple points, and

affect the cell in ways that an individual component can-

not [3]. In this study, we have tested a siRNA triple com-

bination targeting TGFB1, TGFBR2 and CTGF. This tri-

ple siRNA combination was shown to be effective in re-

ducing the expression of target (TGFB1, TGFBR2 and

CTGF) and downstream mediators like Collagen-I and

α-Smooth Muscle Actin (SMA) in both in vitro cell cul-

ture system and ex vivo organ cultures [4].

Additionally, it is important to deliver these siRNA

combinations to the corneal layer where there is high lo-

calization of the target growth factors after wounding. Al-

though most of the targeted anti-fibrotic approaches tar-

get the stromal fibroblasts due to the eventual presence

of myofibroblasts in this region, there has not been any

research on the post-wounding localization ofTGFB1 and

CTGF in the epithelium and the endothelium. A delivery

method that targets the corneal layer with maximum post-

wounding growth factor localization is critical for an ef-

fective therapy.

Delivery of drugs to the cornea is a major challenge,

as the mechanical barriers that protect the cornea (multi-

layered epithelium, tight junctions) constrain ocular drug

delivery [5]. The principal properties governing corneal

drug absorption are its lipophilicity, partition coefficient

and molecular size [6]. Nanocarriers are the potential solu-

tion for targeted ocular drug delivery as they have been

shown to be non-immunogenic, have relatively low toxi-

city, be resistant to protein/serum absorption and be sta-

ble in an enzymatic environment [7]. We have previously

showed the high efficacy of the nanoparticle kit used in

this study in delivering fluorescently labeled siRNA to all

layers of the cornea including the endothelium in an ex

vivo organ culture model [8].

The overall goal of this study is to test and deliver a

previously optimized effective triple siRNA combination

to the appropriate corneal layer with high post wounding

localization of TGFB1 and CTGFso that there is a maxi-

mal reduction of scar formation in rabbits.

2. METHODS

2.1. Laser Ablation of Rabbits

Adult New Zealand Rabbits free of disease were used and

treated according to ARVO Statement for the Use of Ani-

mals in Ophthalmic and Vision Research. Excimer abla-

tion and collection of corneas was performed as previ-

ously described [9]. Briefly, rabbits were anesthetized

with isoflurane inhalation, and proparacaine eye drops

provided topical anesthesia. Laser ablations were perform-

ed to both eyes of each rabbit with a Summit SVS exici-

mer laser that is committed to animal vision research. In

this study, two different approaches were tested to obtain

the most intense scarring in the rabbits. In the first ap-

proach, using the laser in phototherapeutic keratectomy

mode, the central 6 mm diameter area of the cornea was

ablated at a dose of 160 mJ/cm2 to an initial depth of 80

microns to remove the epithelium and then the final 45

microns were ablated by placing a mesh over the cornea

to make an uneven ablation. In the second approach, us-

ing the same laser parameters, the central 6 mm diameter

area of the cornea was ablated to an even depth of 155

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55 49

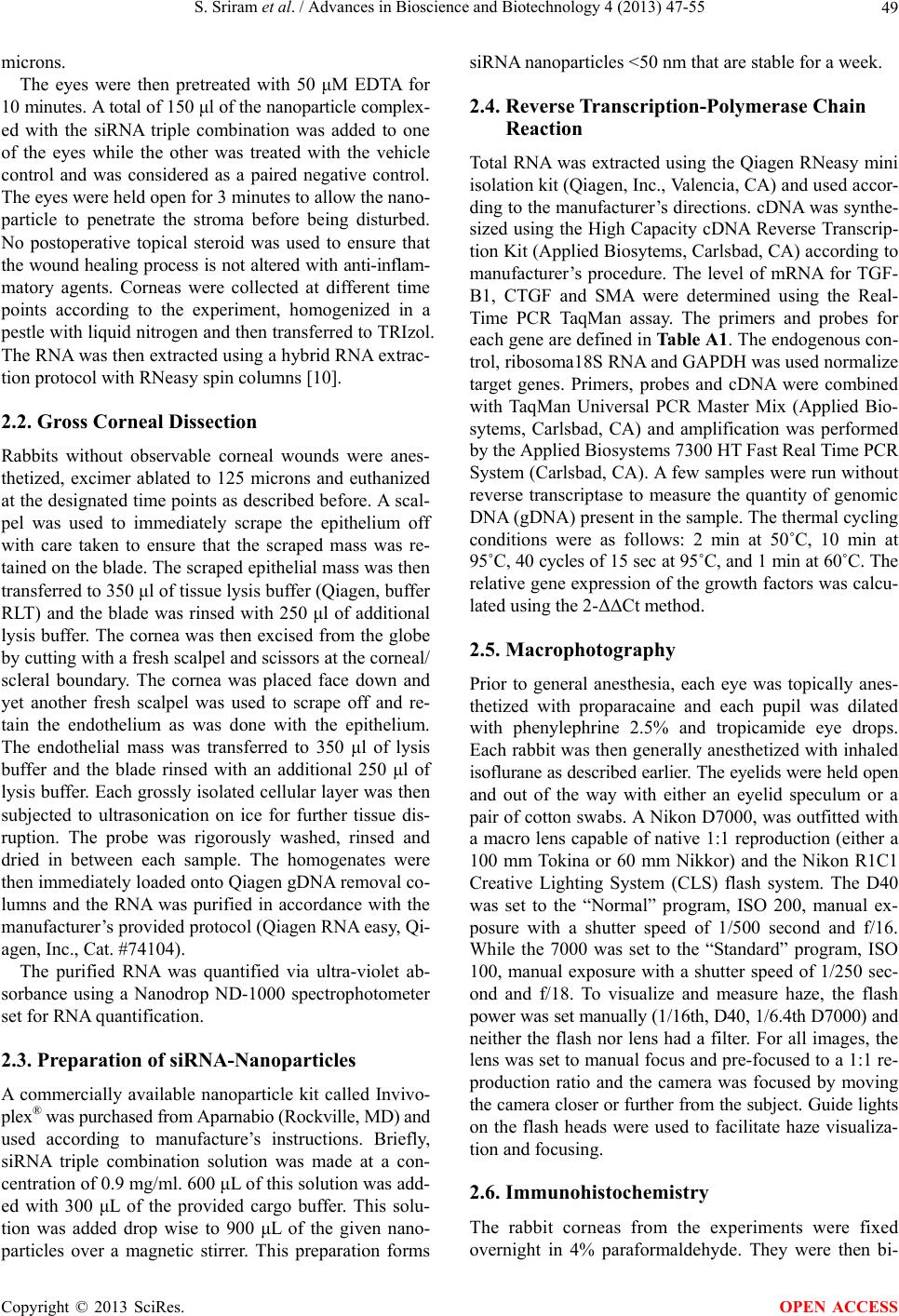

microns.

The eyes were then pretreated with 50 μM EDTA for

10 minutes. A total of 150 μl of the nanoparticle complex-

ed with the siRNA triple combination was added to one

of the eyes while the other was treated with the vehicle

control and was considered as a paired negative control.

The eyes were held open for 3 minutes to allow the nano-

particle to penetrate the stroma before being disturbed.

No postoperative topical steroid was used to ensure that

the wound healing process is not altered with anti-inflam-

matory agents. Corneas were collected at different time

points according to the experiment, homogenized in a

pestle with liquid nitrogen and then transferred to TRIzol.

The RNA was then extracted using a hybrid RNA extrac-

tion protocol with RNeasy spin columns [10].

2.2. Gross Corneal Dissection

Rabbits without observable corneal wounds were anes-

thetized, excimer ablated to 125 microns and euthanized

at the designated time points as described before. A scal-

pel was used to immediately scrape the epithelium off

with care taken to ensure that the scraped mass was re-

tained on the blade. The scraped epithelial mass was then

transferred to 350 μl of tissue lysis buffer (Qiagen, buffer

RLT) and the blade was rinsed with 250 μl of additional

lysis buffer. The cornea was then excised from the globe

by cutting with a fresh scalpel and scissors at the corneal/

scleral boundary. The cornea was placed face down and

yet another fresh scalpel was used to scrape off and re-

tain the endothelium as was done with the epithelium.

The endothelial mass was transferred to 350 μl of lysis

buffer and the blade rinsed with an additional 250 μl of

lysis buffer. Each grossly isolated cellular layer was then

subjected to ultrasonication on ice for further tissue dis-

ruption. The probe was rigorously washed, rinsed and

dried in between each sample. The homogenates were

then immediately loaded onto Qiagen gDNA removal co-

lumns and the RNA was purified in accordance with the

manufacturer’s provided protocol (Qiagen RNA easy, Qi-

agen, Inc., Cat. #74104).

The purified RNA was quantified via ultra-violet ab-

sorbance using a Nanodrop ND-1000 spectrophotometer

set for RNA quantification.

2.3. Preparation of siRNA-Nanoparticles

A commercially available nanoparticle kit called Invivo-

plex® was purchased from Aparnabio (Rockville, MD) and

used according to manufacture’s instructions. Briefly,

siRNA triple combination solution was made at a con-

centration of 0.9 mg/ml. 600 μL of this solution was add-

ed with 300 μL of the provided cargo buffer. This solu-

tion was added drop wise to 900 μL of the given nano-

particles over a magnetic stirrer. This preparation forms

siRNA nanoparticles <50 nm that are stable for a week.

2.4. Reverse Transcription-Polymerase Chain

Reaction

Total RNA was extracted using the Qiagen RNeasy mini

isolation kit (Qiagen, Inc., Valencia, CA) and used accor-

ding to the manufacturer’s directions. cDNA was synthe-

sized using the High Capacity cDNA Reverse Transcrip-

tion Kit (Applied Biosytems, Carlsbad, CA) according to

manufacturer’s procedure. The level of mRNA for TGF-

B1, CTGF and SMA were determined using the Real-

Time PCR TaqMan assay. The primers and probes for

each gene are defined in Table A1. The endogenous con-

trol, ribosoma18S RNA and GAPDH was used normalize

target genes. Primers, probes and cDNA were combined

with TaqMan Universal PCR Master Mix (Applied Bio-

sytems, Carlsbad, CA) and amplification was performed

by the Applied Biosystems 7300 HT Fast Real Time PCR

System (Carlsbad, CA). A few samples were run without

reverse transcriptase to measure the quantity of genomic

DNA (gDNA) present in the sample. The thermal cycling

conditions were as follows: 2 min at 50˚C, 10 min at

95˚C, 40 cycles of 15 sec at 95˚C, and 1 min at 60˚C. The

relative gene expression of the growth factors was calcu-

lated using the 2-ΔΔCt method.

2.5. Macrophotography

Prior to general anesthesia, each eye was topically anes-

thetized with proparacaine and each pupil was dilated

with phenylephrine 2.5% and tropicamide eye drops.

Each rabbit was then generally anesthetized with inhaled

isoflurane as described earlier. The eyelids were held open

and out of the way with either an eyelid speculum or a

pair of cotton swabs. A Nikon D7000, was outfitted with

a macro lens capable of native 1:1 reproduction (either a

100 mm Tokina or 60 mm Nikkor) and the Nikon R1C1

Creative Lighting System (CLS) flash system. The D40

was set to the “Normal” program, ISO 200, manual ex-

posure with a shutter speed of 1/500 second and f/16.

While the 7000 was set to the “Standard” program, ISO

100, manual exposure with a shutter speed of 1/250 sec-

ond and f/18. To visualize and measure haze, the flash

power was set manually (1/16th, D40, 1/6.4th D7000) and

neither the flash nor lens had a filter. For all images, the

lens was set to manual focus and pre-focused to a 1:1 re-

production ratio and the camera was focused by moving

the camera closer or further from the subject. Guide lights

on the flash heads were used to facilitate haze visualiza-

tion and focusing.

2.6. Immunohistochemistry

The rabbit corneas from the experiments were fixed

overnight in 4% paraformaldehyde. They were then bi-

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55

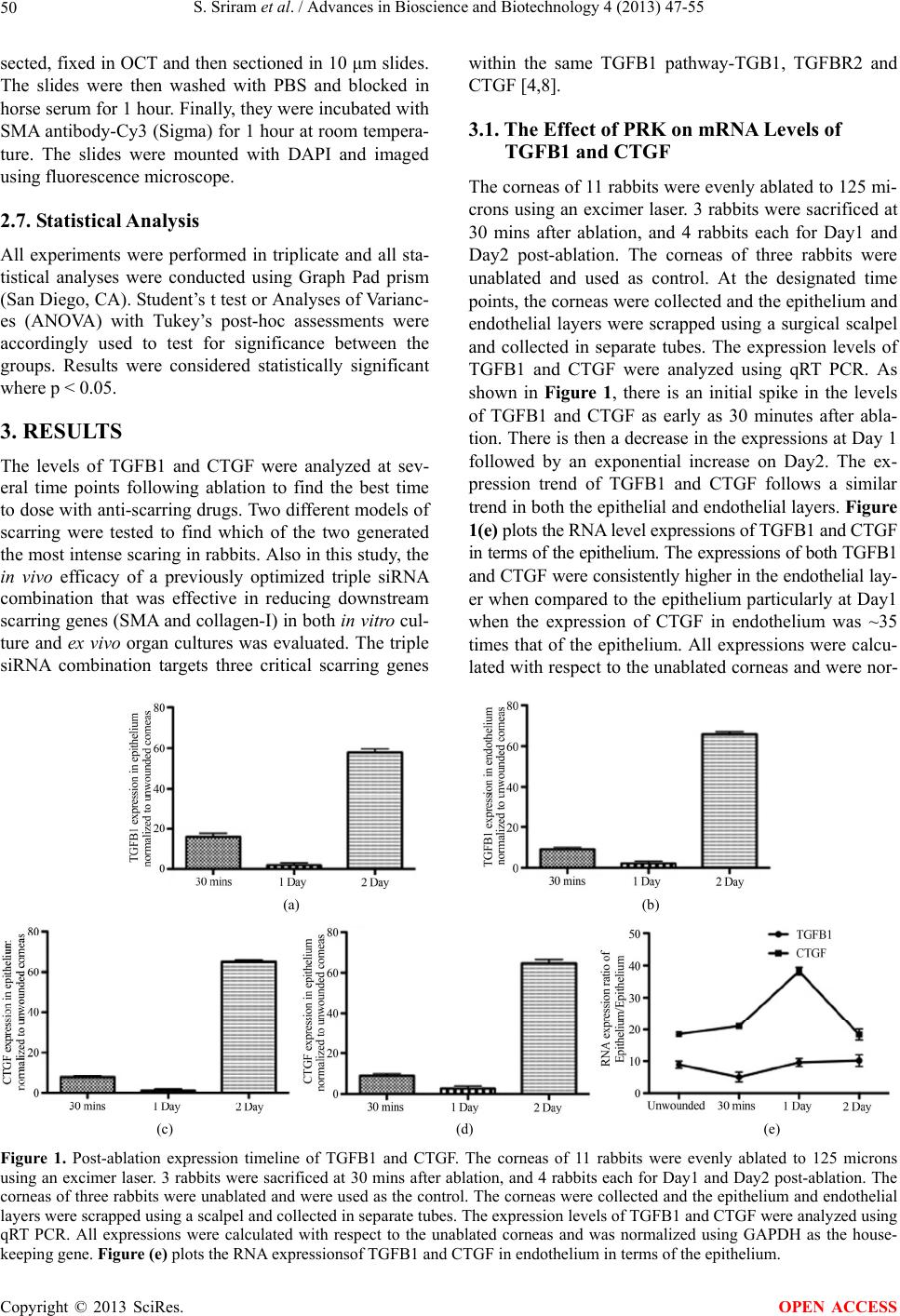

within the same TGFB1 pathway-TGB1, TGFBR2 and

CTGF [4,8].

sected, fixed in OCT and then sectioned in 10 μm slides.

The slides were then washed with PBS and blocked in

horse serum for 1 hour. Finally, they were incubated with

SMA antibody-Cy3 (Sigma) for 1 hour at room tempera-

ture. The slides were mounted with DAPI and imaged

using fluorescence microscope.

3.1. The Effect of PRK on mRNA Levels of

TGFB1 and CTGF

The corneas of 11 rabbits were evenly ablated to 125 mi-

crons using an excimer laser. 3 rabbits were sacrificed at

30 mins after ablation, and 4 rabbits each for Day1 and

Day2 post-ablation. The corneas of three rabbits were

unablated and used as control. At the designated time

points, the corneas were collected and the epithelium and

endothelial layers were scrapped using a surgical scalpel

and collected in separate tubes. The expression levels of

TGFB1 and CTGF were analyzed using qRT PCR. As

shown in Figure 1, there is an initial spike in the levels

of TGFB1 and CTGF as early as 30 minutes after abla-

tion. There is then a decrease in the expressions at Day 1

followed by an exponential increase on Day2. The ex-

pression trend of TGFB1 and CTGF follows a similar

trend in both the epithelial and endothelial layers. Figure

1(e) plots the RNA level expressions of TGFB1 and CTGF

in terms of the epithelium. The expressions of both TGFB1

and CTGF were consistently higher in the endothelial lay-

er when compared to the epithelium particularly at Day1

when the expression of CTGF in endothelium was ~35

times that of the epithelium. All expressions were calcu-

lated with respect to the unablated corneas and were nor-

2.7. Statistical Analysis

All experiments were performed in triplicate and all sta-

tistical analyses were conducted using Graph Pad prism

(San Diego, CA). Student’s t test or Analyses of Varianc-

es (ANOVA) with Tukey’s post-hoc assessments were

accordingly used to test for significance between the

groups. Results were considered statistically significant

where p < 0.05.

3. RESULTS

The levels of TGFB1 and CTGF were analyzed at sev-

eral time points following ablation to find the best time

to dose with anti-scarring drugs. Two different models of

scarring were tested to find which of the two generated

the most intense scaring in rabbits. Also in this study, the

in vivo efficacy of a previously optimized triple siRNA

combination that was effective in reducing downstream

scarring genes (SMA and collagen-I) in both in vitro cul-

ture and ex vivo organ cultures was evaluated. The triple

siRNA combination targets three critical scarring genes

(a) (b)

Figure 1. Post-ablation expression timeline of TGFB1 and CTGF. The corneas of 11 rabbits were evenly ablated to 125 microns

using an excimer laser. 3 rabbits were sacrificed at 30 mins after ablation, and 4 rabbits each for Day1 and Day2 post-ablation. The

corneas of three rabbits were unablated and were used as the control. The corneas were collected and the epithelium and endothelial

layers were scrapped using a scalpel and collected in separate tubes. The expression levels of TGFB1 and CTGF were analyzed using

qRT PCR. All expressions were calculated with respect to the unablated corneas and was normalized using GAPDH as the house-

keeping gene. Figure (e) plots the RNA expressionsof TGFB1 and CTGF in endothelium in terms of the epithelium.

OPEN ACCESS

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55 51

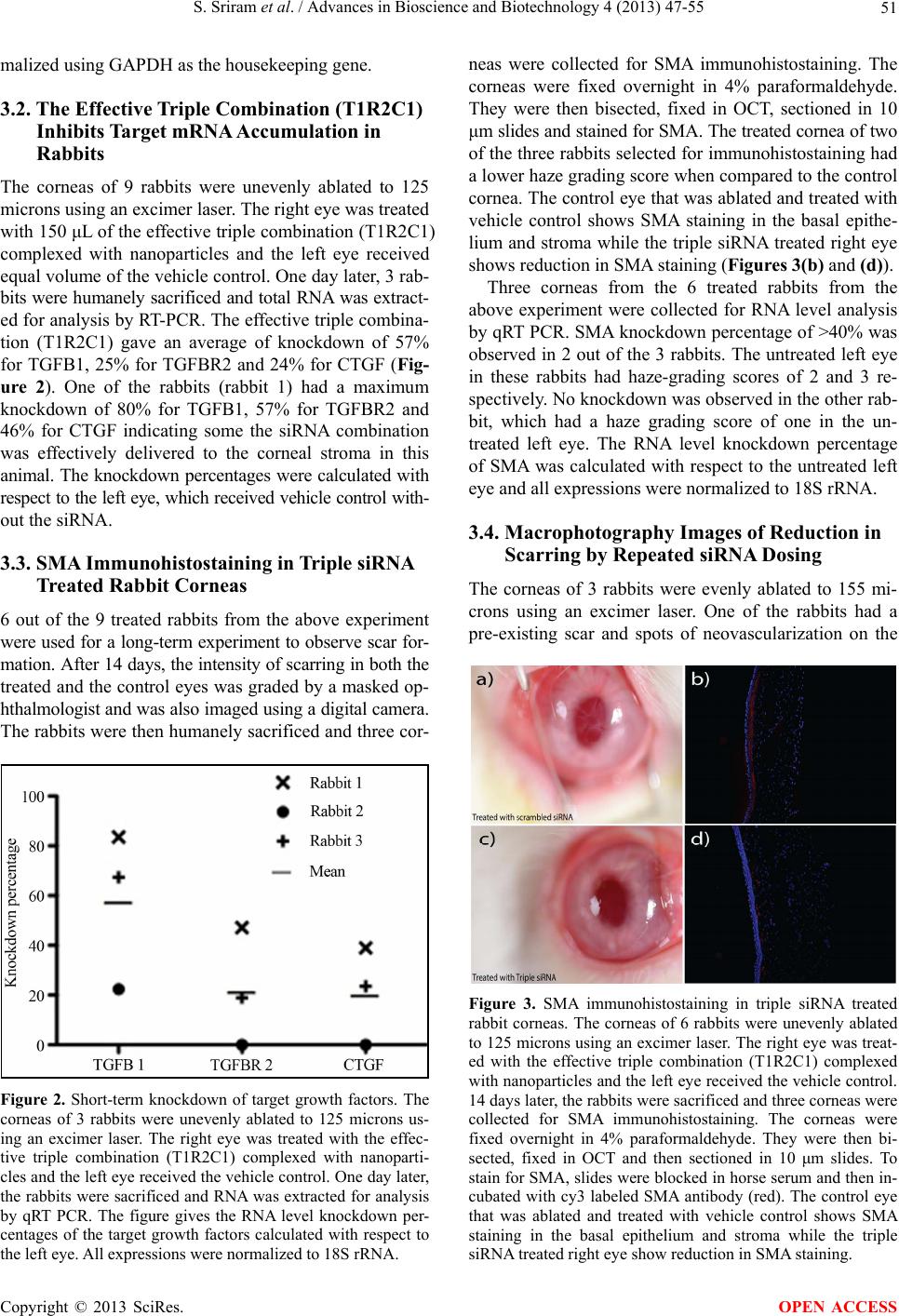

malized using GAPDH as the housekeeping gene.

3.2. The Effective Triple Combination (T1R2C1)

Inhibits Target mRNA Accumulation in

Rabbits

The corneas of 9 rabbits were unevenly ablated to 125

microns using an excimer laser. The right eye was treated

with 150 μL of the effective triple combination (T1R2C1)

complexed with nanoparticles and the left eye received

equal volume of the vehicle control. One day later, 3 rab-

bits were humanely sacrificed and total RNA was extract-

ed for analysis by RT-PCR. The effective triple combina-

tion (T1R2C1) gave an average of knockdown of 57%

for TGFB1, 25% for TGFBR2 and 24% for CTGF (Fig-

ure 2). One of the rabbits (rabbit 1) had a maximum

knockdown of 80% for TGFB1, 57% for TGFBR2 and

46% for CTGF indicating some the siRNA combination

was effectively delivered to the corneal stroma in this

animal. The knockdown percentages were calculated with

respect to the left eye, which received vehicle control with-

out the siRNA.

3.3. SMA Immunohistostaining in Triple siRNA

Treated Rabbit Corneas

6 out of the 9 treated rabbits from the above experiment

were used for a long-term experiment to observe scar for-

mation. After 14 days, the intensity of scarring in both the

treated and the control eyes was graded by a masked op-

hthalmologist and was also imaged using a digital camera.

The rabbits were then humanely sacrificed and three cor-

Figure 2. Short-term knockdown of target growth factors. The

corneas of 3 rabbits were unevenly ablated to 125 microns us-

ing an excimer laser. The right eye was treated with the effec-

tive triple combination (T1R2C1) complexed with nanoparti-

cles and the left eye received the vehicle control. One day later,

the rabbits were sacrificed and RNA was extracted for analysis

by qRT PCR. The figure gives the RNA level knockdown per-

centages of the target growth factors calculated with respect to

the left eye. All expressions were normalized to 18S rRNA.

neas were collected for SMA immunohistostaining. The

corneas were fixed overnight in 4% paraformaldehyde.

They were then bisected, fixed in OCT, sectioned in 10

μm slides and stained for SMA. The treated cornea of two

of the three rabbits selected for immunohistostaining had

a lower haze grading score when compared to the control

cornea. The control eye that was ablated and treated with

vehicle control shows SMA staining in the basal epithe-

lium and stroma while the triple siRNA treated right eye

shows reduction in SMA staining (Figures 3(b) and (d)).

Three corneas from the 6 treated rabbits from the

above experiment were collected for RNA level analysis

by qRT PCR. SMA knockdown percentage of >40% was

observed in 2 out of the 3 rabbits. The untreated left eye

in these rabbits had haze-grading scores of 2 and 3 re-

spectively. No knockdown was observed in the other rab-

bit, which had a haze grading score of one in the un-

treated left eye. The RNA level knockdown percentage

of SMA was calculated with respect to the untreated left

eye and all expressions were normalized to 18S rRNA.

3.4. Macrophotography Images of Reduction in

Scarring by Repeated siRNA Dosing

The corneas of 3 rabbits were evenly ablated to 155 mi-

crons using an excimer laser. One of the rabbits had a

pre-existing scar and spots of neovascularization on the

Figure 3. SMA immunohistostaining in triple siRNA treated

rabbit corneas. The corneas of 6 rabbits were unevenly ablated

to 125 microns using an excimer laser. The right eye was treat-

ed with the effective triple combination (T1R2C1) complexed

with nanoparticles and the left eye received the vehicle control.

14 days later, the rabbits were sacrificed and three corneas were

collected for SMA immunohistostaining. The corneas were

fixed overnight in 4% paraformaldehyde. They were then bi-

sected, fixed in OCT and then sectioned in 10 μm slides. To

stain for SMA, slides were blocked in horse serum and then in-

cubated with cy3 labeled SMA antibody (red). The control eye

that was ablated and treated with vehicle control shows SMA

staining in the basal epithelium and stroma while the triple

siRNA treated right eye show reduction in SMA staining.

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55

right eye and hence had to be excluded. The right eye

was treated with the effective triple combination (T1R2C1)

complexed with nanoparticles for the first three days after

ablation while the left eye was left untreated. After 14

days, the corneas of both rabbits were imaged using the

macrophotography technique described in the methods

section. The haze grading scores of both the rabbits were

similar with Rabbit b showing a slight reduction in scar-

ring after treatment (Figure 4).

3.5. Quantification of Scar Reduction by the

siRNA Treatment

The digital images from the above experiment were sub-

jected to anti-red gray scale conversion by only using the

data in the blue channel. The contrast was increased by

automatic brightness correction in Image J. The wound-

ing region was split into two regions-Top (Region-I) and

Bottom (Region-II) (Figures 5(a) and (b)). The pixel in-

tensities of the regions of interest were normalized to that

of the transparent unwounded regions of the correspond-

ing corneas. The percentage of haze reduction was calcu-

lated by the reduction in pixel intensity of the scarring

region in the treated eye with respect to that of the un-

treated eye. The region-I of both the rabbits show an av-

erage of ~22% reduction in scarring due to the siRNA

treatment (Figure 5(c)). However there was no visible re-

duction in scar formation in region II of both the rabbits.

After imaging, the wounding region in the corneal tis-

sues was collected with an 8-mm biopsy punch for RNA

analysis. In the corneas treated with the triple siRNA com-

bination, both the rabbits show a corresponding reduc-

tion of 60% and 40% in the RNA level expression of SMA

Figure 4. Reduction in scarring by repeated siRNA dosing. The

corneas of 3 rabbits were evenly ablated to 155 microns using

an excimer laser. The right eye was treated with the effective

triple combination (T1R2C1) complexed with nanoparticles for

the first three days after ablation while the left eye was left un-

treated. Both eyes were imaged using a digital camera after 14

days.

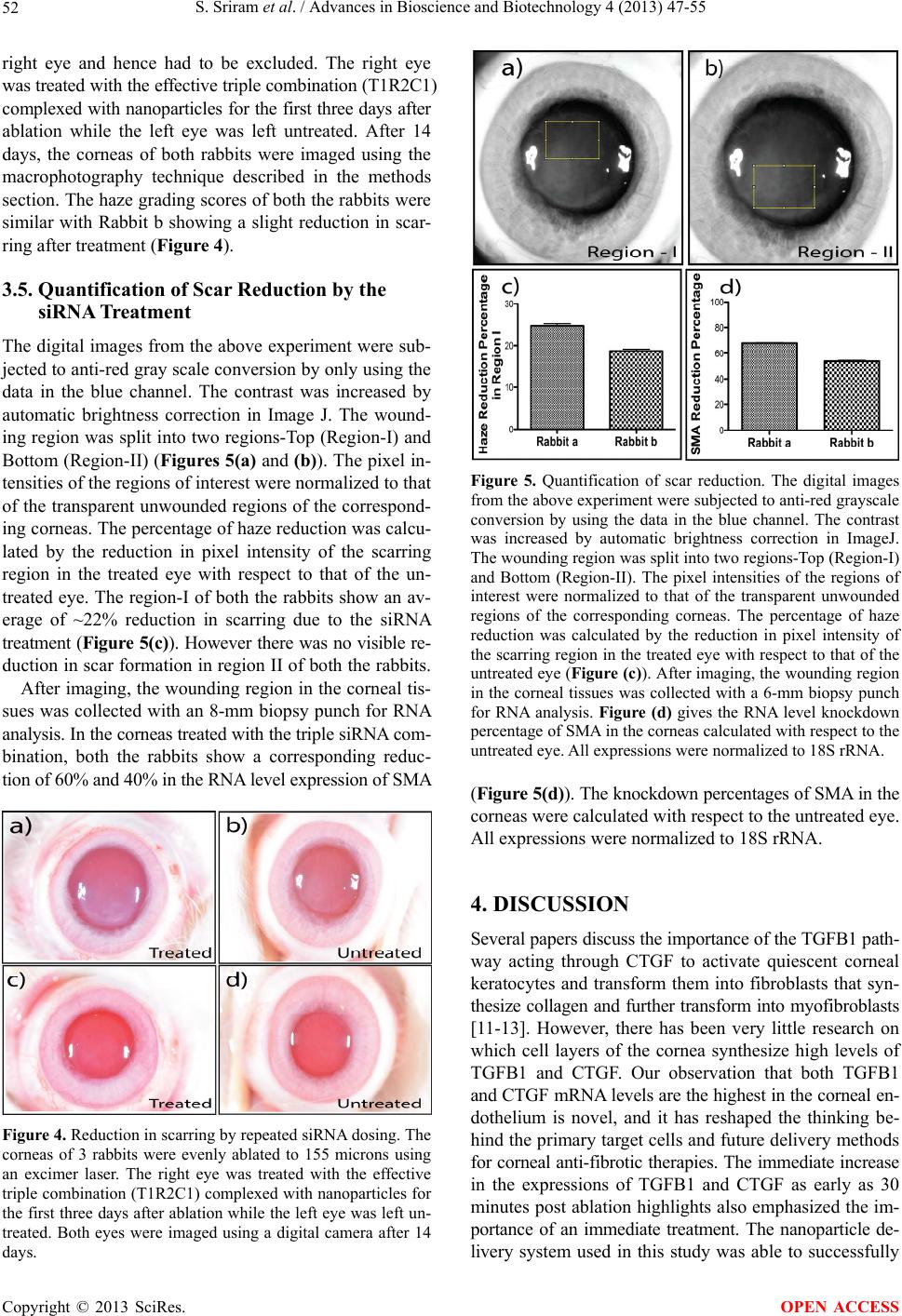

Figure 5. Quantification of scar reduction. The digital images

from the above experiment were subjected to anti-red grayscale

conversion by using the data in the blue channel. The contrast

was increased by automatic brightness correction in ImageJ.

The wounding region was split into two regions-Top (Region-I)

and Bottom (Region-II). The pixel intensities of the regions of

interest were normalized to that of the transparent unwounded

regions of the corresponding corneas. The percentage of haze

reduction was calculated by the reduction in pixel intensity of

the scarring region in the treated eye with respect to that of the

untreated eye (Figure (c)). After imaging, the wounding region

in the corneal tissues was collected with a 6-mm biopsy punch

for RNA analysis. Figure (d) gives the RNA level knockdown

percentage of SMA in the corneas calculated with respect to the

untreated eye. All expressions were normalized to 18S rRNA.

(Figure 5(d)). The knockdown percentages of SMA in the

corneas were calculated with respect to the untreated eye.

All expressions were normalized to 18S rRNA.

4. DISCUSSION

Several papers discuss the importance of the TGFB1 path-

way acting through CTGF to activate quiescent corneal

keratocytes and transform them into fibroblasts that syn-

thesize collagen and further transform into myofibroblasts

[11-13]. However, there has been very little research on

which cell layers of the cornea synthesize high levels of

TGFB1 and CTGF. Our observation that both TGFB1

and CTGF mRNA levels are the highest in the corneal en-

dothelium is novel, and it has reshaped the thinking be-

hind the primary target cells and future delivery methods

for corneal anti-fibrotic therapies. The immediate increase

in the expressions of TGFB1 and CTGF as early as 30

minutes post ablation highlights also emphasized the im-

portance of an immediate treatment. The nanoparticle de-

livery system used in this study was able to successfully

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55 53

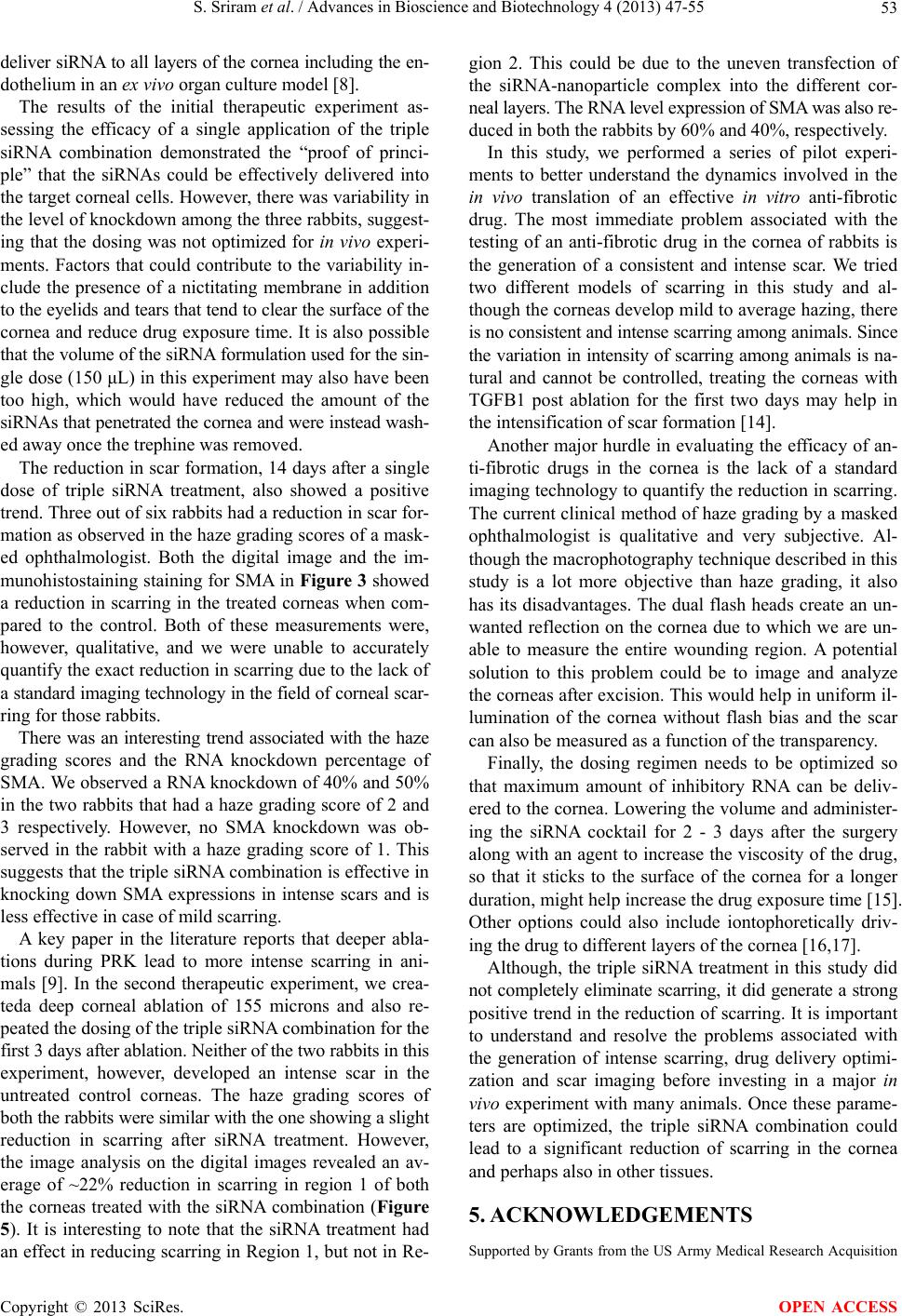

deliver siRNA to all layers of the cornea including the en-

dothelium in an ex vivo organ culture model [8].

The results of the initial therapeutic experiment as-

sessing the efficacy of a single application of the triple

siRNA combination demonstrated the “proof of princi-

ple” that the siRNAs could be effectively delivered into

the target corneal cells. However, there was variability in

the level of knockdown among the three rabbits, suggest-

ing that the dosing was not optimized for in vivo experi-

ments. Factors that could contribute to the variability in-

clude the presence of a nictitating membrane in addition

to the eyelids and tears that tend to clear the surface of the

cornea and reduce drug exposure time. It is also possible

that the volume of the siRNA formulation used for the sin-

gle dose (150 μL) in this experiment may also have been

too high, which would have reduced the amount of the

siRNAs that penetrated the cornea and were instead wash-

ed away once the trephine was removed.

The reduction in scar formation, 14 days after a single

dose of triple siRNA treatment, also showed a positive

trend. Three out of six rabbits had a reduction in scar for-

mation as observed in the haze grading scores of a mask-

ed ophthalmologist. Both the digital image and the im-

munohistostaining staining for SMA in Figure 3 showed

a reduction in scarring in the treated corneas when com-

pared to the control. Both of these measurements were,

however, qualitative, and we were unable to accurately

quantify the exact reduction in scarring due to the lack of

a standard imaging technology in the field of corneal scar-

ring for those rabbits.

There was an interesting trend associated with the haze

grading scores and the RNA knockdown percentage of

SMA. We observed a RNA knockdown of 40% and 50%

in the two rabbits that had a haze grading score of 2 and

3 respectively. However, no SMA knockdown was ob-

served in the rabbit with a haze grading score of 1. This

suggests that the triple siRNA combination is effective in

knocking down SMA expressions in intense scars and is

less effective in case of mild scarring.

A key paper in the literature reports that deeper abla-

tions during PRK lead to more intense scarring in ani-

mals [9]. In the second therapeutic experiment, we crea-

teda deep corneal ablation of 155 microns and also re-

peated the dosing of the triple siRNA combination for the

first 3 days after ablation. Neither of the two rabbits in this

experiment, however, developed an intense scar in the

untreated control corneas. The haze grading scores of

both the rabbits were similar with the one showing a slight

reduction in scarring after siRNA treatment. However,

the image analysis on the digital images revealed an av-

erage of ~22% reduction in scarring in region 1 of both

the corneas treated with the siRNA combination (Figure

5). It is interesting to note that the siRNA treatment had

an effect in reducing scarring in Region 1, but not in Re-

gion 2. This could be due to the uneven transfection of

the siRNA-nanoparticle complex into the different cor-

neal layers. The RNA level expression of SMA was also re-

duced in both the rabbits by 60% and 40%, respectively.

In this study, we performed a series of pilot experi-

ments to better understand the dynamics involved in the

in vivo translation of an effective in vitro anti-fibrotic

drug. The most immediate problem associated with the

testing of an anti-fibrotic drug in the cornea of rabbits is

the generation of a consistent and intense scar. We tried

two different models of scarring in this study and al-

though the corneas develop mild to average hazing, there

is no consistent and intense scarring among animals. Since

the variation in intensity of scarring among animals is na-

tural and cannot be controlled, treating the corneas with

TGFB1 post ablation for the first two days may help in

the intensification of scar formation [14].

Another major hurdle in evaluating the efficacy of an-

ti-fibrotic drugs in the cornea is the lack of a standard

imaging technology to quantify the reduction in scarring.

The current clinical method of haze grading by a masked

ophthalmologist is qualitative and very subjective. Al-

though the macrophotography technique described in this

study is a lot more objective than haze grading, it also

has its disadvantages. The dual flash heads create an un-

wanted reflection on the cornea due to which we are un-

able to measure the entire wounding region. A potential

solution to this problem could be to image and analyze

the corneas after excision. This would help in uniform il-

lumination of the cornea without flash bias and the scar

can also be measured as a function of the transparency.

Finally, the dosing regimen needs to be optimized so

that maximum amount of inhibitory RNA can be deliv-

ered to the cornea. Lowering the volume and administer-

ing the siRNA cocktail for 2 - 3 days after the surgery

along with an agent to increase the viscosity of the drug,

so that it sticks to the surface of the cornea for a longer

duration, might help increase the drug exposure time [15].

Other options could also include iontophoretically driv-

ing the drug to different layers of the cornea [16,17].

Although, the triple siRNA treatment in this study did

not completely eliminate scarring, it did generate a strong

positive trend in the reduction of scarring. It is important

to understand and resolve the problems associated with

the generation of intense scarring, drug delivery optimi-

zation and scar imaging before investing in a major in

vivo experiment with many animals. Once these parame-

ters are optimized, the triple siRNA combination could

lead to a significant reduction of scarring in the cornea

and perhaps also in other tissues.

5. ACKNOWLEDGEMENTS

Supported by Grants from the US Army Medical Research Acquisition

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55

[9] Netto, M.V., Mohan, R.R., Sinha, S., Sharma, A., Dupps,

W. and Wilson, S.E. (2006) Stromal haze, myofibroblasts,

and surface irregularity after PRK. Experimental Eye Re-

search, 82, 788-797.

http://dx.doi.org/10.1016/j.exer.2005.09.021

Activity W81XWH-10-2-0917, National Eye Institute grant EY000587,

National Eye Institute T32-EY07132 training grant, and the National

Eye Institute P30-EY021721 Vision Core Grant.

REFERENCES [10] Rodriguez-Lanetty, M. (2007) Trizol/RNeasy hybrid RNA

extraction protocol.

[1] Blalock, T.D., Duncan, M.R., Varela, J.C., Goldstein, M.H.,

Tuli, S.S., Grotendorst, G.R. and Schultz, G.S. (2003) Con-

nective tissue growth factor expression and action in hu-

man corneal fibroblast cultures and rat corneas after pho-

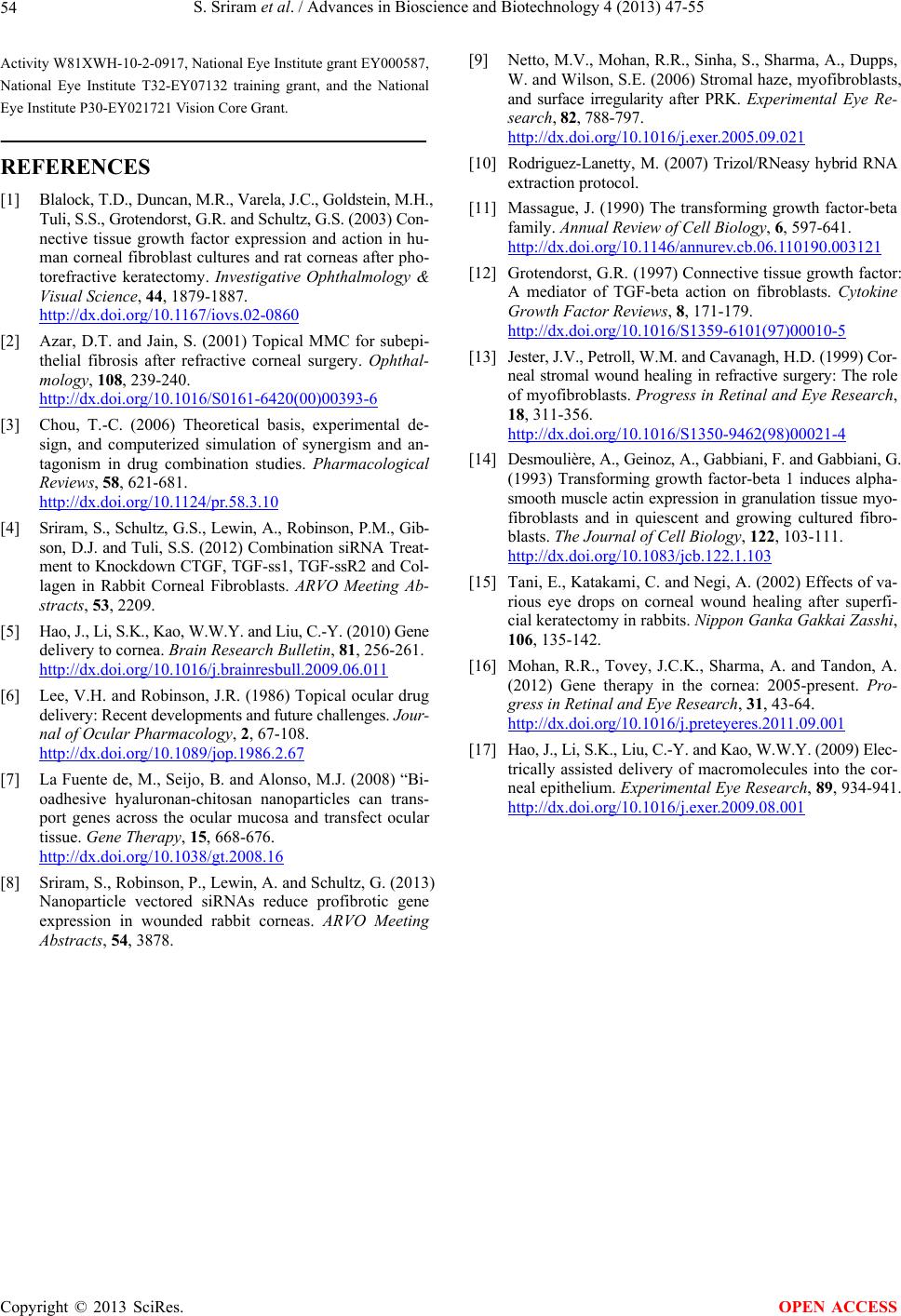

torefractive keratectomy. Investigative Ophthalmology &

Visual Science, 44, 1879-1887.

http://dx.doi.org/10.1167/iovs.02-0860

[11] Massague, J. (1990) The transforming growth factor-beta

family. Annual Review of Cell Biology, 6, 597-641.

http://dx.doi.org/10.1146/annurev.cb.06.110190.003121

[12] Grotendorst, G.R. (1997) Connective tissue growth factor:

A mediator of TGF-beta action on fibroblasts. Cytokine

Growth Factor Reviews, 8, 171-179.

http://dx.doi.org/10.1016/S1359-6101(97)00010-5

[2] Azar, D.T. and Jain, S. (2001) Topical MMC for subepi-

thelial fibrosis after refractive corneal surgery. Ophthal-

mology, 108, 239-240.

http://dx.doi.org/10.1016/S0161-6420(00)00393-6

[13] Jester, J.V., Petroll, W.M. and Cavanagh, H.D. (1999) Cor-

neal stromal wound healing in refractive surgery: The role

of myofibroblasts. Progress in Retinal and Eye Research,

18, 311-356.

http://dx.doi.org/10.1016/S1350-9462(98)00021-4

[3] Chou, T.-C. (2006) Theoretical basis, experimental de-

sign, and computerized simulation of synergism and an-

tagonism in drug combination studies. Pharmacological

Reviews, 58, 621-681.

http://dx.doi.org/10.1124/pr.58.3.10

[14] Desmoulière, A., Geinoz, A., Gabbiani, F. and Gabbiani, G.

(1993) Transforming growth factor-beta 1 induces alpha-

smooth muscle actin expression in granulation tissue myo-

fibroblasts and in quiescent and growing cultured fibro-

blasts. The Journal of Cell Biology, 122, 103-111.

http://dx.doi.org/10.1083/jcb.122.1.103

[4] Sriram, S., Schultz, G.S., Lewin, A., Robinson, P.M., Gib-

son, D.J. and Tuli, S.S. (2012) Combination siRNA Treat-

ment to Knockdown CTGF, TGF-ss1, TGF-ssR2 and Col-

lagen in Rabbit Corneal Fibroblasts. ARVO Meeting Ab-

stracts, 53, 2209.

[15] Tani, E., Katakami, C. and Negi, A. (2002) Effects of va-

rious eye drops on corneal wound healing after superfi-

cial keratectomy in rabbits. Nippon Ganka Gakkai Zasshi,

106, 135-142.

[5] Hao, J., Li, S.K., Kao, W.W.Y. and Liu, C.-Y. (2010) Gene

delivery to cornea. Brain Research Bulletin, 81, 256-261.

http://dx.doi.org/10.1016/j.brainresbull.2009.06.011 [16] Mohan, R.R., Tovey, J.C.K., Sharma, A. and Tandon, A.

(2012) Gene therapy in the cornea: 2005-present. Pro-

gress in Retinal and Eye Research, 31, 43-64.

http://dx.doi.org/10.1016/j.preteyeres.2011.09.001

[6] Lee, V.H. and Robinson, J.R. (1986) Topical ocular drug

delivery: Recent developments and future challenges. Jour-

nal of Ocular Pharmacology, 2, 67-108.

http://dx.doi.org/10.1089/jop.1986.2.67 [17] Hao, J., Li, S.K., Liu, C.-Y. and Kao, W.W.Y. (2009) Elec-

trically assisted delivery of macromolecules into the cor-

neal epithelium. Experimental Eye Research, 89, 934-941.

http://dx.doi.org/10.1016/j.exer.2009.08.001

[7] La Fuente de, M., Seijo, B. and Alonso, M.J. (2008) “Bi-

oadhesive hyaluronan-chitosan nanoparticles can trans-

port genes across the ocular mucosa and transfect ocular

tissue. Gene Therapy, 15, 668-676.

http://dx.doi.org/10.1038/gt.2008.16

[8] Sriram, S., Robinson, P., Lewin, A. and Schultz, G. (2013)

Nanoparticle vectored siRNAs reduce profibrotic gene

expression in wounded rabbit corneas. ARVO Meeting

Abstracts, 54, 3878.

OPEN ACCESS

S. Sriram et al. / Advances in Bioscience and Biotechnology 4 (2013) 47-55 55

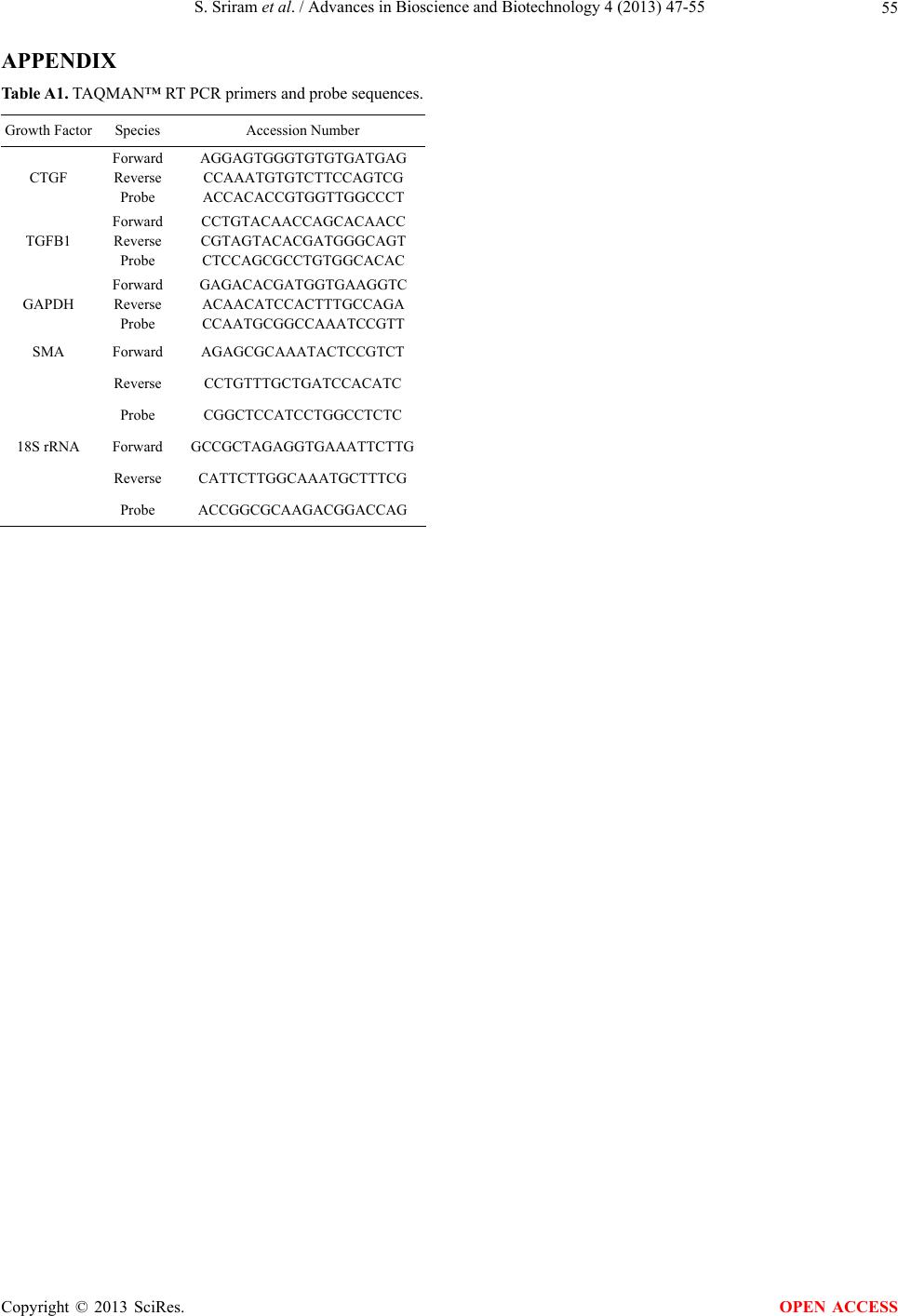

APPENDIX

Table A1. TAQMAN™ RT PCR primers and probe sequences.

Growth Factor Species Accession Number

CTGF

Forward

Reverse

Probe

AGGAGTGGGTGTGTGATGAG

CCAAATGTGTCTTCCAGTCG

ACCACACCGTGGTTGGCCCT

TGFB1

Forward

Reverse

Probe

CCTGTACAACCAGCACAACC

CGTAGTACACGATGGGCAGT

CTCCAGCGCCTGTGGCACAC

GAPDH

Forward

Reverse

Probe

GAGACACGATGGTGAAGGTC

ACAACATCCACTTTGCCAGA

CCAATGCGGCCAAATCCGTT

SMA Forward AGAGCGCAAATACTCCGTCT

Reverse CCTGTTTGCTGATCCACATC

Probe CGGCTCCATCCTGGCCTCTC

18S rRNA Forward GCCGCTAGAGGTGAAATTCTTG

Reverse CATTCTTGGCAAATGCTTTCG

Probe ACCGGCGCAAGACGGACCAG
