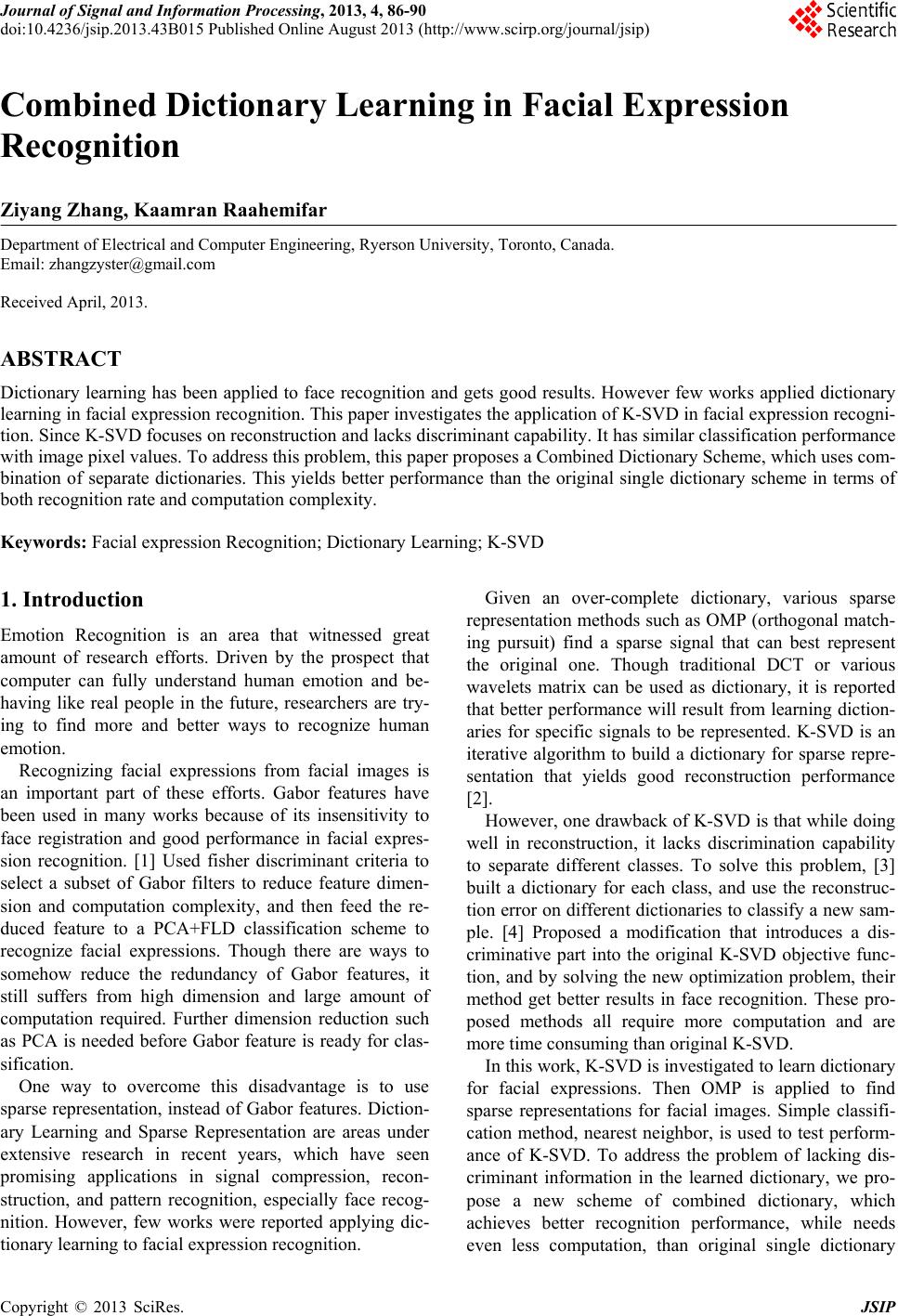

Combined Dictionary Learning in Facial Expression

Recognition

Ziyang Zhang, Kaamran Raahemifar

Department of Electrical and Computer Engineering, Ryerson University, Toronto, Canada.

Email: [email protected]

Received April, 2013.

ABSTRACT

Dictionary learning has been applied to face recognition and gets good results. However few works applied dictionary

learning in facial expression recognition. This p aper investigates th e application of K-SVD in facial expression recog ni-

tion. Since K-SVD focuses on reconstru ction and lacks discriminant capability. It has similar classification performance

with image pixel values. To address this problem, this paper proposes a Combined Dictionary Scheme, which u ses com-

bination of separate dictionaries. This yields better performance than the original single dictionary scheme in terms of

both recognition rate and computation complexity.

Keywords: Facial expression Recognition; Dictionary Learning; K-SVD

1. Introduction

Emotion Recognition is an area that witnessed great

amount of research efforts. Driven by the prospect that

computer can fully understand human emotion and be-

having like real people in the future, researchers are try-

ing to find more and better ways to recognize human

emotion.

Recognizing facial expressions from facial images is

an important part of these efforts. Gabor features have

been used in many works because of its insensitivity to

face registration and good performance in facial expres-

sion recognition. [1] Used fisher discriminant criteria to

select a subset of Gabor filters to reduce feature dimen-

sion and computation complexity, and then feed the re-

duced feature to a PCA+FLD classification scheme to

recognize facial expressions. Though there are ways to

somehow reduce the redundancy of Gabor features, it

still suffers from high dimension and large amount of

computation required. Further dimension reduction such

as PCA is needed before Gabor feature is ready for clas-

sification.

One way to overcome this disadvantage is to use

sparse representation, instead of Gabor features. Diction-

ary Learning and Sparse Representation are areas under

extensive research in recent years, which have seen

promising applications in signal compression, recon-

struction, and pattern recognition, especially face recog-

nition. However, few works were reported applying dic-

tionary learning to facial expression recognition.

Given an over-complete dictionary, various sparse

representation methods such as OMP (orthogonal match-

ing pursuit) find a sparse signal that can best represent

the original one. Though traditional DCT or various

wavelets matrix can be used as dictionary, it is reported

that better performance will result from learning diction-

aries for specific signals to be represented. K-SVD is an

iterative algorithm to build a dictionary for sparse repre-

sentation that yields good reconstruction performance

[2].

However, one drawb ack of K-SVD is that while doing

well in reconstruction, it lacks discrimination capability

to separate different classes. To solve this problem, [3]

built a dictionary for each class, and use the reconstruc-

tion error on different dictionaries to classify a new sam-

ple. [4] Proposed a modification that introduces a dis-

criminative part into the original K-SVD objective func-

tion, and by solving the new optimization problem, their

method get better results in face recognition. These pro-

posed methods all require more computation and are

more time consuming than original K-SVD.

In this work, K-SVD is investigated to learn dictionary

for facial expressions. Then OMP is applied to find

sparse representations for facial images. Simple classifi-

cation method, nearest neighbor, is used to test perform-

ance of K-SVD. To address the problem of lacking dis-

criminant information in the learned dictionary, we pro-

pose a new scheme of combined dictionary, which

achieves better recognition performance, while needs

even less computation, than original single dictionary

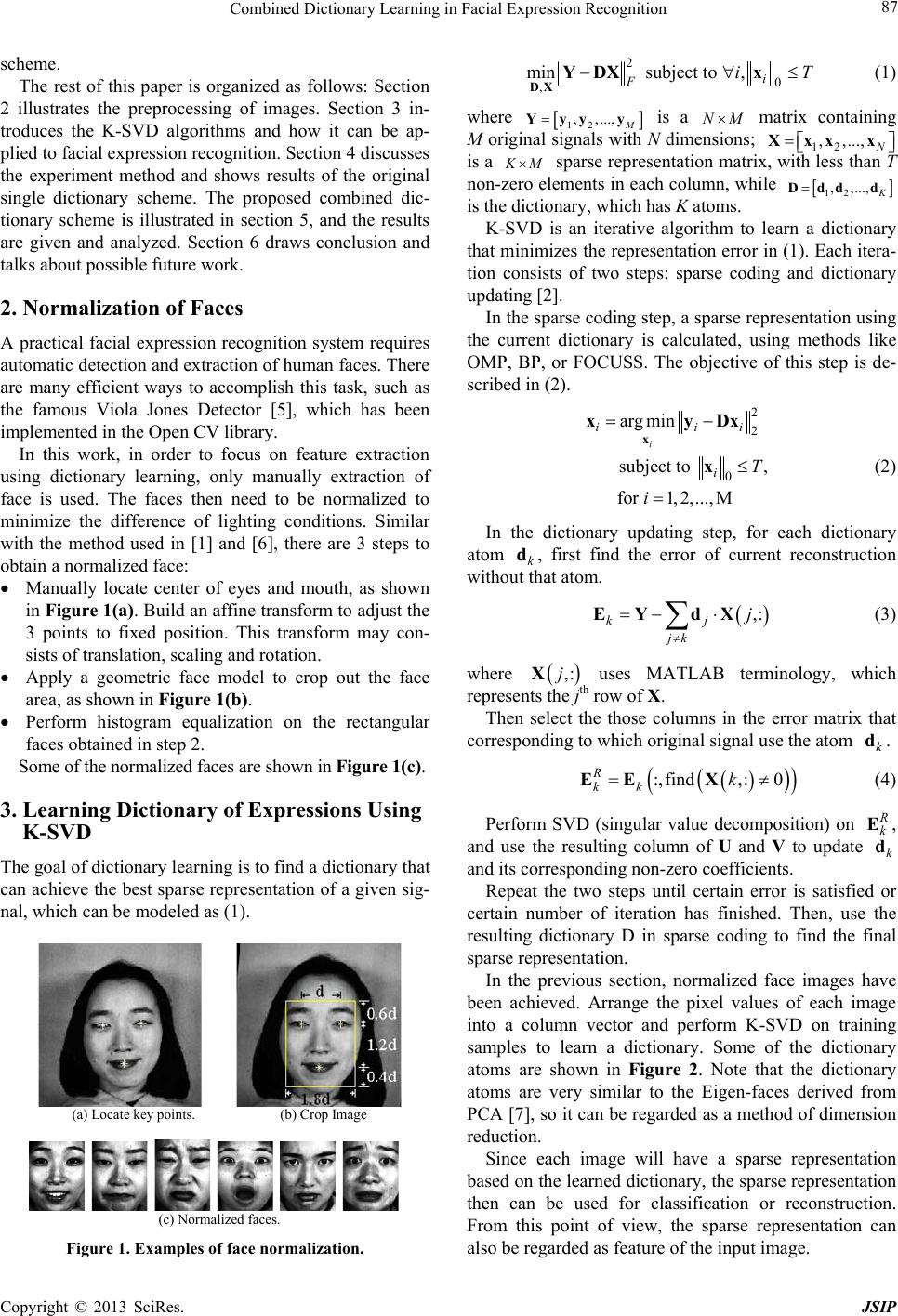

Combined Dictionary Learning in Facial Expression Recognition 87

scheme.

The rest of this paper is organized as follows: Section

2 illustrates the preprocessing of images. Section 3 in-

troduces the K-SVD algorithms and how it can be ap-

plied to facial expression recognition. Section 4 discu sses

the experiment method and shows results of the original

single dictionary scheme. The proposed combined dic-

tionary scheme is illustrated in section 5, and the results

are given and analyzed. Section 6 draws conclusion and

talks about possible fu ture work.

2. Normalization of Faces

A practical facial expression recognition system requires

automatic detection and extraction of hu man faces. There

are many efficient ways to accomplish this task, such as

the famous Viola Jones Detector [5], which has been

implemented in the Op en CV library.

In this work, in order to focus on feature extraction

using dictionary learning, only manually extraction of

face is used. The faces then need to be normalized to

minimize the difference of lighting conditions. Similar

with the method used in [1] and [6], there are 3 steps to

obtain a normalized face:

 Manually locate center of eyes and mouth, as shown

in Figure 1(a). Build an affine transform to adjust th e

3 points to fixed position. This transform may con-

sists of translation, scaling and rotation.

 Apply a geometric face model to crop out the face

area, as shown in Figure 1(b).

 Perform histogram equalization on the rectangular

faces obtained in step 2.

Some of the normalized faces are shown in Figure 1(c).

3. Learning Dictionary of Expressions Using

K-SVD

The goal of dictionary learning is to find a dictionary that

can achieve the best sparse representation of a given sig-

nal, which can be m odel e d as (1 ).

(a) Locate key points. (b) Crop Image

Figure 1. Examples of face normalization.

min subject to ,i

FiT





DX YDXx (1)

where





,,..., M

Y

yy y

is a matrix containing

M original signals with N dimensions; 12

is a

NM

,,..., N





Xxx x



sparse representation matrix, with less than T

non-zero elements in each column, while





, ,...,

Ddd d

is the dictionary, which has K atoms.

K-SVD is an iterative algorithm to learn a dictionary

that minimizes the representation error in (1). Each itera-

tion consists of two steps: sparse coding and dictionary

updating [2].

In the sparse coding step, a sparse representation using

the current dictionary is calculated, using methods like

OMP, BP, or FOCUSS. The objective of this step is de-

scribed in (2).

argmin

subject to ,

for 1,2,...,M







xyDx

(2)

In the dictionary updating step, for each dictionary

atom k, first find the error of current reconstruction

without that atom.





 



EYdX (3)

where





,:jX uses MATLAB terminology, which

represents the jth row of X.

Then select the those columns in the error matrix that

corresponding to which original signal use the atom .







:,find,: 0

kk kEEX  (4)

Perform SVD (singular value decomposition) on ,

and use the resulting column of U and V to update

and its corresponding non-zero coefficients.

Repeat the two steps until certain error is satisfied or

certain number of iteration has finished. Then, use the

resulting dictionary D in sparse coding to find the final

sparse representation.

In the previous section, normalized face images have

been achieved. Arrange the pixel values of each image

into a column vector and perform K-SVD on training

samples to learn a dictionary. Some of the dictionary

atoms are shown in Figure 2. Note that the dictionary

atoms are very similar to the Eigen-faces derived from

PCA [7], so it can be regarded as a method of dimension

reduction.

Since each image will have a sparse representation

based on the learned dictionary, the sparse representation

then can be used for classification or reconstruction.

From this point of view, the sparse representation can

also be regarded as feature of the input image.

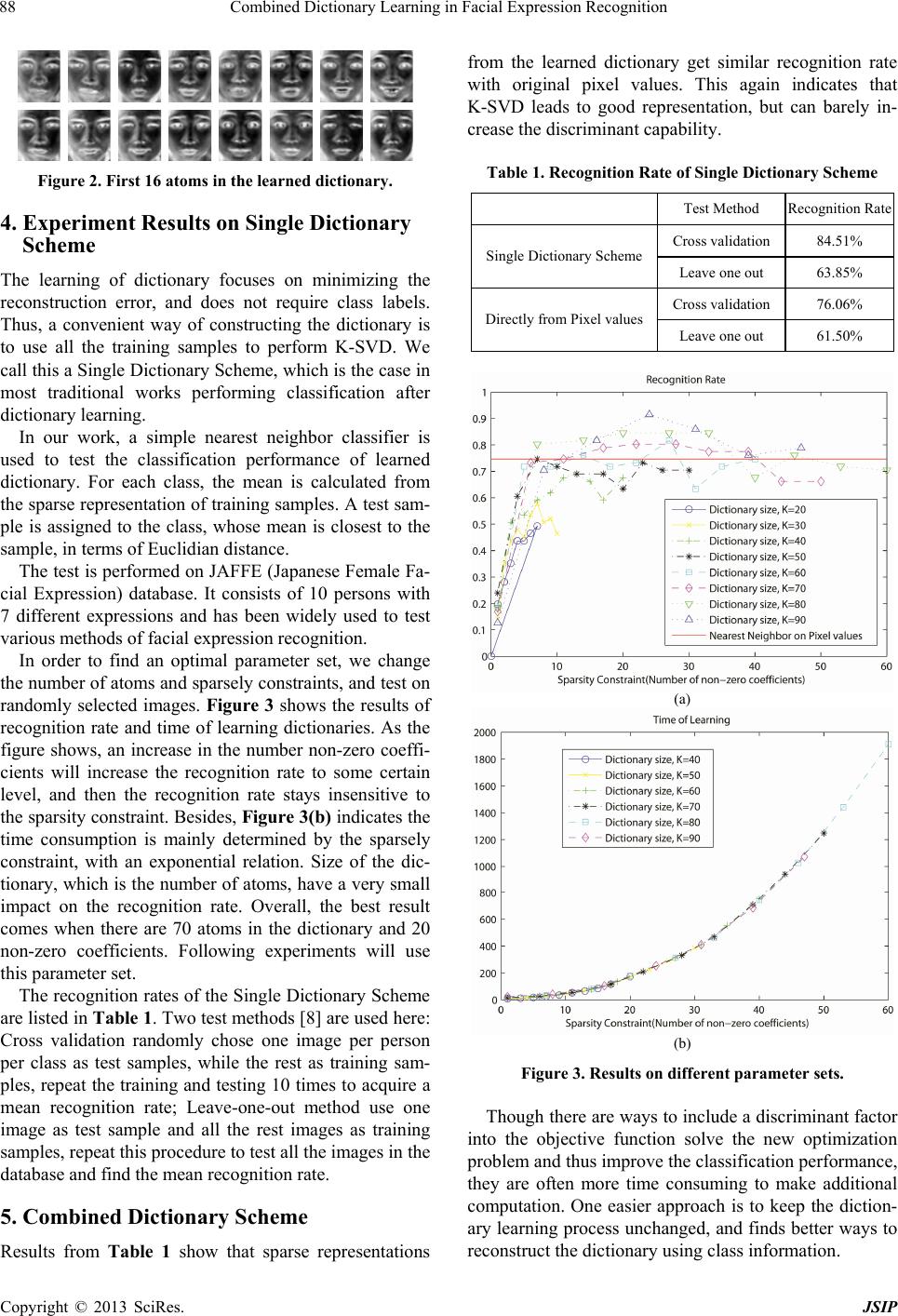

Combined Dictionary Learning in Facial Expression Recognition

Figure 2. First 16 atoms in the learned dictionary.

4. Experiment Results on Single Dictionary

Scheme

The learning of dictionary focuses on minimizing the

reconstruction error, and does not require class labels.

Thus, a convenient way of constructing the dictionary is

to use all the training samples to perform K-SVD. We

call this a Single Dictionary Scheme, which is the case in

most traditional works performing classification after

dictionary learning.

In our work, a simple nearest neighbor classifier is

used to test the classification performance of learned

dictionary. For each class, the mean is calculated from

the sparse representation of train ing samples. A test sam-

ple is assigned to the class, whose mean is closest to the

sample, in terms of Euclidian distance.

The test is performed on JAFFE (Japanese Female Fa-

cial Expression) database. It consists of 10 persons with

7 different expressions and has been widely used to test

various methods of facial expression recognition.

In order to find an optimal parameter set, we change

the number of atoms and sparsely constraints, and test on

randomly selected images. Figure 3 shows the results of

recognition rate and time of learning dictionaries. As the

figure shows, an increase in the number non-zero coeffi-

cients will increase the recognition rate to some certain

level, and then the recognition rate stays insensitive to

the sparsity constraint. Besides, Figure 3(b) indicates the

time consumption is mainly determined by the sparsely

constraint, with an exponential relation. Size of the dic-

tionary, which is the number of atoms, have a very small

impact on the recognition rate. Overall, the best result

comes when there are 70 atoms in the dictionary and 20

non-zero coefficients. Following experiments will use

this parameter set.

The recognition rates of the Single Dictionary Scheme

are listed in Table 1. Two test methods [8] are used here:

Cross validation randomly chose one image per person

per class as test samples, while the rest as training sam-

ples, repeat the training and testing 10 times to acquire a

mean recognition rate; Leave-one-out method use one

image as test sample and all the rest images as training

samples, repeat this procedure to test all the i mages in th e

database and find the mean recognition rate.

5. Combined Dictionary Scheme

Results from Table 1 show that sparse representations

from the learned dictionary get similar recognition rate

with original pixel values. This again indicates that

K-SVD leads to good representation, but can barely in-

crease the discriminant cap ability.

Table 1. Recognition Rate of Single Dictionary Sc he me

T es t Me th od Recognition Rate

Cross validation 84.51%

Single Dictionary SchemeLeave one out 63.85%

Cross validation 76.06%

Directly from Pixel valuesLeave one out 61.50%

(a)

(b)

Figure 3. Results on different parameter sets.

Though there are ways to include a discriminant factor

into the objective function solve the new optimization

problem and thus improve the classification performance,

they are often more time consuming to make additional

computation. One easier approach is to keep the diction-

ary learning process unchanged, and finds better ways to

reconstruct the dictionary using class information.

Combined Dictionary Learning in Facial Expression Recognition 89

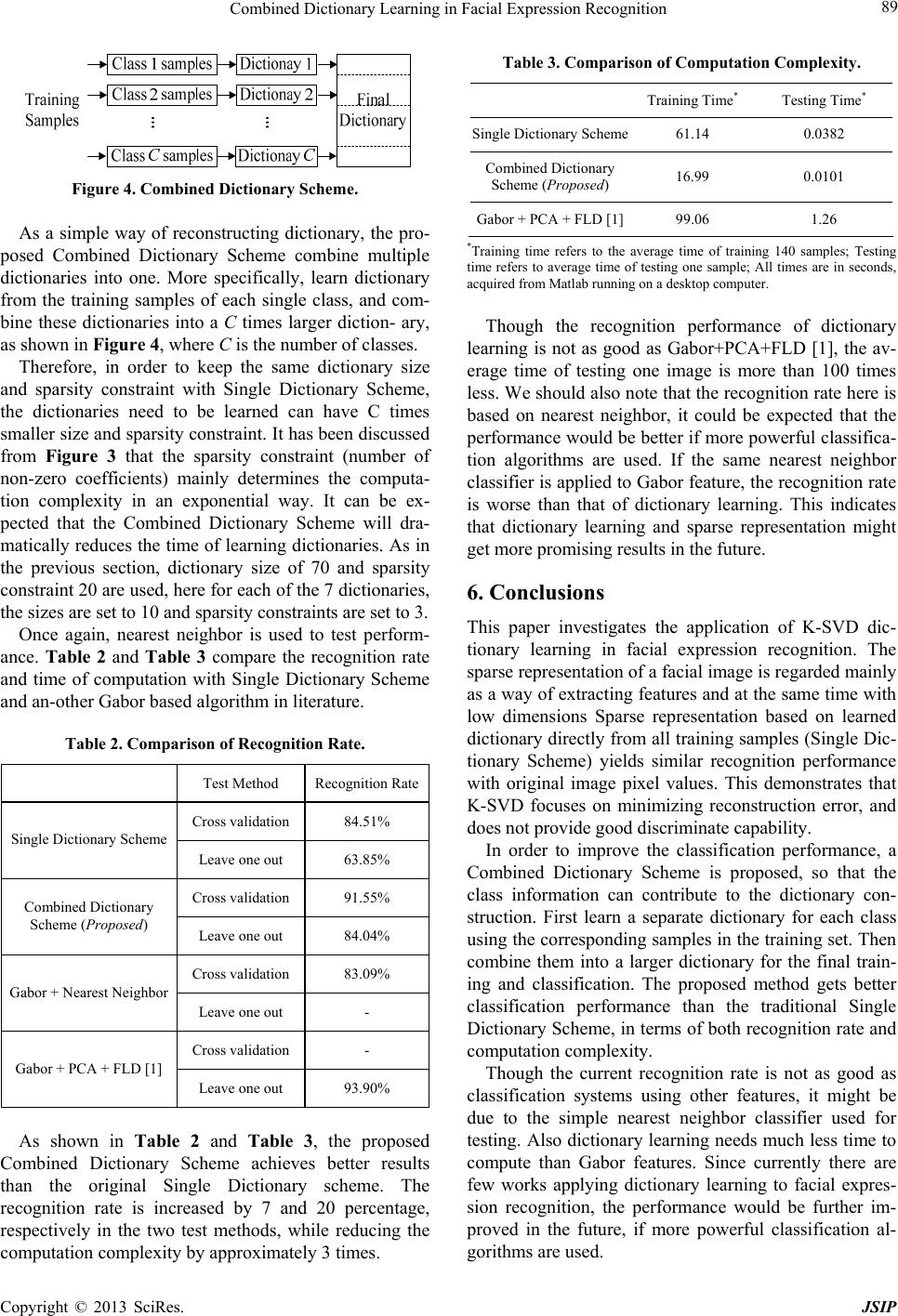

Figure 4. Combined Dictionary Scheme.

As a simple way of reconstructing dictionary, the pro-

posed Combined Dictionary Scheme combine multiple

dictionaries into one. More specifically, learn dictionary

from the training samples of each single class, and com-

bine these dictionaries into a C times larger diction- ary,

as shown in Figure 4, where C is the number of classes.

Therefore, in order to keep the same dictionary size

and sparsity constraint with Single Dictionary Scheme,

the dictionaries need to be learned can have C times

smaller size and sparsity constraint. It has been discussed

from Figure 3 that the sparsity constraint (number of

non-zero coefficients) mainly determines the computa-

tion complexity in an exponential way. It can be ex-

pected that the Combined Dictionary Scheme will dra-

matically reduces the time of learning dictionaries. As in

the previous section, dictionary size of 70 and sparsity

constraint 20 are used, here for each of the 7 dictionaries,

the sizes are set to 10 and sparsity constraints are set to 3.

Once again, nearest neighbor is used to test perform-

ance. Table 2 and Table 3 compare the recognition rate

and time of computation with Single Dictionary Scheme

and an-other Gabor based algorith m in literature.

Table 2. Comparison of Recognition Rate.

Test Method Recognition Rate

Cross validation 84.51%

Single Dictionary Scheme Leave one out 63.85%

Cross validation 91.55%

Combined Dictionary

Scheme (Proposed) Leave one out 84.04%

Cross validation 83.09%

Gabor + Nearest Neighbor Leave one out -

Cross validation -

Gabor + PCA + FLD [1] Leave one out 93.90%

As shown in Table 2 and Table 3, the proposed

Combined Dictionary Scheme achieves better results

than the original Single Dictionary scheme. The

recognition rate is increased by 7 and 20 percentage,

respectively in the two test methods, while reducing the

computation complexity by approximately 3 times.

Table 3. Comparison of Computation Complexity.

Training Time* Testing Time*

Single Dictionary Scheme61.14 0.0382

Combined Dictionary

Scheme (Proposed) 16.99 0.0101

Gabor + PCA + FLD [1]99.06 1.26

*Training time refers to the average time of training 140 samples; Testing

time refers to average time of testing one sample; All times are in seconds,

acquire d from Matlab running on a desktop computer.

Though the recognition performance of dictionary

learning is not as good as Gabor+PCA+FLD [1], the av-

erage time of testing one image is more than 100 times

less. We should also note that the recog nition rate here is

based on nearest neighbor, it could be expected that the

performance would be better if more powerful classifica-

tion algorithms are used. If the same nearest neighbor

classifier is applied to Gabor feature, the recognition rate

is worse than that of dictionary learning. This indicates

that dictionary learning and sparse representation might

get more promising results in the future.

6. Conclusions

This paper investigates the application of K-SVD dic-

tionary learning in facial expression recognition. The

sparse representation of a facial image is regarded mainly

as a way of extracting features and at the same time with

low dimensions Sparse representation based on learned

dictionary directly from all training samples (Single Dic-

tionary Scheme) yields similar recognition performance

with original image pixel values. This demonstrates that

K-SVD focuses on minimizing reconstruction error, and

does not provide good discriminate capability.

In order to improve the classification performance, a

Combined Dictionary Scheme is proposed, so that the

class information can contribute to the dictionary con-

struction. First learn a separate dictionary for each class

using the corresponding samples in the training set. Then

combine them into a larger dictionary for the final train-

ing and classification. The proposed method gets better

classification performance than the traditional Single

Dictionary Scheme, in terms of both recognition rate and

computation complexity.

Though the current recognition rate is not as good as

classification systems using other features, it might be

due to the simple nearest neighbor classifier used for

testing. Also dictionary learning needs much less time to

compute than Gabor features. Since currently there are

few works applying dictionary learning to facial expres-

sion recognition, the performance would be further im-

proved in the future, if more powerful classification al-

gorithms are used.

Combined Dictionary Learning in Facial Expression Recognition

REFERENCES

[1] Z. Y. Zhang, X. M. Mu and L. Gao, “Recognizing Facial

Expressions Based on Gabor Filter Selection,” Proceed-

ings of 2011 4th International Congress on Image and

Signal Processing (CISP). IEEE, 2011, Vol. 3, pp.

1544–1548.

[2] Michal Aharon, Michael Elad, and Alfred Bruckstein,

“K-SVD: An Algorithm for Designing Overcomplete

Dictionaries for Sparse Representation,” IEEE Transac-

tions on Signal Processing, Vol. 54, No. 4, 2006, pp.

4311–4321.doi:10.1109/TSP.2006.881199

[3] Julien Mairal and Francis Batch et al., “Discriminative

Learned Dictionaries for Local Image Analysis,” Pro-

ceedings of 2008 IEEE Conference on Computer Vi-

sionand Pattern Recognition (CVPR), IEEE, 2008, pp.

1–8.

[4] Z. L. Jiang, L. Zhe and L. S. Davis, “Learning a Dis-

criminative Dictionary for Sparse Coding via Label Con-

sistent K-SVD,” Proceedings of 2011 IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

IEEE, 2011, pp. 1697-1704.

[5] Paul Viola and Michael Jones, “Robust Real-time Face

Detection,” International Journal of Computer Vision,

vol. 57, No. 2, 2004, pp. 137–154.

doi:10.1023/B:VISI.0000013087.49260.fb

[6] S. Dubuisson, F. Davoine and M. Masson, “A Solution

for Facial Expression Representation and Recognition,”

Signal Processing: Image Communication, Vol. 17, No. 9,

2002, pp. 657–673. doi:10.1016/S0923-5965(02)00076-0

[7] N. Peter Belhumeur, P. Joao Hespanha and David J.

Kriegman, “Eigenfaces vs. Fisherfaces: Recognition Us-

ing Class Specific Linear Projection,” IEEE Transactions

on Pattern Analysis and Machine Intelligence, Vol. 19,

No. 7, 1997, pp. 711-720. doi:10.1109/34.598228

[8] F. Y. Shih, C. F. Chuang and Patrick, S. P. Wang, “Per-

formance Comparisons of Facial Expression Recognition

in JAFFE Database,” International Journal of Pattern

Recognition and Artificial Intelligence, Vol. 22, Vol. 3,

2008, pp. 445-459.doi:10.1142/S0218001408006284
