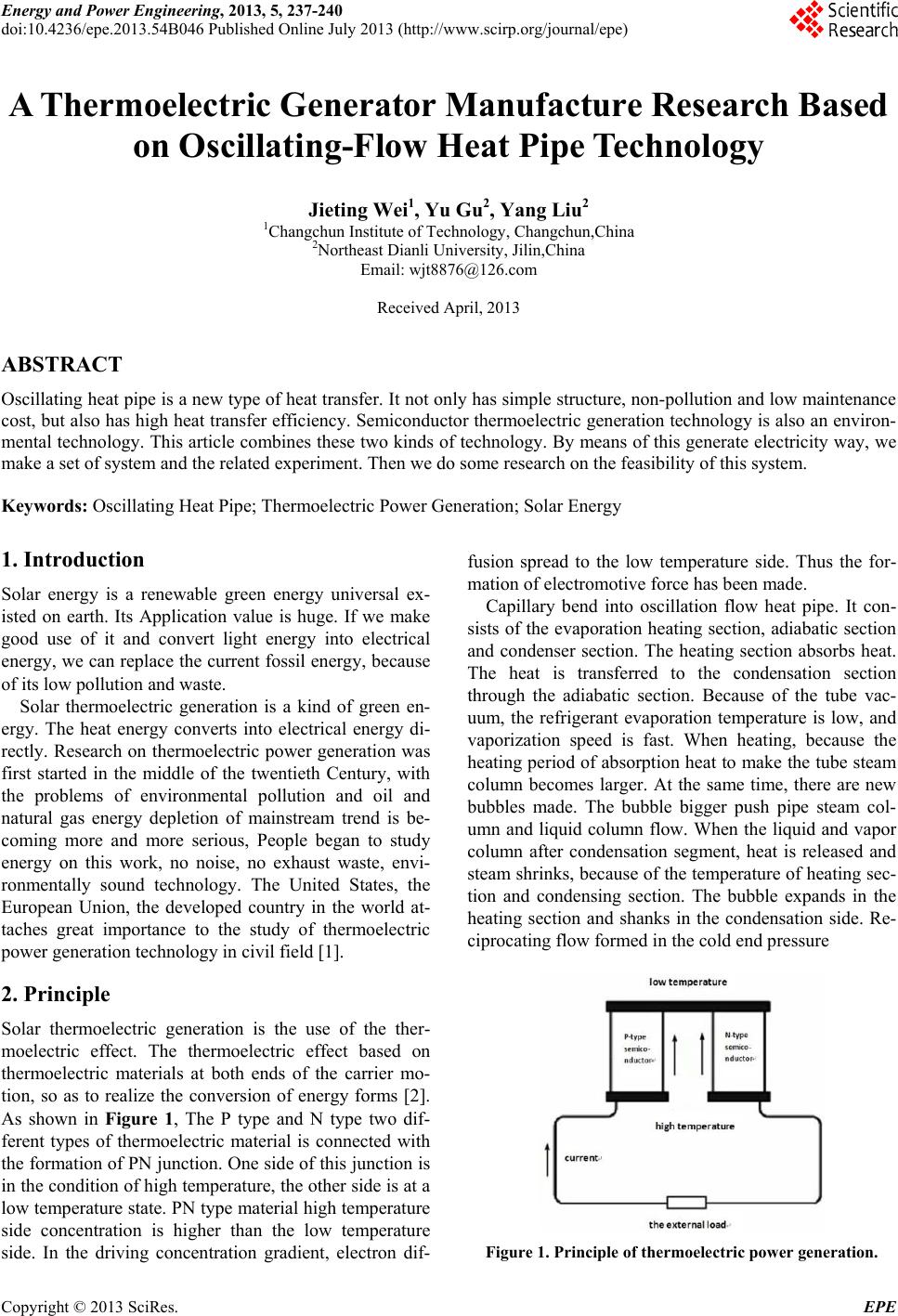

Energy and Power Engineering, 2013, 5, 237-240

doi:10.4236/epe.2013.54B046 Published Online July 2013 (http://www.scirp.org/journal/epe)

A Thermoelectric Generator Manufacture Research Based

on Oscillating-Flow Heat Pipe Technology

Jieting Wei1, Yu Gu2, Yang Liu2

1Changchun Institute of Technology, Changchun,China

2Northeast Dianli University, Jilin,China

Email: [email protected]

Received April, 2013

ABSTRACT

Oscillating heat pipe is a new type of heat transfer. It not only has simple structure, non-pollution and low maintenance

cost, but also has high heat transfer efficiency. Semiconductor thermoelectric generation technology is also an environ-

mental technology. This article combines these two kinds of technology. By means of this generate electricity way, we

make a set of system and the related experiment. Then we do some research on the feasibility of this system.

Keywords: Oscillating Heat Pipe; Thermoelectric Power Generation; Solar Energy

1. Introduction

Solar energy is a renewable green energy universal ex-

isted on earth. Its Application value is huge. If we make

good use of it and convert light energy into electrical

energy, we can replace the current fossil energy, because

of its low pollution and waste.

Solar thermoelectric generation is a kind of green en-

ergy. The heat energy converts into electrical energy di-

rectly. Research on thermoelectric power generation was

first started in the middle of the twentieth Century, with

the problems of environmental pollution and oil and

natural gas energy depletion of mainstream trend is be-

coming more and more serious, People began to study

energy on this work, no noise, no exhaust waste, envi-

ronmentally sound technology. The United States, the

European Union, the developed country in the world at-

taches great importance to the study of thermoelectric

power generation technology in civil field [1].

2. Principle

Solar thermoelectric generation is the use of the ther-

moelectric effect. The thermoelectric effect based on

thermoelectric materials at both ends of the carrier mo-

tion, so as to realize the conversion of energy forms [2].

As shown in Figure 1, The P type and N type two dif-

ferent types of thermoelectric material is connected with

the formation of PN junction. One side of this junction is

in the condition of high temperature, the other side is at a

low temperature state. PN type material high temperature

side concentration is higher than the low temperature

side. In the driving concentration gradient, electron dif-

fusion spread to the low temperature side. Thus the for-

mation of electromotive force has been made.

Capillary bend into oscillation flow heat pipe. It con-

sists of the evaporation heating section, adiabatic section

and condenser section. The heating section absorbs heat.

The heat is transferred to the condensation section

through the adiabatic section. Because of the tube vac-

uum, the refrigerant evaporation temperature is low, and

vaporization speed is fast. When heating, because the

heating period of absorption heat to make the tube steam

column becomes larger. At the same time, there are new

bubbles made. The bubble bigger push pipe steam col-

umn and liquid column flow. When the liquid and vapor

column after condensation segment, heat is released and

steam shrinks, because of the temperature of heating sec-

tion and condensing section. The bubble expands in the

heating section and shanks in the condensation side. Re-

ciprocating flow formed in the cold end pressure

Figure 1. Principle of thermoelectric power generation.

J. T. WEI ET AL.

238

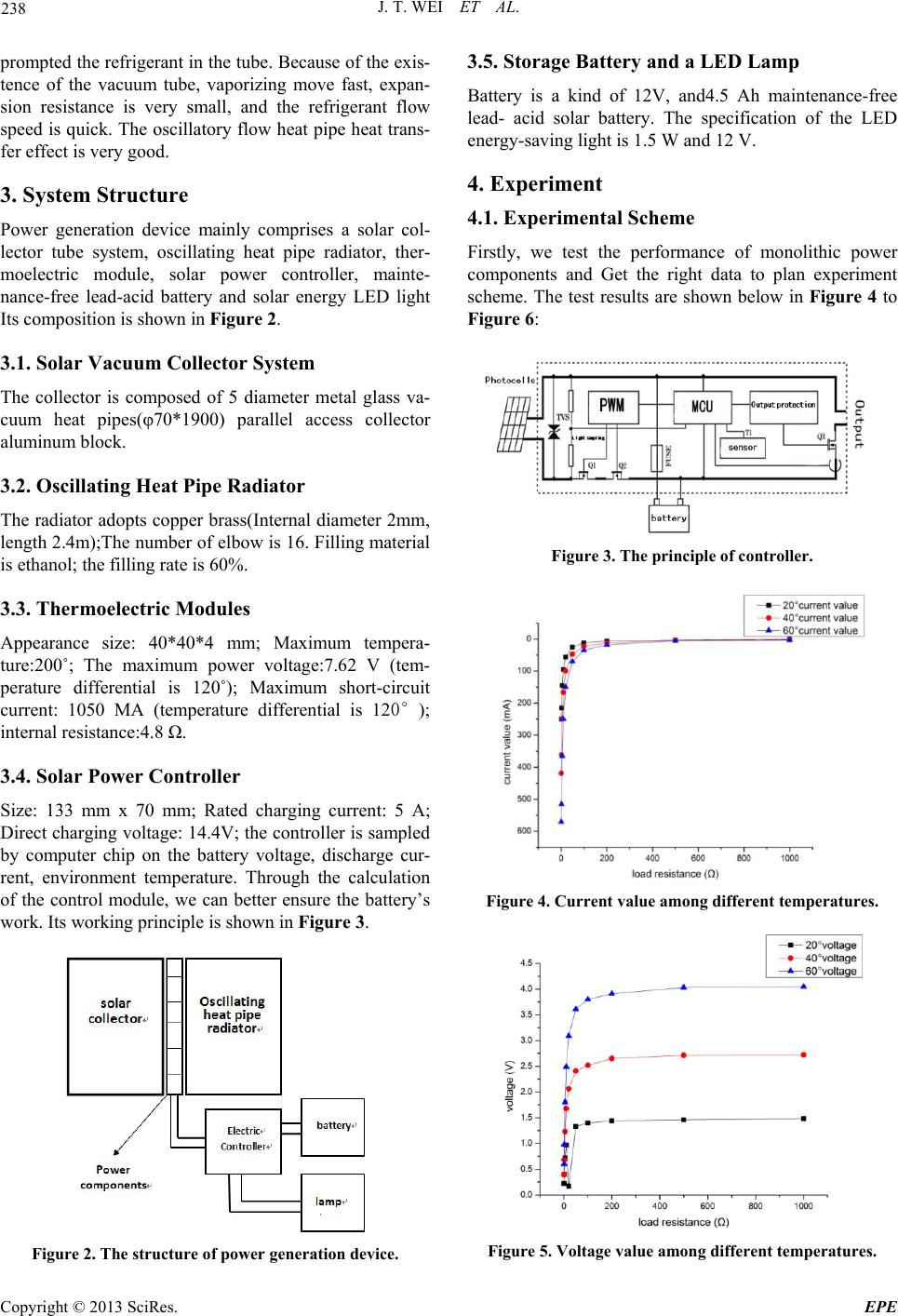

prompted the refrigerant in the tube. Because of the exis-

tence of the vacuum tube, vaporizing move fast, expan-

sion resistance is very small, and the refrigerant flow

speed is quick. The oscillatory flow heat pipe heat trans-

fer effect is very good.

3. System Structure

Power generation device mainly comprises a solar col-

lector tube system, oscillating heat pipe radiator, ther-

moelectric module, solar power controller, mainte-

nance-free lead-acid battery and solar energy LED light

Its composition is shown in Figure 2.

3.1. Solar Vacuum Collector System

The collector is composed of 5 diameter metal glass va-

cuum heat pipes(φ70*1900) parallel access collector

aluminum block.

3.2. Oscillating Heat Pipe Radiator

The radiator adopts copper brass(Internal diameter 2mm,

length 2.4m);The number of elbow is 16. Filling material

is ethanol; the filling rate is 60%.

3.3. Thermoelectric Modules

Appearance size: 40*40*4 mm; Maximum tempera-

ture:200˚; The maximum power voltage:7.62 V (tem-

perature differential is 120˚); Maximum short-circuit

current: 1050 MA (temperature differential is 120°);

internal resistance:4.8 Ω.

3.4. Solar Power Controller

Size: 133 mm x 70 mm; Rated charging current: 5 A;

Direct charging voltage: 14.4V; the controller is sampled

by computer chip on the battery voltage, discharge cur-

rent, environment temperature. Through the calculation

of the control module, we can better ensure the battery’s

work. Its working principle is shown in Figure 3.

Figure 2. The structure of power generation device.

3.5. Storage Battery and a LED Lamp

Battery is a kind of 12V, and4.5 Ah maintenance-free

lead- acid solar battery. The specification of the LED

energy-saving light is 1.5 W and 12 V.

4. Experiment

4.1. Experimental Scheme

Firstly, we test the performance of monolithic power

components and Get the right data to plan experiment

scheme. The test results are shown below in Figure 4 to

Figure 6:

Figure 3. The principle of controller.

Figure 4. Current value among different temperatures.

Figure 5. Voltage value among different temperatures.

J. T. WEI ET AL. 239

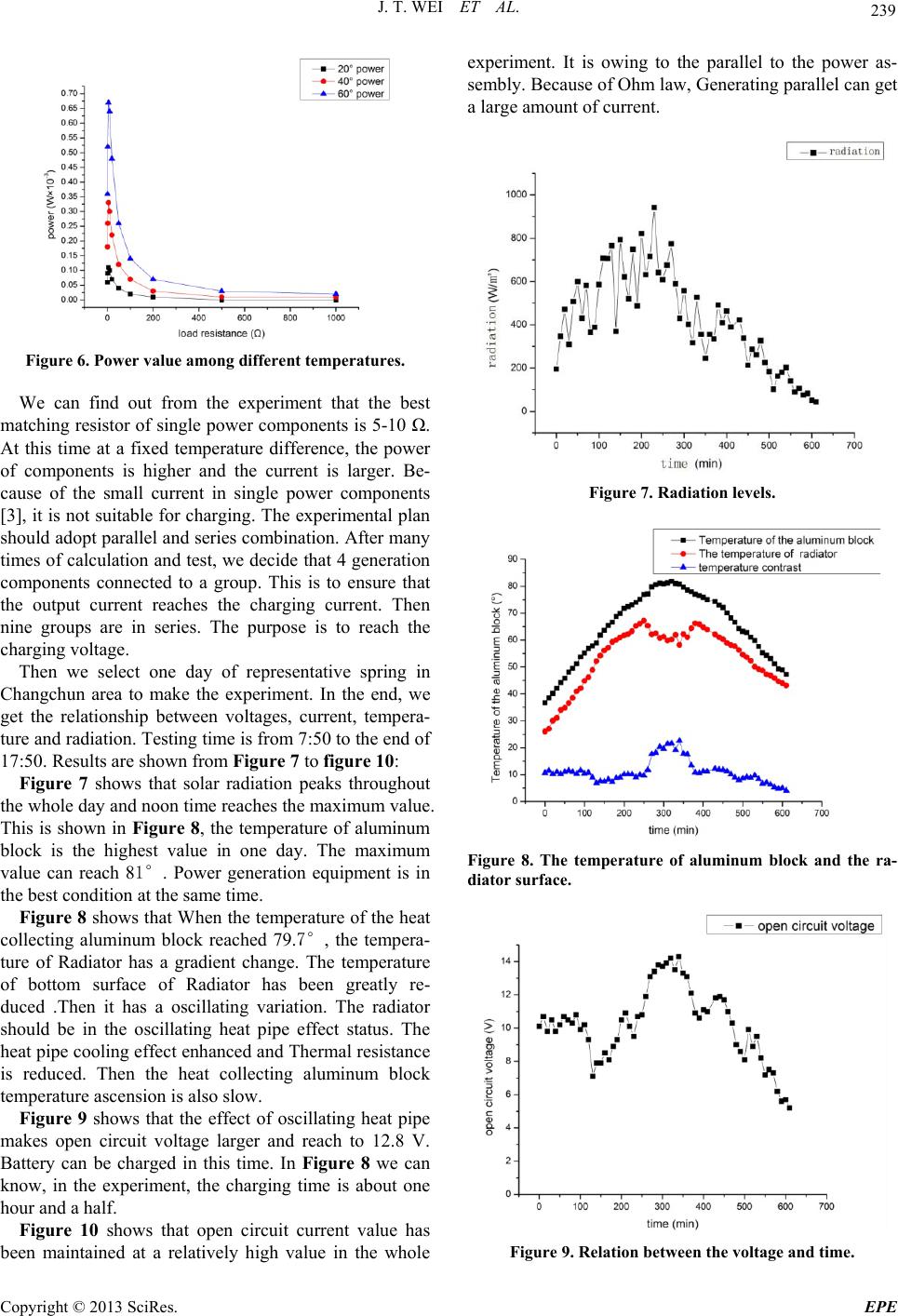

Figure 6. Power value among different temperatures.

We can find out from the experiment that the best

matching resistor of single power components is 5-10 Ω.

At this time at a fixed temperature difference, the power

of components is higher and the current is larger. Be-

cause of the small current in single power components

[3], it is not suitable for charging. The experimental plan

should adopt parallel and series combination. After many

times of calculation and test, we decide that 4 generation

components connected to a group. This is to ensure that

the output current reaches the charging current. Then

nine groups are in series. The purpose is to reach the

charging voltage.

Then we select one day of representative spring in

Changchun area to make the experiment. In the end, we

get the relationship between voltages, current, tempera-

ture and radiation. Testing time is from 7:50 to the end of

17:50. Results are shown from Figure 7 to figu r e 10:

Figure 7 shows that solar radiation peaks throughout

the whole day and noon time reaches the maximum value.

This is shown in Figure 8, the temperature of aluminum

block is the highest value in one day. The maximum

value can reach 81°. Power generation equipment is in

the best condition at the same time.

Figure 8 shows that When the temperature of the heat

collecting aluminum block reached 79.7°, the tempera-

ture of Radiator has a gradient change. The temperature

of bottom surface of Radiator has been greatly re-

duced .Then it has a oscillating variation. The radiator

should be in the oscillating heat pipe effect status. The

heat pipe cooling effect enhanced and Thermal resistance

is reduced. Then the heat collecting aluminum block

temperature ascension is also slow.

Figure 9 shows that the effect of oscillating heat pipe

makes open circuit voltage larger and reach to 12.8 V.

Battery can be charged in this time. In Figure 8 we can

know, in the experiment, the charging time is about one

hour and a half.

Figure 10 shows that open circuit current value has

been maintained at a relatively high value in the whole

experiment. It is owing to the parallel to the power as-

sembly. Because of Ohm law, Generating parallel can get

a large amount of current.

Figure 7. Radiation levels.

Figure 8. The temperature of aluminum block and the ra-

diator surface.

Figure 9. Relation between the voltage and time.

J. T. WEI ET AL.

240

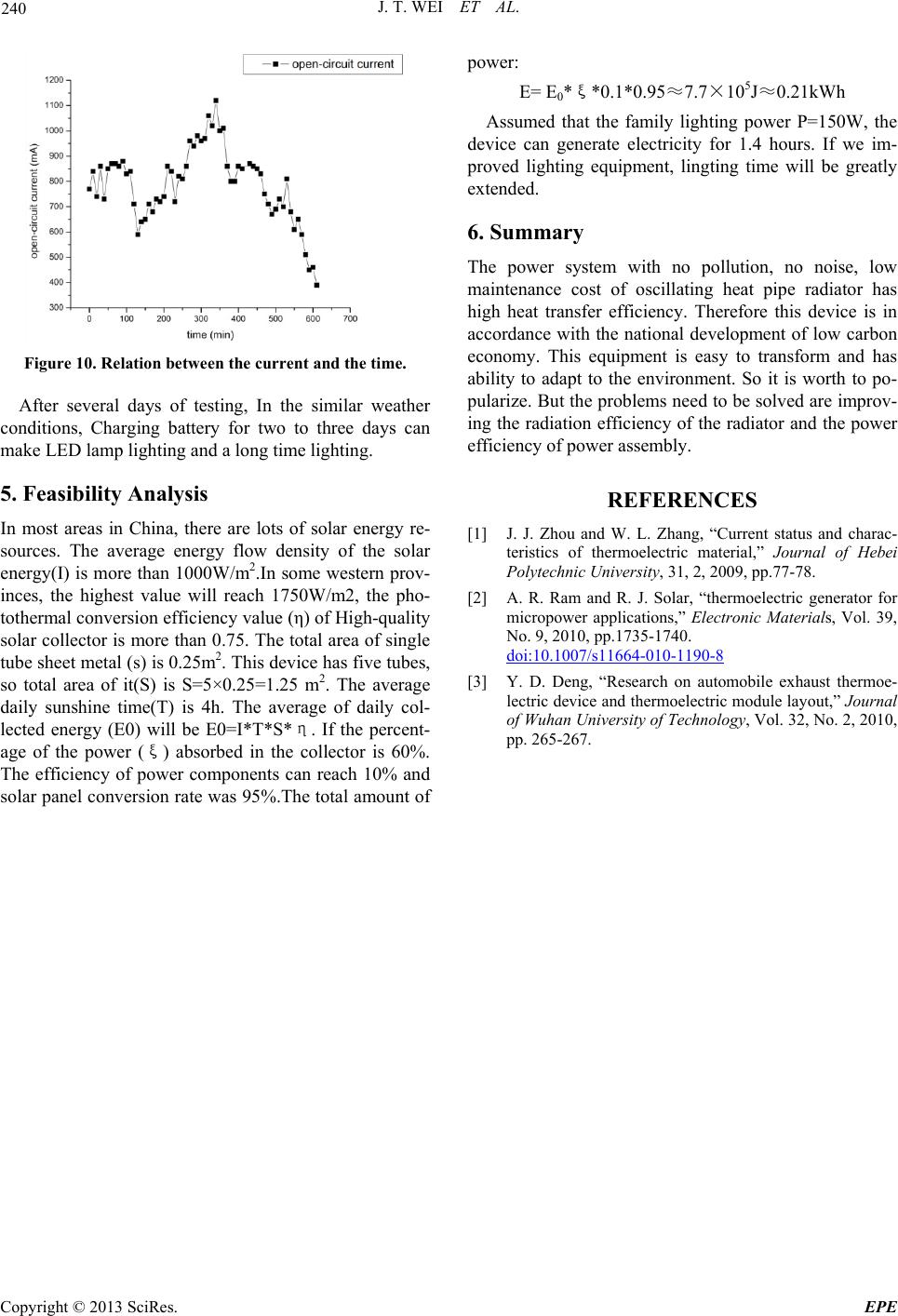

Figure 10. Relation between the current and the time.

After several days of testing, In the similar weather

conditions, Charging battery for two to three days can

make LED lamp lighting and a long time lighting.

5. Feasibility Analysis

In most areas in China, there are lots of solar energy re-

sources. The average energy flow density of the solar

energy(I) is more than 1000W/m2.In some western prov-

inces, the highest value will reach 1750W/m2, the pho-

tothermal conversion efficiency value (η) of High-quality

solar collector is more than 0.75. The total area of single

tube sheet metal (s) is 0.25m2. This device has five tubes,

so total area of it(S) is S=5×0.25=1.25 m2. The average

daily sunshine time(T) is 4h. The average of daily col-

lected energy (E0) will be E0=I*T*S*η. If the percent-

age of the power (ξ) absorbed in the collector is 60%.

The efficiency of power components can reach 10% and

solar panel conversion rate was 95%.The total amount of

power:

E= E0*ξ*0.1*0.95≈7.7×105J≈0.21kWh

Assumed that the family lighting power P=150W, the

device can generate electricity for 1.4 hours. If we im-

proved lighting equipment, lingting time will be greatly

extended.

6. Summary

The power system with no pollution, no noise, low

maintenance cost of oscillating heat pipe radiator has

high heat transfer efficiency. Therefore this device is in

accordance with the national development of low carbon

economy. This equipment is easy to transform and has

ability to adapt to the environment. So it is worth to po-

pularize. But the problems need to be solved are improv-

ing the radiation efficiency of the radiator and the power

efficiency of power assembly.

REFERENCES

[1] J. J. Zhou and W. L. Zhang, “Current status and charac-

teristics of thermoelectric material,” Journal of Hebei

Polytechnic University, 31, 2, 2009, pp.77-78.

[2] A. R. Ram and R. J. Solar, “thermoelectric generator for

micropower applications,” Electronic Materials, Vol. 39,

No. 9, 2010, pp.1735-1740.

doi:10.1007/s11664-010-1190-8

[3] Y. D. Deng, “Research on automobile exhaust thermoe-

lectric device and thermoelectric module layout,” Journal

of Wuhan University of Technology, Vol. 32, No. 2, 2010,

pp. 265-267.
