Communications and Network, 2013, 5, 596-600

http://dx.doi.org/10.4236/cn.2013.53B2107 Published Online September 2013 (http://www.scirp.org/journal/cn)

Speaker Recognition System Based on the Baseband

Correlation Score Reliability Fusion

Qi He1, Ting Huang2, Hongbo Zhang3*

1Science and Technology Department of Ningxia, Yinchuan, China

2MicroStrategy Software (Hangzhou) Co., Ltd., Hangzhou, China

3School of Physics & Electrical Information Engineering, Ningxia University, Yinchuan, China

Email: *[email protected]

Received May 2013

ABSTRACT

Emotion mismatch between training and testing will cause system performance decline sharply which is emotional

speaker recognition. It is an important idea to solve this problem according to the emotion normalization of test speech.

This method proceeds from analysis of the differences between every kind of emotional speech and neutral speech. Be-

sides, it takes the baseband mismatch of emotional changes as the main line. At the same time, it gives the correspon d-

ing algorithm according to four technical points which are emotional expansion, emotional shield, emotional normaliz a-

tion and score compensation. Compared with the traditional GMM-UBM method, the recognition rate in MASC corpus

and EPST corpus wa s inc reased by 3.80% and 8.81% respectively.

Keywords: Emotional Speaker Recognition ; Pitch Normalization Method; Model Mismatch Detection; Emotional

Normalization

1. Introduction

Because of the inconsistent training and testing condi-

tions, the model of the training set cannot effectively

describe the characteristic distribution of the test voice,

referred to herein as the model mismatch. The core of

speaker recognition technology is the pre-entry of the

speaker’s voice samples to which is extracted as the

unique speaker voice feature and stored in the database,

according to match the testing speech with the characte-

ristics in database, then determine the identity of the

speaker. There are many factors that affect the perfor-

mance of the speaker recognition system in a real envi-

ronment; their sources can be divided into external fac-

tors and internal factors. External factors mainly come

from the ambient noise, channel change and the differ-

ence of coding sche me. In tern al fac tor s chan ge, also known

as intra-Speaker variation, refers to the speaker’s own

physiological characteristics or personality and behavior

characteristics change, can be divided into the two cate-

gories of lon g-term and short term. The long-term change

[1] generally refers to the vocal organs slow changes due

to the increasing age of the speaker. The short-term dis-

ease generally refers to the temporary illness such as cold,

cough, inflammation of the tonsils, inflammation of the

gums which could cause the change of vocal organs.

Emotional change is another common factor to cause

performance degradation of speaker recognition system.

Different emotional statuses cause the different effect of

speaker’s utterance mechanism. This will lead to the

change of the personality traits of the speaker’s voice,

and then lead to the mismatch between training and test-

ing feature space distribution.

We propose a score reliability fusion based on the ba-

seband correlation to avoid identifying the user’s specific

emotional type. This method using the correlation of ba-

seband mean deviation and the recognition rate existence

between high difference emotional speech and neutral

voice, by reducing the weight of high-baseband mean

deviation part in high difference emotional speech, to

reduce the score of impersonate model and improve the

score of the real speaker model. Thus, the performance

for speaker recognition is improved.

2. The Application and Mismatch Effects of

the Baseband in Speaker Recognition

The voice is the result of the combined effect of the

sound source and channel, sound source excitation signal,

by modulation of channel and radiation effects of nose

and mouth, form the final speech. The speech contain

two parts (the sound source and channel) [2] of informa-

tion. In phonetics, we usually use cepstral coefficients

Corresponding author.

Q. HE ET AL.

597

(such as MFCC, LPCC [3]) to describe the speech signal

channel response. And use pitch frequency to describe

the excitation of the speech signal sound source. Using

global statistics of baseband can enhance the perfor-

mance of speaker recognition. But because of the lack of

description of the baseband partial information, the ex-

isting methods are generally by speech segmentation,

then extract statistical features to make up for the short-

fall in the baseband fragment.

As the speech baseband characteristics contains the

speaker’s personality traits, and characteristics of no ef-

fect by the channel and noise. So it has been used to im-

prove system robustness of channel mismatch and envi-

ronmental noise in speaker recognition. However, in the

actual environment, the baseband is often affected by the

change of text content of the speaker’s voice, manner of

speaking and emotional state. Thus, in these circums-

tances, using the difference of speaker baseband feature

to distinguish the speaker performance will be greatly

reduced. The mismatch of baseband distribution between

training and testing by the same speaker is baseband

mismatch [4]. It would lead a negative impact to speaker

recognition. Emotion al change is one of the main factors

leading to baseband mismatch. The shape of speech ba-

seband envelope curve is dependent on the speaker’s

speech emotional state [5].

It is different from external factors such as ambient

noise, channel mismatch. The most obvious performance

of emotional changes in speech is the change of the pro-

sodic features such as baseband. So it is not feasible to

take baseband relevant information as the characteristics

of emotional speaker recognition. On the basis of in-

depth study of prosodic features such as baseband in the

emotional changes and Interference phenomena between

baseband characteristics and channel characteristics

(MFCC), in this article, we proposed several emotions

compensation algorithm to reduce the effect of speaker’s

emotional state mismatch between tra ining and testing to

the speaker recognition system.

3. Pitch Normalization Method (PNM)

As it was found there was severe deviation in pitch mean

between HMS and corresponding neutral speech, the idea

of PNM was to normalize pitch of HMS more approx-

imately to the neutral speech. Following the thought,

firstly, varied proportion of pitch mean between HMS

and corresponding neutral speech was need to obtain.

The proportion

was defined as follow:

/F HL=

(1)

In Equation (1),

and

were pitch mean of the

HMS and of the responding neutral speech respectively.

Because speaker was unknown in testing,

was un-

known. It was assumed that the function mapping rela-

tion

mapped

, i.e.:

)(HfL g

(2)

The subscript g presented gender, because

was

related with speak er’s gender. Equation (1) turned to Equ-

ation (3):

// ()

FHL HfH= =

(3)

And then pitch of HMS was normalized by the fol-

lowing equation:

// (/())

t tgtg

LHFHHfH= =

(4)

was the pitch of a period of emotional speech,

while

was the normalized pitch that approximated

the speaker’s corresponding neutral speech.

Obviously, the form of

was unknown and hard to

solve analytically. Polynomial was a smooth and conti-

nuous function, and its differential form was also a po-

lynomial. So it was a good choice for polynomial to fit

. Polynomial form was as follow:

() g

g ig

f xax

∑

(5)

Polynomial order

was able to obtain by Akaike

information criterion (AIC) [1]. One of AIC forms was

adopted here as follow:

2(1)[ln(/)]

AICknRSS n= ++

(6)

In Equation (6),

was sample count, and RSS was

residual sum of squares (RSS). When AIC got its mini-

mum value, corresponding

got its most proper order

for the polynomial. Then the method of least squares (LS)

was able to solve polynomial coefficients

, i.e.,

was fit by polynomial.

4. Score Reliability Fusion Based on the

Baseband

In this paper, we propose a score reliability fusion based

on the baseband, getting the voice contribution to correct

identification voice by way of evaluating high-mismatch

parts of speech, and taking the contribution as the frame

score weighting weights of high-mismatch parts of speech

in test. Finally, we achieve an effective use of speech

high-mismatch parts.

4.1. Score Reliability Fusion Based on the

Baseband Correlation

In speaker recognition, every frame in test voice makes a

contribution to correctly identify. When the frame plays a

positive role for the correct identification, contribution is

positive, otherwise it is negative. When test voice is in-

correctly identified, contribution of a part of frame score

must be negative. Different frame score contribution in

the speech frame level using different weights. It is ob-

Q. HE ET AL.

598

vious to improve the score of the real speaker and reduce

the score of impersonation. Thus, the performance for

speaker recognition is improved.

According to the study of the relationship between the

baseband mean deviation and the degree of mismatch, for

HD emotional speech. The greater the baseband mean

deviation, the lower speaker recognition rate is. That is,

the more unreli able the s cor e calcu lated is, an d the smaller

the contribution for a system to correctly identify is. So,

we propose a score reliability fusion based on the base-

band deviation correlation of difference determine, spe-

cific processes shown in Figure 1. The method to obtain

the weight ing coefficie nts can be di vided int o four steps:

1) Build reliability fusion coefficients related to base-

band for male and female speaker respectively;

2) Use gender recognition to distinguish Gender in-

formation of test speech;

3) Detect the High Mismatch Segment (HMS) of test-

ing speec h according to the method in Chapter 5;

4) Calculate the score weighting coefficients of each

of the test speech frame, according to the high mismatch

identification and reliability weighting coeff icient.

4.2. High Mismatch Detection

There is a discontinuity in the speaker’s emotional ex-

pression. Even in the same speech, there are some fluctu-

ations. The purpose of the method is to identify the se-

rious mismatch segment relative to the neutral model in

speech. That is high mismatch segment. And reduce its

weight when calculating the final test statement score, in

order to improve the speaker recognition performance.

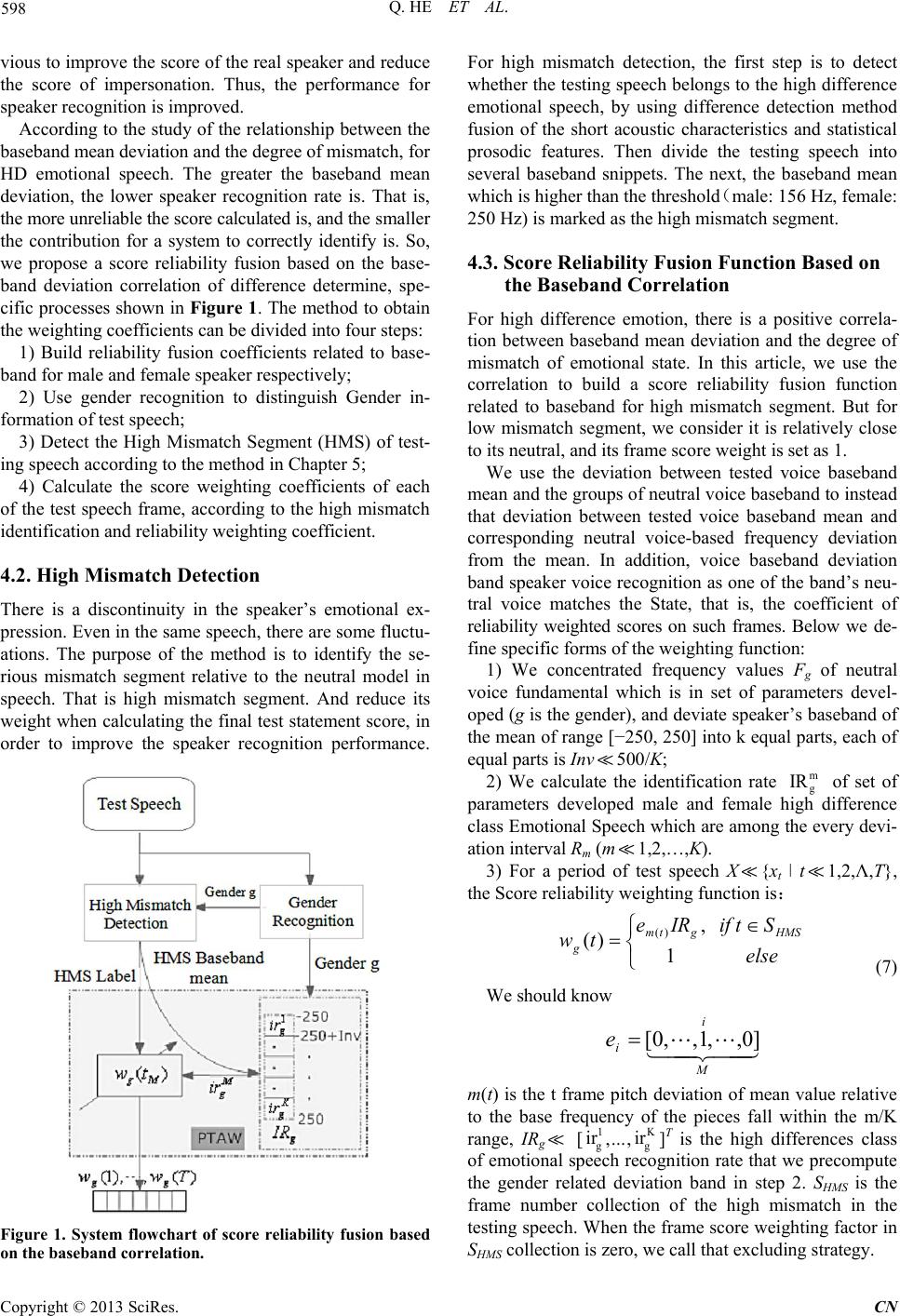

Figure 1. System flowchart of score reliability fusion based

on the baseband correlation.

For high mismatch detection, the first step is to detect

whether the testing speech belongs to the high difference

emotional speech, by using difference detection method

fusion of the short acoustic characteristics and statistical

prosodic features. Then divide the testing speech into

several baseband snippets. The next, the baseband mean

which is higher than the threshold（male: 156 Hz, female:

250 Hz) is marked as the high mismatch segment.

4.3. Score Reliability Fusion Function Based on

the Baseband Correlation

For high difference emotion, there is a positive correla-

tion between baseband mean deviation and the degree of

mismatch of emotional state. In this article, we use the

correlation to build a score reliability fusion function

related to baseband for high mismatch segment. But for

low mismatch segment, we consider it is relatively close

to its neutral, and its frame score weight is set as 1.

We use the deviation between tested voice baseband

mean and the groups of neutral voice baseband to instead

that deviation between tested voice baseband mean and

corresponding neutral voice-based frequency deviation

from the mean. In addition, voice baseband deviation

band speaker voice recognition as one of the band’s neu-

tral voice matches the State, that is, the coefficient of

reliability weighted scores on such frames. Below we de-

fine specific forms of the weighting function:

1) We concentrated frequency values Fg of neutral

voice fundamental which is in set of parameters devel-

oped (g is the gender), and deviate speaker’s baseband of

the mean of range [−250, 250] into k equal parts, each of

equal parts is Inv



500/K;

2) We calculate the identification rate

of set of

parameters developed male and female high difference

class Emotional Speech which are among the every devi-

ation interval Rm (m



1,2,…,K).

3) For a period of test speech X



{xt ǀ t



1,2,Λ,T},

the Score reliability weighting function is：





∈

=else

StifIRe

tw HMSgtm

)( )(

(7)

We shoul d know

 

e]0,,1,

,0[=

m(t) is the t frame pitch deviation of mean value relative

to the base frequency of the pieces fall within the m/K

range, IRg



[

,…,

]T is the high differences class

of emotional speech recognition rate that we precompute

the gender related deviation band in step 2. SHMS is the

frame number collection of the high mismatch in the

testing speech. When the frame score weighting factor in

SHMS collection is zero, we call that excluding strategy.

Q. HE ET AL.

599

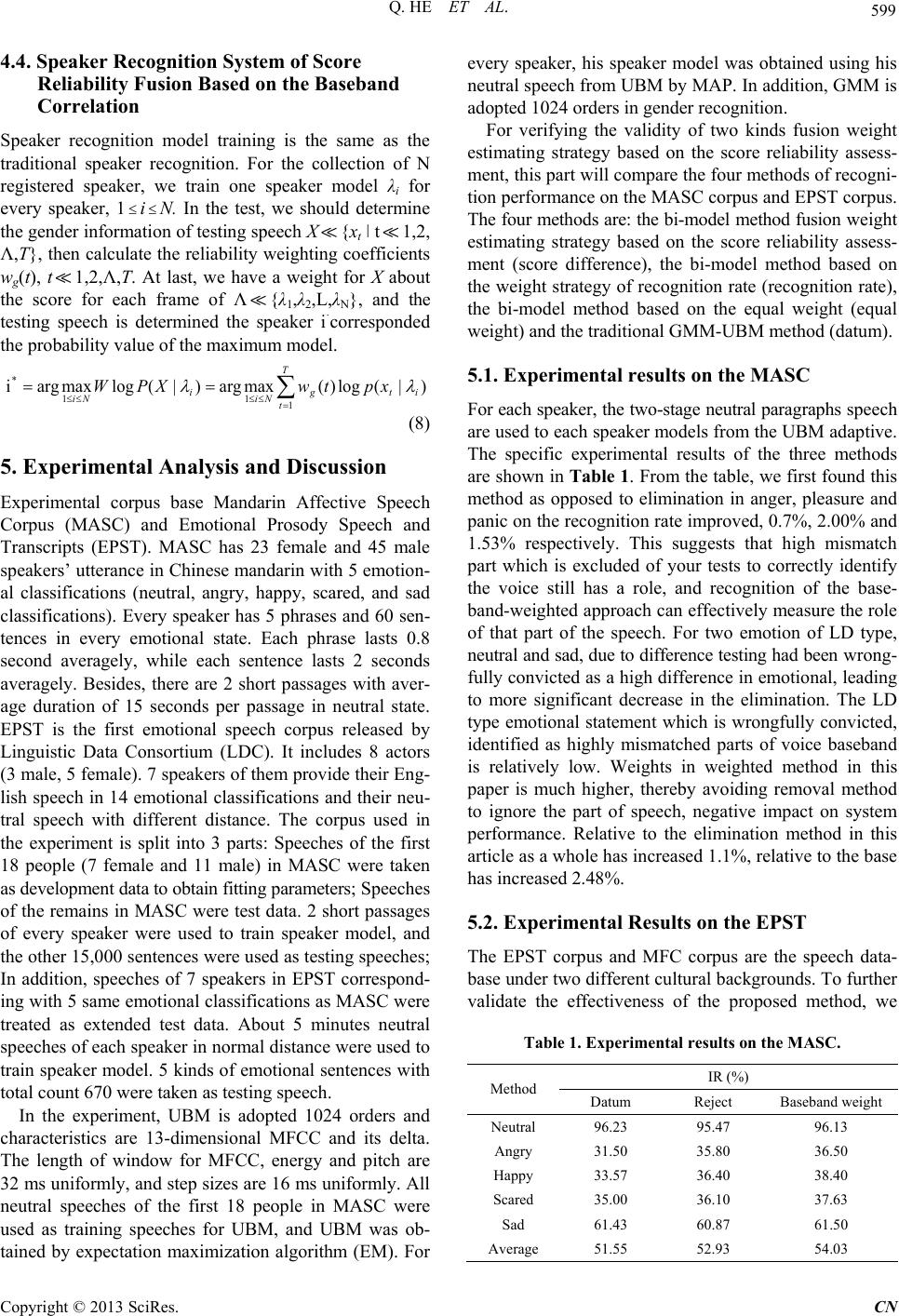

4.4. Speaker Recognition System of Score

Reliability Fusion Based on the Baseband

Correlation

Speaker recognition model training is the same as the

traditional speaker recognition. For the collection of N

registered speaker, we train one speaker model λi for

every speaker, 1

≤

N. In the test, we should determine

the gender information of testing speech X



{xt ǀ t



1,2,

Λ,T}, then calculate the reliability weighting coeff icients

wg(t), t



1,2,Λ,T. At last, we have a weight for X about

the score for each frame of Λ



{λ1,λ2,L,λN}, and the

testing speech is determined the speaker i·corresponded

the probability value of the maximum model.

∑

≤≤≤≤

titg

xptwXPW

)|(log)(maxarg)|(logmaxargi

λλ

(8)

5. Experimental Analysis and Discussion

Experimental corpus base Mandarin Affective Speech

Corpus (MASC) and Emotional Prosody Speech and

Transcripts (EPST). MASC has 23 female and 45 male

speakers’ utterance in Chinese mandarin with 5 emotion-

al classifications (neutral, angry, happy, scared, and sad

classifications). Every speaker has 5 phrases and 60 sen-

tences in every emotional state. Each phrase lasts 0.8

second averagely, while each sentence lasts 2 seconds

averagely. Besides, there are 2 short passages with aver-

age duration of 15 seconds per passage in neutral state.

EPST is the first emotional speech corpus released by

Linguistic Data Consortium (LDC). It includes 8 actors

(3 male, 5 female). 7 speakers of them provide their Eng-

lish speech in 14 emotional classifications and their neu-

tral speech with different distance. The corpus used in

the experiment is split into 3 parts: Speeches of the first

18 people (7 female and 11 male) in MASC were taken

as development data to obtain fitting parameters; Speeches

of the remains in MASC were test data. 2 short passages

of every speaker were used to train speaker model, and

the other 15,000 sentences were used as testing speeches;

In addition, speeches of 7 speakers in EPST correspond-

ing with 5 same emotional classifications as MASC w ere

treated as extended test data. About 5 minutes neutral

speeches of each speaker in normal distance were used to

train speaker model. 5 kinds of emotional sentences with

total count 670 were taken as testing speech.

In the experiment, UBM is adopted 1024 orders and

characteristics are 13-dimensional MFCC and its delta.

The length of window for MFCC, energy and pitch are

32 ms uniformly, and step sizes are 16 ms uniformly. All

neutral speeches of the first 18 people in MASC were

used as training speeches for UBM, and UBM was ob-

tained by expectation maximization algorithm (EM). For

every speaker, his speaker model was obtained using his

neutral speech from UBM by MAP. In addition, GMM is

adopted 1024 ord e rs in gender recognition.

For verifying the validity of two kinds fusion weight

estimating strategy based on the score reliability assess-

ment, this part will compare the four methods of recogni-

tion performance on the MASC corpus and EPST corpus.

The four methods are: the bi-model method fusion weight

estimating strategy based on the score reliability assess-

ment (score difference), the bi-model method based on

the weight strategy of recognition rate (recognition rate),

the bi-model method based on the equal weight (equal

weight) and the traditional GMM-UBM me thod (datum).

5.1. Experimental results on the MASC

For each speaker , the two-stage neutral parag raphs speech

are used to each speaker models from the UBM adaptive.

The specific experimental results of the three methods

are shown in Tab le 1. From the table, we first found this

method as opposed to elimination in anger, pleasure and

panic on the recognition rate improved, 0.7%, 2.00% and

1.53% respectively. This suggests that high mismatch

part which is excluded of your tests to correctly identify

the voice still has a role, and recognition of the base-

band-weighted approach can effectively measure the role

of that part of the speech. For two emotion of LD type,

neutral and sad, due to difference testing had been wrong-

fully convicted as a high difference in emotional, leading

to more significant decrease in the elimination. The LD

type emotional statement which is wrongfully convicted,

identified as highly mismatched parts of voice baseband

is relatively low. Weights in weighted method in this

paper is much higher, thereby avoiding removal method

to ignore the part of speech, negative impact on system

performance. Relative to the elimination method in this

article as a whole has increased 1.1%, relative to the base

has increased 2.48%.

5.2. Experimental Results on the EPST

The EPST corpus and MFC corpus are the speech data-

base under two differ ent cultur al backgr ounds. To furth er

validate the effectiveness of the proposed method, we

Table 1. Experimental res ul t s on the MASC.

Method IR (%)

Datum Reject Baseband weight

Neutral 96.23 95.47 96.13

Angry 31.50 35.80 36.50

Happy 33.57 36.40 38.40

Scared 35.00 36.10 37.63

Sad 61.43 60.87 61.50

Average 51.55 52.93 54.03

Q. HE ET AL.

600

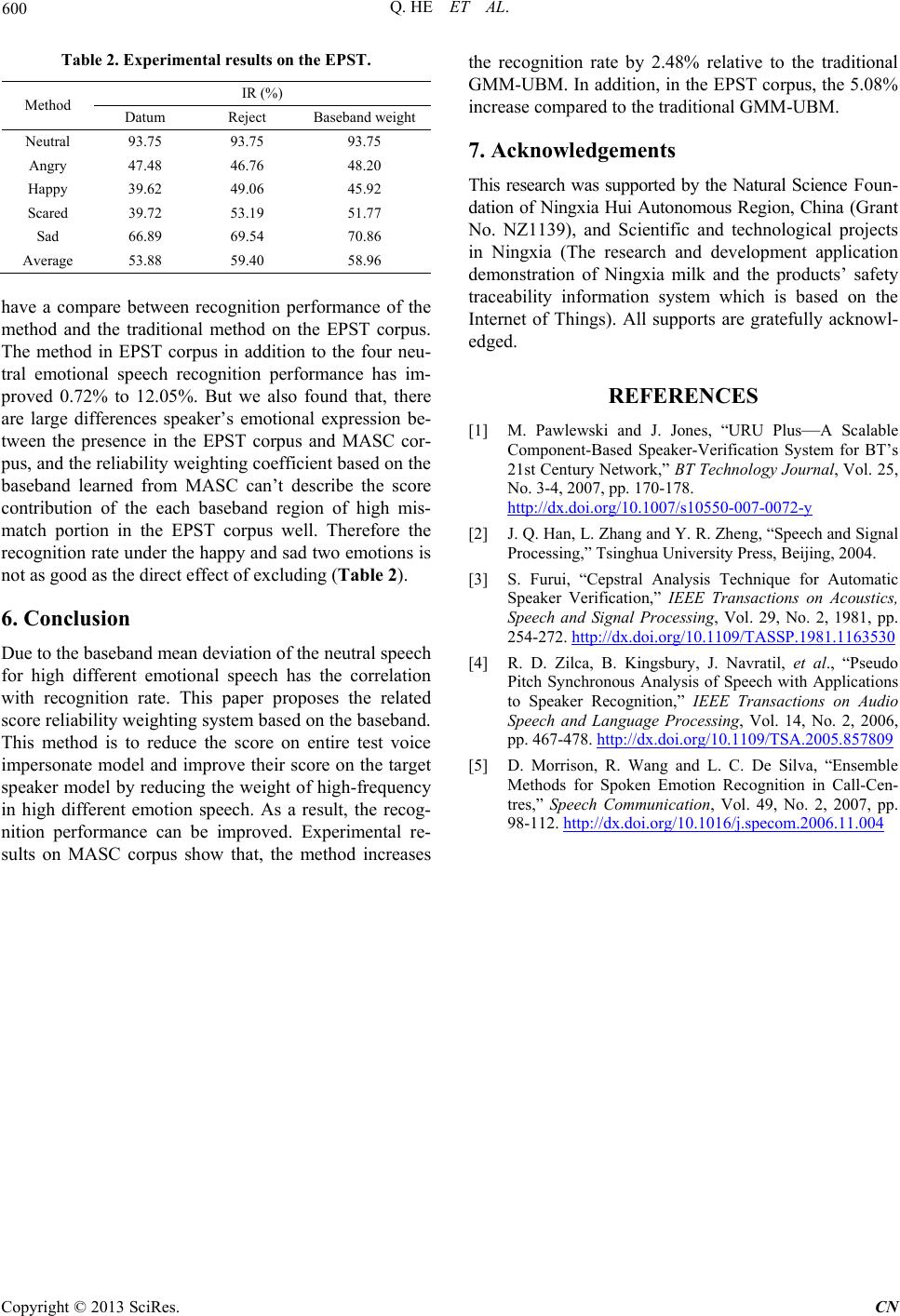

Table 2. Experimental results on the EPST.

Method IR (%)

Datum Reject Baseband weight

Neutral 93.75 93.75 93.75

Angry 47.48 46.76 48.20

Happy 39.62 49.06 45.92

Scared 39.72 53.19 51.77

Sad 66.89 69.54 70.86

Average 53.88 59.40 58.96

have a compare between recognition performance of the

method and the traditional method on the EPST corpus.

The method in EPST corpus in addition to the four neu-

tral emotional speech recognition performance has im-

proved 0.72% to 12.05%. But we also found that, there

are large differences speaker’s emotional expression be-

tween the presence in the EPST corpus and MASC cor-

pus, and the reliability weighting coefficient based on the

baseband learned from MASC can’t describe the score

contribution of the each baseband region of high mis-

match portion in the EPST corpus well. Therefore the

recognition rate under the happy and sad two emotions is

not as good as the direct effect of excluding (Table 2).

6. Conclusion

Due to the baseband mean deviation of the neutral speech

for high different emotional speech has the correlation

with recognition rate. This paper proposes the related

score reliability weighting system based on the baseband.

This method is to reduce the score on entire test voice

impersonate model and improve their score on the target

speaker model by reducing the weight of high-frequency

in high different emotion speech. As a result, the recog-

nition performance can be improved. Experimental re-

sults on MASC corpus show that, the method increases

the recognition rate by 2.48% relative to the traditional

GMM-UBM. In addition, in the EPST corpus, the 5.08%

increase compared to the traditional GMM-UBM.

7. Acknowledgements

This research was supported by the Natural Science Foun-

dation of Ningxia Hui Autonomous Region, China (Grant

No. NZ1139), and Scientific and technological projects

in Ningxia (The research and development application

demonstration of Ningxia milk and the products’ safety

traceability information system which is based on the

Internet of Things). All supports are gratefully acknowl-

edged.

REFERENCES

[1] M. Pawlewski and J. Jones, “URU Plus—A Scalable

Component-Based Speaker-Verification System for BT’s

21st Century Network,” BT Technology Journal, Vol. 25,

No. 3-4, 2007, pp. 170-178.

http://dx.doi.org/10.1007/s10550-007-0072-y

[2] J. Q. Han, L. Zhang and Y. R. Zheng, “Speech and Signal

Processing,” Tsinghua University Press, Beijing, 2004.

[3] S. Furui, “Cepstral Analysis Technique for Automatic

Speaker Verification,” IEEE Transactions on Acoustics,

Speech and Signal Processing, Vol. 29, No. 2, 1981, pp.

254-272. http://dx.doi.org/10.1109/TASSP.1981.1163530

[4] R. D. Zilca, B. Kingsbury, J. Navratil, et al., “Pseudo

Pitch Synchronous Analysis of Speech with Applications

to Speaker Recognition,” IEEE Transactions on Audio

Speech and Language Processing, Vol. 14, No. 2, 2006,

pp. 467-478. http://dx.doi.org/10.1109/TSA.2005.857809

[5] D. Morrison, R. Wang and L. C. De Silva, “Ensemble

Methods for Spoken Emotion Recognition in Call-Cen-

tres,” Speech Communication, Vol. 49, No. 2, 2007, pp.

98-112. http://dx.doi.org/10.1016/j.specom.2006.11.004
