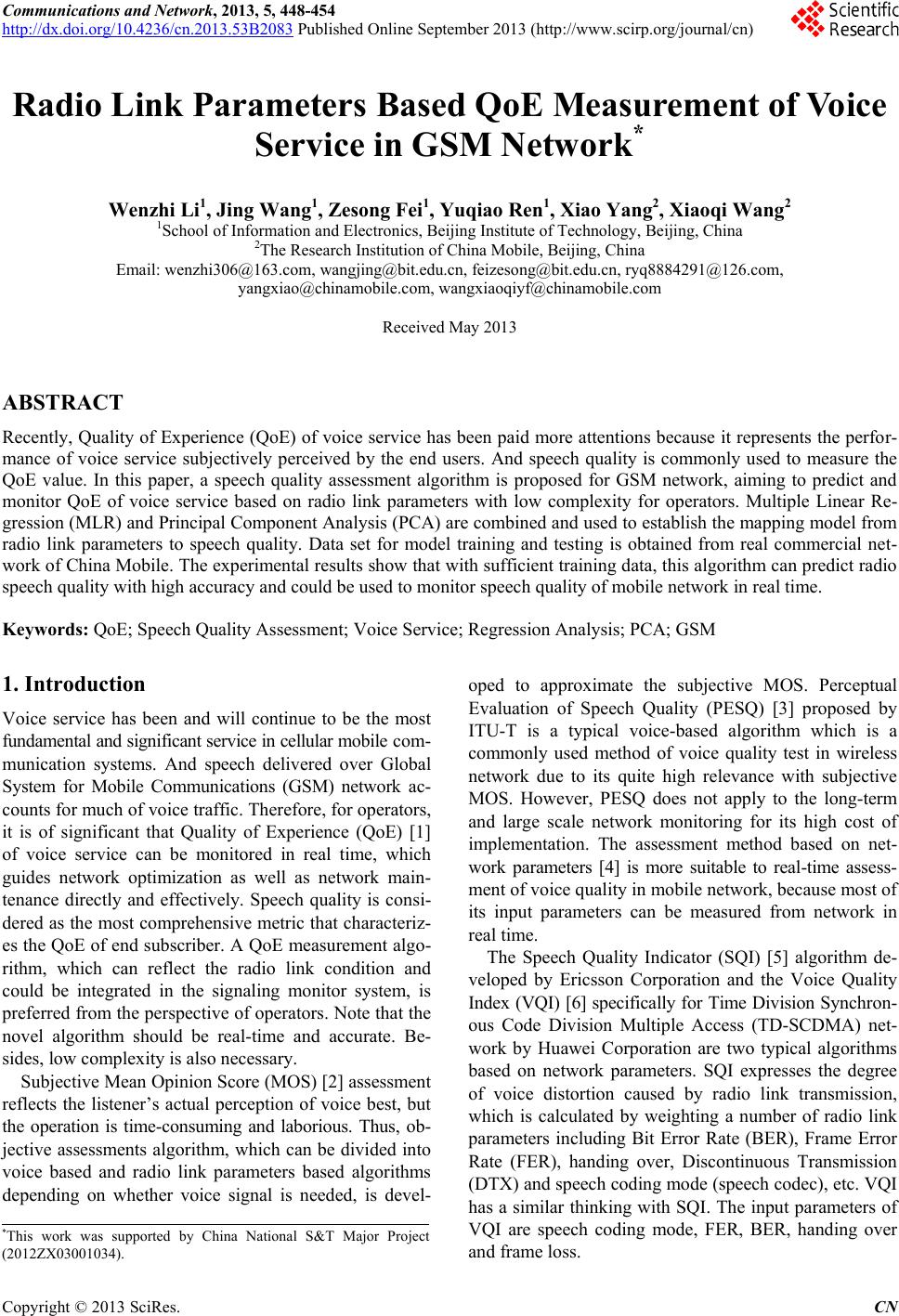

Radio Link Parameters Based QoE Measurement of Voice Service in GSM Network

doi:10.4236/cn.2013.53B2083

Paper Menu >>

Journal Menu >>

Communications and Network, 2013, 5, 448-454

http://dx.doi.org/10.4236/cn.2013.53B2083 Published Online September 2013 (http://www.scirp.org/journal/cn)

Radio Link Parameters Based QoE Measur ement of Voice

Service in GSM Network*

Wenzhi Li1, Jing Wang1, Zesong Fei1, Yuqiao Ren1, Xiao Yang2, Xiaoqi Wang2

1School of Information and Electronics, Beijing Institute of Technology, Beijing, China

2The Research Institution of China Mobile, Beijing, China

Email: we nz [email protected], [email protected], [email protected], [email protected],

[email protected], wangxiaoqiyf@chinamobile.com

Received May 2013

ABSTRACT

Recently, Quality of Experience (QoE) of voice service has been paid more attentions because it represents the perfor-

mance of voice service subjectively perceived by the end users. And speech quality is commonly used to measure the

QoE value. In this paper, a speech quality assessment algorithm is proposed for GSM network, aiming to predict and

monitor QoE of voice service based on radio link parameters with low complexity for operators. Multiple Linear Re-

gression (MLR) and Principal Component Analysis (PCA) are combined and used to establish the mapping model from

radio link parameters to speech quality. Data set for model training and testing is obtained from real commercial net-

work of China Mobile. The experimental results show that w ith sufficient training data, this algor ithm can predict radio

speech quality with high accuracy and could be used to monitor speech quality of mobile network in real time.

Keywords: QoE; Speech Quality Assessment; Voice Service; Regression Ana lysis; P CA; GSM

1. Introduction

Voice service has been and will continue to be the most

fundamental and significant service in cellu lar mob ile com-

munication systems. And speech delivered over Global

System for Mobile Communications (GSM) network ac-

counts for much of voice traffic. Therefore, fo r o p erat ors,

it is of significant that Quality of Experience (QoE) [1]

of voice service can be monitored in real time, which

guides network optimization as well as network main-

tenance directly and effectively. Speech quality is consi-

dered as the most comprehensive metric that characteriz-

es the QoE of end subscriber. A QoE measurement algo-

rithm, which can reflect the radio link condition and

could be integrated in the signaling monitor system, is

preferred from the perspective of operators. Note that the

novel algorithm should be real-time and accurate. Be-

sides, low complexity is also necessary.

Subjective Mean Opinion Score (MOS) [2] assessment

reflects the listener’s actual perception of voice best, but

the operation is time-consuming and laborious. Thus, ob-

jective assessments algorithm, which can be divided into

voice based and radio link parameters based algorithms

depending on whether voice signal is needed, is devel-

oped to approximate the subjective MOS. Perceptual

Evaluation of Speech Quality (PESQ) [3] proposed by

ITU-T is a typical voice-based algorithm which is a

commonly used method of voice quality test in wireless

network due to its quite high relevance with subjective

MOS. However, PESQ does not apply to the long-term

and large scale network monitoring for its high cost of

implementation. The assessment method based on net-

work parameters [4] is more suitable to real-time assess-

ment of voice quality in mobile network, because most of

its input parameters can be measured from network in

real time.

The Speech Quality Indicator (SQI) [5] algorithm de-

veloped by Ericsson Corporation and the Voice Quality

Index (VQI) [6] specifically for Time Division Synchron-

ous Code Division Multiple Access (TD-SCDMA) net-

work by Huawei Corporation are two typical algorithms

based on network parameters. SQI expresses the degree

of voice distortion caused by radio link transmission,

which is calculated by weighting a number of radio link

parameters including Bit Error Rate (BER), Frame Error

Rate (FER), handing over, Discontinuous Transmission

(DTX) and speech coding mode (speech codec), etc. VQI

has a similar thinking with SQI. The input parameters of

VQI are speech coding mode, FER, BER, handing over

and frame loss.

This work was supported by China National S&T Major Project

(2012ZX03001034).

W. Z. LI ET AL.

449

Although those two algorithms have been implemented

by equipment manufacturers, with high accuracy if ade-

quate enough network parameters are collected, their in-

dex values are not very applicable to monitor the QoE of

voice service and network quality. That’s because the

major parameters such as FER, BER, frame loss and so

on which have a great impact on QoE can’t be real-time

acquired by operators in the GSM signaling monitoring

platform. Besides, the speech index values of SQI and

VQI cannot be compared in the network monitoring and

optimization because of their private interfaces by dif-

ferent manufacturers. The purpose of this paper is to solve

the existing problems by proposing a novel QoE mea-

suring algorithm especially for GSM network. The algo-

rithm inputs are specific network parameters collected in

signaling monitoring platform from commercial GSM net-

work of China Mobile. Multiple Linear Regression (MLR)

based on least squares is adopted to further investigate

the relationship between network parameters and QoE of

voice service. All of these features make it possible that

the real-time algorithm with low complexity is suitable

for monitoring QoE of v oi c e s e r vi c e by opera tors.

2. Measurement of QoE of Voice Service

Based on GSM Network Parameters

2.1. Thinking of Measurement Algorithm

The purpose of this algorithm is to measure QoE of voice

service in real time by GSM network parameters. There-

fore, two conditions should be satisfied: network para-

meters must be obtained in real time; a mapping model

from network parameters to speech quality should be es-

tablished.

In GSM network, Measurement Repor t (MR) is one of

the main foundations to assess the quality of radio envi-

ronment. The MR signaling is transmitted every 480ms

in traffic channel (470ms in signaling channel), including

Received S ignal Qua lity (Rx Qual), Re ceived Signal Level

(RxLev), handing over, hopping, speech coding mode and

etc. Therefore, selecting MR as the access of network pa-

rameters can not only express the quality of current radio

link, but also requires little cost to transform current net-

work. Considering the following conditions: time for hu-

man ear to percept voice, PESQ algorithm proposing the

assessed object includes at least 3.2 s speech [7] and the

quantity of MR demanded by measuring algorithm and

the efficiency of data collection in commercial network,

the time granularity of measuring algorithm used in this

paper is set as 4.8 s finally.

The next step is to obtain the speech quality used for

data modeling corresponding to network parameters. The

specific approach is to record the voice sample corres-

ponding to a set of network parameters in time, and then

assess the speech quality with PESQ a lgor ithm . T he model

mapping from network parameters to voice quality adopts

the Multiple Linear Regression method which takes the

advantage of low complexity and high accuracy.

2.2. Obtaining Network Parameters

To reflect the status of current n e two rk more r e alistically,

both the model training and testing use data are collected

from the commercial network. In order to accurately meas-

ure the influence to speech quality caused by radio link

parameters, we ca ptured t he net work param eters and speech

data using the way of cell phone calls landline.

A communication circuit includes wired links and wire-

less links, of which the wireless links are the key aspects

that affect speech quality while the wired parts having

less effects on speech quality are negligible. Meanwhile,

the algorithm is to assess the voice quality of one single

side of the radio links because most of the parameters

reflecting the network q uality could not be transmitted to

the other side of core network (MSC). Accordingly, the

method of obtaining network parameters and speech sam-

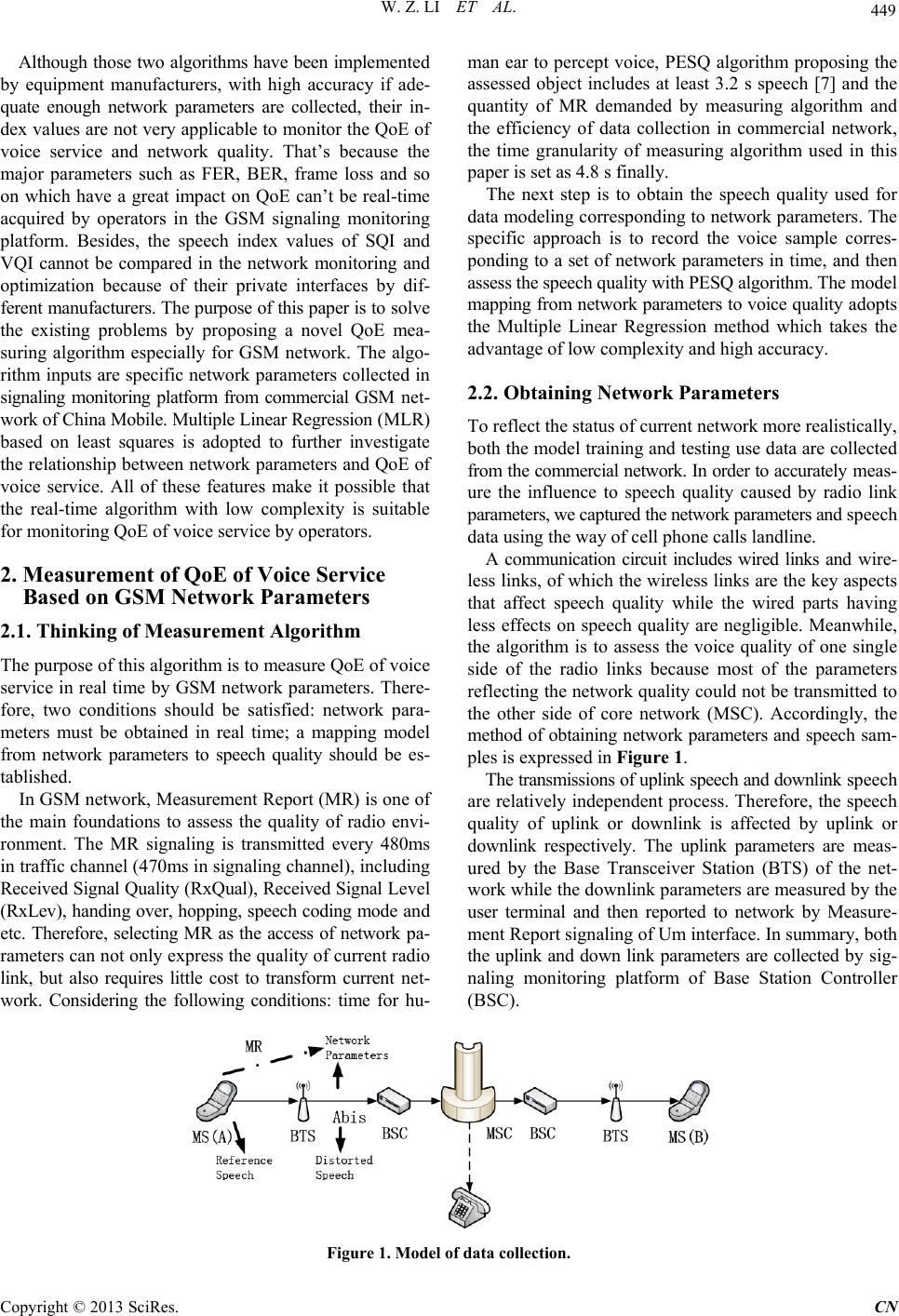

ples is expressed in Figure 1.

The transmissions of uplink speech and downlink speech

are relatively independent process. Therefore, the speech

quality of uplink or downlink is affected by uplink or

downlink respectively. The uplink parameters are meas-

ured by the Base Transceiver Station (BTS) of the net-

work while the downlink parameters are measured by the

user terminal and then reported to network by Measure-

ment Report signaling of Um interface. In summary, both

the uplink and down link parameters are collected by sig-

naling monitoring platform of Base Station Controller

(BSC).

Figure 1. Model of data collection.

W. Z. LI ET AL.

450

The uplink distorted speech should be obtained from

BTS or BSC in theory, but it is not supported in real

network and of more cost in transformation. Furthermore,

considering the little loss of speech quality caused by

wired transmission, we use the way that MS calls lan-

dline, and c ollec t the dist orti on speec h from landli ne side.

PESQ algorithm reco mmended by I TU P.862.1 is used

to calculate the MOS value of every single speech be-

cause PESQ is the most widely used algorithm to assess

speech quality in mobile network testing currently, which

is of very high relevance with subjective MOS.

For every MR the absolute time was record accurately

and for every voice sample the recording start time was

recorded, in order to match the voice sample with MR

conveniently. Specifically, every distorted voice was cor-

responded to 10 pieces of MR (480 ms) data, which was

used for the training and verifying of algorithm.

2.3. The Specific Structure of the Algorithm

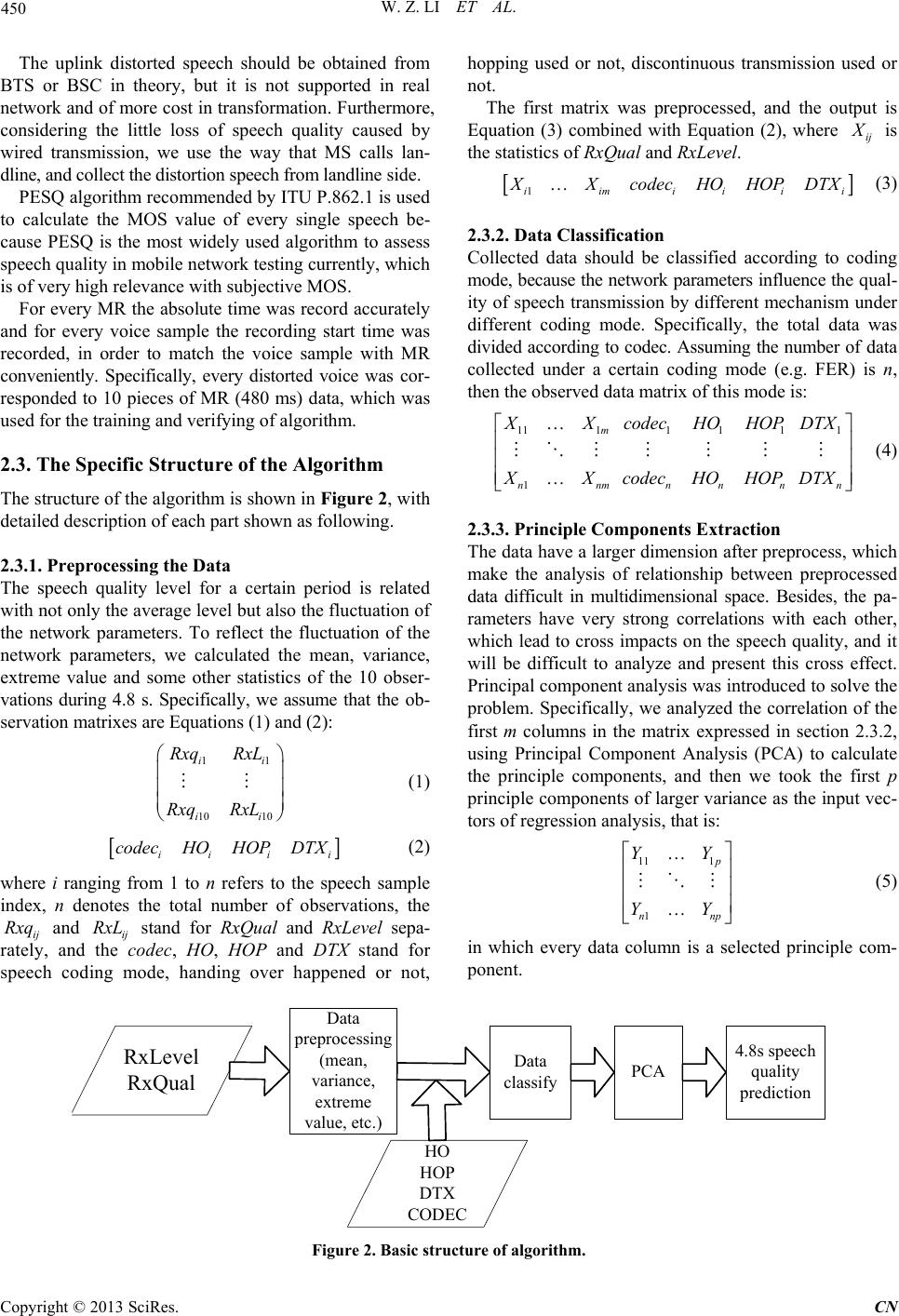

The structure of the algorithm is shown in F igure 2, with

detailed descr iption of each part shown as following.

2.3.1. Preprocessing the Data

The speech quality level for a certain period is related

with not only the average level but also the fluctuation of

the network parameters. To reflect the fluctuation of the

network parameters, we calculated the mean, variance,

extreme value and some other statistics of the 10 obser-

vations during 4.8 s. Specifically, we assume that the ob-

servation matrixes are Equations (1) and (2):

10 10

Rxq RxL









(1)

[ ]

ii ii

codecHOHOPDTX

(2)

where i ranging from 1 to n refers to the speech sample

index, n denotes the total number of observations, the

Rxq

and

RxL

stand for RxQual and RxLevel sepa-

rately, and the codec, HO, HOP and DTX stand for

speech coding mode, handing over happened or not,

hopping used or not, discontinuous transmission used or

not.

The first matrix was preprocessed, and the output is

Equation (3) combined with Equation (2), where

the statistics of RxQual and RxLevel.

[ ]

1iimi iii

XXcodecHOHOP DTX…

(3)

2.3.2. D ata Class i ficatio n

Collected data should be classified according to coding

mode, because the network parameters influence the qual-

ity of speech transmission by different mechanism under

different coding mode. Specifically, the total data was

divided according to codec. Assuming the number of data

collected under a certain coding mode (e.g. FER) is n,

then the observed data matrix of this mode is:

111111 1

nnmnn nn

XXcodecHOP DTX

HOXcodecHOP DTX







…

…



 

(4)

2.3.3. Principle Components Extraction

The data have a larg er dimension after preprocess, which

make the analysis of relationship between preprocessed

data difficult in multidimensional space. Besides, the pa-

rameters have very strong correlations with each other,

which lead to cross impacts on the speech quality, and it

will be difficult to analyze and present this cross effect.

Principal component analysis was introduced to solve the

problem. Specifically, we analyzed the correlation of the

first m columns in the matrix expressed in section 2.3.2,

using Principal Component Analysis (PCA) to calculate

the principle components, and then we took the first p

principle components of larger variance as the input vec-

tors of regression analysis, that is:

11 1

n np

…









(5)

in which every data column is a selected principle com-

ponent.

Figure 2. Basic structure of algorithm.

RxLevel

RxQual

Data

preprocessing

(mean,

variance,

extreme

value, etc.)

Data

classify PCA 4.8s speech

quality

prediction

HOP

DTX

CODEC

W. Z. LI ET AL.

451

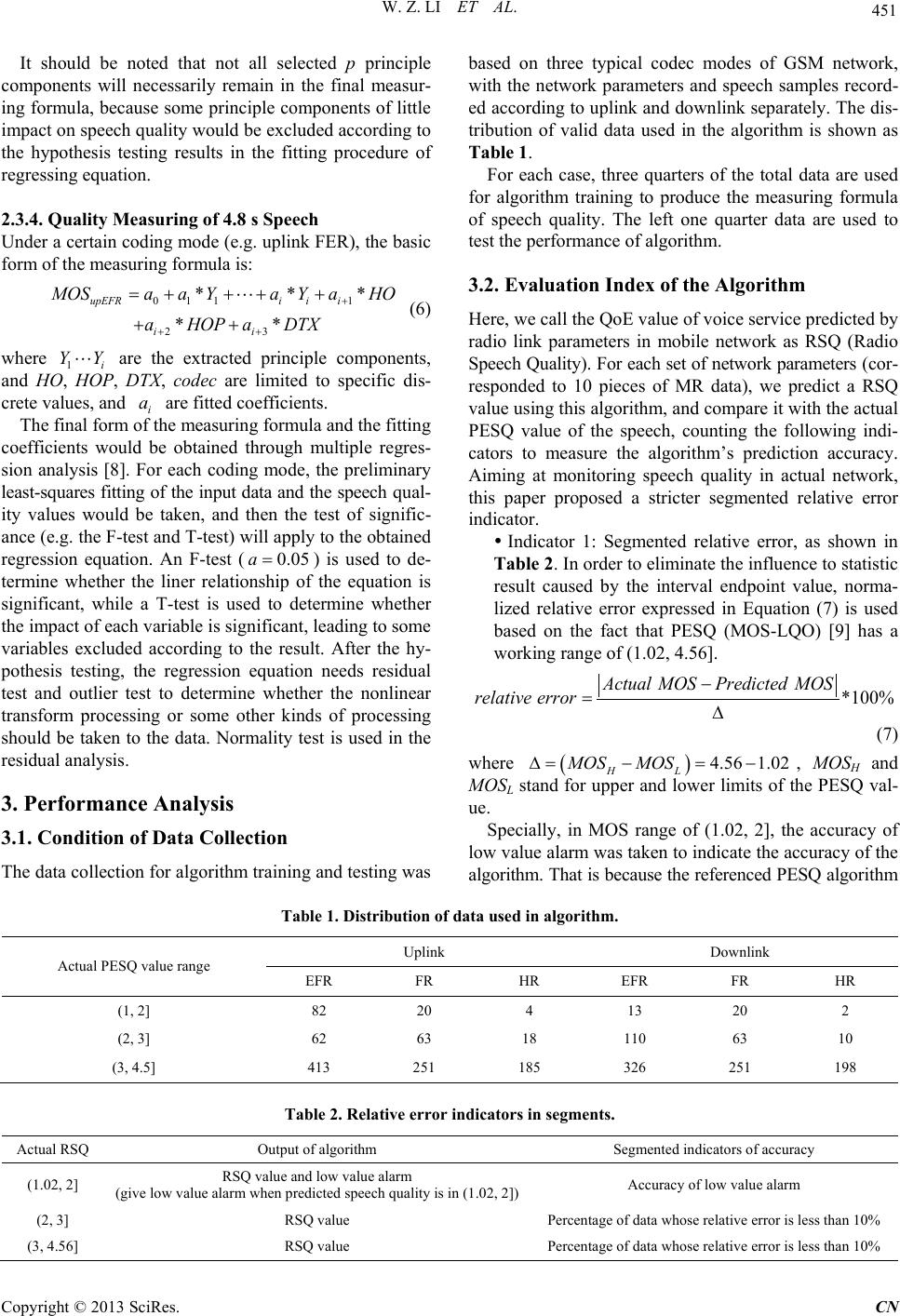

It should be noted that not all selected p principle

components will necessarily remain in the final measur-

ing formula, because some principle components of little

impact on speech quality would be excluded according to

the hypothesis testing results in the fitting procedure of

regressing equation.

2.3.4. Quality Me asurin g of 4.8 s Speech

Under a certain coding mode (e.g. uplink FER), the basic

form of the measuring formula is:

0 111

* **

upEFRi ii

MOSaa Ya YaHO

aHOP aDTX

=++++



(6)

where

YY

are the extracted principle components,

and HO, HOP, DTX, codec are limited to specific dis-

crete values, and

are fitted coefficients.

The final form of the measuring formula and the fitting

coefficients would be obtained through multiple regres-

sion analysis [8]. For each coding mode, the preliminary

least-squares fitting of the input data and the speech qual-

ity values would be taken, and then the test of signific-

ance (e.g. the F-test and T-test) will apply to the obtained

regression equation. An F-test (

0.05a=

) is used to de-

termine whether the liner relationship of the equation is

significant, while a T-test is used to determine whether

the impact of each variable is significant, leading to some

variables excluded according to the result. After the hy-

pothesis testing, the regression equation needs residual

test and outlier test to determine whether the nonlinear

transform processing or some other kinds of processing

should be taken to the data. Normality test is used in the

residual analysis.

3. Performance Analysis

3.1. Condition of Data Collection

The data collection for algorithm training and testin g was

based on three typical codec modes of GSM network,

with the network parameters and speech samples record-

ed according to uplink and downlink separately. The dis-

tribution of valid data used in the algorithm is shown as

Table 1.

For each case, three quarters of the total data are used

for algorithm training to produce the measuring formula

of speech quality. The left one quarter data are used to

test the performance of algorithm.

3.2. Evaluation Index of the Algorithm

Here, we call the QoE value of voice service predicted by

radio link parameters in mobile network as RSQ (Radio

Speech Quality) . For each set of network para meters (cor-

responded to 10 pieces of MR data), we predict a RSQ

value using this algorithm, and compare it with the actual

PESQ value of the speech, counting the following indi-

cators to measure the algorithm’s prediction accuracy.

Aiming at monitoring speech quality in actual network,

this paper proposed a stricter segmented relative error

indicator.

 Indicator 1: Segmented relative error, as shown in

Table 2. In order to eliminate the in fluen ce to statistic

result caused by the interval endpoint value, norma-

lized relative error expressed in Equation (7) is used

based on the fact that PESQ (MOS-LQO) [9] has a

workin g ra nge of (1. 02 , 4.56].

*100%

Actual MOSPredictedMOS

relative error−

=∆

(7)

where

( )

4.56 1.02

MOS MOS∆=−= −

, MOSH and

MOSL stand for upper and lower limits of the PESQ val-

ue.

Specially, in MOS range of (1.02, 2], the accuracy of

low value alarm was taken to indicate the accuracy of the

algorithm. That is b ecause the referenced P ESQ algorithm

Table 1. Distribution of data used in algorithm.

Actual PESQ value range Uplink Downlink

EFR FR HR EFR FR HR

(1, 2] 82 20 4 13 20 2

(2, 3] 62 63 18 110 63 10

(3, 4.5] 413 251 185 326 251 198

Table 2. Relative error indicators in segments.

Actual RSQ Output of algorithm Segmented indicators of accuracy

(1.02, 2] RSQ value and low value alarm

(give low value alarm when predicted speech quality is in (1.02, 2]) Accuracy of low value alarm

(2, 3] RSQ value Percentage of data whose relative error is less than 10%

(3, 4.56] RSQ value Percentage of data whose relative error is less than 10%

W. Z. LI ET AL.

452

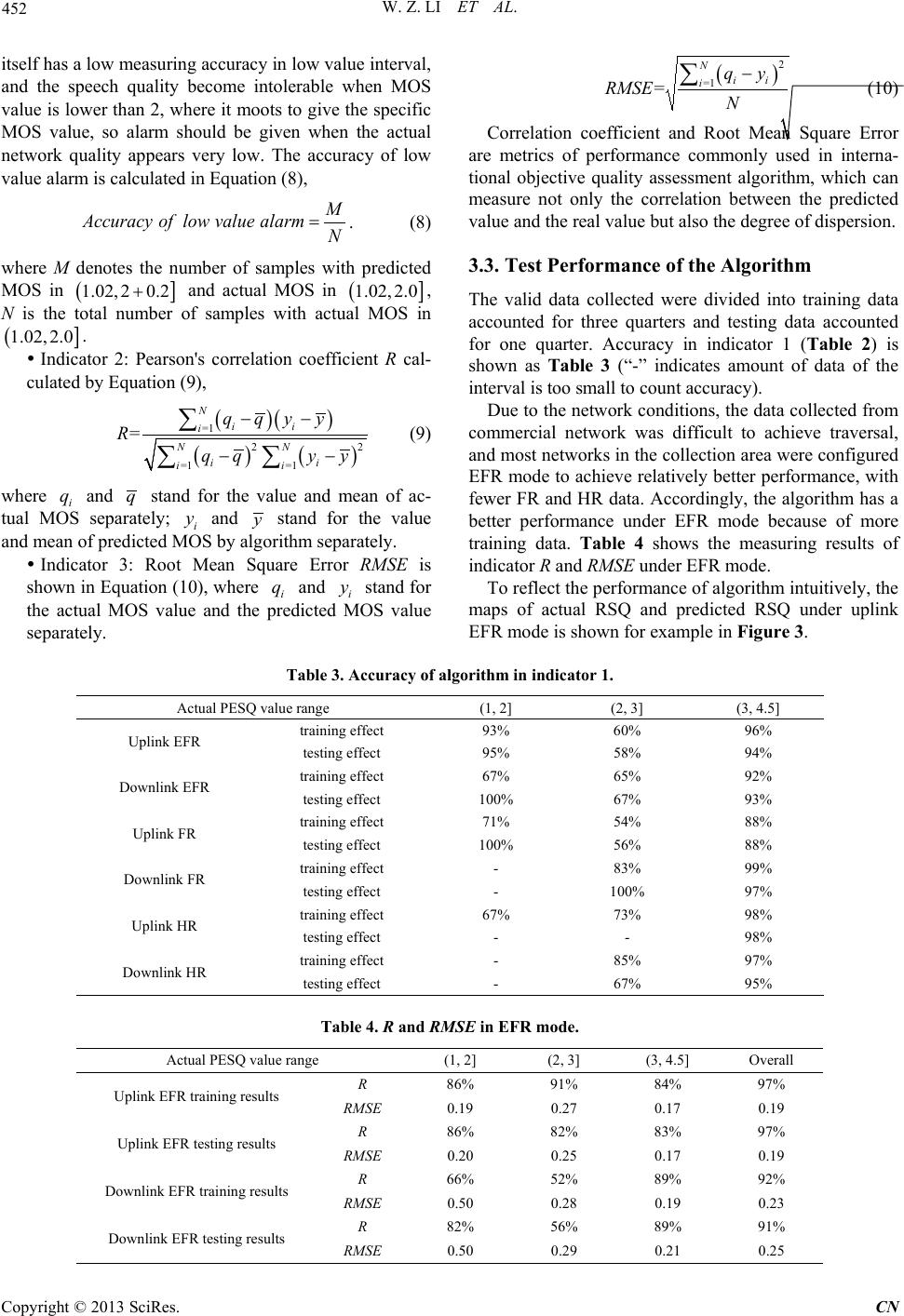

itself has a low measuring accuracy in low value interval,

and the speech quality become intolerable when MOS

value is lower than 2, where it moots to give the specific

MOS value, so alarm should be given when the actual

network quality appears very low. The accuracy of low

value alarm is calculated in Equation (8),

Accuracy oflow value alarmN

. (8)

where M denotes the number of samples with predicted

MOS in

(

]

1.02,20.2+

and actual MOS in

(

]

1.02,2.0

N is the total number of samples with actual MOS in

(

]

1.02,2.0

 Indicator 2: Pearson's correlation coefficient R cal-

culated by E quation (9 ),

( )( )

=1 =1

qqy

Rq yqy

y−−

−−

∑

∑∑

(9)

where

and

stand for the value and mean of ac-

tual MOS separately;

and

stand for the value

and mean of predicted MOS by algorithm separately.

 Indicator 3: Root Mean Square Error RMSE is

shown in Equation (10), where

and

stand for

the actual MOS value and the predicted MOS value

separately.

( )

RMSE N

−

∑

(10)

Correlation coefficient and Root Mean Square Error

are metrics of performance commonly used in interna-

tional objective quality assessment algorithm, which can

measure not only the correlation between the predicted

value and the real value but also the degree of dispersion.

3.3. Test Performance of the Algorithm

The valid data collected were divided into training data

accounted for three quarters and testing data accounted

for one quarter. Accuracy in indicator 1 (Table 2) is

shown as Table 3 (“-” indicates amount of data of the

interval is too small to count accuracy).

Due to the network conditions, the data collected from

commercial network was difficult to achieve traversal,

and most networks in the collection area were configured

EFR mode to achieve relatively better performance, with

fewer FR and HR data. Accordingly, the algorithm has a

better performance under EFR mode because of more

training data. Table 4 shows the measuring results of

indicator R and RMSE under EFR mode .

To reflect the performance of alg orithm intuitive ly, the

maps of actual RSQ and predicted RSQ under uplink

EFR mode is shown for example in Figure 3.

Table 3. Accuracy of algorithm in indicator 1.

Actual PESQ value range (1, 2] (2, 3] (3, 4.5]

Uplink EFR training effect 93% 60% 96%

testing effect 95% 58% 94%

Downlink EFR training effect 67% 65% 92%

testing effect 100% 67% 93%

Uplink FR training effect 71% 54% 88%

testing effect 100% 56% 88%

Downlink FR training effect - 83% 99%

testing effect - 100% 97%

Uplink HR training effect 67% 73% 98%

testing effect - - 98%

Downlink HR training effect - 85% 97%

testing effect - 67% 95%

Table 4. R and RMSE in EFR mode.

Actual PESQ value range (1, 2] (2, 3] (3, 4.5] Overall

Uplink EFR training results R 86% 91% 84% 97%

RMSE 0.19 0.27 0.17 0.19

Uplink EFR testing results R 86% 82% 83% 97%

RMSE 0.20 0.25 0.17 0.19

Downlink EFR training results R 66% 52% 89% 92%

RMSE 0.50 0.28 0.19 0.23

Downlink EFR testing results R 82% 56% 89% 91%

RMSE 0.50 0.29 0.21 0.25

W. Z. LI ET AL.

453

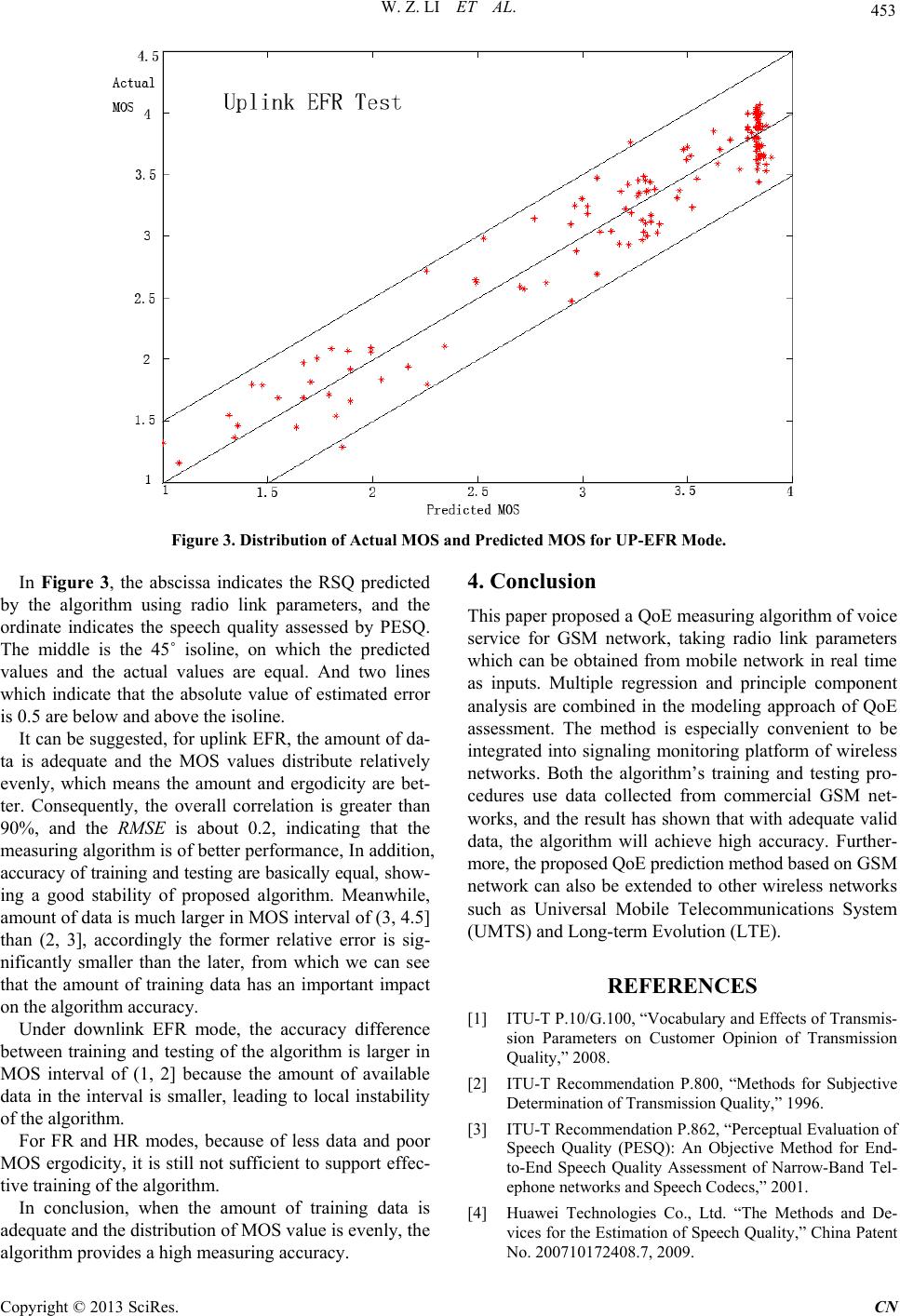

Figure 3. Distribution of Actual MOS and Predicted MOS for UP-EFR Mode.

In Figure 3, the abscissa indicates the RSQ predicted

by the algorithm using radio link parameters, and the

ordinate indicates the speech quality assessed by PESQ.

The middle is the 45˚ isoline, on which the predicted

values and the actual values are equal. And two lines

which indicate that the absolute value of estimated error

is 0.5 are below and above the isoline.

It can be suggested, for uplink EFR, the amount of da-

ta is adequate and the MOS values distribute relatively

evenly, which means the amount and ergodicity are bet-

ter. Consequently, the overall correlation is greater than

90%, and the RMSE is about 0.2, indicating that the

measuring algorithm is of better performance, In addition,

accuracy of tra ining and testing are b asically equal, show-

ing a good stability of proposed algorithm. Meanwhile,

amount of data is much larger in MOS interval o f (3, 4. 5]

than (2, 3], accordingly the former relative error is sig-

nificantly smaller than the later, from which we can see

that the amount of training data has an important impact

on the algorithm accuracy.

Under downlink EFR mode, the accuracy difference

between training and testing of the algorithm is larger in

MOS interval of (1, 2] because the amount of available

data in the interval is smaller, leading to local instability

of the algorithm.

For FR and HR modes, because of less data and poor

MOS ergodicity, it is still not sufficient to support effec-

tive training of the algorithm.

In conclusion, when the amount of training data is

adequate and the distribution of MOS value is evenly, the

algorithm provides a high measuring accuracy.

4. Conclusion

This paper proposed a QoE measuring algorithm of voice

service for GSM network, taking radio link parameters

which can be obtained from mobile network in real time

as inputs. Multiple regression and principle component

analysis are combined in the modeling approach of QoE

assessment. The method is especially convenient to be

integrated into signaling monitoring platform of wireless

networks. Both the algorithm’s training and testing pro-

cedures use data collected from commercial GSM net-

works, and the result has shown that with adequate valid

data, the algorithm will achieve high accuracy. Further-

more, the propos e d QoE pre diction met hod ba se d on GSM

network can also be extended to other wireless networks

such as Universal Mobile Telecommunications System

(UMTS) and Long-term Evolution (LTE).

REFERENCES

[1] ITU-T P.10/G.100, “Vocabulary and Effects of Transmis-

sion Parameters on Customer Opinion of Transmission

Quality,” 2008.

[2] ITU-T Recommendation P.800, “Methods for Subjective

Determination of Transmission Quality,” 1996.

[3] ITU-T Recommendation P.862, “Perceptual Evaluation of

Speech Quality (PESQ): An Objective Method for End-

to-End Speech Quality Assessment of Narrow-Band Tel-

ephone networks and Speech Codecs,” 2001.

[4] Huawei Technologies Co., Ltd. “The Methods and De-

vices for the Estimation of Spe ech Quality ,” China Patent

No. 200710172408.7, 2009.

W. Z. LI ET AL.

454

[5] Ericsson Telefon AB-LM, “Speech Qua lity Measurement

in Mobile Telecommunication Networks Based on Radio

Link Parameters,” US Patent No. 19970861563, 2000.

[6] Y. J. ZUO, “Perception of Voice, Win by Method—So-

lutions for Voice Quality Assessment in TD-SCDMA by

HUAWEI: VQI,” Mobile Communications, Vol. 34, No.

3, 2010, pp. 30-31.

[7] ITU-T Recommendation P.862.3, “Application Guide for

Objective Quality Measurement Based on Recommenda-

tions P.862, P.862.1 and P.862.2,” 2007.

[8] M. Kantardzic (translated by S.Q. Shan, Y. Chen and Y.

Cheng), “Data Mining,” Tsinghua University Press, Bei-

jing, 2003.

[9] ITU-T Recommendation P.862.1, “Mapping Function for

Transforming P.862 Raw Result Scores to MOS-LQO,”

2003.
