SDN-Based Switch Implementation on Network Processors

doi:10.4236/cn.2013.53B2080

Paper Menu >>

Journal Menu >>

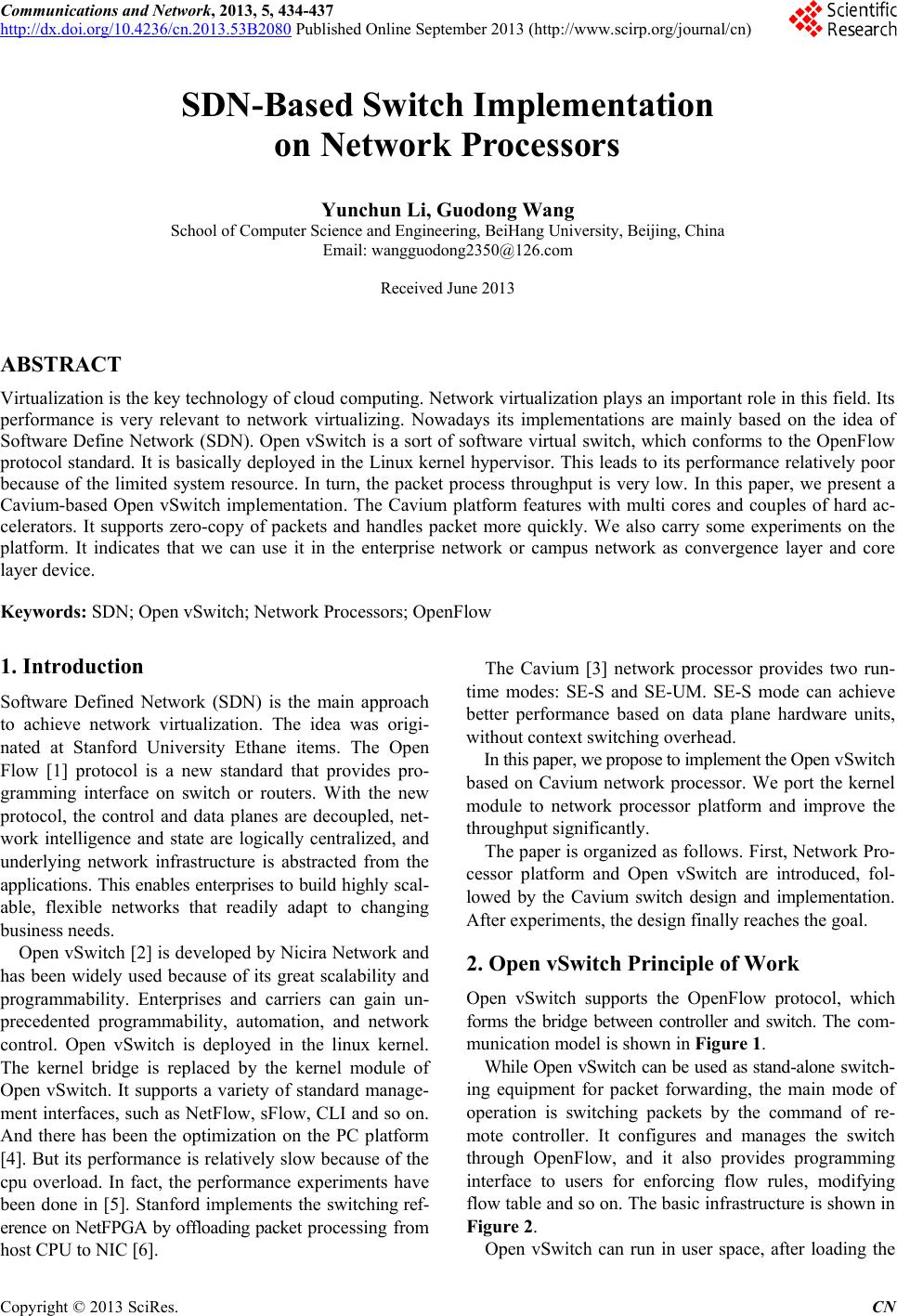

Communications and Network, 2013, 5, 434-437

http://dx.doi.org/10.4236/cn.2013.53B2080 Published Online September 2013 (http://www.scirp.org/journal/cn)

SDN-Based Switch Implementation

on Network Processors

Yunchun Li, Guodong Wang

School of Computer Science and Engineering, BeiHang University, Beijing, China

Email: [email protected]

Received June 2013

ABSTRACT

Virtualization is the key technology of cloud co mputing. Network virtualization plays an important role in this field. Its

performance is very relevant to network virtualizing. Nowadays its implementations are mainly based on the idea of

Software Define Network (SDN). Open vSwitch is a sort of software virtual switch, which conforms to the OpenFlow

protocol standard. It is basically deployed in the Linux kernel hypervisor. This leads to its performance relatively poo r

because of the limited system resource. In turn, the packet process throughput is very low. In this paper, we present a

Cavium-based Open vSwitch implementation. The Cavium platform features with multi cores and couples of hard ac-

celerators. It supports zero-copy of packets and handles packet more quickly. We also carry some experiments on the

platform. It indicates that we can use it in the enterprise network or campus network as convergence layer and core

layer device.

Keywords: SDN; Open vSwitch; Network Processors; OpenFlow

1. Introduction

Software Defined Network (SDN) is the main approach

to achieve network virtualization. The idea was origi-

nated at Stanford University Ethane items. The Open

Flow [1] protocol is a new standard that provides pro-

gramming interface on switch or routers. With the new

protocol, the control and data planes are decoupled, net-

work intelligence and state are logically centralized, and

underlying network infrastructure is abstracted from the

applications. This enables enterprises to build highly scal-

able, flexible networks that readily adapt to changing

business ne eds.

Open vSwitch [2] is developed by Nicira Network and

has been widely used because of its great scalability and

programmability. Enterprises and carriers can gain un-

precedented programmability, automation, and network

control. Open vSwitch is deployed in the linux kernel.

The kernel bridge is replaced by the kernel module of

Open vSwitch. It supports a variety of standard manage-

ment interfaces, such as NetFlow, sFlow, CLI and so on.

And there has been the optimization on the PC platform

[4]. But its performance is relatively slo w because of the

cpu overload. In fact, the performance experiments have

been done in [5]. Stanford implements the switching ref-

erenc e on NetFPGA by offloading packet processing from

host CPU to NIC [6].

The Cavium [3] network processor provides two run-

time modes: SE-S and SE-UM. SE-S mode can achieve

better performance based on data plane hardware units,

without context switching overhead.

In thi s pape r, we pr opo se to i mplem ent the O pen vSwitch

based on Cavium network processor. We port the kernel

module to network processor platform and improve the

throughput significan tly.

The paper is organized as follows. F irs t, Network Pro-

cessor platform and Open vSwitch are introduced, fol-

lowed by the Cavium switch design and implementation.

After experiments, t he design finally reaches the goal.

2. Open vSwitch Principle of Work

Open vSwitch supports the OpenFlow protocol, which

forms the bridge between controller and switch. The com-

munication model is shown in Figure 1.

While Open vSwitch can be used as stand-alone switch-

ing equipment for packet forwarding, the main mode of

operation is switching packets by the command of re-

mote controller. It configures and manages the switch

through OpenFlow, and it also provides programming

interface to users for enforcing flow rules, modifying

flow table and so on. The basic infrastructure is shown in

Figure 2.

Open vSwitch can run in user space, after loading the

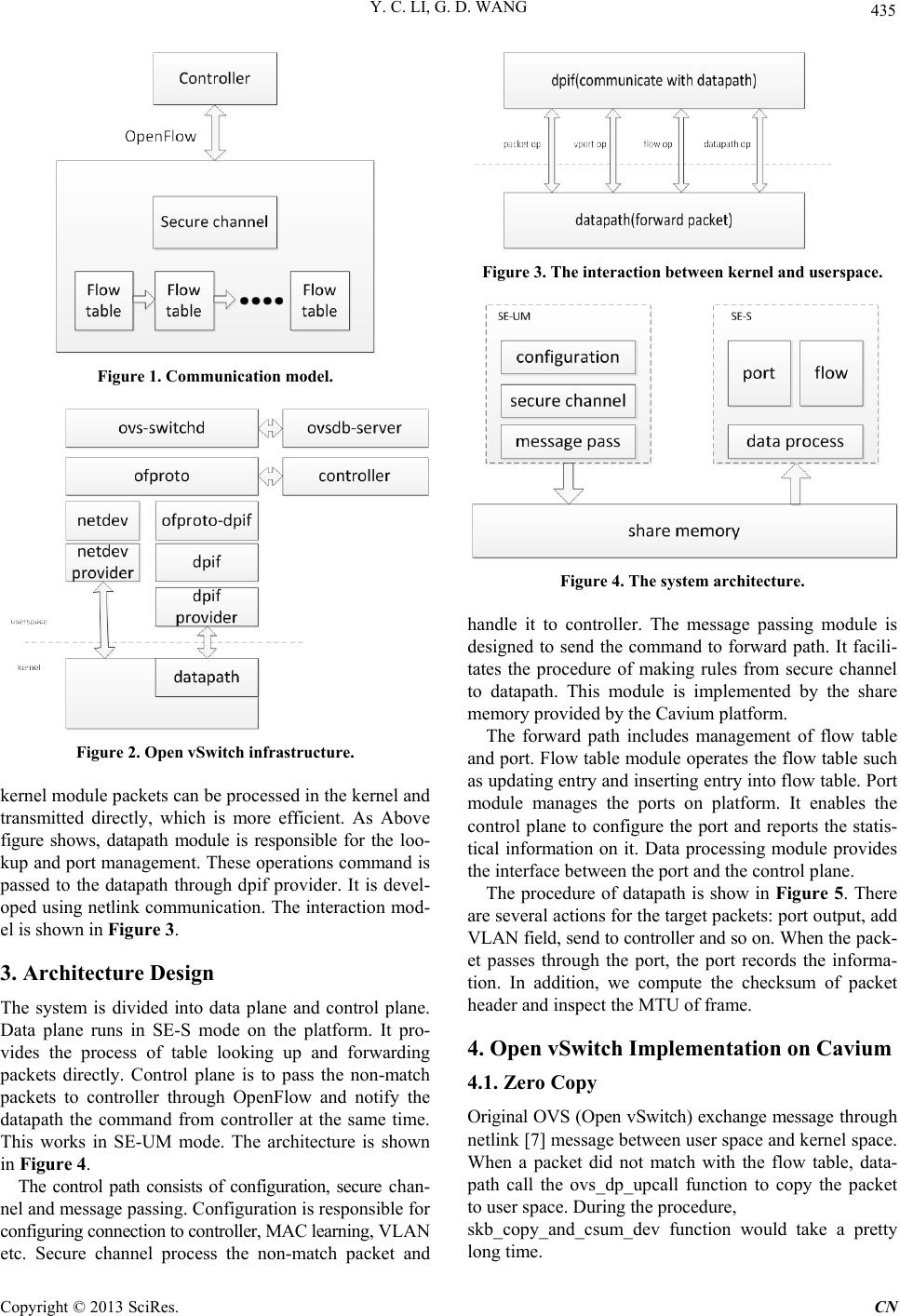

Y. C. LI, G. D. WANG

435

Figure 1. Communication model.

Figure 2. Open vSwitch infrastruc t ure.

kernel module packets can be processed in the kernel and

transmitted directly, which is more efficient. As Above

figure shows, datapath module is responsible for the loo-

kup and port management. These operations command is

passed to the datapath through dpif provider. It is devel-

oped using netlink communication. The interaction mod-

el is shown in Figure 3.

3. Architecture Design

The system is divided into data plane and control plane.

Data plane runs in SE-S mode on the platform. It pro-

vides the process of table looking up and forwarding

packets directly. Control plane is to pass the non-match

packets to controller through OpenFlow and notify the

datapath the command from controller at the same time.

This works in SE-UM mode. The architecture is shown

in Figure 4.

The control path consists of configuration, secure chan-

nel and message passing. Configuration is responsible for

configuring connection to controller, MAC le a rning, VLAN

etc. Secure channel process the non-match packet and

Figure 3. The interaction between kernel and userspace.

Figure 4. The system architecture.

handle it to controller. The message passing module is

designed to send the command to forward path. It facili-

tates the procedure of making rules from secure channel

to datapath. This module is implemented by the share

memory provided by the Cavium platform.

The forward path includes management of flow table

and port. Flow table module operates the flow table such

as updating entry and inserting entry into flow table. Port

module manages the ports on platform. It enables the

control plane to configure the port and reports the statis-

tical information on it. Data processing module provides

the interface between the port and the control plane.

The procedure of datapath is show in Figure 5. There

are several actions for the target packets: port output, add

VLAN field, send to controller and so on. When the pack-

et passes through the port, the port records the informa-

tion. In addition, we compute the checksum of packet

header and inspect the MTU of frame.

4. Open vSwitch Implementation on Cavium

4.1. Zero Copy

Original OVS (Open vSwitch) exchange message through

netlink [7] message between user space and kernel space.

When a packet did not match with the flow table, data-

path call the ovs_dp_upcall function to copy the packet

to user space. During the procedure,

skb_copy_and_csum_dev function would take a pretty

long time.

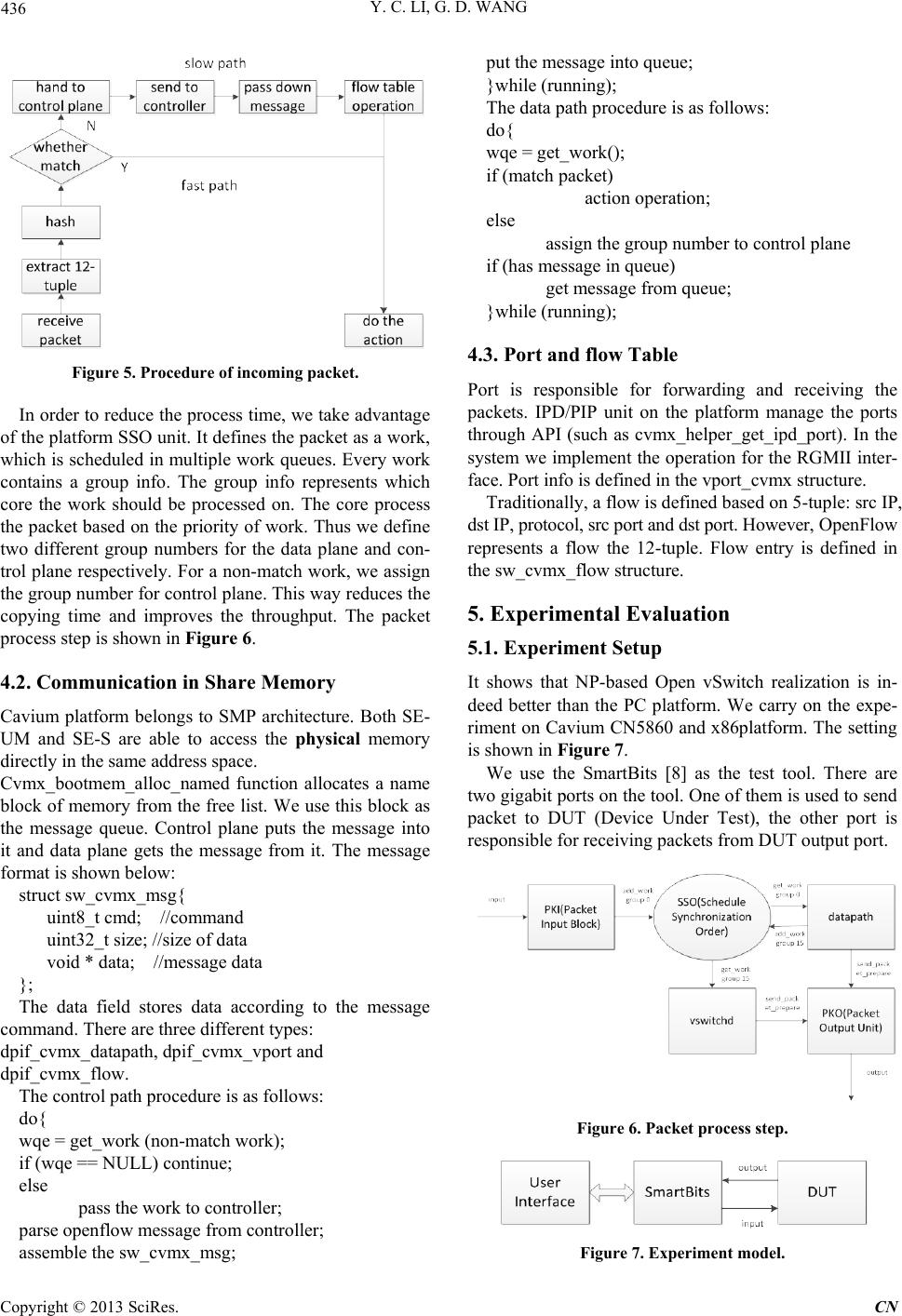

Y. C. LI, G. D. WANG

436

Figure 5. Procedure of incoming packet.

In order to reduce the process time, we take advantage

of the platform SSO unit. It defines the packet as a work,

which is scheduled in multiple work queues. Every work

contains a group info. The group info represents which

core the work should be processed on. The core process

the packet based on the priority of work. Thus we define

two different group numbers for the data plane and con-

trol plane respectively. For a non-match work, we assign

the group number for control plane. This way reduces the

copying time and improves the throughput. The packet

process step is shown in Figure 6.

4.2. Communication in Share Memory

Cavium platform belongs to SMP architecture. Both SE-

UM and SE-S are able to access the physical memory

directly in the same address space.

Cvmx_bootmem_alloc_named function allocates a name

block of memory from the free list. We use this block as

the message queue. Control plane puts the message into

it and data plane gets the message from it. The message

format is shown below:

struct sw_cvmx_msg{

uint8_t cmd; //command

uint32_t size; //size of data

void * data; //message data

};

The data field stores data according to the message

command. There are three different types:

dpif_cvmx_datapath, dpif_cvmx_vport and

dpif_cvmx_flow.

The contr ol pa th procedure is a s follows:

do{

wqe = get_work (non-match work);

if (wqe == NULL) continue;

else

pass the work to controller;

parse openflow message from controller;

assemble the sw_cvmx_msg;

put the message into queue;

}while (running);

The data pa th proce du re i s as follows :

do{

wqe = get_wor k();

if (match packet)

action operatio n;

else

assign the group number to control plane

if (has message in queue)

get message from queue;

}while (running);

4.3. Port and flow Table

Port is responsible for forwarding and receiving the

packets. IPD/PIP unit on the platform manage the ports

through API (such as cvmx_helper_get_ipd_port). In the

system we implement the operation for the RGMII inte r-

face. Port info is defined in the vport_cvmx structure.

Traditionally, a flow is defined based on 5-tuple: src IP,

dst IP, protoc ol, sr c port a nd ds t por t . Howe ve r, OpenFlow

represents a flow the 12-tuple. Flow entry is defined in

the sw_cvmx_flow structure.

5. Experimental Evaluation

5.1. Experiment Setup

It shows that NP-based Open vSwitch realization is in-

deed better than the PC platform. We carry on the expe-

riment on Cavium CN5860 and x86platform. The setting

is shown in Figure 7.

We use the SmartBits [8] as the test tool. There are

two gig abit ports on the tool. One of them is used to send

packet to DUT (Device Under Test), the other port is

responsible for receiving packets from DUT output port.

Figure 6. Packet process step.

Figure 7. Experiment model.

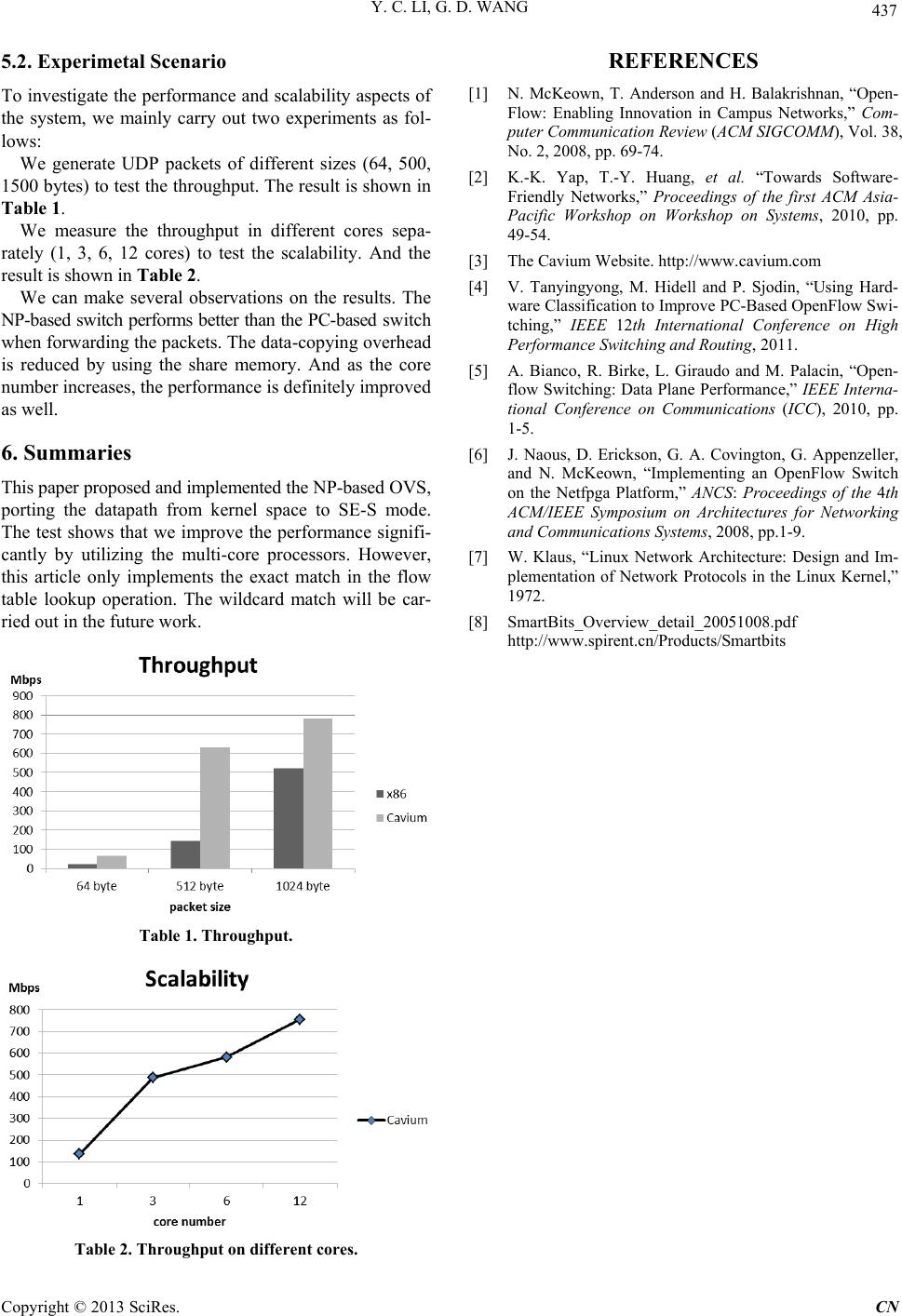

Y. C. LI, G. D. WANG

437

5.2. Experimetal Scenario

To investigate the performance and scalability aspects of

the system, we mainly carry out two experiments as fol-

lows:

We generate UDP packets of different sizes (64, 500,

1500 bytes) to test th e throughput. The resu lt is shown in

Table 1.

We measure the throughput in different cores sepa-

rately (1, 3, 6, 12 cores) to test the scalability. And the

result is shown in Table 2.

We can make several observations on the results. The

NP-based switch p erforms better than the PC-based switch

when forwarding the packets. The data-copying overhead

is reduced by using the share memory. And as the core

number increases, the performance is definitely improved

as well.

6. Summaries

This paper proposed and implemented the NP-based OVS,

porting the datapath from kernel space to SE-S mode.

The test shows that we improve the performance signifi-

cantly by utilizing the multi-core processors. However,

this article only implements the exact match in the flow

table lookup operation. The wildcard match will be car-

ried out i n t he future wor k.

Table 1. Thr ou gh put .

Table 2. Throughput on different cores.

REFERENCES

[1] N. McKeown, T. Anderson and H. Balakrishnan, “Open-

Flow: Enabling Innovation in Campus Networks,” Com-

puter Communication Review (ACM SIGCOMM), Vol. 38,

No. 2, 2008, pp. 69-74.

[2] K.-K. Yap, T.-Y. Huang, et al. “Towards Software-

Friendly Networks,” Proceedings of the first ACM Asia-

Pacific Workshop on Workshop on Systems, 2010, pp.

49-54.

[3] The Cavium Website. http://www.cavium.com

[4] V. Tanyingyong, M. Hidell and P. Sjodin, “Using Hard-

ware Classification to Improve PC-Based OpenFlow Swi-

tching,” IEEE 12th International Conference on High

Performance Switching and Routing, 2011.

[5] A. Bianco, R. Birke, L. Giraudo and M. Palacin, “Open-

flow Switching: Data Plane Performance,” IEEE Inte rna-

tional Conference on Communications (ICC), 2010, pp.

1-5.

[6] J. Naous, D. Erickson, G. A. Covington, G. Appenzeller,

and N. McKeown, “Implementing an OpenFlow Switch

on the Netfpga Platform,” ANCS: Proceedings of the 4th

ACM/IEEE Symposium on Architectures for Networking

and Communications Systems, 2008, pp.1-9.

[7] W. Kla us, “Linux Network Architecture: Design and Im-

plementation of Network Protocols in the Linux Kernel,”

1972.

[8] SmartBits_Overview_detail_20051008.pdf

http://www.spirent.cn/Products/Smartbits
