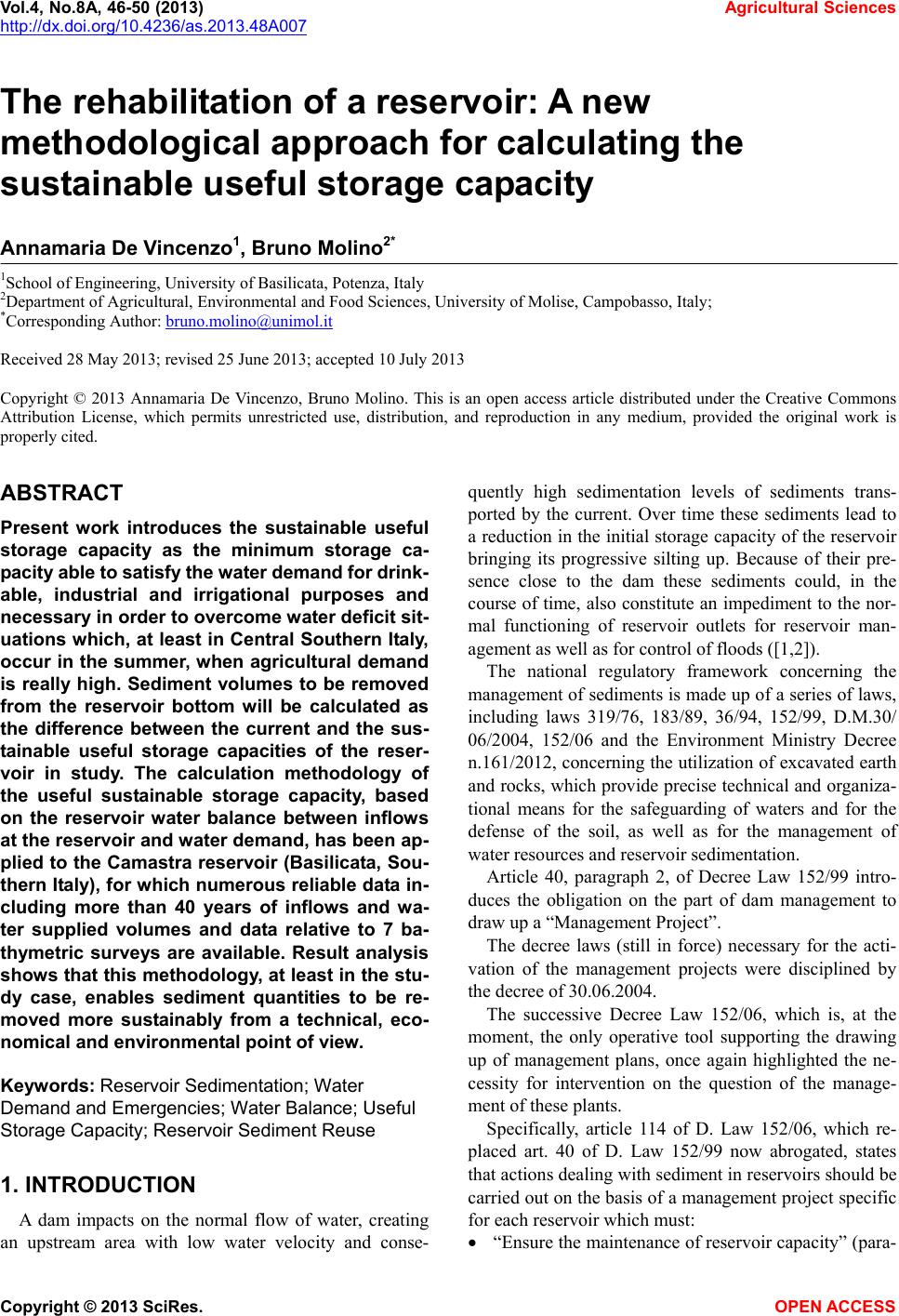

Vol.4, No.8A, 46-50 (2013) Agricultural Sciences

http://dx.doi.org/10.4236/as.2013.48A007

The rehabilitation of a reservoir: A new

methodological approach for calculating the

sustainable useful storage capacity

Annamaria De Vincenzo1, Bruno Molino2*

1School of Engineering, University of Basilicata, Potenza, Italy

2Department of Agricultural, Environmental and Food Sciences, University of Molise, Campobasso, Italy;

*Corresponding Author: [email protected]

Received 28 May 2013; revised 25 June 2013; accepted 10 July 2013

Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is

properly cited.

ABSTRACT

Present work introduces the sustainable useful

storage capacity as the minimum storage ca-

p acity able to satisfy the water dema nd for drink-

able, industrial and irrigational purposes and

necessary in order to overcome water deficit sit-

uations which, at least in Central Southern Italy,

occur in the summer, when agricultural demand

is really high. Sediment volumes to be removed

from the reservoir bottom will be calculated as

the difference between the current and the sus-

tainable useful storage capacities of the reser-

voir in study. The calculation methodology of

the useful sustainable storage capacity, based

on the reservoir water balance between inflows

at the reservoir and water demand, has been ap-

plied to the Camastra reservoir (Basilicata, Sou-

thern Italy), for which numerous reliable data in-

cluding more than 40 years of inflows and wa-

ter supplied volumes and data relative to 7 ba-

thymetric surveys are available. Result analysis

shows that this methodology, at least in the stu-

dy case, enables sediment quantities to be re-

moved more sustainably from a technical, eco-

nomical and environmental point of view.

Keyw ords: Reservoir Sedimentation; Water

Demand and Emergencies; Water Balance; Useful

Storage Capacity; R es e rvoir Sediment Reuse

1. INTRODUCTION

A dam impacts on the normal flow of water, creating

an upstream area with low water velocity and conse-

quently high sedimentation levels of sediments trans-

ported by the current. Over time these sediments lead to

a reduction in the initial storage capacity of the reservoir

bringing its progressive silting up. Because of their pre-

sence close to the dam these sediments could, in the

course of time, also constitute an impediment to the nor-

mal functioning of reservoir outlets for reservoir man-

agement as well as for control of floods ([1,2]).

The national regulatory framework concerning the

management of sediments is made up of a series of laws,

including laws 319/76, 183/89, 36/94, 152/99, D.M.30/

06/2004, 152/06 and the Environment Ministry Decree

n.161/2012, concerning the utilization of excavated earth

and rocks, which provide precise technical and organiza-

tional means for the safeguarding of waters and for the

defense of the soil, as well as for the management of

water resources and reservoir sedimentation.

Article 40, paragraph 2, of Decree Law 152/99 intro-

duces the obligation on the part of dam management to

draw up a “Management Project”.

The decree laws (still in force) necessary for the acti-

vation of the management projects were disciplined by

the decree of 30.06.2004.

The successive Decree Law 152/06, which is, at the

moment, the only operative tool supporting the drawing

up of management plans, once again highlighted the ne-

cessity for intervention on the question of the manage-

ment of these plants.

Specifically, article 114 of D. Law 152/06, which re-

placed art. 40 of D. Law 152/99 now abrogated, states

that actions dealing with sediment in reservoirs should be

carried out on the basis of a management project specific

for each reservoir which must:

 “Ensure the maintenance of reservoir capacity” (para-

A. De Vincenzo, B. Molino / Agricultural Sciences 4 (2013) 46-50 47

graph 2) through operations including draw-down,

dredging and flushing of the reservoirs which are en-

vironmentally sustainable and which do not impact

negatively on the river downstream from the reser-

voir;

 “Define the envisaged activity framework of these

operations”, which must also guarantee the function-

ing of dam outlets and intakes.

Basically the Management Project should provide a

detailed framework of envisaged activities including op-

erations draw-down, dredging and flushing connected

with plant maintenance; it will also include an activities

schedule and a description of the operating procedures

which the dam manager intends to utilize for the removal

of sediments and also its end use with the aim of restor-

ing the original reservoir capacity within the concession

deadline.

Reservoir management agencies are thus responsible,

according to the regulations in force, for the removal of

sediments, which, except in a limited number of cases,

are unsustainable in terms of quantity for the objective

technical and economic difficulties posed by sediment

removal operations and reuse ([3-5]).

The problem of the lack of sustainability with regard

to the restoration of the original useful capacity of reser-

voirs is particularly marked for the majority of Italian

reservoirs under public management in central-southern

Italy. Here, they usually have significant quantities of

sediment to deal with, lack of funds and technical, eco-

nomic and environmental difficulties associated with se-

diment disposal whereas lack of sustainability is only

marginally relevant for the hydro-electric plants in the

Alpine and pre-Alpine areas where, not surprisingly,

most of the management projects which have already

been presented, are located ([6,7]). The question of sus-

tainability becomes increasingly problematic, the greater

the ratio between existing levels of silting up and the

dead volume foreseen in the project. This ratio increases

when the annual average rate of silting up phenomena

differs from the constant average rate envisaged in the

project for the first decades of the plant life, for reasons

which are often not the responsibility of reservoir man-

agement Authority, such as absence of or delay in river

training works, modification in upstream land use (new

productive activities and consequent variations from

transported sediments to the river network), development

of landslide phenomena, etc.

The aim of the work is to propose a new methodology

for the computation of sustainable volumes of sediments

to be removed of the related sustainable useful storage

capacity. The proposed methodology takes into account

the users water demand rather than the restoration of the

original useful storage capacity imposed by law.

2. METHODOLOGY OF CALCULATION

The calculation methodology of useful sustainable ca-

pacity is founded on the analysis of monthly reservoir

water balance between inflows at the reservoir and water

demand, calculated on the basis of water volumes his-

torically supplied to reservoir users.

Inflows to the reservoir are calculated on the basis of

data annually elaborated by the reservoir management

Authority, from which it is possible to deduce for each

year the annual and monthly inflows by applying the

continuity equation to the storage. A successive statistical

elaboration ([8-11]) of the monthly inflows permits the

definition of laws of variation in the average monthly

inflow as a function of cumulative probability φ and,

thus, of the return period T. Figure 1 (where letters on x

axis are for the months of year) shows, for example, the

average monthly inflow I as a function of T at the

Camastra Dam (Basento River, Southern Italy).

The average monthly water volume supplied to users

U is also obtainable from historical data provided by the

reservoir management Authority and varies according to

the final utilization of the water resource (drinkable, in-

dustrial and irrigational uses). Between users the pro-

posed methodology also takes into account the water

course downstream from the dam which requires a mini-

mum ecological discharge for its conservation. Many

methods for the calculation of minimum ecological dis-

charge are available in the technical and scientific litera-

ture ([12-24]).

A monthly reservoir water balance between average

monthly inflows I, corresponding to a given return period,

and water volumes monthly supplied to users U and re-

leased for the river ecological preservation E, which are

constant in relation to the return period, permits the cal-

culation of the volumes W stored in the reservoir for each

month and for different return period according to the

equation:

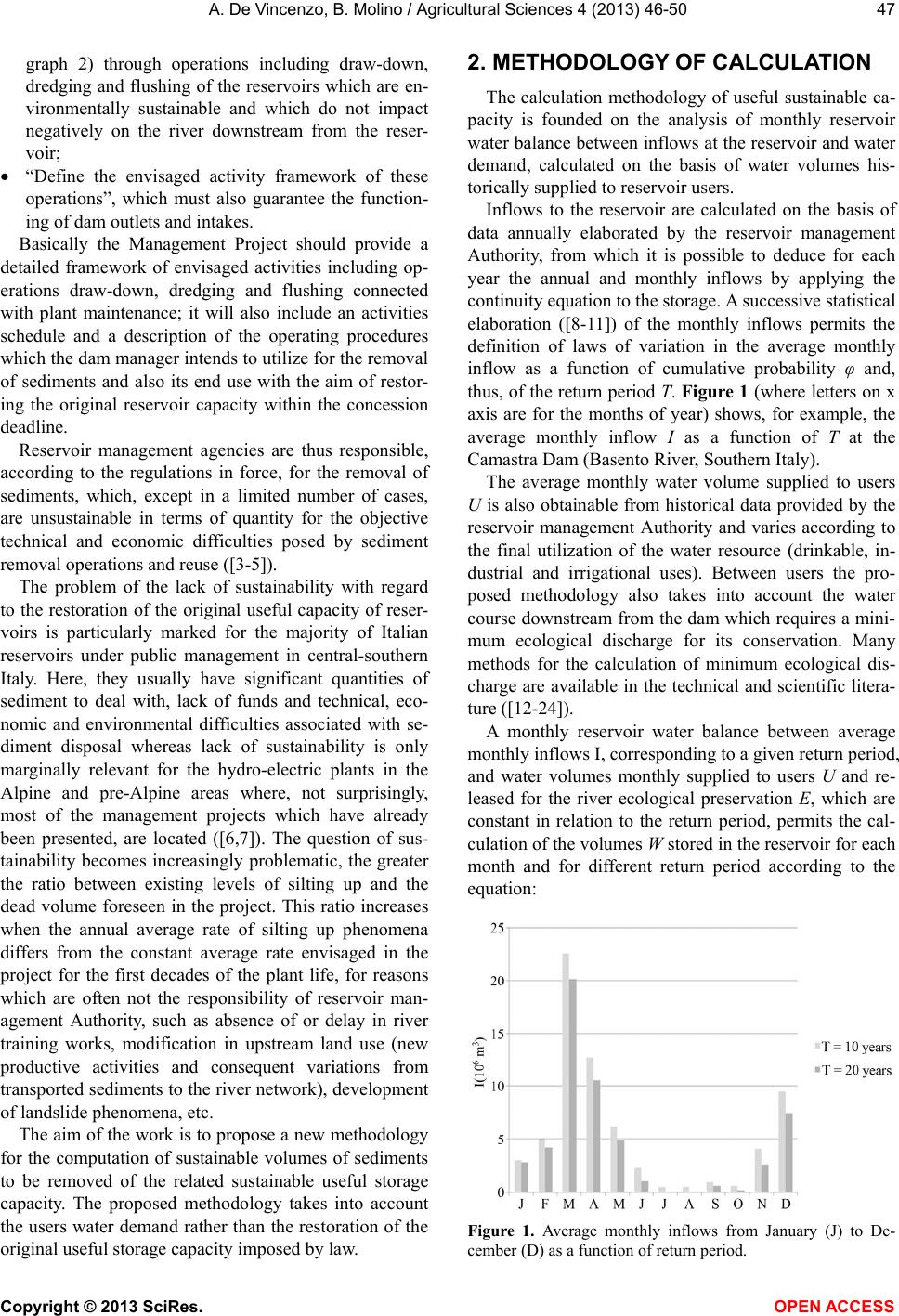

Figure 1. Average monthly inflows from January (J) to De-

cember (D) as a function of return period.

A. De Vincenzo, B. Molino / Agricultural Sciences 4 (2013) 46-50

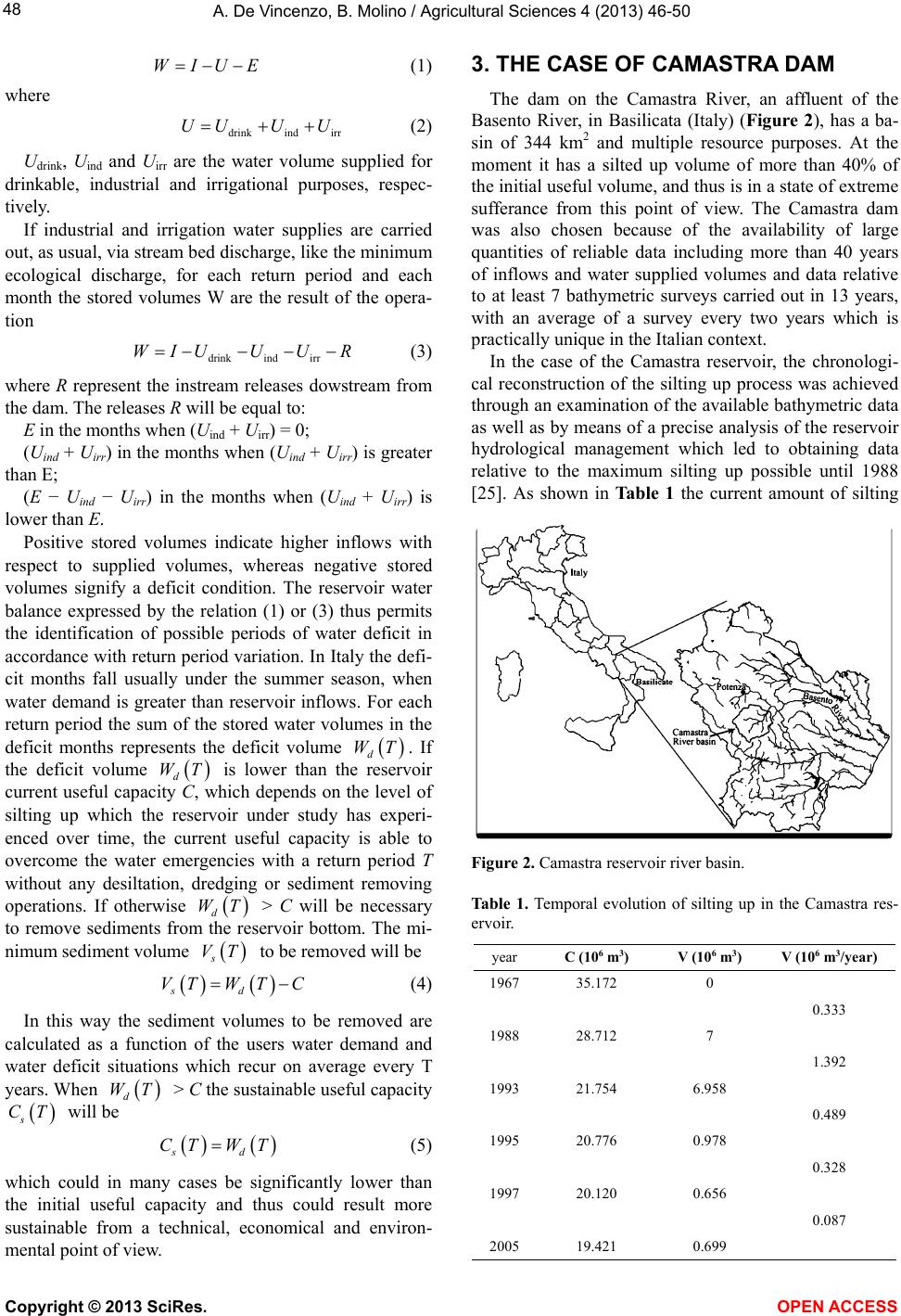

WIUE (1)

where

drink ind irr

UUU U (2)

Udrink, Uind and Uirr are the water volume supplied for

drinkable, industrial and irrigational purposes, respec-

tively.

If industrial and irrigation water supplies are carried

out, as usual, via stream bed discharge, like the minimum

ecological discharge, for each return period and each

month the stored volumes W are the result of the opera-

tion

drink indirr

WIUUU R  (3)

where R represent the instream releases dowstream from

the dam. The releases R will be equal to:

E in the months when (Uind + Uirr) = 0;

(Uind + Uirr) in the months when (Uind + Uirr) is greater

than E;

(E − Uind − Uirr ) in the months when (Uind + Uirr) is

lower than E.

Positive stored volumes indicate higher inflows with

respect to supplied volumes, whereas negative stored

volumes signify a deficit condition. The reservoir water

balance expressed by the relation (1) or (3) thus permits

the identification of possible periods of water deficit in

accordance with return period variation. In Italy the defi-

cit months fall usually under the summer season, when

water demand is greater than reservoir inflows. For each

return period the sum of the stored water volumes in the

deficit months represents the deficit volume





WT. If

the deficit volume is lower than the reservoir

current useful capacity C, which depends on the level of

silting up which the reservoir under study has experi-

enced over time, the current useful capacity is able to

overcome the water emergencies with a return period T

without any desiltation, dredging or sediment removing

operations. If otherwise > C will be necessary

to remove sediments from the reservoir bottom. The mi-

nimum sediment volume to be removed will be



 

VTWT C (4)

In this way the sediment volumes to be removed are

calculated as a function of the users water demand and

water deficit situations which recur on average every T

years. When > C the sustainable useful capacity

will be



 

CT WT (5)

which could in many cases be significantly lower than

the initial useful capacity and thus could result more

sustainable from a technical, economical and environ-

mental point of view.

3. THE CASE OF CAMASTRA DAM

The dam on the Camastra River, an affluent of the

Basento River, in Basilicata (Italy) (Figure 2), has a ba-

sin of 344 km2 and multiple resource purposes. At the

moment it has a silted up volume of more than 40% of

the initial useful volume, and thus is in a state of extreme

sufferance from this point of view. The Camastra dam

was also chosen because of the availability of large

quantities of reliable data including more than 40 years

of inflows and water supplied volumes and data relative

to at least 7 bathymetric surveys carried out in 13 years,

with an average of a survey every two years which is

practically unique in the Italian context.

In the case of the Camastra reservoir, the chronologi-

cal reconstruction of the silting up process was achieved

through an examination of the available bathymetric data

as well as by means of a precise analysis of the reservoir

hydrological management which led to obtaining data

relative to the maximum silting up possible until 1988

[25]. As shown in Ta b l e 1 the current amount of silting

Figure 2. Camastra reservoir river basin.

Table 1. Temporal evolution of silting up in the Camastra res-

ervoir.

year C (106 m3) V (106 m3) V (106 m3/year)

1967 35.172 0

0.333

1988 28.712 7

1.392

1993 21.754 6.958

0.489

1995 20.776 0.978

0.328

1997 20.120 0.656

0.087

2005 19.421 0.699

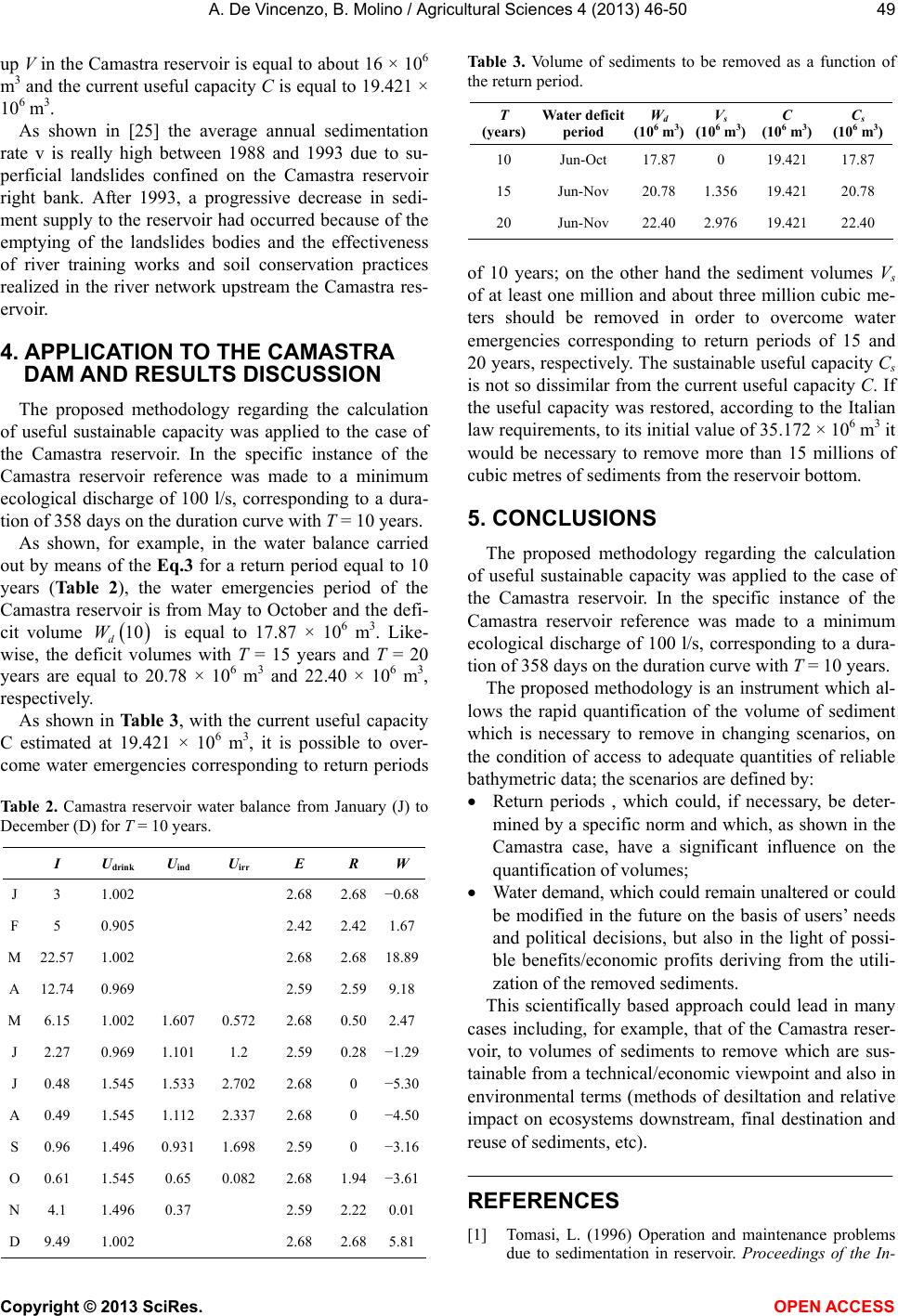

A. De Vincenzo, B. Molino / Agricultural Sciences 4 (2013) 46-50 49

up V in the Camastra reservoir is equal to about 16 × 106

m3 and the current useful capacity C is equal to 19.421 ×

106 m3.

As shown in [25] the average annual sedimentation

rate v is really high between 1988 and 1993 due to su-

perficial landslides confined on the Camastra reservoir

right bank. After 1993, a progressive decrease in sedi-

ment supply to the reservoir had occurred because of the

emptying of the landslides bodies and the effectiveness

of river training works and soil conservation practices

realized in the river network upstream the Camastra res-

ervoir.

4. APPLICATION TO THE CAMASTRA

DAM AND RESULTS DISCUSSION

The proposed methodology regarding the calculation

of useful sustainable capacity was applied to the case of

the Camastra reservoir. In the specific instance of the

Camastra reservoir reference was made to a minimum

ecological discharge of 100 l/s, corresponding to a dura-

tion of 358 days on the duration curve with T = 10 years.

As shown, for example, in the water balance carried

out by means of the Eq.3 for a return period equal to 10

years (Table 2), the water emergencies period of the

Camastra reservoir is from May to October and the defi-

cit volume is equal to 17.87 × 106 m

3. Like-

wise, the deficit volumes with T = 15 years and T = 20

years are equal to 20.78 × 106 m

3 and 22.40 × 106 m

respectively.



As shown in Ta ble 3, with the current useful capacity

C estimated at 19.421 × 106 m

3, it is possible to over-

come water emergencies corresponding to return periods

Ta b l e 2 . Camastra reservoir water balance from January (J) to

December (D) for T = 10 years.

I Udrink Uind Uirr E R W

J 3 1.002 2.68 2.68−0.68

F 5 0.905 2.42 2.421.67

M 22.57 1.002 2.68 2.6818.89

A 12.74 0.969 2.59 2.599.18

M 6.15 1.002 1.607 0.572 2.68 0.502.47

J 2.27 0.969 1.101 1.2 2.59 0.28−1.29

J 0.48 1.545 1.533 2.702 2.68 0 −5.30

A 0.49 1.545 1.112 2.337 2.68 0 −4.50

S 0.96 1.496 0.931 1.698 2.59 0 −3.16

O 0.61 1.545 0.65 0.082 2.68 1.94−3.61

N 4.1 1.496 0.37 2.59 2.220.01

D 9.49 1.002 2.68 2.685.81

Table 3. Volume of sediments to be removed as a function of

the return period.

(years) Water deficit

period Wd

(106 m3) Vs

(106 m3) C

(106 m3)Cs

(106 m3)

10 Jun-Oct 17.870 19.421 17.87

15 Jun-Nov 20.781.356 19.421 20.78

20 Jun-Nov 22.402.976 19.421 22.40

of 10 years; on the other hand the sediment volumes Vs

of at least one million and about three million cubic me-

ters should be removed in order to overcome water

emergencies corresponding to return periods of 15 and

20 years, respectively. The sustainable useful capacity Cs

is not so dissimilar from the current useful capacity C. If

the useful capacity was restored, according to the Italian

law requirements, to its initial value of 35.172 × 106 m3 it

would be necessary to remove more than 15 millions of

cubic metres of sediments from the reservoir bottom.

5. CONCLUSIONS

The proposed methodology regarding the calculation

of useful sustainable capacity was applied to the case of

the Camastra reservoir. In the specific instance of the

Camastra reservoir reference was made to a minimum

ecological discharge of 100 l/s, corresponding to a dura-

tion of 358 days on the duration curve with T = 10 years.

The proposed methodology is an instrument which al-

lows the rapid quantification of the volume of sediment

which is necessary to remove in changing scenarios, on

the condition of access to adequate quantities of reliable

bathymetric data; the scenarios are defined by:

 Return periods , which could, if necessary, be deter-

mined by a specific norm and which, as shown in the

Camastra case, have a significant influence on the

quantification of volumes;

 Water demand, which could remain unaltered or could

be modified in the future on the basis of users’ needs

and political decisions, but also in the light of possi-

ble benefits/economic profits deriving from the utili-

zation of the removed sediments.

This scientifically based approach could lead in many

cases including, for example, that of the Camastra reser-

voir, to volumes of sediments to remove which are sus-

tainable from a technical/economic viewpoint and also in

environmental terms (methods of desiltation and relative

impact on ecosystems downstream, final destination and

reuse of sediments, etc).

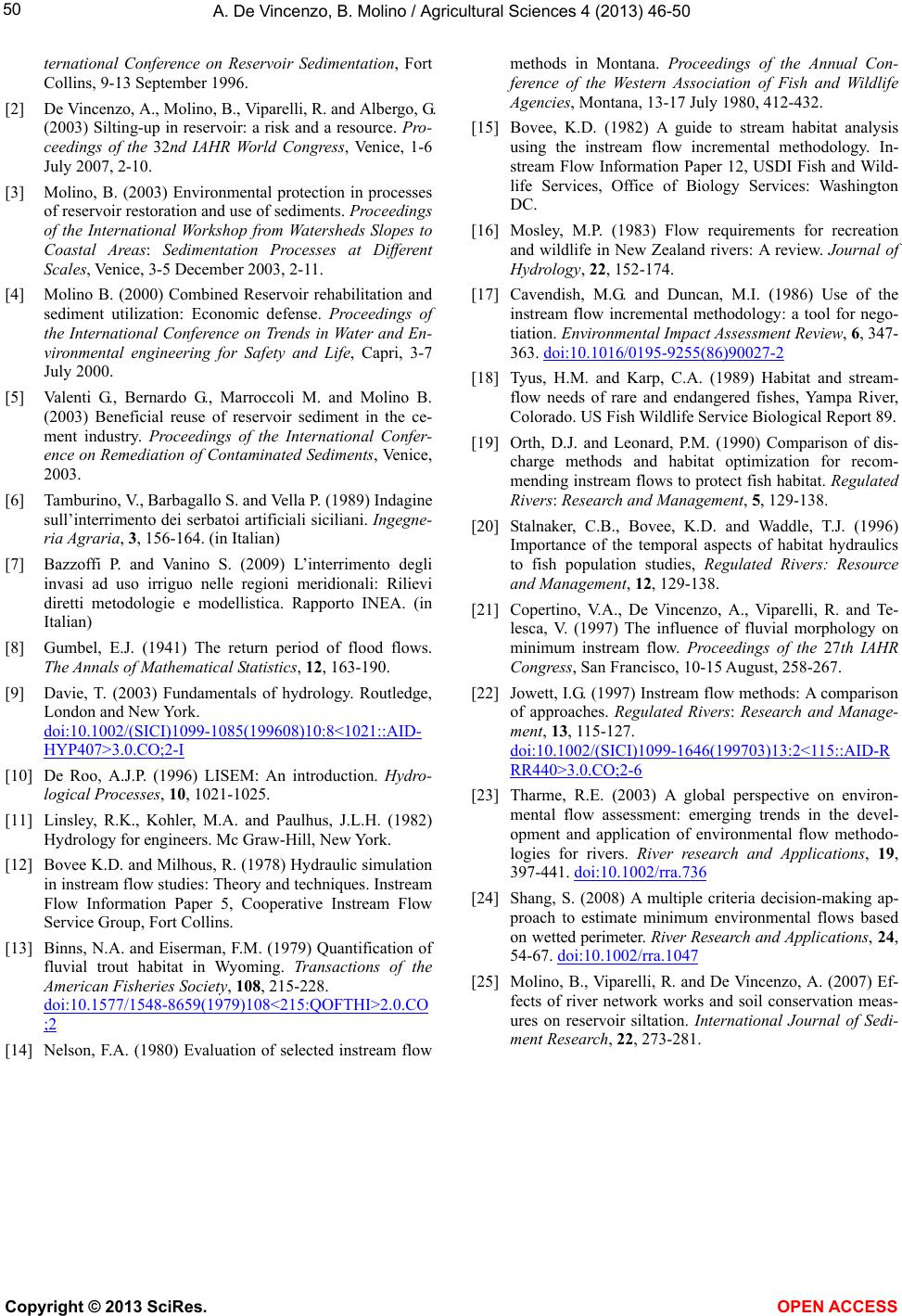

REFERENCES

[1] Tomasi, L. (1996) Operation and maintenance problems

due to sedimentation in reservoir. Proceedings of the In-

A. De Vincenzo, B. Molino / Agricultural Sciences 4 (2013) 46-50

ternational Conference on Reservoir Sedimentation, Fort

Collins, 9-13 September 1996.

[2] De Vincenzo, A., Molino, B., Viparelli, R. and Albergo, G.

(2003) Silting-up in reservoir: a risk and a resource. Pro-

ceedings of the 32nd IAHR World Congress, Venice, 1-6

July 2007, 2-10.

[3] Molino, B. (2003) Environmental protection in processes

of reservoir restoration and use of sediments. Proceedings

of the International Workshop from Watersheds Slopes to

Coastal Areas: Sedimentation Processes at Different

Scales, Venice, 3-5 December 2003, 2-11.

[4] Molino B. (2000) Combined Reservoir rehabilitation and

sediment utilization: Economic defense. Proceedings of

the International Conference on Trends in Water and En-

vironmental engineering for Safety and Life, Capri, 3-7

July 2000.

[5] Valenti G., Bernardo G., Marroccoli M. and Molino B.

(2003) Beneficial reuse of reservoir sediment in the ce-

ment industry. Proceedings of the International Confer-

ence on Remediation of Contaminated Sediments, Venice,

2003.

[6] Tamburino, V., Barbagallo S. and Vella P. (1989) Indagine

sull’interrimento dei serbatoi artificiali siciliani. Ingegne-

ria Agraria, 3, 156-164. (in Italian)

[7] Bazzoffi P. and Vanino S. (2009) L’interrimento degli

invasi ad uso irriguo nelle regioni meridionali: Rilievi

diretti metodologie e modellistica. Rapporto INEA. (in

Italian)

[8] Gumbel, E.J. (1941) The return period of flood flows.

The Annals of Mathematical Statistics, 12, 163-190.

[9] Davie, T. (2003) Fundamentals of hydrology. Routledge,

London and New York.

doi:10.1002/(SICI)1099-1085(199608)10:8<1021::AID-

HYP407>3.0.CO;2-I

[10] De Roo, A.J.P. (1996) LISEM: An introduction. Hydro-

logical Processes, 10, 1021-1025.

[11] Linsley, R.K., Kohler, M.A. and Paulhus, J.L.H. (1982)

Hydrology for engineers. Mc Graw-Hill, New York.

[12] Bovee K.D. and Milhous, R. (1978) Hydraulic simulation

in instream flow studies: Theory and techniques. Instream

Flow Information Paper 5, Cooperative Instream Flow

Service Group, Fort Collins.

[13] Binns, N.A. and Eiserman, F.M. (1979) Quantification of

fluvial trout habitat in Wyoming. Transactions of the

American Fisheries Society, 108, 215-228.

doi:10.1577/1548-8659(1979)108<215:QOFTHI>2.0.CO

[14] Nelson, F.A. (1980) Evaluation of selected instream flow

methods in Montana. Proceedings of the Annual Con-

ference of the Western Association of Fish and Wildlife

Agencies, Montana, 13-17 July 1980, 412-432.

[15] Bovee, K.D. (1982) A guide to stream habitat analysis

using the instream flow incremental methodology. In-

stream Flow Information Paper 12, USDI Fish and Wild-

life Services, Office of Biology Services: Washington

DC.

[16] Mosley, M.P. (1983) Flow requirements for recreation

and wildlife in New Zealand rivers: A review. Journal of

Hydrology, 22, 152-174.

[17] Cavendish, M.G. and Duncan, M.I. (1986) Use of the

instream flow incremental methodology: a tool for nego-

tiation. Environmental Impact Assessment Review, 6, 347-

363. doi:10.1016/0195-9255(86)90027-2

[18] Tyus, H.M. and Karp, C.A. (1989) Habitat and stream-

flow needs of rare and endangered fishes, Yampa River,

Colorado. US Fish Wildlife Service Biological Report 89.

[19] Orth, D.J. and Leonard, P.M. (1990) Comparison of dis-

charge methods and habitat optimization for recom-

mending instream flows to protect fish habitat. Regulated

Rivers: Research and Management, 5, 129-138.

[20] Stalnaker, C.B., Bovee, K.D. and Waddle, T.J. (1996)

Importance of the temporal aspects of habitat hydraulics

to fish population studies, Regulated Rivers: Resource

and Management, 12, 129-138.

[21] Copertino, V.A., De Vincenzo, A., Viparelli, R. and Te-

lesca, V. (1997) The influence of fluvial morphology on

minimum instream flow. Proceedings of the 27th IAHR

Congress, San Francisco, 10-15 August, 258-267.

[22] Jowett, I.G. (1997) Instream flow methods: A comparison

of approaches. Regulated Rivers: Research and Manage-

ment, 13, 115-127.

doi:10.1002/(SICI)1099-1646(199703)13:2<115::AID-R

RR440>3.0.CO;2-6

[23] Tharme, R.E. (2003) A global perspective on environ-

mental flow assessment: emerging trends in the devel-

opment and application of environmental flow methodo-

logies for rivers. River research and Applications, 19,

397-441. doi:10.1002/rra.736

[24] Shang, S. (2008) A multiple criteria decision-making ap-

proach to estimate minimum environmental flows based

on wetted perimeter. River Research and Applications, 24,

54-67. doi:10.1002/rra.1047

[25] Molino, B., Viparelli, R. and De Vincenzo, A. (2007) Ef-

fects of river network works and soil conservation meas-

ures on reservoir siltation. International Journal of Sedi-

ment Research, 22, 273-281.
