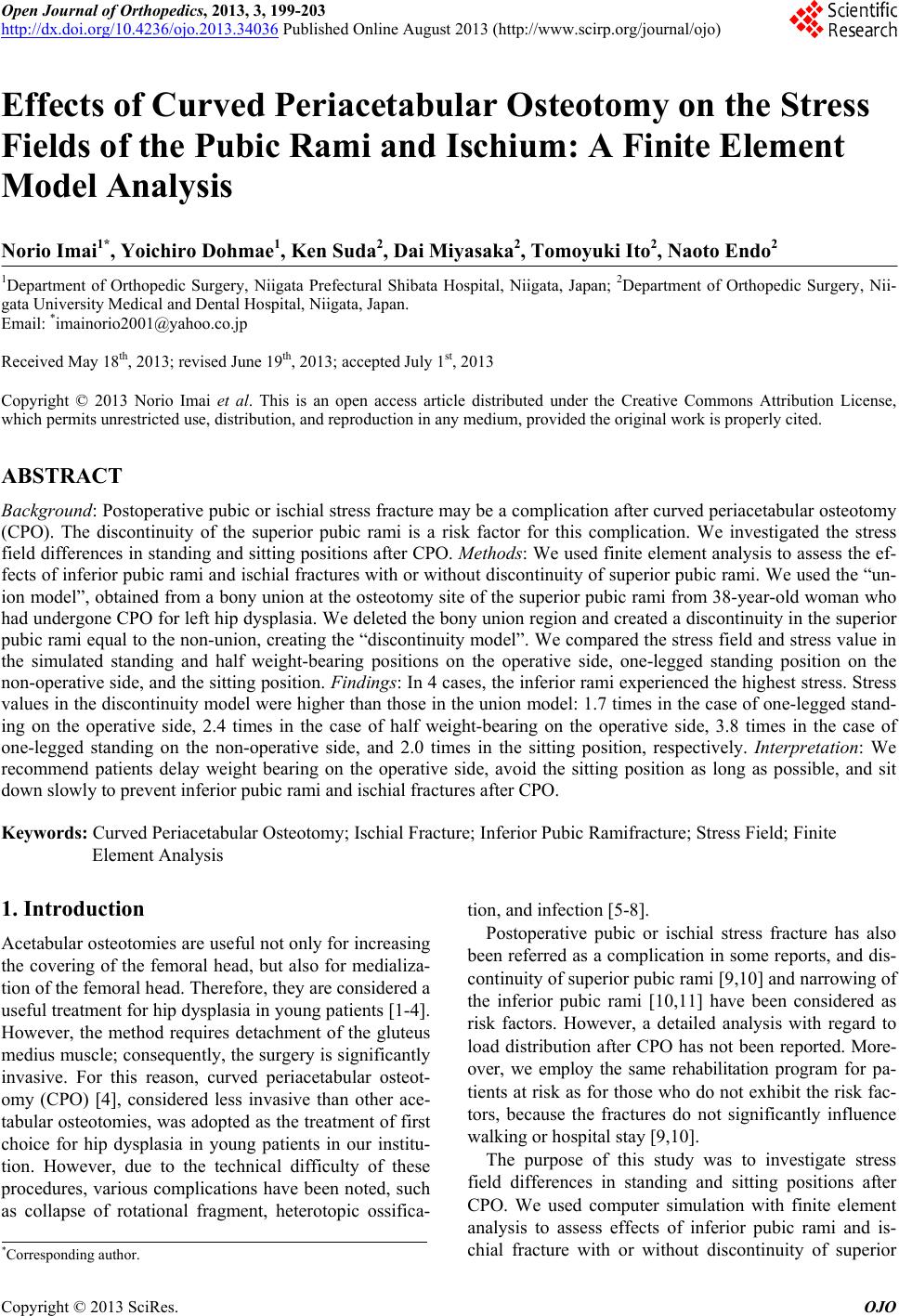

Effects of Curved Periacetabular Osteotomy on the Stress

Fields of the Pubic Rami and Ischium: A Finite Element

Model Analysis

Norio Imai1*, Yoichiro Dohmae1, Ken Suda2, Dai Miyasaka2, Tomoyuki Ito2, Naoto Endo2

1Department of Orthopedic Surgery, Niigata Prefectural Shibata Hospital, Niigata, Japan; 2Department of Orthopedic Surgery, Nii-

gata University Medical and Dental Hospital, Niigata, Japan.

Email: *[email protected]

Received May 18th, 2013; revised June 19th, 2013; accepted July 1st, 2013

which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

ABSTRACT

Background: Postoperative pubic or ischial stress fracture may be a complication after curved periacetabular osteotomy

(CPO). The discontinuity of the superior pubic rami is a risk factor for this complication. We investigated the stress

field differences in standing and sitting position s after CPO. Methods: We used finite element analysis to assess the ef-

fects of inferior pubic rami and ischial fractures with or without discontinu ity of superior pubic rami. We used the “un-

ion model”, obtained from a bony union at the osteotomy site of the superior pubic rami from 38-year-old woman who

had undergone CPO for left hip dysplasia. We deleted the bony union region and created a discontinuity in the superior

pubic rami equal to the non-union, creating the “discon tinuity model”. We compared the stress field and stress value in

the simulated standing and half weight-bearing positions on the operative side, one-legged standing position on the

non-operative side, and th e sitting position. Findings: In 4 cases, the inferior rami experienced the highest stress. Stress

values in the discon tinuity model were higher than those in the union model: 1.7 times in the case of one-leg ged stand-

ing on the operative side, 2.4 times in the case of half weight-bearing on the operative side, 3.8 times in the case of

one-legged standing on the non-operative side, and 2.0 times in the sitting position, respectively. Interpretation: We

recommend patients delay weight bearing on the operative side, avoid the sitting position as long as possible, and sit

down slowly to prevent inferior pubic rami and ischial fractures after CPO.

Keywords: Curved Periacetabular Osteotomy; Ischial Fracture; Inferior Pubic Ramifracture; Stress Field; Finite

Element Analysis

1. Introduction

Acetabular osteotomies are useful not only for increasing

the covering of the femoral head, but also for medializa-

tion of the femoral head. Therefore, they are considered a

useful treatment for hip dysplasia in young patients [1-4].

However, the method requires detachment of the gluteus

medius muscle; consequently, the surgery is significantly

invasive. For this reason, curved periacetabular osteot-

omy (CPO) [4], considered less invasive than other ace-

tabular osteotomies, was adopted as the treat ment of first

choice for hip dysplasia in young patients in our institu-

tion. However, due to the technical difficulty of these

procedures, various complications have been noted, such

as collapse of rotational fragment, heterotopic ossifica-

tion, and infection [5-8].

Postoperative pubic or ischial stress fracture has also

been referred as a complication in some reports, and dis-

continuity of superior pubic rami [9,10] and narrowing of

the inferior pubic rami [10,11] have been considered as

risk factors. However, a detailed analysis with regard to

load distribution after CPO has not been reported. More-

over, we employ the same rehabilitation program for pa-

tients at risk as for those who do not exhibit the risk fac-

tors, because the fractures do not significantly influence

walking or hospital stay [9,10].

The purpose of this study was to investigate stress

field differences in standing and sitting positions after

CPO. We used computer simulation with finite element

analysis to assess effects of inferior pubic rami and is-

chial fracture with or without discontinuity of superior

*Corresponding a uthor.

Effects of Curved Periacetabular Osteotomy on the Stress Fields

of the Pubic Rami and Ischium: A Finite Element Model Analysis

200

pubic rami. Moreover, we provide recommendations con-

cerning the rehabilitation program of patients with dis-

continuity of the superior pubic rami.

2. Materials and Methods

2.1. Subject

The model pelvis and proximal femur were obtained

from a 38-year-old woman who had undergone CPO for

left hip dysplasia and who underwent a computed tomo-

graphy (CT) examination 3 months after surgery, when

the bony union was still not complete. In these patients,

bony union was observed at the osteotomy site of the

superior pubic rami (Figure 1). The Institutional Review

Board of Niigata Prefectural Shibata Hospital approved

the study and informed consent was obtained from the

patient.

2.2. Geometry and Material Properties

Geometrical data were obtained using a high-definition

three-dimensional digitizer (Mimics, Materialise Japan

Co. Ltd, Yokohama, Japan). After digitizing the pelvis,

the coordinates were imported in to a commercially avail-

able finite element modeling software package (SIMU-

LIA Abaqus FEA, IDAJ Co. Ltd, Yokohama, Japan) for

three-dimensional finite mesh reconstruction. The model

was divided into a cortical bone and a cancellous bone,

consisting of approximately 800,000 elements and 200,000

nodes. The material properties were as follows: Young’s

modulus and Poisson’s ratio were 17,000 MPa and 0.3,

respectively, in cortical bone and 70 MPa and 0.2, re-

spectively, in cancellous bone [12].

2.3. Loading and Boundary Conditions

In the standing position, the anterior pelvic plane, con-

sisting of the bilateral anterior superior iliac spine and

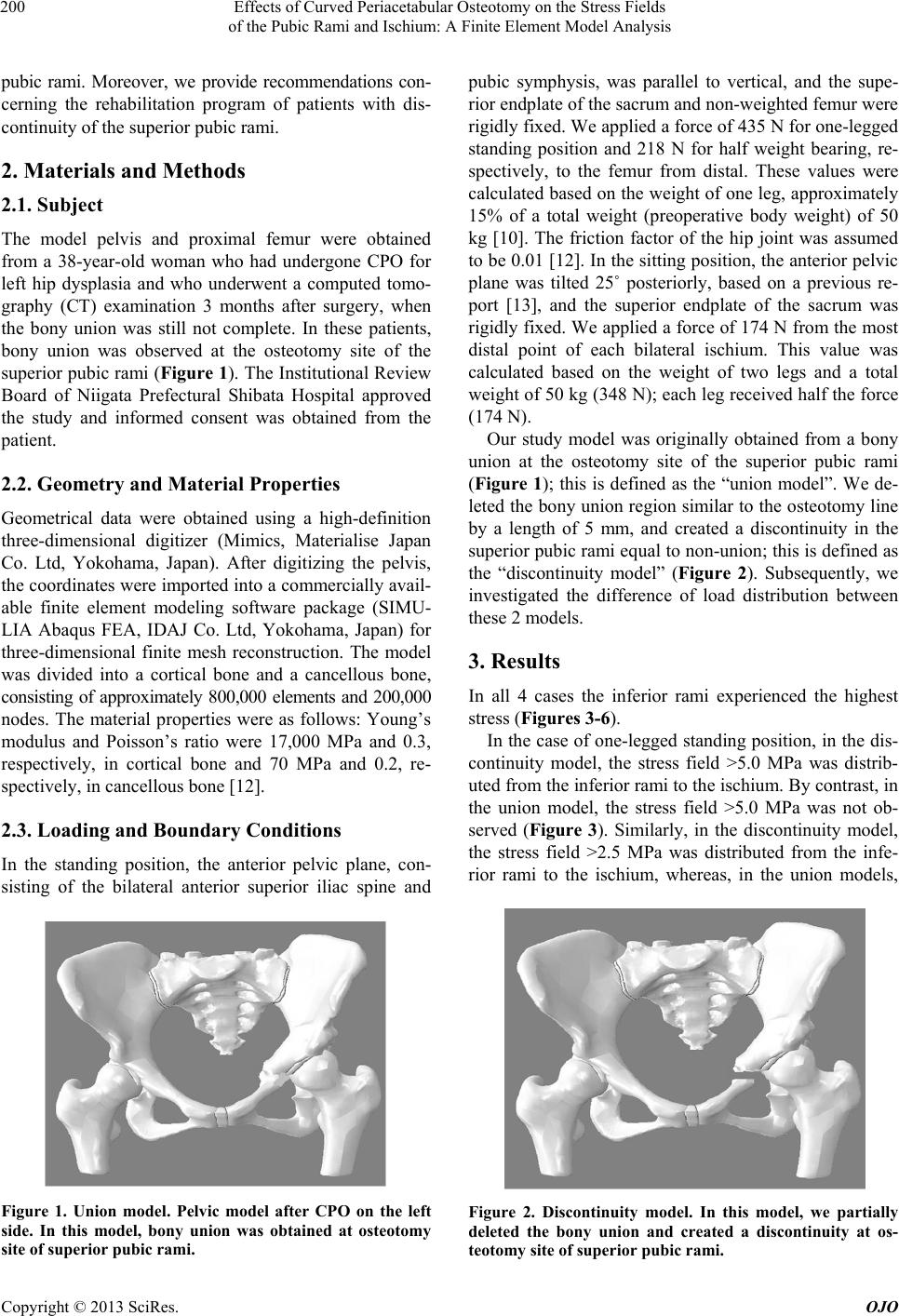

Figure 1. Union model. Pelvic model after CPO on the left

side. In this model, bony union was obtained at osteotomy

site of superior pubic rami.

pubic symphysis, was parallel to vertical, and the supe-

rior endplate of the sacru m and non-w eigh ted femur w ere

rigidly f ixed. We app lied a fo rce of 435 N for one-legg ed

standing position and 218 N for half weight bearing, re-

spectively, to the femur from distal. These values were

calculated based on the weight of one leg, approximately

15% of a total weight (preoperative body weight) of 50

kg [10]. The friction factor of the hip joint was assumed

to be 0.01 [12]. In the sitting position, th e anterior pelvic

plane was tilted 25˚ posteriorly, based on a previous re-

port [13], and the superior endplate of the sacrum was

rigidly fixed. We applied a force of 174 N from the most

distal point of each bilateral ischium. This value was

calculated based on the weight of two legs and a total

weight of 50 kg (348 N); each leg received half the force

(174 N).

Our study model was originally obtained from a bony

union at the osteotomy site of the superior pubic rami

(Figure 1); this is defined as the “union model”. We de-

leted the bony union region similar to the osteotomy line

by a length of 5 mm, and created a discontinuity in the

superior pubic rami equal to non-union; this is defined as

the “discontinuity model” (Figure 2). Subsequently, we

investigated the difference of load distribution between

these 2 m o d e ls.

3. Results

In all 4 cases the inferior rami experienced the highest

stress (Figures 3-6).

In the case of one-legged standing position , in the dis-

continuity model, the stress field >5.0 MPa was distrib-

uted from the inferior rami to the ischium. By contrast, in

the union model, the stress field >5.0 MPa was not ob-

served (Figure 3). Similarly, in the discontinuity model,

the stress field >2.5 MPa was distributed from the infe-

rior rami to the ischium, whereas, in the union models,

Figure 2. Discontinuity model. In this model, we partially

deleted the bony union and created a discontinuity at os-

teotomy site of superior pubic rami.

Effects of Curved Periacetabular Osteotomy on the Stress Fields

of the Pubic Rami and Ischium: A Finite Element Model Analysis

201

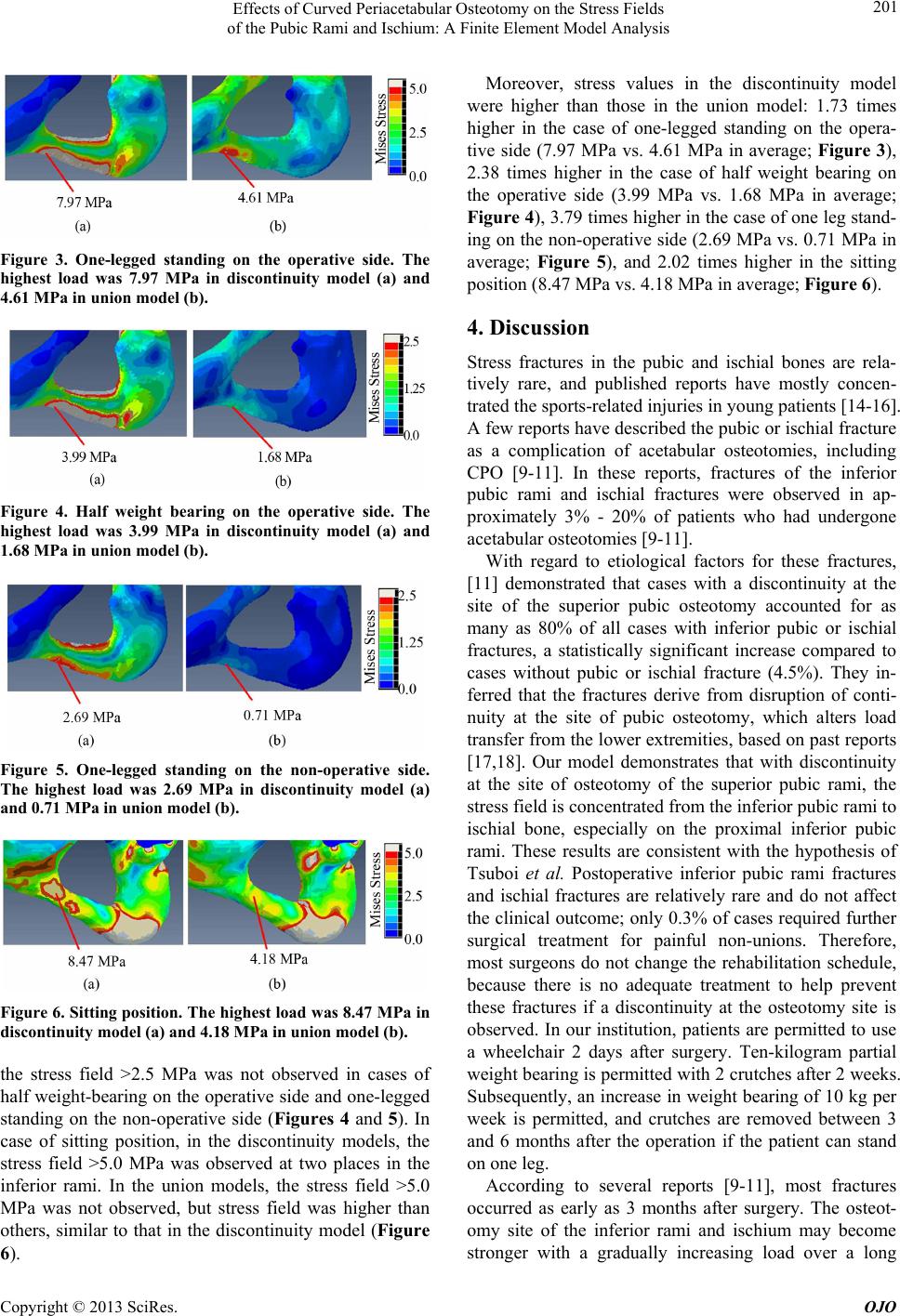

Figure 3. One-legged standing on the operative side. The

highest load was 7.97 MPa in discontinuity model (a) and

4.61 MPa in union model (b).

Figure 4. Half weight bearing on the operative side. The

highest load was 3.99 MPa in discontinuity model (a) and

1.68 MPa in union model (b).

Figure 5. One-legged standing on the non-operative side.

The highest load was 2.69 MPa in discontinuity model (a)

and 0.71 MPa in union model (b).

Figure 6. Sitting position. The highest load was 8.47 MPa in

discontinuity model (a) and 4.18 M P a in union model (b).

the stress field >2.5 MPa was not observed in cases of

half weight-b earing on the operative side and on e-legged

standing on the non-operative side (Figures 4 and 5). In

case of sitting position, in the discontinuity models, the

stress field >5.0 MPa was observed at two places in the

inferior rami. In the union models, the stress field >5.0

MPa was not observed, but stress field was higher than

others, similar to that in the discontinuity model (Figure

6).

Moreover, stress values in the discontinuity model

were higher than those in the union model: 1.73 times

higher in the case of one-legged standing on the opera-

tive side (7.97 MPa vs. 4.61 MPa in average; Figure 3),

2.38 times higher in the case of half weight bearing on

the operative side (3.99 MPa vs. 1.68 MPa in average;

Figure 4), 3.79 times higher in the case of one leg stand-

ing on the non-oper ative side (2.69 MPa vs. 0.71 MPa in

average; Figure 5), and 2.02 times higher in the sitting

position (8.47 MPa vs. 4.18 MPa in average; Figure 6).

4. Discussion

Stress fractures in the pubic and ischial bones are rela-

tively rare, and published reports have mostly concen-

trated the sports-related injuries in young patients [14-16].

A few reports have described the pubic or ischial fracture

as a complication of acetabular osteotomies, including

CPO [9-11]. In these reports, fractures of the inferior

pubic rami and ischial fractures were observed in ap-

proximately 3% - 20% of patients who had undergone

acetabular osteotomies [9-11].

With regard to etiological factors for these fractures,

[11] demonstrated that cases with a discontinuity at the

site of the superior pubic osteotomy accounted for as

many as 80% of all cases with inferior pubic or ischial

fractures, a statistically significant increase compared to

cases without pubic or ischial fracture (4.5%). They in-

ferred that the fractures derive from disruption of conti-

nuity at the site of pubic osteotomy, which alters load

transfer from the lower extremities, based on past reports

[17,18]. Our model demonstrates that with discontinuity

at the site of osteotomy of the superior pubic rami, the

stress field is concentrated from the inferior pubic rami to

ischial bone, especially on the proximal inferior pubic

rami. These results are consistent with the hypothesis of

Tsuboi et al. Postoperative inferior pubic rami fractures

and ischial fractures are relatively rare and do not affect

the clinical outcome; only 0.3% of cases required further

surgical treatment for painful non-unions. Therefore,

most surgeons do not change the rehabilitation schedule,

because there is no adequate treatment to help prevent

these fractures if a discontinuity at the osteotomy site is

observed. In our institution, patients are permitted to use

a wheelchair 2 days after surgery. Ten-kilogram partial

weight bearing is permitted with 2 crutch es after 2 weeks.

Subsequently, an increase in weight bearing of 10 kg per

week is permitted, and crutches are removed between 3

and 6 months after the operation if the patient can stand

on one leg.

According to several reports [9-11], most fractures

occurred as early as 3 months after surgery. The osteot-

omy site of the inferior rami and ischium may become

stronger with a gradually increasing load over a long

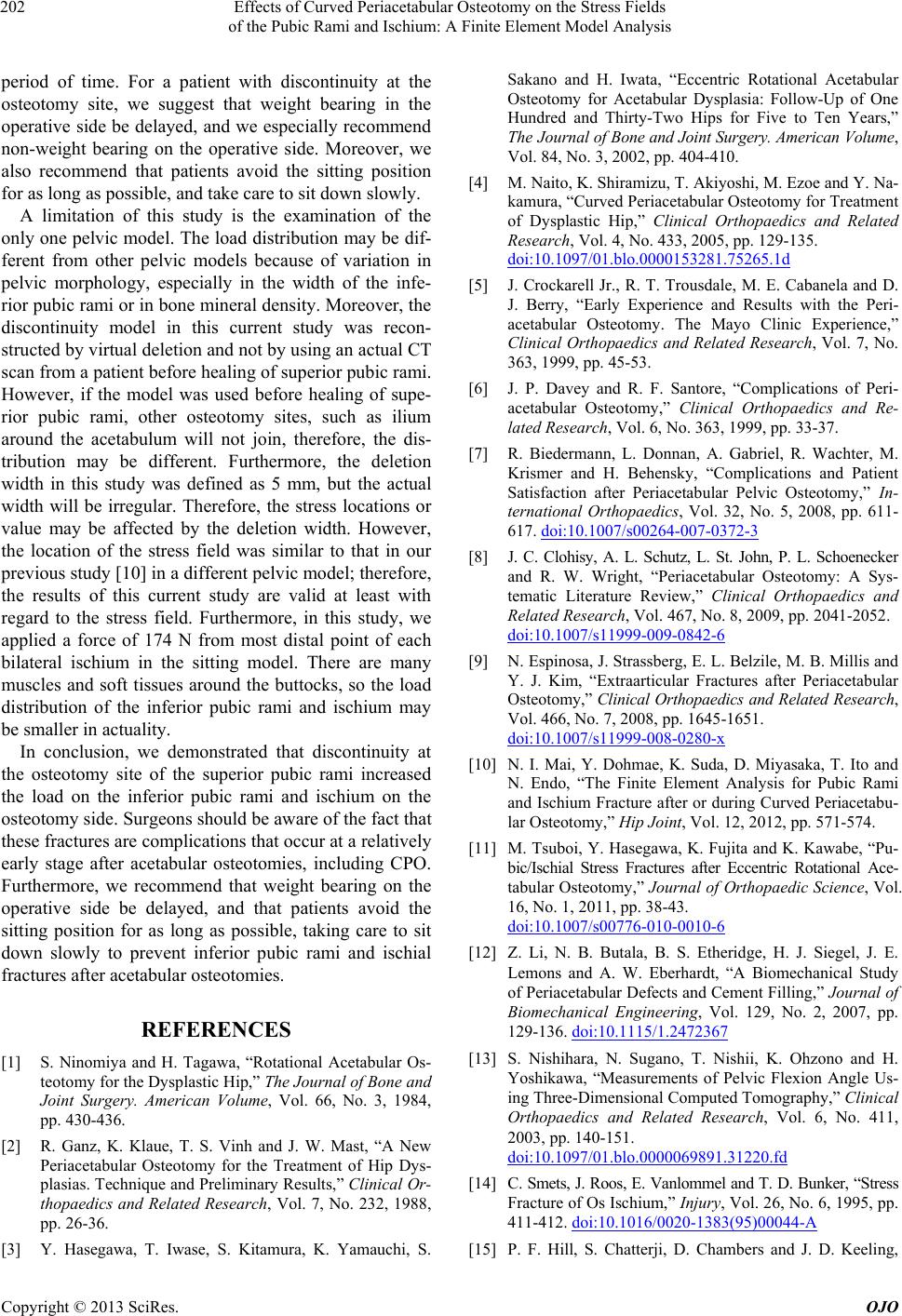

Effects of Curved Periacetabular Osteotomy on the Stress Fields

of the Pubic Rami and Ischium: A Finite Element Model Analysis

202

period of time. For a patient with discontinuity at the

osteotomy site, we suggest that weight bearing in the

operative side be delayed, and we especially recommend

non-weight bearing on the operative side. Moreover, we

also recommend that patients avoid the sitting position

for as long as possible, and take care to sit down slowly.

A limitation of this study is the examination of the

only one pelvic model. The load distribution may be dif-

ferent from other pelvic models because of variation in

pelvic morphology, especially in the width of the infe-

rior pubic rami or in bone mineral density. Moreover, the

discontinuity model in this current study was recon-

structed by virtual deletion and not by using an actual CT

scan from a patient before healing of superior pubic rami.

However, if the model was used before healing of supe-

rior pubic rami, other osteotomy sites, such as ilium

around the acetabulum will not join, therefore, the dis-

tribution may be different. Furthermore, the deletion

width in this study was defined as 5 mm, but the actual

width will be irregular. Therefore, the stress locations or

value may be affected by the deletion width. However,

the location of the stress field was similar to that in our

previous study [10] in a different pelvic model; therefore,

the results of this current study are valid at least with

regard to the stress field. Furthermore, in this study, we

applied a force of 174 N from most distal point of each

bilateral ischium in the sitting model. There are many

muscles and soft tissues around the buttocks, so the load

distribution of the inferior pubic rami and ischium may

be smaller in actuality.

In conclusion, we demonstrated that discontinuity at

the osteotomy site of the superior pubic rami increased

the load on the inferior pubic rami and ischium on the

osteotomy side. Surgeons should be aware of the fact that

these fractures are complications that occur at a relatively

early stage after acetabular osteotomies, including CPO.

Furthermore, we recommend that weight bearing on the

operative side be delayed, and that patients avoid the

sitting position for as long as possible, taking care to sit

down slowly to prevent inferior pubic rami and ischial

fractures after acetabular osteotomies.

REFERENCES

[1] S. Ninomiya and H. Tagawa, “Rotational Acetabular Os-

teotomy for the Dysplastic Hip,” The Journal of Bone and

Joint Surgery. American Volume, Vol. 66, No. 3, 1984,

pp. 430-436.

[2] R. Ganz, K. Klaue, T. S. Vinh and J. W. Mast, “A New

Periacetabular Osteotomy for the Treatment of Hip Dys-

plasias. Technique and Preliminary Results,” Clinical Or-

thopaedics and Related Research, Vol. 7, No. 232, 1988,

pp. 26-36.

[3] Y. Hasegawa, T. Iwase, S. Kitamura, K. Yamauchi, S.

Sakano and H. Iwata, “Eccentric Rotational Acetabular

Osteotomy for Acetabular Dysplasia: Follow-Up of One

Hundred and Thirty-Two Hips for Five to Ten Years,”

The J o ur nal of Bone an d Joint Surge ry. American Volume,

Vol. 84, No. 3, 2002, pp. 404-410.

[4] M. Naito, K. Shiramizu, T. Akiyoshi, M. Ezoe and Y. Na-

kamura, “Curved Periacetabular Osteotomy for Treatment

of Dysplastic Hip,” Clinical Orthopaedics and Related

Research, Vol. 4, No. 433, 2005, pp. 129-135.

doi:10.1097/01.blo.0000153281.75265.1d

[5] J. Crockarell Jr., R. T. Trousdale, M. E. Cabanela and D.

J. Berry, “Early Experience and Results with the Peri-

acetabular Osteotomy. The Mayo Clinic Experience,”

Clinical Orthopaedics and Related Research, Vol. 7, No.

363, 1999, pp. 45-53.

[6] J. P. Davey and R. F. Santore, “Complications of Peri-

acetabular Osteotomy,” Clinical Orthopaedics and Re-

lated Research, Vol. 6, No. 363, 1999, pp. 33-37.

[7] R. Biedermann, L. Donnan, A. Gabriel, R. Wachter, M.

Krismer and H. Behensky, “Complications and Patient

Satisfaction after Periacetabular Pelvic Osteotomy,” In-

ternational Orthopaedics, Vol. 32, No. 5, 2008, pp. 611-

617. doi:10.1007/s00264-007-0372-3

[8] J. C. Clohisy, A. L. Schutz, L. St. John, P. L. Schoenecker

and R. W. Wright, “Periacetabular Osteotomy: A Sys-

tematic Literature Review,” Clinical Orthopaedics and

Related Research, Vol. 467, No. 8, 2009, pp. 2041-2052.

doi:10.1007/s11999-009-0842-6

[9] N. Espinosa, J. Strassberg, E. L. Belzile, M. B. Millis and

Y. J. Kim, “Extraarticular Fractures after Periacetabular

Osteotomy,” Clinical Orthopaedics and Related Research,

Vol. 466, No. 7, 2008, pp. 1645-1651.

doi:10.1007/s11999-008-0280-x

[10] N. I. Mai, Y. Dohmae, K. Suda, D. Miyasaka, T. Ito and

N. Endo, “The Finite Element Analysis for Pubic Rami

and Ischium Fracture after or during Curved Periacetabu-

lar Osteotomy,” Hip Joint, Vol. 12, 2012, pp. 571-574.

[11] M. Tsuboi, Y. Hasegawa, K. Fujita and K. Kawabe, “Pu-

bic/Ischial Stress Fractures after Eccentric Rotational Ace-

tabular Osteotomy,” Journal of Orthopaedic Science, Vol.

16, No. 1, 2011, pp. 38-43.

doi:10.1007/s00776-010-0010-6

[12] Z. Li, N. B. Butala, B. S. Etheridge, H. J. Siegel, J. E.

Lemons and A. W. Eberhardt, “A Biomechanical Study

of Periacetabular Defects and Cement Filling,” Journal of

Biomechanical Engineering, Vol. 129, No. 2, 2007, pp.

129-136. doi:10.1115/1.2472367

[13] S. Nishihara, N. Sugano, T. Nishii, K. Ohzono and H.

Yoshikawa, “Measurements of Pelvic Flexion Angle Us-

ing Three-Dimensional Computed Tomography,” Clinical

Orthopaedics and Related Research, Vol. 6, No. 411,

2003, pp. 140-151.

doi:10.1097/01.blo.0000069891.31220.fd

[14] C. Smets, J. Roos, E. Vanlommel and T. D. Bunker, “Stress

Fracture of Os Ischium,” Injury, Vol. 26, No. 6, 1995, pp.

411-412. doi:10.1016/0020-1383(95)00044-A

[15] P. F. Hill, S. Chatterji, D. Chambers and J. D. Keeling,

Effects of Curved Periacetabular Osteotomy on the Stress Fields

of the Pubic Rami and Ischium: A Finite Element Model Analysis

203

“Stress Fracture of the Pubic Ramus in Female Re-

cruits,” The Journal of Bone & Joint Surgery, Vol. 78, No.

3, 1996, pp. 383-386.

[16] T. R. Williams, M. L. Puckett, G. Denison, A. Y. Shin

and J. D. Gorman, “Acetabular Stress Fractures in Mili-

tary Endurance Athletes and Recruits: Incidence and MRI

and Scintigraphic Findings,” Skeletal Radiology, Vol. 31,

No. 5, 2002, pp. 277-281.

doi:10.1007/s00256-002-0485-0

[17] M. Dalstra and R. Huiskes, “Load Transfer across the

Pelvic Bone,” Journal of Biomechanics, Vol. 28, No. 6,

1995, pp. 715-724. doi:10.1016/0021-9290(94)00125-N

[18] N. Kaku, H. Tsumura, H. Taira, T. Sawatari and T. Torisu,

“Biomechanical Study of Load Transfer of the Pubic

Ramus Due to Pelvic Inclination after Hip Joint Surgery

Using a Three-Dimensional Finite Element Model,”

Journal of Orthopaedic Science, Vol. 9, No. 3, 2004, pp.

264-269. doi:10.1007/s00776-004-0772-9
