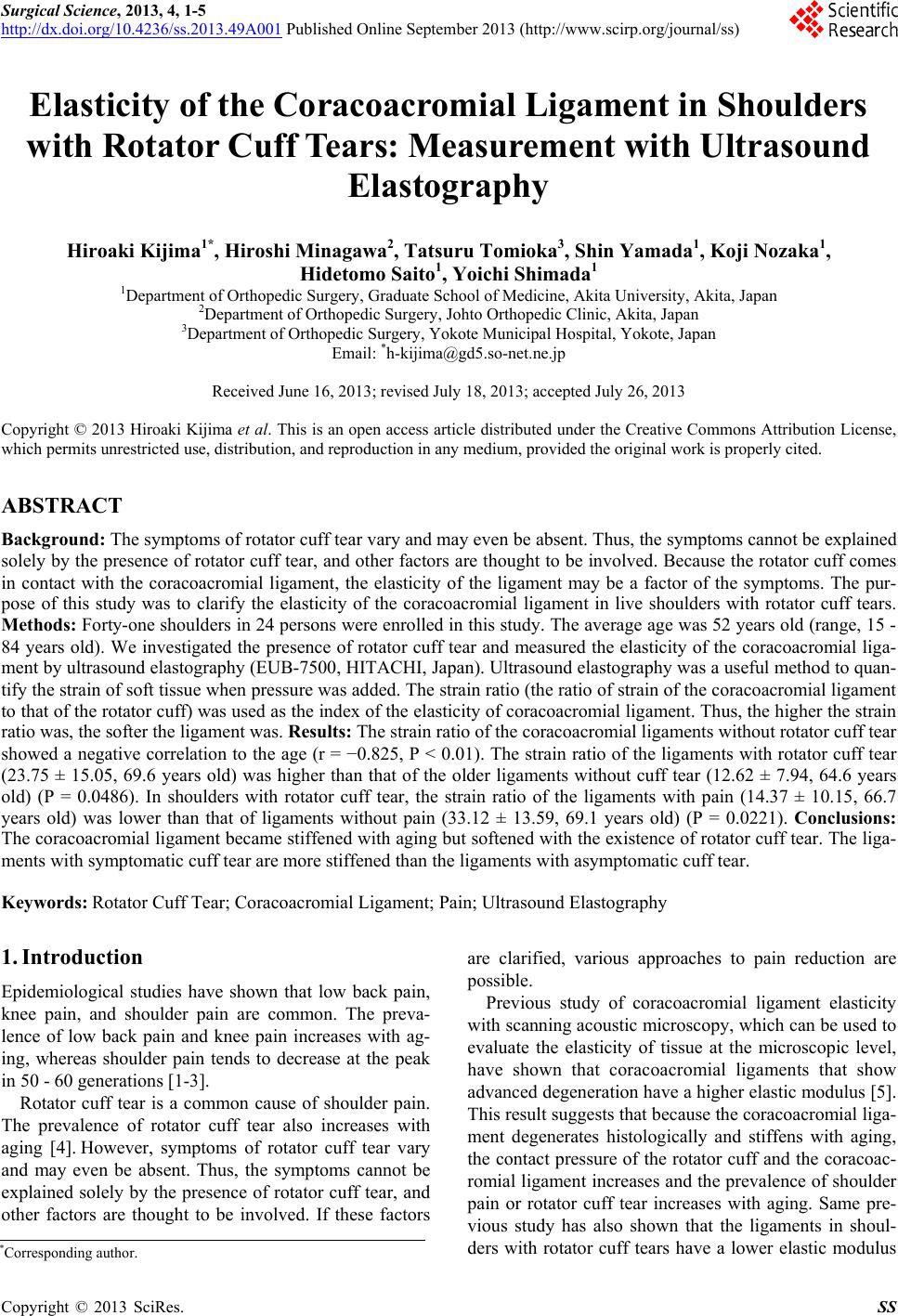

Surgical Science, 2013, 4, 1-5

http://dx.doi.org/10.4236/ss.2013.49A001 Published Online September 2013 (http://www.scirp.org/journal/ss)

Elasticity of the Coracoacromial Ligament in Shoulders

with Rotator Cuff Tears: Measurement with Ultrasound

Elastography

Hiroaki Kijima1*, Hiroshi Minagawa2, Tatsuru Tomioka3, Shin Yamada1, Koji Nozaka1,

Hidetomo Saito1, Yoichi Shimada1

1Department of Orthopedic Surgery, Graduate School of Medicine, Akita University, Akita, Japan

2Department of Orthopedic Surgery, Johto Orthopedic Clinic, Akita, Japan

3Department of Orthopedic Surgery, Yokote Municipal Hospital, Yokote, Japan

Email: *[email protected]

Received June 16, 2013; revised July 18, 2013; accepted July 26, 2013

which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

ABSTRACT

Background: The symptoms of rotator cuff tear vary and may even be absent. Thus, the symptoms cannot be explained

solely by the presence of rotator cuff tear, and other factors are thought to be involved. Because the rotator cuff comes

in contact with the coracoacromial ligament, the elasticity of the ligament may be a factor of the symptoms. The pur-

pose of this study was to clarify the elasticity of the coracoacromial ligament in live shoulders with rotator cuff tears.

Methods: Forty-one shoulders in 24 persons were enrolled in this study. The average age was 52 years old (range, 15 -

84 years old). We investigated the presence of rotator cuff tear and measured the elasticity of the coracoacromial liga-

ment by ultrasound elastography (EUB-7500, HITACHI, Japan). Ultrasound elastography was a useful method to quan-

tify the strain of soft tissue when pressure was added. The strain ratio (the ratio of strain of the coracoacromial ligament

to that of the rotator cuff) was used as the index of the elasticity of coracoacromial ligament. Thus, the higher the strain

ratio was, the softer the ligament was. Results: The strain ratio of the coracoacromial ligaments without rotator cuff tear

showed a negative correlation to the age (r = −0.825, P < 0.01). The strain ratio of the ligaments with rotator cuff tear

(23.75 ± 15.05, 69.6 years old) was higher than that of the older ligaments without cuff tear (12.62 ± 7.94, 64.6 years

old) (P = 0.0486). In shoulders with rotator cuff tear, the strain ratio of the ligaments with pain (14.37 ± 10.15, 66.7

years old) was lower than that of ligaments without pain (33.12 ± 13.59, 69.1 years old) (P = 0.0221). Conclusions:

The coracoacromial ligament became stiffened with aging but softened with the existence of rotator cuff tear. The liga-

ments with symptomatic cuff tear are more stiffened than the ligaments with asymptomatic cuff tear.

Keywords: Rotator Cuff Tear; Coracoacromial Ligament; Pain; Ultrasound Elastography

1. Introduction

Epidemiological studies have shown that low back pain,

knee pain, and shoulder pain are common. The preva-

lence of low back pain and knee pain increases with ag-

ing, whereas shoulder pain tends to decrease at the peak

in 50 - 60 generations [1-3].

Rotator cuff tear is a common cause of shoulder pain.

The prevalence of rotator cuff tear also increases with

aging [4]. However, symptoms of rotator cuff tear vary

and may even be absent. Thus, the symptoms cannot be

explained solely by the presence of rotator cuff tear, and

other factors are thought to be involved. If these factors

are clarified, various approaches to pain reduction are

possible.

Previous study of coracoacromial ligament elasticity

with scanning acoustic microscopy, which can be used to

evaluate the elasticity of tissue at the microscopic level,

have shown that coracoacromial ligaments that show

advanced degeneration have a higher elastic modulus [5].

This result suggests that because the coracoacromial liga-

ment degenerates histologically and stiffens with aging,

the contact pressure of the rotator cuff and the coracoac-

romial ligament increases and the prevalence of shoulder

pain or rotator cuff tear increases with aging. Same pre-

vious study has also shown that the ligaments in shoul-

ders with rotator cuff tears have a lower elastic modulus

*Corresponding author.

H. KIJIMA ET AL.

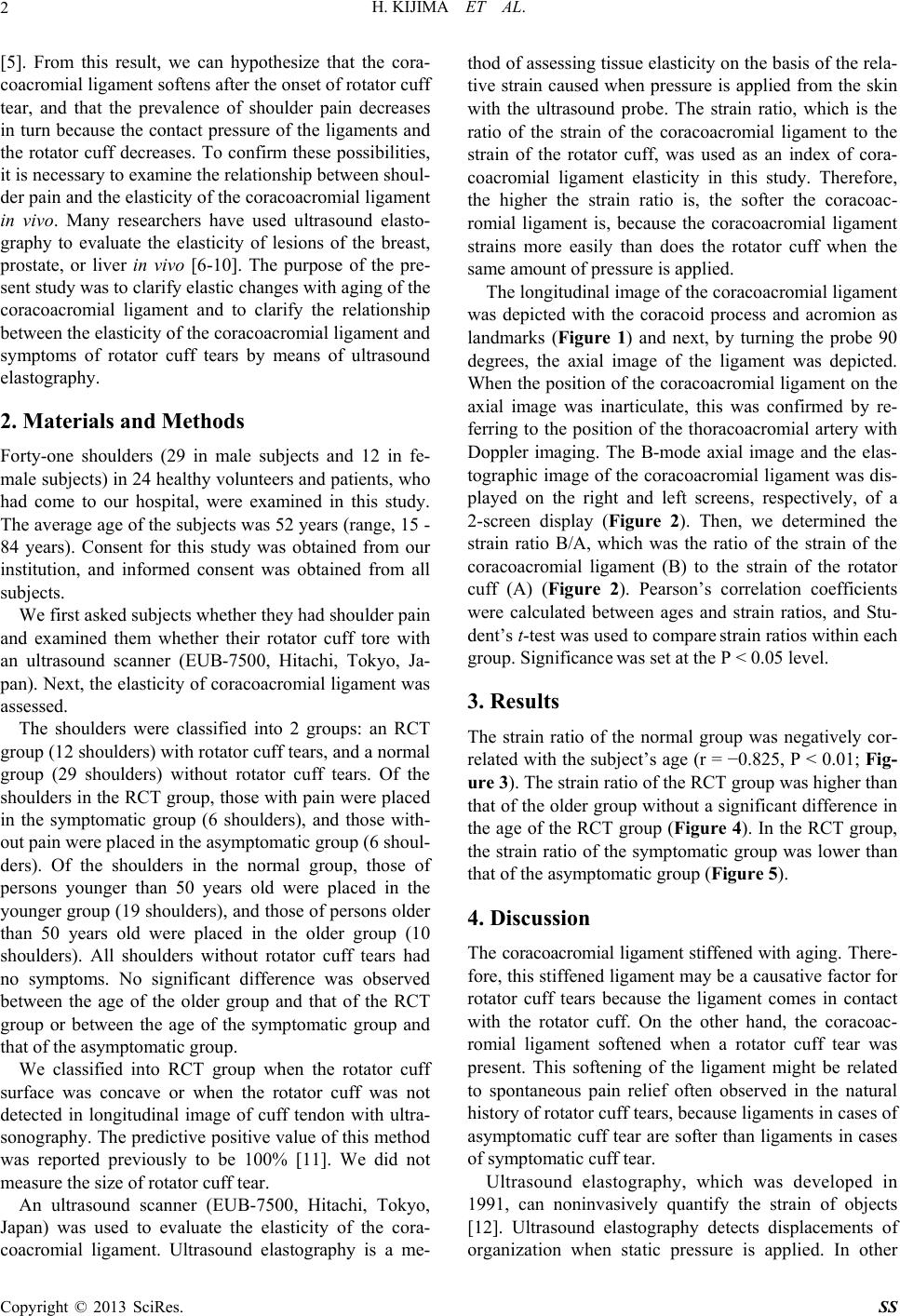

[5]. From this result, we can hypothesize that the cora-

coacromial ligament softens after the onset of rotator cuff

tear, and that the prevalence of shoulder pain decreases

in turn because the contact pressure of the ligaments and

the rotator cuff decreases. To confirm these possibilities,

it is necessary to examine the relationship between shoul-

der pain and the elasticity of the coracoacromial ligament

in vivo. Many researchers have used ultrasound elasto-

graphy to evaluate the elasticity of lesions of the breast,

prostate, or liver in vivo [6-10]. The purpose of the pre-

sent study was to clarify elastic changes with aging of the

coracoacromial ligament and to clarify the relationship

between the elasticity of the coracoacromial ligament and

symptoms of rotator cuff tears by means of ultrasound

elastography.

2. Materials and Methods

Forty-one shoulders (29 in male subjects and 12 in fe-

male subjects) in 24 healthy volunteers and patients, who

had come to our hospital, were examined in this study.

The average age of the subjects was 52 years (range, 15 -

84 years). Consent for this study was obtained from our

institution, and informed consent was obtained from all

subjects.

We first asked subjects whether they had shoulder pain

and examined them whether their rotator cuff tore with

an ultrasound scanner (EUB-7500, Hitachi, Tokyo, Ja-

pan). Next, the elasticity of coracoacromial ligament was

assessed.

The shoulders were classified into 2 groups: an RCT

group (12 shoulders) with rotator cuff tears, and a normal

group (29 shoulders) without rotator cuff tears. Of the

shoulders in the RCT group, those with pain were placed

in the symptomatic group (6 shoulders), and those with-

out pain were placed in the asymptomatic group (6 shoul-

ders). Of the shoulders in the normal group, those of

persons younger than 50 years old were placed in the

younger group (19 shoulders), and those of persons older

than 50 years old were placed in the older group (10

shoulders). All shoulders without rotator cuff tears had

no symptoms. No significant difference was observed

between the age of the older group and that of the RCT

group or between the age of the symptomatic group and

that of the asymptomatic group.

We classified into RCT group when the rotator cuff

surface was concave or when the rotator cuff was not

detected in longitudinal image of cuff tendon with ultra-

sonography. The predictive positive value of this method

was reported previously to be 100% [11]. We did not

measure the size of rotator cuff tear.

An ultrasound scanner (EUB-7500, Hitachi, Tokyo,

Japan) was used to evaluate the elasticity of the cora-

coacromial ligament. Ultrasound elastography is a me-

thod of assessing tissue elasticity on the basis of the rela-

tive strain caused when pressure is applied from the skin

with the ultrasound probe. The strain ratio, which is the

ratio of the strain of the coracoacromial ligament to the

strain of the rotator cuff, was used as an index of cora-

coacromial ligament elasticity in this study. Therefore,

the higher the strain ratio is, the softer the coracoac-

romial ligament is, because the coracoacromial ligament

strains more easily than does the rotator cuff when the

same amount of pressure is applied.

The longitudinal image of the coracoacromial ligament

was depicted with the coracoid process and acromion as

landmarks (Figure 1) and next, by turning the probe 90

degrees, the axial image of the ligament was depicted.

When the position of the coracoacromial ligament on the

axial image was inarticulate, this was confirmed by re-

ferring to the position of the thoracoacromial artery with

Doppler imaging. The B-mode axial image and the elas-

tographic image of the coracoacromial ligament was dis-

played on the right and left screens, respectively, of a

2-screen display (Figure 2). Then, we determined the

strain ratio B/A, which was the ratio of the strain of the

coracoacromial ligament (B) to the strain of the rotator

cuff (A) (Figure 2). Pearson’s correlation coefficients

were calculated between ages and strain ratios, and Stu-

dent’s t-test was used to compare strain ratios within each

group. Significance was set at the P < 0.05 level.

3. Results

The strain ratio of the normal group was negatively cor-

related with the subject’s age (r = −0.825, P < 0.01; Fig-

ure 3). The strain ratio of the RCT group was higher than

that of the older group without a significant difference in

the age of the RCT group (Figure 4). In the RCT group,

the strain ratio of the symptomatic group was lower than

that of the asymptomatic group (Figure 5).

4. Discussion

The coracoacromial ligament stiffened with aging. There-

fore, this stiffened ligament may be a causative factor for

rotator cuff tears because the ligament comes in contact

with the rotator cuff. On the other hand, the coracoac-

romial ligament softened when a rotator cuff tear was

present. This softening of the ligament might be related

to spontaneous pain relief often observed in the natural

history of rotator cuff tears, because ligaments in cases of

asymptomatic cuff tear are softer than ligaments in cases

of symptomatic cuff tear.

Ultrasound elastography, which was developed in

1991, can noninvasively quantify the strain of objects

[12]. Ultrasound elastography detects displacements of

organization when static pressure is applied. In other

H. KIJIMA ET AL.

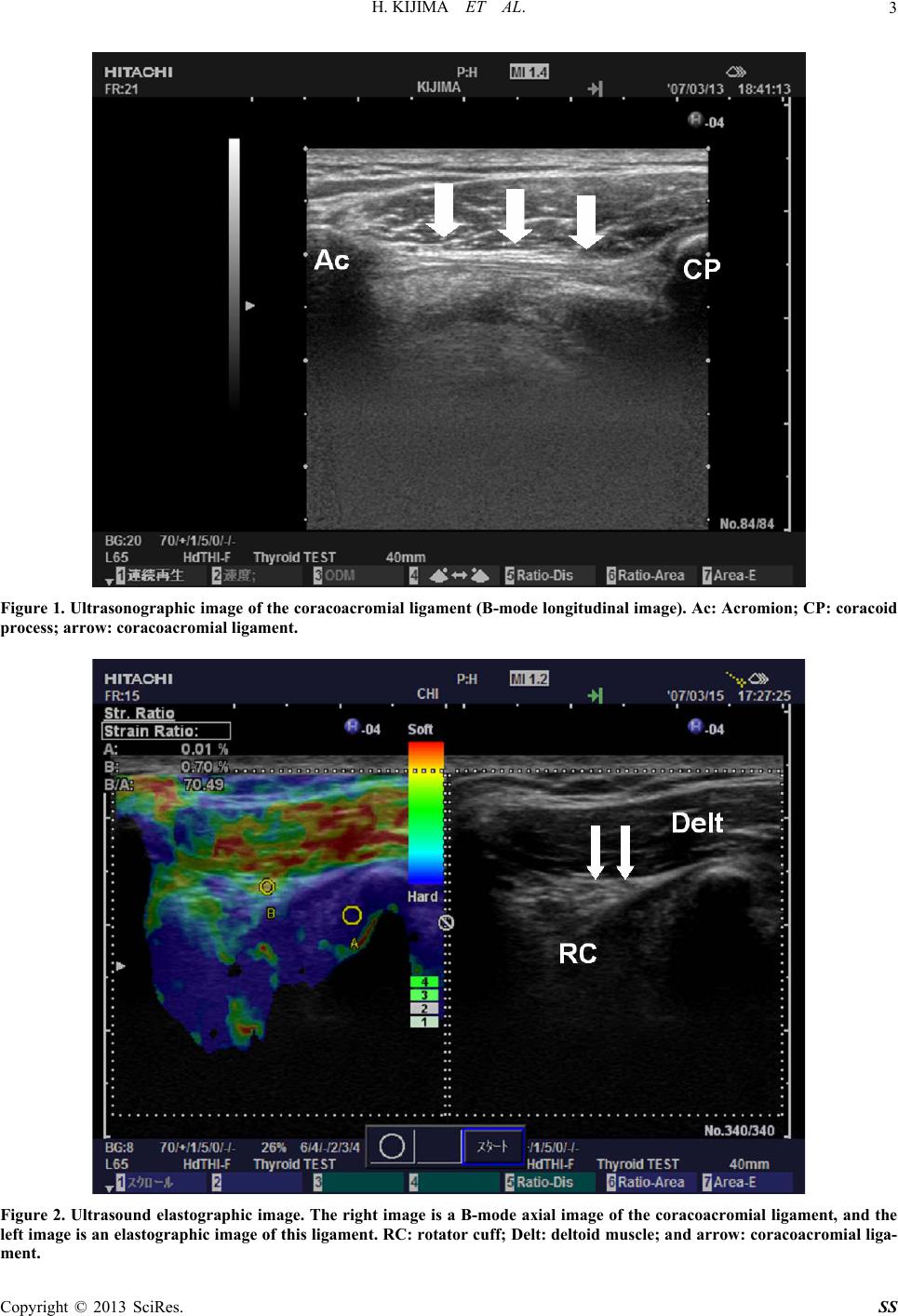

Figure 1. Ultrasonographic image of the coracoacromial ligament (B-mode longitudinal image). Ac: Acromion; CP: coracoid

process; arrow: coracoacromial ligament.

Figure 2. Ultrasound elastographic image. The right image is a B-mode axial image of the coracoacromial ligament, and the

left image is an elastographic image of this ligament. RC: rotator cuff; Delt: deltoid muscle; and arrow: coracoacromial liga-

ment.

H. KIJIMA ET AL.

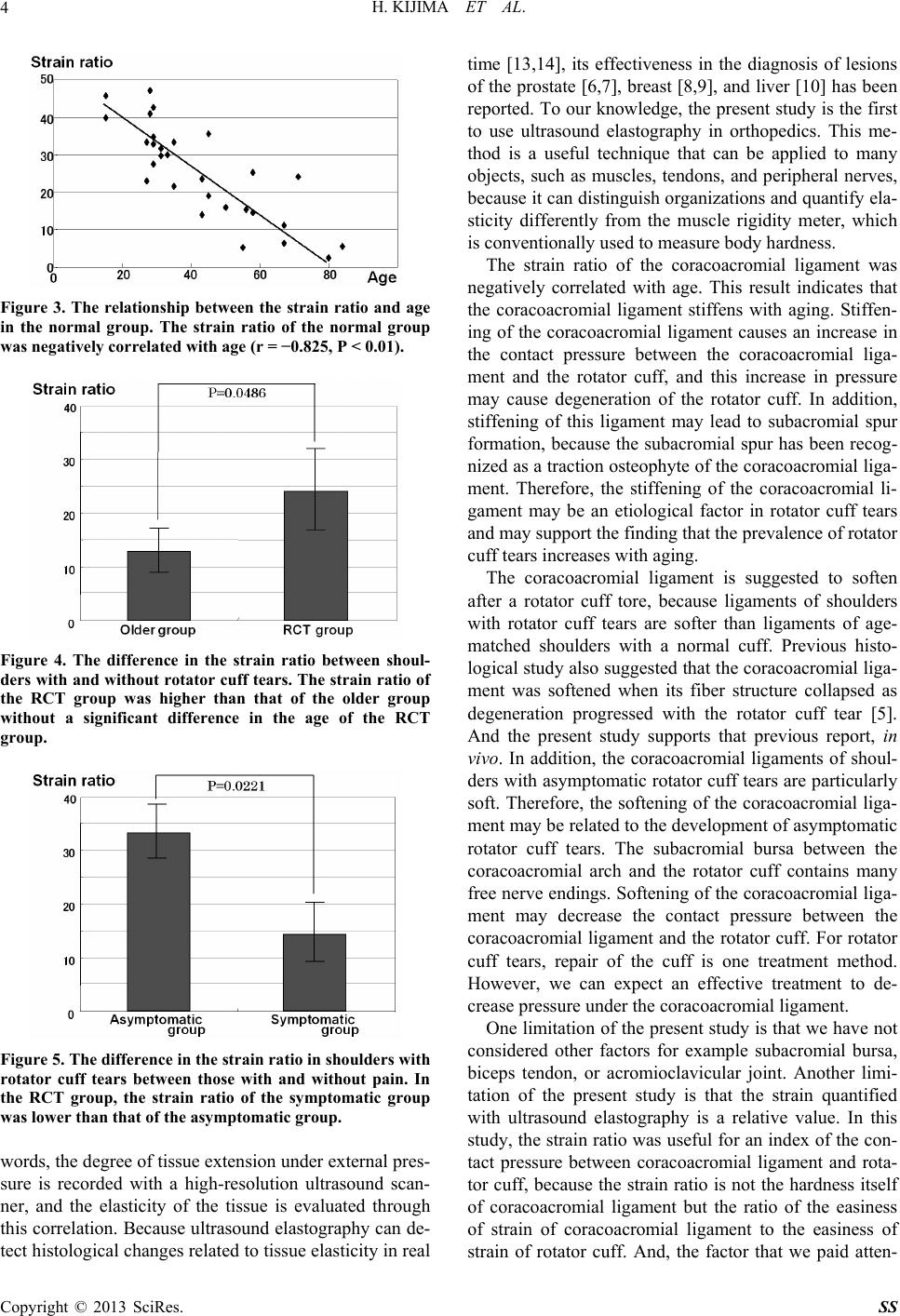

Figure 3. The relationship between the strain ratio and age

in the normal group. The strain ratio of the normal group

was negatively correlated with age (r = −0.825, P < 0.01).

Figure 4. The difference in the strain ratio between shoul-

ders with and without rotator cuff tears. The strain ratio of

the RCT group was higher than that of the older group

without a significant difference in the age of the RCT

group.

Figure 5. The difference in the strain ratio in shoulders with

rotator cuff tears between those with and without pain. In

the RCT group, the strain ratio of the symptomatic group

was lower than that of the asymptomatic group.

words, the degree of tissue extension under external pres-

sure is recorded with a high-resolution ultrasound scan-

ner, and the elasticity of the tissue is evaluated through

this correlation. Because ultrasound elastography can de-

tect histological changes related to tissue elasticity in real

time [13,14], its effectiveness in the diagnosis of lesions

of the prostate [6,7], breast [8,9], and liver [10] has been

reported. To our knowledge, the present study is the first

to use ultrasound elastography in orthopedics. This me-

thod is a useful technique that can be applied to many

objects, such as muscles, tendons, and peripheral nerves,

because it can distinguish organizations and quantify ela-

sticity differently from the muscle rigidity meter, which

is conventionally used to measure body hardness.

The strain ratio of the coracoacromial ligament was

negatively correlated with age. This result indicates that

the coracoacromial ligament stiffens with aging. Stiffen-

ing of the coracoacromial ligament causes an increase in

the contact pressure between the coracoacromial liga-

ment and the rotator cuff, and this increase in pressure

may cause degeneration of the rotator cuff. In addition,

stiffening of this ligament may lead to subacromial spur

formation, because the subacromial spur has been recog-

nized as a traction osteophyte of the coracoacromial liga-

ment. Therefore, the stiffening of the coracoacromial li-

gament may be an etiological factor in rotator cuff tears

and may support the finding that the prevalence of rotator

cuff tears increases with aging.

The coracoacromial ligament is suggested to soften

after a rotator cuff tore, because ligaments of shoulders

with rotator cuff tears are softer than ligaments of age-

matched shoulders with a normal cuff. Previous histo-

logical study also suggested that the coracoacromial liga-

ment was softened when its fiber structure collapsed as

degeneration progressed with the rotator cuff tear [5].

And the present study supports that previous report, in

vivo. In addition, the coracoacromial ligaments of shoul-

ders with asymptomatic rotator cuff tears are particularly

soft. Therefore, the softening of the coracoacromial liga-

ment may be related to the development of asymptomatic

rotator cuff tears. The subacromial bursa between the

coracoacromial arch and the rotator cuff contains many

free nerve endings. Softening of the coracoacromial liga-

ment may decrease the contact pressure between the

coracoacromial ligament and the rotator cuff. For rotator

cuff tears, repair of the cuff is one treatment method.

However, we can expect an effective treatment to de-

crease pressure under the coracoacromial ligament.

One limitation of the present study is that we have not

considered other factors for example subacromial bursa,

biceps tendon, or acromioclavicular joint. Another limi-

tation of the present study is that the strain quantified

with ultrasound elastography is a relative value. In this

study, the strain ratio was useful for an index of the con-

tact pressure between coracoacromial ligament and rota-

tor cuff, because the strain ratio is not the hardness itself

of coracoacromial ligament but the ratio of the easiness

of strain of coracoacromial ligament to the easiness of

strain of rotator cuff. And, the factor that we paid atten-

H. KIJIMA ET AL. 5

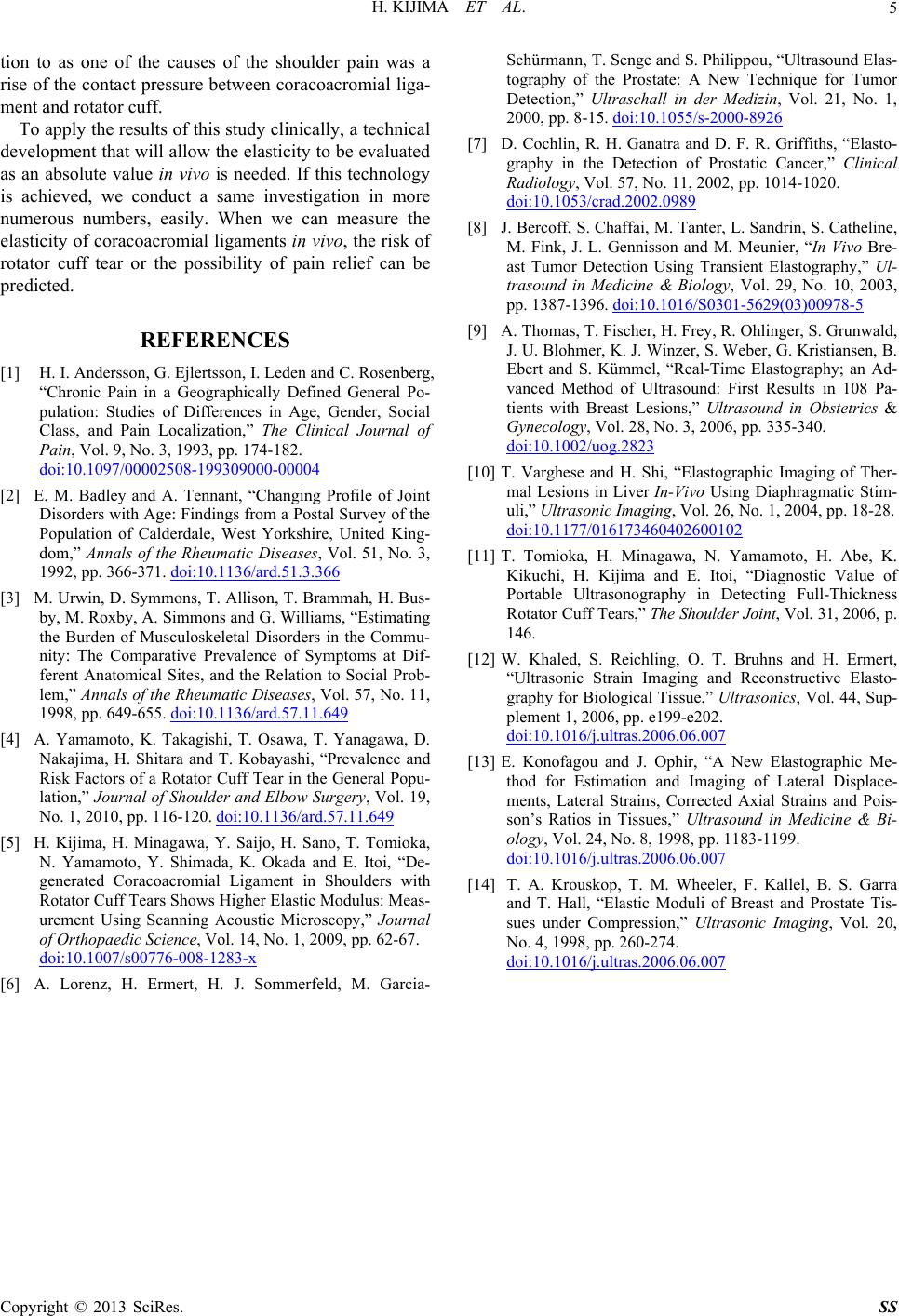

tion to as one of the causes of the shoulder pain was a

rise of the contact pressure between coracoacromial liga-

ment and rotator cuff.

To apply the results of this study clinically, a technical

development that will allow the elasticity to be evaluated

as an absolute value in vivo is needed. If this technology

is achieved, we conduct a same investigation in more

numerous numbers, easily. When we can measure the

elasticity of coracoacromial ligaments in vivo, the risk of

rotator cuff tear or the possibility of pain relief can be

predicted.

REFERENCES

[1] H. I. Andersson, G. Ejlertsson, I. Leden and C. Rosenberg,

“Chronic Pain in a Geographically Defined General Po-

pulation: Studies of Differences in Age, Gender, Social

Class, and Pain Localization,” The Clinical Journal of

Pain, Vol. 9, No. 3, 1993, pp. 174-182.

doi:10.1097/00002508-199309000-00004

[2] E. M. Badley and A. Tennant, “Changing Profile of Joint

Disorders with Age: Findings from a Postal Survey of the

Population of Calderdale, West Yorkshire, United King-

dom,” Annals of the Rheumatic Diseases, Vol. 51, No. 3,

1992, pp. 366-371. doi:10.1136/ard.51.3.366

[3] M. Urwin, D. Symmons, T. Allison, T. Brammah, H. Bus-

by, M. Roxby, A. Simmons and G. Williams, “Estimating

the Burden of Musculoskeletal Disorders in the Commu-

nity: The Comparative Prevalence of Symptoms at Dif-

ferent Anatomical Sites, and the Relation to Social Prob-

lem,” Annals of the Rheumatic Diseases, Vol. 57, No. 11,

1998, pp. 649-655. doi:10.1136/ard.57.11.649

[4] A. Yamamoto, K. Takagishi, T. Osawa, T. Yanagawa, D.

Nakajima, H. Shitara and T. Kobayashi, “Prevalence and

Risk Factors of a Rotator Cuff Tear in the General Popu-

lation,” Journal of Shoulder and Elbow Surgery, Vol. 19,

No. 1, 2010, pp. 116-120. doi:10.1136/ard.57.11.649

[5] H. Kijima, H. Minagawa, Y. Saijo, H. Sano, T. Tomioka,

N. Yamamoto, Y. Shimada, K. Okada and E. Itoi, “De-

generated Coracoacromial Ligament in Shoulders with

Rotator Cuff Tears Shows Higher Elastic Modulus: Meas-

urement Using Scanning Acoustic Microscopy,” Journal

of Orthopaedic Science, Vol. 14, No. 1, 2009, pp. 62-67.

doi:10.1007/s00776-008-1283-x

[6] A. Lorenz, H. Ermert, H. J. Sommerfeld, M. Garcia-

Schürmann, T. Senge and S. Philippou, “Ultrasound Elas-

tography of the Prostate: A New Technique for Tumor

Detection,” Ultraschall in der Medizin, Vol. 21, No. 1,

2000, pp. 8-15. doi:10.1055/s-2000-8926

[7] D. Cochlin, R. H. Ganatra and D. F. R. Griffiths, “Elasto-

graphy in the Detection of Prostatic Cancer,” Clinical

Radiology, Vol. 57, No. 11, 2002, pp. 1014-1020.

doi:10.1053/crad.2002.0989

[8] J. Bercoff, S. Chaffai, M. Tanter, L. Sandrin, S. Catheline,

M. Fink, J. L. Gennisson and M. Meunier, “In Vivo Bre-

ast Tumor Detection Using Transient Elastography,” Ul-

trasound in Medicine & Biology, Vol. 29, No. 10, 2003,

pp. 1387-1396. doi:10.1016/S0301-5629(03)00978-5

[9] A. Thomas, T. Fischer, H. Frey, R. Ohlinger, S. Grunwald,

J. U. Blohmer, K. J. Winzer, S. Weber, G. Kristiansen, B.

Ebert and S. Kümmel, “Real-Time Elastography; an Ad-

vanced Method of Ultrasound: First Results in 108 Pa-

tients with Breast Lesions,” Ultrasound in Obstetrics &

Gynecology, Vol. 28, No. 3, 2006, pp. 335-340.

doi:10.1002/uog.2823

[10] T. Varghese and H. Shi, “Elastographic Imaging of Ther-

mal Lesions in Liver In-Vivo Using Diaphragmatic Stim-

uli,” Ultrasonic Imaging, Vol. 26, No. 1, 2004, pp. 18-28.

doi:10.1177/016173460402600102

[11] T. Tomioka, H. Minagawa, N. Yamamoto, H. Abe, K.

Kikuchi, H. Kijima and E. Itoi, “Diagnostic Value of

Portable Ultrasonography in Detecting Full-Thickness

Rotator Cuff Tears,” The Shoulder Joint, Vol. 31, 2006, p.

146.

[12] W. Khaled, S. Reichling, O. T. Bruhns and H. Ermert,

“Ultrasonic Strain Imaging and Reconstructive Elasto-

graphy for Biological Tissue,” Ultrasonics, Vol. 44, Sup-

plement 1, 2006, pp. e199-e202.

doi:10.1016/j.ultras.2006.06.007

[13] E. Konofagou and J. Ophir, “A New Elastographic Me-

thod for Estimation and Imaging of Lateral Displace-

ments, Lateral Strains, Corrected Axial Strains and Pois-

son’s Ratios in Tissues,” Ultrasound in Medicine & Bi-

ology, Vol. 24, No. 8, 1998, pp. 1183-1199.

doi:10.1016/j.ultras.2006.06.007

[14] T. A. Krouskop, T. M. Wheeler, F. Kallel, B. S. Garra

and T. Hall, “Elastic Moduli of Breast and Prostate Tis-

sues under Compression,” Ultrasonic Imaging, Vol. 20,

No. 4, 1998, pp. 260-274.

doi:10.1016/j.ultras.2006.06.007
