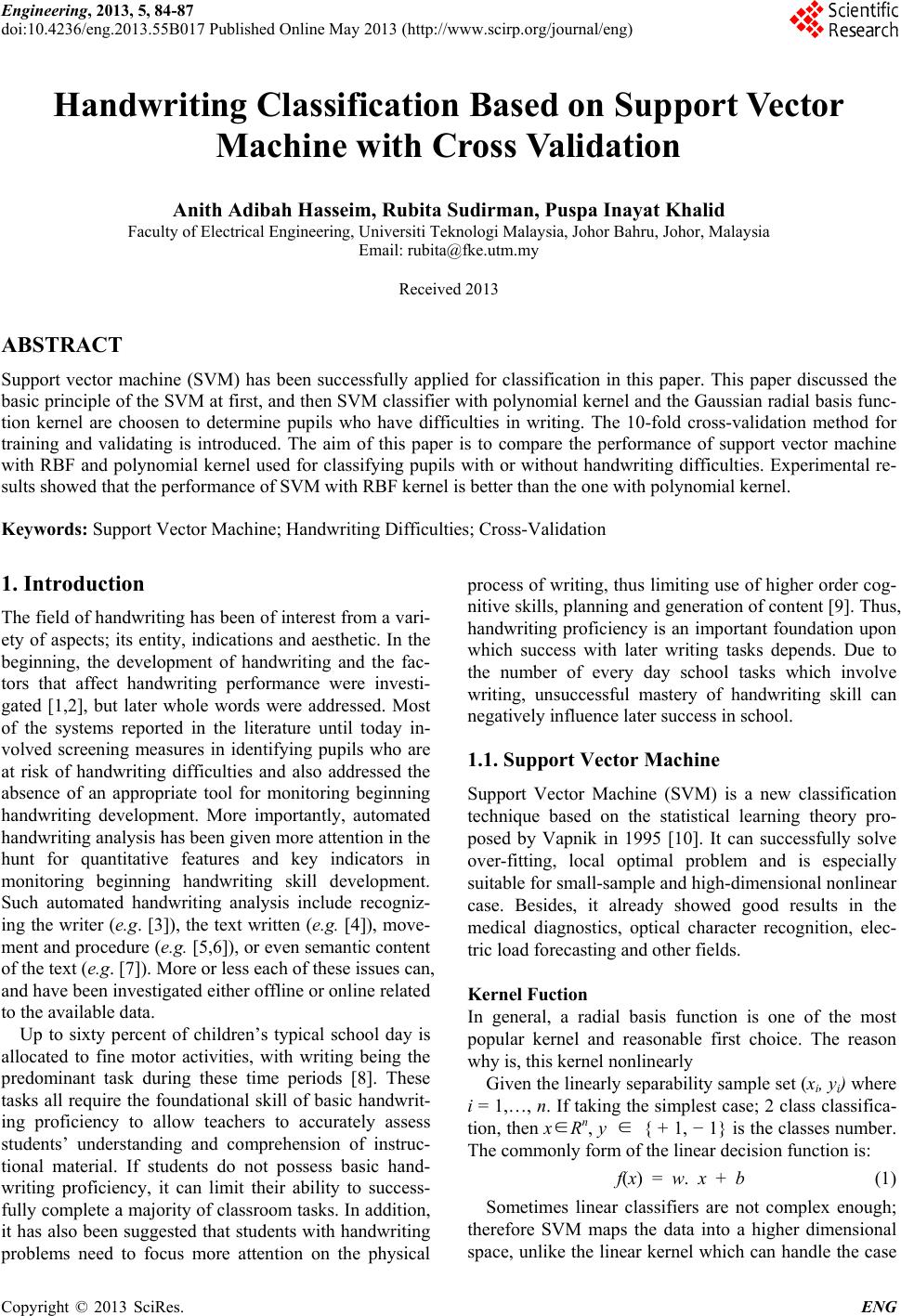

Handwriting Classification Based on Support Vector

Machine with Cross Validation

Anith Adibah Hasseim, Rubita Sudirman, Puspa Inayat Khalid

Faculty of Electrical Engineering, Universiti Teknologi Malaysia, Johor Bahru, Johor, Malaysia

Email: [email protected]

Received 2013

ABSTRACT

Support vector machine (SVM) has been successfully applied for classification in this paper. This paper discussed the

basic principle of the SVM at first, and then SVM classifier with polynomial kernel and the Gaussian radial basis func-

tion kernel are choosen to determine pupils who have difficulties in writing. The 10-fold cross-validation method for

training and validating is introduced. The aim of this paper is to compare the performance of support vector machine

with RBF and polynomial kernel used for classifying pupils with or without handwriting difficulties. Experimental re-

sults showed that the performance of SVM with RBF kernel is better than the one with polynomial kernel.

Keywords: Support Vector Machine; Handwriting Difficulties; Cross-Validation

1. Introduction

The field of handwriting has been of interest from a vari-

ety of aspects; its entity, indications and aesthetic. In the

beginning, the development of handwriting and the fac-

tors that affect handwriting performance were investi-

gated [1,2], but later whole words were addressed. Most

of the systems reported in the literature until today in-

volved screening measures in identifying pupils who are

at risk of handwriting difficulties and also addressed the

absence of an appropriate tool for monitoring beginning

handwriting development. More importantly, automated

handwriting analysis has been given more attention in the

hunt for quantitative features and key indicators in

monitoring beginning handwriting skill development.

Such automated handwriting analysis include recogniz-

ing the writer (e.g. [3]), the text written (e.g. [4]), move-

ment and procedure (e.g. [5,6]), or even semantic content

of the text (e.g. [7]). More or less each of these issues can,

and have been investigated either offline or online related

to the available data.

Up to sixty percent of children’s typical school day is

allocated to fine motor activities, with writing being the

predominant task during these time periods [8]. These

tasks all require the foundational skill of basic handwrit-

ing proficiency to allow teachers to accurately assess

students’ understanding and comprehension of instruc-

tional material. If students do not possess basic hand-

writing proficiency, it can limit their ability to success-

fully complete a majority of classroom tasks. In addition,

it has also been suggested that students with handwriting

problems need to focus more attention on the physical

process of writing, thus limiting use of higher order cog-

nitive skills, planning and generation of content [9]. Thus,

handwriting proficiency is an important foundation upon

which success with later writing tasks depends. Due to

the number of every day school tasks which involve

writing, unsuccessful mastery of handwriting skill can

negatively influence later success in school.

1.1. Support Vector Machine

Support Vector Machine (SVM) is a new classification

technique based on the statistical learning theory pro-

posed by Vapnik in 1995 [10]. It can successfully solve

over-fitting, local optimal problem and is especially

suitable for small-sample and high-dimensional nonlinear

case. Besides, it already showed good results in the

medical diagnostics, optical character recognition, elec-

tric load forecasting and other fields.

Kernel Fuction

In general, a radial basis function is one of the most

popular kernel and reasonable first choice. The reason

why is, this kernel nonlinearly

Given the linearly separability sample set (xi, yi) where

i = 1,…, n. If taking the simplest case; 2 class classifica-

tion, then x∈Rn, y ∈ { + 1, − 1} is the classes number.

The commonly form of the linear decision function is:

f(x) = w. x + b (1)

Sometimes linear classifiers are not complex enough;

therefore SVM maps the data into a higher dimensional

space, unlike the linear kernel which can handle the case

A. A. HASSEIM ET AL. 85

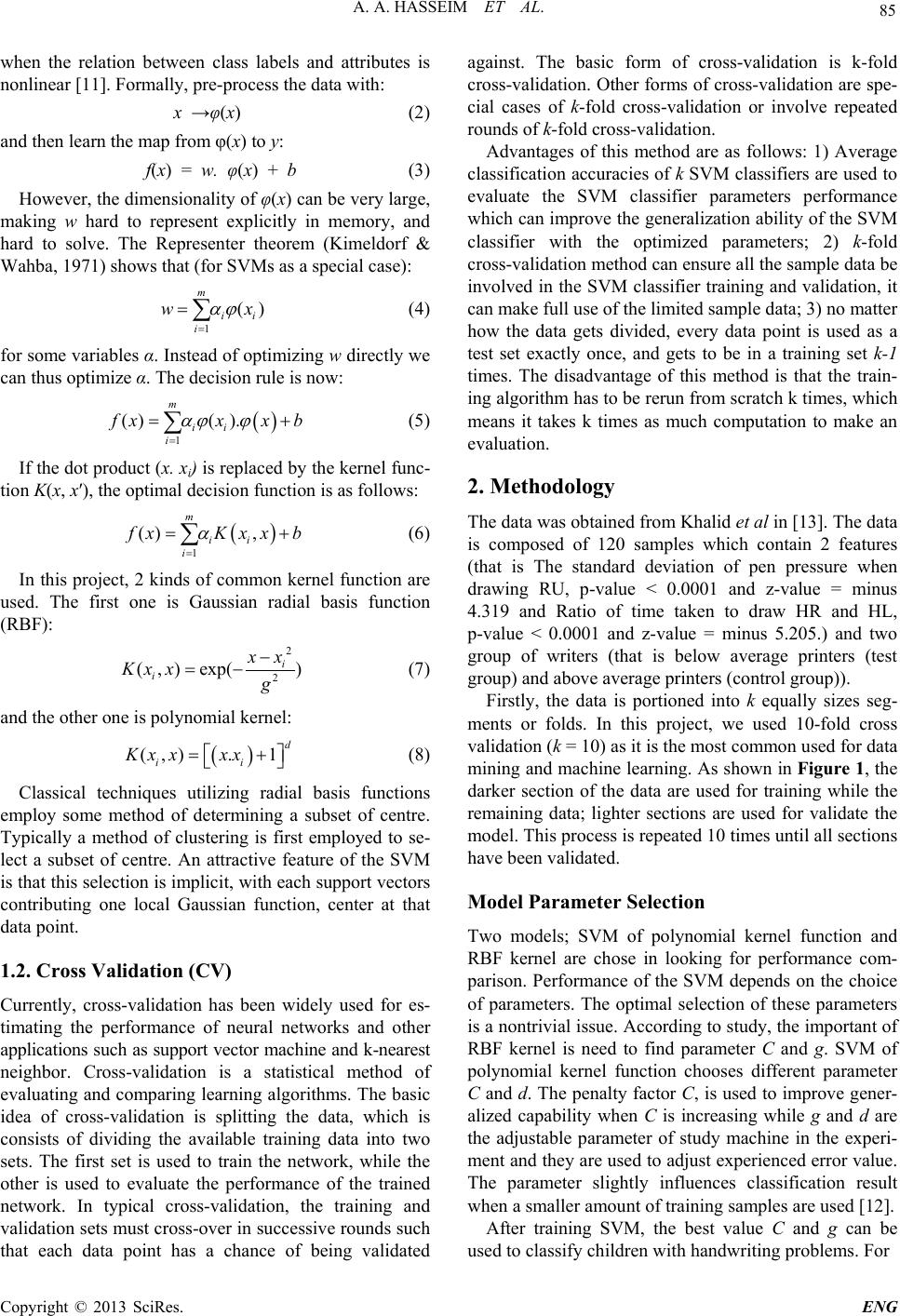

when the relation between class labels and attributes is

nonlinear [11]. Formally, pre-process the data with:

x →φ(x) (2)

and then learn the map from φ(x) to y:

f(x) = w. φ(x) + b (3)

However, the dimensionality of φ(x) can be very large,

making w hard to represent explicitly in memory, and

hard to solve. The Representer theorem (Kimeldorf &

Wahba, 1971) shows that (for SVMs as a special case):

()





 (4)

for some variables α. Instead of optimizing w directly we

can thus optimize α. The decision rule is now:



()( ).

xxx

 



b



(5)

If the dot product (x. xi) is replaced by the kernel func-

tion K(x, x′), the optimal decision function is as follows:



() ,

fxKxx b





 (6)

In this project, 2 kinds of common kernel function are

used. The first one is Gaussian radial basis function

(RBF):

(,) exp()

Kx xg



 (7)

and the other one is polynomial kernel:



(,). 1

Kx xxx









(8)

Classical techniques utilizing radial basis functions

employ some method of determining a subset of centre.

Typically a method of clustering is first employed to se-

lect a subset of centre. An attractive feature of the SVM

is that this selection is implicit, with each support vectors

contributing one local Gaussian function, center at that

data point.

1.2. Cross Validation (CV)

Currently, cross-validation has been widely used for es-

timating the performance of neural networks and other

applications such as support vector machine and k-nearest

neighbor. Cross-validation is a statistical method of

evaluating and comparing learning algorithms. The basic

idea of cross-validation is splitting the data, which is

consists of dividing the available training data into two

sets. The first set is used to train the network, while the

other is used to evaluate the performance of the trained

network. In typical cross-validation, the training and

validation sets must cross-over in successive rounds such

that each data point has a chance of being validated

against. The basic form of cross-validation is k-fold

cross-validation. Other forms of cross-validation are spe-

cial cases of k-fold cross-validation or involve repeated

rounds of k-fold cross-validation.

Advantages of this method are as follows: 1) Average

classification accuracies of k SVM classifiers are used to

evaluate the SVM classifier parameters performance

which can improve the generalization ability of the SVM

classifier with the optimized parameters; 2) k-fold

cross-validation method can ensure all the sample data be

involved in the SVM classifier training and validation, it

can make full use of the limited sample data; 3) no matter

how the data gets divided, every data point is used as a

test set exactly once, and gets to be in a training set k-1

times. The disadvantage of this method is that the train-

ing algorithm has to be rerun from scratch k times, which

means it takes k times as much computation to make an

evaluation.

2. Methodology

The data was obtained from Khalid et al in [13]. The data

is composed of 120 samples which contain 2 features

(that is The standard deviation of pen pressure when

drawing RU, p-value < 0.0001 and z-value = minus

4.319 and Ratio of time taken to draw HR and HL,

p-value < 0.0001 and z-value = minus 5.205.) and two

group of writers (that is below average printers (test

group) and above average printers (control group)).

Firstly, the data is portioned into k equally sizes seg-

ments or folds. In this project, we used 10-fold cross

validation (k = 10) as it is the most common used for data

mining and machine learning. As shown in Figure 1, the

darker section of the data are used for training while the

remaining data; lighter sections are used for validate the

model. This process is repeated 10 times until all sections

have been validated.

Model Parameter Selection

Two models; SVM of polynomial kernel function and

RBF kernel are chose in looking for performance com-

parison. Performance of the SVM depends on the choice

of parameters. The optimal selection of these parameters

is a nontrivial issue. According to study, the important of

RBF kernel is need to find parameter C and g. SVM of

polynomial kernel function chooses different parameter

C and d. The penalty factor C, is used to improve gener-

alized capability when C is increasing while g and d are

the adjustable parameter of study machine in the experi-

ment and they are used to adjust experienced error value.

The parameter slightly influences classification result

when a smaller amount of training samples are used [12].

After training SVM, the best value C and g can be

used to classify children with handwriting problems. For

A. A. HASSEIM ET AL.

Tr ain

Model

Test Test

Result

Train

Model

Test

Result

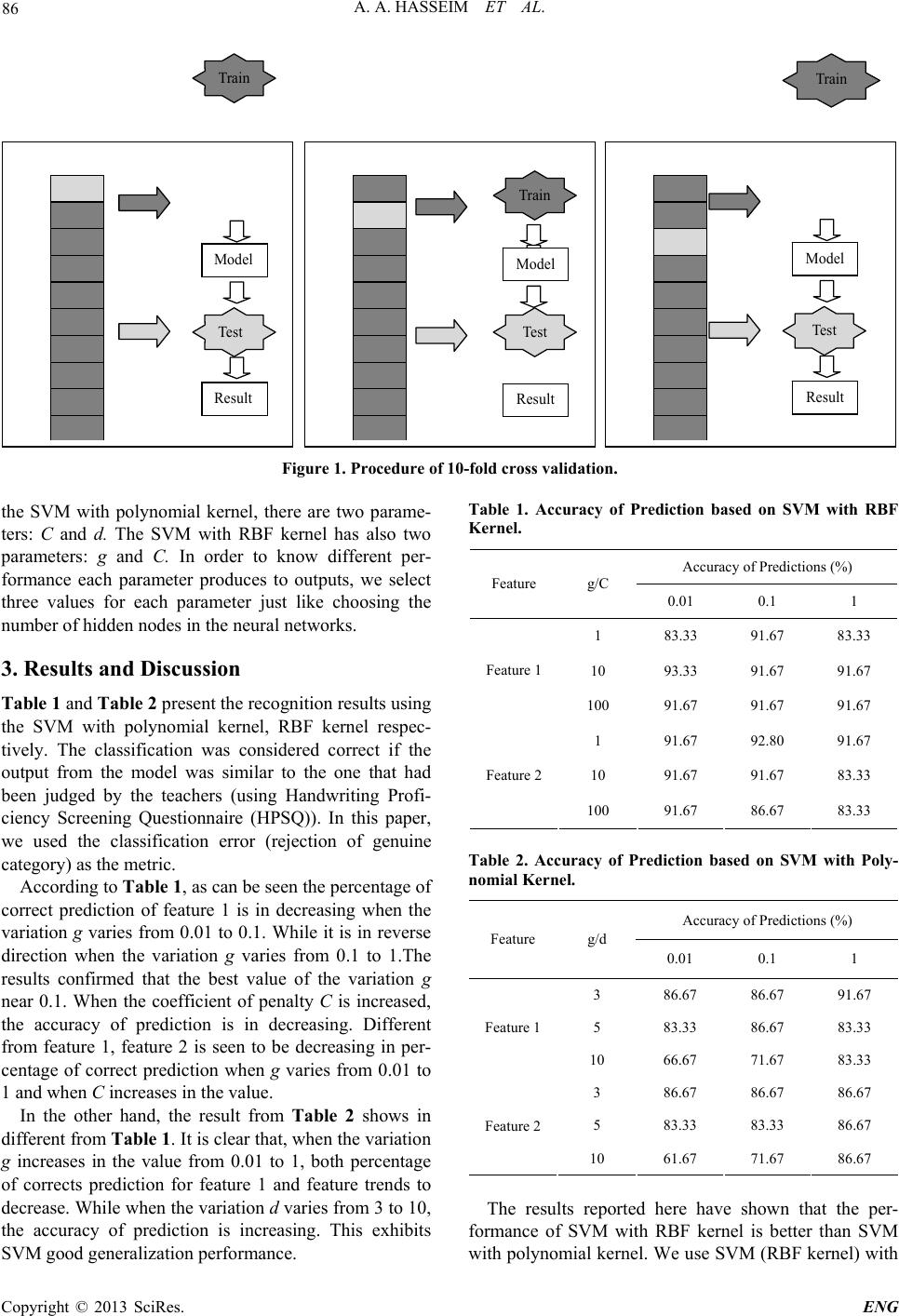

Figure 1. Procedure of 10-fold cross validation.

Table 1. Accuracy of Prediction based on SVM with RBF

Kernel.

the SVM with polynomial kernel, there are two parame-

ters: C and d. The SVM with RBF kernel has also two

parameters: g and C. In order to know different per-

formance each parameter produces to outputs, we select

three values for each parameter just like choosing the

number of hidden nodes in the neural networks.

Accuracy of Predictions (%)

Feature g/C

0.01 0.1 1

1 83.33 91.67 83.33

10 93.33 91.67 91.67

Feature 1

100 91.67 91.67 91.67

1 91.67 92.80 91.67

10 91.67 91.67 83.33

Feature 2

100 91.67 86.67 83.33

3. Results and Discussion

Table 1 and Table 2 present the recognition results using

the SVM with polynomial kernel, RBF kernel respec-

tively. The classification was considered correct if the

output from the model was similar to the one that had

been judged by the teachers (using Handwriting Profi-

ciency Screening Questionnaire (HPSQ)). In this paper,

we used the classification error (rejection of genuine

category) as the metric.

Table 2. Accuracy of Prediction based on SVM with Poly-

nomial Kernel.

According to Table 1, as can be seen the percentage of

correct prediction of feature 1 is in decreasing when the

variation g varies from 0.01 to 0.1. While it is in reverse

direction when the variation g varies from 0.1 to 1.The

results confirmed that the best value of the variation g

near 0.1. When the coefficient of penalty C is increased,

the accuracy of prediction is in decreasing. Different

from feature 1, feature 2 is seen to be decreasing in per-

centage of correct prediction when g varies from 0.01 to

1 and when C increases in the value.

Accuracy of Predictions (%)

Feature g/d

0.01 0.1 1

3 86.67 86.67 91.67

5 83.33 86.67 83.33

Feature 1

10 66.67 71.67 83.33

3 86.67 86.67 86.67

5 83.33 83.33 86.67

Feature 2

10 61.67 71.67 86.67

In the other hand, the result from Table 2 shows in

different from Table 1. It is clear that, when the variation

g increases in the value from 0.01 to 1, both percentage

of corrects prediction for feature 1 and feature trends to

decrease. While when the variation d varies from 3 to 10,

the accuracy of prediction is increasing. This exhibits

SVM good generalization performance.

The results reported here have shown that the per-

formance of SVM with RBF kernel is better than SVM

with polynomial kernel. We use SVM (RBF kernel) with

A. A. HASSEIM ET AL. 87

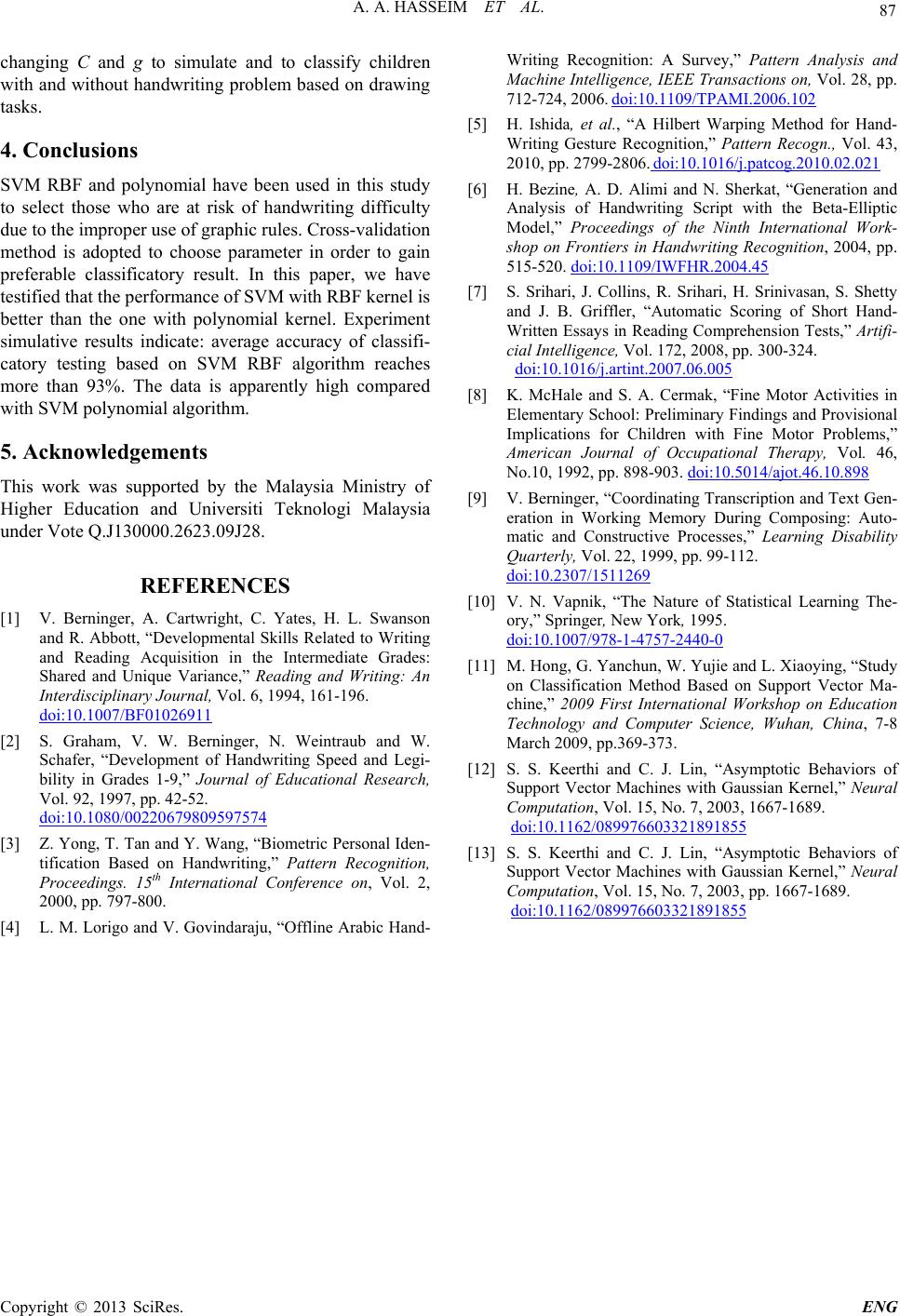

changing C and g to simulate and to classify children

with and without handwriting problem based on drawing

tasks.

4. Conclusions

SVM RBF and polynomial have been used in this study

to select those who are at risk of handwriting difficulty

due to the improper use of graphic rules. Cross-validation

method is adopted to choose parameter in order to gain

preferable classificatory result. In this paper, we have

testified that the performance of SVM with RBF kernel is

better than the one with polynomial kernel. Experiment

simulative results indicate: average accuracy of classifi-

catory testing based on SVM RBF algorithm reaches

more than 93%. The data is apparently high compared

with SVM polynomial algorithm.

5. Acknowledgements

This work was supported by the Malaysia Ministry of

Higher Education and Universiti Teknologi Malaysia

under Vote Q.J130000.2623.09J28.

REFERENCES

[1] V. Berninger, A. Cartwright, C. Yates, H. L. Swanson

and R. Abbott, “Developmental Skills Related to Writing

and Reading Acquisition in the Intermediate Grades:

Shared and Unique Variance,” Reading and Writing: An

Interdisciplinary Journal, Vol. 6, 1994, 161-196.

doi:10.1007/BF01026911

[2] S. Graham, V. W. Berninger, N. Weintraub and W.

Schafer, “Development of Handwriting Speed and Legi-

bility in Grades 1-9,” Journal of Educational Research,

Vol. 92, 1997, pp. 42-52.

doi:10.1080/00220679809597574

[3] Z. Yong, T. Tan and Y. Wang, “Biometric Personal Iden-

tification Based on Handwriting,” Pattern Recognition,

Proceedings. 15th International Conference on, Vol. 2,

2000, pp. 797-800.

[4] L. M. Lorigo and V. Govindaraju, “Offline Arabic Hand-

Writing Recognition: A Survey,” Pattern Analysis and

Machine Intelligence, IEEE Transactions on, Vol. 28, pp.

712-724, 2006. doi:10.1109/TPAMI.2006.102

[5] H. Ishida, et al., “A Hilbert Warping Method for Hand-

Writing Gesture Recognition,” Pattern Recogn., Vol. 43,

2010, pp. 2799-2806. doi:10.1016/j.patcog.2010.02.021

[6] H. Bezine, A. D. Alimi and N. Sherkat, “Generation and

Analysis of Handwriting Script with the Beta-Elliptic

Model,” Proceedings of the Ninth International Work-

shop on Frontiers in Handwriting Recognition, 2004, pp.

515-520. doi:10.1109/IWFHR.2004.45

[7] S. Srihari, J. Collins, R. Srihari, H. Srinivasan, S. Shetty

and J. B. Griffler, “Automatic Scoring of Short Hand-

Written Essays in Reading Comprehension Tests,” Artifi-

cial Intelligence, Vol. 172, 2008, pp. 300-324.

doi:10.1016/j.artint.2007.06.005

[8] K. McHale and S. A. Cermak, “Fine Motor Activities in

Elementary School: Preliminary Findings and Provisional

Implications for Children with Fine Motor Problems,”

American Journal of Occupational Therapy, Vol. 46,

No.10, 1992, pp. 898-903. doi:10.5014/ajot.46.10.898

[9] V. Berninger, “Coordinating Transcription and Text Gen-

eration in Working Memory During Composing: Auto-

matic and Constructive Processes,” Learning Disability

Quarterly, Vol. 22, 1999, pp. 99-112.

doi:10.2307/1511269

[10] V. N. Vapnik, “The Nature of Statistical Learning The-

ory,” Springer, New York, 1995.

doi:10.1007/978-1-4757-2440-0

[11] M. Hong, G. Yanchun, W. Yujie and L. Xiaoying, “Study

on Classification Method Based on Support Vector Ma-

chine,” 2009 First International Workshop on Education

Technology and Computer Science, Wuhan, China, 7-8

March 2009, pp.369-373.

[12] S. S. Keerthi and C. J. Lin, “Asymptotic Behaviors of

Support Vector Machines with Gaussian Kernel,” Neural

Computation, Vol. 15, No. 7, 2003, 1667-1689.

doi:10.1162/089976603321891855

[13] S. S. Keerthi and C. J. Lin, “Asymptotic Behaviors of

Support Vector Machines with Gaussian Kernel,” Neural

Computation, Vol. 15, No. 7, 2003, pp. 1667-1689.

doi:10.1162/089976603321891855
