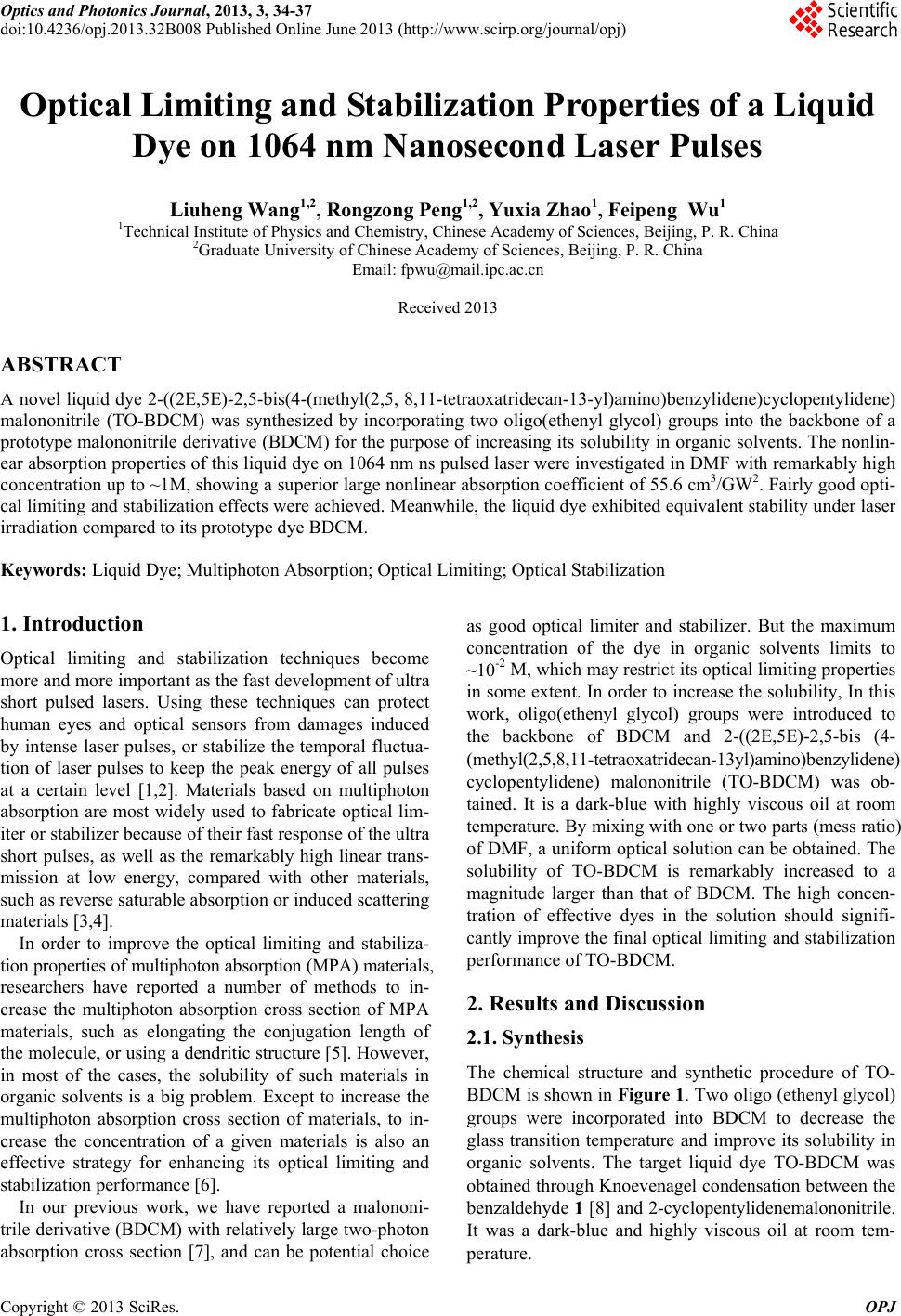

Optics and Photonics Journal, 2013, 3, 34-37

doi:10.4236/opj.2013.32B008 Published Online June 2013 (http://www.scirp.org/journal/opj)

Optical Limiting and Stabilization Properties of a Liquid

Dye on 1064 nm Nanosecond Laser Pulses

Liuheng Wang1,2, Rongzong Peng1,2, Yuxia Zhao1, Feipeng Wu1

1Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing, P. R. China

2Graduate University of Chinese Academy of Sciences, Beijing, P. R. China

Email: [email protected]

Received 2013

ABSTRACT

A novel liquid dye 2-((2E,5E)-2,5-bis(4-(methyl(2,5, 8,11-tetraoxatridecan-13-yl)amino)benzylidene)cyclopentylidene)

malononitrile (TO-BDCM) was synthesized by incorporating two oligo(ethenyl glycol) groups into the backbone of a

prototype malononitrile derivative (BDCM) for the purpose of increasing its solubility in organic solvents. The nonlin-

ear absorption properties of this liquid dye on 1064 nm ns pulsed laser were investigated in DMF with remarkably high

concentration up to ~1M, showing a superior large nonlinear absorption coefficient of 55.6 cm3/GW2. Fairly good opti-

cal limiting and stabilization effects were achieved. Meanwhile, the liquid dye exhibited equivalent stability under laser

irradiation compared to its prototype dye BDCM.

Keywords: Liquid Dye; Multiphoton Absorption; Optical Limiting; Optical Stabilization

1. Introduction

Optical limiting and stabilization techniques become

more and more important as the fast development of ultra

short pulsed lasers. Using these techniques can protect

human eyes and optical sensors from damages induced

by intense laser pulses, or stabilize the temporal fluctua-

tion of laser pulses to keep the peak energy of all pulses

at a certain level [1,2]. Materials based on multiphoton

absorption are most widely used to fabricate optical lim-

iter or stabilizer because of their fast response of the ultra

short pulses, as well as the remarkably high linear trans-

mission at low energy, compared with other materials,

such as reverse saturable absorption or induced scattering

materials [3,4].

In order to improve the optical limiting and stabiliza-

tion properties of multiphoton absorption (MPA) materials,

researchers have reported a number of methods to in-

crease the multiphoton absorption cross section of MPA

materials, such as elongating the conjugation length of

the molecule, or using a dendritic structure [5]. However,

in most of the cases, the solubility of such materials in

organic solvents is a big problem. Except to increase the

multiphoton absorption cross section of materials, to in-

crease the concentration of a given materials is also an

effective strategy for enhancing its optical limiting and

stabilization performance [6].

In our previous work, we have reported a malononi-

trile derivative (BDCM) with relatively large two-photon

absorption cross section [7], and can be potential choice

as good optical limiter and stabilizer. But the maximum

concentration of the dye in organic solvents limits to

~10-2 M, which may restrict its optical limiting properties

in some extent. In order to increase the solubility, In this

work, oligo(ethenyl glycol) groups were introduced to

the backbone of BDCM and 2-((2E,5E)-2,5-bis (4-

(methyl(2,5,8,11-tetraoxatridecan-13yl)amino)benzylidene)

cyclopentylidene) malononitrile (TO-BDCM) was ob-

tained. It is a dark-blue with highly viscous oil at room

temperature. By mixing with one or two parts (mess ratio)

of DMF, a uniform optical solution can be obtained. The

solubility of TO-BDCM is remarkably increased to a

magnitude larger than that of BDCM. The high concen-

tration of effective dyes in the solution should signifi-

cantly improve the final optical limiting and stabilization

performance of TO-BDCM.

2. Results and Discussion

2.1. Synthesis

The chemical structure and synthetic procedure of TO-

BDCM is shown in Figure 1. Two oligo (ethenyl glycol)

groups were incorporated into BDCM to decrease the

glass transition temperature and improve its solubility in

organic solvents. The target liquid dye TO-BDCM was

obtained through Knoevenagel condensation between the

benzaldehyde 1 [8] and 2-cyclopentylidenemalononitrile.

It was a dark-blue and highly viscous oil at room tem-

perature.

L. H. WANG ET AL. 35

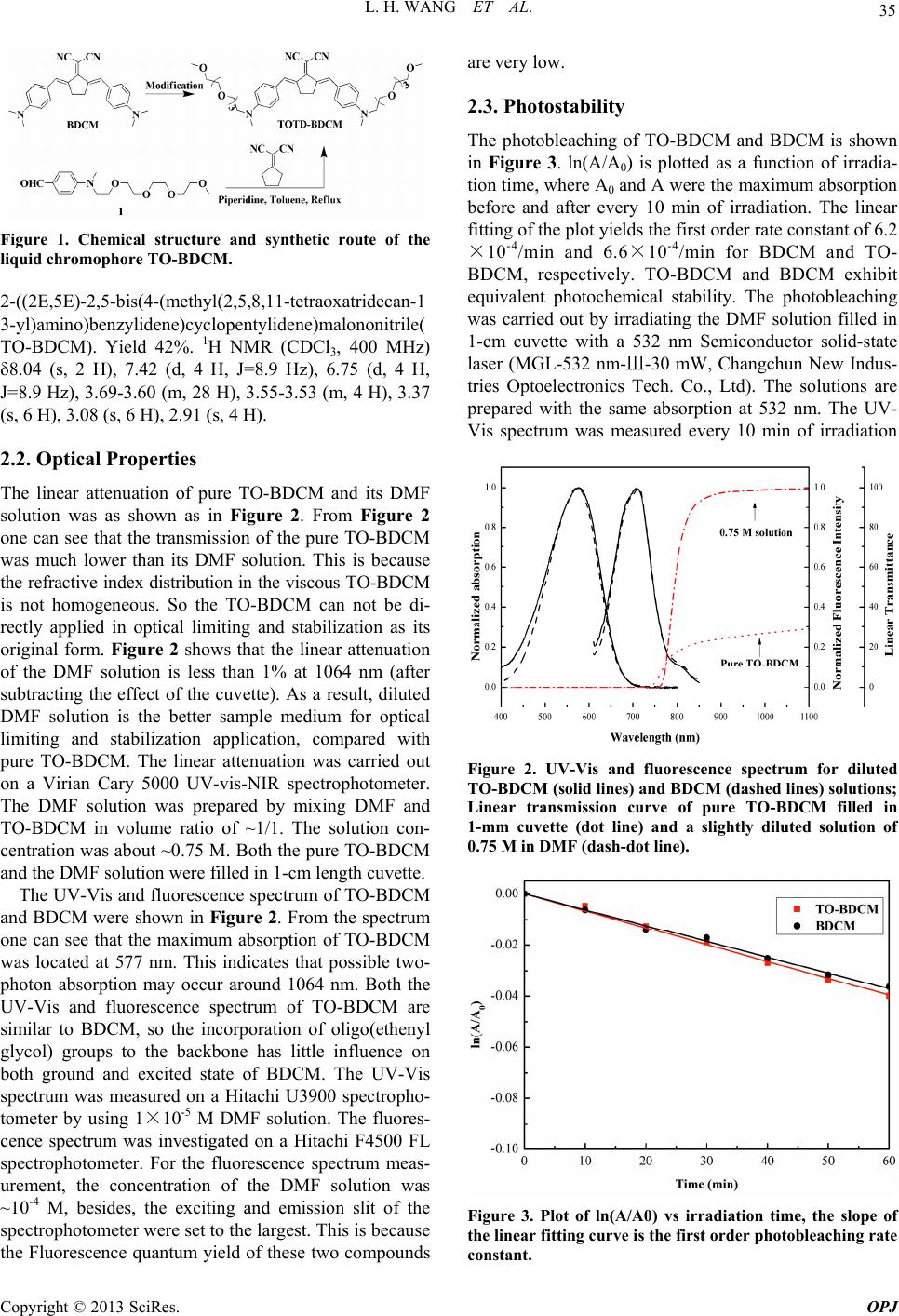

Figure 1. Chemical structure and synthetic route of the

liquid chromophore TO-BDCM.

2-((2E,5E)-2,5-bis(4-(methyl(2,5,8,11-tetraoxatridecan-1

3-yl)amino)benzylidene)cyclopentylidene)malononitrile(

TO-BDCM). Yield 42%. 1H NMR (CDCl3, 400 MHz)

δ8.04 (s, 2 H), 7.42 (d, 4 H, J=8.9 Hz), 6.75 (d, 4 H,

J=8.9 Hz), 3.69-3.60 (m, 28 H), 3.55-3.53 (m, 4 H), 3.37

(s, 6 H), 3.08 (s, 6 H), 2.91 (s, 4 H).

2.2. Optical Properties

The linear attenuation of pure TO-BDCM and its DMF

solution was as shown as in Figure 2. From Figure 2

one can see that the transmission of the pure TO-BDCM

was much lower than its DMF solution. This is because

the refractive index distribution in the viscous TO-BDCM

is not homogeneous. So the TO-BDCM can not be di-

rectly applied in optical limiting and stabilization as its

original form. Figure 2 shows that the linear attenuation

of the DMF solution is less than 1% at 1064 nm (after

subtracting the effect of the cuvette). As a result, diluted

DMF solution is the better sample medium for optical

limiting and stabilization application, compared with

pure TO-BDCM. The linear attenuation was carried out

on a Virian Cary 5000 UV-vis-NIR spectrophotometer.

The DMF solution was prepared by mixing DMF and

TO-BDCM in volume ratio of ~1/1. The solution con-

centration was about ~0.75 M. Both the pure TO-BDCM

and the DMF solution were filled in 1-cm length cuvette.

The UV-Vis and fluorescence spectrum of TO-BDCM

and BDCM were shown in Figure 2. From the spectrum

one can see that the maximum absorption of TO-BDCM

was located at 577 nm. This indicates that possible two-

photon absorption may occur around 1064 nm. Both the

UV-Vis and fluorescence spectrum of TO-BDCM are

similar to BDCM, so the incorporation of oligo(ethenyl

glycol) groups to the backbone has little influence on

both ground and excited state of BDCM. The UV-Vis

spectrum was measured on a Hitachi U3900 spectropho-

tometer by using 1×10-5 M DMF solution. The fluores-

cence spectrum was investigated on a Hitachi F4500 FL

spectrophotometer. For the fluorescence spectrum meas-

urement, the concentration of the DMF solution was

~10-4 M, besides, the exciting and emission slit of the

spectrophotometer were set to the largest. This is because

the Fluorescence quantum yield of these two compounds

are very low.

2.3. Photostability

The photobleaching of TO-BDCM and BDCM is shown

in Figure 3. ln(A/A0) is plotted as a function of irradia-

tion time, where A0 and A were the maximum absorption

before and after every 10 min of irradiation. The linear

fitting of the plot yields the first order rate constant of 6.2

×10-4/min and 6.6×10-4/min for BDCM and TO-

BDCM, respectively. TO-BDCM and BDCM exhibit

equivalent photochemical stability. The photobleaching

was carried out by irradiating the DMF solution filled in

1-cm cuvette with a 532 nm Semiconductor solid-state

laser (MGL-532 nm-Ⅲ-30 mW, Changchun New Indus-

tries Optoelectronics Tech. Co., Ltd). The solutions are

prepared with the same absorption at 532 nm. The UV-

Vis spectrum was measured every 10 min of irradiation

Figure 2. UV-Vis and fluorescence spectrum for diluted

TO-BDCM (solid lines) and BDCM (dashed lines) solutions;

Linear transmission curve of pure TO-BDCM filled in

1-mm cuvette (dot line) and a slightly diluted solution of

0.75 M in DMF (dash-dot line).

Figure 3. Plot of ln(A/A0) vs irradiation time, the slope of

the linear fitting curve is the first order photobleaching rate

constant.

L. H. WANG ET AL.

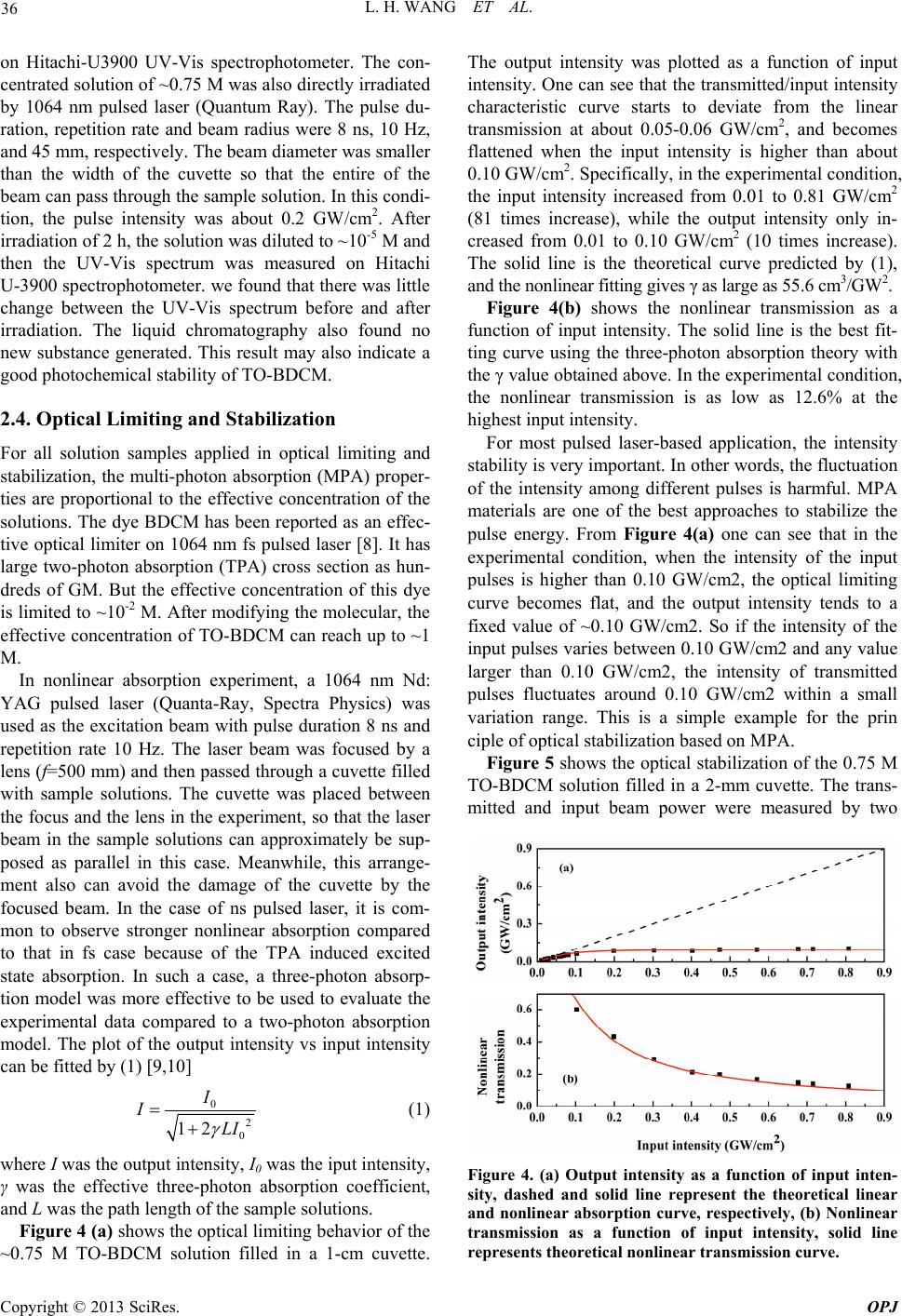

on Hitachi-U3900 UV-Vis spectrophotometer. The con-

centrated solution of ~0.75 M was also directly irradiated

by 1064 nm pulsed laser (Quantum Ray). The pulse du-

ration, repetition rate and beam radius were 8 ns, 10 Hz,

and 45 mm, respectively. The beam diameter was smaller

than the width of the cuvette so that the entire of the

beam can pass through the sample solution. In this condi-

tion, the pulse intensity was about 0.2 GW/cm2. After

irradiation of 2 h, the solution was diluted to ~10-5 M and

then the UV-Vis spectrum was measured on Hitachi

U-3900 spectrophotometer. we found that there was little

change between the UV-Vis spectrum before and after

irradiation. The liquid chromatography also found no

new substance generated. This result may also indicate a

good photochemical stability of TO-BDCM.

2.4. Optical Limiting and Stabilization

For all solution samples applied in optical limiting and

stabilization, the multi-photon absorption (MPA) proper-

ties are proportional to the effective concentration of the

solutions. The dye BDCM has been reported as an effec-

tive optical limiter on 1064 nm fs pulsed laser [8]. It has

large two-photon absorption (TPA) cross section as hun-

dreds of GM. But the effective concentration of this dye

is limited to ~10-2 M. After modifying the molecular, the

effective concentration of TO-BDCM can reach up to ~1

In nonlinear absorption experiment, a 1064 nm Nd:

YAG pulsed laser (Quanta-Ray, Spectra Physics) was

used as the excitation beam with pulse duration 8 ns and

repetition rate 10 Hz. The laser beam was focused by a

lens (f=500 mm) and then passed through a cuvette filled

with sample solutions. The cuvette was placed between

the focus and the lens in the experiment, so that the laser

beam in the sample solutions can approximately be sup-

posed as parallel in this case. Meanwhile, this arrange-

ment also can avoid the damage of the cuvette by the

focused beam. In the case of ns pulsed laser, it is com-

mon to observe stronger nonlinear absorption compared

to that in fs case because of the TPA induced excited

state absorption. In such a case, a three-photon absorp-

tion model was more effective to be used to evaluate the

experimental data compared to a two-photon absorption

model. The plot of the output intensity vs input intensity

can be fitted by (1) [9,10]







(1)

where I was the output intensity, I0 was the iput intensity,

γ was the effective three-photon absorption coefficient,

and L was the path length of the sample solutions.

Figure 4 (a) shows the optical limiting behavior of the

~0.75 M TO-BDCM solution filled in a 1-cm cuvette.

The output intensity was plotted as a function of input

intensity. One can see that the transmitted/input intensity

characteristic curve starts to deviate from the linear

transmission at about 0.05-0.06 GW/cm2, and becomes

flattened when the input intensity is higher than about

0.10 GW/cm2. Specifically, in the experimental condition,

the input intensity increased from 0.01 to 0.81 GW/cm2

(81 times increase), while the output intensity only in-

creased from 0.01 to 0.10 GW/cm2 (10 times increase).

The solid line is the theoretical curve predicted by (1),

and the nonlinear fitting gives γ as large as 55.6 cm3/GW2.

Figure 4(b) shows the nonlinear transmission as a

function of input intensity. The solid line is the best fit-

ting curve using the three-photon absorption theory with

the γ value obtained above. In the experimental condition,

the nonlinear transmission is as low as 12.6% at the

highest input intensity.

For most pulsed laser-based application, the intensity

stability is very important. In other words, the fluctuation

of the intensity among different pulses is harmful. MPA

materials are one of the best approaches to stabilize the

pulse energy. From Figure 4(a) one can see that in the

experimental condition, when the intensity of the input

pulses is higher than 0.10 GW/cm2, the optical limiting

curve becomes flat, and the output intensity tends to a

fixed value of ~0.10 GW/cm2. So if the intensity of the

input pulses varies between 0.10 GW/cm2 and any value

larger than 0.10 GW/cm2, the intensity of transmitted

pulses fluctuates around 0.10 GW/cm2 within a small

variation range. This is a simple example for the prin

ciple of optical stabilization based on MPA.

Figure 5 shows the optical stabilization of the 0.75 M

TO-BDCM solution filled in a 2-mm cuvette. The trans-

mitted and input beam power were measured by two

Figure 4. (a) Output intensity as a function of input inten-

sity, dashed and solid line represent the theoretical linear

and nonlinear absorption curve, respectively, (b) Nonlinear

transmission as a function of input intensity, solid line

represents theoretical nonlinear transmission curve.

L. H. WANG ET AL.

REFERENCES

[1] G. S. He, L.-S. Tan, Q. D. Zheng and P. N. Prasad, “Mul-

tiphoton Absorbing Materials: Molecular Designs, Char-

acterizations and Applications,” Chemical Reviews, Vol.

108, No. 4, 2008, pp. 1245-1330. doi:10.1021/cr050054x

[2] L. W. Tutt and T. F. Boggess, “A Review of Optical Lim-

iting Mechanisms and Devices Using Organics, Fullere-

nes, Semiconductors and Other Materials,” Progress in

Quantum Electronics, Vol. 17, No. 4, 1993, pp. 299-338.

doi:10.1016/0079-6727(93)90004-S

[3] C. R. Giuliano and L. D. Hess, “Nonlinear Absorption of

Light: Optical Saturation of Electronic Transition in Or-

ganic Molecules with High Intensity Laser Radiation,”

IEEE Journal of Quantum Electronics, Vol. 3, No. 8,

1967, pp. 358-367. doi:10.1109/JQE.1967.1074603

[4] G. S. He, C. Weder, P. Smith and P. N. Prasad, “Optical

Limiting and Stabilization Based on A Novel Polymer

Compound,” IEEE Journal of Quantum Electronics, Vol.

34, No. 12, 1998, pp. 2279-2285. doi:10.1109/3.736090

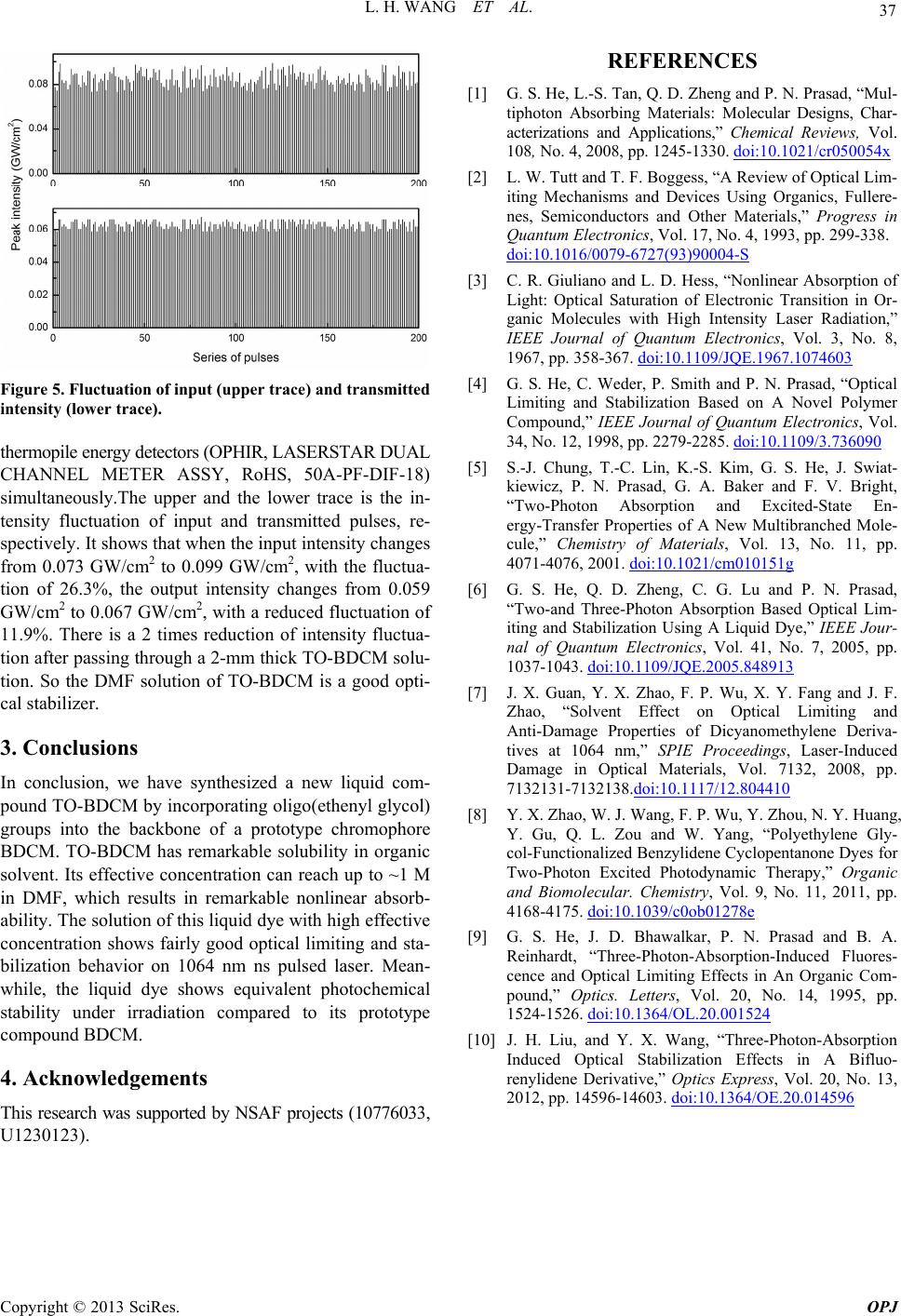

Figure 5. Fl uctuation of input (upper trace) and tr ansmitte d

intensity (lower trace).

thermopile energy detectors (OPHIR, LASERSTAR DUAL

CHANNEL METER ASSY, RoHS, 50A-PF-DIF-18)

simultaneously.The upper and the lower trace is the in-

tensity fluctuation of input and transmitted pulses, re-

spectively. It shows that when the input intensity changes

from 0.073 GW/cm2 to 0.099 GW/cm2, with the fluctua-

tion of 26.3%, the output intensity changes from 0.059

GW/cm2 to 0.067 GW/cm2, with a reduced fluctuation of

11.9%. There is a 2 times reduction of intensity fluctua-

tion after passing through a 2-mm thick TO-BDCM solu-

tion. So the DMF solution of TO-BDCM is a good opti-

cal stabilizer.

[5] S.-J. Chung, T.-C. Lin, K.-S. Kim, G. S. He, J. Swiat-

kiewicz, P. N. Prasad, G. A. Baker and F. V. Bright,

“Two-Photon Absorption and Excited-State En-

ergy-Transfer Properties of A New Multibranched Mole-

cule,” Chemistry of Materials, Vol. 13, No. 11, pp.

4071-4076, 2001. doi:10.1021/cm010151g

[6] G. S. He, Q. D. Zheng, C. G. Lu and P. N. Prasad,

“Two-and Three-Photon Absorption Based Optical Lim-

iting and Stabilization Using A Liquid Dye,” IEEE Jour-

nal of Quantum Electronics, Vol. 41, No. 7, 2005, pp.

1037-1043. doi:10.1109/JQE.2005.848913

[7] J. X. Guan, Y. X. Zhao, F. P. Wu, X. Y. Fang and J. F.

Zhao, “Solvent Effect on Optical Limiting and

Anti-Damage Properties of Dicyanomethylene Deriva-

tives at 1064 nm,” SPIE Proceedings, Laser-Induced

Damage in Optical Materials, Vol. 7132, 2008, pp.

7132131-7132138.doi:10.1117/12.804410

3. Conclusions

In conclusion, we have synthesized a new liquid com-

pound TO-BDCM by incorporating oligo(ethenyl glycol)

groups into the backbone of a prototype chromophore

BDCM. TO-BDCM has remarkable solubility in organic

solvent. Its effective concentration can reach up to ~1 M

in DMF, which results in remarkable nonlinear absorb-

ability. The solution of this liquid dye with high effective

concentration shows fairly good optical limiting and sta-

bilization behavior on 1064 nm ns pulsed laser. Mean-

while, the liquid dye shows equivalent photochemical

stability under irradiation compared to its prototype

compound BDCM.

[8] Y. X. Zhao, W. J. Wang, F. P. Wu, Y. Zhou, N. Y. Huang,

Y. Gu, Q. L. Zou and W. Yang, “Polyethylene Gly-

col-Functionalized Benzylidene Cyclopentanone Dyes for

Two-Photon Excited Photodynamic Therapy,” Organic

and Biomolecular. Chemistry, Vol. 9, No. 11, 2011, pp.

4168-4175. doi:10.1039/c0ob01278e

[9] G. S. He, J. D. Bhawalkar, P. N. Prasad and B. A.

Reinhardt, “Three-Photon-Absorption-Induced Fluores-

cence and Optical Limiting Effects in An Organic Com-

pound,” Optics. Letters, Vol. 20, No. 14, 1995, pp.

1524-1526. doi:10.1364/OL.20.001524

[10] J. H. Liu, and Y. X. Wang, “Three-Photon-Absorption

Induced Optical Stabilization Effects in A Bifluo-

renylidene Derivative,” Optics Express, Vol. 20, No. 13,

2012, pp. 14596-14603. doi:10.1364/OE.20.014596

4. Acknowledgements

This research was supported by NSAF projects (10776033,

U1230123).
