Risk Assessment for Metals and PAHs by Mediterranean Seafood

doi:10.4236/fns.2013.47A002

Paper Menu >>

Journal Menu >>

Food and Nutrition Sciences, 2013, 4, 10-13

http://dx.doi.org/10.4236/fns.2013.47A002 Published Online July 2013 (http://www.scirp.org/journal/fns)

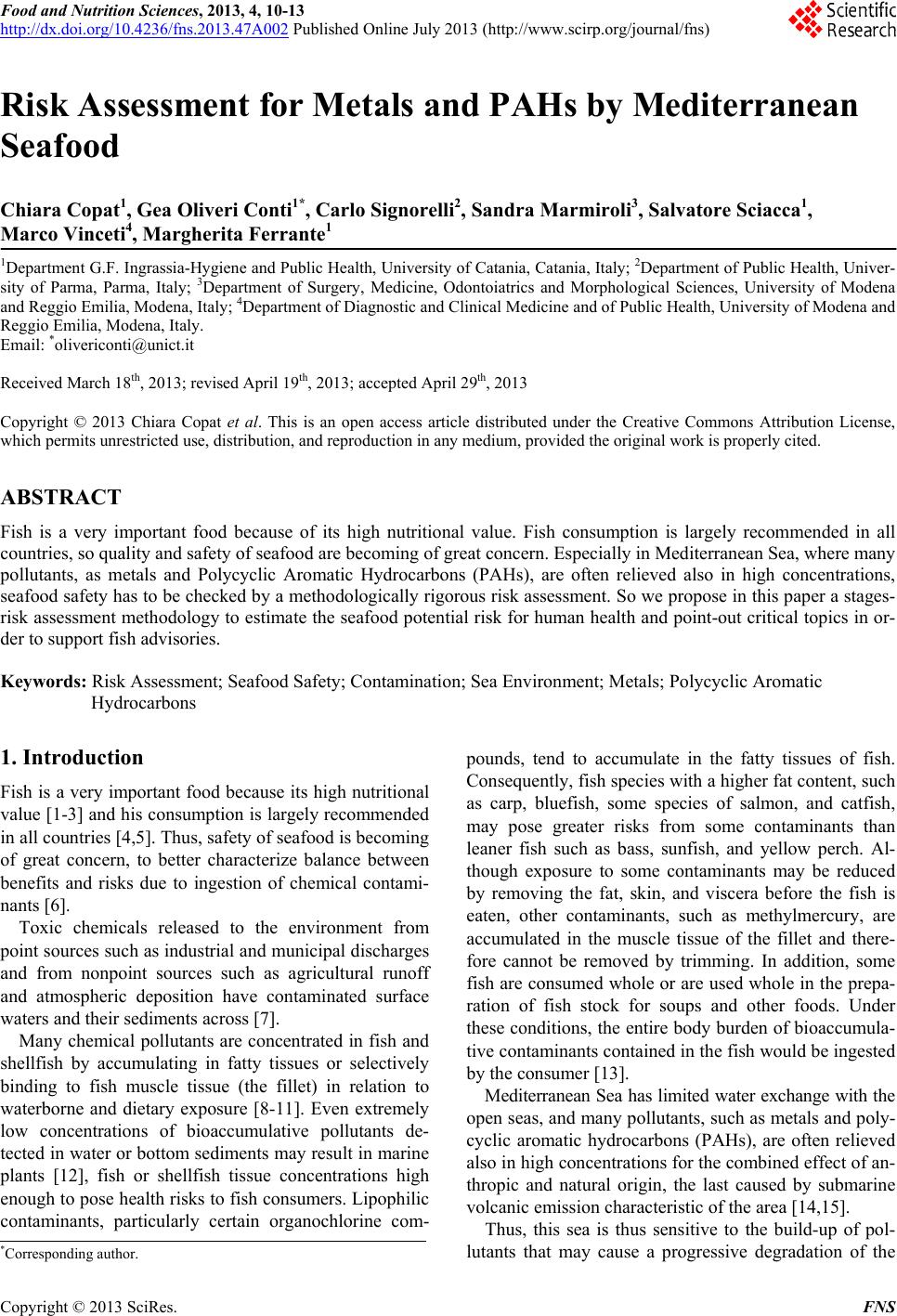

Risk Assessment for Metals and PAHs by Mediterranean

Seafood

Chiara Copat1, Gea Oliveri Conti1*, Carlo Signorelli2, Sandra Marmiroli3, Salvatore Sciacca1,

Marco Vinceti4, Margherita Ferrante1

1Department G.F. Ingrassia-Hygiene and Public Health, University of Catania, Catania, Italy; 2Department of Public Health, Univer-

sity of Parma, Parma, Italy; 3Department of Surgery, Medicine, Odontoiatrics and Morphological Sciences, University of Modena

and Reggio Emilia, Modena, Italy; 4Department of Diagnostic and Clinical Medicine and of Public Health, University of Modena and

Reggio Emilia, Modena, Italy.

Email: *[email protected]

Received March 18th, 2013; revised April 19th, 2013; accepted April 29th, 2013

which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

ABSTRACT

Fish is a very important food because of its high nutritional value. Fish consumption is largely recommended in all

countries, so quality and safety of seafood are becoming of great concern. Especially in Mediterranean Sea, where many

pollutants, as metals and Polycyclic Aromatic Hydrocarbons (PAHs), are often relieved also in high concentrations,

seafood safety has to be checked by a methodologically rigorous risk assessment. So we propose in this paper a stages-

risk assessment methodology to estimate the seafood potential risk for human health and point-out critical topics in or-

der to support fish advisories.

Keywords: Risk Assessment; Seafood Safety; Contamination; Sea Environment; Metals; Polycyclic Aromatic

Hydrocarbons

1. Introduction

Fish is a very important food because its high nutritional

value [1-3] and his consumption is largely recommended

in all countries [4,5]. Thus, safety of seafood is becoming

of great concern, to better characterize balance between

benefits and risks due to ingestion of chemical contami-

nants [6].

Toxic chemicals released to the environment from

point sources such as industrial and municipal discharges

and from nonpoint sources such as agricultural runoff

and atmospheric deposition have contaminated surface

waters and their sediments across [7].

Many chemical pollutants are concentrated in fish and

shellfish by accumulating in fatty tissues or selectively

binding to fish muscle tissue (the fillet) in relation to

waterborne and dietary exposure [8-11]. Even extremely

low concentrations of bioaccumulative pollutants de-

tected in water or bottom sediments may result in marine

plants [12], fish or shellfish tissue concentrations high

enough to pose health risks to fish consumers. Lipophilic

contaminants, particularly certain organochlorine com-

pounds, tend to accumulate in the fatty tissues of fish.

Consequently, fish species with a higher fat content, such

as carp, bluefish, some species of salmon, and catfish,

may pose greater risks from some contaminants than

leaner fish such as bass, sunfish, and yellow perch. Al-

though exposure to some contaminants may be reduced

by removing the fat, skin, and viscera before the fish is

eaten, other contaminants, such as methylmercury, are

accumulated in the muscle tissue of the fillet and there-

fore cannot be removed by trimming. In addition, some

fish are consumed whole or are used whole in the prepa-

ration of fish stock for soups and other foods. Under

these conditions, the entire body burden of bioaccumula-

tive contaminants contained in the fish would be ingested

by the consumer [13].

Mediterranean Sea has limited water exchange with the

open seas, and many pollutants, such as metals and poly-

cyclic aromatic hydrocarbons (PAHs), are often relieved

also in high concentrations for the combined effect of an-

thropic and natural origin, the last caused by submarine

volcanic emission characteristic of the area [14,15].

Thus, this sea is thus sensitive to the build-up of pol-

lutants that may cause a progressive degradation of the

*Corresponding author.

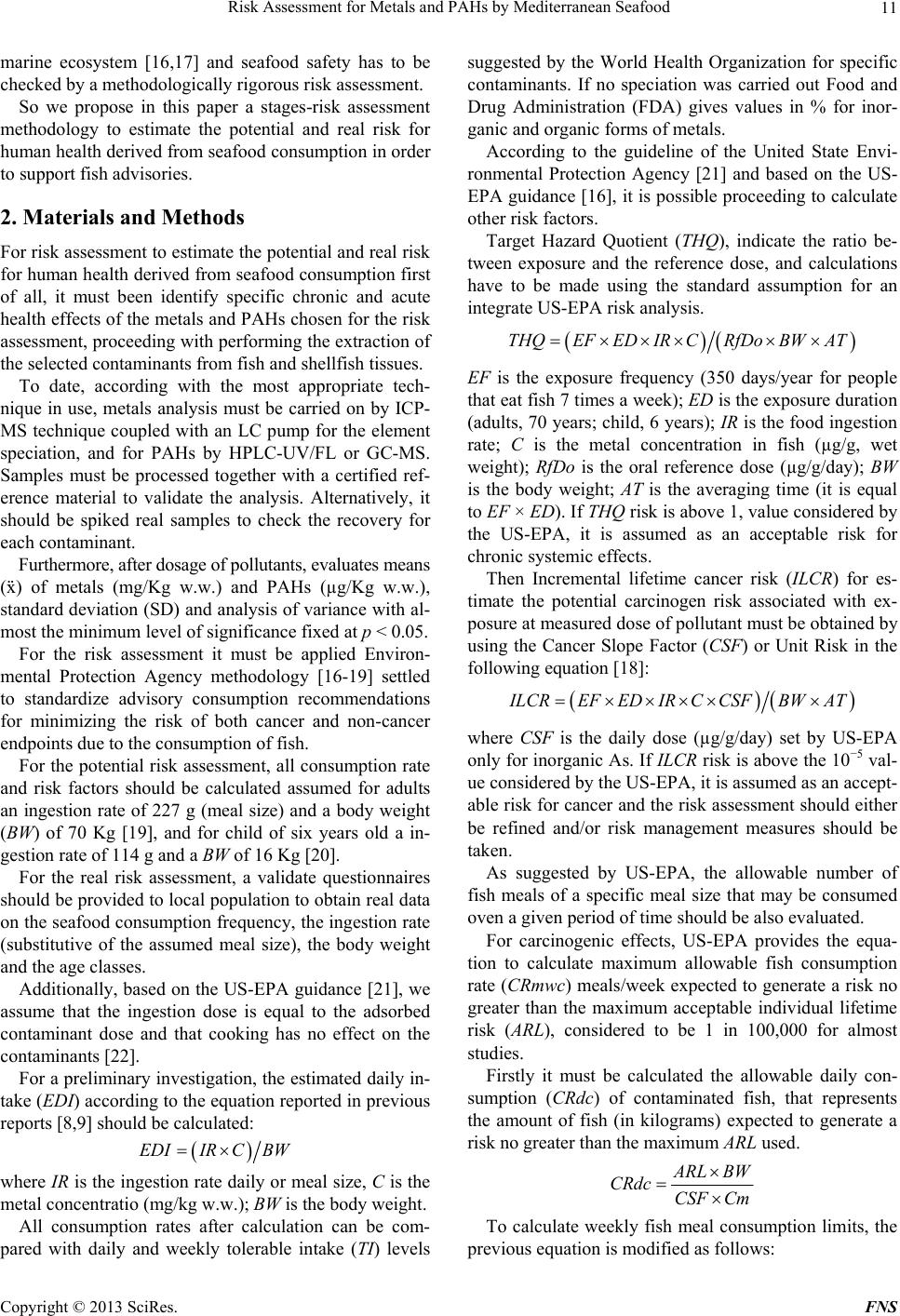

Risk Assessment for Metals and PAHs by Mediterranean Seafood 11

marine ecosystem [16,17] and seafood safety has to be

checked by a methodologically rigorous risk assessment.

So we propose in this paper a stages-risk assessment

methodology to estimate the potential and real risk for

human health derived from seafood consumption in order

to support fish advisories.

2. Materials and Methods

For risk assessment to estimate the potential and real risk

for human health derived from seafood consumption first

of all, it must been identify specific chronic and acute

health effects of the metals and PAHs chosen for the risk

assessment, proceeding with performing the extraction of

the selected contaminants from fish and shellfish tissues.

To date, according with the most appropriate tech-

nique in use, metals analysis must be carried on by ICP-

MS technique coupled with an LC pump for the element

speciation, and for PAHs by HPLC-UV/FL or GC-MS.

Samples must be processed together with a certified ref-

erence material to validate the analysis. Alternatively, it

should be spiked real samples to check the recovery for

each contaminant.

Furthermore, after dosage of pollutants, evaluates means

(ẍ) of metals (mg/Kg w.w.) and PAHs (µg/Kg w.w.),

standard deviation (SD) and analysis of variance with al-

most the minimum level of significance fixed at p < 0.05.

For the risk assessment it must be applied Environ-

mental Protection Agency methodology [16-19] settled

to standardize advisory consumption recommendations

for minimizing the risk of both cancer and non-cancer

endpoints due to the consumption of fish.

For the potential risk assessment, all consumption rate

and risk factors should be calculated assumed for adults

an ingestion rate of 227 g (meal size) and a body weight

(BW) of 70 Kg [19], and for child of six years old a in-

gestion rate of 114 g and a BW of 16 Kg [20].

For the real risk assessment, a validate questionnaires

should be provided to local population to obtain real data

on the seafood consumption frequency, the ingestion rate

(substitutive of the assumed meal size), the body weight

and the age classes.

Additionally, based on the US-EPA guidance [21], we

assume that the ingestion dose is equal to the adsorbed

contaminant dose and that cooking has no effect on the

contaminants [22].

For a preliminary investigation, the estimated daily in-

take (EDI) according to the equation reported in previous

reports [8,9] should be calculated:



EDIIR CBW

where IR is the ingestion rate daily or meal size, C is the

metal concentratio (mg/kg w.w.); BW is the body weight.

All consumption rates after calculation can be com-

pared with daily and weekly tolerable intake (TI) levels

suggested by the World Health Organization for specific

contaminants. If no speciation was carried out Food and

Drug Administration (FDA) gives values in % for inor-

ganic and organic forms of metals.

According to the guideline of the United State Envi-

ronmental Protection Agency [21] and based on the US-

EPA guidance [16], it is possible proceeding to calculate

other risk factors.

Target Hazard Quotient (THQ), indicate the ratio be-

tween exposure and the reference dose, and calculations

have to be made using the standard assumption for an

integrate US-EPA risk analysis.



 

THQEFEDIR CRfDoBWAT 

EF is the exposure frequency (350 days/year for people

that eat fish 7 times a week); ED is the exposure duration

(adults, 70 years; child, 6 years); IR is the food ingestion

rate; C is the metal concentration in fish (µg/g, wet

weight); RfDo is the oral reference dose (µg/g/day); BW

is the body weight; AT is the averaging time (it is equal

to EF × ED). If THQ risk is above 1, value considered by

the US-EPA, it is assumed as an acceptable risk for

chronic systemic effects.

Then Incremental lifetime cancer risk (ILCR) for es-

timate the potential carcinogen risk associated with ex-

posure at measured dose of pollutant must be obtained by

using the Cancer Slope Factor (CSF) or Unit Risk in the

following equation [18]:



 

LCREFEDIR C CSFBWAT 

where CSF is the daily dose (µg/g/day) set by US-EPA

only for inorganic As. If ILCR risk is above the 10−5 val-

ue considered by the US-EPA, it is assumed as an accept-

able risk for cancer and the risk assessment should either

be refined and/or risk management measures should be

taken.

As suggested by US-EPA, the allowable number of

fish meals of a specific meal size that may be consumed

oven a given period of time should be also evaluated.

For carcinogenic effects, US-EPA provides the equa-

tion to calculate maximum allowable fish consumption

rate (CRmwc) meals/week expected to generate a risk no

greater than the maximum acceptable individual lifetime

risk (ARL), considered to be 1 in 100,000 for almost

studies.

Firstly it must be calculated the allowable daily con-

sumption (CRdc) of contaminated fish, that represents

the amount of fish (in kilograms) expected to generate a

risk no greater than the maximum ARL used.

RL BW

CRdc CSF Cm





To calculate weekly fish meal consumption limits, the

previous equation is modified as follows:

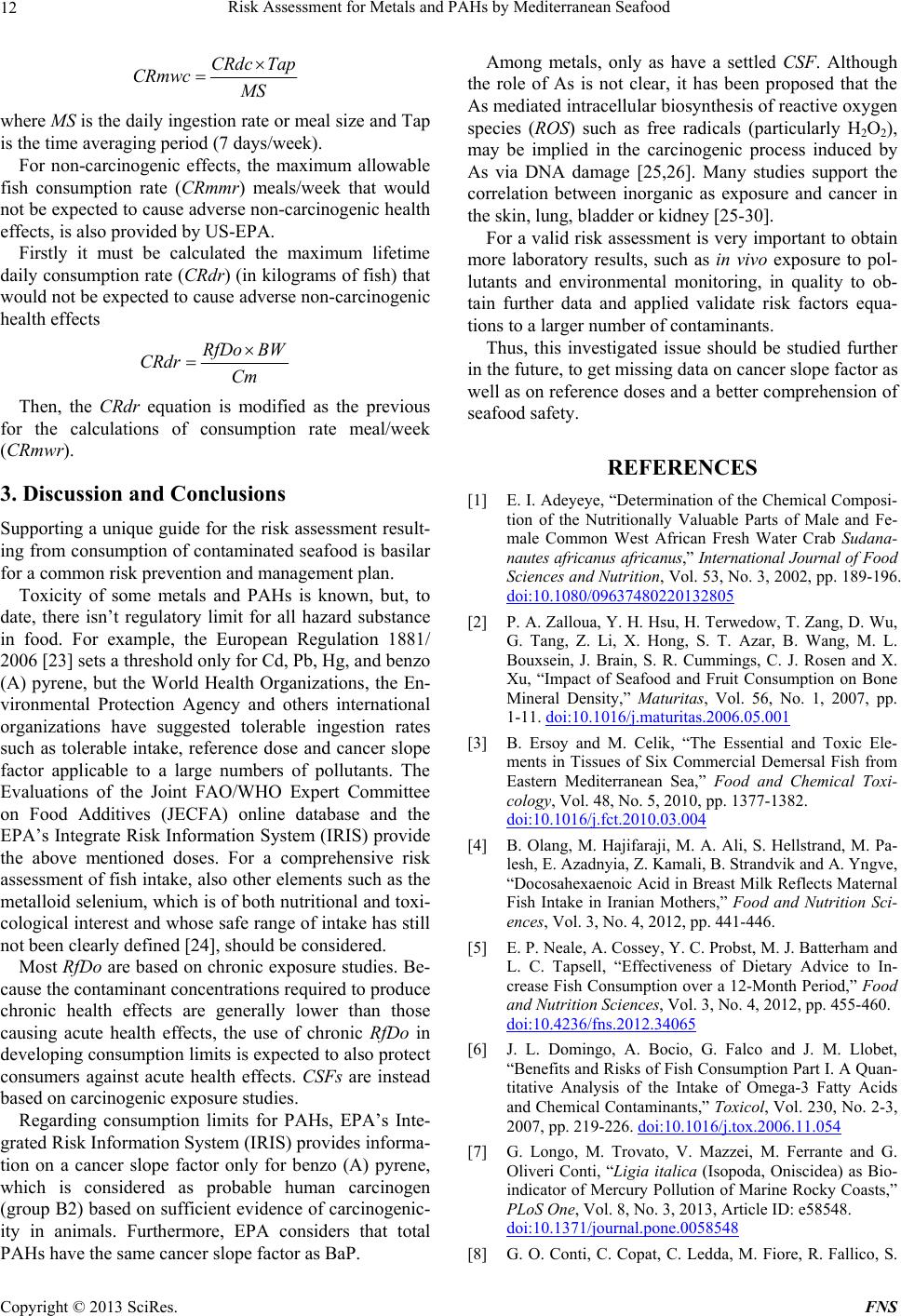

Risk Assessment for Metals and PAHs by Mediterranean Seafood

CRdc Tap

CRmwc MS





where MS is the daily ingestion rate or meal size and Tap

is the time averaging period (7 days/week).

For non-carcinogenic effects, the maximum allowable

fish consumption rate (CRmmr) meals/week that would

not be expected to cause adverse non-carcinogenic health

effects, is also provided by US-EPA.

Firstly it must be calculated the maximum lifetime

daily consumption rate (CRdr) (in kilograms of fish) that

would not be expected to cause adverse non-carcinogenic

health effects

RfDo BW

CRdr Cm





Then, the CRdr equation is modified as the previous

for the calculations of consumption rate meal/week

(CRmwr).

3. Discussion and Conclusions

Supporting a unique guide for the risk assessment result-

ing from consumption of contaminated seafood is basilar

for a common risk prevention and management plan.

Toxicity of some metals and PAHs is known, but, to

date, there isn’t regulatory limit for all hazard substance

in food. For example, the European Regulation 1881/

2006 [23] sets a threshold only for Cd, Pb, Hg, and benzo

(A) pyrene, but the World Health Organizations, the En-

vironmental Protection Agency and others international

organizations have suggested tolerable ingestion rates

such as tolerable intake, reference dose and cancer slope

factor applicable to a large numbers of pollutants. The

Evaluations of the Joint FAO/WHO Expert Committee

on Food Additives (JECFA) online database and the

EPA’s Integrate Risk Information System (IRIS) provide

the above mentioned doses. For a comprehensive risk

assessment of fish intake, also other elements such as the

metalloid selenium, which is of both nutritional and toxi-

cological interest and whose safe range of intake has still

not been clearly defined [24], should be considered.

Most RfDo are based on chronic exposure studies. Be-

cause the contaminant concentrations required to produce

chronic health effects are generally lower than those

causing acute health effects, the use of chronic RfDo in

developing consumption limits is expected to also protect

consumers against acute health effects. CSFs are instead

based on carcinogenic exposure studies.

Regarding consumption limits for PAHs, EPA’s Inte-

grated Risk Information System (IRIS) provides informa-

tion on a cancer slope factor only for benzo (A) pyrene,

which is considered as probable human carcinogen

(group B2) based on sufficient evidence of carcinogenic-

ity in animals. Furthermore, EPA considers that total

PAHs have the same cancer slope factor as BaP.

Among metals, only as have a settled CSF. Although

the role of As is not clear, it has been proposed that the

As mediated intracellular biosynthesis of reactive oxygen

species (ROS) such as free radicals (particularly H2O2),

may be implied in the carcinogenic process induced by

As via DNA damage [25,26]. Many studies support the

correlation between inorganic as exposure and cancer in

the skin, lung, bladder or kidney [25-30].

For a valid risk assessment is very important to obtain

more laboratory results, such as in vivo exposure to pol-

lutants and environmental monitoring, in quality to ob-

tain further data and applied validate risk factors equa-

tions to a larger number of contaminants.

Thus, this investigated issue should be studied further

in the future, to get missing data on cancer slope factor as

well as on reference doses and a better comprehension of

seafood safety.

REFERENCES

[1] E. I. Adeyeye, “Determination of the Chemical Composi-

tion of the Nutritionally Valuable Parts of Male and Fe-

male Common West African Fresh Water Crab Sudana-

nautes africanus africa nus,” International Journal of Food

Sciences and Nutrition, Vol. 53, No. 3, 2002, pp. 189-196.

doi:10.1080/09637480220132805

[2] P. A. Zalloua, Y. H. Hsu, H. Terwedow, T. Zang, D. Wu,

G. Tang, Z. Li, X. Hong, S. T. Azar, B. Wang, M. L.

Bouxsein, J. Brain, S. R. Cummings, C. J. Rosen and X.

Xu, “Impact of Seafood and Fruit Consumption on Bone

Mineral Density,” Maturitas, Vol. 56, No. 1, 2007, pp.

1-11. doi:10.1016/j.maturitas.2006.05.001

[3] B. Ersoy and M. Celik, “The Essential and Toxic Ele-

ments in Tissues of Six Commercial Demersal Fish from

Eastern Mediterranean Sea,” Food and Chemical Toxi-

cology, Vol. 48, No. 5, 2010, pp. 1377-1382.

doi:10.1016/j.fct.2010.03.004

[4] B. Olang, M. Hajifaraji, M. A. Ali, S. Hellstrand, M. Pa-

lesh, E. Azadnyia, Z. Kamali, B. Strandvik and A. Yngve,

“Docosahexaenoic Acid in Breast Milk Reflects Maternal

Fish Intake in Iranian Mothers,” Food and Nutrition Sci-

ences, Vol. 3, No. 4, 2012, pp. 441-446.

[5] E. P. Neale, A. Cossey, Y. C. Probst, M. J. Batterham and

L. C. Tapsell, “Effectiveness of Dietary Advice to In-

crease Fish Consumption over a 12-Month Period,” Food

and Nutrition Sciences, Vol. 3, No. 4, 2012, pp. 455-460.

doi:10.4236/fns.2012.34065

[6] J. L. Domingo, A. Bocio, G. Falco and J. M. Llobet,

“Benefits and Risks of Fish Consumption Part I. A Quan-

titative Analysis of the Intake of Omega-3 Fatty Acids

and Chemical Contaminants,” Toxicol, Vol. 230, No. 2-3,

2007, pp. 219-226. doi:10.1016/j.tox.2006.11.054

[7] G. Longo, M. Trovato, V. Mazzei, M. Ferrante and G.

Oliveri Conti, “Ligia italica (Isopoda, Oniscidea) as Bio-

indicator of Mercury Pollution of Marine Rocky Coasts,”

PLoS One, Vol. 8, No. 3, 2013, Article ID: e58548.

doi:10.1371/journal.pone.0058548

[8] G. O. Conti, C. Copat, C. Ledda, M. Fiore, R. Fallico, S.

Risk Assessment for Metals and PAHs by Mediterranean Seafood

Sciacca and M. Ferrante, “Evaluation of Heavy Metals

and Polycyclic Aromatic Hydrocarbons (PAHs) in Mullus

barbatus from Sicily Channel and Risk-Based Consump-

tion Limits,” Bulletin of Environmental Contamination

and Toxicology, Vol. 88, No. 6, 2012, pp. 946-950.

doi:10.1007/s00128-012-0611-1

[9] C. Copat, F. Bella, M. Castaing, R. Fallico, S. Sciacca

and M. Ferrante, “Heavy Metals Concentrations in Fish

from Sicily (Mediterranean Sea) and Evaluation of Possi-

ble Health Risks to Consumers,” Bulletin of Environ-

mental Contamination and Toxicology, Vol. 88, No. 1,

2012, pp. 78-83. doi:10.1007/s00128-011-0433-6

[10] C. Copat, M. V. Brundo, G. Arena, A. Grasso, G. Oliveri

Conti, C. Ledda, R. Fallico, S. Sciacca and M. Ferrante,

“Seasonal Variation of Bioaccumulation in Engraulis en-

crasicolus (Linneaus, 1758) and Related Biomarkers of

Exposure,” Ecotoxicology and Environmental Safety, Vol.

86, 2012, pp. 31-37. doi:10.1016/j.ecoenv.2012.09.006

[11] B. Tomasello, C. Copat, V. Pulvirenti, V. Ferrito, M.

Ferrante, M. Renis, S. Sciacca and C. Tigano, “Biochem-

ical and Bioaccumulation Approaches for Investigating

Marine Pollution Using Mediterranean Rainbow Wrasse,

Coris julis (Linneaus 1798),” Ecotoxicology and Envi-

ronmental Safety, Vol. 86, 2012, pp. 168-175.

doi:10.1016/j.ecoenv.2012.09.012

[12] C. Copat, R. Maggiore, G. Arena, S. Lanzafame, R.

Fallico, S. Sciacca and M. Ferrante, “Evaluation of a

Temporal Trend Heavy Metals Contamination in Posido-

nia oceanica (L.) Delile, (1813) along the Western Coast-

line of Sicily (Italy),” Journal of Environmental Moni-

toring, Vol. 14, No. 1, 2012, pp. 187-192.

doi:10.1039/c1em10575b

[13] US-EPA, “Guidance for Assessing Chemical Contamina-

tion Data for Use in Fish Advisories Volume II. Risk As-

sessment and Fish Consumption Limits EPA/823-B94-

004,” United States Environmental Protection Agency,

Washington DC, 2000.

http://www.epa.gov/spc/pdfs/rchandbk.pdf

[14] R. Ferrara, B. Mazzolai, E. Lanzillotta, E. Nucaro and N.

Pirrone, “Volcanoes as Emission Sources of Atmospheric

Mercury in the Mediterranean Basin,” Science of the

Total Environment, Vol. 259, No. 1-3, 2000, pp. 115-121.

doi:10.1016/S0048-9697(00)00558-1

[15] R. Di Leonardo, G. Tranchida, A. Bellanca, R. Neri, M.

Angelone and S. Mazzola, “Mercury Levels in Sediments

of Central Mediterranean Sea: A 150+ Year Record from

Box-Cores Recovered in the Strait of Sicily,” Chemos-

phere, Vol. 65, No. 11, 2006, pp. 2366-2376.

doi:10.1016/j.chemosphere.2006.04.076

[16] US-EPA, “Risk Assessment Guidance for Superfund Vol-

ume I. Human Health Evaluation Manual (Part A)”,

Interim Final. EPA 540/1-89/002,” United States Envi-

ronmental Protection Agency, Washington DC, 1989.

http://www.epa.gov/spc/pdfs/rchandbk.pdf

[17] UNEP, “Mediterranean Regional Report. Regionally Based

Assessment of Persistent Toxic Substances,” 1996.

http://www.chem.unep.ch/

[18] US-EPA, “Exposure Factors Handbook,” National Center

for Environmental Assessment, Washington DC, 1997.

http://www.epa.gov/spc/pdfs/rchandbk.pdf

[19] US-EPA, “Risk-Based Concentration Table,” United States

Environmental Protection Agency, Philadelphia, 2000.

http://www.epa.gov/spc/pdfs/rchandbk.pdf

[20] I. Mansilla-Rivera and C. J. Rodriguez-Sierra, “Metal

Levels in Fish Captured in Puerto Rico and Estimation of

Risk from Fish Consumption,” Archives of Environmental

Contamination and Toxicology, Vol. 60, No. 1, 2011, pp.

132-144.

[21] US-EPA, “Risk Characterization Handbook,” US Envi-

ronmental Protection Agency, Washington DC, 2000.

http://www.epa.gov/spc/pdfs/rchandbk.pdf

[22] L. C. Chien, T. C. Hung, K. Y. Choang, C. Y. Yeh, P. J.

Meng, M. J. Shieh and B. C. Ha, “Daily Intake of TBT,

Cu, Zn, Cd and As for Fishermen in Taiwan,” Science of

the Total Environment, Vol. 285, No. 1-3, 2002, pp. 177-

185. doi:10.1016/S0048-9697(01)00916-0

[23] EC. Commission Regulation N. 1881/2006, “Setting Maxi-

mum Levels of Certain Contaminants in Foodstuff,” Offi-

cial Journal of the European Union, Legislation Series,

Vol. 65, 2006, pp. 5-24.

[24] M. Vinceti, T. Maraldi, M. Bergomi and C. Malagoli.

“Risk of Chronic Low-Dose Selenium Overexposure in

Humans: Insights from Epidemiology and Biochemistry,”

Reviews on Environmental Health, Vol. 24, No. 3, 2009,

pp. 231-248. doi:10.1515/REVEH.2009.24.3.231

[25] NRC, “Commitee on Toxicology. Arsenic in Drinking

Water,” The National Academic Press, Washinton DC,

2001.

http://www7.nationalacademies.org/ocga/testimony/arseni

c_in_drinking_water.asp

[26] V. Sirot, T. Guerin, J. L. Volatier and J. C. Leblanc, “Die-

tary Exposure and Biomarkers of Arsenic in Consumers

of Fish and Shellfish from France,” Science of the Total

Environment, Vol. 407, No. 6, 2009, pp. 1875-1885.

doi:10.1016/j.scitotenv.2008.11.050

[27] M. M. Wu, T. L. Kuo, Y. H. Hwang and C. J. Chen.

“Dose-Response Relation between Arsenic Concentration

in Well Water and Mortality from Cancers and Vascular

Diseases,” American Journal of Epidemiology, Vol. 130,

No. 6, 1989, pp. 1123-1132.

[28] C. J. Chen, C. W. Chen, M. M. Wu and T. L. Kuo, “Can-

cer Potential in Liver, Lung, Bladder and Kidney Due to

Ingested Inorganic Arsenic in Drinking Water,” British

Journal of Cancer, Vol. 66, No. 5, 1992, pp. 888-892.

doi:10.1038/bjc.1992.380

[29] A. H. Smith, C. Hopenhayn-Rich, M. N. Bates, H. M.

Goeden, I. Hertz-Picciotto, H. M. Duggan, R. Wood, M. J.

Kosnett and M. T. Smith, “Cancer Risks from Arsenic in

Drinking Water,” Environmental Health Perspectives,

Vol. 97, 1992, pp. 259-267. doi:10.1289/ehp.9297259

[30] C. O. Abernathy, Y. P. Liu, D. Longfellow, H. V.

Aposhian, B. Beck, B. Fowler, R. Goyer, R. Menzer, T.

Rossman, C. Thompson and M. Waalkes, “Arsenic: Health

Effects, Mechanisms of Actions, and Research Issues,”

Environmental Health Perspectives, Vol. 107, No. 7,

1999, pp. 593-597.

http://www.ncbi.nlm.nih.gov/pmc/articles/PMC1566656/

doi:10.1289/ehp.99107593
