Journal of Behavioral and Brain Science, 2013, 3, 150-155

http://dx.doi.org/10.4236/jbbs.2013.31014 Published Online February 2013 (http://www.scirp.org/journal/jbbs)

How the Brain Process Stimulus-Response Conflict? New

Insights from Lateralized Readiness Potentials Scalp

Topography and Reaction Times

Marc E. Lavoie1,2,3, Johannes E. A. Stauder4

1Laboratoire de Psychophysiologie Cognitive et Sociale

2Centre de Recherche Fernand-Seguin, de l’Hôpital Louis-H. Lafontaine, Montréal, Canada

3Département de Psychiatrie, Université de Montréal, Montréal, Canada

4Cognitive Neuroscience, Faculty of Psychology and Neuroscience, Maastricht University, Maastricht, The Netherlands

Email: [email protected]

Received December 14, 2012; revised January 15, 2013; accepted January 22, 2013

ABSTRACT

Stimulus-Response Compatibility (SRC) refers to the fact that some tasks are performed easier and better than others

because of the way stimuli and responses are paired with each other. To assess the brain responses to stimulus-response

conflicts, we investigated the behavioral (accuracy and Reaction Times: RTs) as well as the physiological response

(Lateralized Readiness Potentials: LRP) modulations in a positional blocked and a conditional mixed design in twelve

university students. Results revealed that the performance was less accurate and the RTs, as well as the LRP onset, were

delayed under the mixed conditional design. A greater compatibility effect was also noted on accuracy, RTs and LRP

onset latency in the mixed design. Consistent with these findings, smaller peak activation at fronto-central areas sug-

gests that more selective inhibition is needed in a mixed design context. Despite a smaller activation, the topographical

distribution is similar in both designs. These results indicate that the translation time between stimulus- and response

codes are greater under the mixed instruction, while the similar LRP topography suggests that common neural structures

underlie LRPs in response to both type of designs.

Keywords: Lateralized Readiness Potentials; Mixed-Blocked Designs; Stimulus Response-Compatibility; Reaction

Times

1. Introduction

Stimulus-Response Compatibility (SRC) refers to the fact

that some tasks are performed easier and better than oth-

ers because of the way stimuli and responses are paired

with each other [1]. SRC are not restricted to particular

stimuli, modality or task, indicating the fundamental na-

ture of their underlying cognitive processes. In general

terms, two main theoretical views, the serial and the dual-

task automatic processing approach, attempted to explain

the mechanisms underlying stimulus response conflict.

Early SRC research papers [2,3], as well as recent ones

[4], proposed that incompatible mapping is slower than

compatible mapping because of increased translation time

between the stimulus and response code. Accordingly,

that coding process arises in series after stimulus identi-

fication, but before motor initiation. An alternative ex-

planation is provided by the dual-processing accounts,

which attribute SRC effects to the automatic activation of

responses [5]. At difference with the classical serial mo-

del, automatic activation is not dependent on the effi-

ciency of coding processes, but is induced by a separate

parallel route in which the response are activated directly

and have to be inhibited in case of an incompatible map-

ping [6]. Both SRC models were elaborated on the basis

of overt responses without direct inferences on brain pro-

cesses underlying stimulus-response conflict.

A considerable number of metabolic brain studies ad-

dressed movement related metabolic activity, although

none specifically addressed SRC. Increased regional

blood flow to hand and finger movements were observed

in the contralateral sensorimotor cortex [7,8], premotor

cortex, primary motor cortex, anterior cingulate cortex,

parietal cortex, the supplementary motor area (SMA) and

the prefrontal cortex [9,10]. Unfortunately, is the exact

functional role of most of these areas is still unclear. In-

creased blood flow in the Supplementary Motor Area

was observed to movements triggered by a stimulus as

compared to self paced movements [8] suggesting the

SMA to be task related to the contingency of the cue

triggering the movement. The anterior cingulate cortex

M. E. LAVOIE, J. E. A. STAUDER 151

was associated response selection [9] and the modulation

of commands coming from different regions (e.g. pre-

frontal) to the motor system [11]. The anterior cingulate

cortex was mainly activated when the subjects are forced

to choose from a set of competing responses rather than

relying on well-established S-R associations. Although

these findings might suggest potential mechanisms im-

plicated in SRC, a satisfying understanding of the struc-

tures underlying SRC awaits a metabolic study with tasks

that specifically modulate stimulus response compatibil-

ity. However, even in case a metabolic study isolates the

brain structures, involved in the compatibility effect [12],

we still ignore the time course of activation, since none

of the metabolic techniques offers a high enough time

resolution to tear these processes apart. A solution to this

dilemma is a topographical Lateralized Readiness Poten-

tial (LRP) investigation, which offers a similar time re-

solution than a single lead LRP but also shows the dis-

tribution of the LRP across the scalp at each point in time

[13,14]. The latter may not only help in determining

whether there are qualitative differences in activation be-

tween different task manipulations but may also inform

us about the underlying brain sources implied in gener-

ating the LRP.

We propose to investigate SRC interference through

electrophysiological measures of motor activation, the

so-called LRPs, that reflects only the lateralized part of

the readiness potential, leaving aside electrical potentials

associated with non-motor activity [13]. LRPs reveal

initial activation of the incorrect response (negative de-

flection) followed by a delayed activation of the correct

response (positive deflection) in case of incompatible re-

sponse [15]. The concept of automatic activation found

considerable support by psychophysiological studies us-

ing LRP as an index of selective response preparation.

In order to further examine these hypotheses within a

psychophysiological setting, we compared one blocked

design, where arrows were presented in two separate

blocks of compatible and incompatible sequences and

one mixed design where stimulus-response configura-

tions are presented in mixed order and are dependant on

the color of the arrow. By means of comparing a mixed

with a blocked design, our primary aim is to assess the

occurrence of automaticity in SRC interference. Thus, if

SRC is best explained by a dual-task automatic process-

ing model, we predict that interference will be equally

present in both the blocked and mixed design (compati-

bility main effect). On the other hand, if SRC is best ex-

plained by a serial processing model, the interference

will be more pronounced in the mixed than in the

blocked design (design x compatibility interaction). Al-

though these findings might suggest potential mecha-

nisms implicated in SRC, an understanding of cerebral

structures underlying SRC awaits a topographical ap-

proach that offers a similar time resolution than a single

lead LRP, but with a distribution across the scalp. Hence,

our second aim is to investigate the topographical distri-

bution of the LRP to determine whether there are qualita-

tive differences of activation, which will inform us on

how the underlying neural structures are involved in sti-

mulus-response conflict, across designs and compatibil-

ity conditions (design by electrodes or a design by com-

patibility by electrodes).

2. Methodology

2.1. Participants

The participants were 8 female and 4 male students from

the University of Montreal. They were right handed, and

had normal color vision and normal or corrected to dis-

tant vision. Their average chronological age was 23.8

years (sd = 3.4) and the intelligence level was determined

by the Raven’s Advanced Progressive Matrices. The

scores on this test were 10.8 (sd = 1.5) for Set I (12/12)

and 25.5, (sd = 5.9) for Set II (36/36). The total average

raw scores (48/48) was 38.3, sd = 7.0. Handedness was

determined by the Edinburgh Inventory (Old-field, 1971)

on which the participants showed an average score of

85.6, sd = 27.8 (range −100 to 100). The color vision was

determined by means of the Dvorine Pseudo-Isochroma-

tic Plates (2ed, 1953) on which the participants correctly

identified 97 % of the 15 plates correct (sd = 0.05). None

of the participants had a score below the normal color

vision threshold of 89.5 % (2 unidentified plates). Letter

plates (Home vision care, Anaheim California), deter-

mined distance vision on which all subjects showed

100% correct letter identification above the 20/40 level.

The Table 1 shows the absence of sex differences on all

these variables.

Table 1. Demographic and psychological variables.

Female Male

Mean (SD) Mean (SD)t-test

Age (years) 24.1 (4) 23 (1) ns

Laterality (% right) 82.5 (29) 82.7 (27) ns

Schooling (years) 17.1 (2) 16.5 (1) ns

Intelligence (raw score)

Raven set I 10.75 (2) 11 (1) ns

Raven set II 26.63 (7) 29.25 (4) ns

Raven—total 37.38 (8) 40.25 (6) ns

Color vision (%) 98 (0.5) 96 (0.7) ns

Letter plates (%)

Left eye 100 97 ns

Right eye 100 94 ns

Both eyes 100 100 ns

M. E. LAVOIE, J. E. A. STAUDER

152

2.2. Procedures

Participants were administered three tasks: 1) In the posi-

tional blocked compatible tasks (100 trials), participants

were asked to respond with the hand corresponding to the

direction of the arrow, while ignoring its color. 2) The

positional blocked incompatible (100 trials) required re-

sponding with the hand opposite to the direction of the

arrow, while ignoring color. 3) The conditional mixed

task (200 trials) required a hand response corresponding

to the direction of the arrow to one color and with the

hand opposite to the direction of the arrow to the other

color. The arrows were presented for 350 ms (Inter-Sti-

mulus-Interval = 2000 - 2500 ms).

The EEG signals were recorded concomitantly and

sampled at 250 Hz, with a high- and low-pass filter of

0.01 and 30 Hz respectively, recorded from 20 tin elec-

trodes mounted in a nylon cap, placed at F7, F8, FC3,

FC4, T7, T8, C3, C4, C1, C2, CP3, CP4, TP7, TP8, P7,

P8, P3, P4, O1, O2 referenced to linked earlobes (impe-

dance < 5 kOhms). The EEG was corrected for artifacts

with a dynamic regression in the frequency domain [16]

and correct trials averaged off-line from stimulus onset.

2.3. Statistics and Processing

The stimulus-locked LRP, obtained from subtraction [13],

were reduced to 10 locations (F7’, F3’, FC3’, C1’, C3’,

P3’, P7’, T7’, TP7’, O1’). The proportional onset was

determined as 20% of the maximum positive peak of the

LRP within 50 - 600 ms post-stimulus. Two factors in-

cluding DESIGN (mixed vs blocked) and COMPATIBI-

LITY (compatible vs incompatible) were analyzed for

Reaction Times (RTs) and accuracy separately. Repeated

measures factor (ELECTRODES) was incorporated in

the analysis with LRP onset and peak amplitude.

3. Results

3.1. Performances

Accuracy was significantly better to the blocked (2% error

rate) than to the mixed (8% error rate) design (F1,11) =

18.33, p < 0.001). Consistently, RTs were significantly

faster in the blocked (372 ms) than in the mixed (561 ms)

design (F(1,11) = 255.83, p < 0.001). In both blocked and

mixed design (Figure 1), the compatible yielded faster

RTs than the incompatible condition (F(1,11) = 15.44, p

< 0.005), but that incompatibility effect was only sig-

nificant in the blocked design (t(11) = −5.12, p < 0.001).

3.2. LRP Onset Latency

The LRP onset latency revealed that there were main

effects of design (F(1,11) = 48.02, p < 0.001) and com-

patibility (F(1,11) = 5.88, p < 0.05). The LRP onset was

longer in the mixed (290 ms) than in the blocked (196 ms)

design and the compatible (218 ms) yielded faster la-

tency than the incompatible (268 ms). In addition, there

was a design by compatibility interaction (F(1,11) = 8.78,

p < 0.05) revealing that the LRP latency difference be-

tween compatible and incompatible conditions was larger

in the mixed (90 ms) than in the blocked (4 ms) design

(Figure 2). The LRP waveforms (Figure 3) revealed an

incorrect activation (negative deflection) peaking at 250

ms in the mixed design only. This was followed by a cor-

rect activation (positive deflection) peaking at approxi-

mately 300 ms in response to the blocked design and at

500 ms post-stimulus in the mixed design.

3.3. LRP Peak Amplitude

The results of the LRP peak amplitude activation re-

vealed that there was main effects of design (F(1,11) =

22.87, p < 0.001) and compatibility (F(1,11) = 4.90, p <

0.05). The LRP amplitude was smaller in the mixed (3.1

uV) than in the blocked (4.3 uV) design and the incom-

patible (3.5 uV) yielded smaller amplitude than the com-

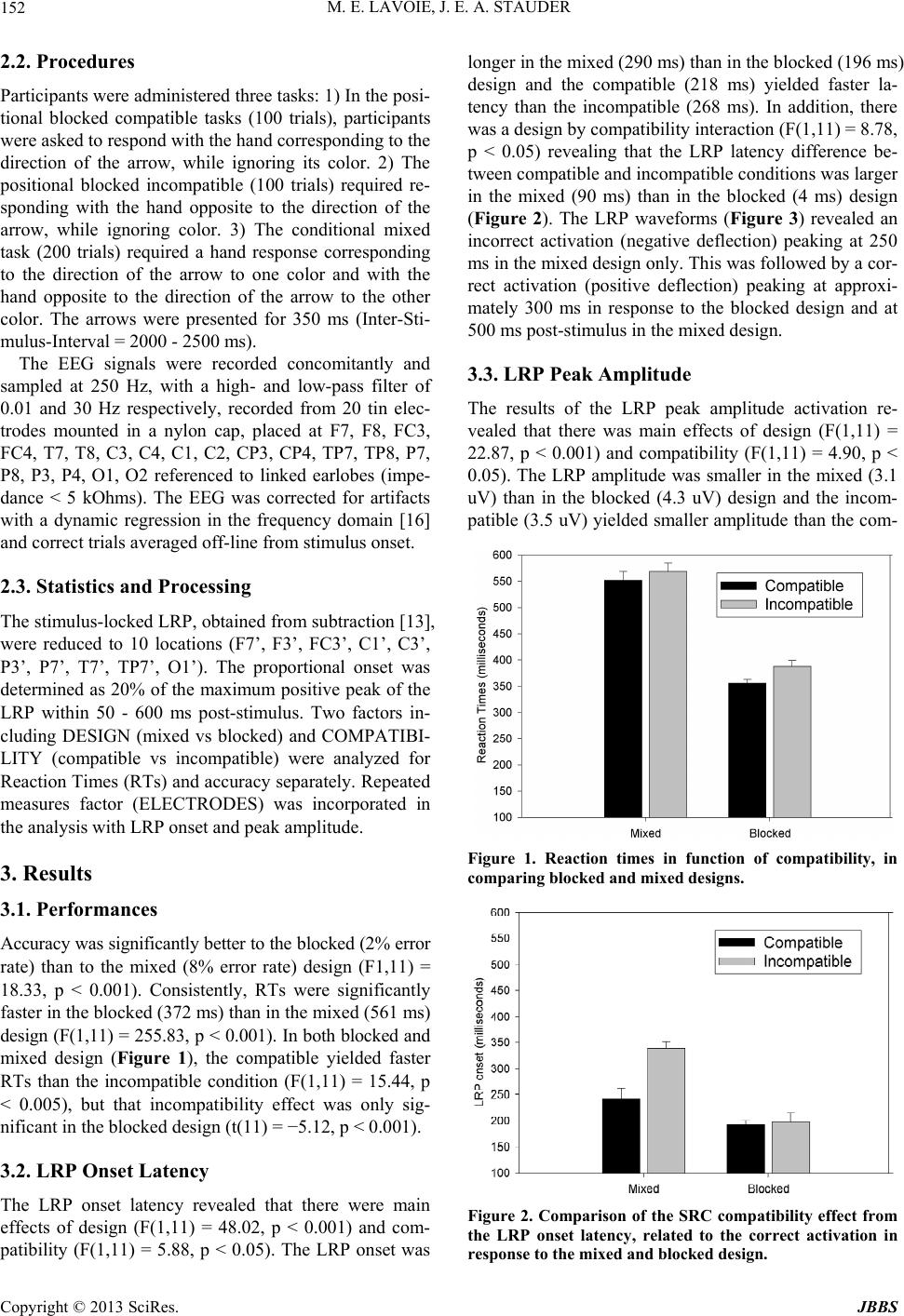

Figure 1. Reaction times in function of compatibility, in

comparing blocked and mixed designs.

Figure 2. Comparison of the SRC compatibility effect from

the LRP onset latency, related to the correct activation in

response to the mixed and blocked design.

M. E. LAVOIE, J. E. A. STAUDER

153

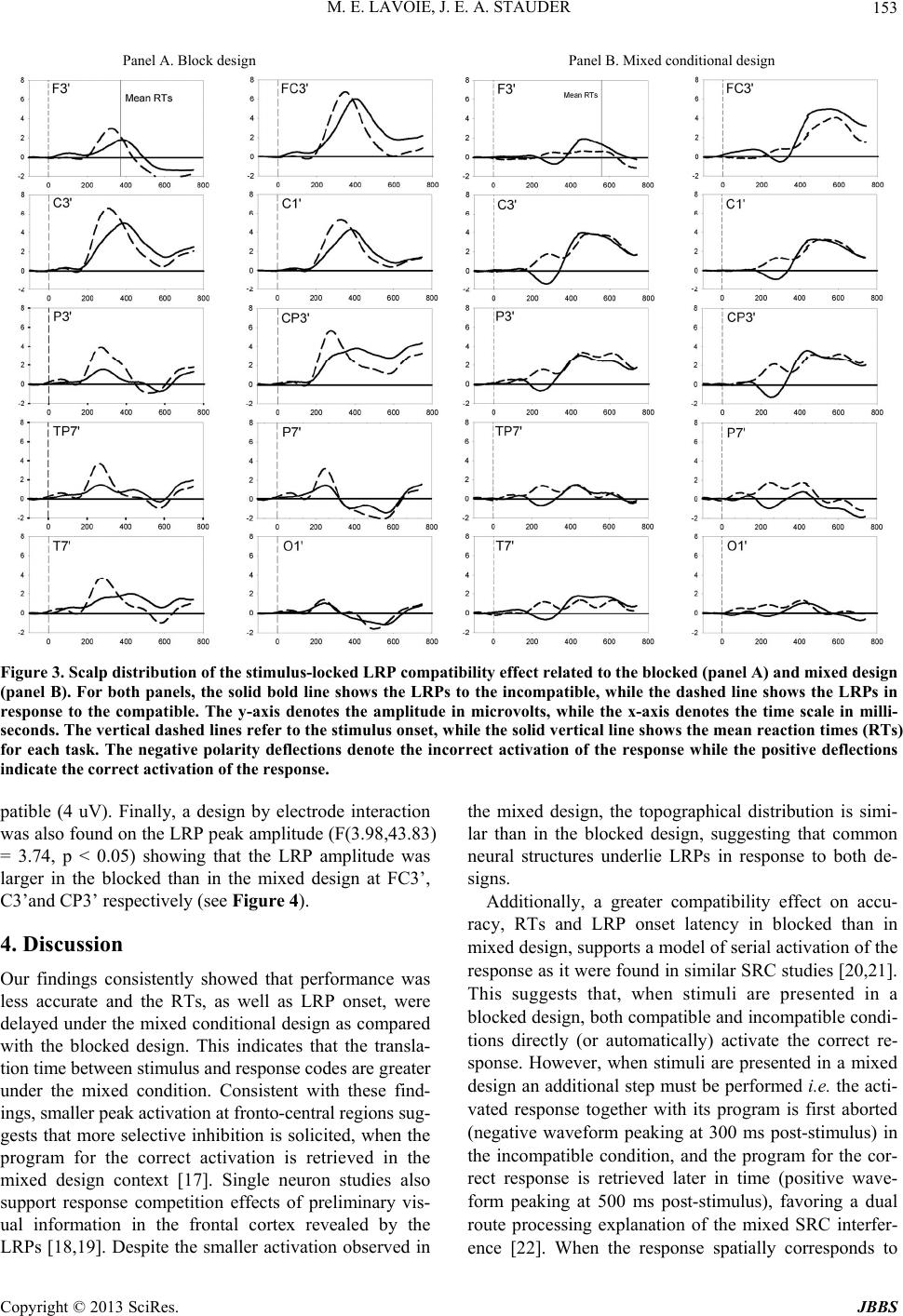

Panel A. Block design Panel B. Mixed conditional design

Figure 3. Scalp distribution of the stimulus-locked LRP compatibility effect related to the blocked (panel A) and mixed design

(panel B). For both panels, the solid bold line shows the LRPs to the incompatible, while the dashed line shows the LRPs in

response to the compatible. The y-axis denotes the amplitude in microvolts, while the x-axis denotes the time scale in milli-

seconds. The vertical dashed lines refer to the stimulus onset, while the solid vertical line shows the mean reaction times (RTs)

for each task. The negative polarity deflections denote the incorrect activation of the response while the positive deflections

indicate the correct activation of the response.

patible (4 uV). Finally, a design by electrode interaction

was also found on the LRP peak amplitude (F(3.98,43.83)

= 3.74, p < 0.05) showing that the LRP amplitude was

larger in the blocked than in the mixed design at FC3’,

C3’and CP3’ respectively (see Figure 4).

4. Discussion

Our findings consistently showed that performance was

less accurate and the RTs, as well as LRP onset, were

delayed under the mixed conditional design as compared

with the blocked design. This indicates that the transla-

tion time between stimulus and response codes are greater

under the mixed condition. Consistent with these find-

ings, smaller peak activation at fronto-central regions sug-

gests that more selective inhibition is solicited, when the

program for the correct activation is retrieved in the

mixed design context [17]. Single neuron studies also

support response competition effects of preliminary vis-

ual information in the frontal cortex revealed by the

LRPs [18,19]. Despite the smaller activation observed in

the mixed design, the topographical distribution is simi-

lar than in the blocked design, suggesting that common

neural structures underlie LRPs in response to both de-

signs.

Additionally, a greater compatibility effect on accu-

racy, RTs and LRP onset latency in blocked than in

mixed design, supports a model of serial activation of the

response as it were found in similar SRC studies [20,21].

This suggests that, when stimuli are presented in a

blocked design, both compatible and incompatible condi-

tions directly (or automatically) activate the correct re-

sponse. However, when stimuli are presented in a mixed

design an additional step must be performed i.e. the acti-

vated response together with its program is first aborted

(negative waveform peaking at 300 ms post-stimulus) in

the incompatible condition, and the program for the cor-

rect response is retrieved later in time (positive wave-

form peaking at 500 ms post-stimulus), favoring a dual

route processing explanation of the mixed SRC interfer-

ence [22]. When the response spatially corresponds to

M. E. LAVOIE, J. E. A. STAUDER

154

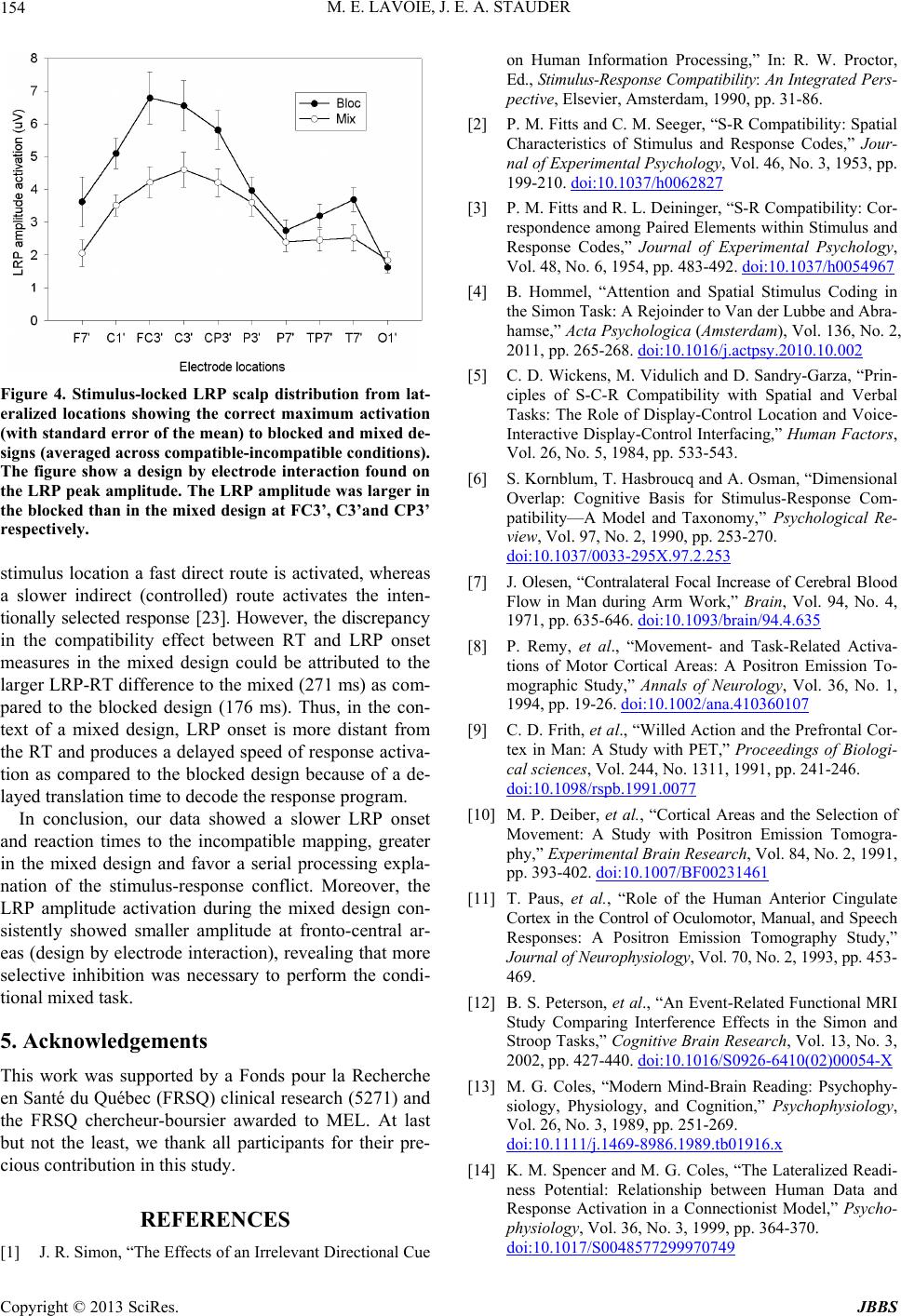

Figure 4. Stimulus-locked LRP scalp distribution from lat-

eralized locations showing the correct maximum activation

(with standard error of the mean) to blocked and mixed de-

signs (averaged across compatible-incompatible conditions).

The figure show a design by electrode interaction found on

the LRP peak amplitude. The LRP amplitude w as larger in

the blocked than in the mixed design at FC3’, C3’and CP3’

respectively.

stimulus location a fast direct route is activated, whereas

a slower indirect (controlled) route activates the inten-

tionally selected response [23]. However, the discrepancy

in the compatibility effect between RT and LRP onset

measures in the mixed design could be attributed to the

larger LRP-RT difference to the mixed (271 ms) as com-

pared to the blocked design (176 ms). Thus, in the con-

text of a mixed design, LRP onset is more distant from

the RT and produces a delayed speed of response activa-

tion as compared to the blocked design because of a de-

layed translation time to decode the response program.

In conclusion, our data showed a slower LRP onset

and reaction times to the incompatible mapping, greater

in the mixed design and favor a serial processing expla-

nation of the stimulus-response conflict. Moreover, the

LRP amplitude activation during the mixed design con-

sistently showed smaller amplitude at fronto-central ar-

eas (design by electrode interaction), revealing that more

selective inhibition was necessary to perform the condi-

tional mixed task.

5. Acknowledgements

This work was supported by a Fonds pour la Recherche

en Santé du Québec (FRSQ) clinical research (5271) and

the FRSQ chercheur-boursier awarded to MEL. At last

but not the least, we thank all participants for their pre-

cious contribution in this study.

REFERENCES

[1] J. R. Simon, “The Effects of an Irrelevant Directional Cue

on Human Information Processing,” In: R. W. Proctor,

Ed., Stimulus-Re sponse Compatibility: An Integrated Pers-

pective, Elsevier, Amsterdam, 1990, pp. 31-86.

[2] P. M. Fitts and C. M. Seeger, “S-R Compatibility: Spatial

Characteristics of Stimulus and Response Codes,” Jour-

nal of Experimental Psychology, Vol. 46, No. 3, 1953, pp.

199-210. doi:10.1037/h0062827

[3] P. M. Fitts and R. L. Deininger, “S-R Compatibility: Cor-

respondence among Paired Elements within Stimulus and

Response Codes,” Journal of Experimental Psychology,

Vol. 48, No. 6, 1954, pp. 483-492. doi:10.1037/h0054967

[4] B. Hommel, “Attention and Spatial Stimulus Coding in

the Simon Task: A Rejoinder to Van der Lubbe and Abra-

hamse,” Acta Psychologica (Amsterdam), Vol. 136, No. 2,

2011, pp. 265-268. doi:10.1016/j.actpsy.2010.10.002

[5] C. D. Wickens, M. Vidulich and D. Sandry-Garza, “Prin-

ciples of S-C-R Compatibility with Spatial and Verbal

Tasks: The Role of Display-Control Location and Voice-

Interactive Display-Control Interfacing,” Human Factors,

Vol. 26, No. 5, 1984, pp. 533-543.

[6] S. Kornblum, T. Hasbroucq and A. Osman, “Dimensional

Overlap: Cognitive Basis for Stimulus-Response Com-

patibility—A Model and Taxonomy,” Psychological Re-

view, Vol. 97, No. 2, 1990, pp. 253-270.

doi:10.1037/0033-295X.97.2.253

[7] J. Olesen, “Contralateral Focal Increase of Cerebral Blood

Flow in Man during Arm Work,” Brain, Vol. 94, No. 4,

1971, pp. 635-646. doi:10.1093/brain/94.4.635

[8] P. Remy, et al., “Movement- and Task-Related Activa-

tions of Motor Cortical Areas: A Positron Emission To-

mographic Study,” Annals of Neurology, Vol. 36, No. 1,

1994, pp. 19-26. doi:10.1002/ana.410360107

[9] C. D. Frith, et al., “Willed Action and the Prefrontal Cor-

tex in Man: A Study with PET,” Proceedings of Biologi-

cal sciences, Vol. 244, No. 1311, 1991, pp. 241-246.

doi:10.1098/rspb.1991.0077

[10] M. P. Deiber, et al., “Cortical Areas and the Selection of

Movement: A Study with Positron Emission Tomogra-

phy,” Experimental Brain Research, Vol. 84, No. 2, 1991,

pp. 393-402. doi:10.1007/BF00231461

[11] T. Paus, et al., “Role of the Human Anterior Cingulate

Cortex in the Control of Oculomotor, Manual, and Speech

Responses: A Positron Emission Tomography Study,”

Journal of Neurophysiology, Vol. 70, No. 2, 1993, pp. 453-

469.

[12] B. S. Peterson, et al., “An Event-Related Functional MRI

Study Comparing Interference Effects in the Simon and

Stroop Tasks,” Cognitive Brain Research, Vol. 13, No. 3,

2002, pp. 427-440. doi:10.1016/S0926-6410(02)00054-X

[13] M. G. Coles, “Modern Mind-Brain Reading: Psychophy-

siology, Physiology, and Cognition,” Psychophysiology,

Vol. 26, No. 3, 1989, pp. 251-269.

doi:10.1111/j.1469-8986.1989.tb01916.x

[14] K. M. Spencer and M. G. Coles, “The Lateralized Readi-

ness Potential: Relationship between Human Data and

Response Activation in a Connectionist Model,” Psycho-

physiology, Vol. 36, No. 3, 1999, pp. 364-370.

doi:10.1017/S0048577299970749

M. E. LAVOIE, J. E. A. STAUDER

155

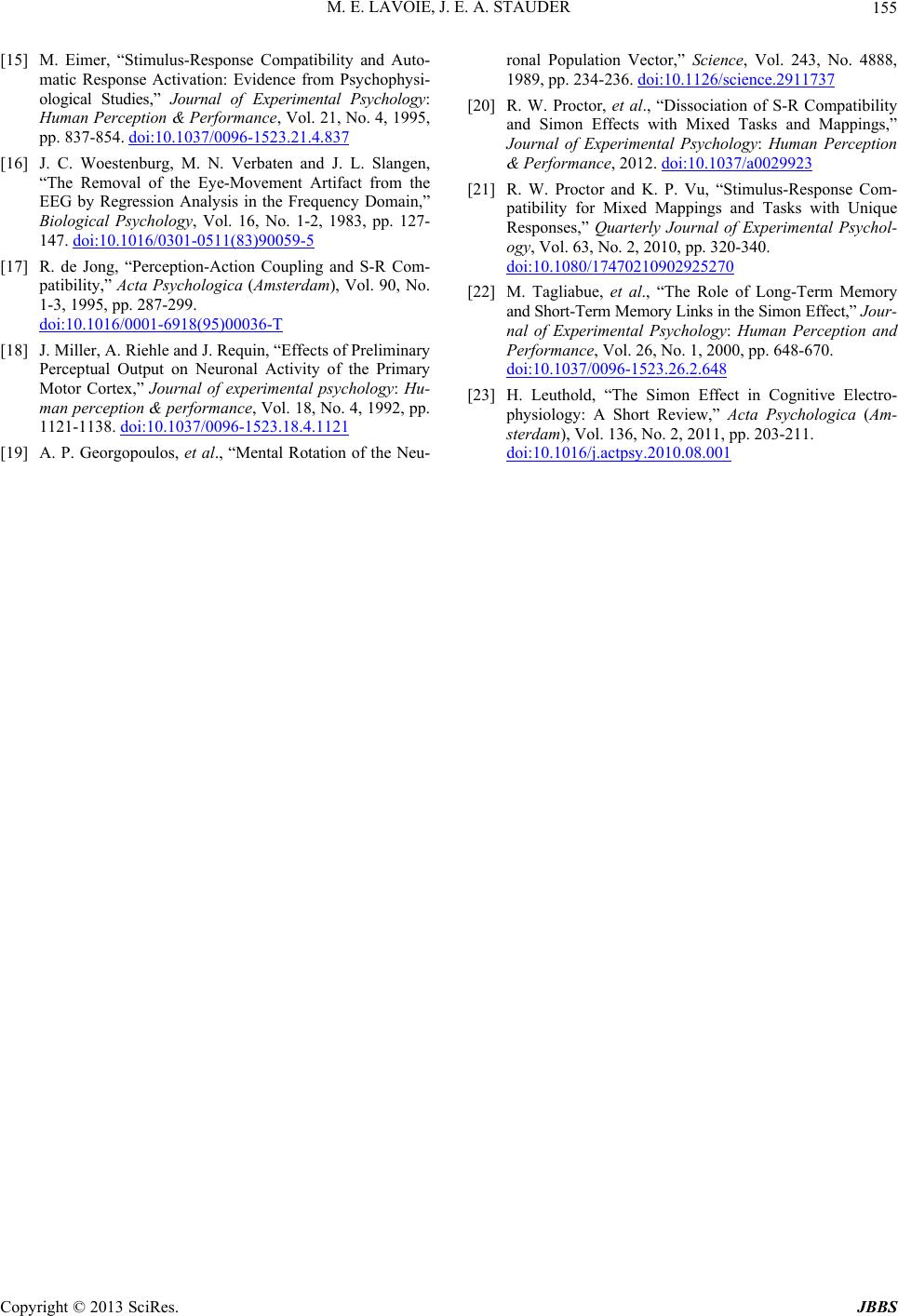

[15] M. Eimer, “Stimulus-Response Compatibility and Auto-

matic Response Activation: Evidence from Psychophysi-

ological Studies,” Journal of Experimental Psychology:

Human Perception & Performance, Vol. 21, No. 4, 1995,

pp. 837-854. doi:10.1037/0096-1523.21.4.837

[16] J. C. Woestenburg, M. N. Verbaten and J. L. Slangen,

“The Removal of the Eye-Movement Artifact from the

EEG by Regression Analysis in the Frequency Domain,”

Biological Psychology, Vol. 16, No. 1-2, 1983, pp. 127-

147. doi:10.1016/0301-0511(83)90059-5

[17] R. de Jong, “Perception-Action Coupling and S-R Com-

patibility,” Acta Psychologica (Amsterdam), Vol. 90, No.

1-3, 1995, pp. 287-299.

doi:10.1016/0001-6918(95)00036-T

[18] J. Miller, A. Riehle and J. Requin, “Effects of Preliminary

Perceptual Output on Neuronal Activity of the Primary

Motor Cortex,” Journal of experimental psychology: Hu-

man perception & performance, Vol. 18, No. 4, 1992, pp.

1121-1138. doi:10.1037/0096-1523.18.4.1121

[19] A. P. Georgopoulos, et al., “Mental Rotation of the Neu-

ronal Population Vector,” Science, Vol. 243, No. 4888,

1989, pp. 234-236. doi:10.1126/science.2911737

[20] R. W. Proctor, et al., “Dissociation of S-R Compatibility

and Simon Effects with Mixed Tasks and Mappings,”

Journal of Experimental Psychology: Human Perception

& Performance, 2012. doi:10.1037/a0029923

[21] R. W. Proctor and K. P. Vu, “Stimulus-Response Com-

patibility for Mixed Mappings and Tasks with Unique

Responses,” Quarterly Journal of Experimental Psychol-

ogy, Vol. 63, No. 2, 2010, pp. 320-340.

doi:10.1080/17470210902925270

[22] M. Tagliabue, et al., “The Role of Long-Term Memory

and Short-Term Memory Links in the Simon Effect,” Jour-

nal of Experimental Psychology: Human Perception and

Performance, Vol. 26, No. 1, 2000, pp. 648-670.

doi:10.1037/0096-1523.26.2.648

[23] H. Leuthold, “The Simon Effect in Cognitive Electro-

physiology: A Short Review,” Acta Psychologica (Am-

sterdam), Vol. 136, No. 2, 2011, pp. 203-211.

doi:10.1016/j.actpsy.2010.08.001
