Advances in Computed Tomography, 2012, 1, 21-22

http://dx.doi.org/10.4236/act.2012.13005 Published Online December 2012 (http://www.SciRP.org/journal/act)

Re-Sheathing the Scimitar Syndrome

Michael Michail, Kaleab N. Asrress, Abhishek Joshi, John A. Giles,

Muhammed Z. Khawaja, Eric T. McWilliams

Department of Cardiology, Conquest Hospital, Hastings, UK

Email: [email protected]

Received November 10, 2012; revised December 12, 2012; accep te d Decemb er 20, 2012

ABSTRACT

Scimitar Syndrome is a congenital condition resulting in anomalous pulmonary venous drainage from the lung into the

inferior vena cava. It is often associated with cardiac and pu lmonary abnormalities, both which are determinan ts in the

severity and timing of presentation . True incidence of this condition is un known and likely to be significantly underes-

timated as many patients remain asymptomatic through adult life. The increase in availability and use of medical imag-

ing suggests that more asymptomatic and subacute cases will be detected. The management in those with the delayed

presentation of this co ndition is debated, however the mainstay of therapy remains medical.

Keywords: Adult-Onset Scimitar Syndrome; Multidetector Computed Tomography

1. Case Report

A fifty-year-old lady presented with progressive exer-

tional dyspnoea in absence of significant past medical

history. Clinical examination was normal. Twelve lead

electrocardiograms showed non-specific changes. Bio-

markers including full blood count, cardiac troponin-T,

and D-dimers were normal. Plain chest radiograph

showed abnormal vascular markings in the right lower

zone suspicious of a scimitar vein (SV) (Figure 1(A)).

64-slice multidetector computed tomography showed

partial anomalous pulmonary venous drainage of the en-

tire right lung to the inferior vena cava (IVC) below the

right atrial-IVC junction (Figures 1(B)-(D)), confirming

scimitar syndrome (SS). Cardiac catheterisation con-

firmed the presence of the SV, and found a left-to-right

shunt with Qp:Qs of 2.1:1.

2. Scimitar Syndrome

SS is a rare congenital abnormality, characterised by ano-

malous pulmonary venous drainage of the right, or less

frequently, the left lung, into the inferior vena cava. The

true incidence is unknown. The syndrome is named after

the Turkish sword “scimitar” describing the radiogra-

phic appearance of the anomalous vein.

SS has two distinct presentations. The “infant” form is

associated with other congenital abnormalities and great-

er mortality. Clinical features may include failure to

thrive, tachypnoea, cardiac failure, recurrent chest infec-

tions and cyanosis [1]. Medical therapy is used to allevi-

ate symptoms in infants, however the presence of pul-

monary hypertension warrants prompt surgical correc-

tion.

The second form presents in children and adults. Car-

diac and pulmonary abnormalities are associated, the

former more accountable for the severity of symptoms.

Cardiac abnormalities include dextrocardia, atrial and

ventricular septal defects, patent ductus arteriosus and

pulmonary vein stenosis. Pulmonary abnormalities vary

but commonly include right lung hypoplasia and pulmo-

nary sequestration. In two thirds of patients, the SV pro-

vides drainage for the entire right lung.

Delayed presentation in the adult group is the result of

fewer cardiopulmonary anomalies. Patients present with

exertional dyspnoea and recurrent chest infections, more

commonly involving the right lung. Electrocardiogram

may find atrial fibrillation, right ventricular hypertrophy

or right bundle branch block. Pulmonary function tests

demonstrate mild deficits in vital capacity [2]. Co mputed

tomography is increasingly used to provide 3D images to

guide further treatment [3].

3. Treatment

The conventional indications for corrective surgery in

adults with SS are a shunt of greater than 50% (a ratio of

2:1), or pulmonary sequestration with recurrent pulmo-

nary infection. These indications arose from a small, sin-

gle centre study (n = 6) [4].

Corrective surgery attempts to reduce left-to-right

shunt by diverting the flow of SV into systemic circula-

tion. Two main approaches have been used: First, re-im-

pla n t a t io n of th e S V into the le ft atrium or, second, to use

a baffle to redirect flow across the right atrium through

M. MICHAIL ET AL.

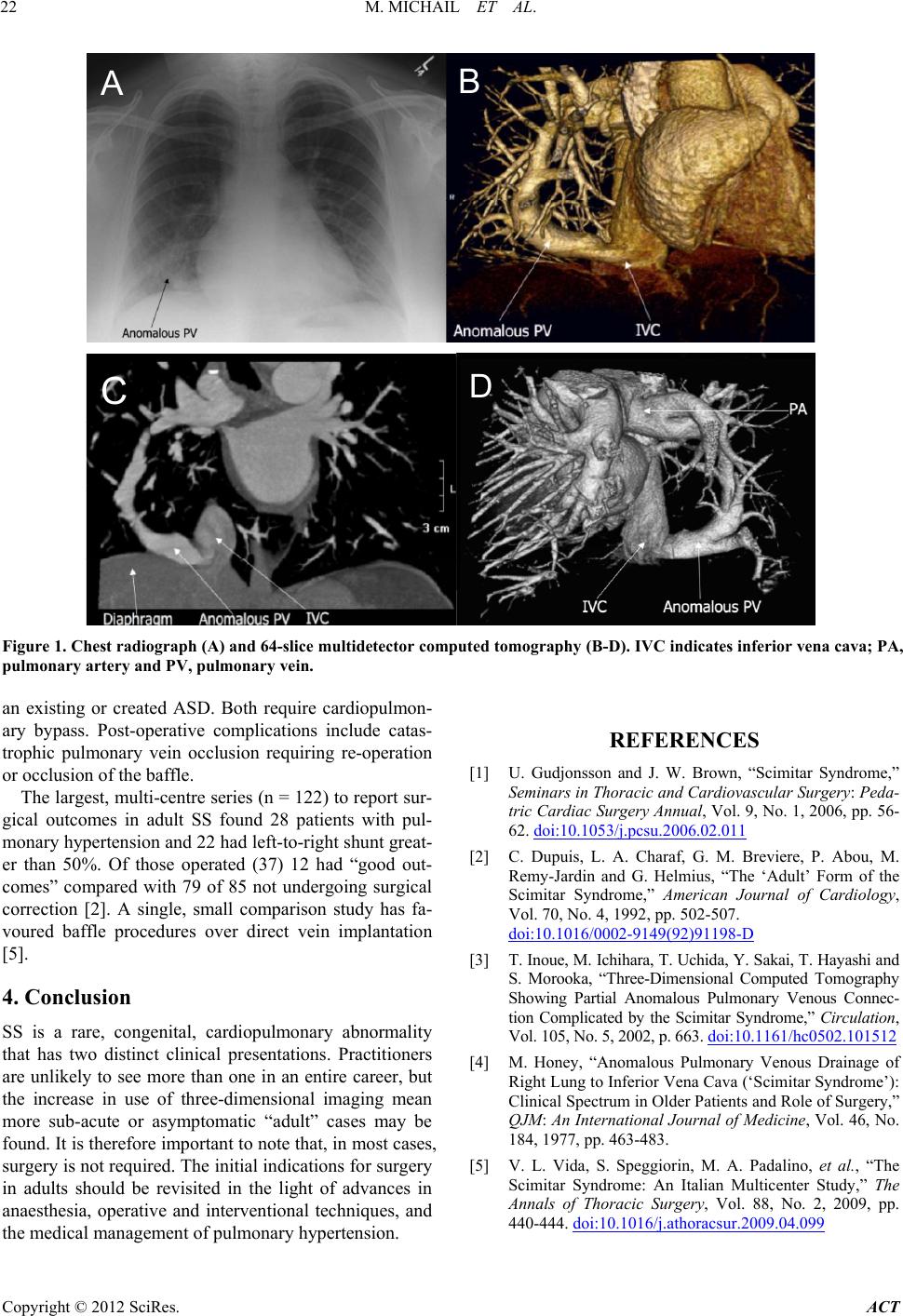

Figure 1. Chest radiograph (A) and 64-slice multidetector computed tomography (B-D). IVC indicates inferior vena cava; PA,

pulmonary artery and PV, pulmonary ve in.

an existing or created ASD. Both require cardiopulmon-

ary bypass. Post-operative complications include catas-

trophic pulmonary vein occlusion requiring re-operation

or occlusion of the baffle.

The largest, multi-centre series (n = 122) to report sur-

gical outcomes in adult SS found 28 patients with pul-

monary hypertension and 22 had left-to-right shunt great-

er than 50%. Of those operated (37) 12 had “good out-

comes” compared with 79 of 85 not undergoing surgical

correction [2]. A single, small comparison study has fa-

voured baffle procedures over direct vein implantation

[5].

4. Conclusion

SS is a rare, congenital, cardiopulmonary abnormality

that has two distinct clinical presentations. Practitioners

are unlikely to see more than one in an entire career, but

the increase in use of three-dimensional imaging mean

more sub-acute or asymptomatic “adult” cases may be

found. It is therefore importan t to note that, in most cases,

surgery is not req uired. The initial in dications fo r surgery

in adults should be revisited in the light of advances in

anaesthesia, operative and interventional techniques, and

he medical management of pulmonary hypertension. t

REFERENCES

[1] U. Gudjonsson and J. W. Brown, “Scimitar Syndrome,”

Seminars in Thoracic and Cardiovascular Surgery: Peda-

tric Cardiac Surgery Annual, Vol. 9, No. 1, 2006, pp. 56-

62. doi:10.1053/j.pcsu.2006.02.011

[2] C. Dupuis, L. A. Charaf, G. M. Breviere, P. Abou, M.

Remy-Jardin and G. Helmius, “The ‘Adult’ Form of the

Scimitar Syndrome,” American Journal of Cardiology,

Vol. 70, No. 4, 1992, pp. 502-507.

doi:10.1016/0002-9149(92)91198-D

[3] T. Inoue, M. Ichihara, T. Uchida, Y. Sakai, T. Hayashi and

S. Morooka, “Three-Dimensional Computed Tomography

Showing Partial Anomalous Pulmonary Venous Connec-

tion Complicated by the Scimitar Syndrome,” Circulation,

Vol. 105, No. 5, 2002, p. 663. doi:10.1161/hc0502.101512

[4] M. Honey, “Anomalous Pulmonary Venous Drainage of

Right Lung to Inferior Vena Cava (‘Scimitar Syndrome’):

Clinical Spectrum in Older Patients and Role of Surgery,”

QJM: An International Journal of Medicine, Vol. 46, No.

184, 1977, pp. 463-483.

[5] V. L. Vida, S. Speggiorin, M. A. Padalino, et al., “The

Scimitar Syndrome: An Italian Multicenter Study,” The

Annals of Thoracic Surgery, Vol. 88, No. 2, 2009, pp.

440-444. doi:10.1016/j.athoracsur.2009.04.099
