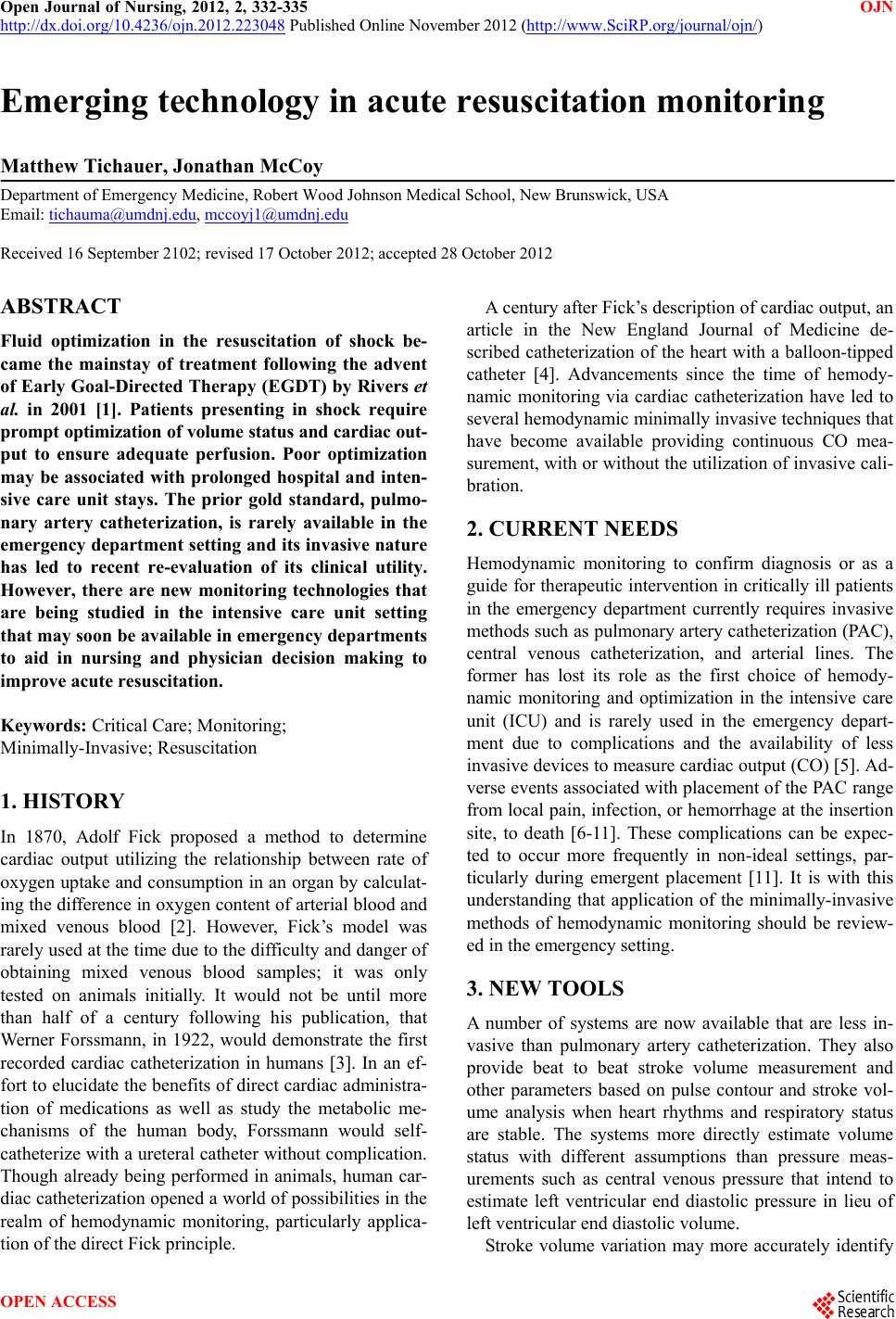

Open Journal of Nursing, 2012, 2, 332-335 OJN

http://dx.doi.org/10.4236/ojn.2012.223048 Published Online November 2012 (http://www.SciRP.org/journal/ojn/)

Emerging technology in acute resuscitation monitoring

Matthew Tichauer, Jonathan McCoy

Department of Emergency Medicine, Robert Wood Johnson Medical School, New Brunswick, USA

Email: [email protected], [email protected]

Received 16 September 2102; revised 17 October 2012; accepted 28 October 2012

ABSTRACT

Fluid optimization in the resuscitation of shock be-

came the mainstay of treatment following the advent

of Early Goal-Directed Therapy (EGDT) by Rivers et

al. in 2001 [1]. Patients presenting in shock require

prompt optimization of volume status and cardiac out-

put to ensure adequate perfusion. Poor optimization

may be associated with prolonged hospital and inten-

sive care unit stays. The prior gold standard, pulmo-

nary artery catheterization, is rarely available in the

emergency department setting and its invasive nature

has led to recent re-evaluation of its clinical utility.

However, there are new monitoring technologies that

are being studied in the intensive care unit setting

that may soon be available in emergency departments

to aid in nursing and physician decision making to

improve acute resuscitation.

Keywords: Critical Care; Monitoring;

Minimally-Invasive; Resuscitation

1. HISTORY

In 1870, Adolf Fick proposed a method to determine

cardiac output utilizing the relationship between rate of

oxygen uptake and consumption in an organ by calculat-

ing the difference in oxyg en content of ar terial blood and

mixed venous blood [2]. However, Fick’s model was

rarely used at the time due to the difficulty and danger of

obtaining mixed venous blood samples; it was only

tested on animals initially. It would not be until more

than half of a century following his publication, that

Werner Forssmann, in 1922, would demonstrate the first

recorded cardiac catheterization in humans [3]. In an ef-

fort to elucidate the benefits of direct cardiac administra-

tion of medications as well as study the metabolic me-

chanisms of the human body, Forssmann would self-

catheterize with a ureteral catheter without complication.

Though already being performed in animals, human car-

diac catheterization op ened a world of possibilities in the

realm of hemodynamic monitoring, particularly applica-

tion of the direct Fick princi ple.

A century after Fick’s description of cardiac output, an

article in the New England Journal of Medicine de-

scribed catheterization of the heart with a balloon-tipped

catheter [4]. Advancements since the time of hemody-

namic monitoring via cardiac catheterization have led to

several hemodynamic minimally invasive techniques that

have become available providing continuous CO mea-

surement, with or without the utilization of invasive cali-

bration.

2. CURRENT NEEDS

Hemodynamic monitoring to confirm diagnosis or as a

guide for therap eutic intervention in critically ill patients

in the emergency department currently requires invasive

methods such as pulmonary artery catheterization (PAC),

central venous catheterization, and arterial lines. The

former has lost its role as the first choice of hemody-

namic monitoring and optimization in the intensive care

unit (ICU) and is rarely used in the emergency depart-

ment due to complications and the availability of less

invasive devices to measure cardiac output (CO) [5]. Ad-

verse events associated with placement of the PAC range

from local pain, infection, or hemorrhage at the insertio n

site, to death [6-11]. These complications can be expec-

ted to occur more frequently in non-ideal settings, par-

ticularly during emergent placement [11]. It is with this

understanding that application of the minimally-invasive

methods of hemodynamic monitoring should be review-

ed in the emergency setting.

3. NEW TOOLS

A number of systems are now available that are less in-

vasive than pulmonary artery catheterization. They also

provide beat to beat stroke volume measurement and

other parameters based on pulse contour and stroke vol-

ume analysis when heart rhythms and respiratory status

are stable. The systems more directly estimate volume

status with different assumptions than pressure meas-

urements such as central venous pressure that intend to

estimate left ventricular end diastolic pressure in lieu of

left ventricular end diastolic volume.

Stroke volume variation may more accurately identify

OPEN ACCESS

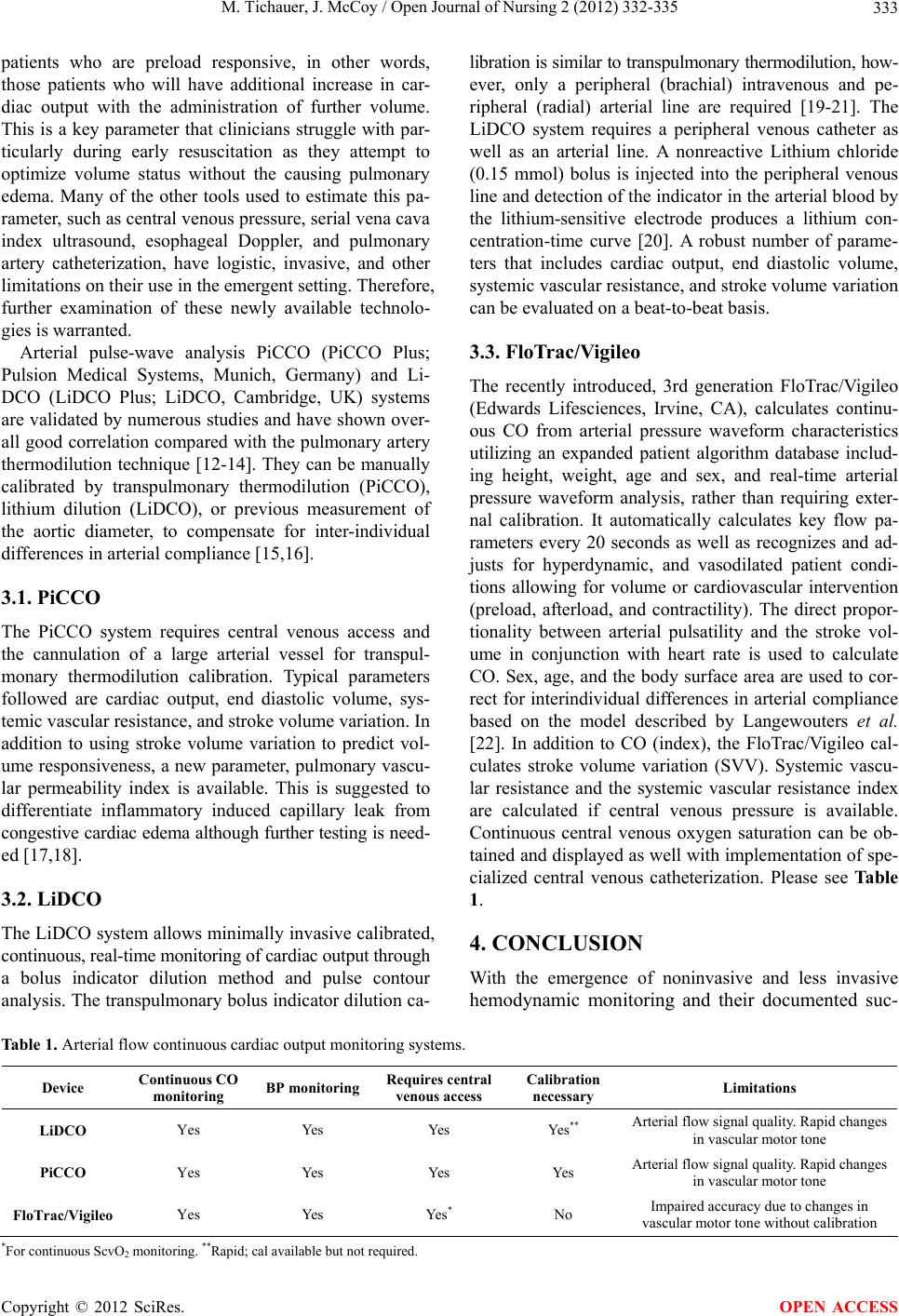

M. Tichauer, J. McCoy / Open Journal of Nursing 2 (2012) 332-335 333

patients who are preload responsive, in other words,

those patients who will have additional increase in car-

diac output with the administration of further volume.

This is a key parameter that clinicians struggle with par-

ticularly during early resuscitation as they attempt to

optimize volume status without the causing pulmonary

edema. Many of the other tools used to estimate this pa-

rameter, such as central venous pressure, serial vena cava

index ultrasound, esophageal Doppler, and pulmonary

artery catheterization, have logistic, invasive, and other

limitations on their u se in the emergent setting. Therefore,

further examination of these newly available technolo-

gies is warranted.

Arterial pulse-wave analysis PiCCO (PiCCO Plus;

Pulsion Medical Systems, Munich, Germany) and Li-

DCO (LiDCO Plus; LiDCO, Cambridge, UK) systems

are validated by numerous studies and have shown over-

all good correlation compared with the pulmonary artery

thermodilution technique [12-14]. They can be manually

calibrated by transpulmonary thermodilution (PiCCO),

lithium dilution (LiDCO), or previous measurement of

the aortic diameter, to compensate for inter-individual

differences in arterial compliance [15,16].

3.1. PiCCO

The PiCCO system requires central venous access and

the cannulation of a large arterial vessel for transpul-

monary thermodilution calibration. Typical parameters

followed are cardiac output, end diastolic volume, sys-

temic vascular resistance, and stroke volume variation. In

addition to using stroke volume variation to predict vol-

ume responsiveness, a new parameter, pulmonary vascu-

lar permeability index is available. This is suggested to

differentiate inflammatory induced capillary leak from

congestive cardiac edema although further testing is need-

ed [17,18].

3.2. LiDCO

The LiDCO system allows minimally invasive calibrated,

continuous, real-time m onit oring of cardi ac out put t hrough

a bolus indicator dilution method and pulse contour

analysis. The transpulmonary bolus indicator dilution ca-

libration is similar to transpulmonary thermodilution, how-

ever, only a peripheral (brachial) intravenous and pe-

ripheral (radial) arterial line are required [19-21]. The

LiDCO system requires a peripheral venous catheter as

well as an arterial line. A nonreactive Lithium chloride

(0.15 mmol) bolus is injected into the peripheral venous

line and detection of the indicator in the arterial blood by

the lithium-sensitive electrode produces a lithium con-

centration-time curve [20]. A robust number of parame-

ters that includes cardiac output, end diastolic volume,

systemic vascular resistance, and stroke volume variation

can be evaluated on a beat-to-beat basis.

3.3. FloTrac/Vigileo

The recently introduced, 3rd generation FloTrac/Vigileo

(Edwards Lifesciences, Irvine, CA), calculates continu-

ous CO from arterial pressure waveform characteristics

utilizing an expanded patient algorithm database includ-

ing height, weight, age and sex, and real-time arterial

pressure waveform analysis, rather than requiring exter-

nal calibration. It automatically calculates key flow pa-

rameters every 20 seconds as well as recognizes and ad-

justs for hyperdynamic, and vasodilated patient condi-

tions allowing for volume or cardiovascular intervention

(preload, afterload, and contractility). The direct propor-

tionality between arterial pulsatility and the stroke vol-

ume in conjunction with heart rate is used to calculate

CO. Sex, age, and the body surface area are used to cor-

rect for interindividual differences in arterial compliance

based on the model described by Langewouters et al.

[22]. In addition to CO (index), the FloTrac/Vigileo cal-

culates stroke volume variation (SVV). Systemic vascu-

lar resistance and the systemic vascular resistance index

are calculated if central venous pressure is available.

Continuous central venous oxygen saturation can be ob-

tained and displayed as well with implementatio n of spe-

cialized central venous catheterization. Please see Table

4. CONCLUSION

With the emergence of noninvasive and less invasive

hemodynamic monitoring and their documented suc-

Table 1. Arterial flow continuous cardiac output monitoring systems.

Device Continuous CO

monitoring BP monitoringRequires central

venous access Calibration

necessary Limitations

LiDCO Yes Yes Yes Yes** Arterial flo w signal quality. Rapid changes

in vascular motor tone

PiCCO Yes Yes Yes Yes

Arterial flow signal quality. Rapid changes

in vascular motor tone

FloTrac/Vigileo Yes Yes Yes* No

Impaired accuracy due to changes in

vascular motor tone without calibration

For contin uous ScvO2 monitoring. **Rapid; ca l available but not required.

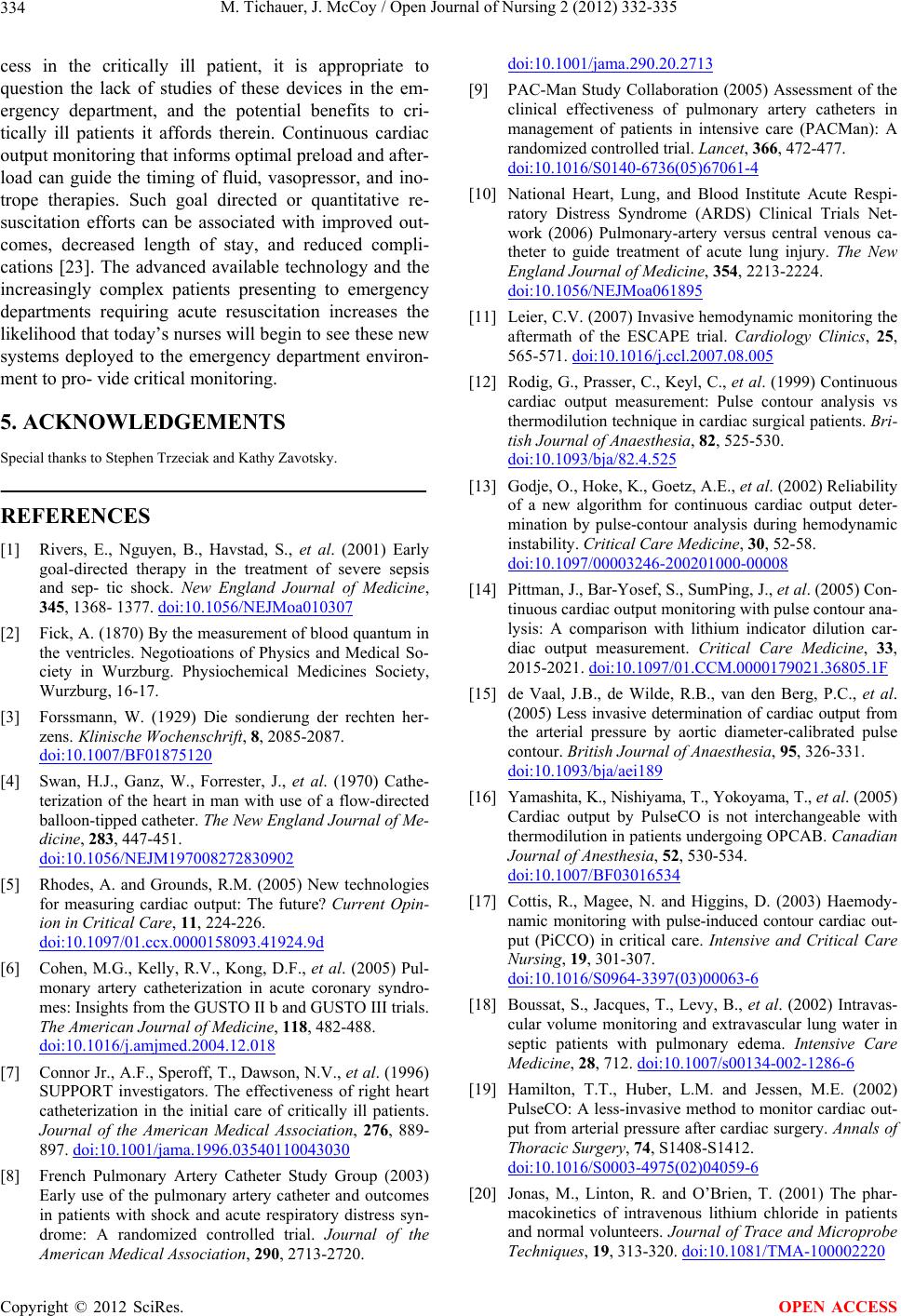

M. Tichauer, J. McCoy / Open Journal of Nursing 2 (2012) 332-335

334

cess in the critically ill patient, it is appropriate to

question the lack of studies of these devices in the em-

ergency department, and the potential benefits to cri-

tically ill patients it affords therein. Continuous cardiac

output monitoring that informs optimal preload and after-

load can guide the timing of fluid, vasopressor, and ino-

trope therapies. Such goal directed or quantitative re-

suscitation efforts can be associated with improved out-

comes, decreased length of stay, and reduced compli-

cations [23]. The advanced available technology and the

increasingly complex patients presenting to emergency

departments requiring acute resuscitation increases the

likelihood that tod ay’s nurses will begin to see these n ew

systems deployed to the emergency department environ-

ment to pro- vide critical monitoring.

5. ACKNOWLEDGEMENTS

Special thanks to Stephen Trzeciak and Kathy Zavotsky.

REFERENCES

[1] Rivers, E., Nguyen, B., Havstad, S., et al. (2001) Early

goal-directed therapy in the treatment of severe sepsis

and sep- tic shock. New England Journal of Medicine,

345, 1368- 1377. doi:10.1056/NEJMoa010307

[2] Fick, A. (1870) By the measurement of blood quantum in

the ventricles. Negotioations of Physics and Medical So-

ciety in Wurzburg. Physiochemical Medicines Society,

Wurzburg, 16-17.

[3] Forssmann, W. (1929) Die sondierung der rechten her-

zens. Klinische Wochenschrift, 8, 2085-2087.

doi:10.1007/BF01875120

[4] Swan, H.J., Ganz, W., Forrester, J., et al. (1970) Cathe-

terization of the heart in man with use of a flow-directed

balloon-tipped catheter. The New England Journal of Me-

dicine, 283, 447-451.

doi:10.1056/NEJM197008272830902

[5] Rhodes, A. and Grounds, R.M. (2005) New technologies

for measuring cardiac output: The future? Current Opin-

ion in Critical Care, 11, 224-226.

doi:10.1097/01.ccx.0000158093.41924.9d

[6] Cohen, M.G., Kelly, R.V., Kong, D.F., et al. (2005) Pul-

monary artery catheterization in acute coronary syndro-

mes: Insights from the GUSTO II b and GUSTO III trials.

The American Journal of Medicine, 118, 482-488.

doi:10.1016/j.amjmed.2004.12.018

[7] Connor Jr., A.F., Speroff, T., Dawson, N.V., et al. (1996)

SUPPORT investigators. The effectiveness of right heart

catheterization in the initial care of critically ill patients.

Journal of the American Medical Association, 276, 889-

897. doi:10.1001/jama.1996.03540110043030

[8] French Pulmonary Artery Catheter Study Group (2003)

Early use of the pulmonary artery catheter and outcomes

in patients with shock and acute respiratory distress syn-

drome: A randomized controlled trial. Journal of the

American Medical Association, 290, 2713-2720.

doi:10.1001/jama.290.20.2713

[9] PAC-Man Study Collaboration (2005) Assessment of the

clinical effectiveness of pulmonary artery catheters in

management of patients in intensive care (PACMan): A

randomized cont r olled trial. Lancet, 366, 472-477.

doi:10.1016/S0140-6736(05)67061-4

[10] National Heart, Lung, and Blood Institute Acute Respi-

ratory Distress Syndrome (ARDS) Clinical Trials Net-

work (2006) Pulmonary-artery versus central venous ca-

theter to guide treatment of acute lung injury. The New

England Journal of Medicine, 354, 2213-2224.

doi:10.1056/NEJMoa061895

[11] Leier, C.V. (2007) Invasive hemodynamic monitoring the

aftermath of the ESCAPE trial. Cardiology Clinics, 25,

565-571. doi:10.1016/j.ccl.2007.08.005

[12] Rodig, G., Prasser, C., Key l, C., et al. (1999) Continuous

cardiac output measurement: Pulse contour analysis vs

thermodilution technique in cardiac surgical patients. Bri-

tish Journal of Anaesthesia, 82, 525-530.

doi:10.1093/bja/82.4.525

[13] Godje, O., Hoke, K., Goetz, A.E., et al. (2002) Reliability

of a new algorithm for continuous cardiac output deter-

mination by pulse-contour analysis during hemodynamic

instability. Critical Care Medicine, 30, 52-58.

doi:10.1097/00003246-200201000-00008

[14] Pittman, J., Bar-Yosef, S., SumPing, J., et al. (2005) Con-

tinuous cardiac output monitoring with pulse contour ana-

lysis: A comparison with lithium indicator dilution car-

diac output measurement. Critical Care Medicine, 33,

2015-2021. doi:10.1097/01.CCM.0000179021.36805.1F

[15] de Vaal, J.B., de Wilde, R.B., van den Berg, P.C., et al.

(2005) Less invasive determination of cardiac output from

the arterial pressure by aortic diameter-calibrated pulse

contour. British Journal of Anaesthesia, 95, 326-331.

doi:10.1093/bja/aei189

[16] Yamashita, K., Nishiy ama, T., Yokoyama, T., et al. (2005)

Cardiac output by PulseCO is not interchangeable with

thermodilution in patients undergoing OPCAB. Canadian

Journal of Anesthesia, 52, 530-534.

doi:10.1007/BF03016534

[17] Cottis, R., Magee, N. and Higgins, D. (2003) Haemody-

namic monitoring with pulse-induced contour cardiac out-

put (PiCCO) in critical care. Intensive and Critical Care

Nursing, 19, 301-307.

doi:10.1016/S0964-3397(03)00063-6

[18] Boussat, S., Jacques, T., Levy, B., et al. (2002) Intravas-

cular volume monitoring and extravascular lung water in

septic patients with pulmonary edema. Intensive Care

Medicine, 28, 712. doi:10.1007/s00134-002-1286-6

[19] Hamilton, T.T., Huber, L.M. and Jessen, M.E. (2002)

PulseCO: A less-invasive method to monitor cardiac out-

put from arterial pressure after cardiac surgery. Annals of

Thoracic Surgery, 74, S1408-S1412.

doi:10.1016/S0003-4975(02)04059-6

[20] Jonas, M., Linton, R. and O’Brien, T. (2001) The phar-

macokinetics of intravenous lithium chloride in patients

and normal volunteers. Journal of Trace and Microprobe

Techniques, 19, 313-320. doi:10.1081/TMA-100002220

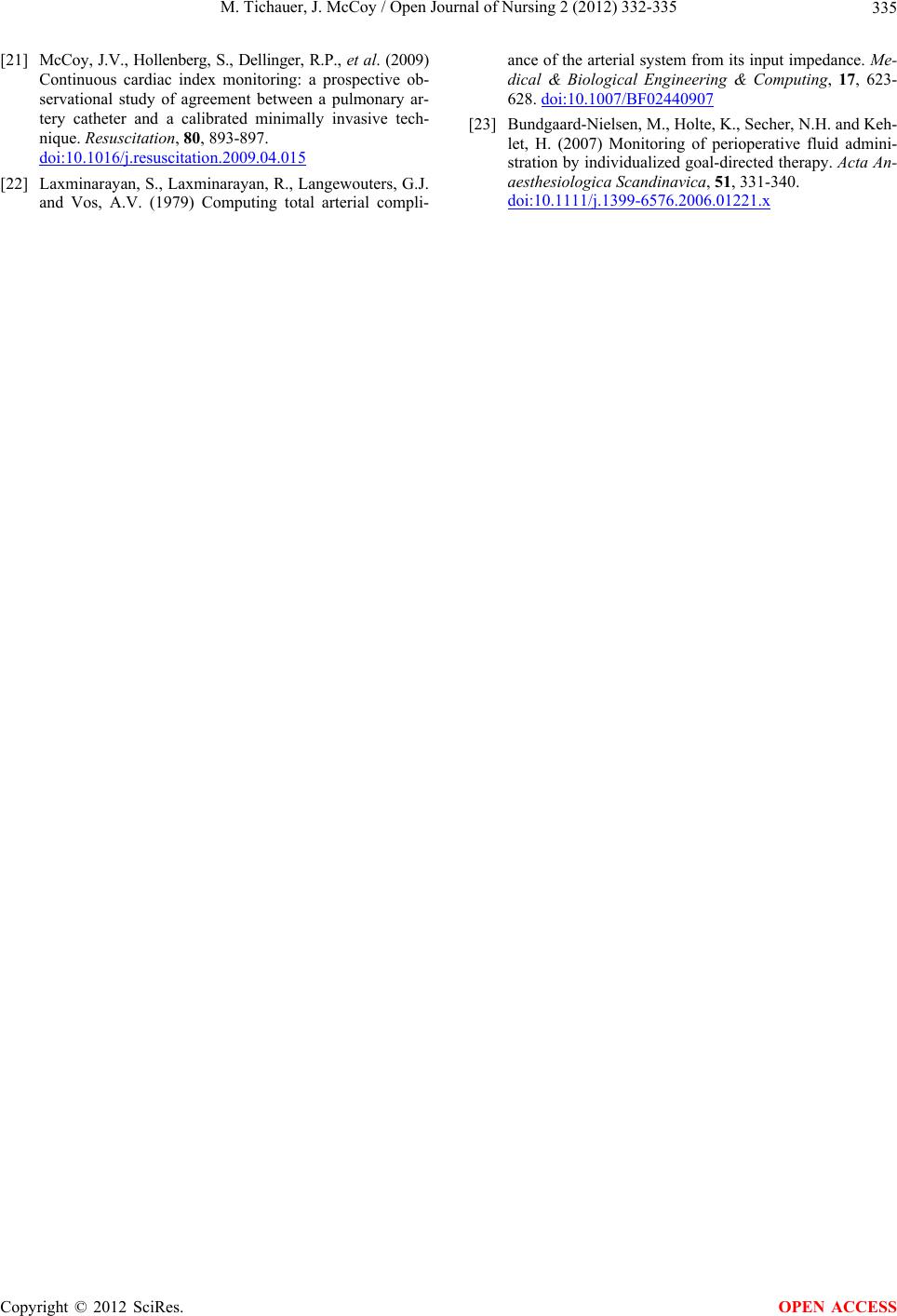

M. Tichauer, J. McCoy / Open Journal of Nursing 2 (2012) 332-335 335

[21] McCoy, J.V., Hollenberg, S., Dellinger, R.P., et al. (2009)

Continuous cardiac index monitoring: a prospective ob-

servational study of agreement between a pulmonary ar-

tery catheter and a calibrated minimally invasive tech-

nique. Resuscitation, 80, 893-897.

doi:10.1016/j.resuscitation.2009.04.015

[22] Laxminarayan, S., Laxminarayan, R., Langewouters, G.J.

and Vos, A.V. (1979) Computing total arterial compli-

ance of the arterial system from its input impedance. Me-

dical & Biological Engineering & Computing, 17, 623-

628. doi:10.1007/BF02440907

[23] Bundgaard-Nielsen, M., Holte, K., Secher, N.H. and Keh-

let, H. (2007) Monitoring of perioperative fluid admini-

stration by individualized goal-directed therapy. Acta An-

aesthesiologica Scandinavica, 51, 331-340.

doi:10.1111/j.1399-6576.2006.01221.x
