Journal of Information Security, 2012, 3, 314-318

http://dx.doi.org/10.4236/jis.2012.34038 Published Online October 2012 (http://www.SciRP.org/journal/jis)

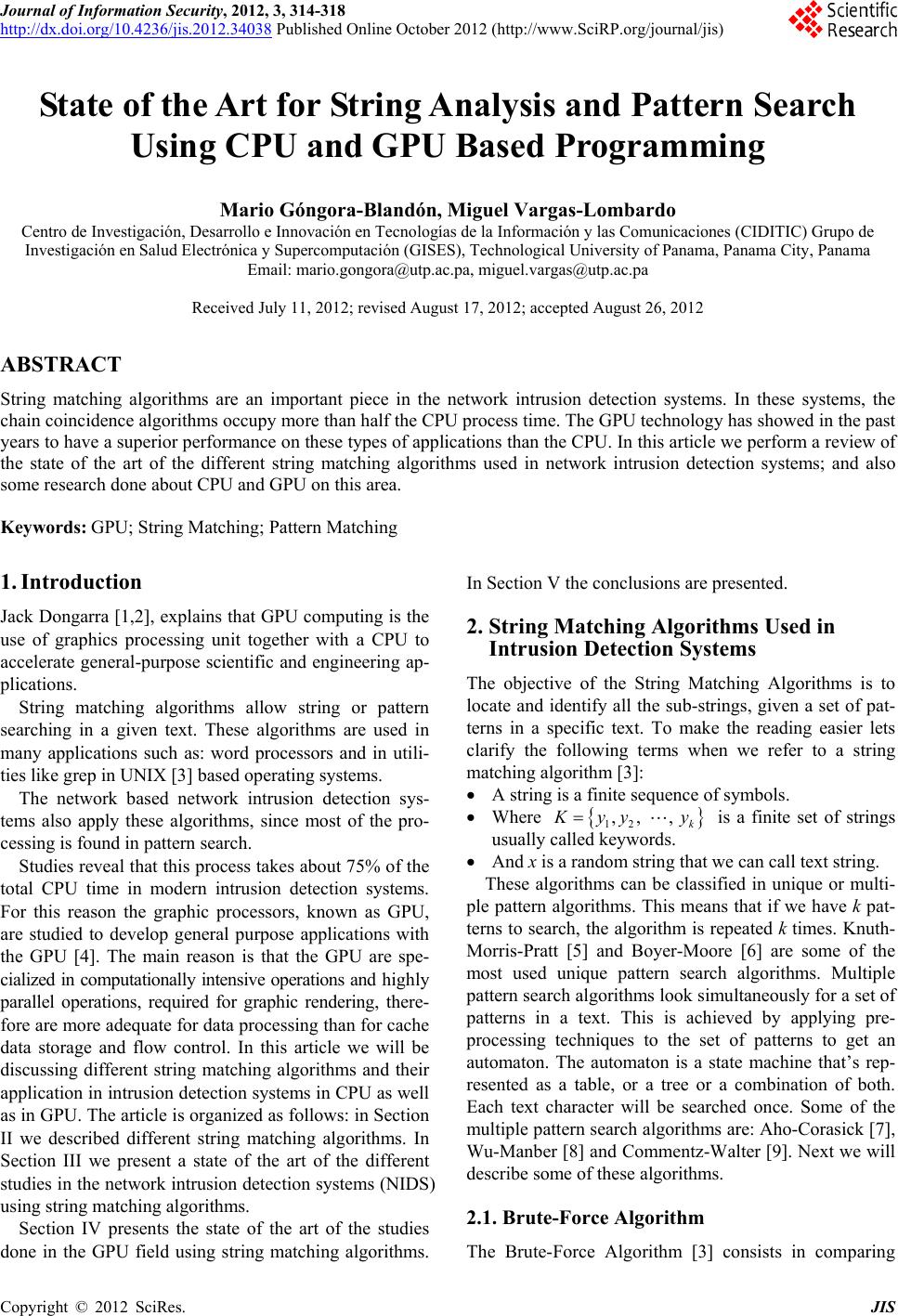

State of the Art for String Analysis and Pattern Search

Using CPU and GPU Based Programming

Mario Góngora-Blandón, Miguel Vargas-Lombardo

Centro de Investigación, Desarrollo e Innovación en Tecnologías de la Información y las Comunicaciones (CIDITIC) Grupo de

Investigación en Salud Electrónica y Supercomputación (GISES), Technological University of Panama, Panama Ci ty, Panama

Email: [email protected], [email protected]

Received July 11, 2012; revised August 17, 2012; accepted August 26, 2012

ABSTRACT

String matching algorithms are an important piece in the network intrusion detection systems. In these systems, the

chain coincidence algorithms occupy more than half the CPU process time. The GPU technology has sh ow ed in the past

years to have a superior performance on these types of applications than the CPU. In this article we perform a review of

the state of the art of the different string matching algorithms used in network intrusion detection systems; and also

some research done about CPU and GPU on this area.

Keywords: GPU; String Matching; Pattern Matching

1. Introduction

Jack Dongarra [1,2], explains that GPU computing is the

use of graphics processing unit together with a CPU to

accelerate general-purpose scientific and engineering ap-

plications.

String matching algorithms allow string or pattern

searching in a given text. These algorithms are used in

many applications such as: word processors and in utili-

ties like grep in UNIX [3] based operating systems.

The network based network intrusion detection sys-

tems also apply these algorithms, since most of the pro-

cessing is found in pattern search.

Studies reveal that this process takes about 75% of the

total CPU time in modern intrusion detection systems.

For this reason the graphic processors, known as GPU,

are studied to develop general purpose applications with

the GPU [4]. The main reason is that the GPU are spe-

cialized in computationally intensive operations and h ighly

parallel operations, required for graphic rendering, there-

fore are more adequate for data processing than for cache

data storage and flow control. In this article we will be

discussing different string matching algorithms and their

application in intrusion d etection systems in CPU as well

as in GPU. The article is organized as follows: in Section

II we described different string matching algorithms. In

Section III we present a state of the art of the different

studies in the network intrusion detection syste ms (NIDS)

using string matching algorithms.

Section IV presents the state of the art of the studies

done in the GPU field using string matching algorithms.

In Section V the conclusions are presented.

2. String Matching Algorithms Used in

Intrusion Detection Systems

The objective of the String Matching Algorithms is to

locate and identify all the sub-strings, given a set of pat-

terns in a specific text. To make the reading easier lets

clarify the following terms when we refer to a string

matching algorithm [3]:

 A string is a finite sequence of symbols.





 Where ,,yyy is a finite set of strings

usually called keywords.

 And x is a random string that we can call text string.

These algorithms can be classified in unique or multi-

ple pattern algorithms. This means that if we have k pat-

terns to search, the algorithm is repeated k times. Knuth-

Morris-Pratt [5] and Boyer-Moore [6] are some of the

most used unique pattern search algorithms. Multiple

pattern search algorithms look simultaneously for a set of

patterns in a text. This is achieved by applying pre-

processing techniques to the set of patterns to get an

automaton. The automaton is a state machine that’s rep-

resented as a table, or a tree or a combination of both.

Each text character will be searched once. Some of the

multiple pattern search algorithms are: Aho-Corasick [7],

Wu-Manber [8] and Commentz-W alter [9]. Next we will

describe some of these algorithms.

2.1. Brute-Force Algorithm

The Brute-Force Algorithm [3] consists in comparing

M. GÓNGORA-BLANDÓN, M. VARGA S-LOMBARDO 315

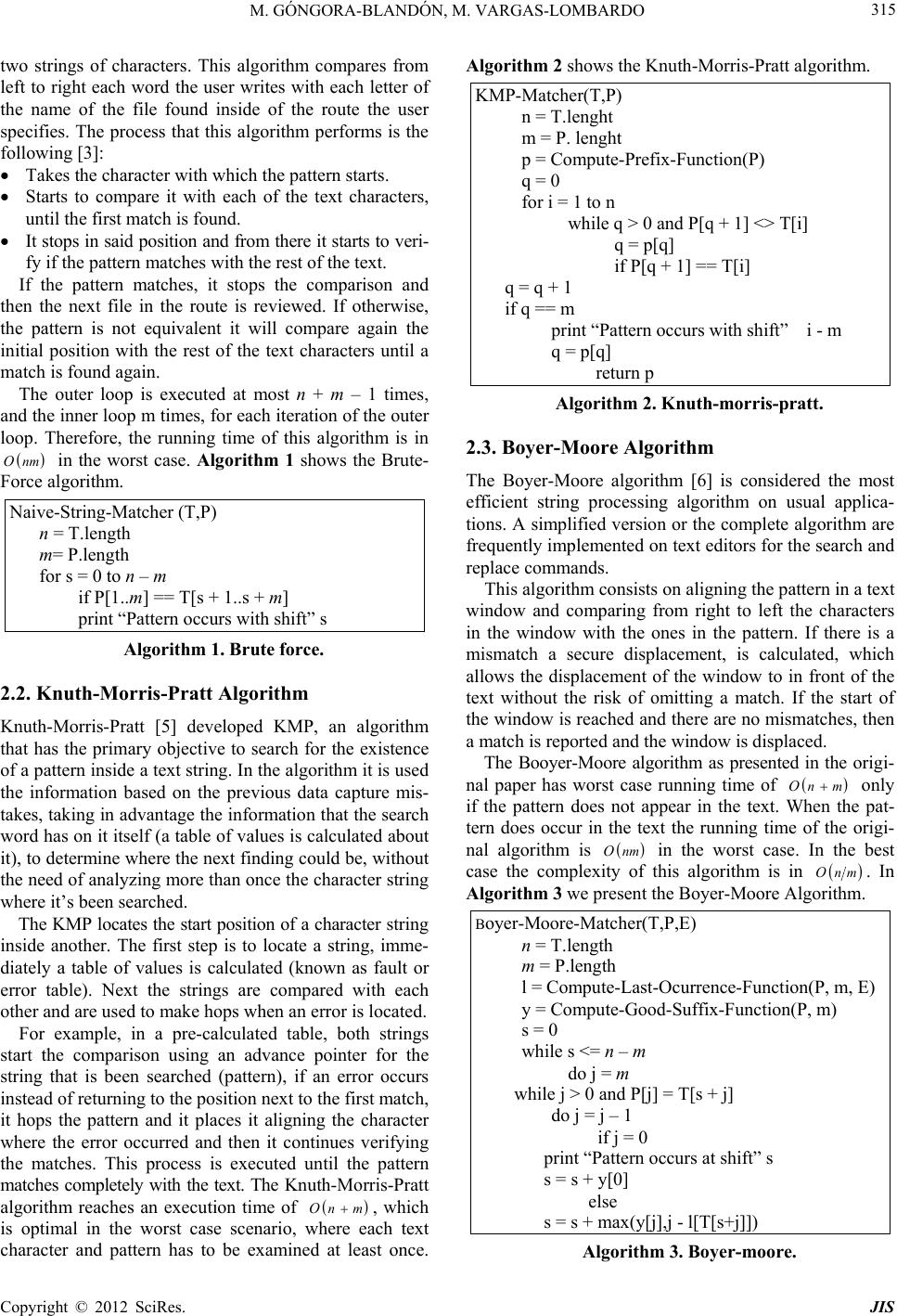

two strings of characters. This algorithm compares from

left to right each word the user writes with each letter of

the name of the file found inside of the route the user

specifies. The process that this algorithm performs is the

following [3]:

 Takes the character with which the pattern starts.

 Starts to compare it with each of the text characters,

until the first match is found.

 It stops in said p osition and from there it star ts to veri-

fy if the pattern matches with the rest of the text.

If the pattern matches, it stops the comparison and

then the next file in the route is reviewed. If otherwise,

the pattern is not equivalent it will compare again the

initial position with the rest of the text characters until a

match is found again.

The outer loop is executed at most n + m – 1 times,

and the inner loop m times, for each iteration of the outer

loop. Therefore, the running time of this algorithm is in

in the worst case. Algorithm 1 shows the Brute-

Force algorithm.



nmO

Naive-String-Ma tcher (T,P)

n = T.length

m= P.length

for s = 0 to n – m

if P[1..m] == T[s + 1..s + m]

print “Pattern occurs with shift” s

Algorithm 1. Brute force.

2.2. Knuth-Morris-Pratt Algorithm

Knuth-Morris-Pratt [5] developed KMP, an algorithm

that has the primary objective to search for the existence

of a pattern insid e a text string. In the algorithm it is used

the information based on the previous data capture mis-

takes, taking in adv antage the information that the search

word has on it itself (a table of values is calculated about

it), to determine where the next finding could be, without

the need of analyzing more than once the character string

where it’s been searched.

The KMP locates the start position of a character st rin g

inside another. The first step is to locate a string, imme-

diately a table of values is calculated (known as fault or

error table). Next the strings are compared with each

other and are used to make hops when an error is located.

For example, in a pre-calculated table, both strings

start the comparison using an advance pointer for the

string that is been searched (pattern), if an error occurs

instead of returning to the po sition next to the first match,

it hops the pattern and it places it aligning the character

where the error occurred and then it continues verifying

the matches. This process is executed until the pattern

matches completely with the text. The Kn uth-Morris -Pra tt

algorithm reaches an execution time of , which

is optimal in the worst case scenario, where each text

character and pattern has to be examined at least once.

Algorithm 2 shows the Knuth-Morris-Pratt algorithm.

KMP-Matcher(T,P)

n = T.lenght

m = P. lenght

p = Compute-Prefix-Function(P)

q = 0

for i = 1 to n

while q > 0 and P[q + 1] <> T[i]

q = p[q]

if P[q + 1] == T[i]

q = q + 1

if q == m

print “Pattern occurs with shift” i - m

q = p[q]

return p

Algorithm 2. Knuth-morris-pratt.

2.3. Boyer-Moore Algorithm

The Boyer-Moore algorithm [6] is considered the most

efficient string processing algorithm on usual applica-

tions. A simplified version or the complete algorithm are

frequently implemented on tex t editors for the search and

replace commands.

This algorithm consists on aligning the pattern in a text

window and comparing from right to left the characters

in the window with the ones in the pattern. If there is a

mismatch a secure displacement, is calculated, which

allows the displacement of the window to in front of the

text without the risk of omitting a match. If the start of

the window is reached and there are no mismatches, then

a match is reported and the window is displaced.

The Booyer-Moore algorithm as presented in the origi-

nal paper has worst case running time of only

if the pattern does not appear in the text. When the pat-

tern does occur in the text the running time of the origi-

nal algorithm is



nmO





nmO in the worst case. In the best

case the complexity of this algorithm is in





nmO. In

Algorithm 3 we present the Boyer-Moore Algorithm.

Boyer-Moore-Matcher(T,P,E)

n = T.length

m = P.length

l = Compute-Last-Ocurrence-Function(P, m, E)

y = Compute-Good-Suffix-Function(P, m)

s = 0

while s <= n – m

do j = m

while j > 0 and P[j ] = T[s + j]

do j = j – 1

if j = 0

print “Pattern occurs at shift” s

s = s + y[0]

else



nmO s = s + max(y[j],j - l[T[s+j]])

Algorithm 3. Boyer-moore.

M. GÓNGORA-BLANDÓN, M. VARGA S-LOMBARDO

316

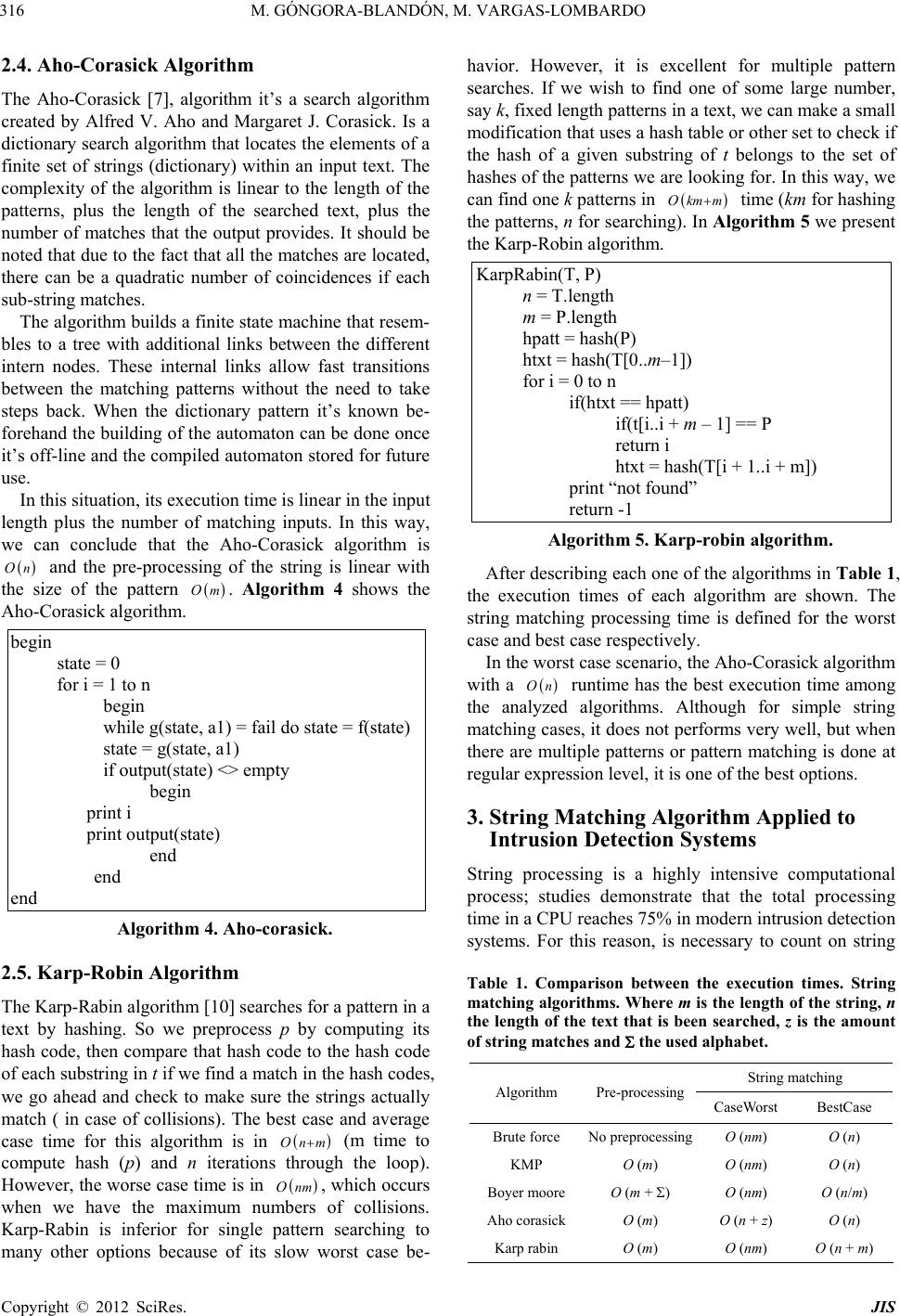

2.4. Aho-Corasick Algorithm

The Aho-Corasick [7], algorithm it’s a search algorithm

created by Alfred V. Aho and Margaret J. Corasick. Is a

dictionary search algorithm that locates the ele ments of a

finite set of strings (dictionary) within an input text. The

complexity of the algorithm is linear to the length of the

patterns, plus the length of the searched text, plus the

number of matches that the output provides. It should be

noted that due to the fact that all the matches are located,

there can be a quadratic number of coincidences if each

sub-string matches.

The algorithm builds a finite state machine that resem-

bles to a tree with additional links between the different

intern nodes. These internal links allow fast transitions

between the matching patterns without the need to take

steps back. When the dictionary pattern it’s known be-

forehand the bu ilding of the automaton can be done once

it’s off-line and the compiled automaton stored for future

use.

In this situation, its execution ti me is linear in the input

length plus the number of matching inputs. In this way,

we can conclude that the Aho-Corasick algorithm is

and the pre-processing of the string is linear with

the size of the pattern . Algorithm 4 shows the

Aho-Corasick algorithm.



begin

state = 0

for i = 1 to n

begin

while g(state, a1) = fail do state = f(state)

state = g(state, a1)

if output(state) <> empty

begin

print i

print output(state)

end

Algori thm 4. Aho -corasi ck.

2.5. Karp-Robin Algorithm

The Karp-Rabin algo rithm [10] searches for a pattern in a

text by hashing. So we preprocess p by computing its

hash code, then compare that hash code to the hash code

of each substring in t if we find a match in the hash codes,

we go ahead and check to make sure the strings actually

match ( in case of collisions). The best case and average

case time for this algorithm is in





nm



nmO



km mO

O (m time to

compute hash (p) and n iterations through the loop).

However, the worse case time is in , which occurs

when we have the maximum numbers of collisions.

Karp-Rabin is inferior for single pattern searching to

many other options because of its slow worst case be-

havior. However, it is excellent for multiple pattern

searches. If we wish to find one of some large number,

say k, fixed length pattern s in a text, we can make a small

modification that uses a hash table or other set to check if

the hash of a given substring of t belongs to the set of

hashes of the patterns we are looking fo r. In this way, we

can find one k patterns in time (km for hashing

the patterns, n for searching). In Algorithm 5 we present

the Karp-Robin algorithm.

KarpRabi n( T, P)

n = T.length

m = P.length

hpatt = hash(P)

htxt = hash(T[0..m–1])

for i = 0 to n

if(htxt == hpatt)

if(t[i..i + m – 1] == P

return i

htxt = hash(T[i + 1..i + m])

print “not found”

return -1

Algorithm 5. Karp-r ob i n a lgorithm.

After describing each one of the algorithms in Table 1,

the execution times of each algorithm are shown. The

string matching processing time is defined for the worst

case and best case respectively.

In the worst case scenario, the Aho-Corasick algorithm

with a





nO runtime has the best execution time among

the analyzed algorithms. Although for simple string

matching cases, it does not performs very well, but when

there are multiple patterns or pattern matching is done at

regular expression level, it is one of the best options.

3. String Matching Algorithm Applied to

Intrusion Detection Systems

String processing is a highly intensive computational

process; studies demonstrate that the total processing

time in a CPU reaches 75% in modern intrusion detection

systems. For this reason, is necessary to count on string

Table 1. Comparison between the execution times. String

matching algorithms. Where m is the length of the string, n

the length of the text that is been searched, z is the amount

of string matches and  the used alphabe t.

String matching

Algorithm Pre-processing

CaseWorst BestCase

Brute force No preprocessing O (nm) O (n)

KMP O (m) O (nm) O (n)

Boyer moore O (m + ) O (nm) O (n/m)

Aho corasick O (m) O (n + z) O (n)

Karp rabin O (m) O (nm) O (n + m)

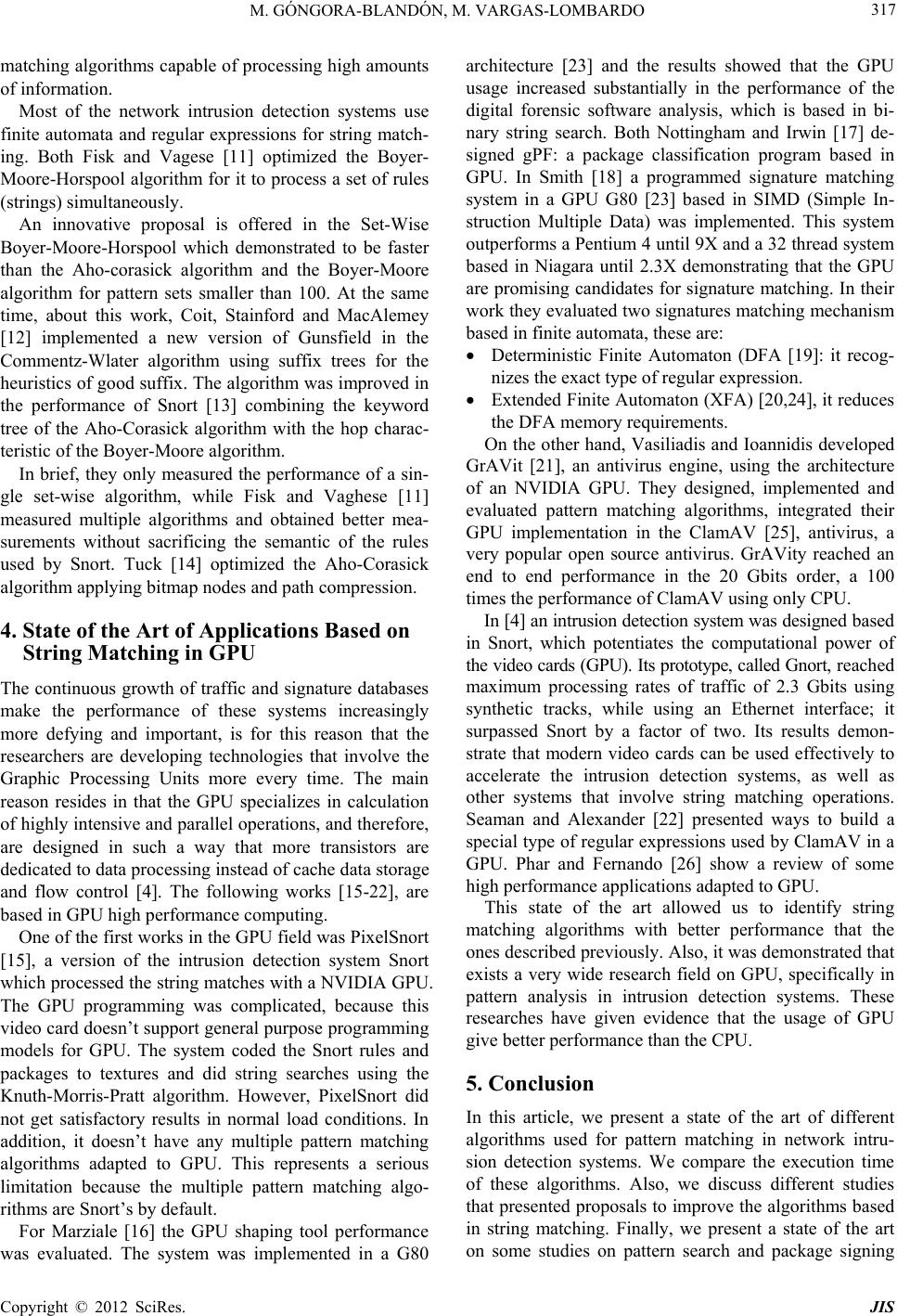

M. GÓNGORA-BLANDÓN, M. VARGA S-LOMBARDO 317

matching algorithms capable of processing high amounts

of information.

Most of the network intrusion detection systems use

finite automata and regular expressions for string match-

ing. Both Fisk and Vagese [11] optimized the Boyer-

Moore-Horspool algorithm for it to process a set of rules

(strings) simultaneously.

An innovative proposal is offered in the Set-Wise

Boyer-Moore-Horspool which demonstrated to be faster

than the Aho-corasick algorithm and the Boyer-Moore

algorithm for pattern sets smaller than 100. At the same

time, about this work, Coit, Stainford and MacAlemey

[12] implemented a new version of Gunsfield in the

Commentz-Wlater algorithm using suffix trees for the

heuristics of good suffix. The algorithm was improved in

the performance of Snort [13] combining the keyword

tree of the Aho-Corasick algorithm with the hop charac-

teristic of the Boyer-Moore algorithm.

In brief, they only measured the performance of a sin-

gle set-wise algorithm, while Fisk and Vaghese [11]

measured multiple algorithms and obtained better mea-

surements without sacrificing the semantic of the rules

used by Snort. Tuck [14] optimized the Aho-Corasick

algorithm applying bitmap nodes and path compression.

4. State of the Art of Applications Based on

String Matching in GPU

The continuous growth of traffic and signature databases

make the performance of these systems increasingly

more defying and important, is for this reason that the

researchers are developing technologies that involve the

Graphic Processing Units more every time. The main

reason resides in that the GPU specializes in calculation

of highly intensive and parallel operations, and therefore,

are designed in such a way that more transistors are

dedicated to data processing instead of cache data storage

and flow control [4]. The following works [15-22], are

based in GPU high performance computing.

One of the first works in the GPU field was PixelSnort

[15], a version of the intrusion detection system Snort

which processed the string matches with a NVIDIA GPU.

The GPU programming was complicated, because this

video card doesn’t support general purpose programming

models for GPU. The system coded the Snort rules and

packages to textures and did string searches using the

Knuth-Morris-Pratt algorithm. However, PixelSnort did

not get satisfactory results in normal load conditions. In

addition, it doesn’t have any multiple pattern matching

algorithms adapted to GPU. This represents a serious

limitation because the multiple pattern matching algo-

rithms are Snort’s by default.

For Marziale [16] the GPU shaping tool performance

was evaluated. The system was implemented in a G80

architecture [23] and the results showed that the GPU

usage increased substantially in the performance of the

digital forensic software analysis, which is based in bi-

nary string search. Both Nottingham and Irwin [17] de-

signed gPF: a package classification program based in

GPU. In Smith [18] a programmed signature matching

system in a GPU G80 [23] based in SIMD (Simple In-

struction Multiple Data) was implemented. This system

outperforms a Pentium 4 until 9X and a 32 thread syste m

based in Niagara until 2.3X demonstrating that the GPU

are promising candidates for signature matching. In their

work they evaluated two signatures matching mechanism

based in finite automata, these are:

 Deterministic Finite Automaton (DFA [19]: it recog-

nizes the exact type of regular expression.

 Extended Finite Automaton (XFA) [20,24 ], it reduces

the DFA memory requirements.

On the other hand, Vasiliadis and Io annidis developed

GrAVit [21], an antivirus engine, using the architecture

of an NVIDIA GPU. They designed, implemented and

evaluated pattern matching algorithms, integrated their

GPU implementation in the ClamAV [25], antivirus, a

very popular open source antivirus. GrAVity reached an

end to end performance in the 20 Gbits order, a 100

times the performance of ClamAV using only CPU.

In [4] an intrusion detection system was designed based

in Snort, which potentiates the computational power of

the video cards (GPU). Its prototype, called Gnort, rea ch ed

maximum processing rates of traffic of 2.3 Gbits using

synthetic tracks, while using an Ethernet interface; it

surpassed Snort by a factor of two. Its results demon-

strate that modern video cards can be used effectively to

accelerate the intrusion detection systems, as well as

other systems that involve string matching operations.

Seaman and Alexander [22] presented ways to build a

special type of regular expressions used by ClamAV in a

GPU. Phar and Fernando [26] show a review of some

high performan ce applications adapted to GPU.

This state of the art allowed us to identify string

matching algorithms with better performance that the

ones described previously. Also, it was demonstrated that

exists a very wide research field on GPU, specifically in

pattern analysis in intrusion detection systems. These

researches have given evidence that the usage of GPU

give better performance than the CPU.

5. Conclusion

In this article, we present a state of the art of different

algorithms used for pattern matching in network intru-

sion detection systems. We compare the execution time

of these algorithms. Also, we discuss different studies

that presented proposals to improve the algorithms based

in string matching. Finally, we present a state of the art

on some studies on pattern search and package signing

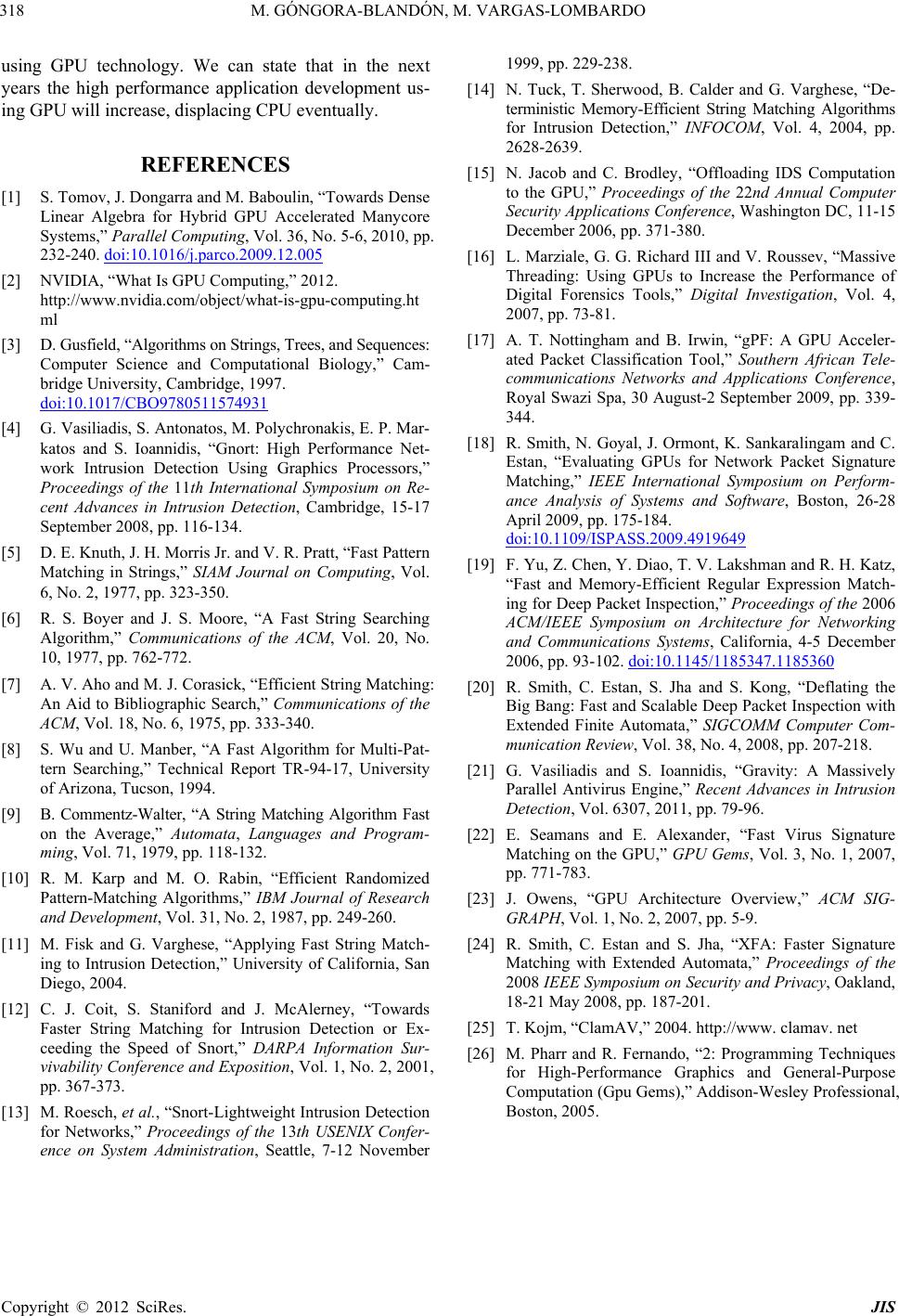

M. GÓNGORA-BLANDÓN, M. VARGA S-LOMBARDO

318

using GPU technology. We can state that in the next

years the high performance application development us-

ing GPU will increase, displacing CPU eventually.

REFERENCES

[1] S. Tomov, J. Dongarra and M. Baboulin, “Towards Dense

Linear Algebra for Hybrid GPU Accelerated Manycore

Systems,” Parallel Computing, Vol. 36, No. 5-6, 2010, pp.

232-240. doi:10.1016/j.parco.2009.12.005

[2] NVIDIA, “What Is GPU Computing,” 2012.

http://www.nvidia.com/object/what-is-gpu-computing.ht

[3] D. Gusfield, “Algorithms on Strings, Trees, and Sequences:

Computer Science and Computational Biology,” Cam-

bridge University, Cambridge, 1997.

doi:10.1017/CBO9780511574931

[4] G. Vasiliadis, S. Antonatos, M. Poly chronakis, E. P. Mar-

katos and S. Ioannidis, “Gnort: High Performance Net-

work Intrusion Detection Using Graphics Processors,”

Proceedings of the 11th International Symposium on Re-

cent Advances in Intrusion Detection, Cambridge, 15-17

September 2008, pp. 116-134.

[5] D. E. Knuth, J. H. Morris Jr. and V. R. Pratt, “Fast Pattern

Matching in Strings,” SIAM Journal on Computing, Vol.

6, No. 2, 1977, pp. 323-350.

[6] R. S. Boyer and J. S. Moore, “A Fast String Searching

Algorithm,” Communications of the ACM, Vol. 20, No.

10, 1977, pp. 762-772.

[7] A. V. Aho and M. J. Corasick, “Efficient String Matching:

An Aid to Bibliographic Search,” Communications of the

ACM, Vol. 18, No. 6, 1975, pp. 333-340.

[8] S. Wu and U. Manber, “A Fast Algorithm for Multi-Pat-

tern Searching,” Technical Report TR-94-17, University

of Arizona, Tucson, 1994.

[9] B. Commentz-Walter, “A String Matching Algorithm Fast

on the Average,” Automata, Languages and Program-

ming, Vol. 71, 1979, pp. 118-132.

[10] R. M. Karp and M. O. Rabin, “Efficient Randomized

Pattern-Matching Algorithms,” IBM Journal of Research

and Development, Vol. 31, No. 2, 1987, pp. 249-260.

[11] M. Fisk and G. Varghese, “Applying Fast String Match-

ing to Intrusion Detection,” University of California, San

Diego, 2004.

[12] C. J. Coit, S. Staniford and J. McAlerney, “Towards

Faster String Matching for Intrusion Detection or Ex-

ceeding the Speed of Snort,” DARPA Information Sur-

vivability Conference and Exposition, Vol. 1, No. 2, 2001,

pp. 367-373.

[13] M. Roesch, et al., “Snort-Lightweight Intrusion Detection

for Networks,” Proceedings of the 13th USENIX Confer-

ence on System Administration, Seattle, 7-12 November

1999, pp. 229-238.

[14] N. Tuck, T. Sherwood, B. Calder and G. Varghese, “De-

terministic Memory-Efficient String Matching Algorithms

for Intrusion Detection,” INFOCOM, Vol. 4, 2004, pp.

2628-2639.

[15] N. Jacob and C. Brodley, “Offloading IDS Computation

to the GPU,” Proceedings of the 22nd Annual Computer

Security Applications Conference, Washington DC, 11-15

December 2006, pp. 371-380.

[16] L. Marziale, G. G. Richard III and V. Roussev, “Massive

Threading: Using GPUs to Increase the Performance of

Digital Forensics Tools,” Digital Investigation, Vol. 4,

2007, pp. 73-81.

[17] A. T. Nottingham and B. Irwin, “gPF: A GPU Acceler-

ated Packet Classification Tool,” Southern African Tele-

communications Networks and Applications Conference,

Royal Swazi Spa, 30 August-2 September 2009, pp. 339-

344.

[18] R. Smith, N. Goyal, J. Ormont, K. Sankaralingam and C.

Estan, “Evaluating GPUs for Network Packet Signature

Matching,” IEEE International Symposium on Perform-

ance Analysis of Systems and Software, Boston, 26-28

April 2009, pp. 175-184.

doi:10.1109/ISPASS.2009.4919649

[19] F. Yu, Z. Chen, Y. Diao, T. V. Lakshman and R. H. Katz,

“Fast and Memory-Efficient Regular Expression Match-

ing for Deep Packet Inspection,” Proceedings of the 2006

ACM/IEEE Symposium on Architecture for Networking

and Communications Systems, California, 4-5 December

2006, pp. 93-102. doi:10.1145/1185347.1185360

[20] R. Smith, C. Estan, S. Jha and S. Kong, “Deflating the

Big Bang: Fast and Scalable Deep Packet Inspection with

Extended Finite Automata,” SIGCOMM Computer Com-

munication Review, Vol. 38, No. 4, 2008, pp. 207-218.

[21] G. Vasiliadis and S. Ioannidis, “Gravity: A Massively

Parallel Antivirus Engine,” Recent Advances in Intrusion

Detection, Vol. 6307, 2011, pp. 79-96.

[22] E. Seamans and E. Alexander, “Fast Virus Signature

Matching on the GPU,” GPU Gems, Vol. 3, No. 1, 2007,

pp. 771-783.

[23] J. Owens, “GPU Architecture Overview,” ACM SIG-

GRAPH, Vol. 1, No. 2, 2007, pp. 5-9.

[24] R. Smith, C. Estan and S. Jha, “XFA: Faster Signature

Matching with Extended Automata,” Proceedings of the

2008 IEEE Symposium on Security and Privacy, Oakland,

18-21 May 2008, pp. 187-201.

[25] T. Kojm, “ClamAV,” 2004. http://www. clamav. net

[26] M. Pharr and R. Fernando, “2: Programming Techniques

for High-Performance Graphics and General-Purpose

Computation (Gpu Gems),” Addison-Wesley Professional,

Boston, 2005.
