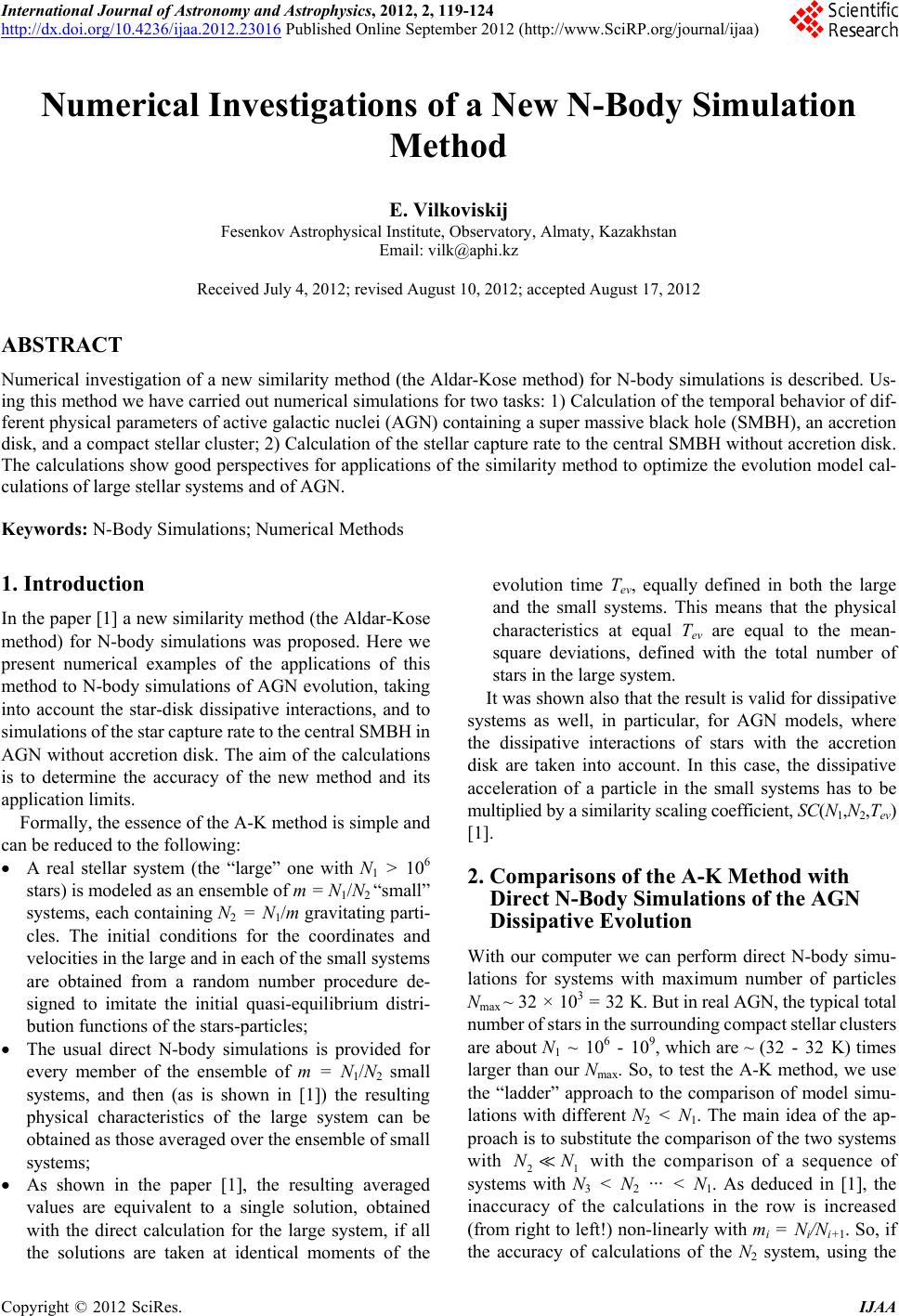

Numerical Investigations of a New N-body Simulation Method

doi:10.4236/ijaa.2012.23016

Paper Menu >>

Journal Menu >>

International Journal of Astronomy and Astrophysics, 2012, 2, 119-124

http://dx.doi.org/10.4236/ijaa.2012.23016 Published Online September 2012 (http://www.SciRP.org/journal/ijaa)

Numerical Investigations of a New N-Body Simulation

Method

E. Vilkoviskij

Fesenkov Astrophysical Institute, Observatory, Almaty, Kazakhstan

Email: [email protected]

Received July 4, 2012; revised August 10, 2012; accepted August 17, 2012

ABSTRACT

Numerical investigation of a new similarity method (the Aldar-Kose method) for N-body simulations is described. Us-

ing this method we have carried out numerical simulations for two tasks: 1) Calculation of the temporal behavior of dif-

ferent physical parameters of active galactic nuclei (AGN) containing a super massive black hole (SMBH), an accretion

disk, and a compact stellar cluster; 2) Calculation of the stellar capture rate to the central SMBH without accretion disk.

The calculations show good perspectives for applications of the similarity method to optimize the evolution model cal-

culations of large stellar systems and of AGN.

Keywords: N-Body Simulations; Numerical Methods

1. Introduction

In the paper [1] a new similarity method (the Aldar-Kose

method) for N-body simulations was proposed. Here we

present numerical examples of the applications of this

method to N-body simulations of AGN evolution, taking

into account the star-disk dissipative interactions, and to

simulations of the star capture rate to the central SMBH in

AGN without accretion disk. The aim of the calculations

is to determine the accuracy of the new method and its

application limits.

Formally, the essence of the A-K method is simple and

can be reduced to the following:

 A real stellar system (the “large” one with N1 > 106

stars) is modeled as an ensemble of m = N1/N2 “small”

systems, each containing N2 = N1/m gravitating parti-

cles. The initial conditions for the coordinates and

velocities in the large and in each of the small systems

are obtained from a random number procedure de-

signed to imitate the initial quasi-equilibrium distri-

bution functions of the stars-particles;

 The usual direct N-body simulations is provided for

every member of the ensemble of m = N1/N2 small

systems, and then (as is shown in [1]) the resulting

physical characteristics of the large system can be

obtained as those averaged over the ensemble of small

systems;

 As shown in the paper [1], the resulting averaged

values are equivalent to a single solution, obtained

with the direct calculation for the large system, if all

the solutions are taken at identical moments of the

evolution time Tev, equally defined in both the large

and the small systems. This means that the physical

characteristics at equal Tev are equal to the mean-

square deviations, defined with the total number of

stars in the large system.

It was shown also that the result is valid for dissipative

systems as well, in particular, for AGN models, where

the dissipative interactions of stars with the accretion

disk are taken into account. In this case, the dissipative

acceleration of a particle in the small systems has to be

multiplied by a similarity scaling coefficient, SC(N1,N2,Tev)

[1].

2. Comparisons of the A-K Method with

Direct N-Body Simulations of the AGN

Dissipative Evolution

With our computer we can perform direct N-body simu-

lations for systems with maximum number of particles

Nmax ~ 32 × 103 = 32 K. But in real AGN, the typical total

number of stars in the surrounding compact stellar clusters

are about N1 ~ 106 - 109, which are ~ (32 - 32 K) times

larger than our Nmax. So, to test the A-K method, we use

the “ladder” approach to the comparison of model simu-

lations with different N2 < N1. The main idea of the ap-

proach is to substitute the comparison of the two systems

with 21

NN with the comparison of a sequence of

systems with N3 < N2 … < N1. As deduced in [1], the

inaccuracy of the calculations in the row is increased

(from right to left!) non-linearly with mi = Ni/Ni+1. So, if

the accuracy of calculations of the N2 system, using the

E. VILKOVISKIJ

120

A-K method with the ensemble of m = N2/N3 subsystems

is acceptable, it (supposedly) will be acceptable for the

representation of any larger systems with N = mN2 =

m2N3… particles and so on, up to N1. This “Aldar-Kose

axiom” needs to be established for any specific task to

find the minimal number of particles N2(min) in the sys-

tems which can safely (with an acceptable precision) be

used in the ensemble of m = N1/N2, representing the larger

N1 system.

The main aims of our model simulations were as fol-

lows:

1) Comparison of the solutions obtained with “usual”

direct N-body simulations for N1 = 32 K and N1 = 16 K to

the solutions for the ensembles of m systems with N2 =

N1/m (the A-K method);

2) Estimation of the dependences of the precision and

time consumption of both methods from different model

parameters.

We compared the following physical parameters of the

models:

a) The growth rates of the central BH mass under dif-

ferent conditions;

b) The distribution functions of the stellar orbits’ in-

clination angles (cos(i)) in two regions, one inside the size

of the accretion disk and the other in the whole stellar

system;

c) The distribution functions of the particle orbits’ ec-

centricities



1bh

eELmM



 



of the stars (par-

ticles) in the same regions (



22bh

EvmM r is the

energy and L is the angular momentum of a star in the

gravitational field of the BH).

The comparisons were performed for the models with

two different rates of growth of the central SMBH (pure

stellar accretion and “stellar plus gas” accretion rates), to

compare the evolution of the system in the cases. (Both

cases are presented with some “toy” models, acceptable

for the formal testing of two different accretions rate cases

only.)

The following simulations were fulfilled and compared

to each other:

А. The direct N-body simulations for the particle num-

bers N1 = 32 K and 16 K (in the figures below the cases

are labeled as 1 × 32 K and 1 × 16 K).

В. The model simulations using the А-K method for the

same systems as the result of averaging over m = N1/N2

“small” systems with different m values (labeled in the

figures as m × N2).

The results of the calculations are presented in Figures

1-8. As it was shown in [1], one has to compare parame-

ters of the systems in the equivalent moments of evolution,

the “evolution times”

 

ev rx

Tt tTt due to vari-

able (diminishing due to accretion and evaporation) par-

ticle numbers. The larger is the evolution time, the bigger

the accuracy gain with this correction.

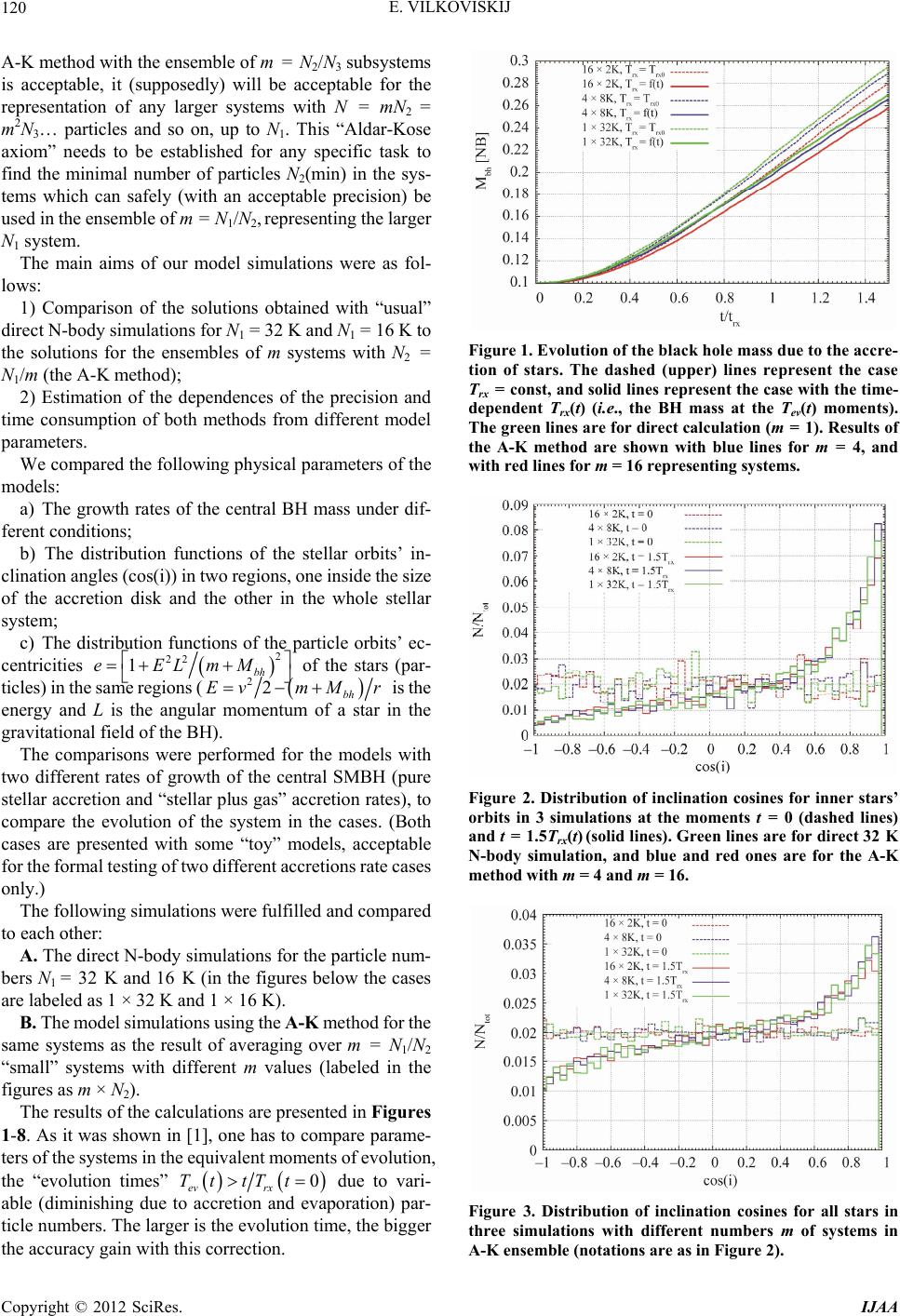

Figure 1. Evolution of the black hole mass due to the accre-

tion of stars. The dashed (upper) lines represent the case

Trx = const, and solid lines represent the case with the time-

dependent Trx(t) (i.e., the BH mass at the Tev(t) moments).

The green lines are for direct calculation (m = 1). Results of

the A-K method are shown with blue lines for m = 4, and

with red lines for m = 16 representing systems.

Figure 2. Distribution of inclination cosines for inner stars’

orbits in 3 simulations at the moments t = 0 (dashed lines)

and t = 1.5Trx(t) (solid lines). Green lines are for direct 32 K

N-body simulation, and blue and red ones are for the A-K

method with m = 4 and m = 16.

Figure 3. Distribution of inclination cosines for all stars in

three simulations with different numbers m of systems in

A-K ensemble (notations are as in Figure 2).

E. VILKOVISKIJ

121

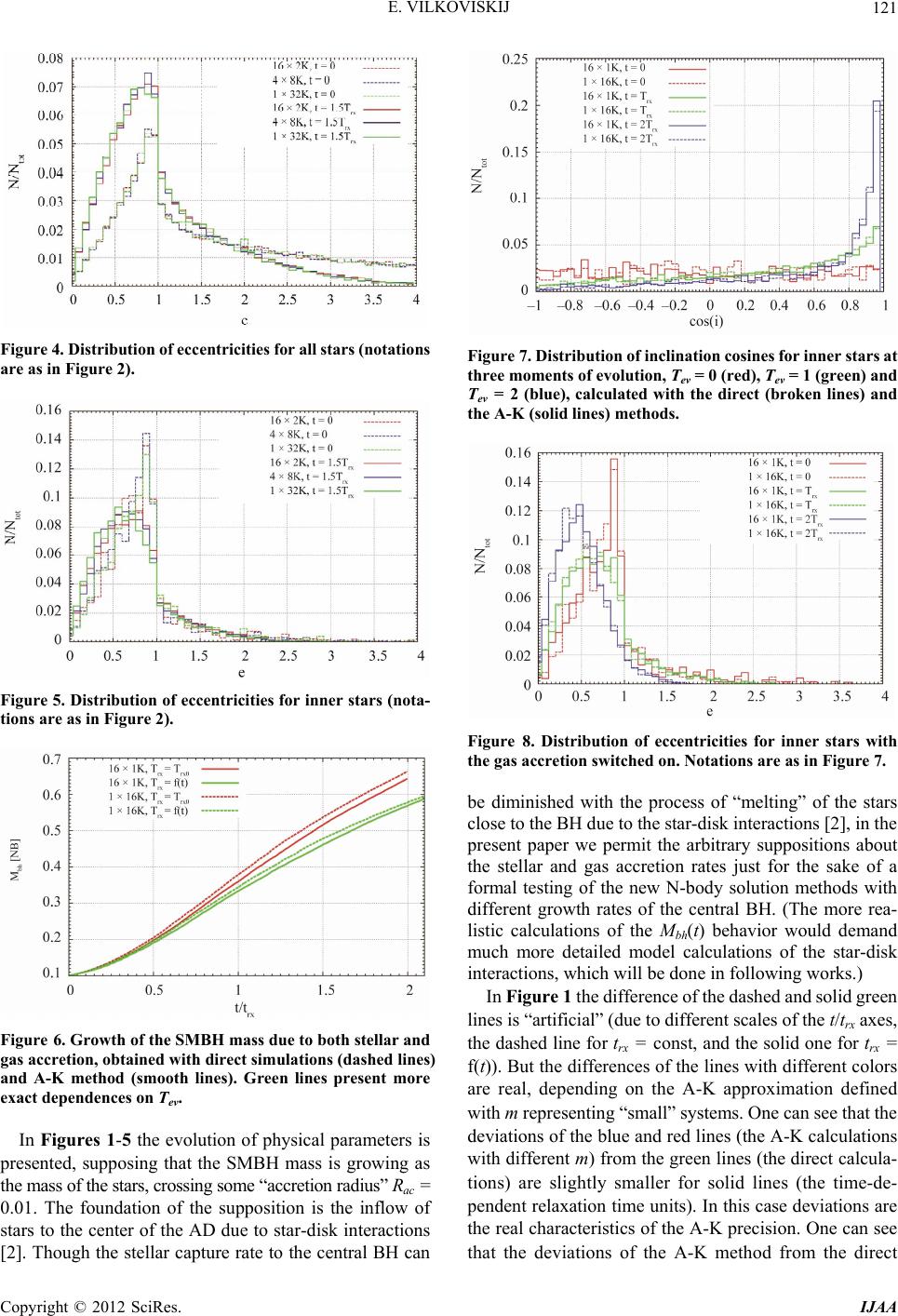

Figure 4. Distribution of eccentricities for all stars (notations

are as in Figure 2).

Figure 5. Distribution of eccentricities for inner stars (nota-

tions are as in Figure 2).

Figure 6. Growth of the SMBH mass due to both stellar and

gas accretion, obtained with direct simulations (dashed lines)

and A-K method (smooth lines). Green lines present more

exact dependences on Tev.

In Figures 1-5 the evolution of physical parameters is

presented, supposing that the SMBH mass is growing as

the mass of the stars, crossing some “accretion radius” Rac =

0.01. The foundation of the supposition is the inflow of

stars to the center of the AD due to star-disk interactions

[2]. Though the stellar capture rate to the central BH can

Figure 7. Distribution of inclination cosines for inner stars at

three moments of evolution, Tev = 0 (red), Tev = 1 (green) and

Tev = 2 (blue), calculated with the direct (broken lines) and

the A-K (solid lines) methods.

Figure 8. Distribution of eccentricities for inner stars with

the gas accretion switched on. Notations are as in Figure 7.

be diminished with the process of “melting” of the stars

close to the BH due to the star-disk interactions [2], in the

present paper we permit the arbitrary suppositions about

the stellar and gas accretion rates just for the sake of a

formal testing of the new N-body solution methods with

different growth rates of the central BH. (The more rea-

listic calculations of the Mbh(t) behavior would demand

much more detailed model calculations of the star-disk

interactions, which will be done in following works.)

In Figure 1 the difference of the dashed and solid green

lines is “artificial” (due to different scales of the t/trx axes,

the dashed line for trx = const, and the solid one for trx =

f(t)). But the differences of the lines with different colors

are real, depending on the A-K approximation defined

with m representing “small” systems. One can see that the

deviations of the blue and red lines (the A-K calculations

with different m) from the green lines (the direct calcula-

tions) are slightly smaller for solid lines (the time-de-

pendent relaxation time units). In this case deviations are

the real characteristics of the A-K precision. One can see

that the deviations of the A-K method from the direct

E. VILKOVISKIJ

122

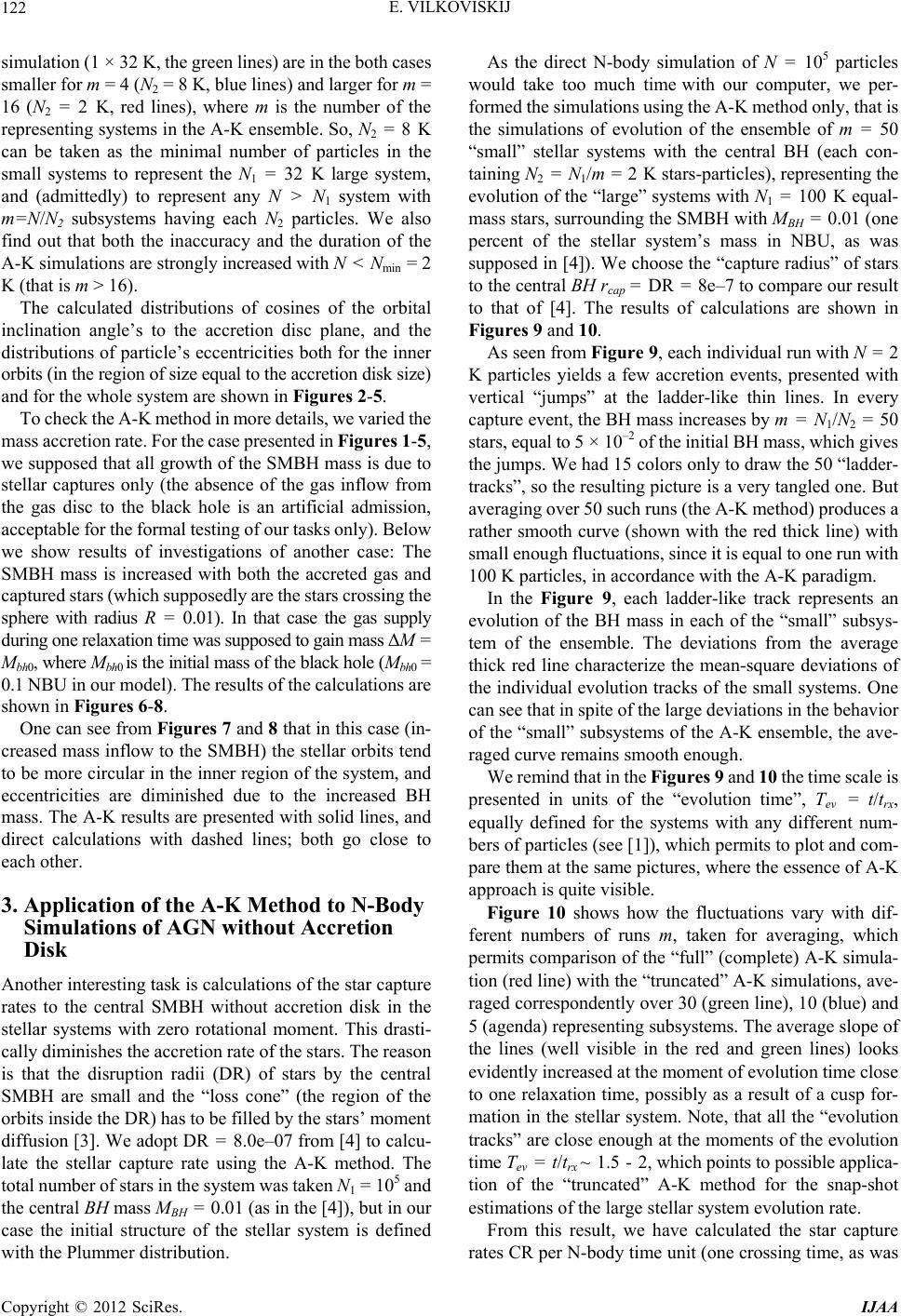

simulation (1 × 32 K, the green lines) are in the both cases

smaller for m = 4 (N2 = 8 K, blue lines) and larger for m =

16 (N2 = 2 K, red lines), where m is the number of the

representing systems in the A-K ensemble. So, N2 = 8 K

can be taken as the minimal number of particles in the

small systems to represent the N1 = 32 K large system,

and (admittedly) to represent any N > N1 system with

m=N/N2 subsystems having each N2 particles. We also

find out that both the inaccuracy and the duration of the

A-K simulations are strongly increased with N < Nmin = 2

K (that is m > 16).

The calculated distributions of cosines of the orbital

inclination angle’s to the accretion disc plane, and the

distributions of particle’s eccentricities both for the inner

orbits (in the region of size equal to the accretion disk size)

and for the whole system are shown in Figures 2-5.

To check the A-K method in more details, we varied the

mass accretion rate. For the case presented in Figures 1-5,

we supposed that all growth of the SMBH mass is due to

stellar captures only (the absence of the gas inflow from

the gas disc to the black hole is an artificial admission,

acceptable for the formal testing of our tasks only). Below

we show results of investigations of another case: The

SMBH mass is increased with both the accreted gas and

captured stars (which supposedly are the stars crossing the

sphere with radius R = 0.01). In that case the gas supply

during one relaxation time was supposed to gain mass ΔM =

Mbh0, where Mbh0 is the initial mass of the black hole (Mbh0 =

0.1 NBU in our model). The results of the calculations are

shown in Figures 6-8.

One can see from Figures 7 and 8 that in this case (in-

creased mass inflow to the SMBH) the stellar orbits tend

to be more circular in the inner region of the system, and

eccentricities are diminished due to the increased BH

mass. The A-K results are presented with solid lines, and

direct calculations with dashed lines; both go close to

each other.

3. Application of the A-K Method to N-Body

Simulations of AGN without Accretion

Disk

Another interesting task is calculations of the star capture

rates to the central SMBH without accretion disk in the

stellar systems with zero rotational moment. This drasti-

cally diminishes the accretion rate of the stars. The reason

is that the disruption radii (DR) of stars by the central

SMBH are small and the “loss cone” (the region of the

orbits inside the DR) has to be filled by the stars’ moment

diffusion [3]. We adopt DR = 8.0e–07 from [4] to calcu-

late the stellar capture rate using the A-K method. The

total number of stars in the system was taken N1 = 105 and

the central BH mass MBH = 0.01 (as in the [4]), but in our

case the initial structure of the stellar system is defined

with the Plummer distribution.

As the direct N-body simulation of N = 105 particles

would take too much time with our computer, we per-

formed the simulations using the A-K method only, that is

the simulations of evolution of the ensemble of m = 50

“small” stellar systems with the central BH (each con-

taining N2 = N1/m = 2 K stars-particles), representing the

evolution of the “large” systems with N1 = 100 K equal-

mass stars, surrounding the SMBH with MBH = 0.01 (one

percent of the stellar system’s mass in NBU, as was

supposed in [4]). We choose the “capture radius” of stars

to the central BH rcap = DR = 8e–7 to compare our result

to that of [4]. The results of calculations are shown in

Figures 9 and 10.

As seen from Figure 9, each individual run with N = 2

K particles yields a few accretion events, presented with

vertical “jumps” at the ladder-like thin lines. In every

capture event, the BH mass increases by m = N1/N2 = 50

stars, equal to 5 × 10–2 of the initial BH mass, which gives

the jumps. We had 15 colors only to draw the 50 “ladder-

tracks”, so the resulting picture is a very tangled one. But

averaging over 50 such runs (the A-K method) produces a

rather smooth curve (shown with the red thick line) with

small enough fluctuations, since it is equal to one run with

100 K particles, in accordance with the A-K paradigm.

In the Figure 9, each ladder-like track represents an

evolution of the BH mass in each of the “small” subsys-

tem of the ensemble. The deviations from the average

thick red line characterize the mean-square deviations of

the individual evolution tracks of the small systems. One

can see that in spite of the large deviations in the behavior

of the “small” subsystems of the A-K ensemble, the ave-

raged curve remains smooth enough.

We remind that in the Figures 9 and 10 the time scale is

presented in units of the “evolution time”, Tev = t/trx,

equally defined for the systems with any different num-

bers of particles (see [1]), which permits to plot and com-

pare them at the same pictures, where the essence of A-K

approach is quite visible.

Figure 10 shows how the fluctuations vary with dif-

ferent numbers of runs m, taken for averaging, which

permits comparison of the “full” (complete) A-K simula-

tion (red line) with the “truncated” A-K simulations, ave-

raged correspondently over 30 (green line), 10 (blue) and

5 (agenda) representing subsystems. The average slope of

the lines (well visible in the red and green lines) looks

evidently increased at the moment of evolution time close

to one relaxation time, possibly as a result of a cusp for-

mation in the stellar system. Note, that all the “evolution

tracks” are close enough at the moments of the evolution

time Tev = t/trx ~ 1.5 - 2, which points to possible applica-

tion of the “truncated” A-K method for the snap-shot

estimations of the large stellar system evolution rate.

From this result, we have calculated the star capture

rates CR per N-body time unit (one crossing time, as was

E. VILKOVISKIJ

123

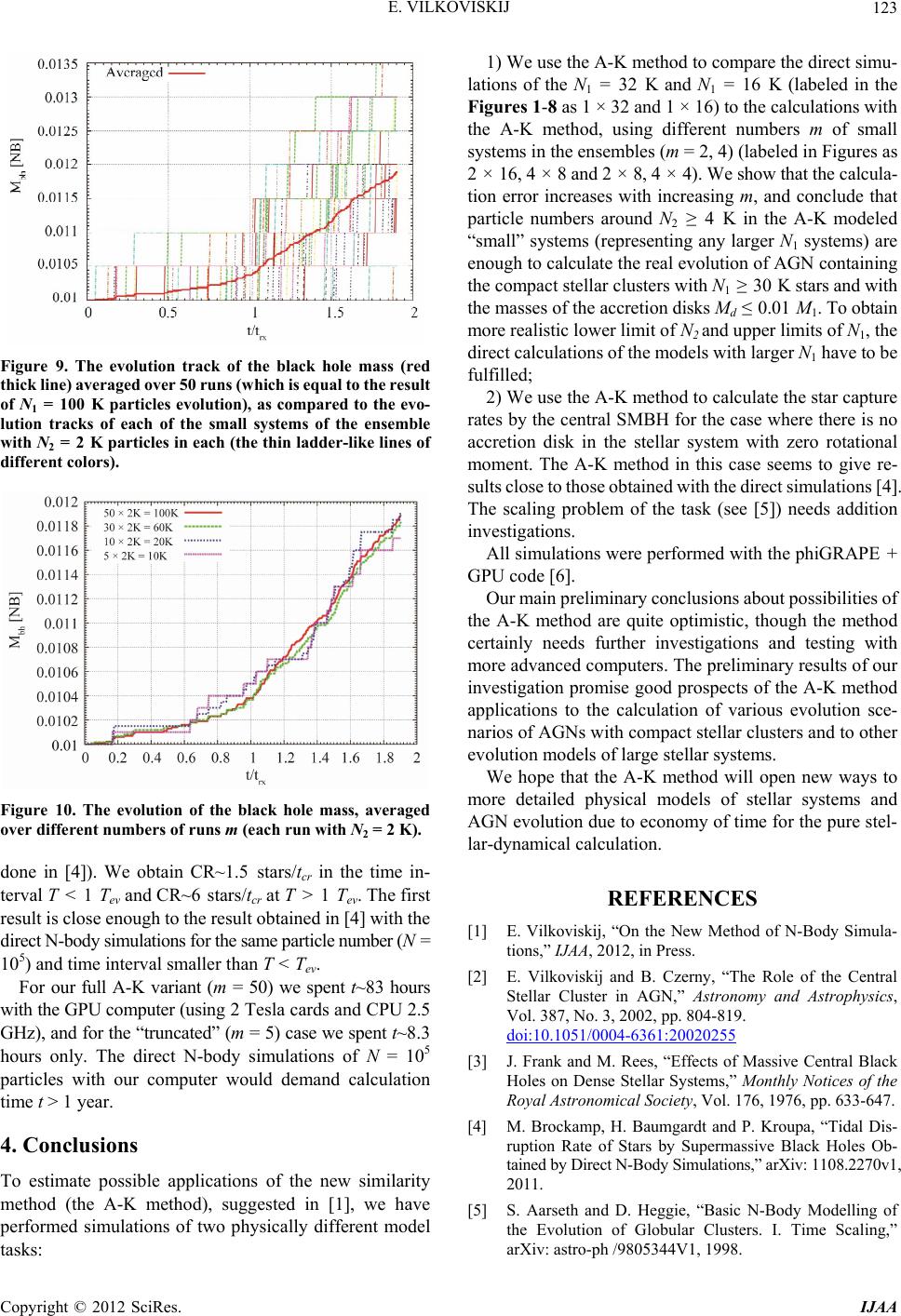

Figure 9. The evolution track of the black hole mass (red

thick line) averaged over 50 runs (which is equal to the result

of N1 = 100 K particles evolution), as compared to the evo-

lution tracks of each of the small systems of the ensemble

with N2 = 2 K particles in each (the thin ladder-like lines of

different colors).

Figure 10. The evolution of the black hole mass, averaged

over different numbers of runs m (each run with N2 = 2 K).

done in [4]). We obtain CR~1.5 stars/tcr in the time in-

terval T < 1 Tev and CR~6 stars/tcr at T > 1 Tev. The first

result is close enough to the result obtained in [4] with the

direct N-body simulations for the same particle number (N =

105) and time interval smaller than T < Tev.

For our full A-K variant (m = 50) we spent t~83 hours

with the GPU computer (using 2 Tesla cards and CPU 2.5

GHz), and for the “truncated” (m = 5) case we spent t~8.3

hours only. The direct N-body simulations of N = 105

particles with our computer would demand calculation

time t > 1 year.

4. Conclusions

To estimate possible applications of the new similarity

method (the A-K method), suggested in [1], we have

performed simulations of two physically different model

tasks:

1) We use the A-K method to compare the direct simu-

lations of the N1 = 32 K and N1 = 16 K (labeled in the

Figures 1-8 as 1 × 32 and 1 × 16) to the calculations with

the A-K method, using different numbers m of small

systems in the ensembles (m = 2, 4) (labeled in Figures as

2 × 16, 4 × 8 and 2 × 8, 4 × 4). We show that the calcula-

tion error increases with increasing m, and conclude that

particle numbers around N2 ≥ 4 K in the A-K modeled

“small” systems (representing any larger N1 systems) are

enough to calculate the real evolution of AGN containing

the compact stellar clusters with N1 ≥ 30 K stars and with

the masses of the accretion disks Md ≤ 0.01 M1. To obtain

more realistic lower limit of N2 and upper limits of N1, the

direct calculations of the models with larger N1 have to be

fulfilled;

2) We use the A-K method to calculate the star capture

rates by the central SMBH for the case where there is no

accretion disk in the stellar system with zero rotational

moment. The A-K method in this case seems to give re-

sults close to those obtained with the direct simulations [4].

The scaling problem of the task (see [5]) needs addition

investigations.

All simulations were performed with the phiGRAPE +

GPU code [6].

Our main preliminary conclusions about possibilities of

the A-K method are quite optimistic, though the method

certainly needs further investigations and testing with

more advanced computers. The preliminary results of our

investigation promise good prospects of the A-K method

applications to the calculation of various evolution sce-

narios of AGNs with compact stellar clusters and to other

evolution models of large stellar systems.

We hope that the A-K method will open new ways to

more detailed physical models of stellar systems and

AGN evolution due to economy of time for the pure stel-

lar-dynamical calculation.

REFERENCES

[1] E. Vilkoviskij, “On the New Method of N-Body Simula-

tions,” IJAA, 2012, in Press.

[2] E. Vilkoviskij and B. Czerny, “The Role of the Central

Stellar Cluster in AGN,” Astronomy and Astrophysics,

Vol. 387, No. 3, 2002, pp. 804-819.

doi:10.1051/0004-6361:20020255

[3] J. Frank and M. Rees, “Effects of Massive Central Black

Holes on Dense Stellar Systems,” Monthly Notices of the

Royal Astronomical Society, Vol. 176, 1976, pp. 633-647.

[4] M. Brockamp, H. Baumgardt and P. Kroupa, “Tidal Dis-

ruption Rate of Stars by Supermassive Black Holes Ob-

tained by Direct N-Body Simulations,” arXiv: 1108.2270v1,

2011.

[5] S. Aarseth and D. Heggie, “Basic N-Body Modelling of

the Evolution of Globular Clusters. I. Time Scaling,”

arXiv: astro-ph /9805344V1, 1998.

E. VILKOVISKIJ

124

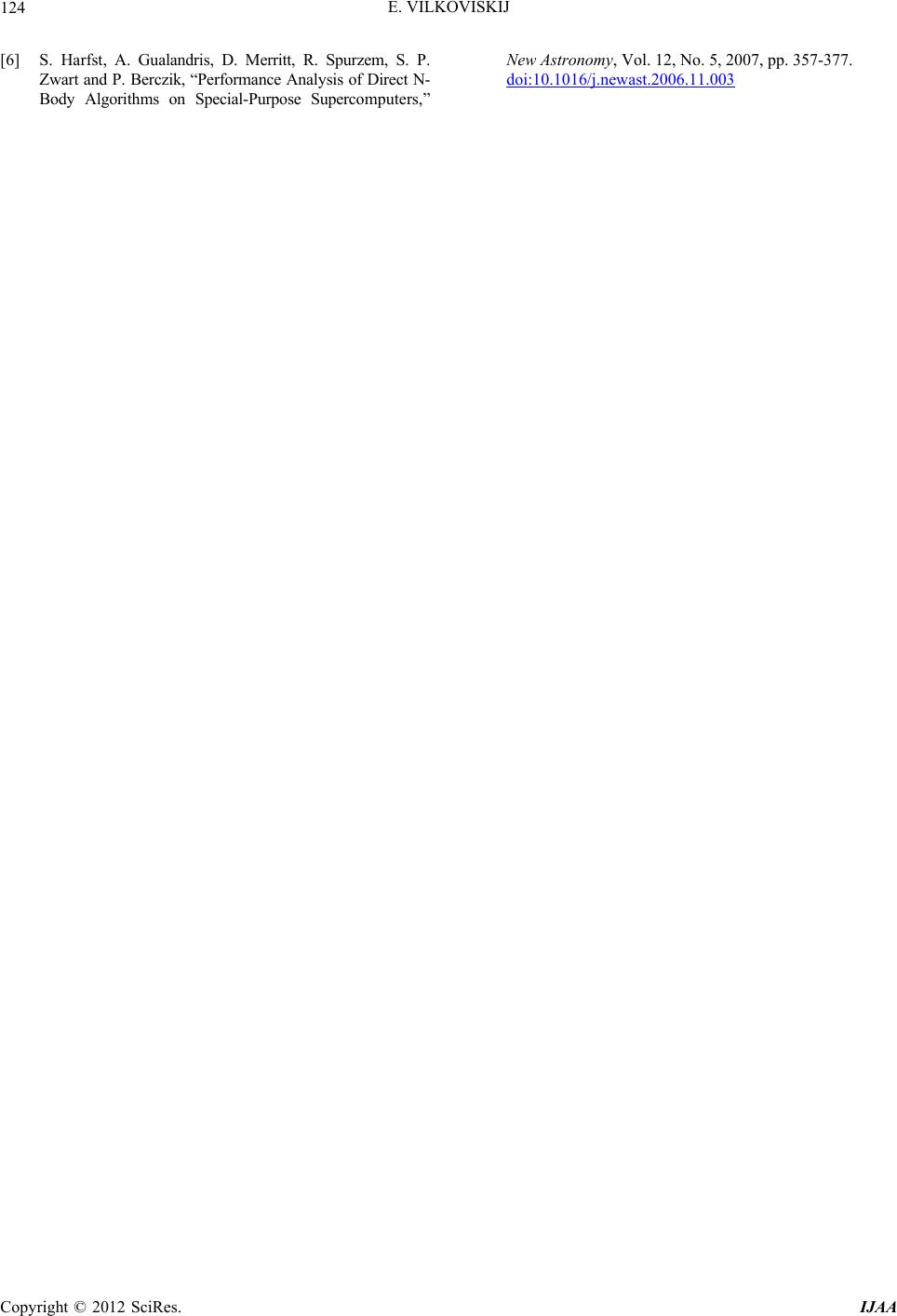

[6] S. Harfst, A. Gualandris, D. Merritt, R. Spurzem, S. P.

Zwart and P. Berczik, “Performance Analysis of Direct N-

Body Algorithms on Special-Purpose Supercomputers,”

New Astronomy, Vol. 12, No. 5, 2007, pp. 357-377.

doi:10.1016/j.newast.2006.11.003
