American Journal of Plant Sciences, 2012, 3, 1336-1340

http://dx.doi.org/10.4236/ajps.2012.39161 Published Online September 2012 (http://www.SciRP.org/journal/ajps)

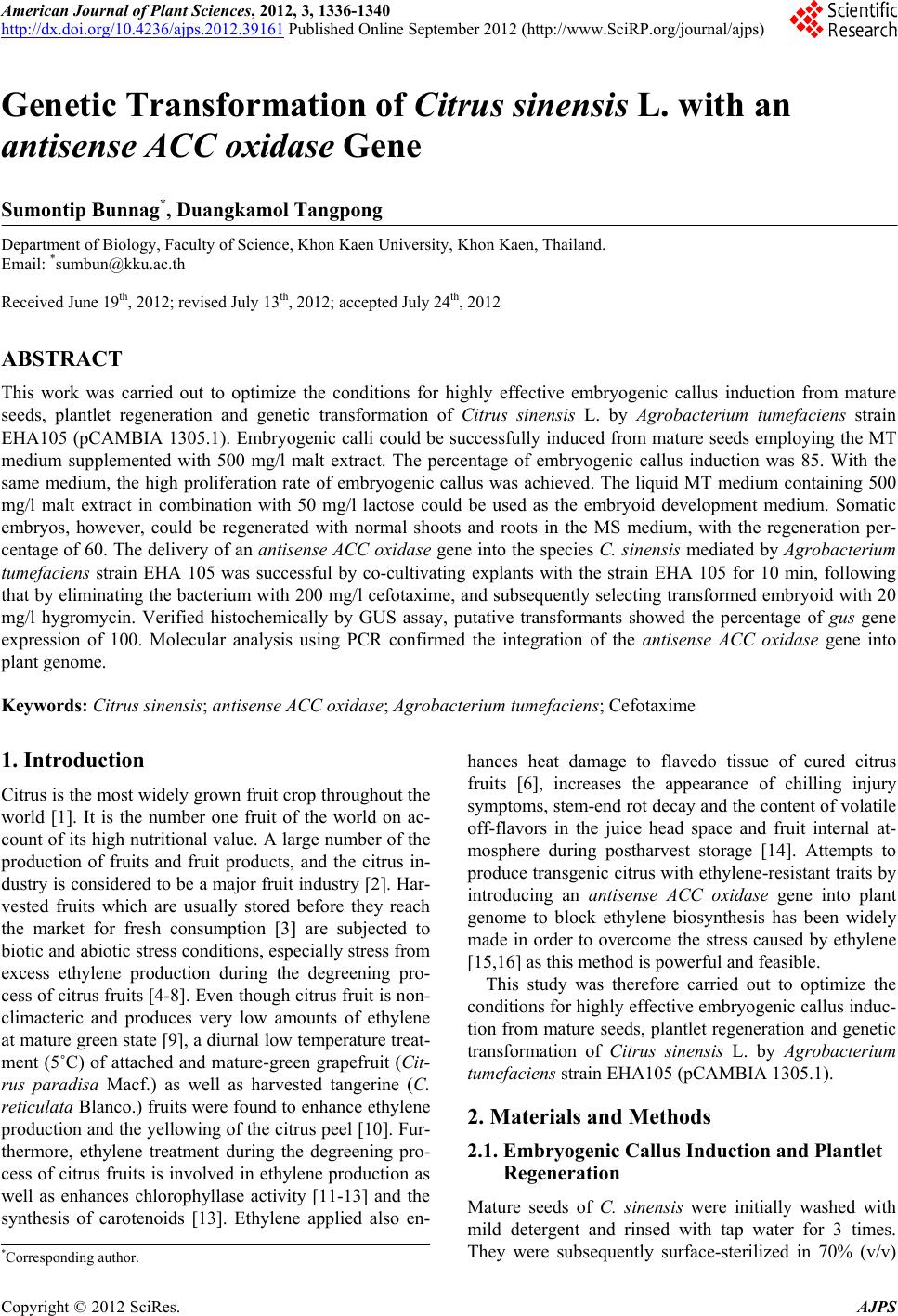

Genetic Transformation of Citrus sinensis L. with an

antisense ACC oxidase Gene

Sumontip Bunnag*, Duangkamol Tangpong

Department of Biology, Faculty of Science, Khon Kaen University, Khon Kaen, Thailand.

Email: *[email protected]

Received June 19th, 2012; revised July 13th, 2012; accepted July 24th, 2012

ABSTRACT

This work was carried out to optimize the conditions for highly effective embryogenic callus induction from mature

seeds, plantlet regeneration and genetic transformation of Citrus sinensis L. by Agrobacterium tumefaciens strain

EHA105 (pCAMBIA 1305.1). Embryogenic calli could be successfully induced from mature seeds employing the MT

medium supplemented with 500 mg/l malt extract. The percentage of embryogenic callus induction was 85. With the

same medium, the high proliferation rate of embryogenic callus was achieved. The liquid MT medium containing 500

mg/l malt extract in combination with 50 mg/l lactose could be used as the embryoid development medium. Somatic

embryos, however, could be regenerated with normal shoots and roots in the MS medium, with the regeneration per-

centage of 60 . The delivery of an antisense ACC oxida se gene into the species C. sinensis mediated by Agrobacterium

tumefaciens strain EHA 105 was successful by co-cultivating explants with the strain EHA 105 for 10 min, following

that by eliminating the bacterium with 200 mg/l cefotaxime, an d subsequently selecting transformed embryoid with 20

mg/l hygromycin. Verified histochemically by GUS assay, putative transformants showed the percentage of gus gene

expression of 100. Molecular analysis using PCR confirmed the integration of the antisense ACC oxidase gene into

plant genome.

Keywords: Citrus sinensis; antisense ACC oxidase; Agrobacterium tumefaciens; Cefotaxime

1. Introduction

Citrus is the most widely grown fruit crop throughout the

world [1]. It is the number one fruit of the world on ac-

count of its high n utritional value. A large n umber of the

production of fruits and fruit products, and the citrus in-

dustry is considered to be a major fruit industry [2]. Har-

vested fruits which are usually stored before they reach

the market for fresh consumption [3] are subjected to

biotic and abiotic stress conditions, especially stress from

excess ethylene production during the degreening pro-

cess of citrus fruits [4-8]. Even though citrus fruit is non-

climacteric and produces very low amounts of ethylene

at mature green state [9], a diurnal low temperature treat-

ment (5˚C) of attached and mature-green grapefruit (Cit-

rus paradisa Macf.) as well as harvested tangerine (C.

reticulata Blanco.) fruits were found to enhance ethylene

production and the yellowing of the citrus peel [10]. Fur-

thermore, ethylene treatment during the degreening pro-

cess of citrus fruits is involved in ethylene production as

well as enhances chlorophyllase activity [11-13] and the

synthesis of carotenoids [13]. Ethylene applied also en-

hances heat damage to flavedo tissue of cured citrus

fruits [6], increases the appearance of chilling injury

symptoms, stem-end rot decay and the co ntent of volatile

off-flavors in the juice head space and fruit internal at-

mosphere during postharvest storage [14]. Attempts to

produce transgenic citrus with ethylene-resistant traits by

introducing an antisense ACC oxidase gene into plant

genome to block ethylene biosynthesis has been widely

made in order to overcome the stress caused by ethylene

[15,16] as this method is powerful and feasible.

This study was therefore carried out to optimize the

conditions for highly effective embryogenic callu s induc-

tion from mature seeds, plantlet regeneration and genetic

transformation of Citrus sinensis L. by Agrobacterium

tumefaciens strain EH A105 (pCAMBIA 1305.1).

2. Materials and Methods

2.1. Embryogenic Callus Induction and Plantlet

Regeneration

Mature seeds of C. sinensis were initially washed with

mild detergent and rinsed with tap water for 3 times.

They were subsequently surface-sterilized in 70% (v/v)

*Corresponding author.

Genetic Transformation of Citrus sinensis L. with an antisense ACC oxidase Gene 1337

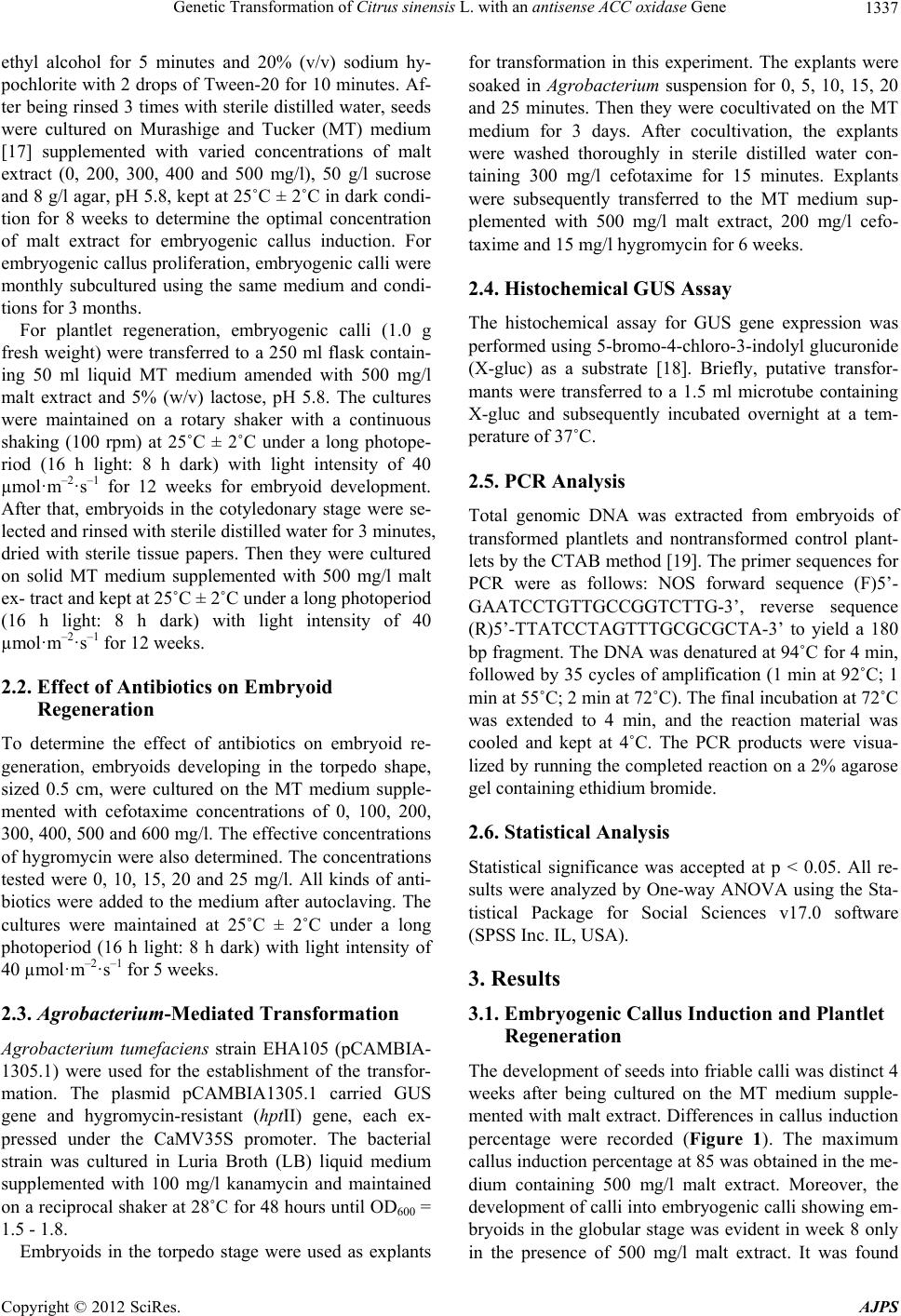

ethyl alcohol for 5 minutes and 20% (v/v) sodium hy-

pochlorite with 2 drops of Tween-20 for 10 minutes. Af-

ter being rinsed 3 times with sterile distilled water, seeds

were cultured on Murashige and Tucker (MT) medium

[17] supplemented with varied concentrations of malt

extract (0, 200, 300, 400 and 500 mg/l), 50 g/l sucrose

and 8 g/l agar, pH 5.8, kept at 25 ˚C ± 2˚C in dark condi-

tion for 8 weeks to determine the optimal concentration

of malt extract for embryogenic callus induction. For

embryogenic callus p roliferation, embryogenic calli were

monthly subcultured using the same medium and condi-

tions for 3 mon t hs.

For plantlet regeneration, embryogenic calli (1.0 g

fresh weight) were transferred to a 250 ml flask contain-

ing 50 ml liquid MT medium amended with 500 mg/l

malt extract and 5% (w/v) lactose, pH 5.8. The cultures

were maintained on a rotary shaker with a continuous

shaking (100 rpm) at 25˚C ± 2˚C under a long photope-

riod (16 h light: 8 h dark) with light intensity of 40

µmol·m–2·s–1 for 12 weeks for embryoid development.

After that, embryoids in the cotyledonary stage were se-

lected and rinsed with sterile distilled water for 3 minutes,

dried with sterile tissue papers. Then they were cultured

on solid MT medium supplemented with 500 mg/l malt

ex- tract and kept at 25˚C ± 2˚C under a long photoperiod

(16 h light: 8 h dark) with light intensity of 40

µmol·m–2·s–1 for 12 weeks.

2.2. Effect of Antibiotics on Embryoid

Regeneration

To determine the effect of antibiotics on embryoid re-

generation, embryoids developing in the torpedo shape,

sized 0.5 cm, were cultured on the MT medium supple-

mented with cefotaxime concentrations of 0, 100, 200,

300, 400, 500 and 600 mg/l. The effective concentrations

of hygromycin were also determined. The concentrations

tested were 0, 10, 15, 20 and 25 mg/l. All kinds of anti-

biotics were added to the medium after autoclaving. The

cultures were maintained at 25˚C ± 2˚C under a long

photoperiod (16 h light: 8 h dark) with light intensity of

40 µmol·m–2·s–1 for 5 weeks.

2.3. Agrobacterium-Mediated Transformation

Agrobacterium tumefaciens strain EHA105 (pCAMBIA-

1305.1) were used for the establishment of the transfor-

mation. The plasmid pCAMBIA1305.1 carried GUS

gene and hygromycin-resistant (hptII) gene, each ex-

pressed under the CaMV35S promoter. The bacterial

strain was cultured in Luria Broth (LB) liquid medium

supplemented with 100 mg/l kanamycin and maintained

on a reciprocal shaker at 28˚C for 48 hours until OD 600 =

1.5 - 1.8.

Embryoids in the torpedo stage were used as explants

for transformation in this experiment. The explants were

soaked in Agrobacterium suspension for 0, 5, 10, 15, 20

and 25 minutes. Then they were cocultivated on the MT

medium for 3 days. After cocultivation, the explants

were washed thoroughly in sterile distilled water con-

taining 300 mg/l cefotaxime for 15 minutes. Explants

were subsequently transferred to the MT medium sup-

plemented with 500 mg/l malt extract, 200 mg/l cefo-

taxime and 15 mg/l hygromycin for 6 weeks.

2.4. Histochemical GUS Assay

The histochemical assay for GUS gene expression was

performed using 5-bromo-4-chloro-3-indolyl glucuronide

(X-gluc) as a substrate [18]. Briefly, putative transfor-

mants were transferred to a 1.5 ml microtube containing

X-gluc and subsequently incubated overnight at a tem-

perature of 37˚C.

2.5. PCR Analysis

Total genomic DNA was extracted from embryoids of

transformed plantlets and nontransformed control plant-

lets by the CTAB method [19]. The primer sequences for

PCR were as follows: NOS forward sequence (F)5’-

GAATCCTGTTGCCGGTCTTG-3’, reverse sequence

(R)5’-TTATCCTAGTTTGCGCGCTA-3’ to yield a 180

bp fragment. The DNA was denatured at 94˚C for 4 min,

followed by 35 cycles of amplification (1 min at 92˚C; 1

min at 55˚C; 2 min at 72˚C). The final incubation at 72˚C

was extended to 4 min, and the reaction material was

cooled and kept at 4˚C. The PCR products were visua-

lized by running the completed reaction on a 2% agarose

gel containing ethidium bromide.

2.6. Statistical Analysis

Statistical significance was accepted at p < 0.05. All re-

sults were analyzed by One-way ANOVA using the Sta-

tistical Package for Social Sciences v17.0 software

(SPSS Inc. IL, USA).

3. Results

3.1. Embryogenic Callus Induction and Plantlet

Regeneration

The development of seeds into friable calli was distinct 4

weeks after being cultured on the MT medium supple-

mented with malt extract. Differences in callus induction

percentage were recorded (Figure 1). The maximum

callus induction percentage at 85 was obtained in the me-

dium containing 500 mg/l malt extract. Moreover, the

development of calli into emb ryogenic calli showing em-

bryoid s in the globular stage was evident in week 8 only

in the presence of 500 mg/l malt extract. It was found

Genetic Transformation of Citrus sinensis L. with an antisense ACC oxidase Gene

1338

120

100

Callus induction capacity (%)

1 2 3 4 5

Treatments

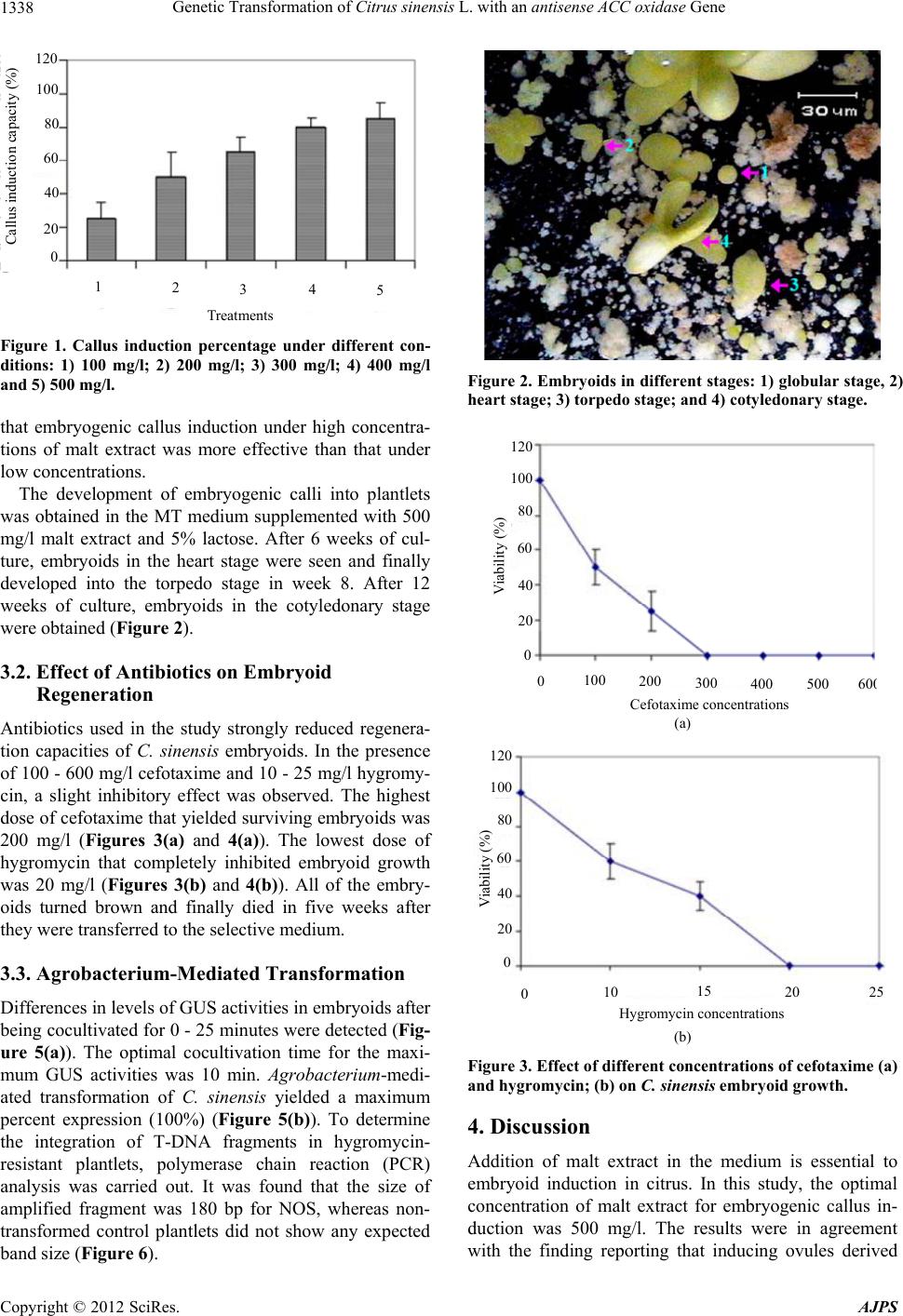

Figure 1. Callus induction percentage under different con-

ditions: 1) 100 mg/l; 2) 200 mg/l; 3) 300 mg/l; 4) 400 mg/l

and 5) 500 mg/l.

that embryogenic callus induction under high concentra-

tions of malt extract was more effective than that under

low concentrations.

The development of embryogenic calli into plantlets

was obtained in the MT medium supplemented with 500

mg/l malt extract and 5% lactose. After 6 weeks of cul-

ture, embryoids in the heart stage were seen and finally

developed into the torpedo stage in week 8. After 12

weeks of culture, embryoids in the cotyledonary stage

were obtained (Figure 2).

3.2. Effect of Antibiotics on Embryoid

Regeneration

Antibiotics used in the study strongly reduced regenera-

tion capacities of C. sinensis embryoids. In the presence

of 100 - 600 mg/l cefotaxime and 10 - 25 mg/l hygromy-

cin, a slight inhibitory effect was observed. The highest

dose of cefotaxime that yielded surviving embryoids was

200 mg/l (Figures 3(a) and 4(a)). The lowest dose of

hygromycin that completely inhibited embryoid growth

was 20 mg/l (Figures 3(b) and 4(b)). All of the embry-

oids turned brown and finally died in five weeks after

they were transferred to the selective medium.

3.3. Agrobacterium-Mediated Transformation

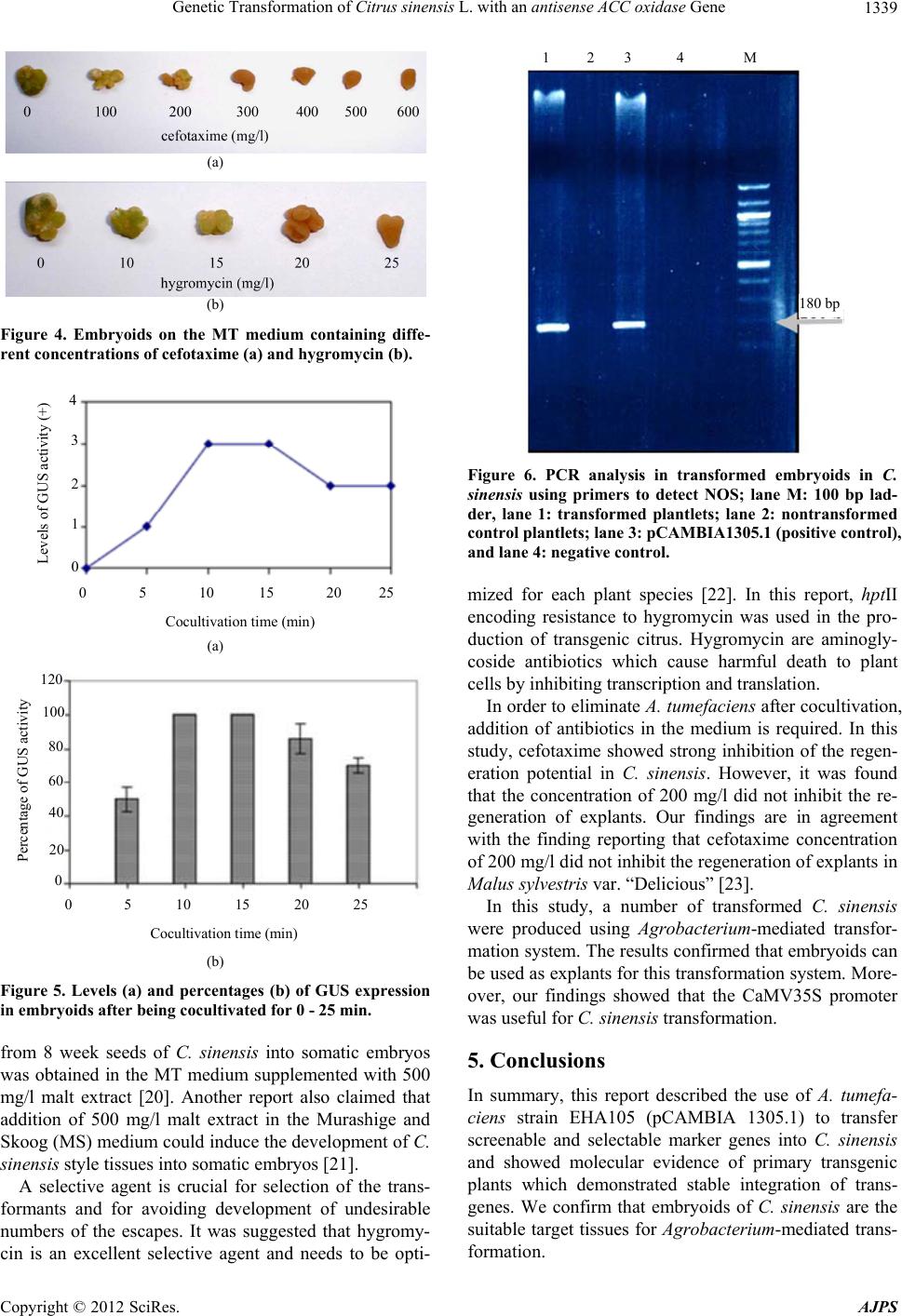

Differences in levels of GUS activities in embryoids after

being cocultivated for 0 - 25 minutes were detected (Fig-

ure 5(a)). The optimal cocultivation time for the maxi-

mum GUS activities was 10 min. Agrobacterium-medi-

ated transformation of C. sinensis yielded a maximum

percent expression (100%) (Figure 5(b)). To determine

the integration of T-DNA fragments in hygromycin-

resistant plantlets, polymerase chain reaction (PCR)

analysis was carried out. It was found that the size of

amplified fragment was 180 bp for NOS, whereas non-

transformed control plantlets did not show any expected

band size (Figure 6).

Figure 2. Embryoids in different stages: 1) globular stage, 2)

heart stage; 3) torpedo stage; and 4) cotyledonary stage.

120

100

Viability (%)

Cefotaxime co ncentrat ions

0100 200 300 400 500 60

(a)

120

100

010 15 20 25

Hygromycin conc entr ations

Vi abil ity (%)

(b)

Figure 3. Effect of different concentrations of cefotaxime (a)

and hygromycin; (b) on C. sinensis embryoi d gr owth.

4. Discussion

Addition of malt extract in the medium is essential to

embryoid induction in citrus. In this study, the optimal

concentration of malt extract for embryogenic callus in-

duction was 500 mg/l. The results were in agreement

with the finding reporting that inducing ovules derived

Genetic Transformation of Citrus sinensis L. with an antisense ACC oxidase Gene 1339

(a)

(b)

Figure 4. Embryoids on the MT medium containing diffe-

rent concentrations of cefotaxime (a) and hygromycin (b).

Levels of GUS activity (+)

0 5 10 15 20 25

Cocul tivatio n time (m in)

(a)

120

100

Percentage of GUS activity

0 5 10 15 20 25

Cocul tiva t io n time (min)

(b)

Figure 5. Levels (a) and percentages (b) of GUS expression

in embryoids after being cocultivated for 0 - 25 min.

from 8 week seeds of C. sinensis into somatic embryos

was obtained in the MT medium supplemented with 500

mg/l malt extract [20]. Another report also claimed that

addition of 500 mg/l malt extract in the Murashige and

Skoog (MS) medium could induce the development of C.

sinensis style tissues into somatic embryos [21].

A selective agent is crucial for selection of the trans-

formants and for avoiding development of undesirable

numbers of the escapes. It was suggested that hygromy-

cin is an excellent selective agent and needs to be opti-

1 2 3 4 M

180 b p

Figure 6. PCR analysis in transformed embryoids in C.

sinensis using primers to detect NOS; lane M: 100 bp lad-

der, lane 1: transformed plantlets; lane 2: nontransformed

control plantlets; lane 3: pCAMBIA1305.1 (positive control),

and lane 4: negative control.

mized for each plant species [22]. In this report, hptII

encoding resistance to hygromycin was used in the pro-

duction of transgenic citrus. Hygromycin are aminogly-

coside antibiotics which cause harmful death to plant

cells by inhibiting transcription and translation.

In order to eliminate A. tumefaciens after cocultivation,

addition of antibiotics in the medium is required. In this

study, cefotaxime showed strong inhibition of the regen-

eration potential in C. sinensis. However, it was found

that the concentration of 200 mg/l did not inhibit the re-

generation of explants. Our findings are in agreement

with the finding reporting that cefotaxime concentration

of 200 mg/l did not inhibit the regeneration of explants in

Malus sylvestris var. “Delicious” [23].

In this study, a number of transformed C. sinensis

were produced using Agrobacterium-mediated transfor-

mation system. The results confirmed that embryoids can

be used as explants for this transformation system. More-

over, our findings showed that the CaMV35S promoter

was useful for C. sinensis transformation.

5. Conclusions

In summary, this report described the use of A. tumefa-

ciens strain EHA105 (pCAMBIA 1305.1) to transfer

screenable and selectable marker genes into C. sinensis

and showed molecular evidence of primary transgenic

plants which demonstrated stable integration of trans-

genes. We confirm that embryoids of C. sinensis are the

suitable target tissues for Agrobacterium-mediated trans-

formation.

Genetic Transformation of Citrus sinensis L. with an antisense ACC oxidase Gene

1340

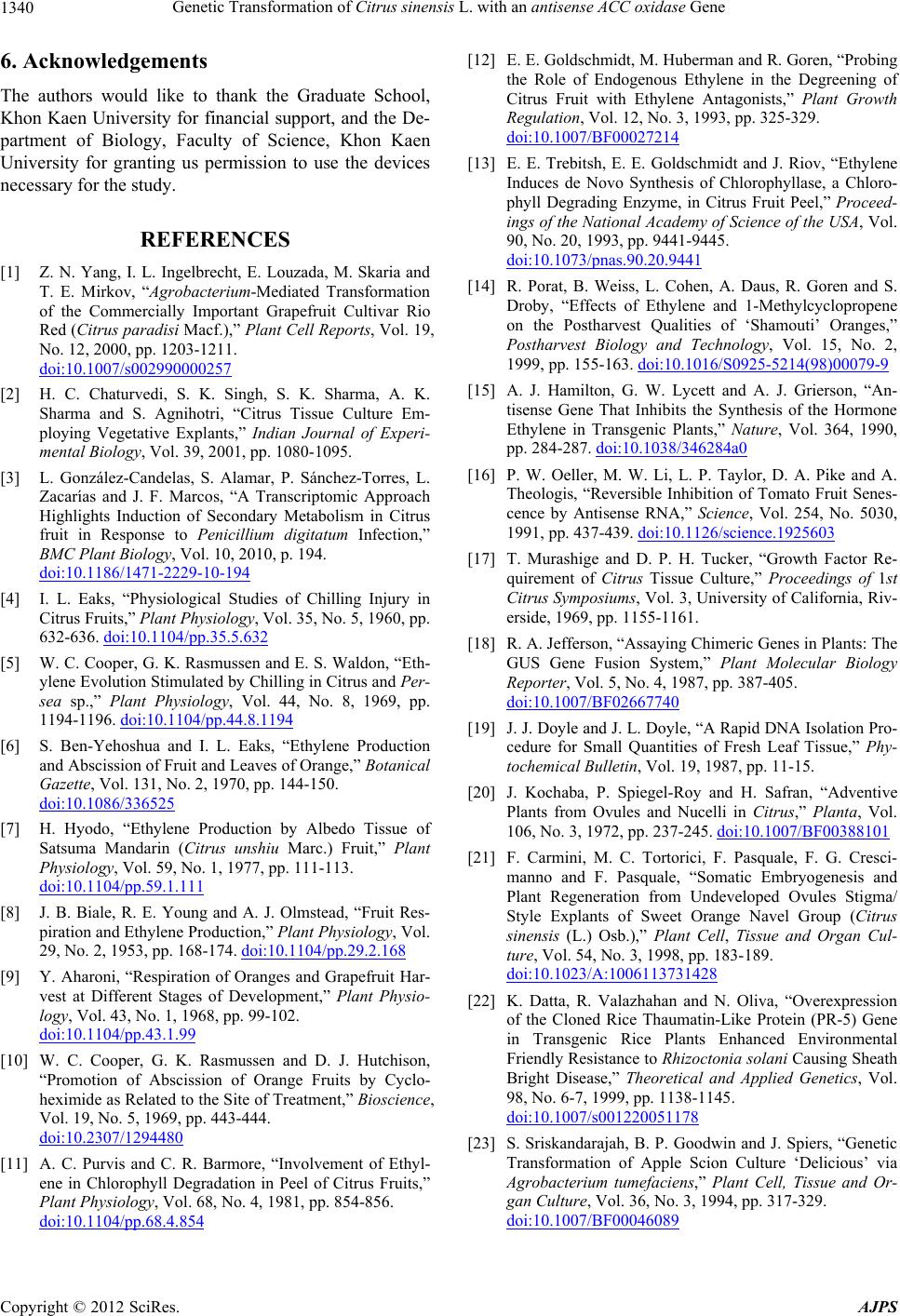

6. Acknowledgements

The authors would like to thank the Graduate School,

Khon Kaen University for financial support, and the De-

partment of Biology, Faculty of Science, Khon Kaen

University for granting us permission to use the devices

necessary for the study.

REFERENCES

[1] Z. N. Yang, I. L. Ingelbrecht, E. Louzada, M. Skaria and

T. E. Mirkov, “Agrobacterium-Mediated Transformation

of the Commercially Important Grapefruit Cultivar Rio

Red (Citrus paradisi Macf.),” Plant Cell Reports, Vol. 19,

No. 12, 2000, pp. 1203-1211.

doi:10.1007/s002990000257

[2] H. C. Chaturvedi, S. K. Singh, S. K. Sharma, A. K.

Sharma and S. Agnihotri, “Citrus Tissue Culture Em-

ploying Vegetative Explants,” Indian Journal of Experi-

mental Biology, Vol. 39, 2001, pp. 1080-1095.

[3] L. González-Candelas, S. Alamar, P. Sánchez-Torres, L.

Zacarías and J. F. Marcos, “A Transcriptomic Approach

Highlights Induction of Secondary Metabolism in Citrus

fruit in Response to Penicillium digitatum Infection,”

BMC Plant Biology, Vol. 10, 2010, p. 194.

doi:10.1186/1471-2229-10-194

[4] I. L. Eaks, “Physiological Studies of Chilling Injury in

Citrus Fruits,” Plant Physiology, Vol. 35, No. 5, 1960, pp.

632-636. doi:10.1104/pp.35.5.632

[5] W. C. Cooper, G. K. Rasmussen and E. S. Waldon, “Eth-

ylene Evolution Stimulated by Chilling in Citrus and Per-

sea sp.,” Plant Physiology, Vol. 44, No. 8, 1969, pp.

1194-1196. doi:10.1104/pp.44.8.1194

[6] S. Ben-Yehoshua and I. L. Eaks, “Ethylene Production

and Abscission of Fruit and Leaves of Orange,” Botanical

Gazette, Vol. 131, No. 2, 1970, pp. 144-150.

doi:10.1086/336525

[7] H. Hyodo, “Ethylene Production by Albedo Tissue of

Satsuma Mandarin (Citrus unshiu Marc.) Fruit,” Plant

Physiology, Vol. 59, No. 1, 1977, pp. 111-113.

doi:10.1104/pp.59.1.111

[8] J. B. Biale, R. E. Young and A. J. Olmstead, “Fruit Res-

piration and Ethylene Production,” Plant Physiology, Vol.

29, No. 2, 1953, pp. 168-174. doi:10.1104/pp.29.2.168

[9] Y. Aharoni, “Respiration of Oranges and Grapefruit Har-

vest at Different Stages of Development,” Plant Physio-

logy, Vol. 43, No. 1, 1968, pp. 99-102.

doi:10.1104/pp.43.1.99

[10] W. C. Cooper, G. K. Rasmussen and D. J. Hutchison,

“Promotion of Abscission of Orange Fruits by Cyclo-

heximide as Related to the Site of Treatment,” Bioscience,

Vol. 19, No. 5, 1969, pp. 443-444.

doi:10.2307/1294480

[11] A. C. Purvis and C. R. Barmore, “Involvement of Ethyl-

ene in Chlorophyll Degradation in Peel of Citrus Fruits,”

Plant Physiology, Vol. 68, No. 4, 1981, pp. 854-856.

doi:10.1104/pp.68.4.854

[12] E. E. Goldschmidt, M. Huberman and R. Goren, “Probing

the Role of Endogenous Ethylene in the Degreening of

Citrus Fruit with Ethylene Antagonists,” Plant Growth

Regulation, Vol. 12, No. 3, 1993, pp. 325-329.

doi:10.1007/BF00027214

[13] E. E. Trebitsh, E. E. Goldschmidt and J. Riov, “Ethylene

Induces de Novo Synthesis of Chlorophyllase, a Chloro-

phyll Degrading Enzyme, in Citrus Fruit Peel,” Proceed-

ings of the National Academy of Science of the USA, Vol.

90, No. 20, 1993, pp. 9441-9445.

doi:10.1073/pnas.90.20.9441

[14] R. Porat, B. Weiss, L. Cohen, A. Daus, R. Goren and S.

Droby, “Effects of Ethylene and 1-Methylcyclopropene

on the Postharvest Qualities of ‘Shamouti’ Oranges,”

Postharvest Biology and Technology, Vol. 15, No. 2,

1999, pp. 155-163. doi:10.1016/S0925-5214(98)00079-9

[15] A. J. Hamilton, G. W. Lycett and A. J. Grierson, “An-

tisense Gene That Inhibits the Synthesis of the Hormone

Ethylene in Transgenic Plants,” Nature, Vol. 364, 1990,

pp. 284-287. doi:10.1038/346284a0

[16] P. W. Oeller, M. W. Li, L. P. Taylor, D. A. Pike and A.

Theologis, “Reversible Inhibition of Tomato Fruit Senes-

cence by Antisense RNA,” Science, Vol. 254, No. 5030,

1991, pp. 437-439. doi:10.1126/science.1925603

[17] T. Murashige and D. P. H. Tucker, “Growth Factor Re-

quirement of Citrus Tissue Culture,” Proceedings of 1st

Citrus Symposiums, Vol. 3, University of California, Riv-

erside, 1969, pp. 1155-1161.

[18] R. A. Jefferson, “Assaying Chimeric Genes in Plants: The

GUS Gene Fusion System,” Plant Molecular Biology

Reporter, Vol. 5, No. 4, 1987, pp. 387-405.

doi:10.1007/BF02667740

[19] J. J. Doyle and J. L. Doyl e, “A Rapid DNA Isolation Pro-

cedure for Small Quantities of Fresh Leaf Tissue,” Phy-

tochemical Bulletin , Vol. 19, 1987, pp. 11-15.

[20] J. Kochaba, P. Spiegel-Roy and H. Safran, “Adventive

Plants from Ovules and Nucelli in Citrus,” Planta, Vol.

106, No. 3, 1972, pp. 237-245. doi:10.1007/BF00388101

[21] F. Carmini, M. C. Tortorici, F. Pasquale, F. G. Cresci-

manno and F. Pasquale, “Somatic Embryogenesis and

Plant Regeneration from Undeveloped Ovules Stigma/

Style Explants of Sweet Orange Navel Group (Citrus

sinensis (L.) Osb.),” Plant Cell, Tissue and Organ Cul-

ture, Vol. 54, No. 3, 1998, pp. 183-189.

doi:10.1023/A:1006113731428

[22] K. Datta, R. Valazhahan and N. Oliva, “Overexpression

of the Cloned Rice Thaumatin-Like Protein (PR-5) Gene

in Transgenic Rice Plants Enhanced Environmental

Friendly Resistance to Rhizoctonia solani Causing Sheath

Bright Disease,” Theoretical and Applied Genetics, Vol.

98, No. 6-7, 1999, pp. 1138-1145.

doi:10.1007/s001220051178

[23] S. Sriskandarajah, B. P. Goodwin and J. Spiers, “Genetic

Transformation of Apple Scion Culture ‘Delicious’ via

Agrobacterium tumefaciens,” Plant Cell, Tissue and Or-

gan Culture, Vol. 36, No. 3, 1994, pp. 317-329.

doi:10.1007/BF00046089
