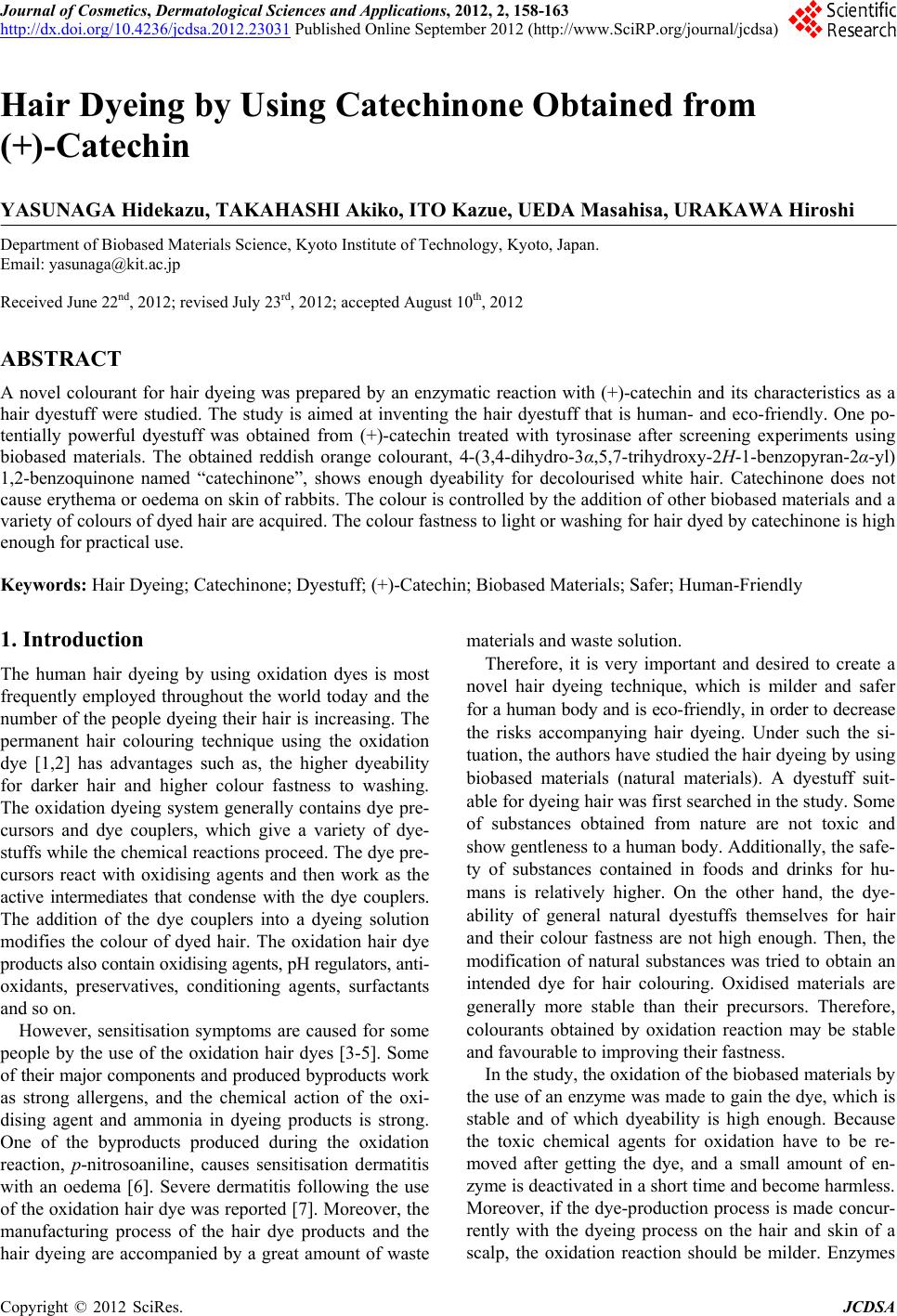

Hair Dyeing by Using Catechinone Obtained from (+)-Catechin

doi:10.4236/jcdsa.2012.23031

Paper Menu >>

Journal Menu >>

Journal of Cosmetics, Dermatological Sciences and Applications, 2012, 2, 158-163

http://dx.doi.org/10.4236/jcdsa.2012.23031 Published Online September 2012 (http://www.SciRP.org/journal/jcdsa)

Hair Dyeing by Using Catechinone Obtained from

(+)-Catechin

YASUNAGA Hidekazu, TAKAHASHI Akiko, ITO Kazue, UEDA Masahisa, URAKAWA Hiroshi

Department of Biobased Materials Science, Kyoto Institute of Technology, Kyoto, Japan.

Email: [email protected]

Received June 22nd, 2012; revised July 23rd, 2012; accepted August 10th, 2012

ABSTRACT

A novel colourant for hair dyeing was prepared by an enzymatic reaction with (+)-catechin and its characteristics as a

hair dyestuff were studied. The study is aimed at inventing the hair dyestuff that is human- and eco-friendly. One po-

tentially powerful dyestuff was obtained from (+)-catechin treated with tyrosinase after screening experiments using

biobased materials. The obtained reddish orange colourant, 4-(3,4-dihydro-3α,5,7 -trih ydroxy-2H-1-benzopyran-2α-yl)

1,2-benzoquinone named “catechinone”, shows enough dyeability for decolourised white hair. Catechinone does not

cause erythema or oedema on skin of rabbits. The colour is controlled by the addition of other biobased materials and a

variety of colours of dyed hair are acquired. The colour fastness to light or washing for hair dyed by catechinone is high

enough for practical use.

Keywords: Hair Dyeing; Catechinone; Dyestuff; (+)-Catechin; Biobased Materials; Safer; Human-Friendly

1. Introduction

The human hair dyeing by using oxidation dyes is most

frequently employed throughout the world today and the

number of the people dyeing their hair is increasing. The

permanent hair colouring technique using the oxidation

dye [1,2] has advantages such as, the higher dyeability

for darker hair and higher colour fastness to washing.

The oxidation dyeing system generally contains dye pre-

cursors and dye couplers, which give a variety of dye-

stuffs while the chemical reactions proceed. The dye pre-

cursors react with oxidising agents and then work as the

active intermediates that condense with the dye couplers.

The addition of the dye couplers into a dyeing solution

modifies the colour of dyed hair. The oxidation hair dye

products also contain oxidising agents, pH regulators, anti-

oxidants, preservatives, conditioning agents, surfactants

and so on.

However, sensitisation symptoms are caused for some

people by the use of the oxidation hair dyes [3-5]. Some

of their major components and produced byproducts work

as strong allergens, and the chemical action of the oxi-

dising agent and ammonia in dyeing products is strong.

One of the byproducts produced during the oxidation

reaction, p-nitrosoaniline, causes sensitisation dermatitis

with an oedema [6]. Severe dermatitis following the use

of the oxidation hair dye was reported [7]. Moreover, the

manufacturing process of the hair dye products and the

hair dyeing are accompanied by a great amount of waste

materials and waste solution.

Therefore, it is very important and desired to create a

novel hair dyeing technique, which is milder and safer

for a human body and is eco-friendly, in order to decrease

the risks accompanying hair dyeing. Under such the si-

tuation, the authors have studied the hair dyeing by using

biobased materials (natural materials). A dyestuff suit-

able for dyeing hair was first searched in the study. Some

of substances obtained from nature are not toxic and

show gentleness to a human body. Additionally, the safe-

ty of substances contained in foods and drinks for hu-

mans is relatively higher. On the other hand, the dye-

ability of general natural dyestuffs themselves for hair

and their colour fastness are not high enough. Then, the

modification of natural substances was tried to obtain an

intended dye for hair colouring. Oxidised materials are

generally more stable than their precursors. Therefore,

colourants obtained by oxidation reaction may be stable

and favourable to improving their fastness.

In the study, the oxidation of the biobased materials by

the use of an enzyme was made to gain the dye, which is

stable and of which dyeability is high enough. Because

the toxic chemical agents for oxidation have to be re-

moved after getting the dye, and a small amount of en-

zyme is deactivated in a short time and become harmless.

Moreover, if the dye-production process is made concur-

rently with the dyeing process on the hair and skin of a

scalp, the oxidation reaction should be milder. Enzymes

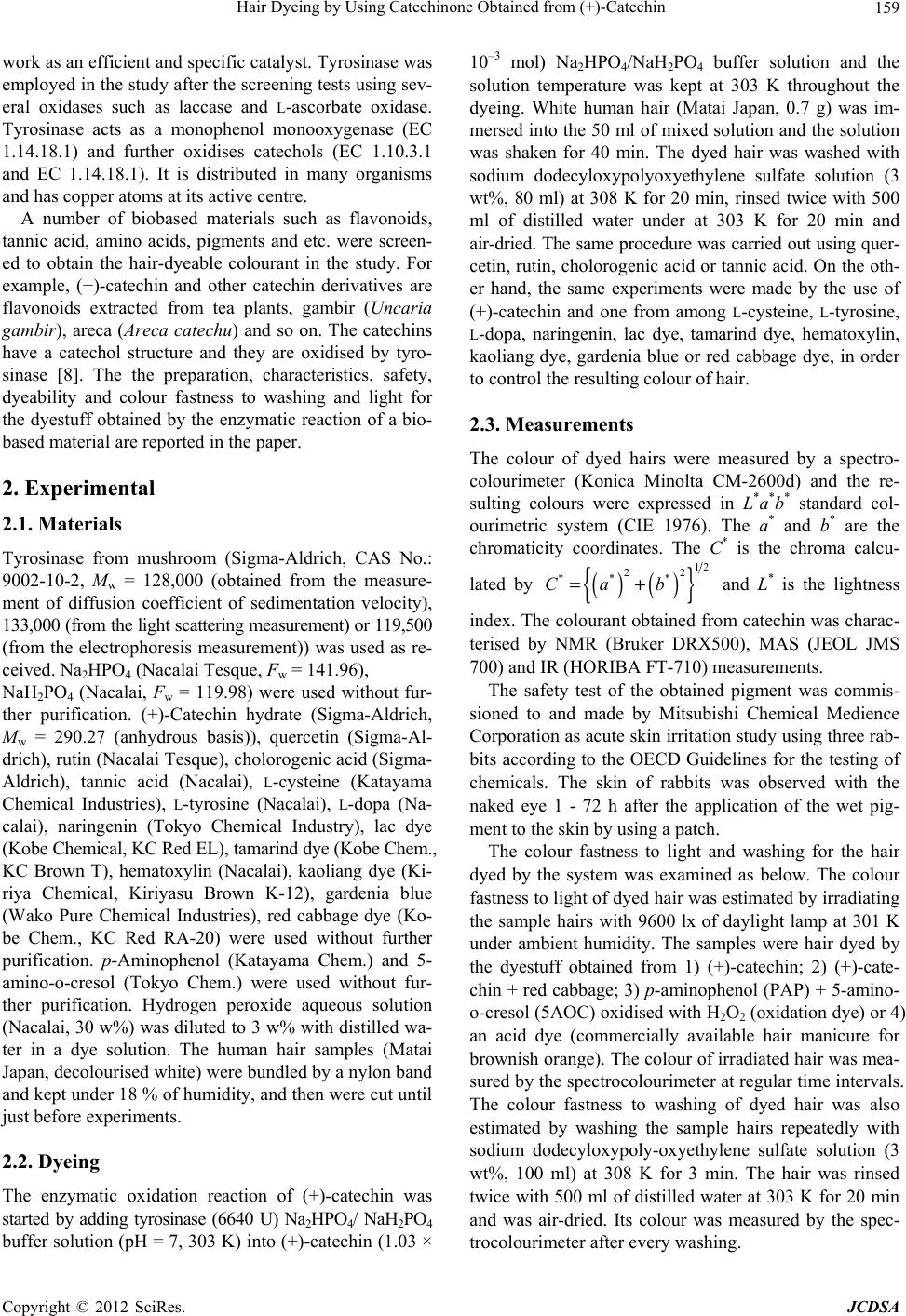

Hair Dyeing by Using Catechinone Obtained from (+)-Catechin 159

work as an efficient and specific catalyst. Tyrosinase was

employed in the study after the screening tests using sev-

eral oxidases such as laccase and L-ascorbate oxidase.

Tyrosinase acts as a monophenol monooxygenase (EC

1.14.18.1) and further oxidises catechols (EC 1.10.3.1

and EC 1.14.18.1). It is distributed in many organisms

and has copper atoms at its active centre.

A number of biobased materials such as flavonoids,

tannic acid, amino acids, pigments and etc. were screen-

ed to obtain the hair-dyeable colourant in the study. For

example, (+)-catechin and other catechin derivatives are

flavonoids extracted from tea plants, gambir (Uncaria

gambir), areca (Areca catechu) and so on. The catechins

have a catechol structure and they are oxidised by tyro-

sinase [8]. The the preparation, characteristics, safety,

dyeability and colour fastness to washing and light for

the dyestuff obtained by the enzymatic reaction of a bio-

based material are reported in the paper.

2. Experimental

2.1. Materials

Tyrosinase from mushroom (Sigma-Aldrich, CAS No.:

9002-10-2, Mw = 128,000 (obtained from the measure-

ment of diffusion coefficient of sedimentation velocity),

133,000 (from the light scattering measurement) or 119,500

(from the electrophoresis measurement)) was used as re-

ceived. Na2HPO4 (Nacalai Tesque, Fw = 141.96),

NaH2PO4 (Nacalai, Fw = 119.98) were used without fur-

ther purification. (+)-Catechin hydrate (Sigma-Aldrich,

Mw = 290.27 (anhydrous basis)), quercetin (Sigma-Al-

drich), rutin (Nacalai Tesque), cholorogenic acid (Sigma-

Aldrich), tannic acid (Nacalai), L-cysteine (Katayama

Chemical Industries), L-tyrosine (Nacalai), L-dopa (Na-

calai), naringenin (Tokyo Chemical Industry), lac dye

(Kobe Chemical, KC Red EL), tamarind dye (Kobe Chem.,

KC Brown T), hematoxylin (Nacalai), kaoliang dye (Ki-

riya Chemical, Kiriyasu Brown K-12), gardenia blue

(Wako Pure Chemical Industries), red cabbage dye (Ko-

be Chem., KC Red RA-20) were used without further

purification. p-Aminophenol (Katayama Chem.) and 5-

amino-o-cresol (Tokyo Chem.) were used without fur-

ther purification. Hydrogen peroxide aqueous solution

(Nacalai, 30 w%) was diluted to 3 w% with distilled wa-

ter in a dye solution. The human hair samples (Matai

Japan, decolourised white) were bundled by a nylon band

and kept under 18 % of humidity, and then were cut until

just before experiments.

2.2. Dyeing

The enzymatic oxidation reaction of (+)-catechin was

started by adding tyrosinase (6640 U) Na2HPO4/ NaH2PO4

buffer solution (pH = 7, 303 K) into (+)-catechin (1.03 ×

10–3 mol) Na2HPO4/NaH2PO4 buffer solution and the

solution temperature was kept at 303 K throughout the

dyeing. White human hair (Matai Japan, 0.7 g) was im-

mersed into the 50 ml of mixed solution and the solution

was shaken for 40 min. The dyed hair was washed with

sodium dodecyloxypolyoxyethylene sulfate solution (3

wt%, 80 ml) at 308 K for 20 min, rinsed twice with 500

ml of distilled water under at 303 K for 20 min and

air-dried. The same procedure was carried out using quer-

cetin, rutin, cholorogenic acid or tannic acid. On the oth-

er hand, the same experiments were made by the use of

(+)-catechin and one from among L-cysteine, L-tyrosine,

L-dopa, naringenin, lac dye, tamarind dye, hematoxylin,

kaoliang dye, gardenia blue or red cabbage dye, in order

to control the resulting colour of hair.

2.3. Measurements

The colour of dyed hairs were measured by a spectro-

colourimeter (Konica Minolta CM-2600d) and the re-

sulting colours were expressed in L*a*b* standard col-

ourimetric system (CIE 1976). The a* and b* are the

chromaticity coordinates. The C* is the chroma calcu-

lated by

() ()

{

}

** *

Ca b=+ and L* is the lightness

index. The colourant obtained from catechin was charac-

terised by NMR (Bruker DRX500), MAS (JEOL JMS

700) and IR (HORIBA FT-710) measurements.

The safety test of the obtained pigment was commis-

sioned to and made by Mitsubishi Chemical Medience

Corporation as acute skin irritation study using three rab-

bits according to the OECD Guidelines for the testing of

chemicals. The skin of rabbits was observed with the

naked eye 1 - 72 h after the application of the wet pig-

ment to the skin by using a patch.

The colour fastness to light and washing for the hair

dyed by the system was examined as below. The colour

fastness to light of dyed hair was estimated by irradiating

the sample hairs with 9600 lx of daylight lamp at 301 K

under ambient humidity. The samples were hair dyed by

the dyestuff obtained from 1) (+)-catechin; 2) (+)-cate-

chin + red cabbage; 3) p-aminophenol (PAP) + 5-amino-

o-cresol (5AOC) oxidised with H2O2 (oxidation dye) or 4)

an acid dye (commercially available hair manicure for

brownish orange). The colour of irradiated hair was mea-

sured by the spectrocolourimeter at regular time intervals.

The colour fastness to washing of dyed hair was also

estimated by washing the sample hairs repeatedly with

sodium dodecyloxypoly-oxyethylene sulfate solution (3

wt%, 100 ml) at 308 K for 3 min. The hair was rinsed

twice with 500 ml of distilled water at 303 K for 20 min

and was air-dried. Its colour was measured by the spec-

trocolourimeter after every washing.

Hair Dyeing by Using Catechinone Obtained from (+)-Catechin

160

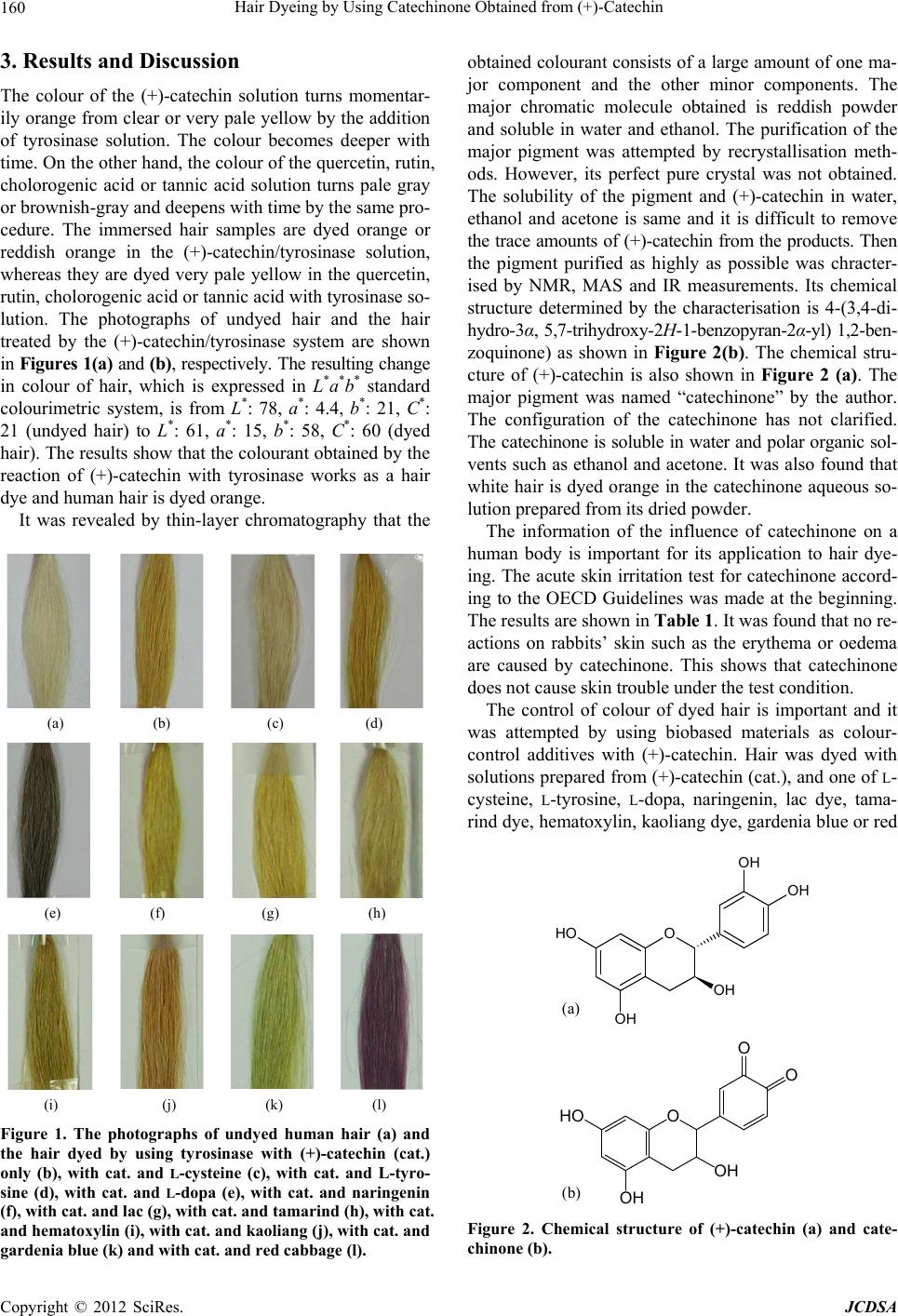

3. Results and Discussion

The colour of the (+)-catechin solution turns momentar-

ily orange from clear or very pale yellow by the addition

of tyrosinase solution. The colour becomes deeper with

time. On the other hand, the colour of the quercetin, rutin,

cholorogenic acid or tannic acid solution turns pale gray

or brownish-gray and deepens with time by the same pro-

cedure. The immersed hair samples are dyed orange or

reddish orange in the (+)-catechin/tyrosinase solution,

whereas they are dyed very pale yellow in the quercetin,

rutin, cholorogenic acid or tannic acid with tyrosinase so-

lution. The photographs of undyed hair and the hair

treated by the (+)-catechin/tyrosinase system are shown

in Figures 1(a) and (b), respectively. The resulting change

in colour of hair, which is expressed in L*a*b* standard

colourimetric system, is from L*: 78, a*: 4.4, b*: 21, C*:

21 (undyed hair) to L*: 61, a*: 15, b*: 58, C*: 60 (dyed

hair). The results show that the colourant obtained by the

reaction of (+)-catechin with tyrosinase works as a hair

dye and human hair is dyed orange.

It was revealed by thin-layer chromatography that the

(a) (b) (c) (d)

(e) (f) (g) (h)

(i) (j) (k) (l)

Figure 1. The photographs of undyed human hair (a) and

the hair dyed by using tyrosinase with (+)-catechin (cat.)

only (b), with cat. and L-cysteine (c), with cat. and L-tyro-

sine (d), with cat. and L-dopa (e), with cat. and naringenin

(f), with cat. and lac (g), with cat. and tamarind (h), with cat.

and hematoxylin (i), with cat. and kaoliang (j), with cat. and

gardenia blue (k) and with cat. and red cabbage (l).

obtained colourant consists of a large amount of one ma-

jor component and the other minor components. The

major chromatic molecule obtained is reddish powder

and soluble in water and ethanol. The purification of the

major pigment was attempted by recrystallisation meth-

ods. However, its perfect pure crystal was not obtained.

The solubility of the pigment and (+)-catechin in water,

ethanol and acetone is same and it is difficult to remove

the trace amounts of (+)-catechin from the products. Then

the pigment purified as highly as possible was chracter-

ised by NMR, MAS and IR measurements. Its chemical

structure determined by the characterisation is 4-(3,4-di-

hydro-3α, 5,7-trihydroxy-2H-1-benzopyran-2α-yl) 1,2-ben-

zoquinone) as shown in Figure 2(b). The chemical stru-

cture of (+)-catechin is also shown in Figure 2 (a). The

major pigment was named “catechinone” by the author.

The configuration of the catechinone has not clarified.

The catechinone is soluble in water and polar organic sol-

vents such as ethanol and acetone. It was also found that

white hair is dyed orange in the catechinone aqueous so-

lution prepared from its dried powder.

The information of the influence of catechinone on a

human body is important for its application to hair dye-

ing. The acute skin irritation test for catechinone accord-

ing to the OECD Guidelines was made at the beginning.

The results are shown in Table 1. It was found that no re-

actions on rabbits’ skin such as the erythema or oedema

are caused by catechinone. This shows that catechinone

does not cause skin trouble under the test condition.

The control of colour of dyed hair is important and it

was attempted by using biobased materials as colour-

control additives with (+)-catechin. Hair was dyed with

solutions prepared from (+)-catechin (cat.), and one of L-

cysteine, L-tyrosine, L-dopa, naringenin, lac dye, tama-

rind dye, hematoxylin, kaoliang dye, gardenia blue or red

OOH

(a)

(b)

Figure 2. Chemical structure of (+)-catechin (a) and cate-

chinone (b).

Hair Dyeing by Using Catechinone Obtained from (+)-Catechin 161

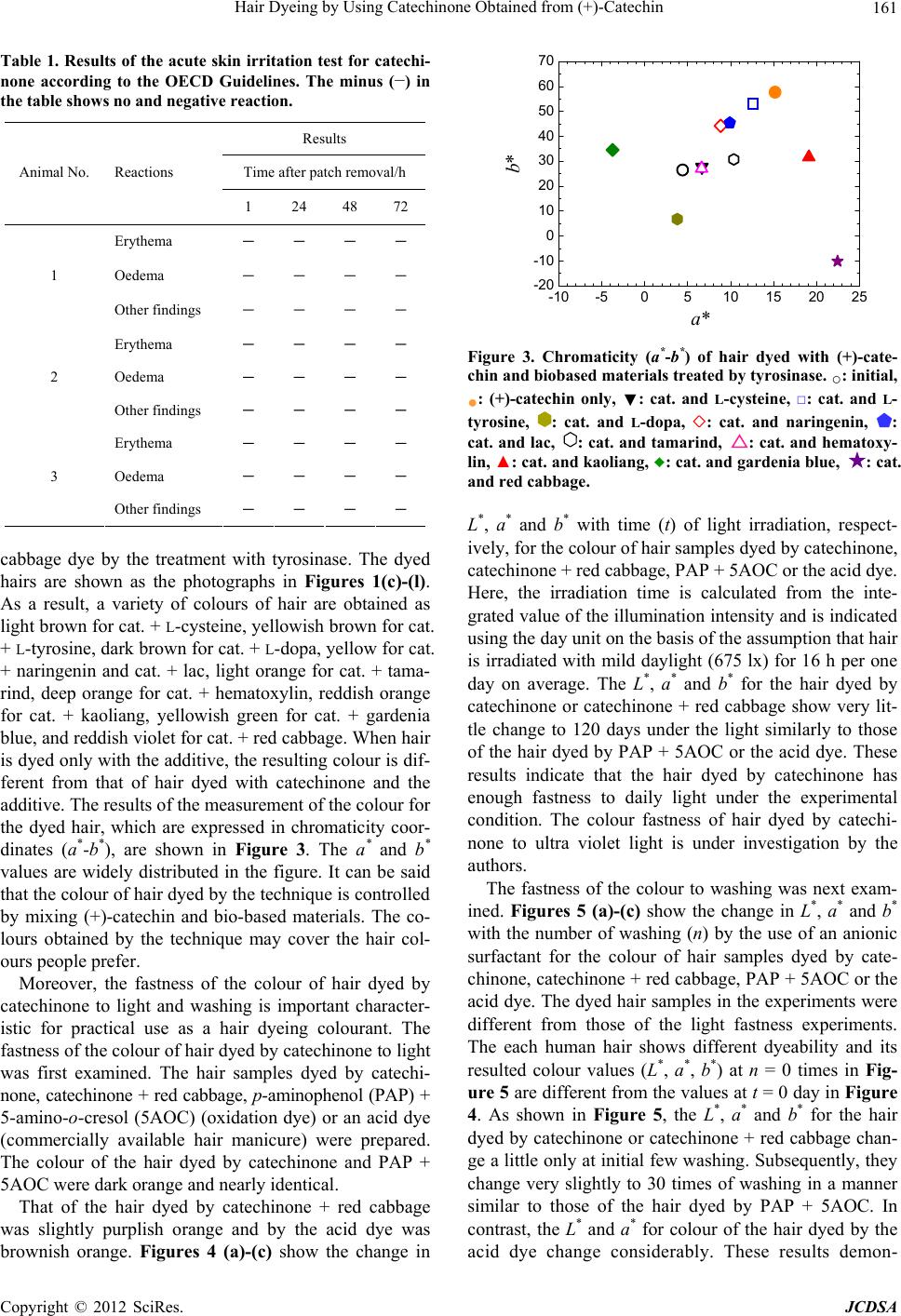

Table 1. Results of the acute skin irritation test for catechi-

none according to the OECD Guidelines. The minus (−) in

the table shows no and negative reaction.

Results

Time after patch removal/h

Animal No. Reactions

1 24 48 72

Erythema －－－－

Oedema －－－－

Other findings －－－－

Erythema －－－－

Oedema －－－－

Other findings －－－－

Erythema －－－－

Oedema －－－－

Other findings －－－－

cabbage dye by the treatment with tyrosinase. The dyed

hairs are shown as the photographs in Figures 1(c)-(l).

As a result, a variety of colours of hair are obtained as

light brown for cat. + L-cysteine, yellowish brown for cat.

+ L-tyrosine, dark brown for cat. + L-dopa, yellow for cat.

+ naringenin and cat. + lac, light orange for cat. + tama-

rind, deep orange for cat. + hematoxylin, reddish orange

for cat. + kaoliang, yellowish green for cat. + gardenia

blue, and reddish violet for cat. + red cabbage. When hair

is dyed only with the additive, the resulting colour is dif-

ferent from that of hair dyed with catechinone and the

additive. The results of the measurement of the colour for

the dyed hair, which are expressed in chromaticity coor-

dinates (a*-b*), are shown in Figure 3. The a* and b*

values are widely distributed in the figure. It can be said

that the colour of hair dyed by the technique is controlled

by mixing (+)-catechin and bio-based materials. The co-

lours obtained by the technique may cover the hair col-

ours people prefer.

Moreover, the fastness of the colour of hair dyed by

catechinone to light and washing is important character-

istic for practical use as a hair dyeing colourant. The

fastness of the colour of hair dyed by catechinone to light

was first examined. The hair samples dyed by catechi-

none, catechinone + red cabbage, p-aminophenol (PAP) +

5-amino-o-cresol (5AOC) (oxidation dye) or an acid dye

(commercially available hair manicure) were prepared.

The colour of the hair dyed by catechinone and PAP +

5AOC were dark orange and nearly identical.

That of the hair dyed by catechinone + red cabbage

was slightly purplish orange and by the acid dye was

brownish orange. Figures 4 (a)-(c) show the change in

-10-505 1015202

-20

-10

Figure 3. Chromaticity (a*-b*) of hair dyed with (+)-cate-

chin and biobased materials treated by tyrosinase. ○: initial,

●: (+)-catechin only, ▼: cat. and L-cysteine, □: cat. and L-

tyrosine, : cat. and L-dopa,

◊

: cat. and naringenin, :

cat. and lac, : cat. and tamarind, : cat. and hematoxy-

lin, ▲: cat. and kaoliang,

♦

: cat. and gardenia blue, : cat.

and red cabbage.

L*, a* and b* with time (t) of light irradiation, respect-

ively, for the colour of hair samples dyed by catechinone,

catechinone + red cabbage, PAP + 5AOC or the acid dye.

Here, the irradiation time is calculated from the inte-

grated value of the illumination intensity and is indicated

using the day unit on the basis of the assumption that hair

is irradiated with mild daylight (675 lx) for 16 h per one

day on average. The L*, a* and b* for the hair dyed by

catechinone or catechinone + red cabbage show very lit-

tle change to 120 days under the light similarly to those

of the hair dyed by PAP + 5AOC or the acid dye. These

results indicate that the hair dyed by catechinone has

enough fastness to daily light under the experimental

condition. The colour fastness of hair dyed by catechi-

none to ultra violet light is under investigation by the

authors.

The fastness of the colour to washing was next exam-

ined. Figures 5 (a)-(c) show the change in L*, a* and b*

with the number of washing (n) by the use of an anionic

surfactant for the colour of hair samples dyed by cate-

chinone, catechinone + red cabbage, PAP + 5AOC or the

acid dye. The dyed hair samples in the experiments were

different from those of the light fastness experiments.

The each human hair shows different dyeability and its

resulted colour values (L*, a*, b*) at n = 0 times in Fig-

ure 5 are different from the values at t = 0 day in Figure

4. As shown in Figure 5, the L*, a* and b* for the hair

dyed by catechinone or catechinone + red cabbage chan-

ge a little only at initial few washing. Subsequently, they

change very slightly to 30 times of washing in a manner

similar to those of the hair dyed by PAP + 5AOC. In

contrast, the L* and a* for colour of the hair dyed by the

acid dye change considerably. These results demon-

Hair Dyeing by Using Catechinone Obtained from (+)-Catechin

162

0 102030405060708090100110120

t / day

0 102030405060708090100110120

-10

t / day

0 102030405060708090100110120

-30

-20

-10

t / day

(a)

(

)

(c)

t/day

a* L*

t/day

(c)

(b)

(a)

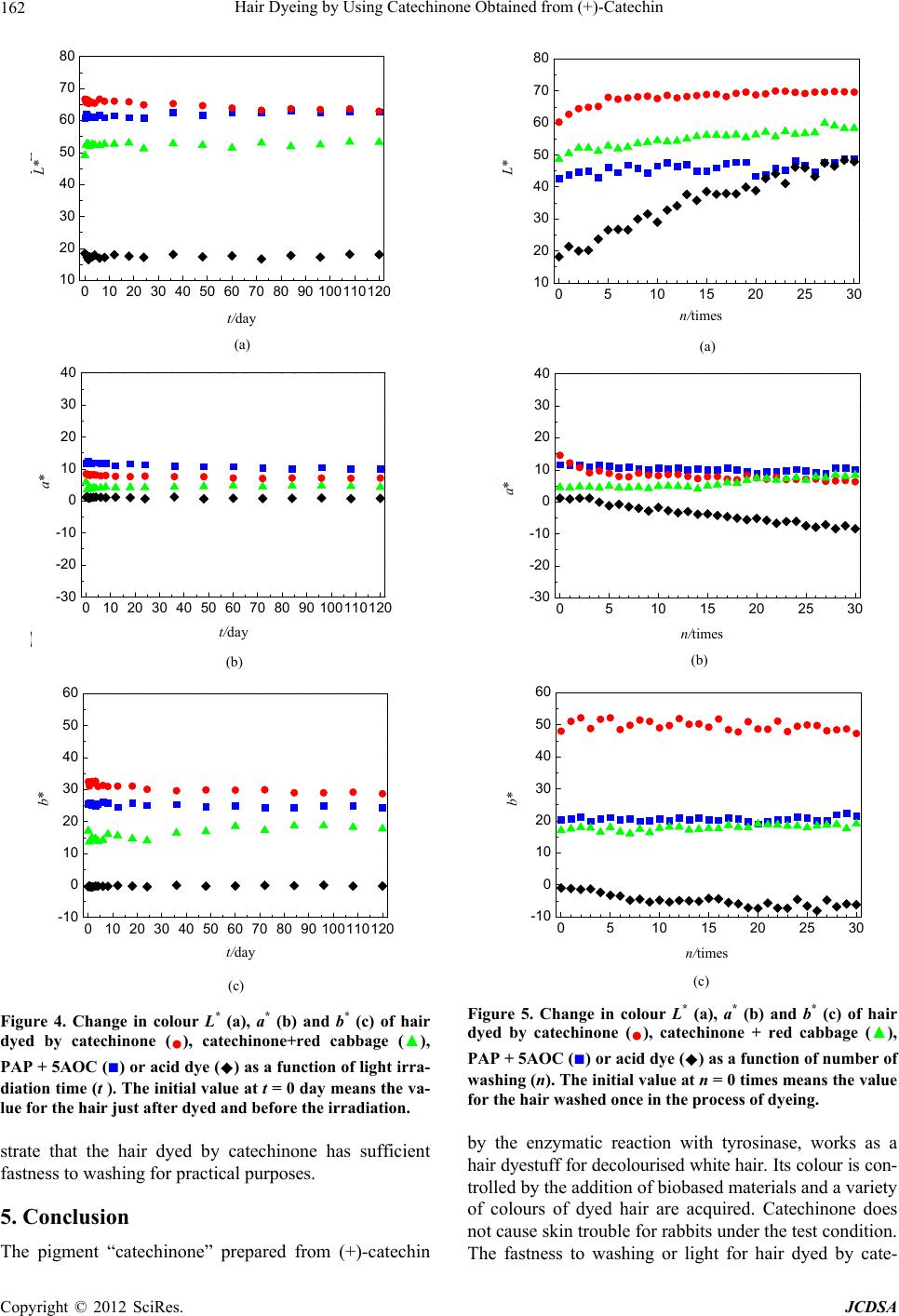

Figure 4. Change in colour L* (a), a* (b) and b* (c) of hair

dyed by catechinone (●), catechinone+red cabbage (▲),

PAP + 5AOC (■) or acid dye (

♦

) as a function of light irra-

diation time (t ). The initial value at t = 0 day means the va-

lue for the hair just after dyed and before the irradiation.

strate that the hair dyed by catechinone has sufficient

fastness to washing for practical purposes.

5. Conclusion

The pigment “catechinone” prepared from (+)-catechin

0510 15 20 25 30

n / times

0510 15 20 25 30

-30

-20

-10

n / times

0510 15 20 25 30

-10

n / times

(a)

(

)

(c)

n/times

a* L*

(c)

(b)

(a)

n/times

Figure 5. Change in colour L* (a), a* (b) and b* (c) of hair

dyed by catechinone (●), catechinone + red cabbage (▲),

PAP + 5AOC (■) or acid dye (

♦

) as a function of number of

washing (n). The initial value at n = 0 times means the value

for the hair washed once in the process of dyeing.

by the enzymatic reaction with tyrosinase, works as a

hair dyestuff for decolourised white hair. Its colour is con-

trolled by the addition of biobased materials and a variety

of colours of dyed hair are acquired. Catechinone does

not cause skin trouble for rabbits under the test condition.

The fastness to washing or light for hair dyed by cate-

Hair Dyeing by Using Catechinone Obtained from (+)-Catechin

163

chinone is high enough for practical use.

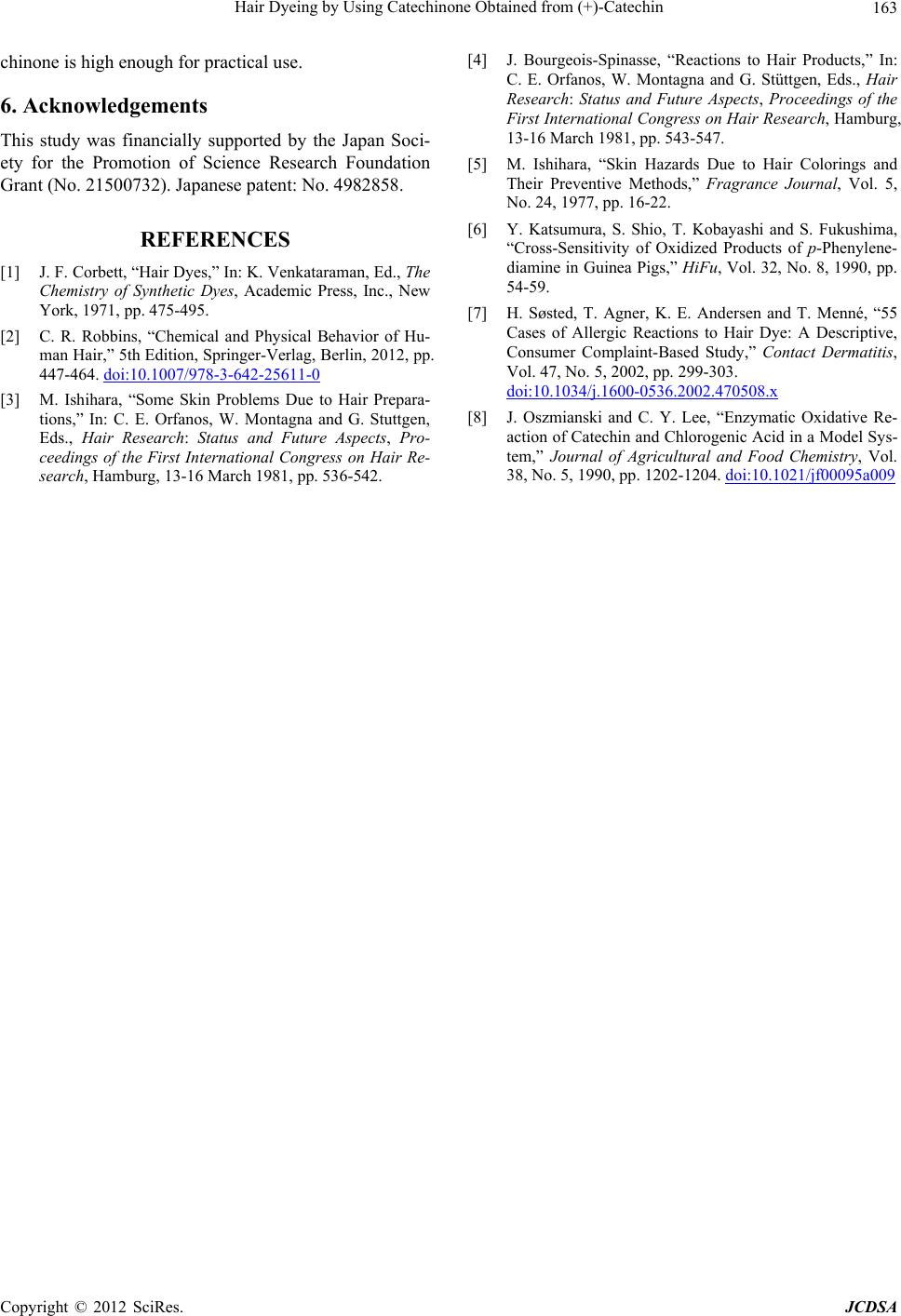

6. Acknowledgements

This study was financially supported by the Japan Soci-

ety for the Promotion of Science Research Foundation

Grant (No. 21500732). Japanese patent: No. 4982858.

REFERENCES

[1] J. F. Corbett, “Hair Dyes,” In: K. Venkataraman, Ed., The

Chemistry of Synthetic Dyes, Academic Press, Inc., New

York, 1971, pp. 475-495.

[2] C. R. Robbins, “Chemical and Physical Behavior of Hu-

man Hair,” 5th Edition, Springer-Verlag, Berlin, 2012, pp.

447-464. doi:10.1007/978-3-642-25611-0

[3] M. Ishihara, “Some Skin Problems Due to Hair Prepara-

tions,” In: C. E. Orfanos, W. Montagna and G. Stuttgen,

Eds., Hair Research: Status and Future Aspects, Pro-

ceedings of the First International Congress on Hair Re-

search, Hamburg, 13-16 March 1981, pp. 536-542.

[4] J. Bourgeois-Spinasse, “Reactions to Hair Products,” In:

C. E. Orfanos, W. Montagna and G. Stüttgen, Eds., Hair

Research: Status and Future Aspects, Proceedings of the

First International Congress on Hair Research, Hamburg,

13-16 March 1981, pp. 543-547.

[5] M. Ishihara, “Skin Hazards Due to Hair Colorings and

Their Preventive Methods,” Fragrance Journal, Vol. 5,

No. 24, 1977, pp. 16-22.

[6] Y. Katsumura, S. Shio, T. Kobayashi and S. Fukushima,

“Cross-Sensitivity of Oxidized Products of p-Phenylene-

diamine in Guinea Pigs,” HiFu, Vol. 32, No. 8, 1990, pp.

54-59.

[7] H. Søsted, T. Agner, K. E. Andersen and T. Menné, “55

Cases of Allergic Reactions to Hair Dye: A Descriptive,

Consumer Complaint-Based Study,” Contact Dermatitis,

Vol. 47, No. 5, 2002, pp. 299-303.

doi:10.1034/j.1600-0536.2002.470508.x

[8] J. Oszmianski and C. Y. Lee, “Enzymatic Oxidative Re-

action of Catechin and Chlorogenic Acid in a Model Sys-

tem,” Journal of Agricultural and Food Chemistry, Vol.

38, No. 5, 1990, pp. 1202-1204. doi:10.1021/jf00095a009
