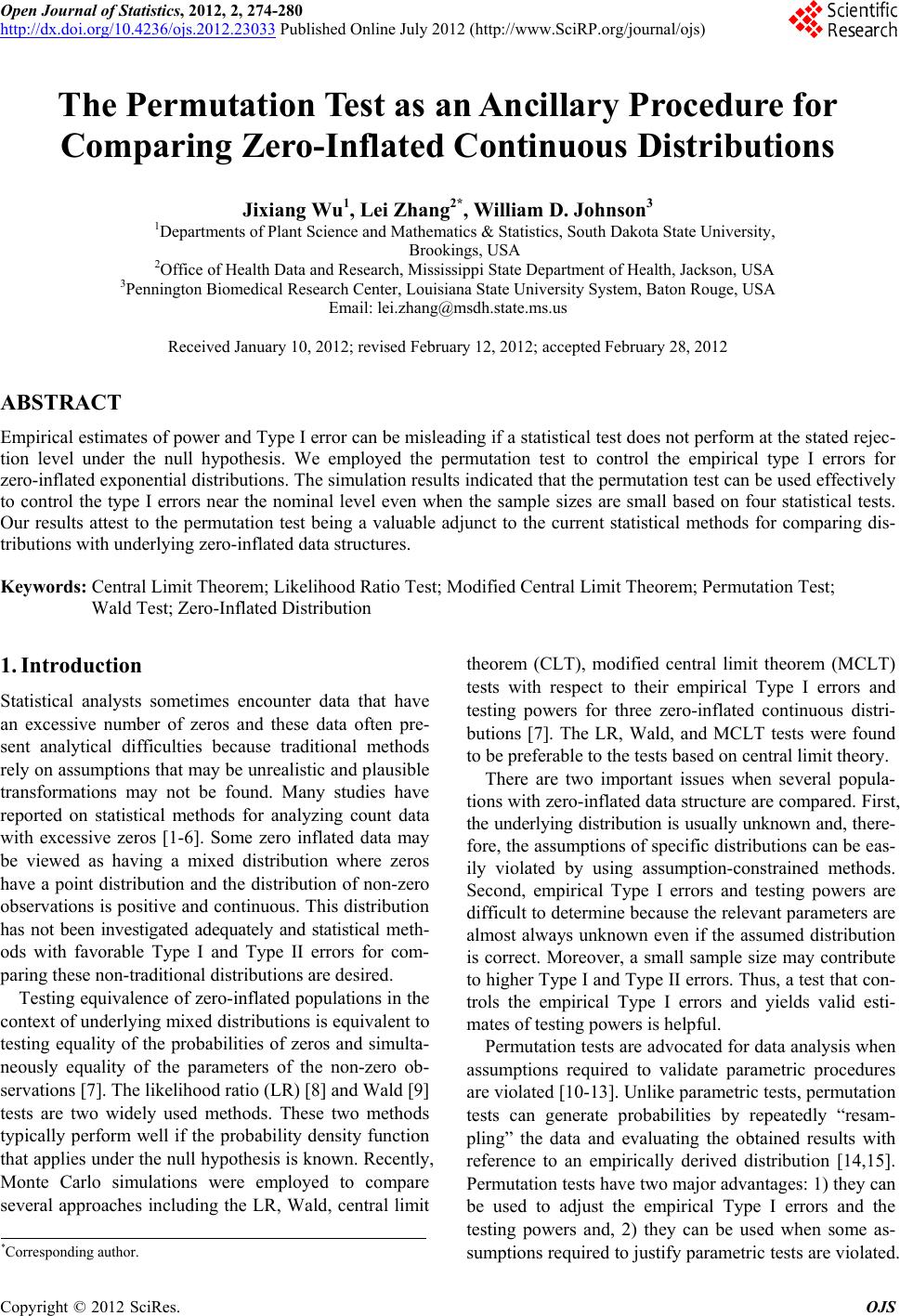

![]() Open Journal of Statistics, 2012, 2, 274-280 http://dx.doi.org/10.4236/ojs.2012.23033 Published Online July 2012 (http://www.SciRP.org/journal/ojs) The Permutation Test as an Ancillary Procedure for Comparing Zero-Inflated Continuous Distributions Jixiang Wu1, Lei Zhang2*, William D. Johnson3 1Departments of Plant Science and Mathematics & Statistics, South Dakota State University, Brookings, USA 2Office of Health Data and Research, Mississippi State Department of Health, Jackson, USA 3Pennington Biomedical Research Center, Louisiana State University System, Baton Rouge, USA Email: [email protected] Received January 10, 2012; revised February 12, 2012; accepted February 28, 2012 ABSTRACT Empirical estimates of power and Type I error can be misleading if a statistical test does not perform at the stated rejec- tion level under the null hypothesis. We employed the permutation test to control the empirical type I errors for zero-inflated exponential distributions. The simulation results indicated that the permutation test can be used effectively to control the type I errors near the nominal level even when the sample sizes are small based on four statistical tests. Our results attest to the permutation test being a valuable adjunct to the current statistical methods for comparing dis- tributions with underlying zero-inflated data structures. Keywords: Central Limit Theorem; Likelihood Ratio Test; Modified Central Limit Theorem; Permutation Test; Wald Test; Zero-Inflated Distribution 1. Introduction Statistical analysts sometimes encounter data that have an excessive number of zeros and these data often pre- sent analytical difficulties because traditional methods rely on assumptions that may be unrealistic and plausible transformations may not be found. Many studies have reported on statistical methods for analyzing count data with excessive zeros [1-6]. Some zero inflated data may be viewed as having a mixed distribution where zeros have a point distribution and the distribution of non-zero observations is positive and continuous. This distribution has not been investigated adequately and statistical meth- ods with favorable Type I and Type II errors for com- paring these non-traditional distributions are desired. Testing equivalence of zero-inflated populations in the context of underlying mixed distributions is equivalent to testing equality of the probabilities of zeros and simulta- neously equality of the parameters of the non-zero ob- servations [7]. The likelihood ratio (LR) [8] and Wald [9] tests are two widely used methods. These two methods typically perform well if the probability density function that applies under the null hypothesis is known. Recently, Monte Carlo simulations were employed to compare several approaches including the LR, Wald, central limit theorem (CLT), modified central limit theorem (MCLT) tests with respect to their empirical Type I errors and testing powers for three zero-inflated continuous distri- butions [7]. The LR, Wald, and MCLT tests were found to be preferable to the tests based on central limit theory. There are two important issues when several popula- tions with zero-inflated data structure are compared. First, the underlying distribution is usually unknown and, there- fore, the assumptions of specific distributions can be eas- ily violated by using assumption-constrained methods. Second, empirical Type I errors and testing powers are difficult to determine because the relevant parameters are almost always unknown even if the assumed distribution is correct. Moreover, a small sample size may contribute to higher Type I and Type II errors. Thus, a test that con- trols the empirical Type I errors and yields valid esti- mates of testing powers is helpful. Permutation tests are advocated for data analysis when assumptions required to validate parametric procedures are violated [10-13]. Unlike parametric tests, permutation tests can generate probabilities by repeatedly “resam- pling” the data and evaluating the obtained results with reference to an empirically derived distribution [14,15]. Permutation tests have two major advantages: 1) they can be used to adjust the empirical Type I errors and the testing powers and, 2) they can be used when some as- sumptions required to justify parametric tests are violated. *Corresponding author. C opyright © 2012 SciRes. OJS ![]() J. X. WU ET AL. 275 Hence, their use may lead to more appropriate statistical conclusions. The purpose of this study was to investigate the issues raised above pertaining to the use of ancillary permuta- tion tests to compare several populations when the ran- dom variable of interest has either a known or unknown zero-inflated continuous distribution. Four statistical tests were compared with respect to both their empirical type I errors and testing powers. First we assumed the data fol- lowed a zero-inflated exponential distribution as reported by Zhang et al. [7]. Empirical Type I errors and testing powers for these tests were compared with and without adjunct permutation tests by empirical estimates obtained using Monte Carlo simulations. Section 2 describes a general permutation test that generates an empirical prob- ability for each test. Simulated results for four carefully selected parameter configurations are presented in Sec- tion 3. Finally, Section 4 demonstrates the results with the permutation test for a data set reported by Koopmans [16]. 2. Statistical Methods 2.1. Four Testing Methods Performances of four tests including the likelihood ratio (LR) [8], Wald [9], central limit theorem (CLT), and modified central limit theorem (MCLT) tests [7] were evaluated. The CLT test considers only the population means calculated over all zero and non-zero observations while the MCLT test considers both the probability of zeros and simultaneously the mean of non-zero observa- tions. The first two tests are distribution-based while the other two are distribution-free based. Maximum likeli- hood (ML) estimators [17] are required for both the LR and Wald tests. For the CLT and MCLT tests, the Wald test was incorporated to derive the probability for each test [7]. These methods were detailed in one of our pre- vious papers [7] and were not repeated in this study. 2.2. Permutation Test The procedures of using the permutation test in zero- inflated data are: Step 1: Calculate the p-value using each of the above mentioned four tests (e.g. LR) to analyze the original data; Step 2: Reshuffle the original data and randomly as- sign the data to different populations without replace- ment; Step 3: Calculate the p-values by the same method used in Step 1 for the reshuffled data obtained in Step 2; Step 4: Repeat Steps 2 and 3 “N times”; Step 5: Construct the sampling distribution of p-values obtained in Steps 2 through 4; Step 6: Locate the p-value in this distribution that cor- responds to each p-value calculated in Step 1. If the p- value from the original data is in the main body of the distribution (α/2 to (1 − α/2)), then there is no significant difference at probability level α among populations. Oth- erwise, there is evidence that the difference between (among) populations is significant. The above procedures from Steps 1 to 6 were applied to all four tests in this study. 3. Simulation Study 3.1. Simulation Procedure In our empirical investigation we assumed interest was in testing the hypothesis that three zero-inflated distribu- tions had identical means. We simulated data from three zero-inflated distributions with sample sizes ranging from 25 to 300 and performed each of four tests repeatedly using the replicate samples to test the null hypothesis. We tabulated the number of rejections of the hypothesis under each known scenario to estimate Type I errors and powers. Twelve sample sizes (n = 25 × s, where s = 1, 2, ···, 12) were considered and the nominal probability level was set at 0.05 throughout. Although different configura- tions were considered only one was listed for the null distributions and three for alternative distributions as described in Table 1. The first configuration in Table 1 was designed to estimate the empirical Type I errors and the remaining three configurations were designed to es- timate the empirical testing powers. Each set of simu- lated data was analyzed by the four tests with and with- out employment of the permutation test. Repetitions of 1000 simulated samples were used for each case. All simulations were conducted by a C++ program written by the authors of this paper. 3.2. Simulation Results First the number of permutations sufficient for statistical tests at a given probability level is determined. The Type I errors and testing powers from 100 to 2000 different permutations for configurations 1 and 2 with sample size 200 are summarized in Figures 1 and 2, respectively. These figures clearly demonstrate that both empirical Type I errors and testing powers became reasonably sta- ble after the sample size surpassed 100 permutations. Results from additional simulations for various different sample sizes and configurations showed similar trends. Thus samples of 500 permutations were chosen for all the remaining simulations. The empirical Type I errors of the four tests with and without permutation tests are summarized in Table 1 for the case of a zero-inflated exponential distribution. The Copyright © 2012 SciRes. OJS ![]() J. X. WU ET AL. 276 Table 1. Four parameter configurations for the simulation study under zero-inflated expone ntial distr i bution. Design 11 , † 22 , 33 , 1 0.35, 1.00 0.35, 1.00 0.35, 1.00 2 0.25, 0.75 0.25, 1.00 0.25, 1.25 3 0.15, 0.20 0.35, 0.25 0.55, 0.30 4 0.15, 0.75 0.25, 1.00 0.35, 1.25 Design 1 is for null hypothesis and 2 to 4 are alternative hypotheses. †: δj and βj are zero probability level and mean of exponential distribution for jth population. Figure 1. Empirical type I errors obtained by 20 different numbers of permutations. (LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem). Figure 2. Empirical testing powers obtained by 20 different numbers of permutations. (LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem). differences between observed Type I errors and the nominal 0.05 level tend to be smaller as the sample size increases for all four tests without permutation tests, in- dicating that all these tests tend to perform better as the sample size increases. However, with the permutation tests, the empirical Type I errors are close to the nominal 0.05 level for different methods and various sample sizes including small sample sizes (Table 2). The results indi- cate that the permutation tests can reduce the high Type I errors that are prevalent with small sample sizes. When the sample sizes are large, i.e., at least 100, the empirical Type I errors for the four statistical methods are almost identical irrespective of using the permutation tests. Tables 3-5 present the empirical powers of the four tests for three parameter configurations as defined in Table 1. As expected, the testing power increased for all four tests as the sample size increased. The testing pow- ers obtained without permutation tests were typically lower than those obtained with permutation tests for all methods when the sample size is small (100 and below). However, as the sample size increases, the testing powers were similar irrespective of using permutation tests. As for parameter configuration 2 described in Table 1, the CLT test and the other three tests have similar testing powers because only means for the non-zero observa- tions contributed the differences (Table 3). As for de- signs 3 and 4, the CLT test has an extremely low testing power compared with other three tests (Tables 4 and 5). The increase or decrease of both zero probability level and the non-zero mean made the differences among popu- lations hard to detect with the CLT method, while the other three tests are sensitive and maintain desirable test- ing powers. This indicates that the LR, Wald, and the MCLT tests are better than the CLT test in general. When the zero probability levels among populations are similar, the CLT test is still a good option. In many situations, the distribution for a given zero- inflated data set is unknown. It will be interesting to re- veal the empirical Type I errors and testing powers ob- tained using these methods by assuming the following distributions. In this study, we generated 1000 simulated data sets based on different parameter configurations as described in Table 1 with the zero-inflated exponential distribution. Then the LR and Wald methods were ap- plied to test the differences among three populations by assuming the data follow zero-inflated gamma and log- normal distributions. Although simulations for various sample sizes were conducted only the results for con- figurations 1 and 2 with sample size of 200 were reported (Table 1) because the similar patterns were observed for different configurations with different sample sizes (data not shown). Given zero-inflated exponential data, both the LR and Wald tests resulted in unfavorably high Type I errors if no permutation tests were applied; however, these type I errors were adjusted substantially to be close to the nominal level on using the permutation test. On the other hand, the testing powers obtained by the LR and Wald tests were lower when the lognormal distribution was assumed. For the gamma distribution, both the LR and Wald tests have similar and desirable testing powers when the permutation tests are applied (Table 6). The results suggested that the tests could have caused either higher Type I errors or lower testing powers when an Copyright © 2012 SciRes. OJS ![]() J. X. WU ET AL. Copyright © 2012 SciRes. OJS 277 Table 2. Empirical Type I errors for zero-inflated exponential distribution based on 1000 simulations. Without permutation With permutation‡ Size LR† Wald CLT MCLT LR Wald CLT MCLT 25 0.060 0.060 0.082 0.101 0.050 0.044 0.061 0.056 50 0.062 0.056 0.060 0.073 0.056 0.051 0.050 0.056 75 0.047 0.048 0.059 0.059 0.047 0.047 0.047 0.046 100 0.046 0.046 0.064 0.062 0.051 0.049 0.061 0.050 125 0.051 0.048 0.055 0.055 0.054 0.054 0.054 0.053 150 0.039 0.038 0.048 0.047 0.045 0.043 0.053 0.041 175 0.042 0.040 0.057 0.043 0.041 0.039 0.054 0.045 200 0.042 0.044 0.052 0.045 0.043 0.044 0.052 0.043 225 0.048 0.054 0.053 0.053 0.043 0.051 0.050 0.050 250 0.049 0.047 0.042 0.051 0.049 0.045 0.038 0.049 275 0.050 0.051 0.055 0.054 0.048 0.048 0.054 0.050 300 0.052 0.053 0.053 0.053 0.055 0.052 0.052 0.051 †: LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem; ‡: 500 permutations were used. Table 3. Empirical testing power for zero-inflated exponential distribution based on 1000 simulations for configuration 2. Without permutation With permutation‡ Size LR† Wald CLT MCLT LR Wald CLT MCLT 25 0.213 0.170 0.242 0.252 0.177 0.123 0.183 0.157 50 0.383 0.347 0.435 0.406 0.356 0.322 0.383 0.340 75 0.557 0.534 0.589 0.579 0.531 0.519 0.562 0.532 100 0.680 0.658 0.671 0.678 0.660 0.644 0.659 0.656 125 0.799 0.791 0.785 0.796 0.792 0.782 0.779 0.786 150 0.893 0.878 0.885 0.884 0.881 0.874 0.870 0.882 175 0.931 0.932 0.933 0.929 0.931 0.924 0.928 0.924 200 0.960 0.964 0.955 0.963 0.957 0.955 0.950 0.958 225 0.980 0.982 0.975 0.984 0.983 0.979 0.975 0.982 250 0.987 0.988 0.982 0.992 0.988 0.987 0.982 0.990 275 0.993 0.996 0.993 0.994 0.991 0.994 0.994 0.994 300 0.997 0.997 0.994 0.995 0.996 0.997 0.993 0.995 †: LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem; ‡: 500 permutations were used. inappropriate distribution was assumed. However, with the permutation tests, the chance to make Type I errors can be greatly decreased, yet the testing powers can be desirable in many cases. 4. Application Koopmans [16] reported results of a study of seasonal activity patterns of field mice. Data consisted of the av- erage distances traveled between captures by field mice at least twice in a given month. The distances were rounded to the nearest meter. A large number of zero distances were observed in addition to non-zero distances resulting in data with a zero-inflated distribution. The exact distribution of the non-zero observations is unknown. ![]() J. X. WU ET AL. 278 Table 4. Empirical testing power for zero-inflated exponential distribution based on 1000 simulations for configuration 3. Without permutation With permutation‡ Size LR† Wald CLT MCLT LR Wald CLT MCLT 25 0.766 0.810 0.161 0.828 0.771 0.795 0.121 0.746 50 0.984 0.988 0.143 0.988 0.982 0.987 0.125 0.981 75 1.000 1.000 0.151 1.000 0.999 0.999 0.142 0.999 100 1.000 1.000 0.206 1.000 1.000 1.000 0.192 1.000 125 1.000 1.000 0.215 1.000 1.000 1.000 0.203 1.000 150 1.000 1.000 0.270 1.000 1.000 1.000 0.251 1.000 175 1.000 1.000 0.264 1.000 1.000 1.000 0.260 1.000 200 1.000 1.000 0.307 1.000 1.000 1.000 0.299 1.000 225 1.000 1.000 0.330 1.000 1.000 1.000 0.326 1.000 250 1.000 1.000 0.325 1.000 1.000 1.000 0.314 1.000 275 1.000 1.000 0.367 1.000 1.000 1.000 0.351 1.000 300 1.000 1.000 0.398 1.000 1.000 1.000 0.388 1.000 †: LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem; ‡: 500 permutations were used. Table 5. Empirical testing power for zero-inflated exponential distribution based on 1000 simulations for configuration 4. Without permutation† With permutation‡ Size LR Wald CLT MCLT LR Wald CLT MCLT 25 0.398 0.366 0.088 0.427 0.366 0.326 0.066 0.312 50 0.731 0.725 0.126 0.749 0.724 0.707 0.108 0.708 75 0.924 0.918 0.164 0.920 0.916 0.900 0.146 0.898 100 0.980 0.976 0.211 0.978 0.975 0.972 0.187 0.971 125 0.990 0.989 0.257 0.991 0.989 0.988 0.248 0.984 150 0.997 0.997 0.288 0.997 0.997 0.996 0.273 0.996 175 1.000 1.000 0.328 1.000 1.000 1.000 0.330 1.000 200 1.000 1.000 0.345 1.000 1.000 1.000 0.340 1.000 225 1.000 1.000 0.435 1.000 1.000 1.000 0.435 1.000 250 1.000 1.000 0.457 1.000 1.000 1.000 0.446 1.000 275 1.000 1.000 0.485 1.000 1.000 1.000 0.486 1.000 300 1.000 1.000 0.554 1.000 1.000 1.000 0.555 1.000 †: LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem; ‡: 500 permutations were used. Various LR tests were used to identify which parameter(s) were associated with the seasonal differences by assum- ing the data followed a mixture of zero-inflated log- snormal distributions [18]. To illustrate our approach, we analyzed the data by four tests alone and by the permuta- tion test with 1000 repetitions assuming the underlying distribution was a zero-inflated exponential distribution (Table 7). The results for all four tests, with and without Copyright © 2012 SciRes. OJS ![]() J. X. WU ET AL. 279 Table 6. Empirical type I errors and testing powers esti- mated by the LR and Wald tests by assuming three differ- ent distributions (exponential, Exp, Gamma, and log nor- mal, LogN) as zero-inflated exponential distribution with and without permutation tests based on 1000 simulations for population size 200. With no permutations Type I error† Testing power‡ Exp 0.041 0.952 Gamma 0.423 1.000 LR LogN 0.167 0.806 Exp 0.038 0.952 Gamma 0.417 1.000 Wald LogN 0.170 0.808 With permutation test∆ Type I error† Testing power‡ Exp 0.040 0.954 Gamma 0.045 0.978 LR LogN 0.051 0.543 Exp 0.035 0.947 Gamma 0.043 0.979 Wald LogN 0.046 0.560 † and ‡: Based on design 1 and design 2 in Table 1, respectively; ∆: 500 permutations were used. Table 7. P-values obtained by different methods by assum- ing zero-inflated exponential distribution for the Koop- mans’s data (1981) with and without permutation tests. Method† No permutations With permutations CLT 0.033 0.050 MCLT 0.031 0.041 LR 0.052 0.024 Wald 0.043 0.018 Note: 1000 permutation tests were used; †: LR = likelihood ratio, CLT = central limit theorem, and MCLT = modified central limit theorem. employment of the permutation tests, indicated that the mice distances differed significantly among the three seasons. 5. Discussion It is desired that a statistical method sustains a preset nominal Type I error and a high testing power. Many methods are based on the appropriate statistical assump- tions and require a large sample size. In some situations, the sample size may be very small and test statistics may yield unfavorable Type I errors and testing powers. In addition, the real distribution is often unknown so desir- able testing properties cannot be expected on employing distribution-based tests. In this study, we investigated statistical properties of the permutation tests integrated with four distribution-based tests to compare populations with zero-inflated data structures. Based on the results from the simulated zero-inflated exponential data, several conclusions can be made on use of the permutation test: 1) high Type I error caused by the appropriate statistical tests without the permutation test for small sample sizes can be adjusted to the preset nominal level when the permutation test is used; 2) high Type I errors caused by the inappropriate assumptions can be adjusted to the pre- set nominal level; and 3) for a large data set, both the type I errors and testing powers are similar regardless the use of the permutation test for appropriate distribution assumptions. The same conclusions applied for the other two types of zero-inflated continuous distributions includ- ing gamma and lognormal distributions (results not shown). As reported by Zhang et al. [7] and in results of this study, the LR and Wald tests hold similar type I errors and testing powers but they are distribution dependent. If an inappropriate distribution is assumed, both inflated Type I errors and low testing powers can occur (Ta b le 6). The CLT test is data structure dependent because it con- siders only the population mean including zeros. When the population means are similar (because the popula- tions have similar probabilities of observations equal to zero) and their non-zero observations have similar dis- tributions, then the CLT test may have statistical proper- ties similar to the other three tests. The MCLT test con- siders two parameters: the zero probability and non-zero mean and thus is better than the CLT test and robust for most cases. In addition, high Type I errors caused by the MCLT test can be adjusted by the permutation test for small sample size. Therefore, the MCLT test can be recommended for general use regardless whether the data distribution is known or unknown. Numerical investiga- tion on other types of distributions should help gain more information regarding the MCLT method. Even though the permutation test showed several ma- jor advantages, the LR and Wald test still sustain desir- able Type I errors and testing powers and are not as computationally intensive when the distribution for a large data set is known or the assumed distributions are appropriate. Nevertheless, the permutation test could be a valuable addition to the current statistical tests especially when a data set is small or the distribution is unknown. REFERENCES [1] D. M. Titterington, A. F. Smith and U. E. Makov, “Statis- Copyright © 2012 SciRes. OJS ![]() J. X. WU ET AL. Copyright © 2012 SciRes. OJS 280 tical Analysis of Finite Mixture Distributions,” John Wiley and Sons, New York, 1985. [2] J. Lawless, “Negative Binomial and Mixed Poisson Re- gression,” Canadian Journal of Statistics, Vol. 15, No. 3, 1987, pp. 209-225. doi:10.2307/3314912 [3] D. C. Heibron, “Generalized Linear Models for Altered Zero Probability and Overdispersion in Count Data,” SIMS Technical Report No. 9, University of California, San Francisco, 1989. [4] R. Schall, “Estimation in Generalized Linear Models with Random Effects,” Biometrika, Vol. 78, No. 4, 1991, pp. 719-727. doi:10.1093/biomet/78.4.719 [5] C. E. McCulloch, “Maximum Likelihood Algorithms for Generalized Linear Mixed Models,” Journal of American Statistical Association, Vol. 92, No. 437, 1997, pp. 162- 170. [6] D. B. Hall, “Zero-Inflated Poisson and Binomial Regres- sion with Random Effects: A Case Study,” Biometrics, Vol. 56, No. 4, 2000, pp. 1030-1039. doi:10.1111/j.0006-341X.2000.01030.x [7] L. Zhang, J. Wu and W. D. Johnson, “Empirical Study of Six Tests for Equality of Populations with Zero-Inflated Continuous Distributions,” Communications in Statistics —Simulation and Computation, Vol. 39, No. 6, 2010, pp. 1196-1211. doi:10.1080/03610918.2010.489169 [8] G. Casella and R. L. Berger, “Statistical Inference,” Dux- bury Inc., San Francisco, 2002. [9] A. Wald, “Tests of Statistical Hypotheses Concerning Several Parameters When the Number of Observations Is Large,” Transactions in American Mathematical Society, Vol. 54, No. 3, 1943, pp. 426-482. [10] E. S. Edgington, “Statistical Inference and Nonrandom Samples,” Psychological Series A, Vol. 66, No. 6, 1966, pp. 485-487. doi:10.1037/h0023916 [11] B. E. Wampold and N. L. Worsham, “Randomization Tests for Multiple Baseline Designs,” Behavioral As- sessment, Vol. 8, 1986, pp. 135-143. [12] R. C. Blair and W. Karniski, “An Alternative Method for Significance Testing of Waveform Difference Potentials,” Psychophysiology, Vol. 30, No. 5, 1993, pp. 518-524. doi:10.1111/j.1469-8986.1993.tb02075.x [13] D. C. Adams and C. D. Anthony, “Using Randomization Techniques to Analyze Behavioural Data,” Animal Be- haviour, Vol. 61, No. 1, 1996, pp. 733-738. doi:10.1006/anbe.2000.1576 [14] J. Ludbrook and H. Dudley, “Why Permutation Tests Are Superior to t and F Tests in Biomedical Research,” American Statistician Association, Vol. 52, No. 2, 1998, pp. 127-132. [15] A. F. Hayes, “Randomization Tests and Equality of Vari- ance Assumption When Comparing Group Means,” Ani- mal Behaviour, Vol. 59, No. 3, 2000, pp. 653-656. doi:10.1006/anbe.1999.1366 [16] L. H. Koopman, “Introduction of Contemporary Statisti- cal Methods,” 2nd Edition, Duxbury Press, Boston, 1981. [17] J. Aitchison, “On the Distribution of a Positive Random Variable Having a Discrete Probability Mass at the Ori- gin,” Journal of American Statistical Association, Vol. 50, No. 271, 1995, pp. 901-908. [18] S. C. Wang, “Analysis of Zero-Heavy Data Using a Mix- ture Model Approach,” Ph.D. Thesis, Virginia Polytech- nic Institute and State University, Blacksburg, 1998. |
