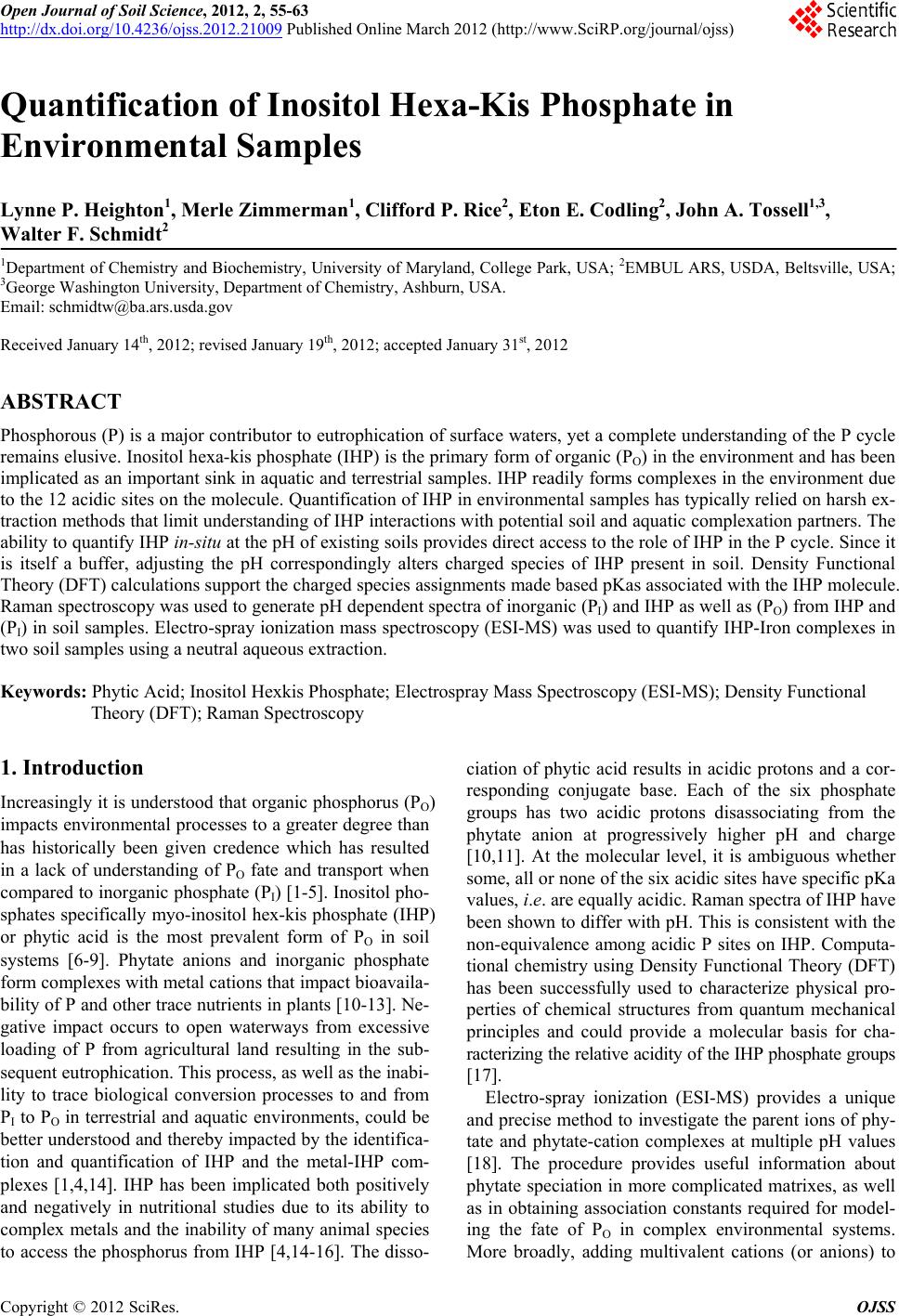

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

doi:10.4236/ojss.2012.21009

Paper Menu >>

Journal Menu >>

Open Journal of Soil Science, 2012, 2, 55-63

http://dx.doi.org/10.4236/ojss.2012.21009 Published Online March 2012 (http://www.SciRP.org/journal/ojss)

Quantification of I nositol Hexa-Kis Phosphate in

Environmental Samples

Lynne P. Heighton1, Merle Zimmerman1, Clifford P. Rice2, Eton E. Codling2, John A. Tossell1,3,

Walter F. Schmidt2

1Department of Chemistry and Biochemistry, University of Maryland, College Park, USA; 2EMBUL ARS, USDA, Beltsville, USA;

3George Washington University, Department of Chemistry, Ashburn, USA.

Email: [email protected]

Received January 14th, 2012; revised January 19th, 2012; accepted January 31st, 2012

ABSTRACT

Phosphorous (P) is a major contributor to eutrophication of surface waters, yet a complete understanding of the P cycle

remains elusive. Inositol hexa-kis phosphate (IHP) is the primary form of organic (PO) in the environment and has been

implicated as an important sink in aquatic and terrestrial samples. IHP readily forms complexes in the environment due

to the 12 acidic sites on the molecule. Quantification of IHP in environmental samples has typically relied on harsh ex-

traction methods that limit understanding of IHP interactions with potential soil and aquatic complexation partners. The

ability to quantify IHP in - si tu at the pH of existing soils provides direct access to the role of IHP in the P cycle. Since it

is itself a buffer, adjusting the pH correspondingly alters charged species of IHP present in soil. Density Functional

Theory (DFT) calculations support the charged species assignments made based pKas associated with the IHP molecule.

Raman spectroscopy was used to generate pH dependent spectra of inorganic (PI) and IHP as well as (PO) from IHP and

(PI) in soil samples. Electro-spray ionization mass spectroscopy (ESI-MS) was used to quantify IHP-Iron complexes in

two soil samples using a neutral aqueous extraction.

Keywords: Phytic Acid; Inositol Hexkis Phosphate; Electrospray Mass Spectroscopy (ESI-MS); Density Functional

Theory (DFT); Raman Spectroscopy

1. Introduction

Increasingly it is understood that organic phosphorus (PO)

impacts environmental processes to a greater degree than

has historically been given credence which has resulted

in a lack of understanding of PO fate and transport when

compared to inorganic phosphate (PI) [1-5]. Inositol pho-

sphates specifically myo-inositol hex-kis phosphate (IHP)

or phytic acid is the most prevalent form of PO in soil

systems [6-9]. Phytate anions and inorganic phosphate

form complexes with metal cations that impact bioavaila-

bility of P and other trace nutrients in plants [10-13]. Ne-

gative impact occurs to open waterways from excessive

loading of P from agricultural land resulting in the sub-

sequent eutrophication. This process, as well as the inabi-

lity to trace biological conversion processes to and from

PI to PO in terrestrial and aquatic environments, could be

better understood and thereby impacted by the identifica-

tion and quantification of IHP and the metal-IHP com-

plexes [1,4,14]. IHP has been implicated both positively

and negatively in nutritional studies due to its ability to

complex metals and the inability of many animal species

to access the phosphorus from IHP [4,14-16]. The disso-

ciation of phytic acid results in acidic protons and a cor-

responding conjugate base. Each of the six phosphate

groups has two acidic protons disassociating from the

phytate anion at progressively higher pH and charge

[10,11]. At the molecular level, it is ambiguous whether

some, all or none of the six acidic sites have specific pKa

values, i.e. are equally acidic. Raman spectra of IHP have

been shown to differ with pH. This is consistent with the

non-equivalence among acidic P sites on IHP. Computa-

tional chemistry using Density Functional Theory (DFT)

has been successfully used to characterize physical pro-

perties of chemical structures from quantum mechanical

principles and could provide a molecular basis for cha-

racterizing the relative acidity of the IHP phosphate groups

[17].

Electro-spray ionization (ESI-MS) provides a unique

and precise method to investigate the parent ions of phy-

tate and phytate-cation complexes at multiple pH values

[18]. The procedure provides useful information about

phytate speciation in more complicated matrixes, as well

as in obtaining association constants required for model-

ing the fate of PO in complex environmental systems.

More broadly, adding multivalent cations (or anions) to

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

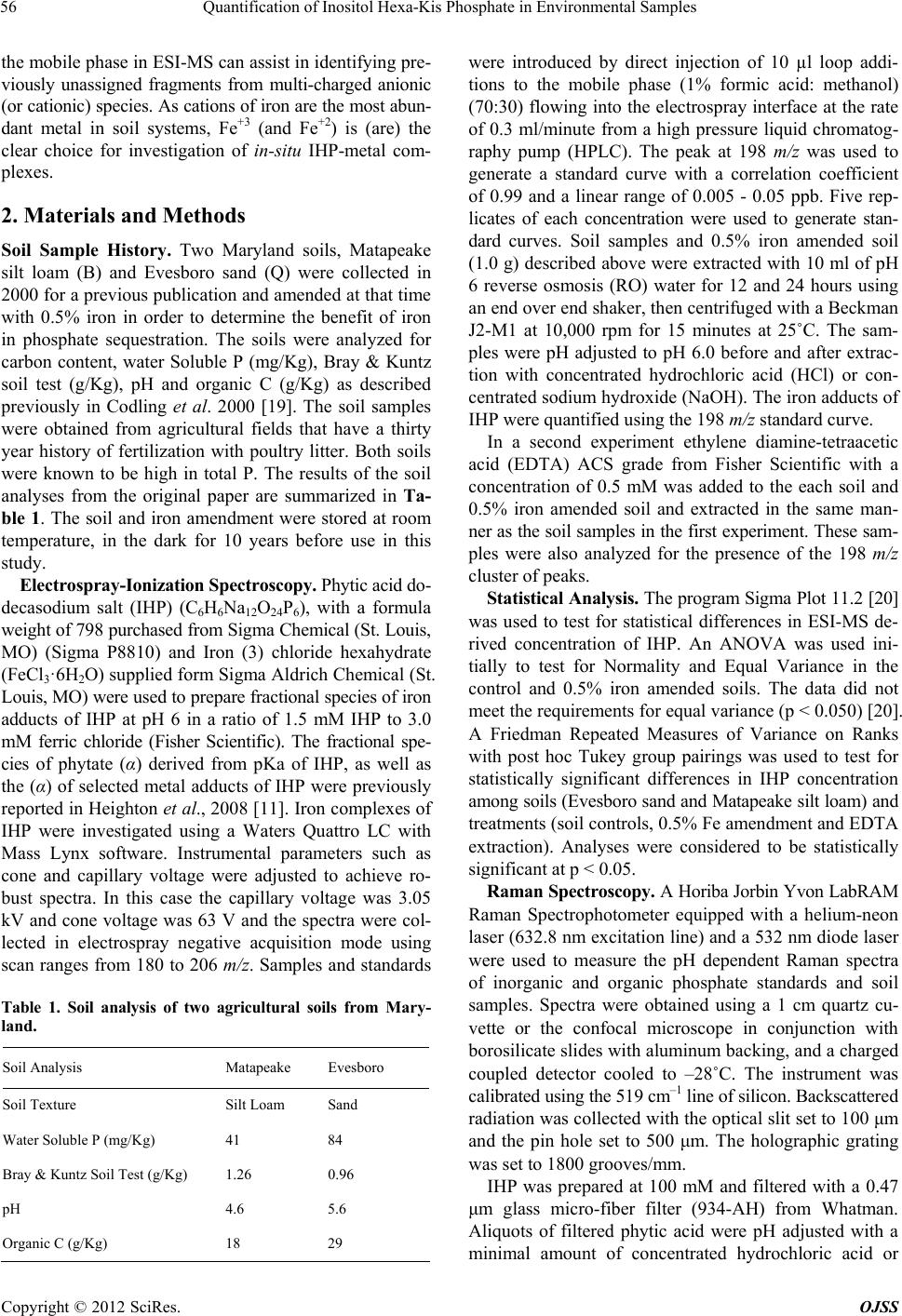

the mobile phase in ESI-MS can assist in identifying pre-

viously unassigned fragments from multi-charged anionic

(or cationic) species. As cations of iron are the most abun-

dant metal in soil systems, Fe+3 (and Fe+2) is (are) the

clear choice for investigation of in-situ IHP-metal com-

plexes.

2. Materials and Methods

Soil Sample History. Two Maryland soils, Matapeake

silt loam (B) and Evesboro sand (Q) were collected in

2000 for a previous publication and amended at that time

with 0.5% iron in order to determine the benefit of iron

in phosphate sequestration. The soils were analyzed for

carbon content, water Soluble P (mg/Kg), Bray & Kuntz

soil test (g/Kg), pH and organic C (g/Kg) as described

previously in Codling et al. 2000 [19]. The soil samples

were obtained from agricultural fields that have a thirty

year history of fertilization with poultry litter. Both soils

were known to be high in total P. The results of the soil

analyses from the original paper are summarized in Ta-

ble 1. The soil and iron amendment were stored at room

temperature, in the dark for 10 years before use in this

study.

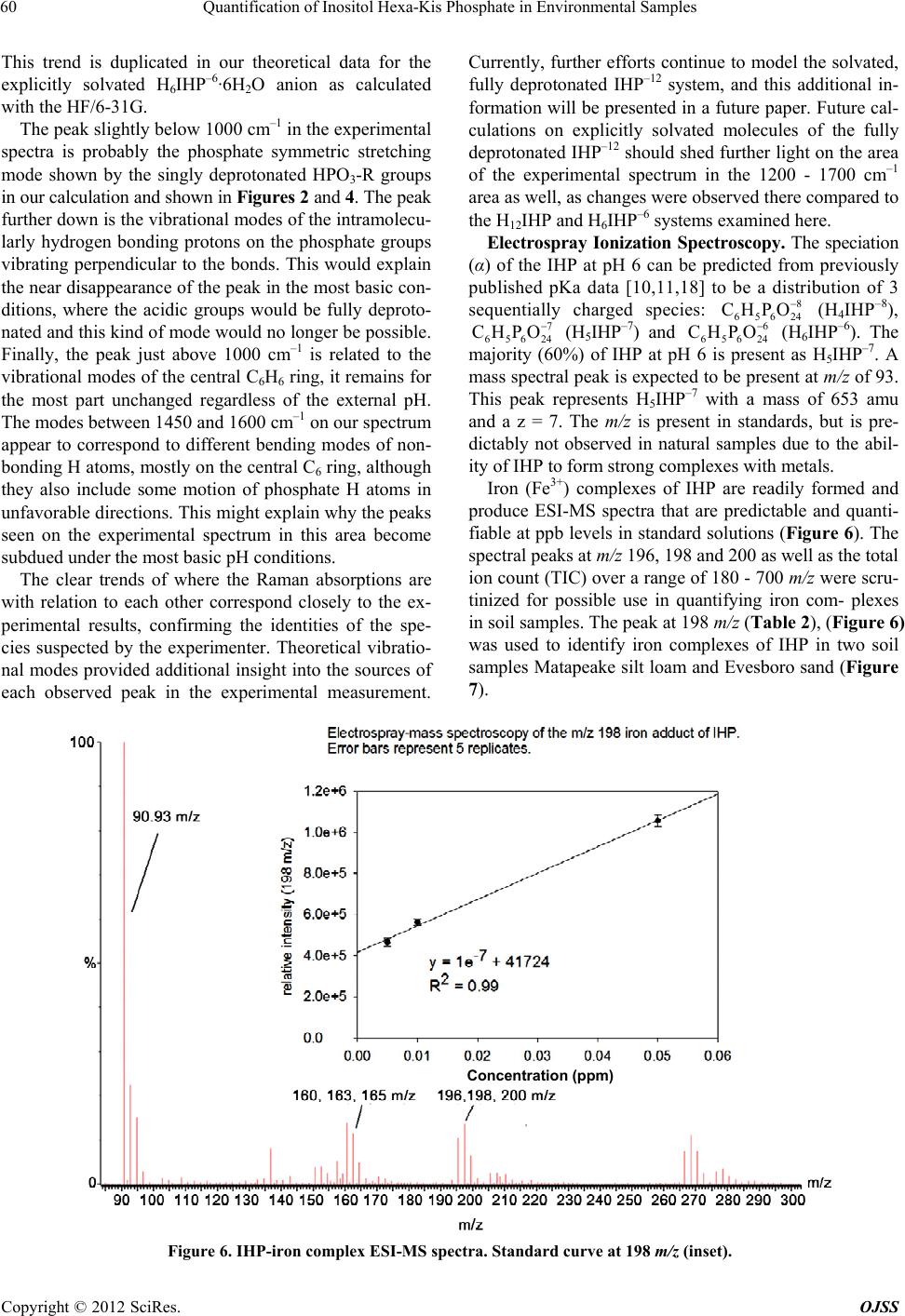

Electrospray-Ionization Spectroscopy. Phytic acid do-

decasodium salt (IHP) (C6H6Na12O24P6), with a formula

weight of 798 purchased from Sigma Chemical (St. Louis,

MO) (Sigma P8810) and Iron (3) chloride hexahydrate

(FeCl3·6H2O) supplied form Sigma Aldrich Chemical (St.

Louis, MO) were used to prepare fractional species of iron

adducts of IHP at pH 6 in a ratio of 1.5 mM IHP to 3.0

mM ferric chloride (Fisher Scientific). The fractional spe-

cies of phytate (α) derived from pKa of IHP, as well as

the (α) of selected metal adducts of IHP were previously

reported in Heighton et al., 2008 [11]. Iron complexes of

IHP were investigated using a Waters Quattro LC with

Mass Lynx software. Instrumental parameters such as

cone and capillary voltage were adjusted to achieve ro-

bust spectra. In this case the capillary voltage was 3.05

kV and cone voltage was 63 V and the spectra were col-

lected in electrospray negative acquisition mode using

scan ranges from 180 to 206 m/z. Samples and standards

Table 1. Soil analysis of two agricultural soils from Mary-

land.

Soil Analysis Matapeake Evesboro

Soil Texture Silt Loam Sand

Water Soluble P (mg/Kg) 41 84

Bray & Kuntz Soil Test (g/Kg) 1.26 0.96

pH 4.6 5.6

Organic C (g/Kg) 18 29

were introduced by direct injection of 10 µl loop addi-

tions to the mobile phase (1% formic acid: methanol)

(70:30) flowing into the electrospray interface at the rate

of 0.3 ml/minute from a high pressure liquid chromatog-

raphy pump (HPLC). The peak at 198 m/z was used to

generate a standard curve with a correlation coefficient

of 0.99 and a linear range of 0.005 - 0.05 ppb. Five rep-

licates of each concentration were used to generate stan-

dard curves. Soil samples and 0.5% iron amended soil

(1.0 g) described above were extracted with 10 ml of pH

6 reverse osmosis (RO) water for 12 and 24 hours using

an end over end shaker, then centrifuged with a Beckman

J2-M1 at 10,000 rpm for 15 minutes at 25˚C. The sam-

ples were pH adjusted to pH 6.0 before and after extrac-

tion with concentrated hydrochloric acid (HCl) or con-

centrated sodium hydroxide (NaOH). The iron adducts of

IHP were quantified using the 198 m/z standard curve.

In a second experiment ethylene diamine-tetraacetic

acid (EDTA) ACS grade from Fisher Scientific with a

concentration of 0.5 mM was added to the each soil and

0.5% iron amended soil and extracted in the same man-

ner as the soil samples in the first experiment. These sam-

ples were also analyzed for the presence of the 198 m/z

cluster of peaks.

Statistical Analysis. The program Sigma Plot 11.2 [20]

was used to test for statistical differences in ESI-MS de-

rived concentration of IHP. An ANOVA was used ini-

tially to test for Normality and Equal Variance in the

control and 0.5% iron amended soils. The data did not

meet the requirements for equal variance (p < 0.050) [20].

A Friedman Repeated Measures of Variance on Ranks

with post hoc Tukey group pairings was used to test for

statistically significant differences in IHP concentration

among soils (Evesboro sand and Matapeake silt loam) and

treatments (soil controls, 0.5% Fe amendment and EDTA

extraction). Analyses were considered to be statistically

significant at p < 0.05.

Raman Spectroscopy. A Horiba Jorbin Yvon LabRAM

Raman Spectrophotometer equipped with a helium-neon

laser (632.8 nm excitation line) and a 532 nm diode laser

were used to measure the pH dependent Raman spectra

of inorganic and organic phosphate standards and soil

samples. Spectra were obtained using a 1 cm quartz cu-

vette or the confocal microscope in conjunction with

borosilicate slides with aluminum backing, and a charged

coupled detector cooled to –28˚C. The instrument was

calibrated using the 519 cm–1 line of silicon. Backscattered

radiation was collected with the optical slit set to 100 μm

and the pin hole set to 500 μm. The holographic grating

was set to 1800 grooves/mm.

IHP was prepared at 100 mM and filtered with a 0.47

μm glass micro-fiber filter (934-AH) from Whatman.

Aliquots of filtered phytic acid were pH adjusted with a

minimal amount of concentrated hydrochloric acid or

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

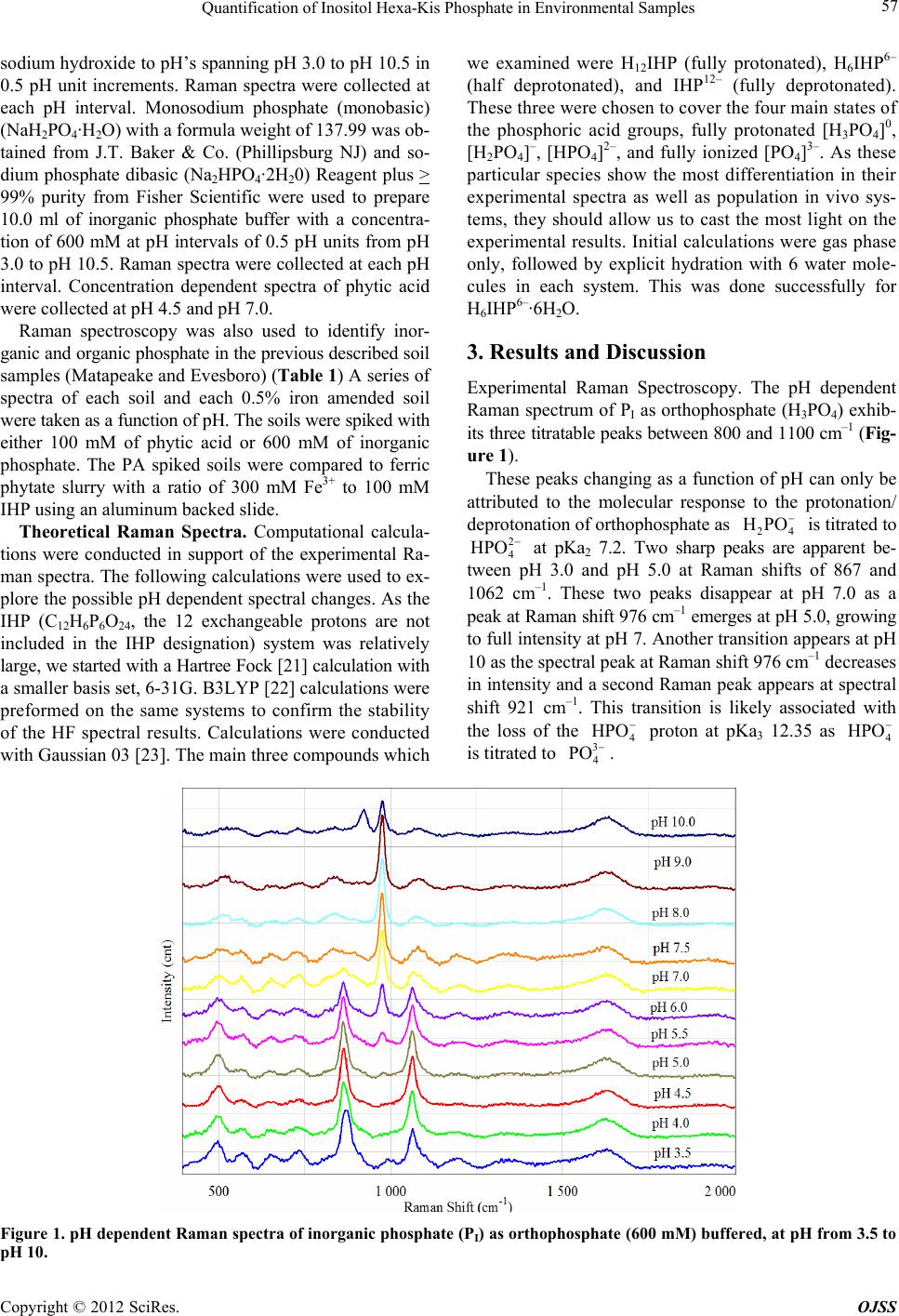

sodium hydroxide to pH’s spanning pH 3.0 to pH 10.5 in

0.5 pH unit increments. Raman spectra were collected at

each pH interval. Monosodium phosphate (monobasic)

(NaH2PO4·H2O) with a formula weight of 137.99 was ob-

tained from J.T. Baker & Co. (Phillipsburg NJ) and so-

dium phosphate dibasic (Na2HPO4·2H20) Reagent plus >

99% purity from Fisher Scientific were used to prepare

10.0 ml of inorganic phosphate buffer with a concentra-

tion of 600 mM at pH intervals of 0.5 pH units from pH

3.0 to pH 10.5. Raman spectra were collected at each pH

interval. Concentration dependent spectra of phytic acid

were collected at pH 4.5 and pH 7.0.

Raman spectroscopy was also used to identify inor-

ganic and organic phosphate in the previous described soil

samples (Matapeake and Evesboro) (Table 1) A series of

spectra of each soil and each 0.5% iron amended soil

were taken as a function of pH. The soils were spiked with

either 100 mM of phytic acid or 600 mM of inorganic

phosphate. The PA spiked soils were compared to ferric

phytate slurry with a ratio of 300 mM Fe3+ to 100 mM

IHP using an aluminum backed slide.

Theoretical Raman Spectra. Computational calcula-

tions were conducted in support of the experimental Ra-

man spectra. The following calculations were used to ex-

plore the possible pH dependent spectral changes. As the

IHP (C12H6P6O24, the 12 exchangeable protons are not

included in the IHP designation) system was relatively

large, we started with a Hartree Fock [21] calculation with

a smaller basis set, 6-31G. B3LYP [22] calculations were

preformed on the same systems to confirm the stability

of the HF spectral results. Calculations were conducted

with Gaussian 03 [23]. The main three compounds which

we examined were H12IHP (fully protonated), H6IHP6–

(half deprotonated), and IHP12– (fully deprotonated).

These three were chosen to cover the four main states of

the phosphoric acid groups, fully protonated [H3PO4]0,

[H2PO4]–, [HPO4]2–, and fully ionized [PO4]3–. As these

particular species show the most differentiation in their

experimental spectra as well as population in vivo sys-

tems, they should allow us to cast the most light on the

experimental results. Initial calculations were gas phase

only, followed by explicit hydration with 6 water mole-

cules in each system. This was done successfully for

H6IHP6–·6H2O.

3. Results and Discussion

Experimental Raman Spectroscopy. The pH dependent

Raman spectrum of PI as orthophosphate (H3PO4) exhib-

its three titratable peaks between 800 and 1100 cm–1 (Fig-

ure 1).

These peaks changing as a function of pH can only be

attributed to the molecular response to the protonation/

deprotonation of orthophosphate as 24

is titrated to HPO



HPO



at pKa2 7.2. Two sharp peaks are apparent be-

tween pH 3.0 and pH 5.0 at Raman shifts of 867 and

1062 cm–1. These two peaks disappear at pH 7.0 as a

peak at Raman shift 976 cm–1 emerges at pH 5.0, growing

to full intensity at pH 7. Another transition appears at pH

10 as the spectral peak at Raman shift 976 cm–1 decreases

in intensity and a second Raman peak appears at spectral

shift 921 cm–1. This transition is likely associated with

the loss of the 4

HPO



proton at pKa3 12.35 as 4

HPO



is titrated to 3



Figure 1. pH depende nt Raman spectra of inorganic phosphate (PI) as orthophosphate (600 mM) buffered, at pH from 3.5 to

pH 10.

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

The pH dependent Raman spectra of PO as IHP exhib-

its a similar pattern of peaks and response to titration as

the PI spectra between 800 and 1100 cm–1, but differs

from the PI in several distinct ways (Figure 2). The first

difference is that the PI peak 863 cm–1 in the PO spectra is

shifted by 30 cm–1 to 832 cm–1. The second difference is

associated with the emergence of the peak at Raman shift

976 cm–1 which begins to appear in the IHP spectra at pH

6.5, much later than in the PI spectra in which it appears

at pH 5.0. Finally, the peak at 1062 cm–1 which disap-

pears in the PI Raman spectra at pH 7.0 never disappears

in the PO spectra indicating that is not associated with

titratable protons but instead part of the carbon structure

of IHP. This peak in the IHP spectra is broader and flat-

ter than the equivalent peak in the orthophosphate (PI)

sample indicating two unresolved peaks in the IHP sam-

ple and only one peak in the PI. This position is supported

by the theoretical data and discussed later. Notably, the

IHP spectra does not change substantially between pH

3.0 and pH 6.0 which is an indication of no or very small

conformational changes in the molecule. The additional

peaks in the Raman spectra of IHP are likely modes within

the molecule that are unaffected by the titration of the

phosphate groups on the molecule. The structure of IHP

in the form of C6H18P6O24 (H12IHP) was determined by is

provided in Figure 3.

Raman spectroscopy can be used to differentiate PI

from PO (as IHP) in standard solutions due to the differ-

ences in the pH dependent spectra of IHP and PI (Figure

1 and Figure 2). The detection limits for normal Raman

spectroscopy of PI and IHP have high concentrations,

rendering the technique of little use in environmental sam-

ples without a pre-concentration step (Figure 4).

Soil samples Matapeake silt loam and Evesboro sand

were examined using Raman spectroscopy at pH 4.5 by

Raman Spectroscopy and PO was found to be indistin-

guishable from PI using the current experimental condi-

tions (Figure 5). Addition of Ferric cation was found to

reduce the intensity of PO as IHP and PI in both soils.

Clearly, PO and PI sites simultaneously compete for the

same metal ions. At the molecular level, the specific sites

1PO, 2PO, 3PO, 4PO, 5PO and 6PO are not structurally

equivalent so each of the twelve protons attached to the

six P sites will not be identical in their ability to form

H3O+ ions.

Raman Spectra Derived from Theoretical Calcula-

tions. Normal vibrational spectroscopy provides lower de-

tection limits than gravimetric analysis does and greater

specificity toward forms of P than colorimetric analyses

does, but it does not provide enough sensitivity for de-

velopment of in-situ probes, which is the ultimate goal of

this work. A pre-concentration step is required to generate

relevant environmental data from normal Raman spec-

troscopy. An alternative to pre-concentration is surface

enhanced Raman spectroscopy. This method has the po-

tential to provide the sensitivity needed for in-situ probes,

while maintaining the ability to provide speciation of P in

unaltered or minimally altered environmental samples.

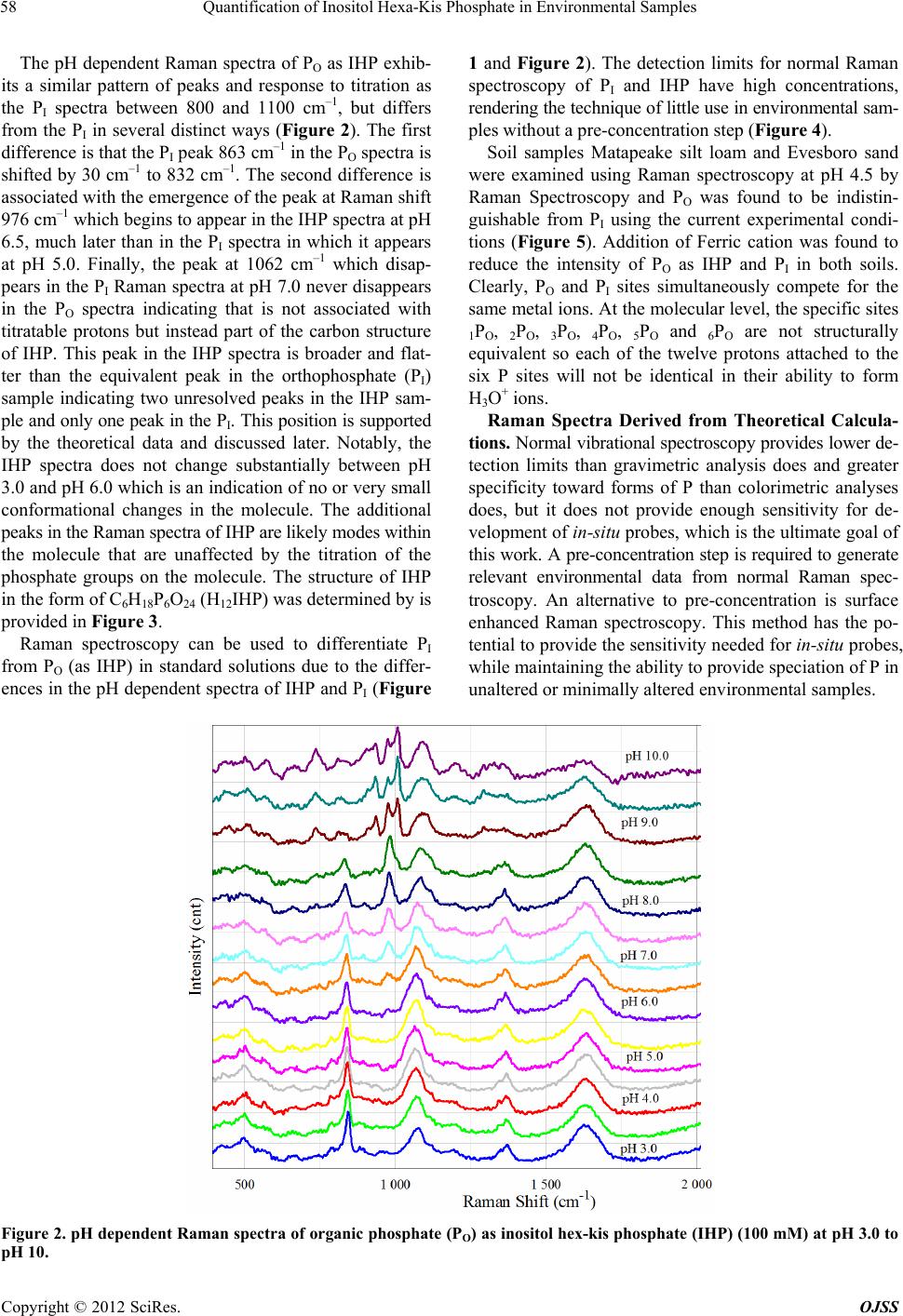

Figure 2. pH dependent Raman spec tra of organic phosphate (PO) as inositol hex-kis phosphate (IHP) (100 mM) at pH 3.0 to

pH 10.

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples 59

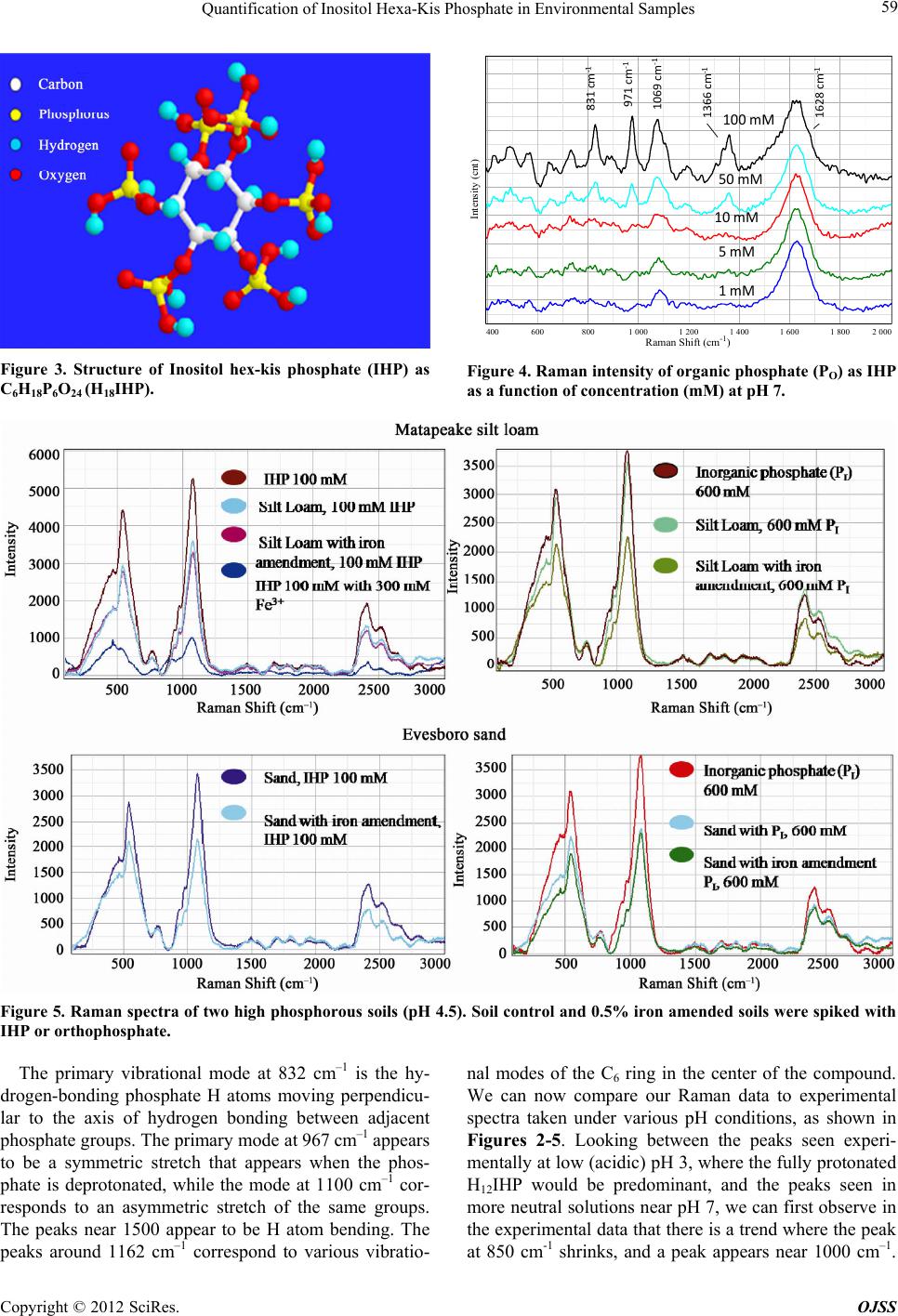

Figure 3. Structure of Inositol hex-kis phosphate (IHP) as

C6H18P6O24 (H18IHP).

Intensity (cnt)

400 600800 1 0001 2001 4001 6001 8002 000

Raman Shift (cm

-1

)

100mM

50mM

10mM

5mM

1mM

831cm

‐1

971cm

‐1

1069cm

‐1

1628cm

‐1

1366cm

‐1

Figure 4. Raman intensity of organic phosphate (PO) as IHP

as a function of concentration (mM) at pH 7.

Figure 5. Raman spec tra of two high phosphorous soils (pH 4.5). Soil control and 0.5% iron amended soils were spiked with

IHP or orthophosphate.

The primary vibrational mode at 832 cm–1 is the hy-

drogen-bonding phosphate H atoms moving perpendicu-

lar to the axis of hydrogen bonding between adjacent

phosphate groups. The primary mode at 967 cm–1 appears

to be a symmetric stretch that appears when the phos-

phate is deprotonated, while the mode at 1100 cm–1 cor-

responds to an asymmetric stretch of the same groups.

The peaks near 1500 appear to be H atom bending. The

peaks around 1162 cm–1 correspond to various vibratio-

nal modes of the C6 ring in the center of the compound.

We can now compare our Raman data to experimental

spectra taken under various pH conditions, as shown in

Figures 2-5. Looking between the peaks seen experi-

mentally at low (acidic) pH 3, where the fully protonated

H12IHP would be predominant, and the peaks seen in

more neutral solutions near pH 7, we can first observe in

the experimental data that there is a trend where the peak

at 850 cm-1 shrinks, and a peak appears near 1000 cm–1.

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

This trend is duplicated in our theoretical data for the

explicitly solvated H6IHP–6·6H2O anion as calculated

with the HF/6-31G.

The peak slightly below 1000 cm–1 in the experimental

spectra is probably the phosphate symmetric stretching

mode shown by the singly deprotonated HPO3-R groups

in our calculation and shown in Figures 2 and 4. The peak

further down is the vibrational modes of the intramolecu-

larly hydrogen bonding protons on the phosphate groups

vibrating perpendicular to the bonds. This would explain

the near disappearance of the peak in the most basic con-

ditions, where the acidic groups would be fully deproto-

nated and this kind of mode would no longer be possible.

Finally, the peak just above 1000 cm–1 is related to the

vibrational modes of the central C6H6 ring, it remains for

the most part unchanged regardless of the external pH.

The modes between 1450 and 1600 cm–1 on our spectrum

appear to correspond to different bending modes of non-

bonding H atoms, mostly on the central C6 ring, although

they also include some motion of phosphate H atoms in

unfavorable directions. This might explain why the peaks

seen on the experimental spectrum in this area become

subdued under the most basic pH conditions.

The clear trends of where the Raman absorptions are

with relation to each other correspond closely to the ex-

perimental results, confirming the identities of the spe-

cies suspected by the experimenter. Theoretical vibratio-

nal modes provided additional insight into the sources of

each observed peak in the experimental measurement.

Currently, further efforts continue to model the solvated,

fully deprotonated IHP–12 system, and this additional in-

formation will be presented in a future paper. Future cal-

culations on explicitly solvated molecules of the fully

deprotonated IHP–12 should shed further light on the area

of the experimental spectrum in the 1200 - 1700 cm–1

area as well, as changes were observed there compared to

the H12IHP and H6IHP–6 systems examined here.

Electrospray Ionization Spectroscopy. The speciation

(α) of the IHP at pH 6 can be predicted from previously

published pKa data [10,11,18] to be a distribution of 3

sequentially charged species: (H4IHP–8),

65624

CHPO



624

CHPO



(H5IHP–7) and (H6IHP–6). The

majority (60%) of IHP at pH 6 is present as H5IHP–7. A

mass spectral peak is expected to be present at m/z of 93.

This peak represents H5IHP–7 with a mass of 653 amu

and a z = 7. The m/z is present in standards, but is pre-

dictably not observed in natural samples due to the abil-

ity of IHP to form strong complexes with metals.

65624

CHPO



Iron (Fe3+) complexes of IHP are readily formed and

produce ESI-MS spectra that are predictable and quanti-

fiable at ppb levels in standard solutions (Figure 6). The

spectral peaks at m/z 196, 198 and 200 as well as the total

ion count (TIC) over a range of 180 - 700 m/z were scru-

tinized for possible use in quantifying iron com- plexes

in soil samples. The peak at 198 m/z (Table 2), (Figure 6)

was used to identify iron complexes of IHP in two soil

samples Matapeake silt loam and Evesboro sand (Figure

7).

Concentration (ppm)

Figure 6. IHP-iron complex ESI-MS spectra. Standard curve at 198 m/z (inset).

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples 61

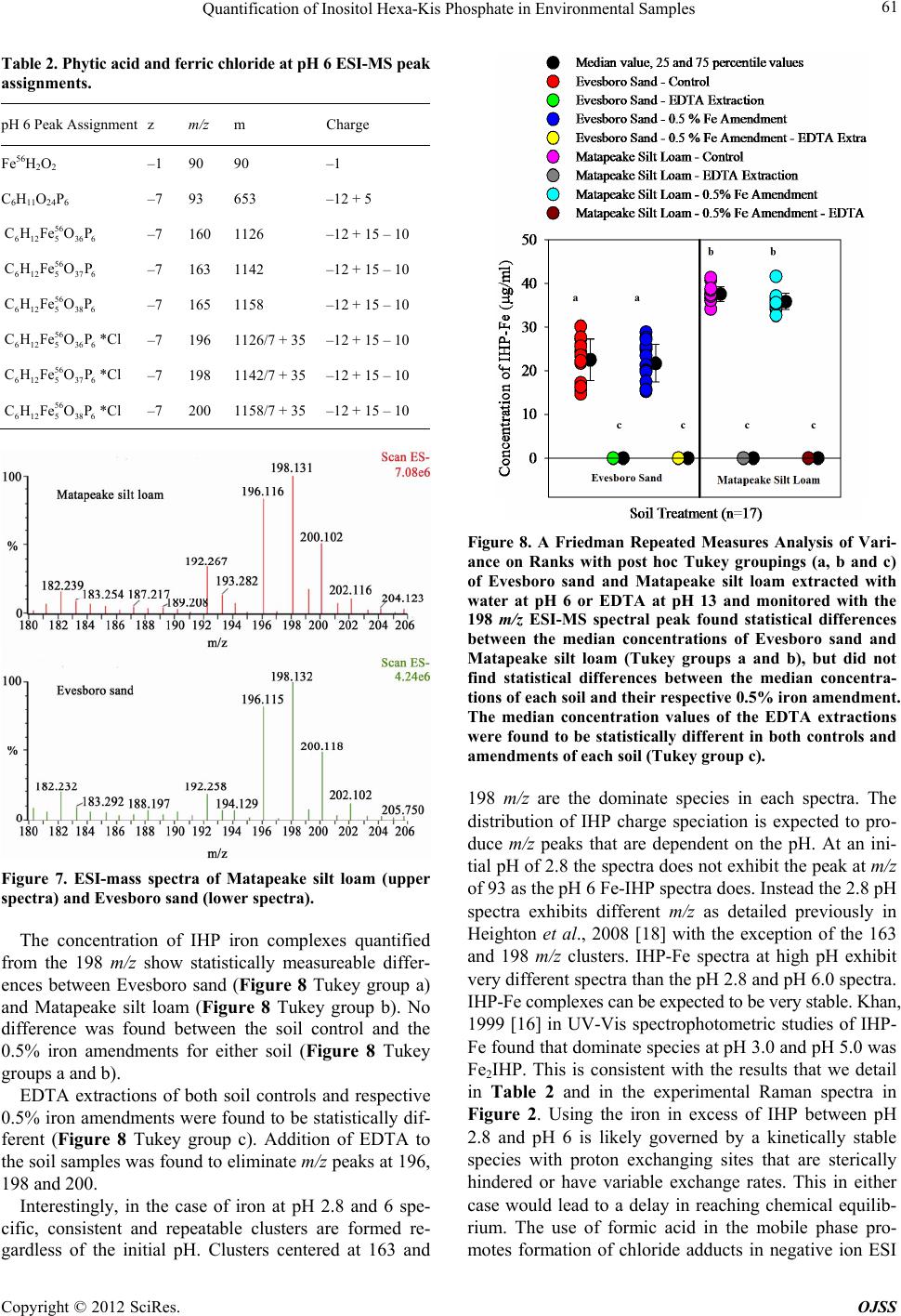

Table 2. Phytic acid and ferric chloride at pH 6 ESI-MS peak

assignments.

pH 6 Peak Assignment z m/z m Charge

Fe56H2O2 –1 90 90 –1

C6H11O24P6 –7 93 653 –12 + 5

612 5 366

CHFeOP –7 160 1126 –12 + 15 – 10

612 5 376

CHFeOP –7 163 1142 –12 + 15 – 10

612 5 386

CHFeOP –7 165 1158 –12 + 15 – 10

612 5 366

CHFeOP *Cl –7 196 1126/7 + 35 –12 + 15 – 10

612 5 376

CHFeOP *Cl –7 198 1142/7 + 35 –12 + 15 – 10

612 5 386

CHFeOP *Cl

–7 200 1158/7 + 35 –12 + 15 – 10

Figure 7. ESI-mass spectra of Matapeake silt loam (upper

spectra) and Evesboro sand (lower spectra).

The concentration of IHP iron complexes quantified

from the 198 m/z show statistically measureable differ-

ences between Evesboro sand (Figure 8 Tukey group a)

and Matapeake silt loam (Figure 8 Tukey group b). No

difference was found between the soil control and the

0.5% iron amendments for either soil (Figure 8 Tukey

groups a and b).

EDTA extractions of both soil controls and respective

0.5% iron amendments were found to be statistically dif-

ferent (Figure 8 Tukey group c). Addition of EDTA to

the soil samples was found to eliminate m/z peaks at 196,

198 and 200.

Interestingly, in the case of iron at pH 2.8 and 6 spe-

cific, consistent and repeatable clusters are formed re-

gardless of the initial pH. Clusters centered at 163 and

Figure 8. A Friedman Repeated Measures Analysis of Vari-

ance on Ranks with post hoc Tukey groupings (a, b and c)

of Evesboro sand and Matapeake silt loam extracted with

water at pH 6 or EDTA at pH 13 and monitored with the

198 m/z ESI-MS spectral peak found statistical differences

between the median concentrations of Evesboro sand and

Matapeake silt loam (Tukey groups a and b), but did not

find statistical differences between the median concentra-

tions of each soil and their respective 0.5% iron amendment.

The median concentration values of the EDTA extractions

were found to be statistically different in both controls and

amendments of each soil (Tukey group c).

198 m/z are the dominate species in each spectra. The

distribution of IHP charge speciation is expected to pro-

duce m/z peaks that are dependent on the pH. At an ini-

tial pH of 2.8 the spectra does not exhibit the peak at m/z

of 93 as the pH 6 Fe-IHP spectra does. Instead the 2.8 pH

spectra exhibits different m/z as detailed previously in

Heighton et al., 2008 [18] with the exception of the 163

and 198 m/z clusters. IHP-Fe spectra at high pH exhibit

very different spectra than the pH 2.8 and pH 6.0 spectra.

IHP-Fe complexes can be expected to be very stable. Khan,

1999 [16] in UV-Vis spectrophotometric studies of IHP-

Fe found that dominate species at pH 3.0 and pH 5.0 was

Fe2IHP. This is consistent with the results that we detail

in Table 2 and in the experimental Raman spectra in

Figure 2. Using the iron in excess of IHP between pH

2.8 and pH 6 is likely governed by a kinetically stable

species with proton exchanging sites that are sterically

hindered or have variable exchange rates. This in either

case would lead to a delay in reaching chemical equilib-

rium. The use of formic acid in the mobile phase pro-

motes formation of chloride adducts in negative ion ESI

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

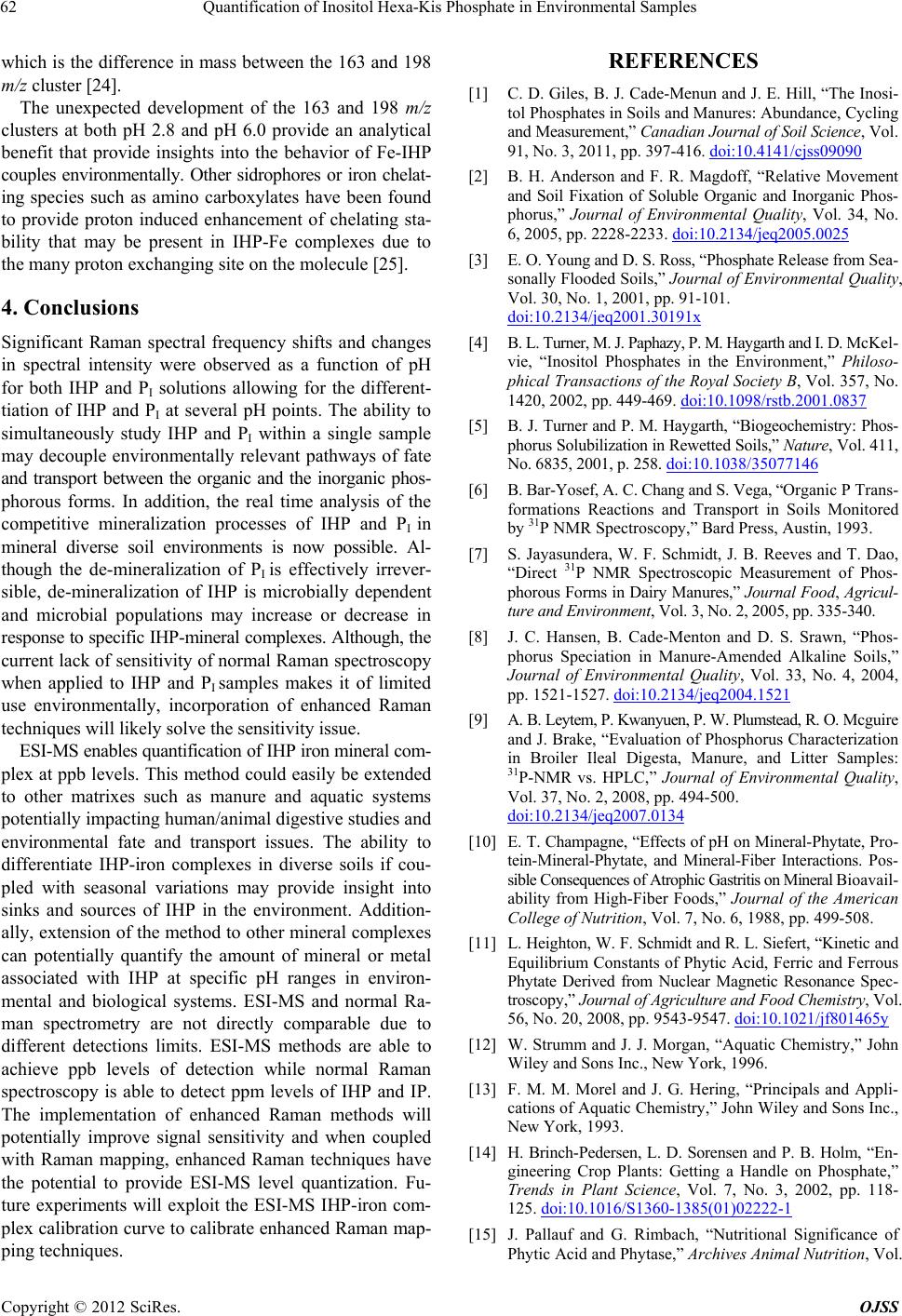

which is the difference in mass between the 163 and 198

m/z cluster [24].

The unexpected development of the 163 and 198 m/z

clusters at both pH 2.8 and pH 6.0 provide an analytical

benefit that provide insights into the behavior of Fe-IHP

couples environmentally. Other sidrophores or iron chelat-

ing species such as amino carboxylates have been found

to provide proton induced enhancement of chelating sta-

bility that may be present in IHP-Fe complexes due to

the many proton exchanging site on the molecule [25].

4. Conclusions

Significant Raman spectral frequency shifts and changes

in spectral intensity were observed as a function of pH

for both IHP and PI solutions allowing for the different-

tiation of IHP and PI at several pH points. The ability to

simultaneously study IHP and PI within a single sample

may decouple environmentally relevant pathways of fate

and transport between the organic and the inorganic phos-

phorous forms. In addition, the real time analysis of the

competitive mineralization processes of IHP and PI in

mineral diverse soil environments is now possible. Al-

though the de-mineralization of PI is effectively irrever-

sible, de-mineralization of IHP is microbially dependent

and microbial populations may increase or decrease in

response to specific IHP-mineral complexes. Although, the

current lack of sensitivity of normal Raman spectroscopy

when applied to IHP and PI samples makes it of limited

use environmentally, incorporation of enhanced Raman

techniques will likely solve the sensitivity issue.

ESI-MS enables quantification of IHP iron mineral com-

plex at ppb levels. This method could easily be extended

to other matrixes such as manure and aquatic systems

potentially impacting human/animal digestive studies and

environmental fate and transport issues. The ability to

differentiate IHP-iron complexes in diverse soils if cou-

pled with seasonal variations may provide insight into

sinks and sources of IHP in the environment. Addition-

ally, extension of the method to other mineral complexes

can potentially quantify the amount of mineral or metal

associated with IHP at specific pH ranges in environ-

mental and biological systems. ESI-MS and normal Ra-

man spectrometry are not directly comparable due to

different detections limits. ESI-MS methods are able to

achieve ppb levels of detection while normal Raman

spectroscopy is able to detect ppm levels of IHP and IP.

The implementation of enhanced Raman methods will

potentially improve signal sensitivity and when coupled

with Raman mapping, enhanced Raman techniques have

the potential to provide ESI-MS level quantization. Fu-

ture experiments will exploit the ESI-MS IHP-iron com-

plex calibration curve to calibrate enhanced Raman map-

ping techniques.

REFERENCES

[1] C. D. Giles, B. J. Cade-Menun and J. E. Hill, “The Inosi-

tol Phosphates in Soils and Manures: Abundance, Cycling

and Measurement,” Canadian Journal of Soil Science, Vol.

91, No. 3, 2011, pp. 397-416. doi:10.4141/cjss09090

[2] B. H. Anderson and F. R. Magdoff, “Relative Movement

and Soil Fixation of Soluble Organic and Inorganic Phos-

phorus,” Journal of Environmental Quality, Vol. 34, No.

6, 2005, pp. 2228-2233. doi:10.2134/jeq2005.0025

[3] E. O. Young and D. S. Ross, “Phosphate Release from Sea-

sonally Flooded Soils,” Journal of Environmental Quality,

Vol. 30, No. 1, 2001, pp. 91-101.

doi:10.2134/jeq2001.30191x

[4] B. L. Turner, M. J. Paphazy, P. M. Haygarth and I. D. McKel-

vie, “Inositol Phosphates in the Environment,” Philoso-

phical Transactions of the Royal Society B, Vol. 357, No.

1420, 2002, pp. 449-469. doi:10.1098/rstb.2001.0837

[5] B. J. Turner and P. M. Haygarth, “Biogeochemistry: Phos-

phorus Solubilization in Rewetted Soils,” Nature, Vol. 411,

No. 6835, 2001, p. 258. doi:10.1038/35077146

[6] B. Bar-Yosef, A. C. Chang and S. Vega, “Organic P Trans-

formations Reactions and Transport in Soils Monitored

by 31P NMR Spectroscopy,” Bard Press, Austin, 1993.

[7] S. Jayasundera, W. F. Schmidt, J. B. Reeves and T. Dao,

“Direct 31P NMR Spectroscopic Measurement of Phos-

phorous Forms in Dairy Manures,” Journal Food, Agricul-

ture and Environment, Vol. 3, No. 2, 2005, pp. 335-340.

[8] J. C. Hansen, B. Cade-Menton and D. S. Srawn, “Phos-

phorus Speciation in Manure-Amended Alkaline Soils,”

Journal of Environmental Quality, Vol. 33, No. 4, 2004,

pp. 1521-1527. doi:10.2134/jeq2004.1521

[9] A. B. Leytem, P. Kwanyuen, P. W. Plumstead, R. O. Mcguire

and J. Brake, “Evaluation of Phosphorus Characterization

in Broiler Ileal Digesta, Manure, and Litter Samples:

31P-NMR vs. HPLC,” Journal of Environmental Quality,

Vol. 37, No. 2, 2008, pp. 494-500.

doi:10.2134/jeq2007.0134

[10] E. T. Champagne, “Effects of pH on Mineral-Phytate, Pro-

tein-Mineral-Phytate, and Mineral-Fiber Interactions. Pos-

sible Consequences of Atrophic Gastritis on Mineral Bioavail-

ability from High-Fiber Foods,” Journal of the American

College of Nutrition, Vol. 7, No. 6, 1988, pp. 499-508.

[11] L. Heighton, W. F. Schmidt and R. L. Siefert, “Kinetic and

Equilibrium Constants of Phytic Acid, Ferric and Ferrous

Phytate Derived from Nuclear Magnetic Resonance Spec-

troscopy,” Journal of Agriculture and Food Chemistry, Vol.

56, No. 20, 2008, pp. 9543-9547. doi:10.1021/jf801465y

[12] W. Strumm and J. J. Morgan, “Aquatic Chemistry,” John

Wiley and Sons Inc., New York, 1996.

[13] F. M. M. Morel and J. G. Hering, “Principals and Appli-

cations of Aquatic Chemistry,” John Wiley and Sons Inc.,

New York, 1993.

[14] H. Brinch-Pedersen, L. D. Sorensen and P. B. Holm, “En-

gineering Crop Plants: Getting a Handle on Phosphate,”

Trends in Plant Science, Vol. 7, No. 3, 2002, pp. 118-

125. doi:10.1016/S1360-1385(01)02222-1

[15] J. Pallauf and G. Rimbach, “Nutritional Significance of

Phytic Acid and Phytase,” Archives Animal Nutrition, Vol.

Quantification of Inositol Hexa-Kis Phosphate in Environmental Samples

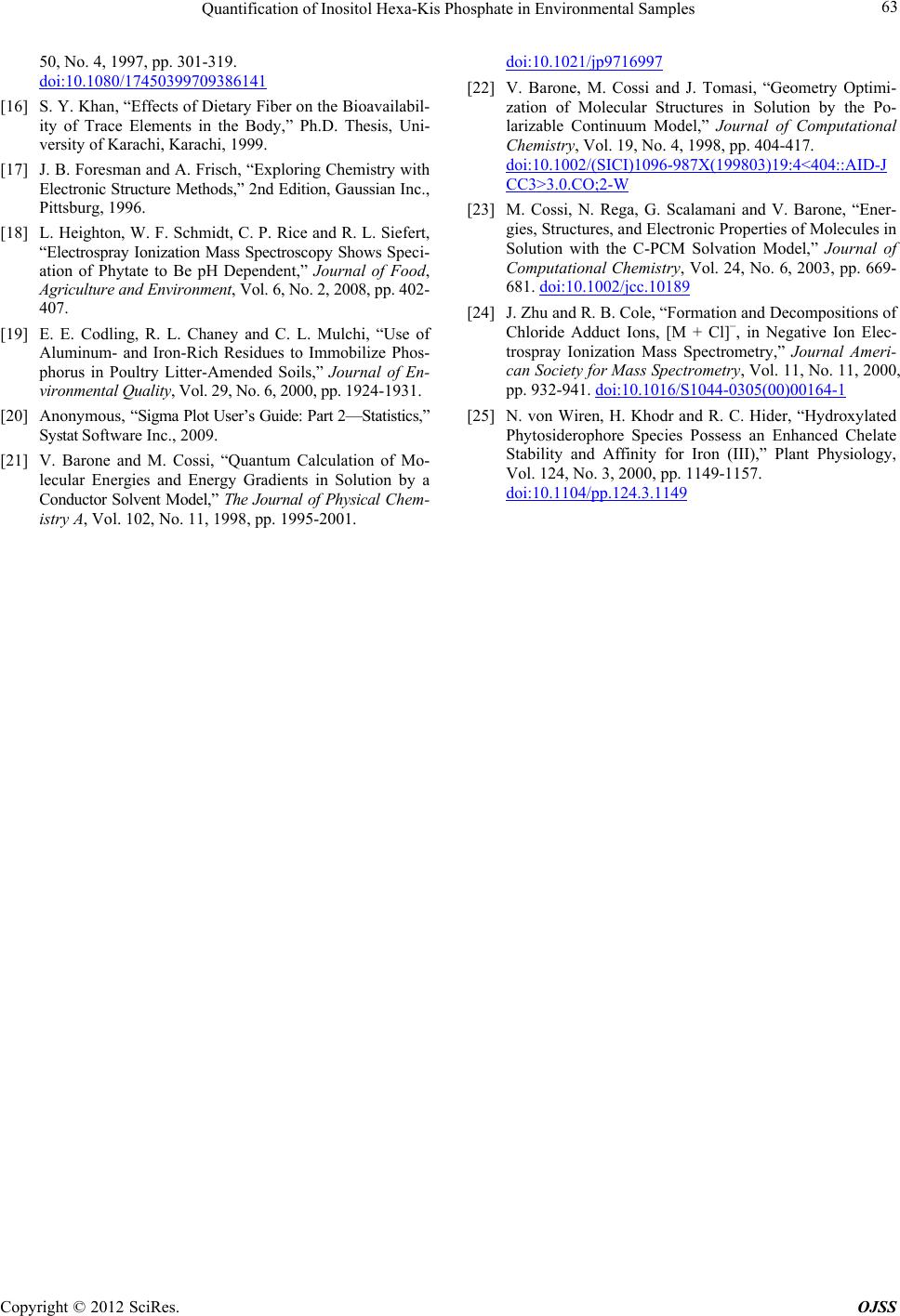

50, No. 4, 1997, pp. 301-319.

doi:10.1080/17450399709386141

[16] S. Y. Khan, “Effects of Dietary Fiber on the Bioavailabil-

ity of Trace Elements in the Body,” Ph.D. Thesis, Uni-

versity of Karachi, Karachi, 1999.

[17] J. B. Foresman and A. Frisch, “Exploring Chemistry with

Electronic Structure Methods,” 2nd Edition, Gaussian Inc.,

Pittsburg, 1996.

[18] L. Heighton, W. F. Schmidt, C. P. Rice and R. L. Siefert,

“Electrospray Ionization Mass Spectroscopy Shows Speci-

ation of Phytate to Be pH Dependent,” Journal of Food,

Agriculture and Environment, Vol. 6, No. 2, 2008, pp. 402-

407.

[19] E. E. Codling, R. L. Chaney and C. L. Mulchi, “Use of

Aluminum- and Iron-Rich Residues to Immobilize Phos-

phorus in Poultry Litter-Amended Soils,” Journal of En-

vironmental Quality, Vol. 29, No. 6, 2000, pp. 1924-1931.

[20] Anonymous, “Sigma Plot User’s Guide: Part 2—Statistics,”

Systat Software Inc., 2009.

[21] V. Barone and M. Cossi, “Quantum Calculation of Mo-

lecular Energies and Energy Gradients in Solution by a

Conductor Solvent Model,” The Journal of Physical Chem-

istry A, Vol. 102, No. 11, 1998, pp. 1995-2001.

doi:10.1021/jp9716997

[22] V. Barone, M. Cossi and J. Tomasi, “Geometry Optimi-

zation of Molecular Structures in Solution by the Po-

larizable Continuum Model,” Journal of Computational

Chemistry, Vol. 19, No. 4, 1998, pp. 404-417.

doi:10.1002/(SICI)1096-987X(199803)19:4<404::AID-J

CC3>3.0.CO;2-W

[23] M. Cossi, N. Rega, G. Scalamani and V. Barone, “Ener-

gies, Structures, and Electronic Properties of Molecules in

Solution with the C-PCM Solvation Model,” Journal of

Computational Chemistry, Vol. 24, No. 6, 2003, pp. 669-

681. doi:10.1002/jcc.10189

[24] J. Zhu and R. B. Cole, “Formation and Decompositions of

Chloride Adduct Ions, [M + Cl]−, in Negative Ion Elec-

trospray Ionization Mass Spectrometry,” Journal Ameri-

can Society for Mass Spectrometry, Vol. 11, No. 11, 2000,

pp. 932-941. doi:10.1016/S1044-0305(00)00164-1

[25] N. von Wiren, H. Khodr and R. C. Hider, “Hydroxylated

Phytosiderophore Species Possess an Enhanced Chelate

Stability and Affinity for Iron (III),” Plant Physiology,

Vol. 124, No. 3, 2000, pp. 1149-1157.

doi:10.1104/pp.124.3.1149
