Event-Related Potential Effects Associated with Insight Problem

Solving in a Chinese Logogriph Task

Qiang Xing1*, John X. Zhang2, Zhonglu Zhang1

1Department of Psychology, Guangzhou University, Guangzhou, China

2Department of Psychology, The Chinese University of Hong Kong, Hong Kong, China

Email: *[email protected]

Received September 30th, 2011; revised November 5th, 2011; accepted December 7th, 2011

The electrophysiological correlates of insight and non-insight problems solving were studied using event-

related potentials (ERPs). Participants were given some time to guess Chinese logogriphs and then pre-

sented with an answer to judge whether it matched the logogriph. Results showed that the insight trials

elicited a more negative ERP deflection (N300-500) than did the non-insight trials in most scalp regions.

In a later time window from 600 ms to 1100 ms, the insight trials elicited a more positive ERP deflection

(P600-1100) than the non-insight trials, mostly in central regions. The results indicate that the early

N300-500 effect may reflect cognitive conflict resulting from the breaking of mental set and the later

P600-1100 effect may be related to the formation of novel associations, both crucial to the occurrence of

insight.

Keywords: N300-500; P600-1100; Insight; Event-Related Potentials; Chinese Logogriph

Introduction

Early Gestalt psychologists coined the term “insight” to refer

to the observation that the process of problem solving was not

trial-and-error but sudden understanding of the gestalt combi-

nation of the problem elements. Insight has been generally cha-

racterized with the following features, 1) Problem solvers usu-

ally meet with a primary impasse in their first attempt to solve

the problem, 2) The process of insight problem solving is

non-verbal, 3) The occurrence of insight is momentary with a

strong “aha” experience (Beeman et al., 2004).

Studies about insight were mostly performed with behavioral

paradigms until the beginning of the 21st century when resea-

rchers started to examine the neural mechanism of insight with

brain imaging techniques such as functional magnetic resonan-

ce imaging (fMRI) and event-related potentials (ERPs). Luo et

al. (Luo, 2004) for the first time studied insight with fMRI and

observed activation in a number of regions during insight prob-

lem solving, including frontal cortex, temporal cortex, anterior

cingulate cortex (ACC) and hippocampus. They suggested that

the breaking of a mental set, crucial to the occurrence of insight,

depends on ACC and left lateral prefrontal cortex, and that

hippocampus plays important role in the forming of novel asso-

ciations (Luo & Niki, 2003; Luo, Niki, & Phillips, 2004).

Bowden et al. found stronger activity in anterior superior tem-

poral gyrus (aSTG) when individuals solved insight problems

compared with non-insight problems (Bowden and Beeman,

2003 & 2007; Beeman, et al., 2004). Another study involving

similar contrasts revealed increased activity in precuneus, left/

middle frontal gyrus, occipital gyrus and cerebellum (Qiu, et al.,

2010). Apparently, insight involves more than a single region

(Luo, 2004). Research with ERPs has also been conducted to

reveal the electrophysiological substrates of insight (Qiu, et al.,

2008; Wang, et al., 2009).

Using the same catalyzed paradigm of Luo and NiKi (2003),

Mai et al. (2004) asked participants to guess a Chinese logo-

griph for some time before the correct answer was presented.

The ERP difference wave between the insight condition and the

non-insight condition revealed a negative component (N380)

with ACC as its neuro-generator, interpreted to reflect the brea-

king of mental set. Using the same paradigm, Qiu et al. (2006)

found a similar response called N320, also localized in ACC.

However, this N320 effect was found not only for the insight

condition but also for the condition where the answer was not

comprehenable. They suggested that N380, or N320 may not

reflect the breaking of mental set but just a generic cognitive

conflict the leve of which differs between familiar and new

ways of insight problem solving (Qiu et al., 2006).

This brief review indicates that insight involves complex

cognitive processes as reflected in activation in multiple regions

of brain (Luo, 2004; Qiu et al., 2008). For the electrophysio-

logical substrates of insight, there has been only one component

(N380 or N320) observed that may reflect the process of

breaking mental set or cognitive conflict (Mai et al., 2004; Qiu

et al., 2006). Although it is indispensable to break the mental

set in order to reach insight, the formation of novel association

may be crucial to insight as well (Bowden & Beeman, 2003 &

2007; Beeman, et al., 2004; Luo, 2004; Luo & Niki, 2003; Luo,

Niki, & Phillips, 2004), as insight is one form of creativity. So

far no study has looked at how novel association is reflected in

the ERPs. One possibility is that there are mulitple ERP re-

sponses under the catalyzed paradigm associated with breaking

mental set and new association formation. Thus, it is hypothe-

sized that an ERP response similar to N380 or N320 will be

elicited, which may reflect breaking mental set, later, some

more ERP effects would be observed which may be related to

new association formation.

In real life individuals often solve an insight problem at the

help of hints after a long time of exhaustive thinking, as de-

*Corresponding author.

Q. XING ET AL.

scribed in the four-stage model of Wallas (1926). We intended

to use ERP to monitor this process of insight problem solving

by using the Chinese logogriphs, one of the typical insight ma-

terials. Early studies (Luo, 2004; Mai et al., 2004; Qiu et al.,

2006; Qiu et al., 2008; Wang et al., 2009; Qiu et al., 2010) in-

dicate that Chinese logogriphs are difficult because they contain

misleading information. Once the answer has been guessed,

individuals would feel a sudden “aha” experience.

Methods

Participants

As paid volunteers, 12 healthy undergraduates who were all

native Chinese speakers (6 females) aged 22 years - 24 years

(mean age = 23.4 years) participated in the experiment. They

are in the second year with the major of psychology. All were

right-handed with normal or corrected-to-normal vision.

Stimuli

As in Qiu et al. (2008), 150 pairs of hint logogriphs and tar-

get logogriphs were used as the materials. Similar to Qiu et al.

(2008) and Wang et al. (2009), the length of most logogriphs

was between 2 and 6 Chinese characters, while all answers

were a single character. The words that appeared in both the

questions and the answers were of high frequency. The charac-

ters were presented in the Song Ti font, at size No. 16. The hint

logogriphs were helpful for the guessing of target ones. For

example, the hint logogriph “有口难言 (meaning difficult to

say even having a mouth)” and the answer “哑 (meaning deaf)”

was paired with the target logogriph “有眼难见 (meaning dif-

ficult to see even having eyes)” and the answer “盲 (meaning

blind)” (for more details see (Qiu et al., 2008).

Procedure

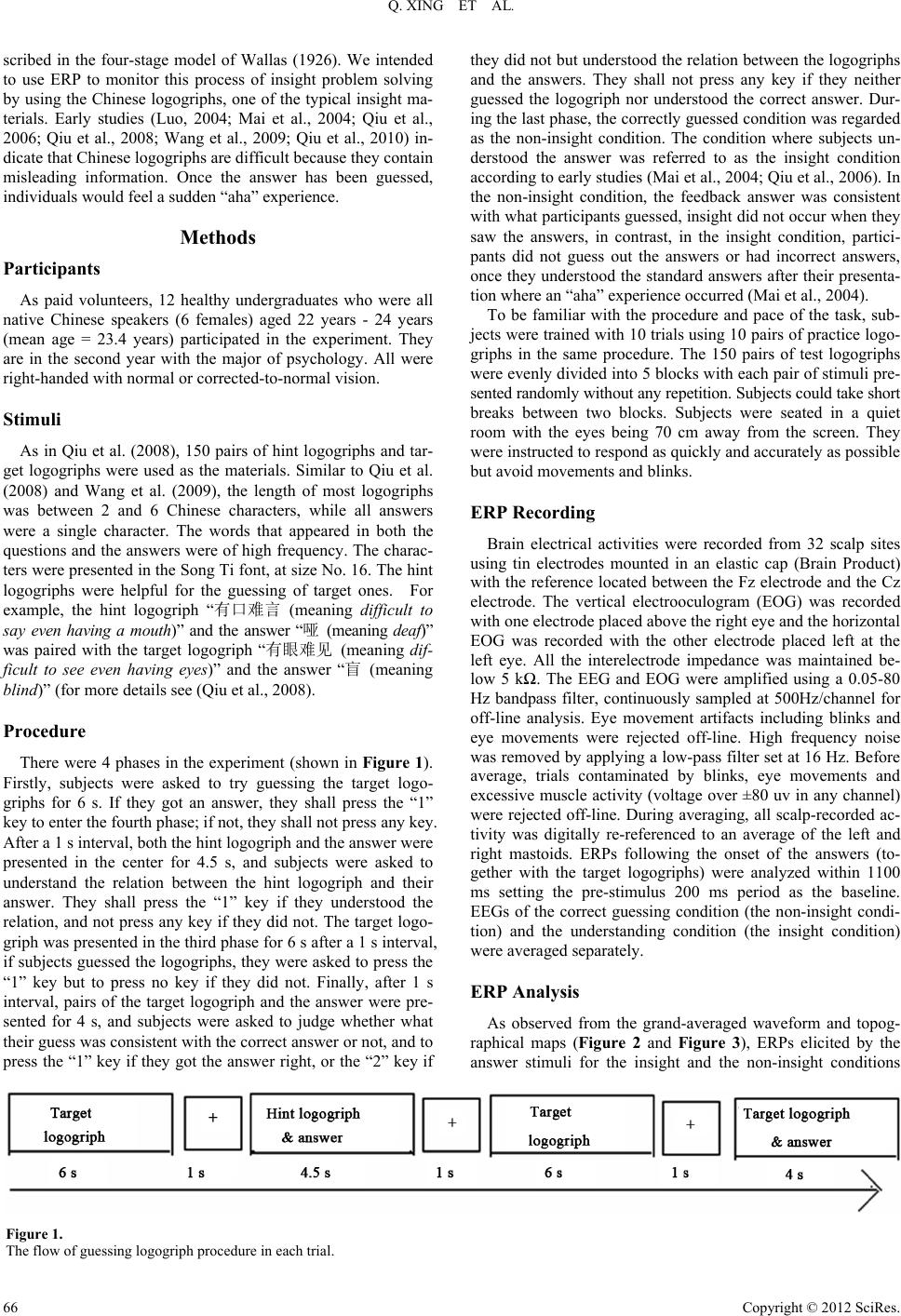

There were 4 phases in the experiment (shown in Figure 1).

Firstly, subjects were asked to try guessing the target logo-

griphs for 6 s. If they got an answer, they shall press the “1”

key to enter the fourth phase; if not, they shall not press any key.

After a 1 s interval, both the hint logogriph and the answer were

presented in the center for 4.5 s, and subjects were asked to

understand the relation between the hint logogriph and their

answer. They shall press the “1” key if they understood the

relation, and not press any key if they did not. The target logo-

griph was presented in the third phase for 6 s after a 1 s interval,

if subjects guessed the logogriphs, they were asked to press the

“1” key but to press no key if they did not. Finally, after 1 s

interval, pairs of the target logogriph and the answer were pre-

sented for 4 s, and subjects were asked to judge whether what

their guess was consistent with the correct answer or not, and to

press the “1” key if they got the answer right, or the “2” key if

they did not but understood the relation between the logogriphs

and the answers. They shall not press any key if they neither

guessed the logogriph nor understood the correct answer. Dur-

ing the last phase, the correctly guessed condition was regarded

as the non-insight condition. The condition where subjects un-

derstood the answer was referred to as the insight condition

according to early studies (Mai et al., 2004; Qiu et al., 2006). In

the non-insight condition, the feedback answer was consistent

with what participants guessed, insight did not occur when they

saw the answers, in contrast, in the insight condition, partici-

pants did not guess out the answers or had incorrect answers,

once they understood the standard answers after their presenta-

tion where an “aha” experience occurred (Mai et al., 2004).

To be familiar with the procedure and pace of the task, sub-

jects were trained with 10 trials using 10 pairs of practice logo-

griphs in the same procedure. The 150 pairs of test logogriphs

were evenly divided into 5 blocks with each pair of stimuli pre-

sented randomly without any repetition. Subjects could take short

breaks between two blocks. Subjects were seated in a quiet

room with the eyes being 70 cm away from the screen. They

were instructed to respond as quickly and accurately as possible

but avoid movements and blinks.

ERP Recording

Brain electrical activities were recorded from 32 scalp sites

using tin electrodes mounted in an elastic cap (Brain Product)

with the reference located between the Fz electrode and the Cz

electrode. The vertical electrooculogram (EOG) was recorded

with one electrode placed above the right eye and the horizontal

EOG was recorded with the other electrode placed left at the

left eye. All the interelectrode impedance was maintained be-

low 5 kΩ. The EEG and EOG were amplified using a 0.05-80

Hz bandpass filter, continuously sampled at 500Hz/channel for

off-line analysis. Eye movement artifacts including blinks and

eye movements were rejected off-line. High frequency noise

was removed by applying a low-pass filter set at 16 Hz. Before

average, trials contaminated by blinks, eye movements and

excessive muscle activity (voltage over ±80 uv in any channel)

were rejected off-line. During averaging, all scalp-recorded ac-

tivity was digitally re-referenced to an average of the left and

right mastoids. ERPs following the onset of the answers (to-

gether with the target logogriphs) were analyzed within 1100

ms setting the pre-stimulus 200 ms period as the baseline.

EEGs of the correct guessing condition (the non-insight condi-

tion) and the understanding condition (the insight condition)

were averaged separately.

ERP Analysis

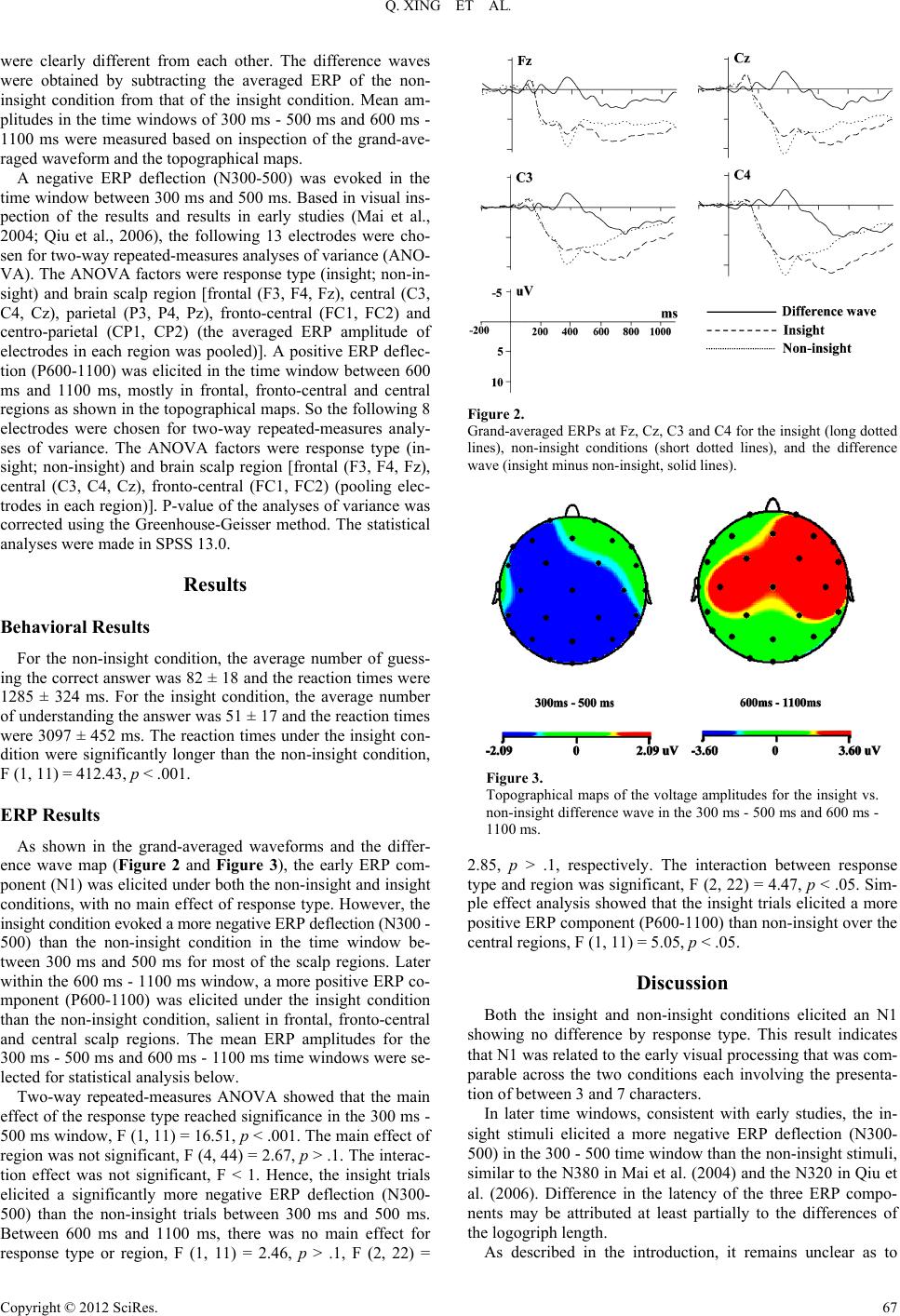

As observed from the grand-averaged waveform and topog-

raphical maps (Figure 2 and Figure 3), ERPs elicited by the

answer stimuli for the insight and the non-insight conditions

Figure 1.

The flow of guessing logogriph procedure in each trial.

Q. XING ET AL.

were clearly different from each other. The difference waves

were obtained by subtracting the averaged ERP of the non-

insight condition from that of the insight condition. Mean am-

plitudes in the time windows of 300 ms - 500 ms and 600 ms -

1100 ms were measured based on inspection of the grand-ave-

raged waveform and the topographical maps.

A negative ERP deflection (N300-500) was evoked in the

time window between 300 ms and 500 ms. Based in visual ins-

pection of the results and results in early studies (Mai et al.,

2004; Qiu et al., 2006), the following 13 electrodes were cho-

sen for two-way repeated-measures analyses of variance (ANO-

VA). The ANOVA factors were response type (insight; non-in-

sight) and brain scalp region [frontal (F3, F4, Fz), central (C3,

C4, Cz), parietal (P3, P4, Pz), fronto-central (FC1, FC2) and

centro-parietal (CP1, CP2) (the averaged ERP amplitude of

electrodes in each region was pooled)]. A positive ERP deflec-

tion (P600-1100) was elicited in the time window between 600

ms and 1100 ms, mostly in frontal, fronto-central and central

regions as shown in the topographical maps. So the following 8

electrodes were chosen for two-way repeated-measures analy-

ses of variance. The ANOVA factors were response type (in-

sight; non-insight) and brain scalp region [frontal (F3, F4, Fz),

central (C3, C4, Cz), fronto-central (FC1, FC2) (pooling elec-

trodes in each region)]. P-value of the analyses of variance was

corrected using the Greenhouse-Geisser method. The statistical

analyses were made in SPSS 13.0.

Results

Behavioral Results

For the non-insight condition, the average number of guess-

ing the correct answer was 82 ± 18 and the reaction times were

1285 ± 324 ms. For the insight condition, the average number

of understanding the answer was 51 ± 17 and the reaction times

were 3097 ± 452 ms. The reaction times under the insight con-

dition were significantly longer than the non-insight condition,

F (1, 11) = 412.43, p < .001.

ERP Results

As shown in the grand-averaged waveforms and the differ-

ence wave map (Figure 2 and Figure 3), the early ERP com-

ponent (N1) was elicited under both the non-insight and insight

conditions, with no main effect of response type. However, the

insight condition evoked a more negative ERP deflection (N300 -

500) than the non-insight condition in the time window be-

tween 300 ms and 500 ms for most of the scalp regions. Later

within the 600 ms - 1100 ms window, a more positive ERP co-

mponent (P600-1100) was elicited under the insight condition

than the non-insight condition, salient in frontal, fronto-central

and central scalp regions. The mean ERP amplitudes for the

300 ms - 500 ms and 600 ms - 1100 ms time windows were se-

lected for statistical analysis below.

Two-way repeated-measures ANOVA showed that the main

effect of the response type reached significance in the 300 ms -

500 ms window, F (1, 11) = 16.51, p < .001. The main effect of

region was not significant, F (4, 44) = 2.67, p > .1. The interac-

tion effect was not significant, F < 1. Hence, the insight trials

elicited a significantly more negative ERP deflection (N300-

500) than the non-insight trials between 300 ms and 500 ms.

Between 600 ms and 1100 ms, there was no main effect for

response type or region, F (1, 11) = 2.46, p > .1, F (2, 22) =

Figure 2.

Grand-averaged ERPs at Fz, Cz, C3 and C4 for the insight (long dotted

lines), non-insight conditions (short dotted lines), and the difference

wave (insight minus non-insight, solid lines).

Figure 3.

Topographical maps of the voltage amplitudes for the insight vs.

non-insight difference wave in the 300 ms - 500 ms and 600 ms -

1100 ms.

2.85, p > .1, respectively. The interaction between response

type and region was significant, F (2, 22) = 4.47, p < .05. Sim-

ple effect analysis showed that the insight trials elicited a more

positive ERP component (P600-1100) than non-insight over the

central regions, F (1, 11) = 5.05, p < .05.

Discussion

Both the insight and non-insight conditions elicited an N1

showing no difference by response type. This result indicates

that N1 was related to the early visual processing that was com-

parable across the two conditions each involving the presenta-

tion of between 3 and 7 characters.

In later time windows, consistent with early studies, the in-

sight stimuli elicited a more negative ERP deflection (N300-

500) in the 300 - 500 time window than the non-insight stimuli,

similar to the N380 in Mai et al. (2004) and the N320 in Qiu et

al. (2006). Difference in the latency of the three ERP compo-

nents may be attributed at least partially to the differences of

the logogriph length.

As described in the introduction, it remains unclear as to

Q. XING ET AL.

what cognitive mechanism this negative effect reflects, the

breaking of mental set (Mai, et al., 2004) or cognitive conflict

(Qiu, et al., 2006). In the catalyzed paradigm, subjects firstly

formed certain thought (the old thought). They then formed a

new thought if they understood the logogriphs or they did not

form any clear thought if they did not understand the logo-

griphs. Either way, they would experience transition from the

old thought to a new thought or to no thought at all, inducing

cognitive conflict. In the present study, the focus was on the

insight condition involving only comprehension, the conflict

from switching from an old thought to a new thought shall by

nature be related to the breaking of mental set.

Breaking mental set was regarded as one key cognitive proc-

ess of insight (Qiu, et al., 2010; Zhao, et al., 2011). Insight

problems such as the Chinese logogriphs task often involve

misleading cues, which make inappropriate constraints or un-

helpful primary knowledge strongly activated, leading to im-

passe where individual does not know how to solve this prob-

lem. Therefore, it is necessary to break the mental set in order

to solve the insight problem. However, insight as one form of

creativity involves another crucial cognitive component, the for-

mation of novel association (Bowden and Beeman, 2003 & 2007;

Luo, 2004) as well, therefore differences between the two com-

ponents lie in that the former emphasizes more the breaking of the

old and non-effective association while the later more on the

forming of new and effective association. Hence different ERP

components were observed in the time course of insight occur-

ence.

Beyond the early effects already reported in previous studies

(Mai et al., 2004; Qiu et al., 2006), the insight condition also

elicited a more positive ERP deflection (P600-1100) between

600 ms and 1100 ms in the present study, mostly in frontal, fron-

to-central and central regions (reaching significance in central

regions). No similar effects in P300 or late positive component

(LPC) had been observed for insight in early studies (Mai, et al.,

2004; Qiu et al., 2006). P300 and LPC shared many similarities

in latency and topographical distributions and were considered

related (Hajcak, Moser, & Simons, 2006; Huang & Luo, 2009).

LPC was found to be involved in attentional and orienting

processes (Knight; 1996; Hajcak, Moser, & Simons, 2006),

with its amplitude reflecting the amount of mental resources

employed (Olofsson, Nordin, Sequeira, & Polich, 2008). P300

was linked to memory updating, encoding, or retrieval, and the

formation of new representations through integration (Donchin,

1981), with its amplitude reflecting deployment of attentional

resources (Donchin & Coles, 1988). We suggest that when the

answers appeared, there was conflict between the new and old

thoughts under the insight condition, shown in the N300-500

effect. To correctly understand the answers of logogriphs, indi-

viduals needed to retrieve information related to the answer and

loose constraints of the old thought. When the retrieved infor-

mation was successfully integrated with the given answers fo-

rming a novel association or a new representation, the insight

occurred. P300 or LPC was sensitive to this process probably

because of the critical role of attentional resources in this proc-

ess. In conclusion, the P600-1100 effect might reflect the forming

of novel associations following the breaking of mental set.

In a word, the present ERP study showed that, compared

with non-insight problem solving, insight problem solving elic-

ited a negative deflection in the time window of 300 ms - 500

ms and a positive deflection between 600 ms and 1100 ms.

Therefore, the significance of this research is that the same

result was repeated that N300-500 may be related to the cogni-

tive conflict in the breaking of mental set, furthermore, P600-

1100 was discovered which may be related to the formation of

novel associations. So both N300-500 and P600-1100 may be

important electrophysiological labels in the process of insight

problem solving. However, there may be limitation as well as

significance. Similar to early studies (Mai et al., 2004; Qiu et

al., 2006), the catalyzed paradigm was employed in this study,

under which insight is externally elicited while internally pro-

duced insight would be neglected to some extent (Qiu et al.,

2008).

Acknowledgements

This work was supported by the National Natural Science

Foundation of China (31070918).

REFERENCES

Bowden, E. M., & Jung-Beeman, M. (2003). Aha! Insight experience

correlates with solution activation in the right hemisphere. Psy-

chonomic, Bulletin and Revi ew , 10, 730-737.

doi:10.3758/BF03196539

Bowden, E. M., & Jung-Beeman, M. (2007). Methods for investigating

the neural components of insight. Methods, 42, 87-99.

doi:10.1016/j.ymeth.2006.11.007

Donchin, E. (1981). Surprise! Surprise? Psychophysiology, 18, 493-513.

doi:10.1111/j.1469-8986.1981.tb01815.x

Donchin, E., & Coles, M. G. H. (1988). Is the P300 component a mani-

festation of context updating? Behavioral Brain Science, 11, 355-

372. doi:10.1017/S0140525X00058027

Hajcak, G., Moser, J. S., & Simons, R. F. (2006). Attending to affect:

Appraisal strategies modulate the electrocortical response to arousing

pictures. Emotion, 6, 517-522. doi:10.1037/1528-3542.6.3.517

Huang, Y. X., & Luo, Y. J. (2009). Can negative stimuli always have

the processing superiority？An ERP study. Acta Psychologica Si-

nica, 41, 822-831.

Jung-Beeman, M., Bowden, E. M., Haberman, J., Frymiare, J. L.,

Arambel-Liu, S., Greenblatt, R., et al. (2004). Neural activity when

people solve verbal problems with insight. PLoS Biology, 2, 500-510.

doi:10.1371/journal.pbio.0020097

Knight, R. T. (1996). Contribution of human hippocampal region to

novelty detection. Nature, 383, 256-259. doi:10.1038/383256a0

Luo, J. (2004). Neural correlates of insight. Acta Psychologica Sinica,

36, 219-234.

Luo, J., & Niki, K. (2003). Function of hippocampus in “insight” of

problem solving. Hippocampus, 13, 316-323.

doi:10.1002/hipo.10069

Luo, J., Niki, K., & Phillips, S. (2004). Neural correlates of the “Aha!

Reaction”. NeuroRepo rt, 15, 2013-2017.

doi:10.1097/00001756-200409150-00004

Mai, X.Q., Luo, J., Wu, J. H., & Luo, Y. J. (2004). “Aha!” effects in

guessing riddle task: An ERP study. Human Brain Mapping, 22,

261-270. doi:10.1002/hbm.20030

Olofsson, J. K., Nordin, S., Sequeira, H., & Polich, J. (2008). Affective

picture processing: An integrative review of ERP findings. Biologi-

cal Psychology, 77, 247-265. doi:10.1016/j.biopsycho.2007.11.006

Qiu, J., Li, H., Jou, J. W., Liu, J., Luo, Y. J., Feng, T. Y., et al. (2010).

Neural correlates of the “Aha” experiences: Evidence from an fMRI

study of insight problem solving. Cortex, 46, 397-403.

doi:10.1016/j.cortex.2009.06.006

Qiu, J., Li, H., Luo, Y. J., Chen, A. T., & Zhang, Q. L. (2006). Brain

mechanism of cognitive conﬂict in a guessing Chinese logogriph task.

NeuroReport, 17, 679-682. doi:10.1097/00001756-200604240-00025

Qiu, J., Li, H., Yang, D., Luo, Y. J., Li, Y., Wu, Z. Z., et al. (2008). The

neural basis of insight problem solving: An event-related potential

study. Brain and Cognition, 68, 100-106.

doi:10.1016/j.bandc.2008.03.004

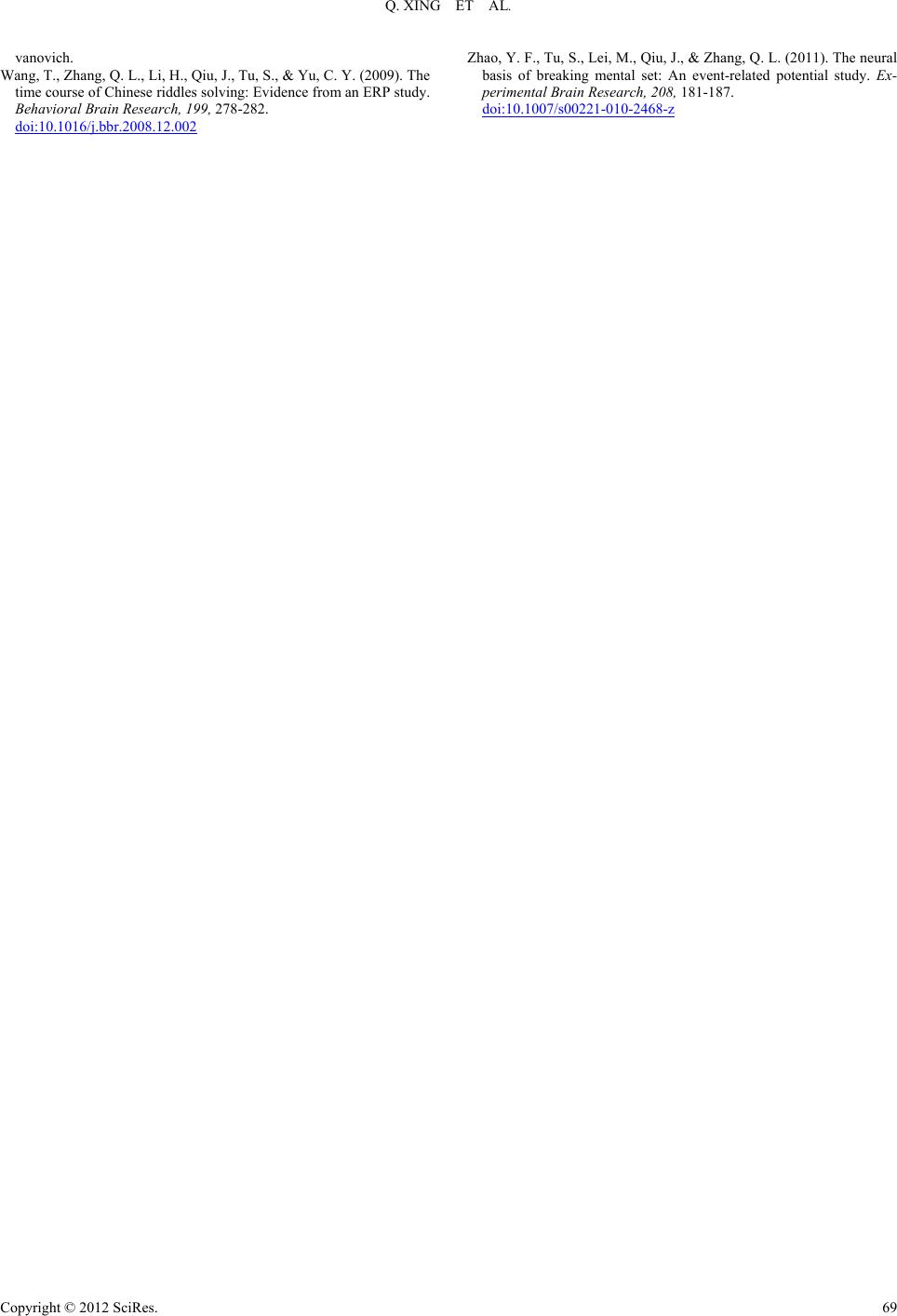

Wallas, G. (1926). The art of thought. New York: Harcourt Brace Jo-

Q. XING ET AL.

vanovich.

Wang, T., Zhang, Q. L., Li, H., Qiu, J., Tu, S., & Yu, C. Y. (2009). The

time course of Chinese riddles solving: Evidence from an ERP study.

Behavioral Brain Research, 1 99, 278-282.

doi:10.1016/j.bbr.2008.12.002

Zhao, Y. F., Tu, S., Lei, M., Qiu, J., & Zhang, Q. L. (2011). The neural

basis of breaking mental set: An event-related potential study. Ex-

perimental Brain Research, 20 8, 181-187.

doi:10.1007/s00221-010-2468-z
